VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
+12
More
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter VEVOR X-Axis Power Feed for Milling Machine, 150 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter

Features & Details

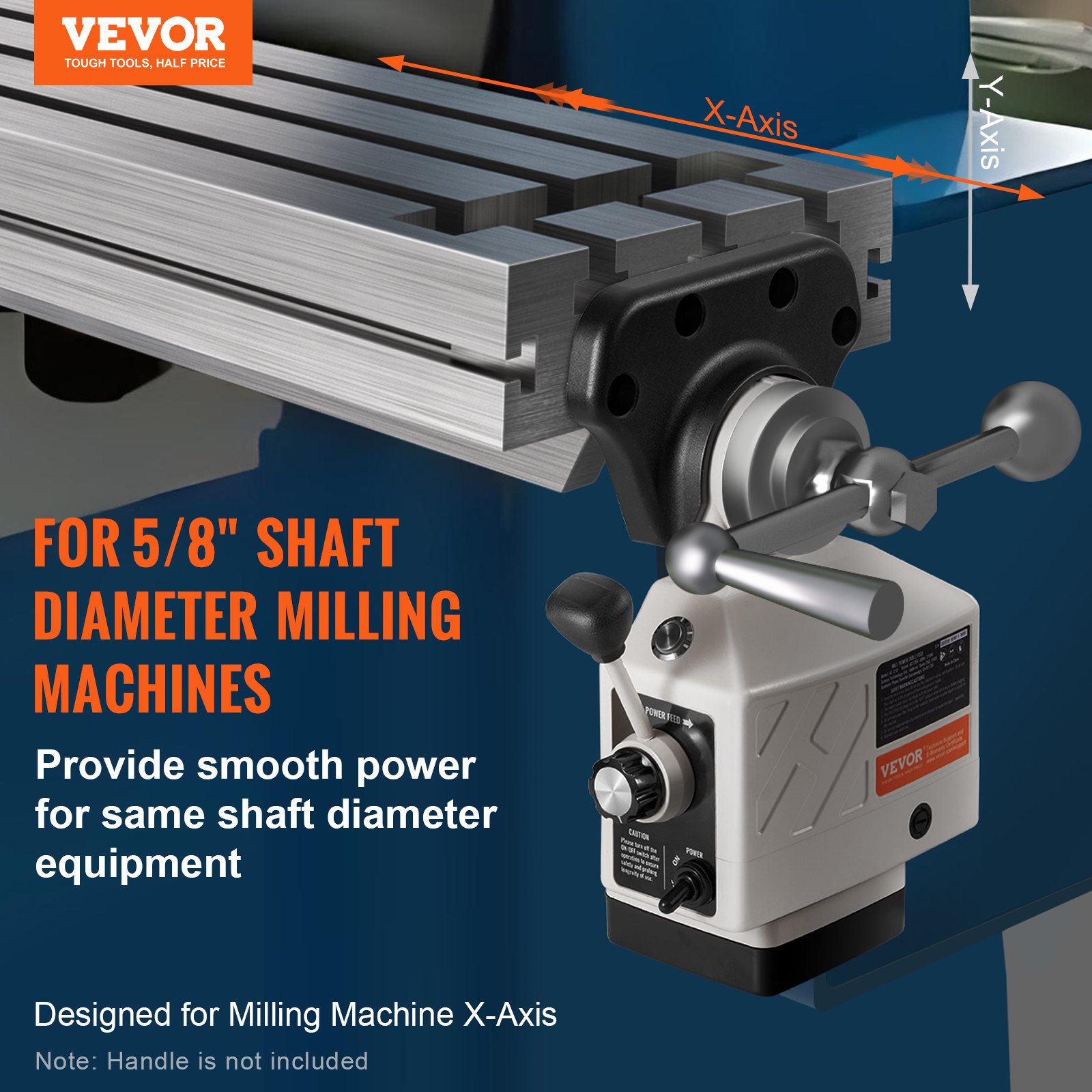

  • Ultimate High-Compatibility Solution: Our power feed table mill Includes everything needed to mount on most knee-type mills with a 5/8'' end shaft diameter that shares the same installation pattern, such as Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, Webb, and others.

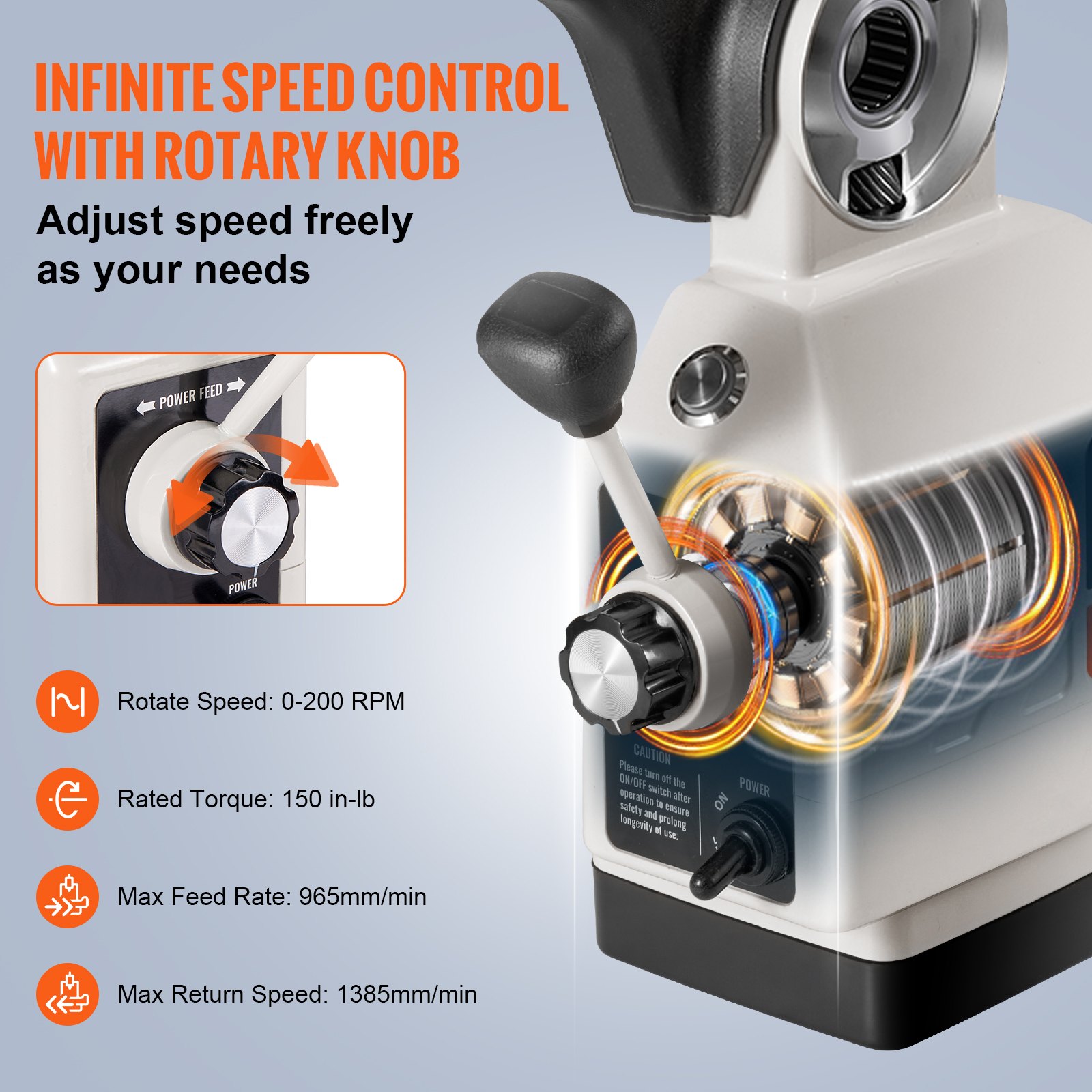

  • Infinitely Variable Speed Control: With the continuously variable speed knob, you can adjust the speed according to your needs. Our milling machine power feed offers a rated torque of 150 in-lb(16.9 NM), a maximum speed of 200 RPM, a maximum feed rate of 965 mm/min, and a maximum return speed of 1385 mm/min.
  • Highly Stable and Efficient: Featuring Gleason spiral bevel gears, our power table feed boasts stable transmission ratios, low noise, high transmission efficiency, and high load-bearing capacity. Plus, it comes with a special security device that protects the gearbox plastic gears, and electronic components from damage in the event of tool collision or sudden reversal during rapid transmission.
  • Easy to Use, Manual or Automatic: Our power feed milling machine offers two different speed adjustment modes: manual and automatic. With manual control buttons, you can adjust the speed as needed. Alternatively, set the device to automatic constant speed mode for hands-free operation, making your milling tasks a breeze.
  • Designed for X-axis Direction: This power feed woodworking enables smooth movement in the X-axis direction. Its versatility extends to various machines, including radial milling machines, drilling and boring machines, small grinding machines, and specialized machine tools, ensuring stable power delivery across a wide range of equipment.

Frequently Bought Together

Reviews 4.4
All reviews are from verified purchases
Average rating based on 101 reviews

chuck
Reviewed on Jan 24,2026
works very good installed it and worked grate
See Less
See More
Alex
Reviewed on Jan 07,2026
It took an entire day to adapt this to work on my mill. I had to create a custom mounting plate, a shaft bushing to adapt the inside diameter of the bearing to the diameter of my mills handle shaft, then I had to file a key slot in the handle shaft to fit the keyway and key for this unit to attach to the shaft. I also had to drill and tap the end of my handle shaft to bolt on the unit as my handle shaft was of insufficient length. Had to drill mounting holes for the stop switch bracket as well. If it all just slid onto a 5/8" diameter shaft as a unit, it would be a lot easier to install. My old handle assembly would not connect to the unit, so I can only turn it by hand from the other end.
See Less
See More
John
Reviewed on Dec 12,2025
Mounted on a Sharp knee mill (Bridgeport clone) and it fit flawlessly. They have worked out the issues of fitment that you see in YouTube videos from a few years ago. It is a quality product, and the variable speed gives great control. Will probably buy another for the Y axis.
See Less
See More
fabr
Reviewed on Dec 10,2025
I have used this for about a week now and I must say it is just what I needed. I've always wanted a power table elevator but the prices were just waaaaayyyyyy out of my reach for an unnecessary accessory. For barely over a hundred bux tho ,How can a person go wrong unless it is a total POS thing. Well it appears well built and the quality of the machining of the visible ring and pinion is top notch . Time will tell if it is durable or not. Now for the negative. You better be quite mechanically inclined to install this on an real Bridgeport. I never have said to throw away the instructions and just wing it but in this case it is true. You might as well throw them away and not waste your time reading the useless things. LOL!! Overall though,I am very happy with this purchase.
See Less
See More
Kevin
Reviewed on Dec 06,2025
Doesn’t come with a T track for the safety stops and took a little effort mounting this to my Bridgeport. Once mounted, it works great.
See Less
See More
ET
Reviewed on Dec 05,2025
power feed looks to be working great. I made new shafts etc so I would not have to alter the current shafts in the milling machine
See Less
See More
Will
Reviewed on Nov 28,2025
Like many have said, the brass gear needed to be modified to fit on my Bridgeport. It was too long to get the lock nut back on. Other than that, works as it should and can get pretty slow if needed.
See Less
See More
J. Klotz
Reviewed on Sep 29,2025
Fit perfect and works great. Ill eventually buy the ones for the other axis........ ...........
See Less
See More
Thomas
Reviewed on Sep 15,2025
good product, good price and good delivery.
See Less
See More
Josh parry
Reviewed on Sep 12,2025
I bought this power feed for my Bridgeport mill and it is great I would highly recommend it to add power feed to a mill
See Less
See More
See all 101 reviews

About this item

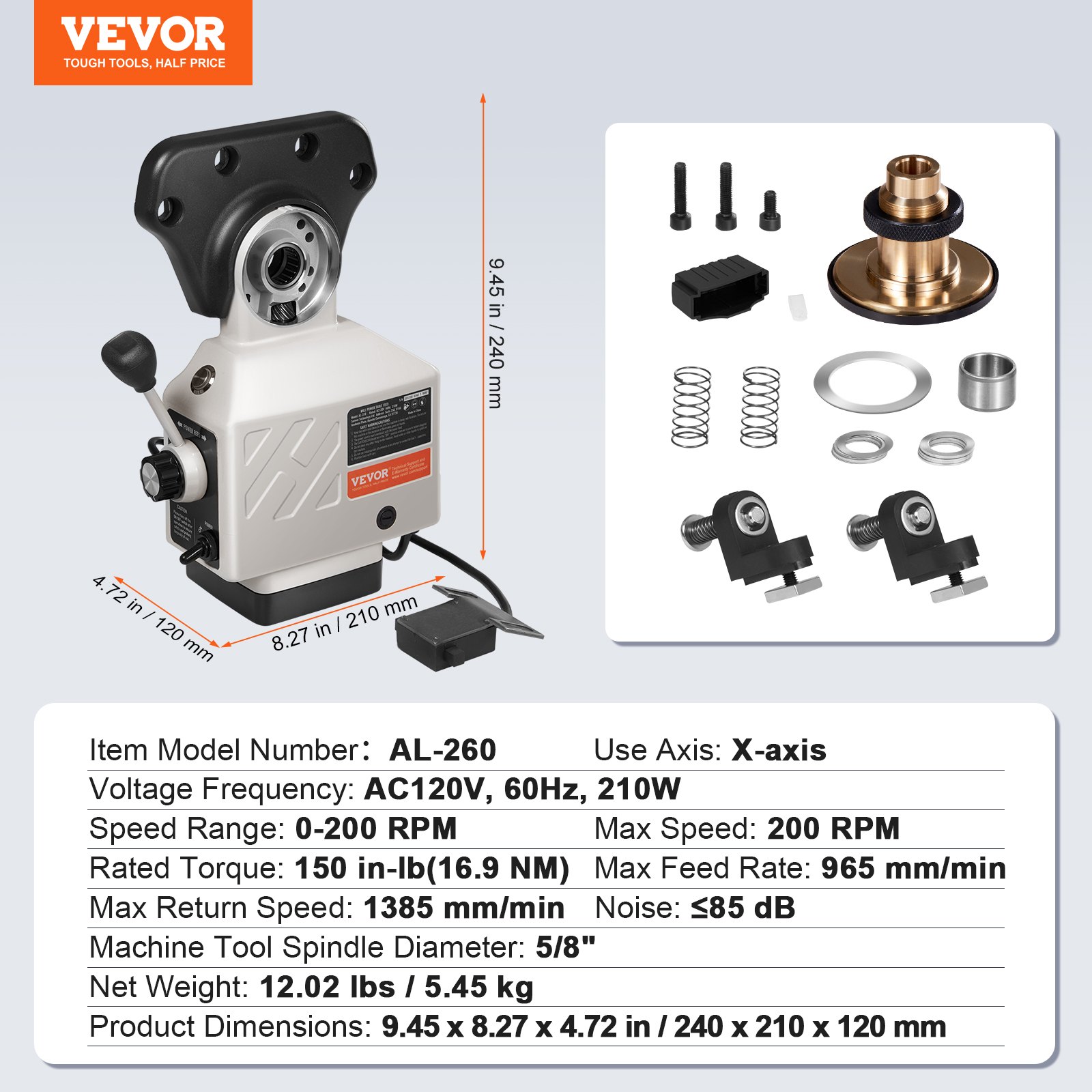

Product specification
Item Model Number
AL-260
Use Axis
X-axis
Voltage Frequency
AC120V, 60Hz, 210W
Speed Range
0-200 RPM
Max Speed
200 RPM
Max Torque
150 in-lb(16.9 NM)
Max Feed Rate
965 mm/min
Max Return Speed
1385 mm/min
Machine Tool Spindle Diameter
5/8"
Noise
≤85 dB
Net Weight
12.02 lbs / 5.45 kg
Product Dimensions
9.45 x 8.27 x 4.72 in / 240 x 210 x 120 mm
Description
VEVOR Milling Machine Power Feed
VEVOR x-axis power feed for milling machine, offers high performance and precision.
VEVOR x-axis power feed for milling machine, offers high performance and precision.
Our power table feed brings a stable transmission ratio and high load-bearing capabilities. Take control of speed with ease using the manual lever and automatic knob. Ideal for 5/8'' end shaft diameter machines and X-axis milling machines. Experience efficiency and reliability like never before!
Equipped with Gleason spiral bevel gears, our milling machine power feed ensures a stable transmission ratio, low noise output, high transmission efficiency, and excellent load-bearing capacity. With noise levels ≤85dB, providing a conducive environment for your work or study without disruptions.
Our power feed table mill is equipped with overload protection. In instances of rapid transmission, if there is a collision or instantaneous reversal between the tool and the workpiece, a special security mechanism safeguards the gearbox's plastic gears and electronic components from damage.

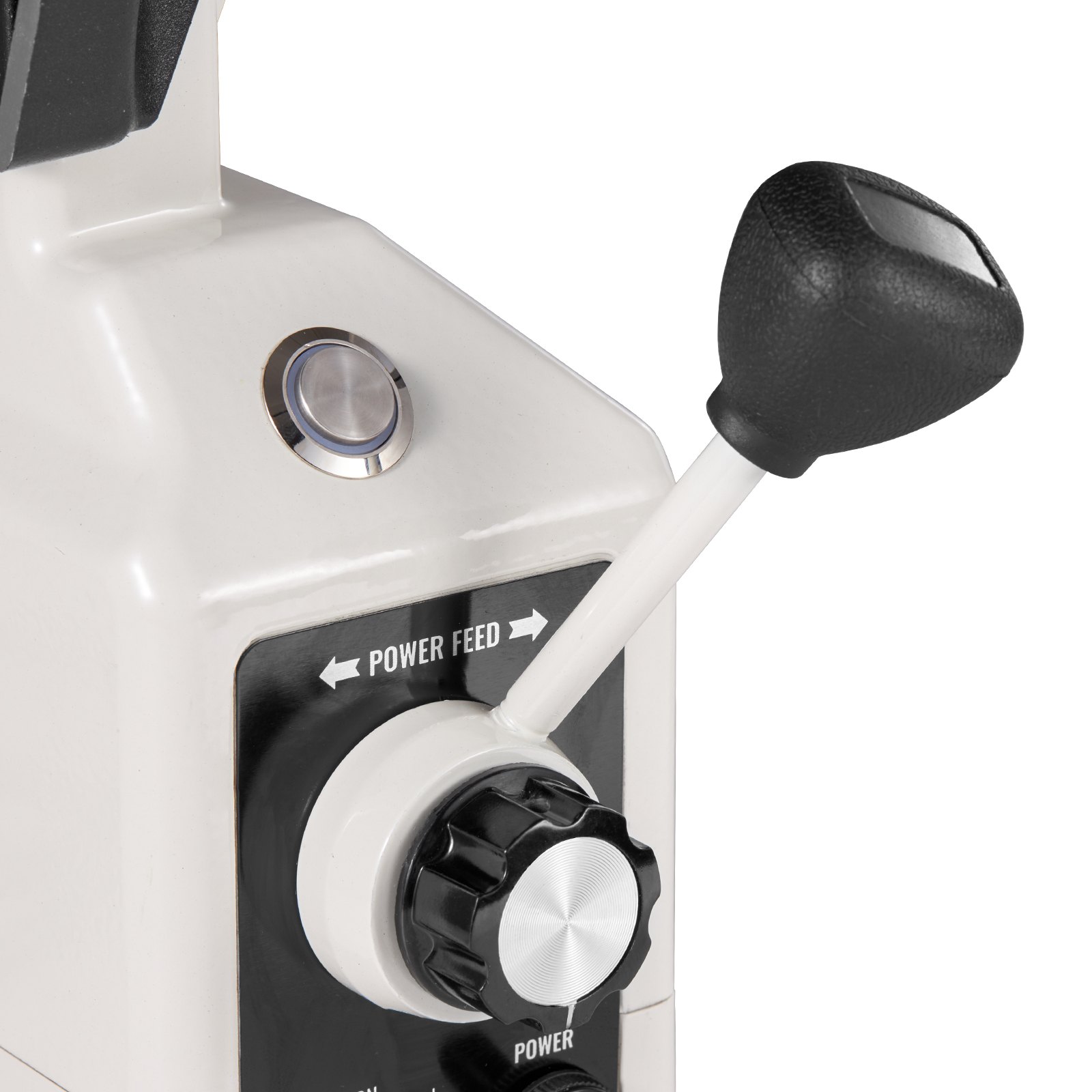

Our compact and lightweight power table feed is easy to install and operate. The control panel features clear functions, making the operation straightforward. Additionally, we provide a detailed installation and user manual, ensuring you have all the information you need to operate effectively.

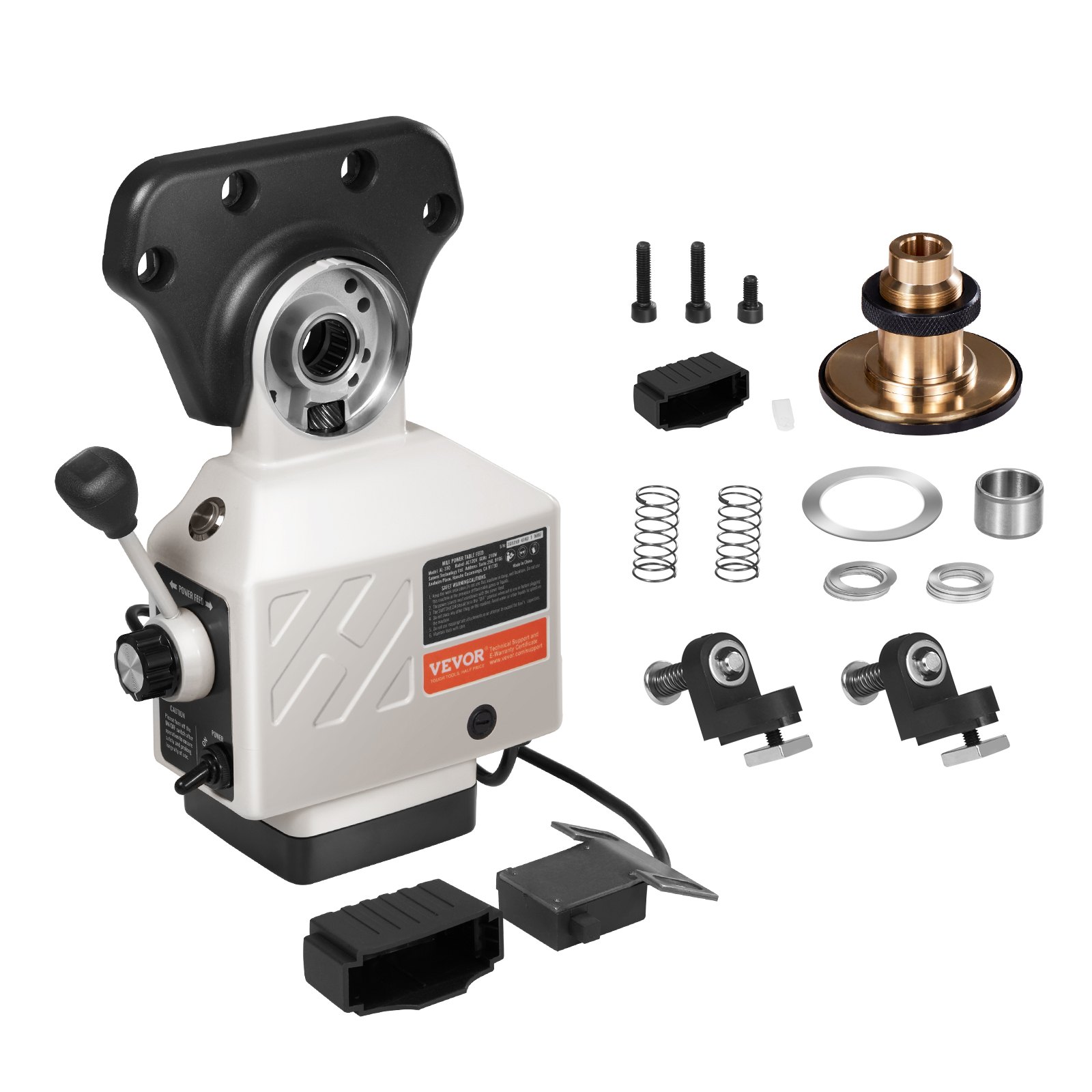

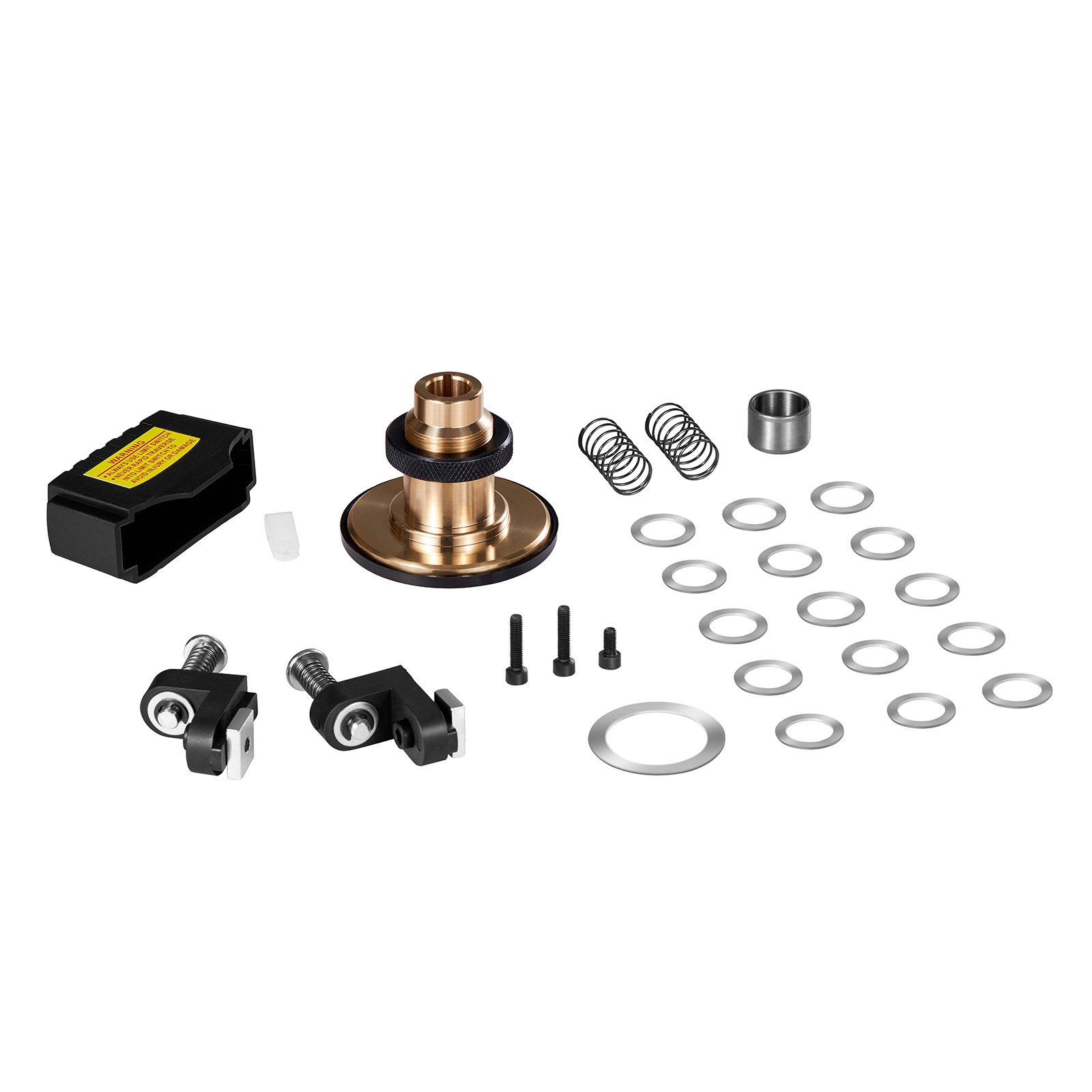

Our power feed milling machine comes with a set of sturdy metal parts that are built to last, including 1 x copper gear, 1 x install the retainer plate, 3 x fixing screws, 2 x limit switch springs, 15 x adjusting shims, 1 x bearing inner ring, and 1 x copper gear gasket.

Streamline Your Milling Operation — X-Axis Power Feed

Enhance work efficiency and speed up the milling process with this power feed X-axis. It is specifically designed for a 5/8" end-shaft diameter. It offers a true weight of 150 pounds with a maximum adjustable speed of 200 RPM. It provides stable transmission and low noise, resulting in higher efficiency. This power feed provides two speed adjustment modes; manual and automatic, making this versatile machine an ideal match for different machines.


Speed Control System

You can control your work efficiency with this X-axis power feed for milling machines. With its speed control, you can set it to any value. The speed knob, which is constantly variable, makes it easy to change the speed. Having more than enough power to handle even the hardest milling jobs.


This power feed unit has a strong maximum torque of 150 in-lb (16.9 Nm). With a top speed of 200 RPM, milling can be done quickly and efficiently. It helps in minimizing cycle times and raising output. With a maximum feed rate of 965 mm/min, this power table feed mill quickly works on your pieces while maintaining a quality finish. It can also return at a top speed of 1385 mm/min. With this quick return feature, you can quickly move the milling table. Our X-axis power feed gives you the flexibility and speed you need to get great results.


Stability & Noiseless Operation

This power table feed mill is engineered for stability and efficiency. It is an essential addition to any precision machining setup. This power feed unit has Gleason spiral bevel gears, which are renowned for their exceptional performance. These gears ensure stable transmission ratios for achieving accurate and repeatable milling operations.


They are designed to operate quietly, minimizing noise in your workspace. Their efficiency means that most of the input power is effectively converted to useful work. It enhances the overall performance of the power feed.


Construction for Internal Protection

The sturdy design of the gears allows them to handle significant loads without compromising performance. Thus, it makes the power feed suitable for demanding milling tasks. A special security device offers critical protection for the internal components. This device is designed to safeguard the gearbox, plastic gears, and electronic components from damage. This security feature extends the lifespan of the power feed.

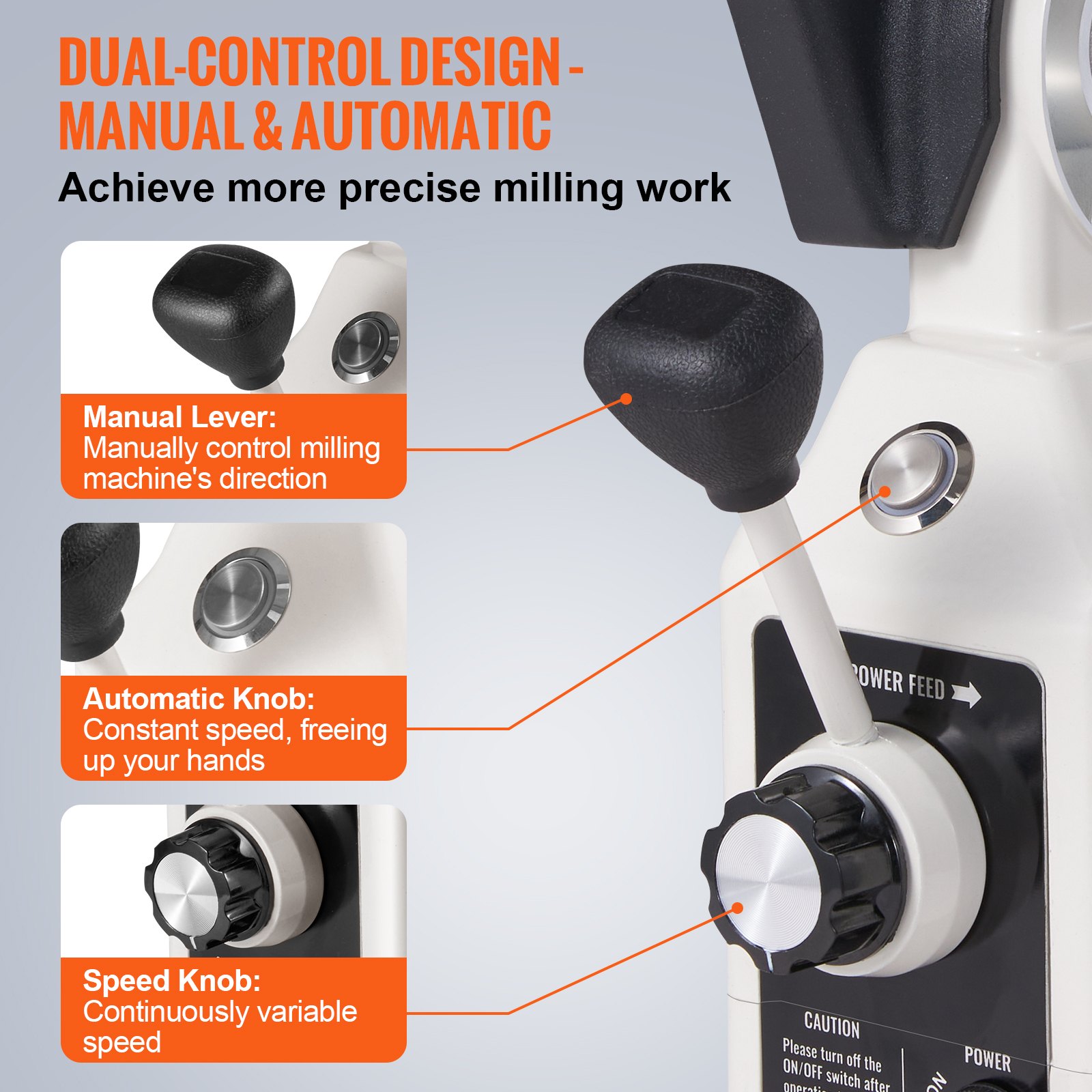

Easy to Use: Manual or Automatic

Designed with user-friendly features, this power table feed mill has manual and automatic speed adjustment modes. In manual mode, the power feed is equipped with manual control buttons. These are good for tasks requiring a high level of precision and control. It helps in fine-tuning the feed rate to match the material and cutting conditions.


For those seeking convenience, the power feed offers an automatic constant speed mode. Simply set the desired speed, and the power feed will maintain it consistently, allowing for hands-free operation. Automatic mode significantly reduces the need for constant supervision, saving you time.


Super Simple to Install

One of the most admirable features of this X-axis power feed for milling machines is its easy installation. The power feed comes with detailed and clear instructions, making the process straightforward and easy to follow. It includes all necessary mounting hardware and components, such as screws, brackets, and connectors. So you don't need to make additional purchases. The power feed features a plug-and-play design, reducing the need for complex wiring or adjustments.

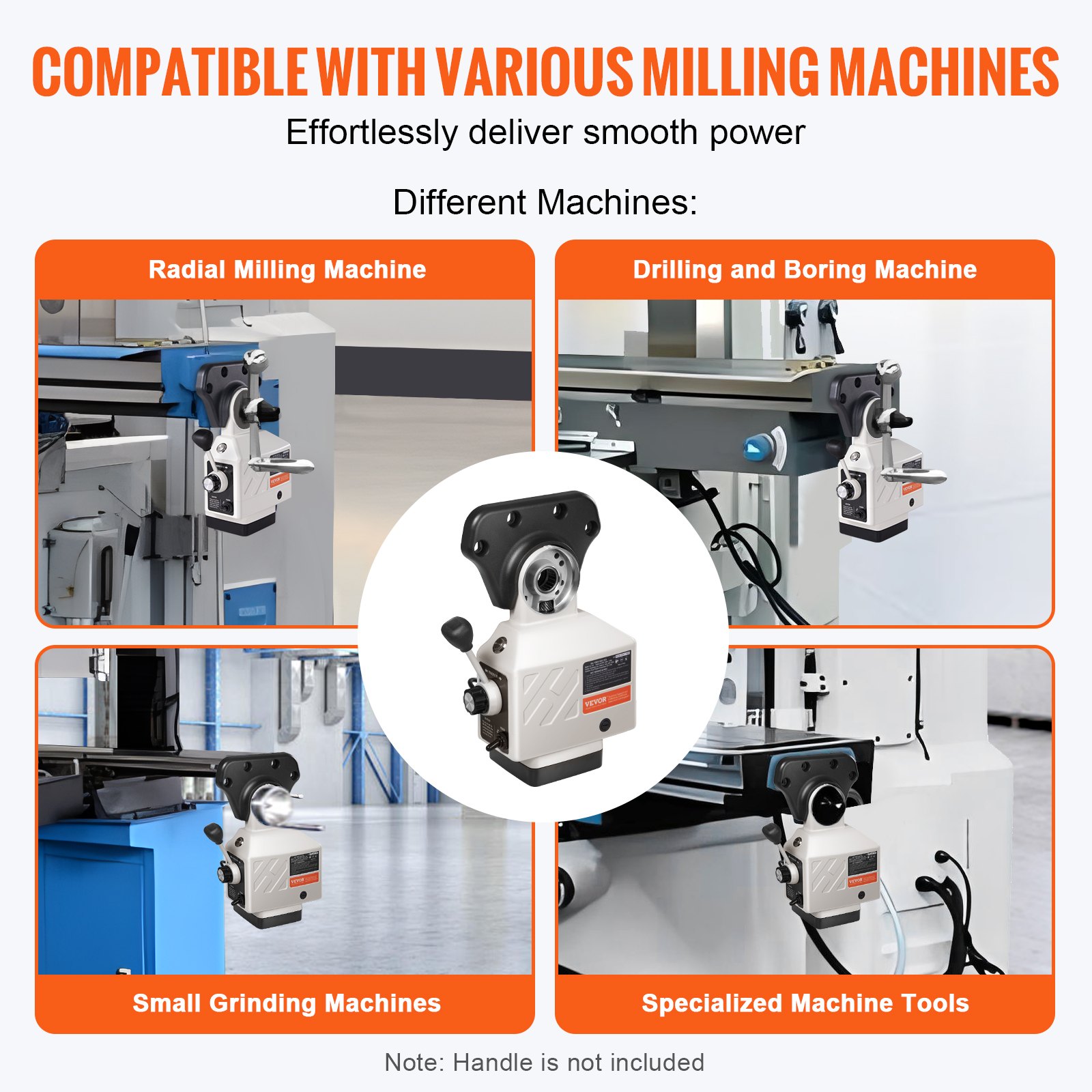

High-Compatibility

This X-axis power feed for milling tools is the best way to get high compatibility for your milling needs. This power feed unit is made to work with a lot of different knee-type mills without any problems. This power feed is designed to work with machines that have an end shaft width of 5/8" and the same installation pattern. Some are Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, Webb, etc. This power feed offers a perfect fit and performance, whether you are updating an older machine or setting up a new one.


Versatility in Action

This X-axis power feed is very flexible, so it can be used with a lot of different types of machines and for a lot of different tasks. It is designed to be compatible with most milling machines, which means it should fit your equipment without needing extensive modifications. These include rotary milling machines, drilling and boring machines, small grinding machines, and specialized machine tools. It delivers stable power to a lot of different types of equipment.


Product guides and documents
User manual-en (PDF) Review

Questions and Answers (5)

5 Questions
Ask a Question
The product dimensions are inconsistent- is it 240mm or 330mm in total height? What is the bottom to the shaft axis dimension?
Answer This Question
Product dimensions are 9.45 x 8.27 x 4.72 inches / 240 x 210 x 120 mm.
By vevor
Helpful ( 1 )
And it be used on a mini mill and hook on the left end of the table and mount hortz.?
Answer This Question
Hello, we are very sorry for the inconvenience, due to the lack of prototype for the time being, our technicians can not verify your question in time to give an accurate answer, you can refer to the product detail page/manual for more information, thank you for your understanding.
By vevor
Helpful ( 1 )
What are the dimesions for the attachment holes??
Answer This Question
The dimension for the copper gear bore is 16.
By vevor
Helpful ( 1 )
Does the torque drop off at the low speeds e.g. 1.0 rpm.
Answer This Question
It will drop off a little bit.
By vevor
Helpful ( 0 )
what is the backlash when shimming x power feed . 2 degrees? .015 ?
Answer This Question
It is recommended that around 0.2-0.5mm is the best.
By vevor
Helpful ( 0 )
