Features & Details

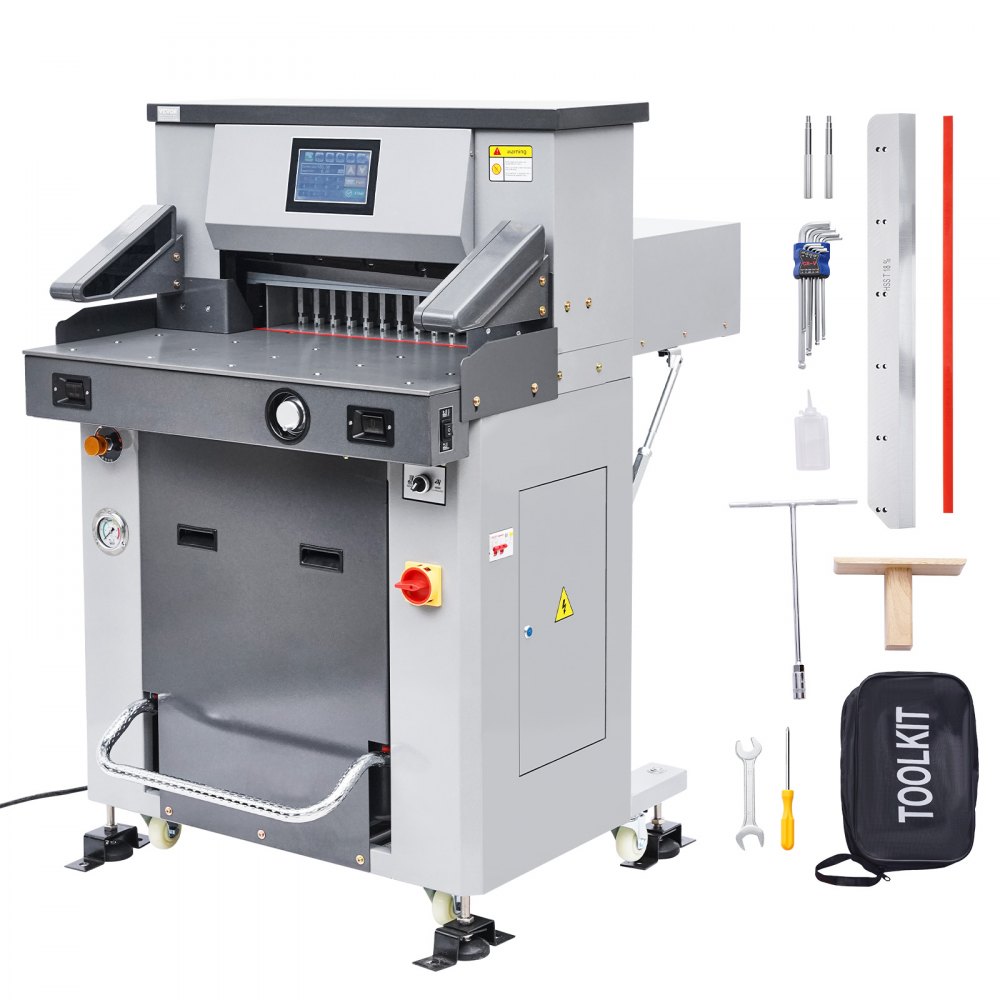

• Cutting Width 515 mm / Depth 80 mm: This fully automatic hydraulic paper cutter features a wider and deeper cutting area, capable of cutting up to 800 sheets in a single pass. It includes extra blades and cutting rods for protection and longer-lasting sharpness. It cuts copy paper, textured paper (up to 250g), and coated paper (up to 200g), but not grayboard or PVC boards.
• User-Friendly Touchscreen: All functions are controlled through a 7 in touchscreen with multiple cutting modes. You can store up to 100 data sets, each with 96 sizes, and adjust settings. The system also provides diagnostics and error alerts for smooth operation.
• ±0.3mm Precision Cutting: Features like infrared guides, automatic paper press/feed, and a cast-iron structure reduce errors and ensure high precision. You can also manually fine-tune for extra accuracy.
• Triple Security Protection: Infrared sensors stop the machine when detecting foreign objects. The dual-button operation prevents accidental cuts, and the emergency stop switch ensures security shutdown in any situation.
• Quick Setup: The hydraulic cutting machine comes with tools and a manual for easy assembly. Choose a flat, spacious area, remove the machine from the box, secure it with screws, and you're ready to go. Due to its weight, we recommend having enough hands to assist with setup.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

H520TV7

Max Power Output

2100W

Max Cutting Width

19.49 in / 495mm

Max Cutting Thickness

3.15 in / 80mm

Cutting Precision

±0.3mm

Product Weight

703.27 lbs / 319 kg

Product Dimensions

49.41 x 34.88 x 54.13 in / 1255 x 886 x 1375mm

Blade

Material

Description

Electric Hydraulic Paper Cutter-Precision and efficiency in every cut!

The hydraulic paper cutter features a widened and deepened design, capable of cutting 800 sheets of standard copy paper in one pass. Extra blades & cutting rods ensure cutting efficiency. It cuts copy paper, textured paper (up to 250g), and coated paper (up to 200g), but not grayboard or PVC plastic boards.

All functions are controlled via a 7 in touchscreen, with four cutting modes and the ability to adjust settings based on usage. You can store up to 100 data sets, each with 96 sizes. The screen also provides system settings and diagnostics, giving error alerts for easy troubleshooting.

We've designed several features to keep cutting precision within ±0.2mm. Infrared guides make the cutting position clear, while the automatic paper press and feed functions reduce human error. The cast-iron body structure minimizes cutting reaction force. You can also manually fine-tune for extra accuracy.

To ensure security, infrared sensors stop operation when foreign objects are detected. The dual-button cutting function requires both hands to press the button simultaneously, preventing accidental cuts. An emergency stop switch ensures the machine can be quickly shut off in case of emergency.

Always read the user manual before operating the machine. Place the machine in a clean, dry environment, away from direct sunlight and wind. Do not remove the infrared security top. Always disconnect the power before placing your hand or any objects in the cutting area.
