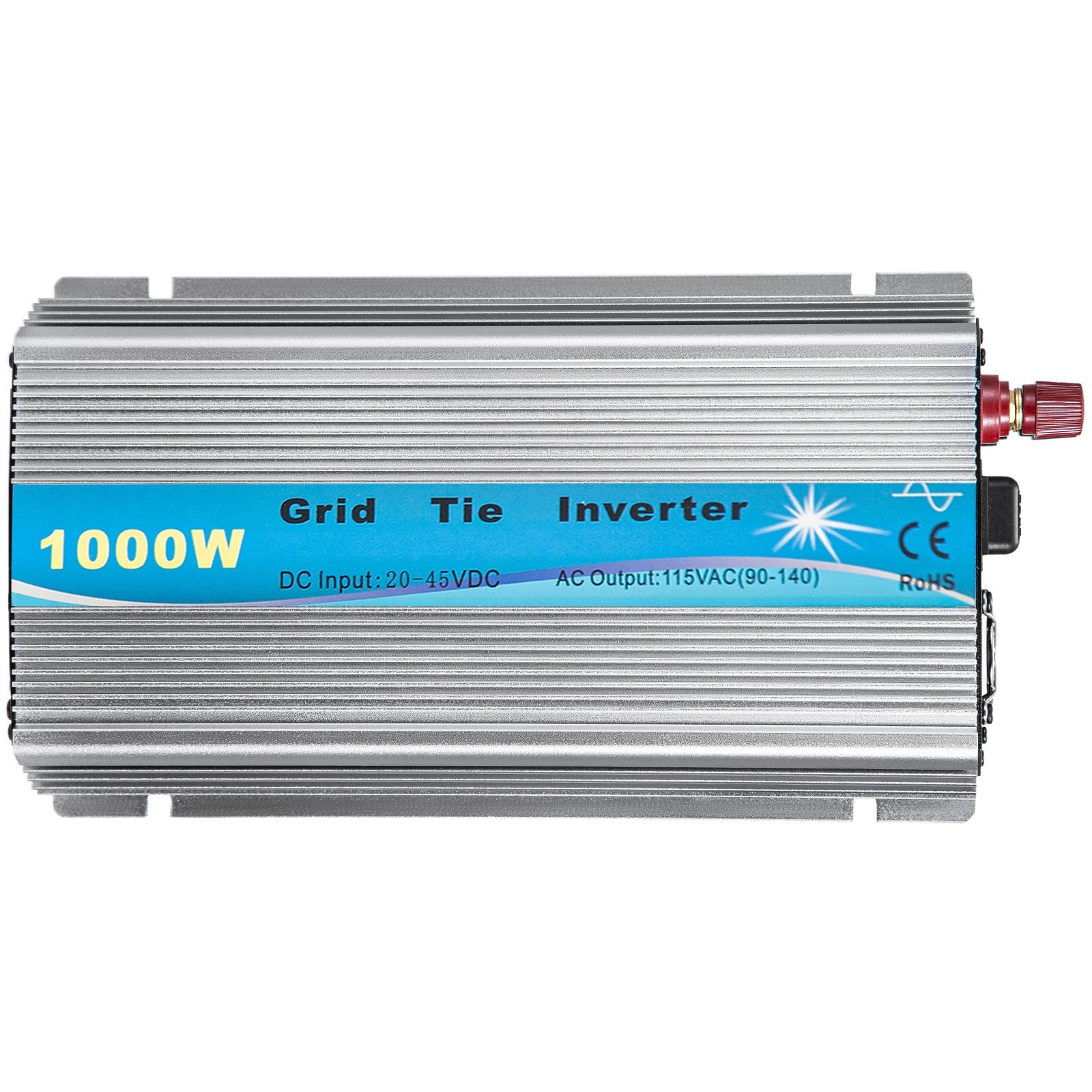

VEVOR Grid Tie Solar Inverter, 1000W MPPT Power Inverter, 50/60 Hz Solar Grid Tie System, Grid Tie Inverter, DC 20-45V Input to AC 90-140V Output Wind Turbine Grid Tie Inverter for Solar Panel System
4.5 24 Reviews
$ 100 99
Each when you buy 0+.
Shop
Get -% off for new user
Get $5.00 Off $99.00+ Orders on Your First 3 App Orders.
Download Now
- 【PREMIUM QUALITY】- Grid tie inverter adopts an aluminum alloy shell, which is heat-resisting, cold-resistant, and not easy to rust. The additional copper wiring lug can effectively reduce the short circuit and other weak DC connection faults. It adopts a unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
- 【EXCELLENT PERFORMANCE】- Solar grid-tie inverter has the function of maximum power point tracking. It will detect the solar panel's voltage and current in real-time and keep tracking the maximum power point to charge the battery with the maximum power efficiency of more than 99%.
- 【HIGH-SPEED COOLING FAN】- The grid-tie solar inverter features a built-in intelligent temperature-controlled cooling fan. When the machine's internal temperature reaches a certain level, the fan will rotate and effectively reduces the operating temperature.
- 【FULLY SAFETY PROTECTIONS】- The solar tie inverter applies the LED indicator to promptly remind the user of the inverter's running status. It adopts the high-frequency isolation transformer type, high efficiency, and high security. Multiple intelligent security protections ensure the inverter to be fully protected in the process of use.
- 【PARALLEL INSTALLATION】-The inverter uses the parallel design of DC input and the modular design of solar micro-inverter, which is easy for system configuration, flexible for combination, strong expansibility of system. It is a key device of power generation systems, such as PV power generation systems.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Top Reviews
About this item
Description

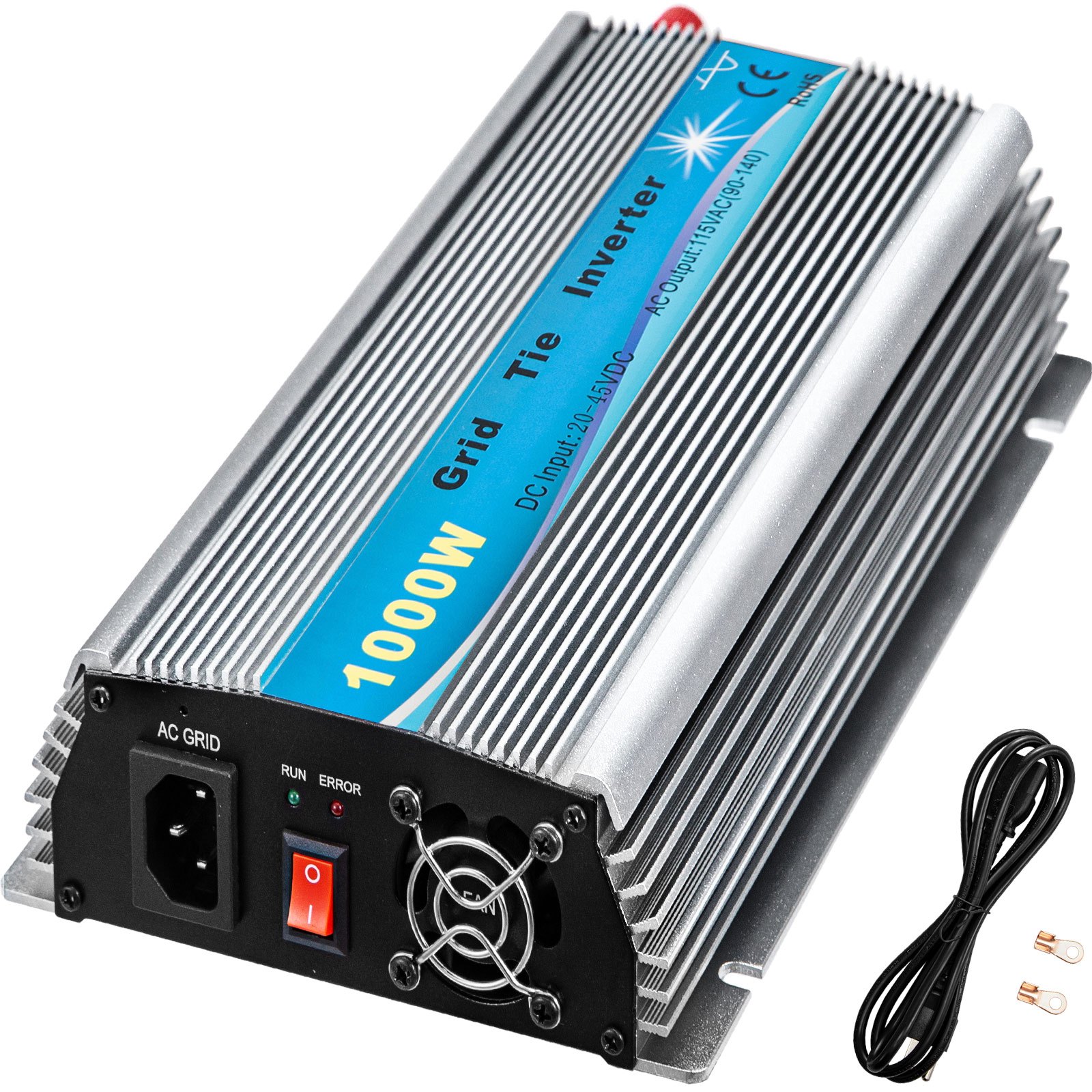

1000W Grid Tie Solar Inverter
A smart grid-tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and connecting to the utility grid, which sine wave, frequency, and phase are the same as the power grid and then feeds into the utility grid. The AC output from the inverter is synchronized and in-phase with the utility grid. Smart microinverter can be easily placed and attached to the rack underneath of PV module. It is a key device of power generation systems such as the PV power generation system and the wind turbine power system.
- Excellent Performance
- High-Speed Cooling Fan
- Fully Safety Protections
- Parallel Installation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

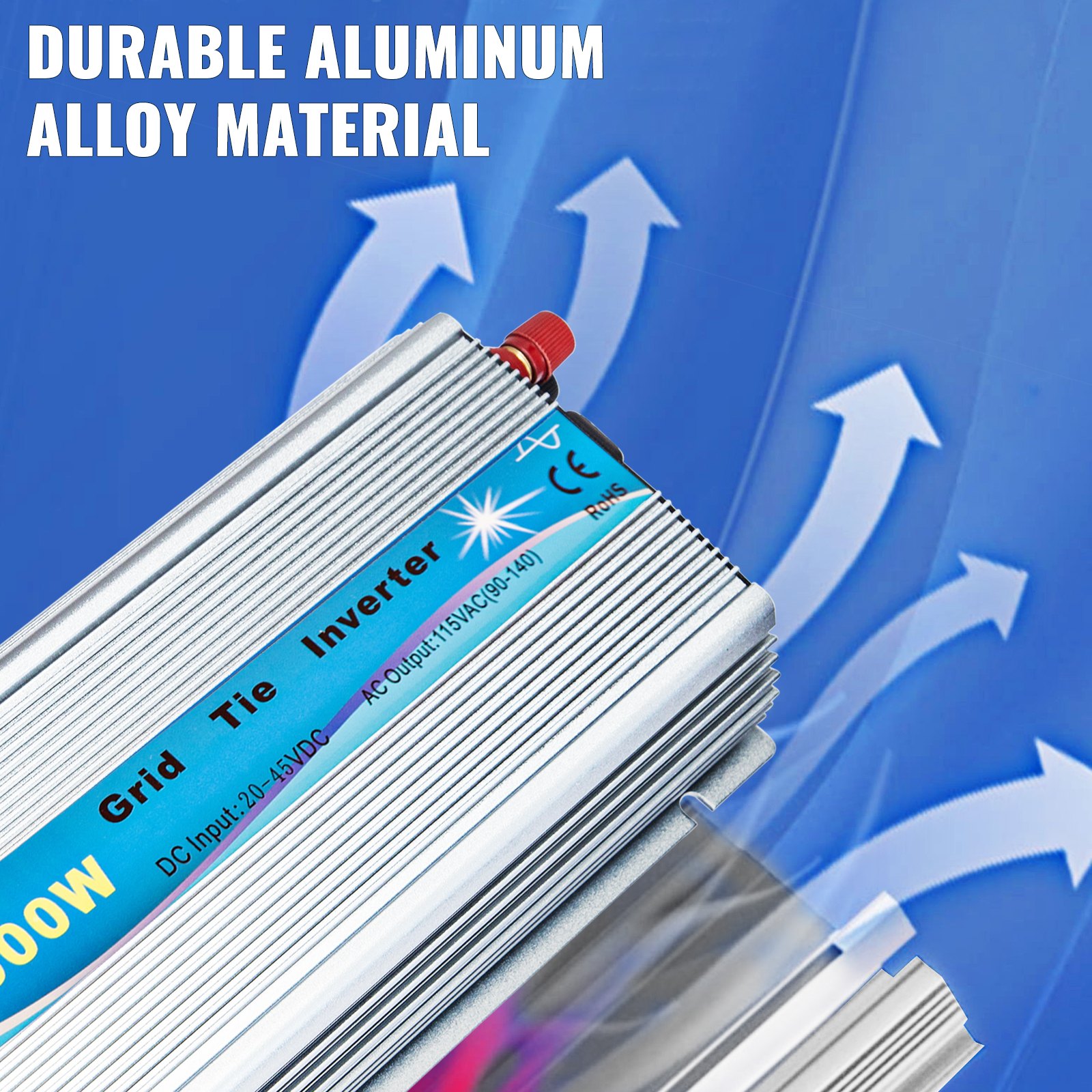

Sturdy Aluminum Alloy
This grid-tie solar inverter is made of aluminum alloy material, which is anti-vibration and anti-deformation. It has high strength and is able to resist oxidation, compression, and deformation.

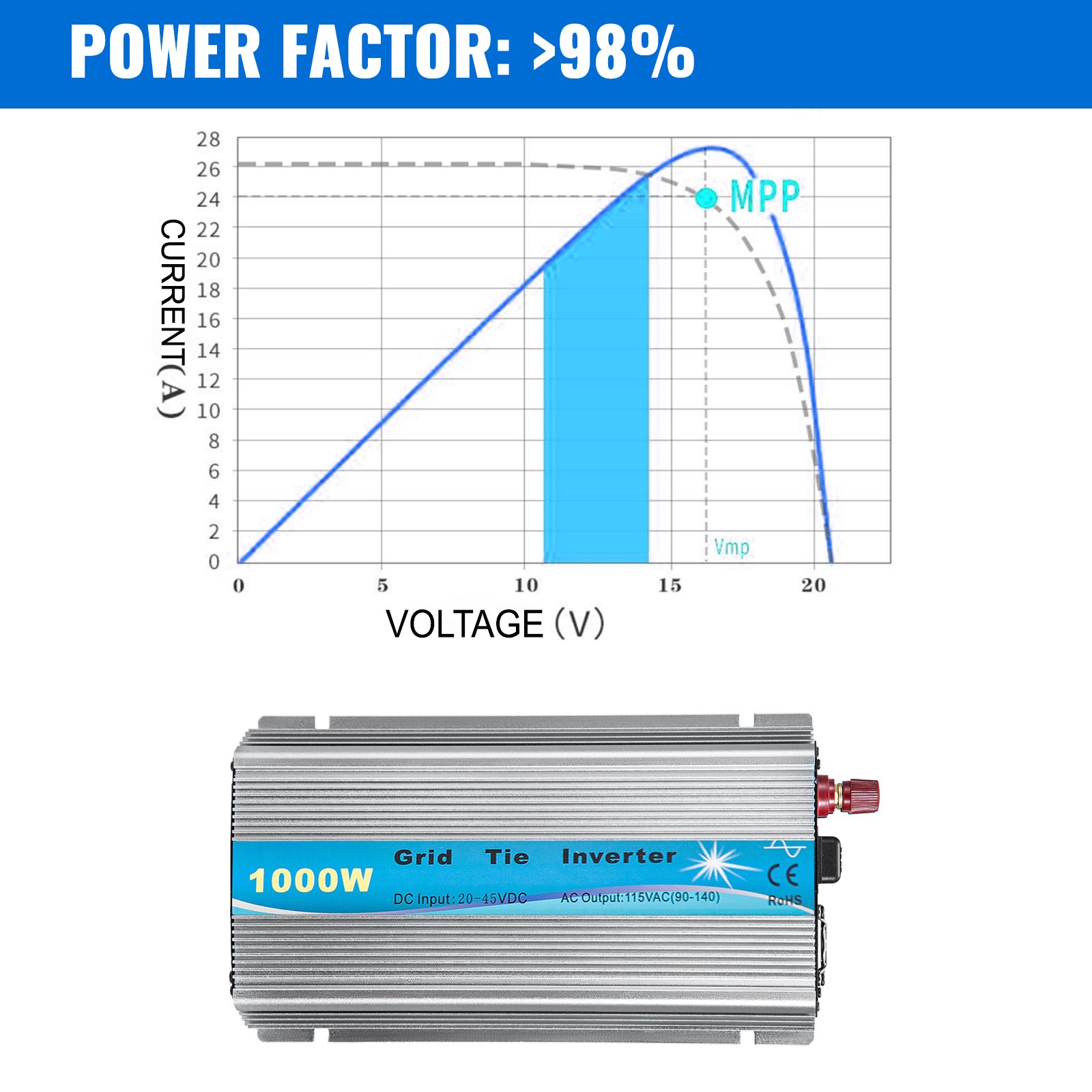

MPPT Function
When the MPPT function is adjusted to the maximum power point, the product automatically locks the power at the maximum power point, so that the output power is more stable.

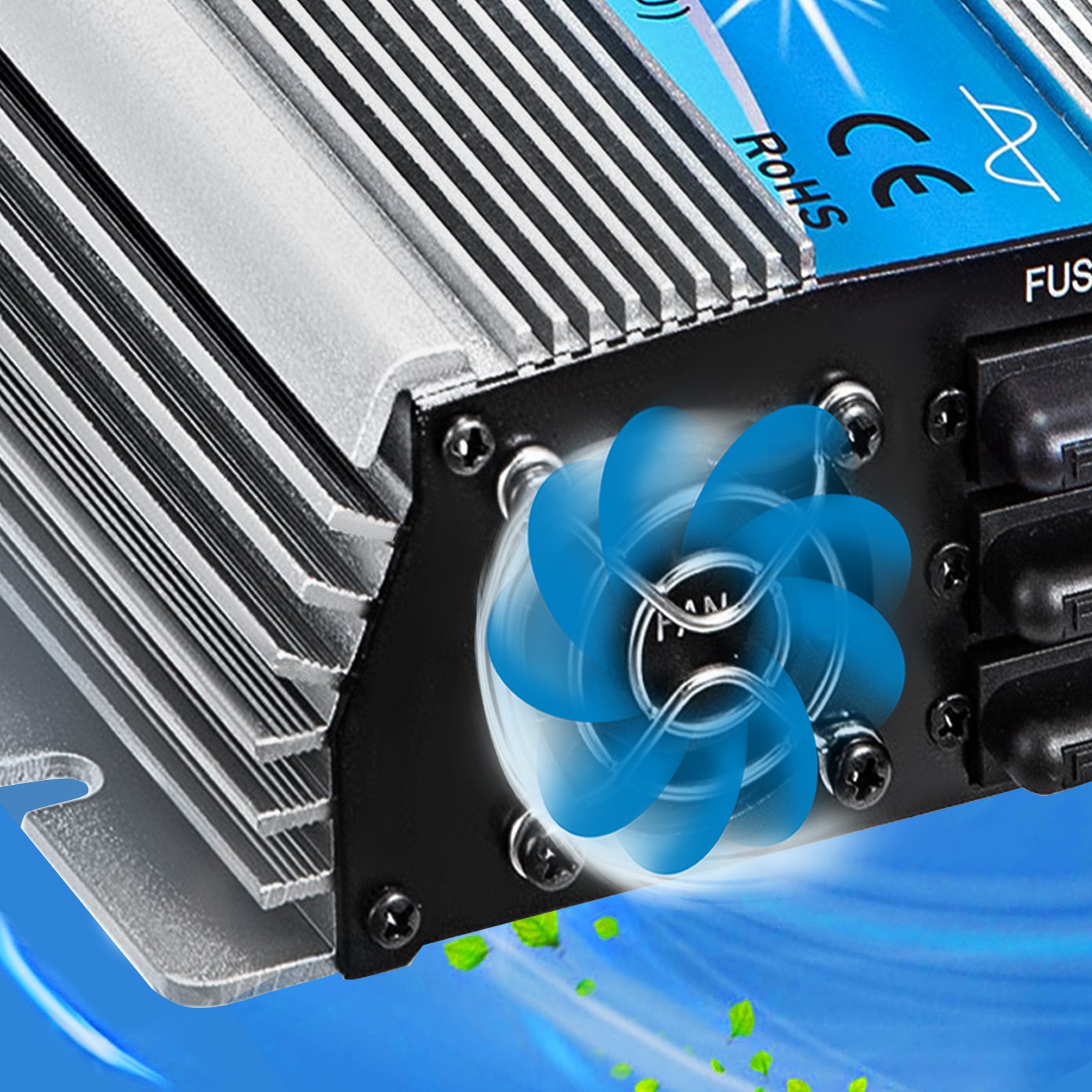

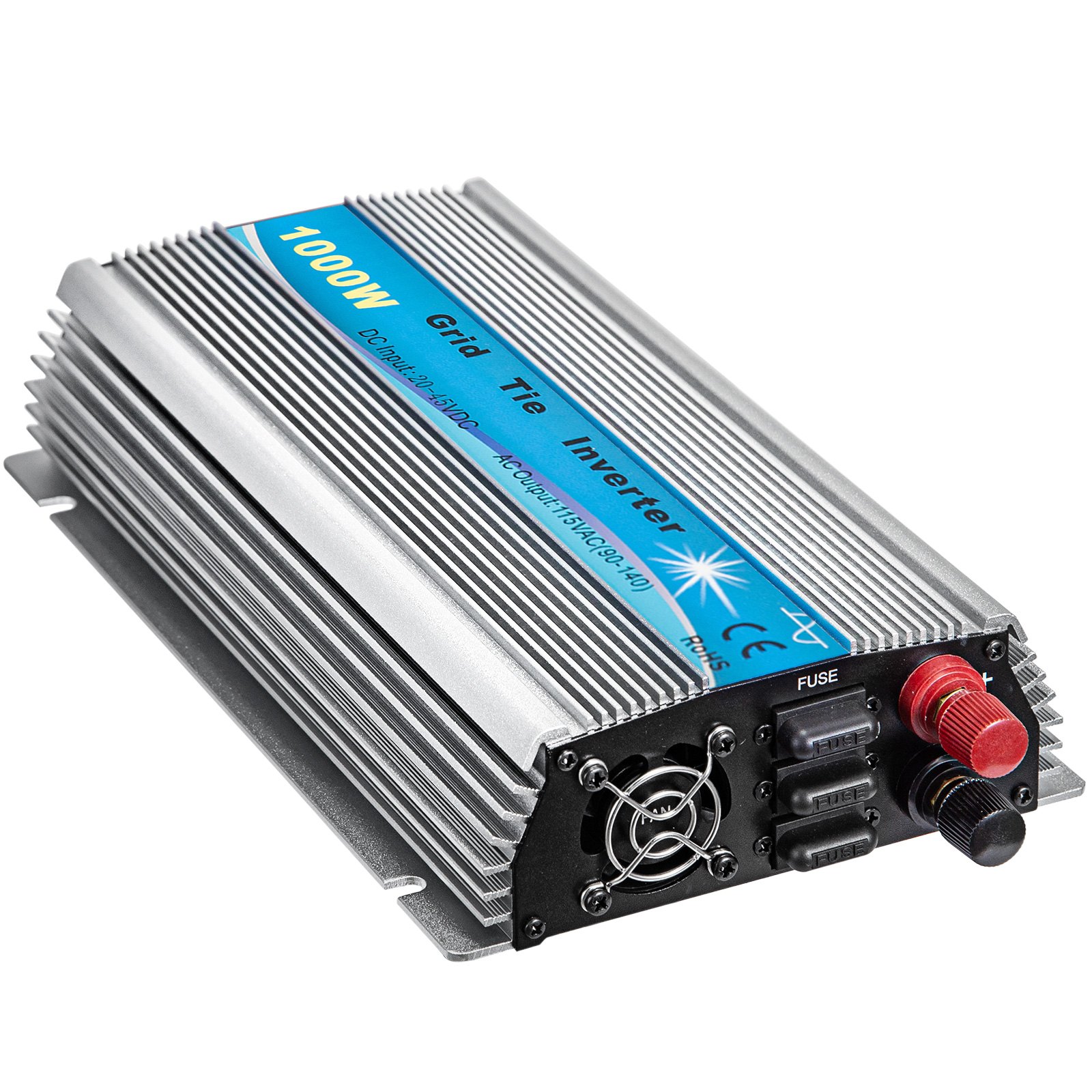

Intelligent Fan Cooling
A built-in intelligent cooling fan effectively reduces the operating heat. Fan net cover prevents small animals from flying into the machine, effectively protecting the fan's internal circuit.

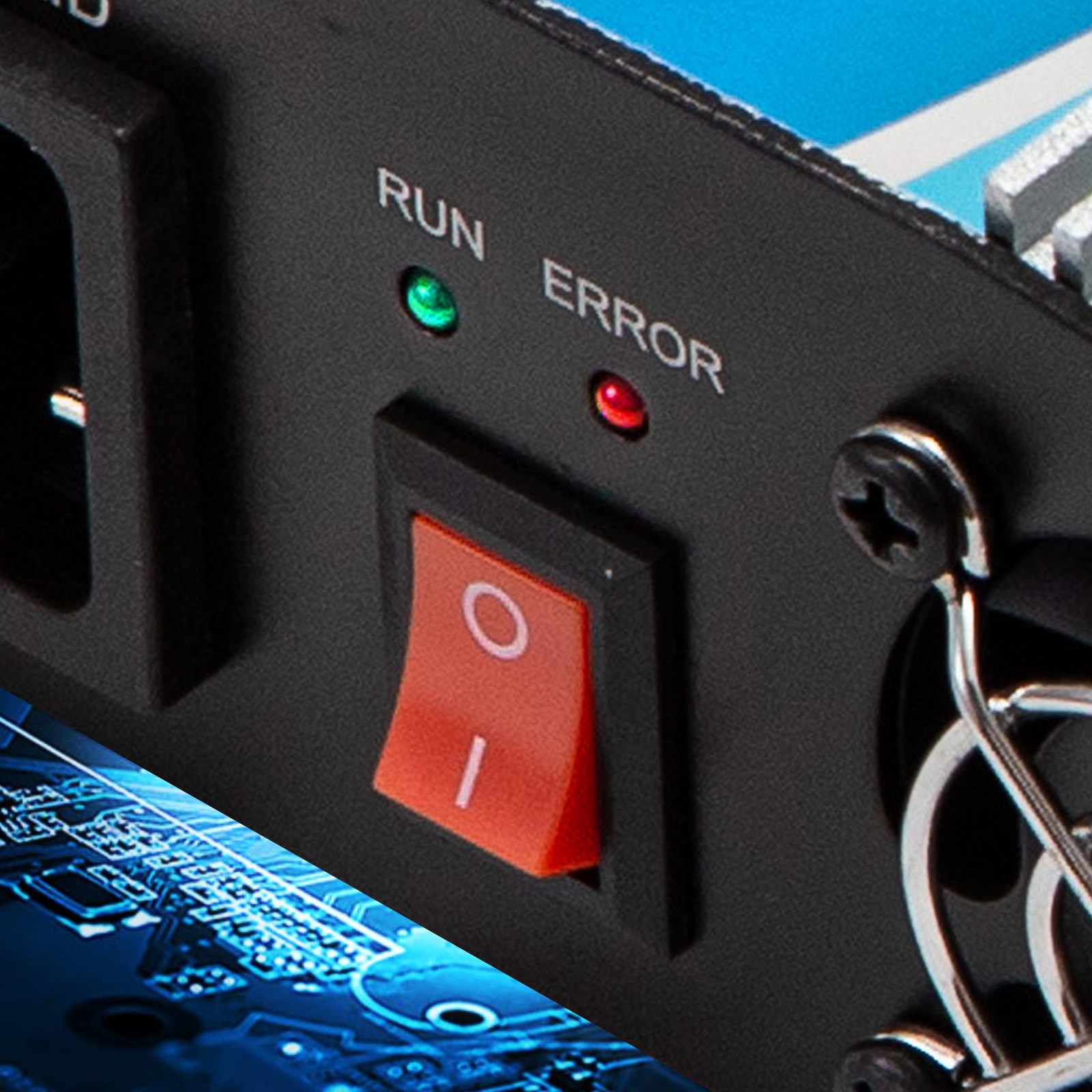

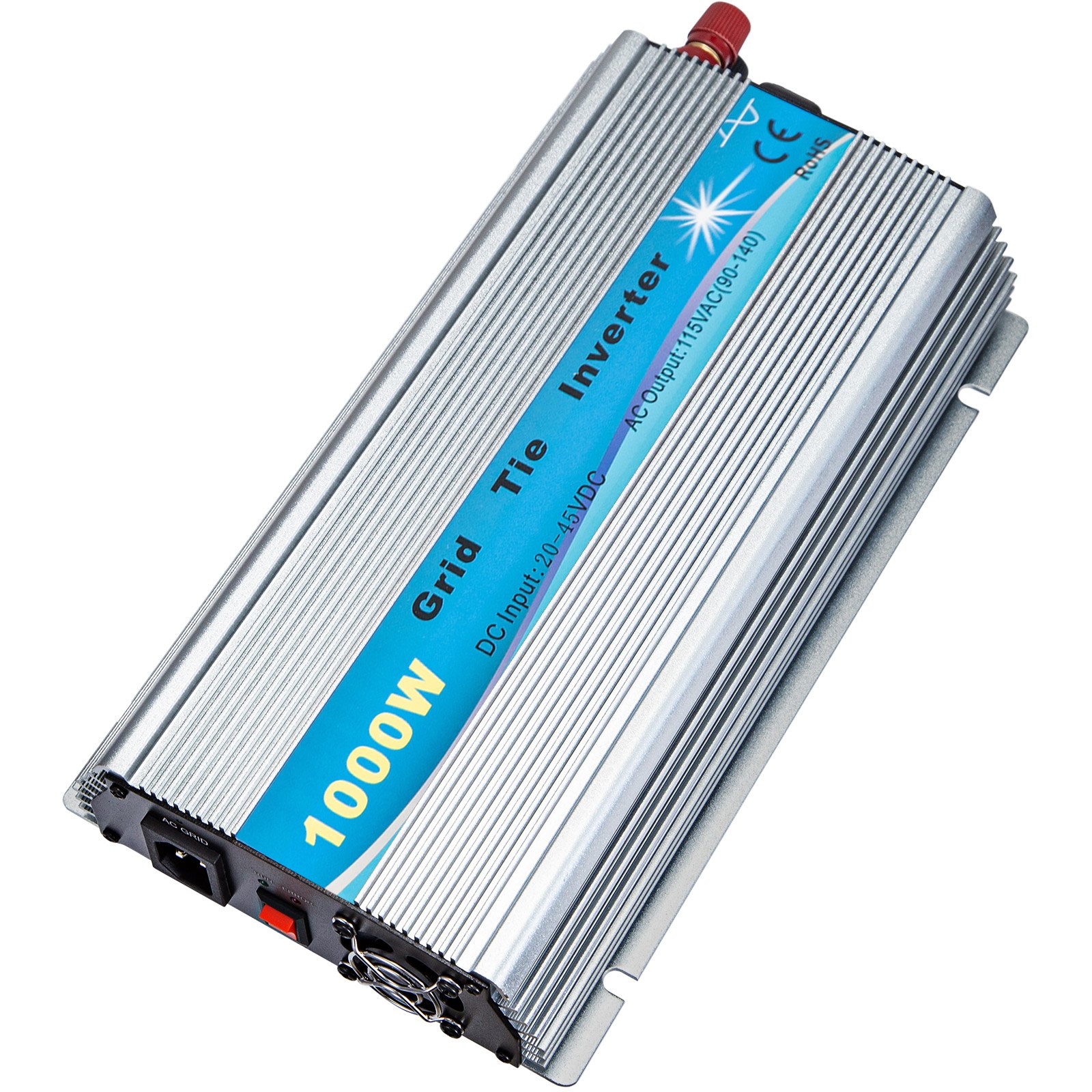

LED Indicators
LED indicators facilitate the user to observe the machine's normal operation more directly and adjust it in time. An independent power switch is easy to control the inverter.

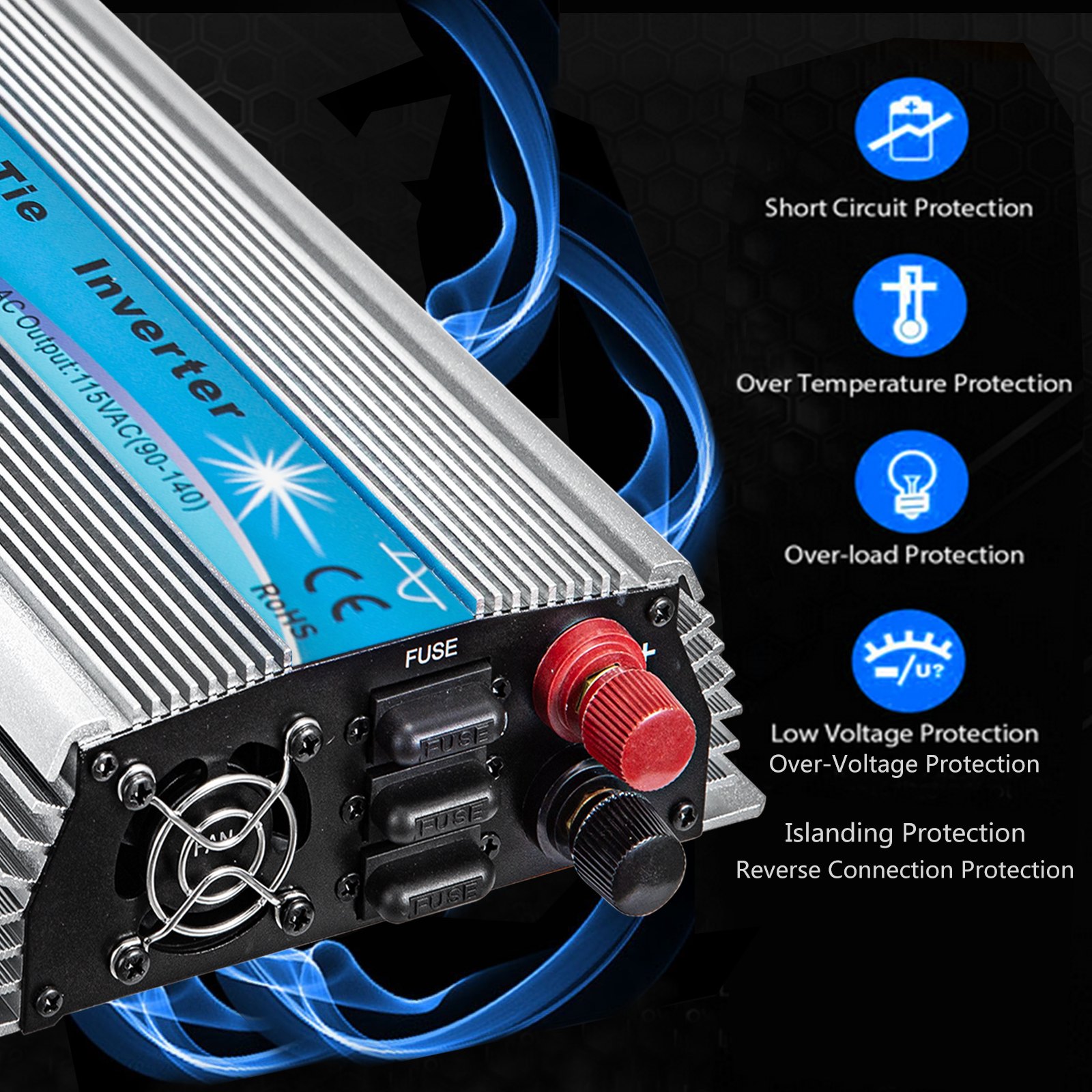

Multiple Protection Designs
There are seven main protection measures for an inverter: short circuit protection, over-temperature protection, over-load protection, low voltage protection, over-voltage protection, islanding protection, converse connection protection.

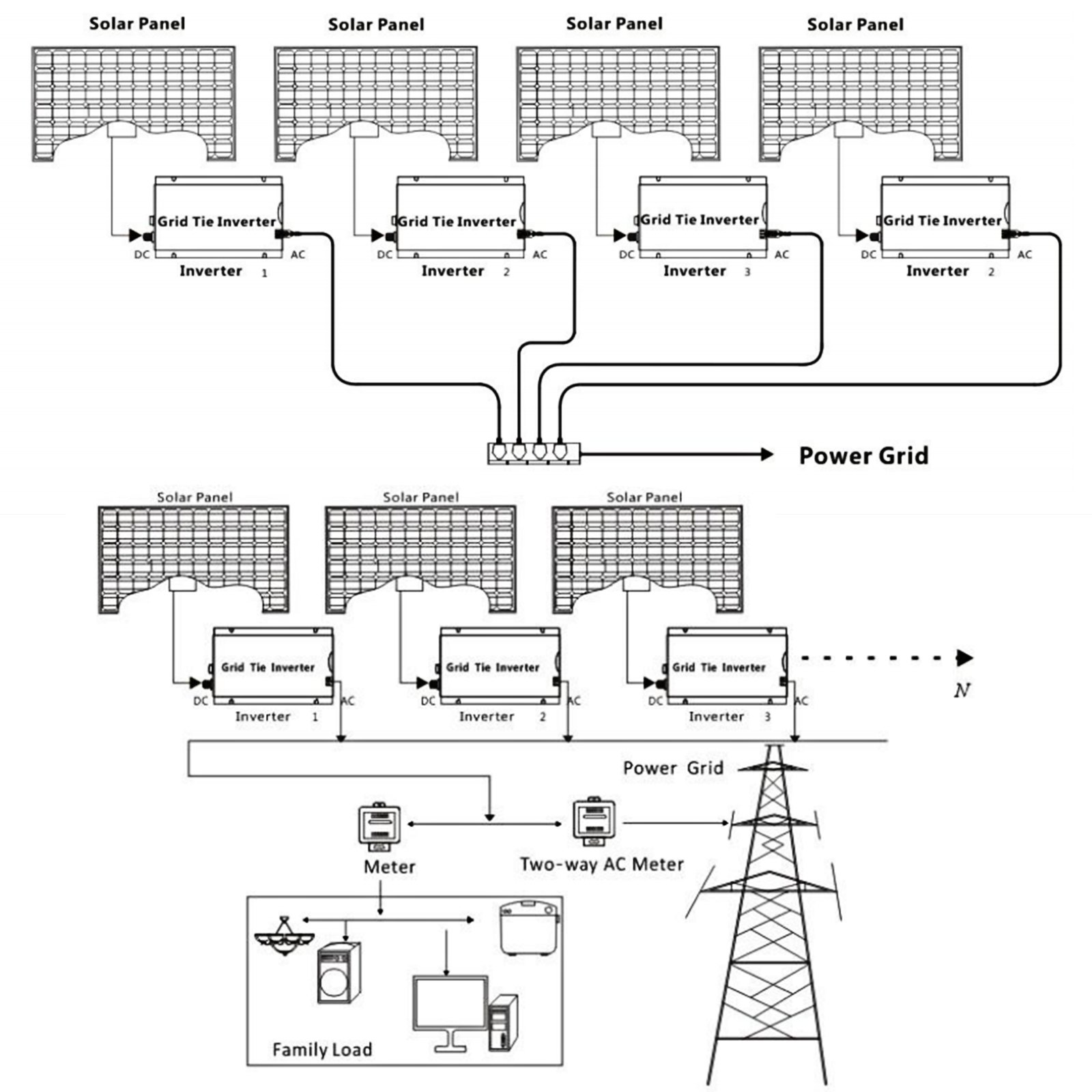

Distributed Installation
A small solar microinverter installs in parallel will achieve high power output function. Thanks to the distributed modularization, the inverter will not be affected by a single point of failure. Thus, the whole system's productiveness will be improved.

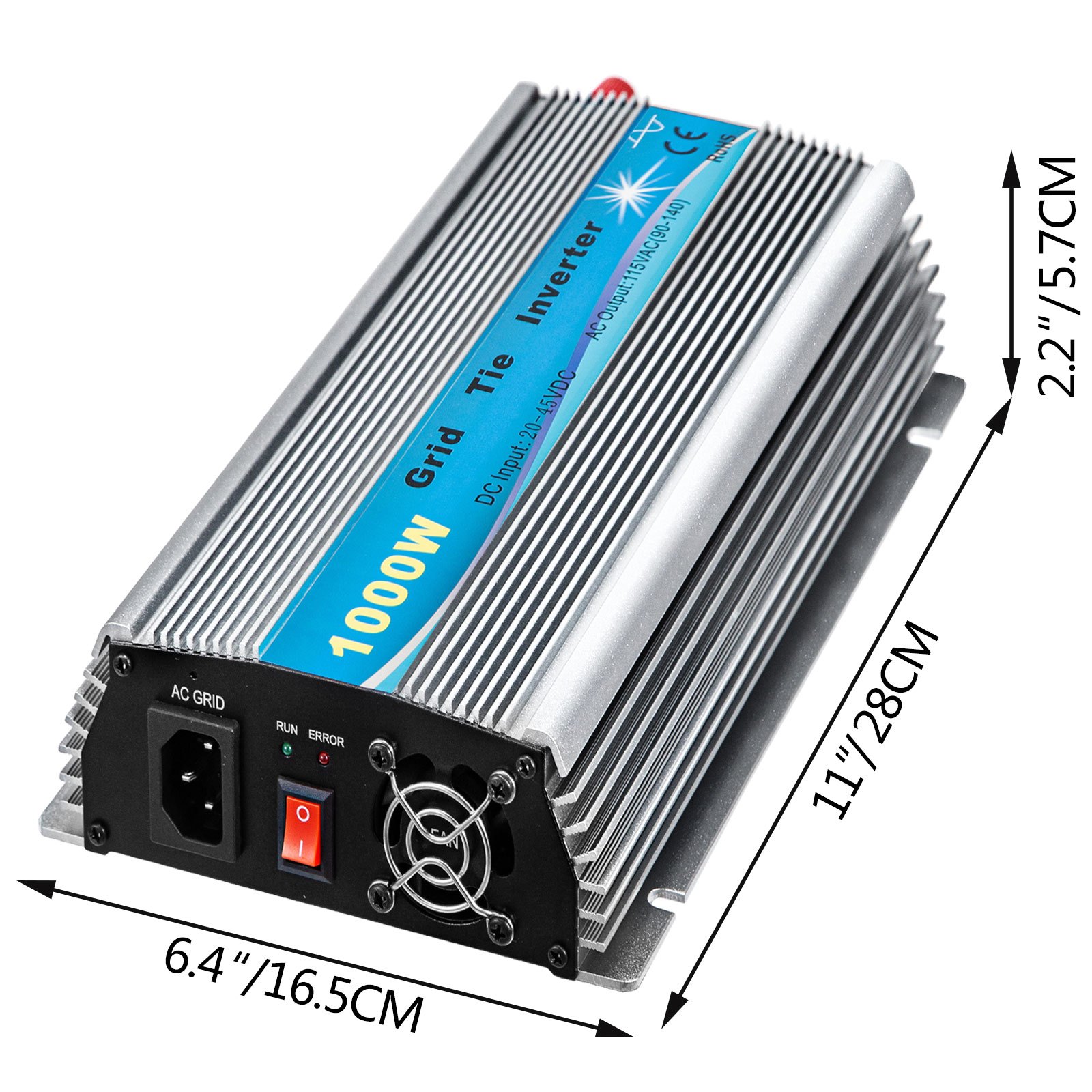

Specifications
- Rated Power: 1000Watt
- Solar Panels: 60cells-Vmp:26-30V:Voc:34-38V
- DC Input Range: 20-45VDC
- MPPT Voltage: 24-38VDC
- DC MAX. Current: 45A
- AC Output: 115VAC(90-140VAC)
- Frequency: 50Hz/60Hz(Auto control)
- Power Factor: >98%
- Working Temperature: -20℃-65℃/-13℉-149℉
- Working Humidity: 0%~90%RH non-condensing
- Waterproof: Indoor design
- Display: LED
- Cooling: Fan-cooling
- Stand-by Power: <1W
- Protection: Islanding, Short-circuit, Converse Connection, Low Voltage, Over Voltage, Over temperature Protection
- EMC: EN61000-6-3:2007 EN61000-6-1:2007
- Grid Disturbance: EN 50178+EN 62109-1+VDE0126-1-12
- Grid Detection: DIN VDE 10261741

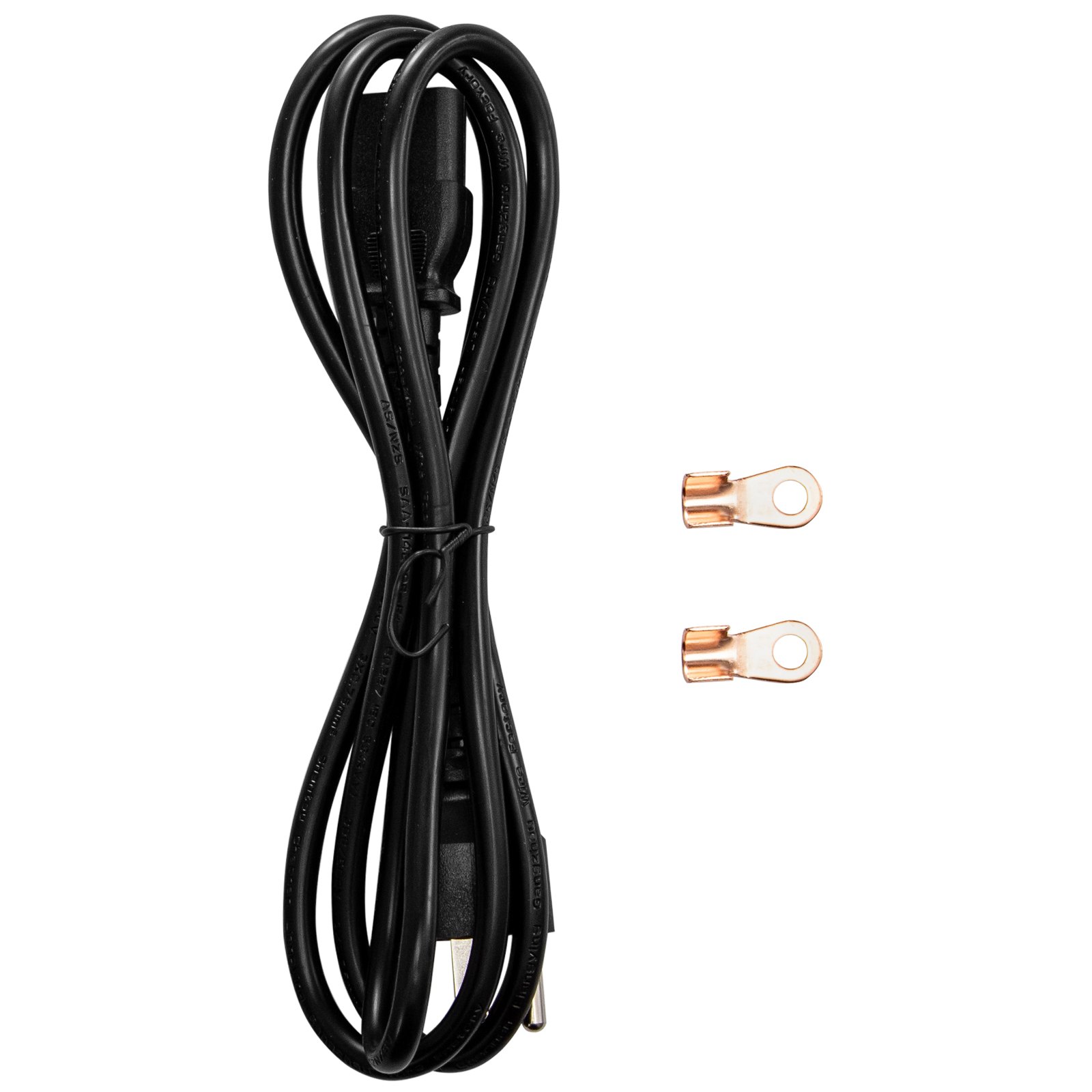

Package Content
- 1 x Grid Tie Inverter
- 1 x Copper Wiring Lugs
- 1 x Plug
- 1 x User Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
1000W Grid Tie Solar Inverter
A smart grid-tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and connecting to the utility grid, which sine wave, frequency, and phase are the same as the power grid and then feeds into the utility grid. The AC output from the inverter is synchronized and in-phase with the utility grid. Smart microinverter can be easily placed and attached to the rack underneath of PV module. It is a key device of power generation systems such as the PV power generation system and the wind turbine power system.
- Excellent Performance
- High-Speed Cooling Fan
- Fully Safety Protections
- Parallel Installation
Sturdy Aluminum Alloy
This grid-tie solar inverter is made of aluminum alloy material, which is anti-vibration and anti-deformation. It has high strength and is able to resist oxidation, compression, and deformation.
MPPT Function
When the MPPT function is adjusted to the maximum power point, the product automatically locks the power at the maximum power point, so that the output power is more stable.
Intelligent Fan Cooling
A built-in intelligent cooling fan effectively reduces the operating heat. Fan net cover prevents small animals from flying into the machine, effectively protecting the fan's internal circuit.
LED Indicators
LED indicators facilitate the user to observe the machine's normal operation more directly and adjust it in time. An independent power switch is easy to control the inverter.
Multiple Protection Designs
There are seven main protection measures for an inverter: short circuit protection, over-temperature protection, over-load protection, low voltage protection, over-voltage protection, islanding protection, converse connection protection.
Distributed Installation
A small solar microinverter installs in parallel will achieve high power output function. Thanks to the distributed modularization, the inverter will not be affected by a single point of failure. Thus, the whole system's productiveness will be improved.
Package Content
- 1 x Grid Tie Inverter
- 1 x Copper Wiring Lugs
- 1 x Plug
- 1 x User Manual
Specifications
- Rated Power: 1000Watt
- Solar Panels: 60cells-Vmp:26-30V:Voc:34-38V
- DC Input Range: 20-45VDC
- MPPT Voltage: 24-38VDC
- DC MAX. Current: 45A
- AC Output: 115VAC(90-140VAC)
- Frequency: 50Hz/60Hz(Auto control)
- Power Factor: >98%
- Working Temperature: -20℃-65℃/-13℉-149℉
- Working Humidity: 0%~90%RH non-condensing
- Waterproof: Indoor design
- Display: LED
- Cooling: Fan-cooling
- Stand-by Power: <1W
- Protection: Islanding, Short-circuit, Converse Connection, Low Voltage, Over Voltage, Over temperature Protection
- EMC: EN61000-6-3:2007 EN61000-6-1:2007
- Grid Disturbance: EN 50178+EN 62109-1+VDE0126-1-12
- Grid Detection: DIN VDE 10261741
