VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable
TSZC62A5D1004G1ZDV1

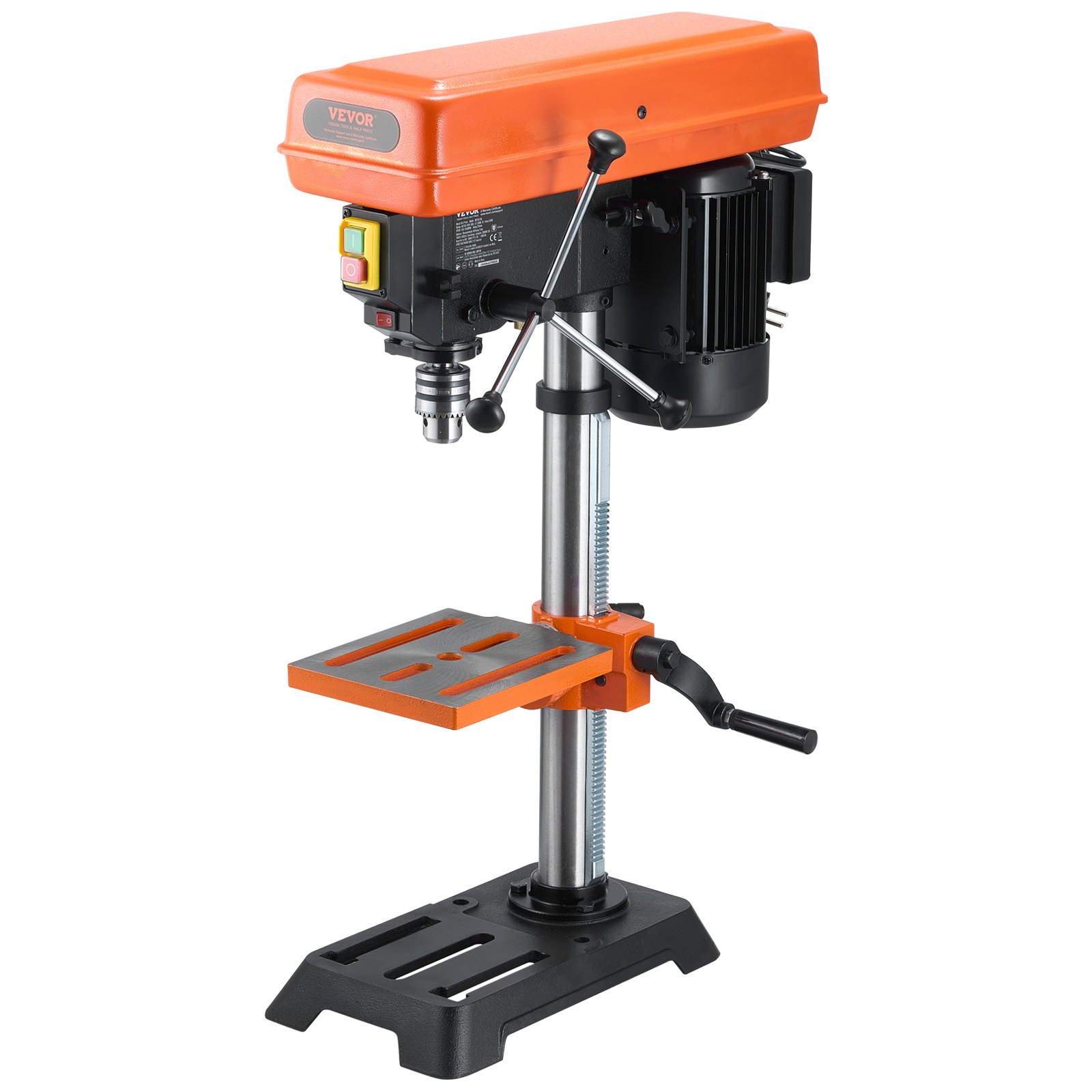

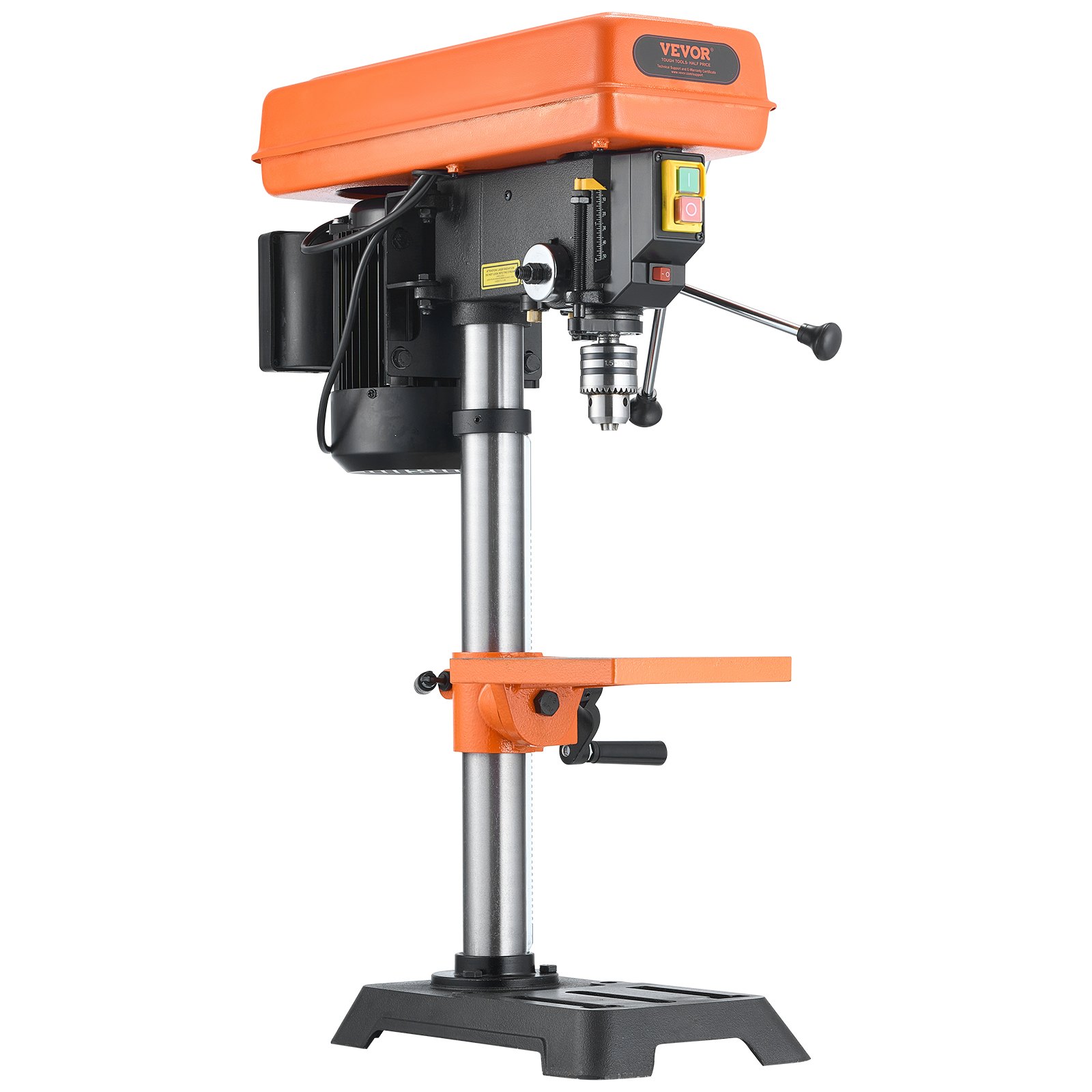

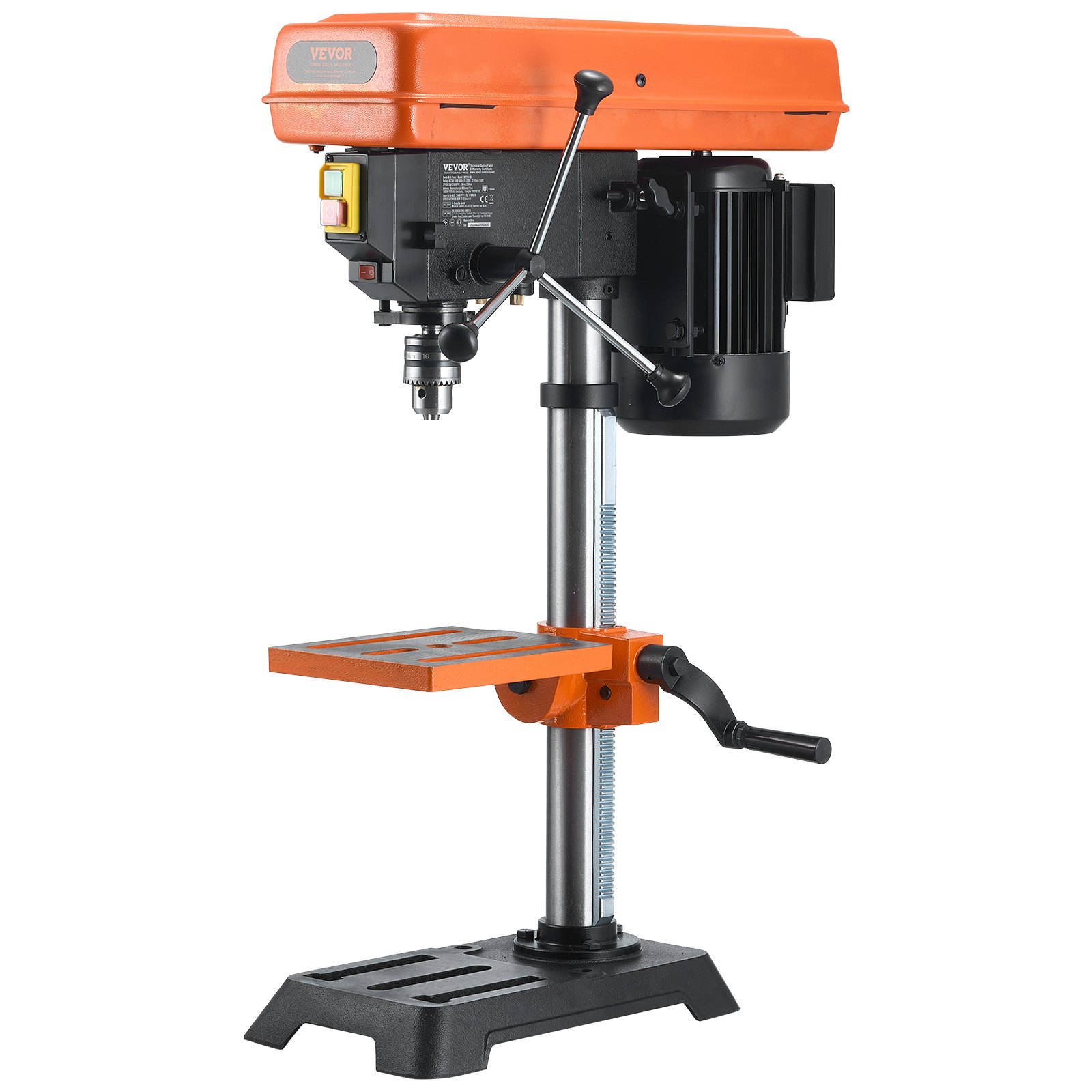

VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

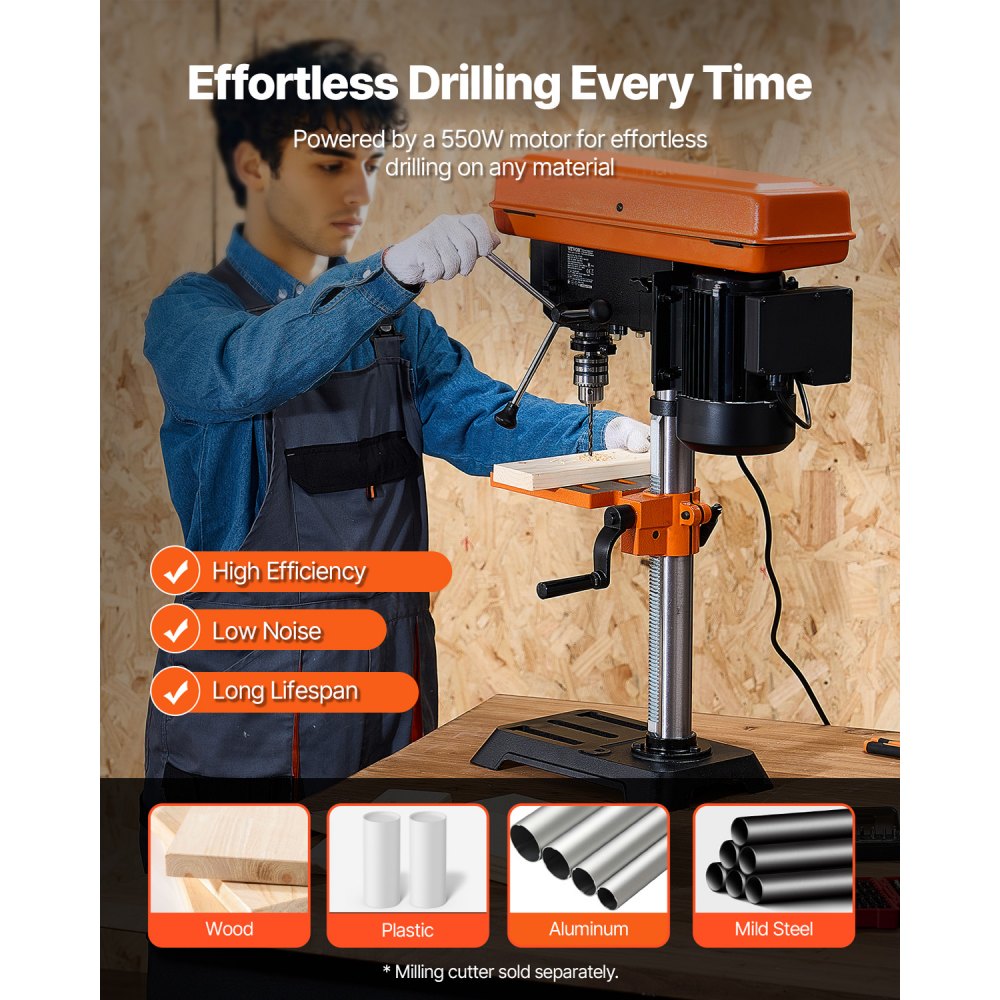

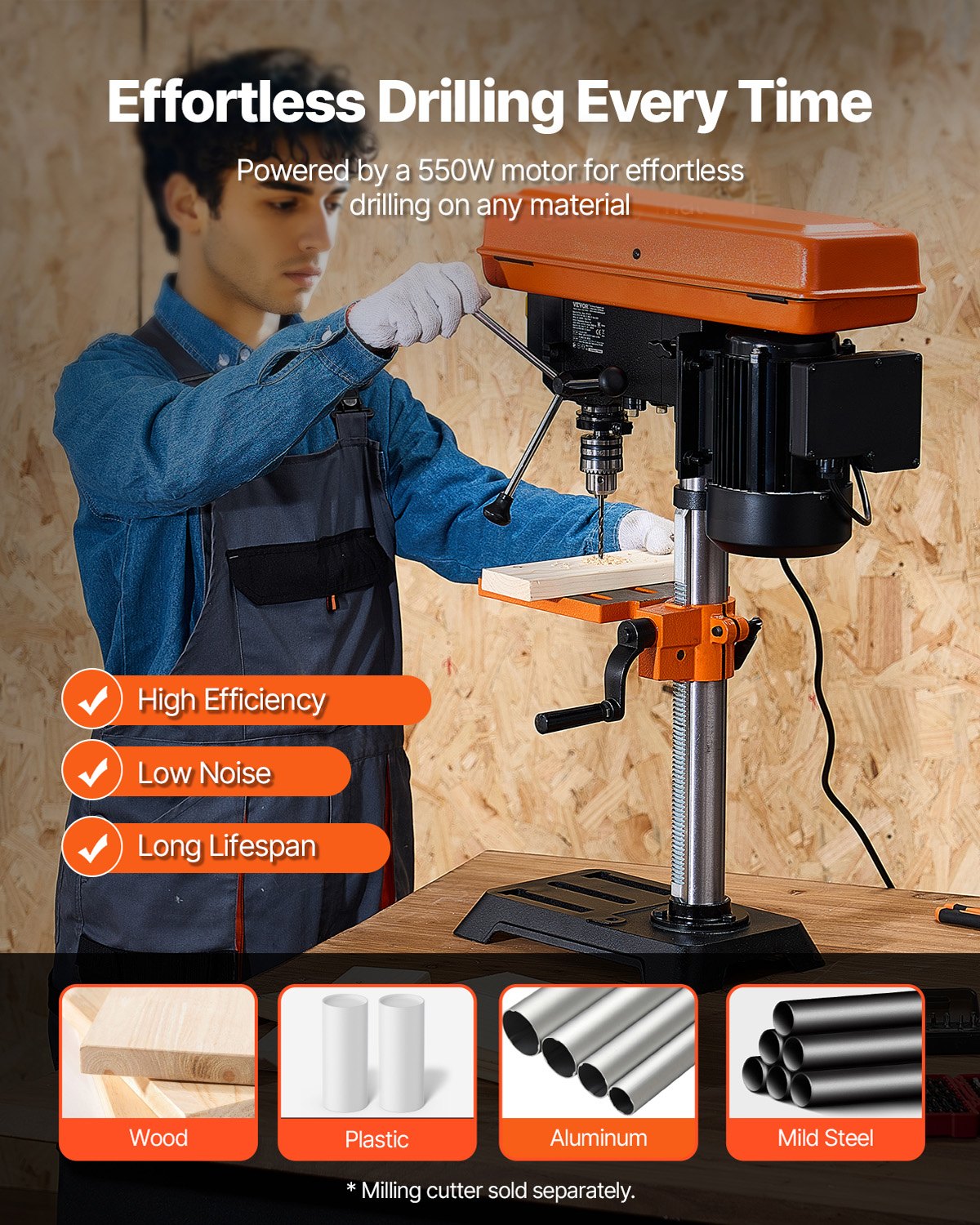

  • Exceptional Drilling Performance: Powered by a robust 6.2A induction motor, this benchtop drill press delivers superior power and stability, ensuring top-notch performance even during extended drilling sessions.
  • Variable 5-Speed Control: Customize your drilling experience with five adjustable speeds ranging from 610 to 2800 RPM. Effortlessly switch between speeds by adjusting the belt, our bench drill press allowing you to tackle a variety of materials and projects with precision.

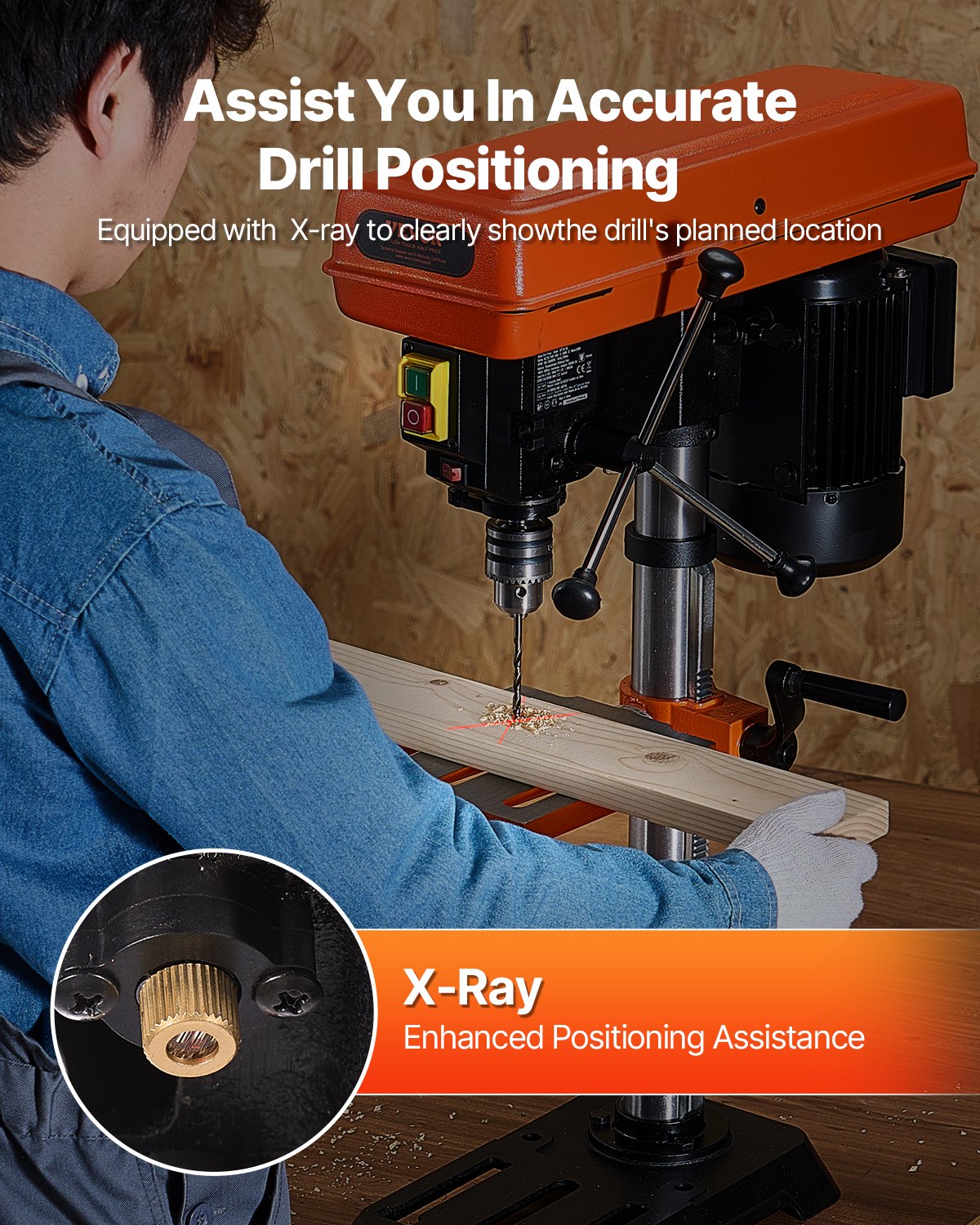

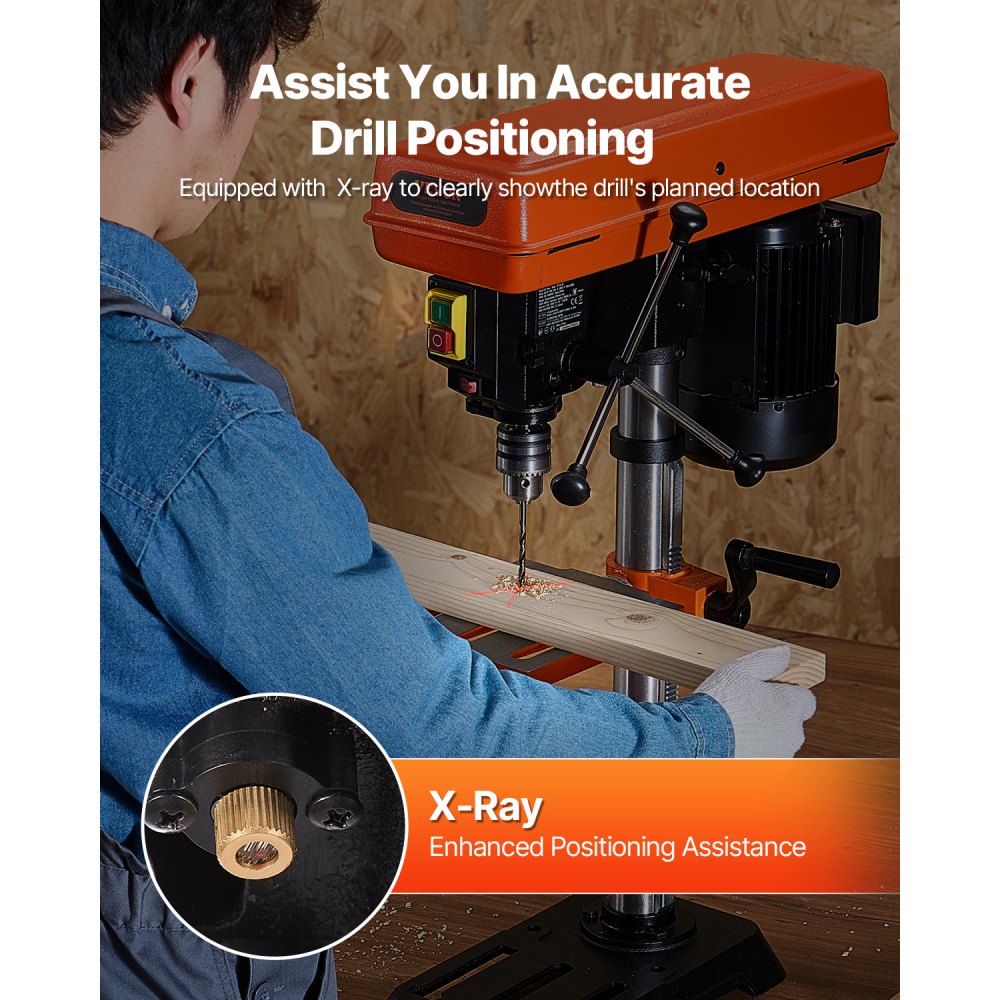

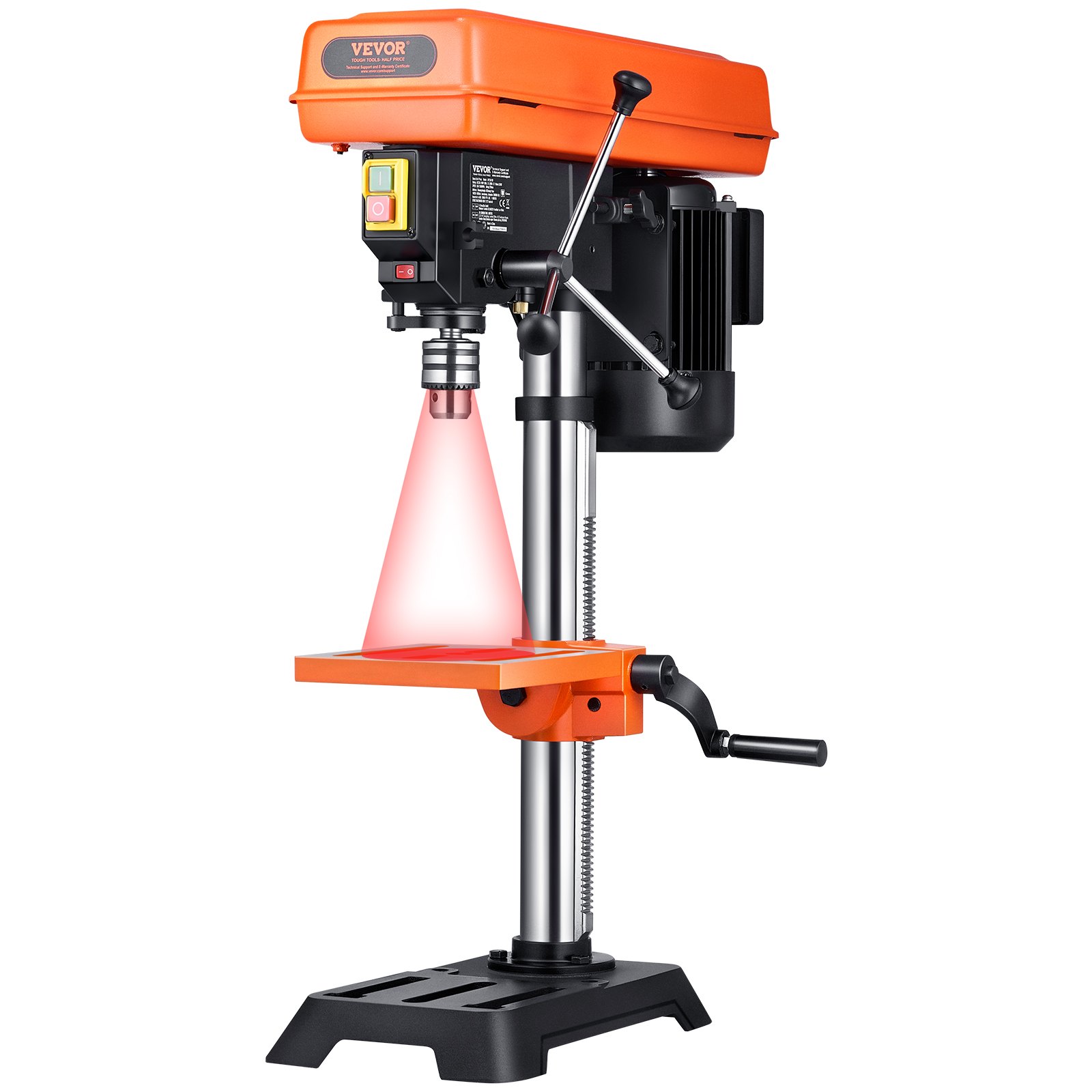

  • LED Lighting & X-Ray Positioning: Never miss a detail with the integrated LED work light. Our benchtop drill press ensures you have a clear view of your work area, even in low-light conditions. The X-ray positioning system helps you accurately locate drilling spots for precision work.
  • Precision-Engineered Drilling: Achieve flawless results with our drill press’s low radial runout and 1/2-inch maximum drilling diameter. The adjustable depth stop and 2-inch spindle travel let you set precise drilling depths for perfect holes every time.
  • Flexible & Adjustable Worktable: Experience unmatched flexibility and stability with the thick metal worktable that adjusts in height and tilts up to 45°. Our benchtop drill press is ideal for precise, complex drilling hole tasks, making it an invaluable tool for any workshop.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 10in Benchtop Drill Press Tabletop Drilling Machine 610-2800RPM Adjustable
10-Inch Benchtop Drill Press, Elevate your DIY projects

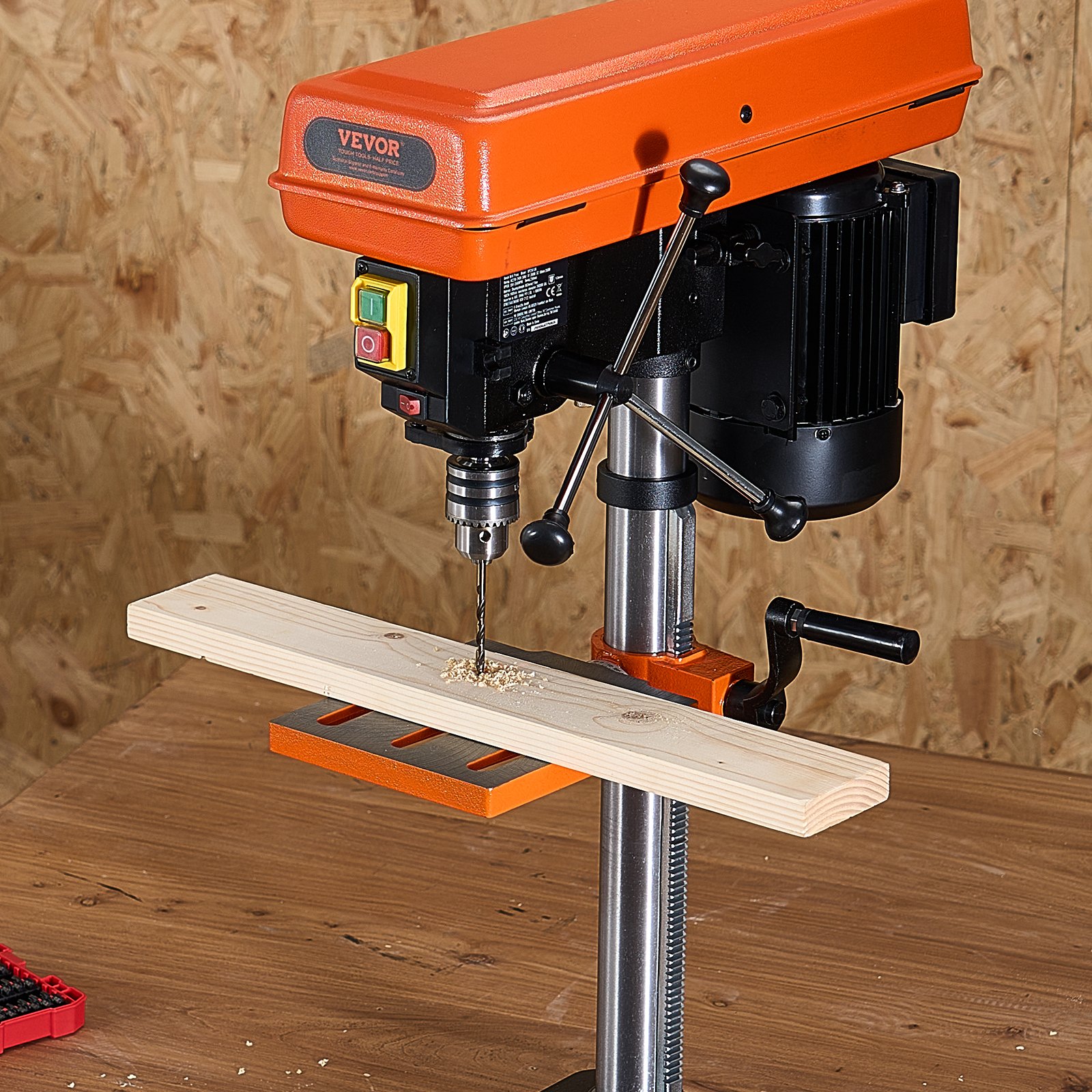

Featuring all-copper induction motor and 5-speed adjustment, our benchtop drill press handles your woodworking, metalworking, or other drilling tasks. With X-ray positioning for pinpoint accuracy, LED light and 45° tilt adjustable worktable provide flexibility for complex drilling needs.

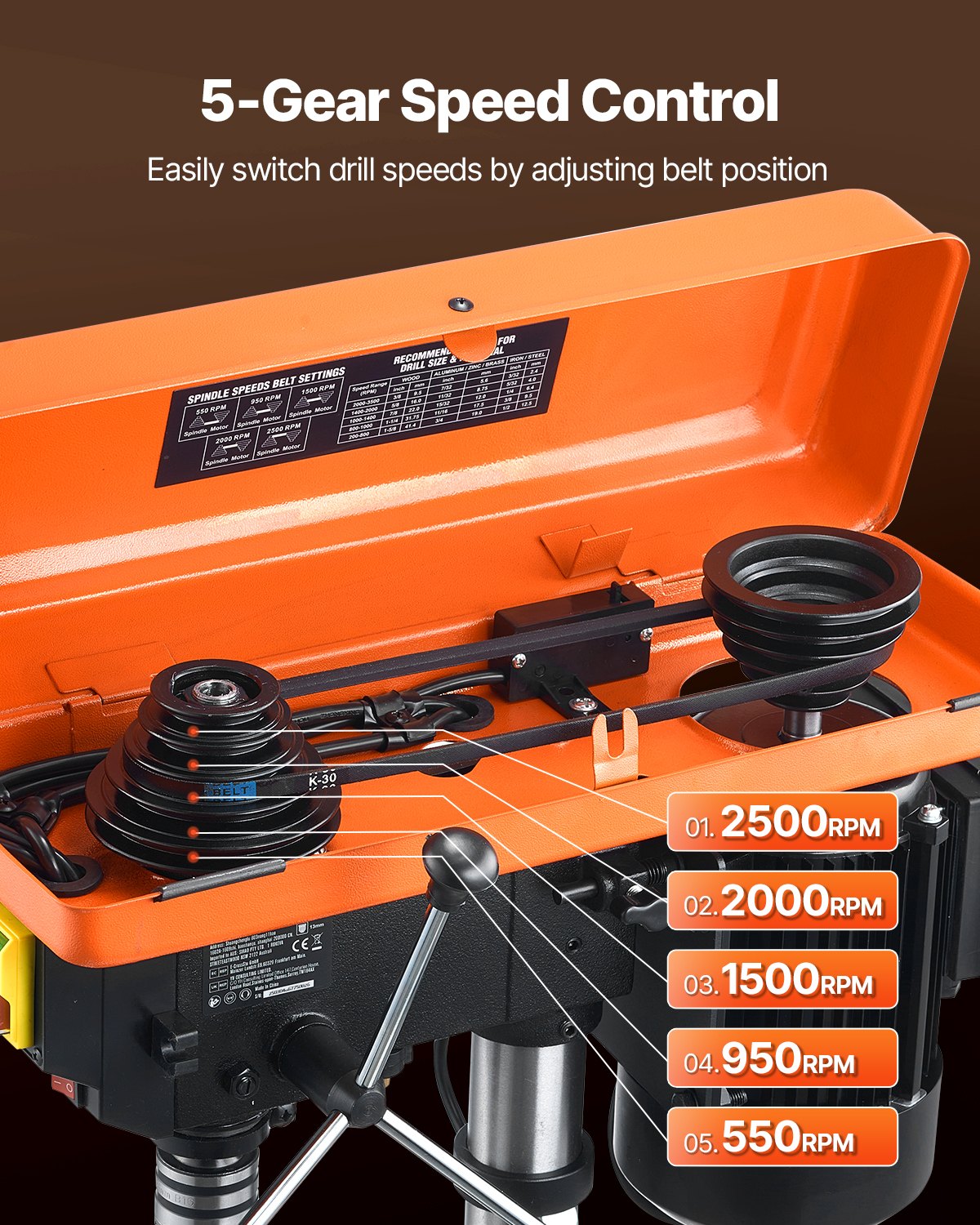

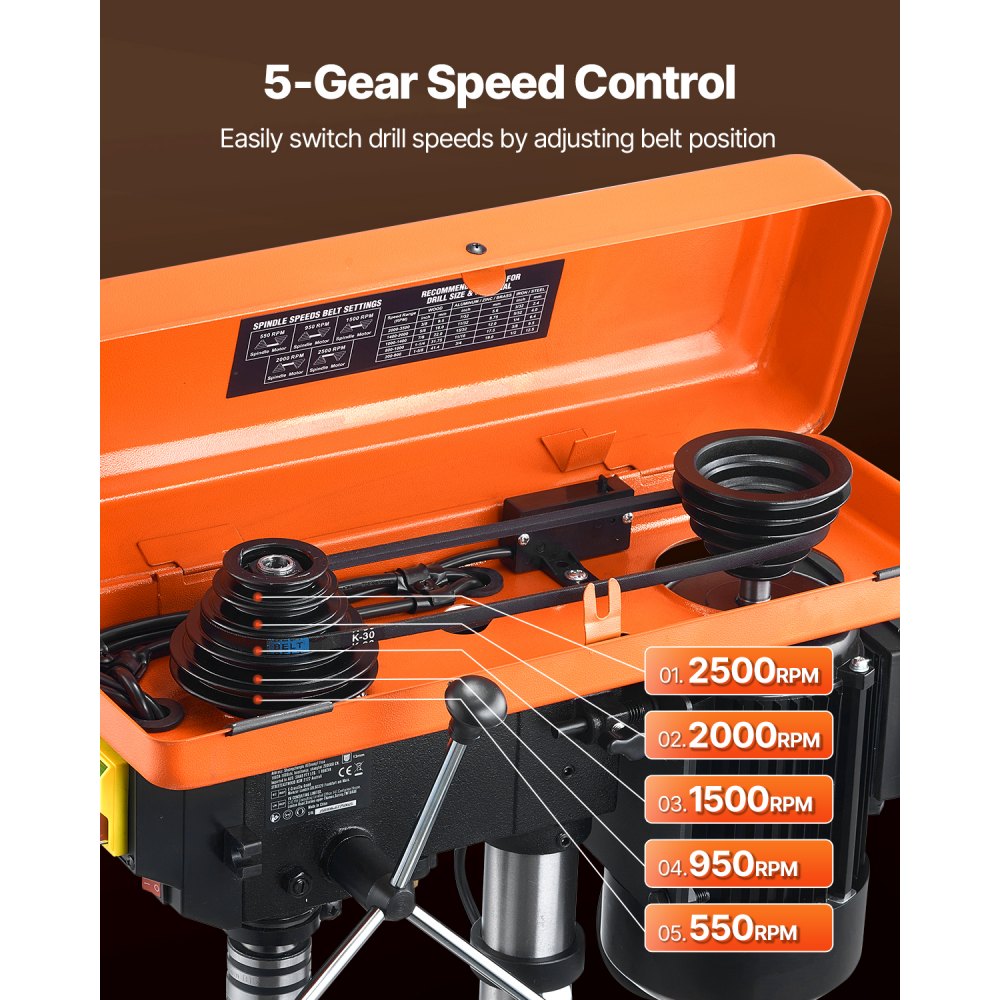

Switch between 5 speed settings by adjusting the belt position, tailoring the benchtop drill press’ s speed to different materials and workpiece sizes for optimal efficiency and precision.

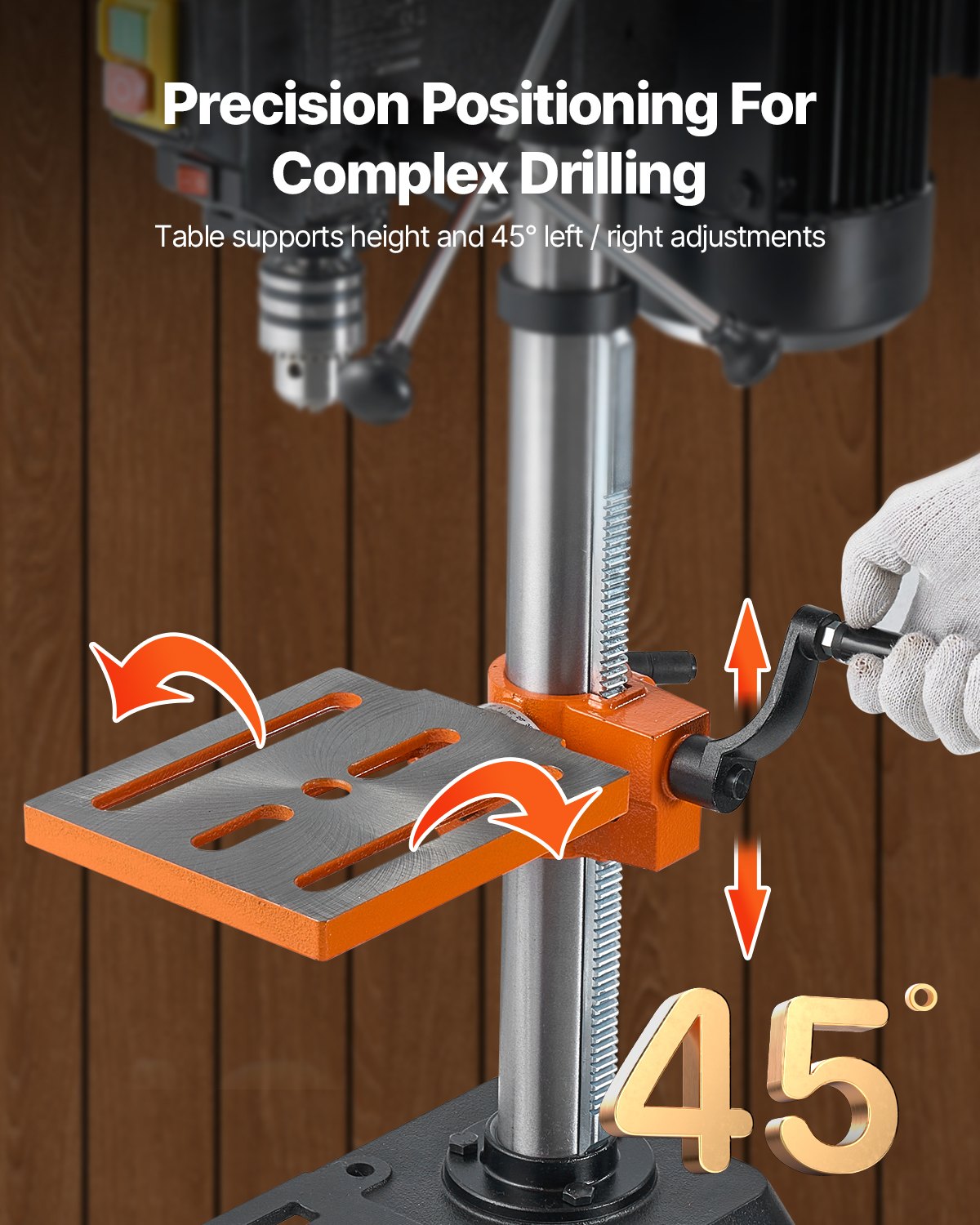

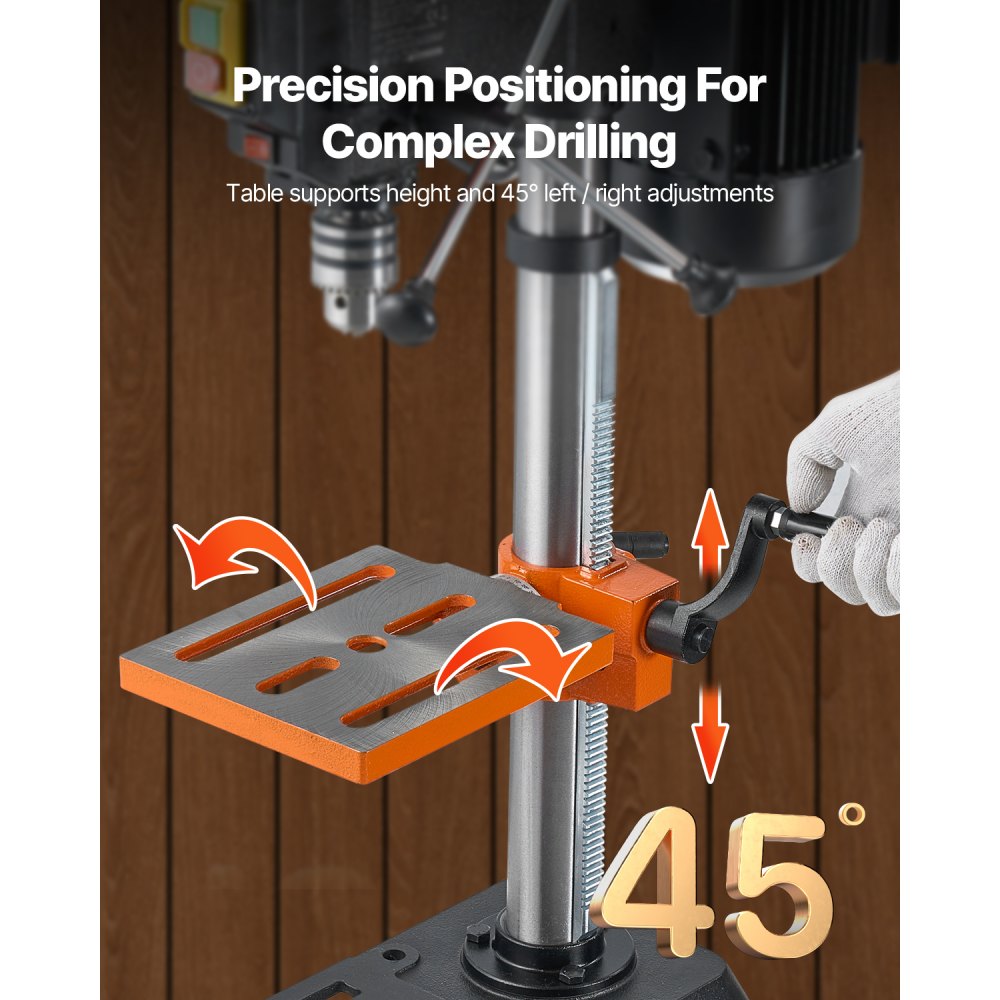

Crafted from thick metal, the worktable offers exceptional stability. It also features adjustable height and 45° tilt both horizontally and vertically, ideal for precise positioning in complex drilling tasks.
Features an adjustable depth stop with a 2-inch spindle travel, our benchtop drill press allows you to set exact drilling depths for consistent results. Also includes a high-quality cooling system to handle bulk processing.

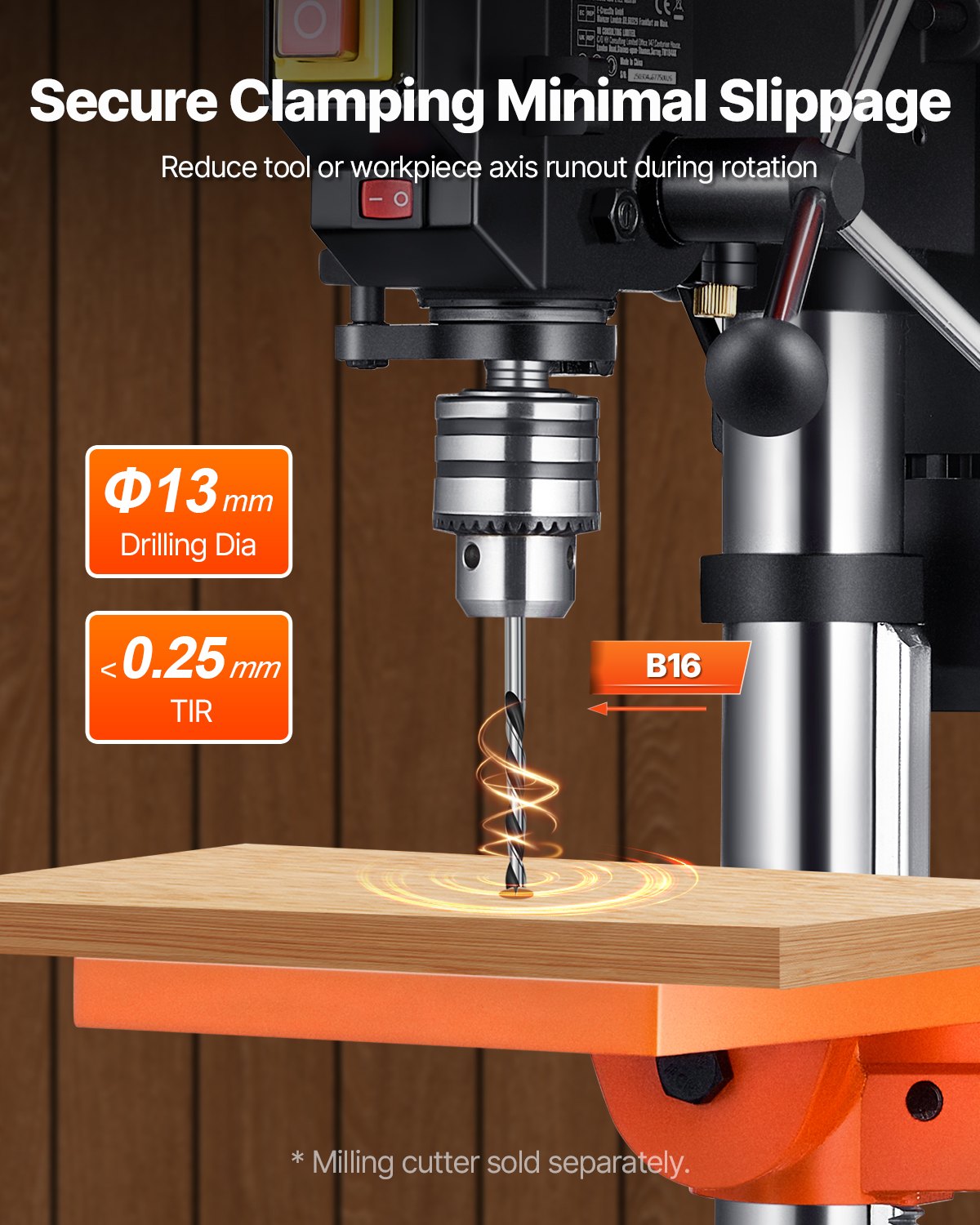

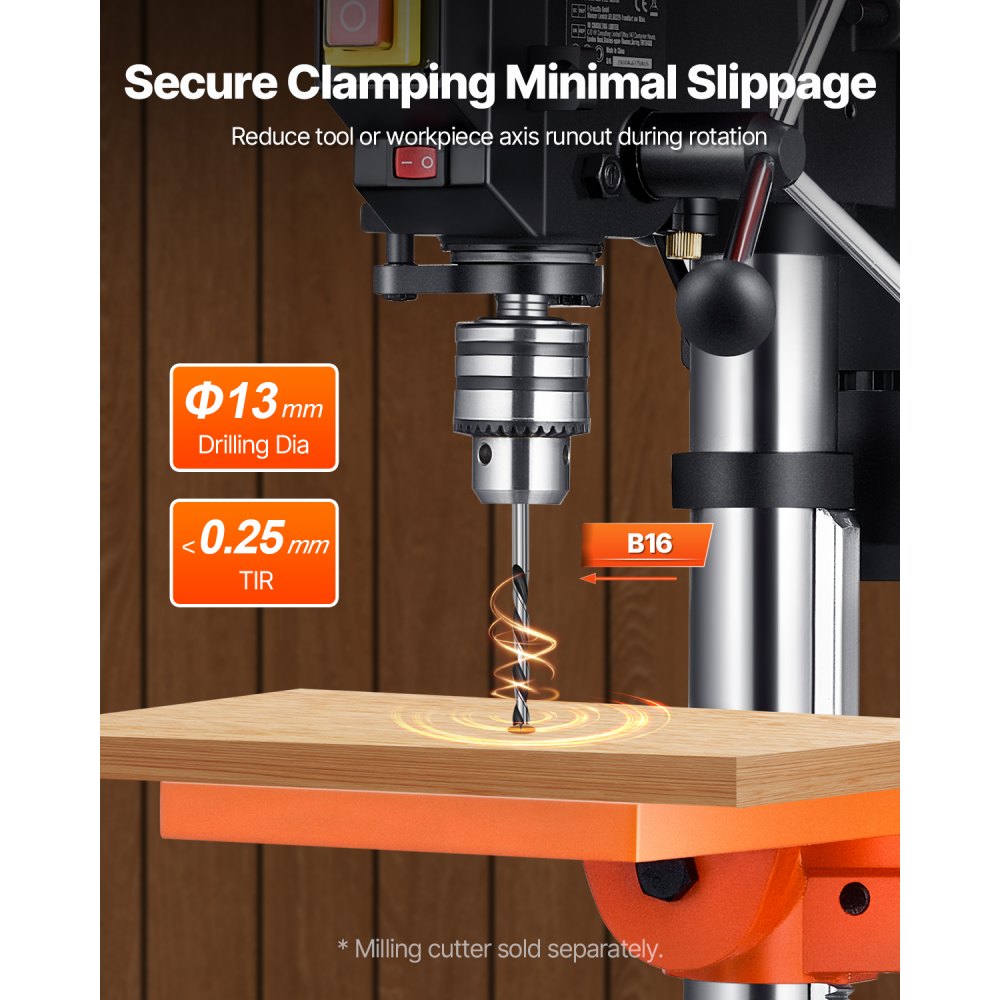

Stability is crucial for precision drilling. Our JT33 chuck, hardened through quenching, ensures a secure grip on the drill bit, no more worries about deformation.

Specification

Item Model Number
DP103L
Swing
10 in/254 mm
Spindle Speed
610/940/1500/2150/2800 RPM
Main Material
Q235, HT150
Chuck Capacity
≤1/2''
Net Weight
43.4 lbs/19.7 kg
Product Dimensions (L x W x H)
19.5 x 9.8 x 29.1 in/495 x 250 x 740 mm
Questions and Answers
1 Questions
what is the spindle travel distance
It is 50mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
57 Review(s)
Clear filters
Gene Taylor Gene Taylor
Mr
This is a very heavy duty drill press. As always, The deliveries are always timely. I will continue to shop Vevor products, the quality is always upper end
Steven Ross Steven Ross
Needs setup; Great for home or hobby
Setting up out of the box: The user needs to attach the press tower to the powder-coated cast-iron base (using your own wrench), the cast and machined-flat table to the press tower, and the drive assembly to the top of the tower. Once this is complete, the user needs to clean the mating surfaces of the chuck and spindle, then use a hammer to attach the chuck onto the spindle. I did this, tested the trueness of my chuck assembly, and discovered some wobble. A couple more medium whacks with the hammer, and the chuck was set nice and true. The table on mine was not squared to the drill bit axis. I used a long Philips screwdriver stuck in the chuck, handle side down, with a small carpenter's square, to get the left-to-right (X-axis) alignment correct. The indicators for degrees of tilt on the table should not be trusted out of the box. Luckily, the table is square front to back (Y-axis), as this is not adjustable on this model. I then adjusted the pulleys to the lowest speed, easily done with no tools. My impressions: Once set up, I was able to rattle off several small home and hobby projects that had been held up due to needing good, 90-degree holes made, including counter-sinking, using the chuck stop on the left side of the press. Get yourself some small C-clamps for holding work steady on the table (different hardnesses in the wood grain can can make pull your project out of alignment) and supply your own work light to shine on the project area, as one is not included with this model. *For the money* this is a good little beginner drill press that has met and, in some cases exceeded, my expectations. If you want more bells, whistles and convenience, spend more on another more expensive model. For occasional home and hobby uses, this is a great little press.
Christina Hughes Christina Hughes
Intuitive set up and operation.
It's heavy for its size and that's a plus. First use was flawless - drilling a 1/32" hole to a depth of 1/8" to modify and repair a camera part. One more similar repair and the drill press will have paid for itself.
Zachary Bennett Zachary Bennett
Compact yet effective!
This drill press performs exceptionally well. I primarily utilize it for constructing birdhouses, but I have no doubt it excels in other applications as well. The assembly process was quick, taking only 5 to 10 minutes, and the instructions were straightforward and easy to follow. I would highly recommend this drill press to anyone engaged in small woodworking projects as a hobby.
Diane Powell Diane Powell
Precision and Power in a Compact Design!"
Constructed with a durable cast iron base, this drill press ensures stability and reduces vibration, resulting in more accurate and controlled drilling. The 5-speed settings cater to various materials and project requirements, offering flexibility and precision. The easy-to-adjust depth stop and spindle travel enhance the overall user experience, allowing for consistent drilling depths. Assembly is a breeze with clear instructions, and the black and orange color scheme adds a touch of style to the workspace. The adjustable worktable and beveling feature accommodate a range of angles and project demands, proving the versatility of this drill press. While the 8-inch size may not be suitable for industrial-scale projects, it is ideal for hobbyists and those with limited space.
Sean Hughes Sean Hughes
Quality
Well made easy to assemble and change speeds.
Julia Rogers Julia Rogers
Outstanding value!
Haven't cleared a space for permanent mounting so the wife agreed to let me use her dining room table! I'm using two panel meters and two SPST illuminated switches so holes needed drilling. Fortunately the panel switches included a hole saw so all I had to do was buy the appropriate size saw for the meters! After determining how best to clamp the work, I enlisted the wife to help hold the laser panel while I torqued it all up. As you can see, the drill press performed FLAWLESSLY! Out of the box and 10 minutes later? JOB DONE! Excellent value and quality!
Vincent Russell Vincent Russell
Great buy
A good little drill press I have drilled several large holes with forshner bits and a hole saw. Looks like it is well built and will last a long time. I have not drilled any metal yet and that’s not what I bought it for so I imagine it would drill thin steel but if you are expecting miracles for a hundred dollars you better buy something much larger. It will be perfect for my needs. I added a ply wood base to clamp it to my bench and to the table for a larger surface so I could use my drum sander.
Amy Price Amy Price
Use it for knives and wood work
Works like it's supposed to and hasn't had any issues
Chad Hughes Chad Hughes
Great tool for beginners like me
Packed very well, easy to understand instructions, no missing parts, and feels very robust and heavy duty. I tried it and it impressed me.
