3 Phase Converter 20HP 70A 220V Single to 3 Phase 220V-240V Input/Output

Name: 3 Phase Converter 20HP 70A 220V Single to 3 Phase 220V-240V Input/Output
Brand: VEVOR
SKU: SZBXQ15KW000TXDY8V7
Price: 267.99 USD
Availability: InStock
Rating: 3.4 (12 reviews)

See All Customer Reviews

12 Reviews 3 answered questions

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive $5.00 off for your first three orders on the App.

Download Now

Exclusive $5.00 off for your first three orders on the App.

Scan the QR code to download

About this item

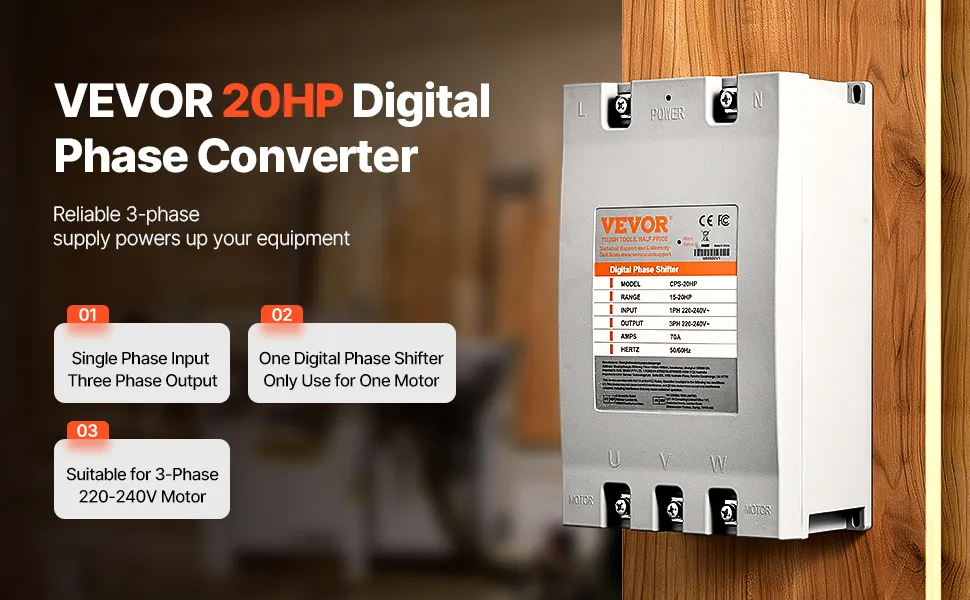

Precise Phase Conversion: 20HP digital phase converter excels in transforming single-phase to 3-phase power, ideal for operating 220-240V motor equipment that requires a three-phase input. With compact size, high energy efficiency, and easy installation, it's an optimal choice for precision power conversion.
Compact and Effortless Installation: With dimensions of just 13.3" x 7.8" x 5.3" and weighing only 9.0 lbs, this digital phase converter occupies minimal space. It's ideally suited for both residential and small-scale commercial settings, offering a space-saving alternative to bulkier traditional inverters.
High Efficiency, Cost Savings: The 3 phase converter excels in energy efficiency, operating without high-frequency interference and offering lower power consumption. Long-term use brings substantial energy and operational cost savings.
Simple and User-Friendly Setup: Installation is straightforward—simply connect the power supply and motor lines. There's no need for complex programming, making it user-friendly. For added safety and reliability, it's recommended to use with an air switch.
Versatile Applications: Perfectly suited for high-powered motor-driven equipment in residential and commercial settings. Whether for power tools in a garage or woodworking machinery in a small business, this phase converter provides stable and reliable three-phase power, meeting diverse motor power requirements.

See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

3 Phase Converter 20HP 70A 220V Single to 3 Phase 220V-240V Input/Output

Description Specification Questions and Answers Reviews

Phase Conversion Redefined, Empower Your Equipment

20HP digital phase converter precisely converts single-phase power into 3-phase power, providing efficient and reliable 3-phase power solutions for diverse equipment. Compact, easy installation and energy-saving. Enhance equipment performance now and enjoy a more stable power supply.

This digital phase shifter is user-friendly, offering a straightforward wiring connection —Simply connect the power supply and motor lines without the need for complex programming settings. Remember to pair it with an air switch for increased safety and dependability.

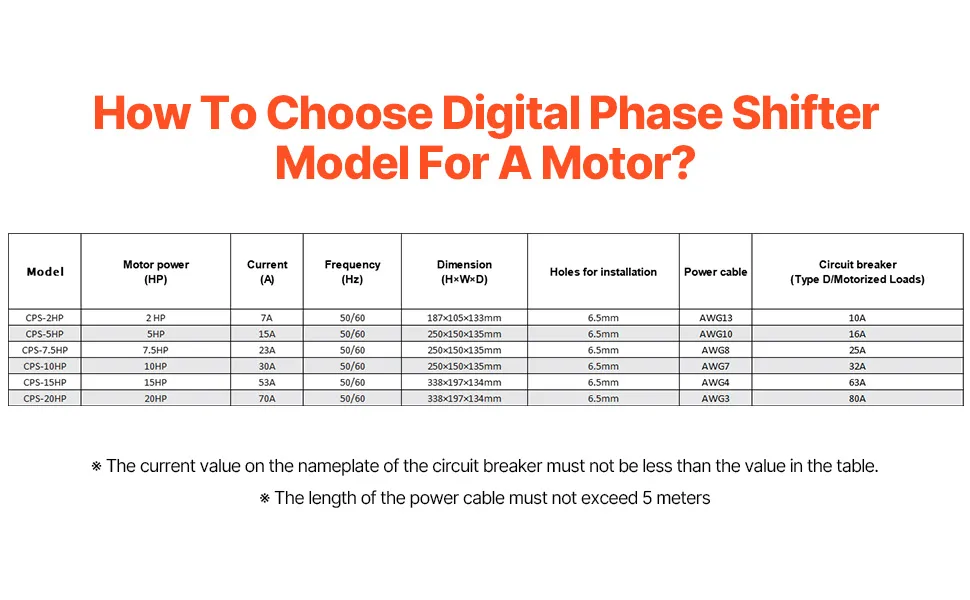

Power Selection Notes - When the power of the converter is several levels higher than the motor power, it will cause abnormal heating of the motor. When the power is several levels lower than the motor power, it will cause startup failure.

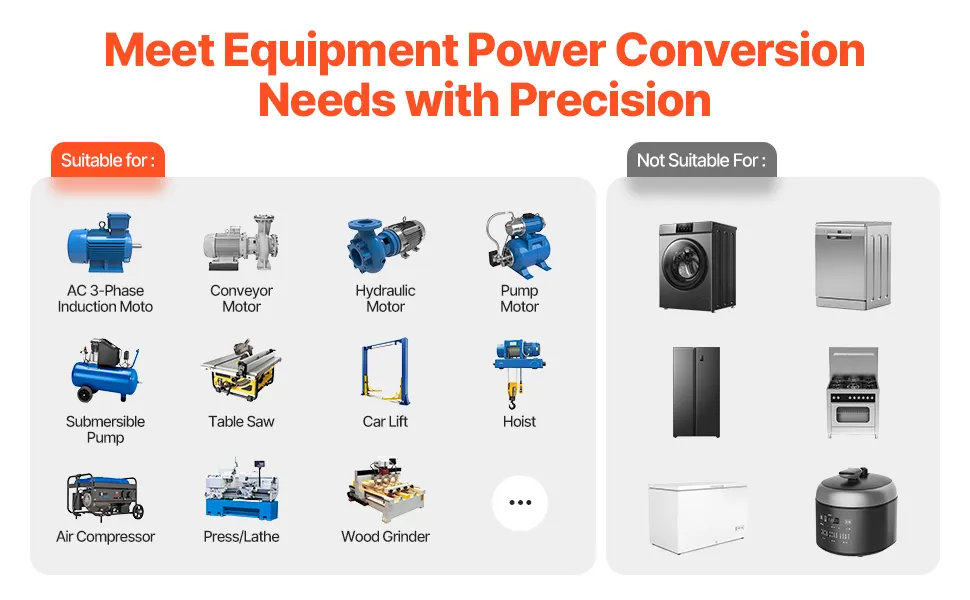

Our digital phase shifter is the ideal choice for various settings: home garages, garage workshops, and small workspaces. It meets equipment power conversion needs with precision, ensuring the efficient and smooth operation of your equipment.

This single phase to 3 phase converter is compact and lightweight, occupying minimal installation space. It features direct wiring connections, making it incredibly easy to connect to phase converter and motor. It's important to note that one converter must be used on one motor only.

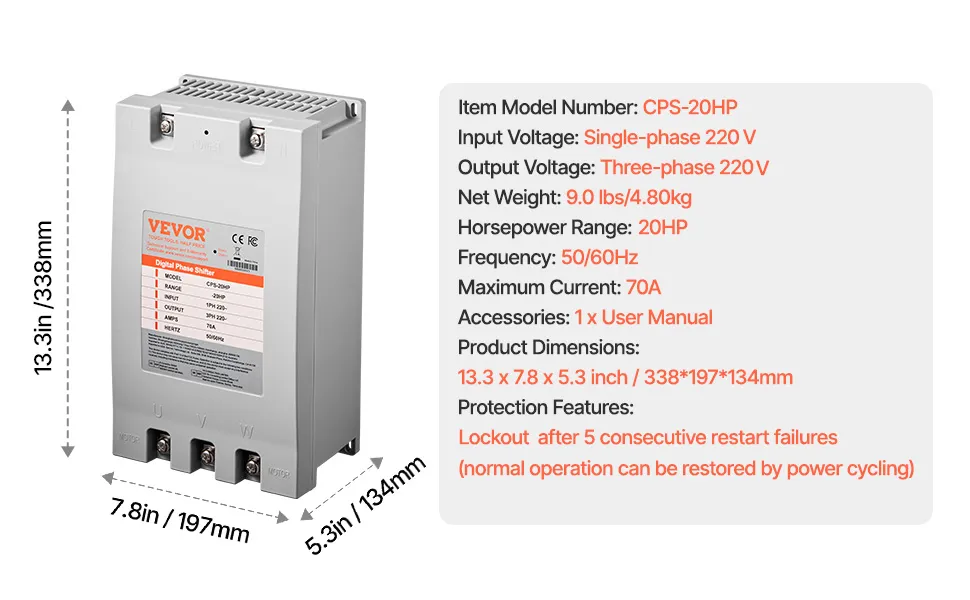

Specification

Item Model Number: CPS-20HP

Horsepower Range: 15 - 20HP (15KW)

Input Voltage: Single-phase 220 - 240V

Output Voltage: Three-phase 220 - 240V

Frequency: 50/60Hz

Maximum Current: 70A

Net Weight: 9.0 lbs / 4.80 kg

Product Dimensions: 13.3 x 7.8 x 5.3 in / 338 x 197 x 134 mm

Questions and Answers

3 Questions

or Ask a Question

Question:

Can this be used to power a small CNC machine with a lower total amp rating than your phase converter?

Answer This Question

Answer:

This can not be used to power a small CNC machine with a lower total amp rating than your phase converter.

By vevor

Helpful ( 1 )

Question:

I have a PROSPOT I4 welder 3P 60A and want to use it for my side work at the garage. I have 60A single phase breaker in existing electrical panel. Can 70A converter can be used for this purpose ? Thank you T

Answer This Question

Answer:

No, our inverter output can only be used for three-phase asynchronous motors and cannot be used for other equipment.

By vevor

Helpful ( 0 )

Question:

I am looking to use one of your converters for my commercial steam oven. Will this work or not and would you please include why? Thank you for you time.

Answer This Question

Answer:

No. The inverter outputs a three-phase square wave signal, not a sine wave signal, which will damage the electrical equipment on your appliance.

By vevor

Helpful ( 0 )

Customer Reviews

3.4 Out of 5

Based on 12 reviews

12 Review(s)

Clear filters

Mostly

I reordered to get one sized correctly for my motor. This does work. Motor starting is ruff and noisy. Once the motor starts it run good with a fairly balance phase current.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Craig

owner

I am very disappointed. The unit doesn't work so I addressed the technical hotline and received no help. I have been corresponding with Amir and can not get any support with the item. I requested a Return Authorization Number so I could send it back and receive my money back. The last email he offered me a credit of $20 to keep the item. Why would I keep the item if it doesn't work? This has been going on way too long and I have wasted way too much of my time with it. Very Disappointed. I would rate it zero but one star is as low as I can go.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

perry

homewner

i still have not took this converter out of box because i don't know if i need the 10hp 30 amp one to run my lathe at optimal performance have been waiting on your support team to answer this question for me i will do what they recommend which is best to suit my needs my lathe has a 7.5 hp motor 21.6 amp and my question is will the one i have is sufficient to get the most power to my lathe or do i need next size which is 10 hp 30 amp one you have your answer will be greately appreciated thanks.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

OldSchool

Synergy Excavating

This is the 2nd one I've bought, thought maybe the 1st one was defective, & it was past the return window. The voltage is 277 volts on one pole, on both converters. This is causing overheating on my machines. Very disappointed.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Devin Whitaker

Sent me wrong item

They sent me a power inverter instead of this product. Now I'll have to wait a week or so before they get back to me to make it right

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Michael Goode

Bought this to test 3phase fans

No issues, working great!

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Larry

For about 1/10th the cost of a mechanical phase converter rated for 10hp, I installed this solid state one, and it works fine. I haven’t a clue how it works, and you can’t test the manufactured leg until the motor is running, so installation requires a bit of faith in the very brief installation instructions. As usual, Vevor provides no useful technical support, manuals, warranty, or anything else after the sale, so it’s a bit of a gamble. Not for the faint of heart! Let’s hope it’s still running a year or so down the road. If so, it’s a great value.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Richard

Perfect choice for those who don't need speed control

I have this converter connected to my three-phase radial arm saw. It performs just beautifully. Very economical solution to my problem.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Amazon Curstomer

I love it.

Much easier than other VFR's, better value for the buck.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Warren

Works

It powers my 240 3 phase lathe.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
