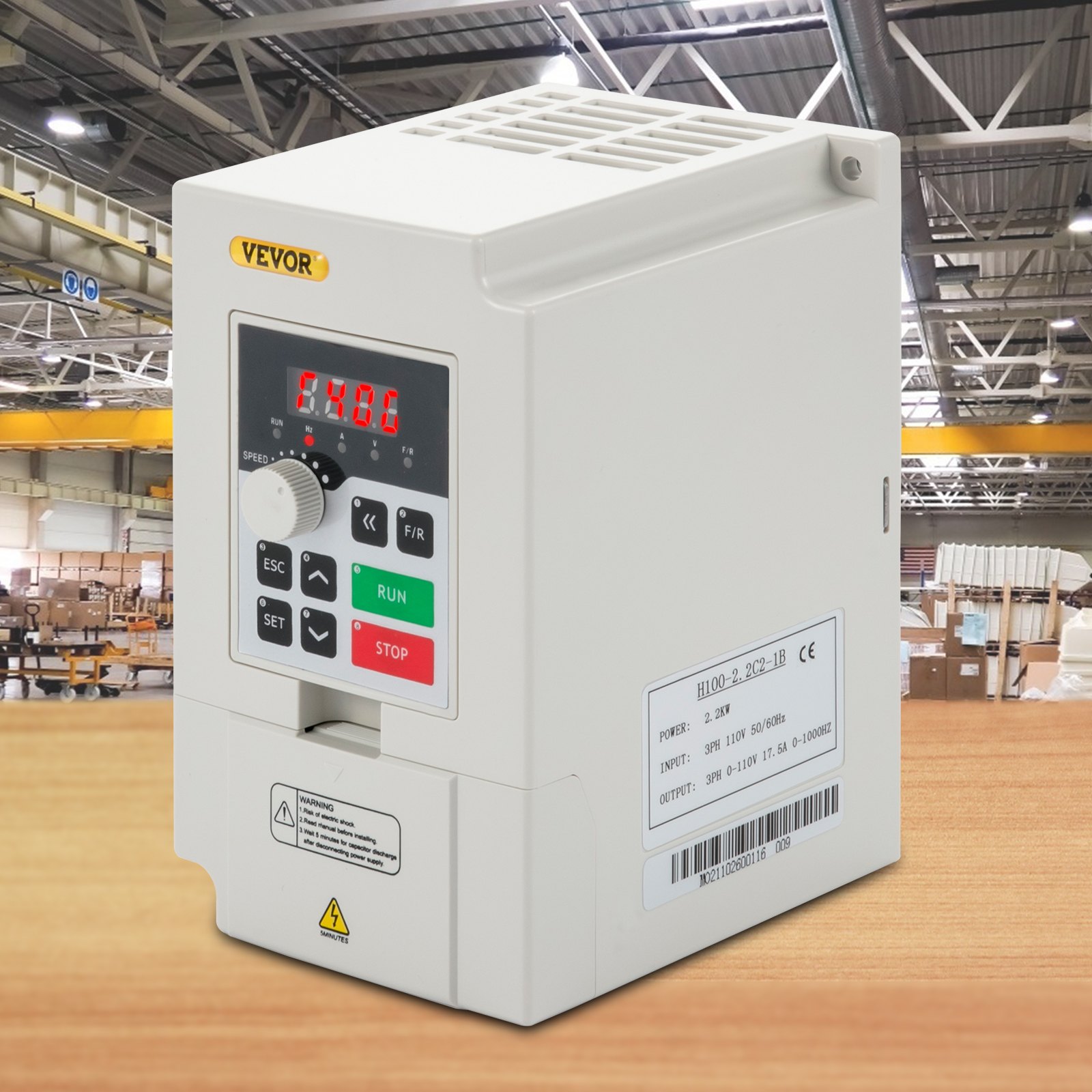

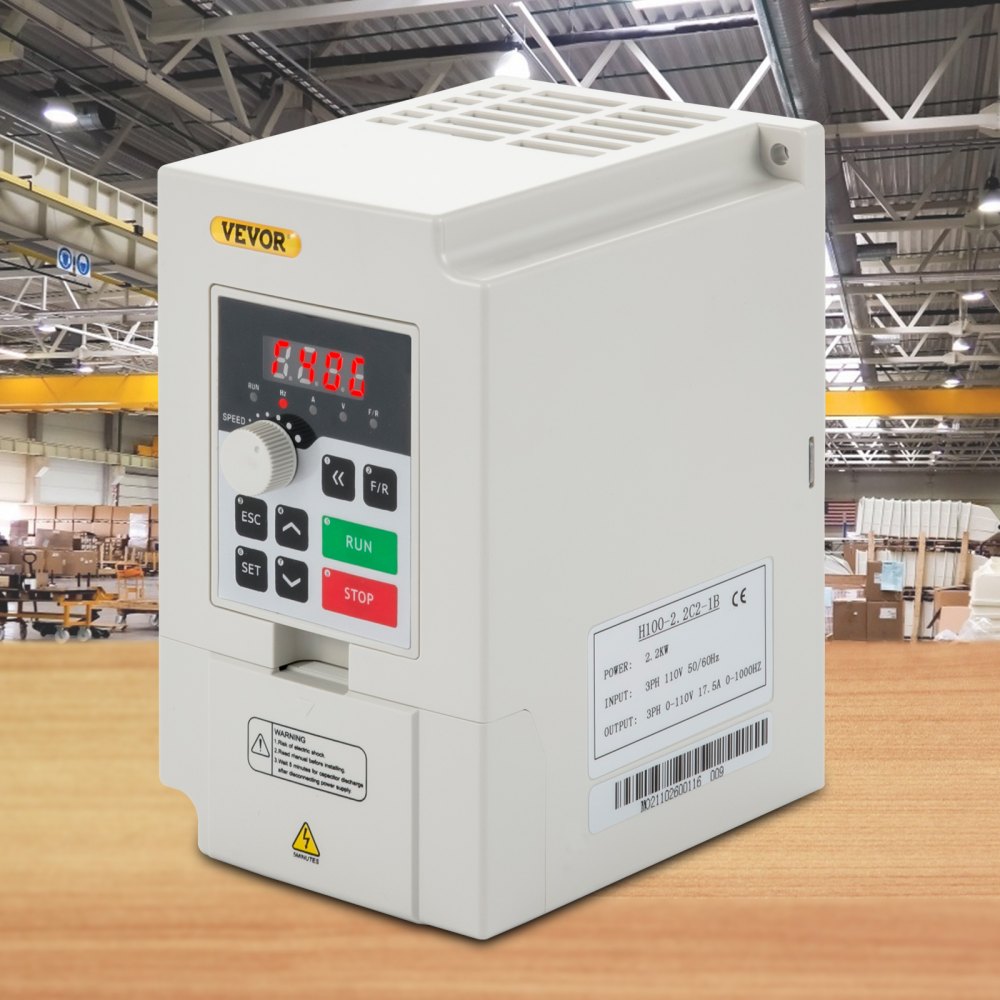

BPQD2.2KW110V6VC3V6

VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485) VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485) VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485) VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485) VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485) VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485) VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
$105.99
105.99
Price including VATSee details

2.2 kW

  • 3 kW
  • 7.5 kW
  • 4 kW
  • 2.2 kW
  • · Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.
  • · Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.
  • · Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.
  • · Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
  • · Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.


Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
2.2 kW
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
2.2 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
  • This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
  • Powerful Function
  • Low-Noise Operation
  • Smart Digital Display
  • Multiple Protection

VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

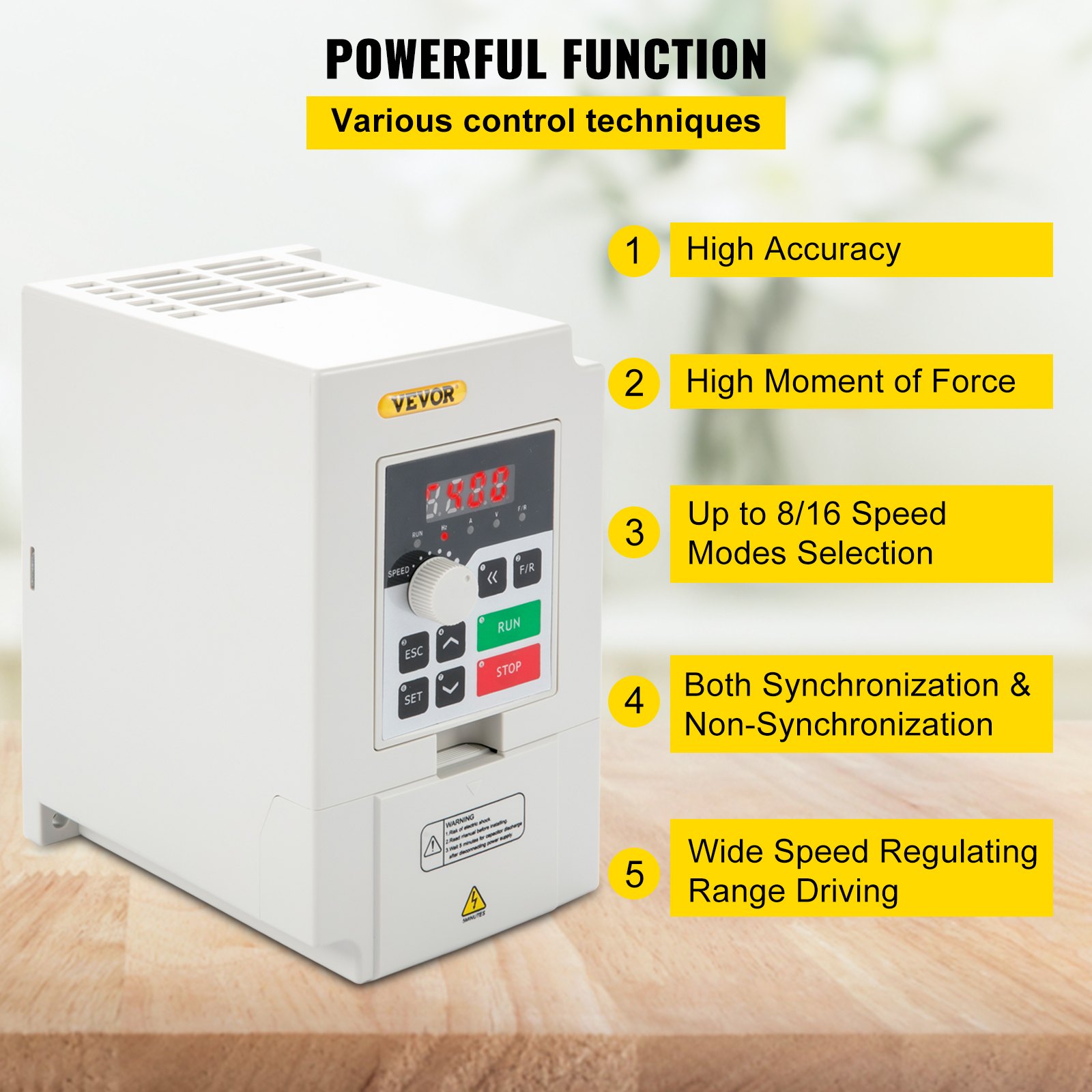

Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

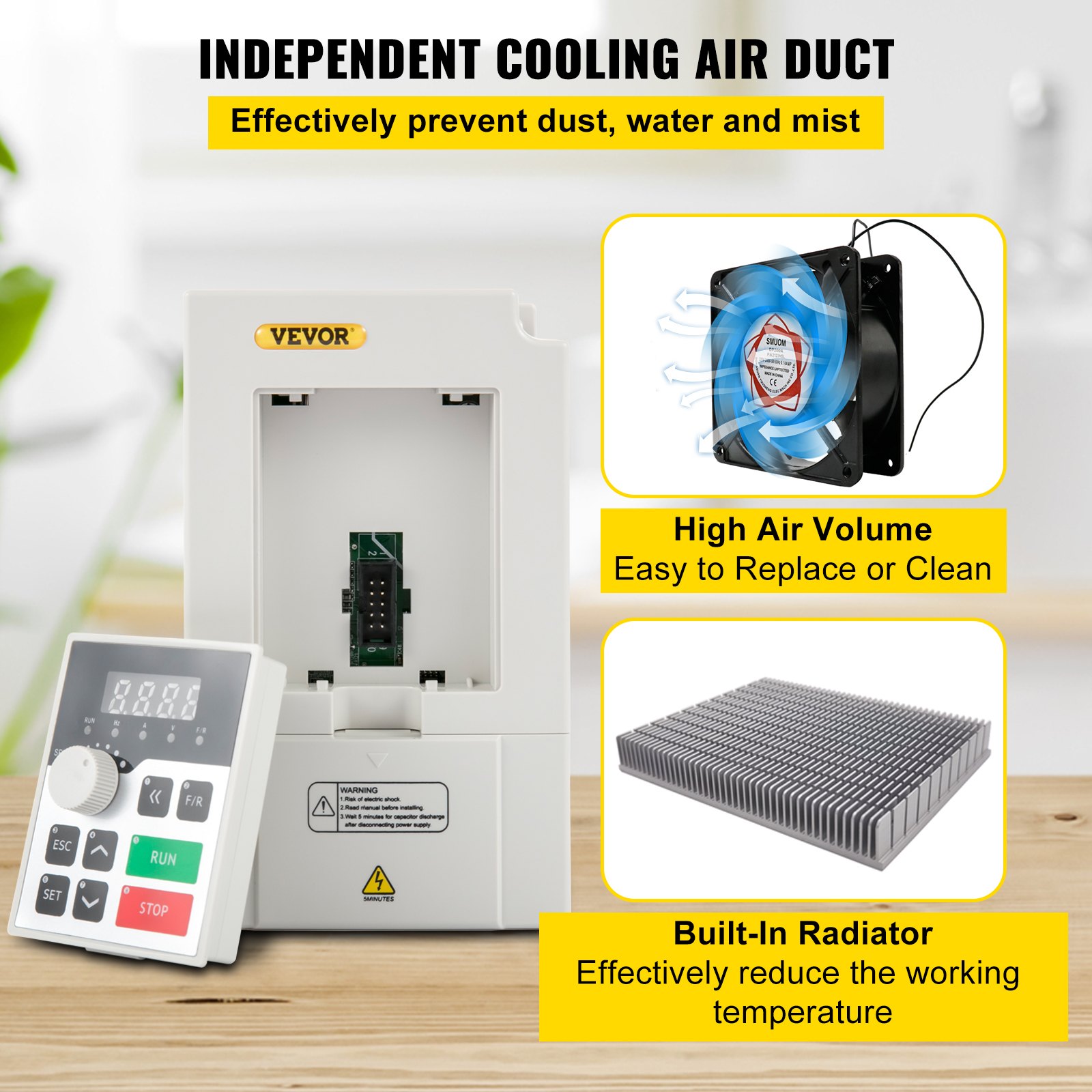

High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

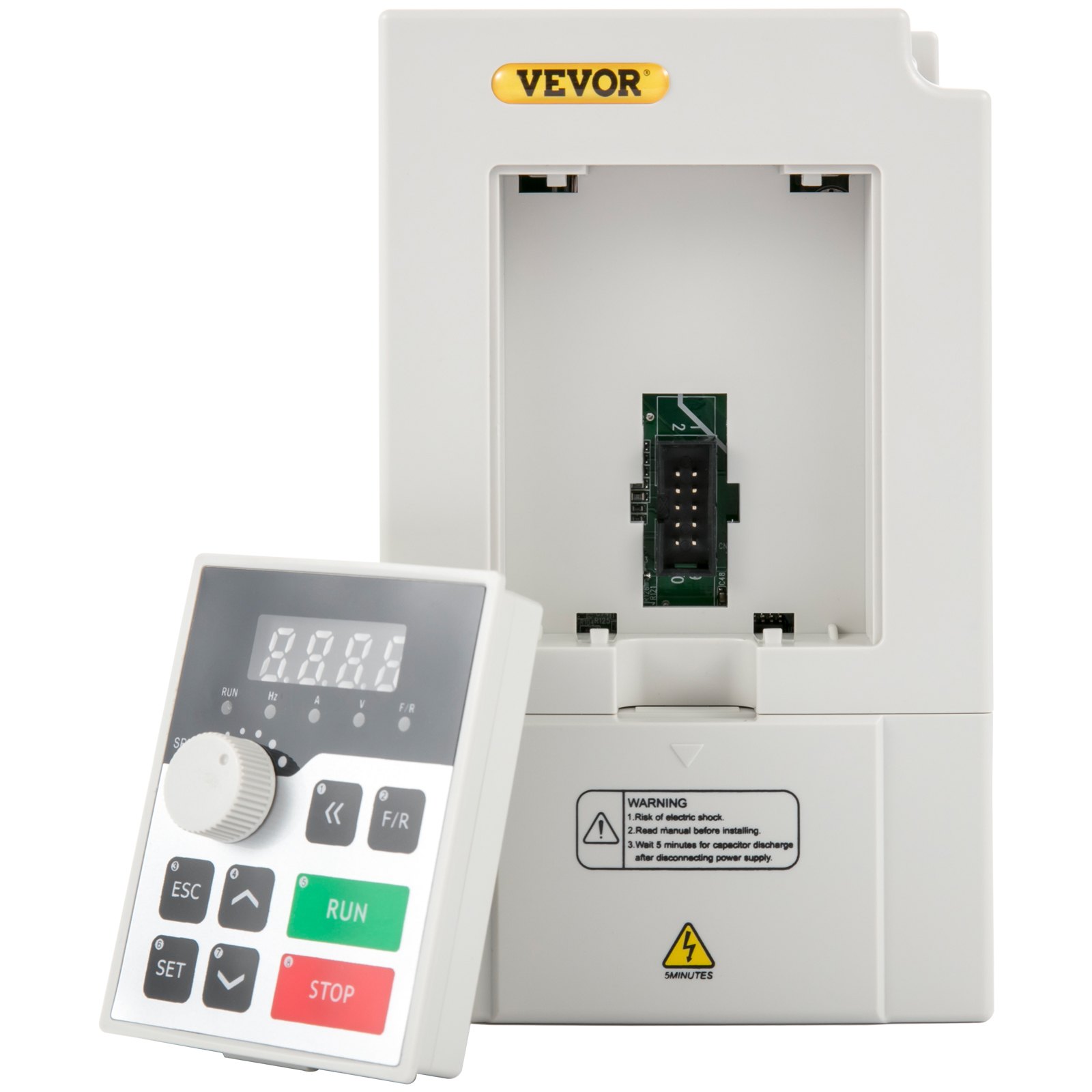

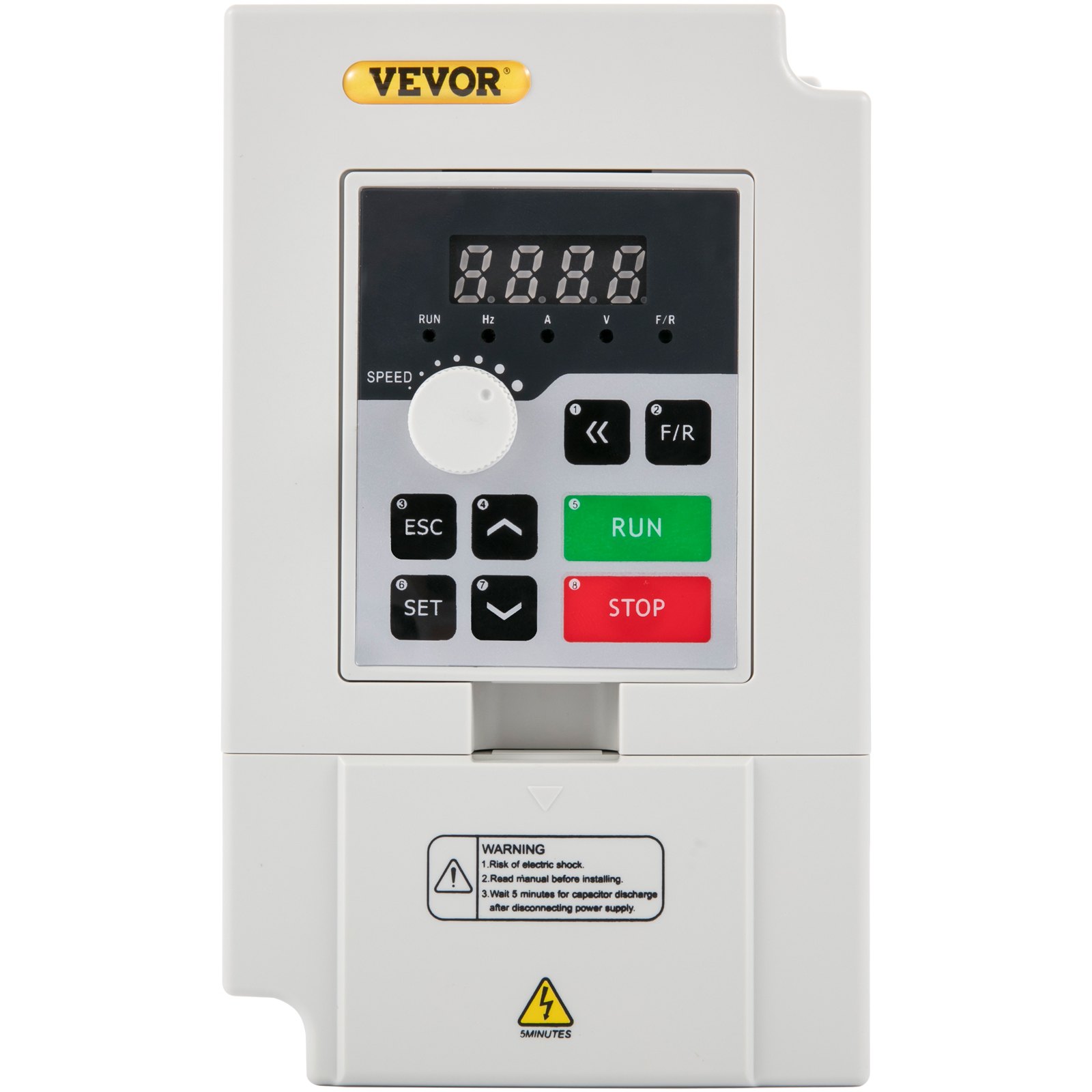

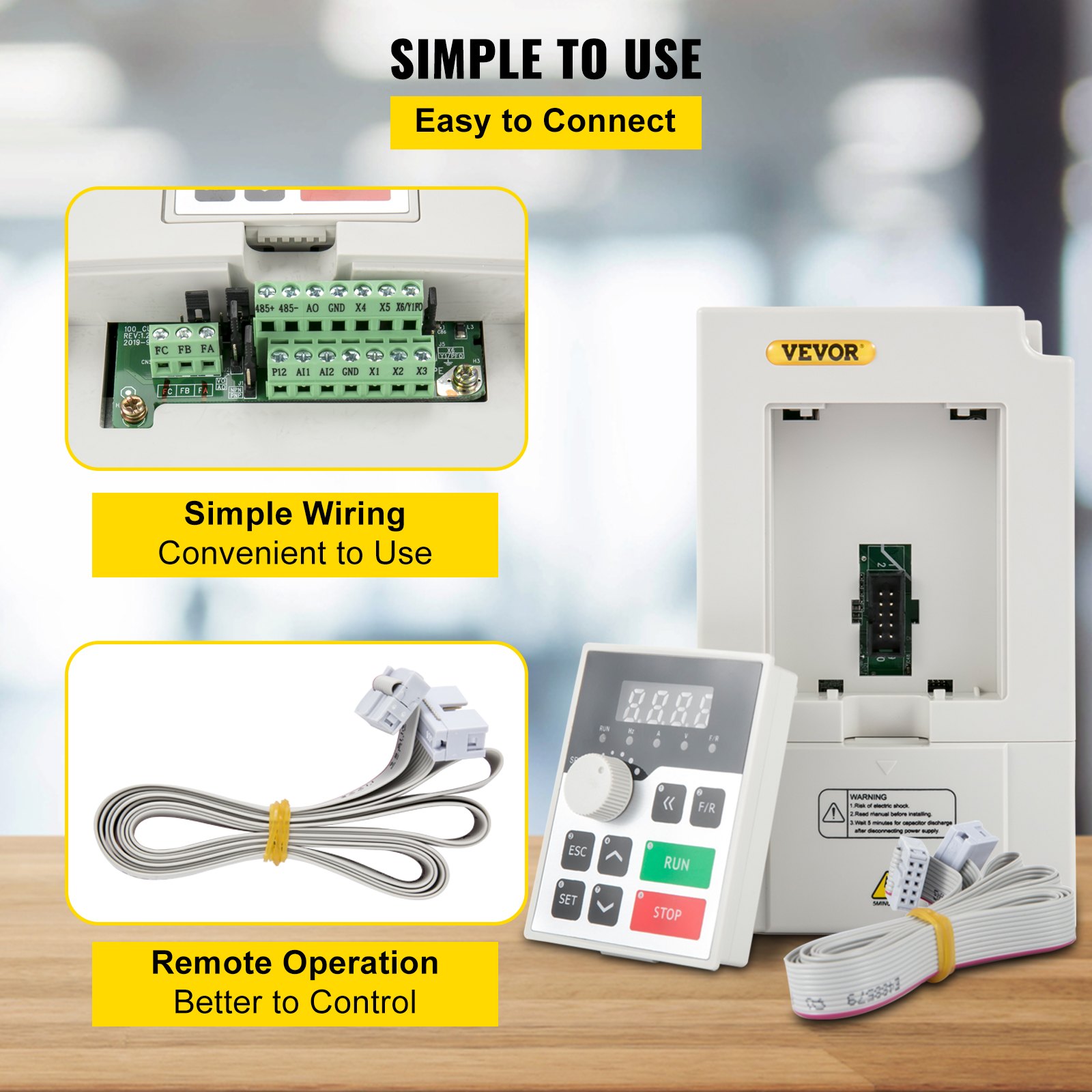

Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

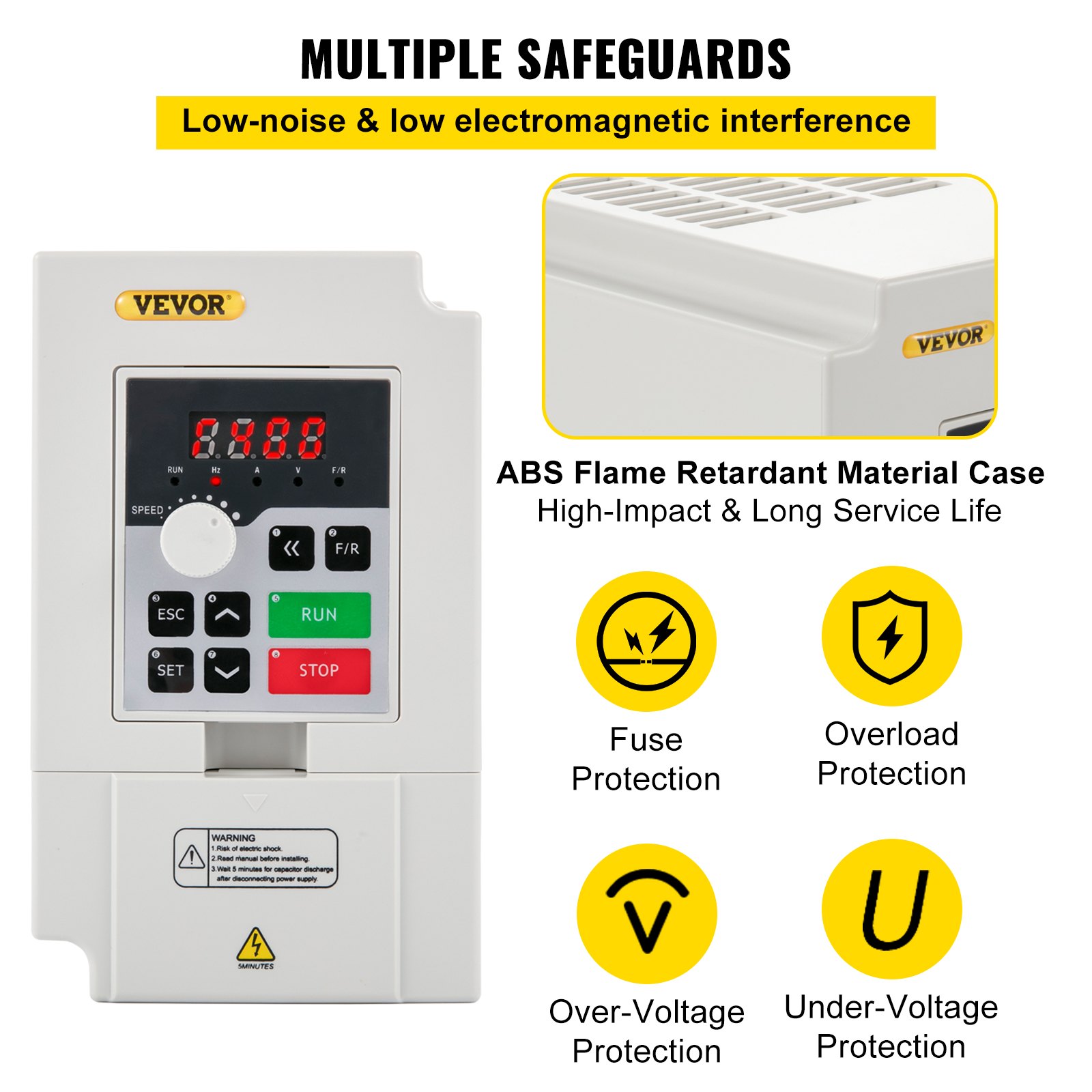

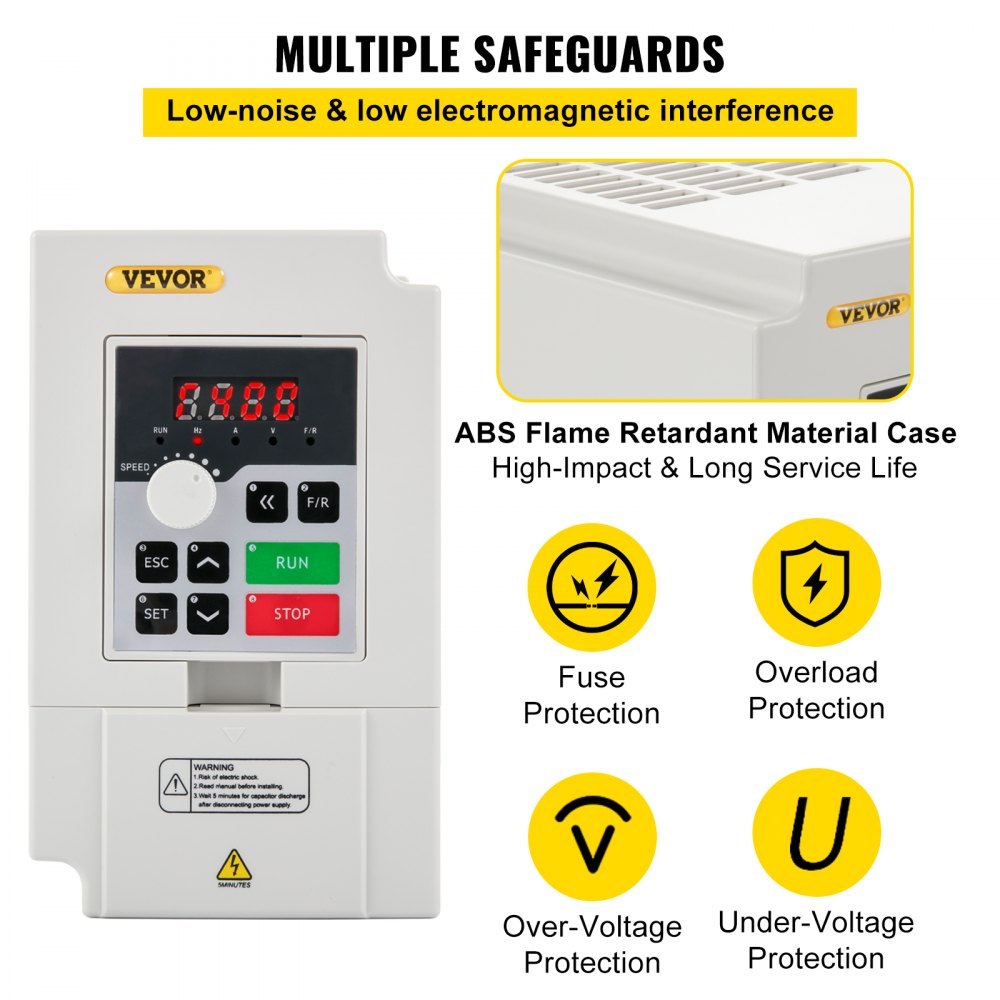

Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

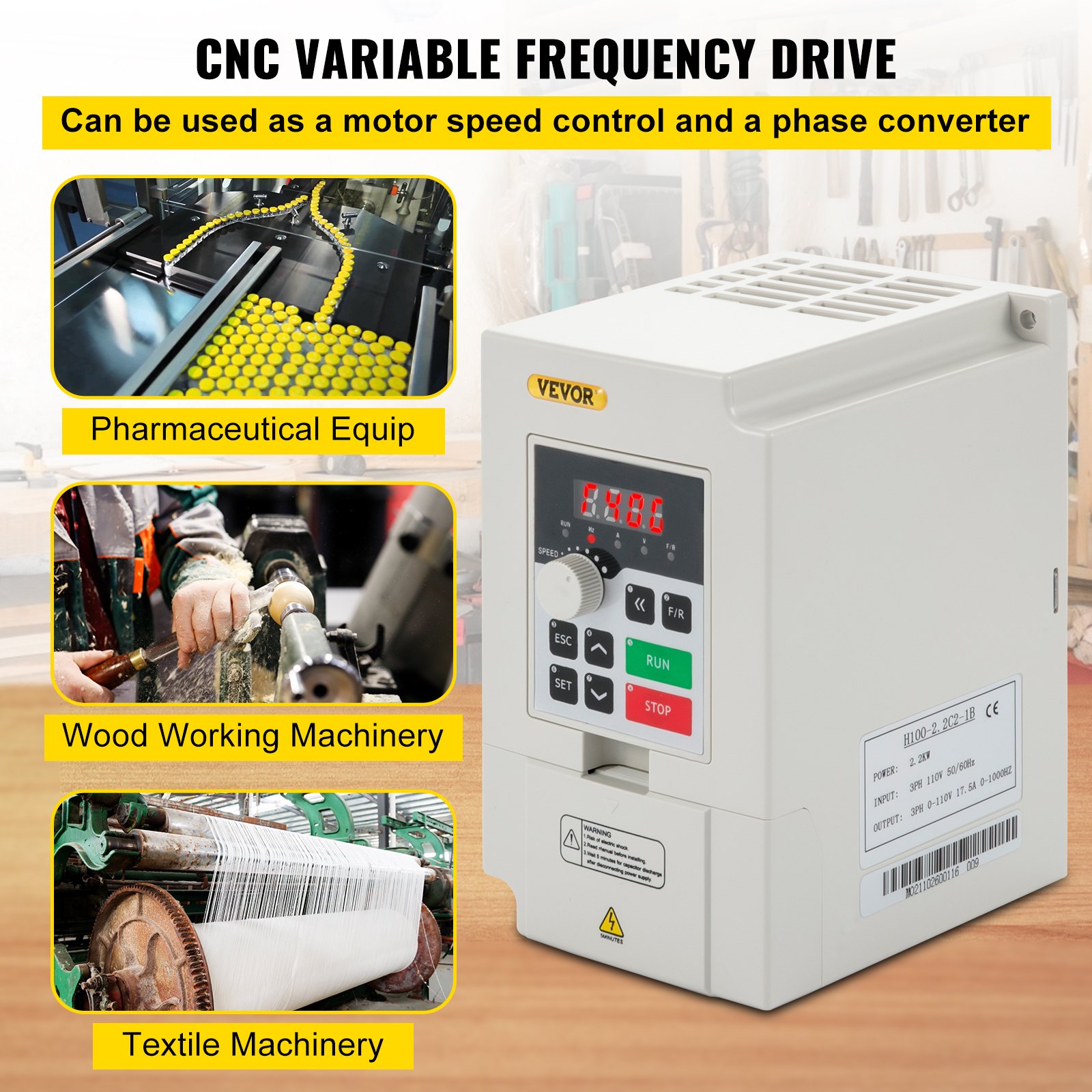

Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

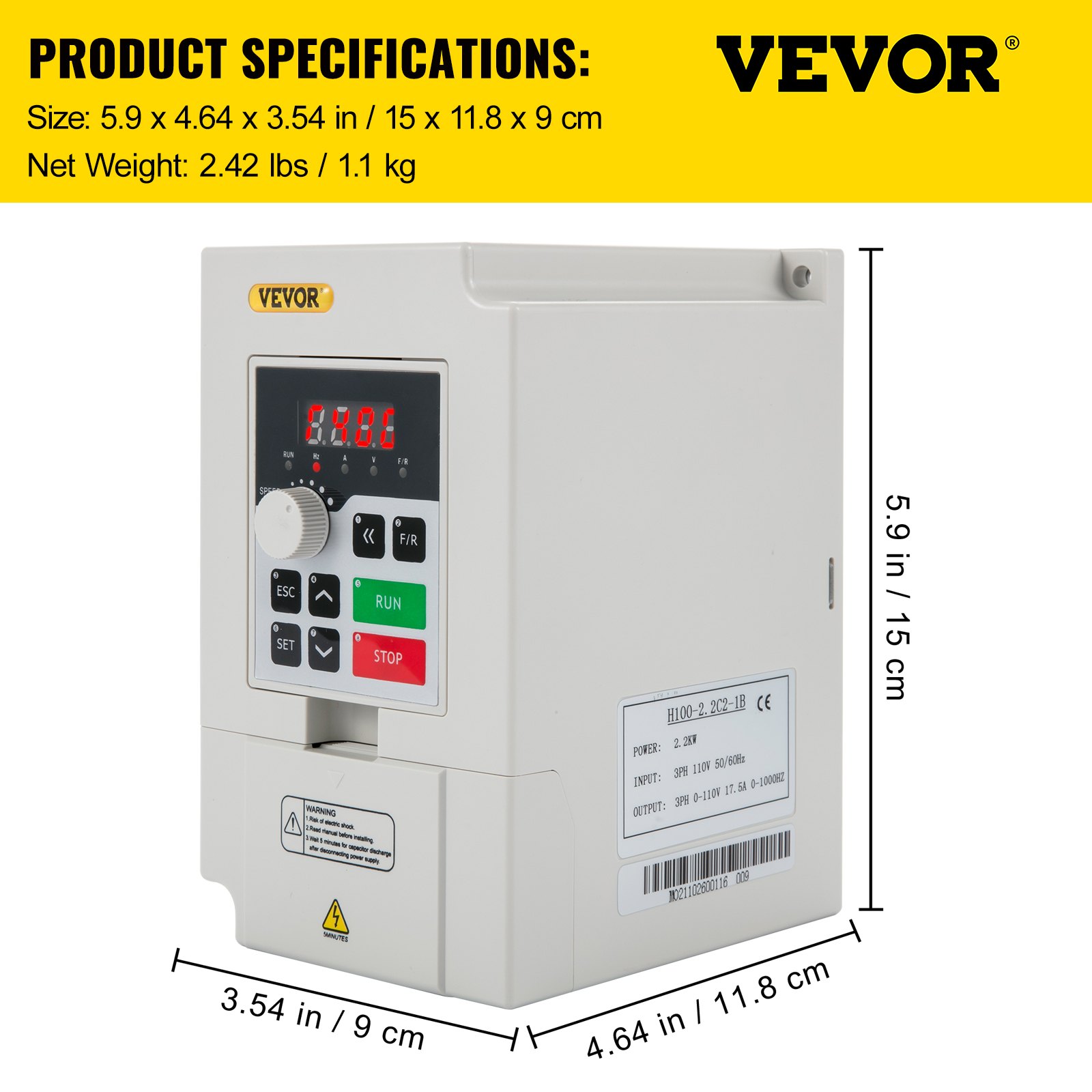

Specifications
  • Model: H100-2.2C2-1B
  • Power: 2.2 kW
  • Input Voltage: 110V
  • Output Voltage: 0-110V
  • Input Current: 0-17.5A
  • Output Current: 0-17.5A
  • Input Phase: 1 or 3 Phase
  • Output Phase: 3 Phase
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-1000 Hz
  • Horsepower: 3 HP
  • Working Temperature: 23~104℉/-5 ~ 40 ℃
  • Humidity: 0-90% Relative Humidity (without dew)
  • Vibration: Below 0.5 G
  • Net Weight: 2.43 lbs / 1.1 kg
  • Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

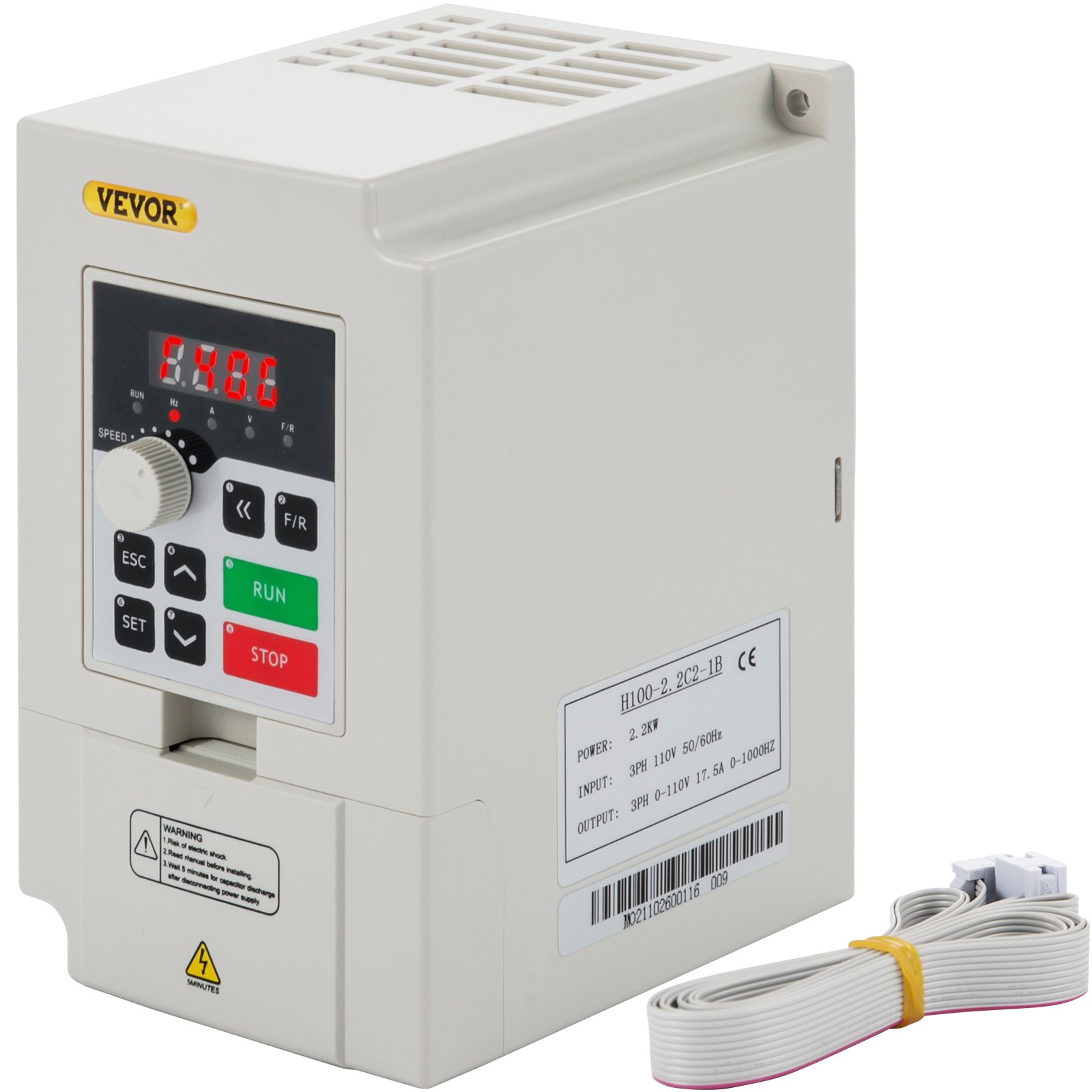

Package Content
  • 1 x 2.2 KW Variable Frequency Drive Inverter
  • 1 x English Manual
  • 1 x Extension Wire
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)

VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
2.2 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
  • This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
  • Powerful Function
  • Low-Noise Operation
  • Smart Digital Display
  • Multiple Protection
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Package Content
  • 1 x 2.2 KW Variable Frequency Drive Inverter
  • 1 x English Manual
  • 1 x Extension Wire
VEVOR VFD 2.2KW 110V 3HP, 1 or 3 Phase Input, 3 Phase Output Variable Frequency Drive, AC 17.5A 0~1000HZ CNC Motor Inverter Converter for Motor Speed (RS485)
Specifications
  • Model: H100-2.2C2-1B
  • Power: 2.2 kW
  • Input Voltage: 110V
  • Output Voltage: 0-110V
  • Input Current: 0-17.5A
  • Output Current: 0-17.5A
  • Input Phase: 1 or 3 Phase
  • Output Phase: 3 Phase
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-1000 Hz
  • Horsepower: 3 HP
  • Working Temperature: 23~104℉/-5 ~ 40 ℃
  • Humidity: 0-90% Relative Humidity (without dew)
  • Vibration: Below 0.5 G
  • Net Weight: 2.43 lbs / 1.1 kg
  • Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm

Specification

Model
H100-2.2C2-1B
Power
2.2 kW
Input Voltage
110V
Output Voltage
0-110V
Input Current
0-17.5A
Output Current
0-17.5A
Input Phase
1 or 3 Phase
Output Phase
3 Phase
Input Frequency
50/60 Hz
Output Frequency
0-1000 Hz
Horsepower
3 HP
Working Temperature
23~104℉/-5 ~ 40 ℃
Humidity
0-90% Relative Humidity (without dew)
Vibration
Below 0.5 G
Net Weight
2.43 lbs / 1.1 kg
Product Size
5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
Questions and Answers
4 Questions
Is there a place to download a PDF manual for this VFD?
Here is the link to the manual: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/H100manualV1.8%EF%BC%88%E6%96%B0%E5%91%BD%E5%90%8Dls%EF%BC%89%281%29%281%29_1653643426582.pdf
By vevor
Can you guys give me more information about parameters F070 can’t understand what digits and Tens’s digits means.
The F070 parameter is an analog selection function parameter, mainly for the AI2 analog input port. This analog quantity is mainly to control the frequency of the inverter. Depending on your input analog type selectable, it can be 0-10V or 0-5V voltage signal, or 0-20mA or 4-20mA current signal.
By vevor
This VFD produces a 3-phase output. But can we simply connect a single phase motor to two of the output terminals and run it with this VFD? In other words, can we use ONE of the three output phases to run a single phase motor?
If the motor power is below 1KW, this inverter can be applied, because the current will be very large when the single-phase connection is used. The motor wire is connected to the two terminals U and W of the inverter.
By vevor

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
5 Reviews
Carolina Carolina
7.5 kW
ME ENCANTO
Excelente, funciona a la perfeccion, valio cada centavo
0
Amy Sue Amy Sue
Easy to set up and Use
Exactly what I needed and worked perfectly for the electronic lab set up I am doing.
0
John Noonan John Noonan
Easy setup
Easy setup and works great.
0
Juan C. Juan C.
That is good
I like it so much, this is a very good product, the only bad thing is to delay at delivery
0
Mark S. Mark S.
Simple, easy to install and a good value control.
Used this as a speed control for a hopper. Works well so far. The instruction manual is a little vague. Maybe geared more towards people who install these for a living yet got it wired in and installed and once got the parameters setup it works very well. Hopefully it will last me a while.
0
