Features & Details

• Efficient Degassing Performance: Our 3.5 CFM vacuum pump is designed for degassing and de-bubbling, achieving an ultimate vacuum of 5 Pa. Whether you're working in a laboratory, food packaging, resin casting, or wood stabilization, it covers all
• Stable & Reliable Operation: Powered by a 4-pole high-torque motor, the single stage vacuum pump provides long-lasting power. The built-in cooling fan avoids overheating during extended use, ensuring consistent, reliable performance for every job
• 3-Gallon Vacuum Chamber: Crafted from quality stainless steel, our vacuum chamber withstands high pressure without deforming. The tempered glass lid allows you to easily monitor the degassing process and fine-tune the results for optimal performance
• User-Friendly Design: The ergonomic handle of the vacuum pump fits comfortably in your hand, with a rubber coating for comfortable grip and portability. Plus, the oil window has clear markings, so you can view the oil level at a glance
• Everything You Need: This kit includes a vacuum pump, a 3-gallon vacuum chamber, a tempered glass lid, a vacuum gauge set, a red & blue manual shut-off valve, a 4.92 ft hose, a silicone pad, and a bottle of 0.35 qt (330 ml) vacuum pump oil

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

VP125

Power

1/4 HP

Free Air Displacement

3.5 CFM

Ultimate Vacuum

5 Pa

Intake Fitting

1/4"SAE

Oil Capacity

0.27 qt./260 ml

Vacuum Chamber Capacity

3 Gallons/11.36 Liters

Pump Dimensions (L x W x H)

11.02 x 4.92 x 8.86 in/280 x 125 x 225 mm

Net Weight

23.05 lbs/10.45 kg

Description

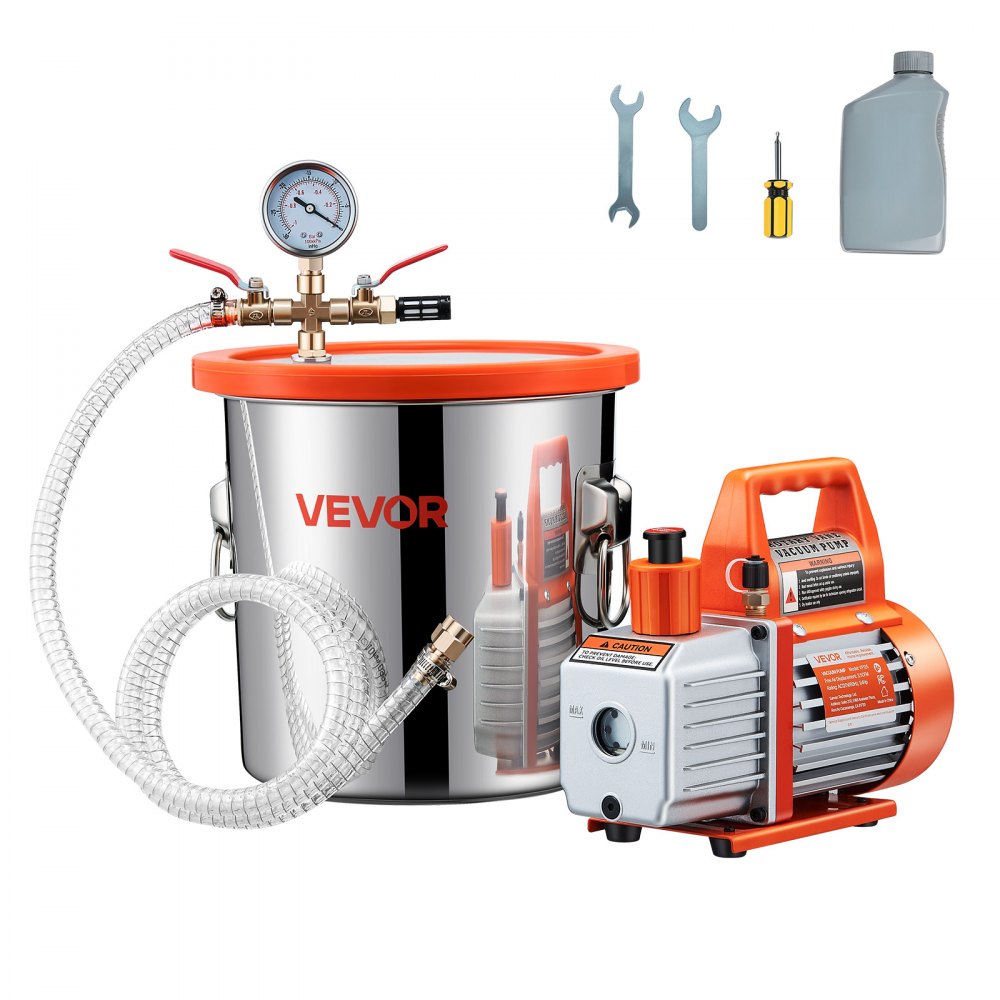

3 Gallon Vacuum Chamber with 3.5 CFM Pump Kit

Our vacuum pump delivers fast, thorough degassing every time with a 4-pole powerful motor and 5 Pa ultimate vacuum. The 3-gallon stainless steel vacuum chamber withstands high pressure, while tempered glass lid allows you to easily monitor the degassing process.

•
•
•

Large CapacityPrecise MeasurementBend Resistance

•
•
•

Large CapacityPrecise MeasurementBend Resistance

•
•
•

Oil Mist FiltrationFast Cooling FanVacuum Oil Included

•
•
•

Oil Mist FiltrationFast Cooling FanVacuum Oil Included

•
•
•

Simple OperationWide ApplicationThoughtful Design

•
•
•

Simple OperationWide ApplicationThoughtful Design

Q: What is the free air displacement (CFM) of this vacuum pump? Is it suitable for home AC maintenance?

A: This pump has a flow rate of 3.5 CFM and an ultimate vacuum pressure of <20Pa, making it ideal for quickly evacuating home and vehicle AC systems. It far exceeds the needs of DIY users.

Q: How loud is the pump? Will it disturb the work environment?

A: The noise level is ≤70dB (comparable to normal conversation). Featuring cast aluminum housing for noise reduction, it operates quieter than similar pumps with iron casings. Fit for use in garages, workshops, or other enclosed spaces.

Q: What does the current protector do?

A: The built-in 4.5A overload protection automatically shuts off power if there is unstable voltage or motor overheating, keeping damage from the motor. Simply press the reset button after maintenance to restart the pump.

Q: Is the vacuum chamber seal reliable? How can I check it?

A: Test Methods: Soap Water Test: After vacuuming the chamber, close the valve and apply soapy water along the lid’s edge. No bubbles indicate a reliable seal. Pressure Test: Vacuum the chamber to 20 Pa, then let it sit for 30 minutes. If the pressure rise is ≤5 Pa, the seal is deemed satisfactory.
