Split Type Water Alcohol Distiller
Results for Split Type Water Alcohol Distiller
Browse a full selection of split type water alcohol distillers made for home users, small businesses, and people who like to make their own spirits. You can buy 3, 5, 8, 9, 13.2, and 15 gallon food-grade stainless steel boilers from VEVOR. They come with thumper kegs, worm coils, condensers, thermometers, and sealing seals. The range covers every step, from the first boil to the final collection, at reasonable prices. This is true whether you are distilling water for a workshop, making a small amount of whisky, or adding on to a setup that you already have.
VEVOR Split Type Alcohol Distillers for Home Brewing and Water Purification
Not sure whether a small 3 gallon alcohol still or a full 15 gallon rig will work best in your space? The split design separates the boiler from the condenser, making it easier to clean, store, and add capacity than one-piece units. With years of use in kitchens, garages, sheds, and small craft shops, VEVOR ensures each alcohol distiller delivers steady heat transfer and leak-proof seals.
Choosing Still Capacity and Material: 3 to 15 Gallon Stainless Steel Builds
Everything you get depends on the build's capacity and quality, from batch yield to flavor clarity. Split-type water alcohol distillers let you add capacity without buying a whole new system.
Matching Boiler Size to Your Batch Goals
How much wash you can process in one run depends on the boiler size, and getting the right size saves hours of work. For apartment dwellers and first-time users who want to test recipes with little ingredient waste, a 3-gallon alcohol still works. When you move up to a 5-gallon alcohol still, you have enough space for a regular fermentation bucket and will not have to fill it up as often.
Mid-range options change the maths again. An 8-gallon or 9-gallon alcohol still can easily handle weekend batches, making enough finished spirit to give as gifts or store for a long time. Most serious hobbyists choose a 13.2 gallon alcohol still because it has the right amount of output and does not take up too much space on a counter or burner stand.
For club brewers and small-scale producers who run back-to-back sessions, the largest still is 15 gallons. Remember to fill a boiler only two-thirds to three-quarters of the way to the top so there is room for foaming. Split-type water alcohol distillers are easy to scale up because the condensers and thumpers often carry the same amount of alcohol.
Why Food-Grade Stainless Steel Matters
Material choice affects taste, durability, and ease of cleaning more than most buyers think. A stainless steel moonshine still does not rust or pit like thinner alloys do, even after long exposure in the boiler with acidic fruit washes. For the boilers, lids, and column parts, VEVOR uses food-grade 304 stainless steel, which will not add metallic notes to your distillate.
Wall thickness is also important. Higher-gauge steel spreads heat more evenly across the base, which helps prevent scorching and keeps the final product from tasting burnt and bitter. This even distribution also keeps your heat source from having hot spots that can bend cheaper vessels after a few cycles.
When you clean stainless steel, it lives up to its name. A soft brush and a quick rinse with hot water remove any residue. A mild citric acid soak removes tough buildup. Copper mesh packing can be placed inside the column of split type water alcohol distillers when you want sulfur reduction, giving you the smoothness of copper with the durability of steel.
Condenser Design, Worm Coils, and Cooling Efficiency
The condenser is where vapor becomes liquid, and its design directly controls your collection rate. For beginners running their first alcohol still, worm-coil condensers submerged in a cooling bucket offer a large surface area and are easy to use. With a steady temperature difference, water flows in cold at the bottom and out warm at the top.
Tube-in-shell condensers use a different approach, circulating cooling water around a straight vapor path to achieve higher throughput. These suit anyone running a high-capacity booze-distilling machine where speed matters over long sessions. You can choose between the two styles on VEVOR's split type alcohol distillers based on your bench space and cooling water setup.
Watch your flow rate regardless of style. Too little cooling water lets vapor escape uncondensed, wasting product and creating hazards near an open flame. Too much water wastes energy without improving results. If you use a yard hose or a submersible pump to produce a thin, steady stream, the output should remain around room temperature at the spout. This is what most people think is right for condensation.
Seals, Fittings, and Long-Term Durability
Most leaks come from seals and joints and can happen in any home distilling machine. Silicone gaskets rated for high temperatures hold their shape through hundreds of heating cycles, unlike rubber options that harden and crack. Before each run, make sure that the seal is flat in its groove.
Tri-clamp fittings are the standard for reliable alcohol distilling gear because they are easy to take apart without tools. That is important when you need to clean a column full of mesh or switch out a thumper between runs. When portability is more important than frequent disassembly, threaded compression fittings work well on smaller units.
Older rigs still use flour paste sealing as a backup, but current split type water alcohol distillers rarely need it. Regularly check the welds around the base of the boiler and the column ports, as these areas experience the most heat stress. VEVOR stands behind its products with helpful after-sales customer service, making it easy to find new seals, thermometers, and clamps when normal wear and tear shows.
Applications and Kit Contents for Split Type Water Alcohol Distillers
These tools do a lot more than make spirits. If you know what is in the box, you can plan your first run without making last-minute trips to the hardware shop.
Practical Uses: Water Purification, Spirits, and Essential Oils
Making booze from water distiller for alcohol also works well as a tool for cleaning. Running tap water through the boiler removes minerals, chlorine, and dissolved solids. This makes distilled water for use in batteries, CPAP machines, aquariums, and steam irons for much less money than buying bottled water. This is the main reason many owners just buy it.
The same setup can also serve as a moonshine machine for corn or sugar washes, a still for liquor when working with fruit brandies, and a refinement tool for aging tests. Putting a thumper keg between the boiler and the condenser raises the proof and brings fruity aromas into the distillate.
Some herbalists use these units to make alcohol-based tinctures and extracts, while others use steam distillation to produce hydrosols and essential oils from lavender, rosemary, or citrus peels. Before you start distilling alcohol, check the rules in your area. Rules for making fuel and drinks vary widely by state and country. For all these uses, split type water alcohol distillers use the same basic tools.
What Comes in the Kit and What to Add

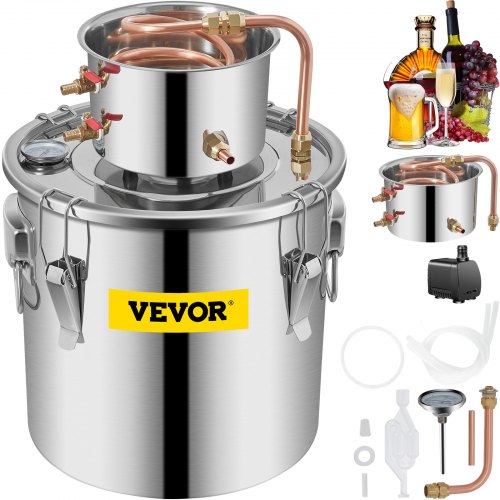

Most VEVOR alcohol distillers for home use come with everything you need to make beer at home, including a boiler with a lid, a column or dome, a condenser assembly, silicone tubing, seals, clamps, and a thermometer that can be built in or inserted. Larger sets of equipment for making spirits at home usually come with extra copper mesh packing and a thumper keg.
Having a few extras helps. With a hydrometer and a pipette, you can read the proof all the time while collecting, instead of guessing. Foreshots, heads, hearts, and tails are easy to separate when you use one-quart glass collection jars. If you want to control the starting speed, an induction plate or propane burner with fine flame control works better than a fixed-output element.
Fermentation gear is usually different. Before you use any alcohol distillation machine for the first time, you should set aside money for a food-grade bucket, a fermenter, and yeast. Your split type water alcohol distillers will look brand new for years if you keep them dry and take them apart between runs.
Why Choose VEVOR Split Type Water Alcohol Distillers?
From 3 to 15 gallons, VEVOR has everything you need in food-grade stainless steel. They have worm coil and tube-in-shell condensers, thumper kegs, and full gear kits all in one place. You can get commercial-grade materials at prices that are reasonable for home users. Customer service is quick and easy, and replacement parts are simple to order. Compare sizes, make sure the specs fit your workspace, then add your order to the cart right away.
FAQs
What size should a beginner still start with?
The most useful size is a 5 gallon unit. It is the same size as a normal fermentation bucket, makes a good amount of food, and can be used on a countertop hob without needing big batches of ingredients.
Can I distill drinking water with these units?
Yes. Run clean tap water through the boiler without any copper packing, then collect the condensation. This produces mineral-free distilled water for use in batteries, gadgets, and humidifiers.
Is copper packing necessary in a stainless boiler?
For spirits, it is not necessary but a good idea. The column's copper mesh links sulfur compounds that make flavors taste bad. It isn't necessary for distilling water, and it is easy to remove for cleaning.
How do I prevent leaks during a run?
Place silicone seals flat, make sure clamps are tight all the way around, and heat slowly. A sudden temperature rise makes pressure rise faster than the seals can settle. Replace seals that become stiff or show signs of cracking.
Is home distilling legal?
Each country and state has its own rules. Most of the time, it is legal to own tools, but making alcohol may require a permit. Before you run a spirit wash, check your local laws.
