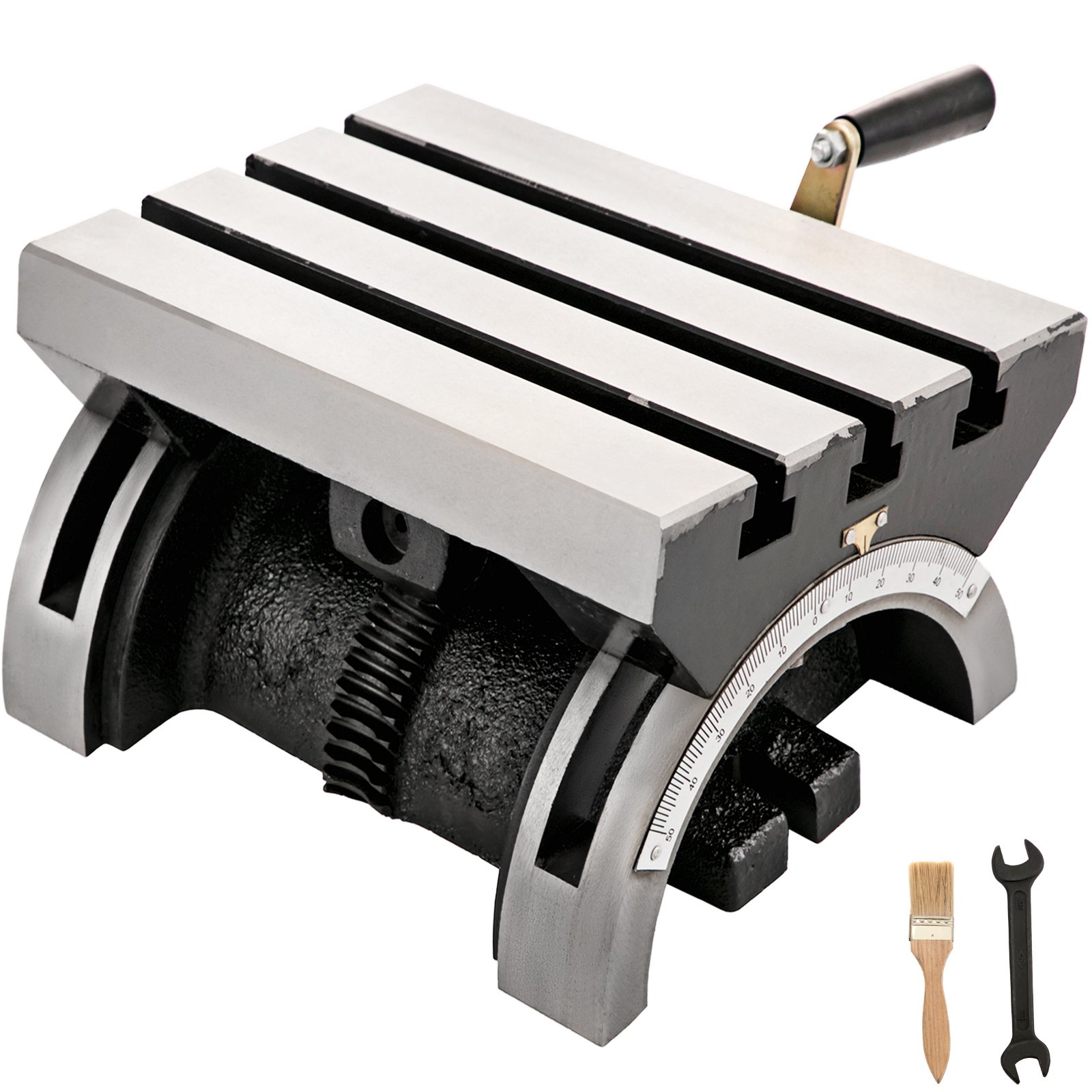

VEVOR tilting milling table with adjustment knob, brush, and wrench included. VEVOR tilting milling table in durable material with grooved surface and adjustable handle. VEVOR tilting milling table with machined t-slots for precision positioning. VEVOR tilting milling table with adjustable handle and metallic black base. VEVOR tilting milling table with precise scale indicator and adjustment knob. close-up of VEVOR tilting milling table with a better ground finish and precision scale. brush and wrench with text "convenient accessories" for VEVOR tilting milling table.
XCGZT7YCKQX000001V0

VEVOR Tilting Milling Table 7x5inch Tilting Angle Milling Machine 0-90°Adjustable Swivel Angle Plate with 3 T-slots and an Adjustable Crank Handle Heavy Duty Tilting Milling Machine for Grinding

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

178 x 125 mm

  • 178 x 125 mm
  • 250 x 180 mm

About this item

  • 【HEAVY DUTY CONSTRUCTION】- built by heavy duty cast iron material,which is anti-corrosion and rust resistance, angle milling table can withstand tough environment and designed for long service time.
  • 【HIGH QUALITY WORKING GEAR】- Adjustable angle countertops with 3 10mm T-slots make it easy for you to place various types of tools and have more space for processing. Dimension: 7x5inch.
  • 【ADJUSTABLE ANGLE PLATE】- with a crank handle, you can adjust the angle as you need. Range from 0-45 degrees (both sides), especially there is a claear dial helping to measure more precisely. Increasing the flexibility during in using.
  • 【PRESICE & BETTER FINISH】- The whole adjustable angle plate surface is finely ground and chamfer the edge to come to a great processing effect.
  • 【CONVENIENT CLEANING & ASSEMBLY】- We especially offer a cleaning brush and a hand wrench, it will be convenient and easy for you to clean and install it. Can be locked at any angle with the help of screws at each end.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Tilting Milling Table 7x5inch Tilting Angle Milling Machine 0-90°Adjustable Swivel Angle Plate with 3 T-slots and an Adjustable Crank Handle Heavy Duty Tilting Milling Machine for Grinding
178 x 125 mm
VEVOR tilting milling table 7x5 inch, -45° to 45°, with included tools and machinery.
VEVOR tilting milling table with angle scale, handle, brush, and wrench included.

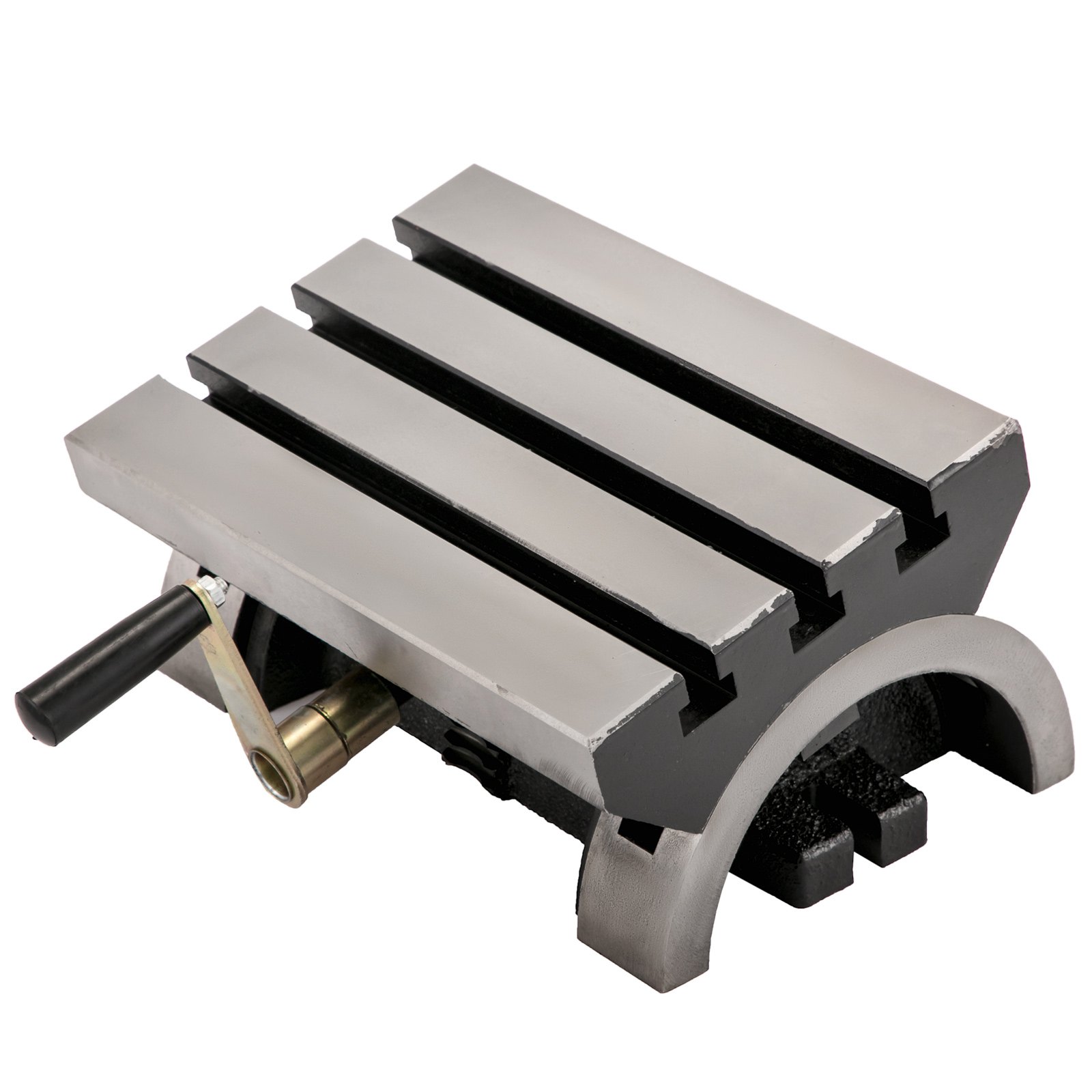

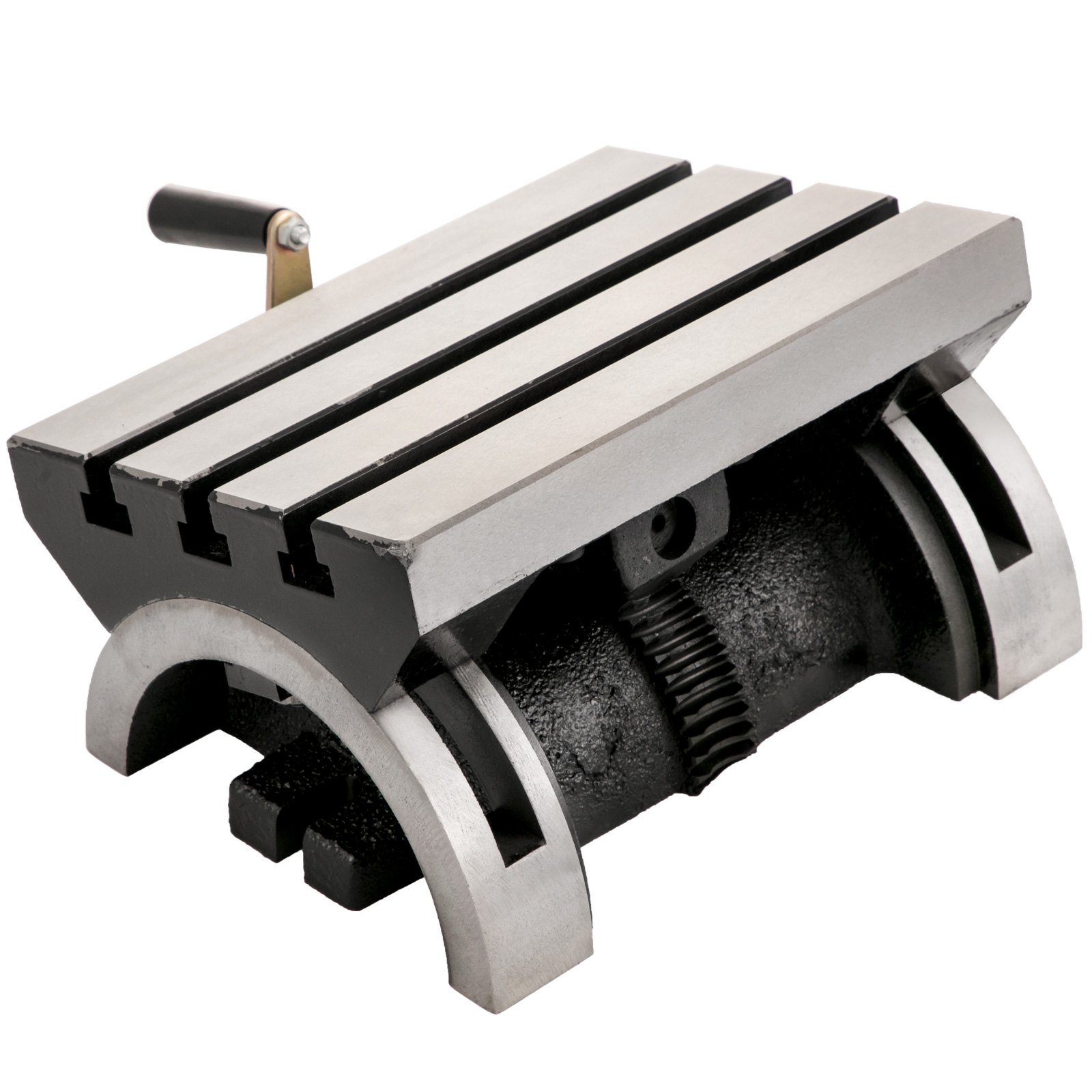

Adjustable Tilting Milling Table
This tilting table for milling machine which made of heavy duty cast iron can be adjusted from 0-45 degrees (both sides), with 3 T-slots (10mm), a crank handle and presice ground finish, it is a perfect tool to improve your milling processing.
  • Heavy Duty Construction
  • High Quality Working Gear
  • Adjustable Angle Plate
  • Precise & Better Finish
  • Convenient Cleaning & Assembly
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

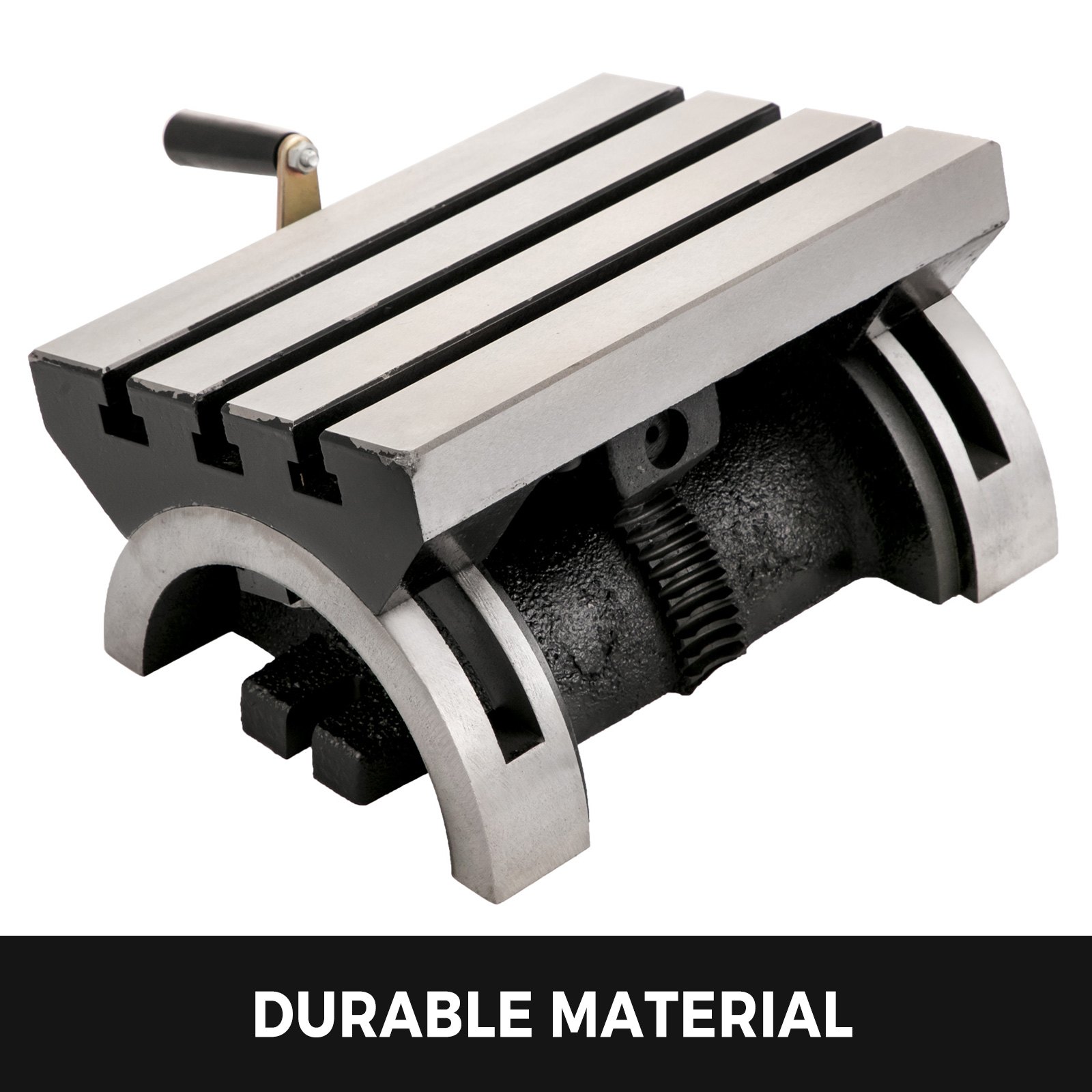

VEVOR tilting milling table with durable material and grooved surface.
Durable Material
Made of heavy duty cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.
VEVOR tilting milling table with machined t-slots and a sturdy adjustment handle.

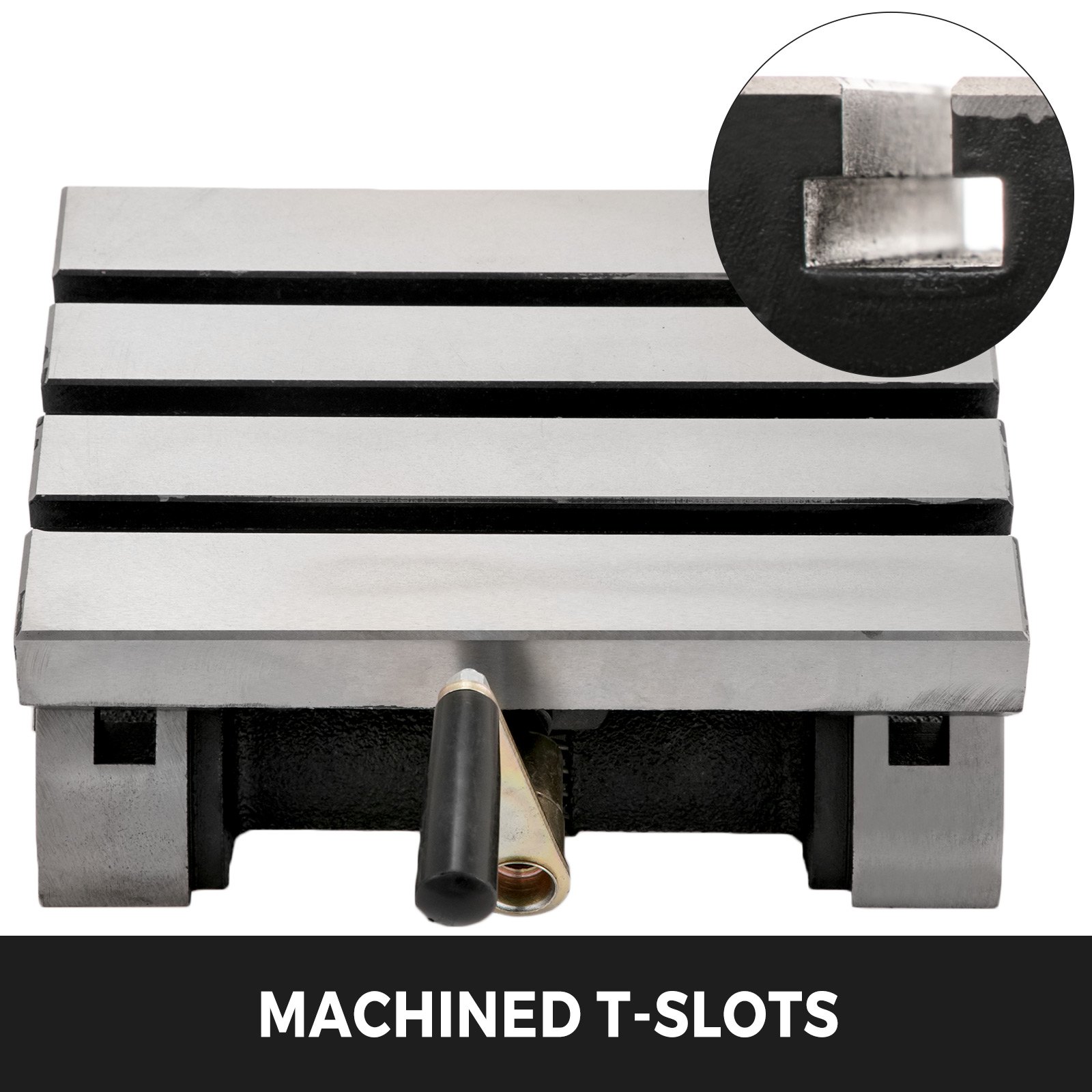

Machined T-slots
The milling table for 7inch length and 5inch width, with three 10 mm T-slots, are machined for a clean, precise & better finish.

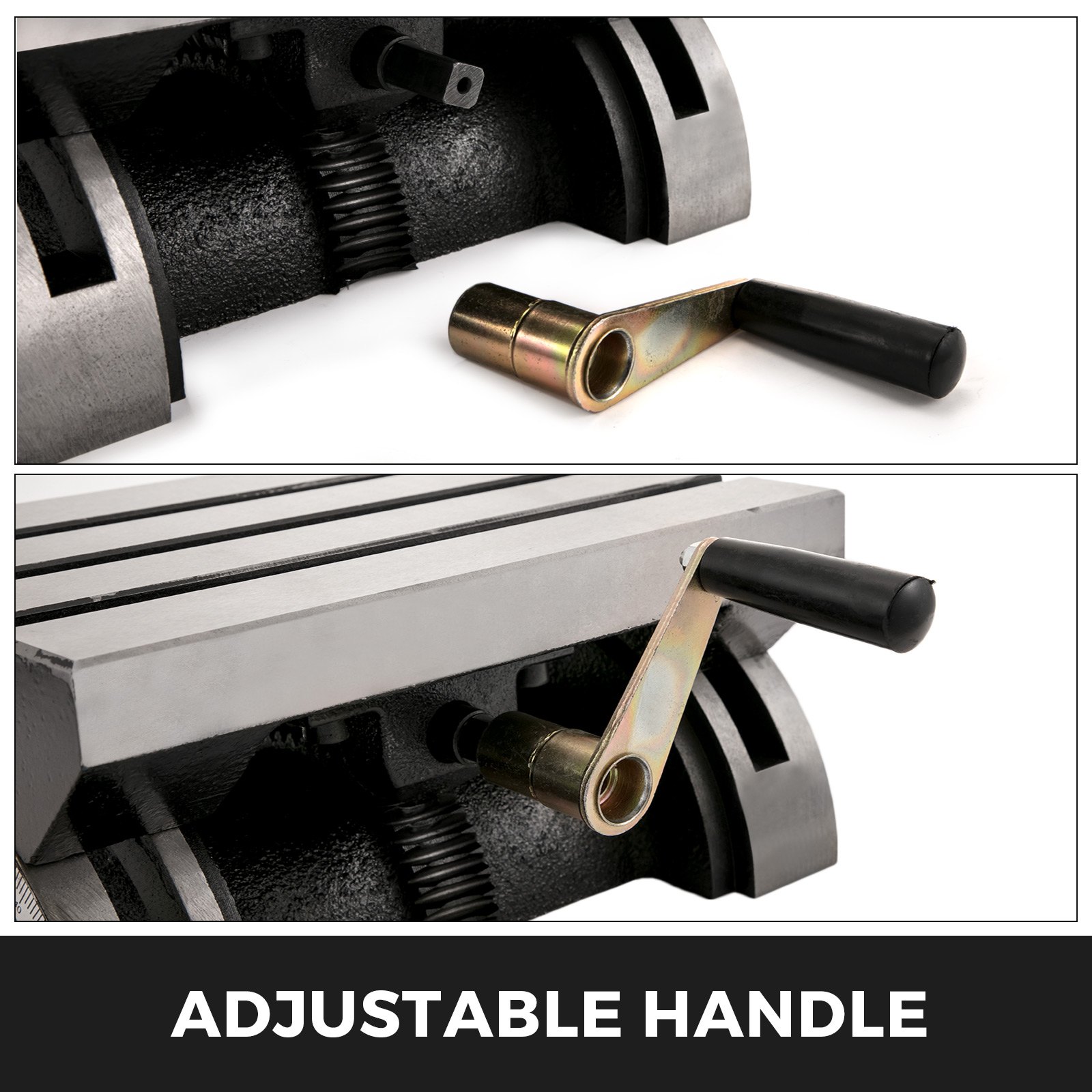

VEVOR tilting milling table with adjustable handle for precise positioning.
Adjustable Handle
Rotary table for milling machine supplied complete with a crank handle, you can adjust the angle as you need. Range from 0-90°.

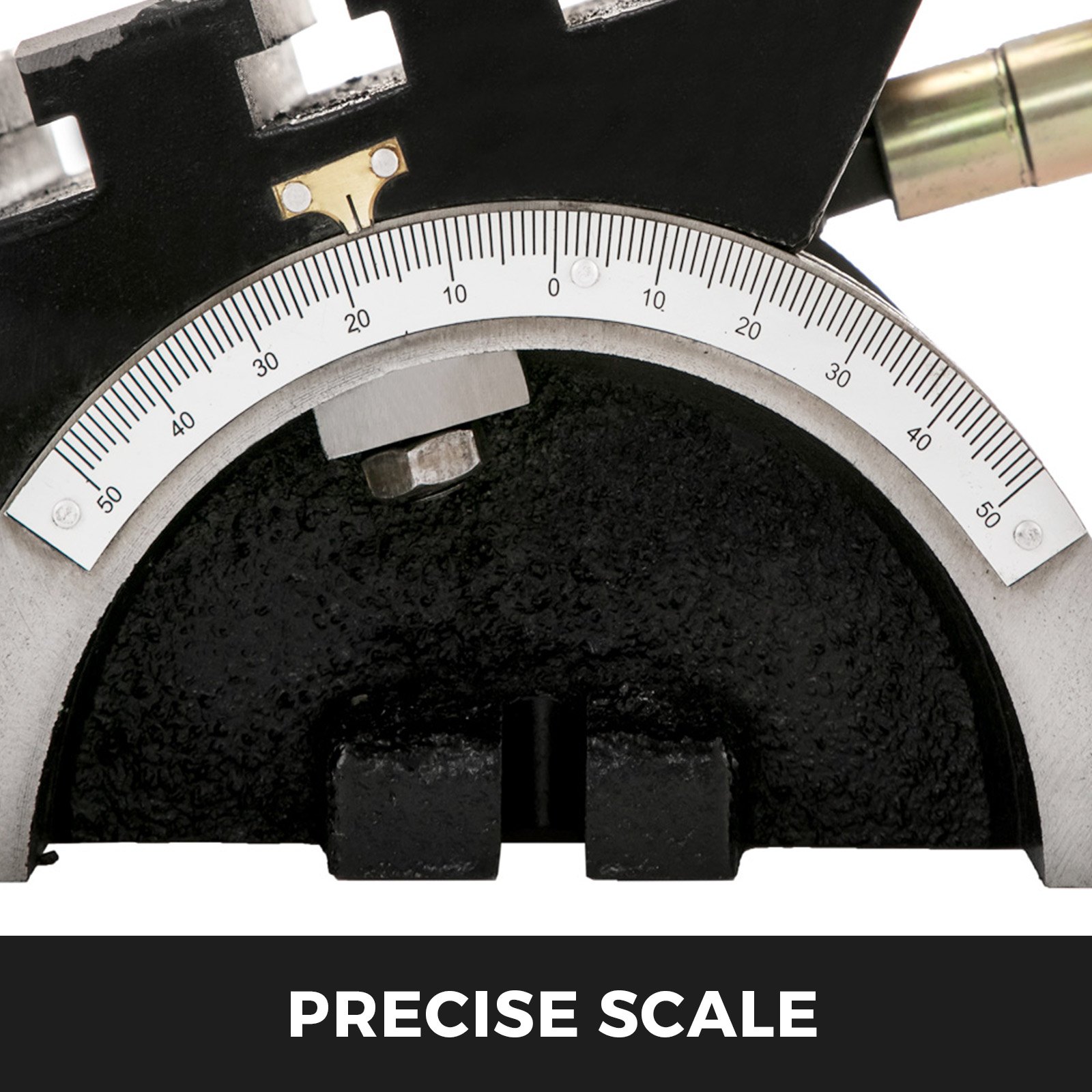

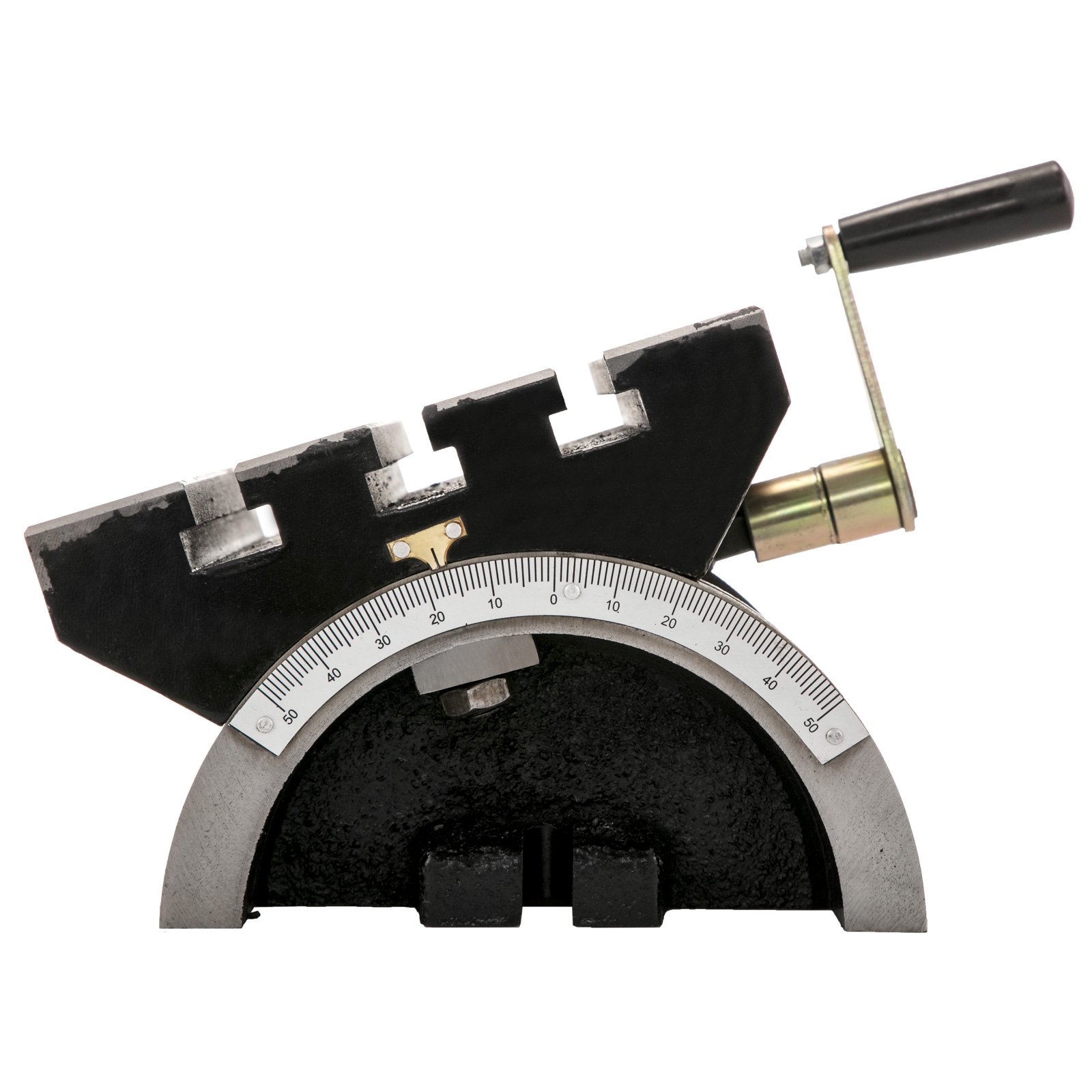

close-up of VEVOR tilting milling table with precise scale.
Precise Scale
Equipped with precise and clear dial, the angle can be adjust by accurately measuring according to the needs of processing.

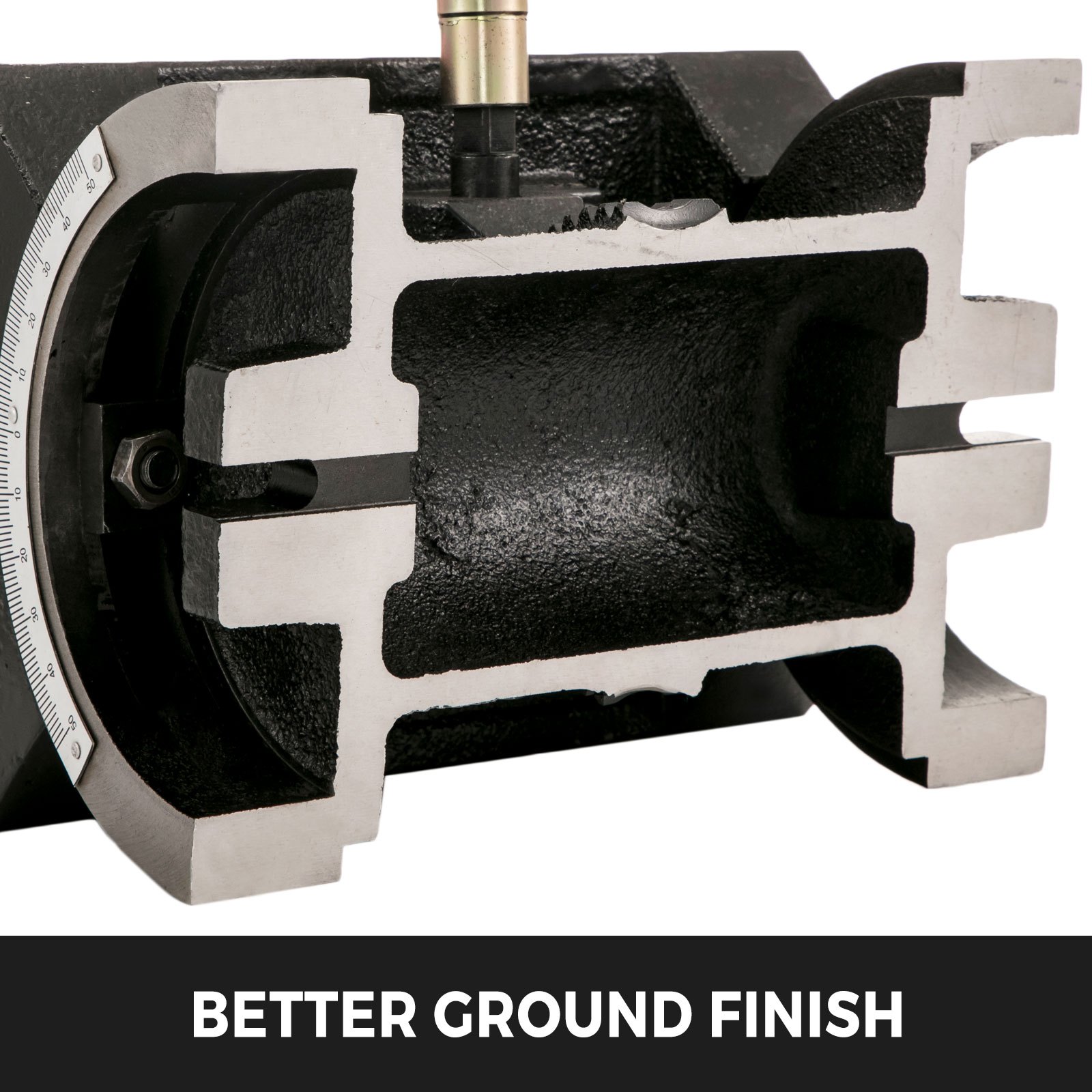

VEVOR tilting milling table with precise ground finish and angle measurements.
Better Ground Finish
The bottom surface of the work table is finely ground, better cooperate with the machine tool, making the machining more precise.

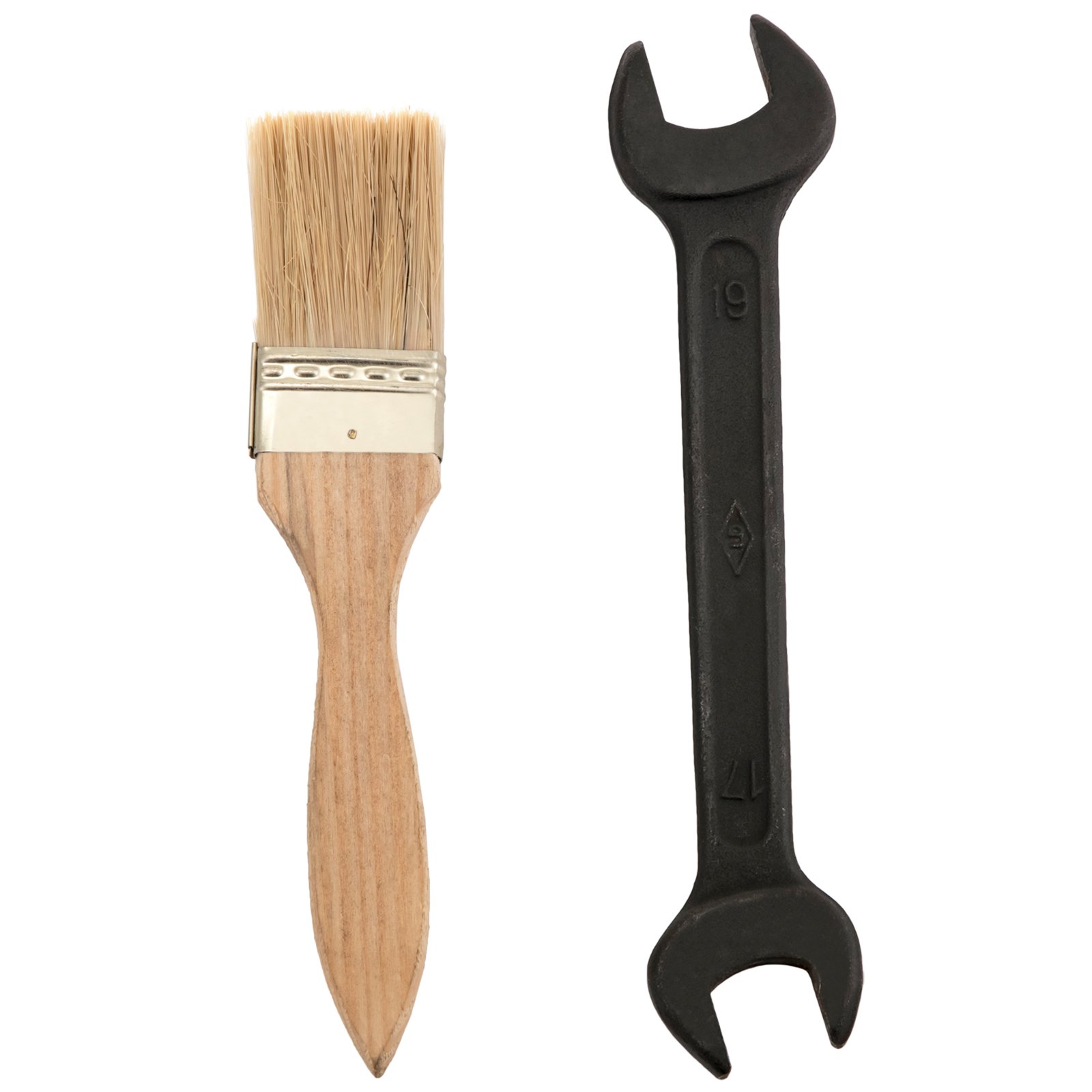

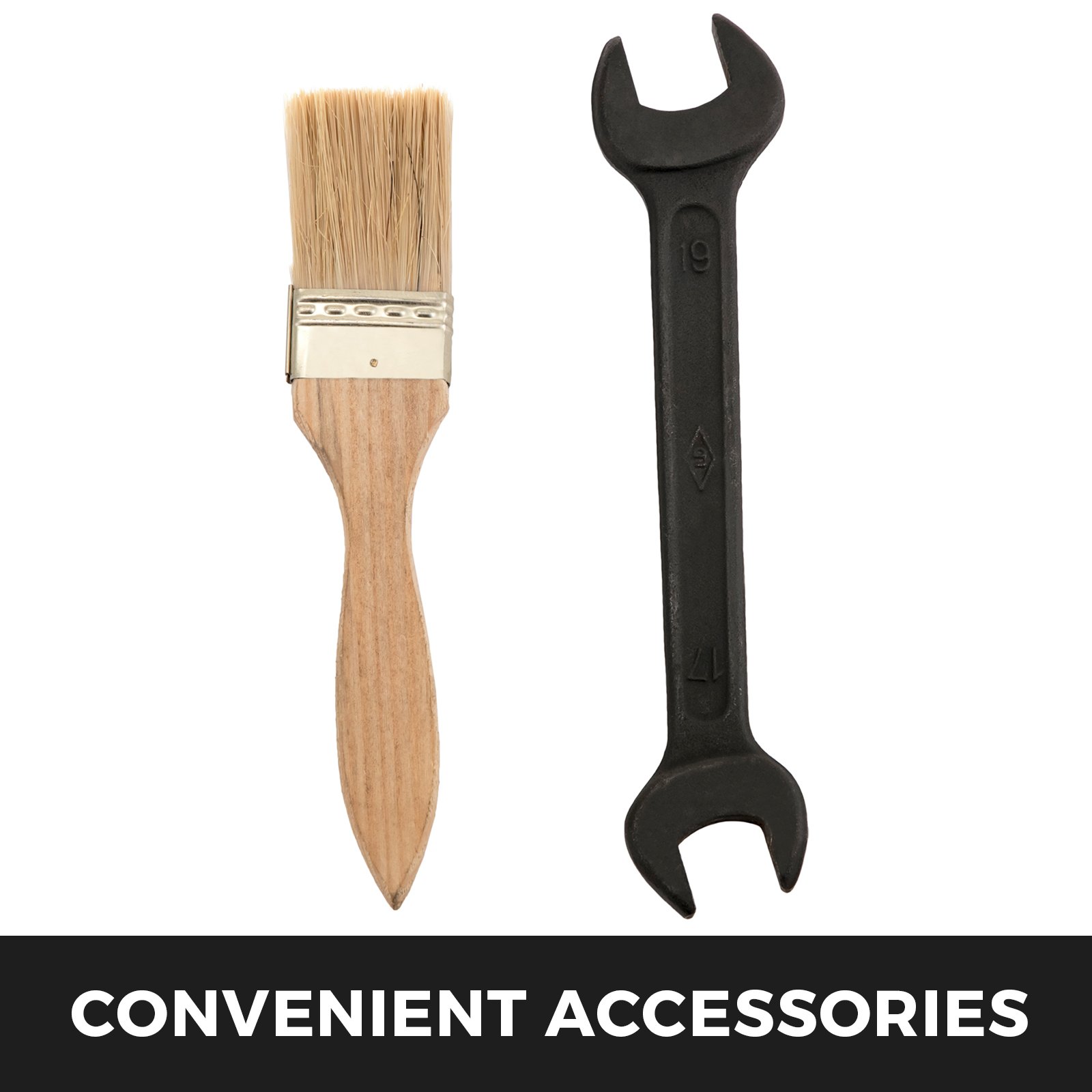

paintbrush and wrench, key tools for VEVOR tilting milling table. convenient accessories.
Convenient Accessories
The tilting table equipped with a cleaning brush and wrench, it will be easy for you to clean and install it.

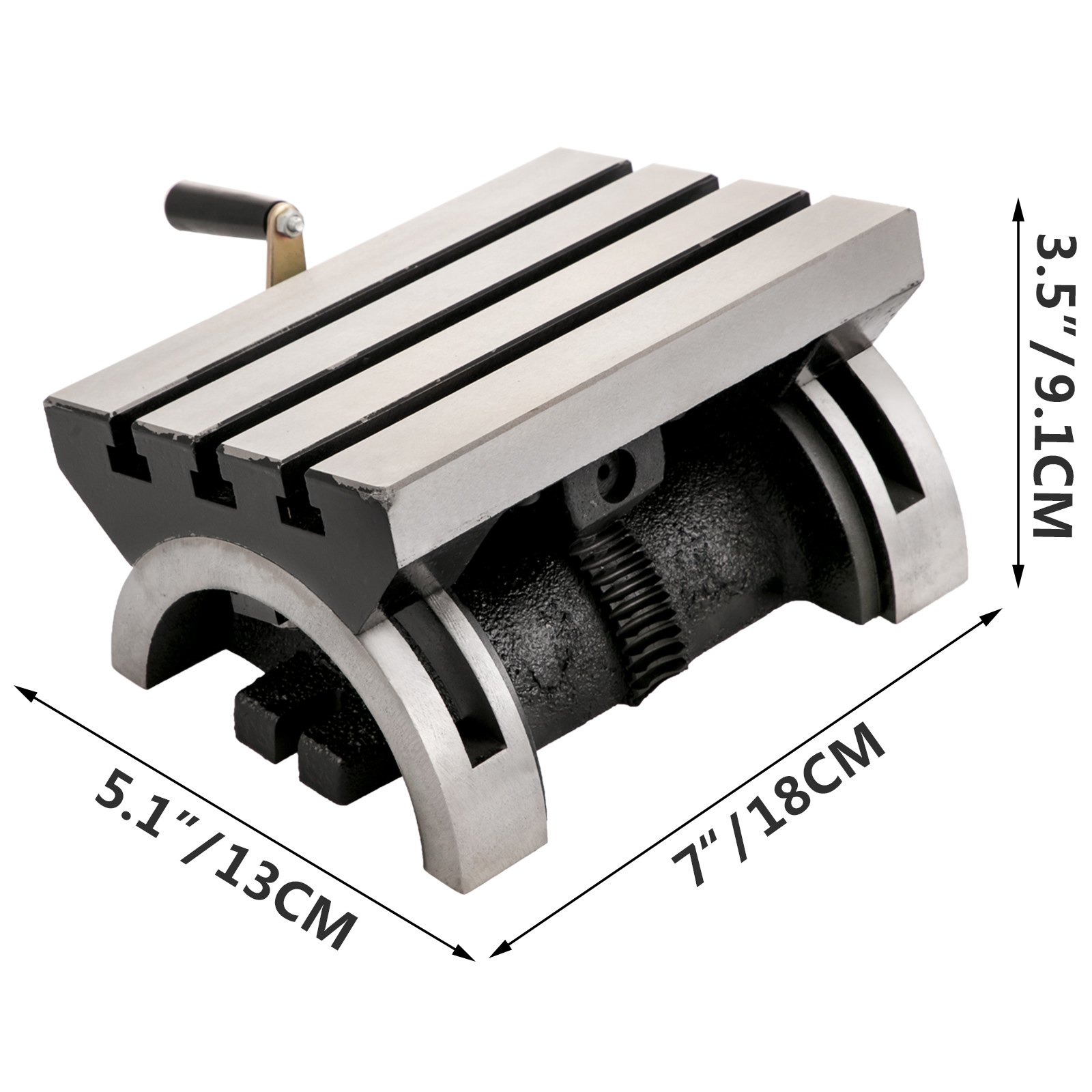

VEVOR tilting milling table with dimensions 7"x5.1"x3.5".
Specifications
  • Material: Cast Iron
  • Tilting Range: 0-45degree (both sides)
  • Overall Dimension: 7x5x3.5inch (178x125x89mm)
  • Overall Weigh: 15lbs (7kg)
VEVOR tilting milling table with adjustment handle and two tools.
Package Content
  • 1 x Titling Milling Table
  • 1 x Hand Wrench
  • 1 x Cleaning Brush
VEVOR tilting milling table 7x5 inch, -45° to 45°, with included tools and machinery.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR tilting milling table with angle scale, handle, brush, and wrench included.
Adjustable Tilting Milling Table
This tilting table for milling machine which made of heavy duty cast iron can be adjusted from 0-45 degrees (both sides), with 3 T-slots (10mm), a crank handle and presice ground finish, it is a perfect tool to improve your milling processing.
  • Heavy Duty Construction
  • High Quality Working Gear
  • Adjustable Angle Plate
  • Precise & Better Finish
  • Convenient Cleaning & Assembly
VEVOR tilting milling table with durable material and grooved surface.
Durable Material
Made of heavy duty cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.
VEVOR tilting milling table with machined t-slots and a sturdy adjustment handle.
Machined T-slots
The milling table for 7inch length and 5inch width, with three 10 mm T-slots, are machined for a clean, precise & better finish.
VEVOR tilting milling table with adjustable handle for precise positioning.
Adjustable Handle
Rotary table for milling machine supplied complete with a crank handle, you can adjust the angle as you need. Range from 0-90°.
close-up of VEVOR tilting milling table with precise scale.
Precise Scale
Equipped with precise and clear dial, the angle can be adjust by accurately measuring according to the needs of processing.
VEVOR tilting milling table with precise ground finish and angle measurements.
Better Ground Finish
The bottom surface of the work table is finely ground, better cooperate with the machine tool, making the machining more precise.
paintbrush and wrench, key tools for VEVOR tilting milling table. convenient accessories.
Convenient Accessories
The tilting table equipped with a cleaning brush and wrench, it will be easy for you to clean and install it.
VEVOR tilting milling table with adjustment handle and two tools.
Package Content
  • 1 x Titling Milling Table
  • 1 x Hand Wrench
  • 1 x Cleaning Brush
VEVOR tilting milling table with dimensions 7"x5.1"x3.5".
Specifications
  • Material: Cast Iron
  • Tilting Range: 0-45degree (both sides)
  • Overall Dimension: 7x5x3.5inch (178x125x89mm)
  • Overall Weigh: 15lbs (7kg)

Heavy Duty Tilting Milling Table

The VEVOR tilting milling table is meticulously designed to provide a strong and reliable solution for your milling needs. Made from high-quality cast iron, it ensures durability and stability. This makes it an excellent choice for both professional machinists who want to improve their performance in the field of machining and hobbyist fields. The sturdy construction allows it to hold up well under pressure, making it ideal for heavy-duty tasks like angle milling and drilling.


Adjustable Swivel Angle Plate

Our VEVOR tilting angle milling machine has a versatile range of motion. It can tilt from 0 to 45 degrees on both sides. This feature gives you the flexibility to work on various projects that require precise angle adjustments. No matter if you're working on railroad track anvils or valve reliefs, the swivel plate provides accurate positioning and ease of use.


Good Value for the Money

We have made our VEVOR adjustable swivel angle plate a very economical choice. This table is an economical option without compromising on quality. It has remained affordable but delivers on performance and functionality. These features make it popular among satisfied customers. The combination of solid construction and precision engineering makes it the best investment for your workshop.


Fast and Reliable Shipping

We are proud of our commitment to customer satisfaction with fast and reliable shipping. The VEVOR heavy-duty milling machine is shipped in a sturdy, wooden box that ensures it arrives in perfect condition. Secure packaging along with prompt delivery mean you can start using your table for angle milling and drilling without delay.


Easy to Adjust and Set Up

It is so easy to set up our VEVOR rotary table for grinding, thanks to its user-friendly design. The adjustable crank handle allows for smooth and precise angle adjustments. This makes it easy to position the table exactly where you need it. This feature is especially useful for projects that require repeated or incremental adjustments.


Good Surface Finish and Parallelism

Our VEVOR rotary table for grinding offers the benefits of a good surface finish and parallelism. Enjoy the advantages of having smooth, flat surfaces on our table's top surface, which is ground. This results in a smooth, flat surface. The table’s top surface is ground, providing an eloquent, flat-graded texture ideal for milling and grinding applications. The parallelization ensures consistent cuts with accuracy. It enhances the overall quality of your work.


Suitable for a Range of Projects

The VEVOR adjustable swivel angle plate is suitable for a wide range of projects. From roughing in parts to more precise milling tasks, it will be an excellent addition to any workshop, regardless of whether you are a professional or hobbyist. Its versatility makes it able to hold workpieces at specific angles, and the durable construction makes it an essential tool for any machining job.


See More

Specification

Material
Cast Iron
Tilting Range
0-45degree (both sides)
Overall Dimension
7x5x3.5inch (178x125x89mm)
Overall Weigh
15lbs (7kg)
Questions and Answers
2 Questions
Can this make ~90 degree tilting angle? It looks only for 50 degree.
Its inclination angle is about 45 degrees.
By vevor
Hi! I need distance between T slot and dimension
It is 33mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
15 Review(s)
Clear filters
Regor Regor
grinder jig
I use this to set angle in front of grinder for tool sharpening. works good fast shipping. I use this to set angle in front of grinder for tool sharpening. works good fast shipping.
Hobbist Hobbist
Owner
Seems to be well made except for 2 very small pin holes in the casting on the top face. Had the usual dirt on most import tools but it cleaned up ok. Can't speak to how well it will work because I have not used it yet. Vevor seems like a responsible company shipping was very fast.
Shane Shane
Nice tilt table for mill
Bought this for a friend to use on his horizontal mill. Nice and low profile so he doesn’t give up too much room Doesn’t have super precise measurements, but works great for roughing in his railroad track anvils.
Luke Warm Luke Warm
Sufficiant for simple jobs, price is good
I contacted Vevor before purchasing my 10" x 7" tilting angle plate concerning a review about unfinished saddle surfaces and was assured they have stringent quality controls. When it arrived I was very pleased with the way it was packaged in double boxes with the angle plate oiled and double wrapped in plastic. Top was ground, bottom appeared to be ground, degree increments were clean and concise. For the price I was very happy but I still wanted to check it out further. It was set and locked on o degrees so I placed it on my bench top mill table which was trammed in at .002 for a 7 3/8" circle. The first thing I noticed was it rocked diagonally so I flipped it over on it's top and got the same results. Next I clamped it down on the table and ran the four corners setting the first corner at 0. The remaining four corners were .005" of an inch higher (see pic). Next I noticed the the outer corners of the top saddle were not in contact with the base saddle (see Pic). Finally looking at the saddle surfaces they appear (my opinion) to have been cleaned up with a sanding disc on an angle grinder, the same for the two long sides of the top plate(see Pics). For most of what I do for $104 this will suffice, but for some more precise I wouldn't recommend it. With all that said I'm pleased enough to keep it and possible attempt to bring it in closer latter on. I've been a machinist for 40 years working at McDonnell Douglas and Boeing. Sorry two pics would not load.
Heritage Minis Heritage Minis
Owner
Good value for the money and up to the task I bought it for. More toys for the mancave machinist. *******************************************************************************************
Todd Bates Todd Bates
Surprised at the quality
Very impressed for the price! Surface finish and parallel is good. Backlash on this type of table is acceptable. Recommended! I have a 7x10 and a 5x7. I had a shipping issue (I got a TV stand instead of the 5x7 but after sending pictures it was resolved )
Craig Craig
Shop owner
It is of good quality, and easy to use. As a mold maker, I always look for things that would make my life easier. The set up process is fast, and accurate for roughing in parts.
rotorhead rotorhead
Great for angle milling and drilling
Great setup and work positioning tool for the Bridgeport.
JT JT
Very sold for how inexpensive it is.
Held solid enough to fly cut the valve reliefs in my pistons with no chattering.
Mark Clinton Mark Clinton
Manufacturing Technician
I ordered a 10 x 7 table, but received the 7 x 5 table. Apparently the wrong sticker was put on the box and customer service gave me a partial discount. I love table I received, and the final price is worth the product.
