Features & Details

• Enhanced Efficiency: This PCP air compressor adopts a dual-cylinder two-stage compression design, with 4500 PSI / 30Mpa maximum pressure and 2200W high power, delivering 35 L / min high air flow rate. It takes about 3 minutes to fill a 0.5L tank from 0 to 4500 PSI and 45 minutes to fill a 6.8L tank from 0 to 4500 PSI

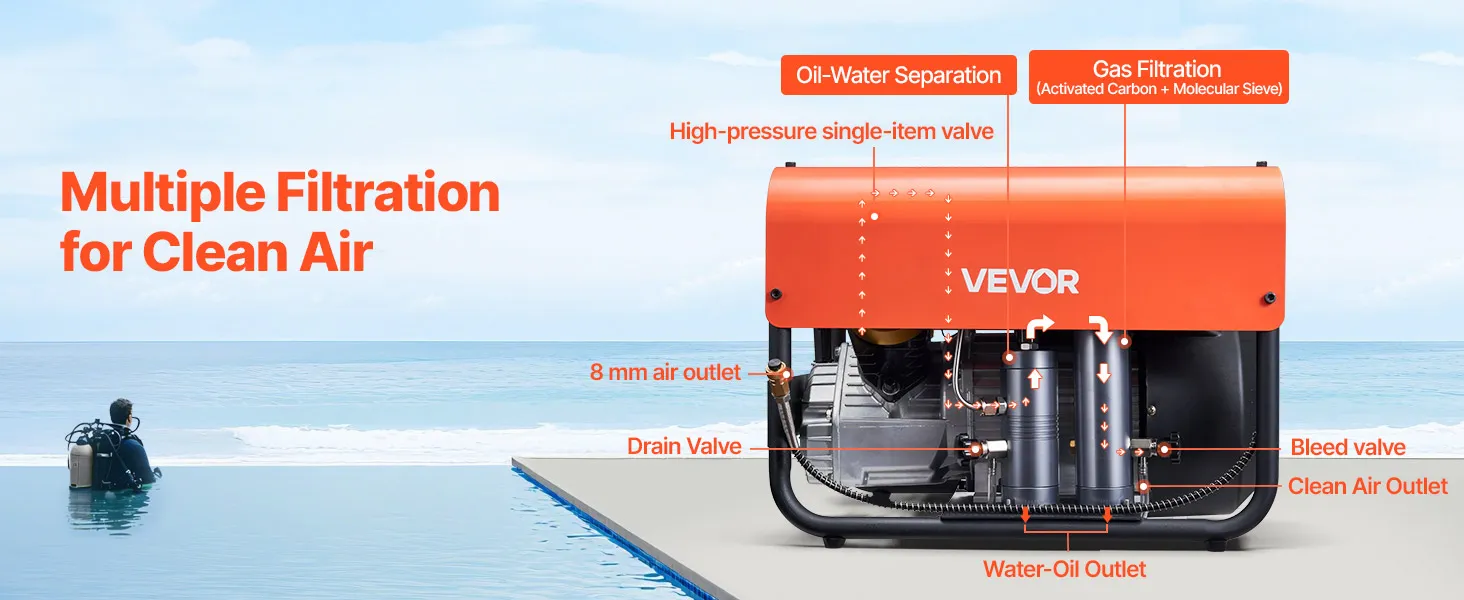

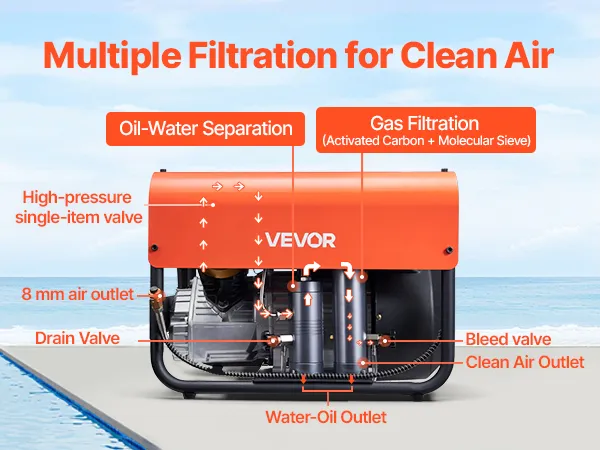

• Multi-Layer Filtration System: Equipped with an oil-water separator and gas filtration system (Activated Carbon + Molecular Sieve), this diving scuba tank air compressor effectively removes moisture, oil, and impurities, ensuring the delivery of clean, dry, and high-quality air
• Efficient Cooling System: This PCP diving compressor pump features an external water and fan cooling system, equipped with cooling fans, water pump, and water hoses for rapid heat dissipation, preventing overheating during high-pressure operation. (You need to separately prepare cooling water and an external water bucket.)
• Automatic Stop: This high-pressure paintball compressor is equipped with a pressure and temperature gauge for real-time readings. It automatically stops when the preset pressure is reached, preventing over-pressurization and enhancing operational safety and user convenience
• Wide Applications: Widely used in scuba diving, PCP rifles, paintball shooting, firefighting, leak detection, air - tightness testing, and more fields, meeting various high-pressure air needs. (PLEASE NOTE: Lubricating oil need use EC750 edible grade)

Frequently Bought Together

Videos for this product

About this item

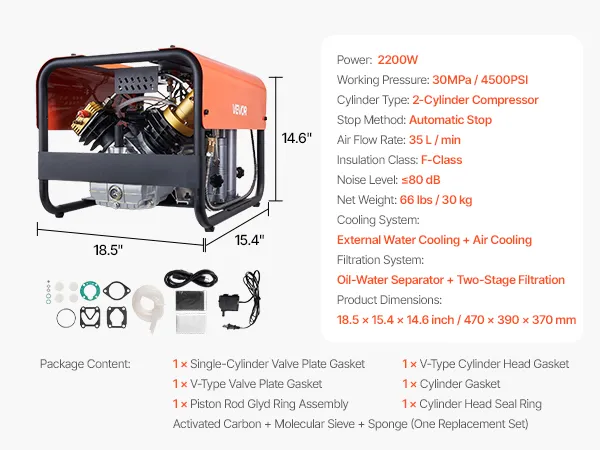

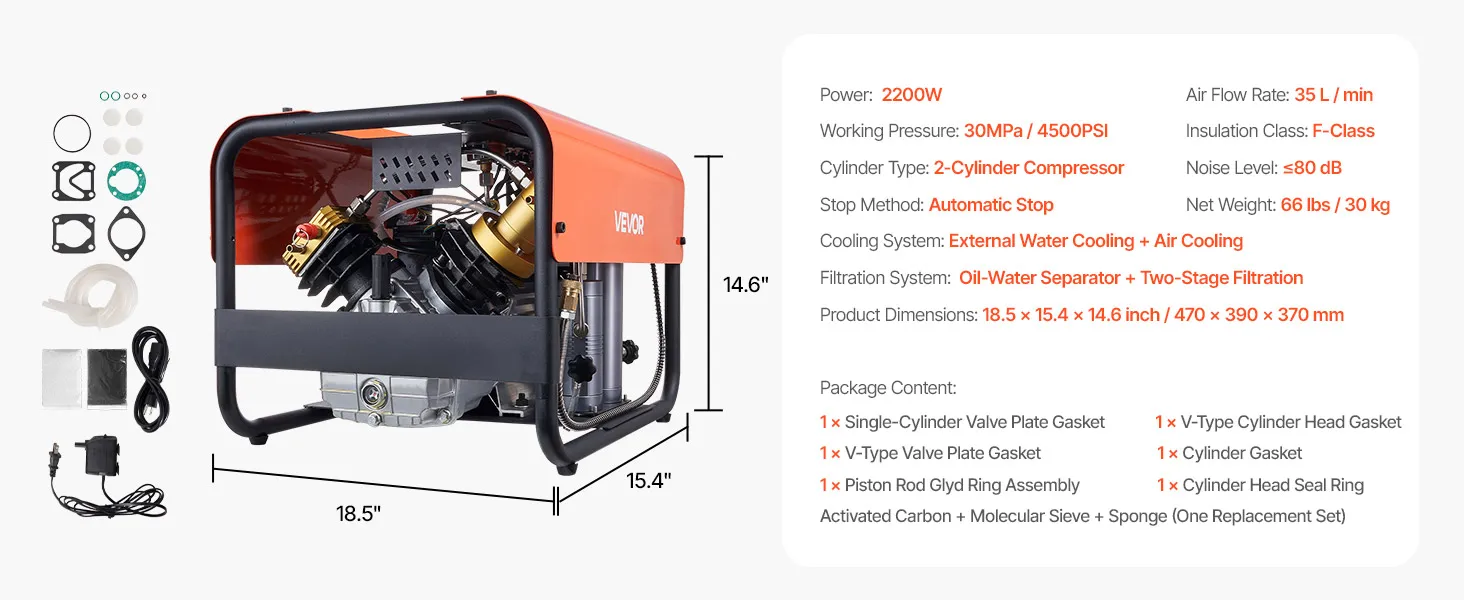

Product specification

Item Model Number

GYQSYSJ2GWZS19N4K001V1

Power

2200W

Working Pressure

4500PSI / 30MPa

Cylinder Type

2-Cylinder Compressor

Cooling System

External Water Cooling + Air Cooling

Stop Method

Automatic Stop

Air Flow Rate

35 L / min

Insulation Class

F-Class

Net Weight

66 lbs / 30 kg

Product Dimensions

18.5 x 15.4 x 14.6 inch / 470 x 390 x 370 mm

Description

Fast, Safe, and Reliable Air Compression

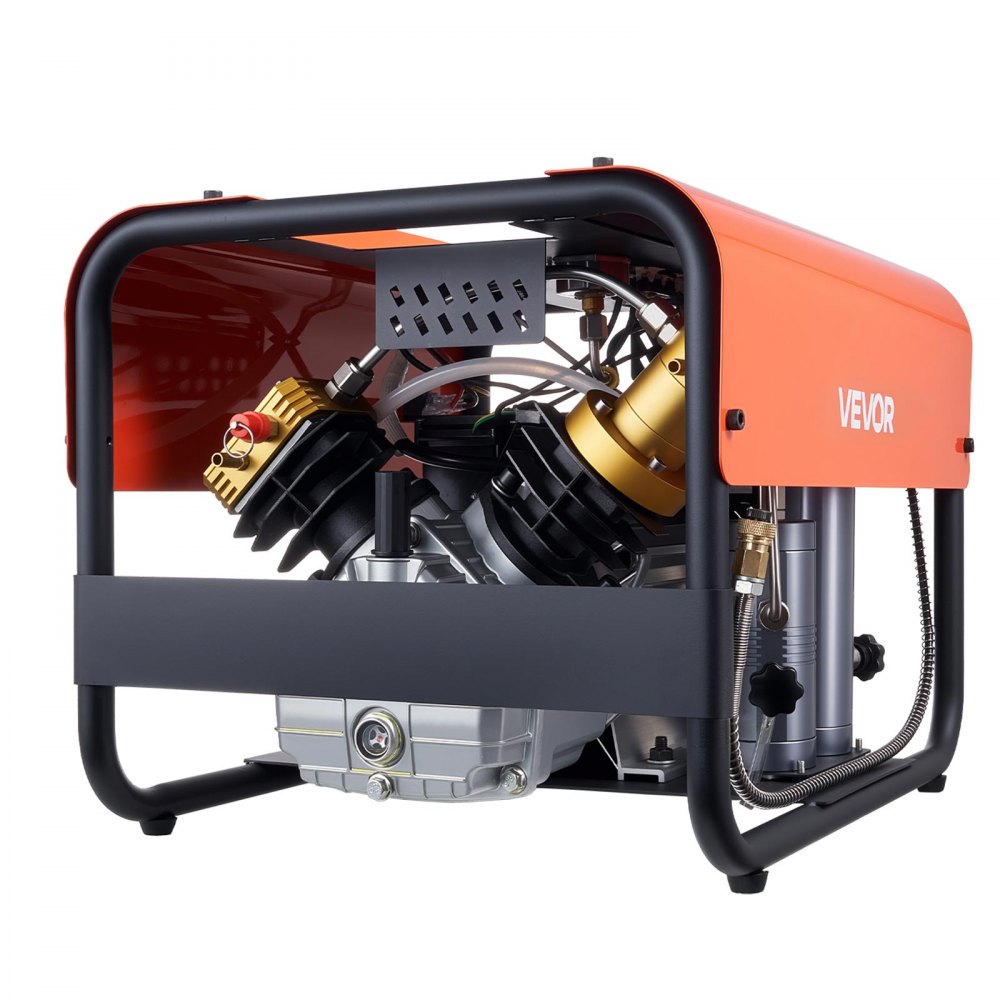

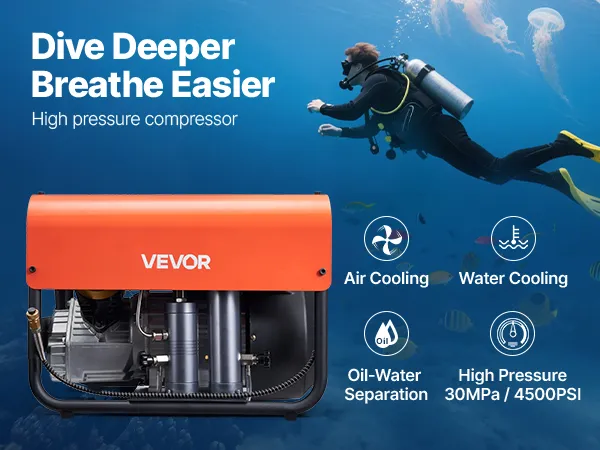

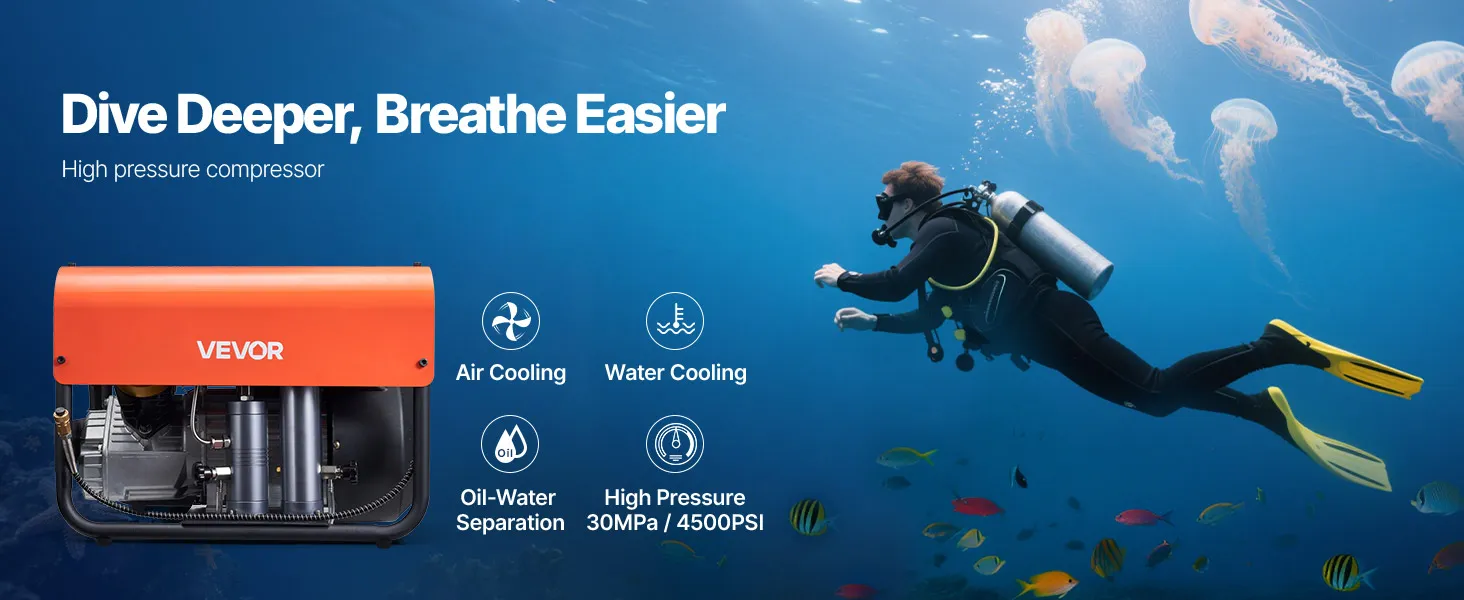

This dual-cylinder diving scuba tank air compressor features 2200W high power and 4500PSI (30MPa) maximum pressure, delivering 35 L/min high air flow rate. Once it reaches the preset pressure, it automatically shuts off, providing safe inflation for your paintball guns, PCP rifle, and scuba diving tanks.

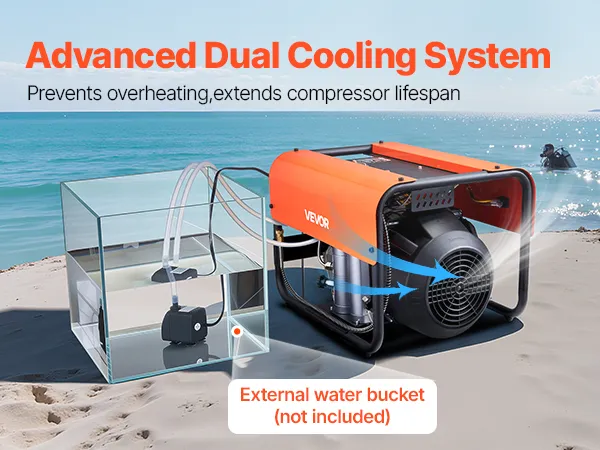

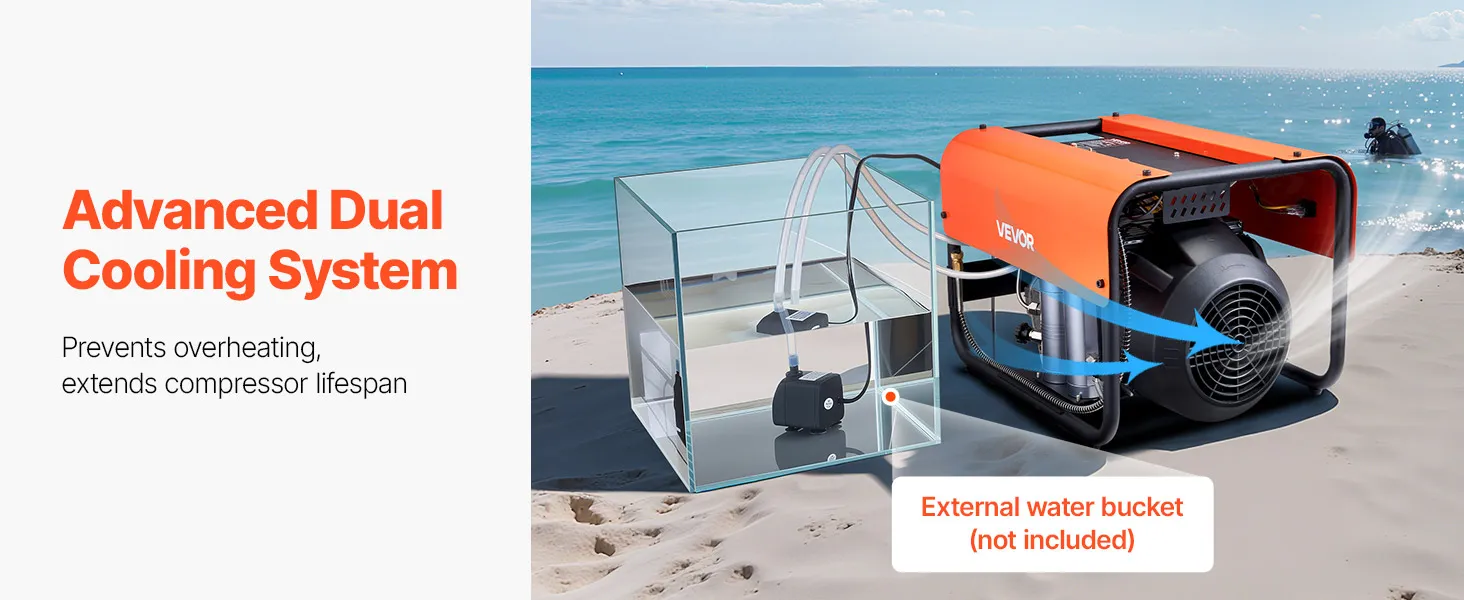

The PCP air compressor features an external water and fan cooling system for enhanced heat dissipation. Prepare an external water bucket with cooling water. Connect the inlet and outlet water hoses, place the water pump into the bucket, and power it on. Check if the water is flowing properly.

The PCP air compressor features an external water and fan cooling system for enhanced heat dissipation. Prepare an external water bucket with cooling water. Connect the inlet and outlet water hoses, place the water pump into the bucket, and then power it on.

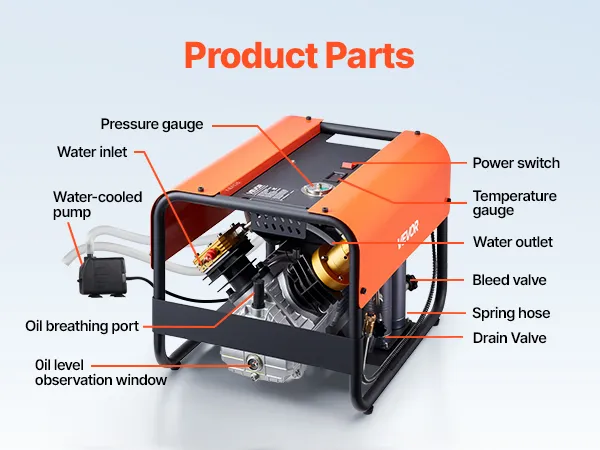

Designed with multiple detailed features to ensure safe and efficient operation, including water pump, water outlet, water inlet, pressure relief valve, pressure gauge, temperature gauge, oil level observation window, etc, all ensuring the stability and longevity.

This 4500 PSI high-pressure PCP air compressor is ideal for scuba diving, PCP rifles, paintball shooting, firefighting, leak detection, pressure testing, and more, meeting a wide variety of high-pressure air needs. (PLEASE NOTE: Lubricating oil need be EC750 edible grade)
