VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
+12
More
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay
VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay VEVOR Multi-Directional Microscope with Spring Bracket, 7X-45X Magnification Jewelry Microscope, Micro Jewelry Inlaid Stand with Integrated USB Ring LED Light, Jewelers Microscope for Jewelry Inlay

Features & Details

  • 7X-45X Continuous Zoom: This jewelry microscope with spring bracket provides high-definition clarity and a wide field of view for your work. With a working height of 0-15.7 inches / 0-400mm, a field of view range of 0.2-1.3 inches / 5.1-33mm, and a lens ring of 3 inches / 77mm, it provides high clarity and strong stereoscopic effect.
  • Reinforced Multi-Angle Adjustable Stand: The reinforced stand of the jewelers microscope can be adjusted up, down, left, right, forward, and backward. The stable structure helps reduce vibrations for precise observations. The maximum working distance is 30.7 inches / 780mm, and the minimum working distance is 13.2 inches / 335mm.
  • Quick Release Stand Structure: The multi-directional microscope is designed with a quick release stand structure, allowing for quick loosening of the stand joints. Simply follow 3 steps—press the button, lift the handle, and twist to tighten, making observation work simpler.
  • Integrated Ring LED Light: The integrated design ensures more even lighting and easier installation. With 144 LED lights providing ample illumination at 18000-35000 lumens, it clearly presents the details of the jewelry. The microscope jewelry inlaid stand uses a USB interface for more convenient installation.
  • Support for Simultaneous Observation and Adjustment: The simple adjustment mechanism of the stereo microscope allows for quick and precise adjustments of diopter, magnification, and lens distance, making your work more efficient.

Frequently Bought Together

Reviews 4.7
All reviews are from verified purchases
Average rating based on 10 reviews

Jess
Reviewed on Feb 28,2026
This is a huge upgrade from an optivisor for stone setting. I haven’t used a more expensive microscope so I have nothing to compare it to. The articulating arm is pretty stiff and I have to give it a really good yank to get it into position and the cable on the ring light is a little on the shorter side so I might need to extend it or get a different one. My biggest complaint is that the rubber eye guards don’t attach securely at all. I am literally knocking them off onto the floor 29 times a day or if I put the cover on and take off they will disappear so I am planning on buying some new eye guards for it. The ball vice is fine. It works for holding rings but it’s not as heavy duty as a GRS. I really waffled on buying a Leica, then an Amscope trinocular. But after receiving the Amscope , I realized that the Vevor was about a third of the price and same unit/optics minus the trinocular part. If you need to set stones and not go into debt then this is a great option and I whole heartedly recommend despite the couple of drawbacks mentioned. I own a lot of Vevor stuff (melting furnace, rotary tumbler, fume extractor) in my studio in addition to name brand stuff and Vevor hasn’t let me down yet.
See Less
See More
Ted
Reviewed on Feb 15,2026
I have never used a Leica or other expensive jewelers microscope, so I can’t compare it to that. But as someone who doesn’t do jewelry full time, and is using a scope for the first time, I can say that this thing is amazing. I’ve used it a couple times to set stones and view my jewelry and with the light, the image quality is great. I’m very happy with how much easier this makes the work as compared to an optivisor. If you need one, and don’t know why you need a more expensive one, then get this one and be happy.
See Less
See More
Martín
Reviewed on Feb 12,2026
I'm thrilled with my new Multi-Directional Microscope! Its exceptional quality and unbeatable price make it a fantastic investment. I'm confident it will elevate my metalsmith work, allowing me to see my craft with even greater precision and detail. I can't wait to see how it transforms my artistry!
See Less
See More
Alonso W
Reviewed on Feb 10,2026
Now I can fix my watches without breaking my back. Thank you vevor I love it so much
See Less
See More
Dalia
Reviewed on Jan 05,2026
I was fortunate enough to learn jewelry making using the Leica microscope. After leaving school, I knew I needed a microscope but not for thousands of dollars. This is a great option that has comparable quality. I will say though, the springs and the joints are a little stiff and they want to retract back quite often, but I’m sure they’ll loosen up over time. The handles that keep the joints in position could be sturdier, but it does that job. Overall great product :)
See Less
See More
Kestin
Reviewed on Aug 16,2025
be careful screwing in the bottom lens, the threads are plastic and can risk damaging or cross threading them if its not seated correctly. spin in backwards till it drops then screw down normally> great microscope for the cost.
See Less
See More
Rylan Stay
Reviewed on May 25,2025
Overall this scope is a great value. It is definitely not as good as the more expensive rigs, but it gets probably 80% of the way there for a fraction of the cost. Here are some problems you should know about before purchase. None of them are dealbreakers, and can be pretty easily overcame. - the big one is the lead screw for mounting the microscope to the arm was not long enough on my unit. Only about 2 threads were able to grab and so I almost dropped the microscope a couple times when I went to tighten it into place and the threads slipped. I solved it by taking a 1/2 inch drill bit and drilling out a small recess for the handle to sit into so it’d have more purchase on the screw. Now it can’t get quite as tight so the head will still swivel from side to side without much force, but at least it won’t fall off the arm. - the included usb ring light has a couple issues. First the cable isn’t long enough to be ran all the way down the arm and to a power source, so you’ll need an extension cord. Second it doesn’t come with an ac adapter, so depending on your power situation you’ll have to pick one of those up too. Third the light isn’t diffused at all so it can cause some pretty nasty glare on your workpiece. Some tissue paper can be affixed to help. - The included dust cover won’t fit over both the arm and the microscope after it’s been assembled. Overall though the build quality is pretty good, with all the important parts being quality metal. The picture quality is good, and the range of zoom is good for all the work I do. The ball vise is a little cheap, but it get the job done and has a good variety of bits to let it grab whatever you need. In whole, this setup is totally worth the price, even after picking up a couple little things to make it run better.
See Less
See More
Louis
Reviewed on May 21,2025
Great quality and utility given its unbeatable price. I'm a hobbyist and didn't want to drop 8x the money for a meiji or 10x for a leica, so I went with vevor...very happy.
See Less
See More
Skylar Rogers
Reviewed on Jan 23,2025
Had no issues, works as it should, would recommend.
See Less
See More
Greg
Reviewed on Jan 21,2025
You can spend much more money on a big name but if this is your first microscope then it’s a million times better than not having ine at all. I can see upgrading some day but this is a phenomenal value as long as you have some managed expectations. Sub $400 versus nearly $4000? The choice was easy.
See Less
See More
See all 10 reviews

About this item

Product specification
Item Model Number
JH-1A
Eyepiece Magnification
10X
Objective Lens Magnification
0.7X-4.5X (adjustable)
Total Magnification
7X-45X (adjustable)
Working Distance
0-15.7 in / 0-400mm
Field of View
0.2-1.3in / 5.1-33mm
Binocular Distance
2-3 in / 50-75mm
Stand Extension Length
13.2-30.7 in / 335-780mm
Product Weight
22 lbs / 10kg
Material
Steel + Aluminum + Plastic
Product Dimensions
18.3 x 6.9 x 18.7 in / 465 x 175 x 475mm
Description

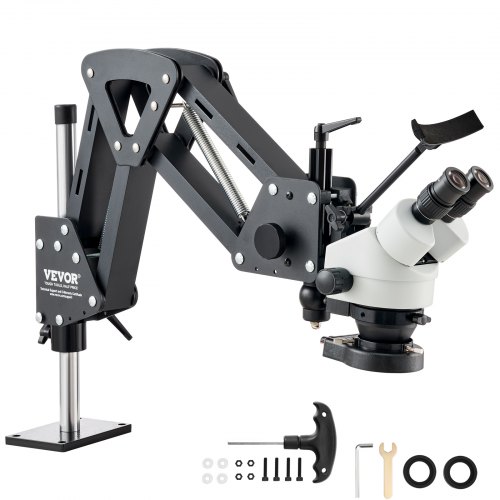

VEVOR Multi-Directional Microscope Set
VEVOR microscope 7x-45x in use for jewelry inlay, engraving, circuit board repair, and inspection.
VEVOR microscope 7x-45x in use for jewelry inlay, engraving, circuit board repair, and inspection.
With 7X-45X continuous zoom, our jewelry microscope with spring bracket provides clear and stereoscopic microscopic effects. This micro inlaid mirror is widely used in jewelry inlay, engraving crafts, PCB repair, factory inspection, jewelry appraisal, watch repair, and more.
VEVOR microscope 7x-45x with adjustable arm for large operating space on a wooden table.
VEVOR microscope 7x-45x with adjustable arm for large operating space on a wooden table.
The 0-15.7 in / 0-400mm working height allows for observation of various sizes of specimens. You can flexibly apply this jewelers microscope to different workbenches, stands, or other installation positions without the need to adjust the height of the workbench.
VEVOR microscope 7x-45x adjustable stand, showcasing maximum and minimum working distances.
VEVOR microscope 7x-45x adjustable stand, showcasing maximum and minimum working distances.
The multi-directional microscope has a maximum working distance of 30.7 inches / 780mm, allowing for the observation of larger and taller objects such as large PCBs, mechanical parts, or performing fine surface operations.
VEVOR microscope 7x-45x with integrated usb ring led light, dimming control, 6500-7000k color temperature.
VEVOR microscope 7x-45x with integrated usb ring led light, dimming control, 6500-7000k color temperature.
With 144 LED lights providing ample lighting, a color temperature of 6500-7000K, and 18000-35000 lumens, the microscope jewelry inlaid stand supports 0-100% stepless dimming. The integrated LED ring light with a USB interface is widely applicable and easy to install.
comfortable head support with multi-angle adjustment for flexible positioning, fits various heights.
comfortable head support with multi-angle adjustment for flexible positioning, fits various heights.
The extended design of the stereo microscope adapts to different heights. It is adjustable at multiple angles, flexibly adjustable, and reduces neck and lumbar fatigue from prolonged work.
VEVOR microscope 7x-45x, model jh-1a with 10x eyepiece, adjustable stand, and detailed specifications.
VEVOR microscope 7x-45x, model jh-1a with 10x eyepiece, adjustable stand, and detailed specifications.

Multi-Directional Microscope for Precision Jewelry Work

The VEVOR multi-directional microscope offers high-definition clarity and a wide field of view. It has a 0 to 15.7-inch working height, with a 0.2 to 1.3-inch field of view range for precise observation. The spring bracket stand allows for adjustments in multiple directions, reducing vibrations for accurate work.


High Clarity and Stereoscopic Effect

This jewlery microscope has a lens ring of 3 inches and an extreme 7X-45X magnification range. It provides stereoscopic clarity with clear, powerful magnification. The integrated ring LED light offers even lighting with 144 LEDs. They deliver 18000-35000 lumens (UV), which ensures every detail of your jewelry is presented vividly.


Quick and Easy Adjustments with Quick Release Stand

The quick release stand’s structure makes this multi-directional microscope easier to observe. Press the button, lift the handle, and twist to tighten it. This allows for quick adjustments of diopter, magnification, and lens distance. The result is a more efficient and accurate work environment.


Stable and Durable Design for Precise Observations

The stable and durable design is important for detailed work. The maximum working distance is 30.7 inches, and the minimum working height is 13.2 inches. This allows you to adjust the reinforced stand-up, down, left, right, forward, and backward.


Easy Installation with Integrated Ring LED Light

The multi-direcctional microscope features a built-in design. The ring LED light features an integrated design, which ensures even lighting and easy installation. The USB interface provides a convenient setup. You can use the built-in stand of the microscope for ample illumination. This enhances the accuracy of your jewelry inspection.


Efficient and Precise Work with Simultaneous Adjustment Capability

Efficient and precise work is due to the simple adjustment mechanism of this multi-directional microscope. It allows for quick and precise adjustments. Hence, it makes the work process more efficient. The binocular distance of 2-3 inches ensures comfort during extended use. Steel, aluminum, and plastic construction on the microscope adds durability and reliability.


Versatile and Powerful Tool for Jewelry Work

This microscope is designed to meet the needs of precise and detailed jewelry work. It offers high-definition clarity, adjustable magnification, and a stable observation platform. With its LED ring light and quick-release stand, it simplifies the work process.


Product guides and documents
User manual-en (PDF) Review

Questions and Answers (3)

3 Questions
Ask a Question
What's the differences between "VEVOR Multi-Directional Microscope with Spring Bracket Ring Light 7X-45X Jewelry" and "VEVOR Micro Inlaid Mirror Multi-Directional Microscope with Spring Bracket Multi-Directional Micro-Setting Microscope" Microscope Gem Diamond Setting Machine with Stand Jewelry Tools 7X-45X" ? I'm trying to purchase either one, but I'm not sure which one is better for me.. Thanks! I
Answer This Question
The two brackets are different, you can choose according to the parameters. Another difference is that one product does not have a ring light (buy it yourself if you need it), and the other product has a ring light.
By vevor
Helpful ( 7 )
Does thus include a barlow lens?
Answer This Question
Hello, this product is equipped with a 0.5X objective lens.
By vevor
Helpful ( 0 )
Does the VEVOR Multi-Directional Microscope with Spring Bracket Ring Light 7X-45X Jewelry have the Machine Objective Lens: 0.5X/165Mm?
Answer This Question
Hello, this machine is equipped with a 0.5X objective lens
By vevor
Helpful ( 0 )
