Name: VEVOR Linear Rail Slide 2PCs 20mm x 1200mm Linear Bearing Slide Set with 4Pcs Block Bearings SC20UU+4Pcs Shaft Support Linear Shaft CNC Parts Kits for Electronic Equipment Guide Bar
Brand: VEVOR
SKU: HTTZ20-1200MM0001V0
Price: 62.99 USD
Availability: Discontinued
Rating: 4.8 (62 reviews)

VEVOR Linear Rail Slide 2PCs 20mm x 1200mm Linear Bearing Slide Set with 4Pcs Block Bearings SC20UU+4Pcs Shaft Support Linear Shaft CNC Parts Kits for Electronic Equipment Guide Bar

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive $5.00 off for your first three orders on the App.

Download Now

Exclusive $5.00 off for your first three orders on the App.

Scan the QR code to download

Sliding Track Size: 1200 mm

1200 mm
300 mm
1000 mm

Slider Size: 20 mm

20 mm

About this item

Complete Linear Rail Kits: This linear rail set includes 2pcs 47.2 in / 1200 mm chrome plated linear shafts; 4pcs fixed shaft support; 4pcs pillar block bearings SC20UU. Sliding blocks are used cooperatively with rails, smooth sliding provided by the inside linear bearing.
High-Quality Steel Material: Linear motion bearing kits are made of carbon steel, linear bearings are made of GCr15 bearing steel with aluminum alloy housing. The chrome plating treatment surface makes it beautiful and anti-rust. Hardness can reach as high as HRC62, more durable.
Premier Linear Guiding System: Perfect combination of the main axle bearing rail and aluminum alloy support, which nicely stabilizes the original rail. Industrial-grade standard SBR block, with a high precision linear bearing inside.
Easy to Install: Conveniently install the linear rail by aligning the track with the mouth of the slide rail and pushing the slide rail until the slide rail completely falls. It's no need for maintenance.
Wide Application: Linear motion ball bearing set is widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry. Suitable for kinds of electronic equipment/guide bar, driveshaft, and pillar.

See More See Less

VEVOR linear rail slide with high precision, high hardness carbon steel shafts.

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

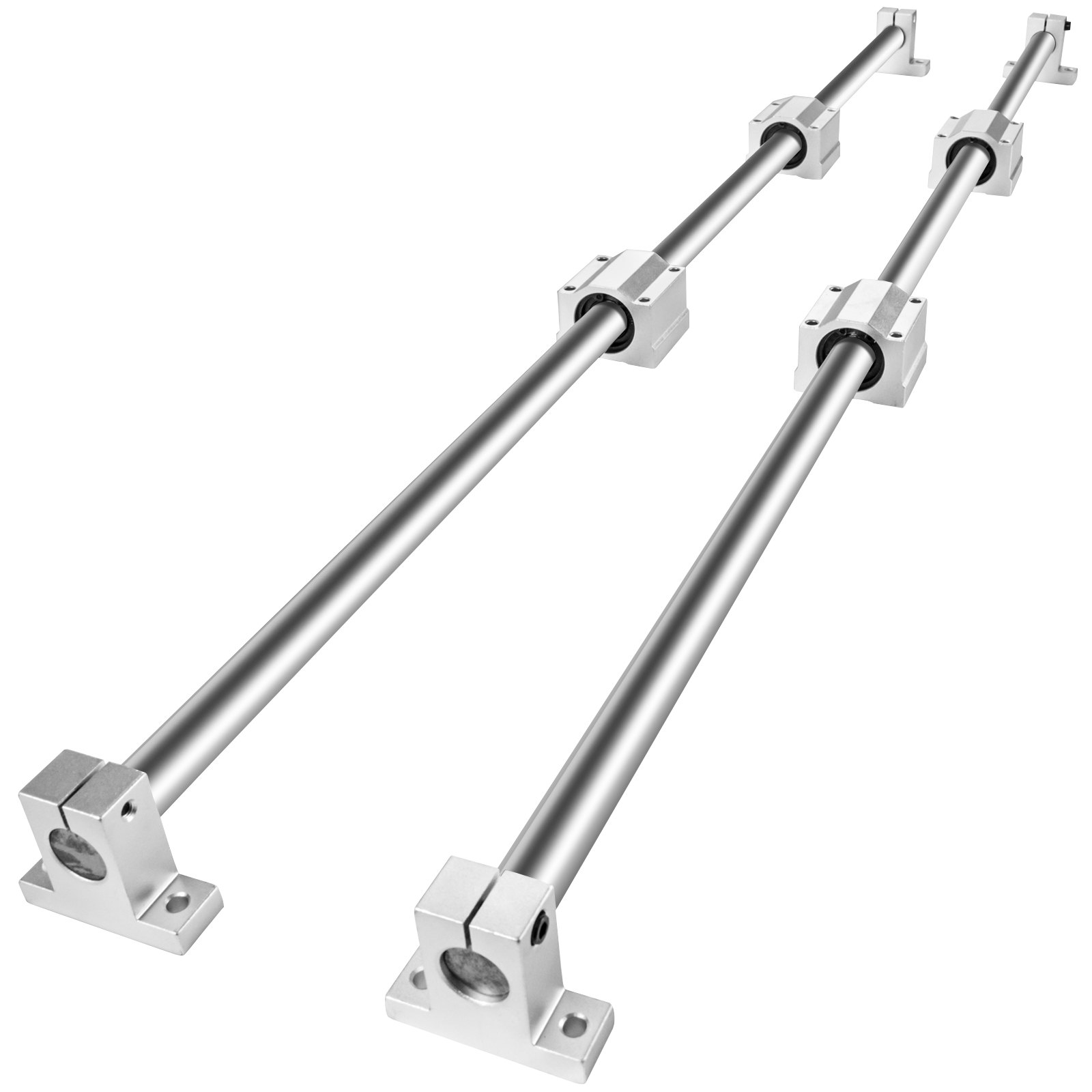

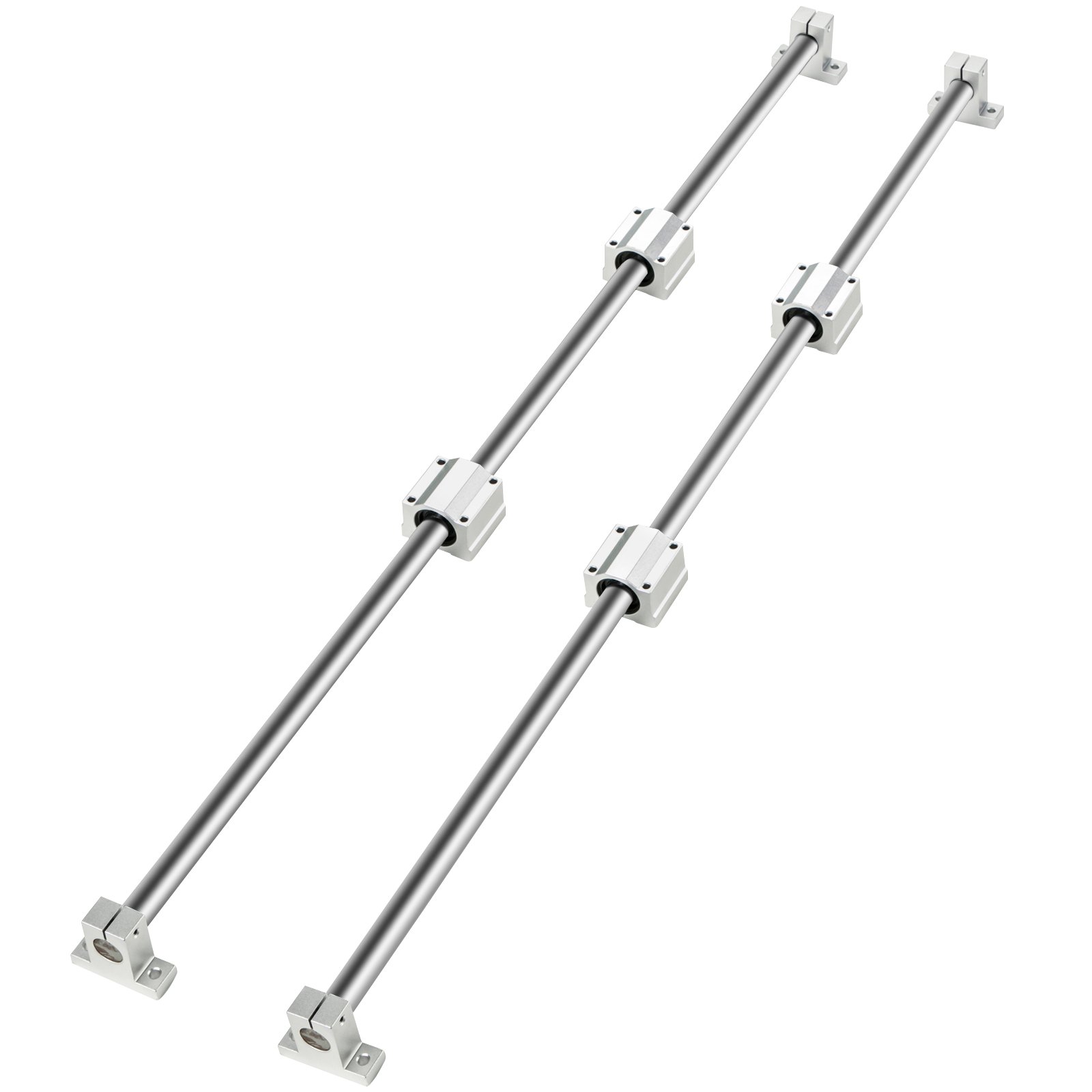

VEVOR linear rail slide with cylindrical rails and mounting blocks.

20 x 1200 mm Linear Optical Axis Slider Set

Smooth Motion & Low Noise & High Hardness

This linear rail set includes 2pcs 47.2 in / 1200 mm chrome plated linear shafts; 4pcs fixed shaft support; 4pcs pillar block bearings SC20UU. A perfect combination of main axle and aluminum alloy support, which nicely stabilizes the original rail. Premier quality bearing blocks moves smoothly while using.

Complete Linear Rail Kits
High-Quality Steel Material
Premier Linear Guiding System
Easy to Install

Fine Workmanship

CNC rail kit includes 2pcs 47.2 in / 1200 mm chrome plated linear shafts; 4pcs fixed shaft support; 4pcs pillar block bearings SC20UU. The bearing steel central axle is solid and durable, which makes it has a long service life.

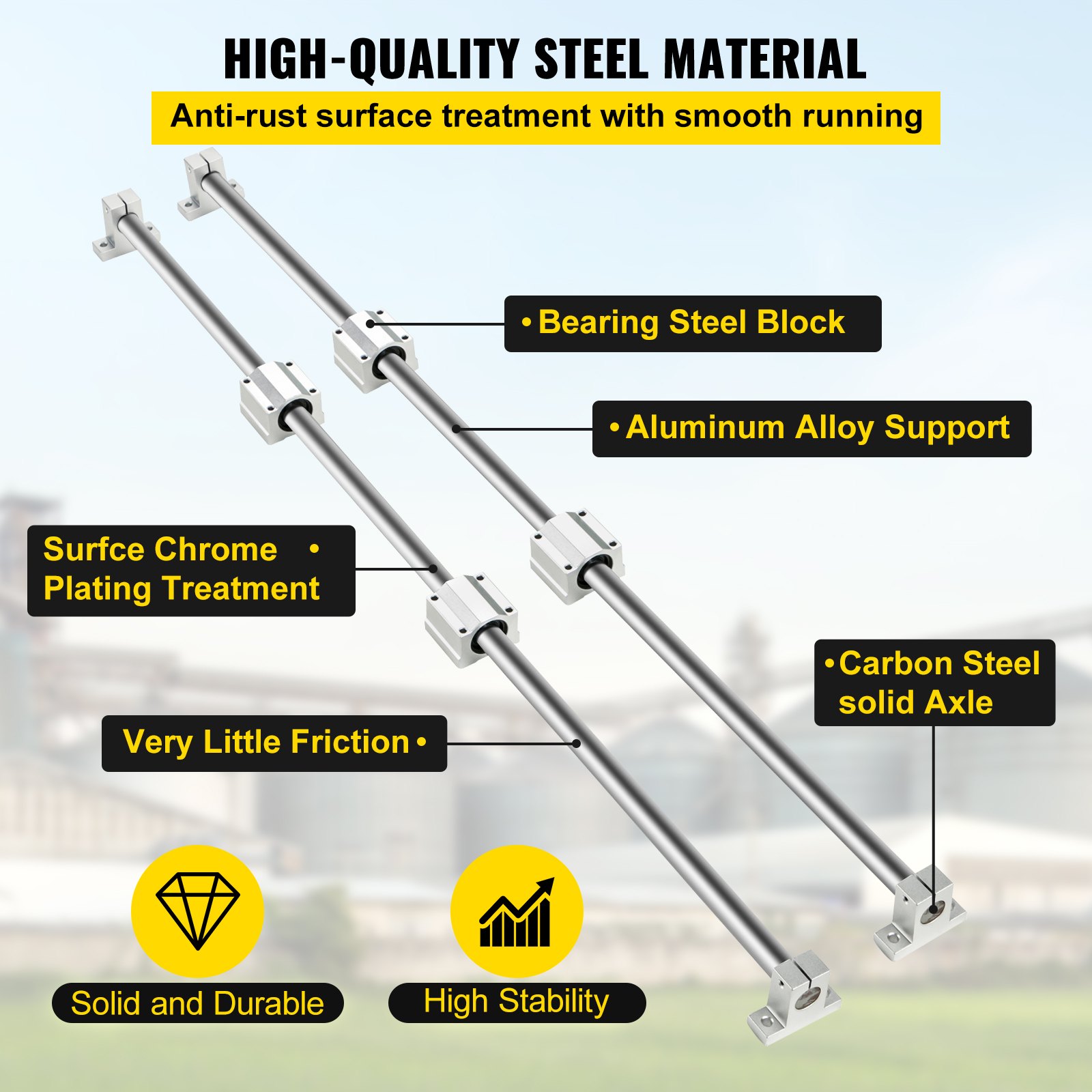

VEVOR linear rail slide with bearing steel block and aluminum alloy support

Heavy-Duty Material

This bearing rail is constructed with a carbon steel main axle, aluminum alloy support, and GCr15 bearing steel linear rail block with an aluminum alloy casing. The chrome plating surface treatment results in high hardness, reaching HRC62 with high accuracy and strong durability.

VEVOR linear rail slide system with heavy-duty and high rigidity features.

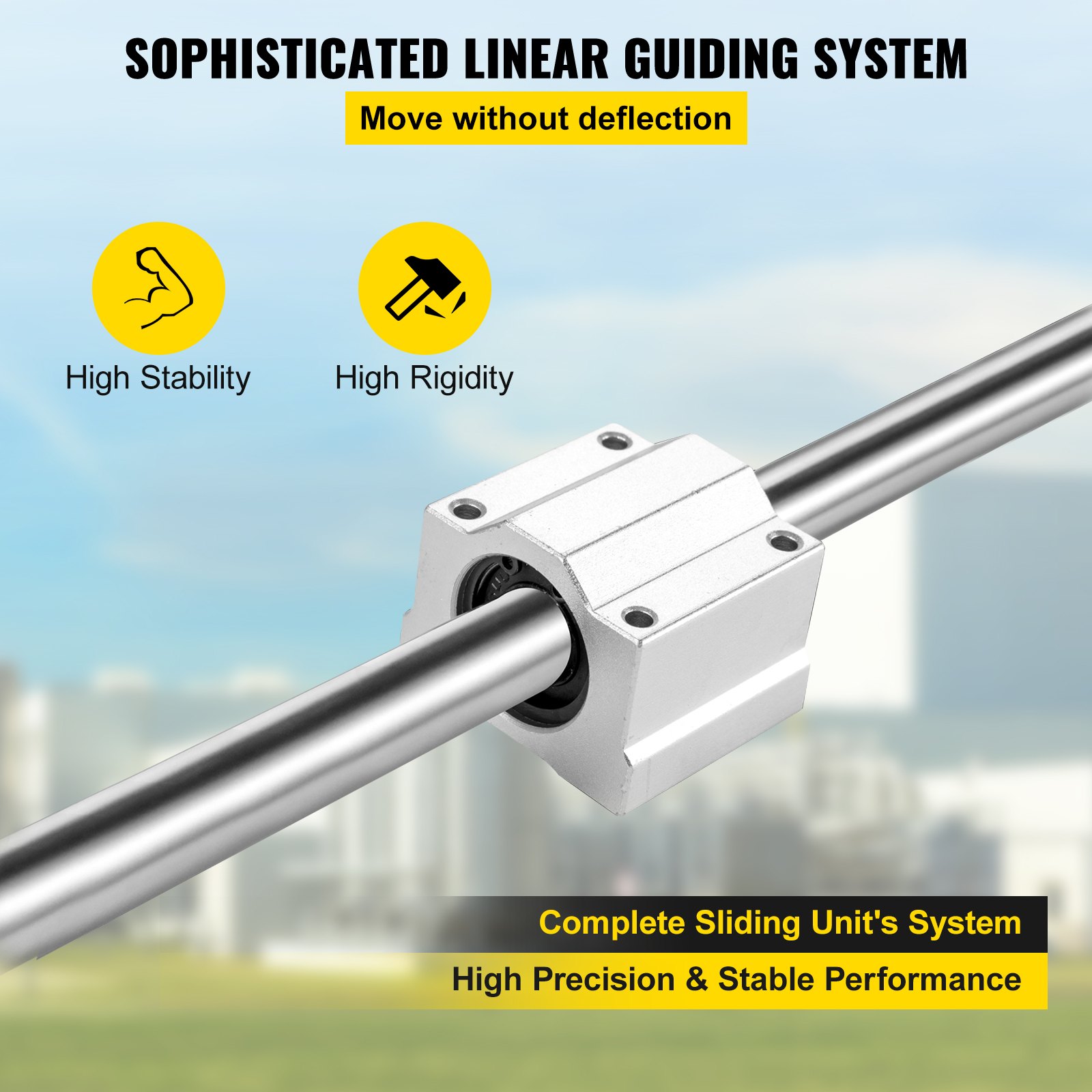

Complete Linear Guiding System

The cylindrical guide is composed of a top rail and quality bearing blocks which makes your process move without deflection. What's more, the rod rail shaft supports have high rigidity and strong bearing capacity.

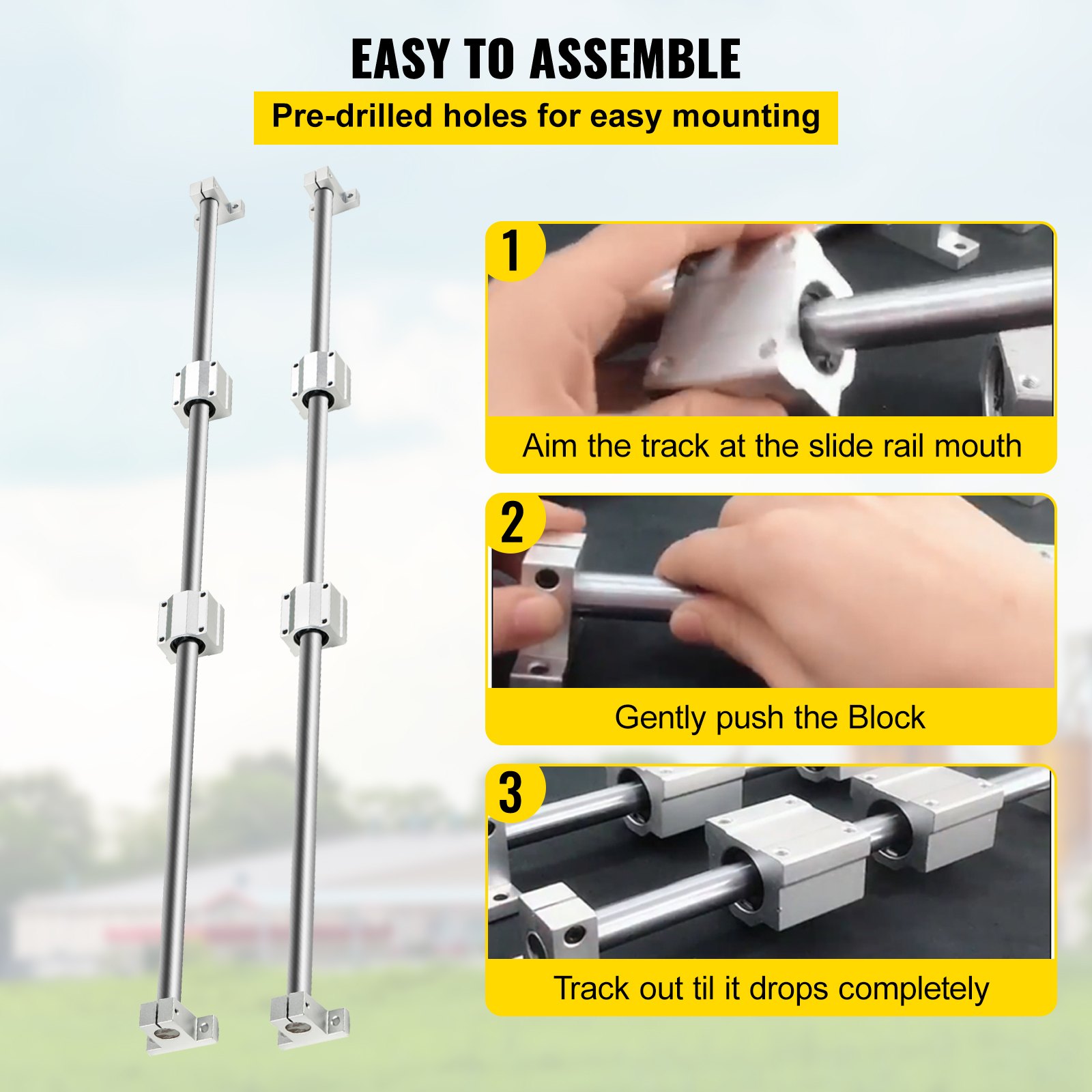

three-step guide for VEVOR linear rail slide assembly with hands-on installation.

Simple Installation

The linear rail set prefers careful installation that, however, is easy. Align the track with the slide rail's mouth and push the slide rail gently until the slide rail ultimately falls to achieve the assembly.

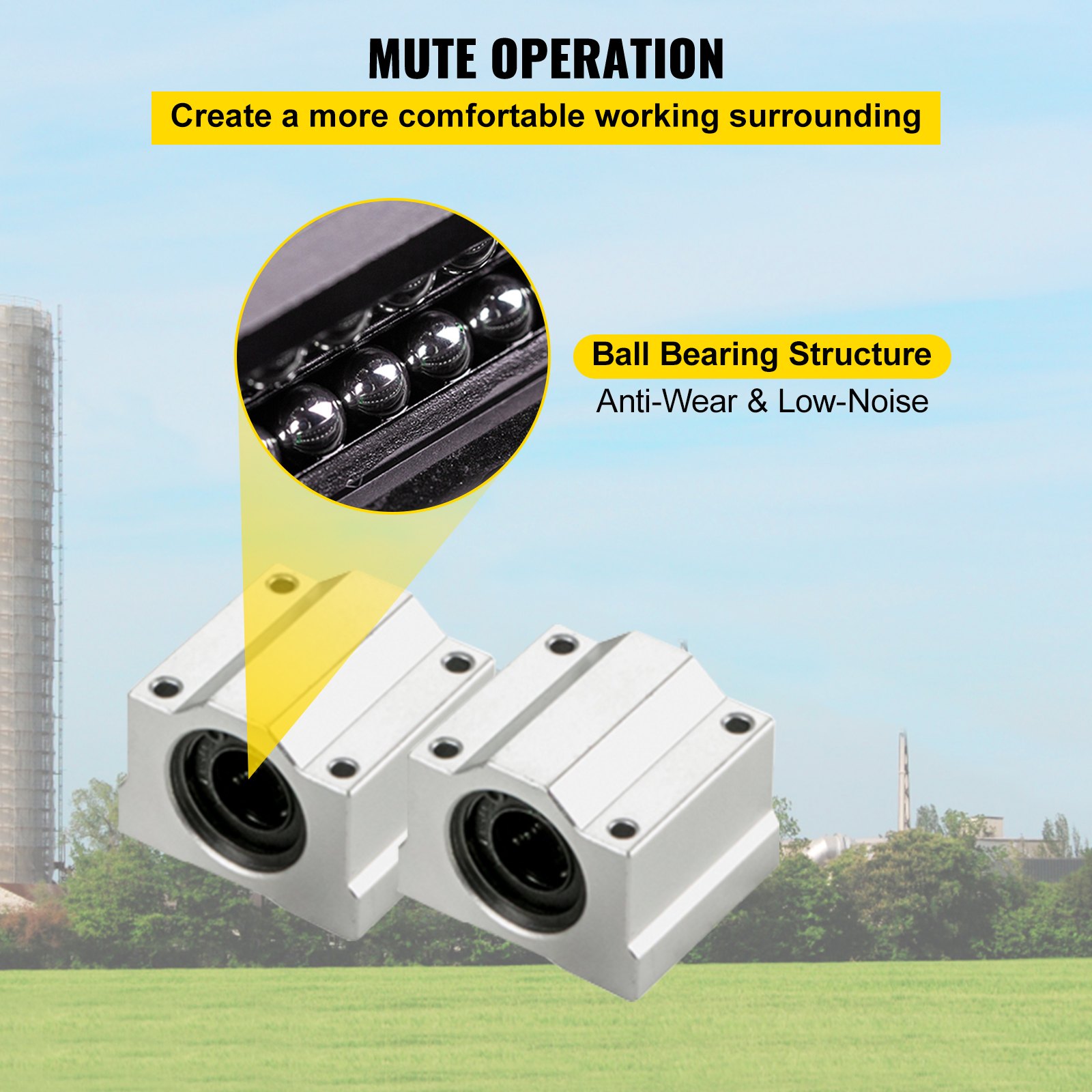

Quiet Operation

Our professional and technical linear slides and blocks can stabilize the original rail. As a result, move smoothly without deflection, minimal wear, and low noise while using.

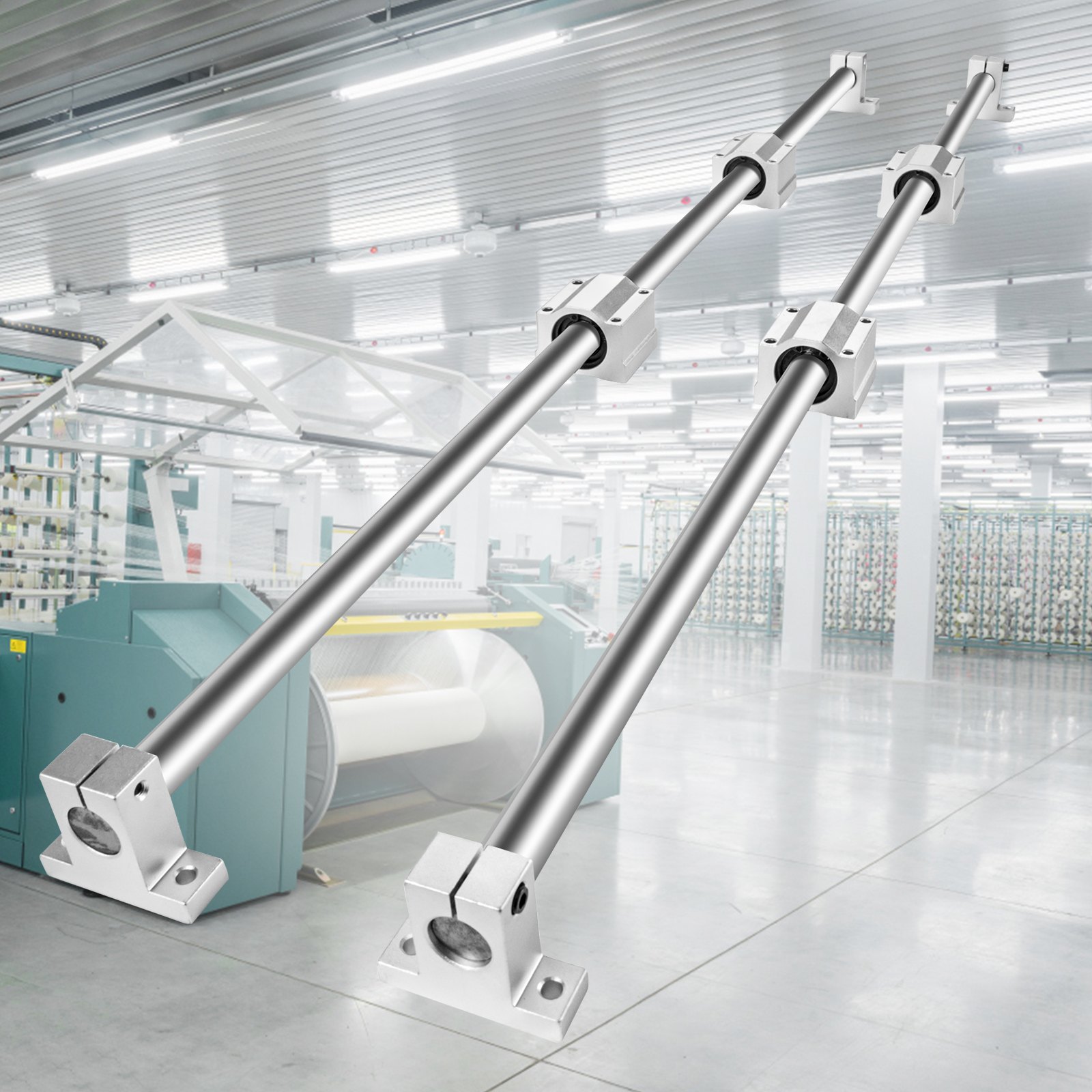

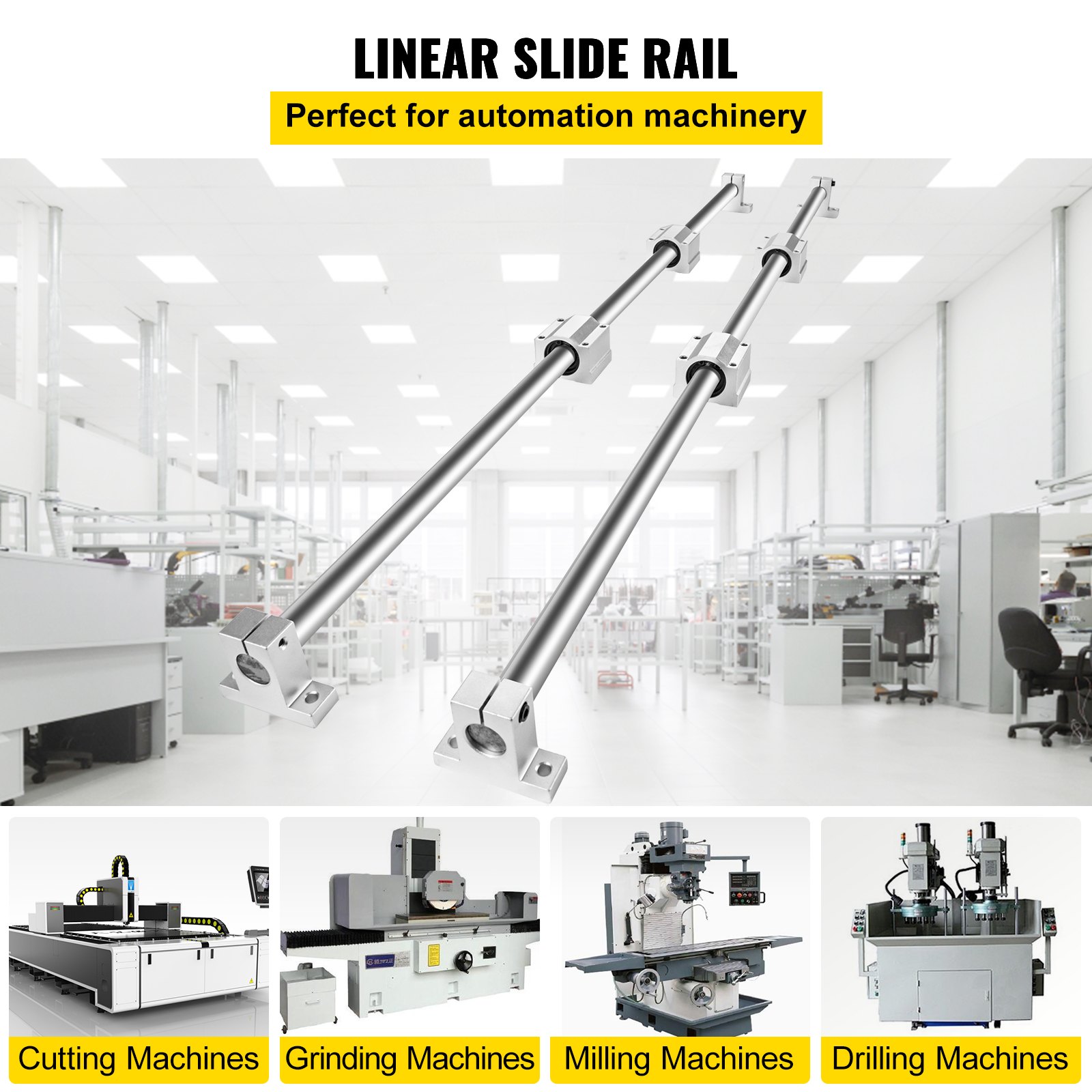

cutting, grinding, milling, and drilling machines for VEVOR linear rail slide applications.

Extensive Application

The linear rail performs well in automation machinery such as DIY CNC routers, lathes, machine tools, bending machines, etc.

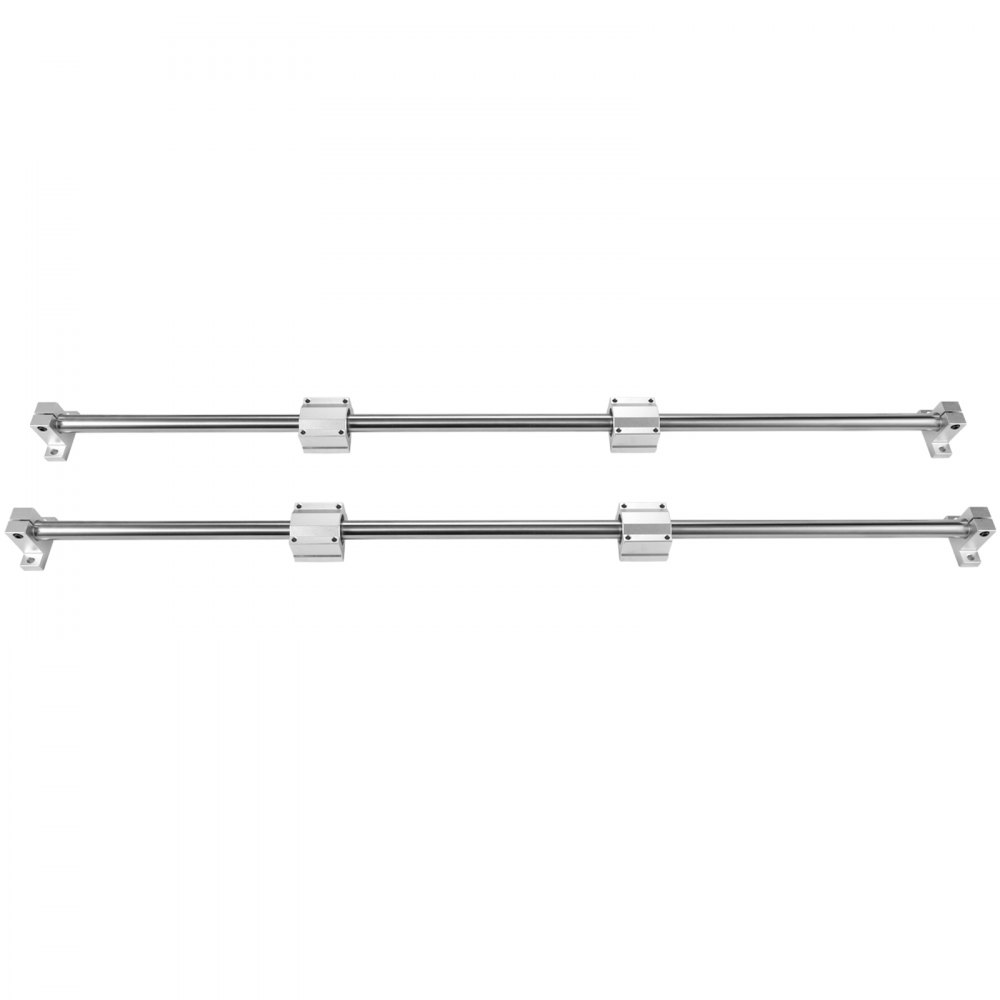

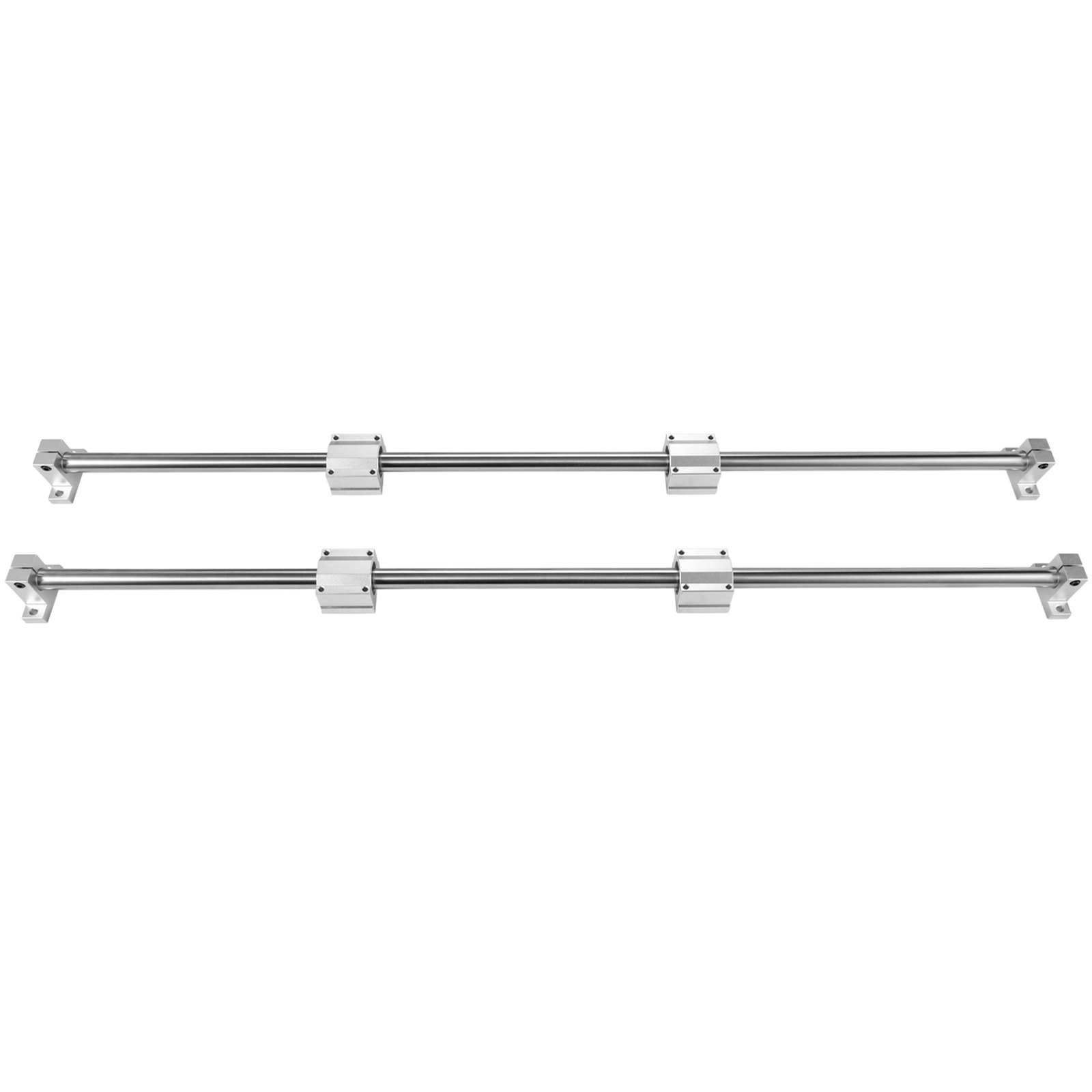

two VEVOR linear rail slides with mounted ball bearings and support brackets.

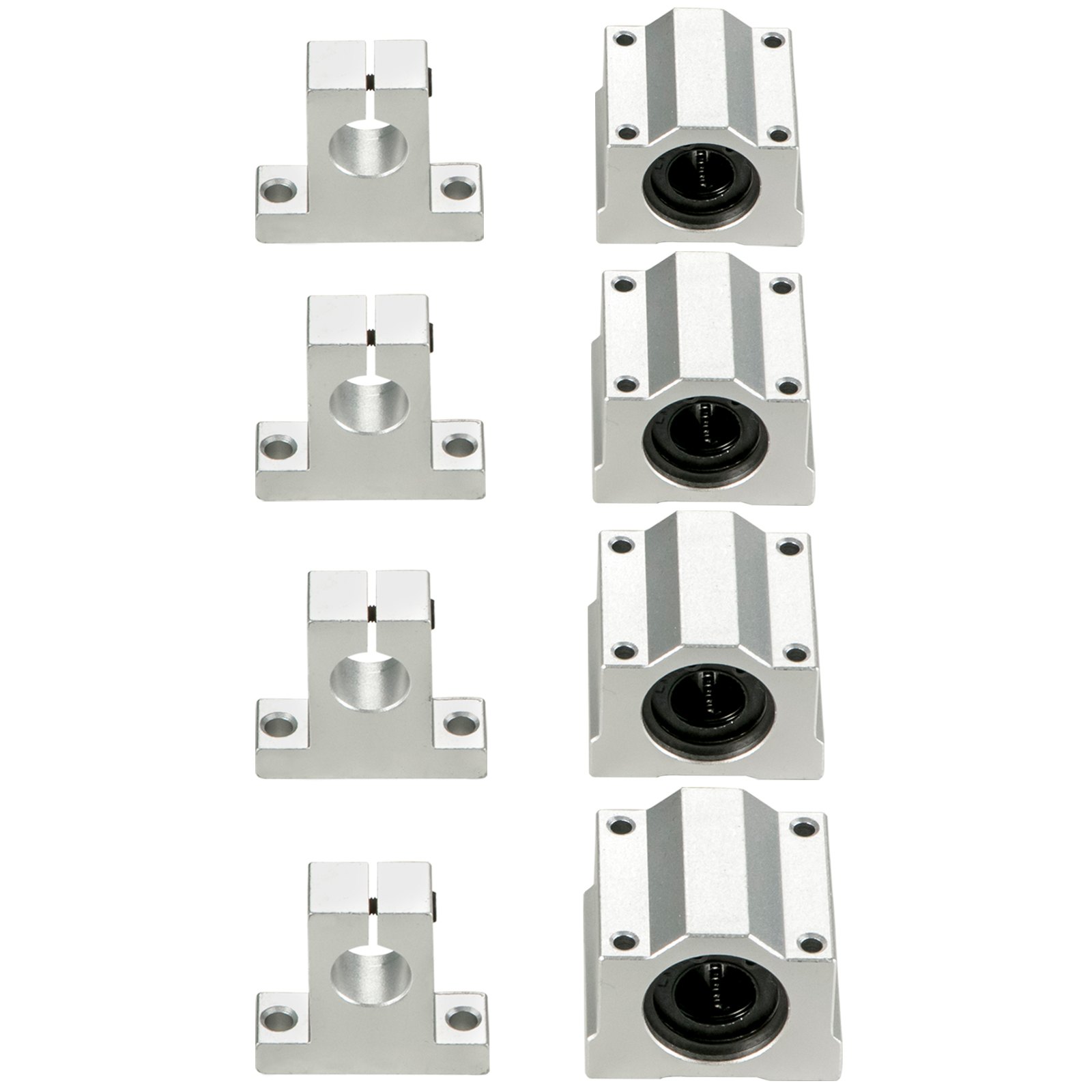

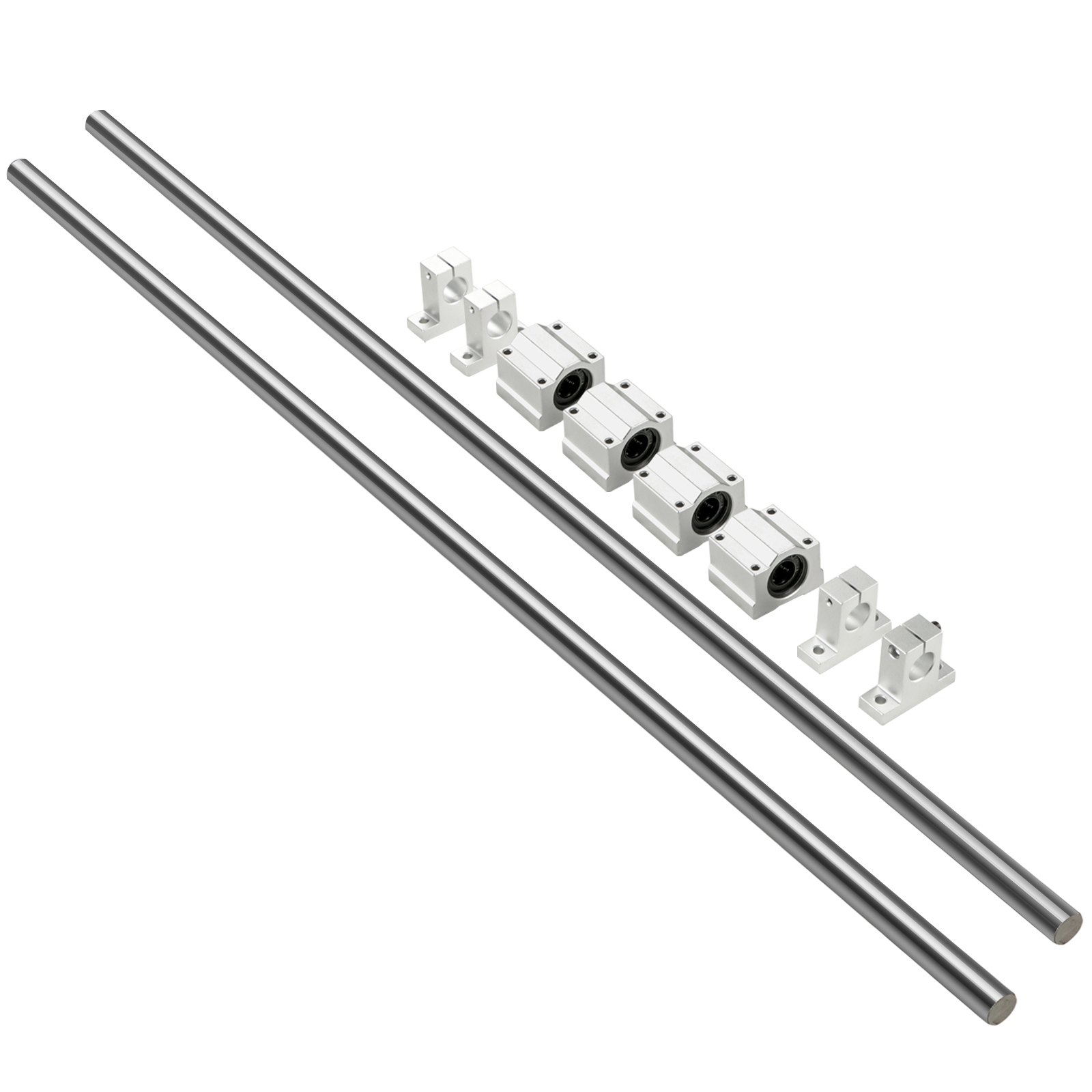

Package Content

2 x Chrome Plated Steel Shafts
4 x SC20UU Bearing Blocks
4 x Fixed Support

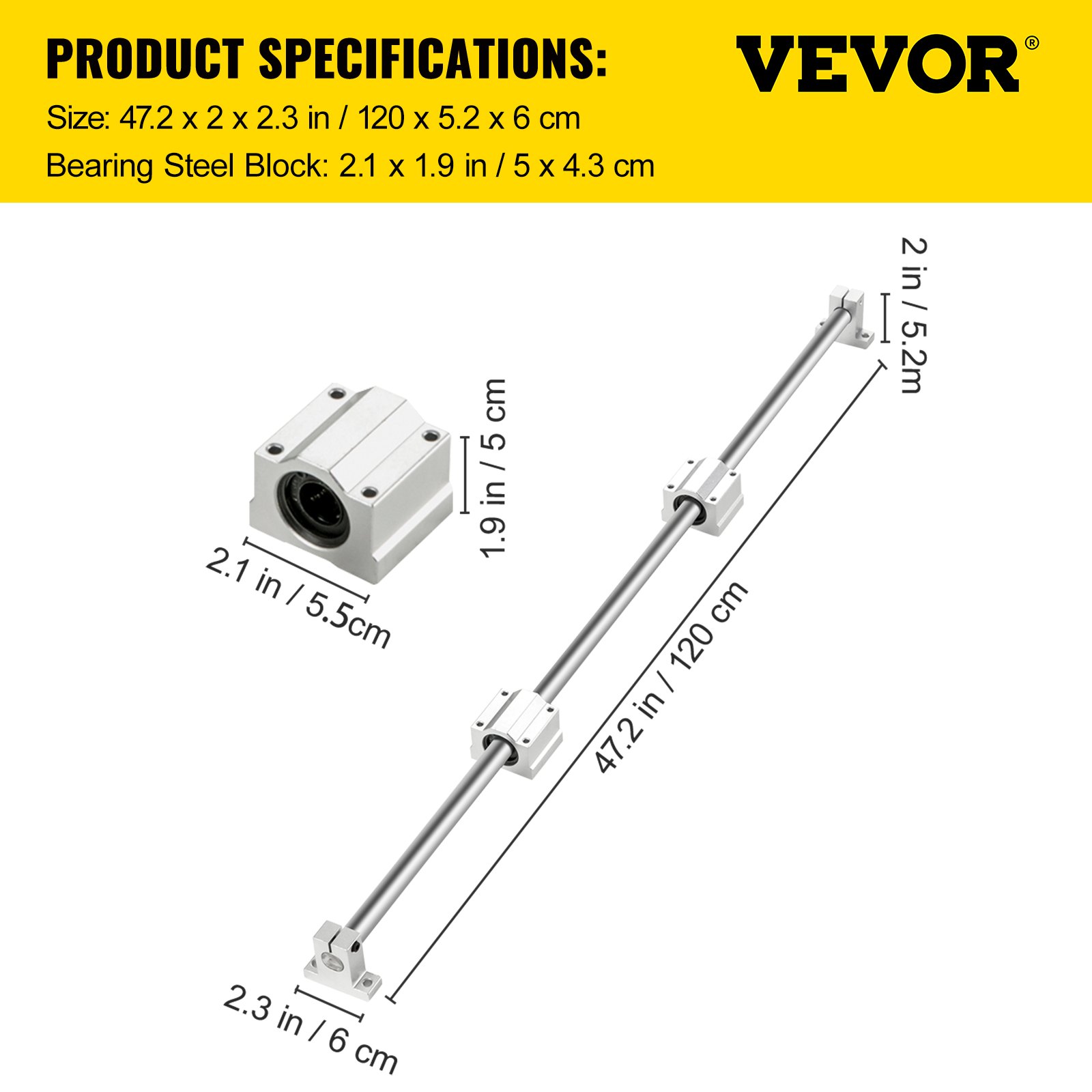

VEVOR linear rail slide with dimensions; 47.2 in length, 2.3 in width, 2 in height.

Specifications

Type: Linear Slide Rail Set
Material: Carbon Steel, GCr15, Aluminum Alloy
Rail Shafts: 2PCs Chrome Plated Shafts
Bearing Blocks: 4PCs SC20UU
Bearing Support: 4PCs Fixed Support
Rail Shaft Length: 47.2 in / 1200 mm
Rail Shaft Diameter: 0.79 in / 20 mm

These rails were the overhead portion for a Router Sled Flattening Jig. Their smooth action and precision-drilled components made the build and implementation a snap.

If weight is an indication of quality, these guide rail and associated hardware ooze with quality. They are heavy. Which is good for my application, which is a flattening jig which involves two pairs of rails at 90-degree angles. I tried other methods of making a flattening jig, none of which worked well at all. With these rails it works well.

These rails are good quality and worked out prefect to make my own slab flattening router fixture they are straight and the bearing saddles glide smoothly

Customer Reviews

4.8 Out of 5

Based on 62 reviews

Ratings by Features

Price 4.8
Quality 4.7
Features 4.7
Easy to Use 4.7
See More See Less

62 Review(s)

Clear filters

Alfonso Niño

Buen producto

Lo que esperaba, tal cual la descripción

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Dan in NC

Smooth Action and Precision-Drilled Components

Rick The handyman

Surface planer rails

These worked great for building a surface planer with my router to surface boards making a table top. Very strong and good value for the money.

beanp

Thomas

Great Guide Rail

Wow it’s just what I needed, Got here fast and parts are all good. Thank you

Don S.

Linear Rails

BrofessorBeam

Works but There are Better Options

This is a great product and excellent for the price. If you are just needing rails this works for simple heavy-duty guidance. If you are building robotics, I would recommend the slim square rails with ballscrew. As the main alum, I had the hardest time designing parts for this rail system. barrings are very thick and wide off the build plate. There is a use for everything and for the time these worked very well. For the right project, I'd recommend.

C. Mendez

Excellent quality material, and exquisitely perfect machining.

Excellent quality material, and exquisitely perfect machining. I can't detect much, if any deflection; the rails are strong. The only negative to this product is that the screw holes are metric, and while the manual provided is informative, it lacks that detail.

John

None

Used these to make my own router setup, 7' x 5', to flatten wood slabs, etc. worked great.

Jimbo

Linear Guide Rails

I purchased the linear guide rails to custom build a router sled in order to match my needs. I'm still setting the tabletop but for now, everything looks great at a great price
