ZLFJST12CFB000001V6

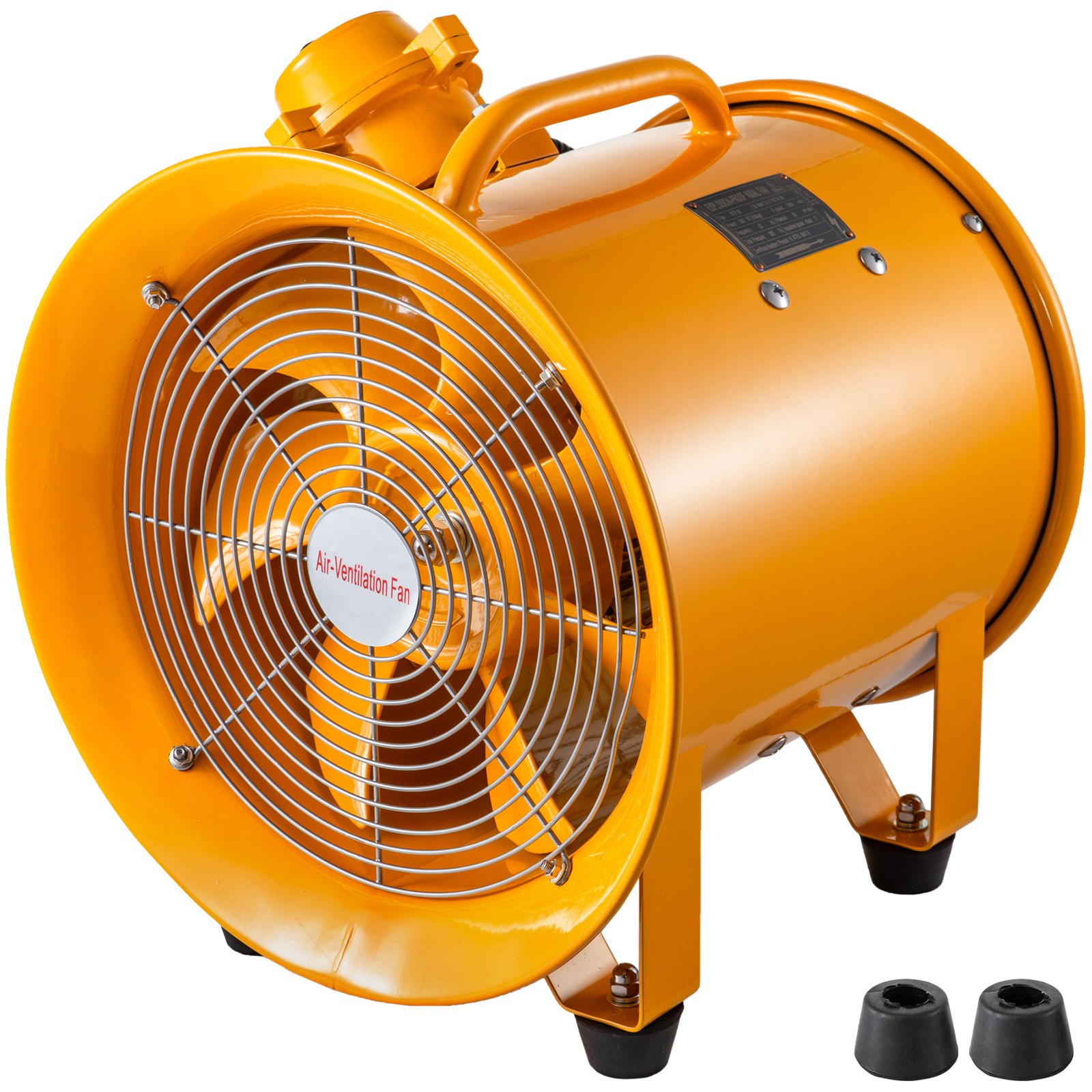

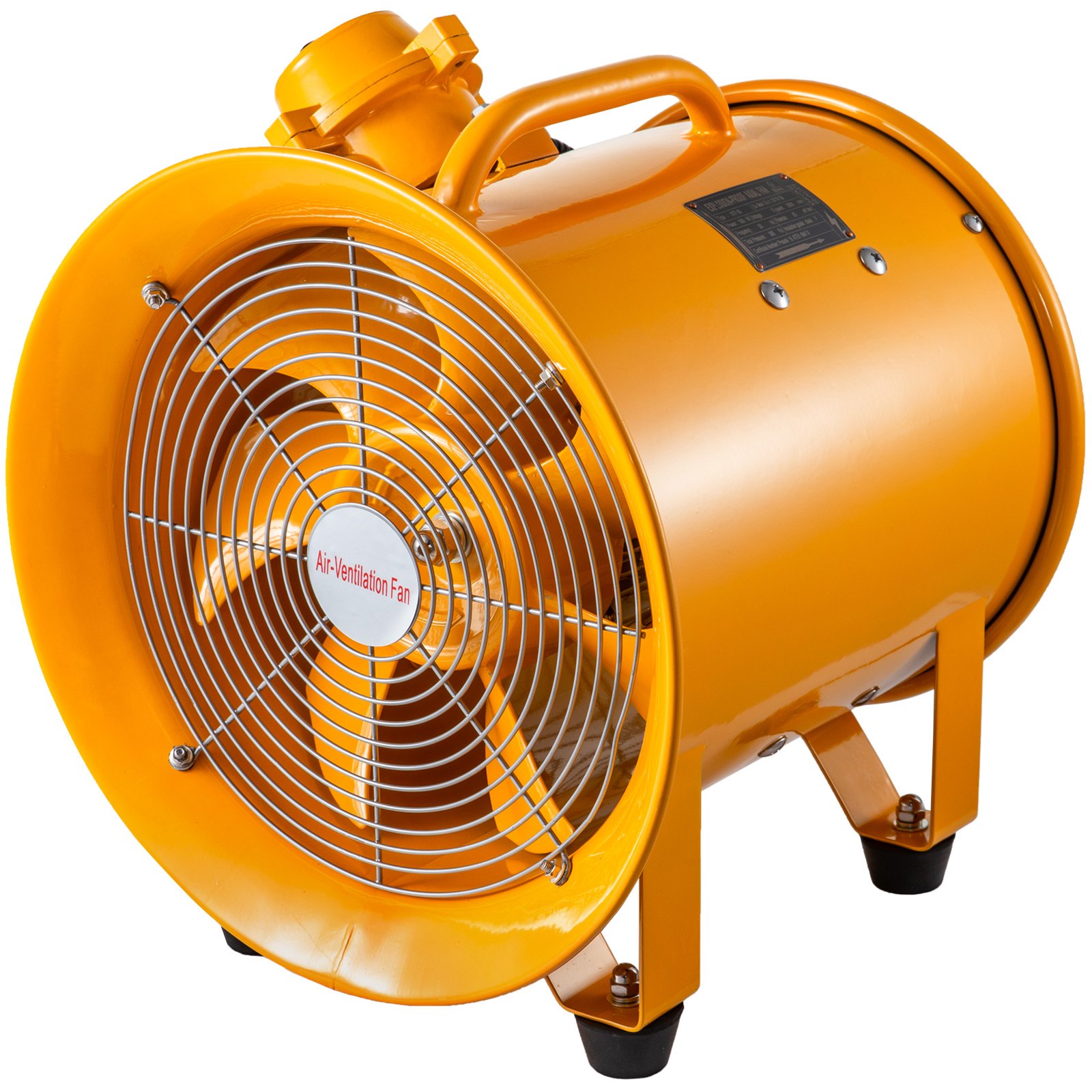

ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation

ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
$169.99
169.99
Price including VATSee details
  • · 12'' Explosion-Proof Axial Fan: EX Certified explosion-proof fan is designed with an explosion-proof switch. Power: 550W. Voltage: 110V. Frequency: 60 Hz. Current: 5.0A. Fan Diameter: 12 in / 300 mm. Static Pressure: 450Pa. Axial Fan Bearing Type: 6203. Certification: ATEX, CE, UL, RoHS, TÜV.
  • · 550W Pure Copper Motor: The explosion fan features an explosion-proof, high-velocity, 100% copper winding motor. 3450 RPM motor speed is suitable for long-term ventilation. It can move a large amount of air quickly with low noise at only 69 dB (A). Keep the air in your working area clear and avoids build-ups.
  • · 4620 m³/h Large Air Flow: The axial fan exhaust can control a large air volume of the 2719 CFM / 4620 m³/h, and the 7 metal blades provide fast and effective ventilation. It extracts the maximum amount of air and maintains high-efficiency work. Besides, 2 high-density grills ensure portable ventilators work continuously and safely.
  • · Sturdy & Humanized Design: The ventilator explosion is equipped with a durable 0.079 in / 2.0 mm steel sheet housing, bringing excellent durability and extending its service life. Two handles and four rubber feet allow you to use and carry it effortlessly. 2 extra rubber feet are provided for easy replacement. / 4 stable wheels at the bottom are offered for easy movement to preferred locations. Extra 2 wheels are provided for easy replacement.
  • · Ventilate Anywhere: The explosion-proof exhaust fan is perfectly connected to a 12'' anti-static flexible air duct. It is widely used in most places where airflow is needed, ideal for air exhaustion in factories, warehouses, offices, workshops, laboratories, gas stations, military plants, etc.


Frequently Bought Together

People Who Bought This Item Also Bought

ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
12 Inch Atex Certified Ventilators 550W Explosion Proof Fan
The 300 mm axial flow fan is designed to be heavy duty and compact. Explosion Proof Motor of speed: 3450Rpm offers large flow 77m3/min and reliability, suitable for even the most demanding industrial, construction and workshop applications.
  • 12" Explosion Proof Fan
  • High Performance Motor
  • Portable & Compact
  • Large Air Flow
  • Stable Feet

ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation

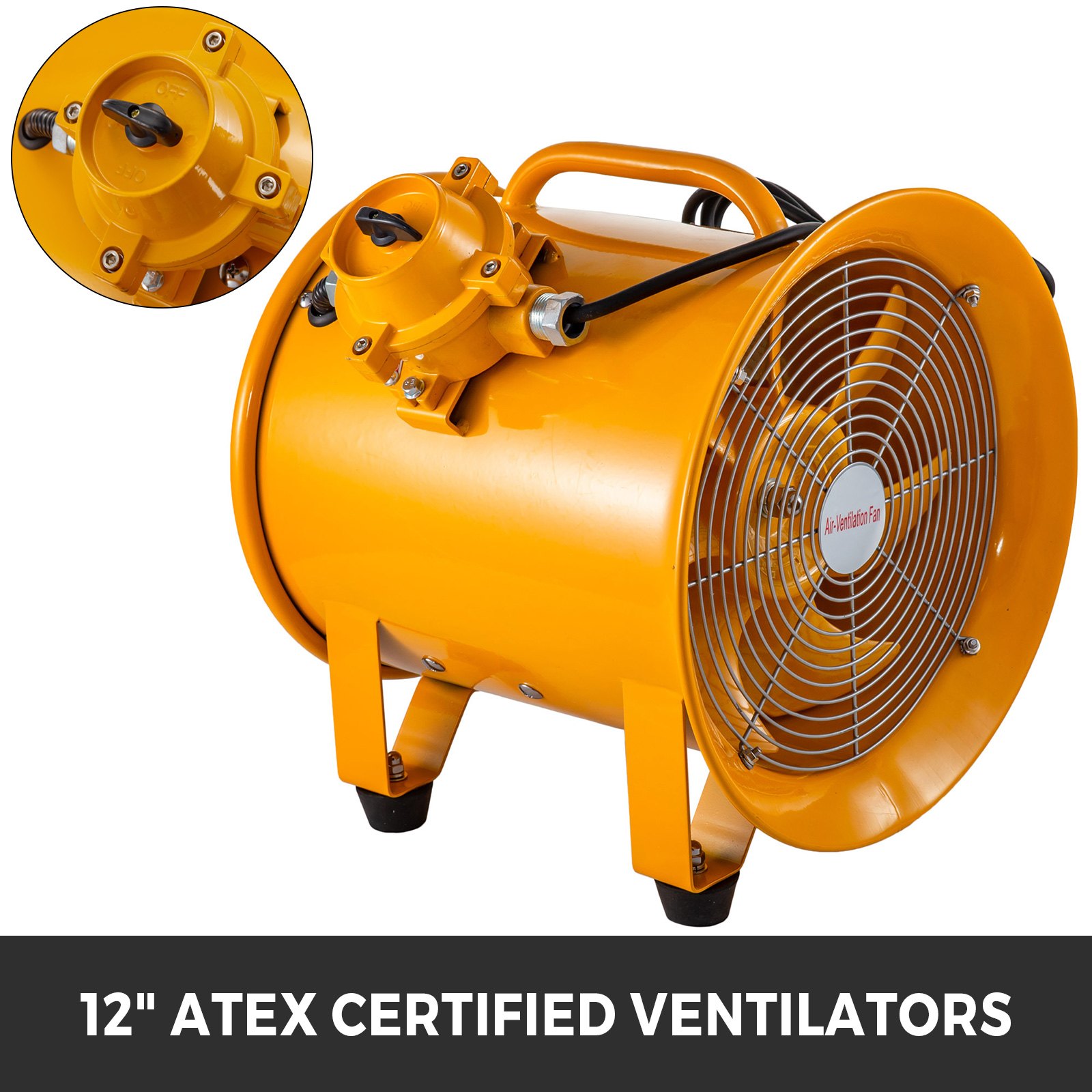

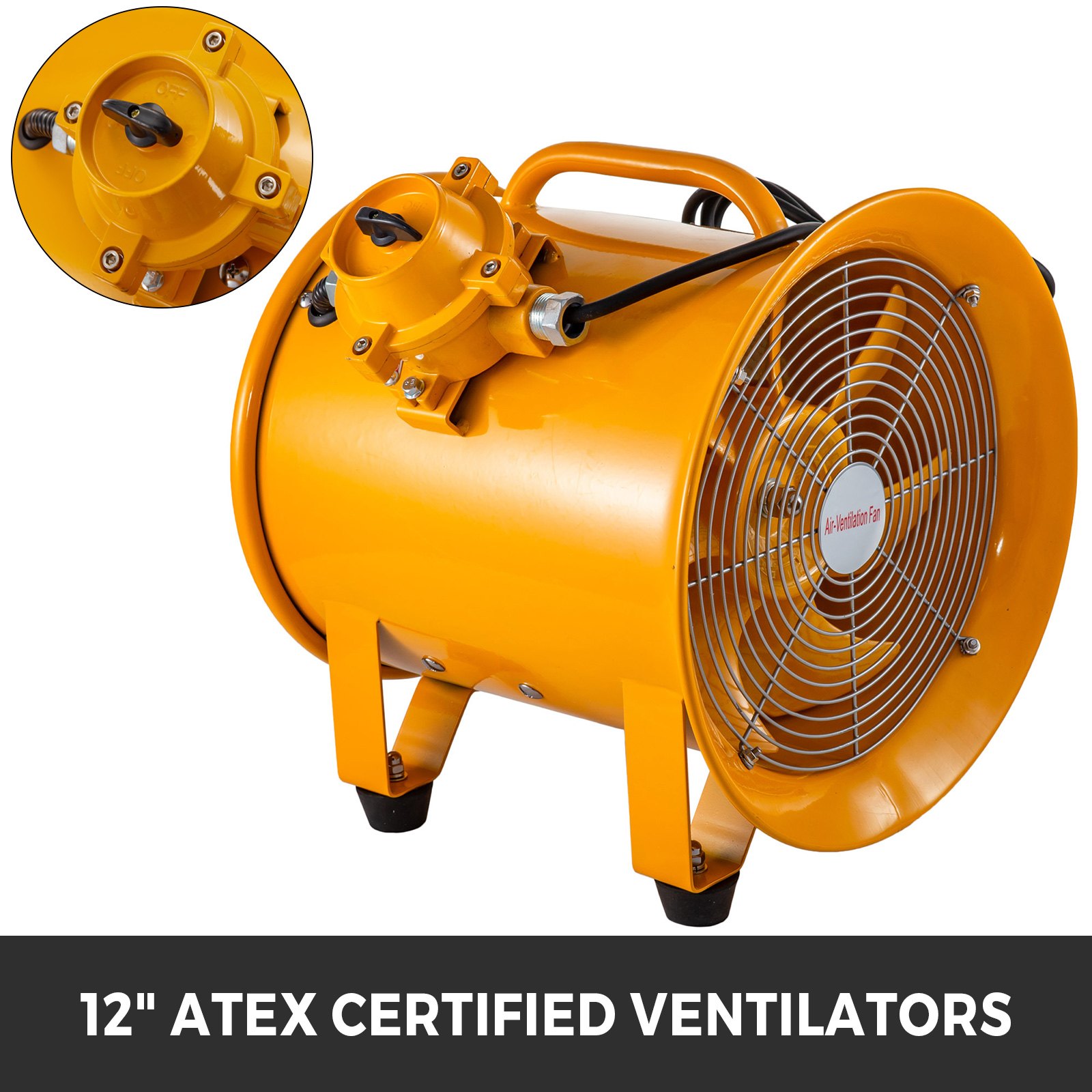

12" ATEX Rated Ventilator
Watts: 550W. EX rated explosion proof fan.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation

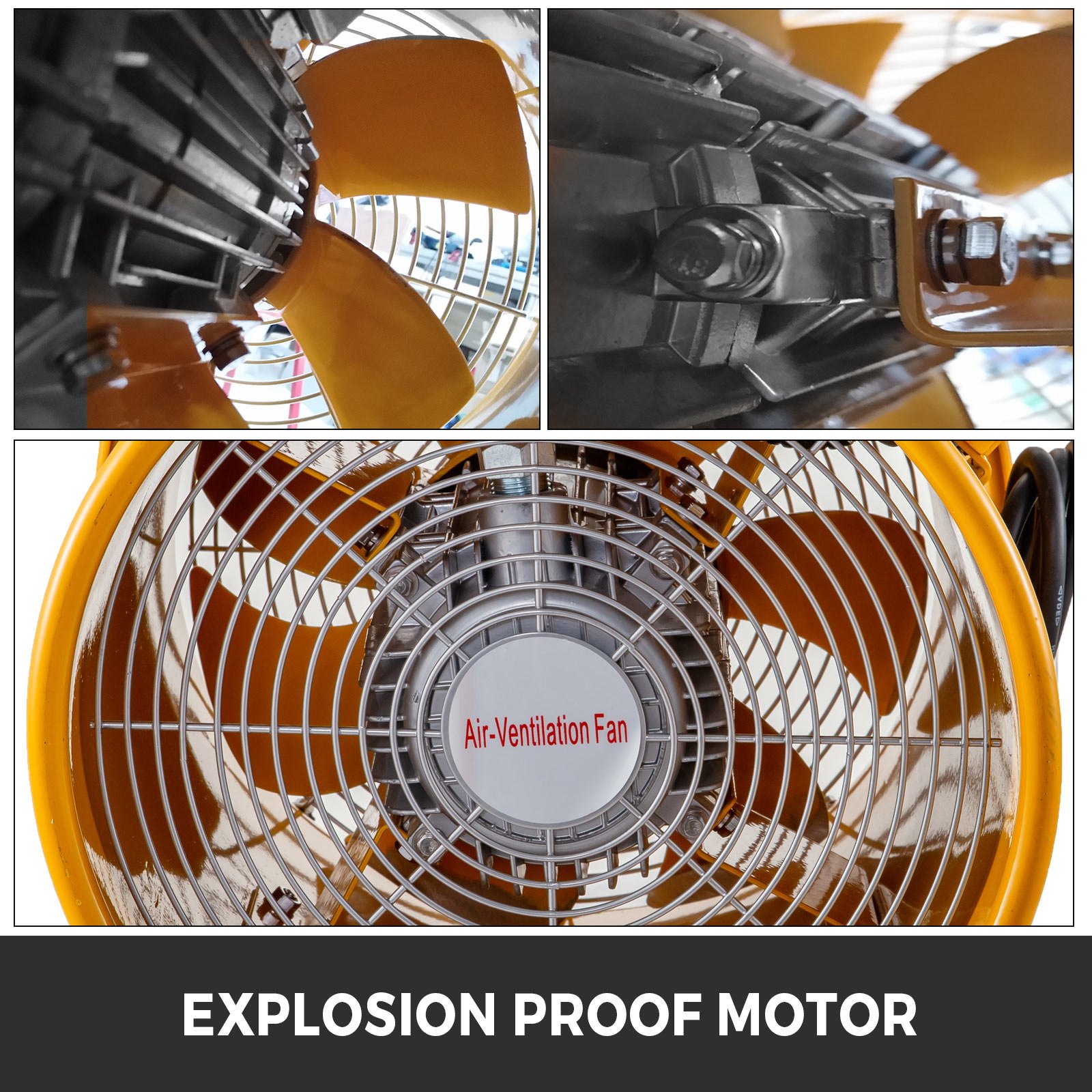

Explosion Proof Motor
Fast Speed: 3450 rpm. Low Noise: 69 dB(A).
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation

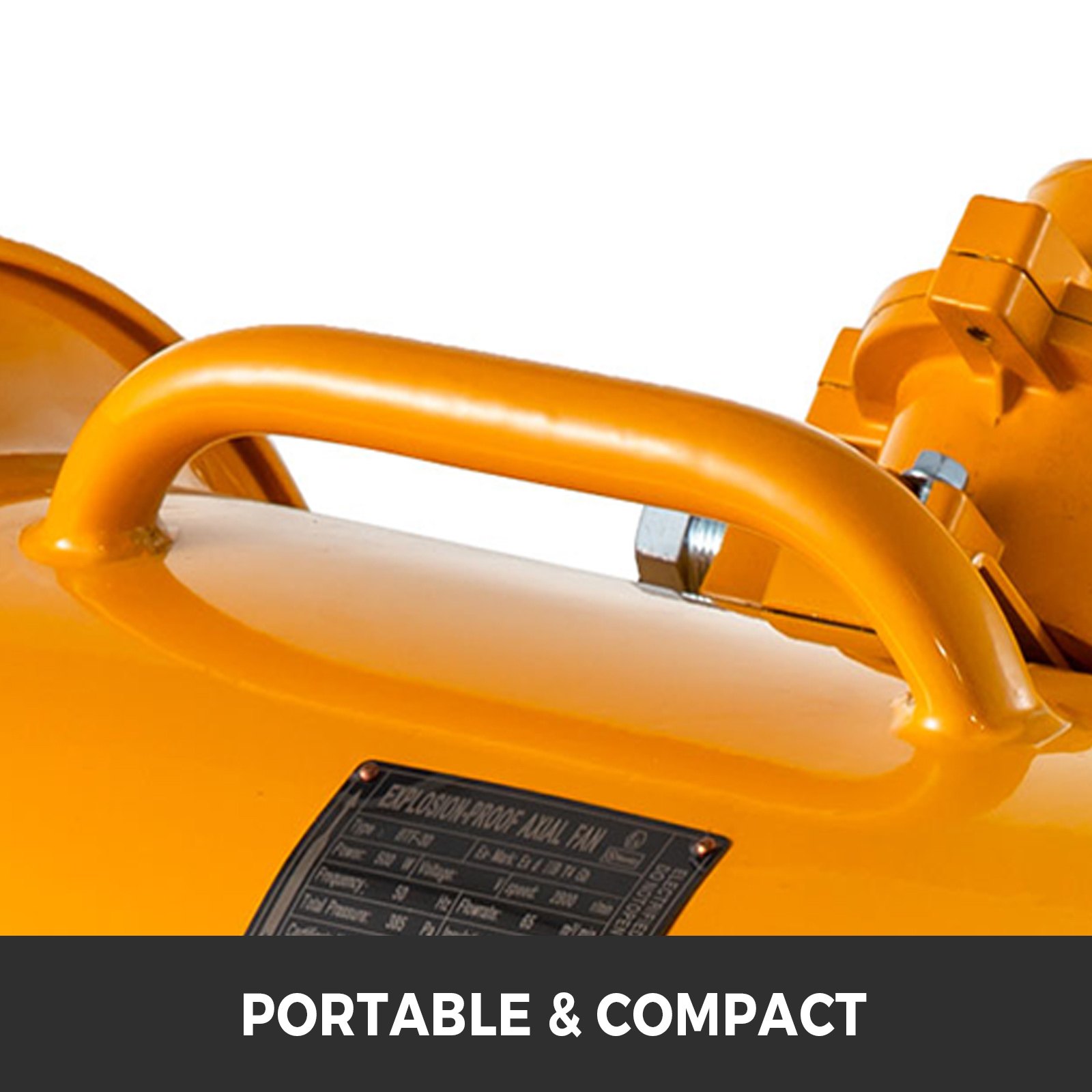

Portable & Compact
Compact and heavy duty metal fan, metal construction, easy use and storage.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation

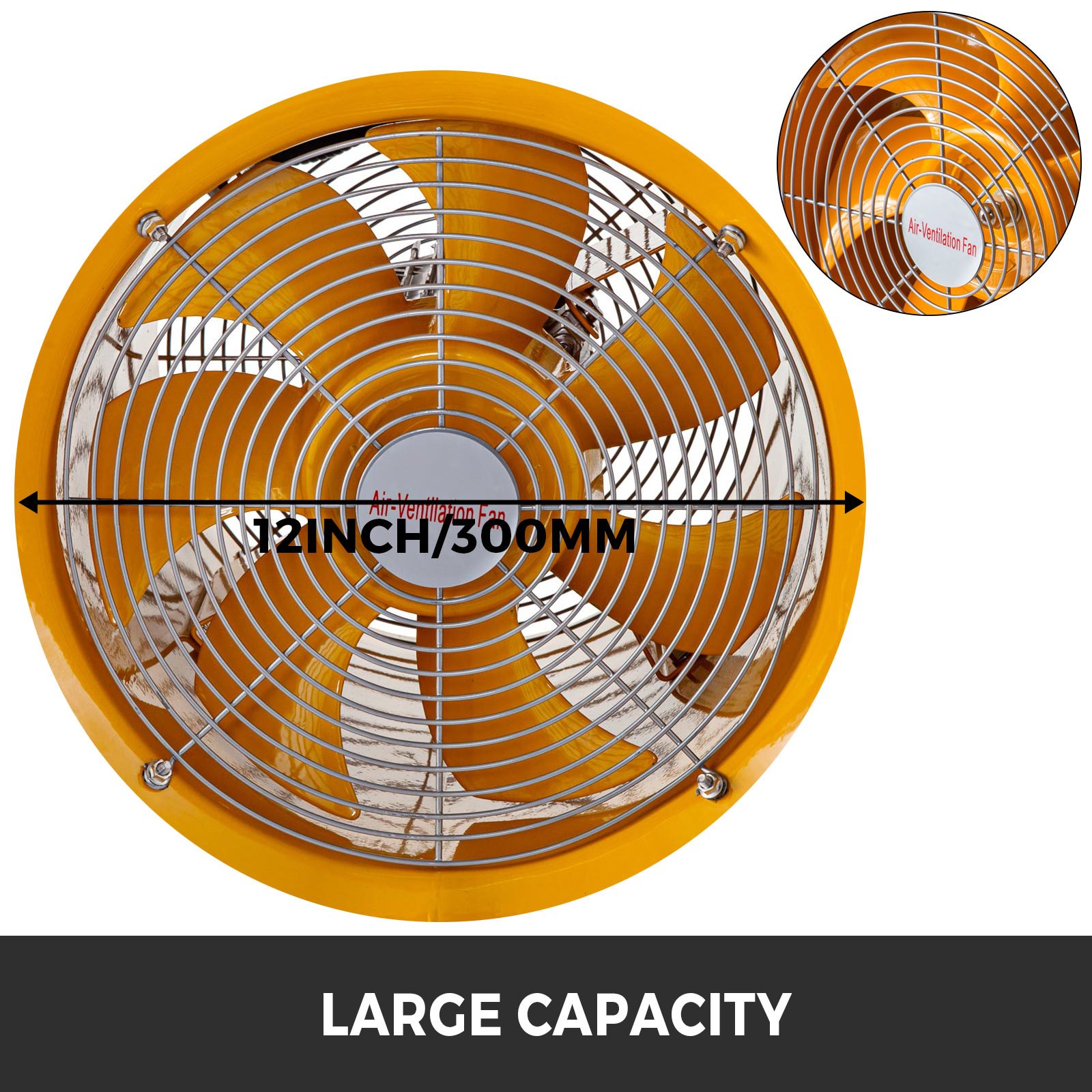

Large Capacity
Diameter: 12" / 300 mm, Capacity: 77 m³/min with a durable grill.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation

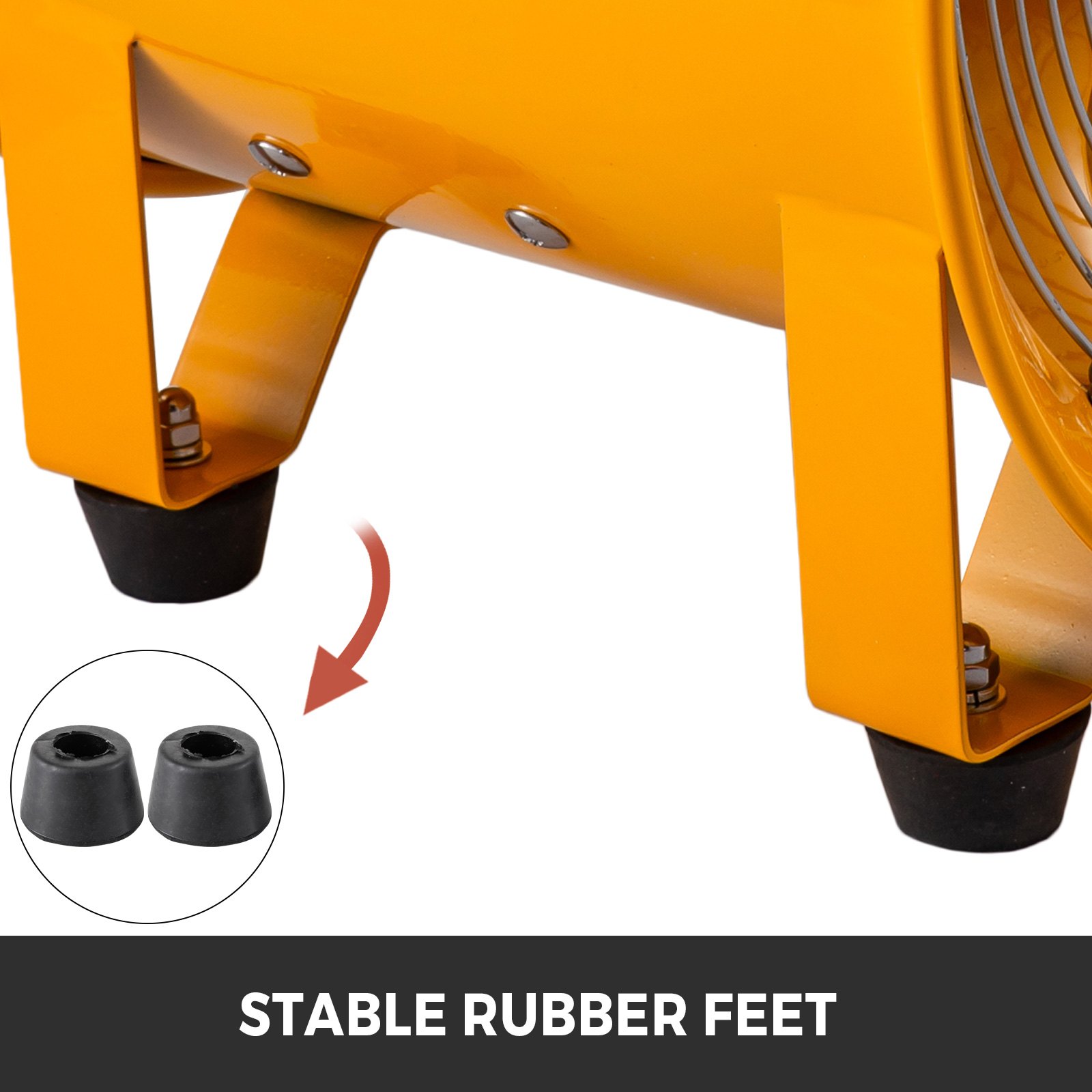

Stable Rubber Feet

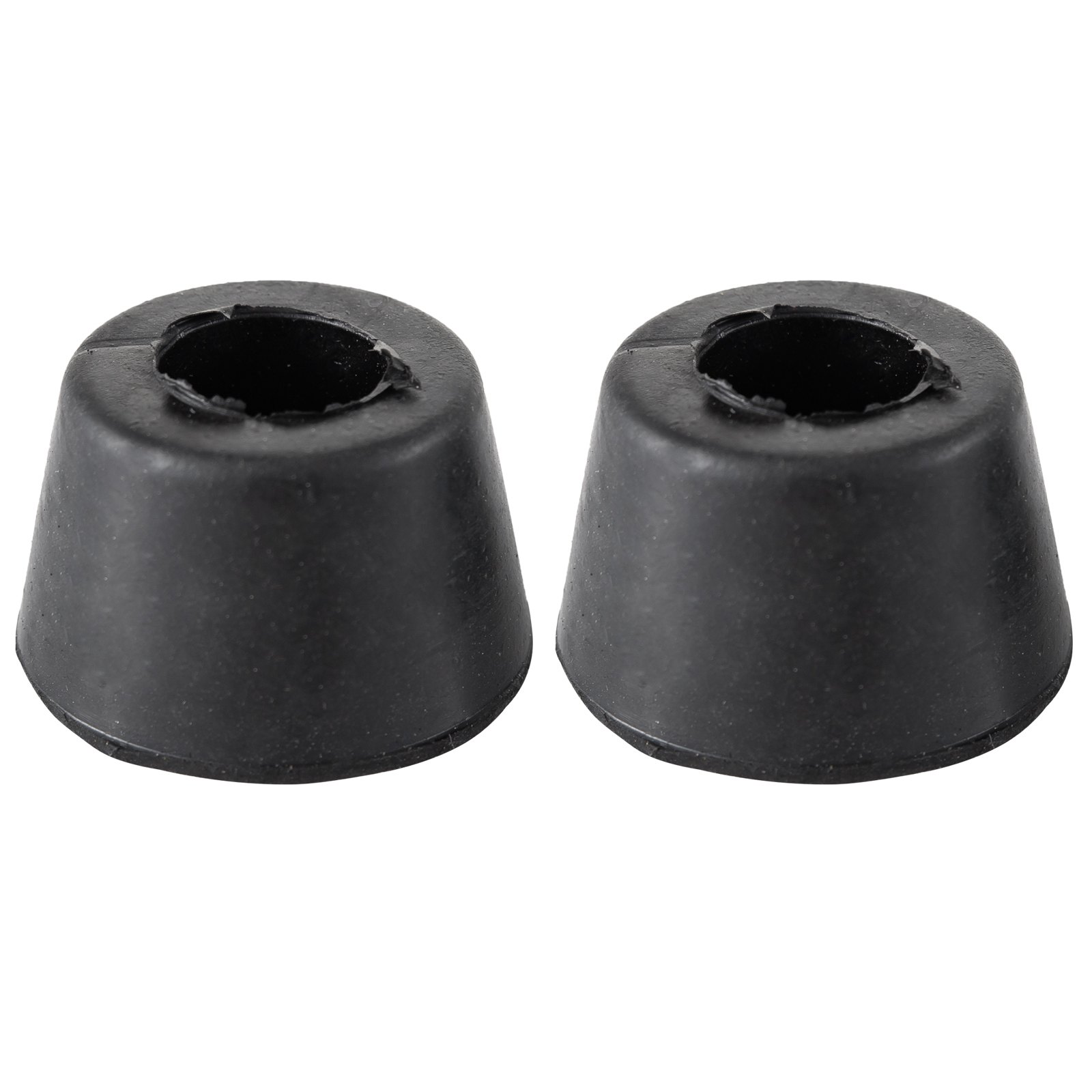

4 rubber feet for effortless to move. 2 more rubber feet free for easy replacement.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Wide Application
Widely used for ventilation in office,oil,military industry,chemical industry,medicine,metallurgy,etc.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Specifications
  • Diameter: 12" / 300 mm
  • Watts: 550W
  • Speed: 3450 RPM
  • Capacity: 77 m³/min
  • Static: 450Pa
  • Noise: 69 dB(A)

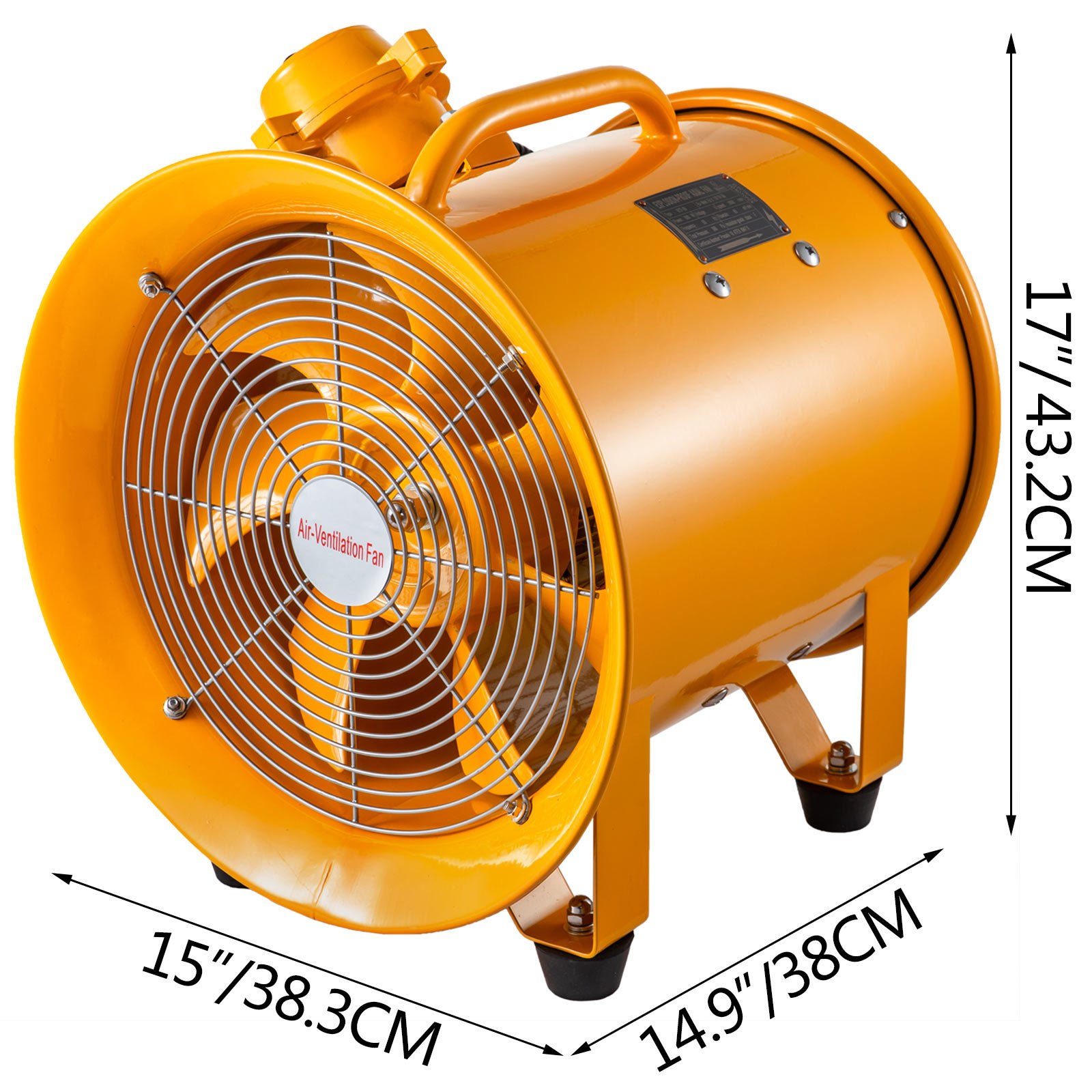

  • Fan Size: 14.9" x 15" x 17" / 38 x 38.3 x 43.2 cm

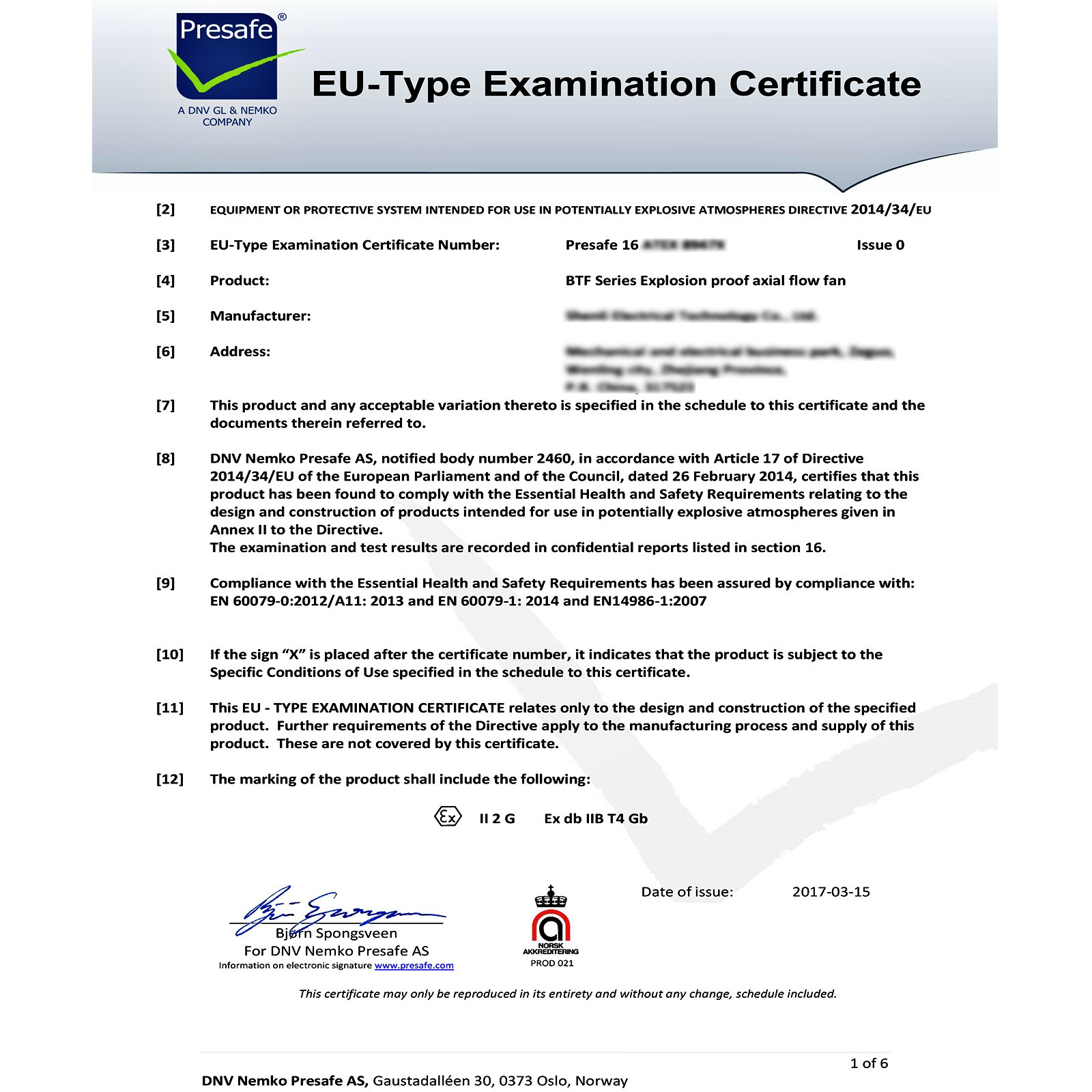

  • Ex Mark: EX db IIB T4 Gb Certified by DNV
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Package Content
  • 1 x ATEX Certified Ventilator
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation

ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
12 Inch Atex Certified Ventilators 550W Explosion Proof Fan
The 300 mm axial flow fan is designed to be heavy duty and compact. Explosion Proof Motor of speed: 3450Rpm offers large flow 77m3/min and reliability, suitable for even the most demanding industrial, construction and workshop applications.
  • 12" Explosion Proof Fan
  • High Performance Motor
  • Portable & Compact
  • Large Air Flow
  • Stable Feet
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
12" ATEX Rated Ventilator
Watts: 550W. EX rated explosion proof fan.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Explosion Proof Motor
Fast Speed: 3450 rpm. Low Noise: 69 dB(A).
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Portable & Compact
Compact and heavy duty metal fan, metal construction, easy use and storage.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Large Capacity
Diameter: 12" / 300 mm, Capacity: 77 m³/min with a durable grill.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Stable Rubber Feet
4 rubber feet for effortless to move. 2 more rubber feet free for easy replacement.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Wide Application
Widely used for ventilation in office,oil,military industry,chemical industry,medicine,metallurgy,etc.
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Package Content
  • 1 x ATEX Certified Ventilator
ATEX Certified Ventilators Explosion Proof Fan 12 Inch for Ventilation
Specifications
  • Diameter: 12" / 300 mm
  • Watts: 550W
  • Speed: 3450 RPM
  • Capacity: 77 m³/min
  • Static: 450Pa
  • Noise: 69 dB(A)
  • Fan Size: 14.9" x 15" x 17" / 38 x 38.3 x 43.2 cm
  • Ex Mark: EX db IIB T4 Gb Certified by DNV

Specification

Color
Orange
Power
550W
Voltage
110V
Frequency
60 Hz
Current
5.0A
Motor Speed
3450 RPM
Air Flow
2719 CFM / 4620 m³/h (77 m³/min)
Fan Diameter
12 in / 300 mm
Noise
69 dB(A)
Static Pressure
450 Pa
Motor Type
100% Copper, Explosion-proof
Ex Mark
EX db IIB T4 Gb Certified by DNV
CE Certificate Number
CN208A1Z 001
UL Certificate Number
E498516
Other Certification
RoHS, TÜV
Fan Material
0.079 in / 2.0 mm Steel Sheet
Blades Material
Aluminum Alloy
Axial Fan Bearing Type
6203
Fan Dimensions(L x W x H)
14.9 x 15 x 17 in / 38 x 38.3 x 43.2 cm
Net Weight
40.12 lbs / 18.2 kg
Questions and Answers
5 Questions
What is the max cfm this unit produces on high?
2713 CFM.
By vevor
What is the temp rating of this fan and wiring. We are looking at installing inside a hot box operating at 200degrees F.
The temp rating of this fan and wiring is 50 degrees Celsius. It cannot be installed in a 200°F hot box.
By vevor
I want to use a fan speed controller to control the speed of the blower. Is this a brushed or brushless motor? Also, should I use a regular fan contoller, or do I use a vfd fan controller for this motor?
Brushless motor, no fan speed controller can be installed. The motor has only one speed at the factory setting, even if the controller is installed, it is the same speed, which may cause damage to the motor.
By vevor

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
2 Reviews
Bill Bill
Auto painter
Very happy with the results of my paint job after using one fan to push and the other fan to pull the fumes and overspray Outnof my makeshift 16x24 plastic paint booth. I sued 4 - 16”x24” cheap furnace filters on the inlet at about 4’ up to 6’ and 5- 16x24 “ on the outlet T ground level with a fan blowing through the inlet and a fan sucking air from the outside. No overspray. On the canopy pop up tent that I used to hold the “ceiling “ of the 6 mil plastic. I also used a hobby air outside air hooded mask which worked wonderfully. No paint fumes for me. No mask coated with paint spray. The only change on these fans that I would love to have is a variable speed motor or motor control. Very happy for the price
0
Mark Mark
Owner
Great fan, moves lots of air. I am using this for a paint booth so being explosion proof was a priority. I didn't see anything else even remotely close to this in terms of airflow and price. Very satisfied.
0
