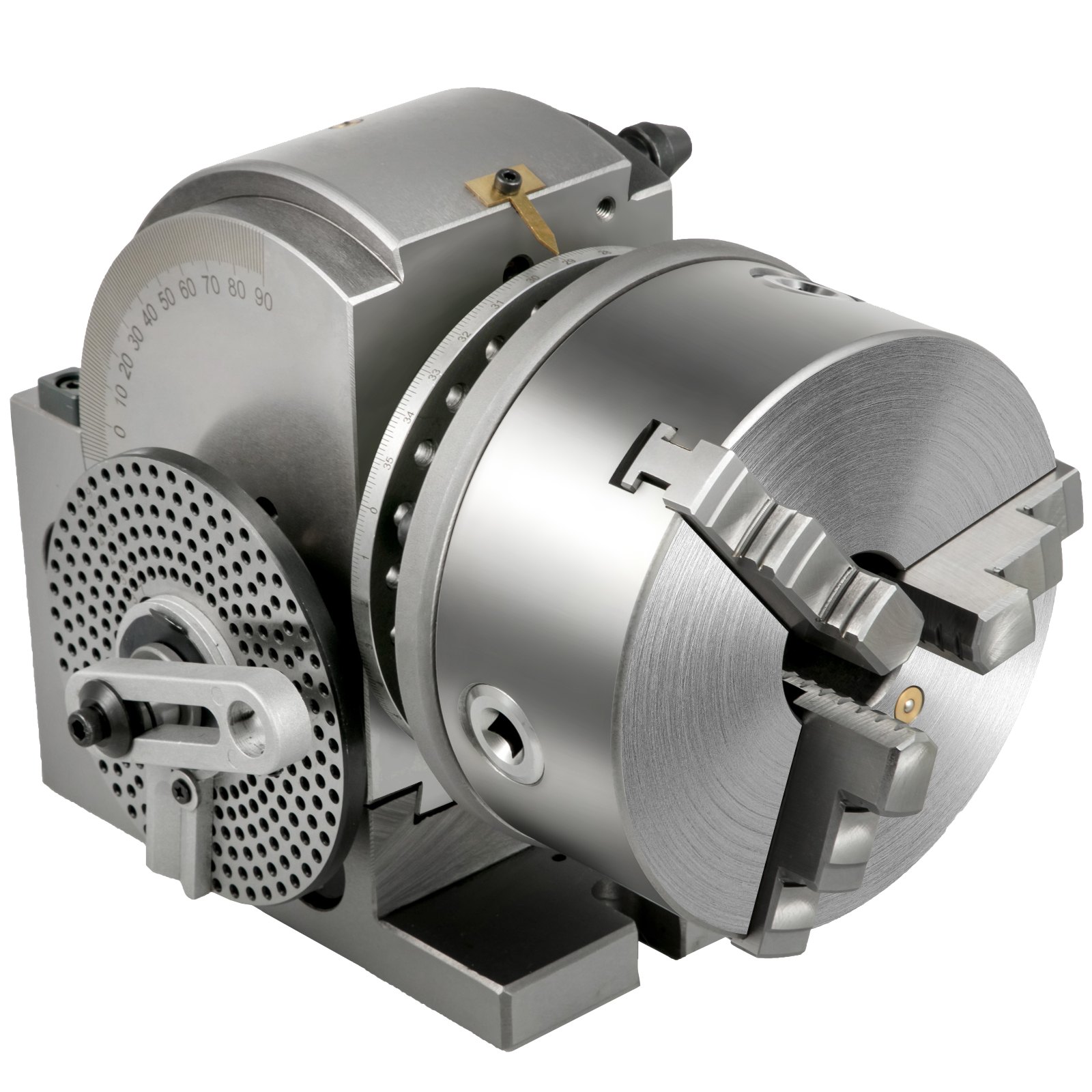

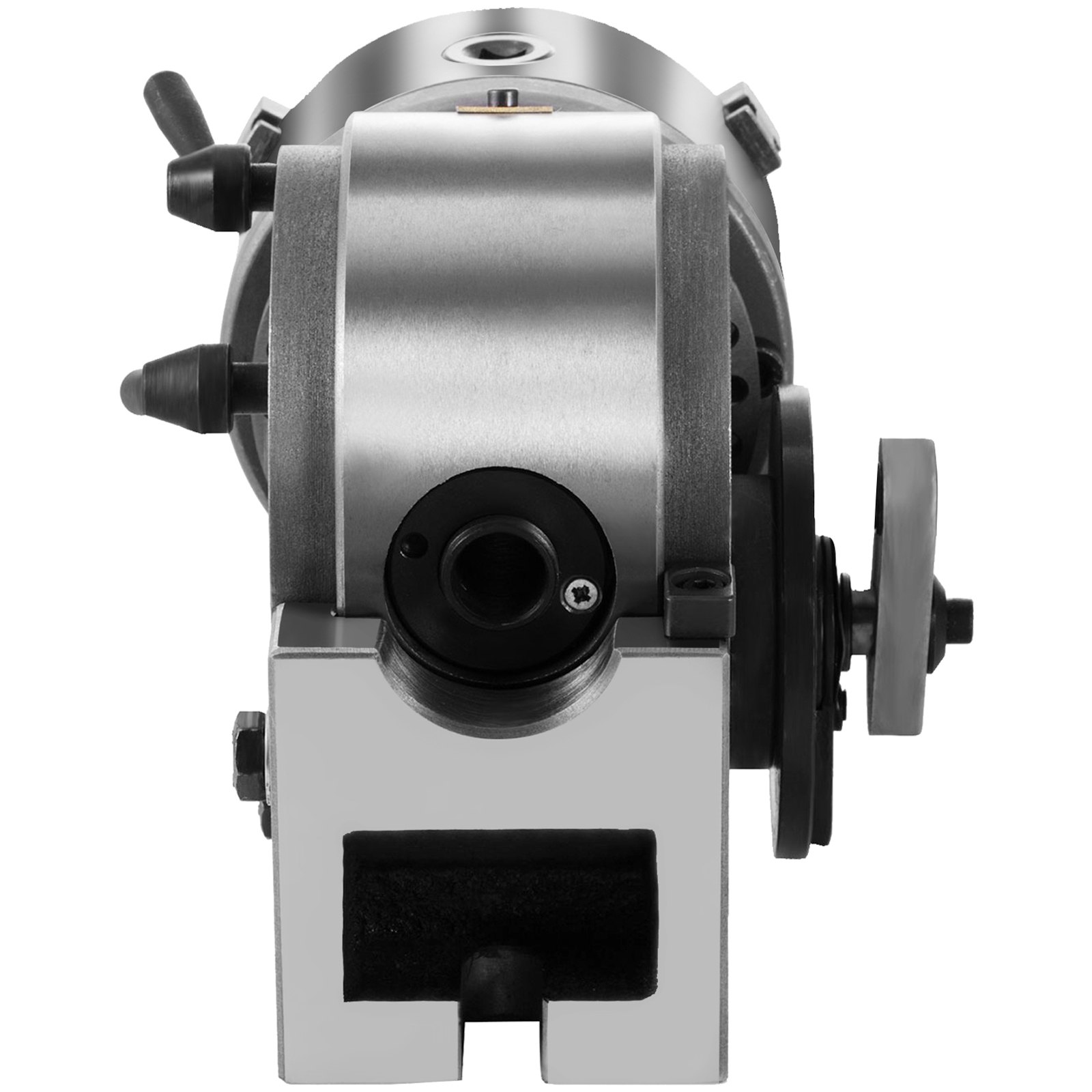

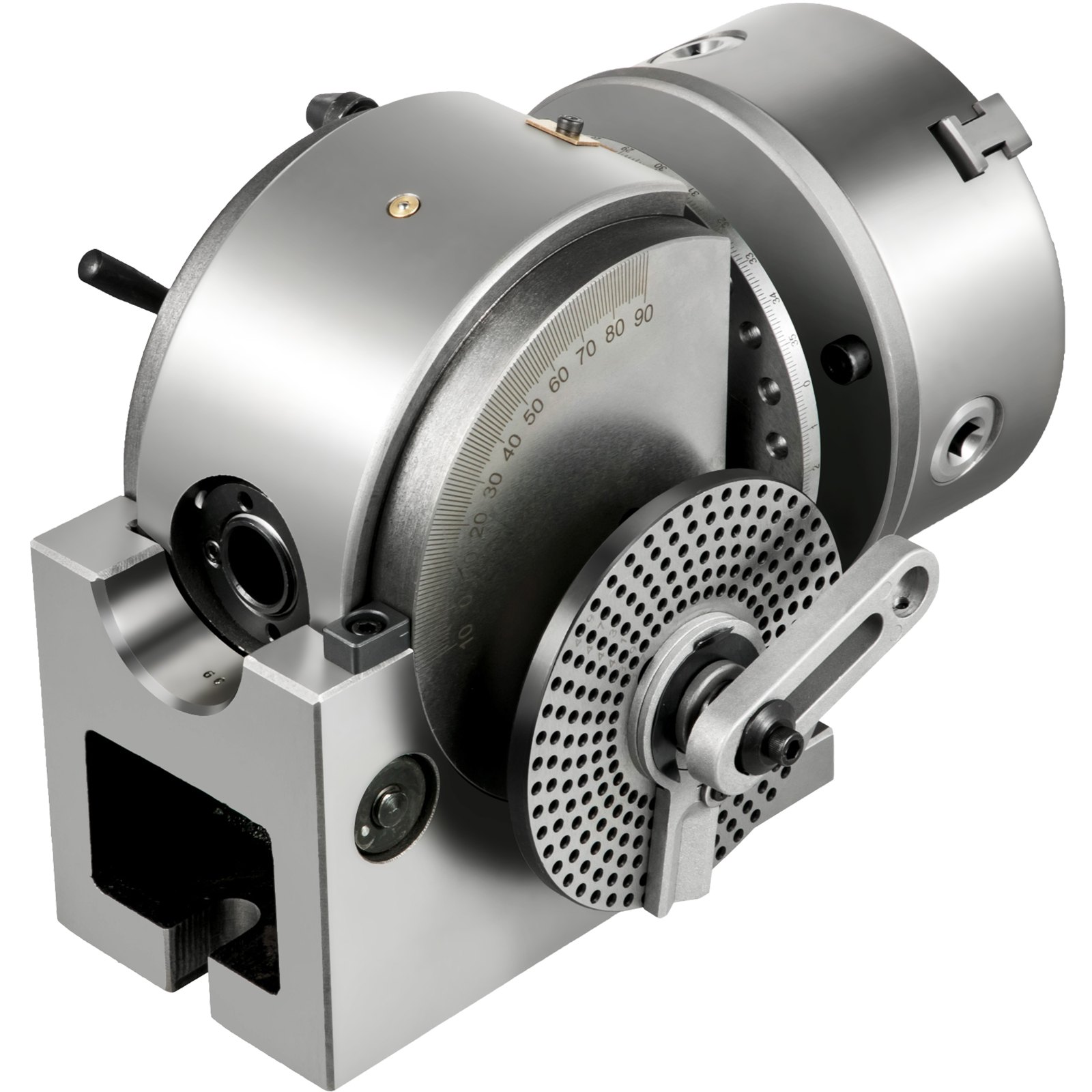

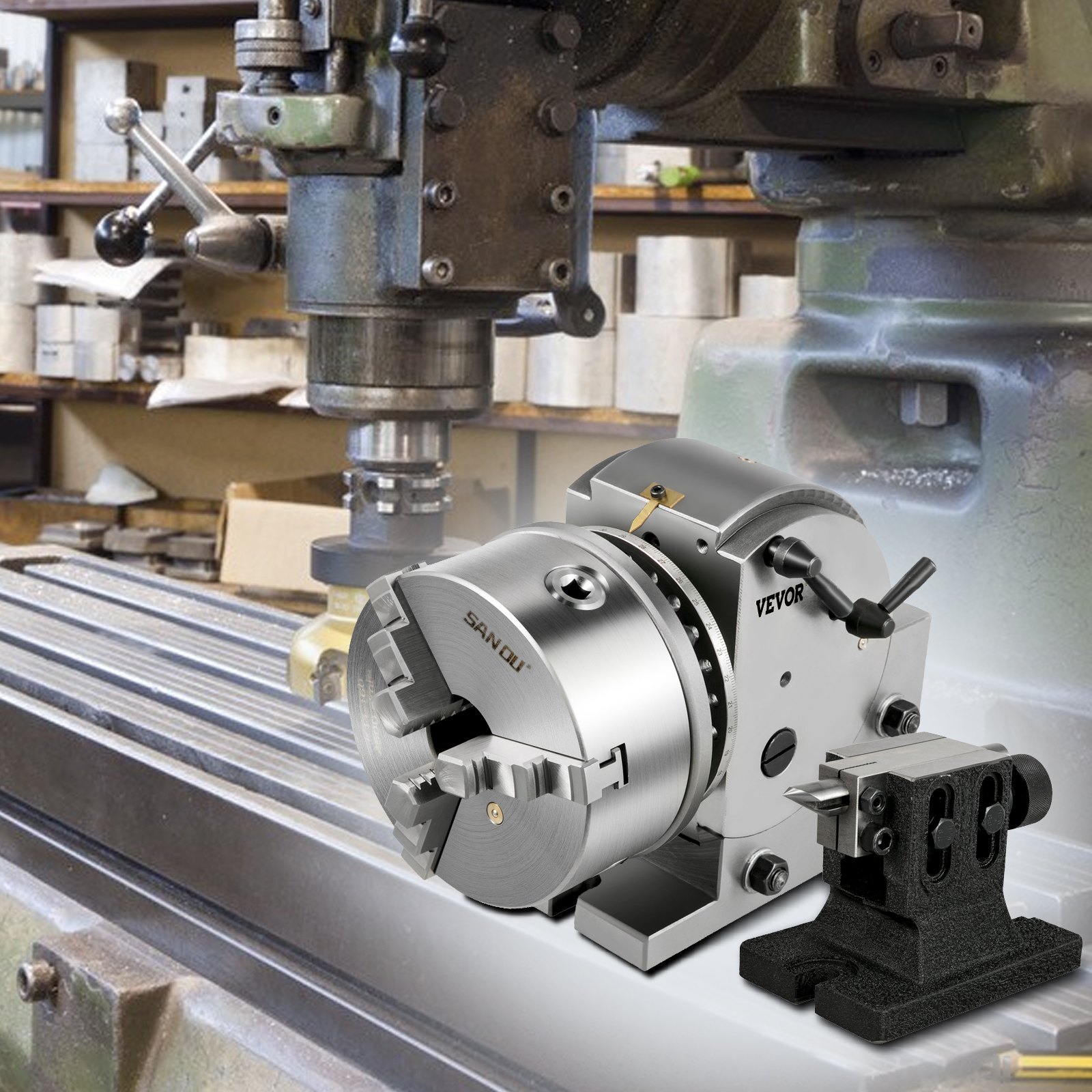

VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding

VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding
$399.99
399.99
Price including VATSee details
  • · Adjustable Angle: The semi-universal dividing head features a 6" 3-jaw chuck, Spindle Speed: 2500 RPM. The headstock is adjustable from the horizontal position to 90 degrees upward. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm. Free 3 more jaws for 6" chuck.

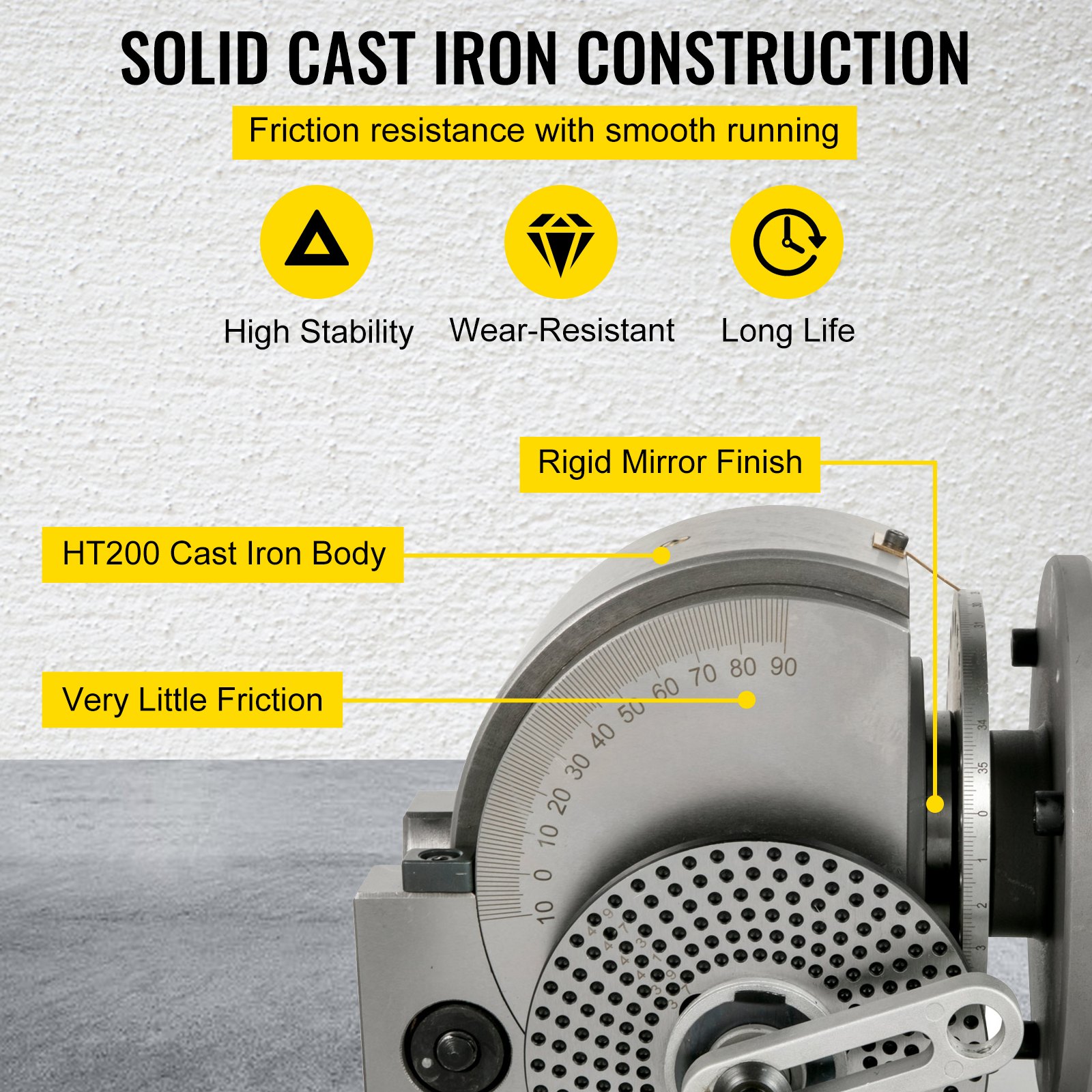

  • · Solid Construction: This indexing head is made of HT 200 to be a long life. A rigid frame provides high accuracy with little backlash for a smooth rotation. The reduction ratio is 1:40.

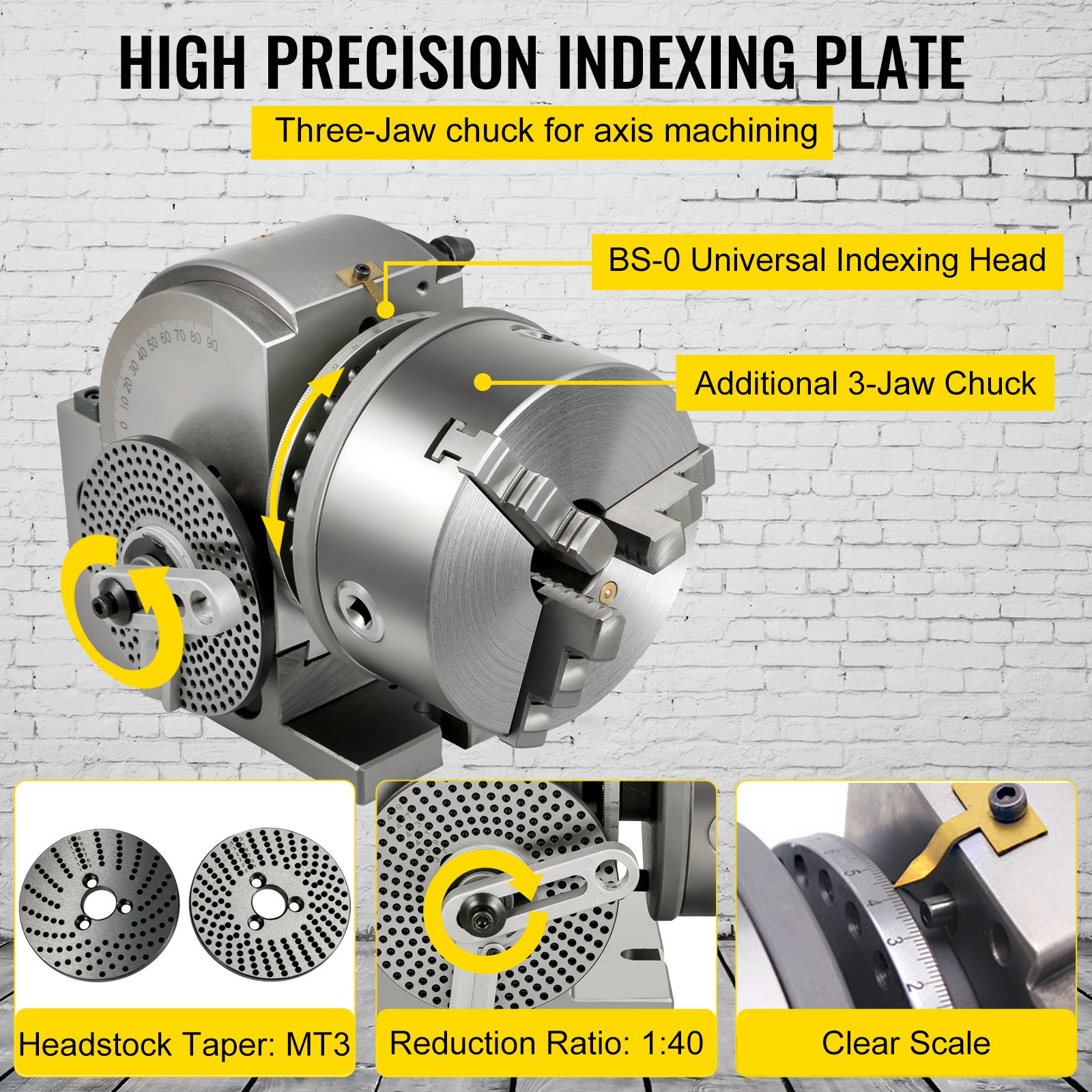

  • · Precise & Accurate: Dividing head milling machine with laser engraving scales. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
  • · MT3 Tailstock Adjustable: Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. The model of the tailstock is MT3. One extra dead center is included.
  • · Rich Dividing Head Set: 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and specific other numbers.


Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Indexing Dividing Head for Milling Machine 6" /160 mm for Milling Grinding
VEVOR Indexing Dividing Head for Milling Machine 6
VEVOR Indexing Dividing Head for Milling Machine 6
VEVOR Indexing Dividing Head for Milling Machine 6
6"/160MM Dividing Head for Milling Machine
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete BS-2A 2,3,4,6,8,12,24 division indexding. Attaches 3 dividing plates along with the dividing head indirect dividing in any division indexding 2-50.51-380.
  • Adjustable Angle
  • Solid Construction
  • Clear & Accurate
  • MT3 Tailstock Adjustable
  • Rich Dividing Head Set

VEVOR Indexing Dividing Head for Milling Machine 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Indexing Dividing Head for Milling Machine 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Indexing Dividing Head for Milling Machine 6

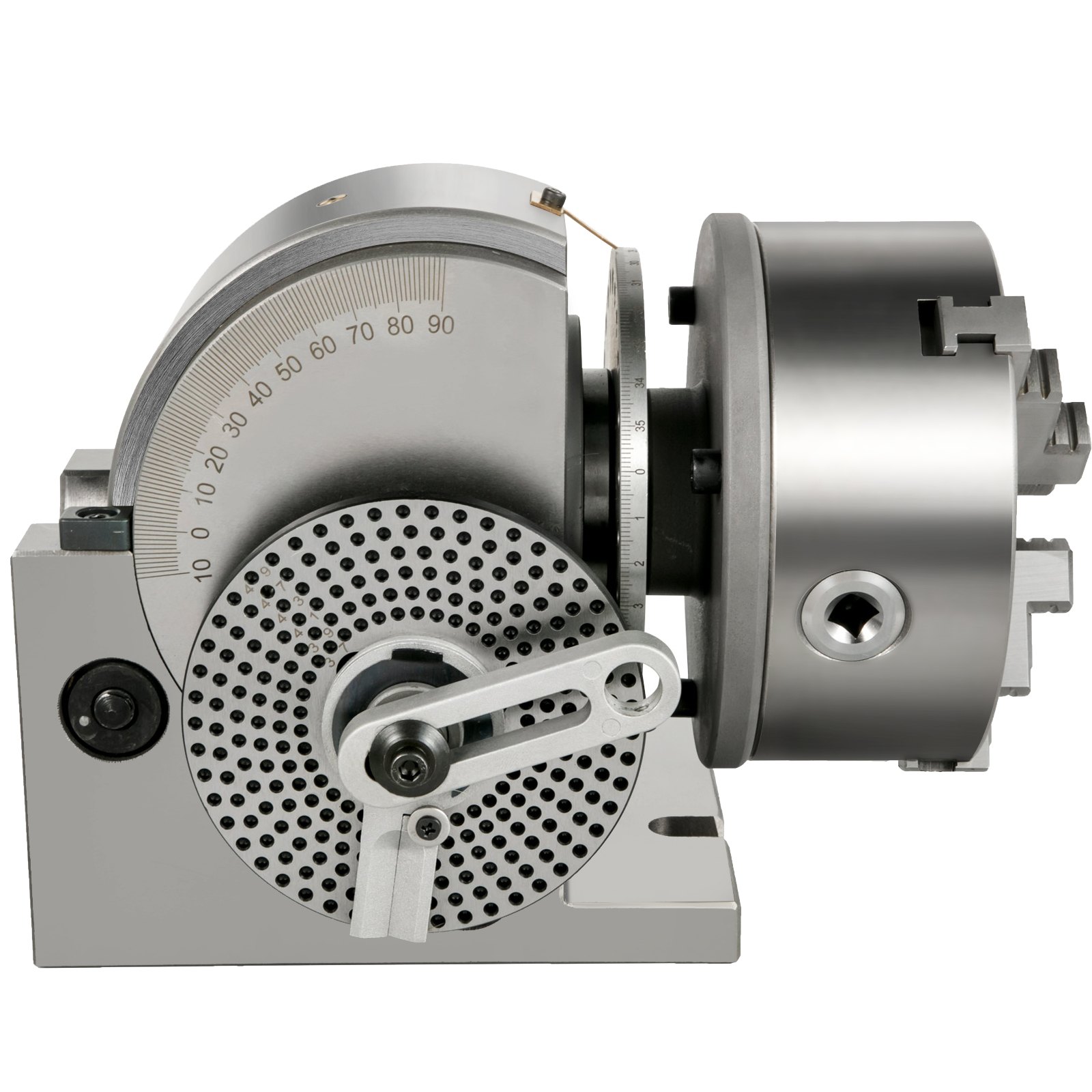

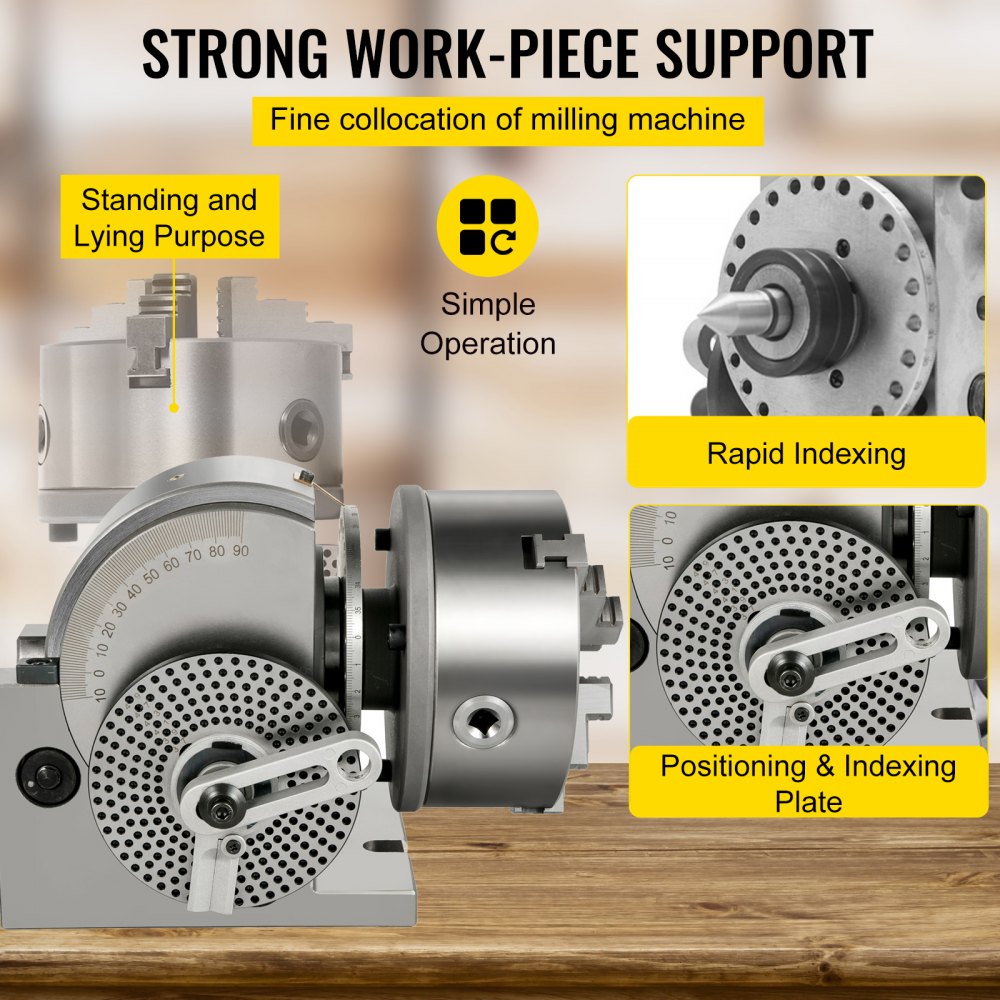

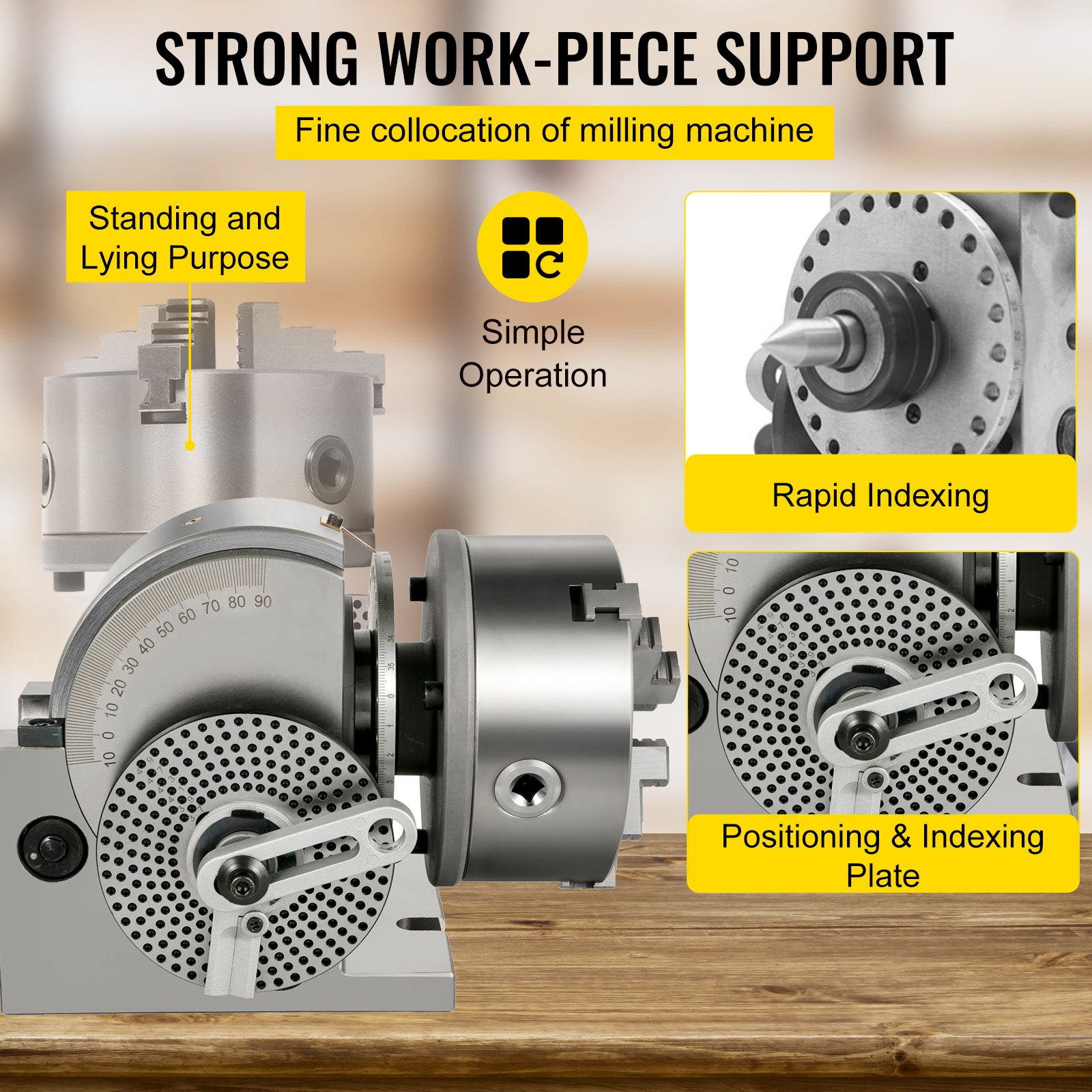

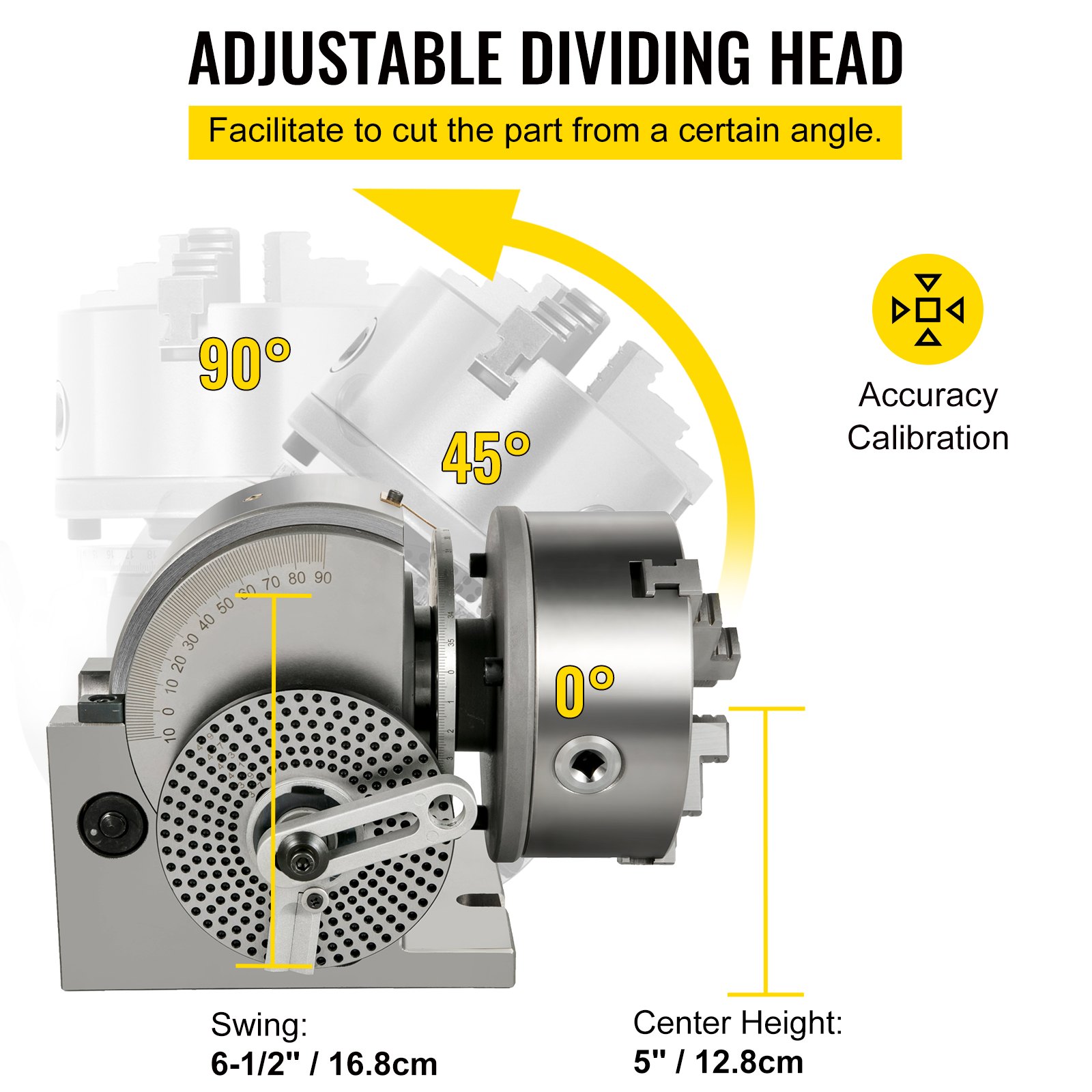

Adjustable 0°-90°
Vertical & horizontal milling machine with Head stock chuck for lathe. Swing: 6-1/2"/168mm, Center Height: 5"/128mm.
VEVOR Indexing Dividing Head for Milling Machine 6
Ruggedly Constructed
Ruggedly constructed hardened and ground worm gear. Reduction Ratio: 1:40.
VEVOR Indexing Dividing Head for Milling Machine 6
Quick-dividing Design
Designed with rotary table and indexing chuck, 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.
VEVOR Indexing Dividing Head for Milling Machine 6
MT3 Tailstock Adjustable
Ball bearing precision, smooth turning. One more dead center for free.
VEVOR Indexing Dividing Head for Milling Machine 6
Universal 3 Plates
3 dividing plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380.
VEVOR Indexing Dividing Head for Milling Machine 6

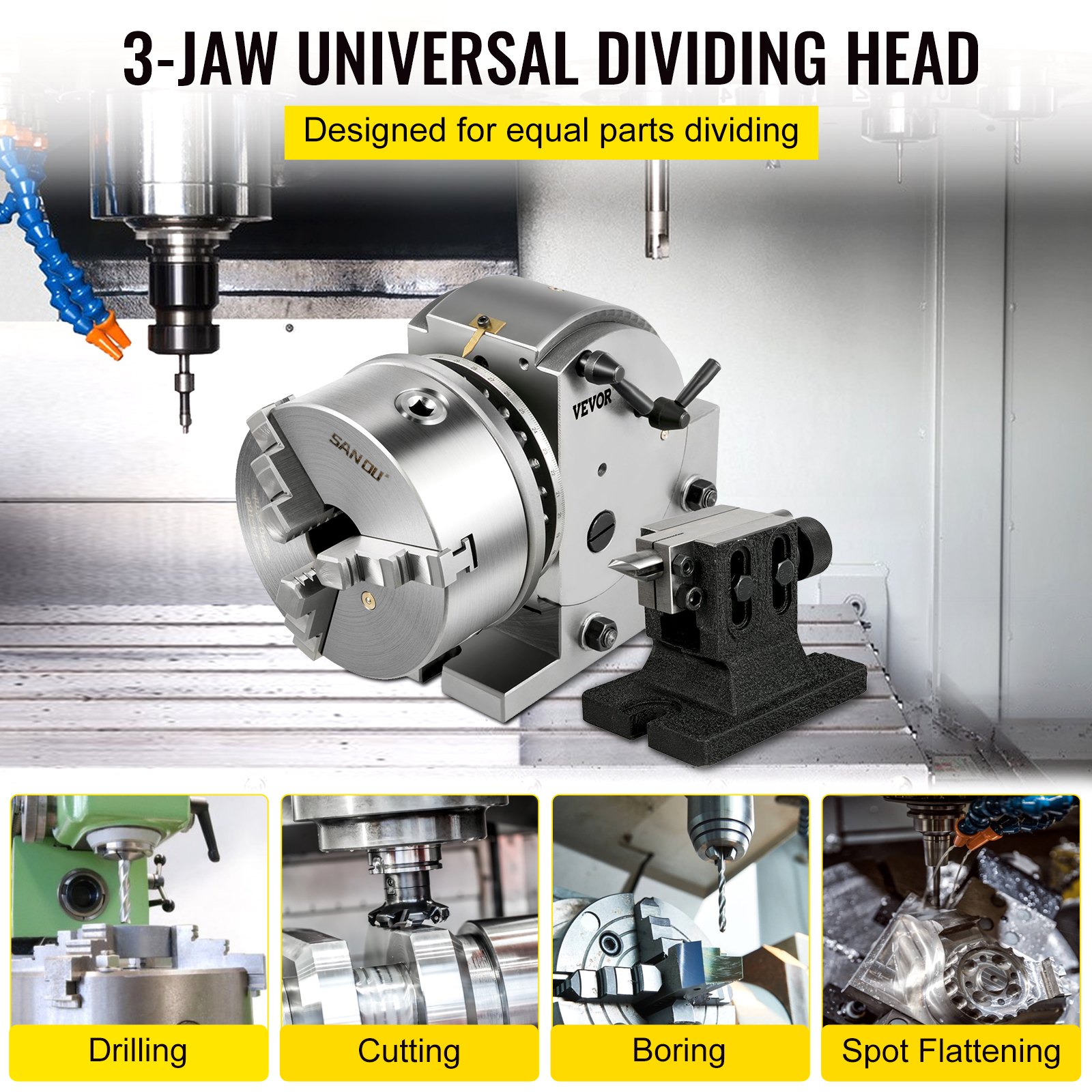

Wide Application
Ideal choice for various uses in milling, grinding and drilling work.
VEVOR Indexing Dividing Head for Milling Machine 6
Specifications
  • Chuck Diameter: 6"/160mm
  • Spindle Speed: 2500Rpm
  • Swing: 6-1/2"/168mm
  • Center Height: 5"/128mm
  • Reduction Ratio: 1:40
  • Tailstock: MT3
VEVOR Indexing Dividing Head for Milling Machine 6

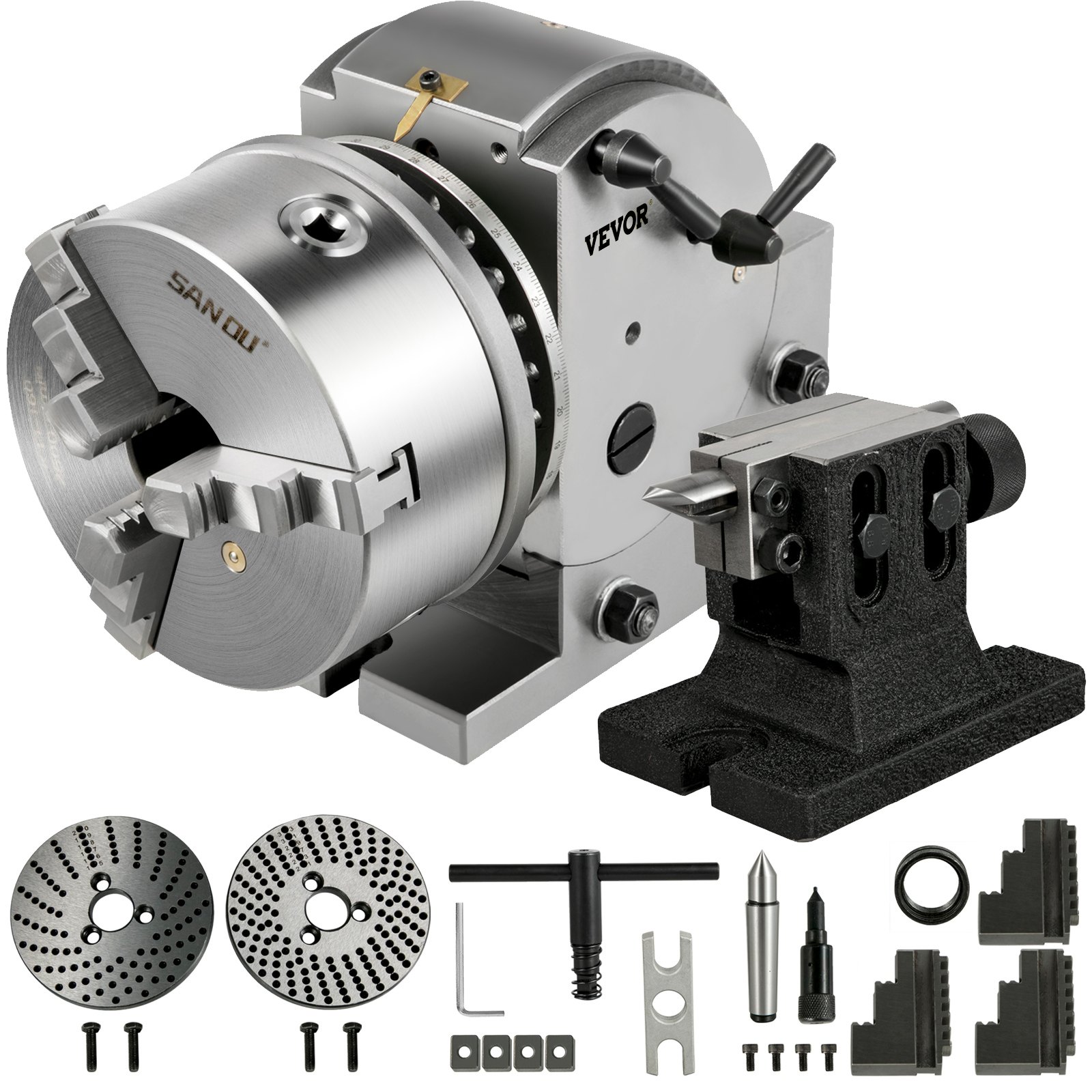

Package Content
  • 1 x 6" Dividing Head
  • 2 x Dividing Plate
  • 3 x 6" Chuck Jaw
  • 1 x Dead Center
  • 1 x Tailstock
  • Some Related Accessories
VEVOR Indexing Dividing Head for Milling Machine 6
VEVOR Indexing Dividing Head for Milling Machine 6

VEVOR Indexing Dividing Head for Milling Machine 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Indexing Dividing Head for Milling Machine 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Indexing Dividing Head for Milling Machine 6
6"/160MM Dividing Head for Milling Machine
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete BS-2A 2,3,4,6,8,12,24 division indexding. Attaches 3 dividing plates along with the dividing head indirect dividing in any division indexding 2-50.51-380.
  • Adjustable Angle
  • Solid Construction
  • Clear & Accurate
  • MT3 Tailstock Adjustable
  • Rich Dividing Head Set
VEVOR Indexing Dividing Head for Milling Machine 6
Adjustable 0°-90°
Vertical & horizontal milling machine with Head stock chuck for lathe. Swing: 6-1/2"/168mm, Center Height: 5"/128mm.
VEVOR Indexing Dividing Head for Milling Machine 6
Ruggedly Constructed
Ruggedly constructed hardened and ground worm gear. Reduction Ratio: 1:40.
VEVOR Indexing Dividing Head for Milling Machine 6
Quick-dividing Design
Designed with rotary table and indexing chuck, 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.
VEVOR Indexing Dividing Head for Milling Machine 6
MT3 Tailstock Adjustable
Ball bearing precision, smooth turning. One more dead center for free.
VEVOR Indexing Dividing Head for Milling Machine 6
Universal 3 Plates
3 dividing plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380.
VEVOR Indexing Dividing Head for Milling Machine 6
Wide Application
Ideal choice for various uses in milling, grinding and drilling work.
VEVOR Indexing Dividing Head for Milling Machine 6
Package Content
  • 1 x 6" Dividing Head
  • 2 x Dividing Plate
  • 3 x 6" Chuck Jaw
  • 1 x Dead Center
  • 1 x Tailstock
  • Some Related Accessories
VEVOR Indexing Dividing Head for Milling Machine 6
Specifications
  • Chuck Diameter: 6"/160mm
  • Spindle Speed: 2500Rpm
  • Swing: 6-1/2"/168mm
  • Center Height: 5"/128mm
  • Reduction Ratio: 1:40
  • Tailstock: MT3

Specification

Chuck Diameter
6" / 16 cm
Spindle Speed
2500 RPM
Swing
6-1/2" / 16.8 cm
Center Height
5" / 12.8 cm
Reduction Ratio
1
Tailstock
MT3
Net Weight
77 lbs / 35 kg
Headstock Dimensions
4.4" x 7.9" x 11.8" / 11.3 x 30.2 x 21.9 cm
Tailstock Dimensions
4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm
Questions and Answers
3 Questions
What is the thru diameter of the chuck and does it allow stock to be passed thru the dividing head as well? If so what is the max diameter that can fit thru it?
The through hole of the chuck is 40, and the maximum diameter of the central hole through the indexing head is 24.
By vevor
The tailstock taper is specified as MT3, but I see no specification of the headstock taper. Is it also MT3?
The tailstock is an eccentric tip, not a tapered one.
By vevor
What is the height at 90 degrees ?
340mm.
By vevor

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
10 Reviews
Shooter Shooter
Hobbyist
Great Value, runout was only .0003 . Chuck was taken apart and metal chips cleaned out and deburred.
0
Dave Dave
Retired shop owner
This was a wonderful purchase. The tool works extremely well and after a small adjustment for backlash I was set. I was blown away by the quality and finish. The guides for the slots on my milling machine table fit perfectly. The indexing marks are etched very nicely. I would recommend this very well made tool very highly!
0
Andy Andy
Exceeded my expectations!
This dividing head has exceeded my expectations. For this price, what I expected was a "kit" that needed work to make it functional. What I received is high quality and well made. I completely disassembled it to thoroughly clean all of the parts and make any necessary adjustments, but was pleasantly surprised that there was nothing that needed to be done. Cleaning it showed almost no residual grinding grit or swarf - I couldn't have hoped for any better from much higher priced equipment. I replaced the oil and grease, reassembled, and it works flawlessly. I have had it for about 4 months and could not be happier with the purchase.
1
Iron Works Iron Works
Dividing head 5 in
Great value awesome product
0
Andy S. Andy S.
Great bargain!
High quality with very good fit and finish. Fast, hassle free shipping and a great price. I expected to have to do significant work to it and pulled it completely apart to clean it thoroughly and lubricate it when it arrived. I found very little grit or dirt within it. Nicely machined everywhere. You can't beat the quality, even at a higher price. I am very pleased with this. High recommendation!
