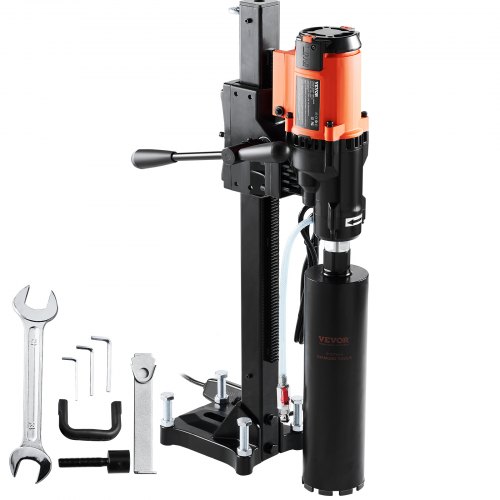

VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W

Features & Details

  • 8-inch Max Wet & Dry Drilling: Adapts up to 8-inch drill bits. Our standup core drilling machine with stand can perform wet and dry two modes drilling, and you can feel assured of accuracy when boring holes in a variety of surfaces with a 8 in / 20 cm diameter hole capacity. Attention: a industrial-grade 4.25in core bit is only included.
  • Capable Coring Efficiency: A 2500W powerful motor and 750RPM high-speed gearbox are intentionally taken to complete diversified drilling projects, allowing the operator to adjust based on the specific material being drilled. Max Drilling Depth: 23.62 in / 60 cm. Output Arbor Sizes: External Thread 1-1/4" x 7 UNC, Internal Thread 5/8" x 11 UNC.
  • Expertly Designed for Security: Our diamond core drill rig integrates a secure clutch with an overload protection device to work by automatically tripping when the drill bit becomes stuck or encounters resistance beyond a certain level, further reducing the risk of operator damage and injury during the operations.
  • Effortless Drilling: Our concrete core drill has a rustproof steel forged output shaft to bear more pressure, an upgraded one-touch water pipe connector for a stable water supply, and a thickened guide rail to stabilize the machine and reduce shaking.
  • Built for Heavy-Duty Concrete Drilling: Easy to maneuver in drilling reinforced concrete, red brick, marble, and other materials. Our wet&dry diamond core drilling rig will surely meet professional demands and is for more than just home use, and you can quickly install air conditioners, kitchen pipes, stair railings, repair highways, etc.
See More

Frequently Bought Together

Videos for this product

Reviews 4.8

All reviews are from verified purchases
Average rating based on 93 reviews
Top Reviews
Cyber2steve Cyber2steve
Reviewed on May 11,2025
I gave it 4 star overall. It lost one star because there was no way to change the speed, no port to connect the water and no assembly instructions for connecting the parts that came with it. After you figure out how to connect the handles and staring at the thing for a bit, it was easy to use. You then have to figure out there is a reset switch on the side that tends to trip under certain load. It sometimes trip preventing the machine from starting until you press it. It seems very well made and come at a very good price.
Bill Bill
Reviewed on Apr 23,2025
What a machine!! Review of 8" drill provided with 4" hole saw. Drilled thru 8" of concrete 5 times. Hit multiple 5/8 re-bar. No problem. Just drill very slowly through the steel and your good to go. Drill MUST be anchored solidly so that it does not bind. Only hic-up was hitting tie wire which jammed the bit. Back off and go forward sill slower.
Ranzerox Ranzerox
Reviewed on Apr 22,2025
First time to core drilling. Excellent pricing and used it about 10 times. Beautiful core holes it makes
Donn Donn
Reviewed on Mar 29,2025
This core drill was about 50 bucks more than a one day rental at the bigi box store. I've used it several times (days) so, it was well worth the money spent.
Zachary Nelson Zachary Nelson
Reviewed on Mar 14,2025
This drill works great. I am a first time core driller and was skeptical of the low price point compared to name brand units. I purchased a separate 8\" bit and drilled thru 9\" of concrete and rebar with no issues. I took advice and drilled very slowly especially when I detected the rebar. I also used 1/2\" tap cons to fasten the drill to the concrete which I HIGHLY recommend. The drill itself is of high quality and comes with everything you need.
Daves not hear Daves not hear
Reviewed on Mar 09,2025
Cut like butter a nice clean hole in my concrete. Bolted to concrete using 2 concrete bolts and used a pump sprayer to cool it. Good size for diy radon removal project.
john daley john daley
Reviewed on Mar 04,2025
I was pleasantly surprised with the quality of this product at the price point that it was sold at. I wasn’t expecting much, as the price of this product was what I would have paid to rent one for the day. This product exceeded my expectations and I’m sure it will drill many holes for me. I bought it for the expectation of maybe being able to use it two or three times and seeing how the cost to rent one for less than a day was the same as it was to buy it I figured I would give it a try. I do not drill many masonry holes, but I’m sure this will last me for years and meet my needs for when I need to drill masonry holes. The only short fall I found with it was the base was a bit narrower than it needed to be and was somewhat to keep it in the correct place anchored to the wall. But with that being said, it was a hollow block wall and I could not get an anchor in it as good as I would have liked so that did not help the situation very much. I would definitely recommend it for occasional use.
Sam Sam
Reviewed on Jan 27,2025
Drilled through cinder block, brick, and solid concrete without missing a beat! The motor had plenty of power, the bit shows little wear after 3 holes, everything worked just as it should.
Ricky alazar Ricky alazar
Reviewed on Jan 09,2025
Great Product shipping was fast to silicone valley, I Mounted to the wall and used an 8” Core bit I acquired and This Tool Did a great Job, I was amazed by the high quality of this product for such a great Price
Ray Ferrer Ray Ferrer
Reviewed on Jan 03,2025
My guys said it’s a great unit their only disappointment was it doesn’t have a two speed transmission.

About this item

Product specification
Item Model Number
Z1Z-9230
No-load Power
1680W
Rated Power
2500W
Speed
750RPM
Drilling Diameter
8 in / 20 cm Max
Drilling Depth
23.62 in / 60 cm Max
Arbor Size
1-1/4" x 7 UNC & 5/8" x 11 UNC
Drilling Method
Wet and Dry Drilling
Product Size
36.41 x 15.15 x 14.64 in / 92.5 x 38.5 x 37.2 cm
Net Weight
54.67 lbs / 24.8 kg
Description

Diamond Core Drilling Machine: High Power and Versatile

With powerful performance and a 750RPM speed, this tool is dependable for various drilling tasks. It’s perfect for both wet and dry drilling purposes. This ensures versatility in various materials, such as concrete core drill rigs, brick, and stone. The machine has a maximum drilling diameter of 8 inches and a depth of up to 23.62 inches. Our 1-1/4" and 5/8" thread sizes allow for simple compatibility with various bits. With a strong build and efficient performance, the VEVOR diamond core drilling machine is essential for any serious DIYer or professional.


Core Drill with Stand: Enhanced Comfort and Efficiency

The included stand is a game-changer. It provides a secure and stable platform for drilling. This feature reduces physical strain, making long drilling sessions more manageable. The stand's design ensures the drill stays steady. You increase precision and reduce the risk of errors. Is it particularly useful for drilling in less accessible areas? Yes, the VEVOR core drill with stand is an excellent investment for anyone who values both efficiency and comfort during their projects. So, this machine is perfect for both home use and professional use.


High Power Core Drilling Machine: Easy and Effective

With 2500W of power, this drill can handle even the toughest drilling jobs. The 750RPM speed ensures smooth and consistent drilling. This makes it easier to manage. The high power allows for quick and precise drilling while reducing the overall time needed for tasks. Therefore, it is a cost-effective solution for construction and home improvement projects. Its ease of use and powerful performance rank it as an industry leader in the market.


Wet and Dry Core Drill: Flexible Usage

Both wet and dry drill are possible with the VEVOR diamond core drilling machine. This versatility is a significant benefit as it allows you to switch between different drilling methods based on your needs. Wet drilling helps reduce dust and heat, while dry drills are ideal for certain materials where water could cause damage. The machine's flexibility allows for countless applications.


Diamond Core Drilling Machine: Easy Setup and Maintenance

The setup process for the VEVOR diamond core drilling machine is straightforward. The included mounting rig makes it simple to secure the drill, ensuring stability during use. Maintenance is also simple, with few moving parts needing attention. This ease of use extends to bit changes, allowing for quick and hassle-free execution. It adds credibility to the machine’s overall appeal. You don’t need extensive technical knowledge to use it.


Durable and Reliable: Long-Lasting Performance

We build the VEVOR diamond core drilling machine to last. Its strong construction ensures it can withstand heavy use, making it a reliable tool for frequent projects in the future. High-quality materials used in its construction guarantee durability, reducing the need for repeated replacements. This makes it an excellent investment for both homeowners and professionals who need a dependable drilling solution. With its reliability, you can complete your tasks efficiently and effectively, time and time again.


Cost-Effective and Efficient: Great Value for the Price

The VEVOR diamond core drilling machine provides exceptional value for its price. The VEVOR diamond core drilling machine's powerful performance and versatile features make it an affordable option for all drilling requirements. This machine can handle various tasks, reducing the need for multiple tools. Not only does it save money, but it also enhances productivity. Its affordability and performance make it a top choice for those seeking to maximize their investment.


8-inch Wet & Dry Core Drill Machine
Our diamond wet and dry drilling machine is suitable for a wide range of applications, including plumbing, electrical, HVAC, and construction projects. The heavy-duty but lightweight design makes it easy to carry and tackle a variety of materials, such as concrete, red brick, marble, etc.
The 2500W robust motor easily loosens the reinforced concrete wall with a rotary speed of 750RPM, widely used in road construction, home decoration, and Routine maintenance activities.
As the machine will work upside down, so water would unavoidable flow on to the drill machine. In this case, our drilling rig has a rustproof steel forged output shaft and quick-insert water pipe connector for a long-lasting water supply.
When the safety clutch is activated, it disengages the drill motor from the core bit, preventing the drill bit from rotating and reducing the risk of injury or damage to the machine.
Smooth alloy base support is lighter and steadier. It also means higher accuracy, good durability, and longer lifespan.
See More

Questions and Answers (29)

29 Questions
Ask a Question
Showing 1-29 of 29
Sort by: Featured questions
how does this core drill use both 1.25" and 5/8 -11 core bits...... as it states in description
Answer This Question
1.25'' and 5/8-11 are two threads of the output shaft, which are used to adapt to drill bits with different thread specifications, and cannot be used at the same time.
By vevor on
What is the long silver bar used for
Answer This Question
The silver L-shaped bar is an inner hexagonal wrench, which is used to remove screws.
By vevor on
how do I attach a standard water hose to this drill? Looking for the right direct plug attachment?
Answer This Question
It is recommended to plug in the quick-release connector directly.
By vevor on
Recommend purchasing quick connectors for use.
By vevor on
Does it use vacuum to keep it in place, if no vacuum how is it held steady
Answer This Question
Please refer to the video in the link below. https://we.tl/t-3HBCy8CqtF
By vevor on
the drilling bit that comes with the machine has a 1-1/4" connector, we have additional drill bits with a 5/8" connector, do we need to buy an additional adapter for that?
Answer This Question
Yes, an additional adapter is needed.
By vevor on
