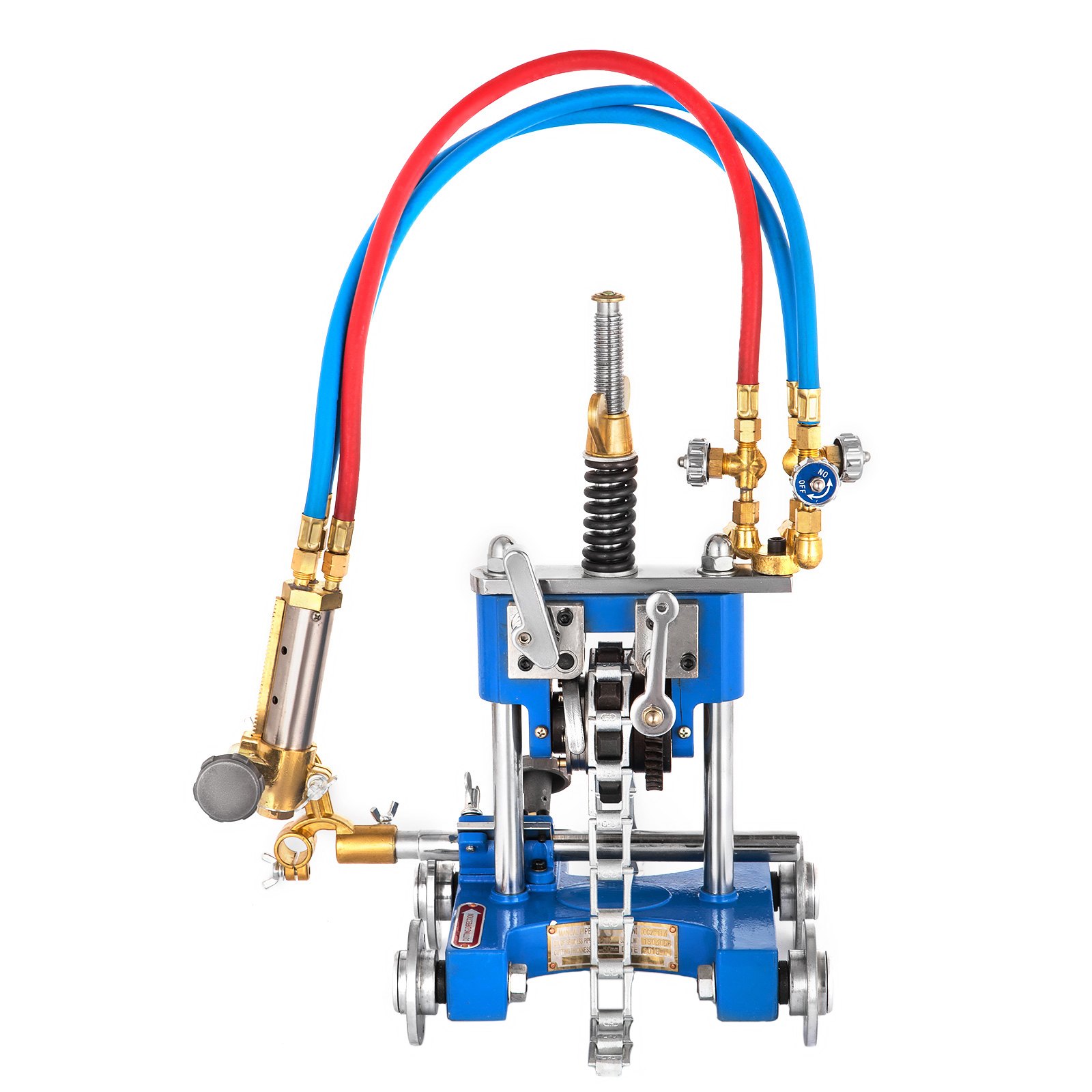

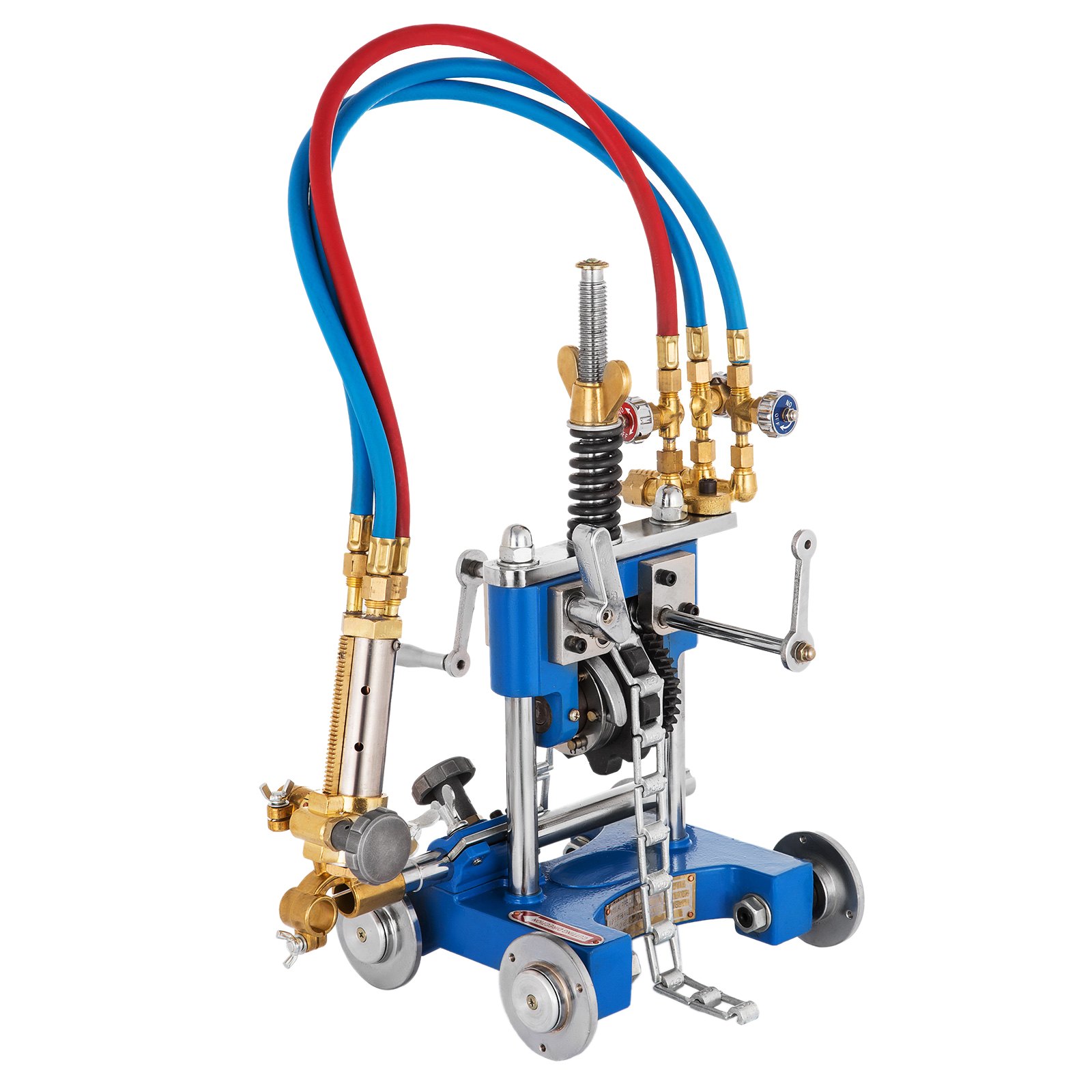

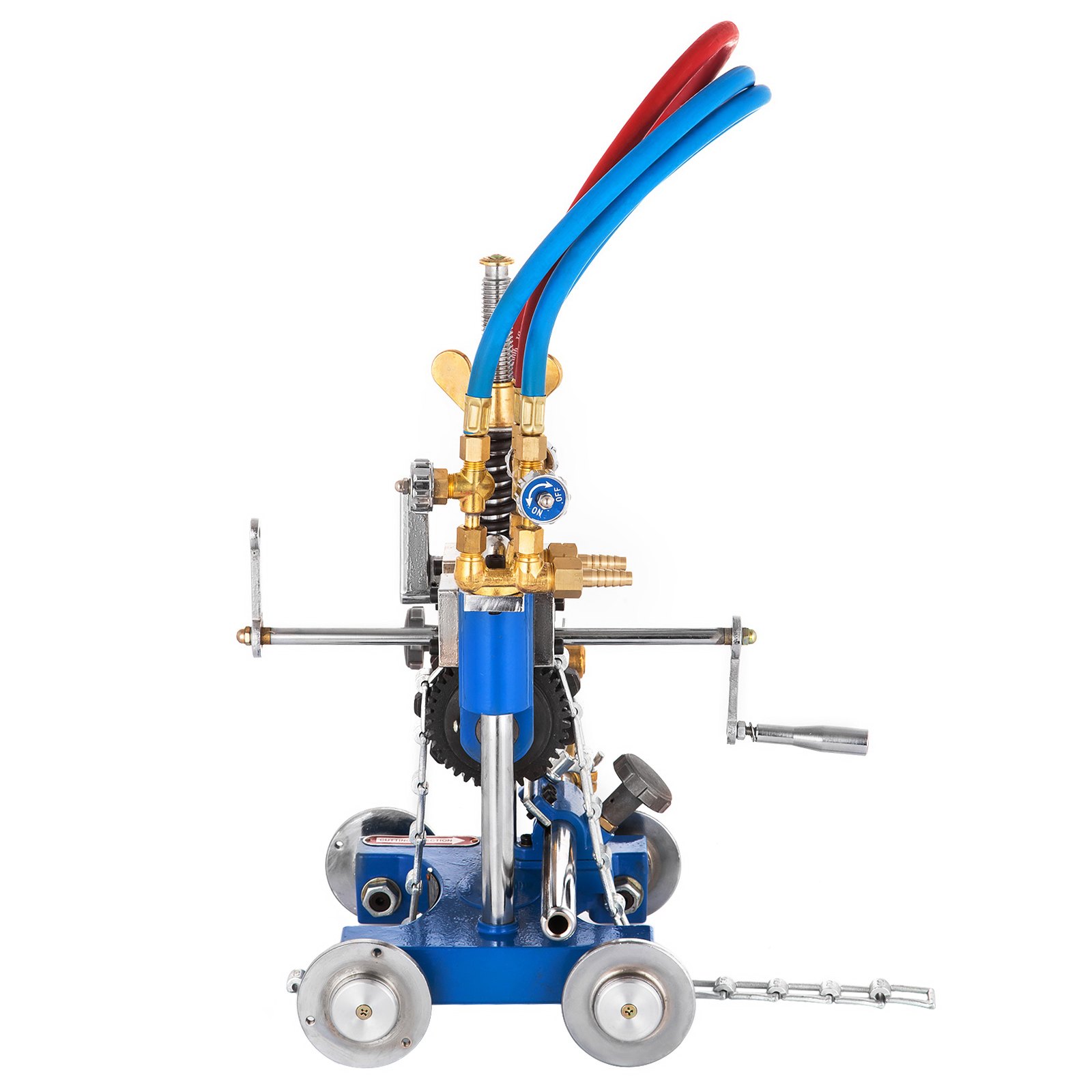

Manual Pipe Gas Cutting Beveling Machine Torch Track Chain Cutter Beveler

Features & Details

• 【LIGHTWEIGHT CONSTRUCTION】- The magnetic tunnel pipe gas cutting machine has an aluminum alloy main body, lightweight, compact, portable and sturdy, stable, and durable.
• 【LARGE CUTTING RANGE】- This torch beveling gas cutter uses oxygen-acetylene for straight cut or bevel cut(I, Y, V 0-45°angle). The cutting pipe diameter range is Ф108-600 mm / 4.25 - 23.6 inches; cutting thickness reaches 5-50 mm / 0.2 - 2 inches.

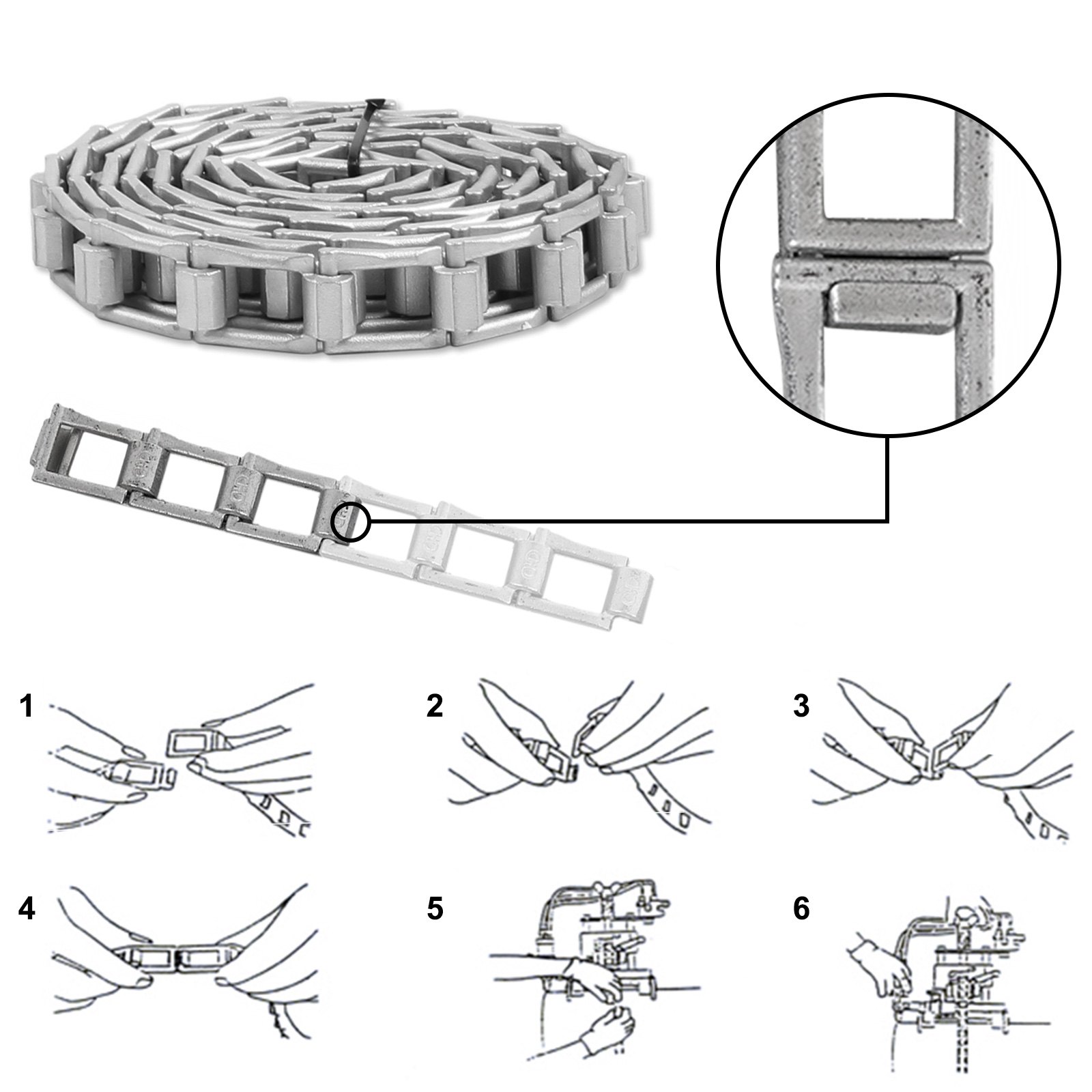

• 【ADJUSTABLE LENGTH OF CHAIN】: You can use the chain to bind the pipe cutting machine in the pipe, then control machine motion by the chain. The chain can be increased or decreased to adapt to different pipe diameters, flexible, and convenient to operate.
• 【EASY TO OPERATE】- This pipe cutting machine will move forward if you turn the control handle clockwise and move backward if you spin it anti-clockwise. The torch also can move horizontally, up, down, etc. These are all by manual control, so no electricity is needed.

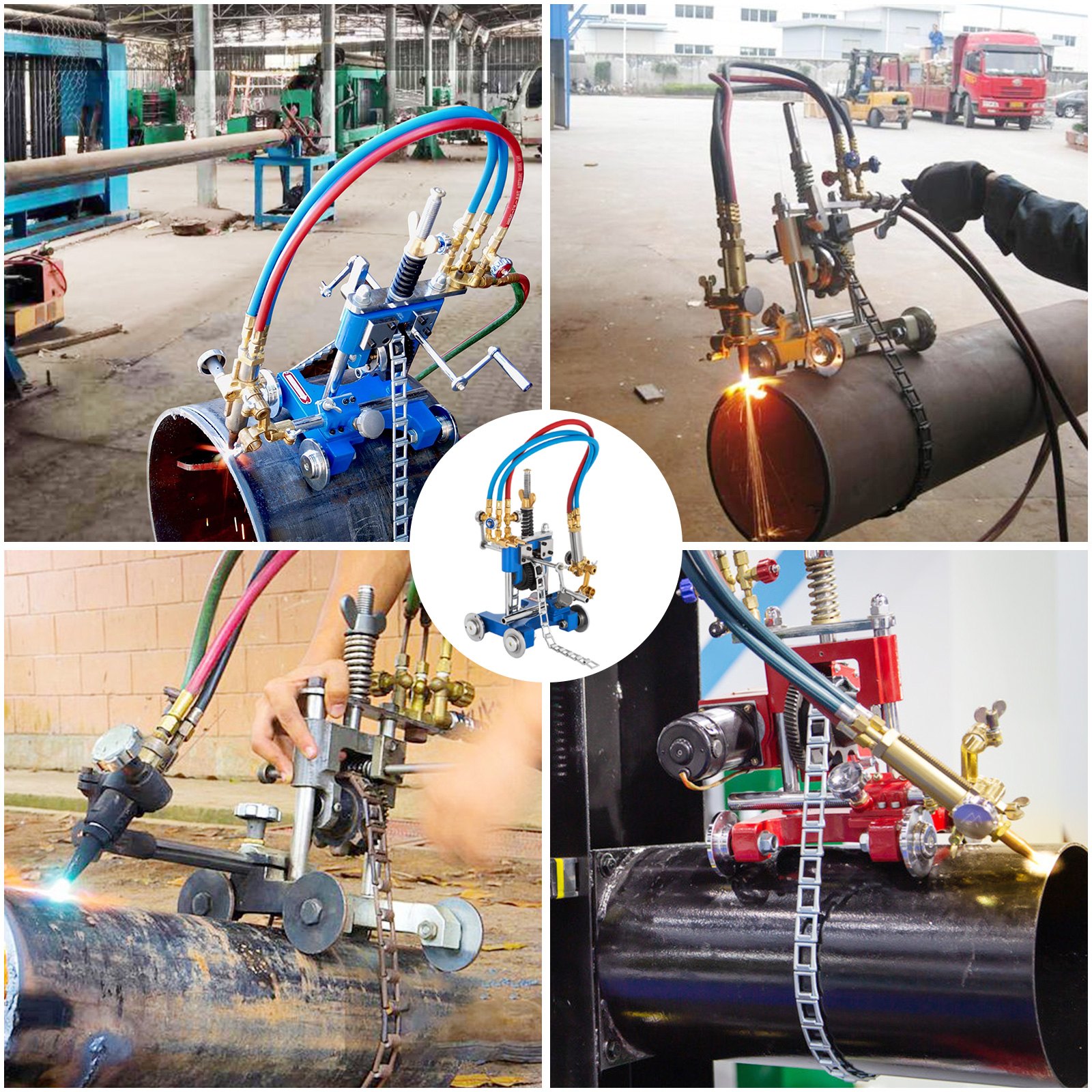

• 【WIDE APPLICATION】- This Pipe Beveling Machine is suitable for petroleum, chemical, mechanical, processing, electricity, construction, mining industries, etc. And it does not require electricity, so it is especially suitable for fieldwork without power.

• The pipe's bottom should be kept plane to reduce friction when you cut the rolling pipes.
• It is necessary that other people help you roll the pipe if it is very large.
• Keep enough space around the pipe when you cut fixed pipes so that the machine can be circumrotated freely.
• Smear lubricant on the slippage part to make it easier to operate.
• The machine should be gathered betimes after finishing work to avoid losing the chain.

• Aluminum alloy main body, compact and portable.

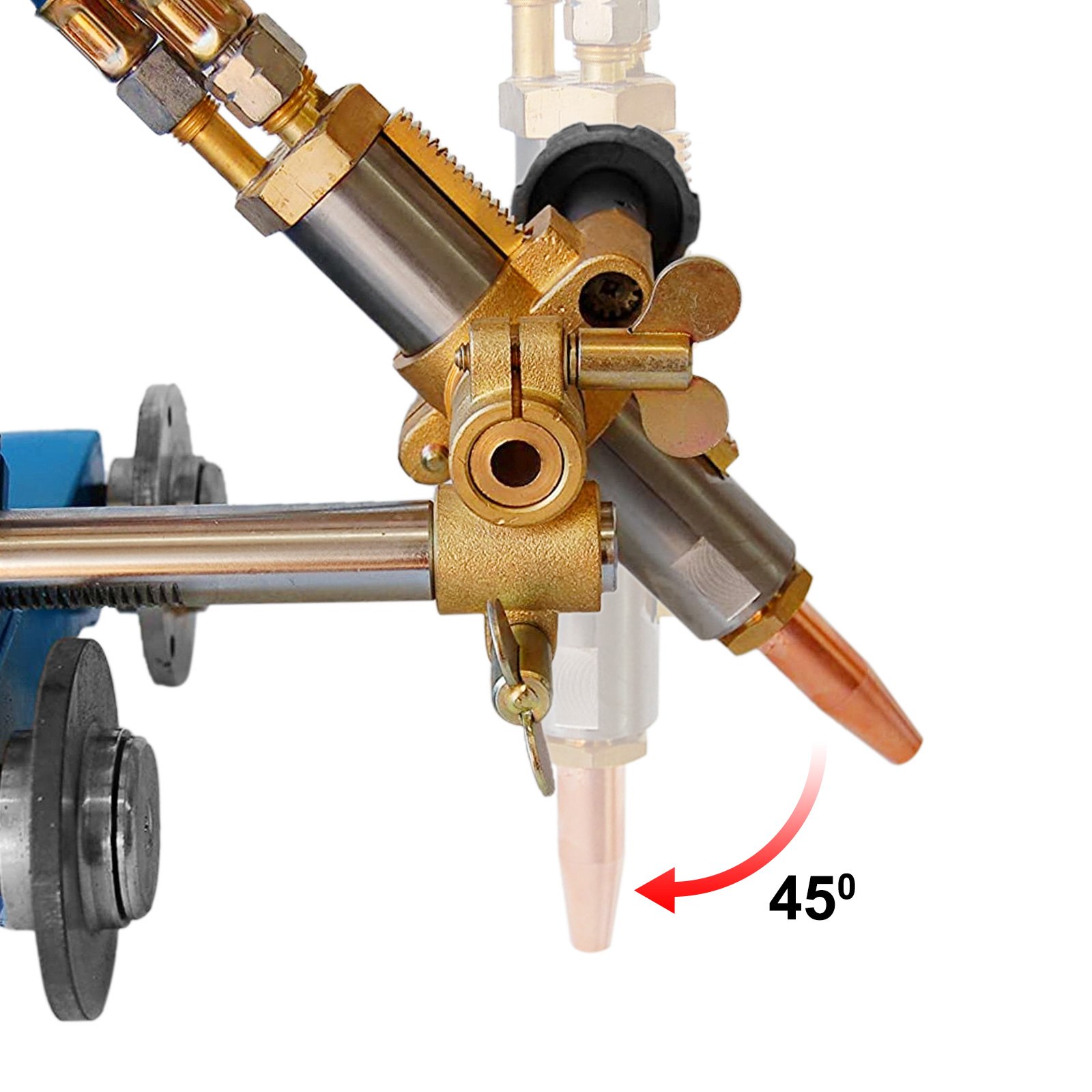

• Use oxygen-acetylene for straight cut or bevel cut(I,Y,V 0-45° angle).
• Manual control of cutting speed.
• Cutting pipe diameter: φ 108-600mm; cutting thickness: 5-50mm.
• With Chain to enwind the pipe to connect machine, then to control machine motion by chain.

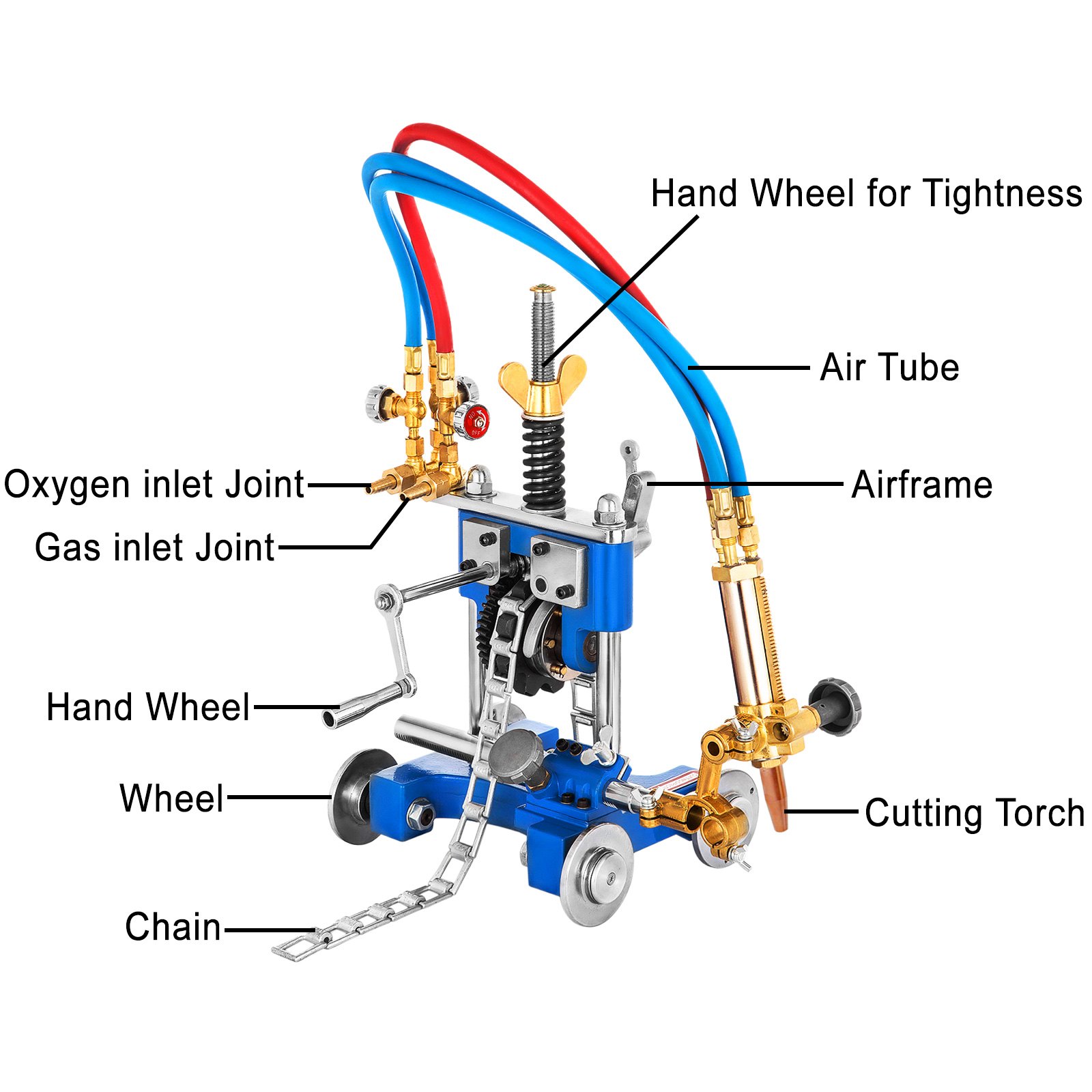

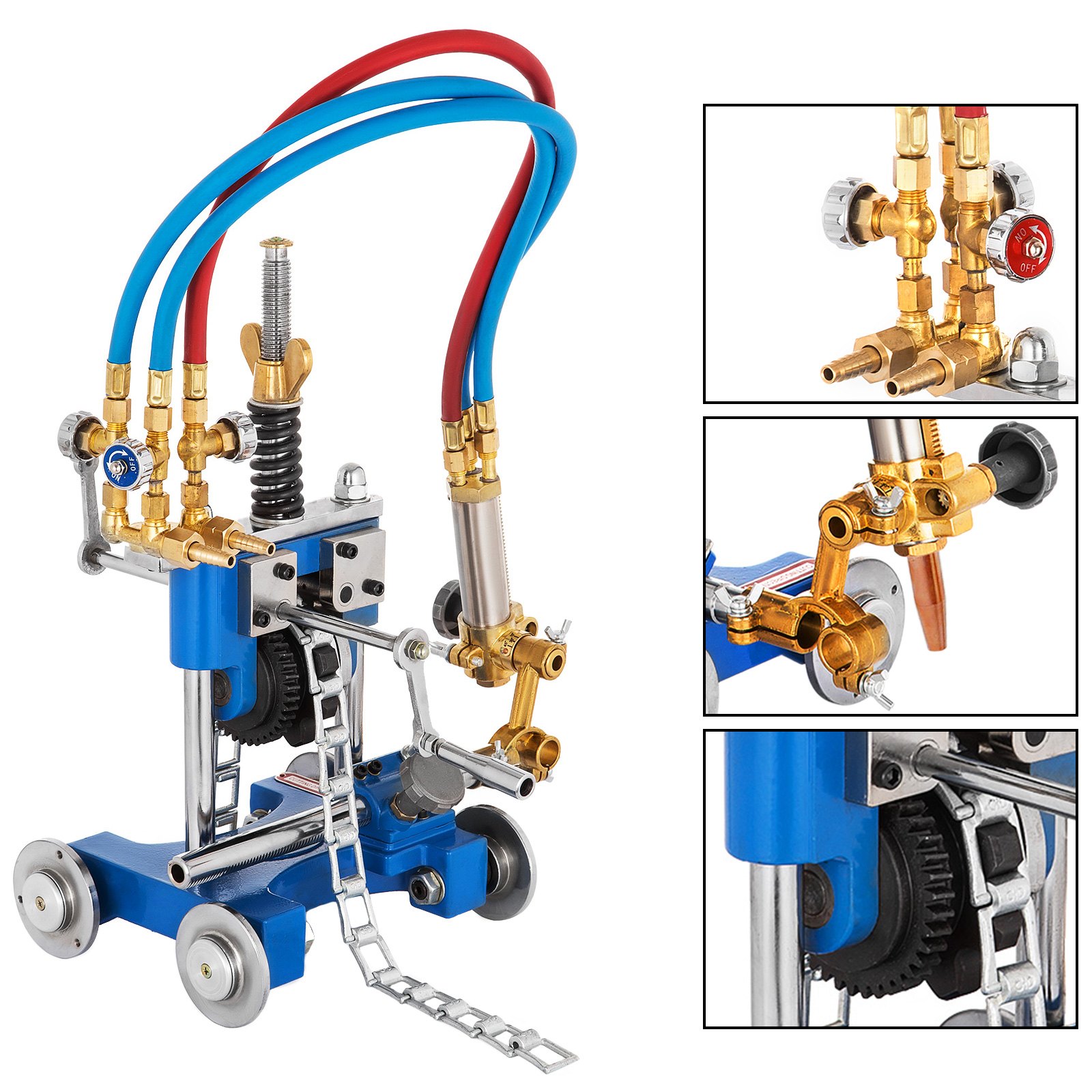

• Torch moves horizontally, up & down with cross feed hand wheel & adjust knob.
• Efficient gas cutting, with 3 hoses(fuel gas hose, preheating oxygen hose, and cutting oxygen hose) to get connected to gas distributor.
• Direction-Control Handle: Machine will walk forward if you revolve it clockwise, and walk backward if revolving it anti-clockwise.
• With screw to adjust tightness between machine & pipe.
• No electricity needed.
• Easy to operate, with detailed instructions on user manual.
• Come with 2-years warranty.

• Model: CG2-11Y
• Material: Aluminum Alloy
• Bevel Shape: I,Y,V Type
• Beveling Angle: 0-45°
• Cutting Hose Range: 108-600mm(Seamless Steel Pipe)
• Cutting Pipe Thickness: 5-50mm
• Reset Accuracy: 1mm

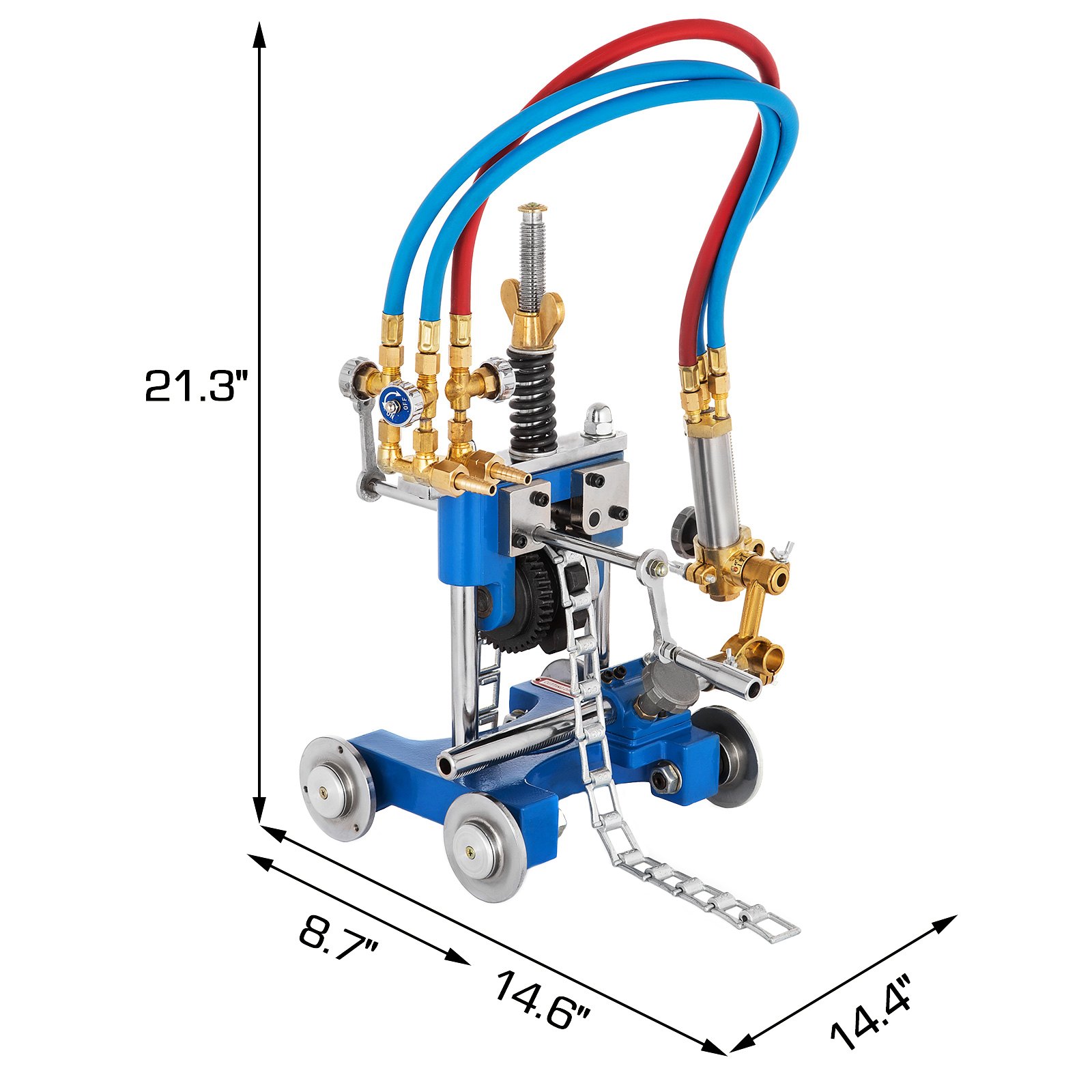

• Product Weight: 10.5kg / 23LB

Specification

• Model: CG2-11Y
• Material: Aluminum Alloy
• Bevel Shape: I, Y, V Type
• Beveling Angle: 0-45°
• Cutting Hose Range: 108-600 mm / 4.25 - 23.6 inches(Seamless Steel Pipe)
• Cutting Pipe Thickness: 5-50 mm / 0.2 - 2 inches
• Reset Accuracy: 1 mm / 0.04 inch
• Product Weight: 10.5 kg / 23LB

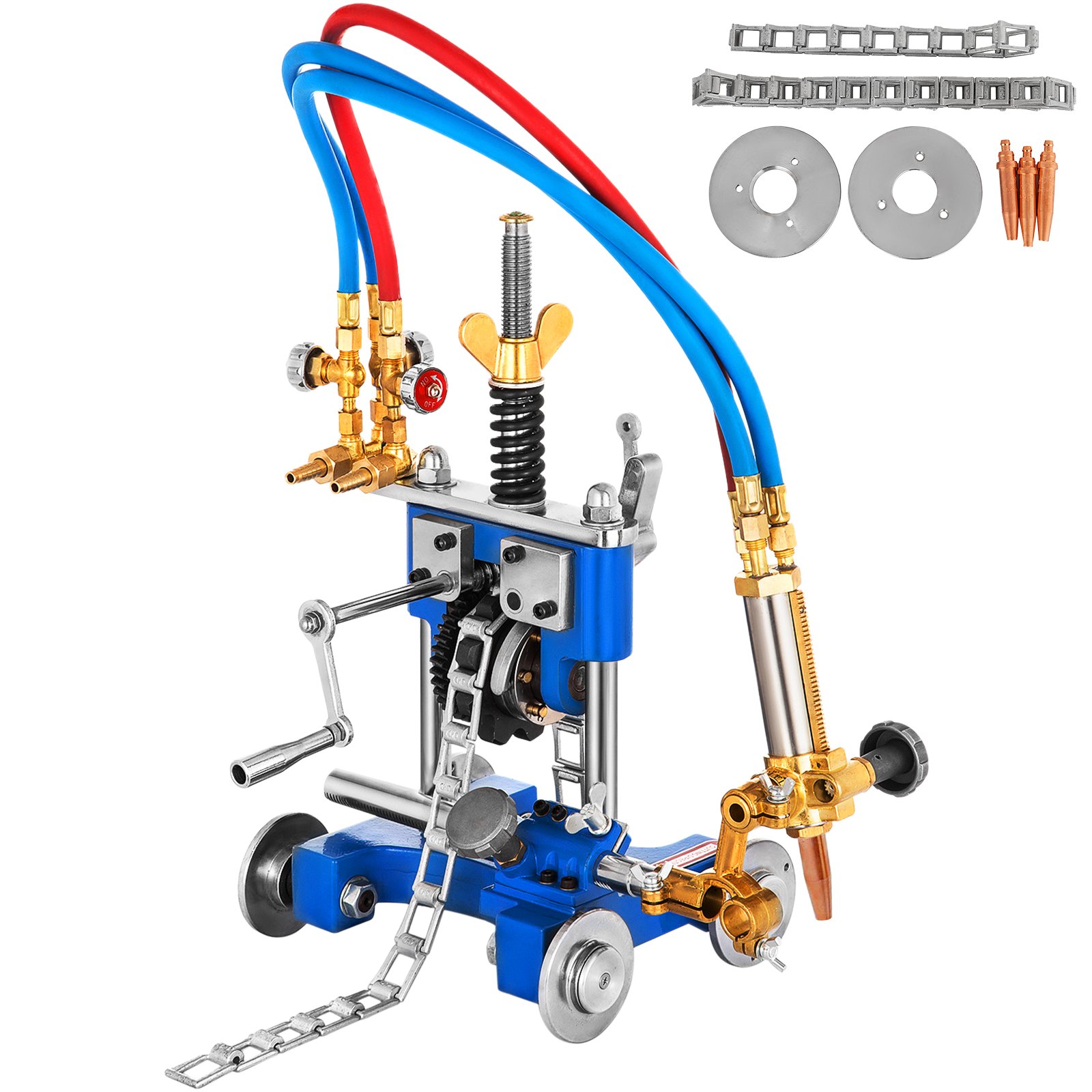

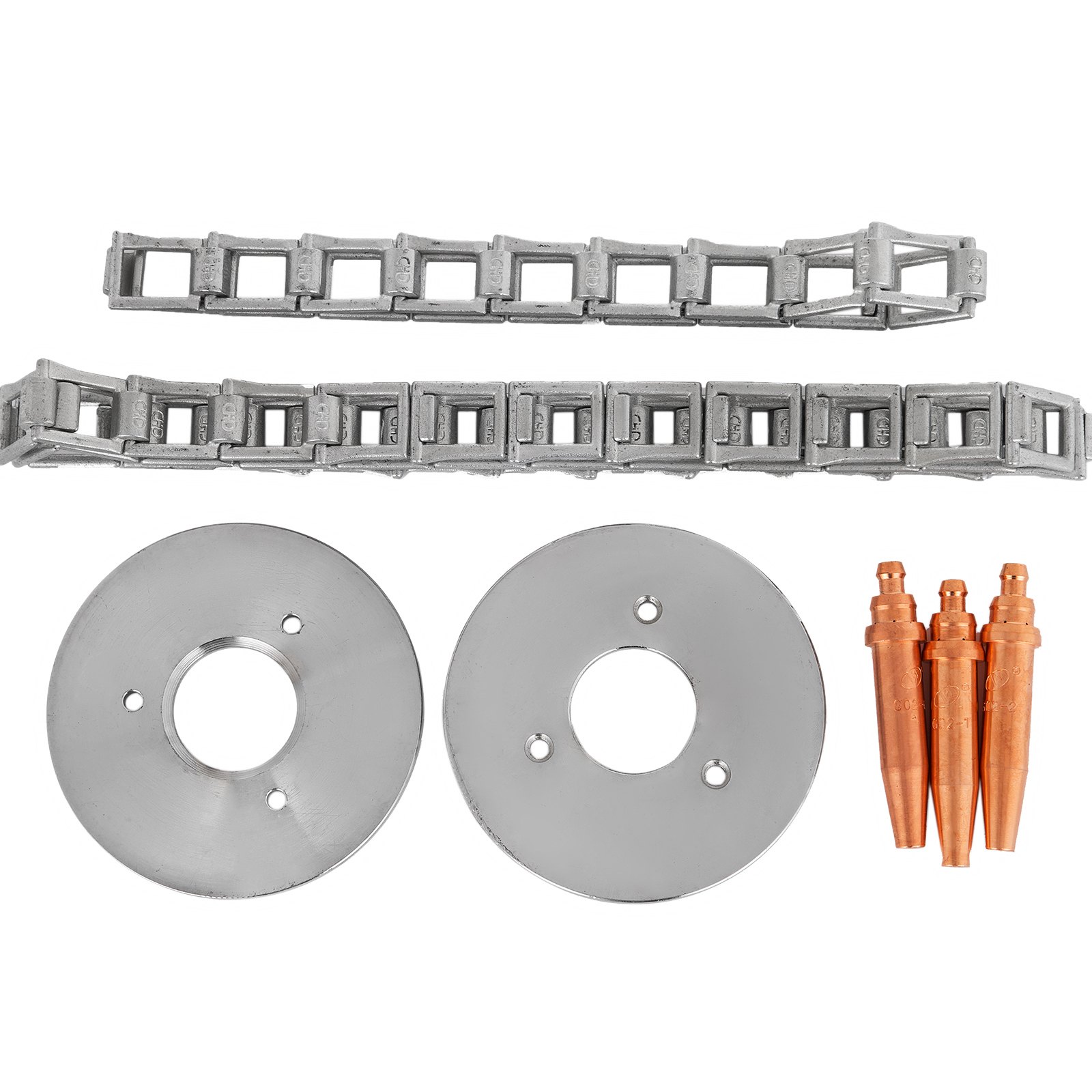

Package Content

• 1 x Main Body
• 1 x Standard Torch Unit Assemblage
• 1 x Chain(83 links)
• 1 x Set of Tips(G0 #1,2,3)
• 1 x Gas-in Connector
• 1 x Connection of Torch
• 1 x User Manual
