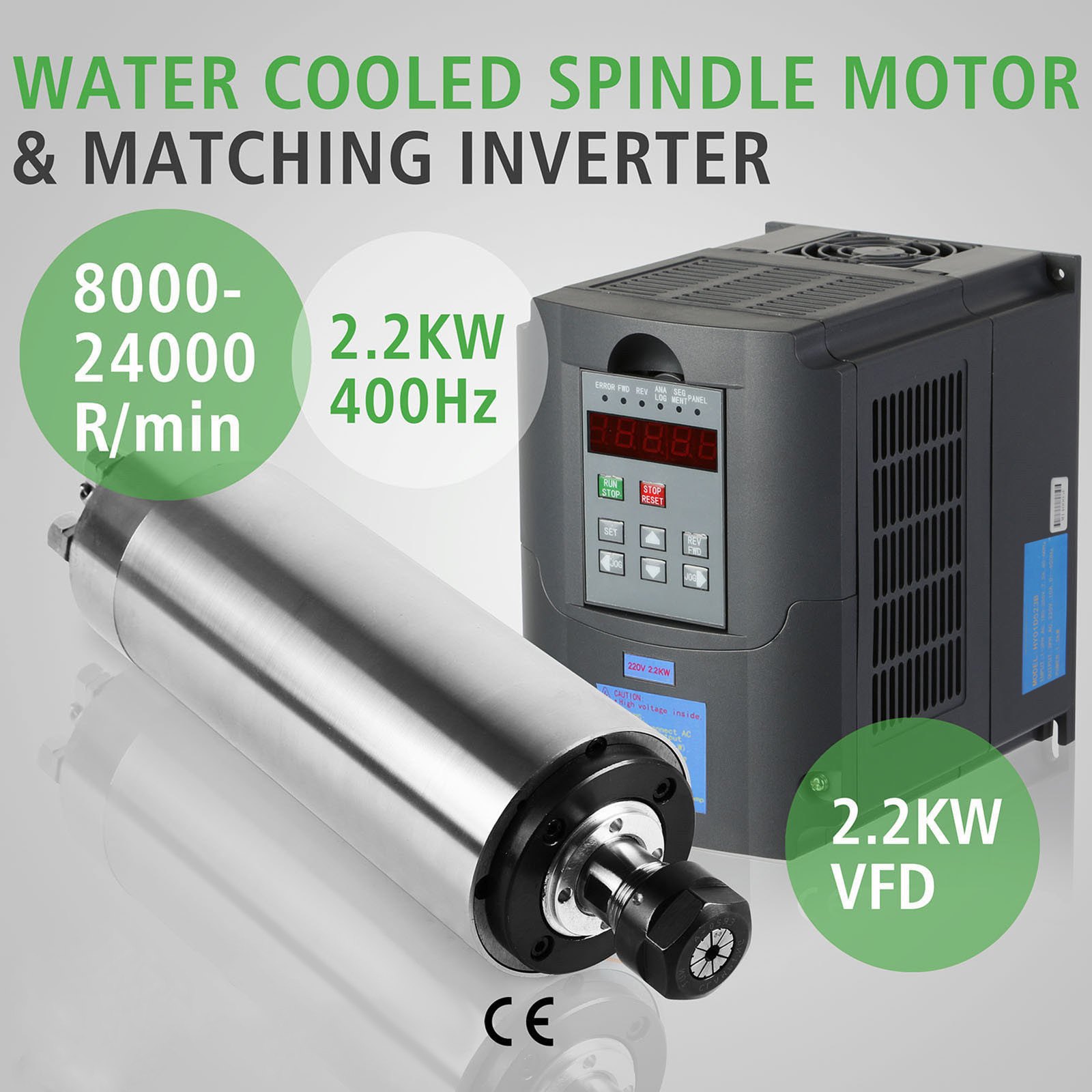

Updated 2.2KW Water-cooling Spindle Motor And Matching Inverter 2.2KW VFD

Unlike other selling low quality spindle at doubtful low price, this is a high quality Spindle with stainless steel 304 casing and the Germany made ball bearing.New upgraded with adopt germany imported bearing: three times useful time than ordinary spindle motor. More speed: 8000-24000 R/min. More precis eollet: ER20(4mm,6mm,8mm,12mm,12.7mm) Runout off: less than 0.005mm. Pass ISO9001 quality certification which means this item is the top quality item.

We also stock the followingupdated top-quality water-cooling electric motor spindles for your selection

Kindly Notices: the water-cooling electric motor spindles 110v and 220v can be generic

We also stock the following updated top-quality air-cooling electric motor spindles for your selection

Kindly Notices: the air-cooled spindle motors spindles 110v and 220v can be generic

Friendly Note

Theair-cooled spindle motor and vfdmay be in different stock,so they may be sent separately.

Pls do not worry,you will receive All the parcels in recent days after the order

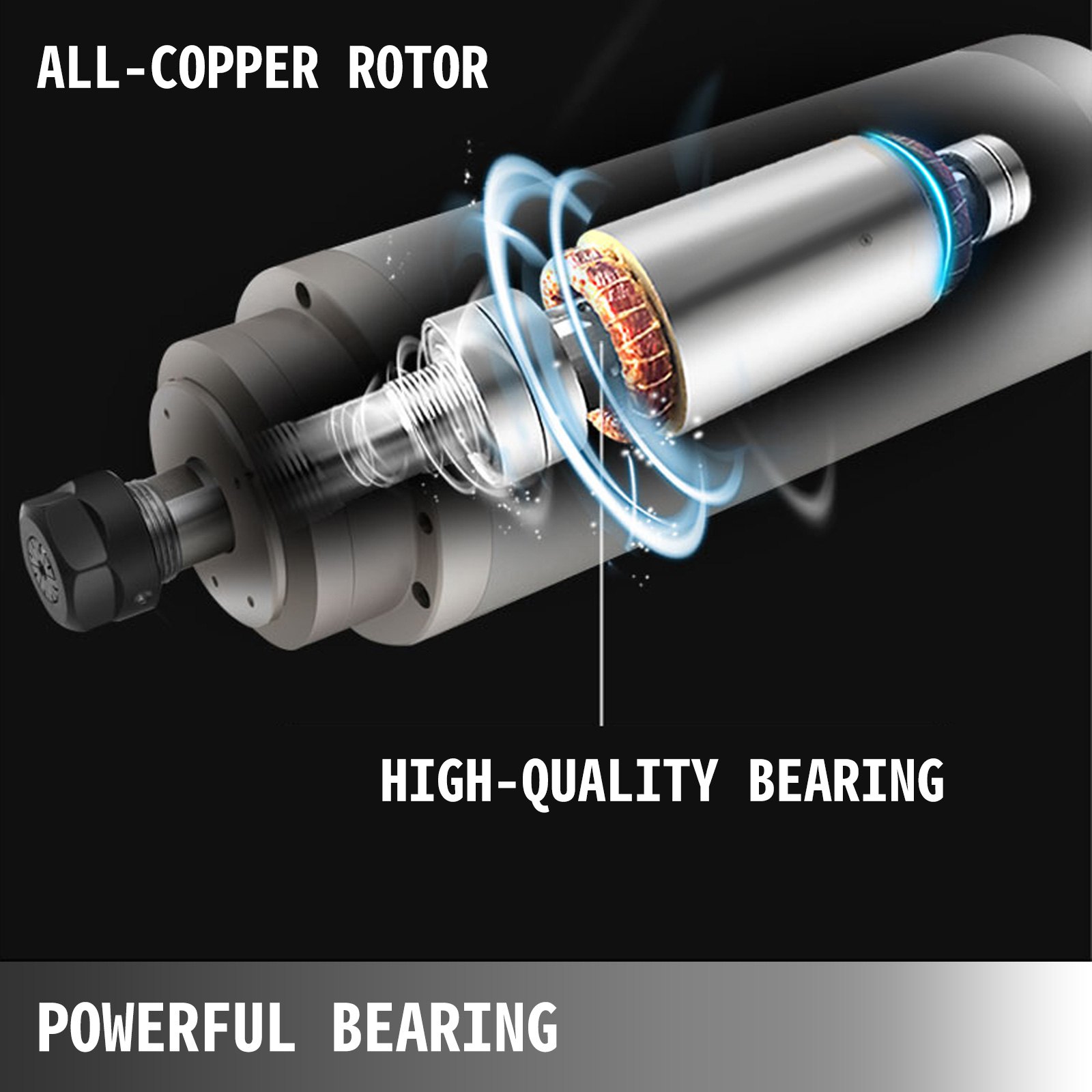

• This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor.
• In extremely high speed working environment, ordinary bearing can not ensure this high rotate speed for using for long time.
• Our Germany imported bearing can make spindle motor three times longer useful time than ordinary spindle motor.
• The cost for Germany Imported Bearing is more than  150$ than ordinary bearing.
• MORE SPEED: 8000-24000 R/min.MORE PRECISE.

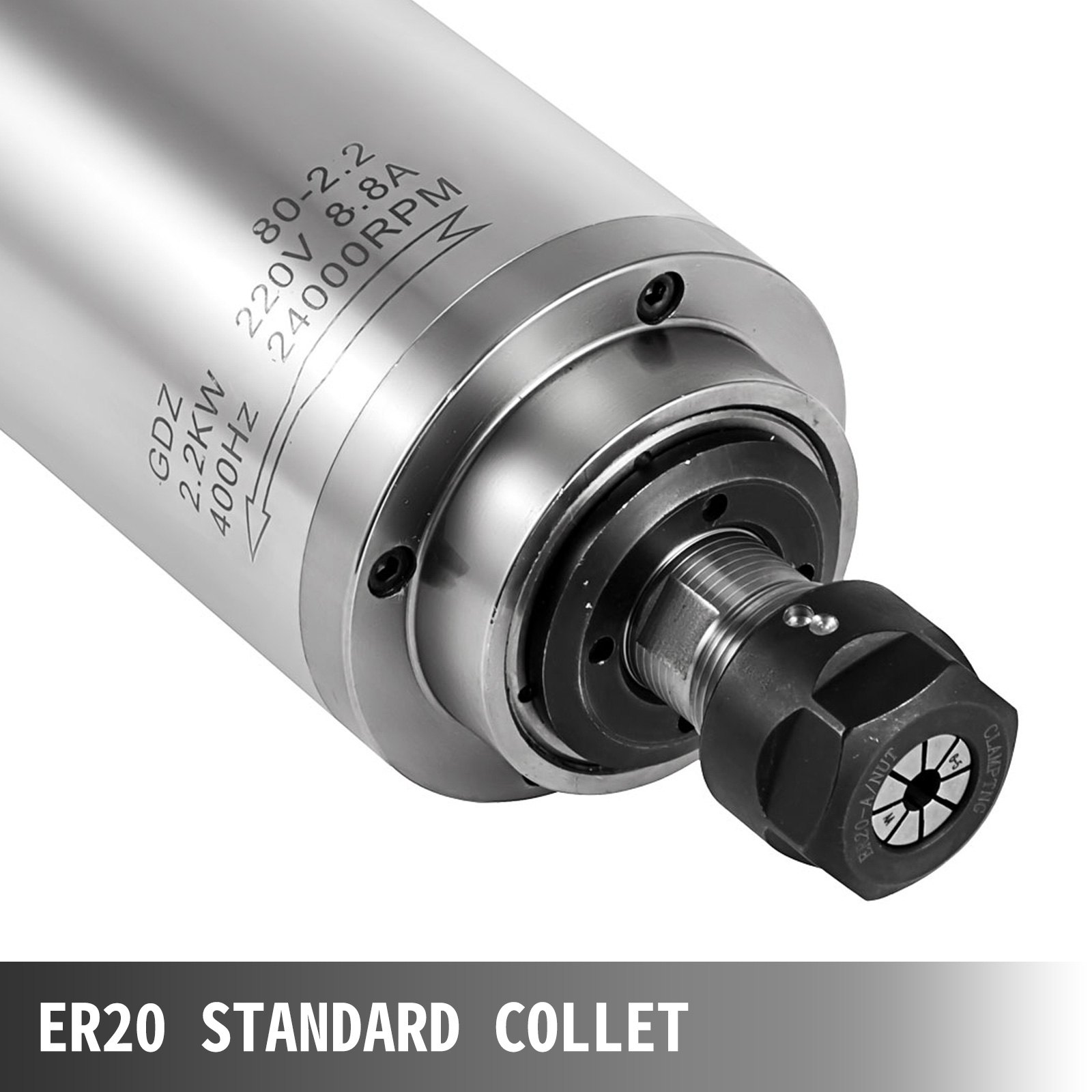

• Collet: ER20(4mm,6mm,8mm,12mm,12.7mm) Runout off: less than 0.005mm.
• ISO9001 quality certifications which means this item is the top quanlity item.

• Spec: φ80x200 mm (Diameter:80mm x Length:200mm)
• Power: 2.2 KW
• Voltage: 220V~250V
• Frequency: 400 Hz
• Speed: 8000-24000 R/min
• Water Cooling
• ER20(4mm,6mm,8mm,12mm,12.7mm)  collet chuck
• Runout off: less than 0.005 mm
• Grease Lubrication

• Input Voltage: 220±15%
• Output Voltage – 208-240VAC (analogous to Input Voltage)
• Input Frequency: 48-63 Hz
• Output Frequency: 0-400 Hz
• Input Phase: suit for 1 phase input
• Output Phase: 3 phase
• Item Manufactuer: From a well-known manufacture who manufacture VFD for more than 12 years.
• Warranty: 2 years

• 1 x 2.2KW Water Coolde Spindle Motor
• 1 x 2.2KW Variable Frequency Drive
