DJCM0525600000001V7

New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM

New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
$186.99
186.99
Price including VATSee details
  • · Single Phase Electric Motor: This air compressor electric motor runs at 5 HP SPL. Rated Speed: 3450 RPM, Input: 3.1 kW, Voltage: 208-230V, Amperage: 16-15A, Frequency: 60 Hz, Synchronous Speed: 3600 RPM, Frame: 56 Frame, Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft, Shaft Length: 1.875 in / 4.8 cm, Rotation: CW-CCW(Reversible). Push your air compressor to the limits with this well-balanced motor!
  • · Sturdy Steel Construction: The 5 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life. Mounting Type: Base-Mounted.
  • · Overload Thermal Protector: The 5HP electric motor for air compressor adopts a manual reset knob allowing it to stand up against high-temperature overloads. A Reduced starting amperage design ensures the reduced voltage will start at a rated load. Insulation Class: F, Service Factor: 1.
  • · Fast Heat Dissipation: The 56 frame electric motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust. Works hard while maintaining high performance.
  • · ODP for Dry Environments: The open drip-proof motor demonstrates optimal performance when used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Ensure our motor matches the specific specifications listed on your compressor before purchase.


Frequently Bought Together

People Who Bought This Item Also Bought

New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
3.1 KW 5 HP SPL Air Compressor Electric Motor Single Phase
An AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 3.1 KW Electric Motor D56 5S2C for air compressor. A 208-230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8" keyed shaft. It is a five hp SPL electric motor that is commonly used for home and small shop air compressors.
Note: Not all 5 hp motors are exactly the same. So, with the new motor you're purchasing, it's vitally important that you match up the specs on your old motor. All the information you need to know can be found right on your electric motor's nameplate/sticker, which usually can be found on the side of the motor.
  • AC Electric Motor
  • Steel Housing
  • Fast Heat Dissipation
  • Manual Overload Protection

New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM

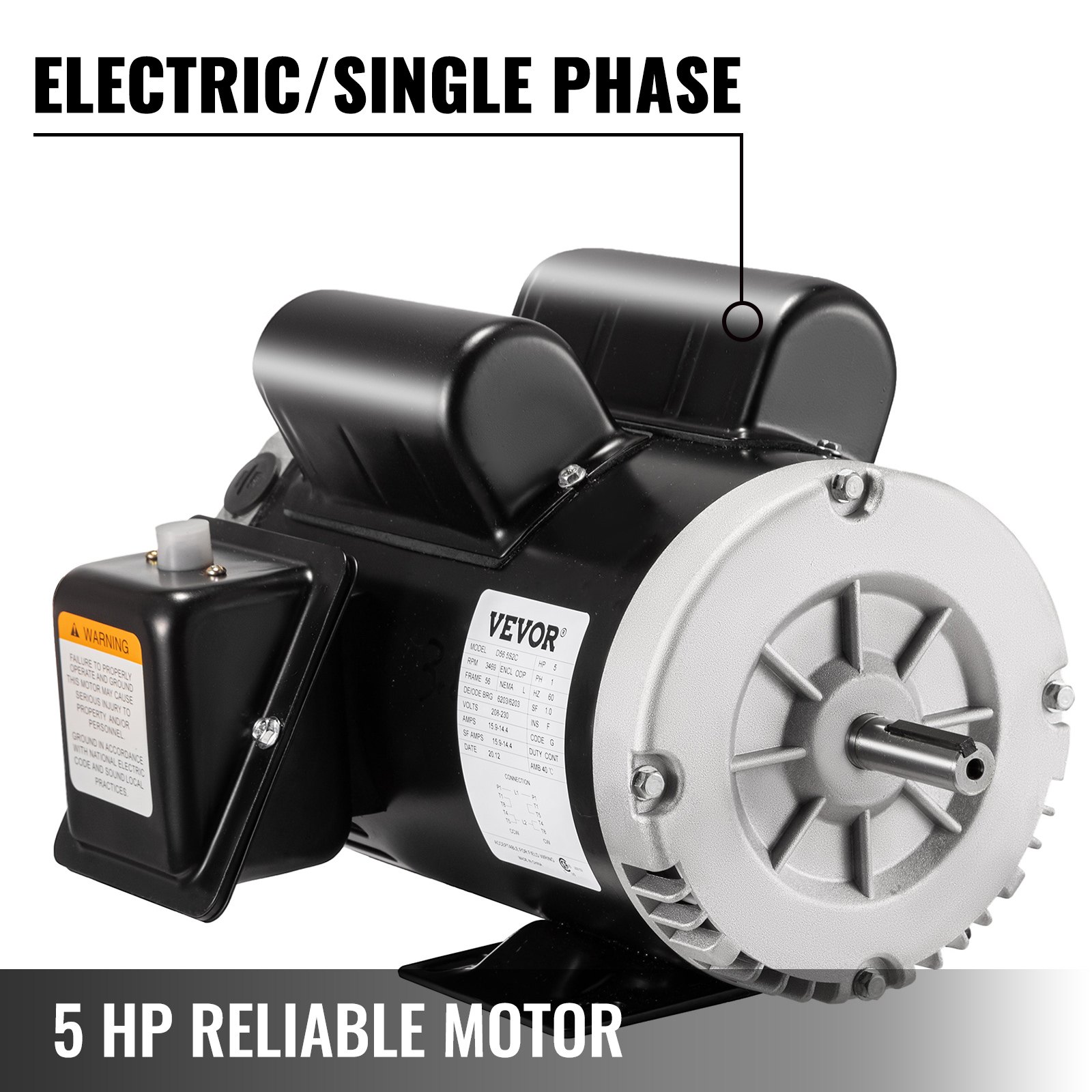

5 HP Reliable Motor
High power motor allows conserving energy over extended periods, featuring single-phase electric motor, reducing energy costs or overheads, effortless to move.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM

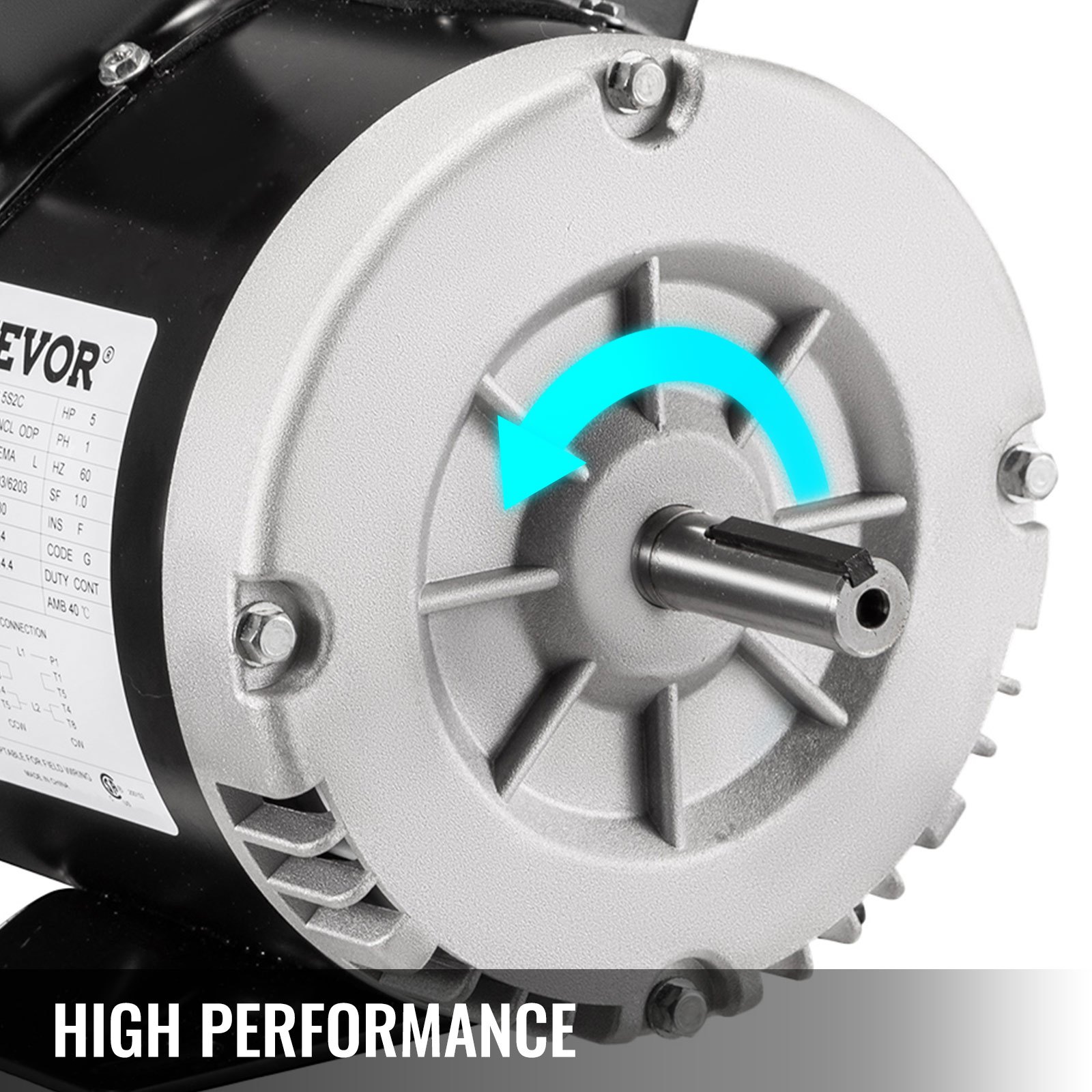

High Performance
Runs at 5 HP, with a maximum speed of 3450 RPM, synchronous speed: 3600 RPM, Voltage: 208-230V, Frame: 56, easy to use.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM

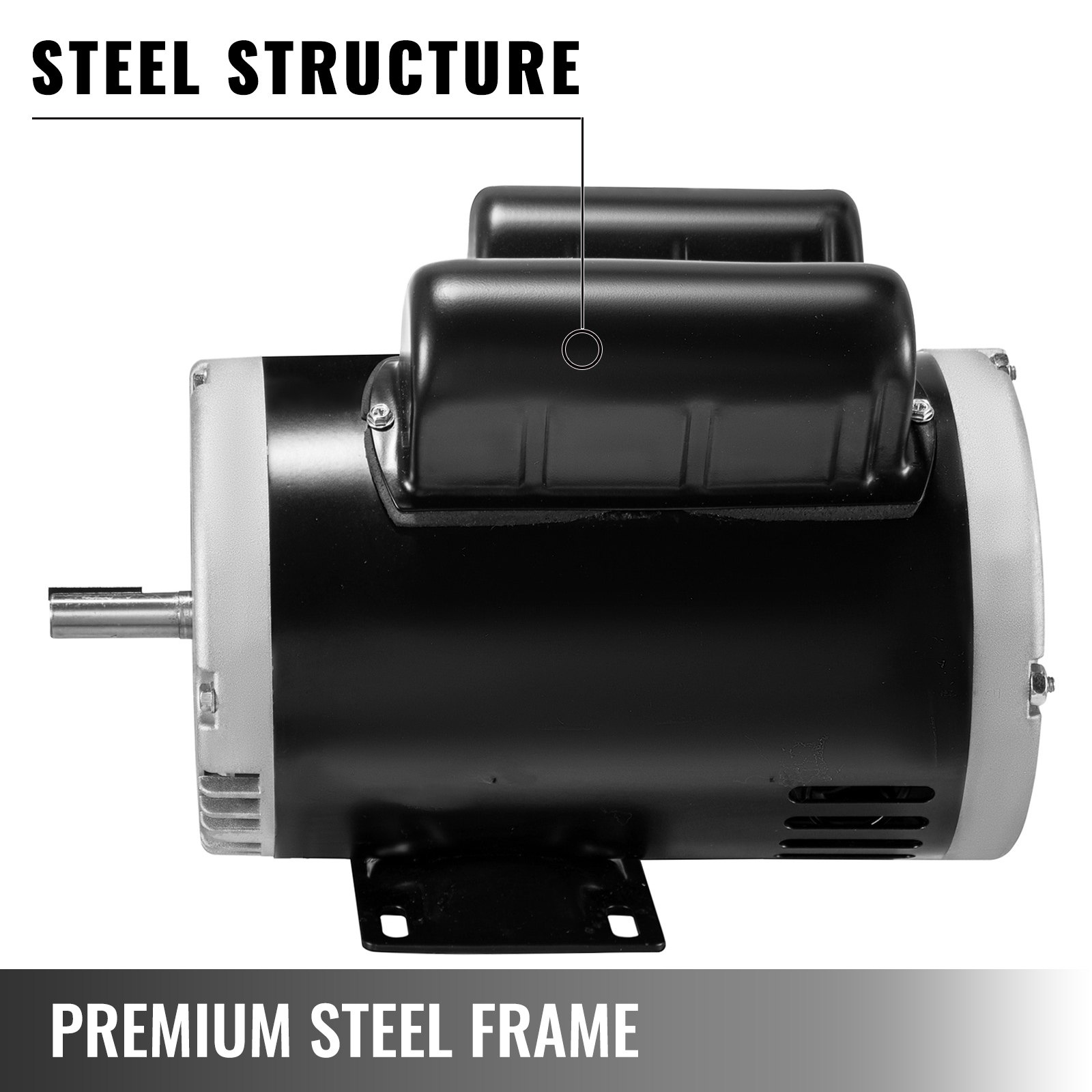

Premium Steel Frame
Heavy gauge steel frame construction for strength and durability, corrosion and wear resistance, and smooth surface provides comfortable use.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM

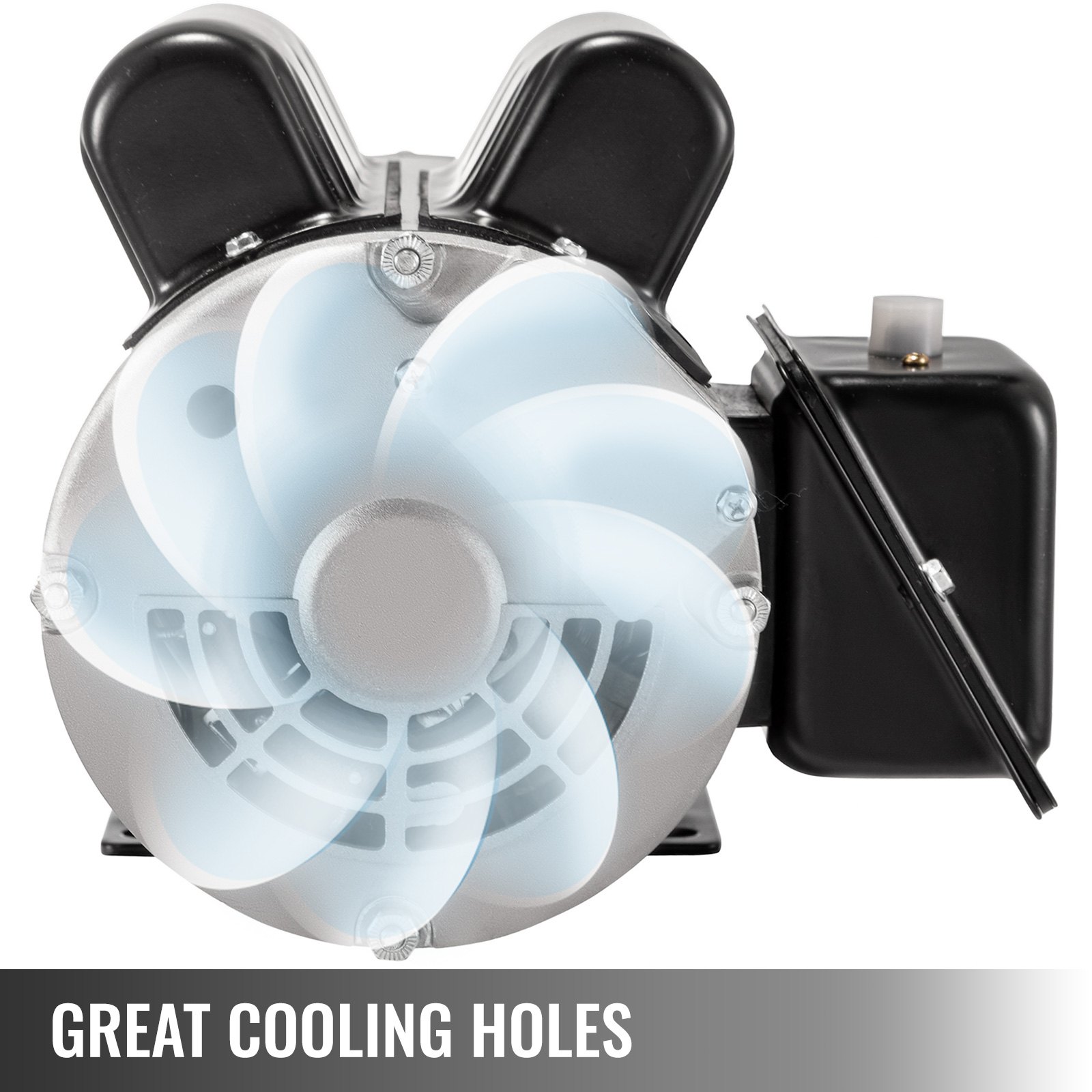

Great Cooling Holes
The air compressor motor has multiple heat dissipation holes, and it can quickly dissipate heat while running, can prevent foreign objects from being caught in the engine.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM

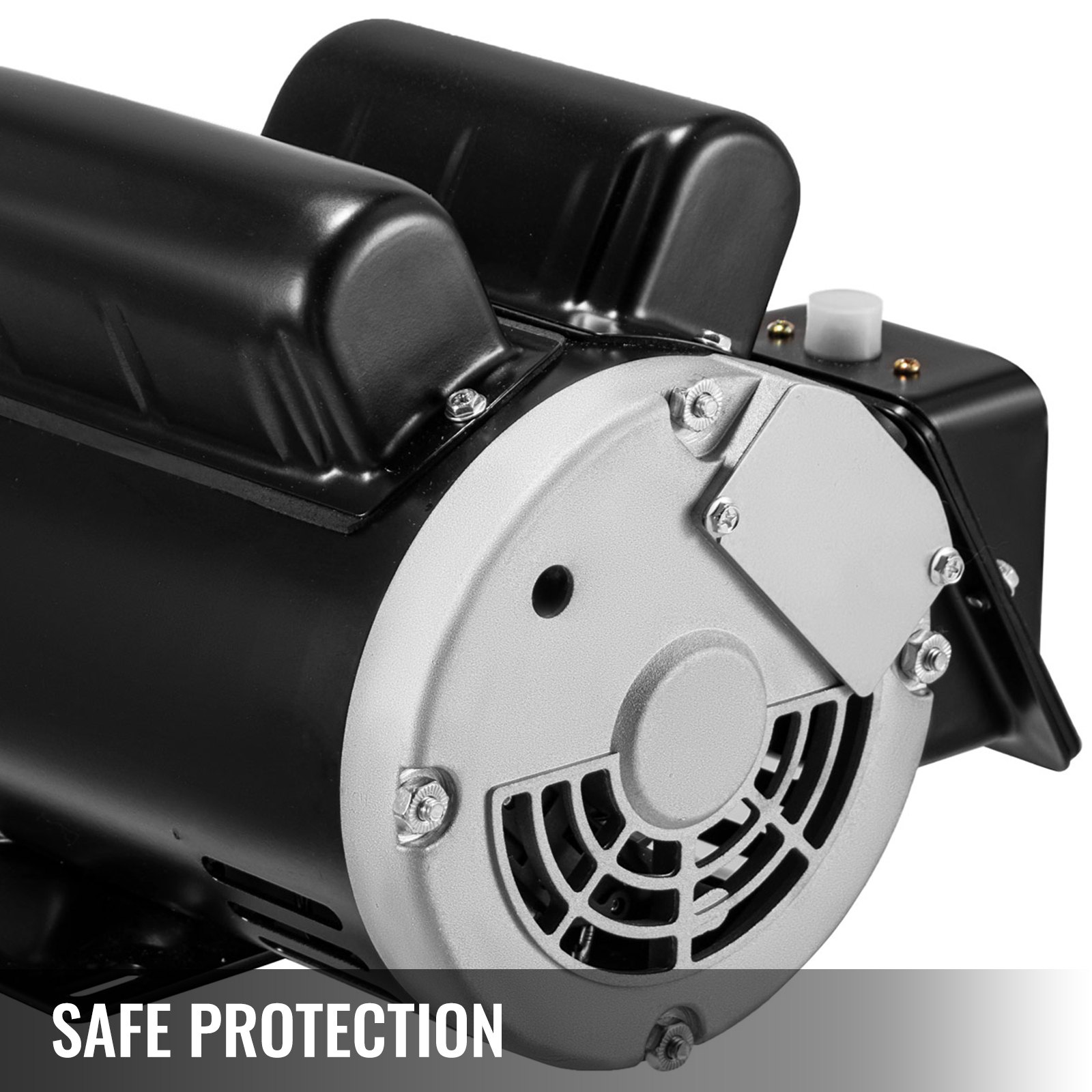

Safe Protection
Capacitor housing and conduit boxes protect all environments, and low-temperature manual overload protector protects against extreme overload.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Wide Application
The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Specifications
  • Phase: Single Phase, 2 Pole
  • Voltage: 208-230V
  • Rated Load (HP): 5HP SPL
  • Amperage: 15.9-14.4A
  • Frequency: 60 Hz
  • Rated Speed: 3469 RPM
  • Synchronous Speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft Diameter: 5/8" Keyed shaft (1.6 cm)
  • Shaft Length: 1.875" / 4.8 cm
  • Rotation: CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE.)
  • Service Factor: 1
  • Insulation Class: F
  • Mounting Type: Base-Mounted
  • Enclosure Type: ODP
  • IP Rating: IP 23
  • AC Motor Type: Induction Motor
  • CODE: G
  • DUTY: CONT
  • NEMA: L
  • AMB: 40℃

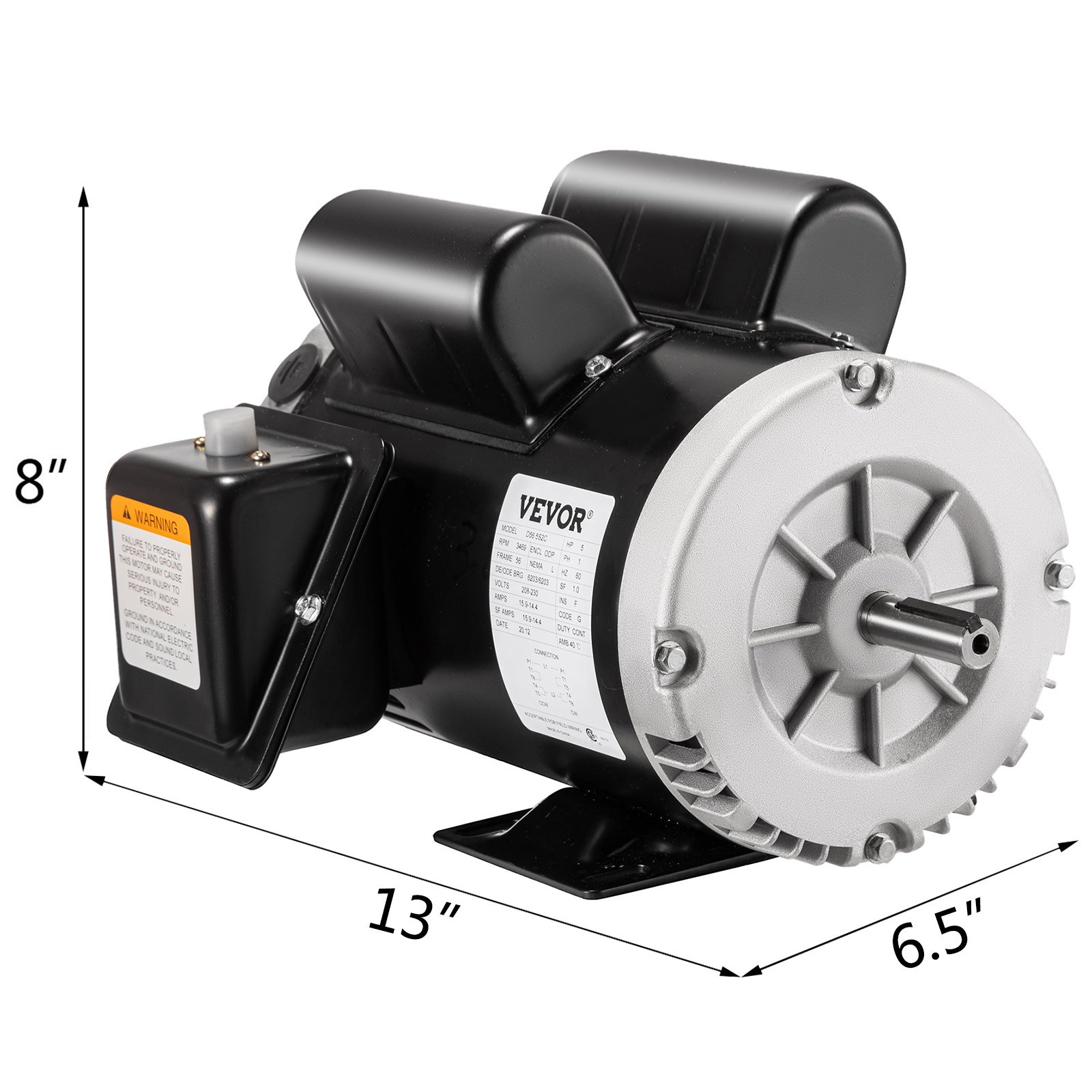

  • Motor Size(L x W x H): 13 x 6.5 x 8'' / 33.02 x 16.51 x 20.32 cm
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Package Content
  • 1 x Electric Motor
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM

New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
3.1 KW 5 HP SPL Air Compressor Electric Motor Single Phase
An AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 3.1 KW Electric Motor D56 5S2C for air compressor. A 208-230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8" keyed shaft. It is a five hp SPL electric motor that is commonly used for home and small shop air compressors.
Note: Not all 5 hp motors are exactly the same. So, with the new motor you're purchasing, it's vitally important that you match up the specs on your old motor. All the information you need to know can be found right on your electric motor's nameplate/sticker, which usually can be found on the side of the motor.
  • AC Electric Motor
  • Steel Housing
  • Fast Heat Dissipation
  • Manual Overload Protection
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
5 HP Reliable Motor
High power motor allows conserving energy over extended periods, featuring single-phase electric motor, reducing energy costs or overheads, effortless to move.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
High Performance
Runs at 5 HP, with a maximum speed of 3450 RPM, synchronous speed: 3600 RPM, Voltage: 208-230V, Frame: 56, easy to use.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Premium Steel Frame
Heavy gauge steel frame construction for strength and durability, corrosion and wear resistance, and smooth surface provides comfortable use.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Great Cooling Holes
The air compressor motor has multiple heat dissipation holes, and it can quickly dissipate heat while running, can prevent foreign objects from being caught in the engine.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Safe Protection
Capacitor housing and conduit boxes protect all environments, and low-temperature manual overload protector protects against extreme overload.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Wide Application
The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Package Content
  • 1 x Electric Motor
New 3.1 KW 5 HP SPL Air Compressor Electric Motor CM05256 Single Phase 56 Frame 3450 RPM
Specifications
  • Phase: Single Phase, 2 Pole
  • Voltage: 208-230V
  • Rated Load (HP): 5HP SPL
  • Amperage: 15.9-14.4A
  • Frequency: 60 Hz
  • Rated Speed: 3469 RPM
  • Synchronous Speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft Diameter: 5/8" Keyed shaft (1.6 cm)
  • Shaft Length: 1.875" / 4.8 cm
  • Rotation: CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE.)
  • Service Factor: 1
  • Insulation Class: F
  • Mounting Type: Base-Mounted
  • Enclosure Type: ODP
  • IP Rating: IP 23
  • AC Motor Type: Induction Motor
  • CODE: G
  • DUTY: CONT
  • NEMA: L
  • AMB: 40℃
  • Motor Size(L x W x H): 13 x 6.5 x 8'' / 33.02 x 16.51 x 20.32 cm

Specification

Model
D565S2C
Type
SPL
Input
3.1 kW
Horsepower
5HP SPL
Voltage
208-230V
Phase
Single Phase, 2 Pole
Amperage
16-15A
Rated Speed
3450 RPM
Frequency
60 Hz
Synchronous Speed
3600 RPM
Frame
56 Frame
Shaft Diameter
5/8 in / 1.6 cm Keyed Shaft
Shaft Length
1.875 in / 4.8 cm
Rotation
CW-CCW(Reversible)
Service Factor
1
Insulation Class
F
Mounting Type
Base-Mounted
Enclosure Type
ODP (Open Drip-Proof)
AC Motor Type
Induction Motor
IP Rating
IP 23
CODE
G
DUTY
CONT
Current Type
AC
NEMA
L
AMB
104℉ / 40℃
Motor Size(L x W x H)
13 x 6.5 x 8 in / 33.02 x 16.51 x 20.32 cm
Questions and Answers
6 Questions
What type of warranty does it carry?
One year.
By vevor
Will this work for a 60gal air compressor?
It should work on any size compressor tank.
By vevor
Can this motor be used for variable speeds with a vfd?
Yes. This Electric Motor can be used for variable speeds with a vfd.
By vevor

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
Brett Brett
Satisfied
I gave it a 5 star review even tho the motor did not work properly. Customer service was great. I contacted the company and explained the issues with the motor, They promptley issued me a refund, Very nice people to work with, I purchased a second motor from them and it has been working fine.
0
Geraldine Lamprecht Geraldine Lamprecht
Good motor
Got the product quickly, works well.
0
Rick Rick
owner
Intermittent use on an air compressor works fine. Will run on a 15A circuit and it replaced a 2HP motor pulling 20A. Not the best quality but it works and it's cheap. It is what it is. The motor gave new life to a 30-year-old compressor.
0
Tonia pittman Tonia pittman
Works
0
Willie Willie
Prez
VEVOR Air Compressor Motor, 2Hp 3450RPM Electric Compressor Motor 115V 230V 56 Frame Single Phase Electric Motor is being used for a retrofit for an old Craftsman 6" Planer. Does the job well. Original motor for the planer is no longer available.................................................................................................................................................................................................................................................................................................................................................................................................
0
Rodney Callow Rodney Callow
It comes wired for 120 volts
Great value. Had to change the wiring to run on 240 volts.
0
anthony pape anthony pape
You better know wiring, fuses amps
The motor seems fine. Thus high review. I’m going to attribute this to user error but they should include more on wiring into a plug, how many amps should the plug Handle. I wired it to instructions. It runs to 3800 rpm’s in seconds. But If I put any load on it, it blows my homes 20amp fuses. But it makes some sense. You can’t have 115V and 15 amps and get 2 hp or the stated 3100 watts
0
Mike Mike
Owner
Works as it should. Will buy again when needed. The price was right
0
k1977f250 k1977f250
Go ahead and trust it
Arrived well packaged installed in a few minutes works great. Don't know why it had so many negative reviews. If I have any problems will update review.
0
trk drvr trk drvr
Does what it is supposed to
Installed on my 2 stage air compressor. Bolted right up and pumped air what else is there
