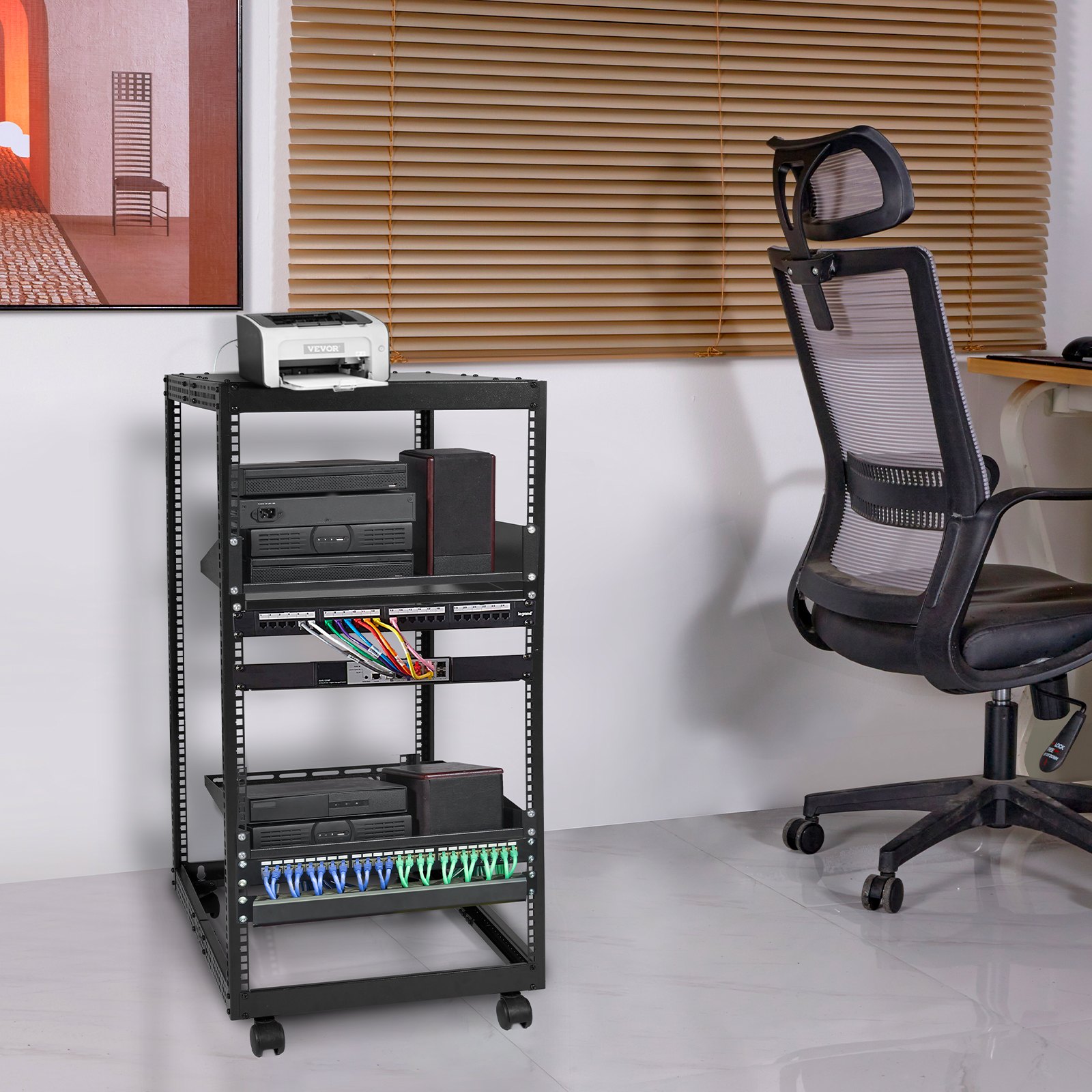

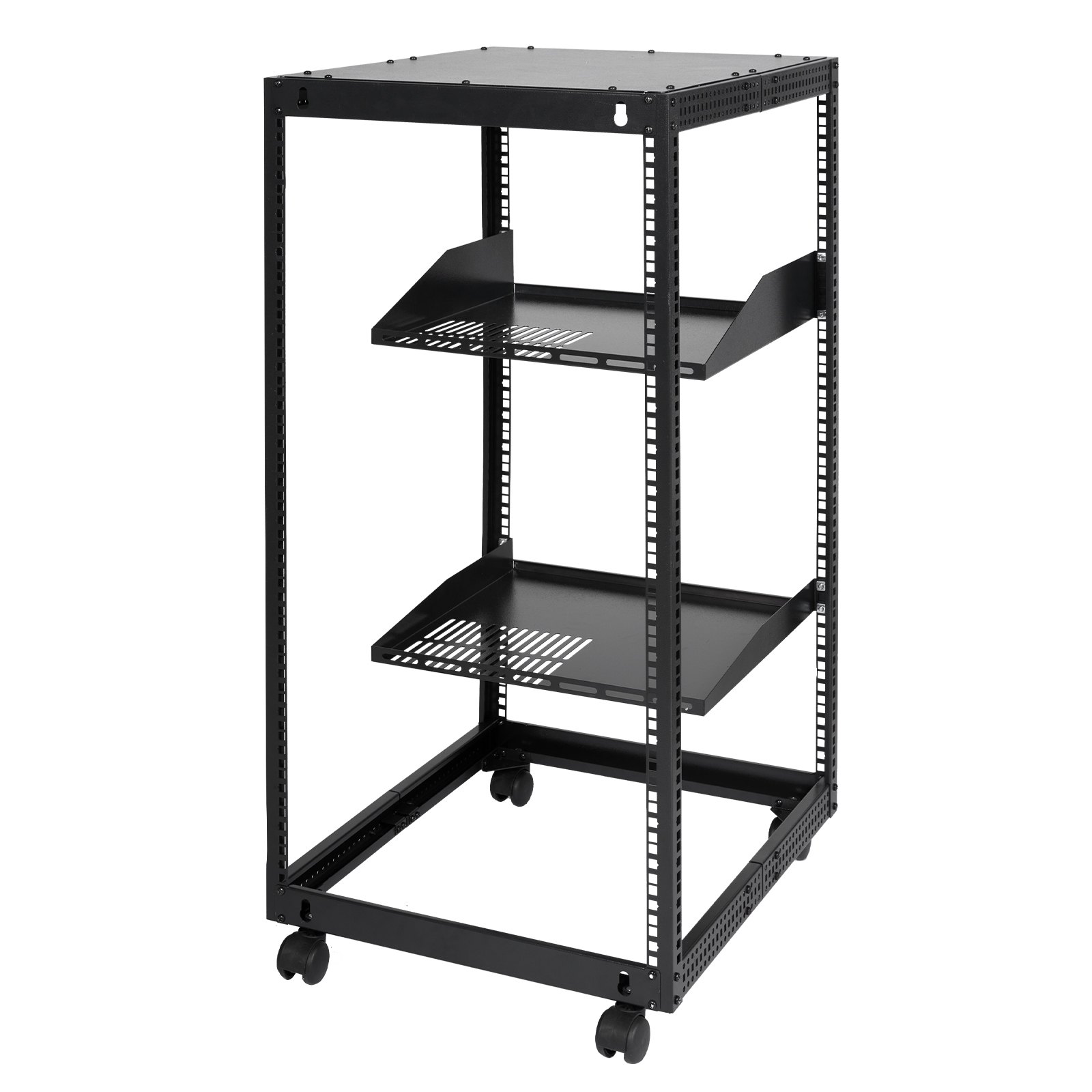

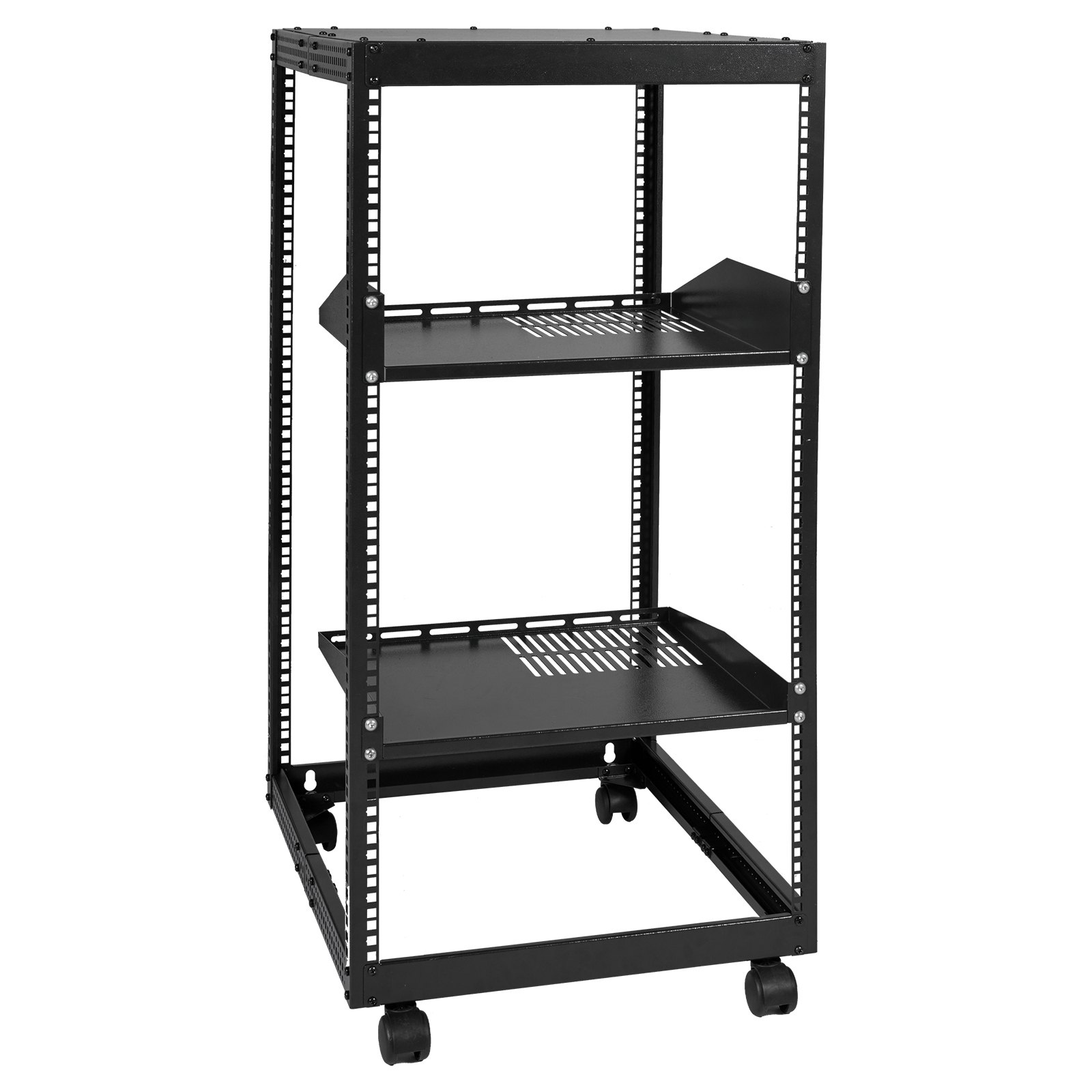

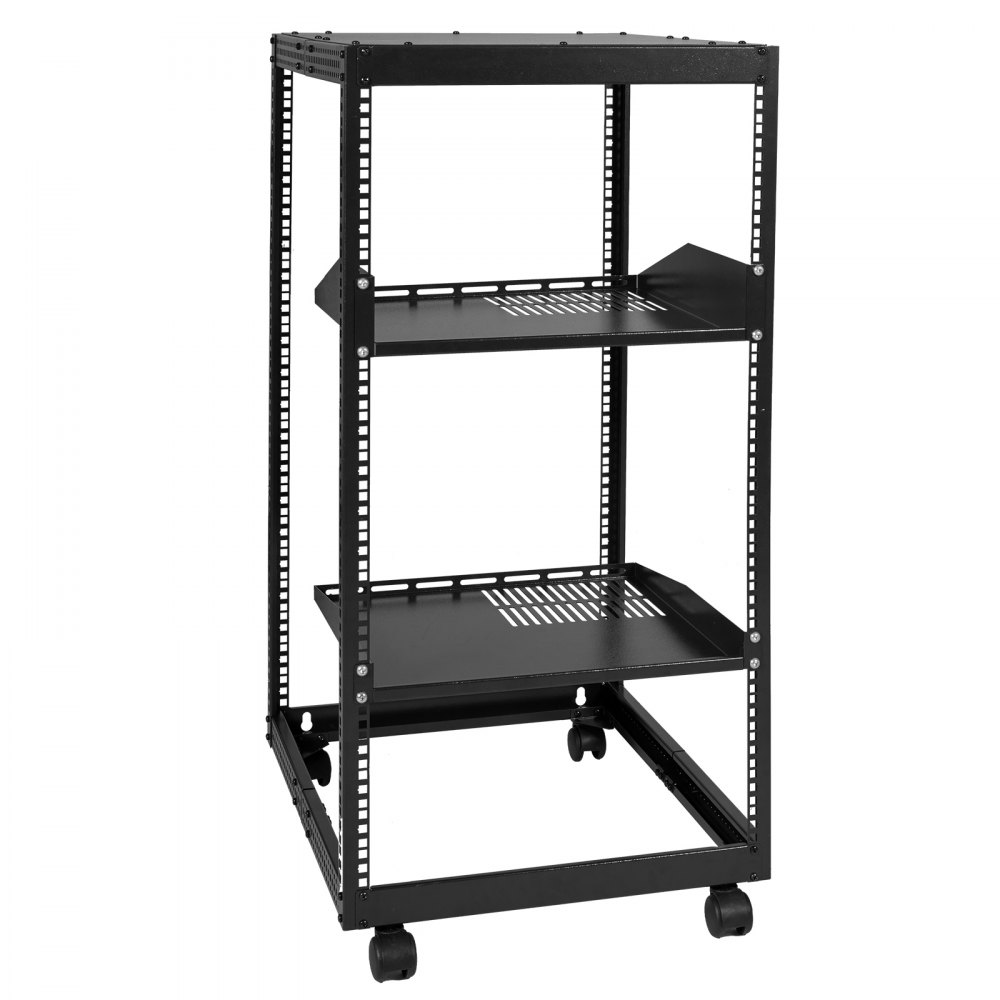

VEVOR server rack with three ventilated shelves, black frame, and caster wheels for mobility. VEVOR server rack with 23"-40" adjustable depth, large storage capacity, and unrestricted wiring. VEVOR server rack, strong load-bearing, 500 lbs ground-mounted, 150 lbs wall-mounted, space-saving. VEVOR server rack made of upgraded cold-rolled steel, strong and durable with multiple shelves. user-friendly design VEVOR server rack with top panel storage, adjustable shelves, and easy-move rollers. VEVOR server rack in office, classroom, and home settings highlighting multifunctional applications.
KFSJJH20U2340PHVWV0

VEVOR 20U Open Frame Server Rack, 15''-40'' Adjustable Depth, Free Standing or Wall Mount Network Server Rack, 4 Post AV Rack with Casters, Holds All Your Networking IT Equipment AV Gear Router Modem

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

20 U

  • 20 U
  • 15U
  • 12U

About this item

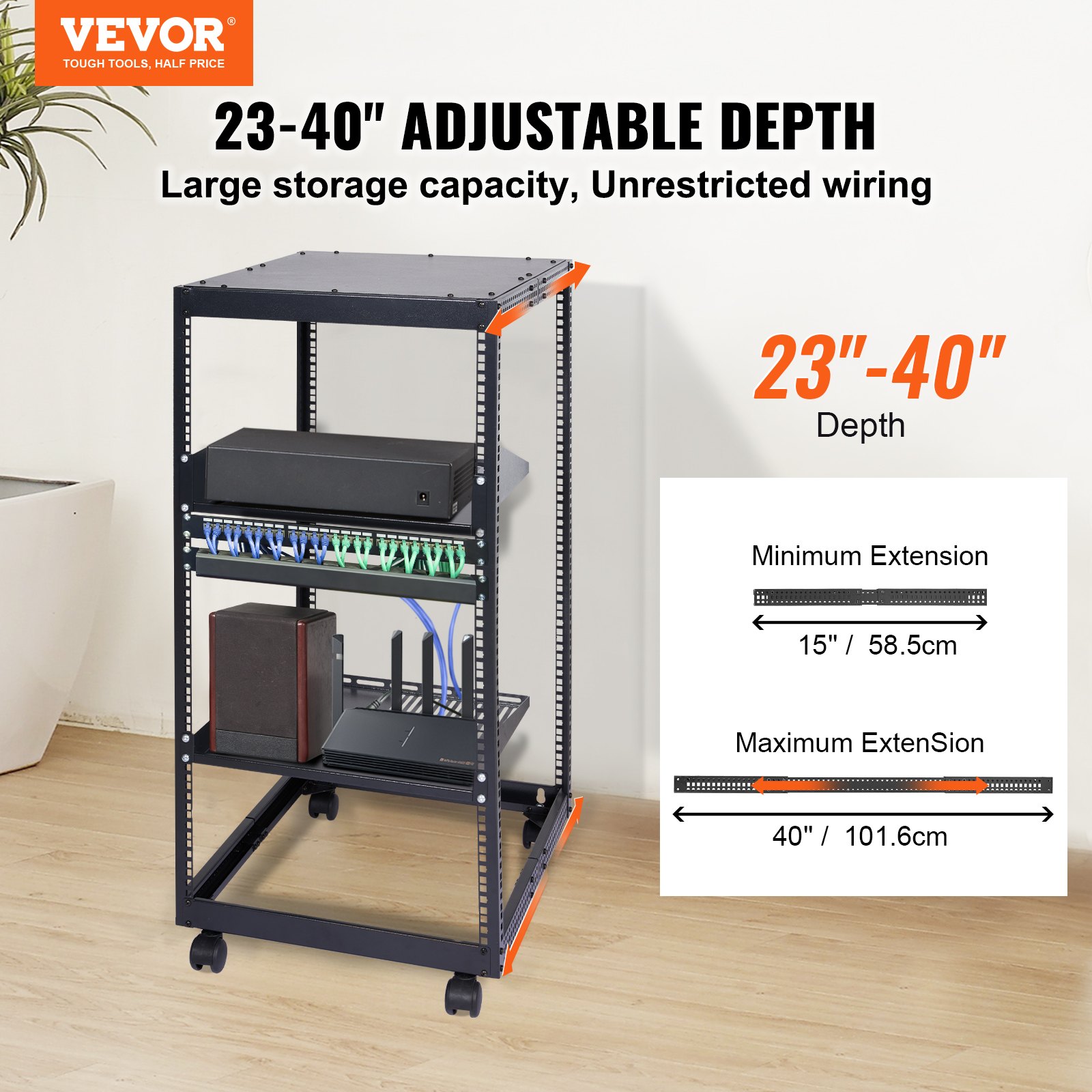

  • Adjustable Depth: 23-40'' adjustable depth is used for servers and network equipment, ensuring enough space for AV equipment, components, and cabling, while allowing you to access ports and equipment from multiple sides.
  • Strong Load Capacity: Ground-Mounted Load Capacity: 500 lbs, Wall-Mounted Load Capacity: 150 lbs. The av rack is made of carbon steel for better weldability performance and can help save space while meeting your need to place multiple devices.

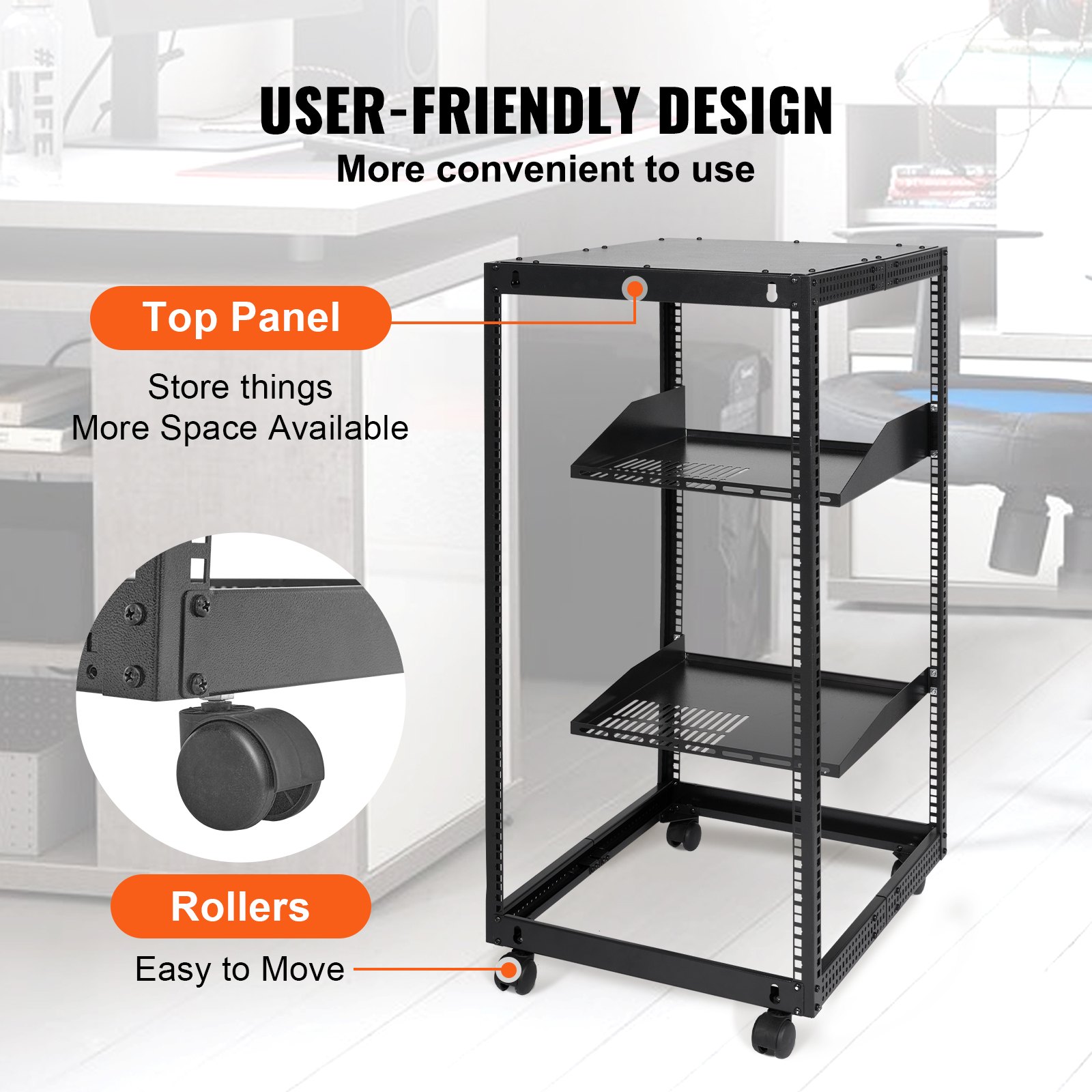

  • User-friendly Design: Ergonomic design makes the open frame av rack easier to use. The additional top panel is able to place other items with more available space. Roller design moves anywhere and anytime, is convenient, and is more energy-saving.
  • Complete Accessories: We provide the accessories you need, including 2 x Pallets, 145 x M5*10 Cross Head Screws, 4 x Casters, 4 x M10*50 Expansion Screws,10 x M6*12 Cage Nuts, 1 x Grounding Wire, 1 x User Manual.

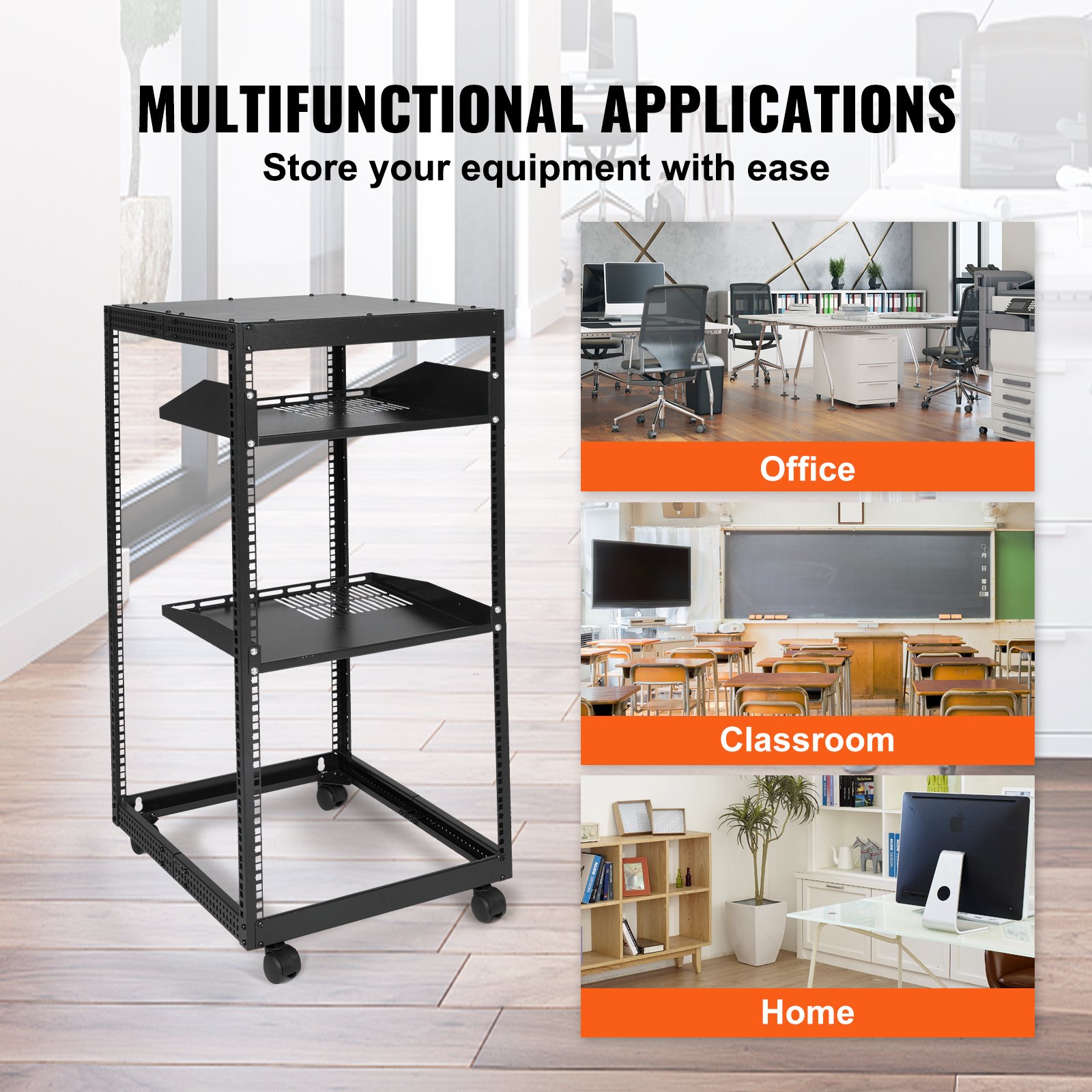

  • Wide Application: The server rack wall mount maximizes the use of available space, suitable for retail venues, classrooms, offices, and other places where space is limited.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 20U Open Frame Server Rack, 15''-40'' Adjustable Depth, Free Standing or Wall Mount Network Server Rack, 4 Post AV Rack with Casters, Holds All Your Networking IT Equipment AV Gear Router Modem
20 U

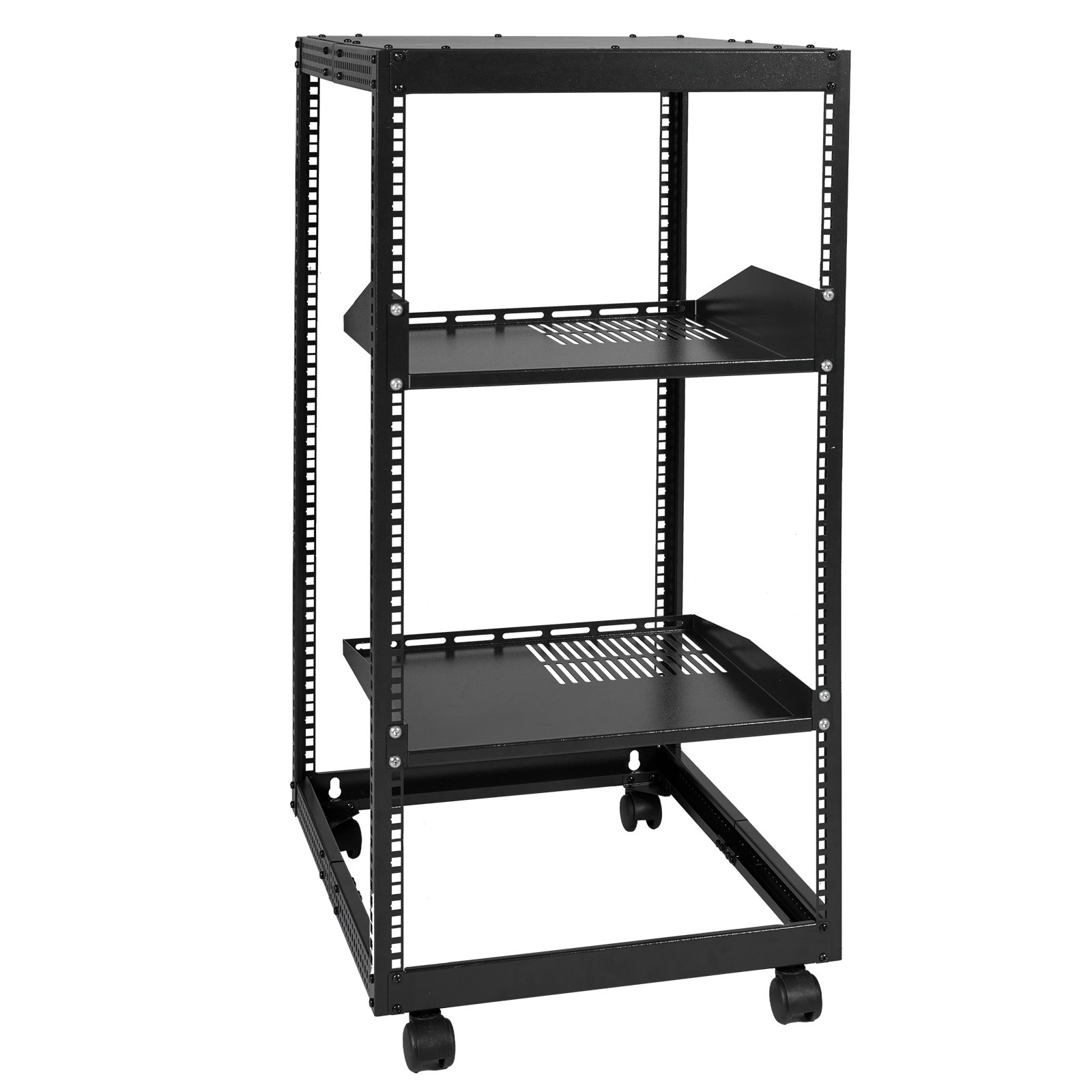

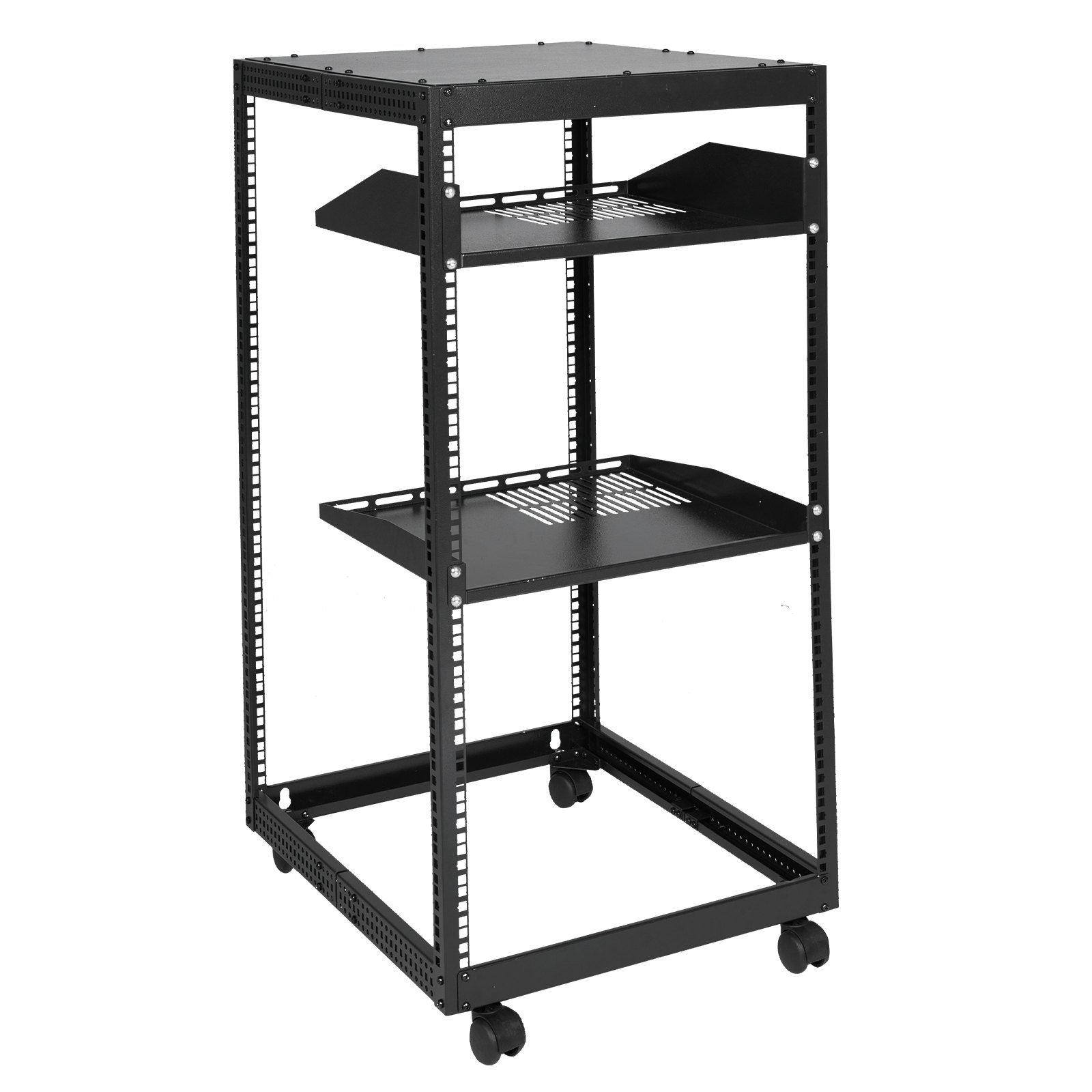

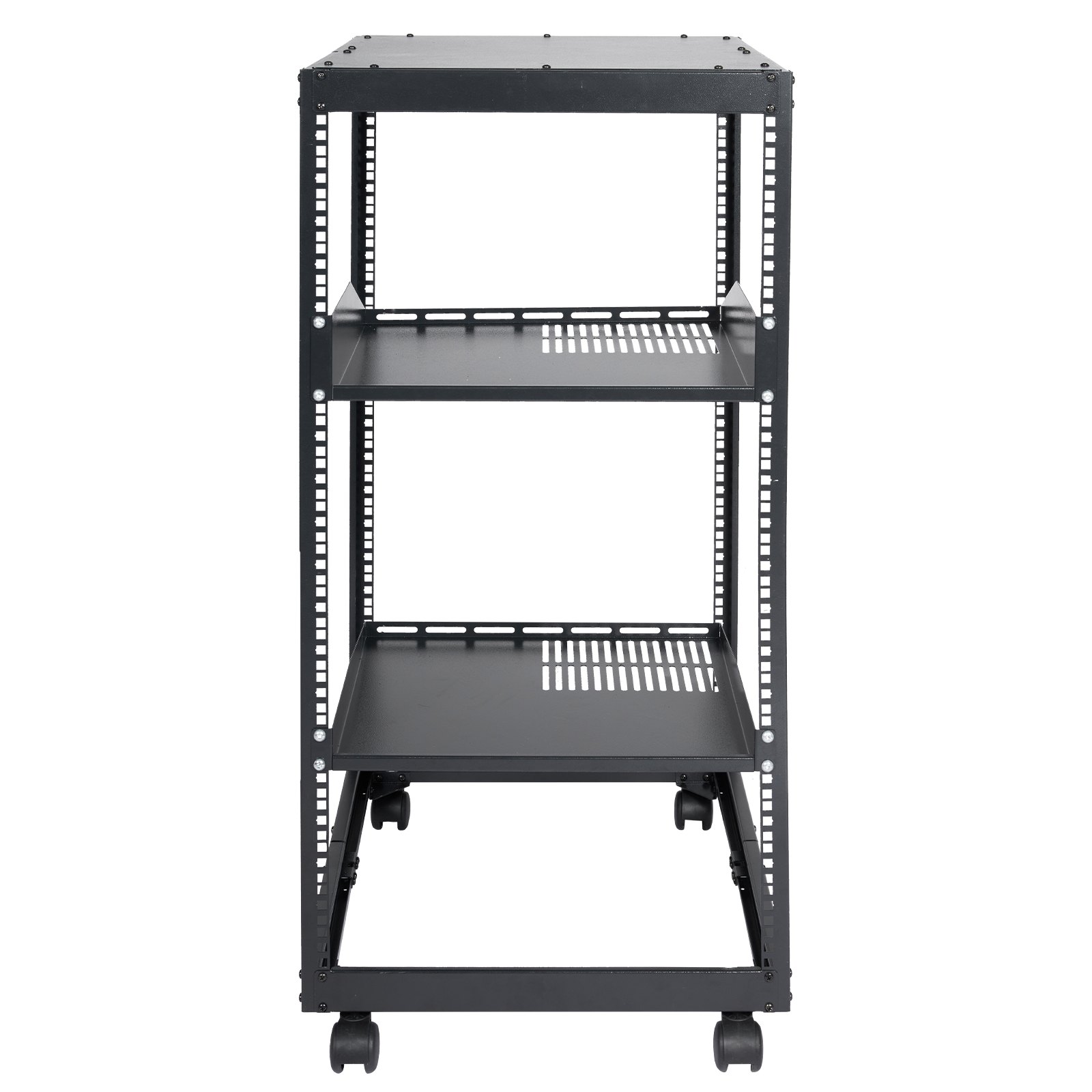

VEVOR Open Frame Server Rack
VEVOR 20U open frame rack provides you with professional network equipment storage services. It can be wall-mounted or free-standing, is the perfect choice for limited space and maximizes your available space.
An open frame server rack is easier to access ports, maximizing the number of devices that can be placed.

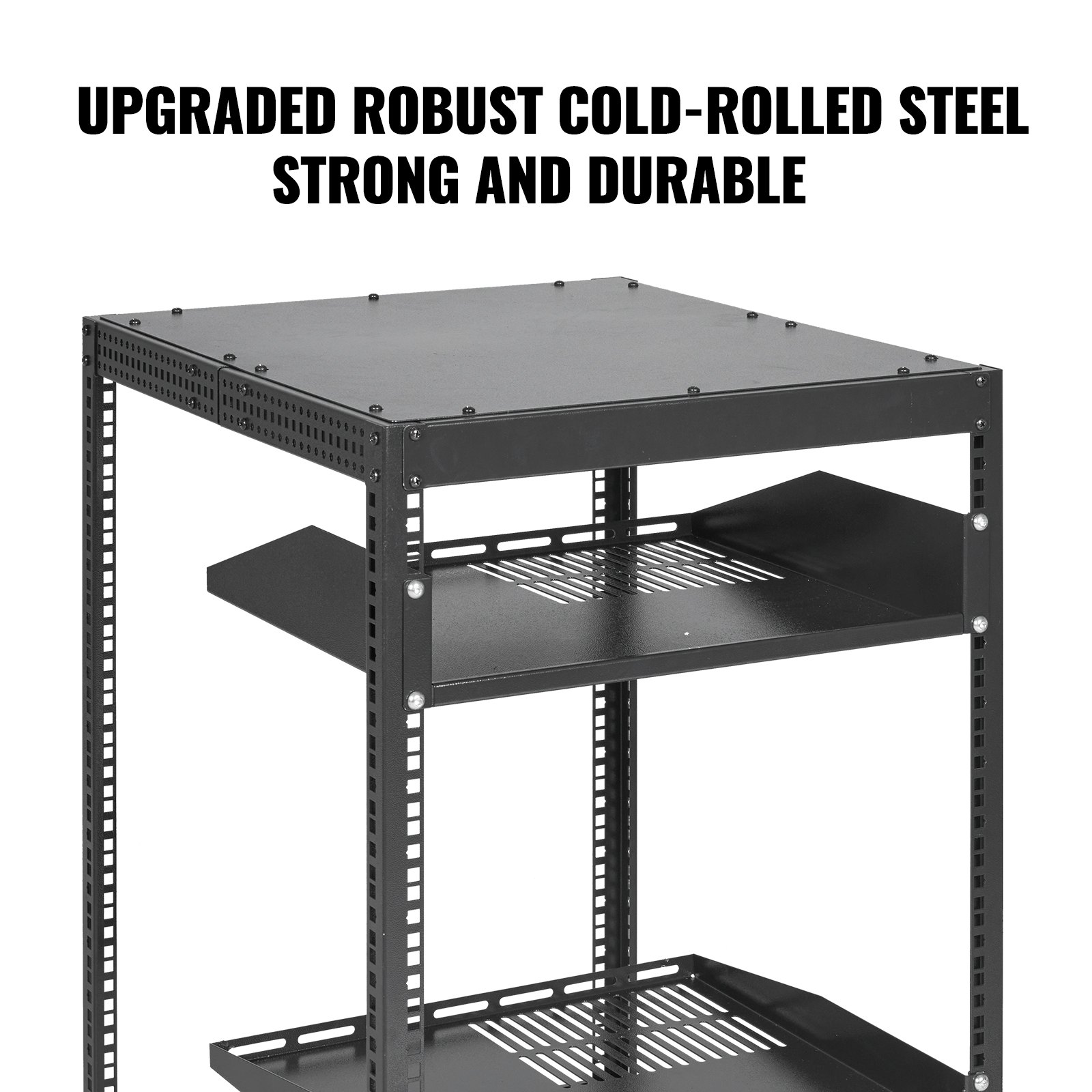

The network rack is constructed of carbon steel that has stronger load-bearing to place multiple devices.
The ergonomic design makes it easier for you to use. The top panel can hold other items while protecting the top of the machine.
The server rack maximizes available space and is Ideal for locations where space is limited, such as retail locations, offices, etc.

20U Open Frame Server Rack: Sturdy Build for Reliable Performance

The VEVOR 20U open frame server rack made from high-quality materials, promises excellent durability, ensuring your IT and AV equipment remain securely held. The solid structure is designed to house various networking devices, server units, and AV gear. Its robust build eliminates concerns about structural integrity, even when fully populated with heavy equipment. This ensures you have a stable and reliable rack that performs well under intense use. Perfect for tech enthusiasts, offices, small data centers, or other large infrastructure facilities, these 20U racks combine strength and functional design, making them a great addition to any setup.


Adjustable Depth Feature: Versatile for Various IT & AV Equipment

The adjustable depth feature of this rack is a standout. It has an adjustable range of 15 to 40 inches to accommodate different types of equipment. This flexibility means it can hold various pieces of networking gear, servers, and AV equipment without issue. No matter if you're working in sanitizing PC labs, small offices, or audio-visual setups, this configurable depth capability ensures you can tailor the rack to your exact needs. The versatile design helps future-proof this rack for evolving tech requirements. By adjusting to fit varying depths, it provides the adaptability needed in dynamic tech environments.


Easy Installation: User-Friendly Design for Smooth Setup

The installation process is simple. With clear instructions and a minimal number of parts, setting up the rack can be completed in less than an hour. The user-friendly design facilitates an efficient assembly process, making it easy even for those who are not particularly handy. All necessary components are included, and the rack's intuitive assembly helps you get it up and running quickly. This simplicity in installation helps even beginners feel confident in setting up their rack efficiently.


Solid Construction: Supports Heavy Load without Wobbling

The VEVOR 20U open frame server rack is engineered to support a heavy load without wobbling. With a 500-pound weight capacity, it is ideal for holding various equipment. The solid construction ensures that servers, modems, and AV gear remain stable and secure under heavy loads. There is no need to worry about the structure failing under high loads either. This reliability in handling major weights makes it an ideal choice for both professional setups and amateur setups.


Cost-Effective Solution: High-Quality Rack at an Affordable Price

A cost-effective solution for those on a budget is the VEVOR 20U open frame server rack. It has a price-sensitive approach to providing efficiencies and savings. Although it comes at an affordable price, the quality is not compromised. Ideal for tech enthusiasts, small businesses, or home labs, this rack offers excellent value for money. This rack provides great value for money in terms of performance. For those looking to optimize their setup without breaking the bank, it’s able to serve as an optimum tool for starters as well as experienced professionals who need reliable server racks at a reasonable cost. The balance of affordability and quality ensures you get a dependable product in the long term.


Mobility Enabled: Comes with Casters for Easy Movement

One of the main features of this 20U open frame server rack is its casters. They make it easy to move around. It doesn’t matter if you're moving your setup or just needing occasional repositioning. These wheels make the process smooth. The included casters are strong, supporting the full load without any trouble. Once in place, you can lock them to keep the rack stationary. This mobility feature is beneficial for dynamic environments where equipment needs adjustment frequently. They add a layer of convenience to the already versatile and robust design. So it is easier to use this rack in different settings.


See More

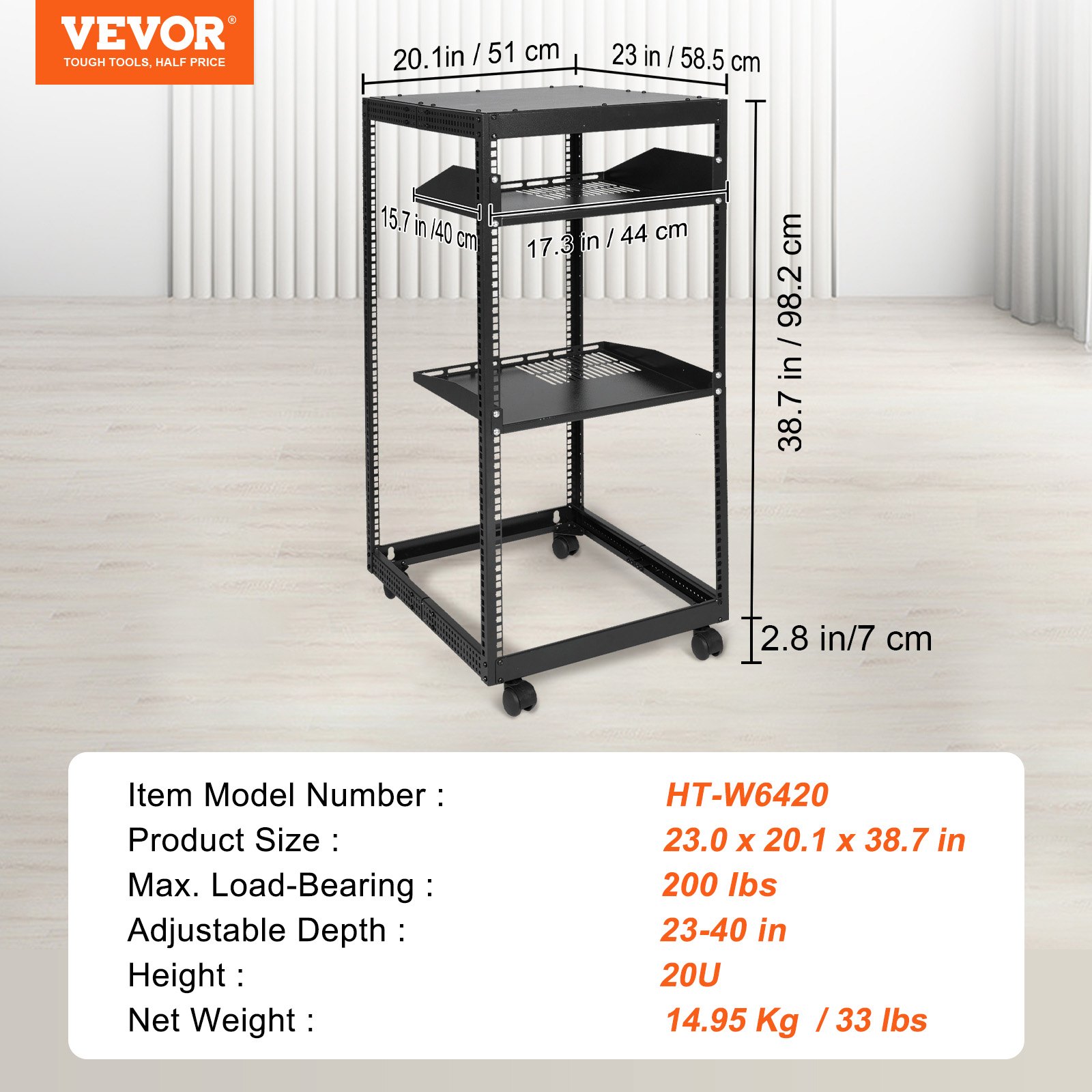

Specification

Item Model Number
HT-W6420
Height
20U
Adjustable Depth
23-40 in
Wall-Mounted Load-Bearing
150 lbs
Wall-Mounted Load-Bearing
500 lbs
Installation Width Standard
19 in
Color
Black
Net Weight
33 lbs / 14.95 kg
Product Size
23 x 20.1 x 38.7 in / 58 x 510 x 982 mm
Questions and Answers
4 Questions
I am wanting to upgrade the castors on my server rack i just purchased. The UPS battery weighs about 100 pounds and I just want to be safe about things. What size threading/bolt are the castors that come with the server rack?
The nuts of the casters matched with this rack are m10.
By vevor
What is the total height of the 20U assembled rack?
The total height after installation is 982MM.
By vevor
What size are the two (2) included pallets?
Hello, the matching trays are 1 1U and 1 2U trays, which are standard 19-inch width and 400MM depth.
By vevor
Are there thin steel or vented side panels for the 20U rack?
This is a frame structure without side panels.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
69 Review(s)
Clear filters
Tom Tom
Servor rack heaven
I use these for portable video woerk wnd training. Construction is stronger then twice other pices, whells are great use, doble sided standard rack mount opening is absolute heave. As well as sturdy beyond belief. LOVE THEM -now have 5. :) Tom
Eric Eric
Owner
Everything works great. Went together easy. Now sitting in the server room with 3 Supermicro 36 bay storage servers running on it. The only problem is with the top plate. It only fits with one depth. If you extend it at all, the top won’t fit on it and you will have to make one for it. I actually cut and stained a piece of 1/4” plywood for it.
dracoix dracoix
It was worth it, but at what cost...
Pros: - This is a gem in the rough for the price, it beats StarTech. - It's built sturdy enough for mid-weight servers, don't expect it to hold up massive NAS or SANs. It definitely feels like 200lbs really is its limit. - It's 20U, industry standard square-holes (for M6x16mm and square cage nuts), and comes with 2 incredibly well-built shelves. Cons: - If assembling yourself, prepare a few hours or so to assemble it, including loading it with gear. Much of the issues are screw alignments and the awkwardness. - The instructions require some engineering intuitiveness. I spent a good 5 minutes trying to decode some of its reasonings and then much of it clicked and it was off to the races. - All the screws, and I do mean all of them including the standoffs and grounding cord, comes in one single bag. - The alignments are not the greatest, be glad you have an electric drill. - The small corner pieces will be your bane, I gave up on the inner screws. - Didn't come with a flat-wrench to put on the wheels, had to make due with a crescent wrench at first until I got an actual normal wrench that fit its size. - Given it's weight limit and mid-grade sturdiness, I do recommend having some extra shelf units and rail mounts just to add extra stability. Niche nitpick: As another review stated, they could have made the opportunistic decision to make a fully all-side 19\" compatibility. That would have been insanely awesome and there's plenty of homelabbers that would have loved it. You can still mount half-racks in the midsections to make due, but damn, that is so close to perfection for some people's use-cases. Like me, I have it floor standing with the front side facing the edge of a desk (top units are net gear), the back side is facing an open area corner for access, and its side is facing out into the open room, and its other side is against the wall. That open midsection could have LCD panels, fan mounts, or w/e in standard 19\" rack form, but sadly no.
Andrew G Andrew G
Gets the job done
So far I've mounted a heavy UPS on the bottom and some switches on the top and it's doing pretty well, setup wasn't too hard, I think it was a good value for what you get.
Darkedu Darkedu
Great bang for the buck!
Bought this for the adjustable deph for a server. Works great.
Drew Darling Drew Darling
Perfect Server Rack
Rack went together easy and functions great as a home lab network setup in my case. Lots of screws for assembly but it was fun to put together.
Todd Todd
Power screwdriver is a must
Nice construction, but make sure you have a power screwdriver. It is mentioned in the instructions as well. Screws are used and require a good amount of force to drive into the metal components. Only complaint is that very few rack mount bolts and corresponding nuts included. I would at least make sure you have enough to rack 2 or 3 additional devices. Comes with enough to mound trays and 4 additional for 1 device. They are cheap, but would a have added to original purchase if i knew
Chris Chris
Sir
Great choice for a small homelab, very well built. But the rack hardware nuts could have been better.
Robert A. Sutherland Robert A. Sutherland
Low cost solid frame
The frame is solidly built. Corner stiffeners work quite well to stabilize it. Adjusted mine to 32” depth, so top cover (not adjustable:-) doesn’t cover all, but a piece of plywood on top would fix that that. Only problem is the wheel attach. It looks like it’s a spot-welded nut. I’ve only loaded to 80lbs and one has already broken loose. When done, load will be close to 180lbs (it’s rating) so I will have to reinforce somehow. Update: Three wheel attach nuts have failed. Not even fully loaded. It looks like they punched out a hex hole for the nut to sit in then spot welded it! If it were a full weld, it might have worked, but just a round clearance hole with the nut spot welded on surface would have been stronger (would have frame support stress rather than spot welds). Now I have to use two large pattern washers to compensate for the hex hole.
ashafe153 ashafe153
Server Rack
Great piece of equipment, it did not disappoint, the metal uses good quality. The only complaint is it is a little hard to put together and also a little hard to figure out how long to make it. But once your past that its great, I have two servers and a dream machine pro on it with no issues. This could also be used for sound equipment which would be nice since it comes with wheels to move it around easier. Overall great product!
