VEVOR 4 Color 1 Station Silk Screen Printing Press Printer With Adjustable Stand Flash Dryer
5 3 Reviews
$ 244 99
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get $5.00 Off $99.00+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- The products will be sent from different stocks.
- Please do not worry about it, you will receive ALL the parcels in recent days.
- If you don't get all tracking numbers in eBay, please contact us firstly.
- Thanks!
- Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our silk screen printing machine is designed for small printing shops, whether it is for multi-color or volume printing, this equipment can also serve as an ideal backup solution to larger companies. For those who are just getting into the printing business, this can be their best starting point. Manufactured with highly durable materials, this equipment is designed to last. There is no maintenance needed once assembled.It can simultaneously install four screen plates. The screen layer is able to rotate independently upon installation, then it is available for four colors’ overprinting and making progressive proofs. This machine is comes with a 18"x18" flash dryer,it makes your printing more convenient.The flash dryer has a 18x18" heating grid opening, wheels, and a standard 110V plug so there is no special wiring required. This unit can be raised or lowered from 30" to 48". It is very heavy duty. The temperature is over 400 degrees F at distance of 2 1/2" below the flash heating element. It can easily cure plastisol ink for silkscreen printing.It is ultra heavy and has a base diameter that is reasonable (about 38"). It can easily roll thru standard 32" door way. We have a flash dryer. It is only about 2/3 the weight. It is much lighter so its base has to have a big diameter (over 50") to prevent it from tipping over.
Product specification
- 1 X Head of Flash Dryer
- 4 X Base Leg of Flash Dryer
- 1 X Below Support Bar
- 1 X Top Support Bar
- 4 X Caster
- 2 X Handle
Reviews summary
5 3 Reviews
Customers say:
Al-generated from customer reviews
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 5.0
All reviews are from verified purchases
Average rating based on 3 reviews
Reviews 5.0
All reviews are from verified purchases
Edward Evans
Reviewed on Mar 31,2023
It was a perfect match. Works great.
See Less
See More
Brian Brown
Reviewed on Mar 19,2023
Great price and Great product.
See Less
See More
Ronald Watson
Reviewed on Mar 08,2023
buy again
See Less
See More
See all 3 reviews
About this item
Product specification
- 1 X Head of Flash Dryer
- 4 X Base Leg of Flash Dryer
- 1 X Below Support Bar
- 1 X Top Support Bar
- 4 X Caster
- 2 X Handle
- 8 X Screw For Base Legs
- 1 X Base Leg Support Plate
- Hardwares for installtion
Description
Friendly Notice:
The products will be sent from different stocks.Please do not worry about it, you will receive ALL the parcels in recent days.
If you don't get all tracking numbers in eBay, please contact us firstly.
Thanks!
Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our silk screen printing machine is designed for small printing shops, whether it is for multi-color or volume printing, this equipment can also serve as an ideal backup solution to larger companies. For those who are just getting into the printing business, this can be their best starting point. Manufactured with highly durable materials, this equipment is designed to last. There is no maintenance needed once assembled.It can simultaneously install four screen plates. The screen layer is able to rotate independently upon installation, then it is available for four colors’ overprinting and making progressive proofs.

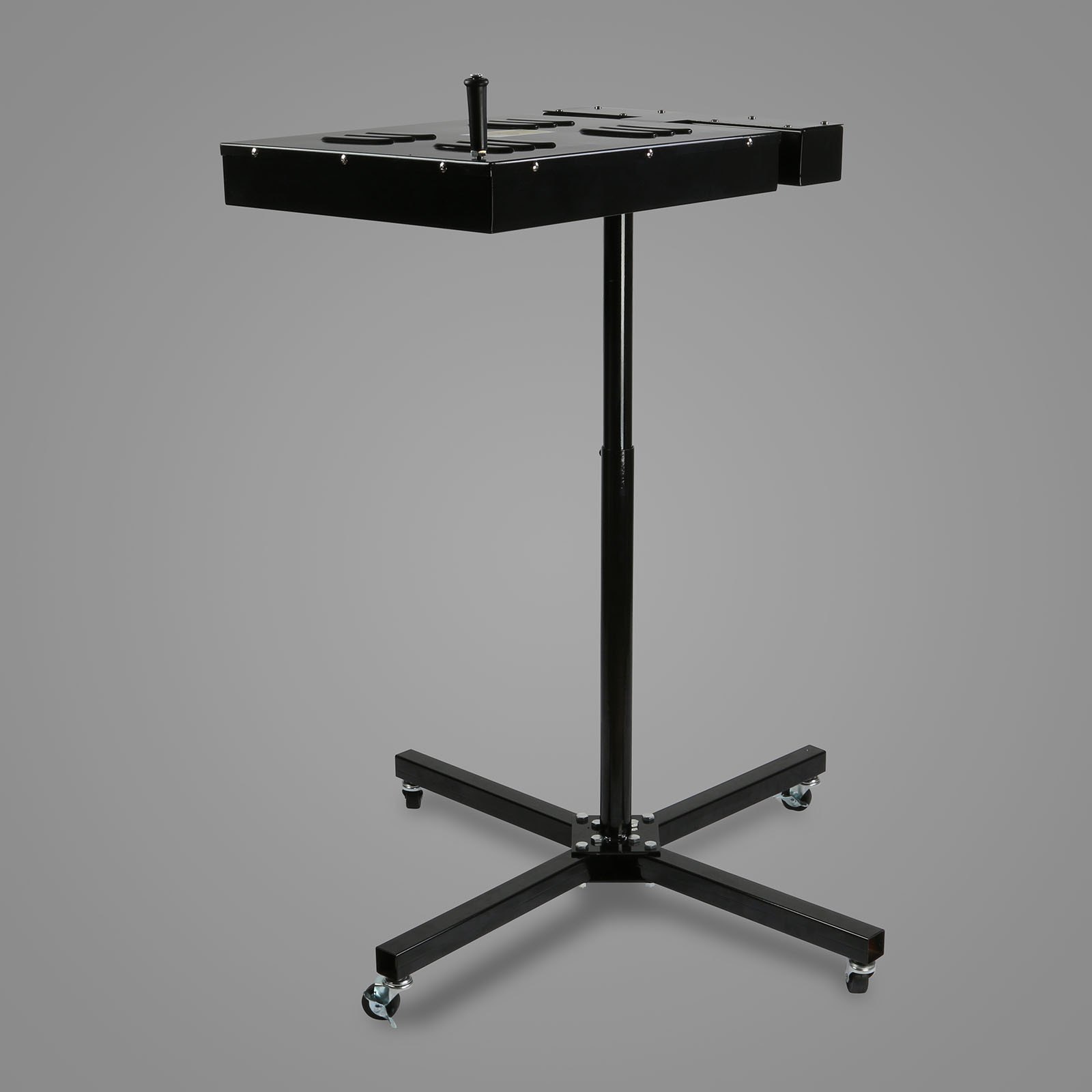

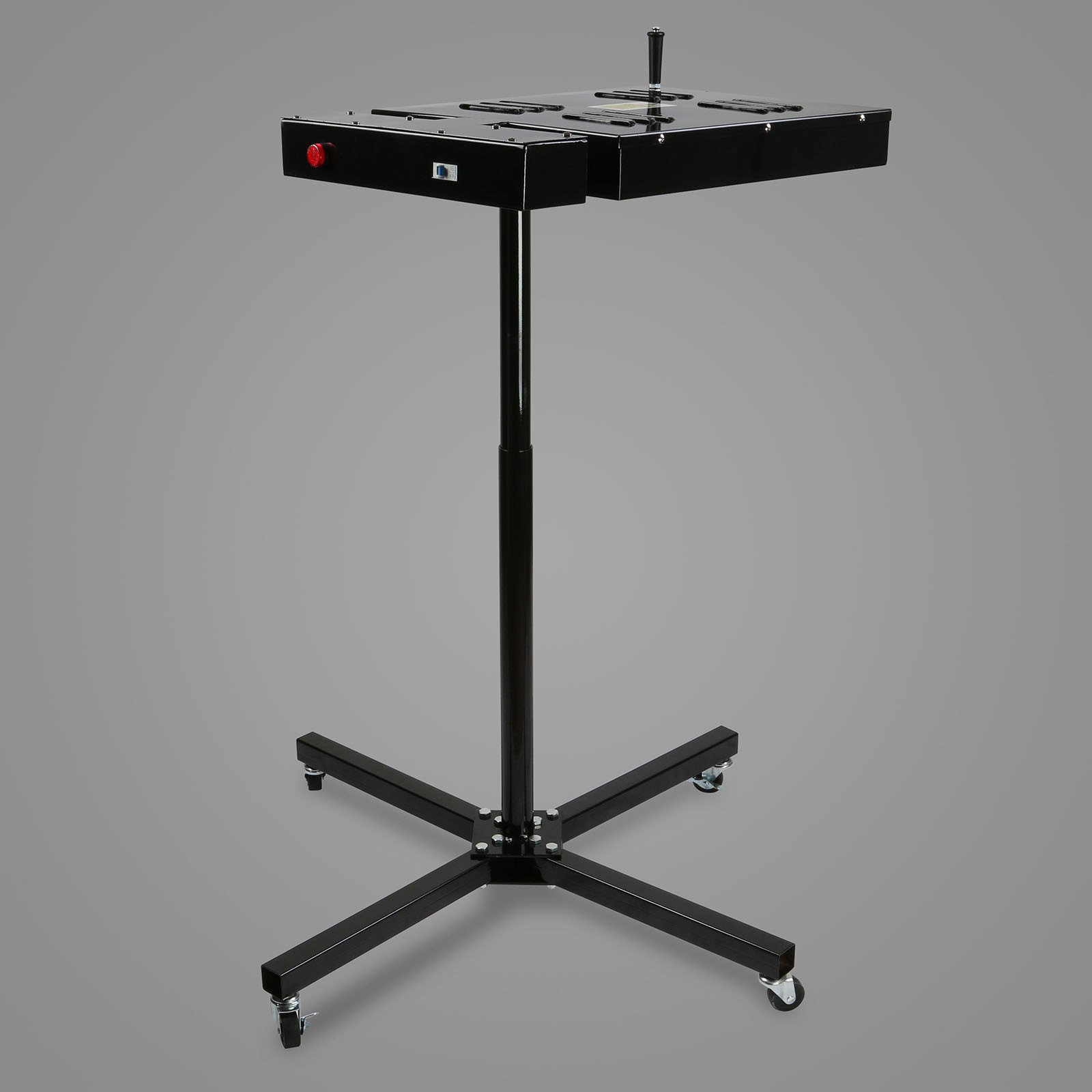

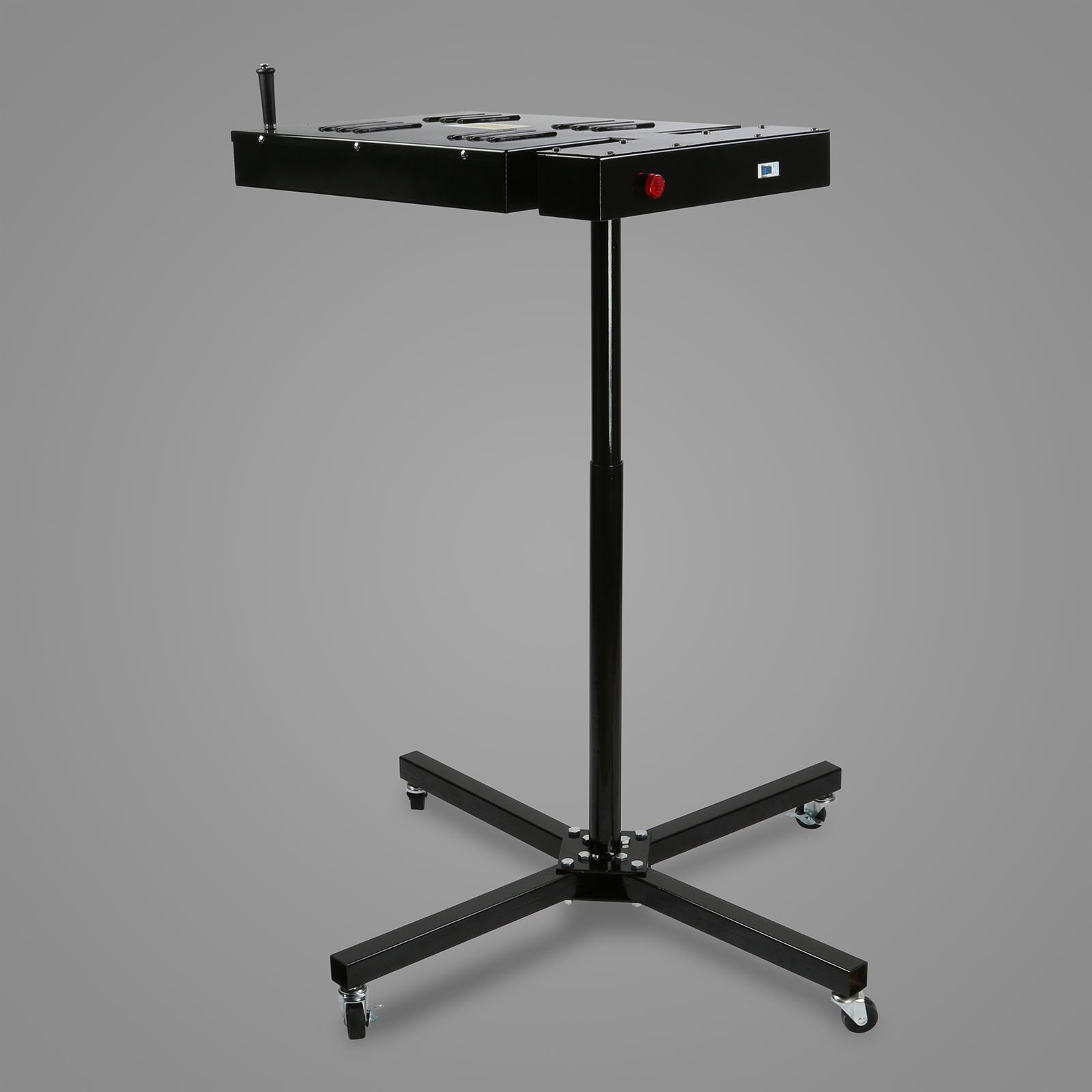

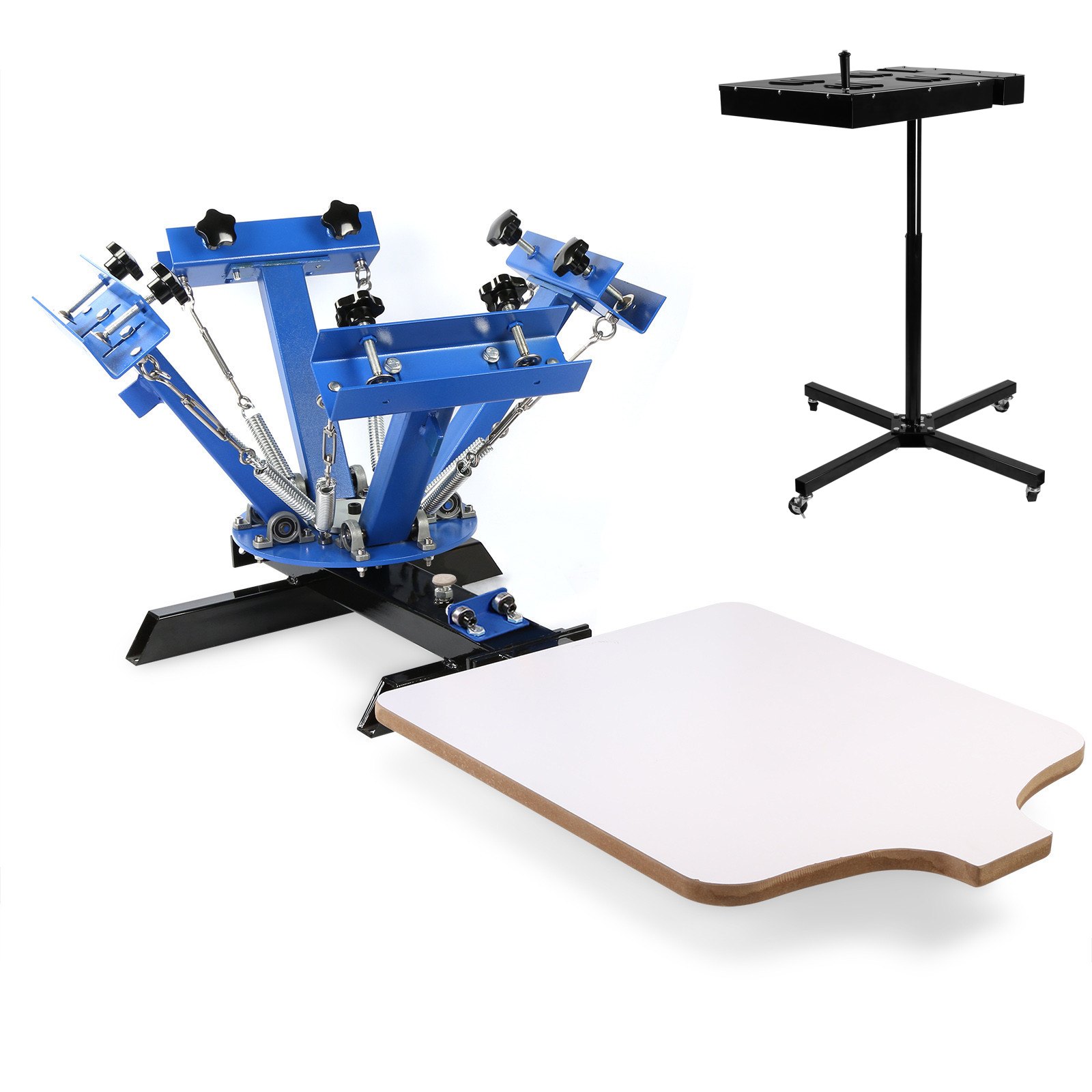

This machine is comes with a 18"x18" flash dryer,it makes your printing more convenient.The flash dryer has a 18x18" heating grid opening, wheels, and a standard 110V plug so there is no special wiring required. This unit can be raised or lowered from 30" to 48". It is very heavy duty. The temperature is over 400 degrees F at distance of 2 1/2" below the flash heating element. It can easily cure plastisol ink for silkscreen printing.It is ultra heavy and has a base diameter that is reasonable (about 38"). It can easily roll thru standard 32" door way. We have a flash dryer. It is only about 2/3 the weight. It is much lighter so its base has to have a big diameter (over 50") to prevent it from tipping over.
Application:
Printing onto clothing (especially for T-shirts), woven fabric, metal, paper, copybook, plastic, circuit board, wood, glass, ceramic tile, leather and other plain printing substrates. This makes it especially suitable for small businesses as well as individual printing shops.
Note:
1.The screen frames are not included with the 4 color 1 station screen press.
2.The flash dryer takes approximately 5 minutes from initial turn on to stabilize temperature.There will be natural fluctuations in the temperature as you use the item.

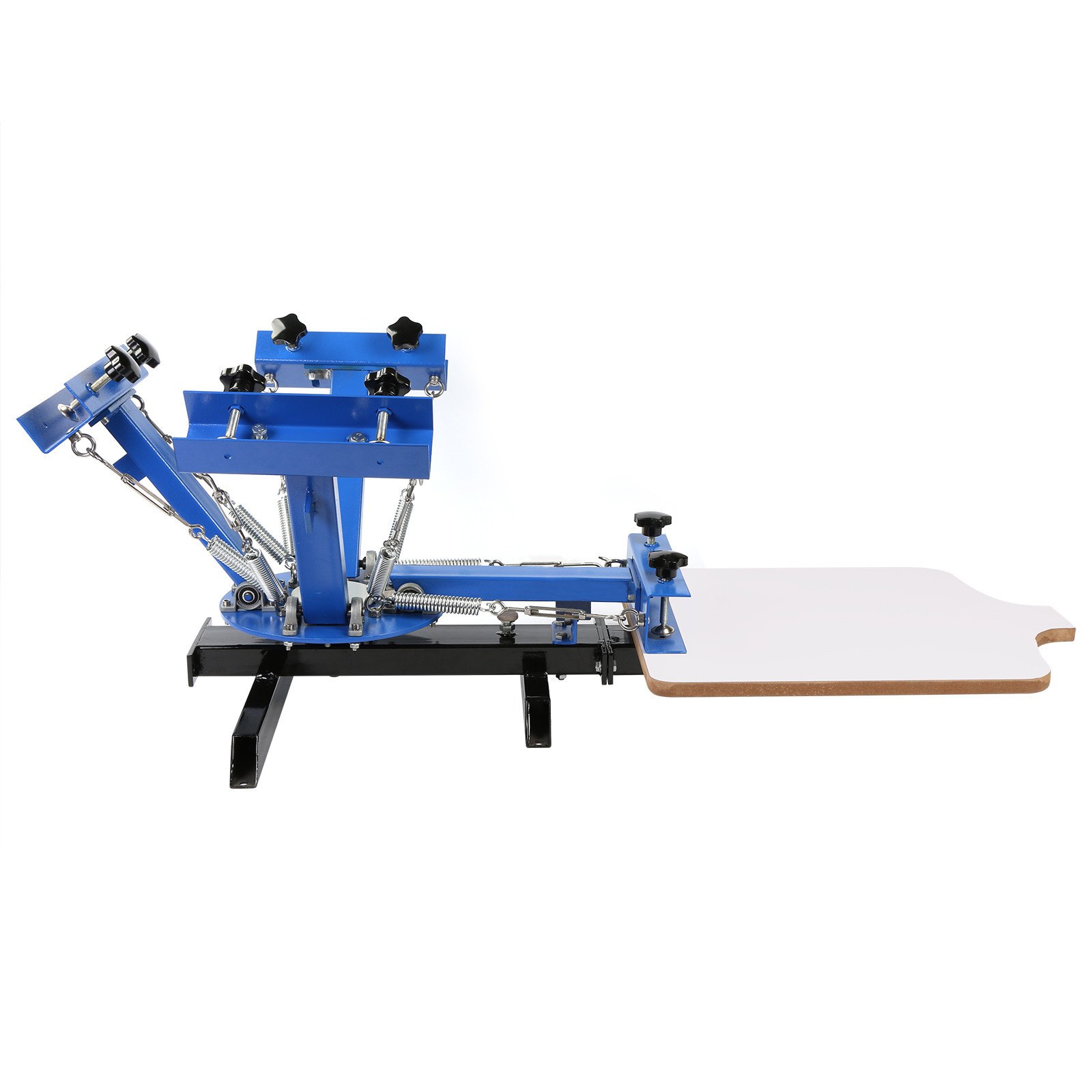

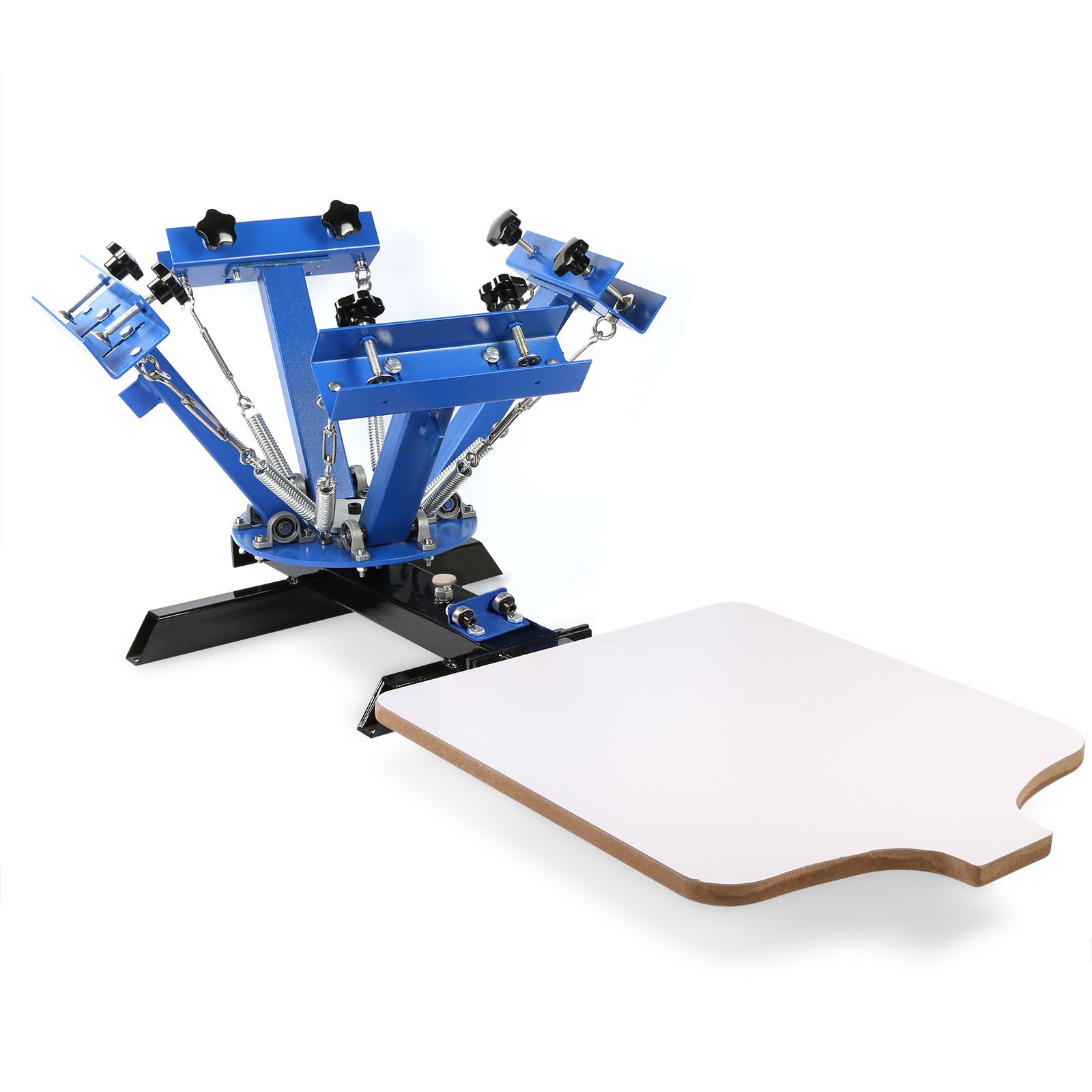

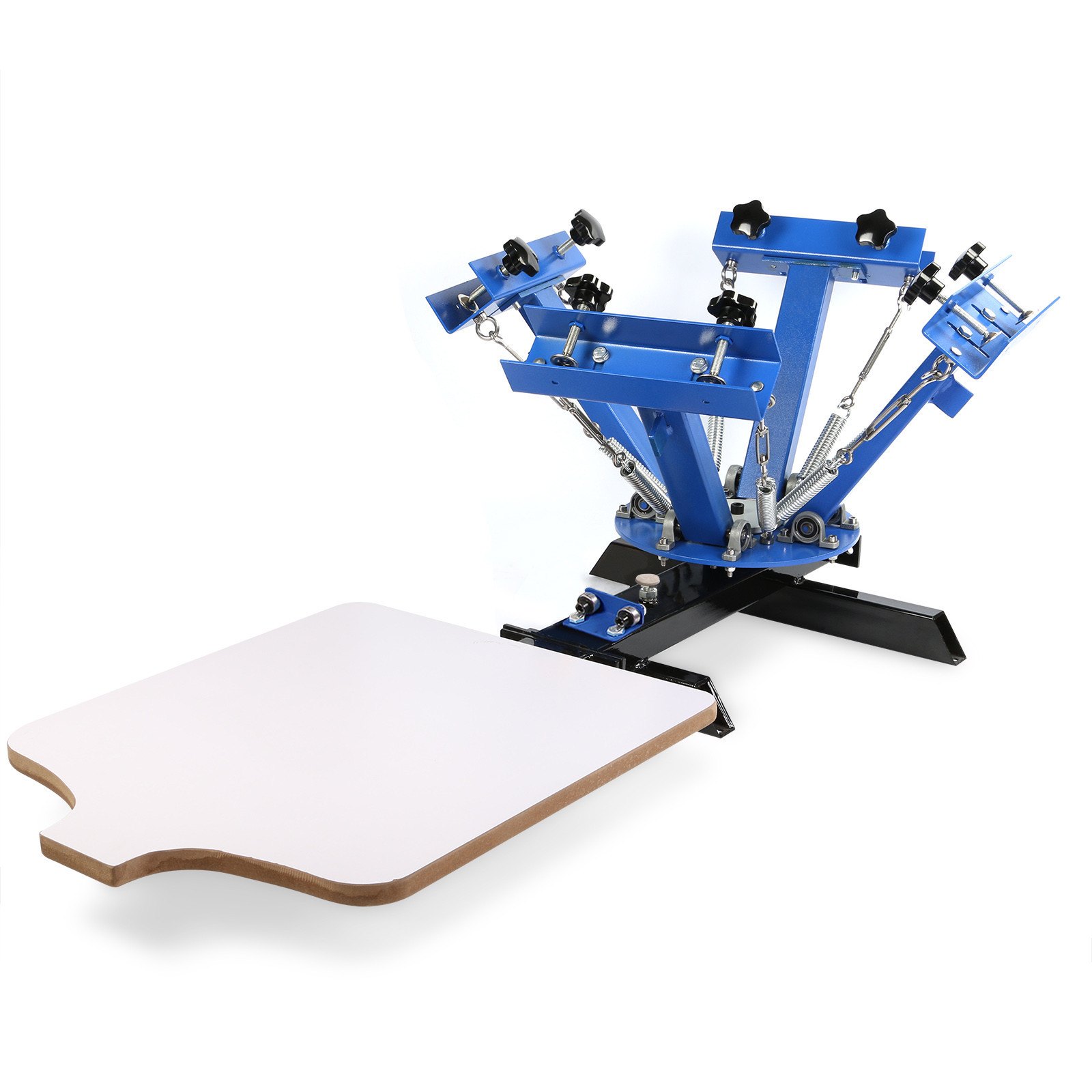

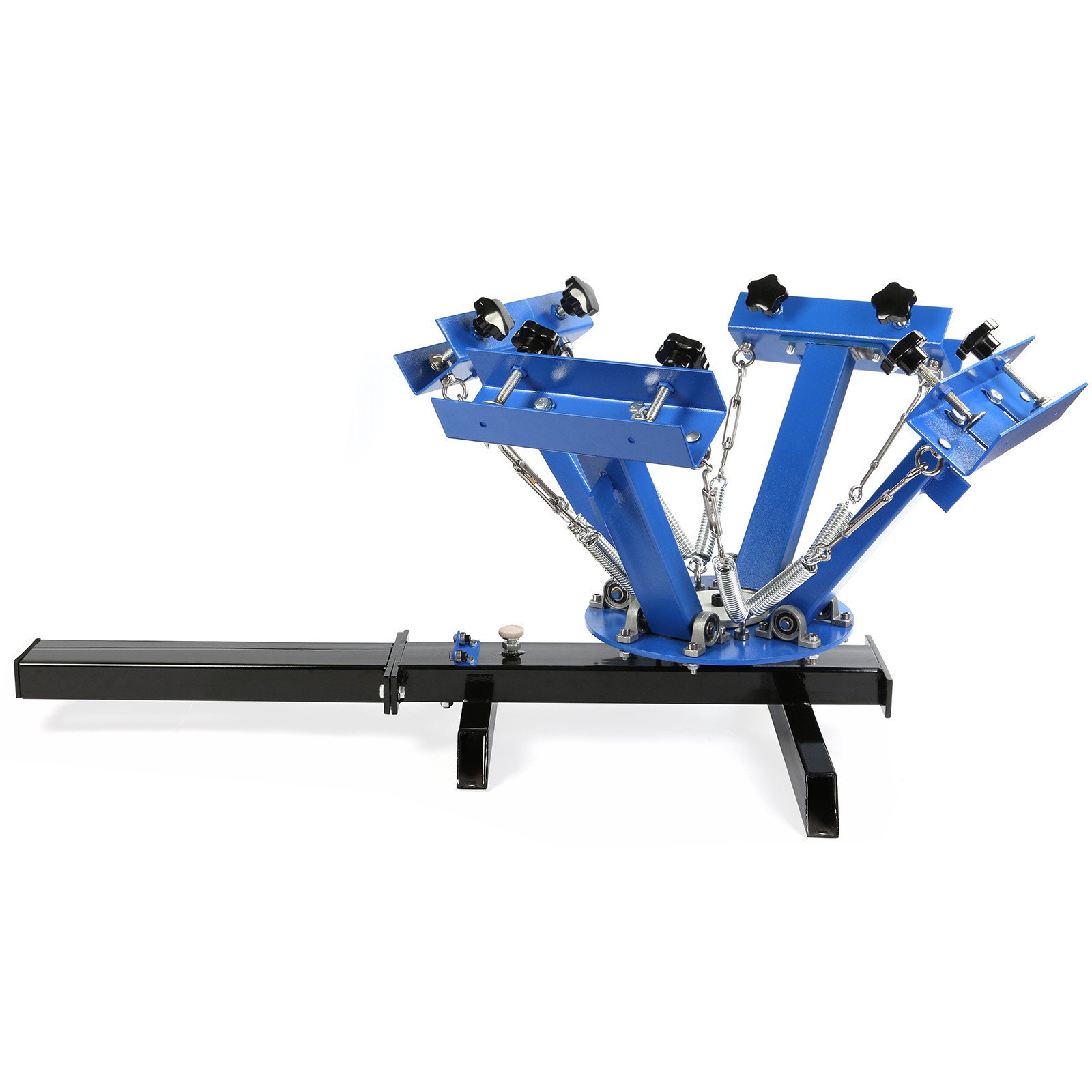

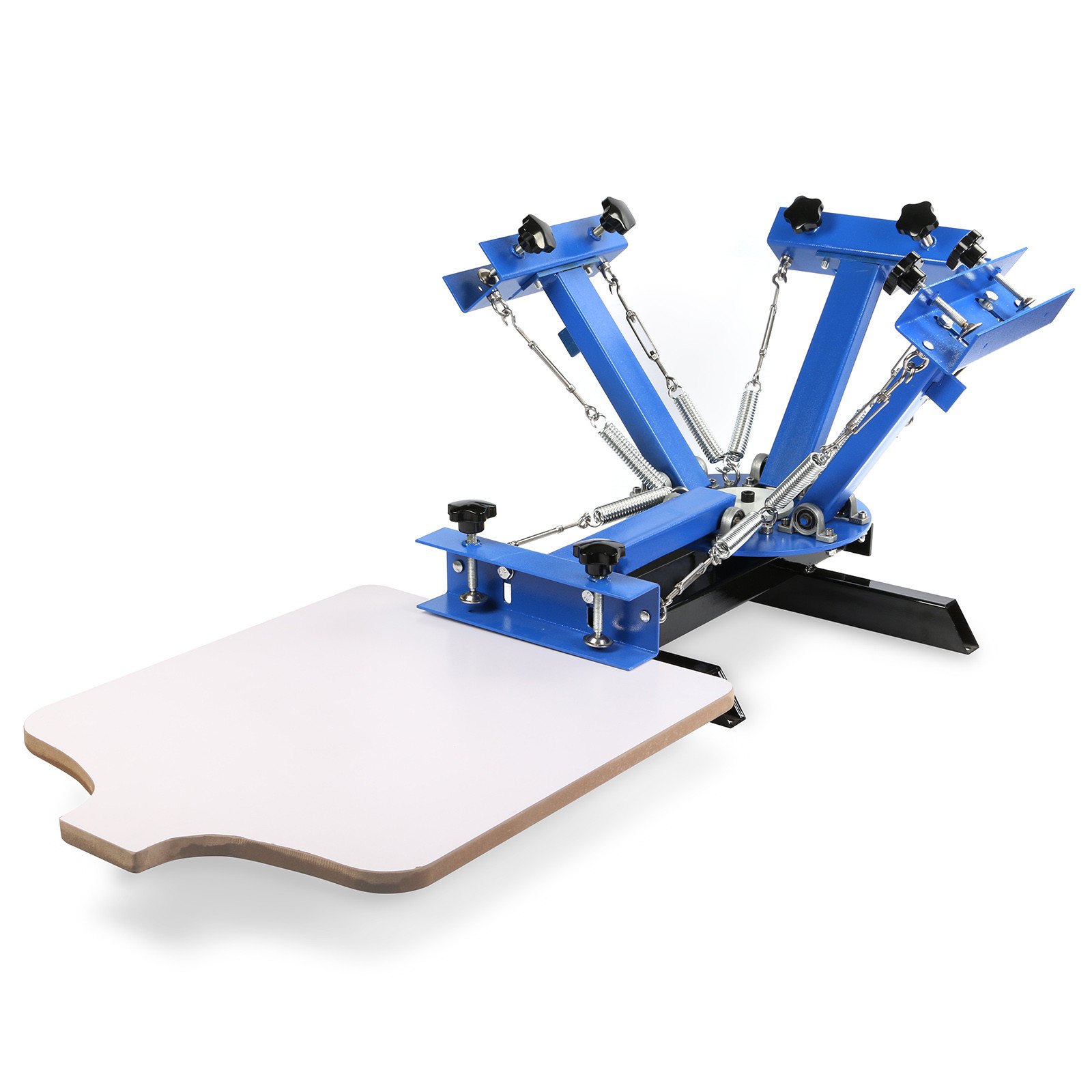

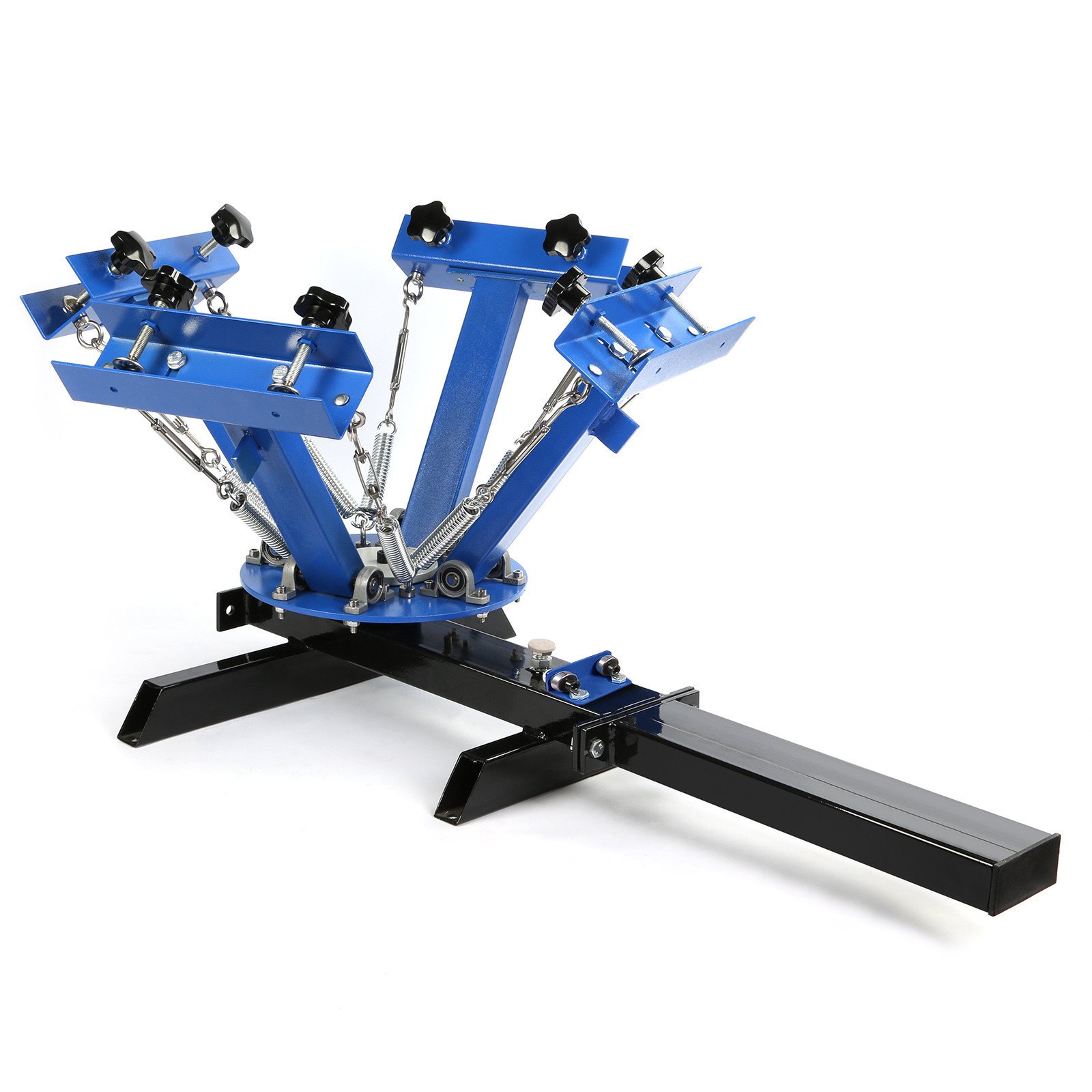

4 Color 1 Station Screen Printing Machine
- Table type and combinatorial design saves space and convenient for transportation.
- Screen printing platen layer can rotate independently which is easy operated with higher efficiency.
- Adjustable double-spring devices are available for screen frames of different weight.
- Supporting device keeps the machine stable and in balance.
- All-metal construction, advanced electrostatic spraying and electroplating, durable and easy to clean.
- Equipped with full set of installation tools, for installation and operation.
- Adjustable height floor stand from 30" to 48"
- Double Boxed for secure and rigid packaging
- Basic assembly tools included
- Shrink wrapped parts in shipping box for safety in transit
- Styrofoam padded on all sides and internally secured
- On/Off Switch, No Timer
- Heavy Duty Steel Bearing Castors
- Black Powder Coated Steel Welded Frame
- Secure Handle for Moving the Dryer in production
4 Color 1 Station Screen Printing Machine

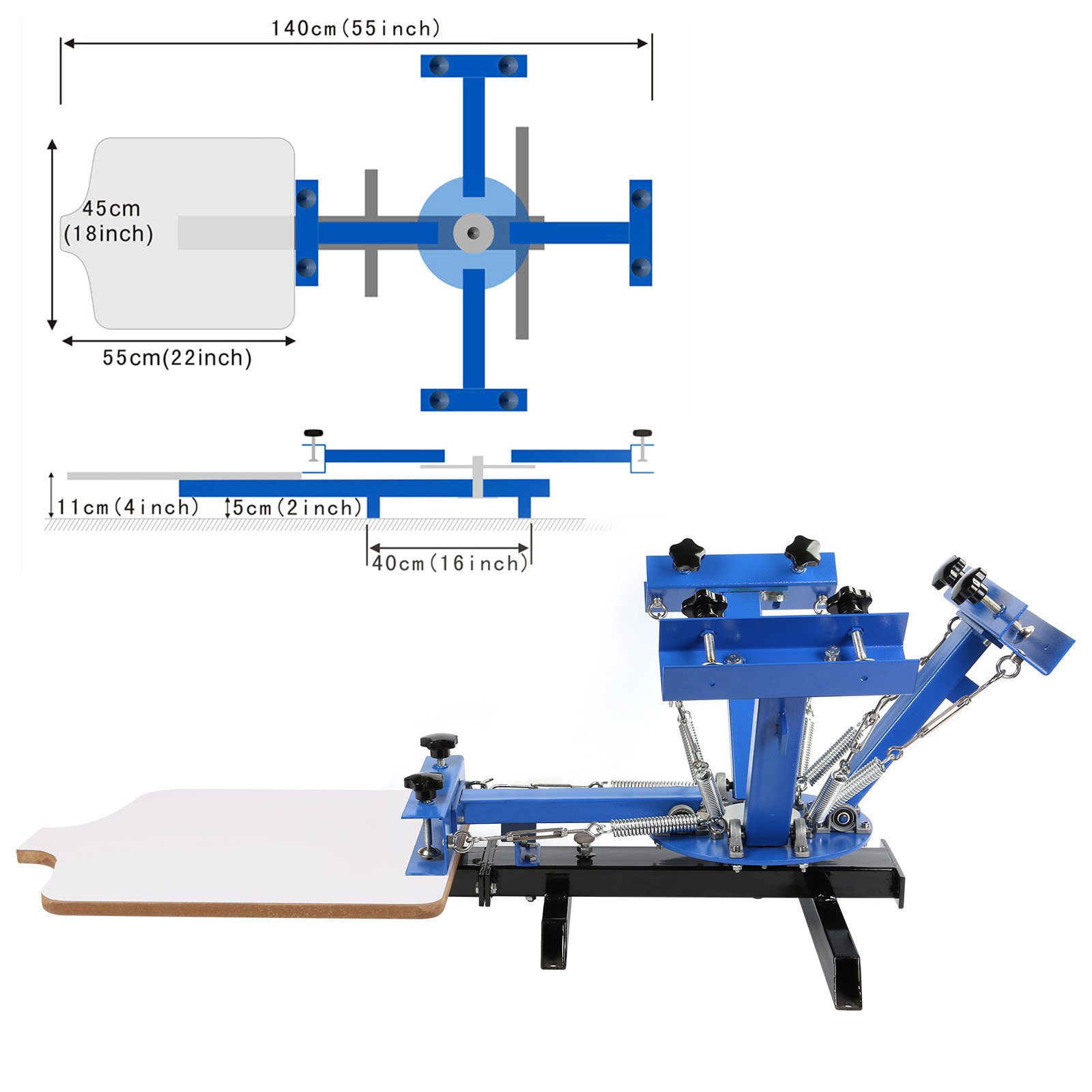

- Machine size: 32*7.9*55" (82*20*140cm)
- Platen size: 21.7*17.7" (55*45cm)
- Arm Length: 13.25" inches
- Arm Width: 10" inches
- T-shirt board: W 18" x L 21.5" inches
- Max Screen thickness: 2" inches
- Heating Area:18" x 18"
- Base Dimensions:38" x 38"
- Top Dimensions:29" x 19"
- Input Power:110V/60Hz
- Max Temp:660℉（350℃）
- Suggest Temp Range:140-180 degrees Celsius
- Average Current Draw:13 Amps
- Maximum Current Draw:16.5 Amps
- Average Power Usage:1350 Watts
- Maximum Power Usage:2000 Watts
- Minimum Height: 30"
- Maximum Height:48"
- Shipped Weight:53 lbs
- Assembled Dimensions:38" x 38" x 48"

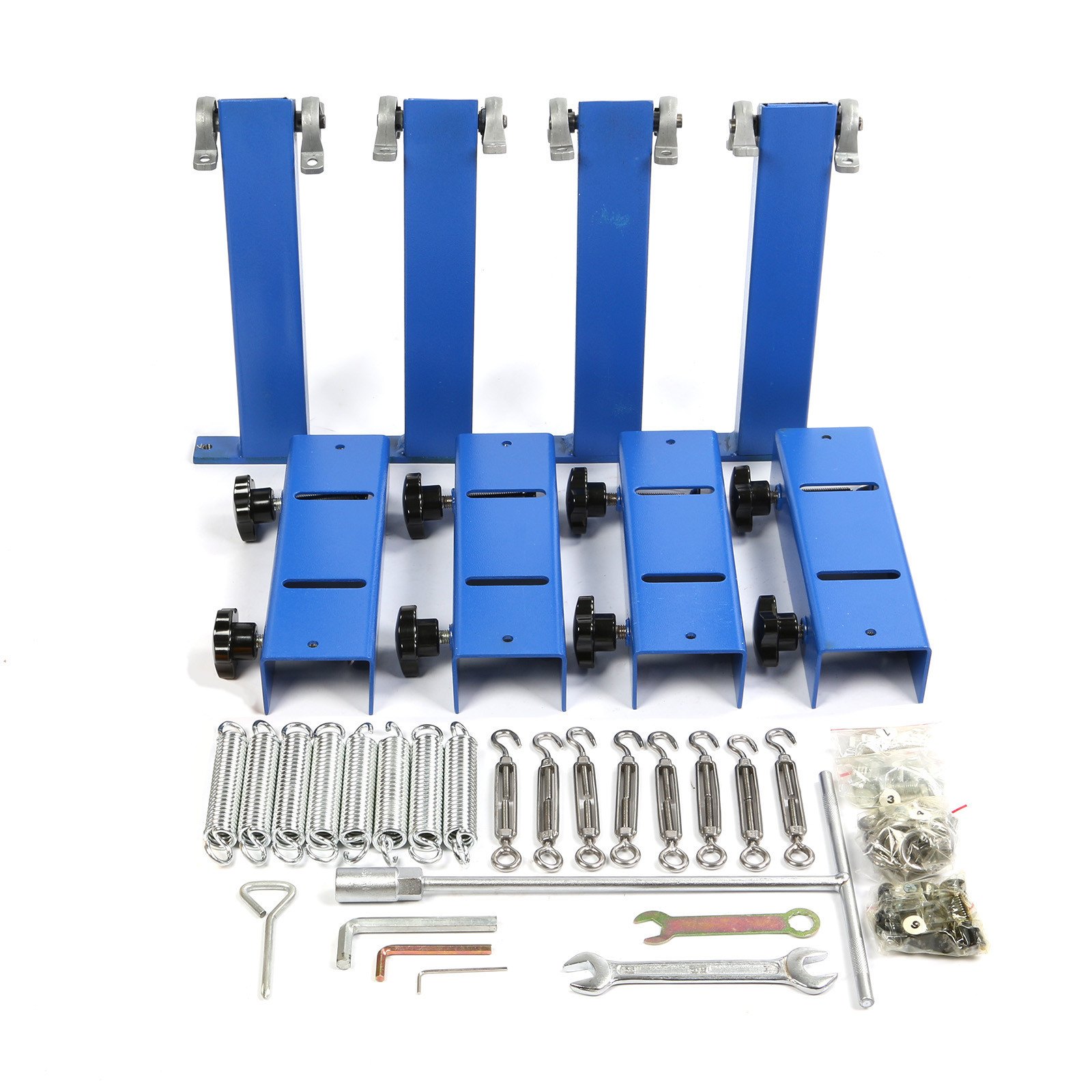

- 1 set of 4 color 1 station screen press (Only screen press without the frames included.)
- 1 X Head of Flash Dryer
- 4 X Base Leg of Flash Dryer
- 1 X Below Support Bar
- 1 X Top Support Bar
- 4 X Caster
- 2 X Handle
- 8 X Screw For Base Legs
- 1 X Base Leg Support Plate
- Hardwares for installtion
Friendly Notice:
The products will be sent from different stocks.Please do not worry about it, you will receive ALL the parcels in recent days.
If you don't get all tracking numbers in eBay, please contact us firstly.
Thanks!
Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our silk screen printing machine is designed for small printing shops, whether it is for multi-color or volume printing, this equipment can also serve as an ideal backup solution to larger companies. For those who are just getting into the printing business, this can be their best starting point. Manufactured with highly durable materials, this equipment is designed to last. There is no maintenance needed once assembled.It can simultaneously install four screen plates. The screen layer is able to rotate independently upon installation, then it is available for four colors’ overprinting and making progressive proofs.
This machine is comes with a 18"x18" flash dryer,it makes your printing more convenient.The flash dryer has a 18x18" heating grid opening, wheels, and a standard 110V plug so there is no special wiring required. This unit can be raised or lowered from 30" to 48". It is very heavy duty. The temperature is over 400 degrees F at distance of 2 1/2" below the flash heating element. It can easily cure plastisol ink for silkscreen printing.It is ultra heavy and has a base diameter that is reasonable (about 38"). It can easily roll thru standard 32" door way. We have a flash dryer. It is only about 2/3 the weight. It is much lighter so its base has to have a big diameter (over 50") to prevent it from tipping over.
Application:
Printing onto clothing (especially for T-shirts), woven fabric, metal, paper, copybook, plastic, circuit board, wood, glass, ceramic tile, leather and other plain printing substrates. This makes it especially suitable for small businesses as well as individual printing shops.
Note:
1.The screen frames are not included with the 4 color 1 station screen press.
2.The flash dryer takes approximately 5 minutes from initial turn on to stabilize temperature.There will be natural fluctuations in the temperature as you use the item.
4 Color 1 Station Screen Printing Machine
- Table type and combinatorial design saves space and convenient for transportation.
- Screen printing platen layer can rotate independently which is easy operated with higher efficiency.
- Adjustable double-spring devices are available for screen frames of different weight.
- Supporting device keeps the machine stable and in balance.
- All-metal construction, advanced electrostatic spraying and electroplating, durable and easy to clean.
- Equipped with full set of installation tools, for installation and operation.
- Adjustable height floor stand from 30" to 48"
- Double Boxed for secure and rigid packaging
- Basic assembly tools included
- Shrink wrapped parts in shipping box for safety in transit
- Styrofoam padded on all sides and internally secured
- On/Off Switch, No Timer
- Heavy Duty Steel Bearing Castors
- Black Powder Coated Steel Welded Frame
- Secure Handle for Moving the Dryer in production
4 Color 1 Station Screen Printing Machine
- Machine size: 32*7.9*55" (82*20*140cm)
- Platen size: 21.7*17.7" (55*45cm)
- Arm Length: 13.25" inches
- Arm Width: 10" inches
- T-shirt board: W 18" x L 21.5" inches
- Max Screen thickness: 2" inches
- Heating Area:18" x 18"
- Base Dimensions:38" x 38"
- Top Dimensions:29" x 19"
- Input Power:110V/60Hz
- Max Temp:660℉（350℃）
- Suggest Temp Range:140-180 degrees Celsius
- Average Current Draw:13 Amps
- Maximum Current Draw:16.5 Amps
- Average Power Usage:1350 Watts
- Maximum Power Usage:2000 Watts
- Minimum Height: 30"
- Maximum Height:48"
- Shipped Weight:53 lbs
- Assembled Dimensions:38" x 38" x 48"
- 1 set of 4 color 1 station screen press (Only screen press without the frames included.)
- 1 X Head of Flash Dryer
- 4 X Base Leg of Flash Dryer
- 1 X Below Support Bar
- 1 X Top Support Bar
- 4 X Caster
- 2 X Handle
- 8 X Screw For Base Legs
- 1 X Base Leg Support Plate
- Hardwares for installtion
