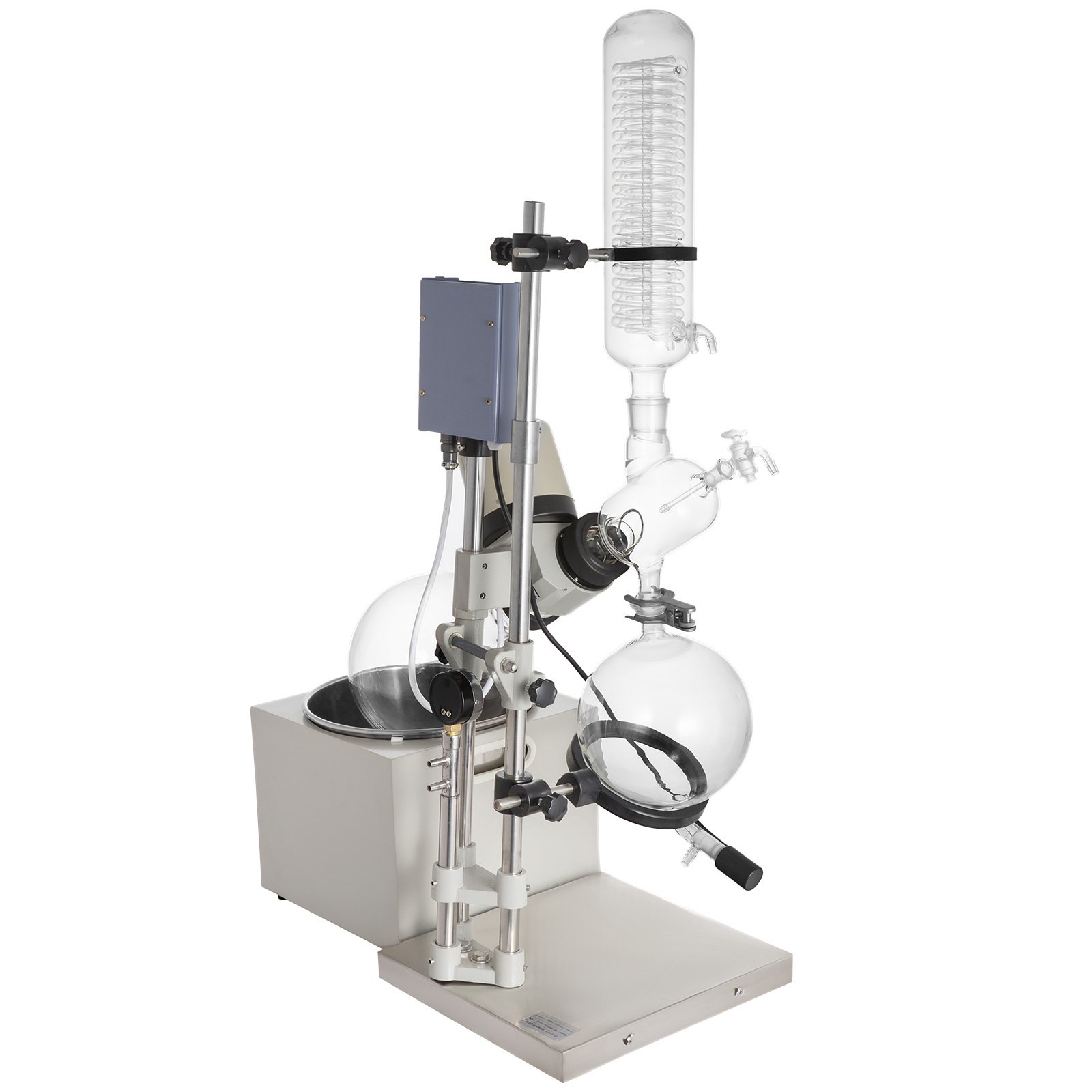

5L Rotary Evaporator & Vacuum Pump & Chiller
This is a set of 5L lab rotary evaporator with a vacuum pump and a chiller circulator. It adopts the flask to enlarge the evaporation area under reduced pressure, to make the solution in bottle diffuse and evaporate, the flask rotating as it is heating in the water bath. Apply premium aluminum alloy, good electronic devices, and high-temperature resistant glass, durable and safe on use. It is mainly used for the concentration, crystallization, drying, separation, and solvent recovery of the chemical industry, pharmaceutical industry, institutions of higher learning and scientific research laboratories.
- Product Details
- Speed Adjustable
- 15L TANK & QUIET USE
- Reliable Electronic Device

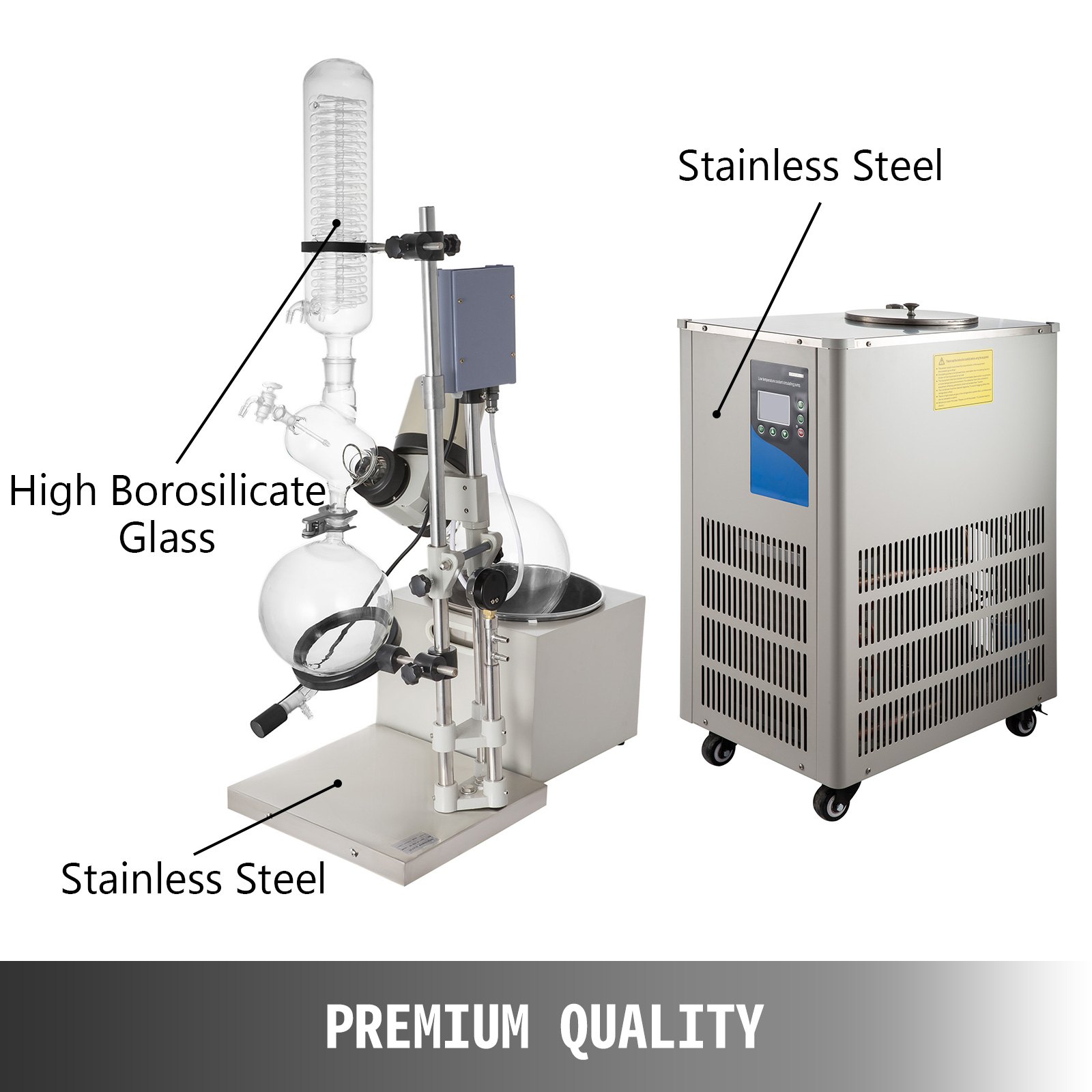

Premium Quality
The base, standing & height adjustable rod are made of stainless steel, corrosion-resistant & anti-rust. Both of the circulating system devices and rotary evaporator all adopt high-quality stainless steel material.

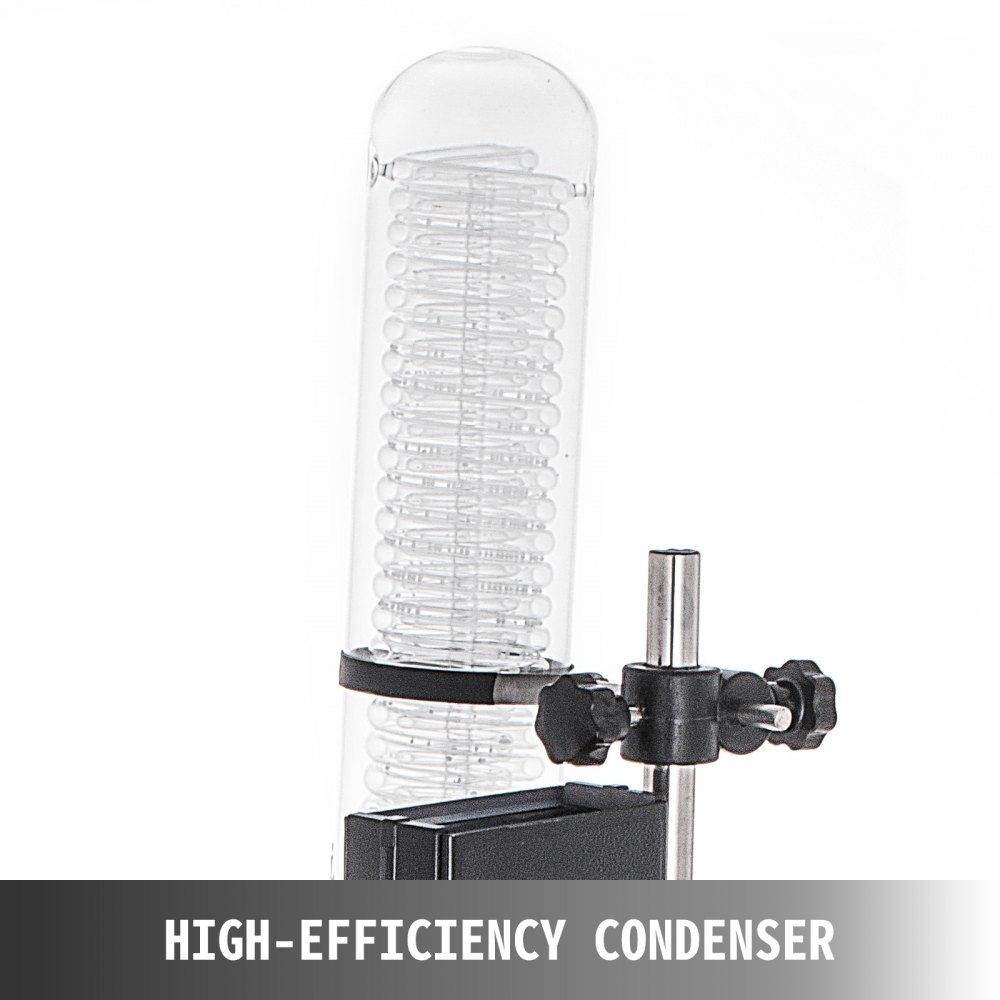

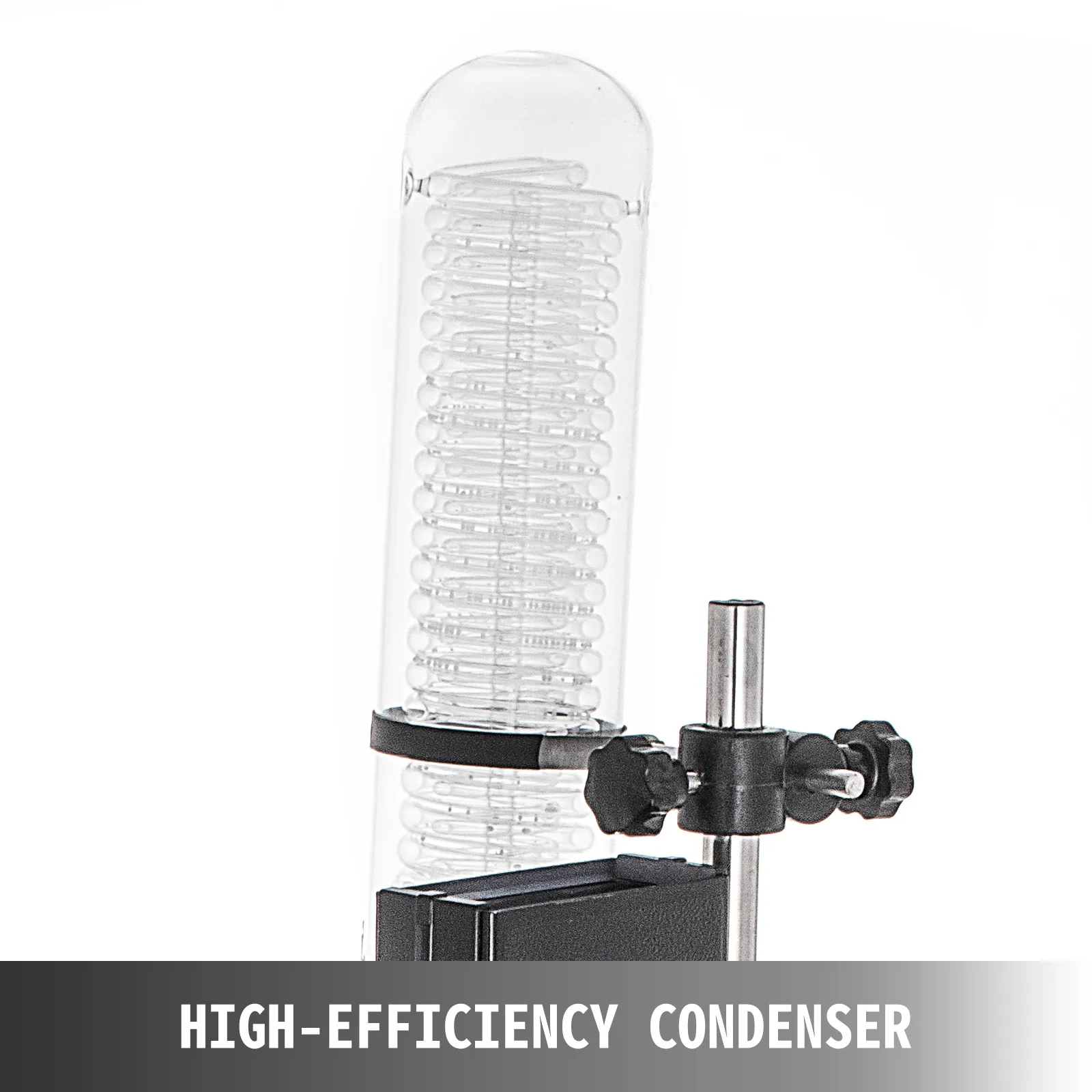

High-efficiency Condenser
The serpentine condenser is used on the rotary evaporator with a chiller. It will provide a more considerable condensation and higher distillation efficiency, compared with other small rotary evaporators on the market.

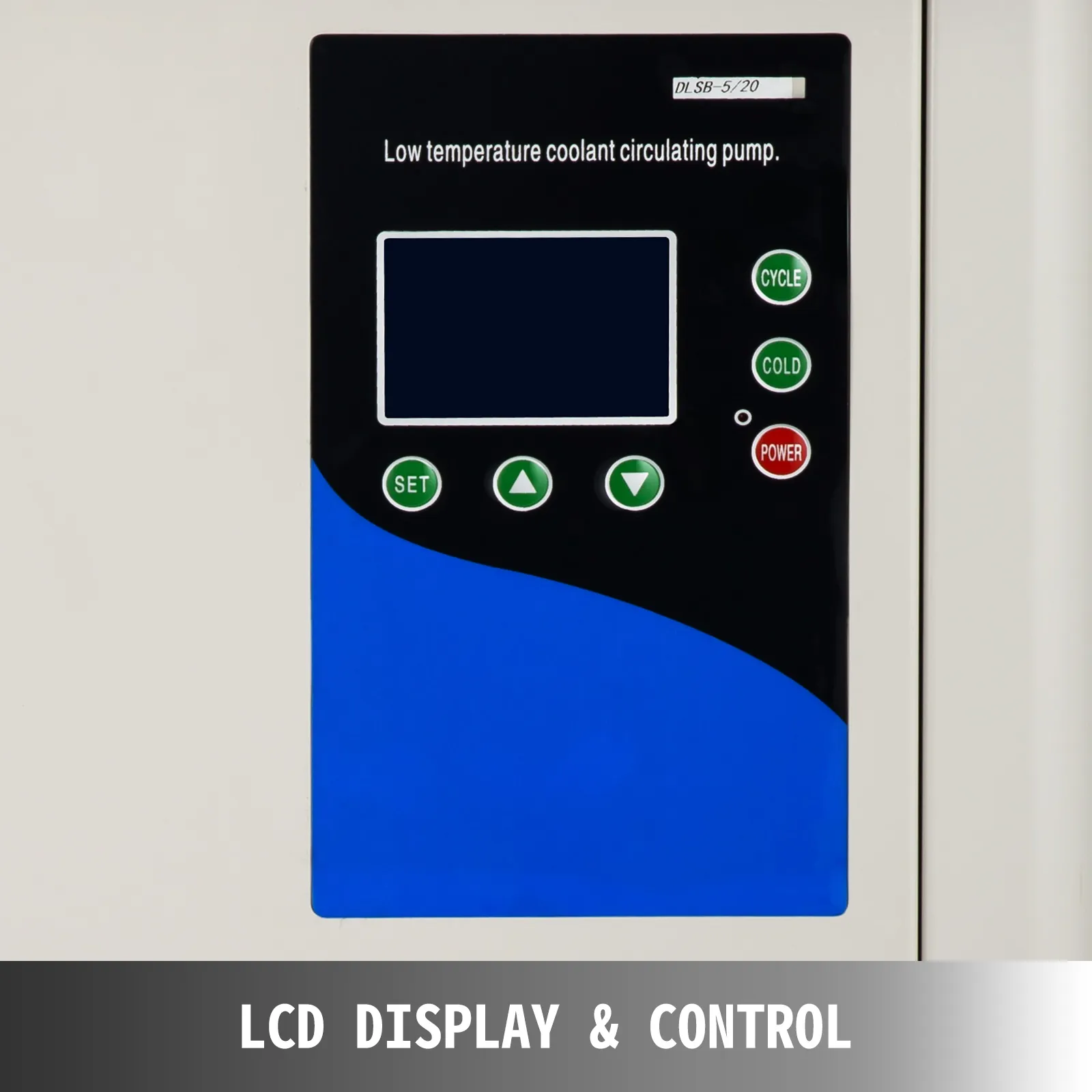

LCD Display & Control
The large LCD screen with buttons, with a built-in thermostat, clearly to adjust temperature ranges: -10℃ to 99℃, and adjustment accuracy is ±1℃. It also can select backlight, cooling, or circulating mode.

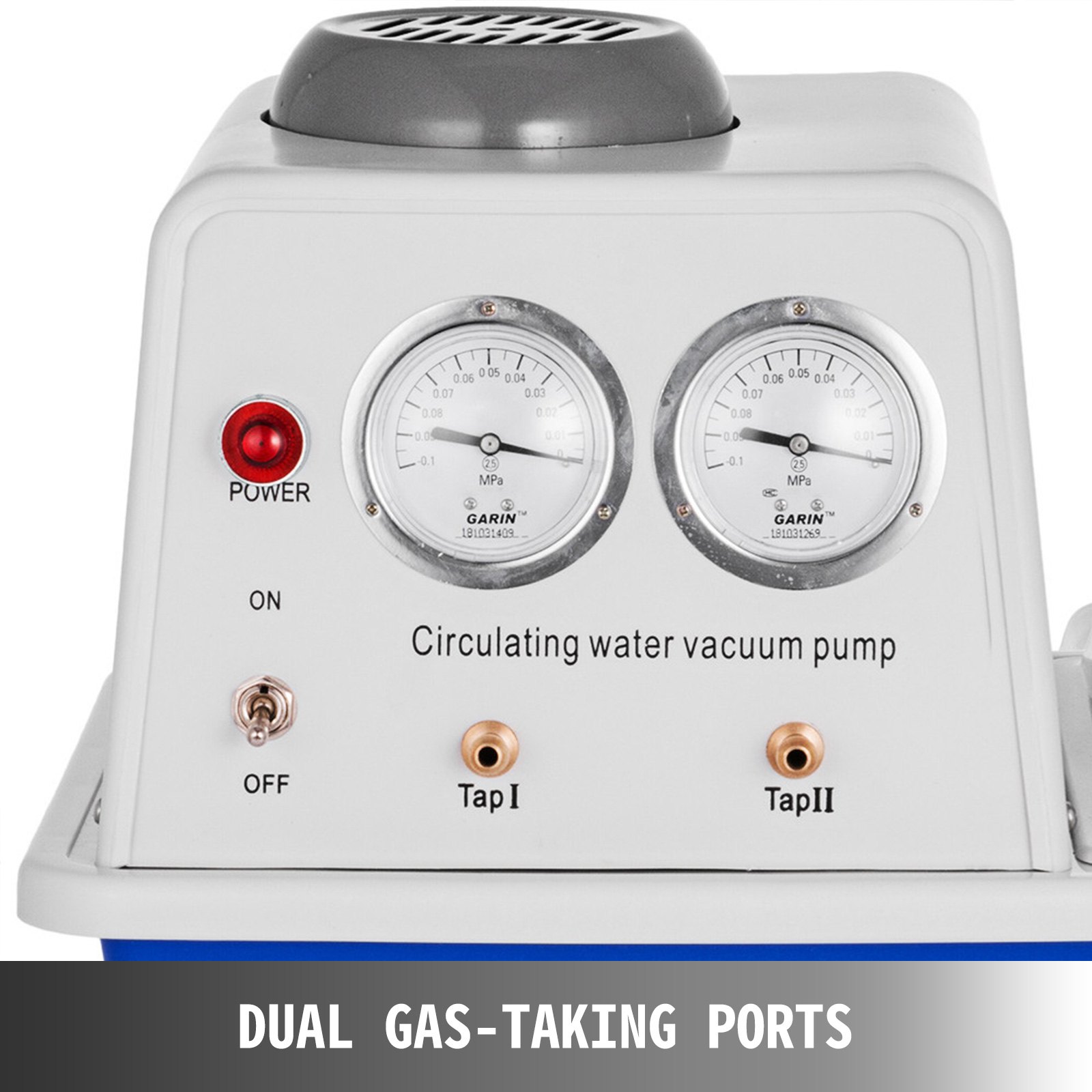

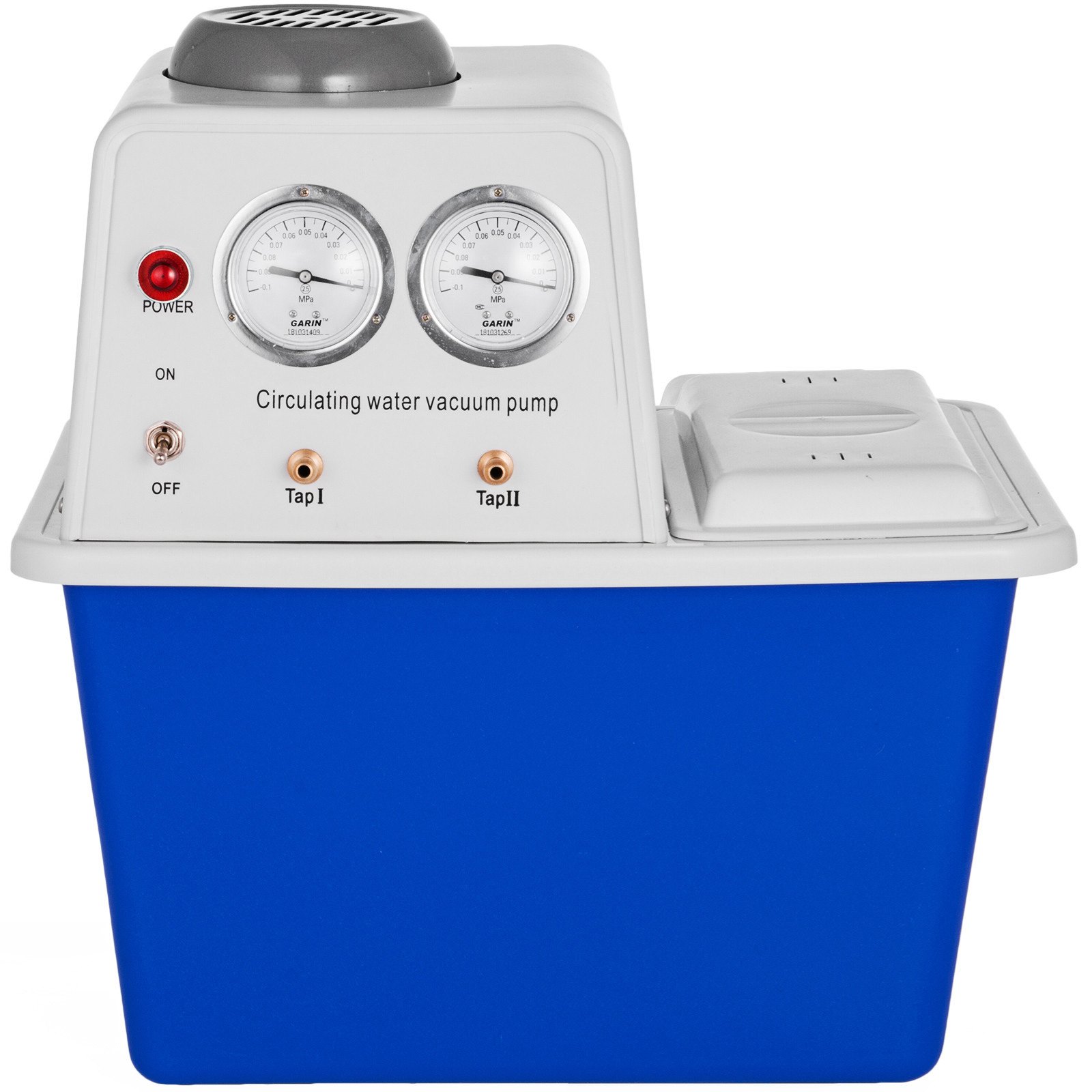

Dual Gas-taking Ports
It adopts double suction taps, can be used alone or in parallel with two vacuum gauges. Single-tap sucking rate: 10L/min; The maximum vacuum degree: 0.098Mpa.

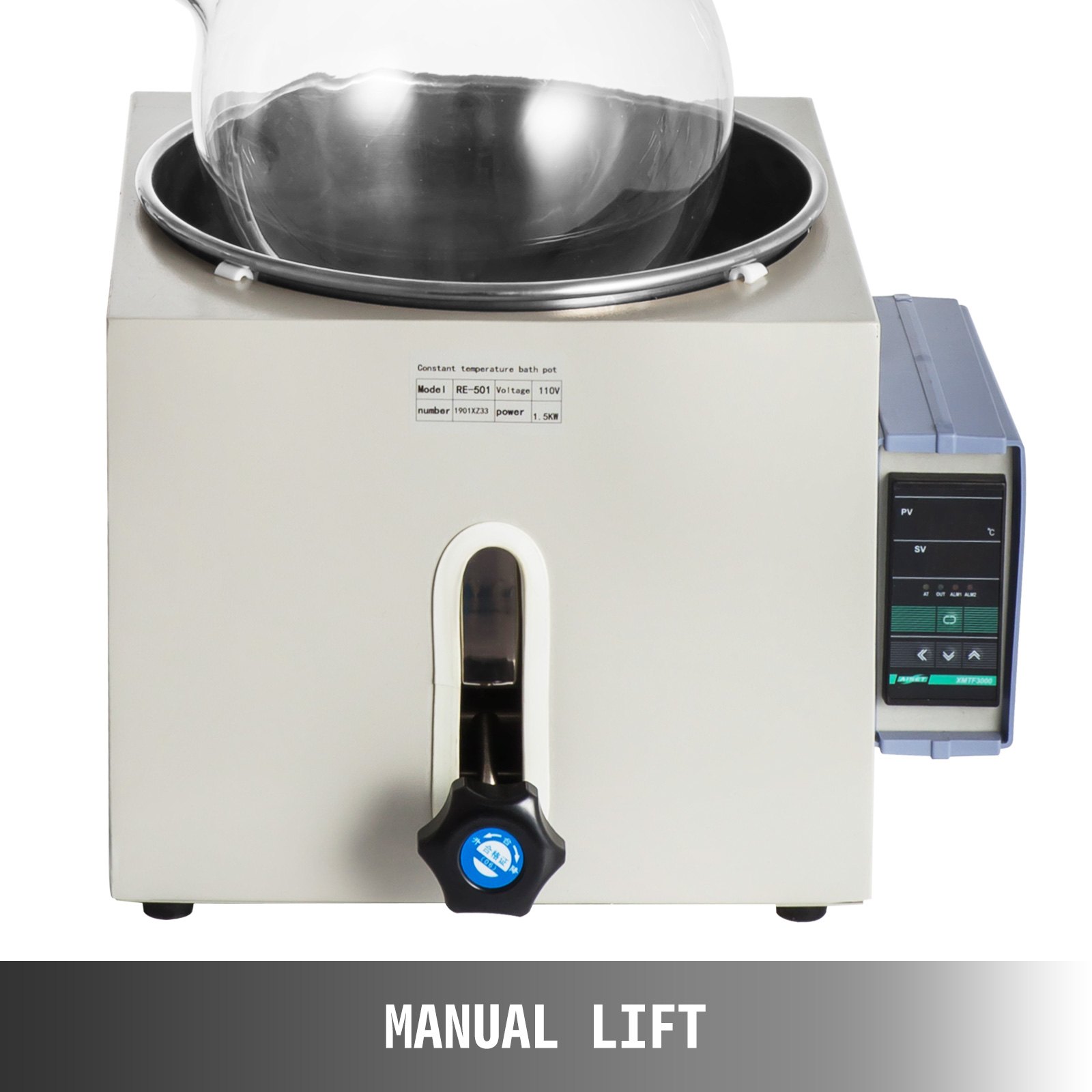

Manual Lift
Operate the lifting hand wheel on the steering column; you can adjust the height of the machine. When you change it upward, it will flip up, and turning in the opposite direction will fall.

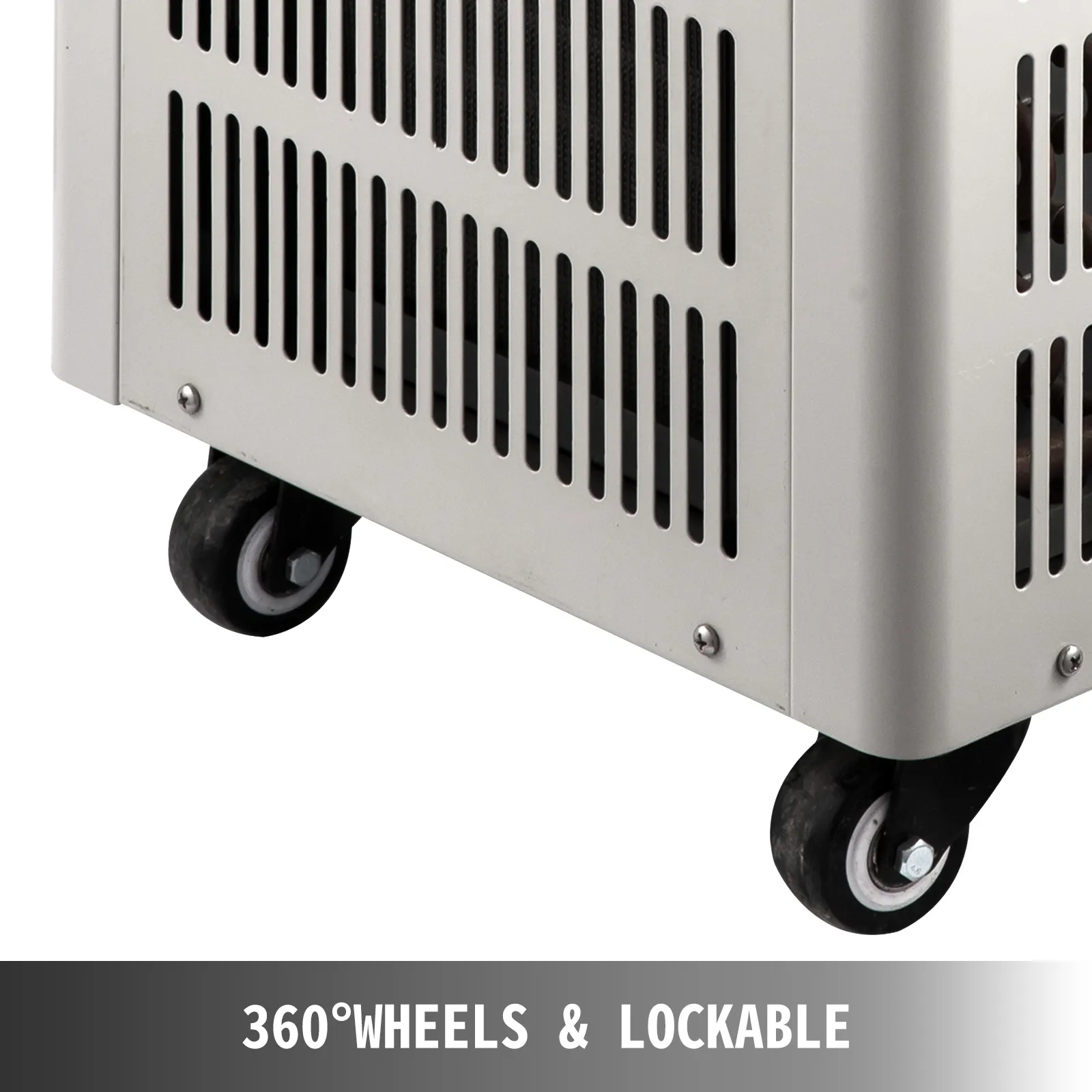

360°Wheels & Lockable
This circulating chiller is designed with four wheels, 2 x 360°wheels, and 2 x wheels with locks. You can move this equipment everywhere quickly and lock it at any place if needed.

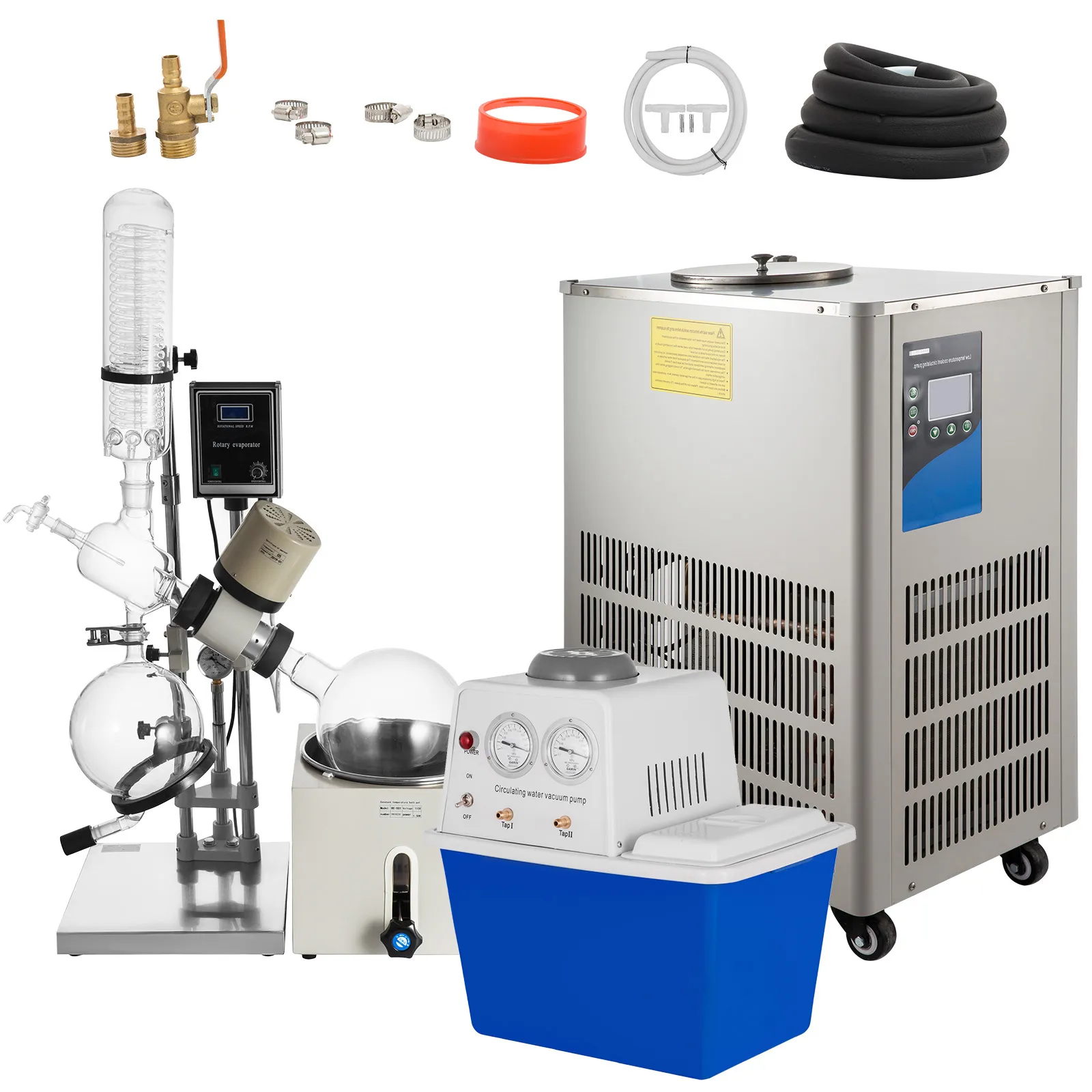

Package Content
- 1 x Rotary Evaporator
- 1 x Vacuum Pump
- 1 x Chiller Circulator
- 1 x English Manual

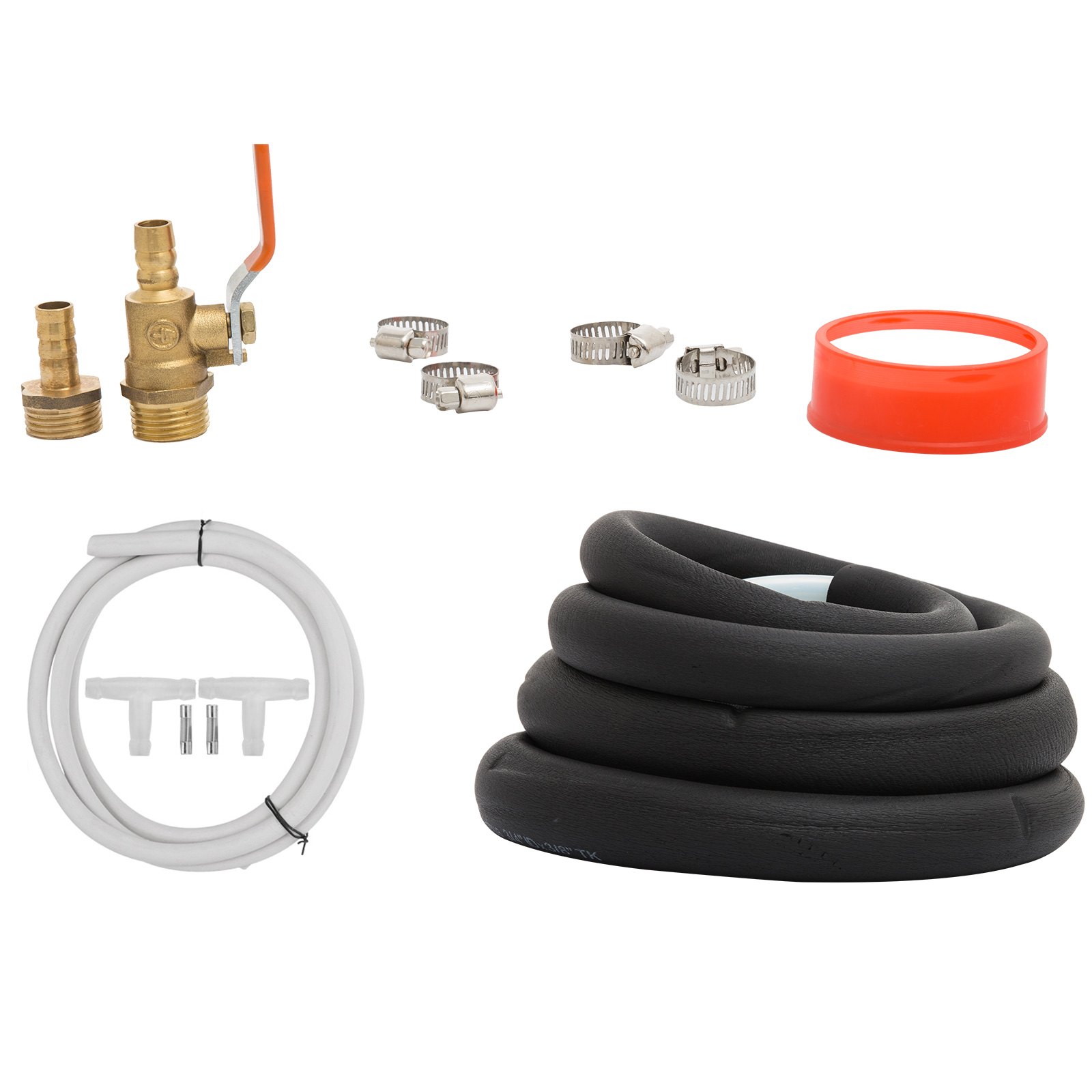

- 1 X Accessories Kit

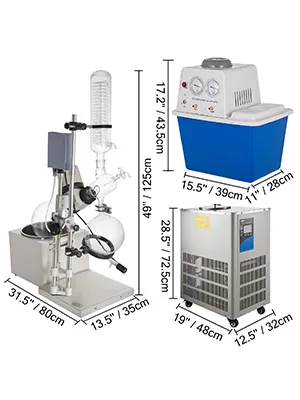

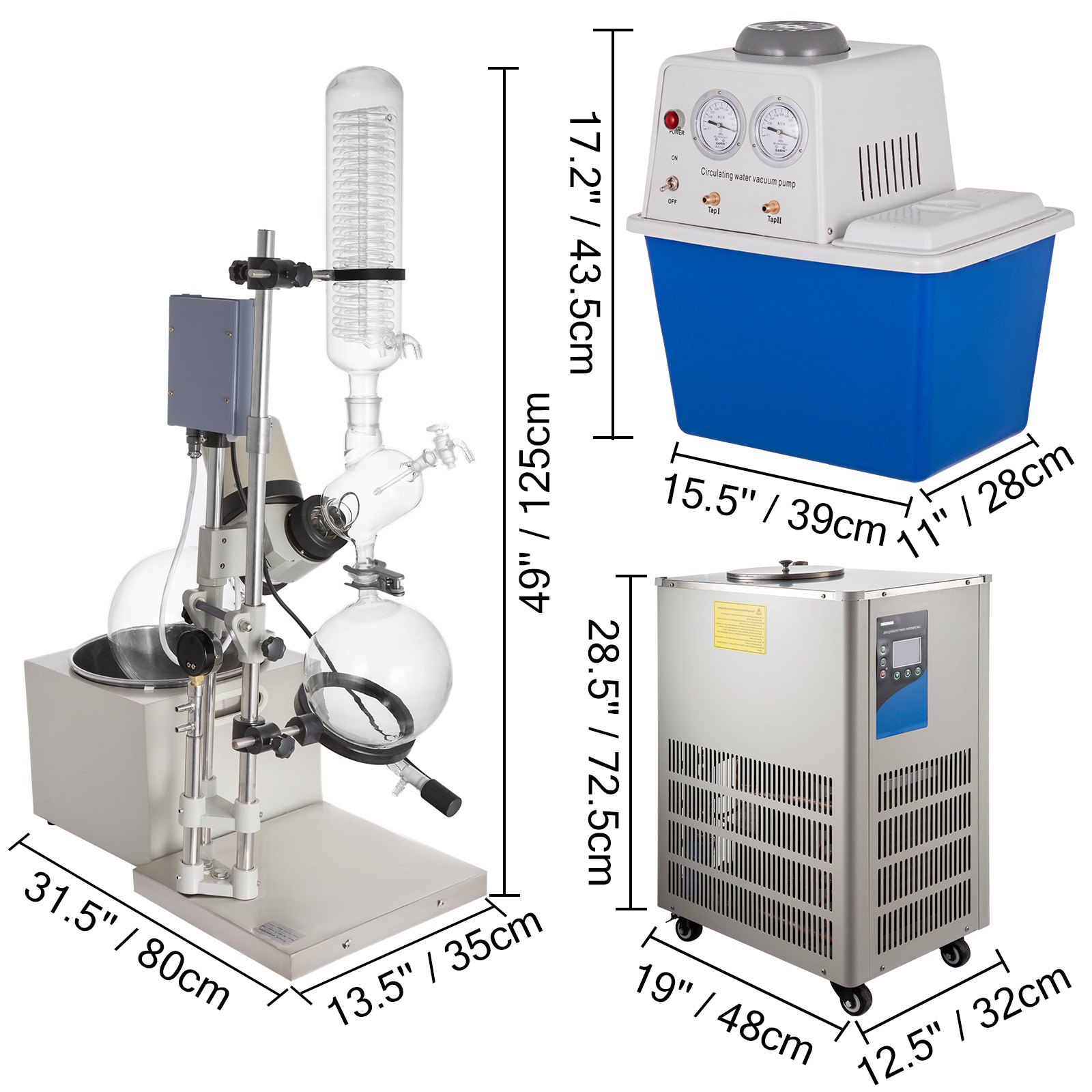

Specifications
- 5L Rotary Evaporator
- Flask & Condenser: Borosilicate Glass
- Boiling Flask Capacity: 5L
- Receiving Flask Capacity: 3L
- Rotation Speed: 0-90rpm(Stepless Adjustable)
- Water Bath Pan Lift Range: 12cm / 4.7"

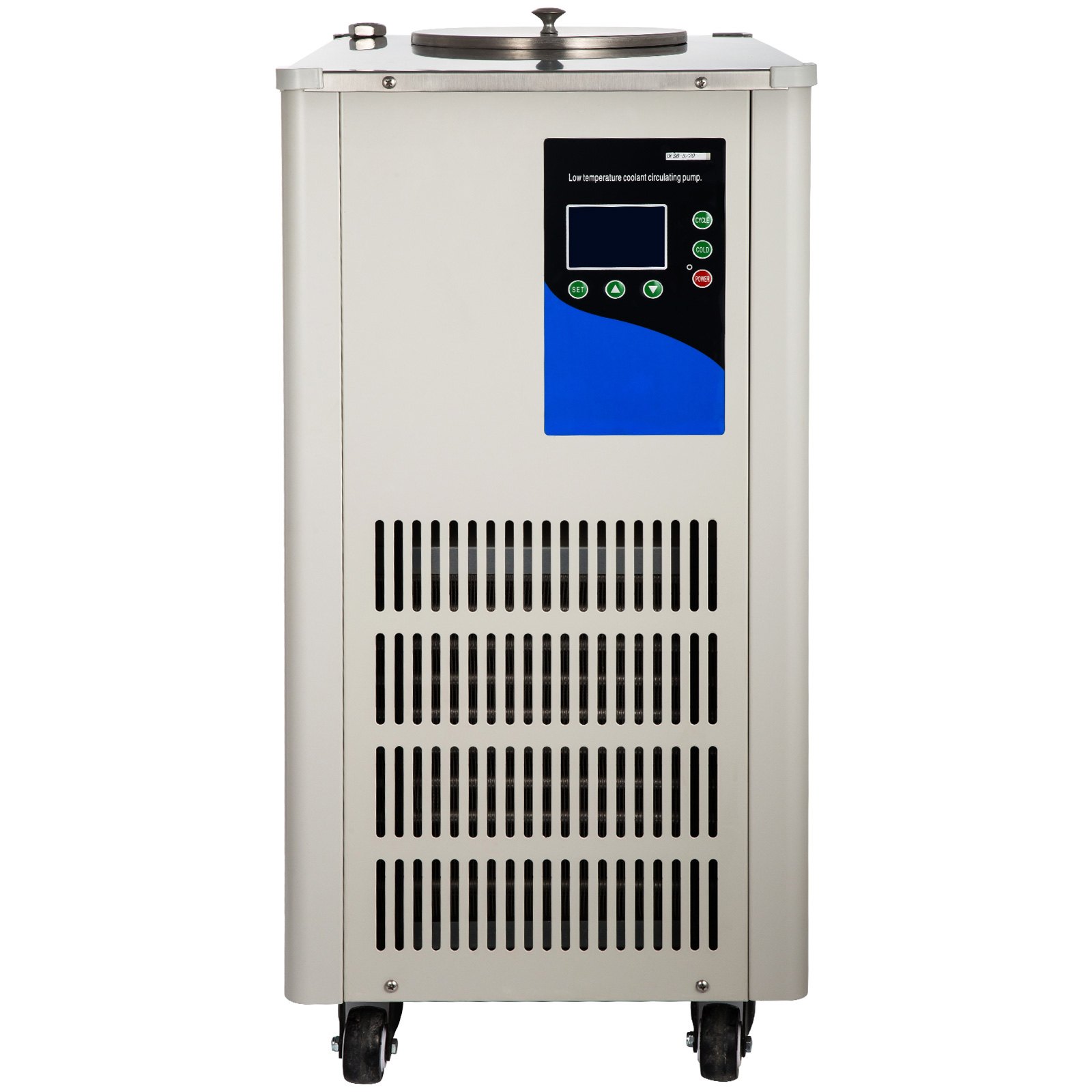

- Recirculating Chiller
- Water Tank Capacity: 5L
- Temperature Adjust Range: -10℃ to 99℃(Accuracy: ±1℃)
- Max. Cooling Capacity: 1248-319W
- Flow Rate: 35L/min
- Pump Lift: 5-6M; Pump Pressure: 0.4bar
- Cooling System: Enclosed Compressor R22 R404 F23
- Circulating Pump: 30W
- Vacuum Pump
- Single-Tap Sucking Rate:10L/min
- Max. Vacuum Degree: 0.098Mpa
- Flow: 60L/min
- Tank Volume: 15L
- Motor Power: 180W
- Noise: <50dB
- Tube Amount: 2
