Name: VEVOR 50Amp Non-Touch Pilot Arc Plasma Cutter, 110/220V Dual Voltage Plasma Cutting Machine, Max 1/2 Inch(14MM) Clean Cut, Portable Cutting Machine IGBT Inverter Digital Plasma Cutting Equipment
Brand: VEVOR
SKU: DHJ50ADDHGNDLZQGJV1
Price: 225.99 USD
Availability: Discontinued
Rating: 4.8 (167 reviews)

VEVOR 50Amp Non-Touch Pilot Arc Plasma Cutter, 110/220V Dual Voltage Plasma Cutting Machine, Max 1/2 Inch(14MM) Clean Cut, Portable Cutting Machine IGBT Inverter Digital Plasma Cutting Equipment

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

Air Plasma Cutter: The CUT-50F Plasma Cutter efficiently cuts through rough, painted, and rusty surfaces and produces minimal slag. The air plasma cutter is an excellent choice for DIY jobs and light-duty business projects with high speed and precision cuts combined with low cost.
Output & Performance: AC 110/220V; Rated Output Current: 50 Amps; Max Cutting Thickness: 0.47" / 12 mm; Duty Cycle: 60%; The inverter plasma cutter is suitable for cutting for stainless steel, alloy steel, mild steel, copper, aluminum, etc. The ability of the dual voltage allows the plasma cutter to operate at 110V or 220V.
Plasma Cutting Torch：Torch Length: 4Meter(13.12Feet). The electrode and tip are easily replaced. Pilot arc technology allows you to cut without touching the tip to the metal: better cutting quality and smooth cutting surface.

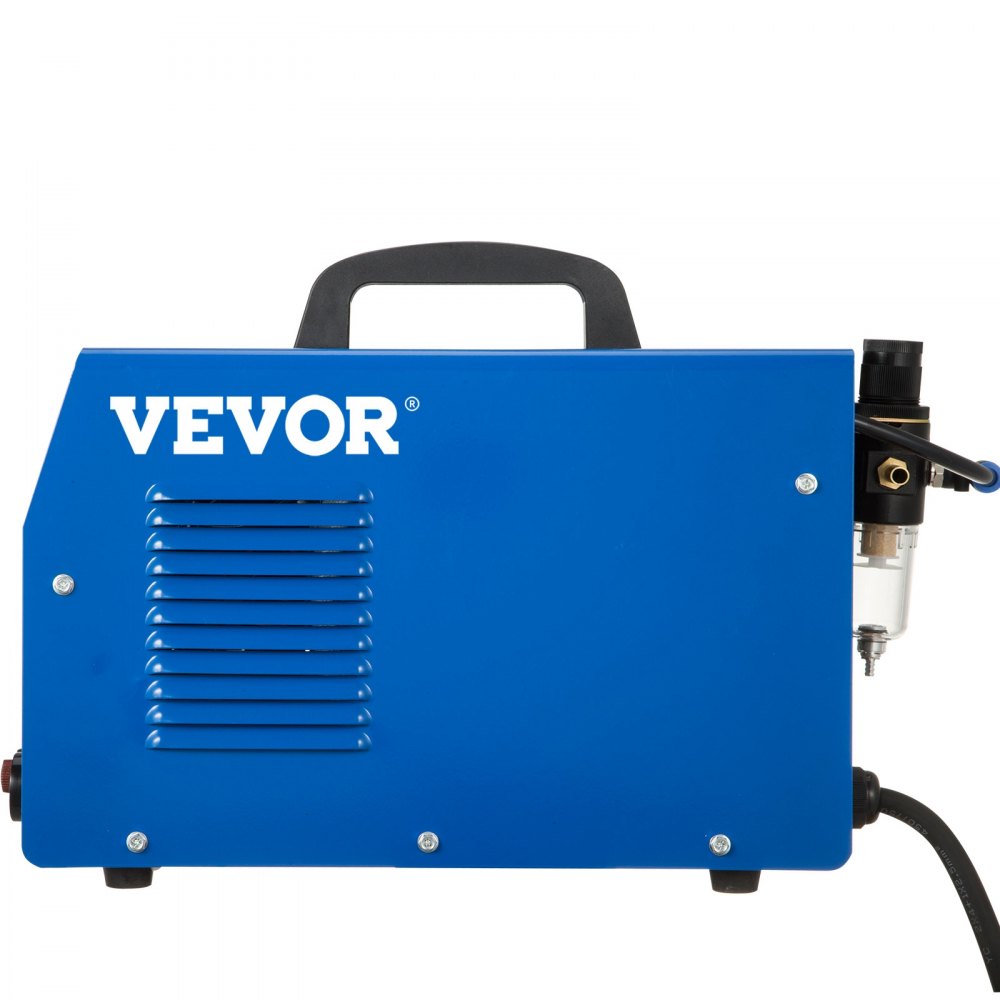

Setup Within 1 Min: Compact plasma cutting machine features a clear LCD digital display and simple control panel, easy to operate. The Air filter Regulator can quickly connect to the air compressor. The whole machine can be set up quickly within 1 min.
Efficient Cooling System: It has an efficient cooling system to protect the welding machine from damage. There are heat emission holes on both sides and a solid cooling fan on the reverse side to achieve quick dissipate heat.

See More See Less

VEVOR 50Amp Non-Touch Pilot Arc Plasma Cutter, 110/220V Dual Voltage Plasma Cutting Machine, Max 1/2 Inch(14MM) Clean Cut, Portable Cutting Machine IGBT Inverter Digital Plasma Cutting Equipment

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Tough Equipment & Tools, Pay Less

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

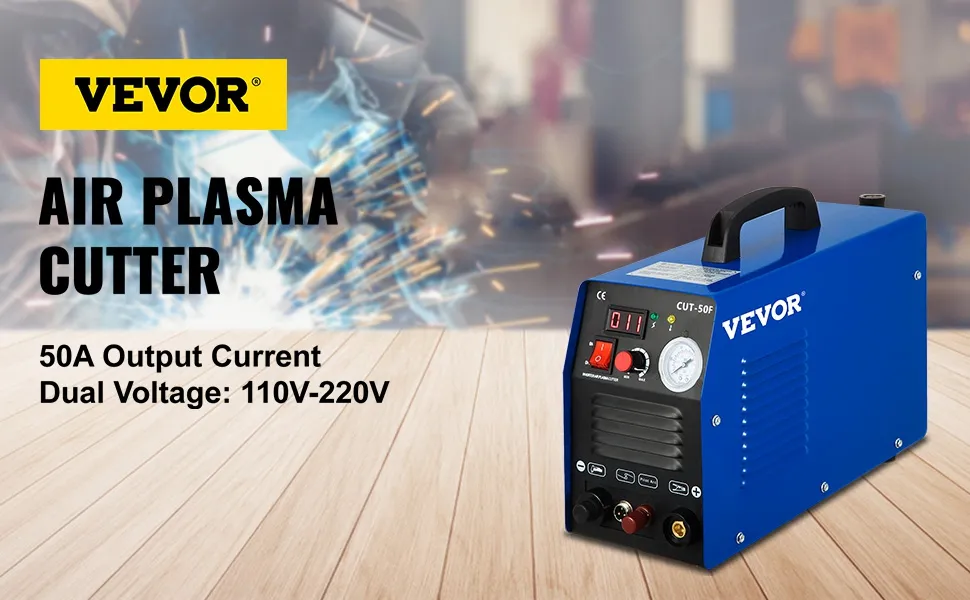

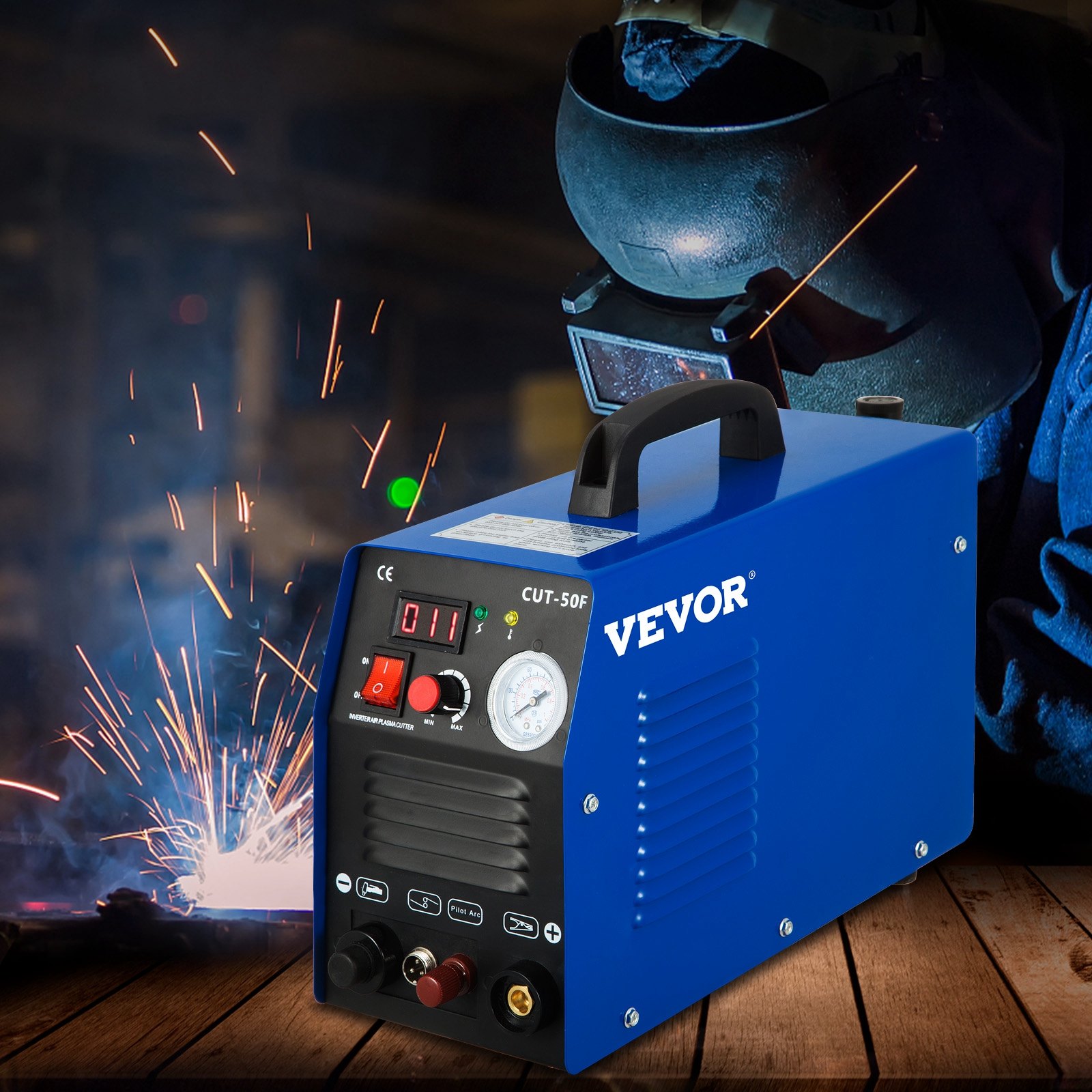

50A Non-Touch Pilot Arc Plasma Cutter

The plasma cutting machine is equipped with a high-quality non-touch pilot arc plasma torch explicitly developed to enhance and improve the cut quality. The cutting machine is suitable for businesses and DIY users and fully accommodating the demands of professional operators.

Air Plasma Cutter
Output & Performance
Plasma Cutting Torch
Setup Within 1 Min
Efficient Cooling System

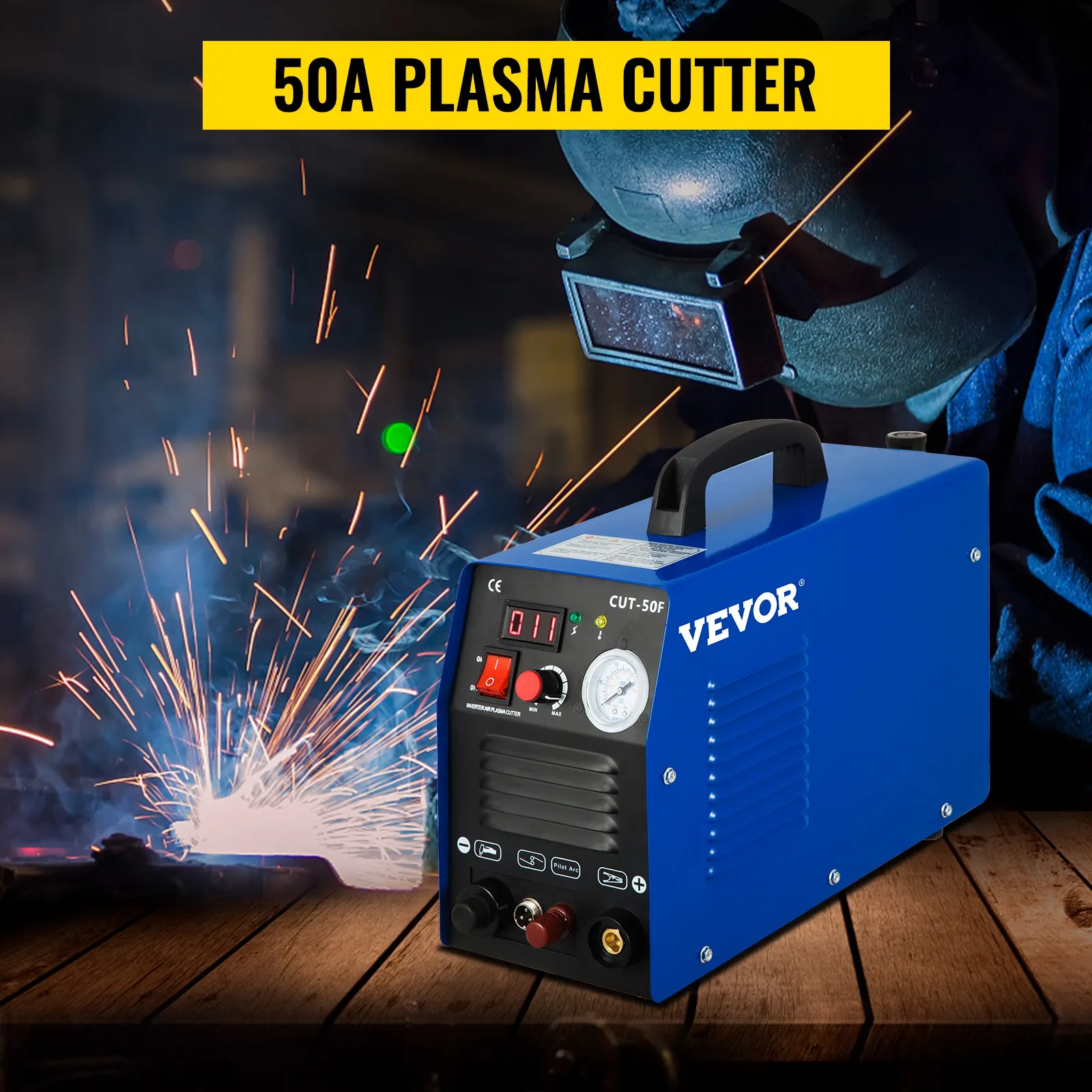

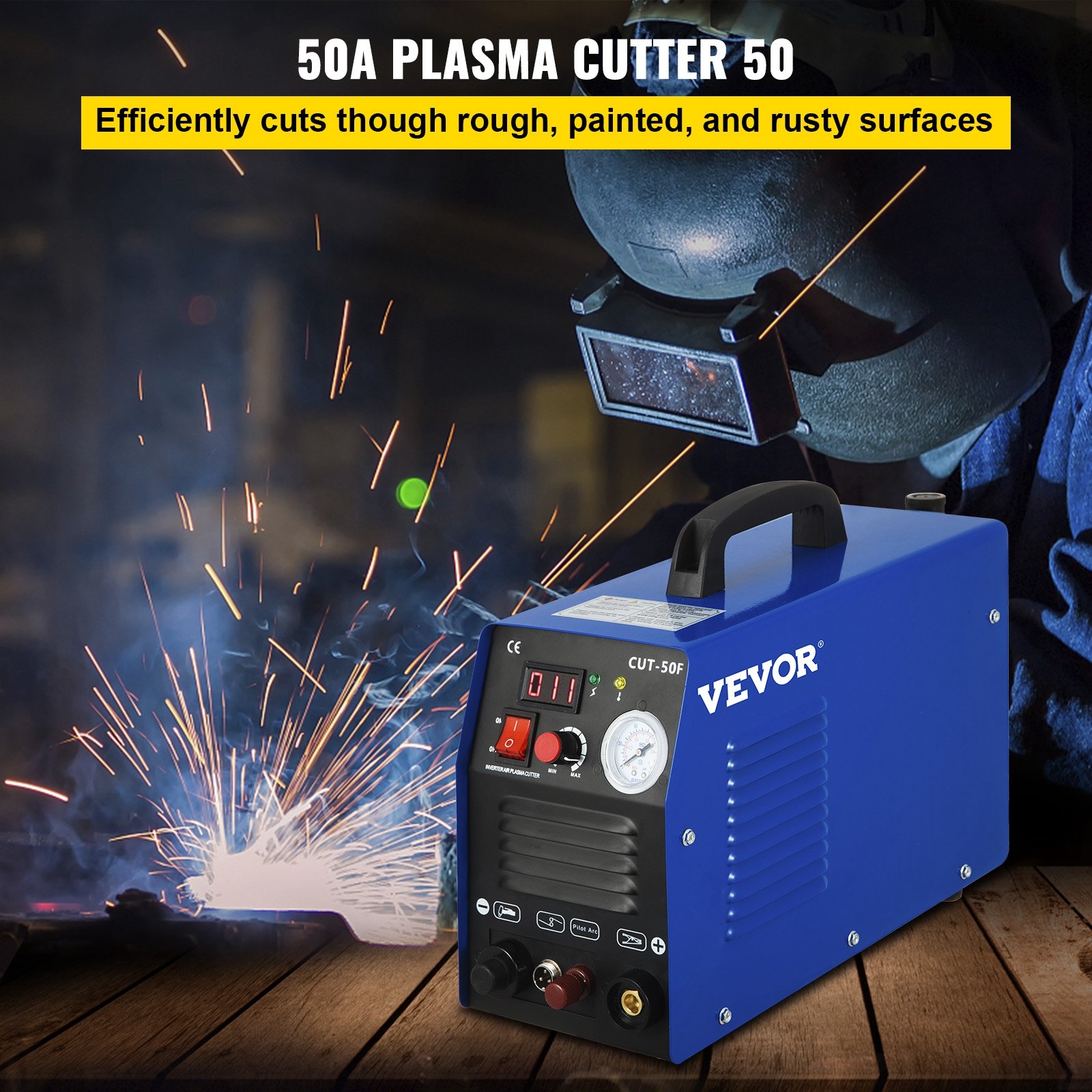

50A Plasma Cutter

Pilot arc torch efficiently cuts through rough, painted, and rusty surfaces. Compare with oxyhydrogen cutting, plasma cutting is more secure, cost-effective, and easier to use.

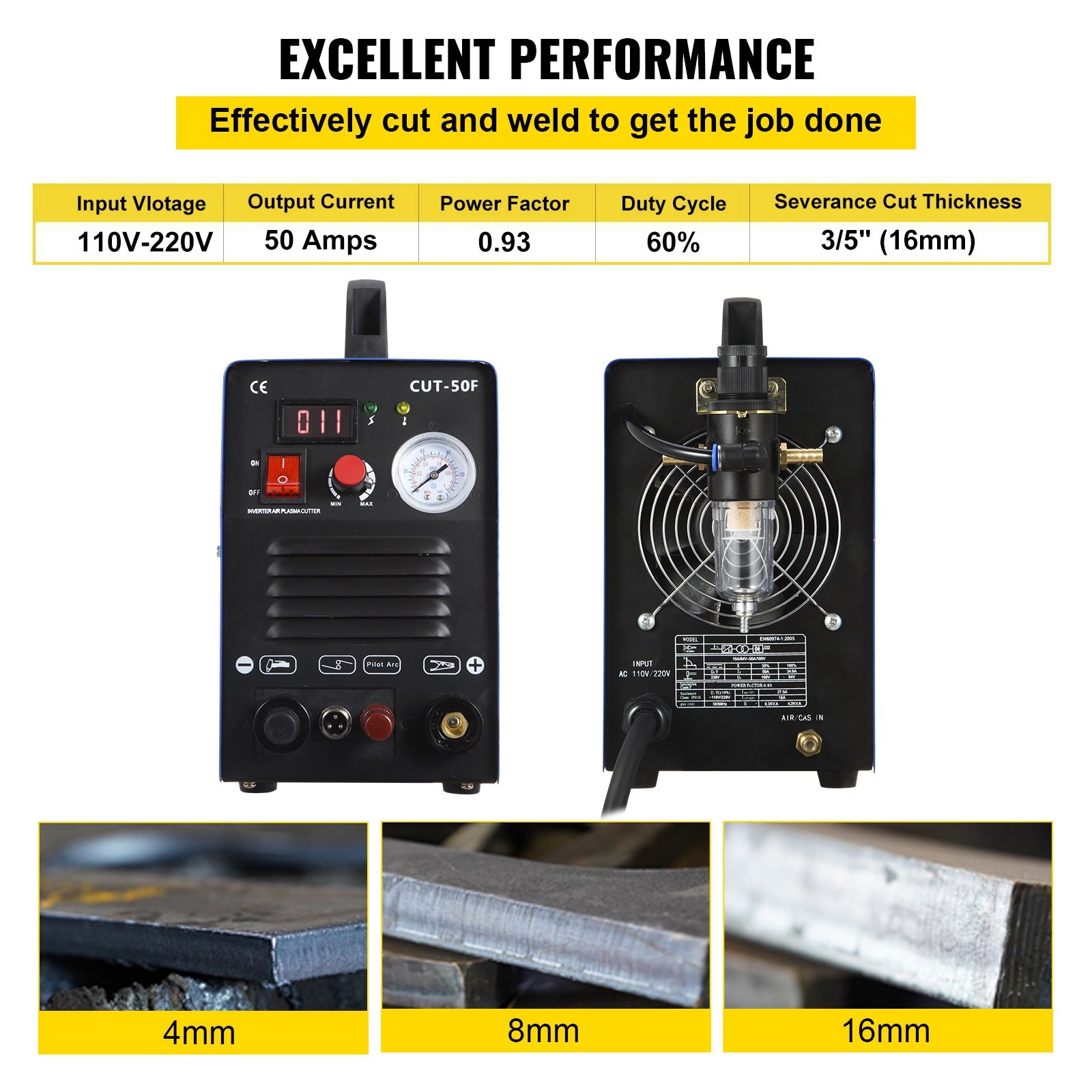

Excellent Performance

AC 110/220V; 50A; The plasma cutter can easily cut up to 0.47" " (12 mm) metal under maximum output.

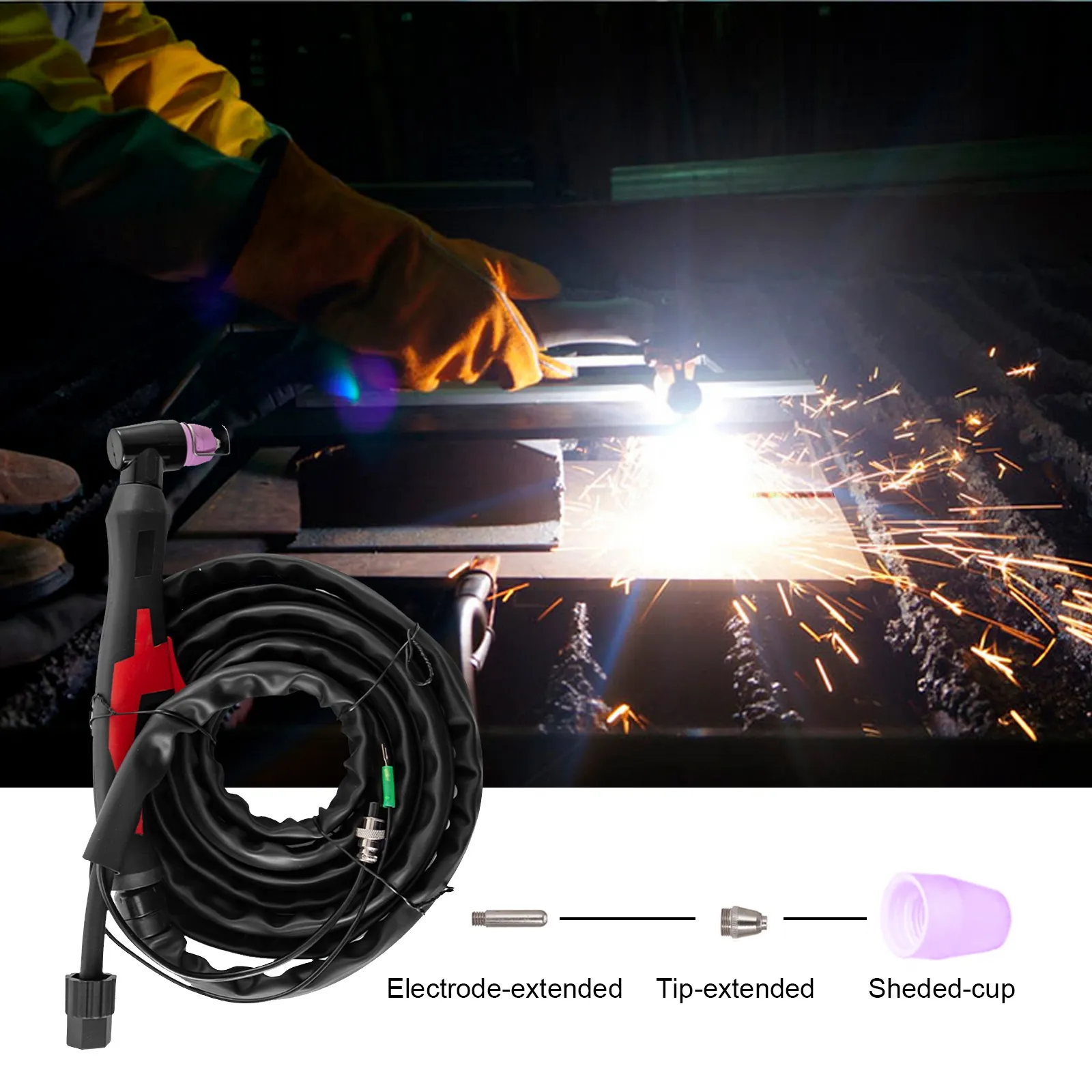

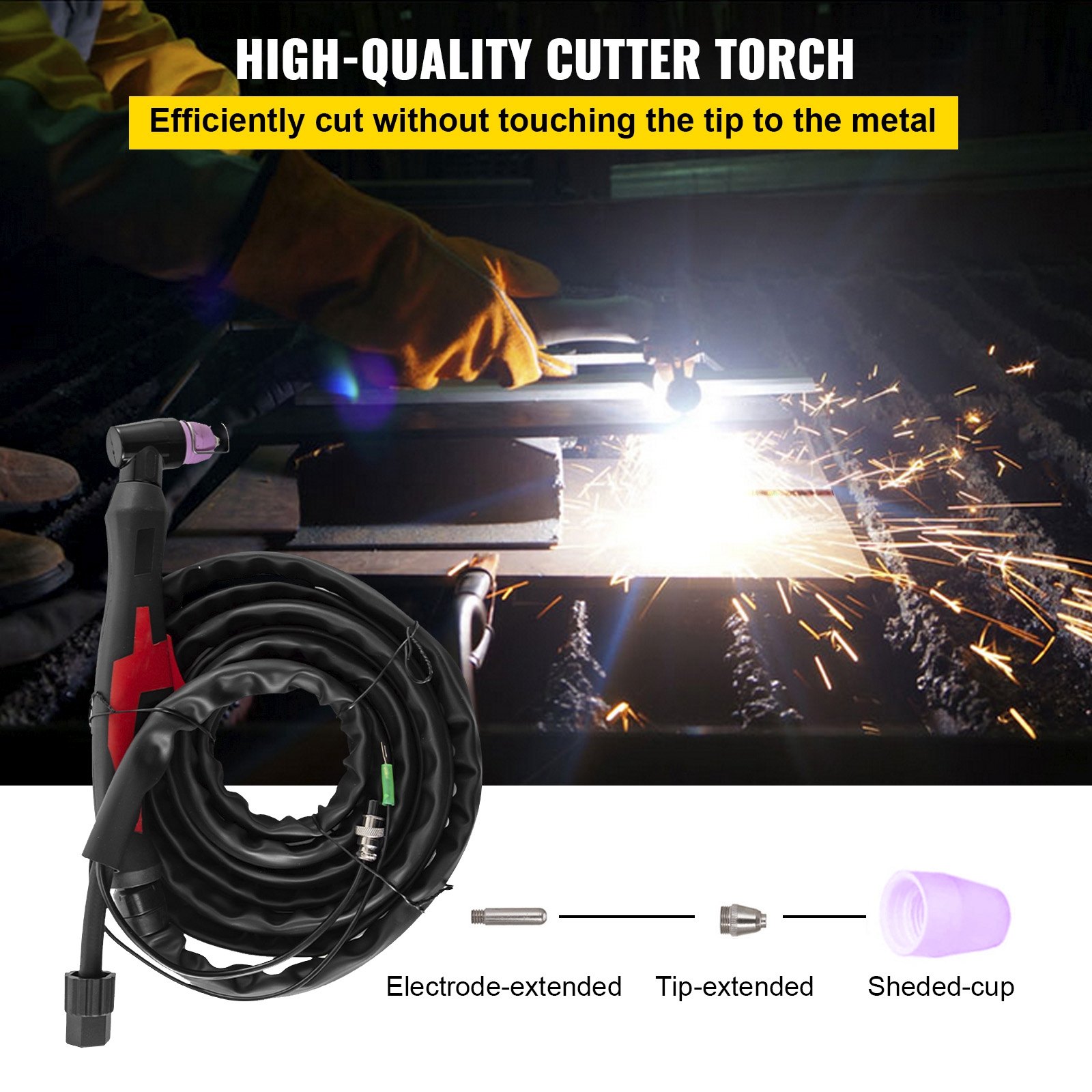

Plasma Cutter Torch

The 4M plasma cutting torch is easy to replace electrode and tip. Pilot arc technology allows you to cut without touching the tip to the metal.

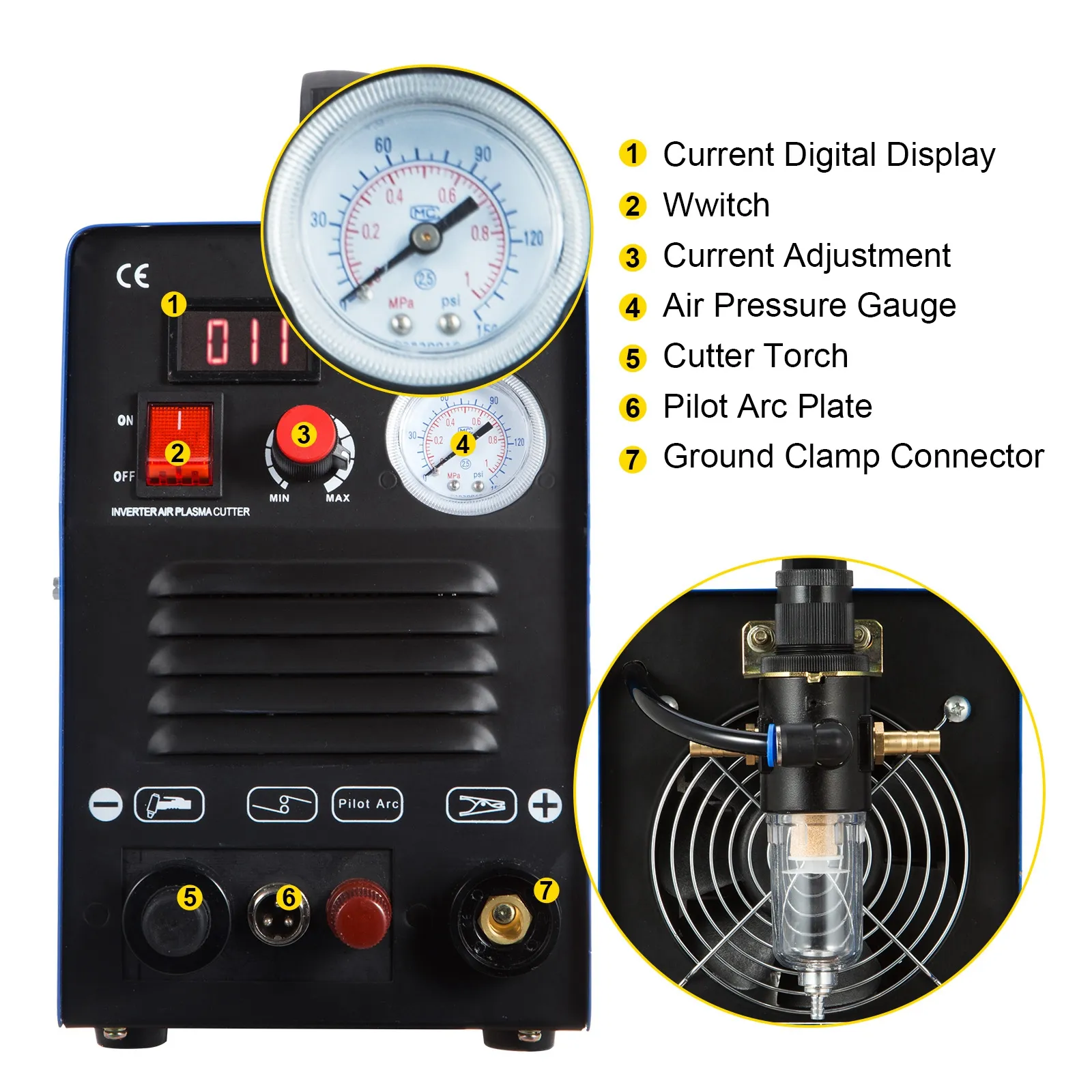

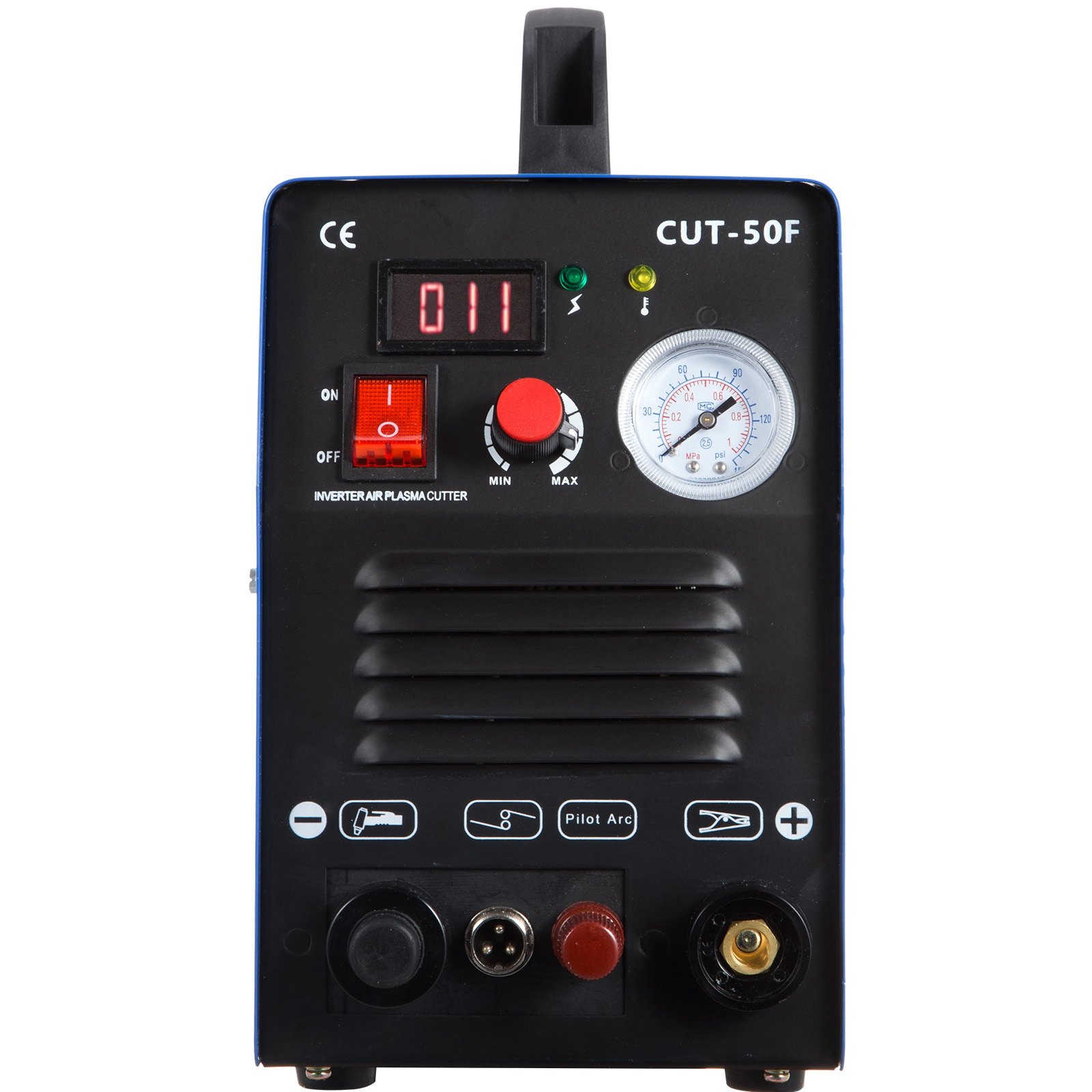

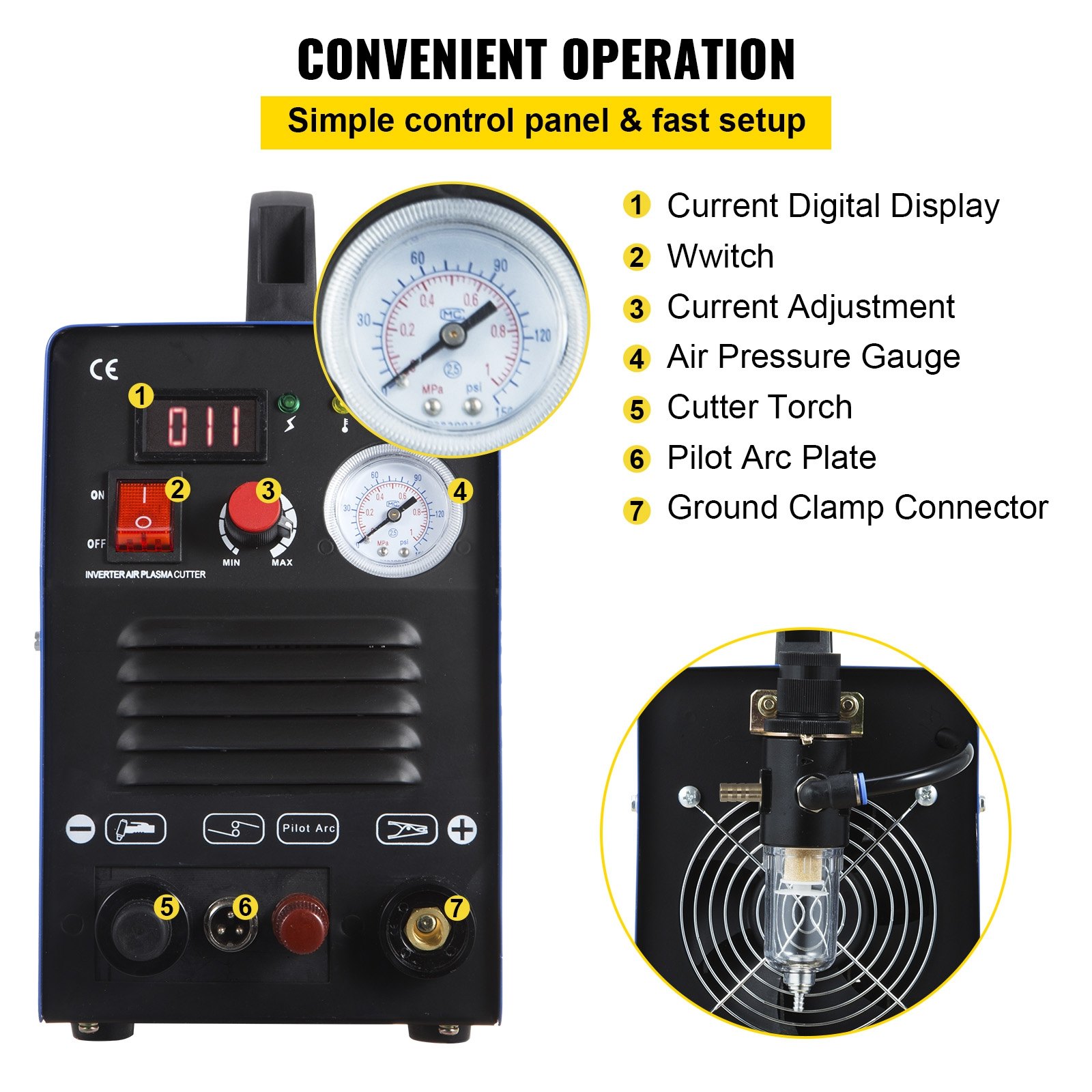

Easy to Operation

The simple but uncluttered control panel is easy to read and operate. In addition, the 220V input design allows the machine to connect to your existing wall outlet easily.

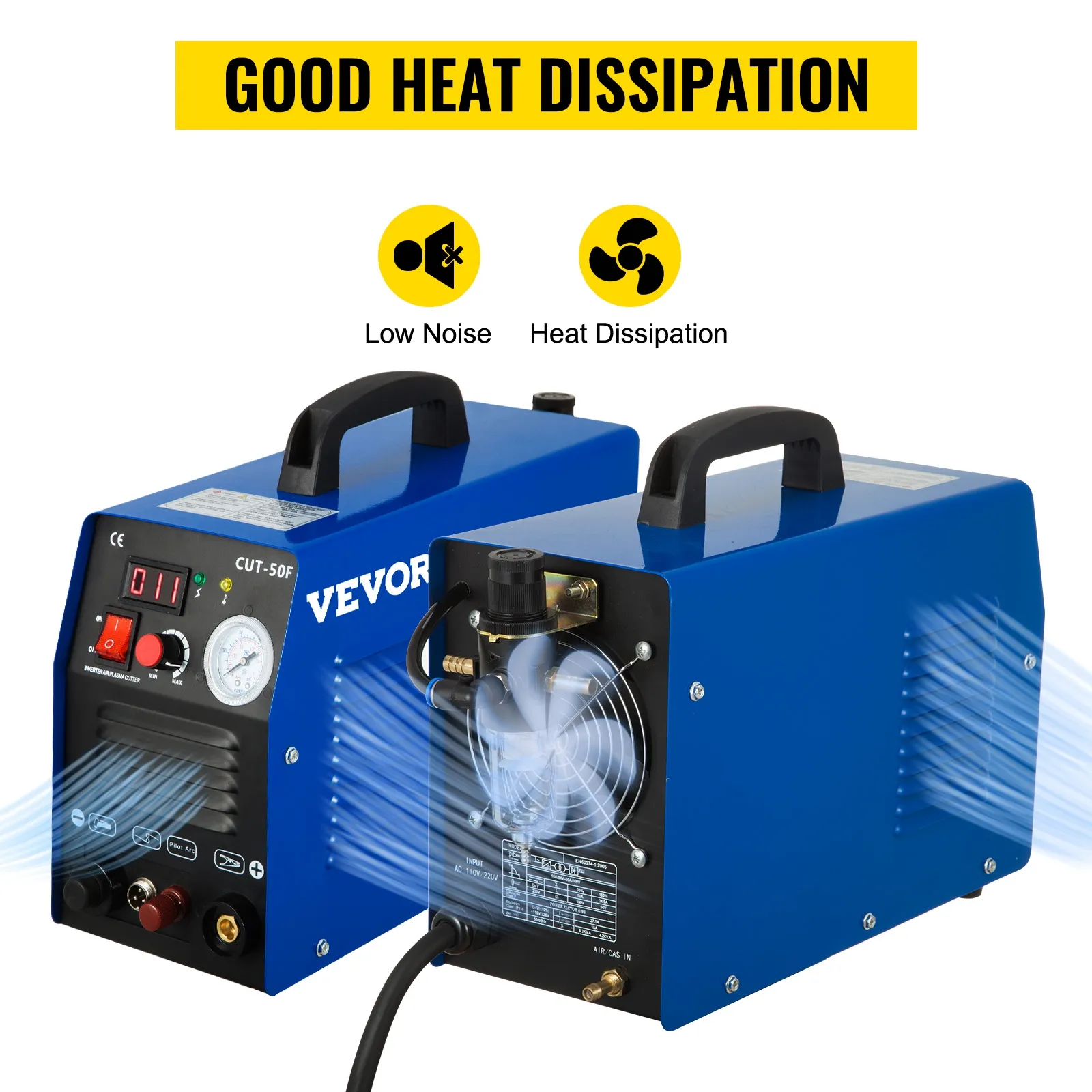

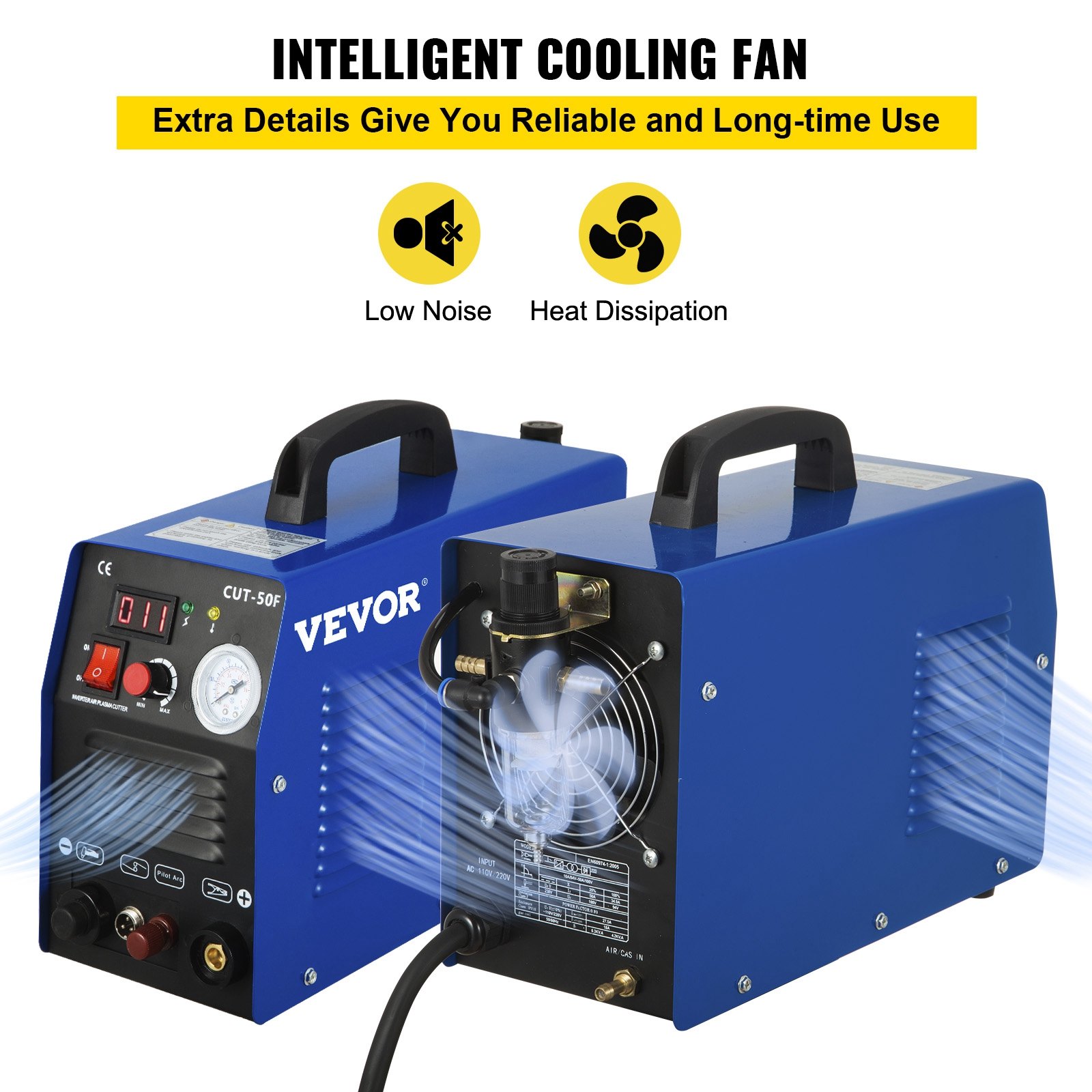

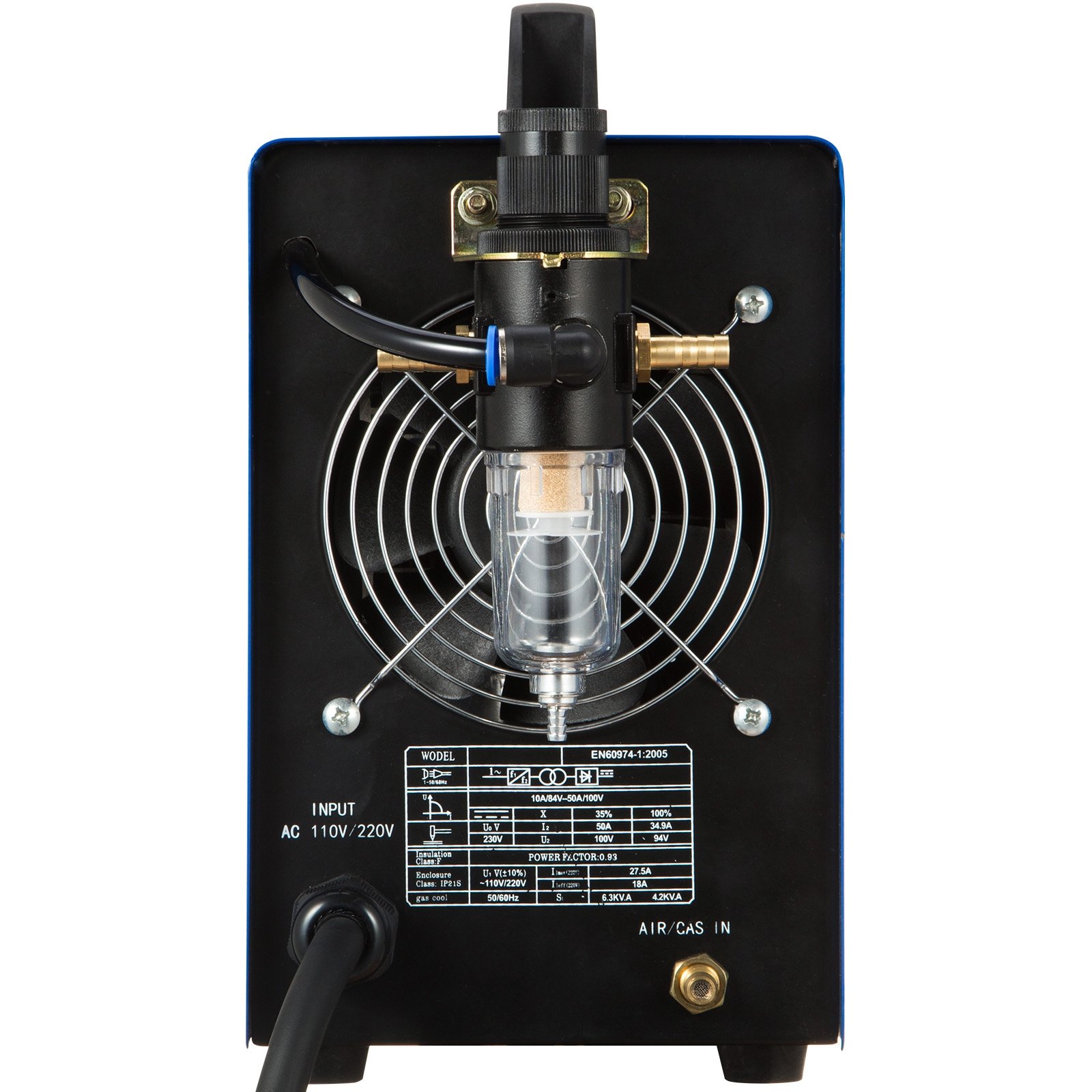

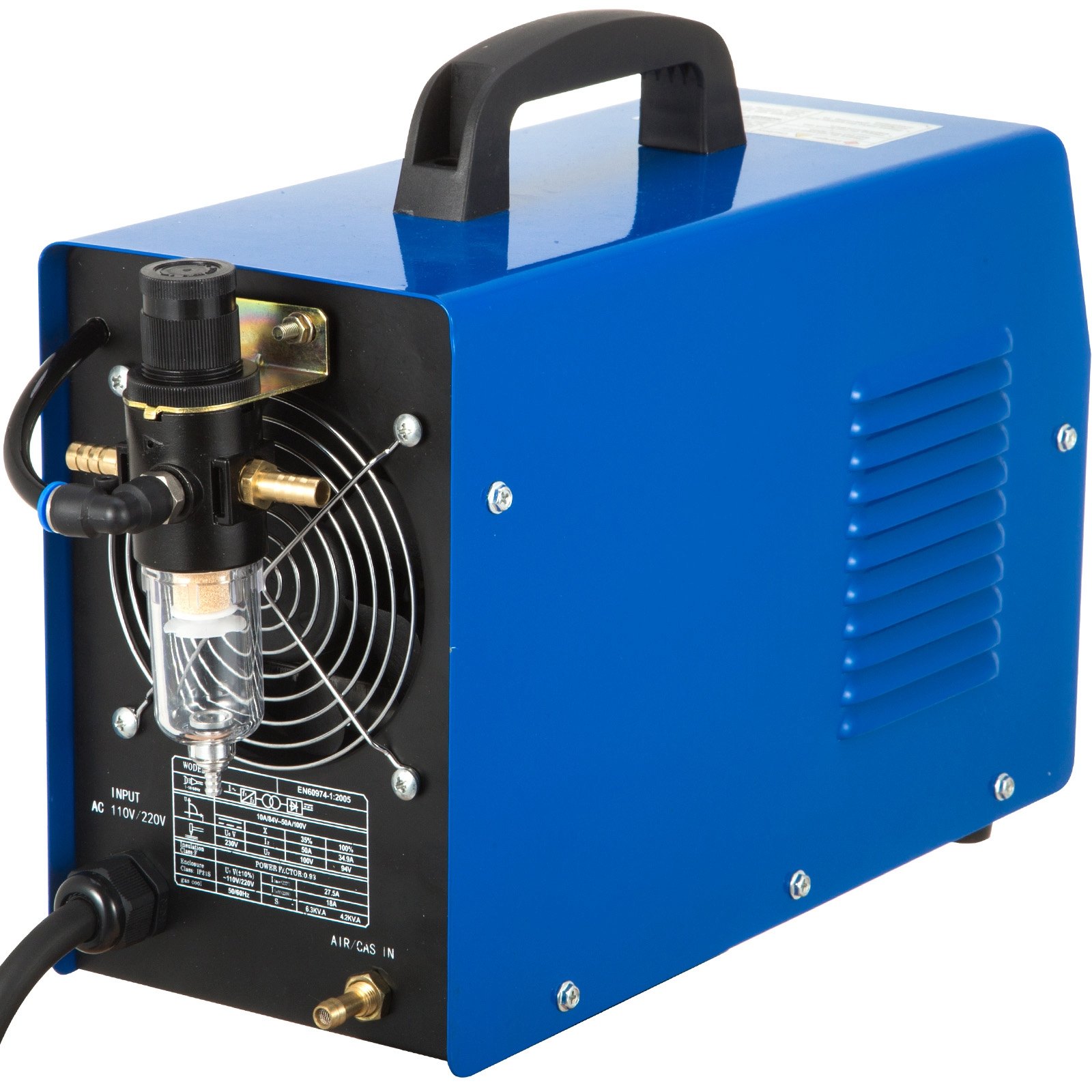

Good Heat Dissipation

The inner fan and heat emission hole on the side of the machine enables the plasma cutter machine to work steadily by its effective cooling.

Wide Application

It is perfect for home DIY in the garage and general repairing work such as cutting stainless steel, alloy steel, mild steel, copper, and aluminum.

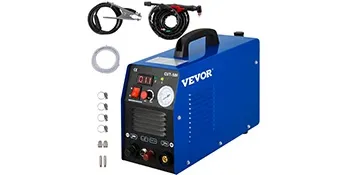

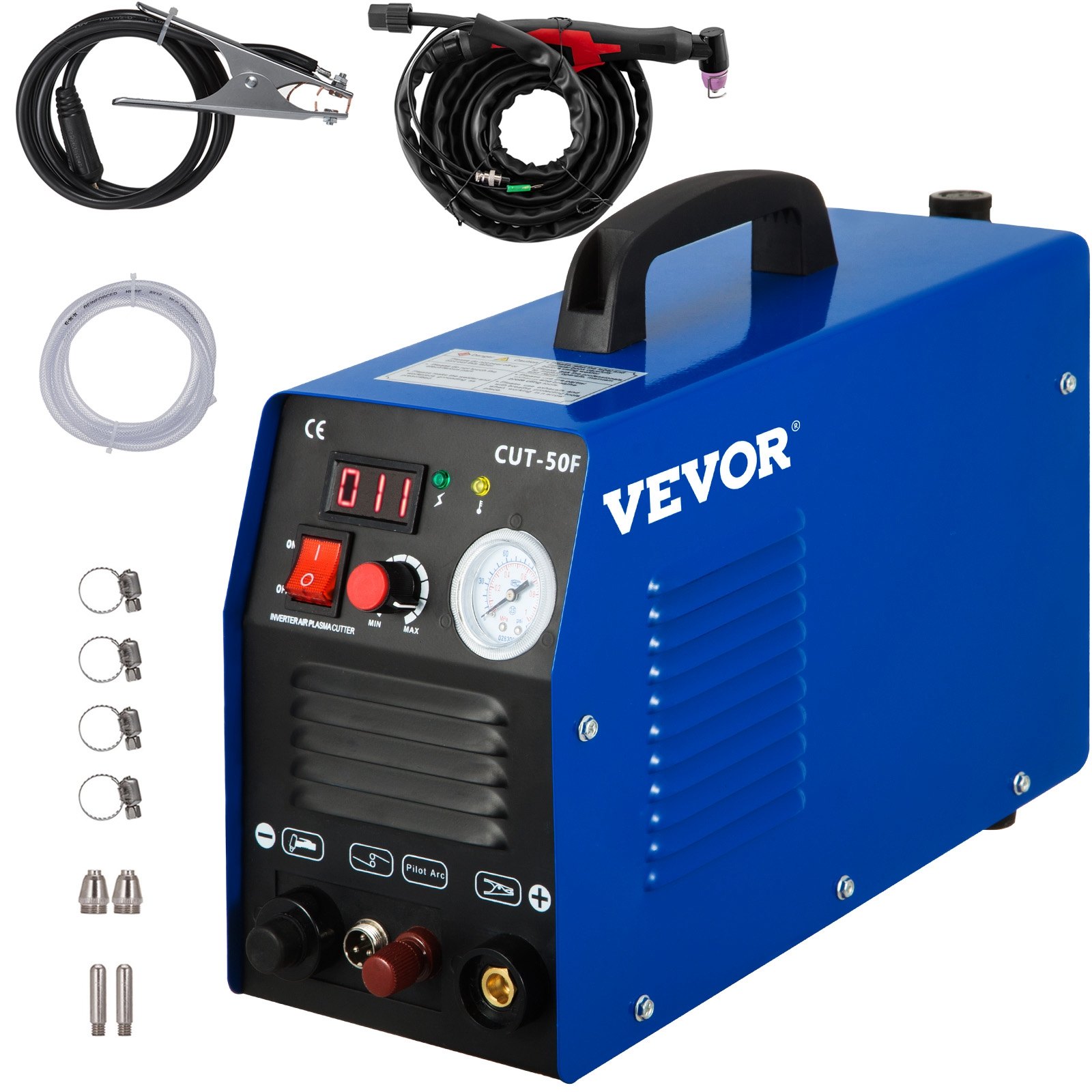

Package Content

1 x CUT-50F Non-Touch Pilot Arc Plasma Cutter
1 x 13 Feet AG-60 Cutting Torch
1 x 200A Grounding Clip
1 x AFR-2000 Oil Water Separator
4 x Hose Clamps
2 x Gas Joints
2 x Nozzles
2 x Electrodes
1 x 6.5FT Long Trachea (8mm x 12mm)
1 x Manual

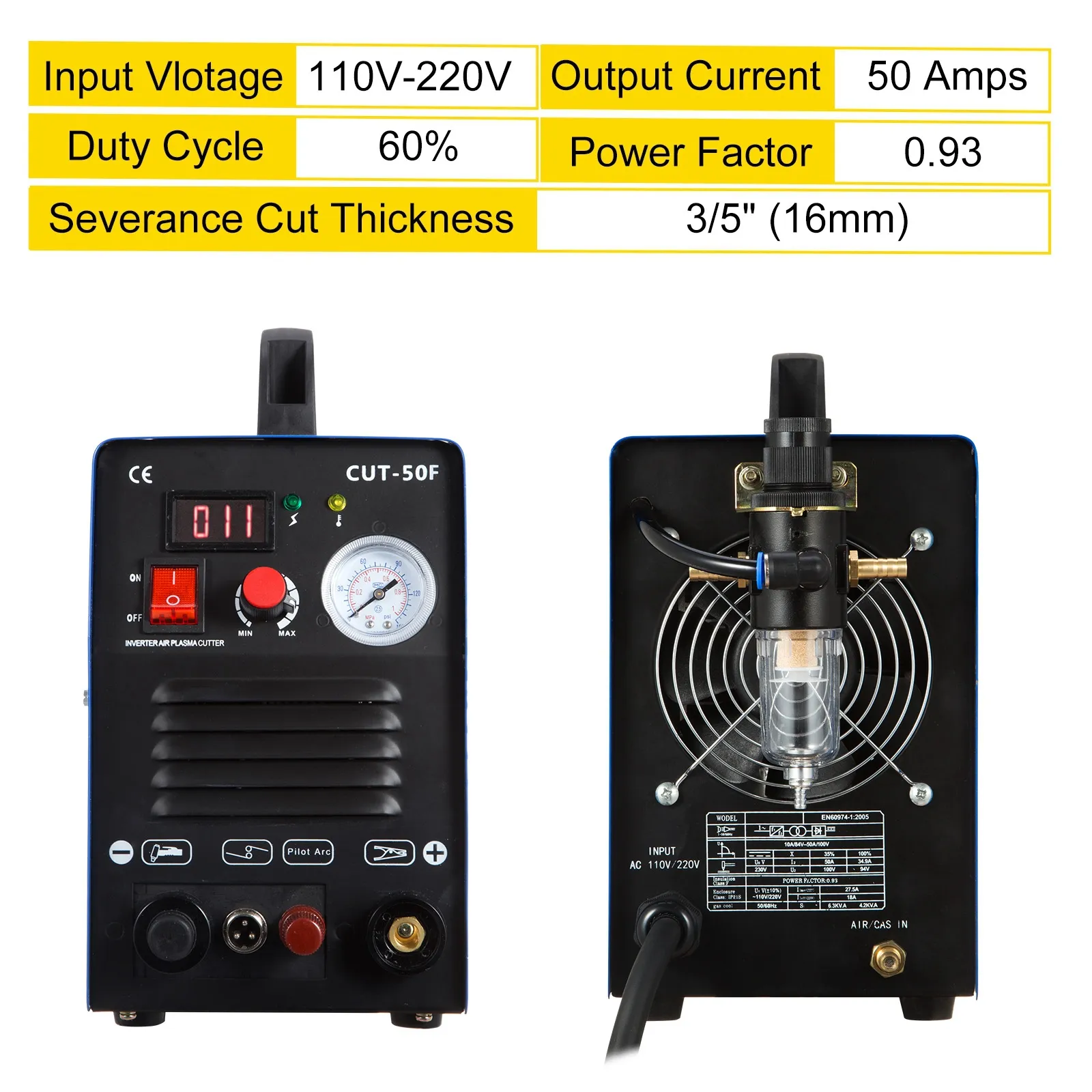

Specifications

Model: CUT-50F
Input Voltages: 110~220V, 1-PH, 50/60Hz
Input Current: 40A@110V, 1-PH/20A@220V, 1-PH
Output Current: 10~50A
Duty Cycle: 38A
Gas Supply: Clean, dry, oil-free air
Recommended Gas Inlet Flow Rate / Pressure: 3.6scfm @ 65psi
Maximum Severance Cut Thickness: 3/5" (16mm)
Mild Steel: Max. 14mm @ 50A
Stainless Steel: Max. 1/2'' / 12mm @ 50A
Aluminum: Max. 3/5" (16mm) @ 50A
Efficiency: 89%
Welding Current: 50A
Power Factor: 0.93
Protection Degree: IP21
Insulation Class: F

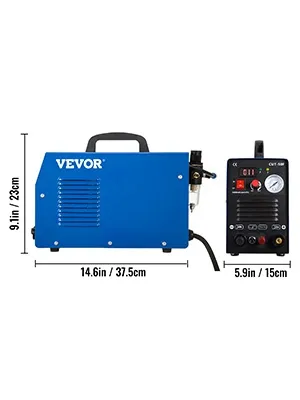

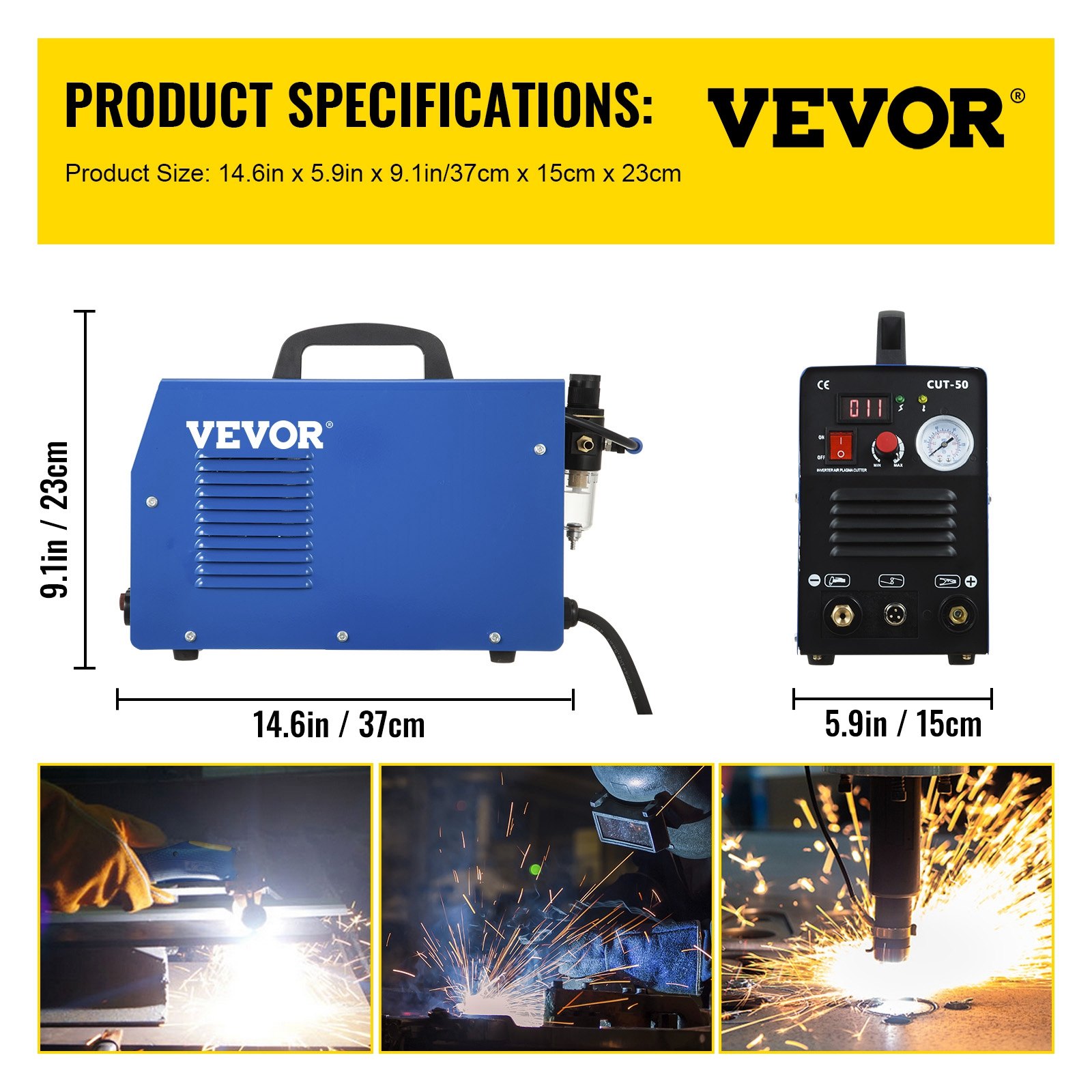

Dimensions (Lx Wx H): 37 x 15.5 x 30 cm
Weight: 25lb / 11kg

Specification

Model: CUT-50F

Input Voltages: 110~220V, 1-PH, 50/60Hz

Input Current: 40A@110V, 1-PH/20A@220V, 1-PH

Output Current: 10~50A

Duty Cycle: 38A

Gas Supply: Clean, dry, oil-free air

Recommended Gas Inlet Flow Rate / Pressure: 3.6scfm @ 65psi

Maximum Severance Cut Thickness: 3/5" (16mm)

Mild Steel: Max. 14mm @ 50A

Stainless Steel: Max. 1/2'' / 12mm @ 50A

Aluminum: Max. 3/5" (16mm) @ 50A

Efficiency: 89%

Welding Current: 50A

Power Factor: 0.93

Protection Degree: IP21

Insulation Class: F

Dimensions (Lx Wx H): 37 x 15.5 x 30 cm

Weight: 25lb / 11kg

For the price, you cannot beat it. Sliced through 3/ 8" steel like butter. Such a deal ! Tried on 110 and 220V , works well for sheetmetal on 110v, 220V for thicker stock. I purchased extra consumables from Amazon. pretty inexpensive. All in all, not a bad little machine.

I absolutely love this cutter, went into the garage with my sons and we all learned how to use it very quickly. Anything that destroys metal and shoots sparks is easy to get everyone wanting to try it. But seriously it works great once I learned how to set my air pressure accordingly. It cut everything we put in front of it, and pretty fast too. The cutts were crooked at first but that's because we were not good at looking at it through the dark welding helmet. But with some practice the cuts improved greatly. I would definitely recommend this plasma cutter for anyone who has wanted to work with steel in there garage/ shop. It's totally legitimate, and I also purchased the vevor mig welder to put the steel together with, between both I have like $450 in both, witch I couldn't get a 50 amp plasma cutter at my local store for $900. So great price, great product, it's well built and the torch seems well built too, I honestly was expecting less for the price point. I would like to try more vevor tools . I'm super impressed by vevor with everything I have used so far

30A on my 220V outlet works well for me. You need to make sure the arc transfers to the metal and not remain on the pilot. It gets brighter when that happens.

Customer Reviews

4.8 Out of 5

Based on 167 reviews

Ratings by Features

Price 4.8
Quality 4.7
Features 4.7
Easy to Use 4.7
See More See Less

167 Review(s)

Clear filters

Eric English

50amp plasma cutter

Product works awesome cuts very clean recommend to run on 220 me personally everytime I run on 110 I blow braker

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

andy

Mr.

Ray Sulich

Bought for no tap start. We'll constructed, small and light. Only issue was I had to take it apart to get the protective film of the display.

Zach

Vevor plasma cutter 50a

Phil

Darin

Plasma cutter

I bought one of these for work and was so happy with the way it worked I bought this unit for Home. I use them often and so far I have had no issues.

Plasma Cutter

I was pleasantly surprised with this machine. It does what it says it does on 220 volts. On 110 Volts it doesn't cut very well but it does cut. I

Kenneth Mock jr

Owner

It is a good machine for the price the only problem is getting tips for it had to do a lot of research to find tips

Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful

Linn

Business owner

Nice little machine works well but the air line hose takes a lot of air expanding, better to just put a fitting on and hook up a real air hose to it. Other than that we were able to cut 3/8 on 37 setting with an old generator. Can't wait to see what it will do hooked up to an outlet.

Dennis

I was slightly skeptical of a $200 plasma cutter but since I have had great luck with other Vevor products I went ahead and ordered it. It arrived quickly and was relatively simple to set up. I had never used a plasma cutter before so I have no reference to how to compare it to plasma cutters but I thought this worked great for my needs. It took a little practice to get the hang of it and I had to go over some cuts twice but I was pleasantly surprised at the results.
