Features & Details

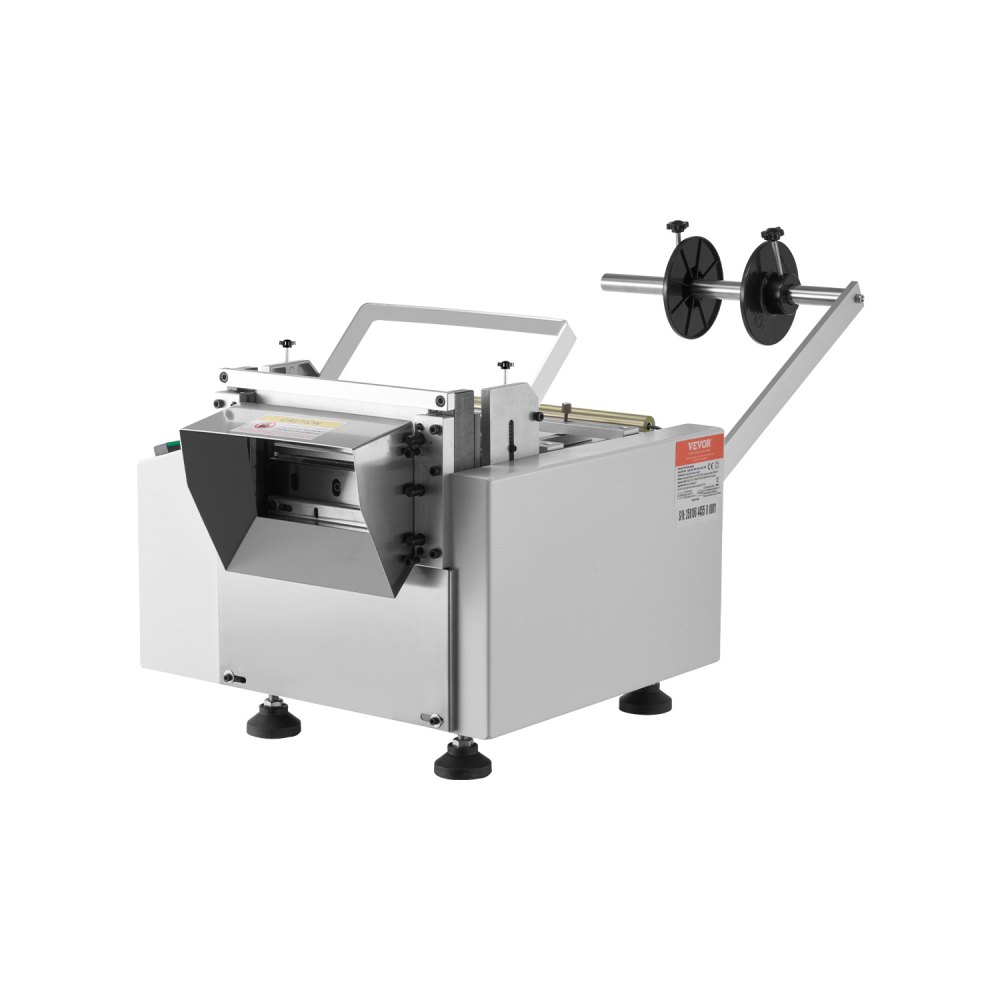

• Efficient and Precise Cutting: This automatic heat-shrink tube cutter provides quick and accurate cutting, with 1mm to 180mm cutting width, 0.1mm to 99999.9mm cutting lengths, 0.1mm to 0.6mm cutting thickness and 0.1mm cutting precision. It can make 100-120 cuts per minute, at a 34m/min feeding speed, and is capable of cutting multiple films simultaneously.
• Easy-to-Use Automation System: Our HZX-200 automatic cutting machine is equipped with a micro-computer control program, making it simple to operate. The cutting length and speed are easy to set on the convenient control panel, and the LCD screen clearly displays the data, allowing for efficient and fast adjustments.
• Ideal for a Wide Range of Materials: Designed to handle a wide range of materials like PVC film, PE film, non-woven fabric, insulating paper, copper foil, aluminum foil, nickel foil, PET film, and thin heat shrink tubes, this automatic pipe cutter ensures precise cuts, significantly enhancing work efficiency.
• Safety Features & Memory Function: This automated cutting machine will automatically stop working when the cutting process is completed or when there is no material left to cut. Additionally, it has a memory function—the set length and speed will remain saved even after shutdown, eliminating the need for reconfiguration during the next use.
• High-Quality Blade for Sharp Cuts: The automatic cutter machine features SKD2 high-speed steel blade, offering exceptional sharpness and durability. It ensures precise, smooth and clean cut, delivering flat cuts for various materials. And the built-in cooling fan helps dissipate heat and prevents motor overheating, ensuring optimal performance.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

HZX-200

Cutting Length

0.1 - 99999.9mm

Cutting Width

1 - 180 mm

Cutting Thickness

0.1 - 0.6 mm

Cutting Speed

100 - 120 cut/min

Feeding Speed

34 m/min, 0.1 mm Precision

Net Weight

77.6 lbs / 35.2 kg

Product Size

31.5 x 16.2 x 16.5 inch / 800 x 412 x 420 mm

Description

Automatic, Fast, and Precise Cutting

This automatic cutting machine offers efficient and precise cutting for multiple materials. It features 1mm to 180mm cutting width, 0.1mm to 99999.9mm cutting lengths, 0.1mm to 0.6mm cutting thickness, automated control, and a user-friendly operation panel, ensuring reliable cutting performance.

•
•

Automatic ControlAutomatic Stop

•
•

Automatic ControlAutomatic Stop

•
•

Sharp BladeCooling Fan

•
•

Sharp BladeCooling Fan

•

Applicable Materials

Key Features

Feeding Rod

The high-quality feeding rod ensures smooth and precise material feeding, minimizing disruption during the cutting process.

Feeding Track

The feeding track guides the material smoothly into the cutting area, enabling fast and efficient feeding while reducing the risk of material jamming or misalignment.

Cutting Tube Outlet

Equipped with a reliable cutting tube outlet, this cutting machine ensures that materials are easily expelled after cutting, minimizing clogs and prevent material buildup.
