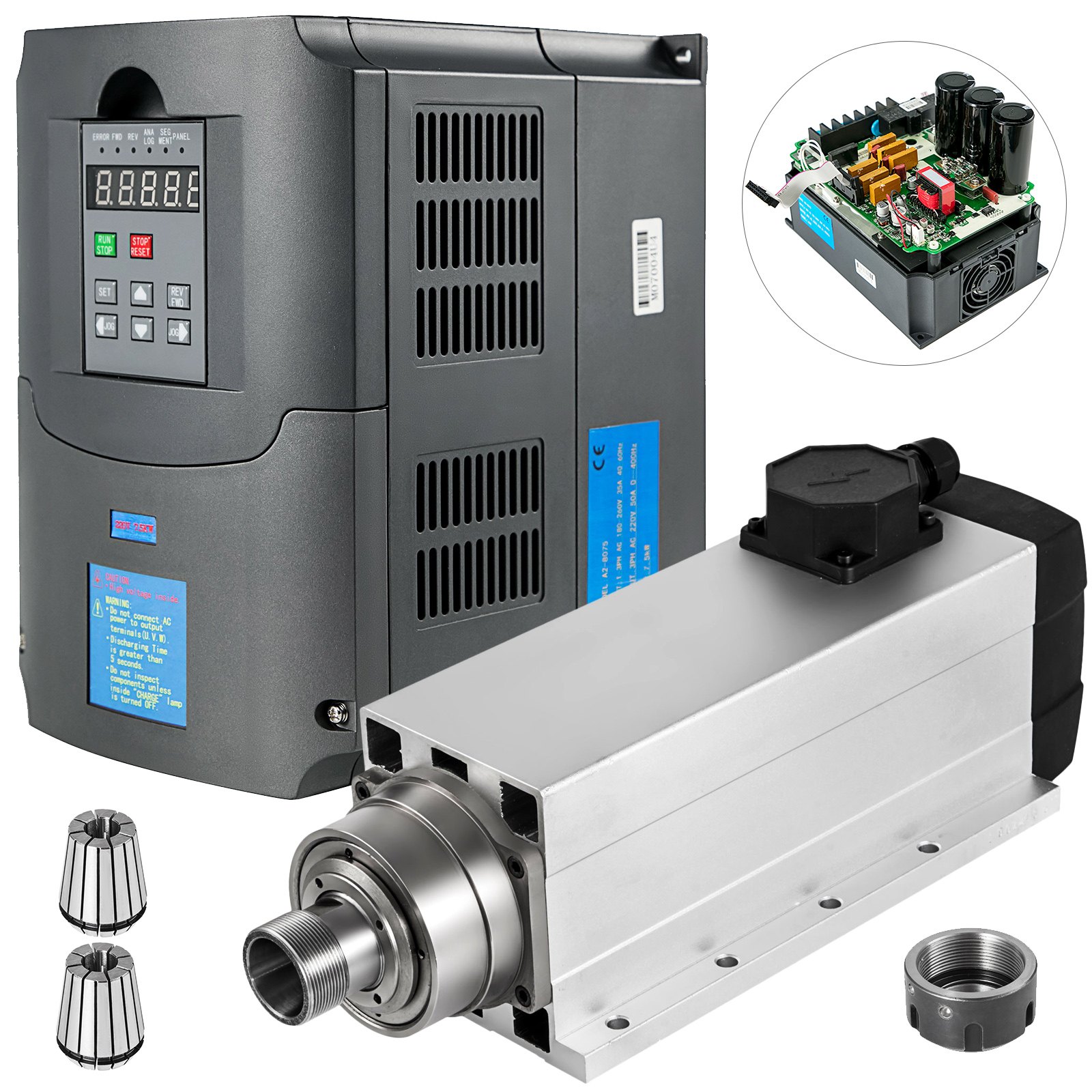

VEVOR Spindle Motor 7.5KW Square Air Cooled Spindle Motor ER32 Collect 18000RPM& VFD Variable Frequency Drive 220V 7.5KW for CNC Router Engraving Milling Machine
Save up to 15% with PRO price. Sign up for free PRO Account.
About this item
This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. This item use Sine wave PWN(SPWM ) for the control system and performance excellently.
【PRODUCT DETAILS】- The spindle motor features 7.5KW, 18000rpm, with ER32 (6 mm) collet. The 10HP 7.5KW variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
【PREMIUM QUALITY】- The spindle motor and the VFD are made of high quality material. So they have stable performance, easy operation, high quality, less noise and so on.
【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
VEVOR Spindle Motor 7.5KW Square Air Cooled Spindle Motor ER32 Collect 18000RPM& VFD Variable Frequency Drive 220V 7.5KW for CNC Router Engraving Milling Machine
The Spindle Motor features 7.5KW, 18000rpm, with ER32 (6 mm) collet. Suitable for milling and engraving machines.The product is made of high-qualified material, so the products have the following advantages: stable performance, easy operation, high quality, less noise and so on. NOTE: This product can only use three-phase electricity. This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. This item use Sine wave PWN(SPWM ) for the control system and performance excellently.
【PRODUCT DETAILS】- The spindle motor features 7.5KW, 18000rpm, with ER32 (6 mm) collet. The 10HP 7.5KW variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
【PREMIUM QUALITY】- The spindle motor and the VFD are made of high quality material. So they have stable performance, easy operation, high quality, less noise and so on.
【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
【WORKS COOPERATIVELY】- The air cooled spindle, together with variable frequency drive inverter, it's definitely a nice combination to imporve the work efficiency and performace of the VFD.
Product Parameters
The air-cooled spindle motor features stable performance and low noise, with 18,000 rpm and ER32 (6 mm) collet. The 10HP 7.5KW VFD is 220V inpute voltage, 208-240VAC output voltage, 48-63 Hz inpute frequency, 1 or 3 phase inpute phase, 3 phase outpute phase.
Superior Quality
Both of the VFD and air cooled spindle motor use the superior material to make. They are exquisite in appearance and fine in workmanship. The fabulous materials provide them stable perfromance and a great experience of use.
Excellent Performance
The PID control technology that uses advanced calculous PID closed-loop arithmetic is applied in the VFD. That gives it quick responding speed as well as high suitability. It also supports low output ratting torque0.5HZ-150% and low speed running ability.

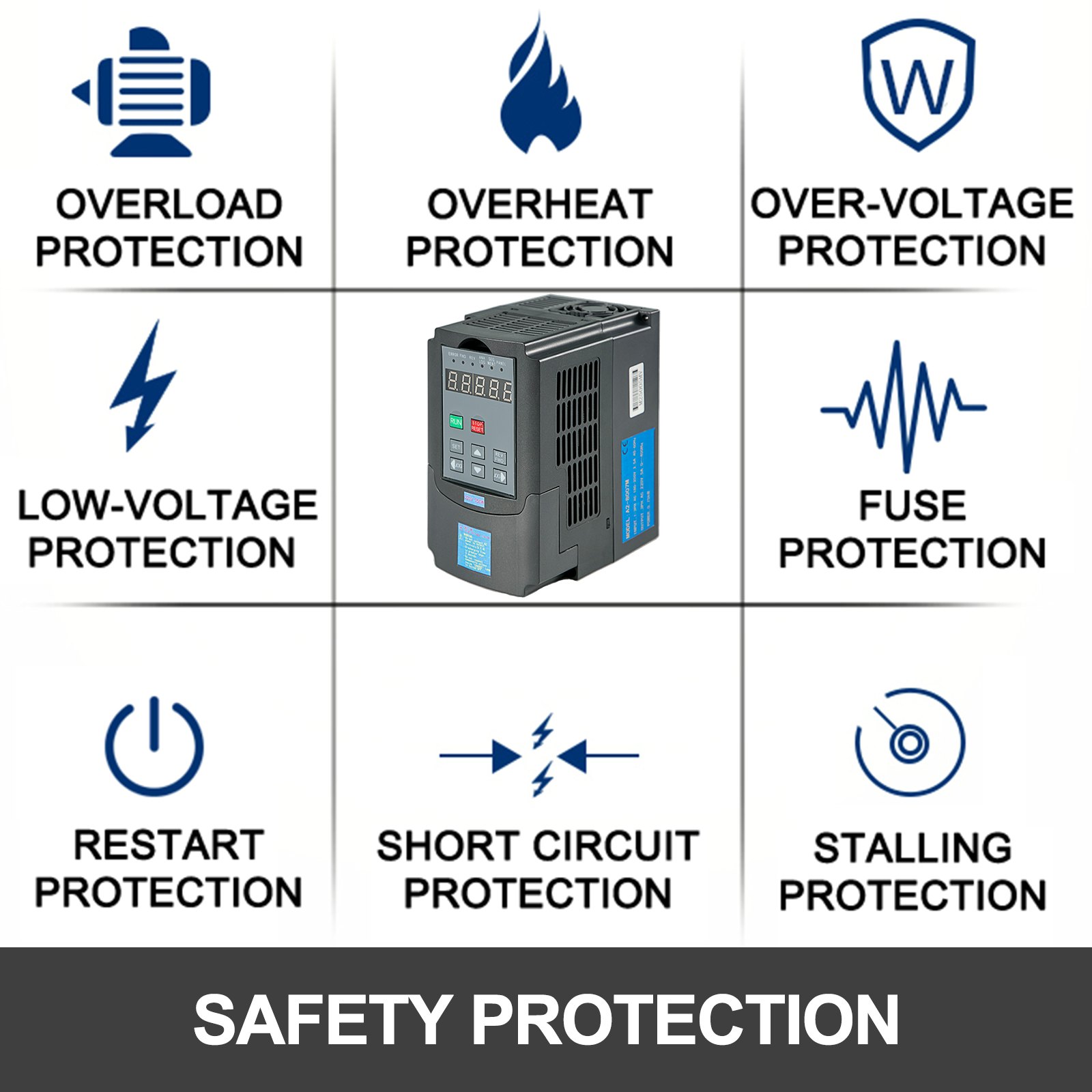

Perfect Protection System
The VFD has perfect protection systems such as the overload protection, short circuit starting protection and fuse protection. If something wrong happens, the machine will stop in time, which will help recuce the damage to the product.
Easy PLC Function
Easy PLC function of the VFD drive can realize 16 legs of speed and inverter control function with extremely strong anti-jamming capability. It has many advantages like small size, light weight and low energy consumption.
Fast Assemble
All devices needed for installation is provided in the box. The English manual will be provided for the variable frequency drive inverter. It's easy and convenient for you to finish a fast assemble.
Technical Parameters for Variable Frequency Drive Inverter
Inpute Voltage: 220V
Output Voltage: 208-240VAC ( analogous to Input Voltage )
Inpute Frequency: 48-63 Hz
Outpute Frequency: 0-400 Hz

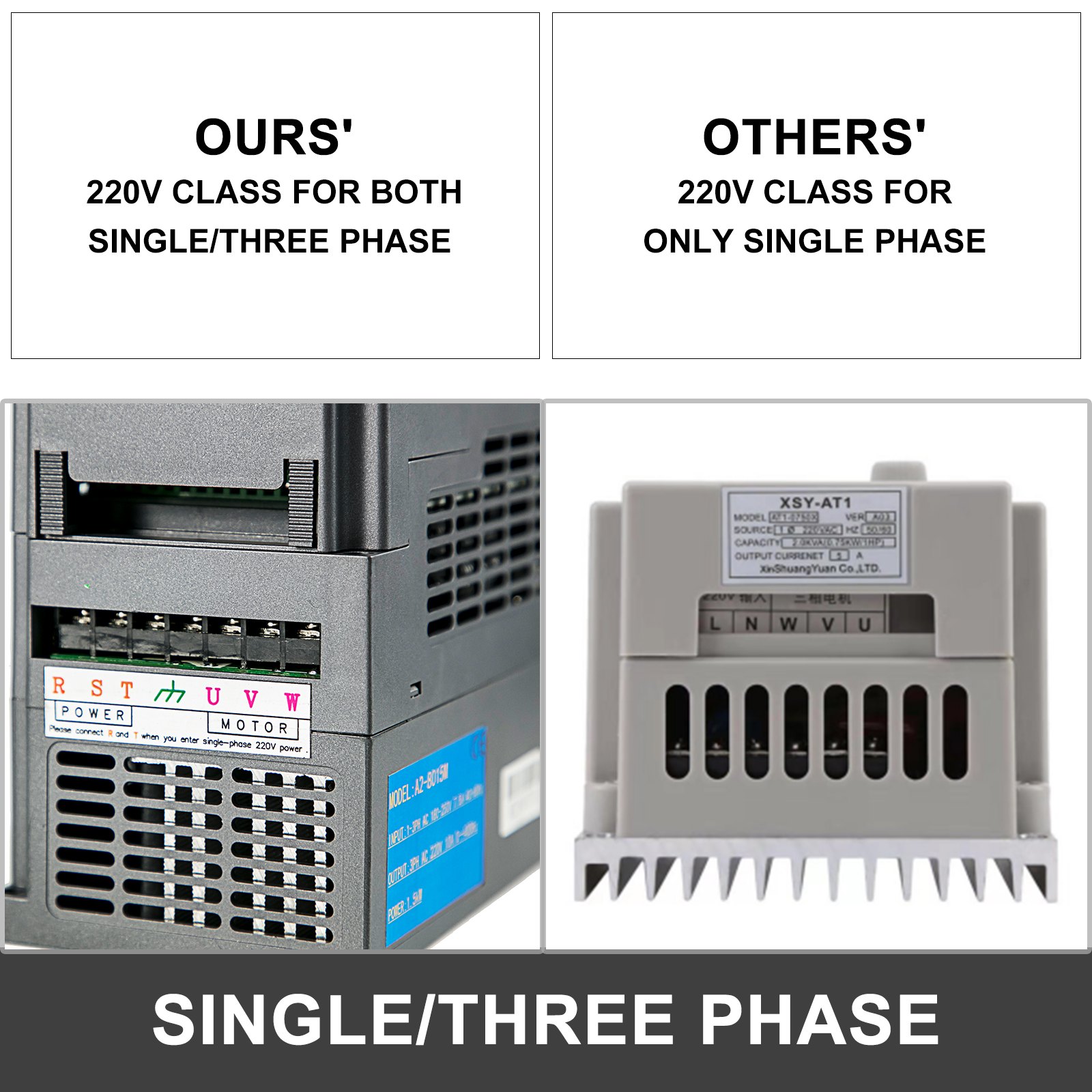

Inpute Phase: 1 or 3 phase as you like
Outpute Phase: 3 phase
Series:HY inverters
Control Mode:SPWM
Input Power:220V class：220±15%
5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
Working Temperature:-10~40℃
Humidity:0-95% Relative Humidity（without dew）
Vibration:Below 0.5G

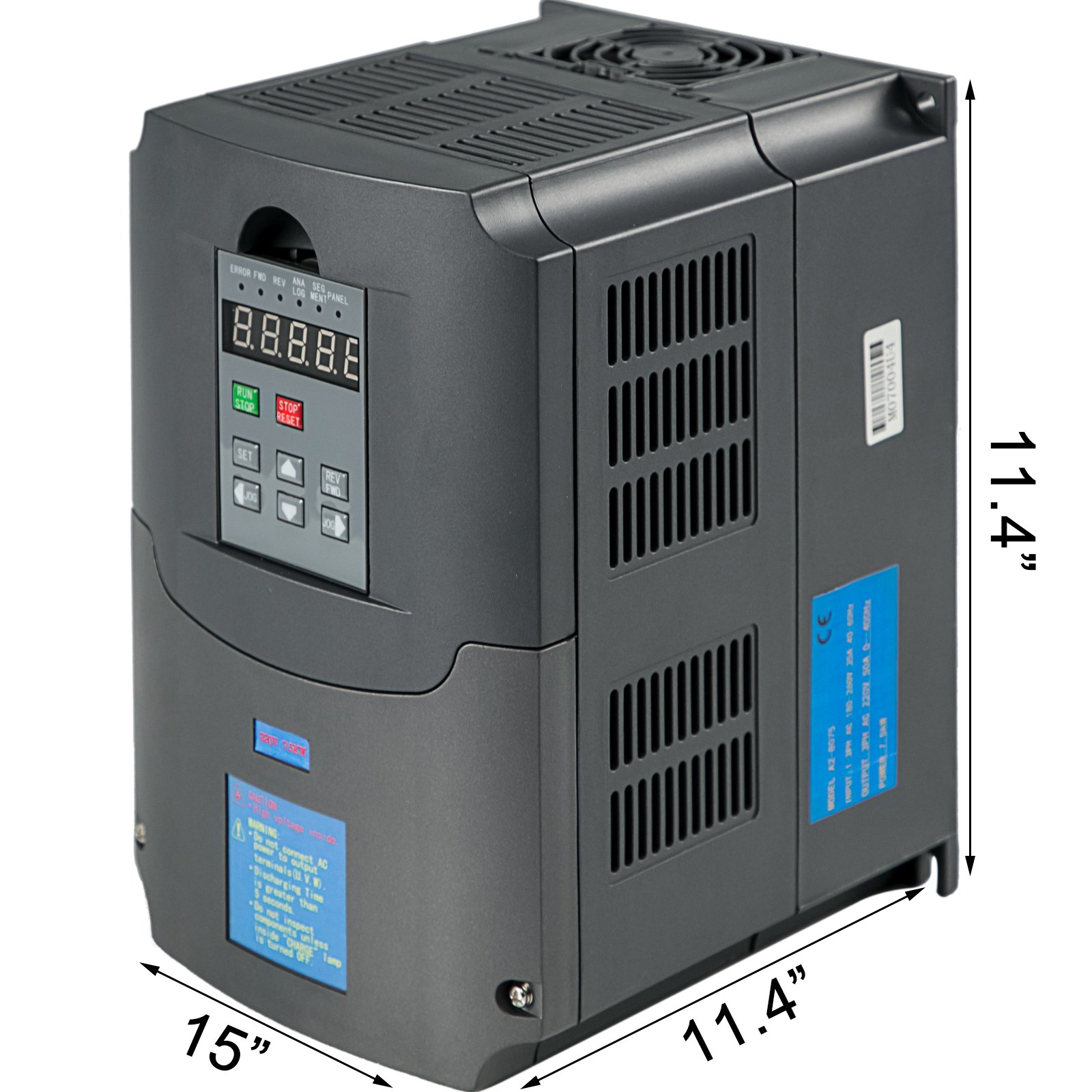

Dimension: 38 x 29 x 29cm(L x W x H)

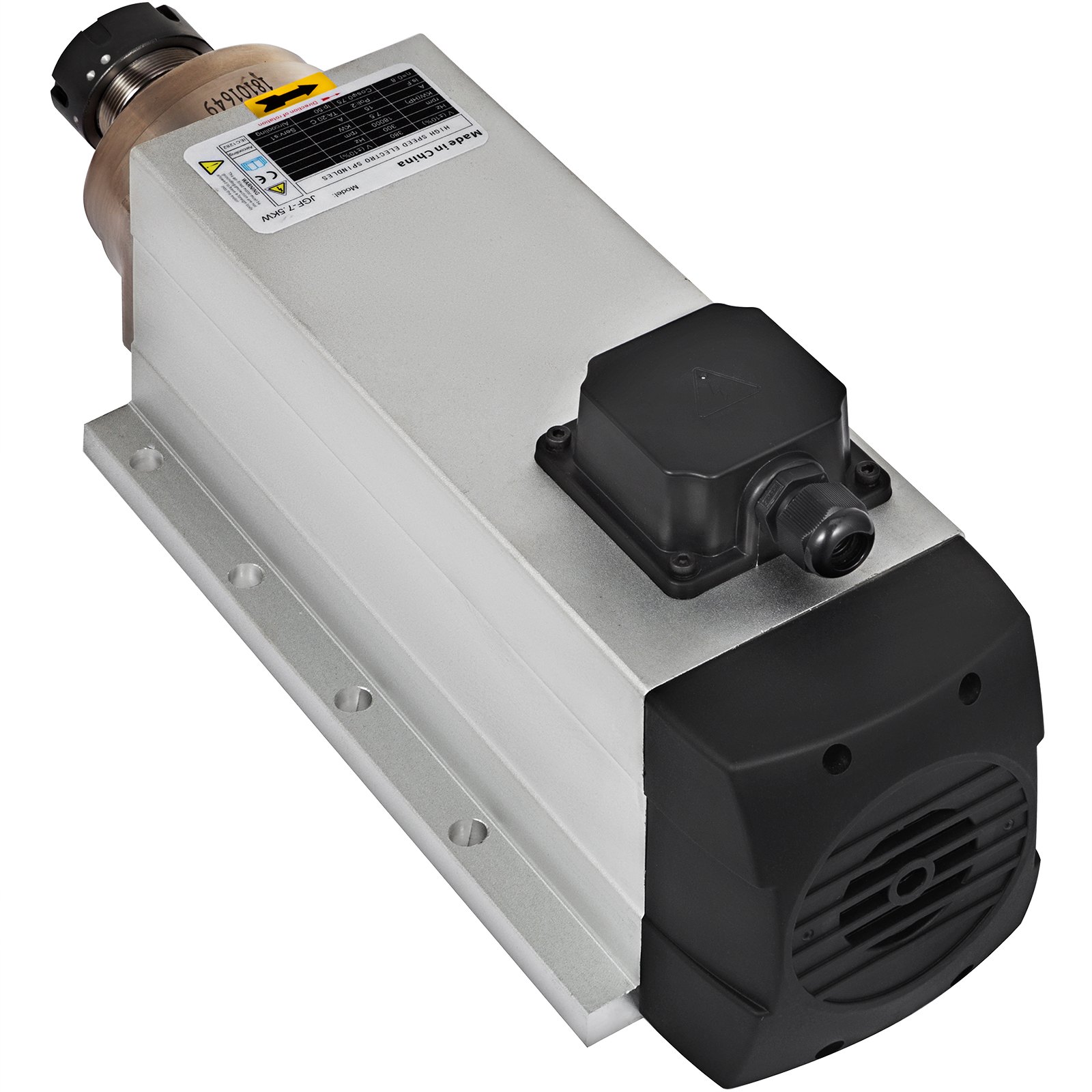

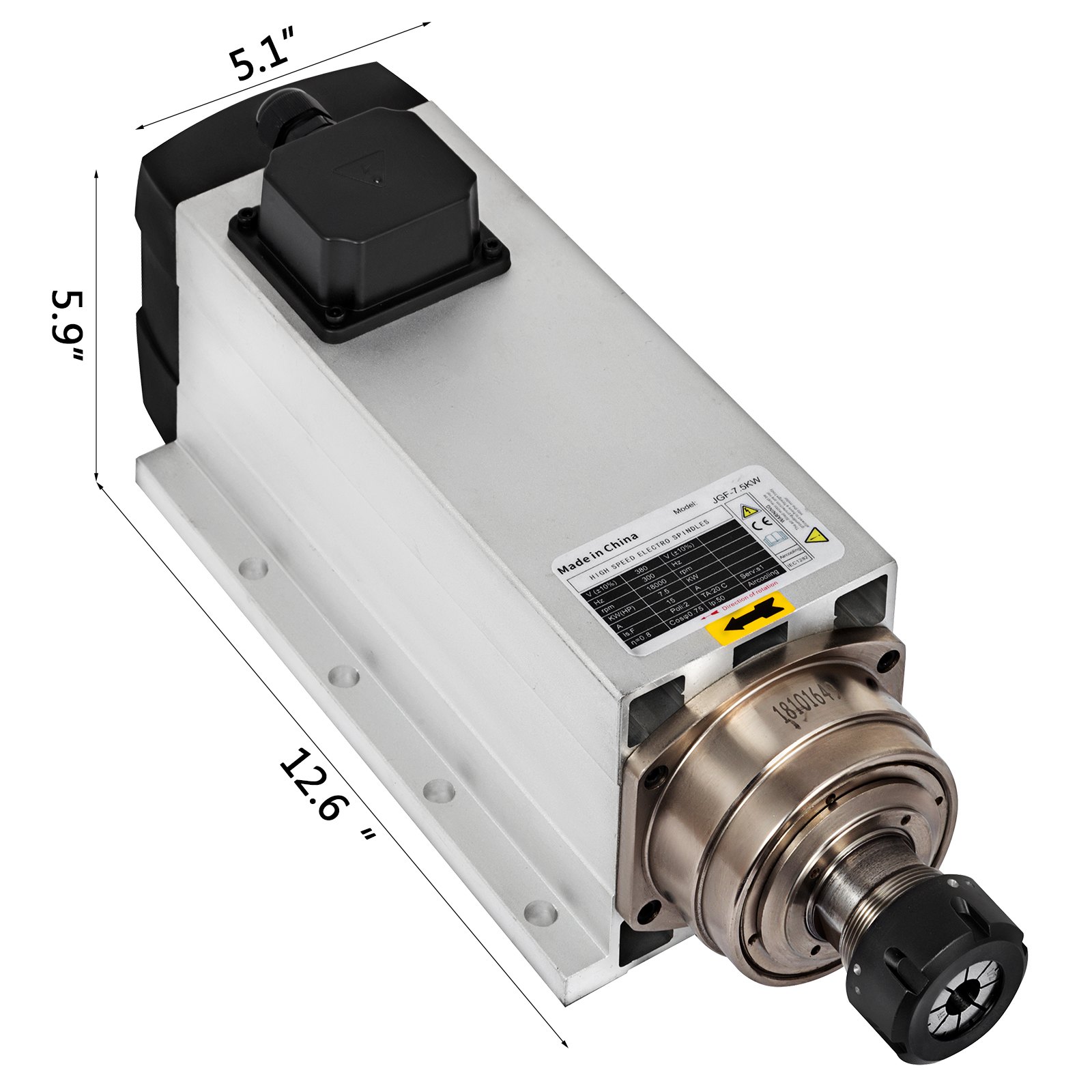

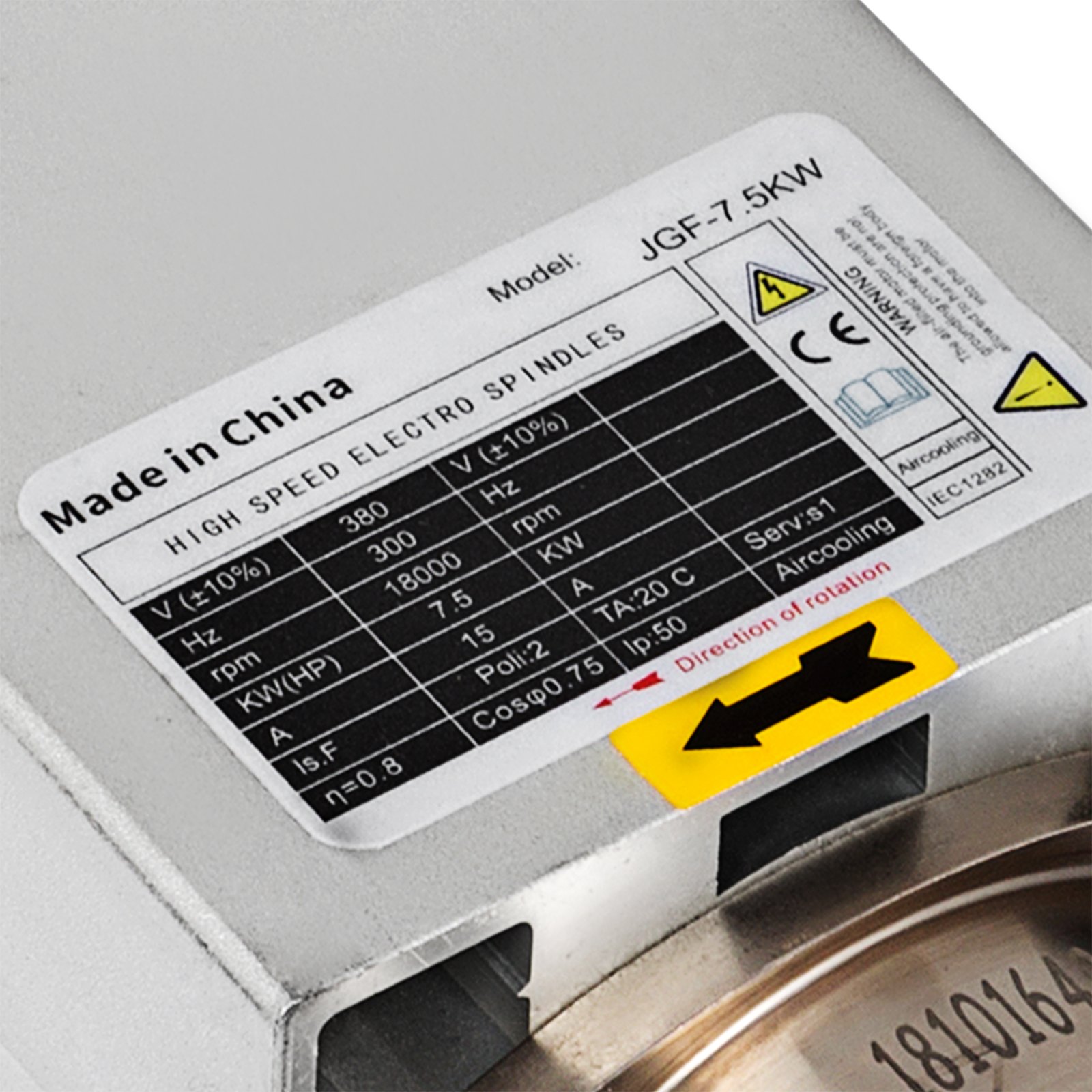

Technical Parameters for Spindle Motor
Model: YS9055T
Cooling: Air-cooled
Rated power: 7.5 KW
Voltage: 380 V
Current: 15.0 A
Frequency: 300 Hz

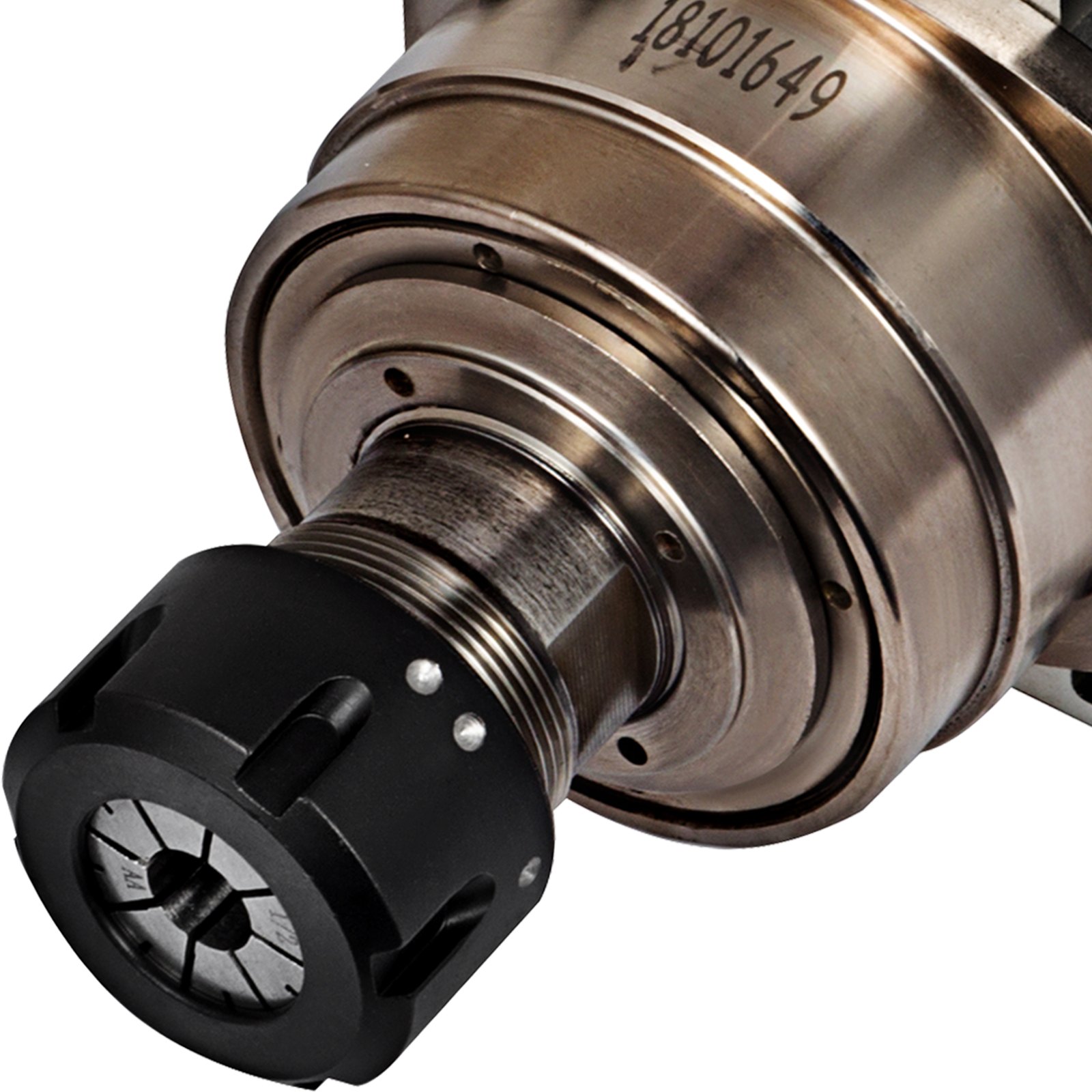

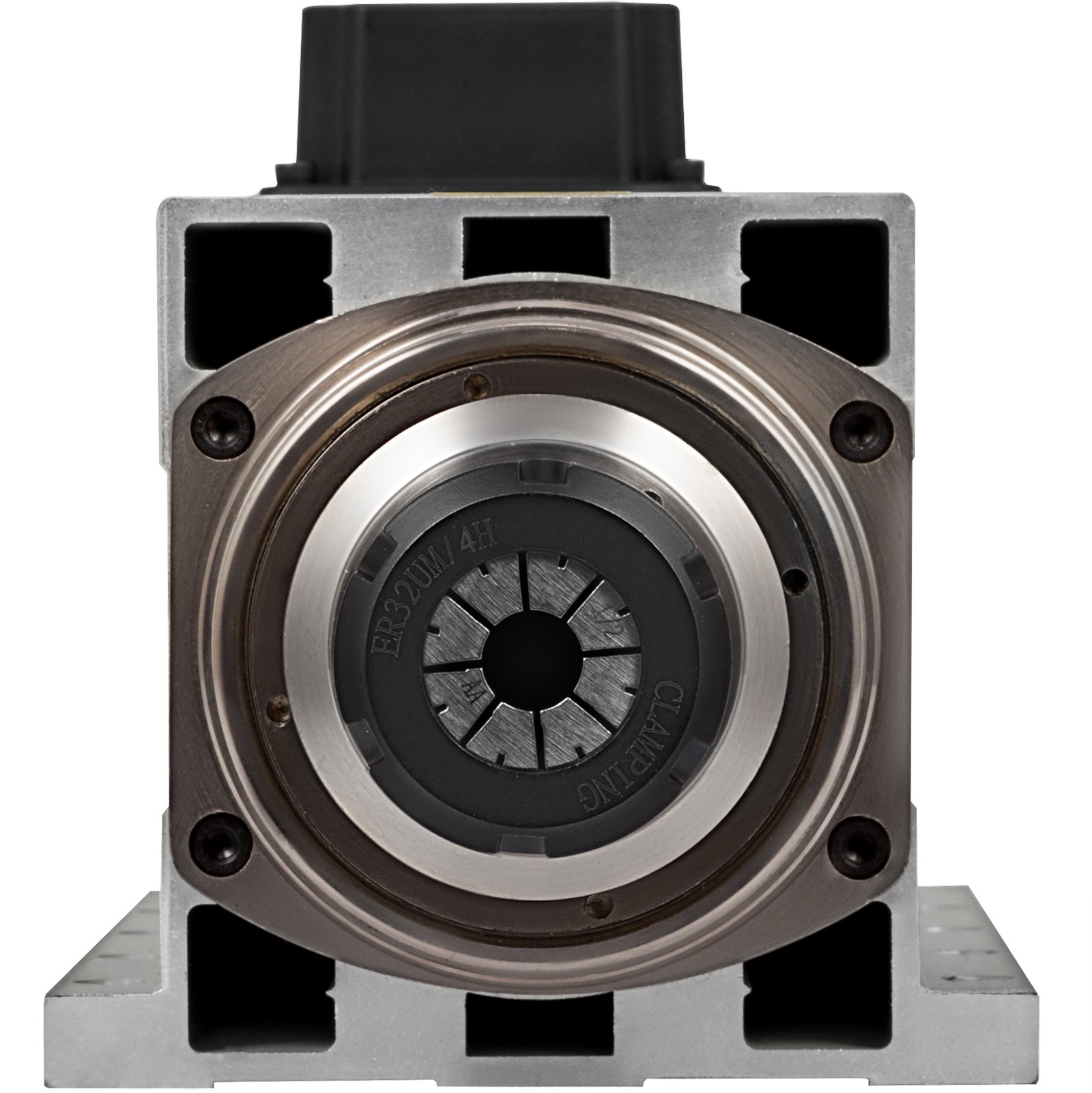

Collet: ER32 (6 mm)
Rotating speed: 1-18000 rpm
Runout off: 0.01 mm
Connection of spindle end: ER32 Φ4-Φ20
Bearing model: 6005 x 1, 7008 x 2
Torque: 3.98Nm
Application: Milling
Usage: Engraving machines
Weight: 20 kg (44.09 lbs)
Package size: 46 x 24 x 21 cm (18.11 x 9.45 x 8.27 inch)
Package for Variable Frequency Drive Inverter
1 x 7.5KW Variable Frequency Drive Inverter
1 x English Manual
Package for Spindle Motor
1 x 7.5KW Air-cooled Spindle Motor
1 x Collet ER32 (6MM)
1 x Aviation Plug
2 x Wrenches
