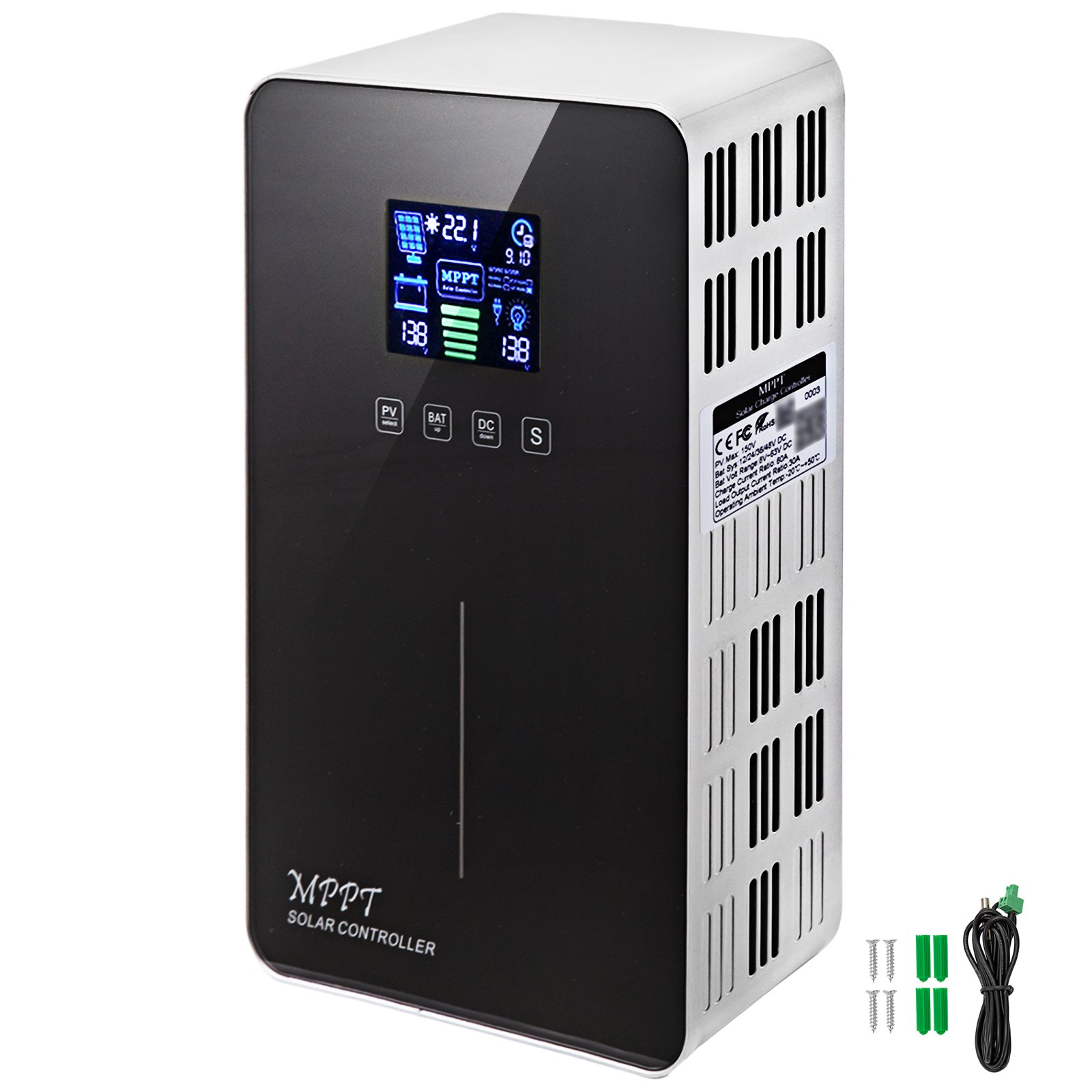

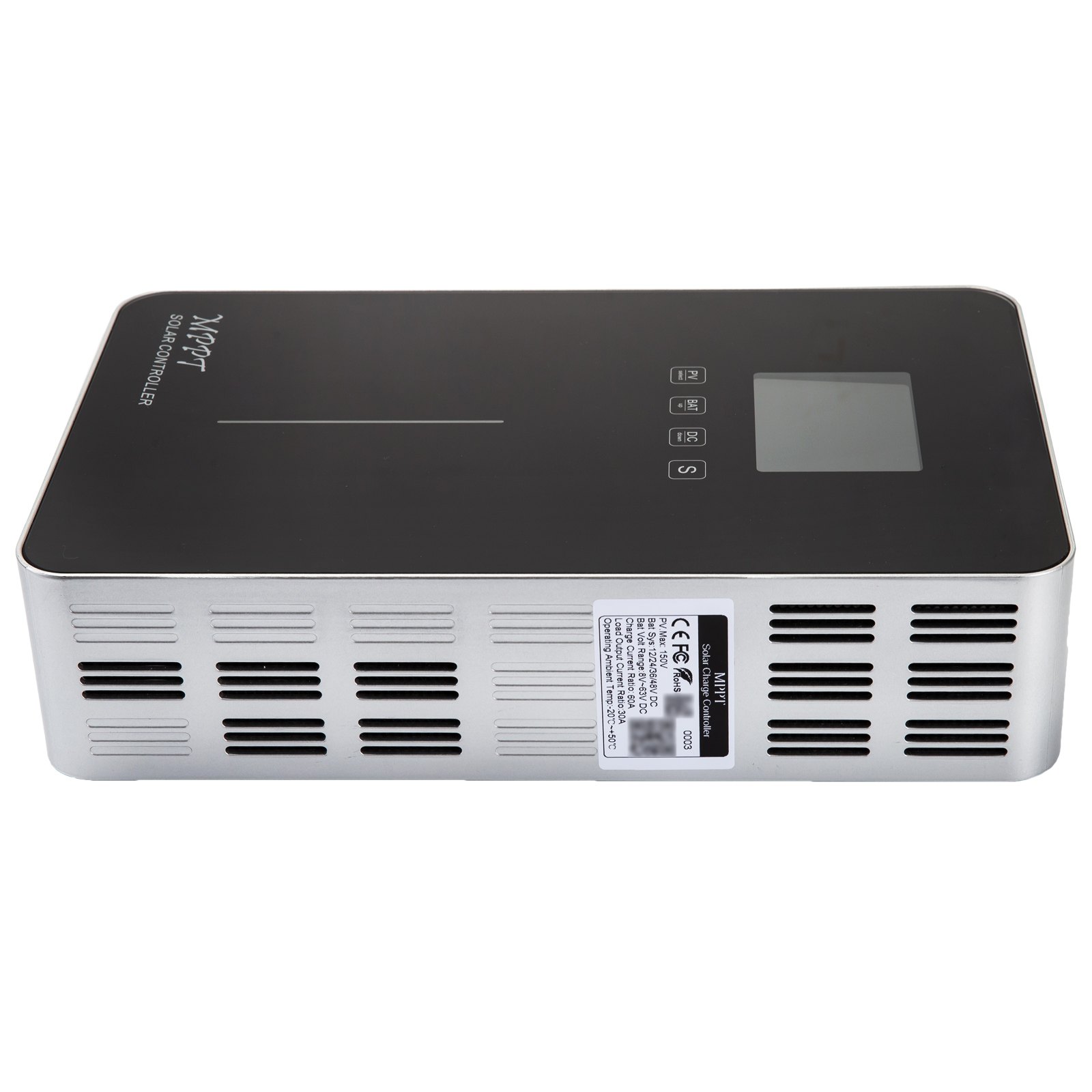

60A Solar Charge Controller
This MPPT Solar panel charge Controller will maximize the production output of your Solar system, thus higher MPPT efficiency (≥99.5%）can be achieved. Touch screen design for your easier operation and RS485 & WI-Fi communication support PC/ App Monitoring. It is super ideal and practical for household Solar system, street light system, Solar power system, etc.
- Friendly Note: WIFI box is not included in the package.
- High Efficiency
- Multiple Protection Properties
- Automatic Recognition
- RS485 & WIFI Communication
- LCD Touch Screen

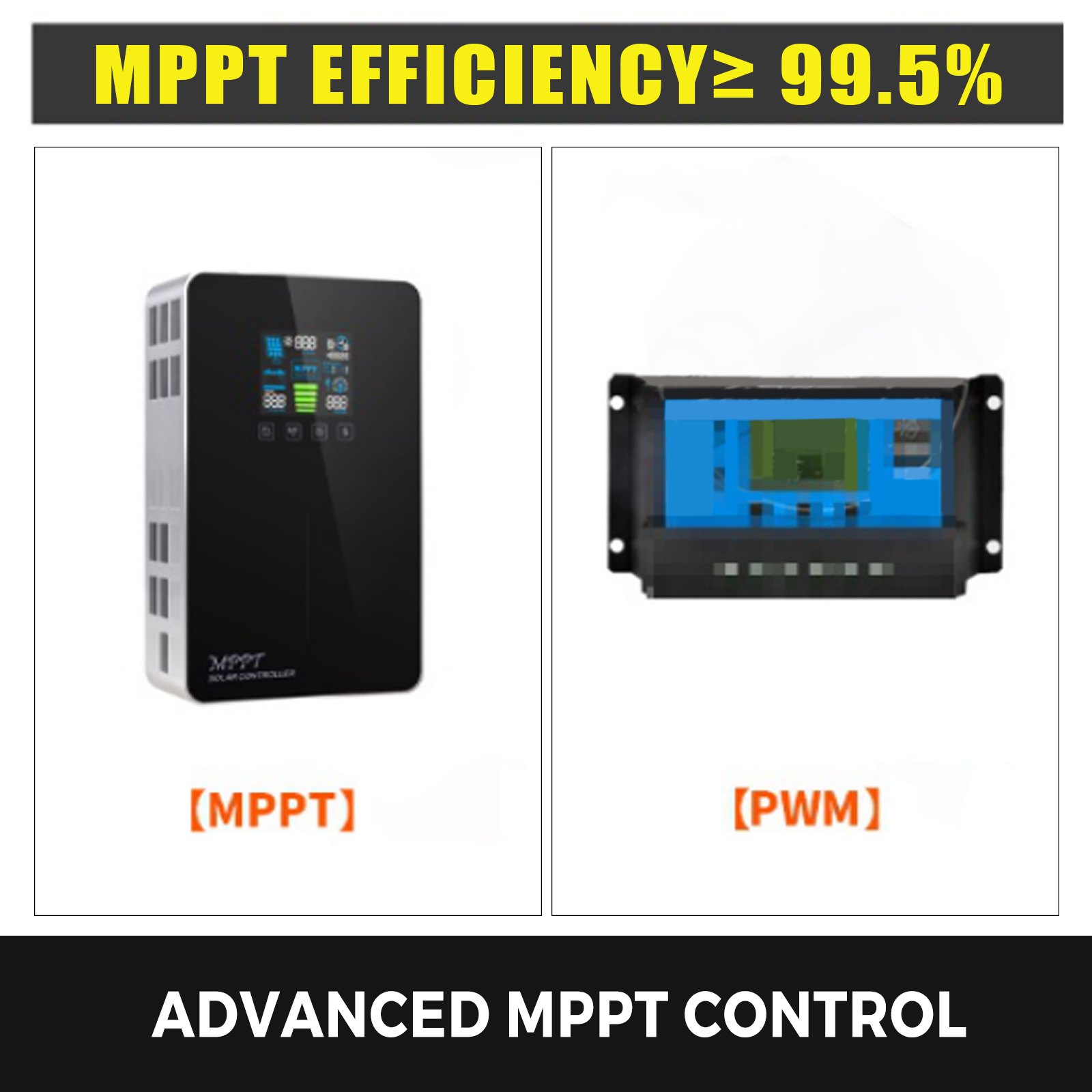

Advanced MPPT Control
MPPT efficiency is no less than 99.5%, significantly improving the utilization of Solar Panel.
Super-Safe Electronic Protection
Over/low voltage protection, temperature protection, reverse connection protection, short-circuit protection for its safe and stable running.

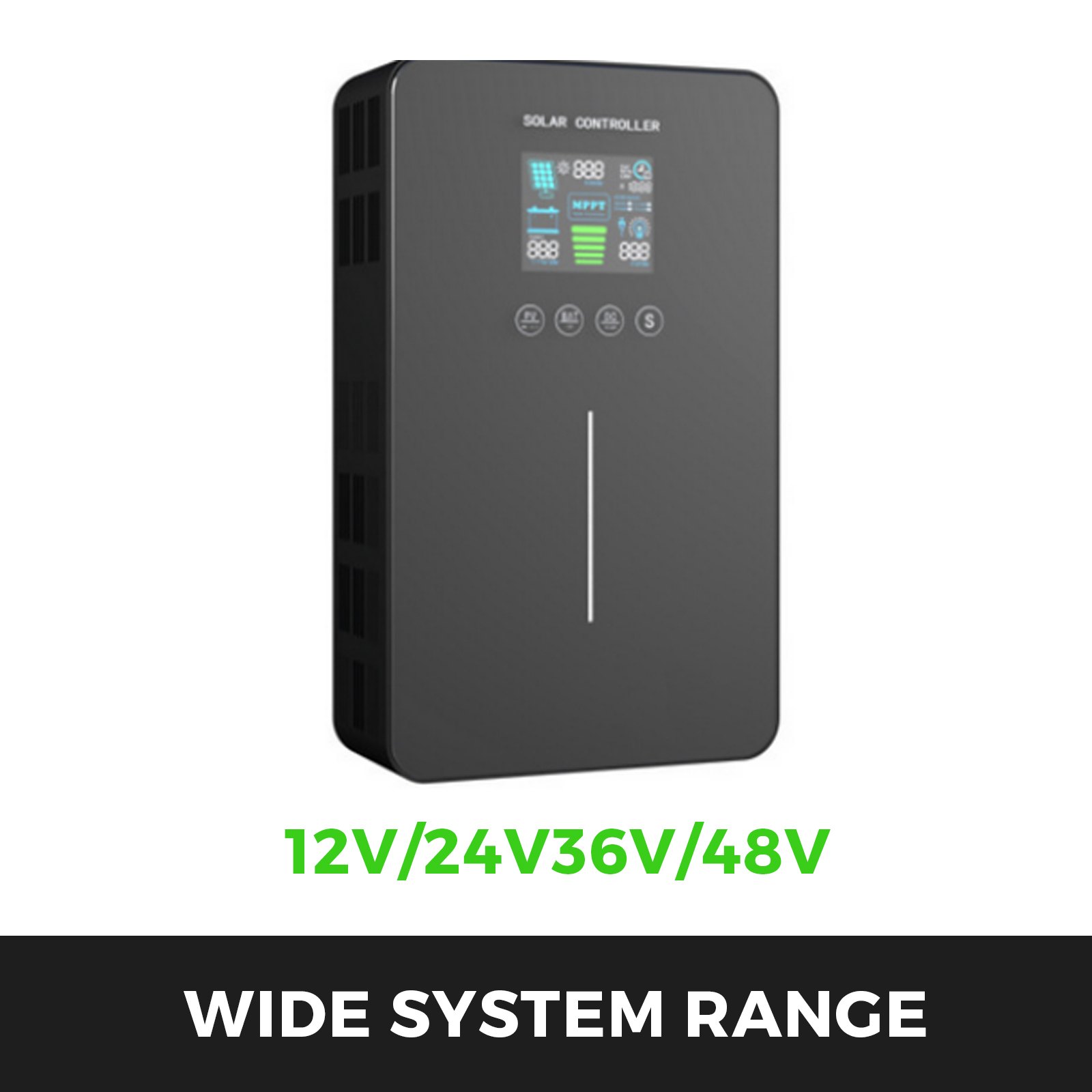

Wide System Range
Auto-recognition of battery system (Voltage): 12V/24V/36V/48V

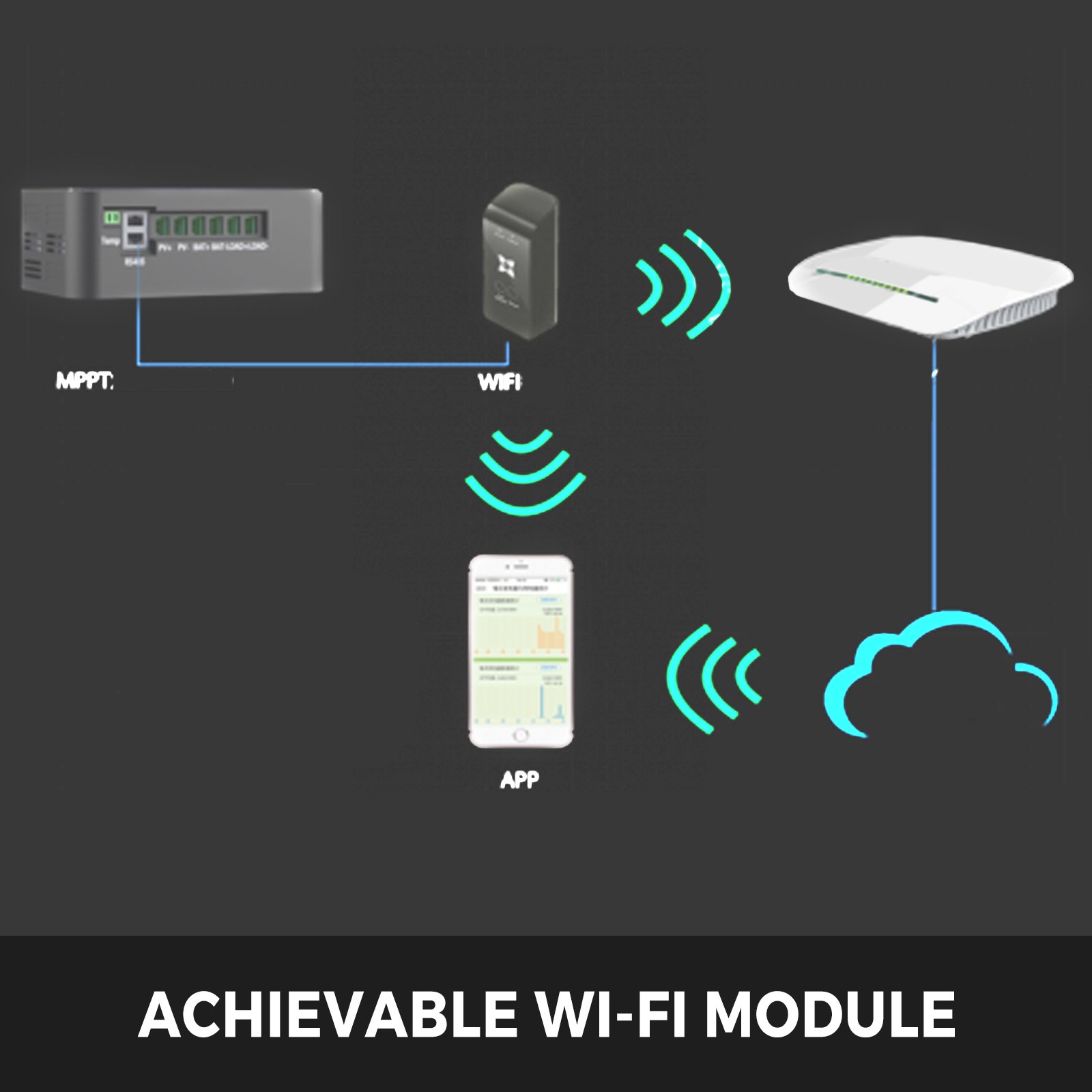

Achievable WI-Fi Module
RS485 PORTS support PC software monitoring; Support WI-FI module for APP cloud monitoring.

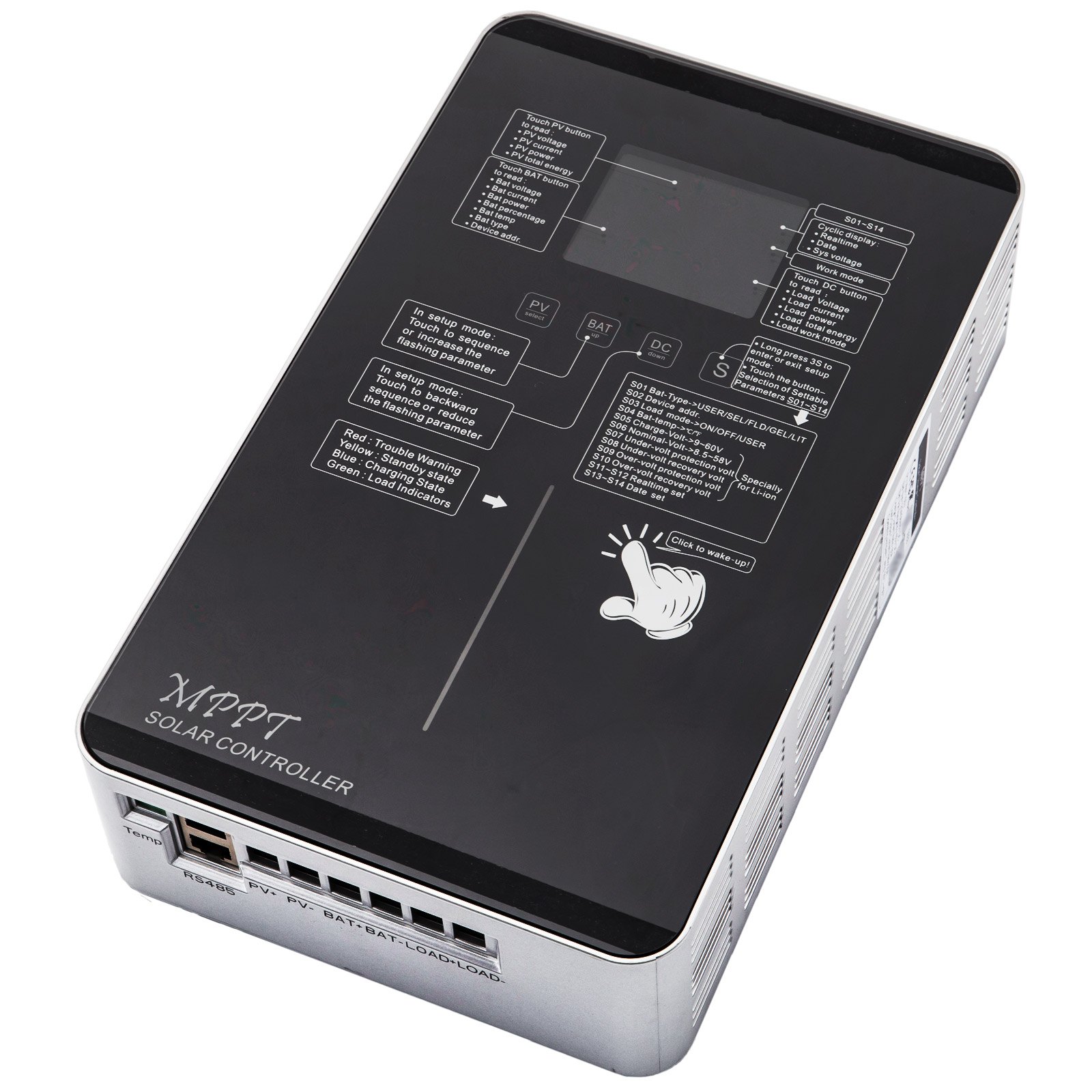

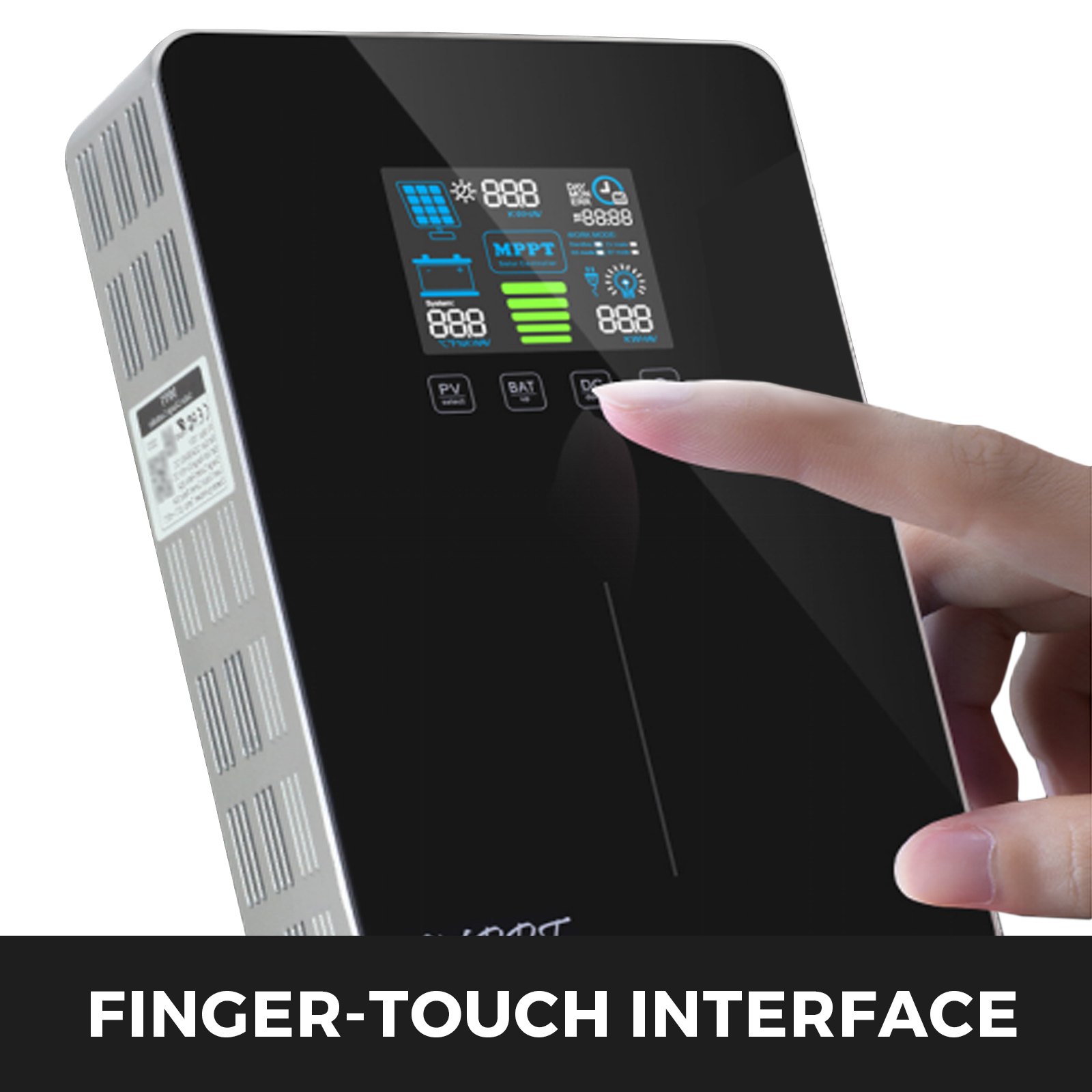

Finger-Touch Interface
Touch screen design for your easy operation, tempered glass surface to extend its operating life.
Wide Application
Perfect for Solar power system, Solar streetlamp, Solar Billboards, Solar water pump, etc.
Package Content
- 1 x MPPT Solar Charge Controller

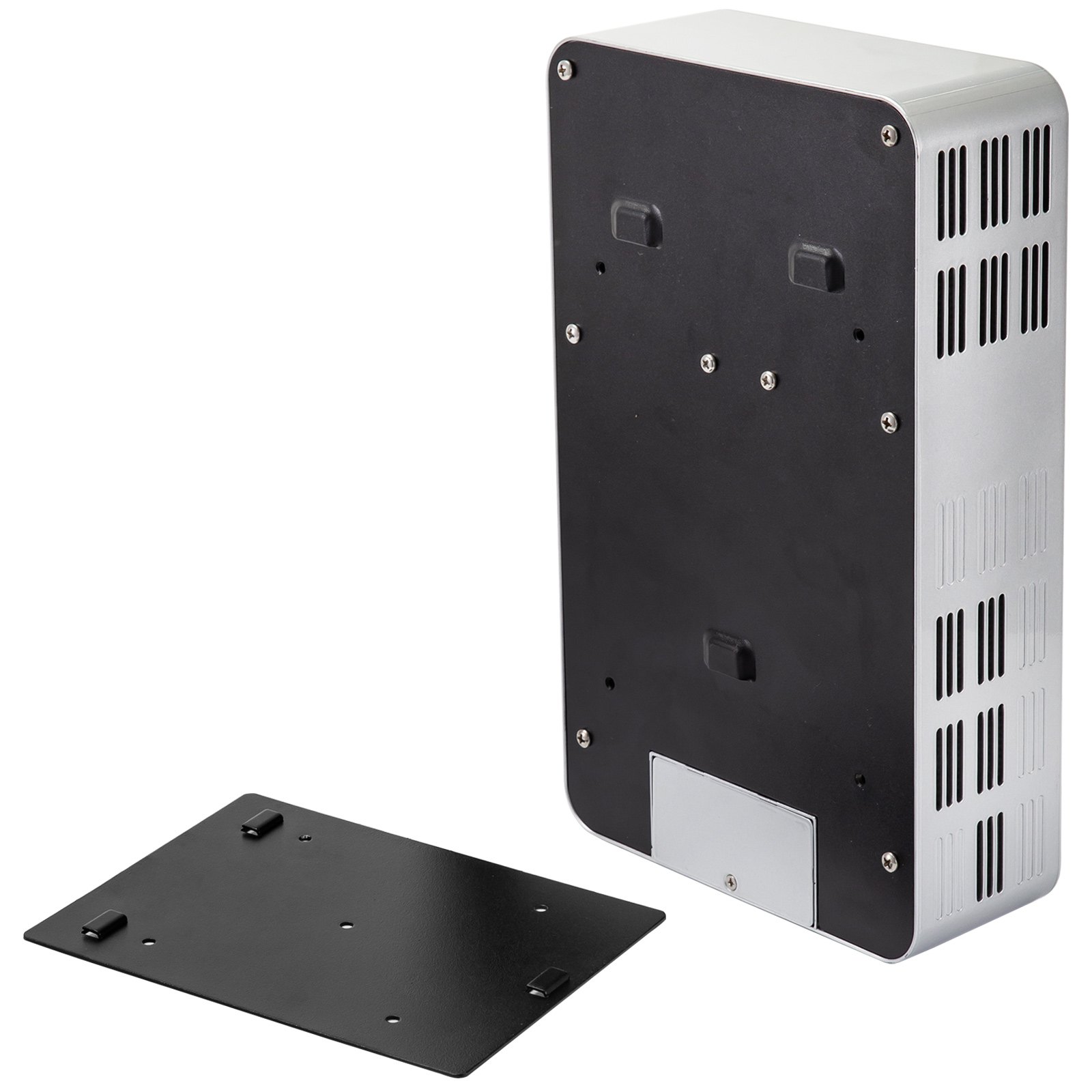

- 1 x Mounting Backboard

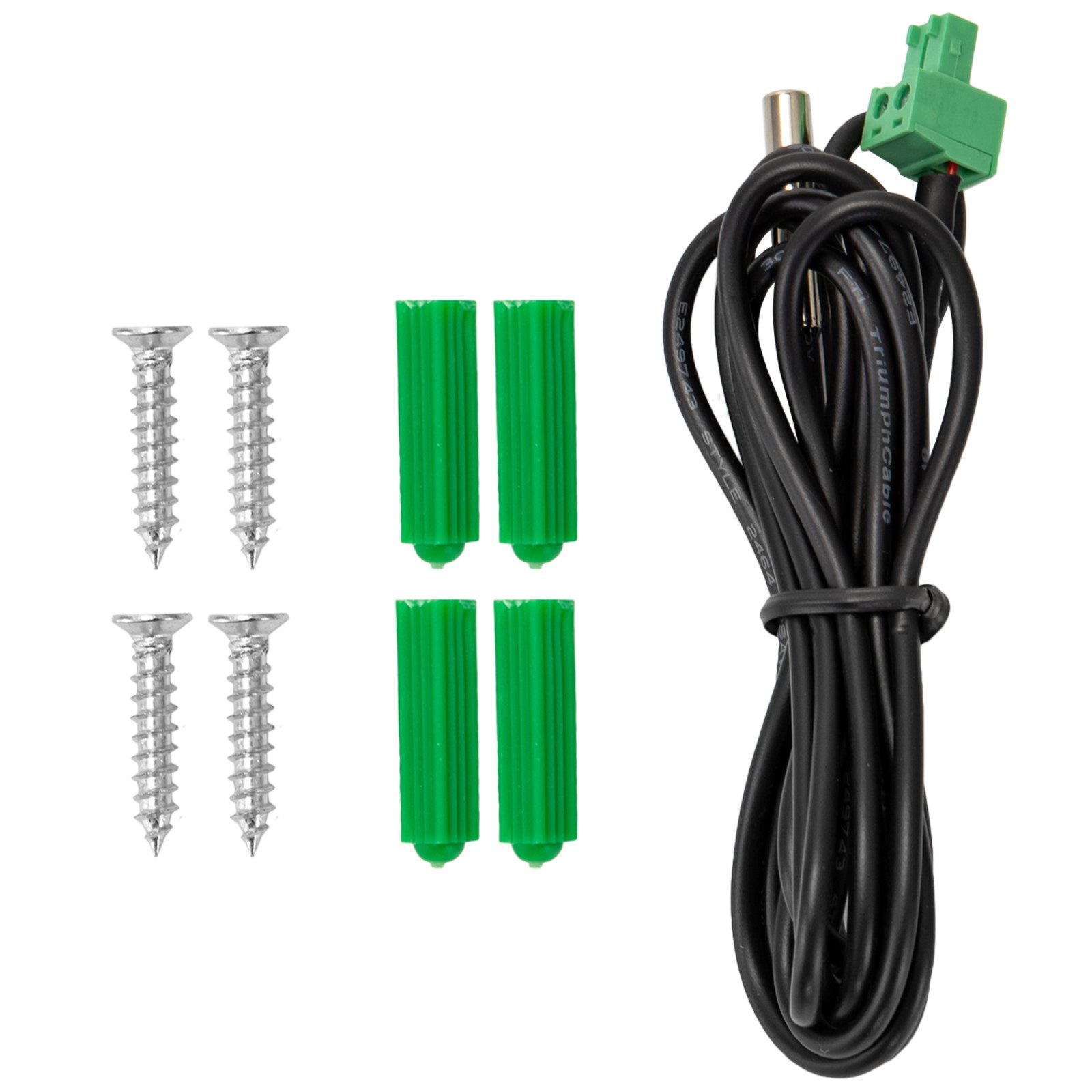

- 1 x Temperature Sensing Cable
- 4 x M4 Screws (for mounting backboard)
- 4 x Plastic Expansion Particles
- 1 x User Manual
Specifications
- Model:MPPT-60A
- Material: Tempered Glass Surface
- Color: Black
- MPPT Efficiency: ≥99.5%
- Standbypower：0.5W~1.2W
- Rated Charge Current: 60A
- Rated Load Current: 30A
- Load Control Mode: On, Off, PV voltage control, Dual-time control, PV + Time control
- Low Voltage Protection: The default protection point is 10.5V, and it is restored to 11V (can be set)
- Systemvoltage：12V/24V/36V/48V auto work
- Display:High-Definition LCD Segment Code Backlight Display
- Communication:Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
- Charge Method ：3 stages: CC (Constant current), CV (Constant voltage), CF (Floating charge)
- Setup Method: PC software / Mobile APP / controller display
- Protections:Input over / low voltage, output over / low voltage, reverse connection, over temperature, short circuit, battery shedding etc.
- Heat-Dissipating method: Fan-cooling
- Max.PV input voltage(VOC): DC150V
- Start charge voltage point: Battery voltage+3V
- Low input voltage protection point: Battery voltage+2V
- 12V System: 780W
- 24V System: 1560W
- 36V System: 2340W
- 48V System: 3120W
- Dry contact access voltage:5V ~ 12V
- Operating Ambient Temperature：-20℃~+50℃
- Storage Temperature：-40℃~+75℃
- Recommended breaker：≥100A
- Noise: ≤10dB
- Altitude：0~3000 m
- Temperature compensation：-3mV/℃/2V(default)
