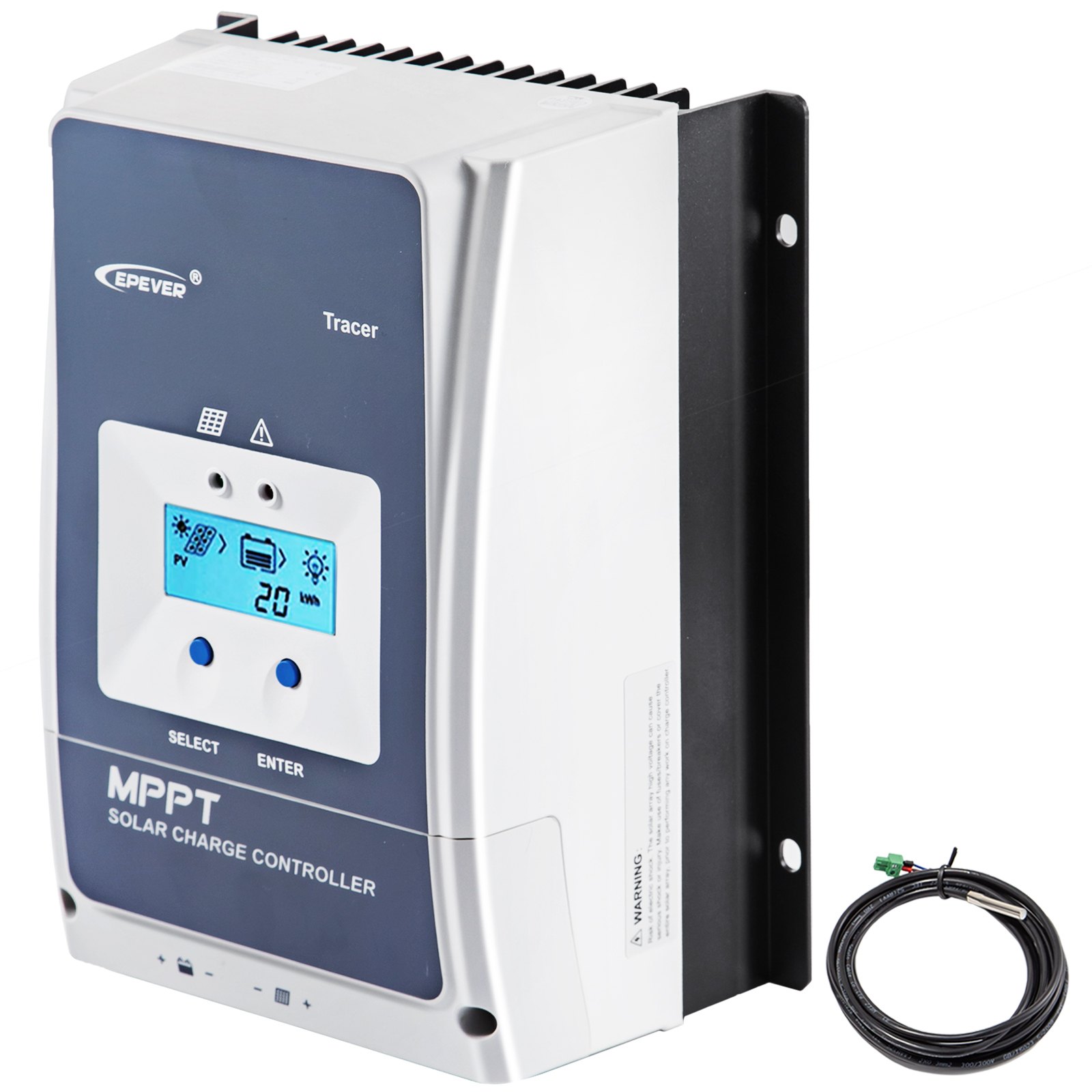

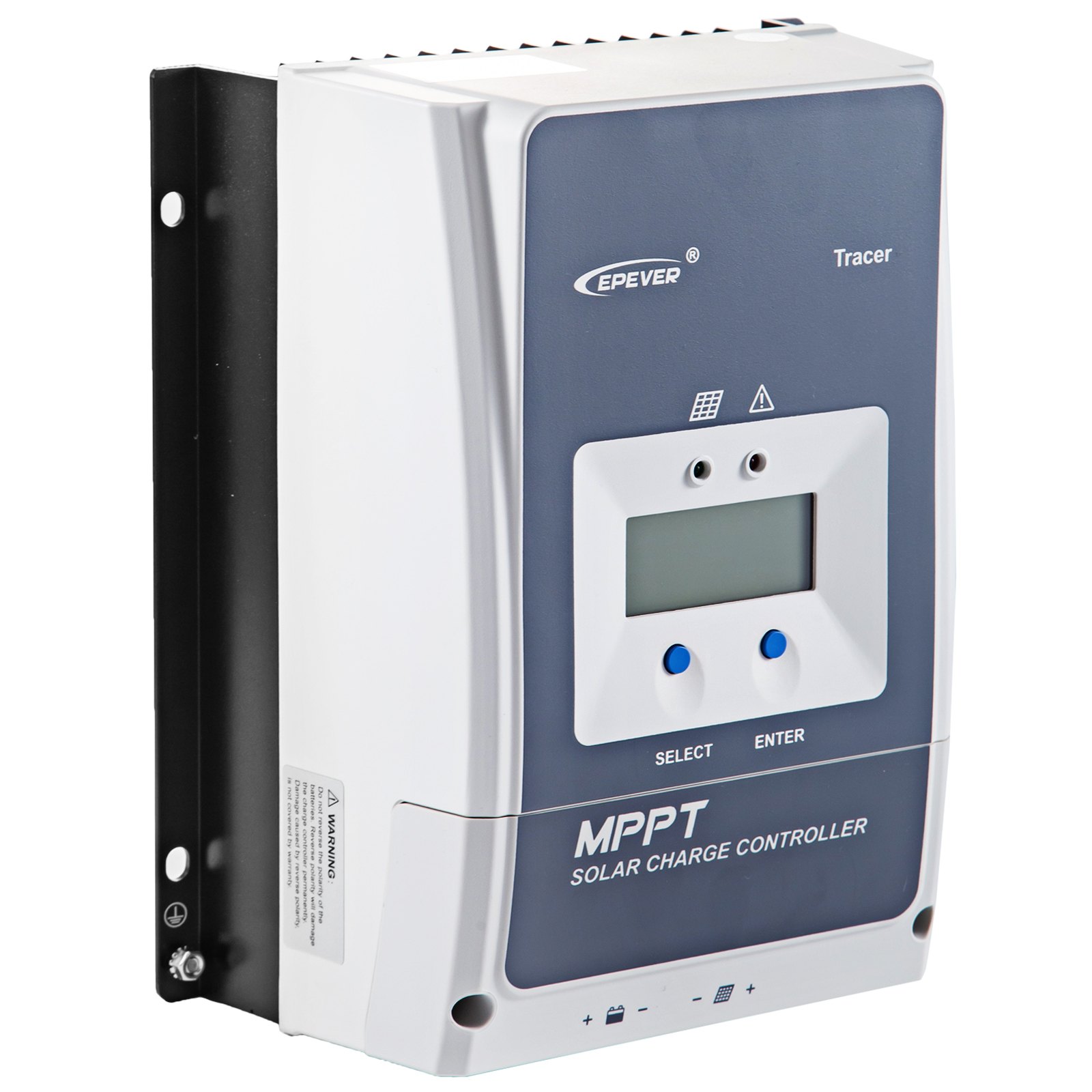

50 Amp Solar Charge Controller
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%，conversion≥98.3%，so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- High-Definition LCD Display
- Intelligent Monitoring
- Cooling Fan Design
- Temperature Sensor Included

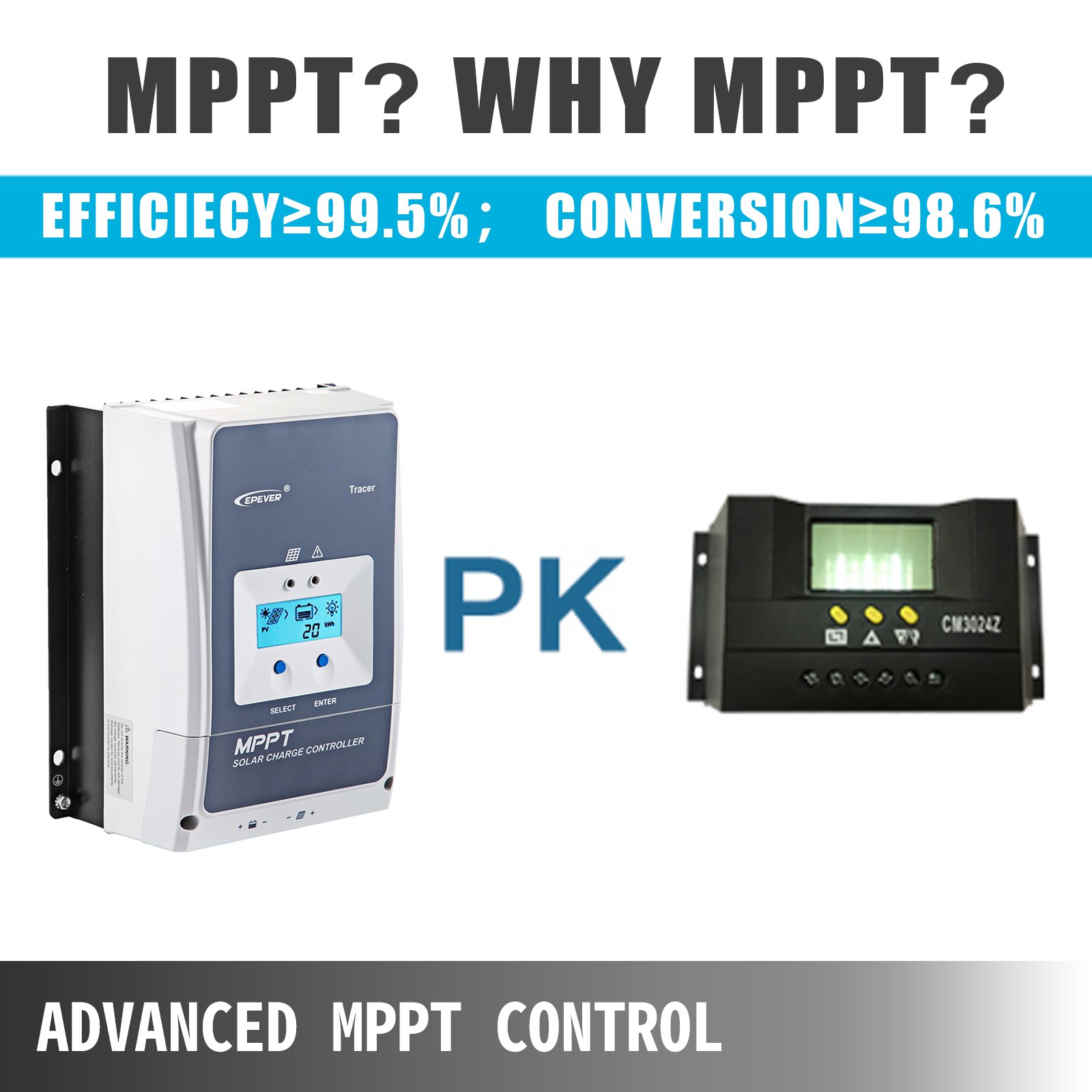

Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.3%.

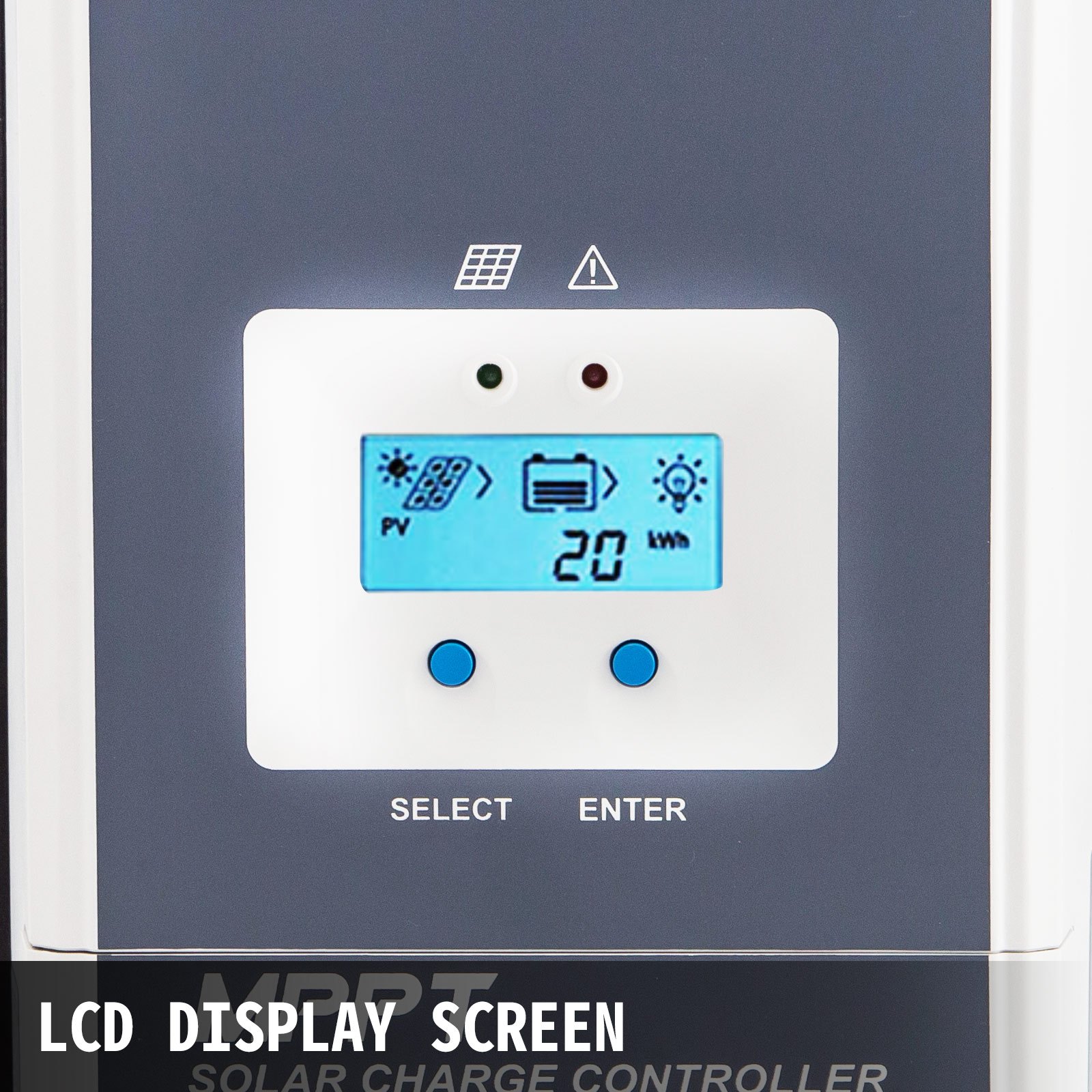

LCD Display Screen
The backlit LCD screen shows the status of charging clearly.

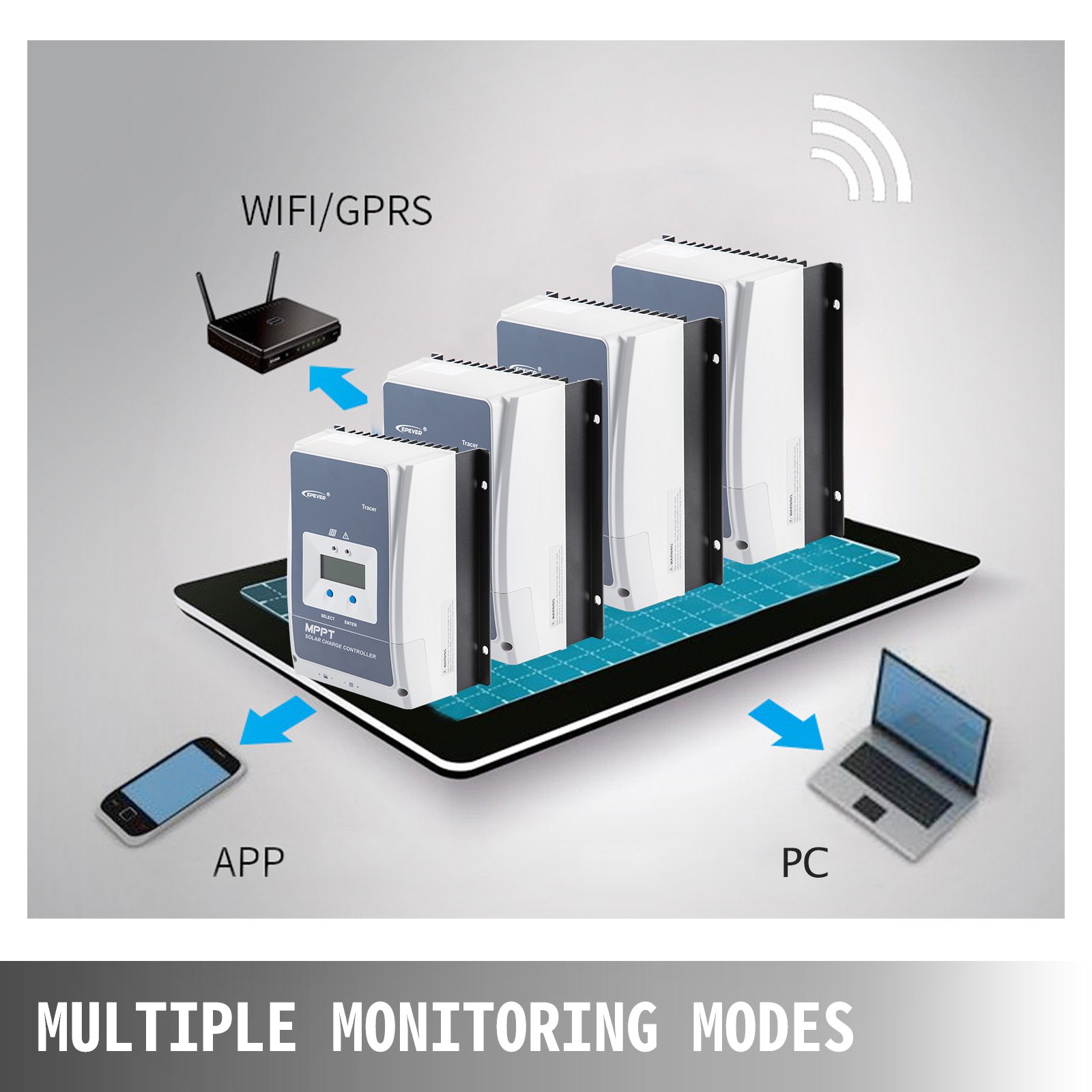

Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.

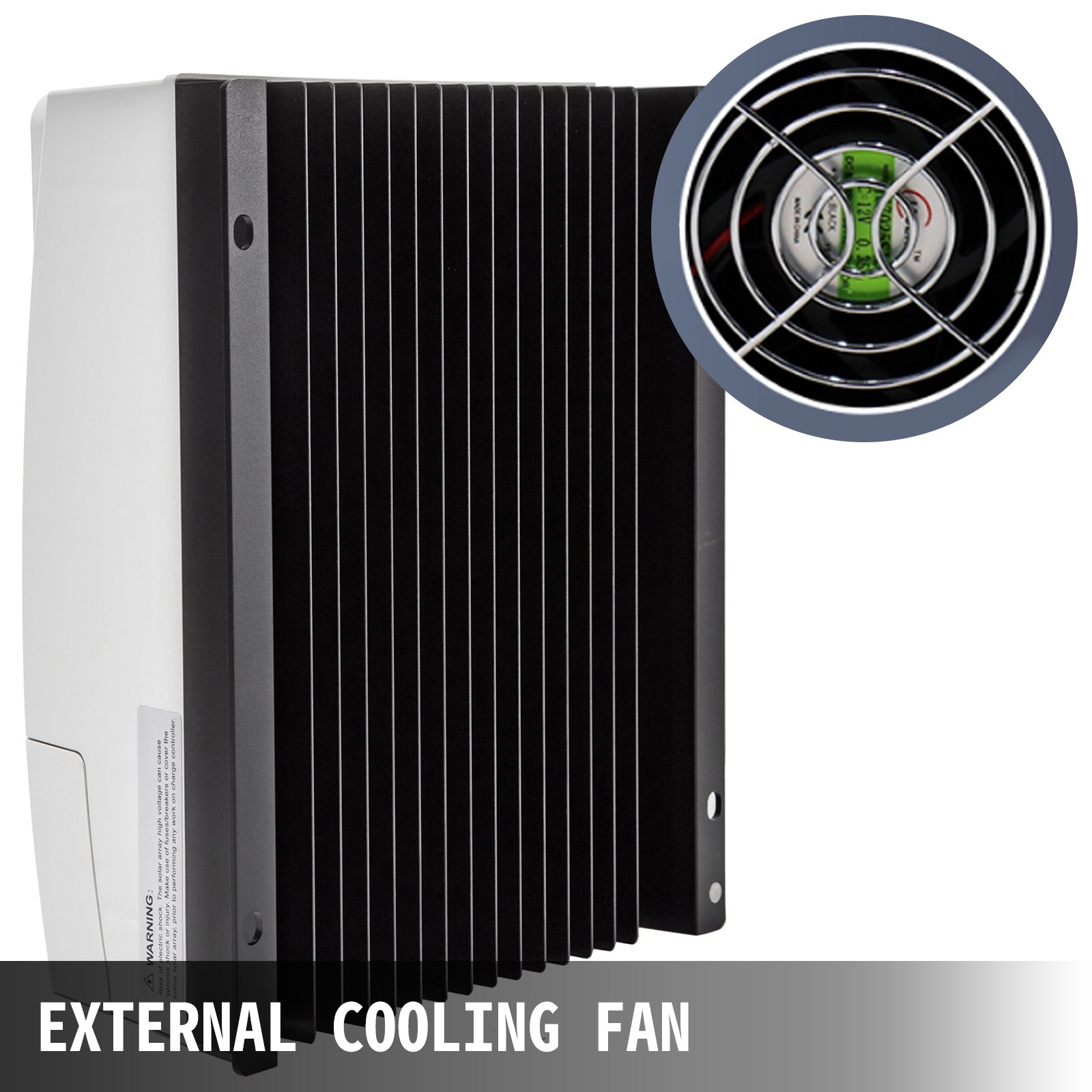

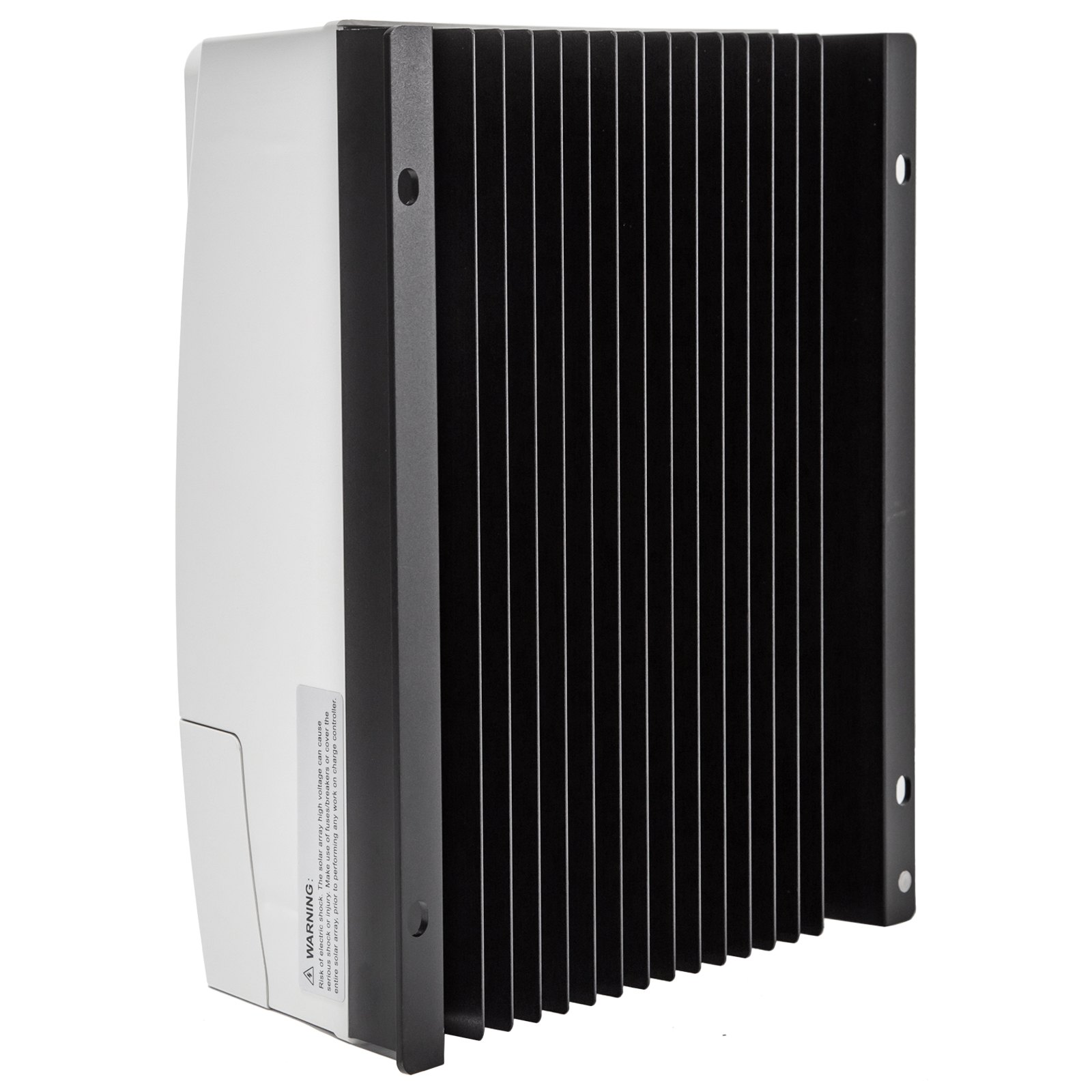

External Cooling Fan
The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.

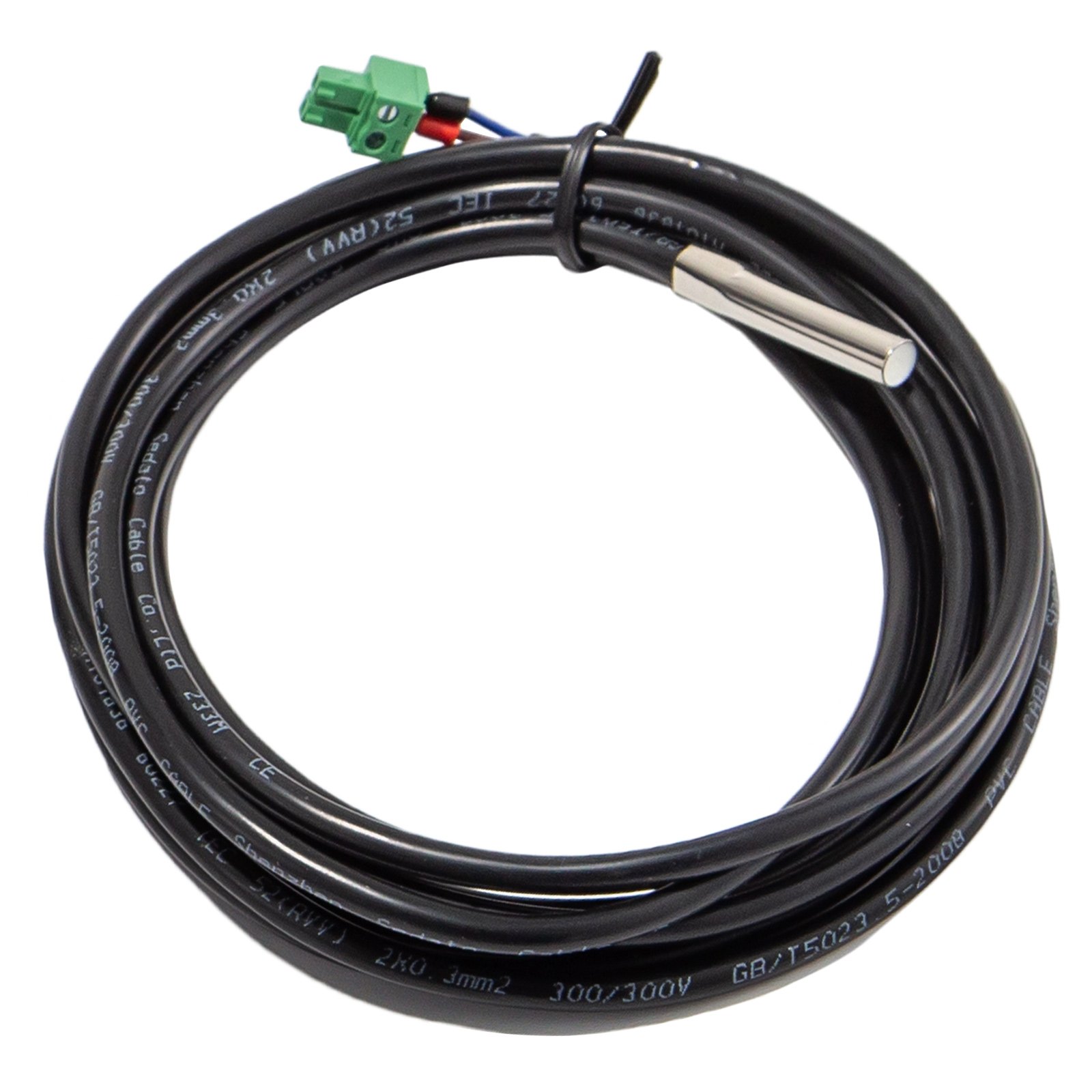

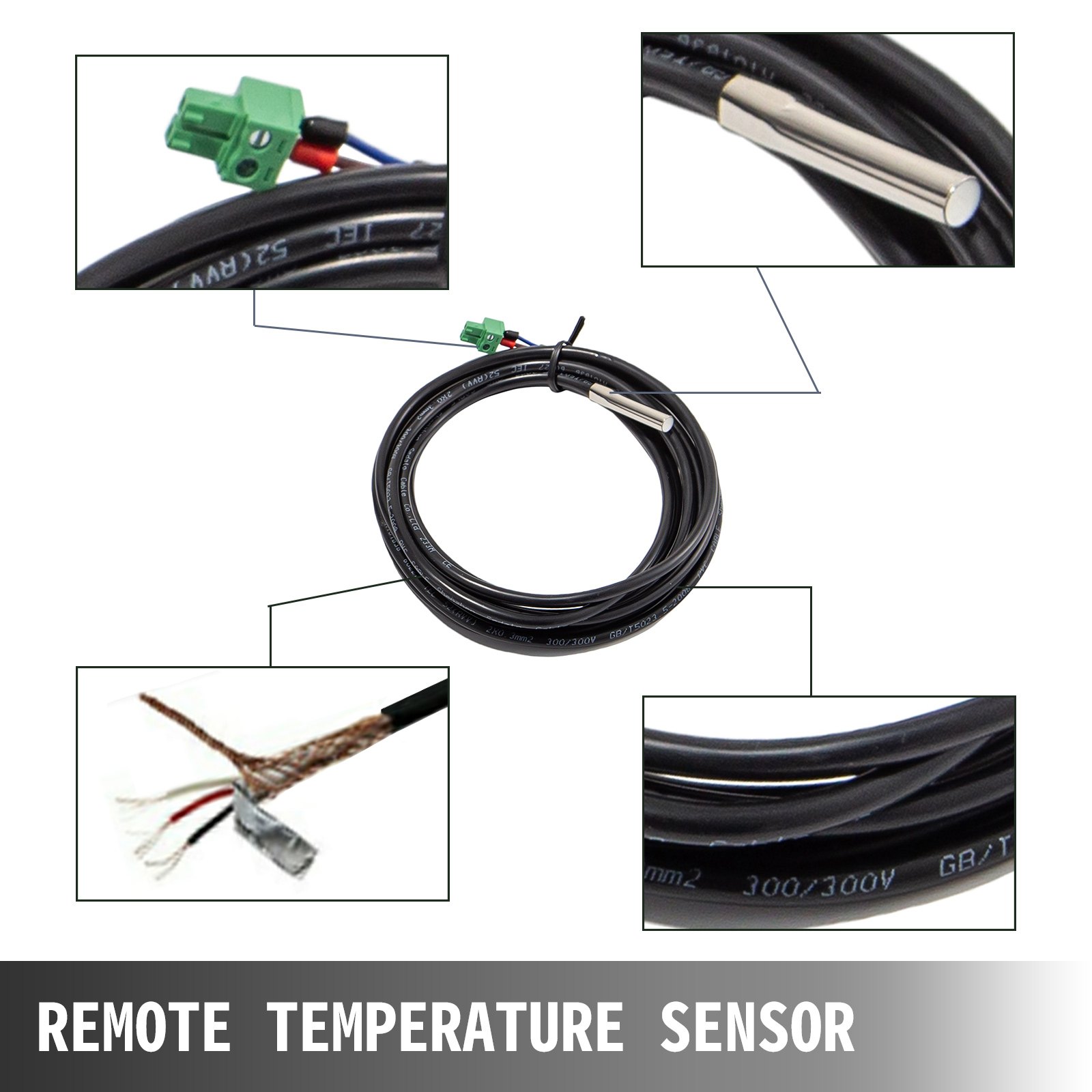

Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.

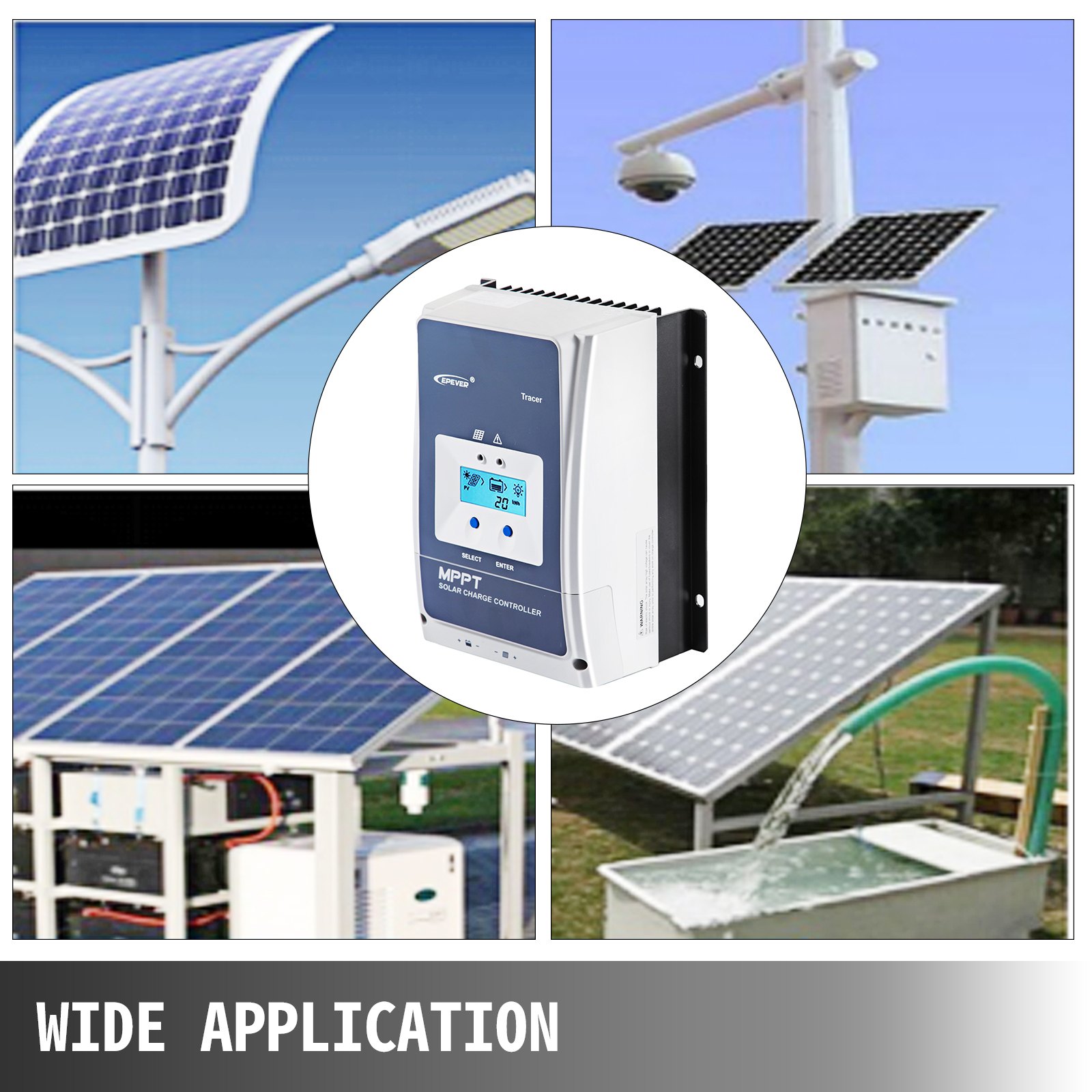

Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Package Content
- 1 X Solar Charge Controller
- 1 X Temperature Sensor
Specifications
- Nominal System Voltage: 12/24/36/48 V DC or Auto
- Battery Input Voltage Range: 8V～68V
- Battery Type: Lithium Battery: Lithium Battery: LiFePO4/ Li(Ni Co Mn)O2/ User
- Battery Fuse: 80A/58V
- Rated Charge Current: 50A
- Rated charge Power: 625W/12V 250W/24V 1875W/36V 500W/48V
- Max. PV Open Circuit Voltage: 150V① 138V②
- MPP Voltage Range: Battery Voltage +2V) ～108V③
- Tracking Efficiency: ≥99.5%
- Max. Conversion Efficiency: 98.3%
- Full Load Efficiency: 97.8%
- Temperature Compensate Coefficient:－3mV/°C/2V(Default)
- Self-Consumption: 98mA/12V; 60mA/24V; 50mA/36V;46mA/48V
- Grounding: Common Negative Grounding
- Relay: Rated Value: 5A/30VDC; Max. Value: 0.5A/60VDC
- RS485 Interface: RS485(RJ45)
- LCD backlight time: Default:60S, Range: 0～999S(0S:the backlight is ON all the time)
- Ambient Temperature Range: -25 °C ～+60 °C (above 45 °C)
- LCD Temperature Range: -20 °C ～+70 °C
- Storage Temperature Range: -30 °C ～+85 °C
- Relative Humidity Range: 5% to 95% (N.C.）
- Enclosure: IP20
- Pollution Degree: PD2
- Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in the Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection

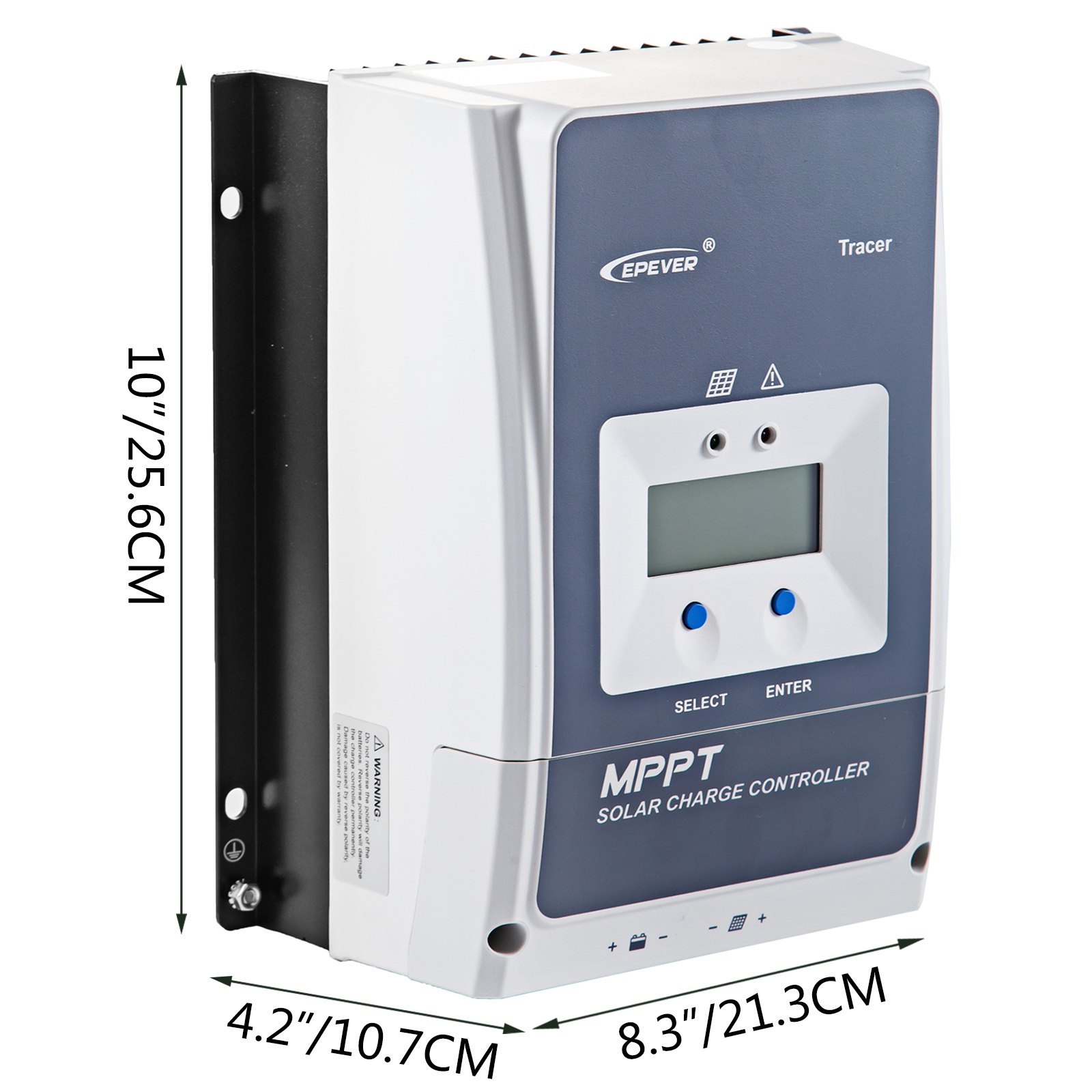

- Dimension: 261×216×119 mm
- Mounting Dimension: 180 mm x 204 mm
- Mounting Hole Size: φ7 mm
- ① At minimum operating environment temperature
- ② At 25 °C environment temperature
- ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature
