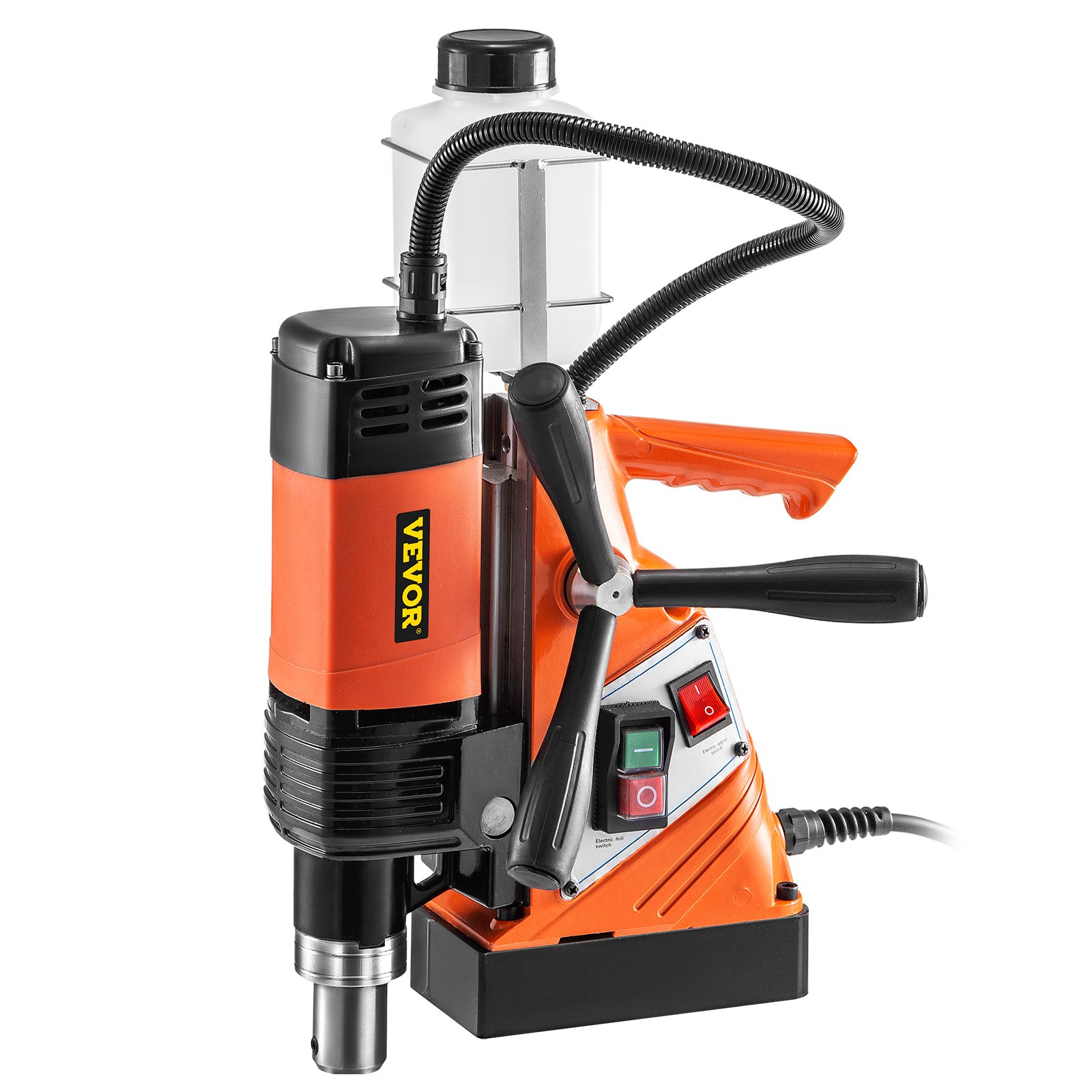

VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
JGSZKJ6JTST-36M01V1

VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

$351.99
351.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Superior Performance: Our portable drill press generates exceptionally strong power thanks to its 1100W copper motor. It is capable of drilling into the toughest materials at 700 RPM. Maximum Coring Diameter: 1-3/8 / 35 mm; Maximum Travelling Distance: 4.7" / 120 mm.
  • Premium Coring Bits: There are 6 chisel bits: Φ0.47", Φ0.63", Φ0.71", Φ0.79", Φ0.94", Φ1". These drilling bits meet a variety of demands for coring.
  • 10000 N Magnetic Force: The powerful magnet can generate 2248lbs/10000 N of holding force, ensuring the drill press machine does not move in the work. Our magnetic drill press anchor itself securely during work due to its electromagnet base.

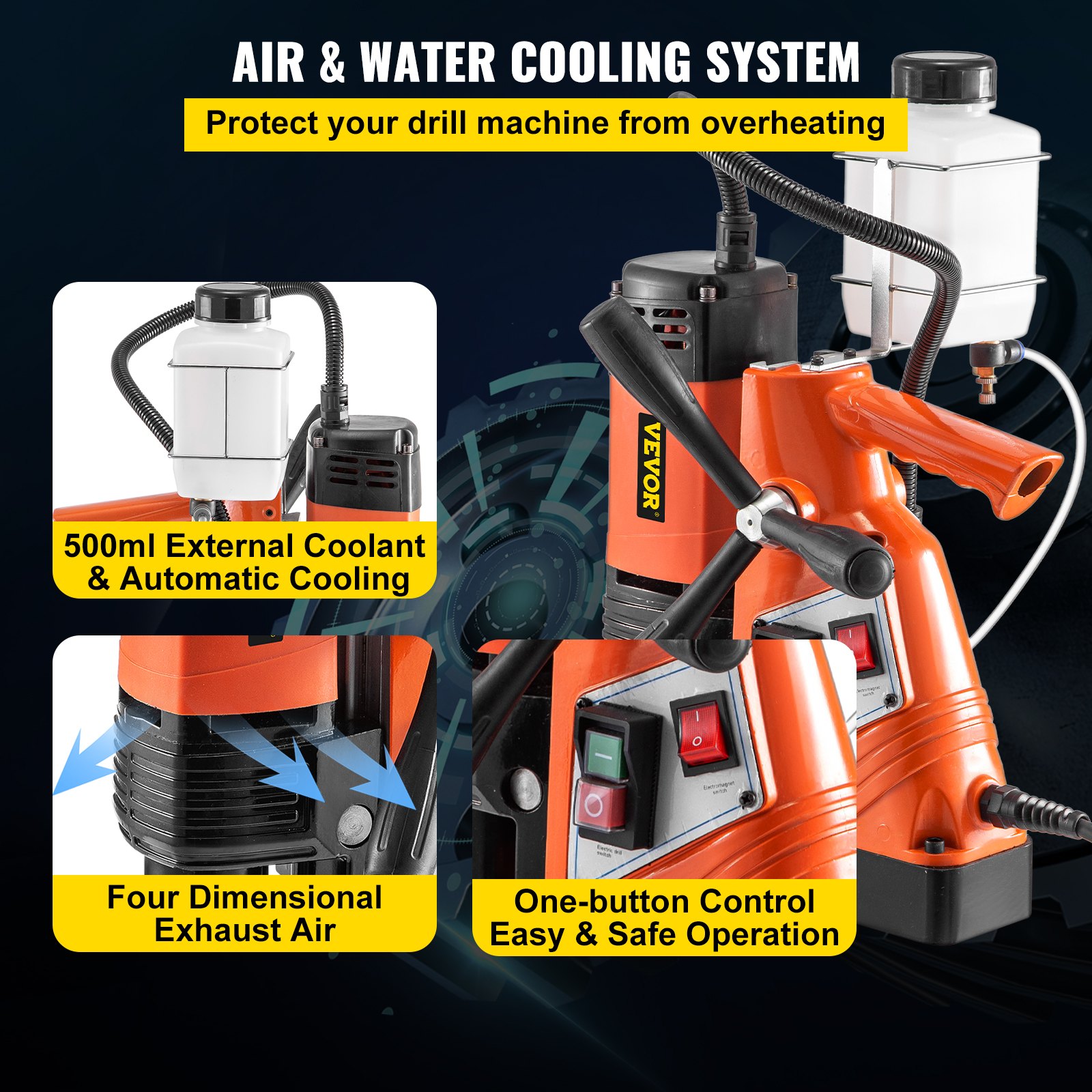

  • Thoughtful Designs & Cooling System: This ergonomic handle provides comfortable grip in operation and transport. These 3 extended crank handles are coated with nonslip rubber for laborsaving operation. Coolant tank and exhaust air holes are designed for effectively cooling the magnetic drill press. What's more, the drilling tool kit is well stored and sorted in our blow-molded carrying case.
  • Various Application: The electromagnetic drill press plays a vitally important role in shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, and other engineering facilities.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Only 1 Left, order soon
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

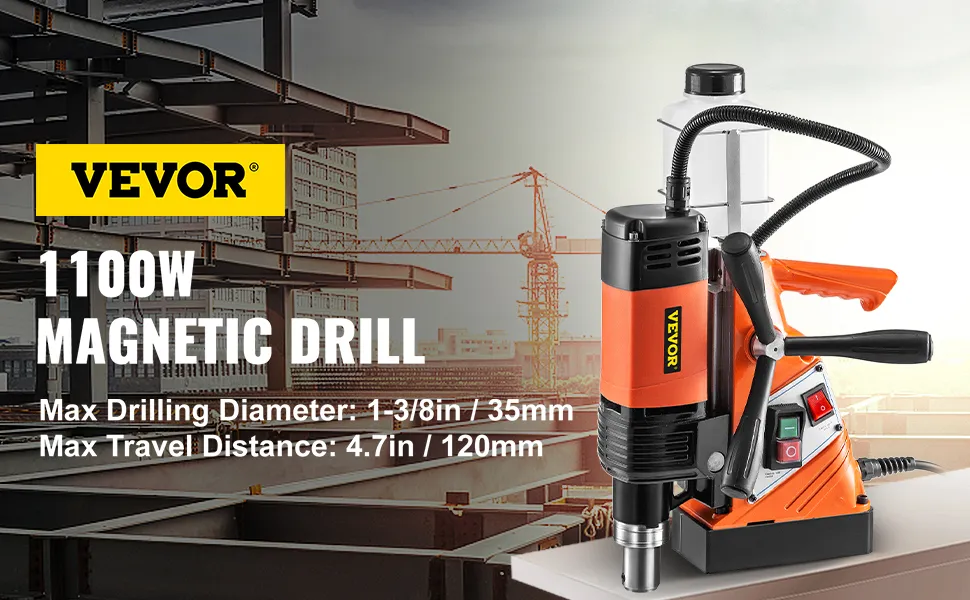

Magnetic Drill
700RPM & 1100W & 4.7" Travel Distance
  • This class of leading drill press tools has been designed and engineered specifically for speed and precision. Its solid magnetic adhesion is 10000 N, which can perform the multidirectional operation. It is an essential tool for performing heavy-duty steel fabrication work.
  • Superior Performance
  • Premium Coring Bits
  • 10000 N Magnetic Force
  • Thoughtful Designs & Cooling System

VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

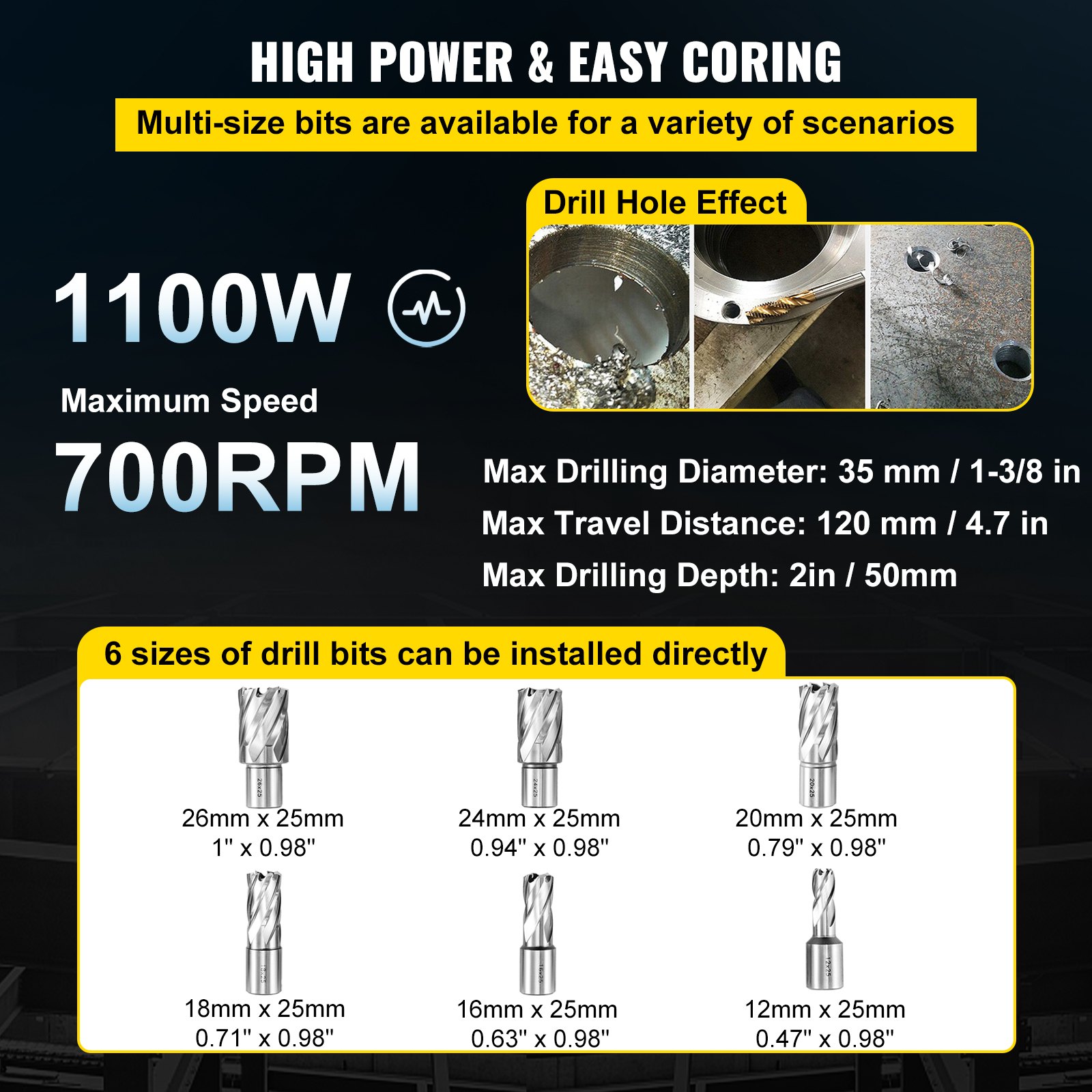

Excellent Performance
Fast drilling of our machine can reach clean cutting. With a drilling depth of 2"/55 mm, this magnetic drilling machine makes drilling extremely easy when you need to drill through thick metal.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

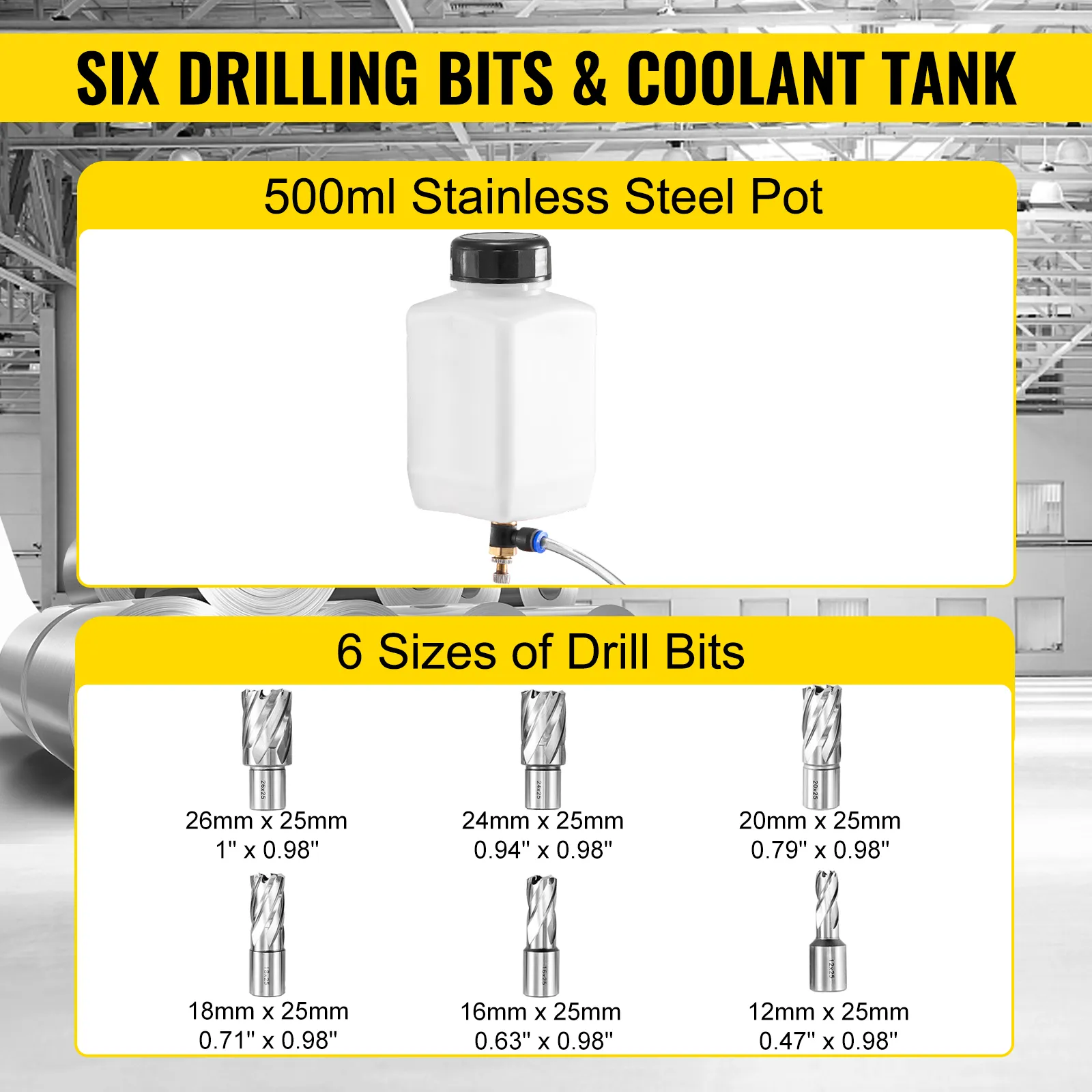

Six Drilling Bits & Coolant Tank
6 coring bits meet the different working requirements, and they can be installed directly without a drill clip. Also, there is a coolant pot provided for heat dissipation.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

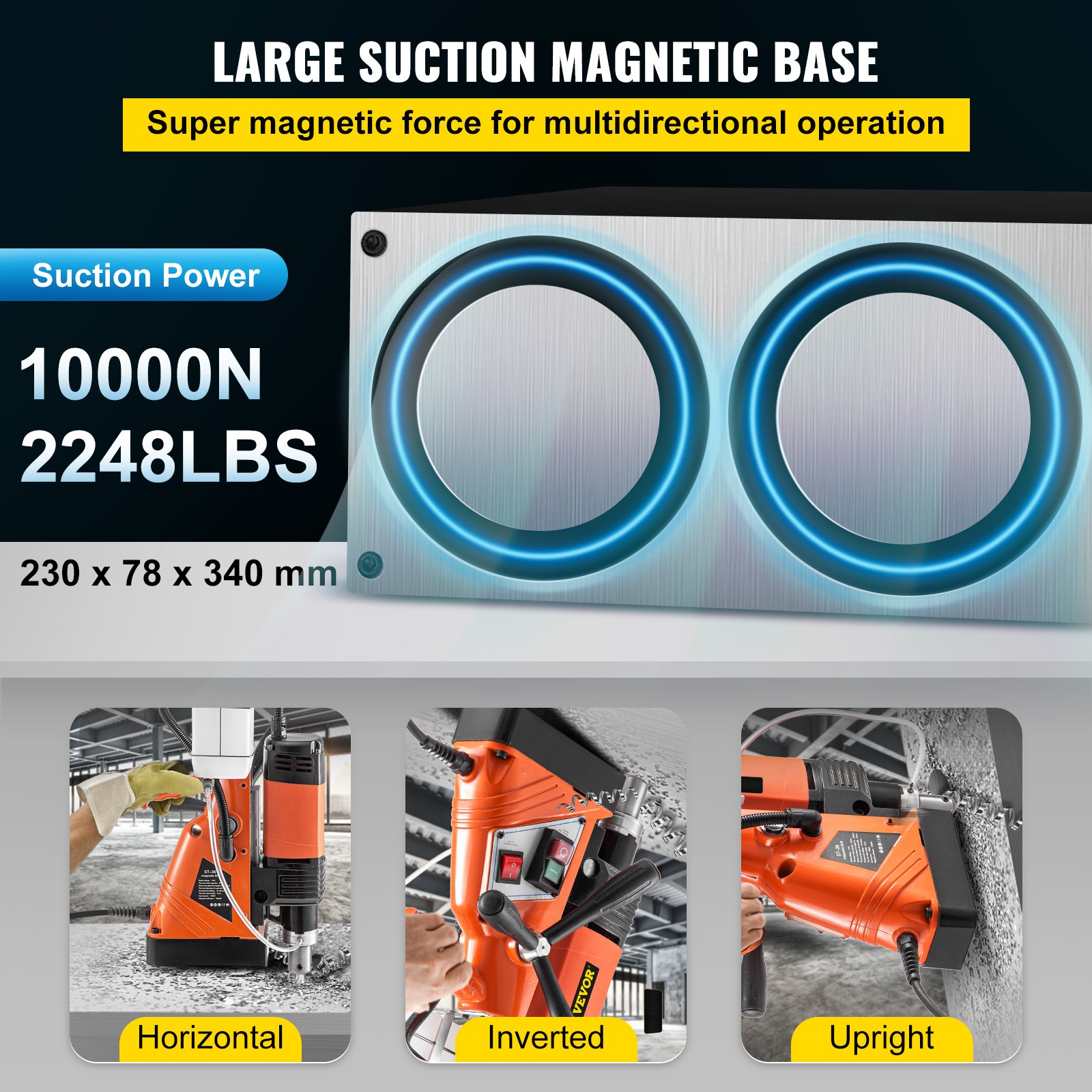

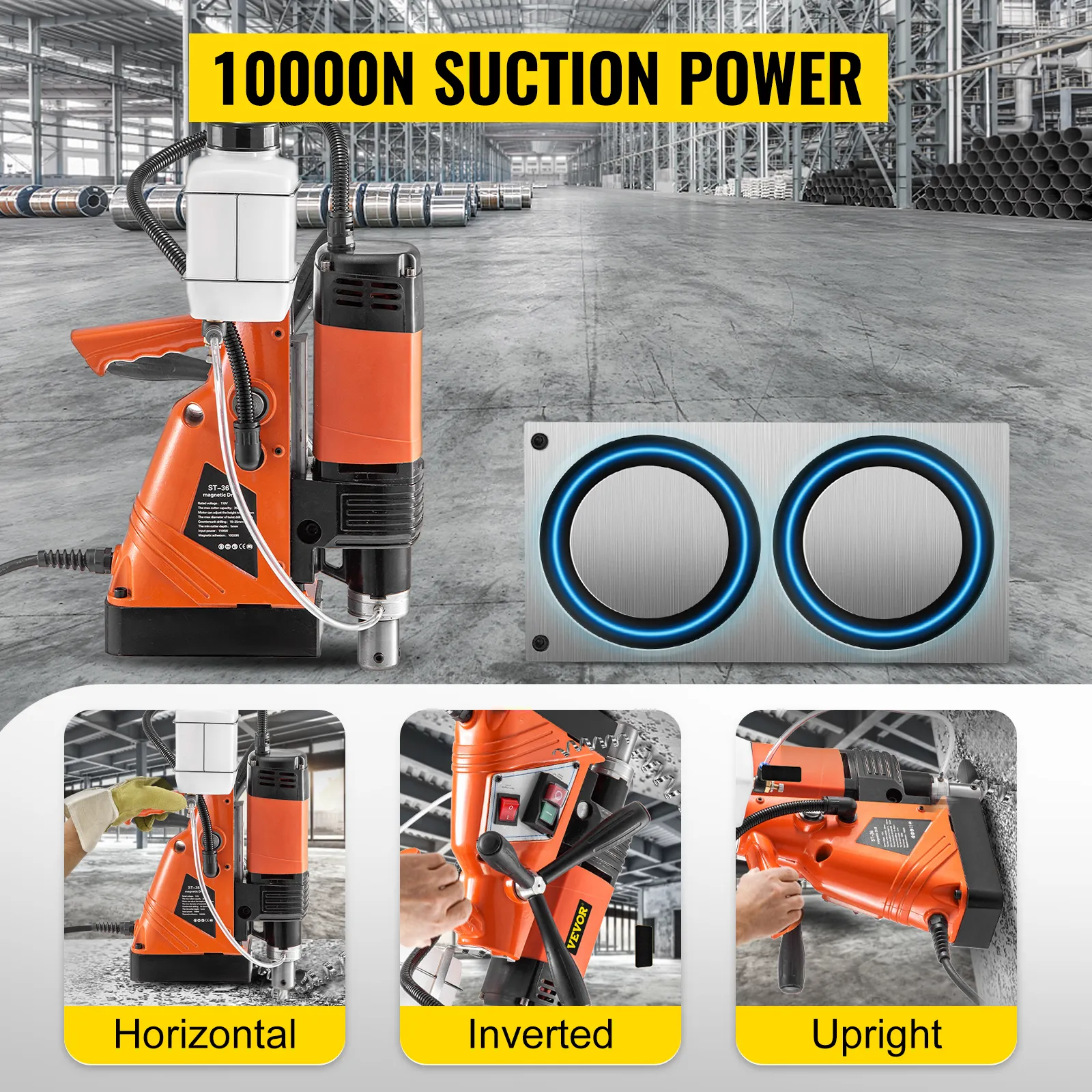

10000 N Suction Power
Equipped with a robust electromagnetic base, the magnetic core drilling machine can achieve side suction and back suction. Its enormous size ensures the stability and efficiency of work.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

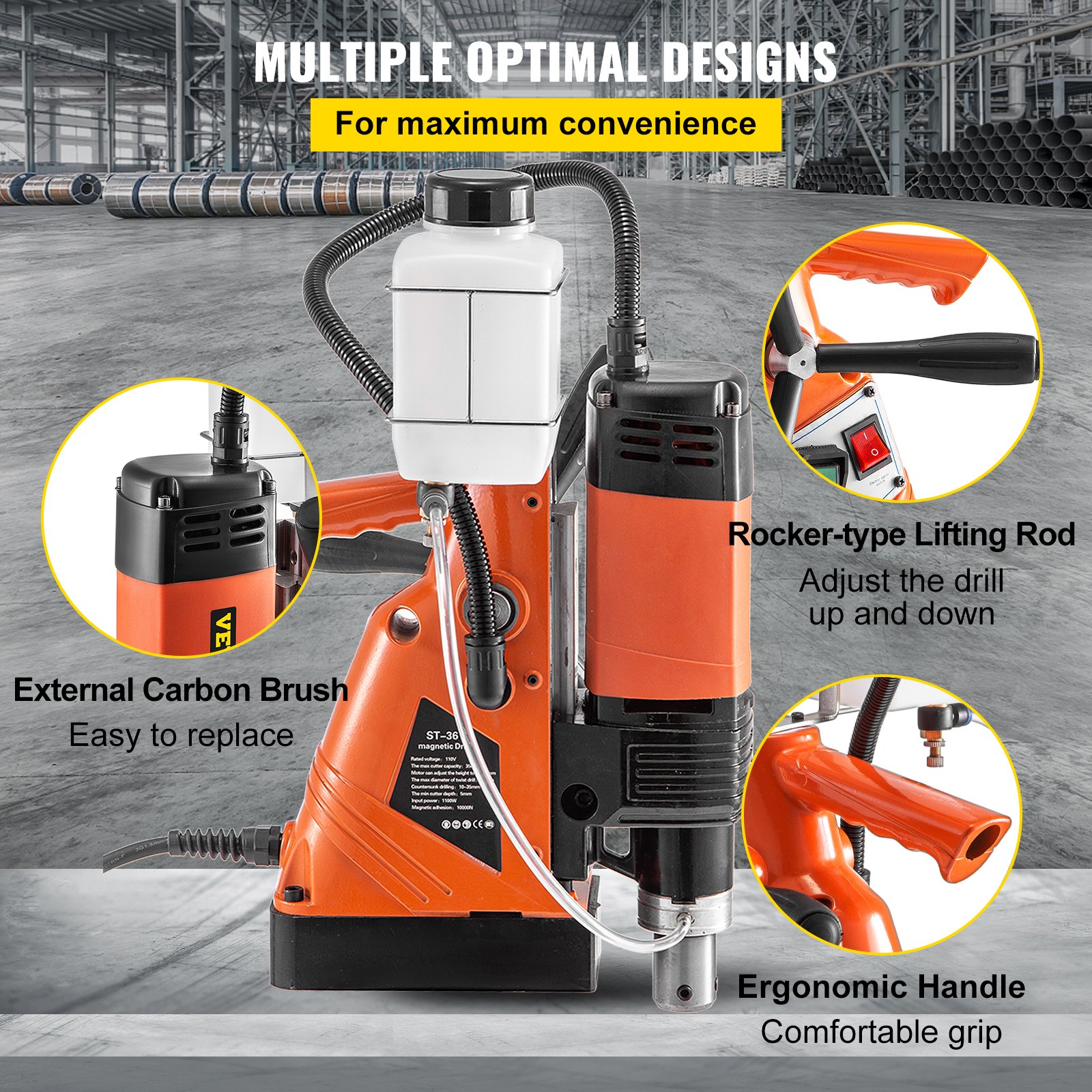

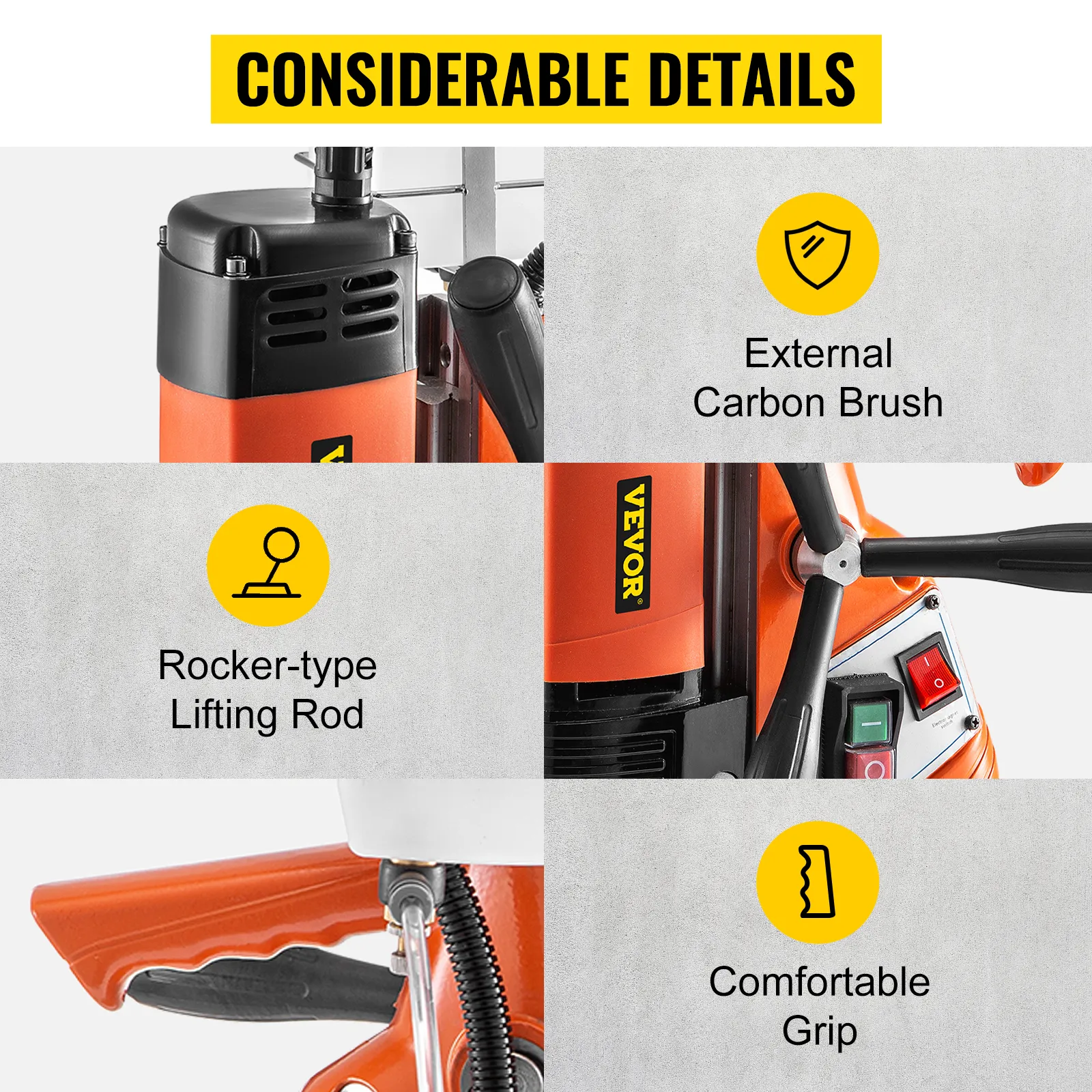

Considerable Details
Three extended crank rods allow you to adjust the drill up and down with less effort. Ergonomically handles for easy carrying. External carbon brush makes it easy to be replaced.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

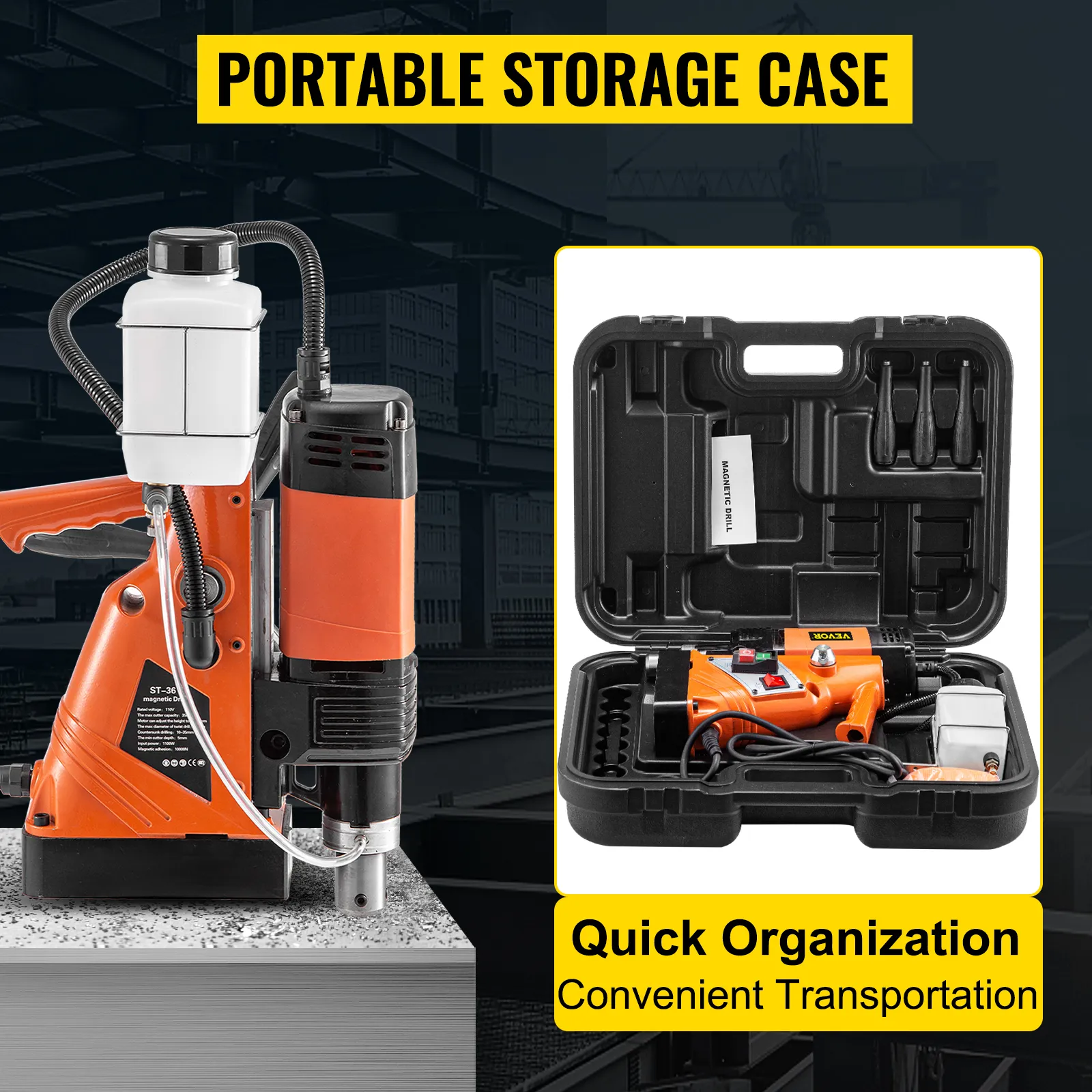

Portable Storage Case
The package comes with a carrying case. It features a comfortable handle, allowing convenient transportation and easy storage.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Extensive Usage
The electromagnetic drill press plays a vitally important role in shipbuilding, equipment manufacturing, equipment installation, bridge engineering, and other engineering facilities.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

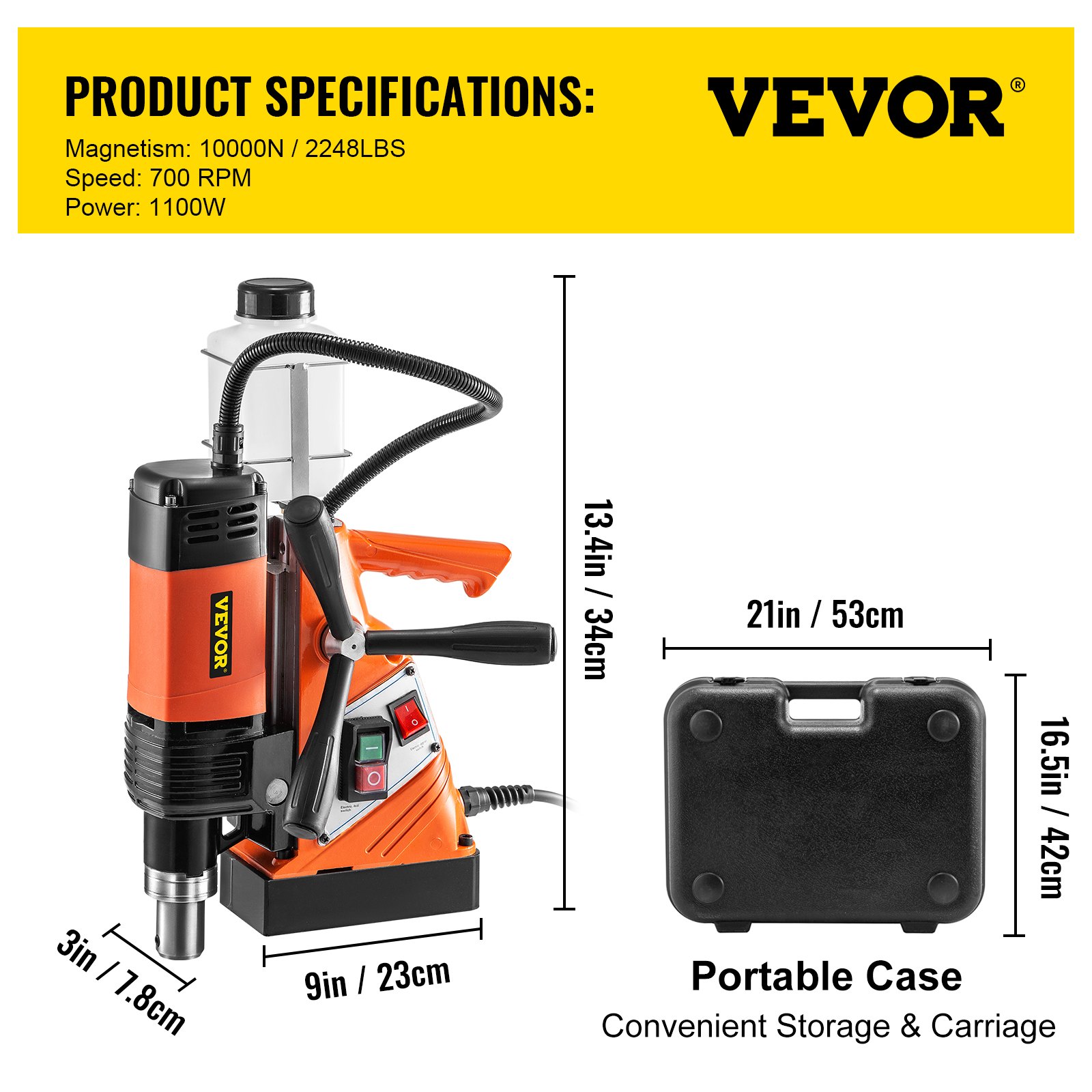

Specifications
  • Model: ST-36
  • Rated power: 1100 W
  • Max. cutting dia.(annular cutter): 35 mm / 1-3/8 in.
  • Max. cutting depth: 50 mm / 2 in.
  • No-load speed: 700 rpm
  • Rotation direction: clockwise
  • Arbor bore: 19.05 mm / 3/4 in. dia.
  • Cooling supply: Internal cooling
  • Voltage: AC 110V; 50-60 Hz
  • Magnet force: 10000 N
  • Stroke: 120 mm / 4.7 in.
  • Magnet footprint: 165 x 80 x 39 mm / 6.5 x 3.1 x 1.5 in.
  • Weight: 10.5 kg / 23.1 lbs
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

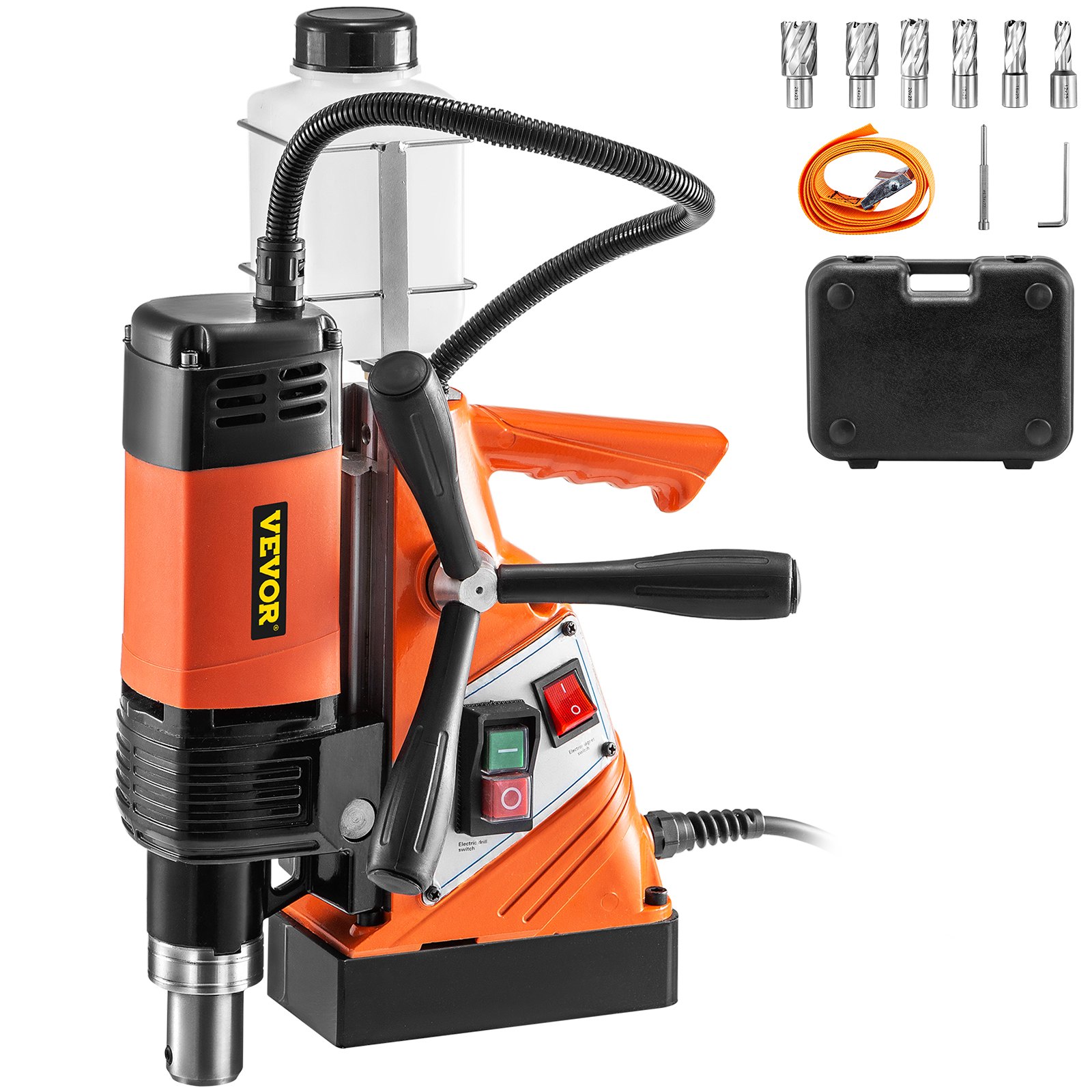

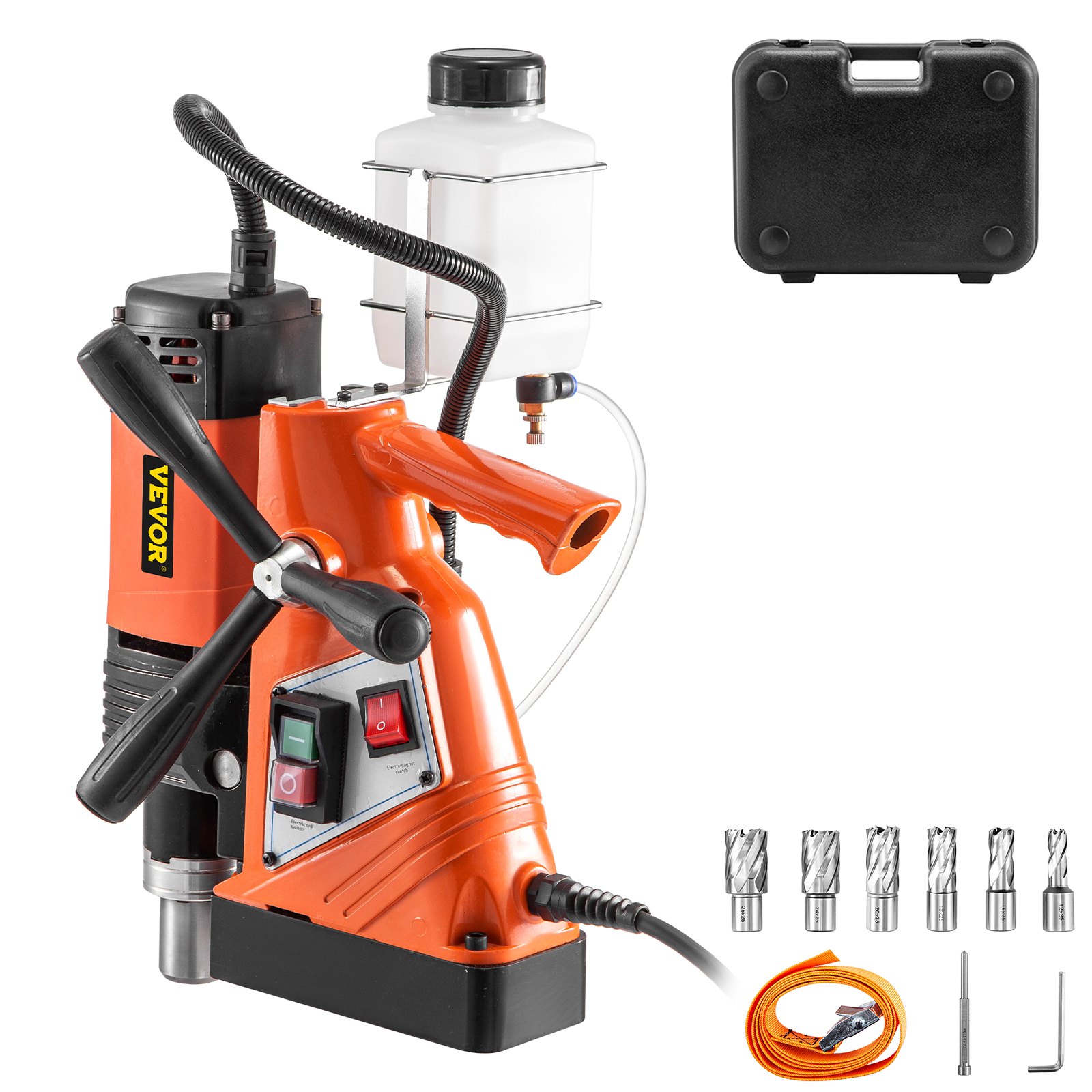

Package Content
  • 1 x Magnetic drill
  • 1 x Packing case
  • 1 x Cooling device
  • 1 x Safety belt
  • 1 x Allen wrench (2.5 mm, 4.0 mm, 6.0 mm)
  • 1 x Manual
  • 2 x Sealing ring in the cooling ring
  • 6 x Weldon Shank Core Drill (Φ12 x 25, Φ16 x 25, Φ18 x 25, Φ20 x 25, Φ24 x 25, Φ26 x 25 mm)
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit

VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Magnetic Drill
700RPM & 1100W & 4.7" Travel Distance
  • This class of leading drill press tools has been designed and engineered specifically for speed and precision. Its solid magnetic adhesion is 10000 N, which can perform the multidirectional operation. It is an essential tool for performing heavy-duty steel fabrication work.
  • Superior Performance
  • Premium Coring Bits
  • 10000 N Magnetic Force
  • Thoughtful Designs & Cooling System
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Excellent Performance
Fast drilling of our machine can reach clean cutting. With a drilling depth of 2"/55 mm, this magnetic drilling machine makes drilling extremely easy when you need to drill through thick metal.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Six Drilling Bits & Coolant Tank
6 coring bits meet the different working requirements, and they can be installed directly without a drill clip. Also, there is a coolant pot provided for heat dissipation.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
10000 N Suction Power
Equipped with a robust electromagnetic base, the magnetic core drilling machine can achieve side suction and back suction. Its enormous size ensures the stability and efficiency of work.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Considerable Details
Three extended crank rods allow you to adjust the drill up and down with less effort. Ergonomically handles for easy carrying. External carbon brush makes it easy to be replaced.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Portable Storage Case
The package comes with a carrying case. It features a comfortable handle, allowing convenient transportation and easy storage.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Extensive Usage
The electromagnetic drill press plays a vitally important role in shipbuilding, equipment manufacturing, equipment installation, bridge engineering, and other engineering facilities.
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Package Content
  • 1 x Magnetic drill
  • 1 x Packing case
  • 1 x Cooling device
  • 1 x Safety belt
  • 1 x Allen wrench (2.5 mm, 4.0 mm, 6.0 mm)
  • 1 x Manual
  • 2 x Sealing ring in the cooling ring
  • 6 x Weldon Shank Core Drill (Φ12 x 25, Φ16 x 25, Φ18 x 25, Φ20 x 25, Φ24 x 25, Φ26 x 25 mm)
VEVOR Magnetic Drill Press 1100W Magnetic Base Drill 10000N Magnet Force 6PCS Cutter Kit Mag Drill with 1-1/3 inch (35mm) Boring Diameter 700 RPM Portable Electric Mag Drill Press w/6PCS Cutter Kit
Specifications
  • Model: ST-36
  • Rated power: 1100 W
  • Max. cutting dia.(annular cutter): 35 mm / 1-3/8 in.
  • Max. cutting depth: 50 mm / 2 in.
  • No-load speed: 700 rpm
  • Rotation direction: clockwise
  • Arbor bore: 19.05 mm / 3/4 in. dia.
  • Cooling supply: Internal cooling
  • Voltage: AC 110V; 50-60 Hz
  • Magnet force: 10000 N
  • Stroke: 120 mm / 4.7 in.
  • Magnet footprint: 165 x 80 x 39 mm / 6.5 x 3.1 x 1.5 in.
  • Weight: 10.5 kg / 23.1 lbs

Specification

Model
ST-36
Rated power
1100 W
Max. cutting dia.(annular cutter)
35 mm / 1-3/8 in.
Max. cutting depth
50 mm / 2 in.
No-load speed
700 rpm
Rotation direction
clockwise
Arbor bore
19.05 mm / 3/4 in. dia.
Cooling supply
Internal cooling
Voltage
AC 110V; 50-60 Hz
Magnet force
10000 N
Stroke
120 mm / 4.7 in.
Magnet footprint
165 x 80 x 39 mm / 6.5 x 3.1 x 1.5 in.
Weight
10.5 kg / 23.1 lbs
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
135 Review(s)
Clear filters
Gerald Stanley Gerald Stanley
Great drill
I bought this to drill holes in the chassis of my off road truck to mount brackets. 1/4” thick steel and it had no problem making a perfect hole. I highly recommend this drill. Use your common sense when operating this equipment and you have no issues. Some reviewers very critical of the lack of an interlock but if you take your time and look at what you’re doing it’s not a problem. Great purchase and very useful tool.
Vinito Vinito
Mr.
I just received this drill today, so I can't speak to longevity. That said, if longevity was a huge priority on this I would expect to pay $1,600 or more and this suits my budget MUCH better. I will say that the drill is VERY solid construction (much better than expected) and yet operation is still very smooth. I've several times used a very popular brand seen on YT all the time and that one has excessive wiggle and rocking on the vertical track, but this Vevor one has none of that. Very nice. The weldon socket fits the tools very well, i.e. not loose - this one is very concentric in that regard. Both boring tools and even the drill chuck ran very true and I could not detect any runout at all by naked eye, so is much better than most tools of this type that I've used. Whether that's luck or something else, I'm very happy about this. The electronic speed controller takes a second or so to catch up with itself if you push it enough to slow it down (not what you'd normally do), but that's typical of electronic controllers and I prefer this type to primitive "get what you set" variable speed. Speed range is VERY useful (pretty much slows to zero) and reversing will come in handy. All the switches and knobs feel smooth and solid. There IS a magnet/motor interlock!! Thus you can't start the motor if you forget to switch on the magnet first. Also, if you accidentally switch off the magnet while the motor is spinning, it switches the motor off automatically. Important safety feature! Surprised NONE of the online info on the drill notes this fact. The drill is GOOD, but this item's listing on their website needs help. The features are very nice. The only thing I wish it had was a quill lock since gravity keeps wanting to lower it constantly making it awkward for changing tools and such. It's not terrible, just a bit annoying. Mine did NOT come with the "quick change" tool collar as the pictures show, but I'm actually glad about that because the typical set screw arrangement this one came with is simple and reliable. I don't change tools on mag drills often enough to need quick change anyway. So technically a dropped feature, but for me that was kind of a relief since I was skeptical of the reliability of a quick-change collar thing. One less thing to go wrong. Another feature that is never mentioned is the positioning of the drill body along the vertical slide is quick and easily accessible. None of that disassembling stuff some mag drills have. Loosen a hex socket screw on the side, slip it up or down, and snug it back down. I like this. Long story short, I really like this drill so far. Drilled a few 1/2" holes today for something I'm building and really it worked great. Operation is very smooth, has plenty adequate power (both magnet and motor) and a pleasure to use. I like it! Photo shows the 1/2" jobber length drill chucked in the thing. Does this with about 3/4" to spare. Awesome.
Dean Long Dean Long
Lead Fabricator and Mechanic
This drill is a great deal, drills very well and has an extremely strong magnet. I have used it to drill through 1in plate down to 11ga. I have even drilled holes with it upside down, great product
jim jim
Owner
Great product. I would definitely recommend but don't forget the extra bits! The Mag Drill Press cut through 1/4 steel plate with ease.
Jim Francis Jim Francis
Extreme Drilling
Why have I not gotten this drill earlier in my life? Used my new drill immediately with the best results possible. Easy to use, awesome results.
Ray Ray
Magnetic drill
Ok magnetic drill. Purchased to get me through a specific job. Used the drill chuck with hole saws. Got the job done but when backing the hole saw out of the work piece the quick release chuck came loose too often, dropping the drill chuck, adapter and hole saw. I'm not sure if this is an issue with the drill chuck adapter or the quick release mechanism. I haven't tried any of the boring bits that come with the drill press to see if their arbor adapter does the same thing. All of the boring bits with this machine are metric. I would have preferred to buy just the machine without the metric boring bits.
Pat Pat
President
I really like this drill. It is small and light, yet powerful. And the quick-release chuck for the annular bits is a terrific feature. Only disappointment is that it doesn’t come with a carrying/storage case.
Mike Mike
boss man
This drill works great and is a big time saver for me when drilling steel plate. I have recommended this drill to many people . Also the price is wright for most people.
dave dave
owner
Worked very well. We used it to drill horizontal holes through vertical plates 1/2" thick 9 feet in the air off scaffold. The weight was ideal and it worked great. Unlike other very heavy brand name units the weight on this was a plus and did not seem to affect the quality.
Duane Leverenz Duane Leverenz
Service Engineer
I expected this Mag Drill to be cheap limited use tool. Turns out I was incorrect. I basically bought the bits and received a Mag drill for free. I thought great deal! Turns out I was wrong. It was a fantastic deal!!! This drill is solid. I have a solid drill with quality bits that cut with a machine finish. I almost feel bad I got such a good deal. I look forward to seeing what other quality items I can dig up from Vevor.
