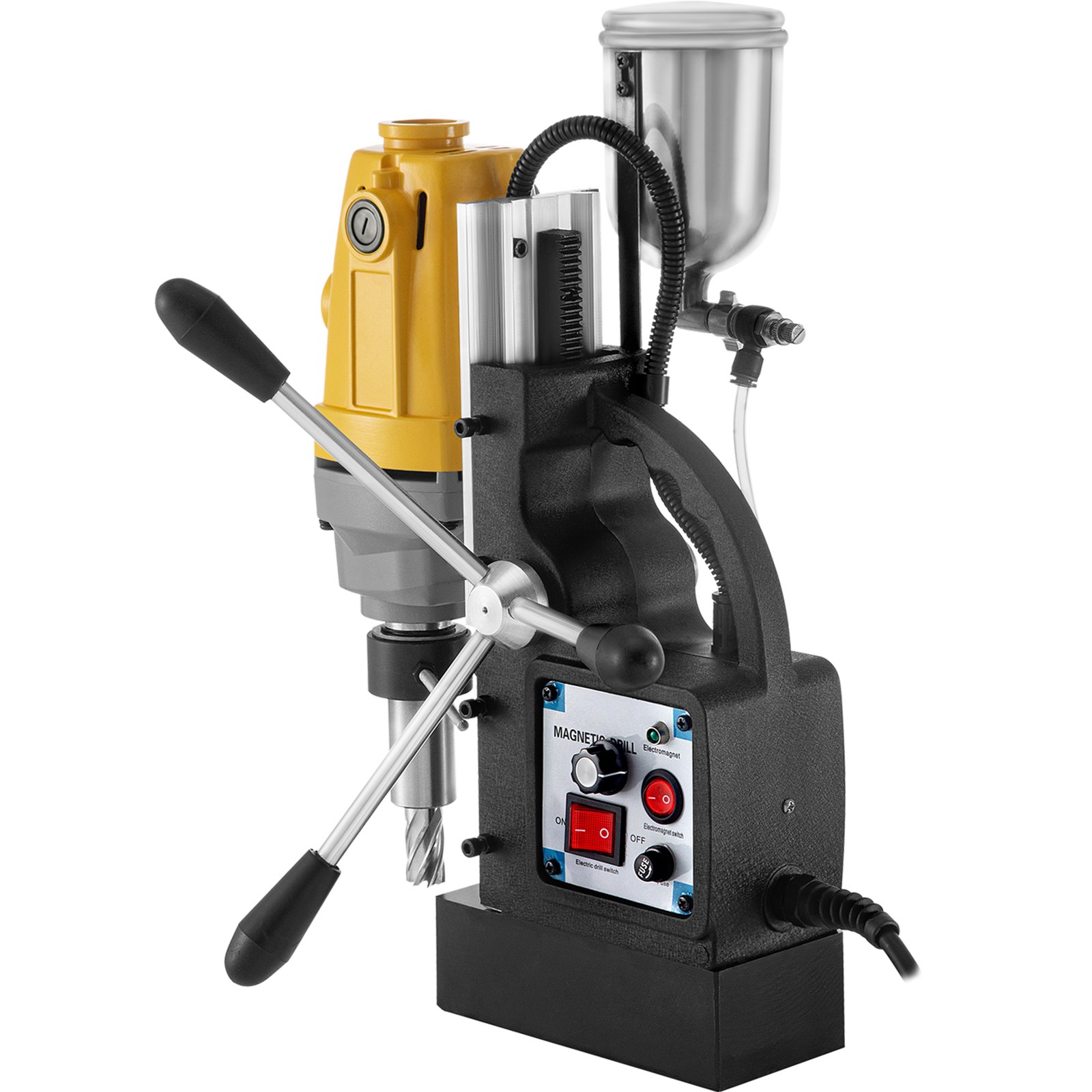

VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit

VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit
$326.99
326.99
Price including VATSee details

11 Pieces Toroidal Cutter

  • 11 Pieces Toroidal Cutter
  • No
  • 6 Pieces Toroidal Cutter

40 mm

  • 35 mm
  • 40 mm
  • · 【HIGH PERFORMANCE】- Motor power: 1100 W, 60 Hz. No-load speed: 200-550RPM. Maximum Boring Depth: 2.16 inches / 55 mm. Maximum Boring Diameter: 1.57inches / 40 mm. Drilling bits: Φ12, Φ13, Φ15, Φ16, Φ18, Φ20, Φ21, Φ23, Φ24, Φ26, Φ27. Besides, our magnetic drill can only be used with hollow boring bits, not with annular bits.
  • · 【STEPLESS SPEED】- Our magnetic base drill bores at 200 - 550RPM. Taking advantage of the panel is beneficial to achieve stemless speed regulation of the drill press.
  • · 【2700 LBS MAGNETIC FORCE】- The magnetic drill press’s maximum magnetic force is 12000 N / 2700 lbs, suitable for clumsy working space. The foot size of drill machine is 166 X 80 mm / 6.53" X 3.15".
  • · 【ADJUSTABLE HEIGHT & COOLING SYSTEM】- The aluminum alloy double dovetail guide rail of the mag drill can adjust the height of the motor. Our coolant tank effectively helps your rig get rid of the overheating.
  • · 【WIDELY APPLICATION】- The electromagnetic drill press plays a vitally important role in shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, and other engineering facilities.


Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit
11 Pieces Toroidal Cutter 40 mm
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16

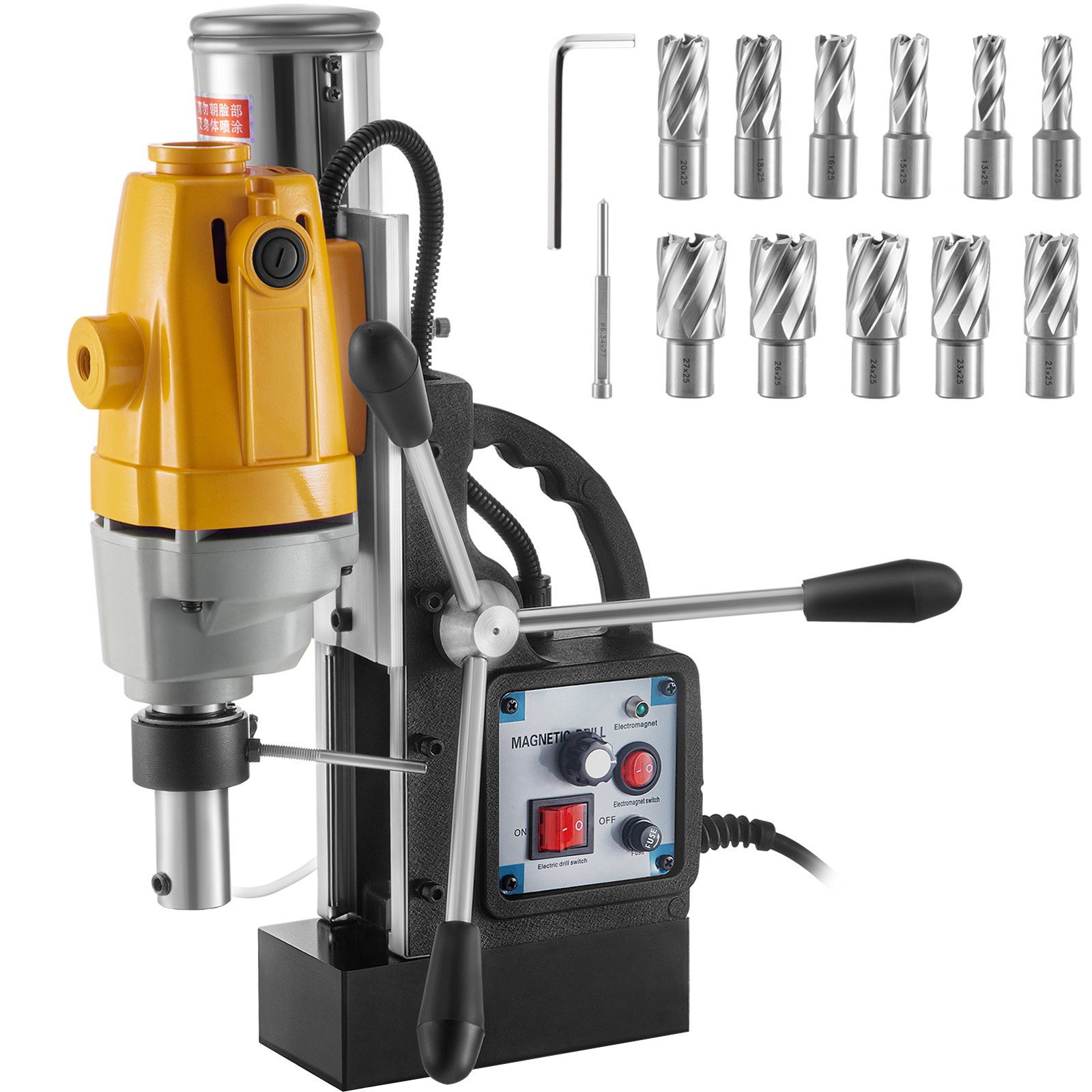

Magnetic Drill with 11 PCS HSS
This class of leading drill press tools has been designed and engineered specifically for speed and precision, with solid magnetic adhesion of 12000 N, an optimized rotation speed of 200-550RPM. It is an essential tool for performing heavy-duty industrial and steel fabrication work.
Note
  • 1. The magnetic base can only be adsorbed on the steel plate (thickness greater than or equal to 5 mm).
  • 2. Our magnetic drill can only be used with hollow boring bits, not with annular bits.
  • High Performance
  • 2700 lbs Magnetic Force
  • Adjustable Height
  • Easy Cooling & Usage
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16

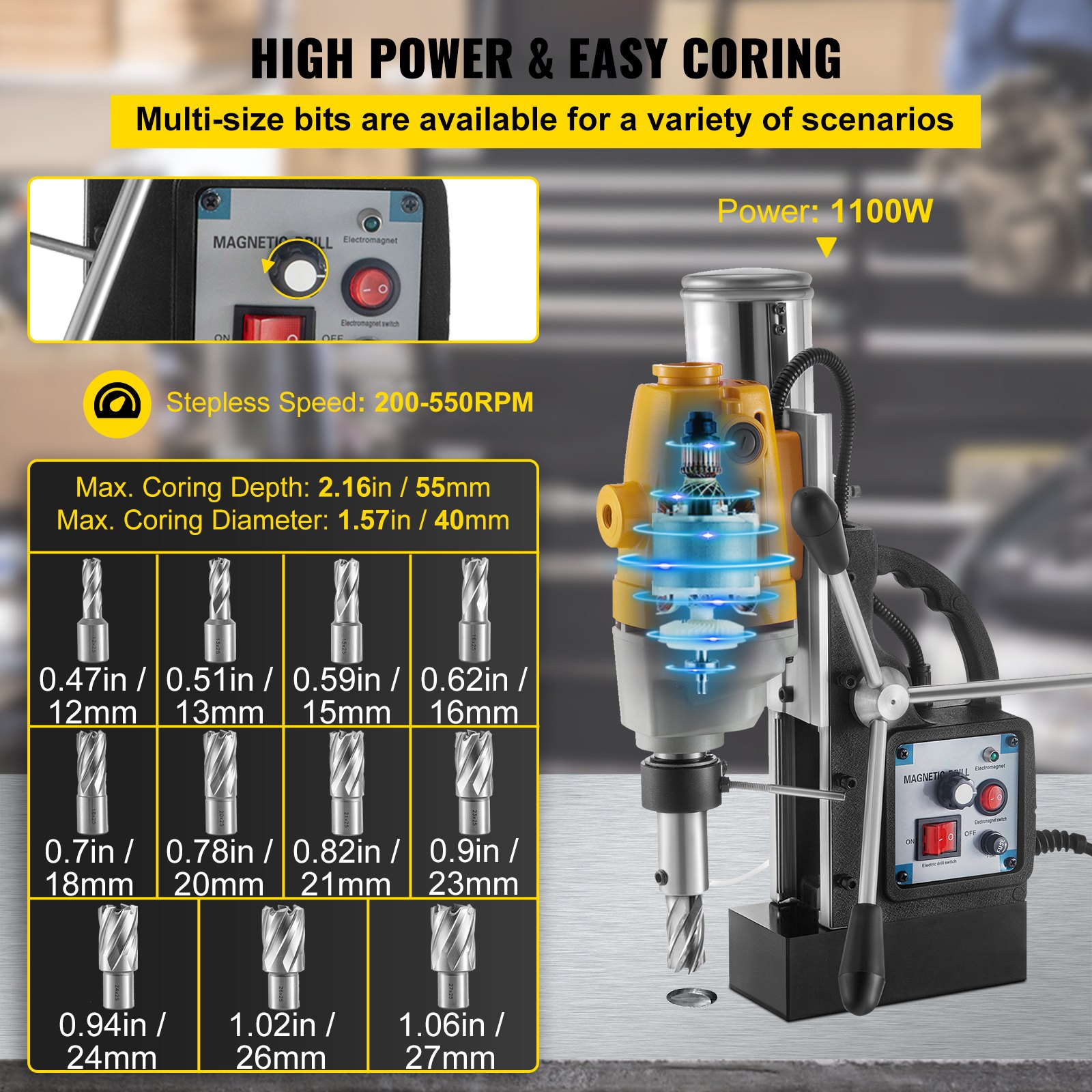

Durable Body & Robust Motor
Fast drilling of our drilling machine can reach clean cutting. With a drilling depth of 55 mm, magnetic drilling machines make drilling extremely easy when you need to drill through thick metal. And our magnetic drill can only be used with hollow boring bits, not with annular bits.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Stepless Speed Regulation
With the use of the panel, as long as you rotate the button, you would obtain stemless speed regulation. The design of the handle of our magnet drill press provides you easy work and carriage.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16

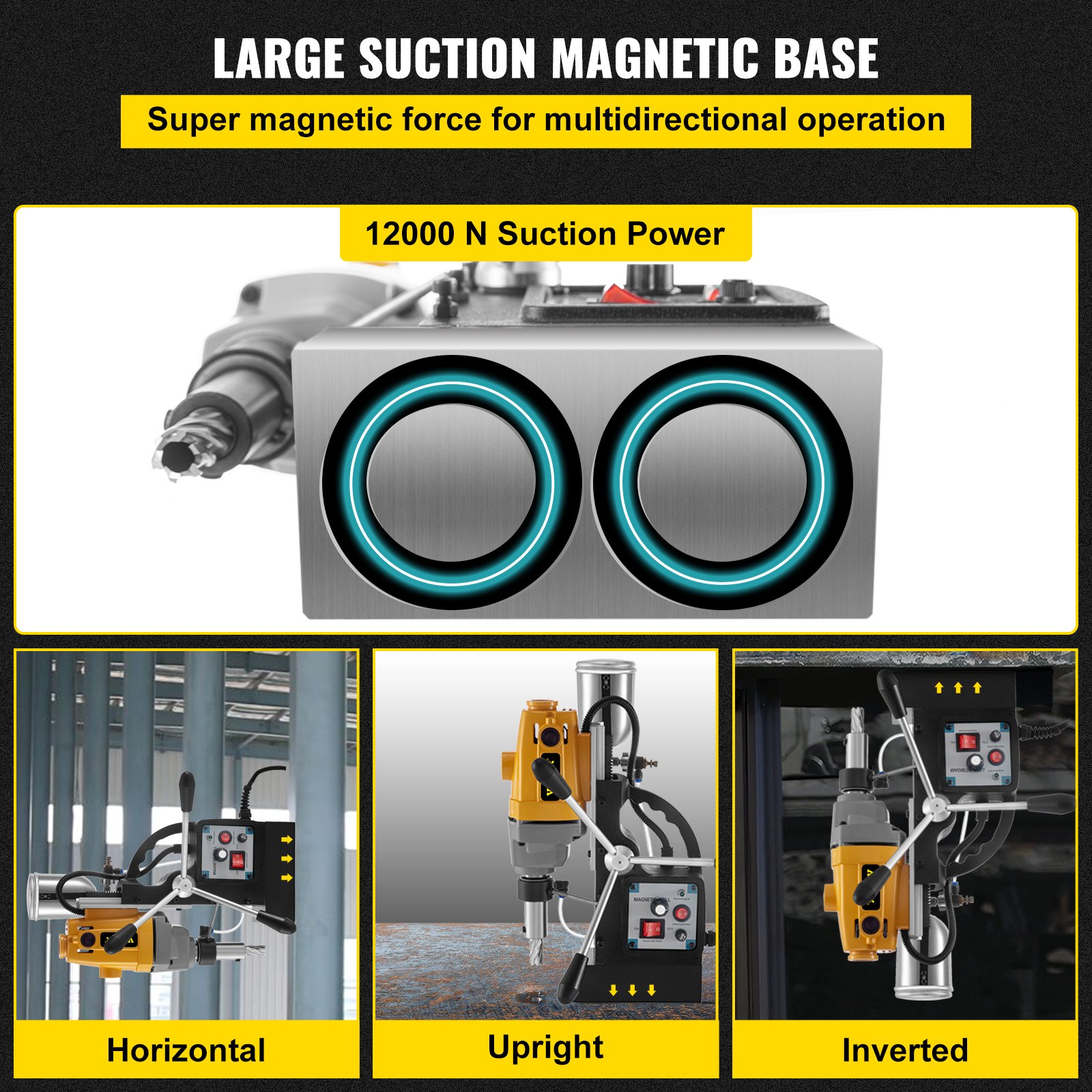

2700 Lbs / 12000 N Electromagnet Base
Equipped with a robust electromagnetic base, the magnetic core drilling machine can achieve side suction and back suction. Its enormous size ensures the stability and efficiency of work.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16

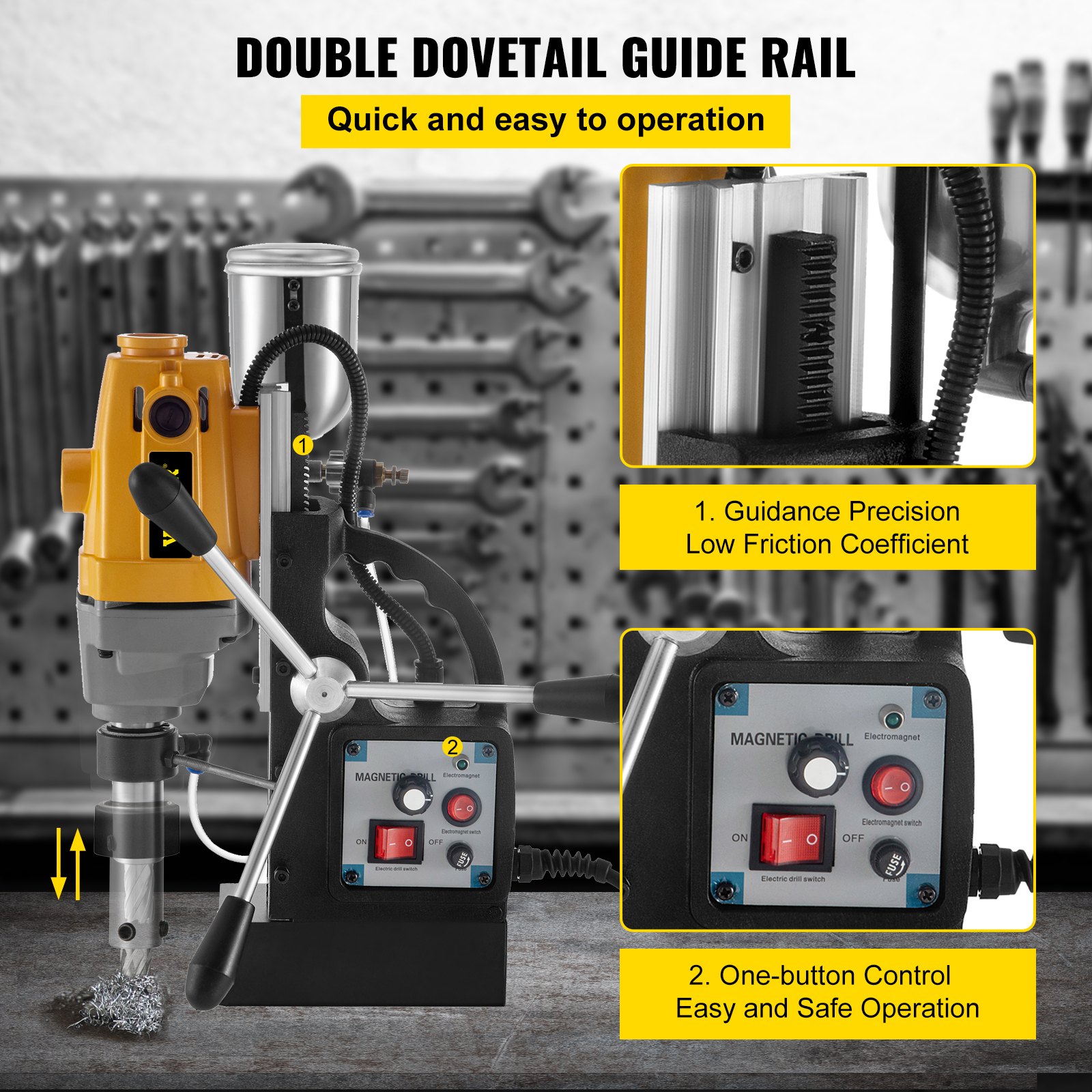

Double Dovetail Guide Rail
Aluminum alloy double dovetail guide makes sure the rigidity of the mag drill press. The surface of the rocker-type lifting rod is provided with an anti-skid rubber sleeve, which gives users access to convenient operation.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16

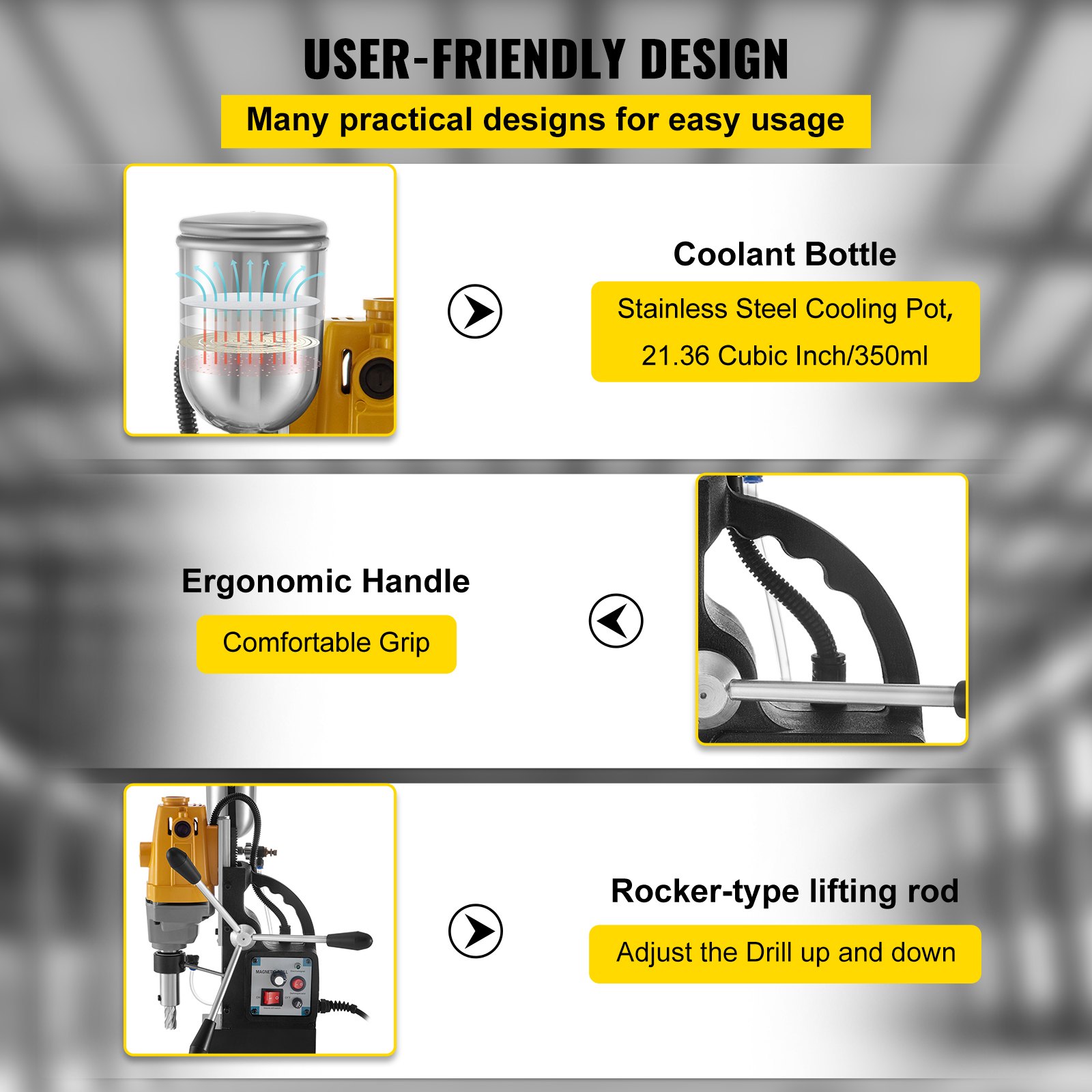

Integrated Cooling System
Coupled with a coolant tank and cyclone-style air intake cooling system, Our power magnetic drill presses effectively avoid overheating to extend its service life.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16

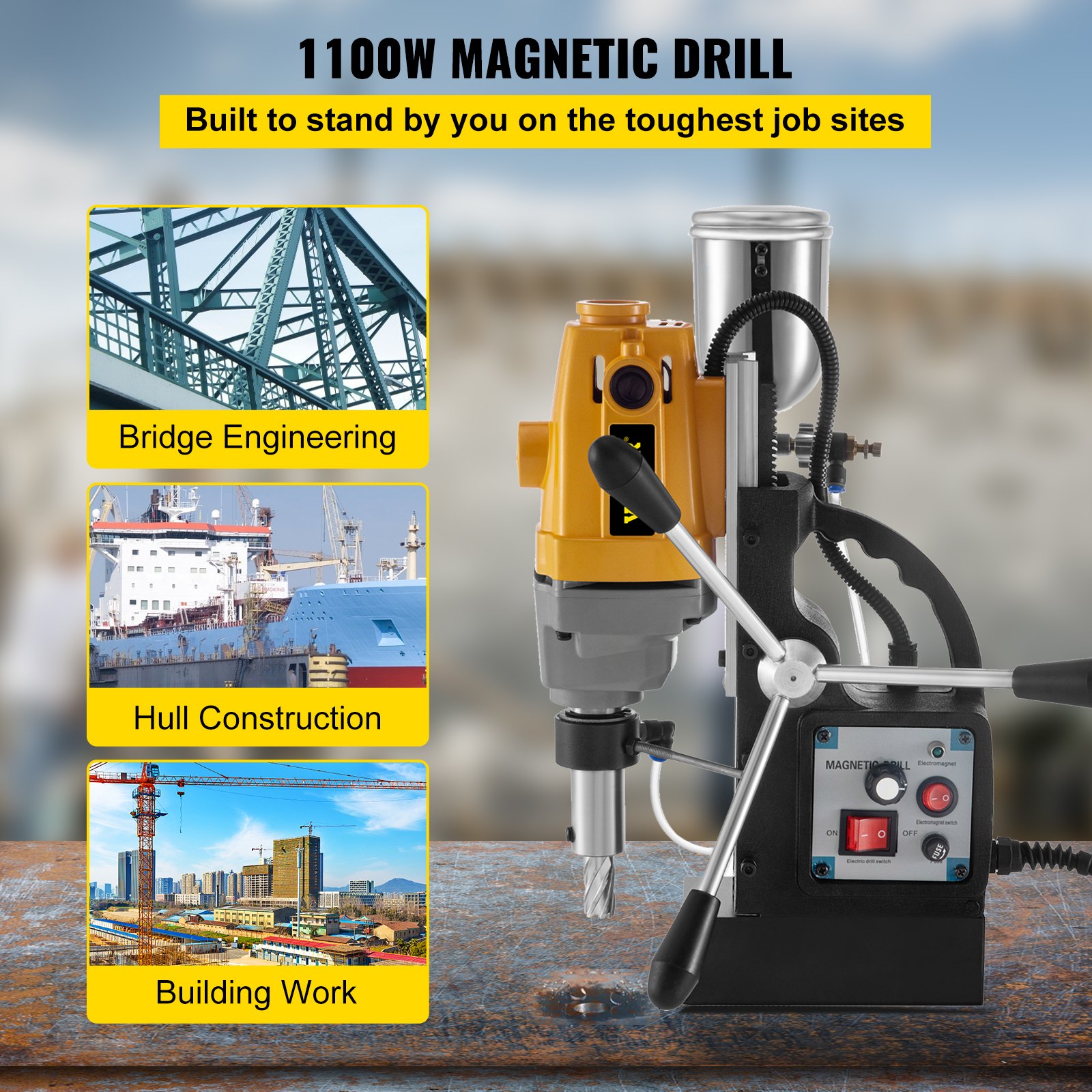

Extensive Usage
The boring tool drill press allows you to deal with steel structures, drilling rigs, electric power construction, railway manufacturing, and many other fields.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Specifications
  • Model: J1C-40
  • Power: 1100 W
  • Power Supply: 110 V / 60 Hz
  • Idle Speed Approx : 200-550RPM
  • Max Magnetic Force: 12000 N / 2700 lbs
  • Max. Travel distance: 4.92 inches / 125 mm
  • Max. Drilling Depth Φ (Core Drill ): 2.16 inches / 55 mm
  • Magnetic Foot Dimensions: 6.53 x 3.14 inches / 166 x 80 mm
  • Max. Drilling Φ (with Core Drill ): 0.47 x 1.57 inches / 12 x 40 mm
  • Product Weight: 27.11 lbs / 12.3 kg

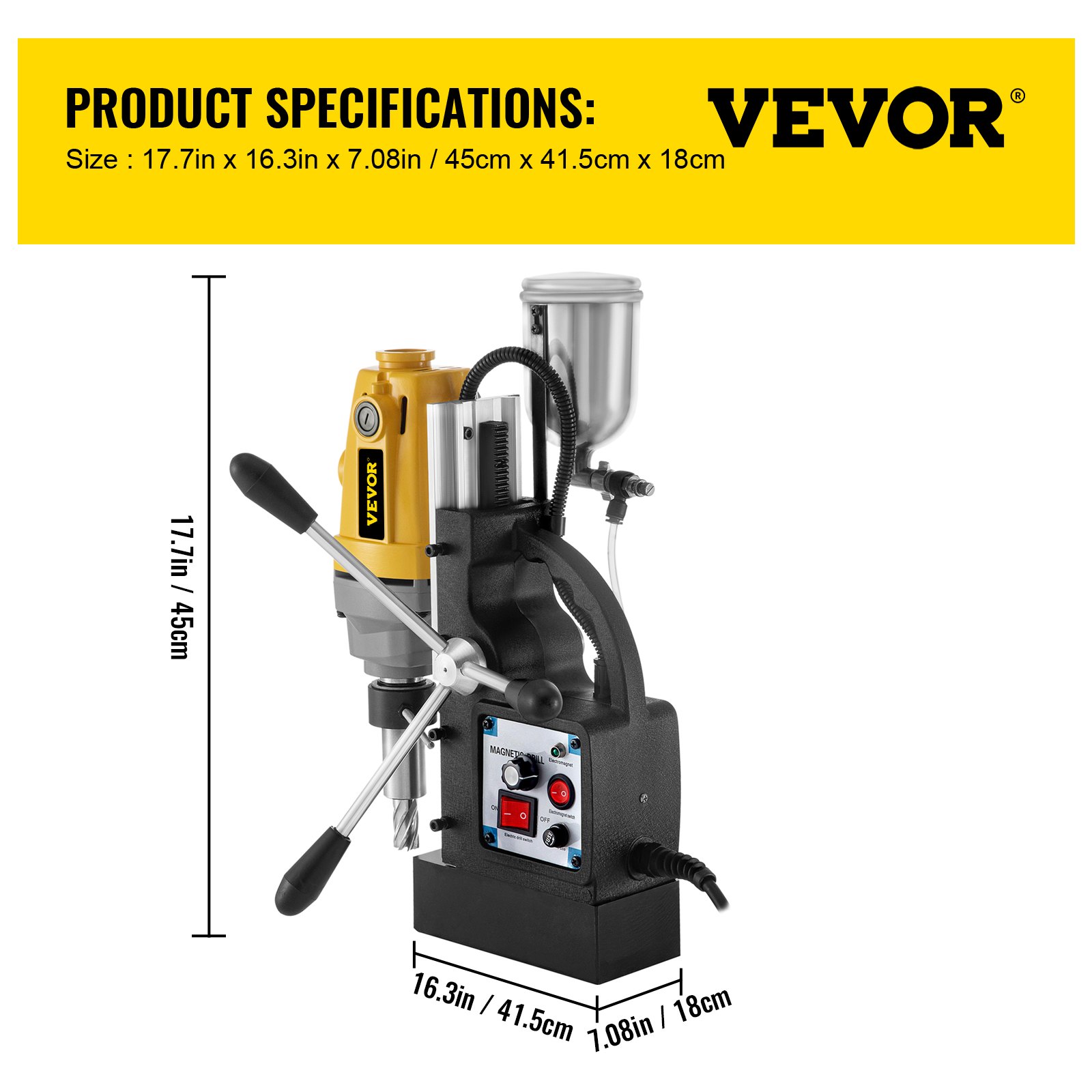

  • Product Size: 17.71 x 16.33 x 7.08 inches / 45 x 41.5 x 18 cm
  • Color: Yellow and Black
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Package Content
  • 1 x 1100W Magnetic Drill
  • 1 x Rope
  • 1 x Kettle
  • 1 x Water Pipe
  • 1 x Support Rod
  • 3 x Little Rockers
  • 1 x Thimble (0.25 x 3.03 inches / 6.34 x 77 mm)
  • 1 x Operating Manual

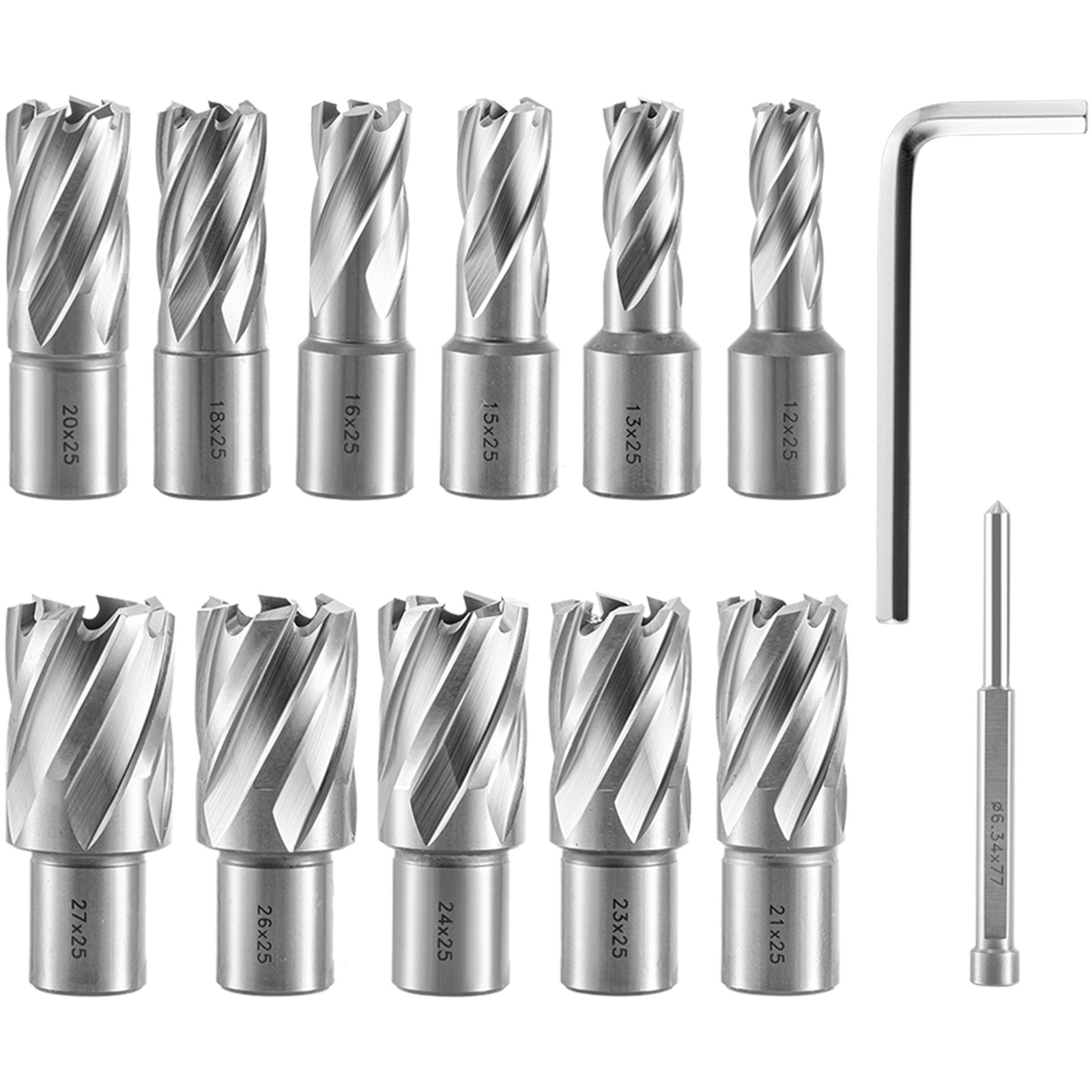

  • 11 x Drilling Bit (Φ12, Φ13, Φ15, Φ16, Φ18, Φ20, Φ21, Φ23, Φ24, Φ26, Φ27)
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Magnetic Drill with 11 PCS HSS
This class of leading drill press tools has been designed and engineered specifically for speed and precision, with solid magnetic adhesion of 12000 N, an optimized rotation speed of 200-550RPM. It is an essential tool for performing heavy-duty industrial and steel fabrication work.
Note
  • 1. The magnetic base can only be adsorbed on the steel plate (thickness greater than or equal to 5 mm).
  • 2. Our magnetic drill can only be used with hollow boring bits, not with annular bits.
  • High Performance
  • 2700 lbs Magnetic Force
  • Adjustable Height
  • Easy Cooling & Usage
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Durable Body & Robust Motor
Fast drilling of our drilling machine can reach clean cutting. With a drilling depth of 55 mm, magnetic drilling machines make drilling extremely easy when you need to drill through thick metal. And our magnetic drill can only be used with hollow boring bits, not with annular bits.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Stepless Speed Regulation
With the use of the panel, as long as you rotate the button, you would obtain stemless speed regulation. The design of the handle of our magnet drill press provides you easy work and carriage.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
2700 Lbs / 12000 N Electromagnet Base
Equipped with a robust electromagnetic base, the magnetic core drilling machine can achieve side suction and back suction. Its enormous size ensures the stability and efficiency of work.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Double Dovetail Guide Rail
Aluminum alloy double dovetail guide makes sure the rigidity of the mag drill press. The surface of the rocker-type lifting rod is provided with an anti-skid rubber sleeve, which gives users access to convenient operation.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Integrated Cooling System
Coupled with a coolant tank and cyclone-style air intake cooling system, Our power magnetic drill presses effectively avoid overheating to extend its service life.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Extensive Usage
The boring tool drill press allows you to deal with steel structures, drilling rigs, electric power construction, railway manufacturing, and many other fields.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Package Content
  • 1 x 1100W Magnetic Drill
  • 1 x Rope
  • 1 x Kettle
  • 1 x Water Pipe
  • 1 x Support Rod
  • 3 x Little Rockers
  • 1 x Thimble (0.25 x 3.03 inches / 6.34 x 77 mm)
  • 1 x Operating Manual
  • 11 x Drilling Bit (Φ12, Φ13, Φ15, Φ16, Φ18, Φ20, Φ21, Φ23, Φ24, Φ26, Φ27)
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16
Specifications
  • Model: J1C-40
  • Power: 1100 W
  • Power Supply: 110 V / 60 Hz
  • Idle Speed Approx : 200-550RPM
  • Max Magnetic Force: 12000 N / 2700 lbs
  • Max. Travel distance: 4.92 inches / 125 mm
  • Max. Drilling Depth Φ (Core Drill ): 2.16 inches / 55 mm
  • Magnetic Foot Dimensions: 6.53 x 3.14 inches / 166 x 80 mm
  • Max. Drilling Φ (with Core Drill ): 0.47 x 1.57 inches / 12 x 40 mm
  • Product Weight: 27.11 lbs / 12.3 kg
  • Product Size: 17.71 x 16.33 x 7.08 inches / 45 x 41.5 x 18 cm
  • Color: Yellow and Black

Specification

Model
J1C-40
Power
1100 W
Power Supply
110 V / 60 Hz
Idle Speed Approx
200-550RPM
Max Magnetic Force
12000 N / 2700 lbs
Max. Travel distance
4.92 inches / 125 mm
Max. Drilling Depth Φ (Core Drill )
2.16 inches / 55 mm
Magnetic Foot Dimensions
6.53 x 3.14 inches / 166 x 80 mm
Max. Drilling Φ (with Core Drill )
0.47 x 1.57 inches / 12 x 40 mm
Product Weight
27.11 lbs / 12.3 kg
Product Size
17.71 x 16.33 x 7.08 inches / 45 x 41.5 x 18 cm
Color
Yellow and Black
Questions and Answers
1 Questions
Does it come with a standard drill bit chuck?
Hello William Simmons! This product can only be used with Weldon shank bits and it comes with  Weldon shank bits.
By vevor

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
Gramps9999 Gramps9999
1680W 11 Pieces Toroidal Cutter 40 mm
Best way yet to drill large metal objects!
We actually bought this for our son for his birthday, but I was the first to use it. I had to drill a 26mm hole is some mild steel that was about 9.5mm thick. It drilled a beautifully clean hole in a little over 2 minutes. It was easy to use and not too heavy. I would have given this product 5-stars on "Features" except for two issues; 1) the so called safety strap is just a piece of rope. Really???, and 2) I would have preferred the lowest speed setting to be a bit slower (but that is just my preference). Overall, this is a great magnetic drill press and well worth the money. Our son loves it and has used it multiple times already.
0
jim jim
1680W 6 Pieces Toroidal Cutter 40 mm
Owner
Great product. I would definitely recommend but don't forget the extra bits! The Mag Drill Press cut through 1/4 steel plate with ease.
0
Byron Z Byron Z
1100 W 11 Pieces Toroidal Cutter 40 mm
Unstable to drill a hole
It’s easy for use and portable to carry out for anywhere drill a hole,electrical magnetic working good on metal surface but still jumping when bits touch the surface...
0
James Gauldin James Gauldin
1680W
Initial thoughts and observations
My first reaction to the equipment is positive. I was surprised to find a drill chuck in with the anular cutters. I do not see that as part of the kit and had ordered a chuck separately. The chuck provided with the unit is maybe a 1/2" while the one I ordered was 5/8". The coolant line was not kinked on my unit. Also the anular cutters are ground to inch sizes. This was a bit disappointing for I ordered this unit after seeing a comment that the cutters were supplied in metric. Given I already had an imperial set the metrics would have been a nice addition to my set. However, I'm not complaining as the cutters appear to be well made. I am a bit disappointed that the wire from the control to the drill motor is about 3" short this preventing full travel of the drill head in the ways. While I don't plan on running the full length of the ways for various reasons, it is nice to have the ability for those rare situations. The unit was shipped with the power switches on, minor but always makes me wonder who is surprised when they plug it in for the first time. The magnet appears suitable but more testing will be needed. The manual seems to be written better than the comments note. However, it is still a bit rough to understand in one or two places. More to come at a later date after a bit of testing.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit
0
Nathan JDC Contracting Nathan JDC Contracting
1680W
Oiler is touchy
While this is not an expensive mag drill, it gets the job done great. The oiler can be a bit touchy, but with some practice, you should get it down. I end up keeping a oil mat under the drill when not in use, since the oiler tends to leak a little bit.
0
Amazon Customer Amazon Customer
NEED IT
Bought this to drill holes on the noose neck trailer, so we could add lights. It did a hell of a job! we also use it in our semi truck shop and its put to the test. It's defiantly holding up..
0
Garage FAB N stuff Garage FAB N stuff
1680W 6 Pieces Toroidal Cutter 40 mm
VEVOR Mag Drill Press Electric Magnetic Drill for the win!
I ordered this item specifically to drill a welding table top for precision fixture points. The drill was packaged well and arrived with everything you see in the picture. The shipping only took a few days and tracking was provided. I assembled the item using common sense because the manual was not formatted in a manner that could be read. There were English words but it was not possible to read. I proceeded to drill a over hundred holes in 1/4 in plate steel with no issue. The drill has plenty of power and internal cooling fan kept the drill nice and cool. There was no discernable runout of the chuck and quality of the holes was amazing. Now that I have this drill I can envision many more uses for it where I want drill press quality but need a portable drill. This drill will go anywhere a steel plate can be clamped. Overall this item is 5 stars by delivering a capable tool at 20% the cost of a comparable "pro level" tools. This is well suited for DIY mechanics, metal hobby shops, and professional homeowners.
VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit VEVOR Mag Drill, 200-550RPM Stepless Speed Electromagnetic Drill Press, 2.16" Depth 1.57" Dia Magnetic Core Drill, 2700LBS Boring Tool Drill Press, 1100W Drill Press, 11 PCS HSS Annular Cutter Kit
0
Customer Service Reply: Dear customer,
Thank you for you positive comment.

Your encouragement will keeping us moving forward.
We sincerely hope that we will have more chances to serve you.
Please contact us for any questions!

Best regards,
VEVOR Team
Pepper Pepper
1680W 11 Pieces Toroidal Cutter 40 mm
Not reverse
No reverse and very limited space to raise the drill bit but a great machine
0
Matthew Gardner Matthew Gardner
1680W 11 Pieces Toroidal Cutter 40 mm
It’s fast and easy, doesn’t cost much either
This drill works great. I drilled through my semi frame in about 15 seconds. It works great. I didn’t have to spend allot of money, and far exceeded my expectations for sure.
0
Cliff Cliff
1680W 11 Pieces Toroidal Cutter 40 mm
not made in USA
it appears it should work for moderate use.
