VEVOR XYZ Linear Stage 3 Axles 60 x 60 mm Trimming Platform, Bearing Tuning Platform Sliding Table, XYZ 3 Directions Manual Linear Stage for Optical Instruments, Measuring Devices, Semiconductor
5 2 Reviews
$ 96 99
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get $5.00 Off $99.00+ Orders on Your First 3 App Orders.
Download Now
- 【ACCURATE POSITION】- The 3-Axes optical stage features micrometer heads for accurate position. This manual displacement platform can be used for high-precision or medium-heavy production machinery inspection devices, precise positioning, quantitative movement.
- 【XYZ AXIS LINEAR STAGE】- The workbench size of this linear stage sliding table is 60 x 60 mm (2.36 inches). The direction of movement: X, Y, Z axis. Travel: XY:±6.5 mm. Itinerary: Z: 10 mm. Load: 24.5 N(3kgf). Accuracy: 0.03 mm. Parallel: 0.03 mm.

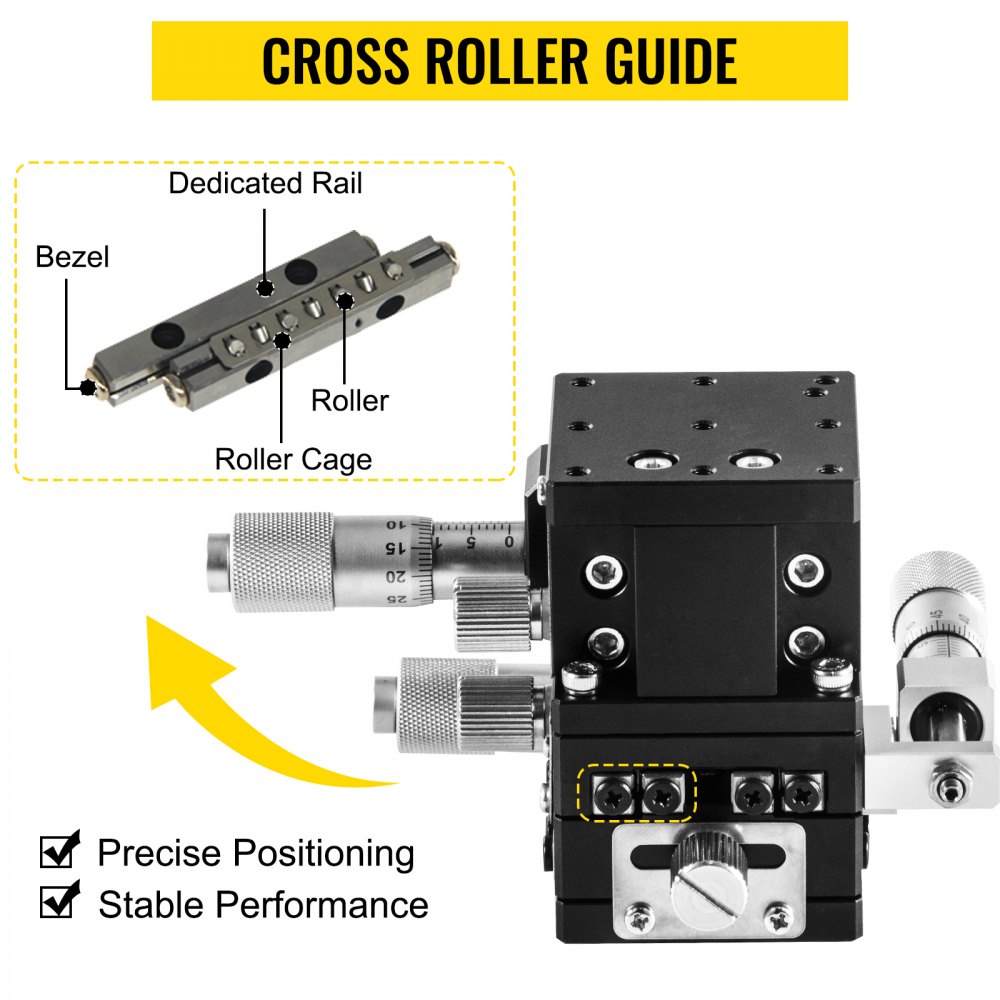

- 【CROSS ROLLER GUIDE】- Using the intersection roller guide for high accuracy, smooth movement, this linear stage has the features of precision movement, precise positioning, stable performance, easy installation, and removal.
- 【PREMIUM MATERIAL】- The slider is built with aluminum alloy with hard oxidation treatment, which is wear-resistant and corrosion-resistant and can adapt to different harsh environments. The stainless steel screw is processed with surface passivation treatment, rust-proof and fadeless.
- 【VARIOUS APPLICATION】- It is widely used in optical instruments and apparatus, measuring equipment, testing fixture, Semiconductor manufacturing equipment, testing machine, microscope, transporter, process machine, medical equipment, printing machine, etc.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Top Reviews
About this item
Description

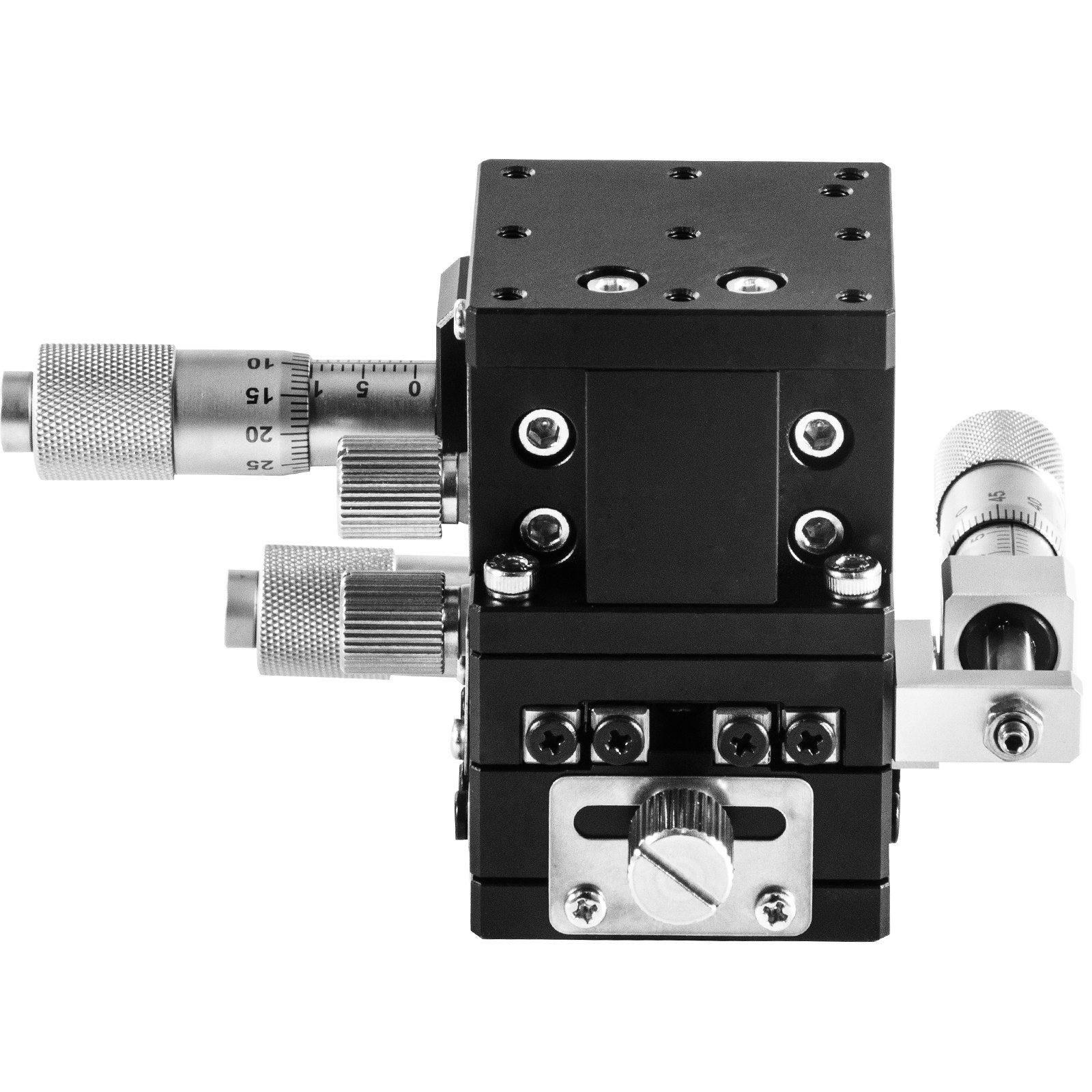

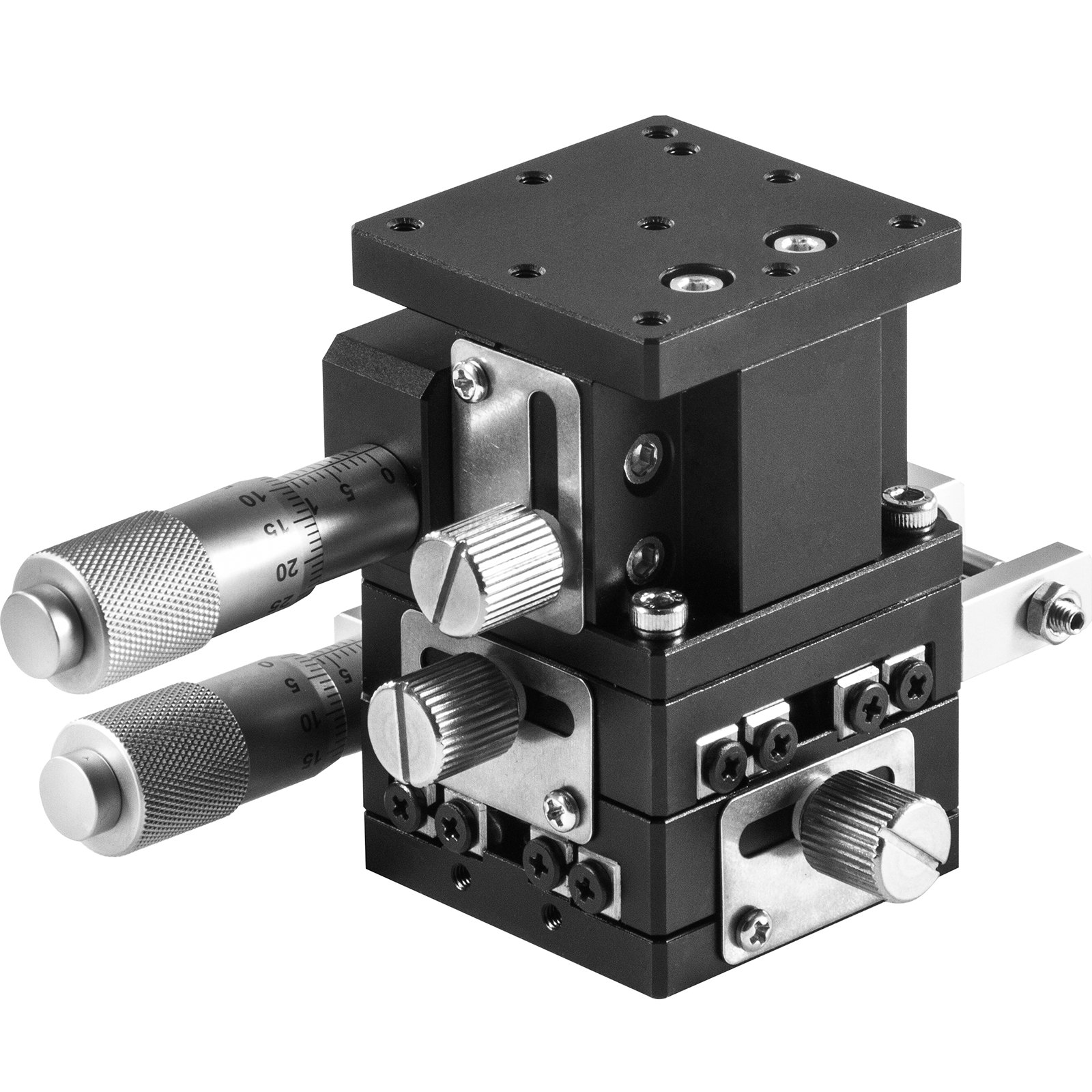

XYZ 3 Axles Linear Stage
This linear stage has a 60 x 60 mm workbench and features the micrometer heads for accurate position. There are many types of manual translation stages and a complete range of combinations. It is widely used in scientific research units, automatic measurement inspection, industrial automation, and other fields and can realize automatic displacement control under vacuum, pollution, sterile, radiation, and different environments.
- Accurate Position
- XYZ Axis Linear Stage
- Cross Roller Guide
- Premium Material
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Accurate & Smooth Acting

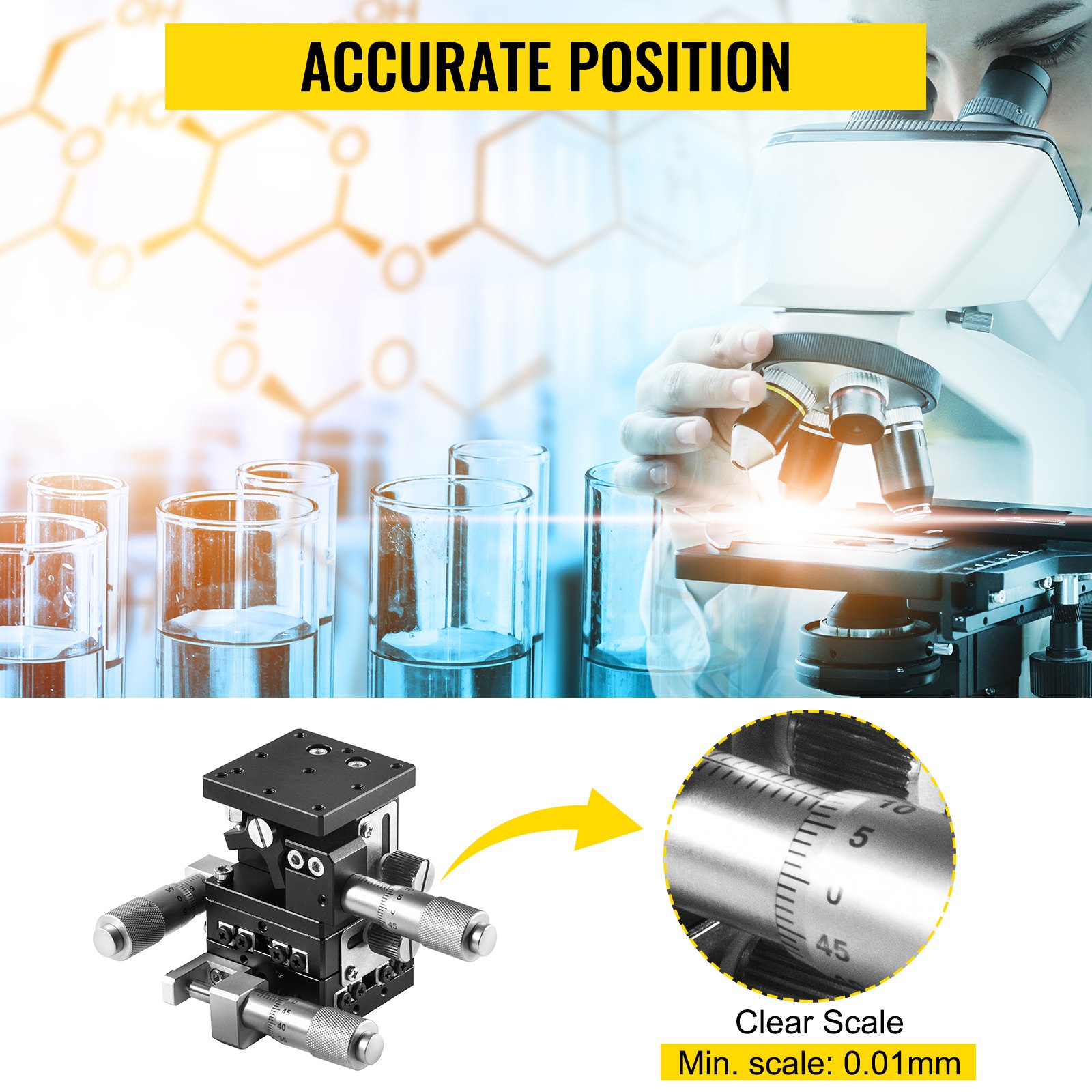

The 3-Axes optical stage is designed with micrometer heads for accurate position. The micrometer heads have a precise scale, and the minimum scale is 0.01 mm.

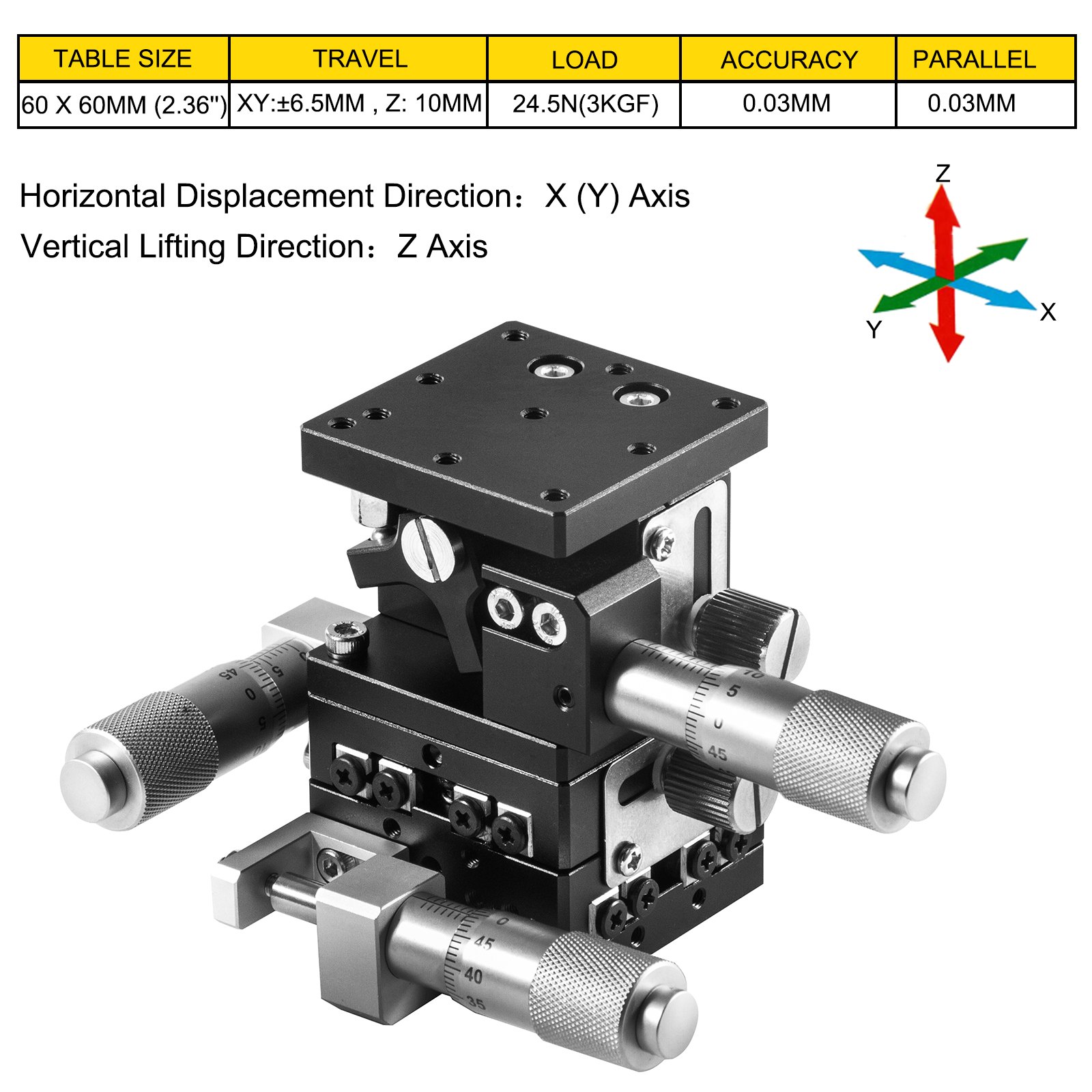

XYZ Axis Linear Stage
This linear stage has the 60 x 60 mm (2.36 inches) workbench. The direction of movement: X, Y, Z axis. Travel: XY:±6.5 mm, Z: 10 mm. And the accuracy and parallel are 0.03 mm.

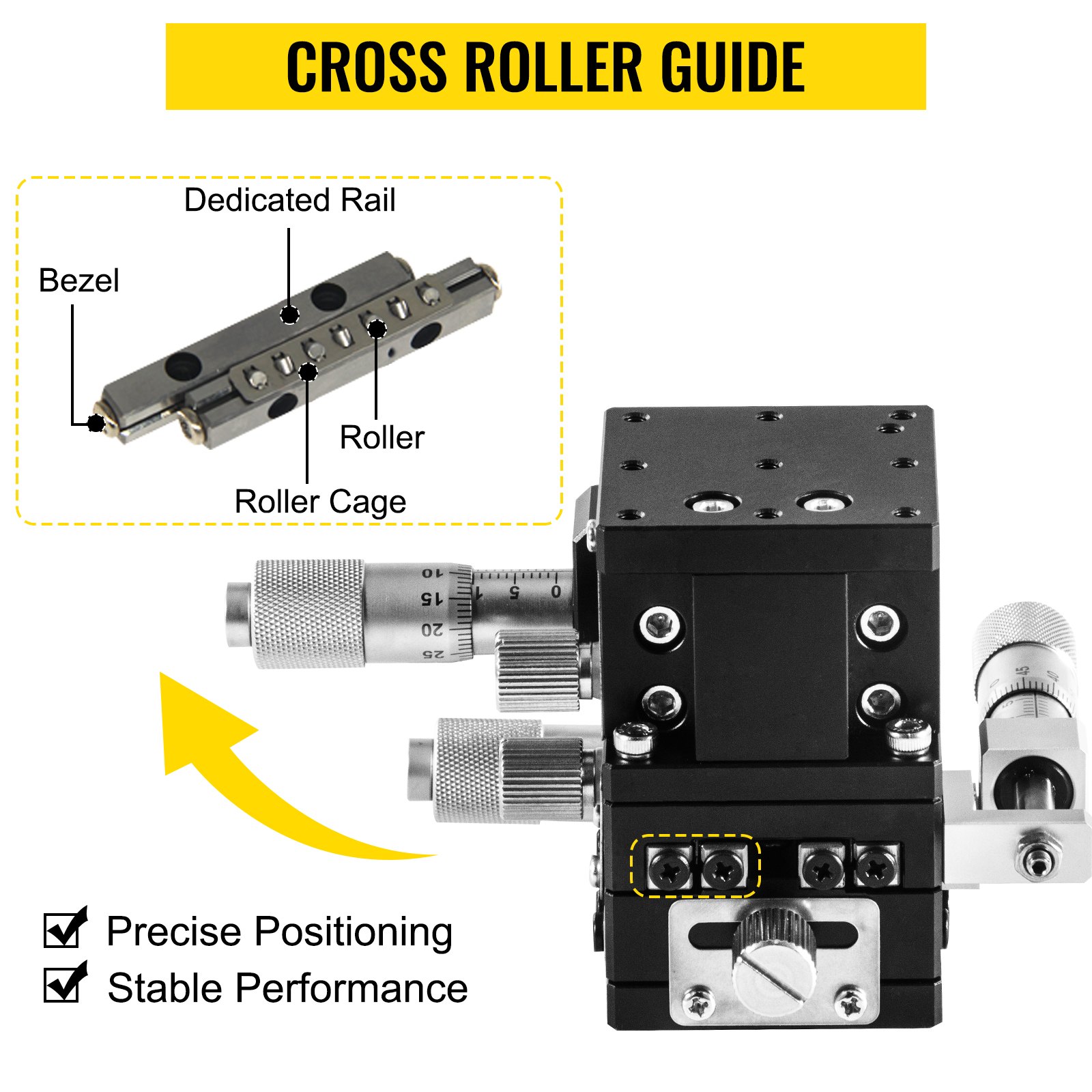

Intersection Roller Guide
The XYZ axle uses the intersection roller guide to ensure high accuracy, smooth movement. It can realize automatic displacement control under vacuum, pollution, and other environments.

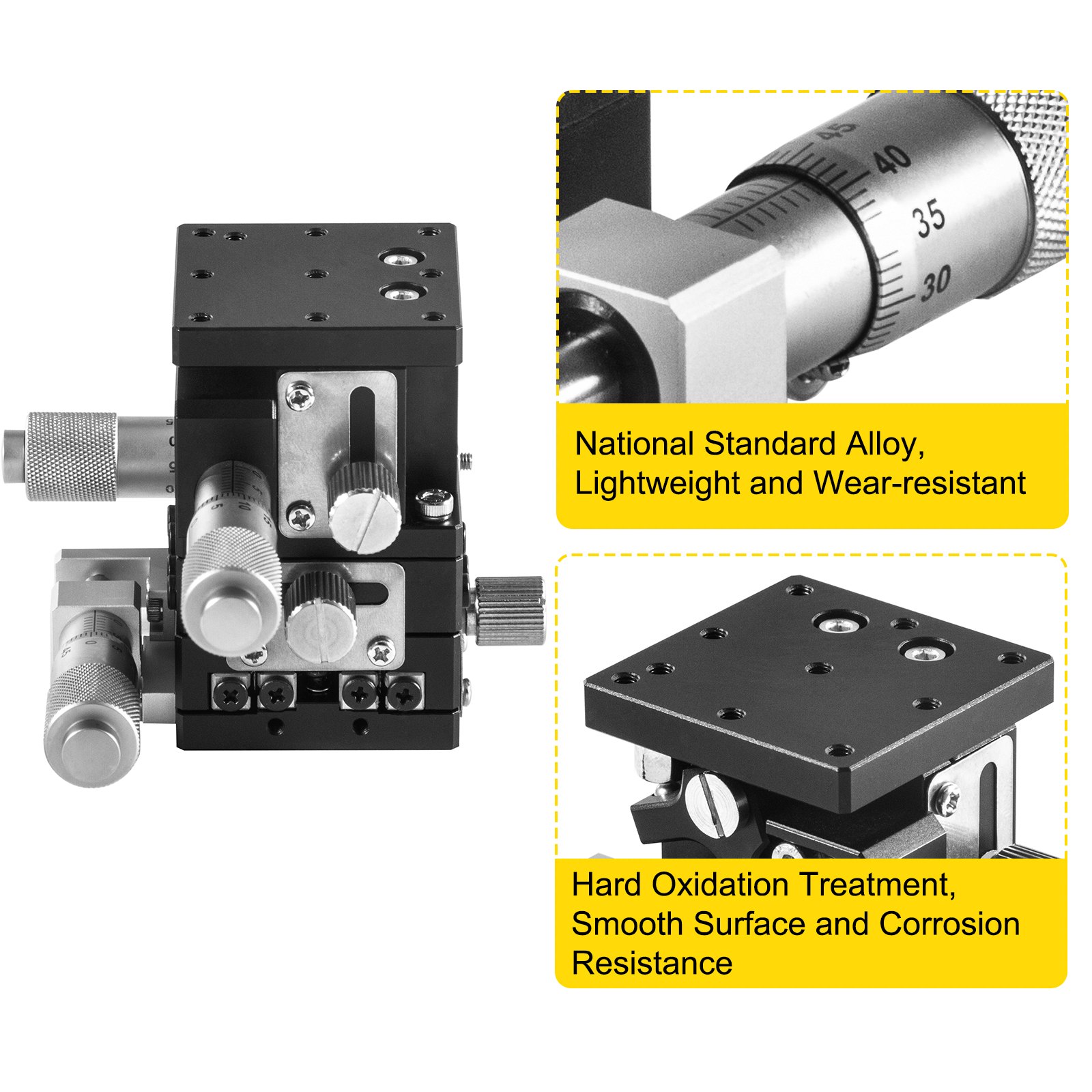

Excellent Quality
Made of national standard alloy with hard oxidation treatment, the stage has a smooth surface, a low coefficient of friction, and can be used in complex environments.

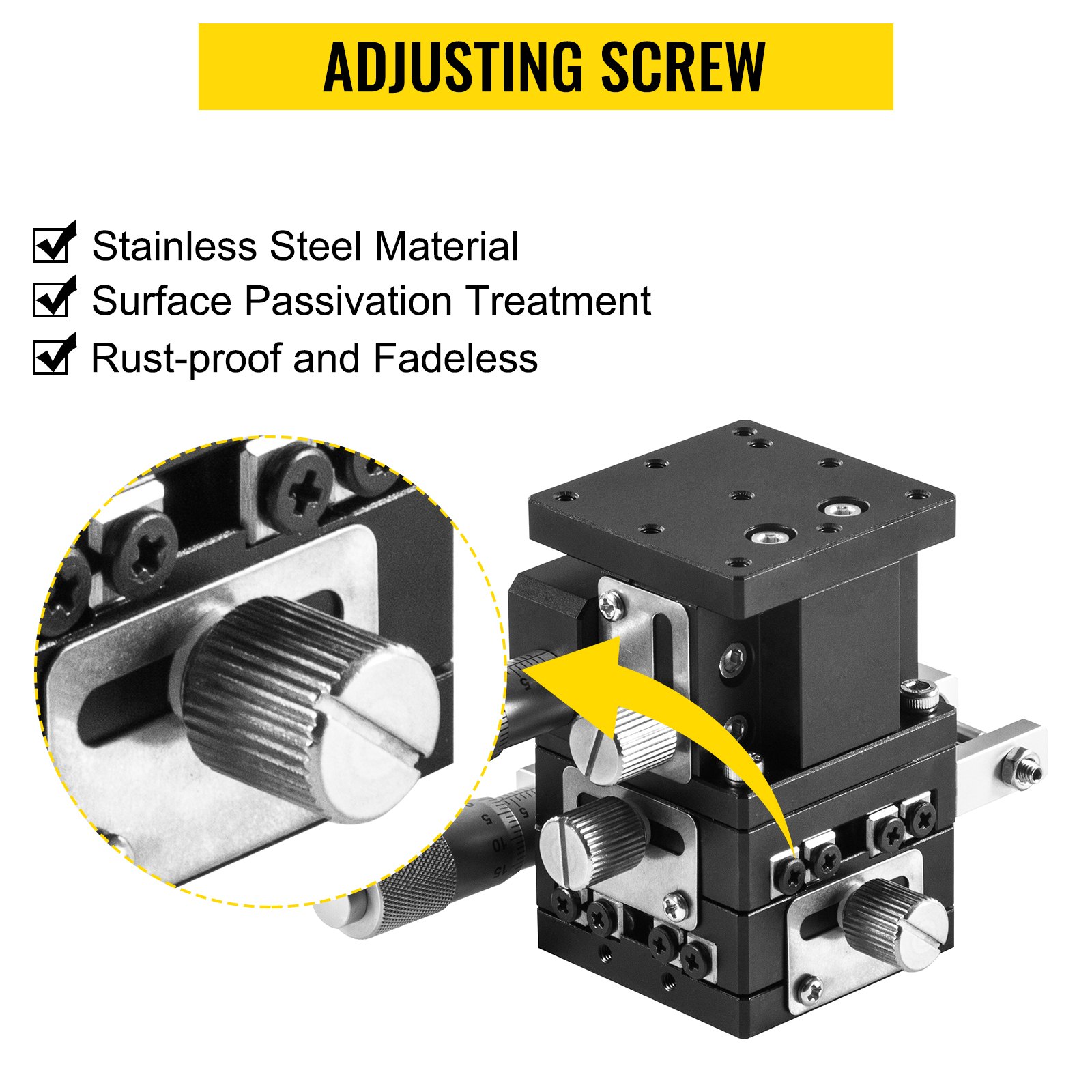

Stainless Steel Screw
The adjusting screw is made of stainless steel material with passivation treatment, and it is rust-proof and corrosion-resistant.
Wide Application
It is suitable for machine tools, automation equipment, optical equipment, laboratory accuracy inspection, mechanical equipment positioning, and movement.
Specifications
- Model: LD60-LM

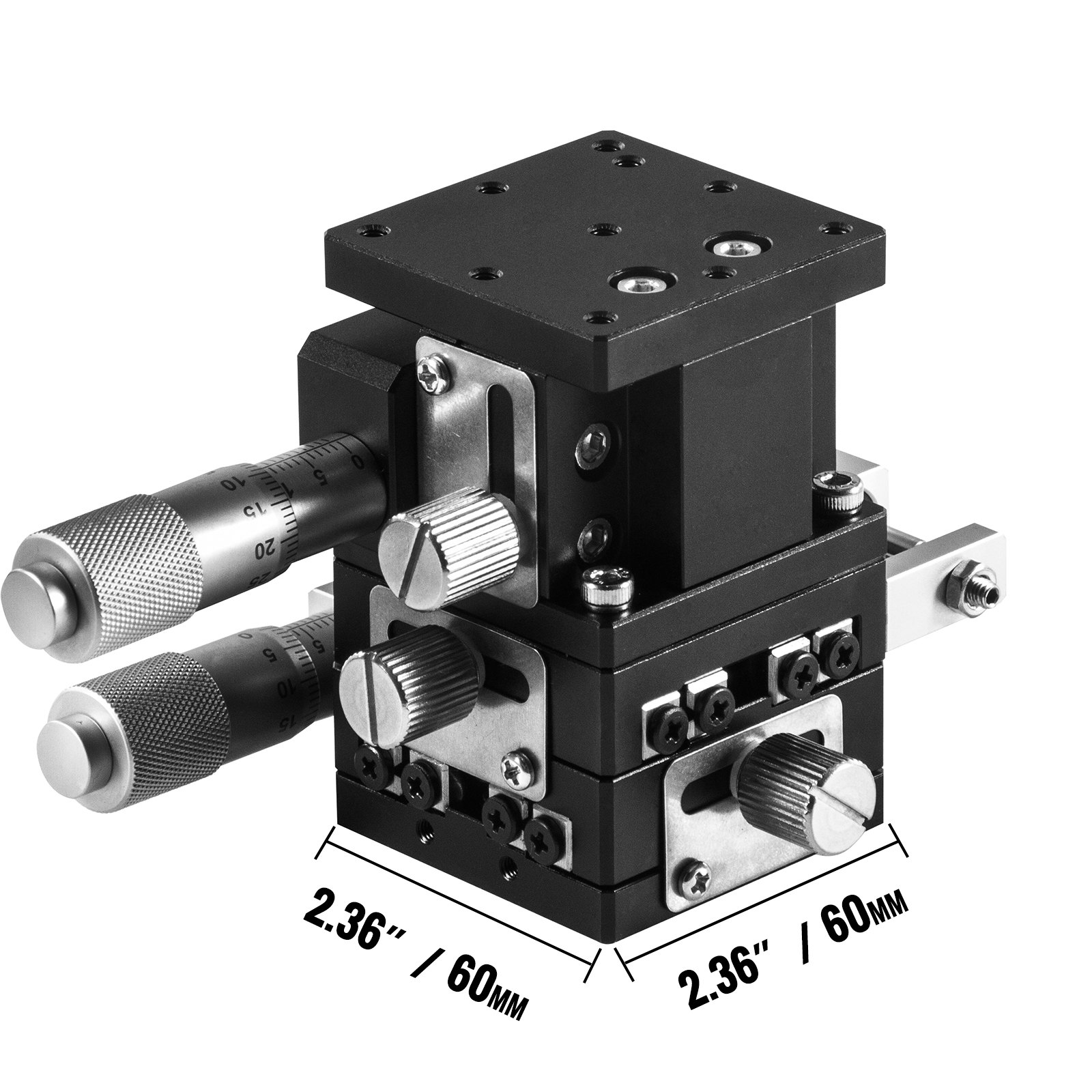

- Workbench Size: 60 x 60 mm (2.36 inches)
- Direction of Movement: X, Y, Z axis
- Travel: XY: ± 6.5 mm / 0.26''
- Itinerary: Z: 10 mm / 0.39''
- Load: 24.5 N (2kgf)
- Minimum Scale: 0.01 mm
- Accuracy: 0.03 mm
- Parallel: 0.03 mm
- Material: Aluminum Alloy
Package Content

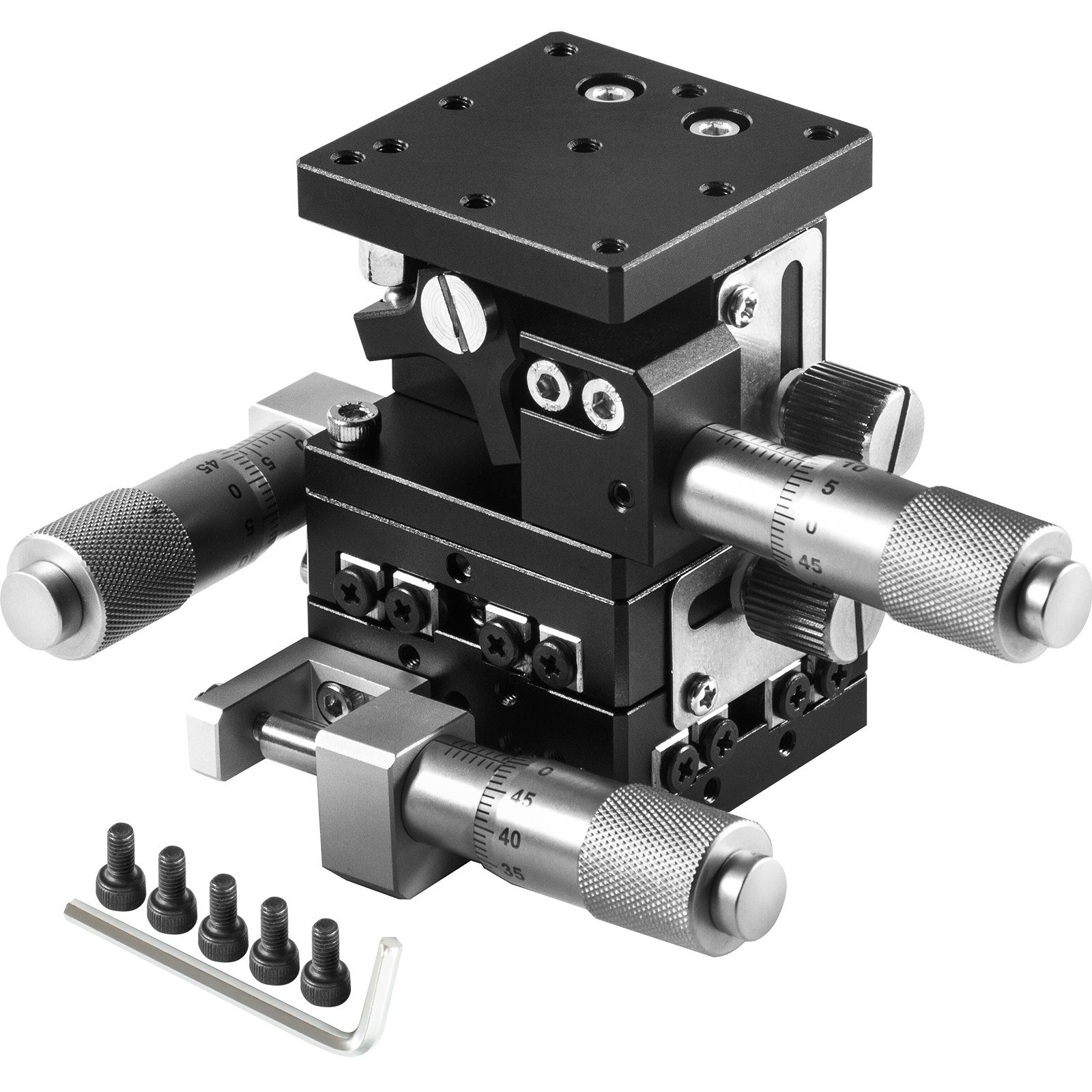

- 1 x XYZ Axis Linear Stage Table
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
XYZ 3 Axles Linear Stage
This linear stage has a 60 x 60 mm workbench and features the micrometer heads for accurate position. There are many types of manual translation stages and a complete range of combinations. It is widely used in scientific research units, automatic measurement inspection, industrial automation, and other fields and can realize automatic displacement control under vacuum, pollution, sterile, radiation, and different environments.
- Accurate Position
- XYZ Axis Linear Stage
- Cross Roller Guide
- Premium Material
Accurate & Smooth Acting
The 3-Axes optical stage is designed with micrometer heads for accurate position. The micrometer heads have a precise scale, and the minimum scale is 0.01 mm.
XYZ Axis Linear Stage
This linear stage has the 60 x 60 mm (2.36 inches) workbench. The direction of movement: X, Y, Z axis. Travel: XY:±6.5 mm, Z: 10 mm. And the accuracy and parallel are 0.03 mm.
Intersection Roller Guide
The XYZ axle uses the intersection roller guide to ensure high accuracy, smooth movement. It can realize automatic displacement control under vacuum, pollution, and other environments.
Excellent Quality
Made of national standard alloy with hard oxidation treatment, the stage has a smooth surface, a low coefficient of friction, and can be used in complex environments.
Stainless Steel Screw
The adjusting screw is made of stainless steel material with passivation treatment, and it is rust-proof and corrosion-resistant.
Wide Application
It is suitable for machine tools, automation equipment, optical equipment, laboratory accuracy inspection, mechanical equipment positioning, and movement.
Package Content
- 1 x XYZ Axis Linear Stage Table
Specifications
- Model: LD60-LM
- Workbench Size: 60 x 60 mm (2.36 inches)
- Direction of Movement: X, Y, Z axis
- Travel: XY: ± 6.5 mm / 0.26''
- Itinerary: Z: 10 mm / 0.39''
- Load: 24.5 N (2kgf)
- Minimum Scale: 0.01 mm
- Accuracy: 0.03 mm
- Parallel: 0.03 mm
- Material: Aluminum Alloy
