GSC200MMDC0000001V0

VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling

VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling
$49.99
49.99
Price including VATSee details

200 mm

  • 100 mm
  • 500 mm
  • 200 mm
  • 350 mm
  • 450 mm
  • 400 mm
  • 300 mm
  • 250 mm
  • 150 mm
  • · 【HIGH PERFORMANCE】- Our grating and precision ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length: 200mm, Accuracy: ±0.005 mm, Resolution: 5μm. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be addition support when using long linear scale.
  • · 【DURABLE ALUMINUM BODY】- Aluminum profile scale body, and head with zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
  • · 【DOUBLE SEAL+SIGNAL CABLE】- The Linear Scale Encoder features a double layer lip seal to give extra protection from contamination, high abrasive resistance. 3m signal cable applies multilayer shielded wire steel and metal shell protection.
  • · 【STABLE SLIDE PART】- Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be addition support when using long linear scale.
  • · 【CONVENIENT & PRACTICAL】- A rigid metal extrusion with slotted end blocks for simple adjustable mounting. Several mounting points for through hole or easy attachment to brackets and additional mounting hardware.


Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 1 Axis Lathe Linear Scale, 8"/200mm 0.0002" Accuracy Optical Length Precision Linear Scale for Metal Mill Milling Drilling
200 mm
VEVOR 1 Axis Lathe Linear Scale, 8
VEVOR 1 Axis Lathe Linear Scale, 8
VEVOR 1 Axis Lathe Linear Scale, 8

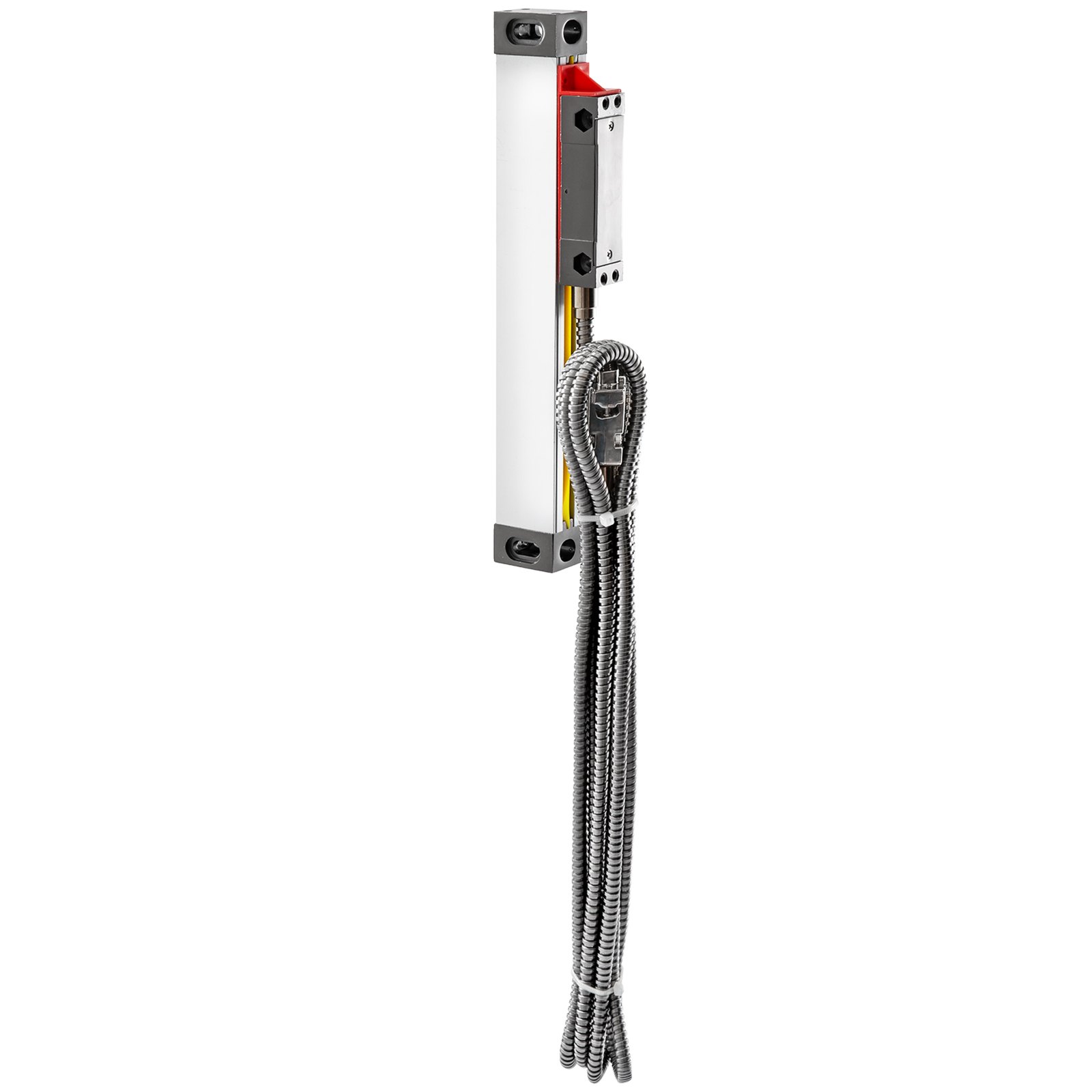

200mm Linear Scale Encoder With 3m Cable
Here we offer you 200mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal+Signal Cable
  • Stable Slide Part
  • Convenient & Practical
VEVOR 1 Axis Lathe Linear Scale, 8
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 1 Axis Lathe Linear Scale, 8
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 1 Axis Lathe Linear Scale, 8

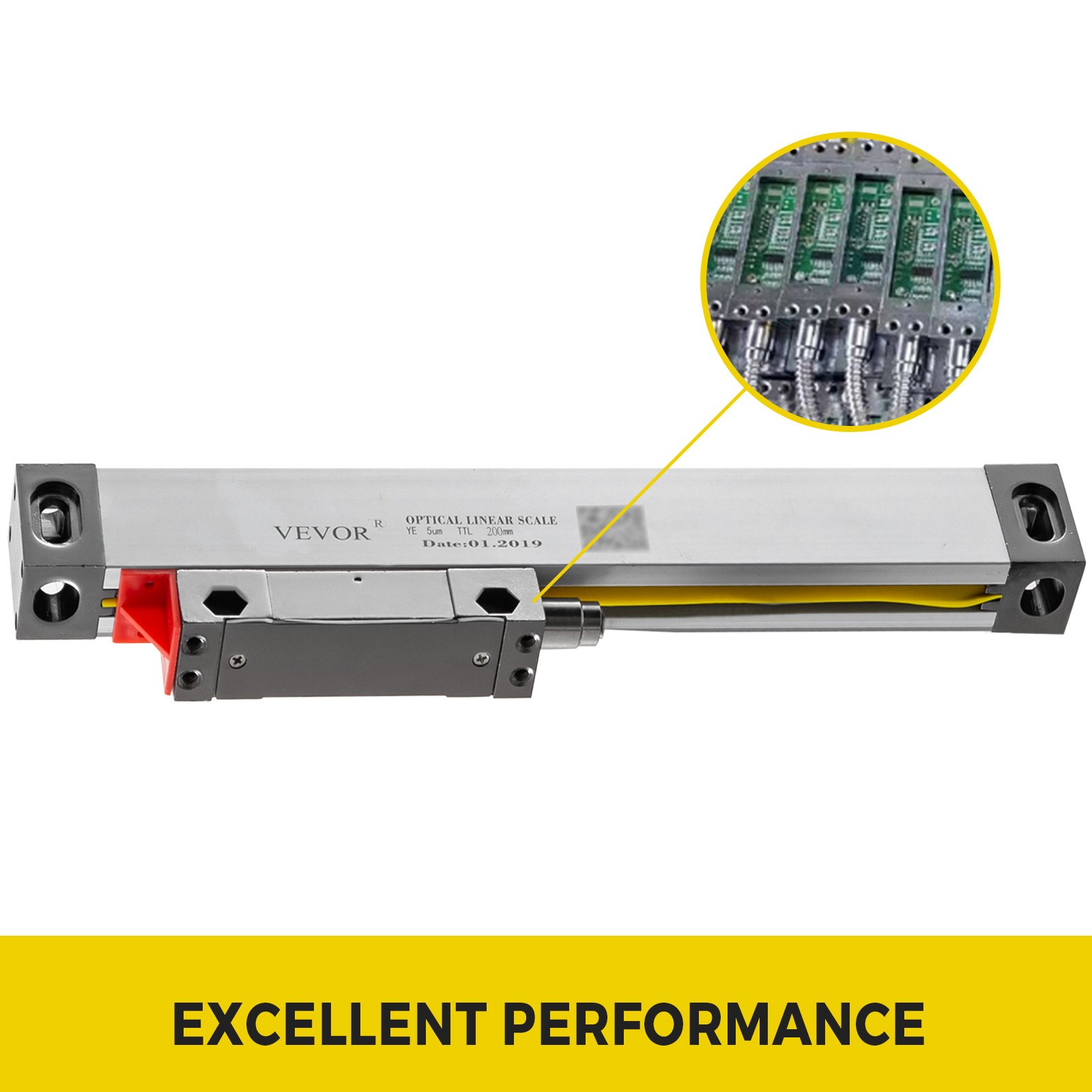

Excellent Performance
The Linear scale applies intelligent chip with travel length 0-200mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
VEVOR 1 Axis Lathe Linear Scale, 8

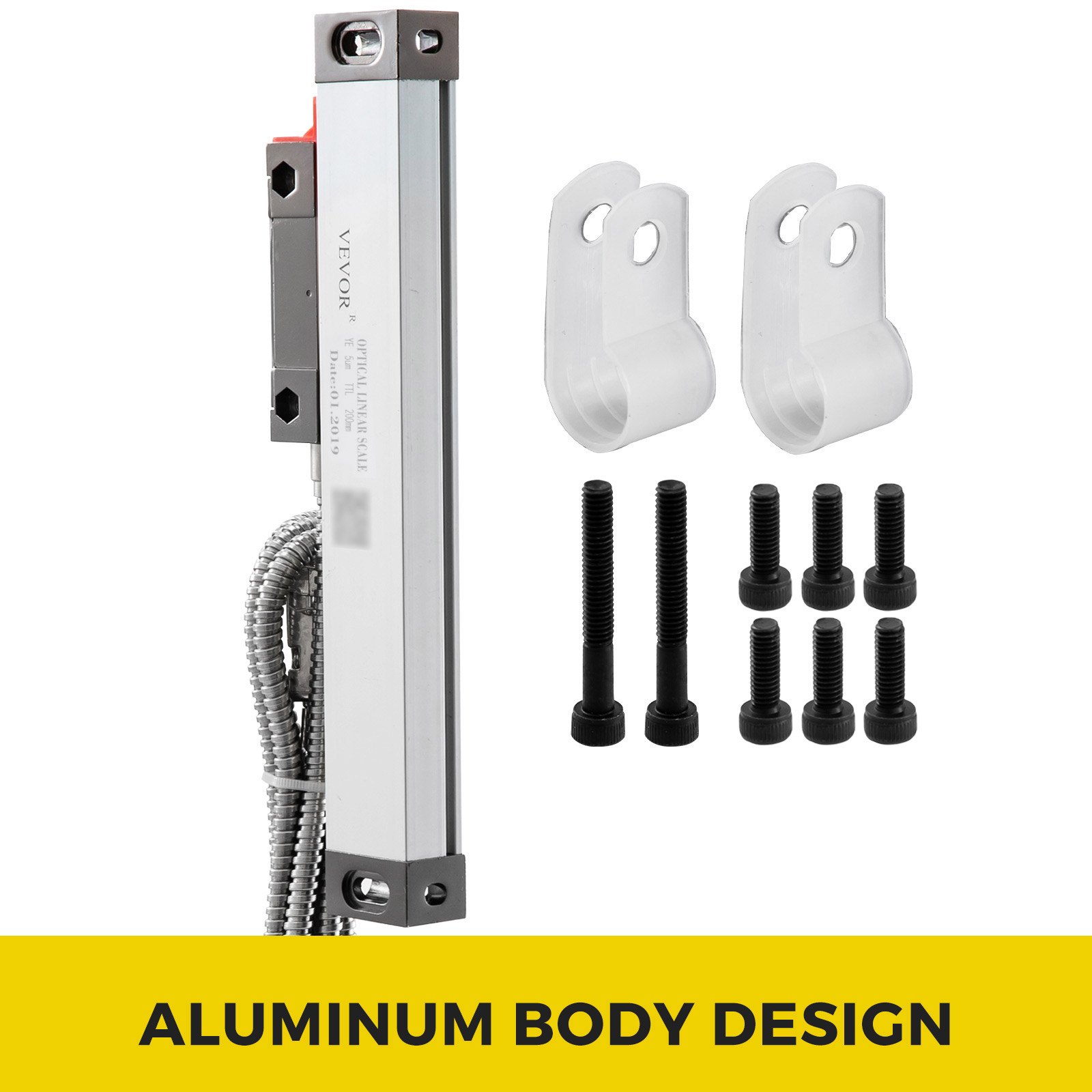

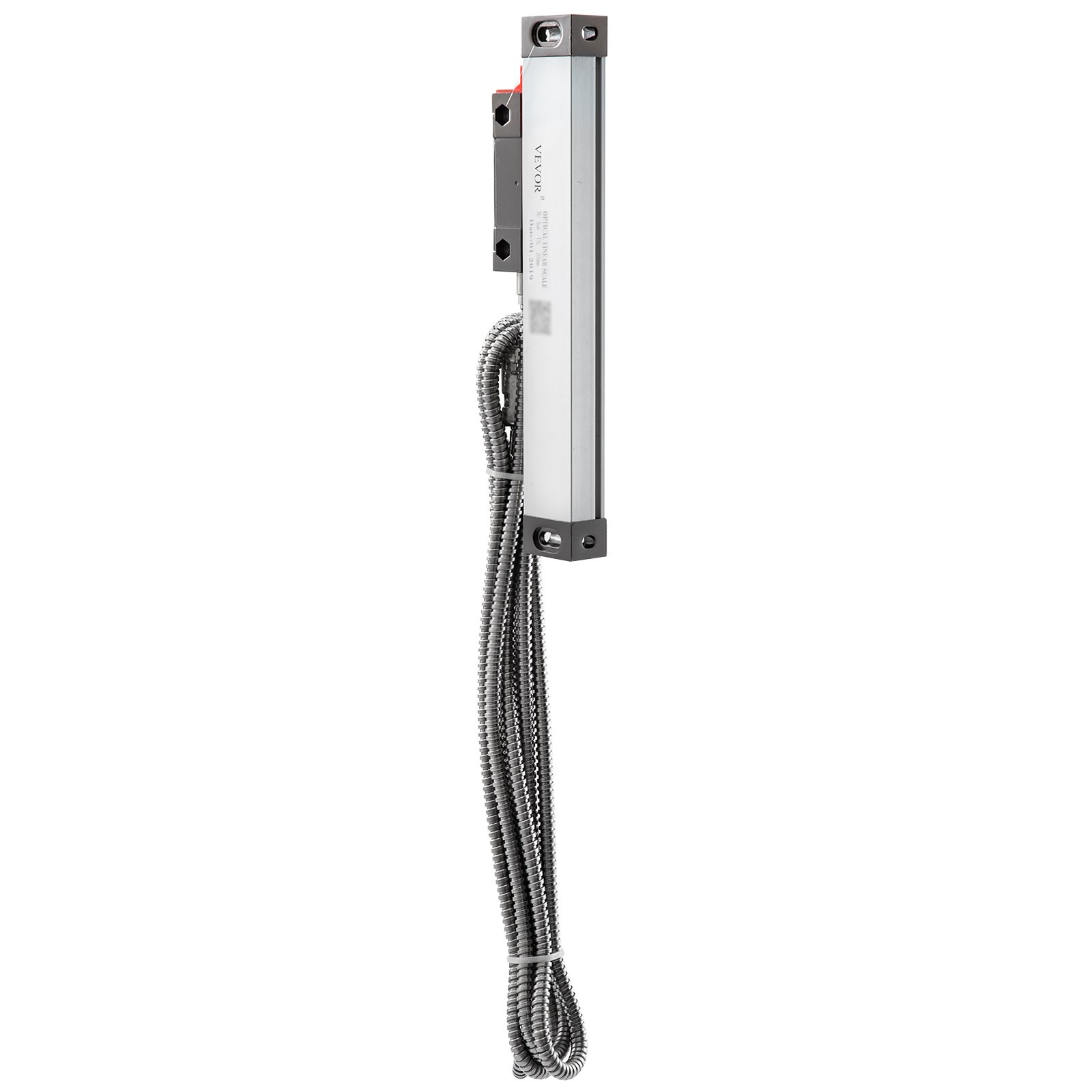

Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
VEVOR 1 Axis Lathe Linear Scale, 8

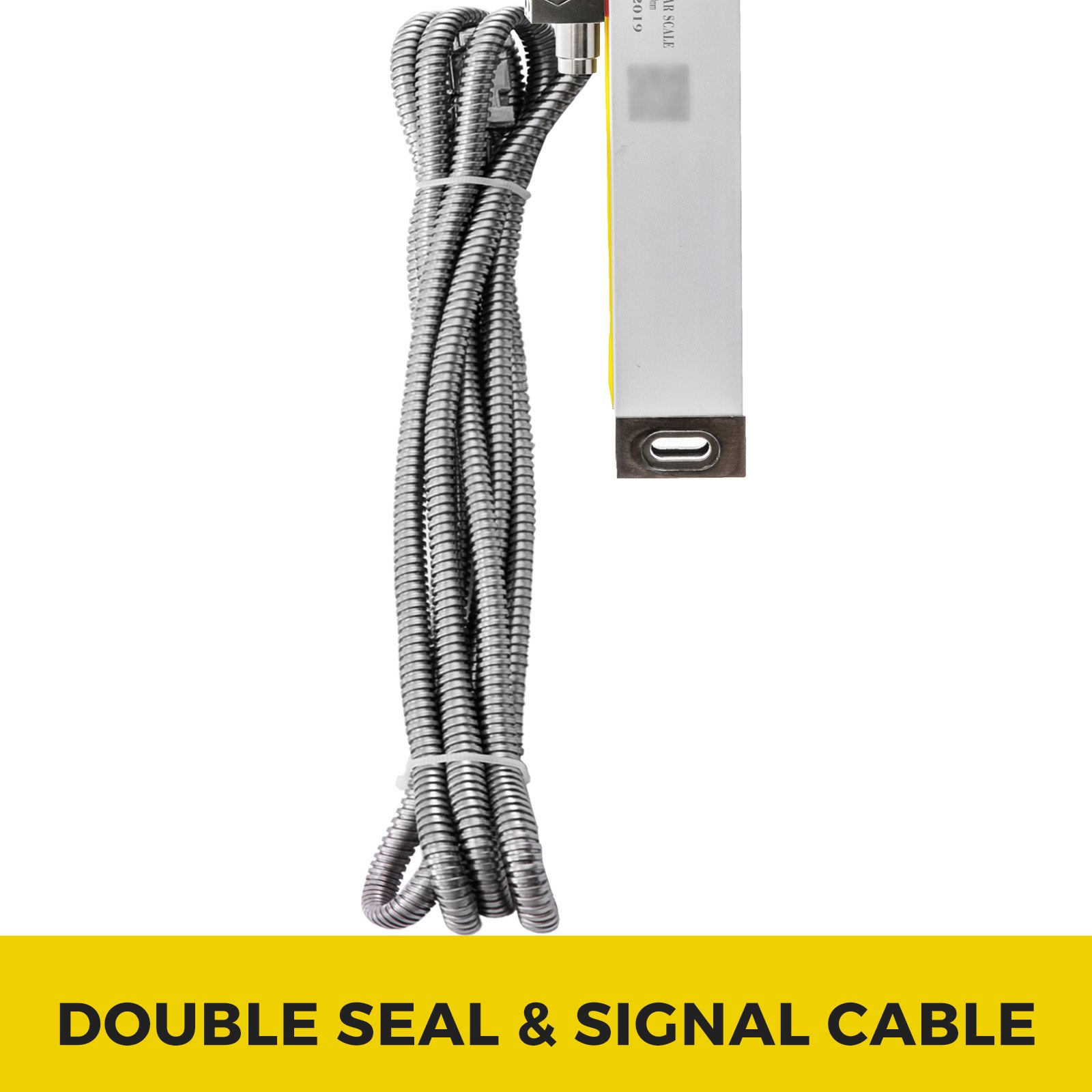

Double Seal+Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
VEVOR 1 Axis Lathe Linear Scale, 8

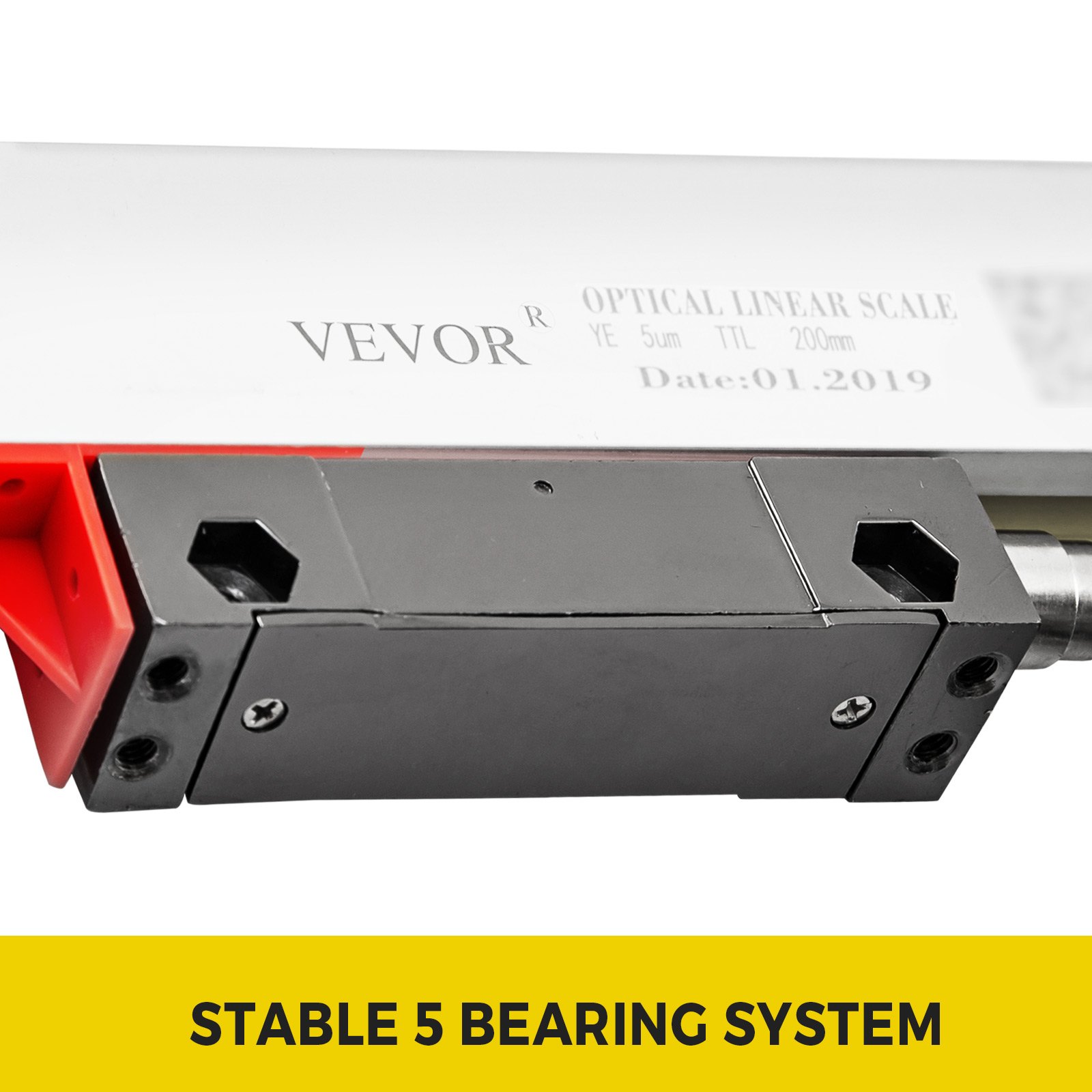

Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
VEVOR 1 Axis Lathe Linear Scale, 8
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
VEVOR 1 Axis Lathe Linear Scale, 8

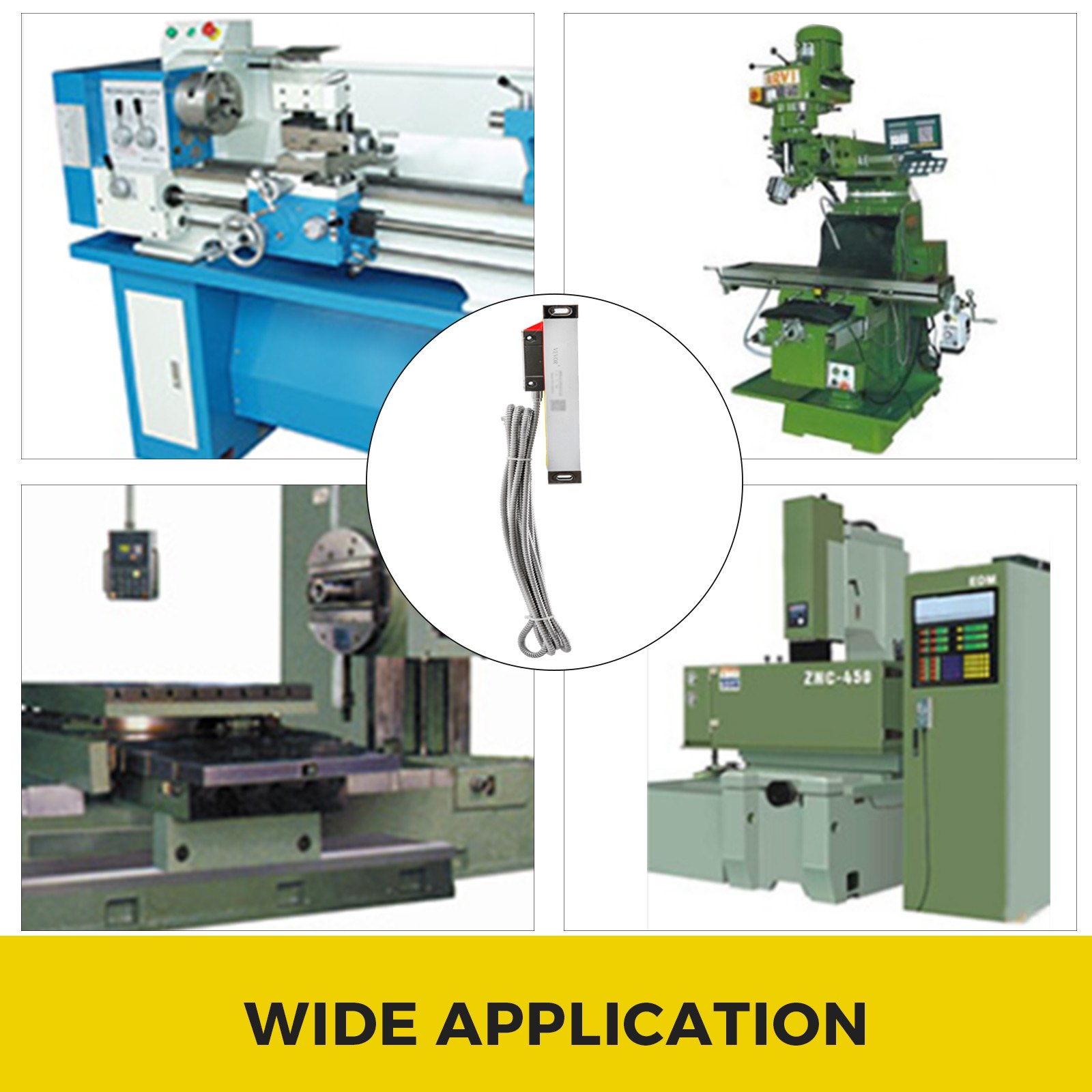

Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
VEVOR 1 Axis Lathe Linear Scale, 8
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 200mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53

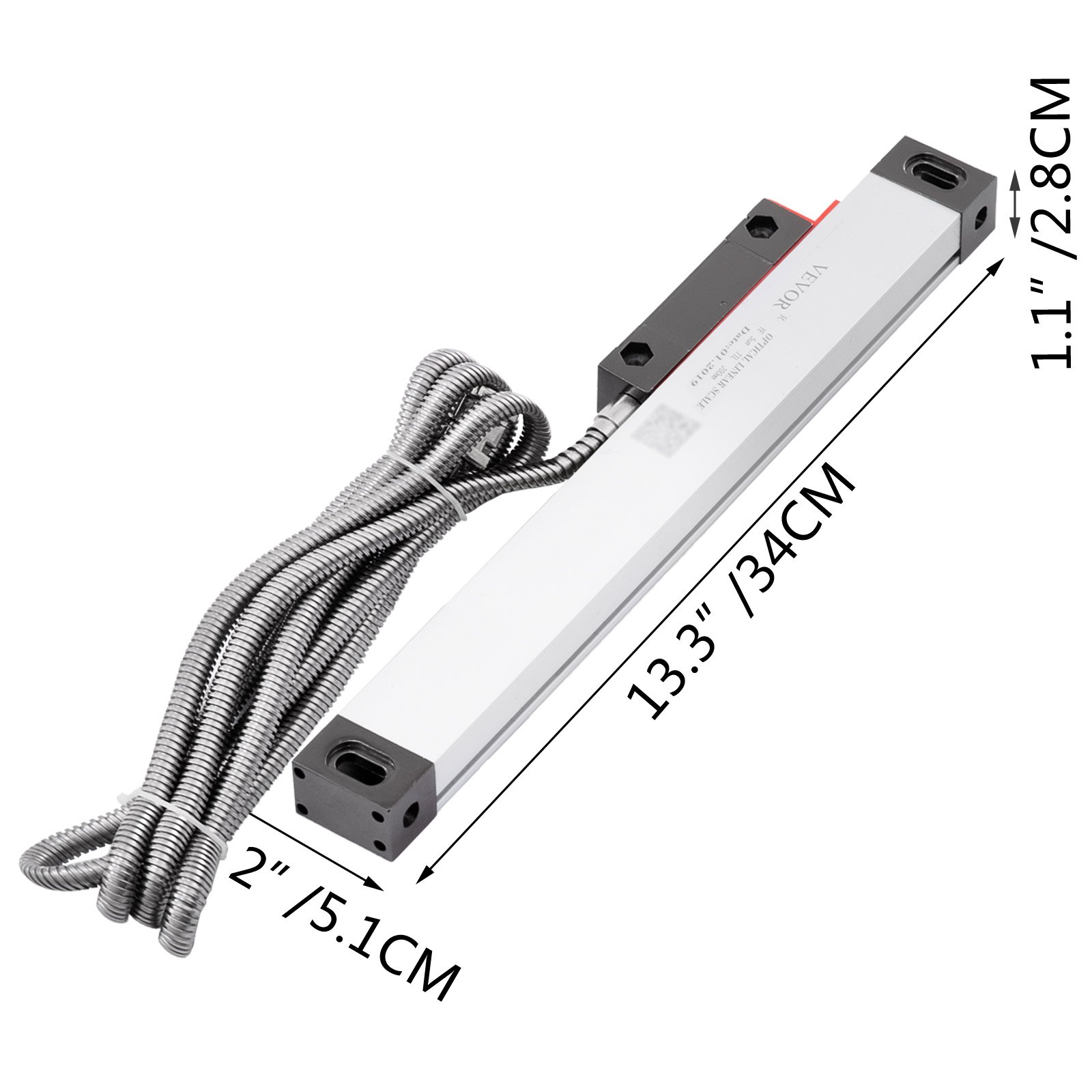

  • Product Dimention(LxWxH): 34 x 2 x 5cm (13.39" x 0.79" x 1.97")
VEVOR 1 Axis Lathe Linear Scale, 8

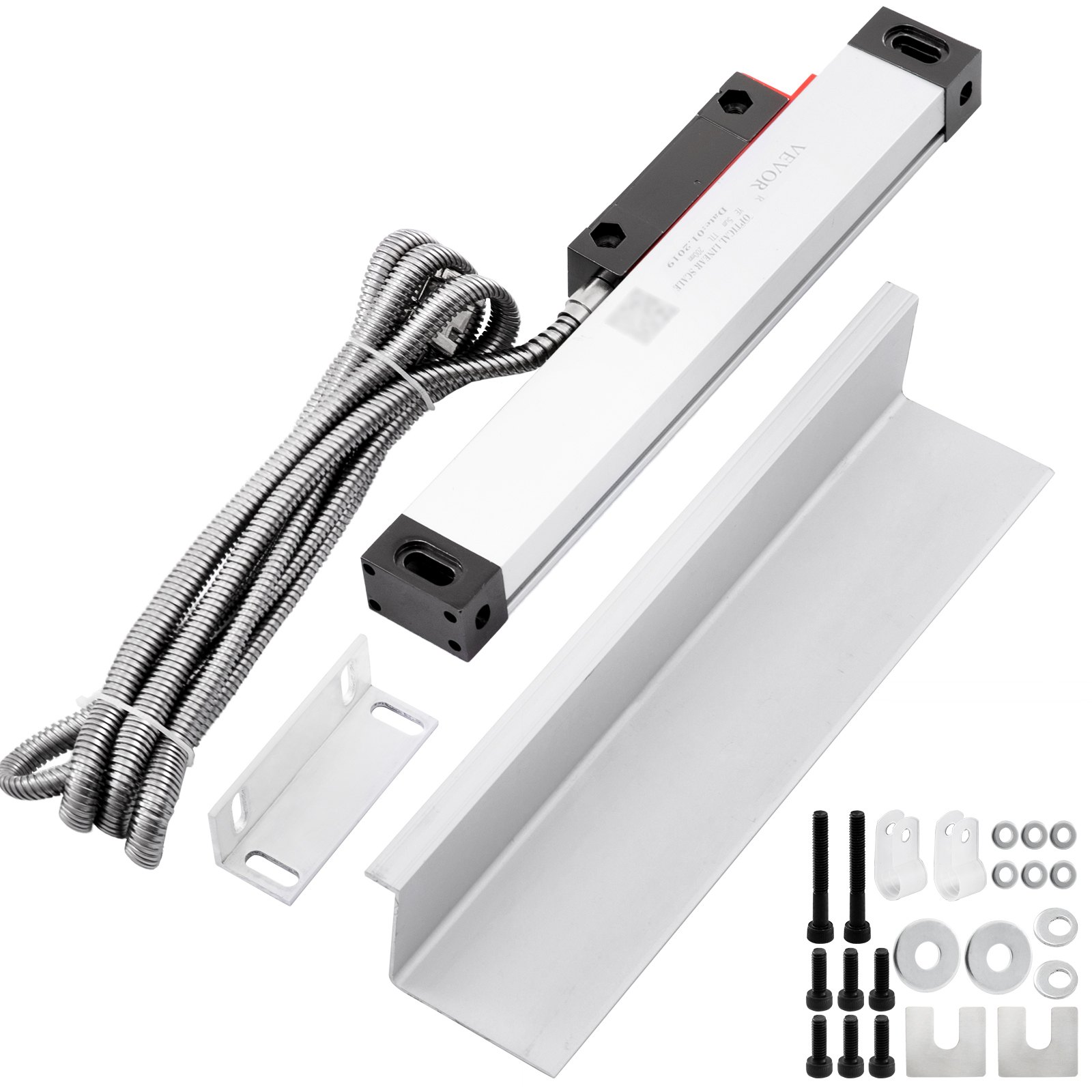

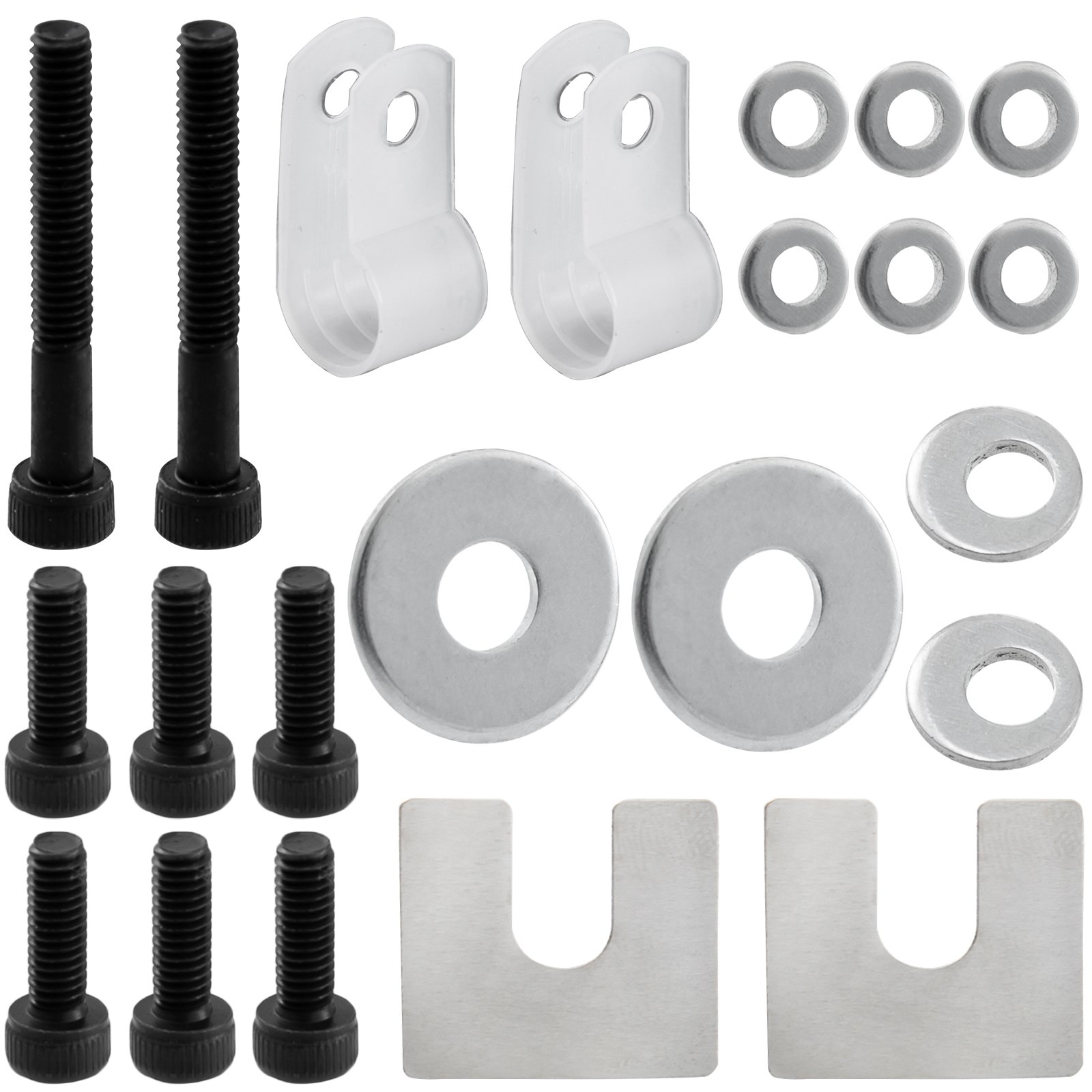

Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
VEVOR 1 Axis Lathe Linear Scale, 8
VEVOR 1 Axis Lathe Linear Scale, 8
VEVOR 1 Axis Lathe Linear Scale, 8
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 1 Axis Lathe Linear Scale, 8
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 1 Axis Lathe Linear Scale, 8
200mm Linear Scale Encoder With 3m Cable
Here we offer you 200mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal+Signal Cable
  • Stable Slide Part
  • Convenient & Practical
VEVOR 1 Axis Lathe Linear Scale, 8
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-200mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
VEVOR 1 Axis Lathe Linear Scale, 8
Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
VEVOR 1 Axis Lathe Linear Scale, 8
Double Seal+Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
VEVOR 1 Axis Lathe Linear Scale, 8
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
VEVOR 1 Axis Lathe Linear Scale, 8
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
VEVOR 1 Axis Lathe Linear Scale, 8
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
VEVOR 1 Axis Lathe Linear Scale, 8
Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
VEVOR 1 Axis Lathe Linear Scale, 8
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 200mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimention(LxWxH): 34 x 2 x 5cm (13.39" x 0.79" x 1.97")

Specification

Voltage
5V DC
Current
50mA
Travel Length
200mm
Grating Pitch
0.02mm (50LP/min)
Resolution
5μm (0.005mm) 0.0002"
Accuracy
±0.005 mm or 0.0002" (at 20 deg C)
Response Speed
60m/min or 40inch/sec
Cable Length
3m
Sealing
Double seal
IP Class
53
Product Dimention(LxWxH)
34 x 2 x 5cm (13.39" x 0.79" x 1.97")
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
29 Reviews
Steve Steve
1000 mm
Steve
This scale was a replacement for my hobby milliing machine that I have in my workshop. The reason I needed to replace it was that I made a mistake and broke my original that came with my Vevor Scale. The replacement arrive properly it was installed quickly with no issues. It works the way it should. Thank you again for your excellent customer service.
0
Chris Chris
100 mm
King of Castle
Added this linear encoder to the cross-slide of my mini lathe, works great! Bought the 200mm one for the carriage as well.
0
GridWork GridWork
200 mm
Great value, works so far.
The scales are pretty well made and look pretty good. Tracks well, can't say on the durability, time will tell. It should be ok as long as treated well.
0
Curtis Reinhardt Curtis Reinhardt
300 mm
Decent for the price
Well made, install took a few hours because I removed the table and slides. You could do it without removing table. But I wouldn't. Very happy so far
0
Artemio Cespedes Artemio Cespedes
150 mm
Great deal!
I bought three scales for my little mini-mill for the X, Y, and Z-axis, and have to say I thought these were a great bargain. They come with mounting brackets, scales covers, mounting screws, and end covers for the scales which was an unexpected surprise. Be aware that although these scales are advertised as Mophorn, they are labeled Vevor which was fine with me because they are of decent quality. Mounting the scales required some creativity, but that would be with any brand. Make sure you measure correctly for the length and keep in mind it will be easier to deal with a scale a little too long than one that is a little too short. The 3-axis display appears to be a more solid display than the Cozyel brand I have on my larger mill. Packaging was excellent and shipping was on time. The only negative was the display didn't have a ground wire in the package, but that wasn't a big deal since I made one in quick order.
0
