2 Set SBR20-1200mm 20mm Fully Supported Linear Rail Shaft Rod With 4 SBR20UU + SBR16-2000mm Linear Slide Guide 16mm Shaft 2 Rail With 4SBR16UU Bearing Block CNC

Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Because of point contact between ball and straight axis, so the load is small. The ball is spinning with the smallest friction, it can run a high precision and smooth motion. Flange linear bearings can be divided into: round flange type, oval flange, guide wheel flange, guide the oval flange type, plus long round flange type.

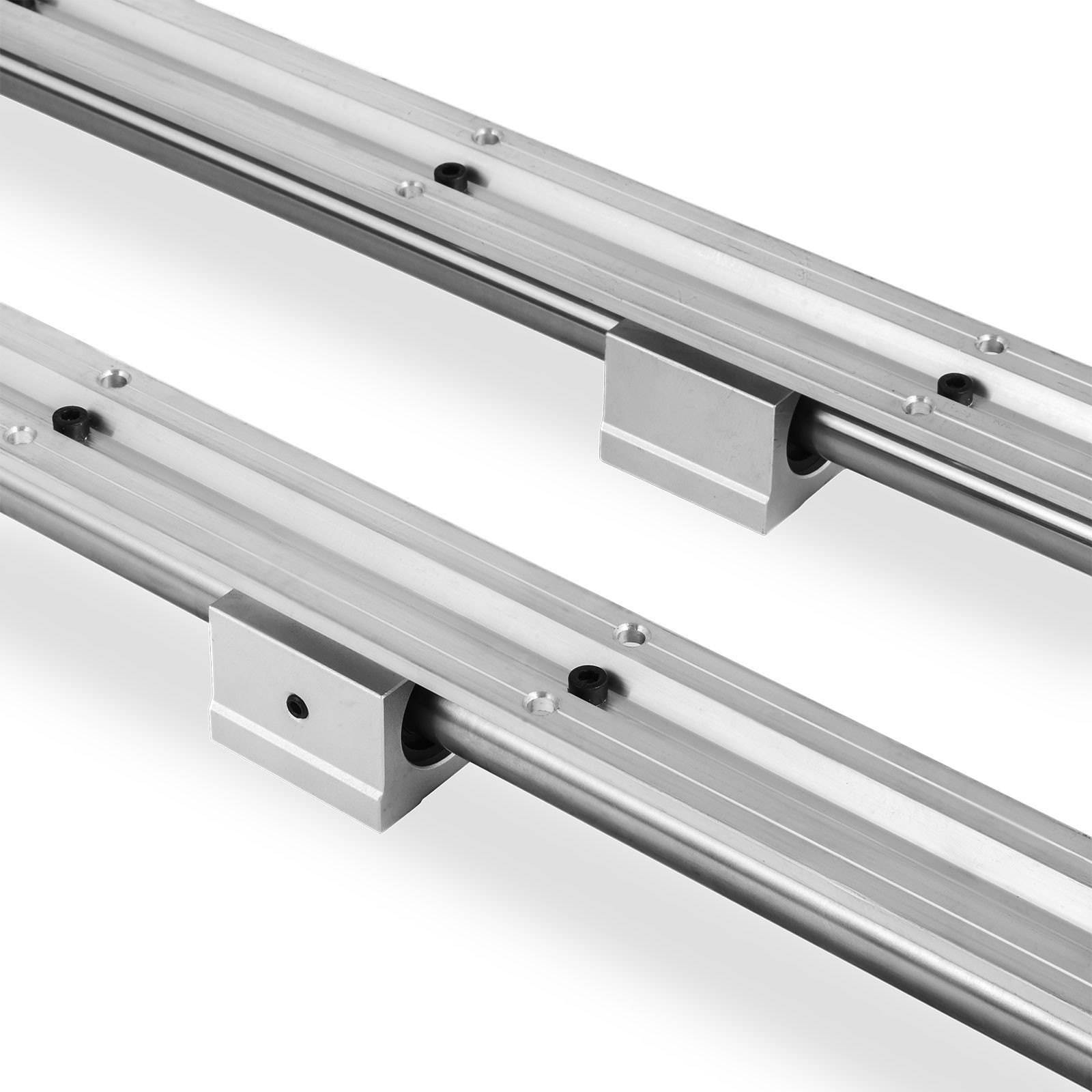

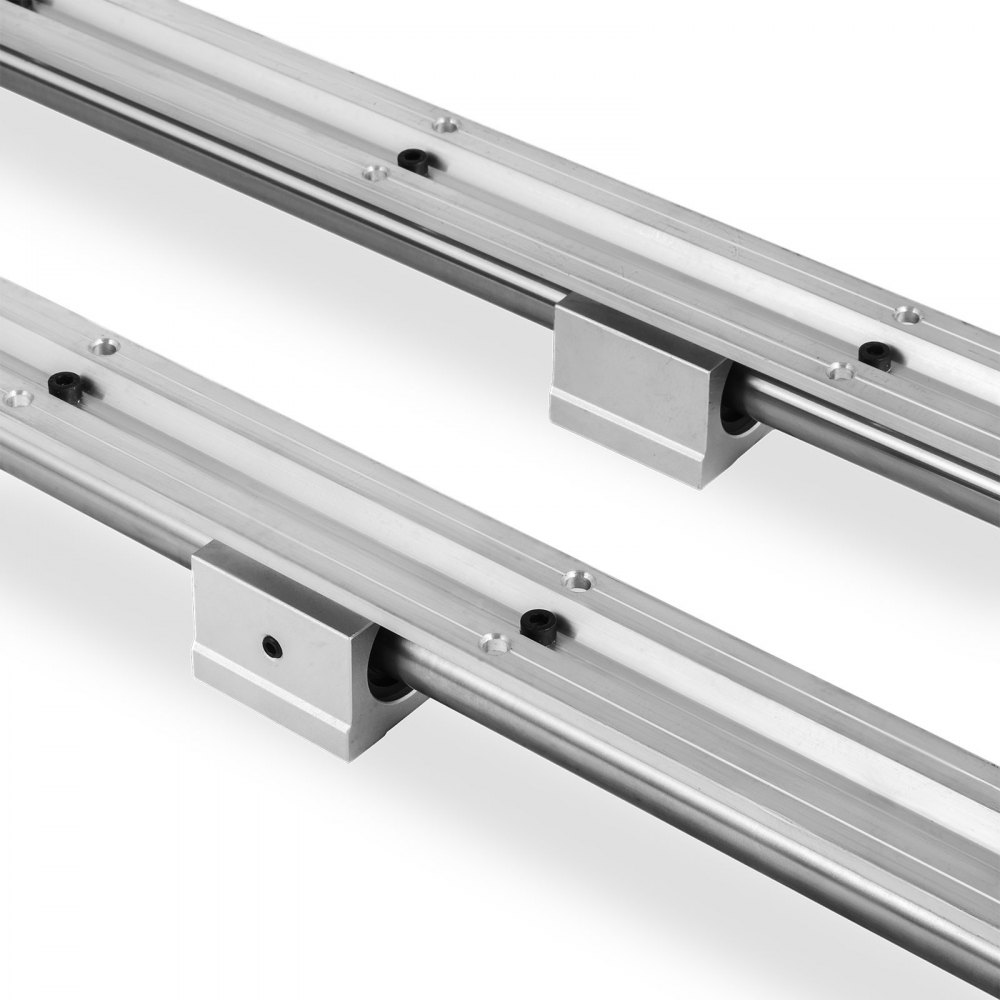

This is the sliding unit with the aluminium case, shafts and aluminium rail for preventing deflexion. This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy. The support rail unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.

The shaft is case hardened. If you use normal steel shafts, the bearings will cut them up in no time. So make sure what you buy is case hardened!

Application

It is widely used in linear motion system. For example, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, food Packing Machine, other sliding parts on industrial machinery.

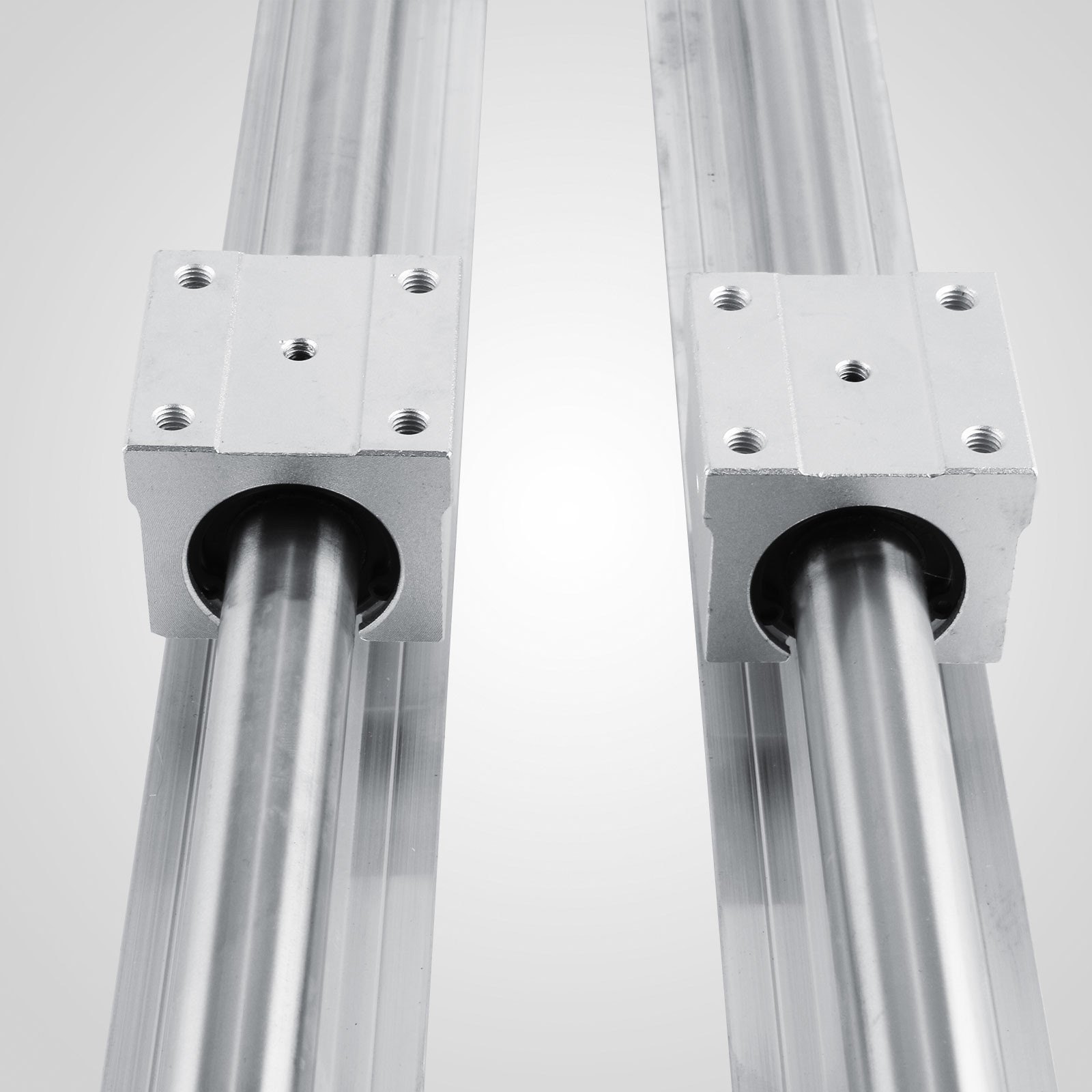

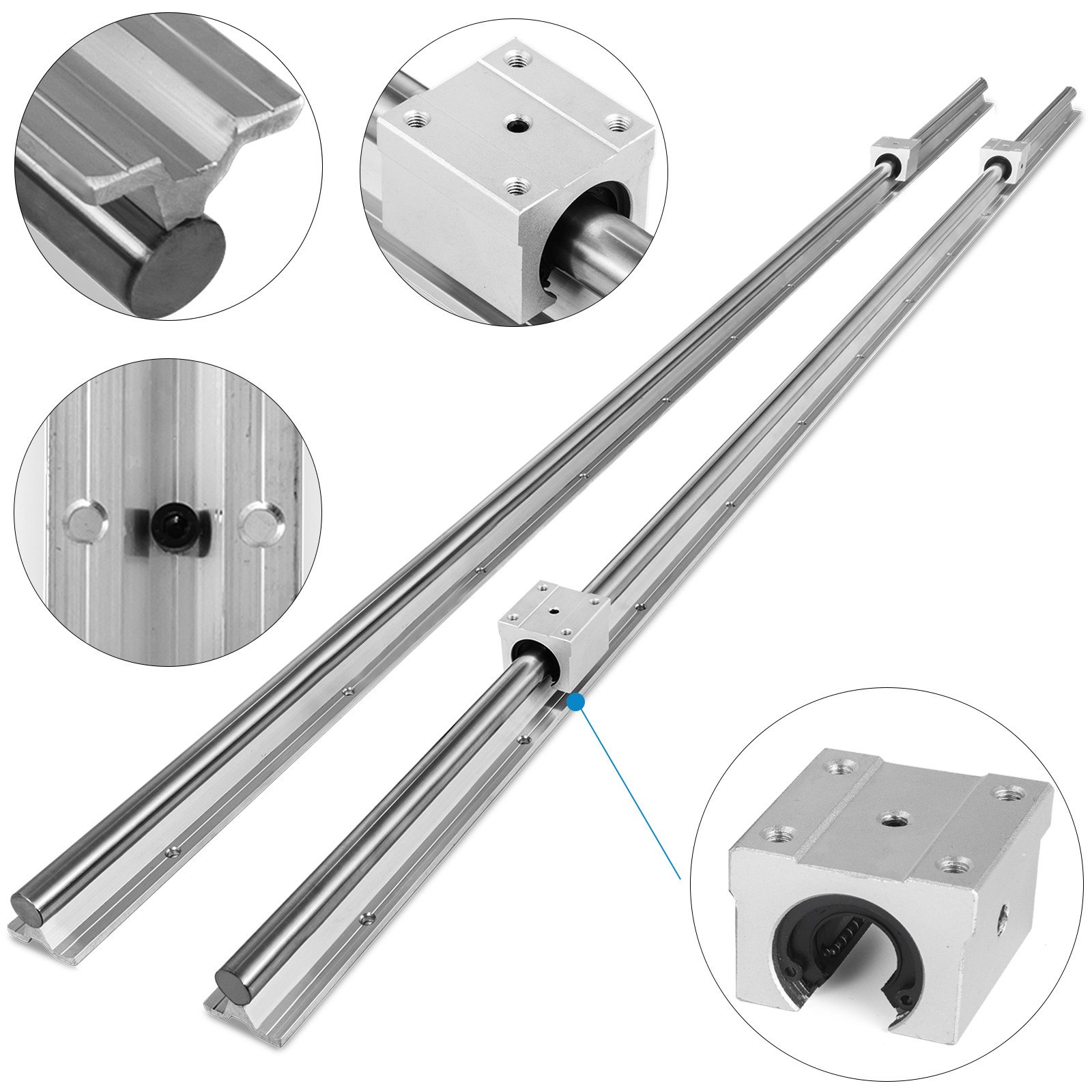

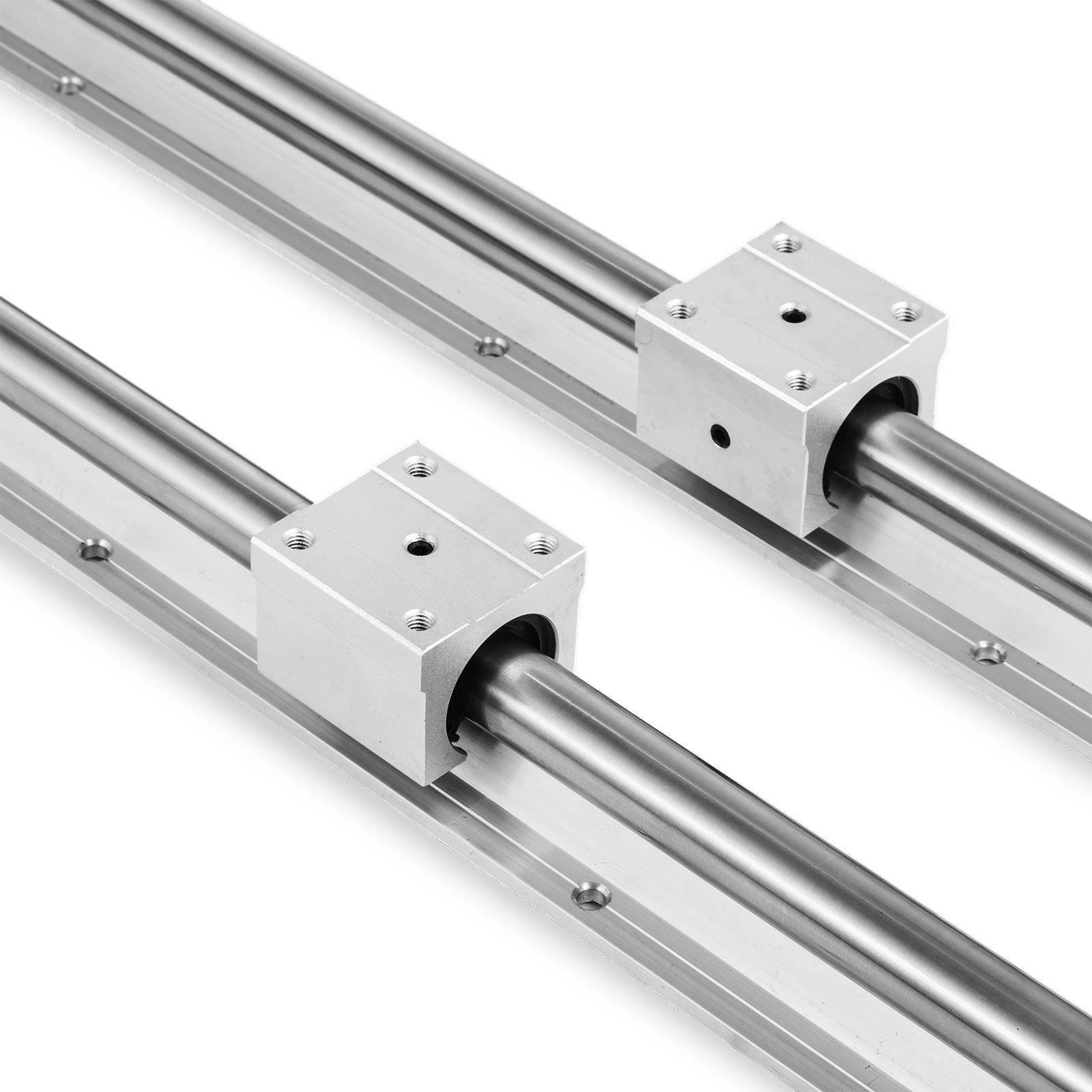

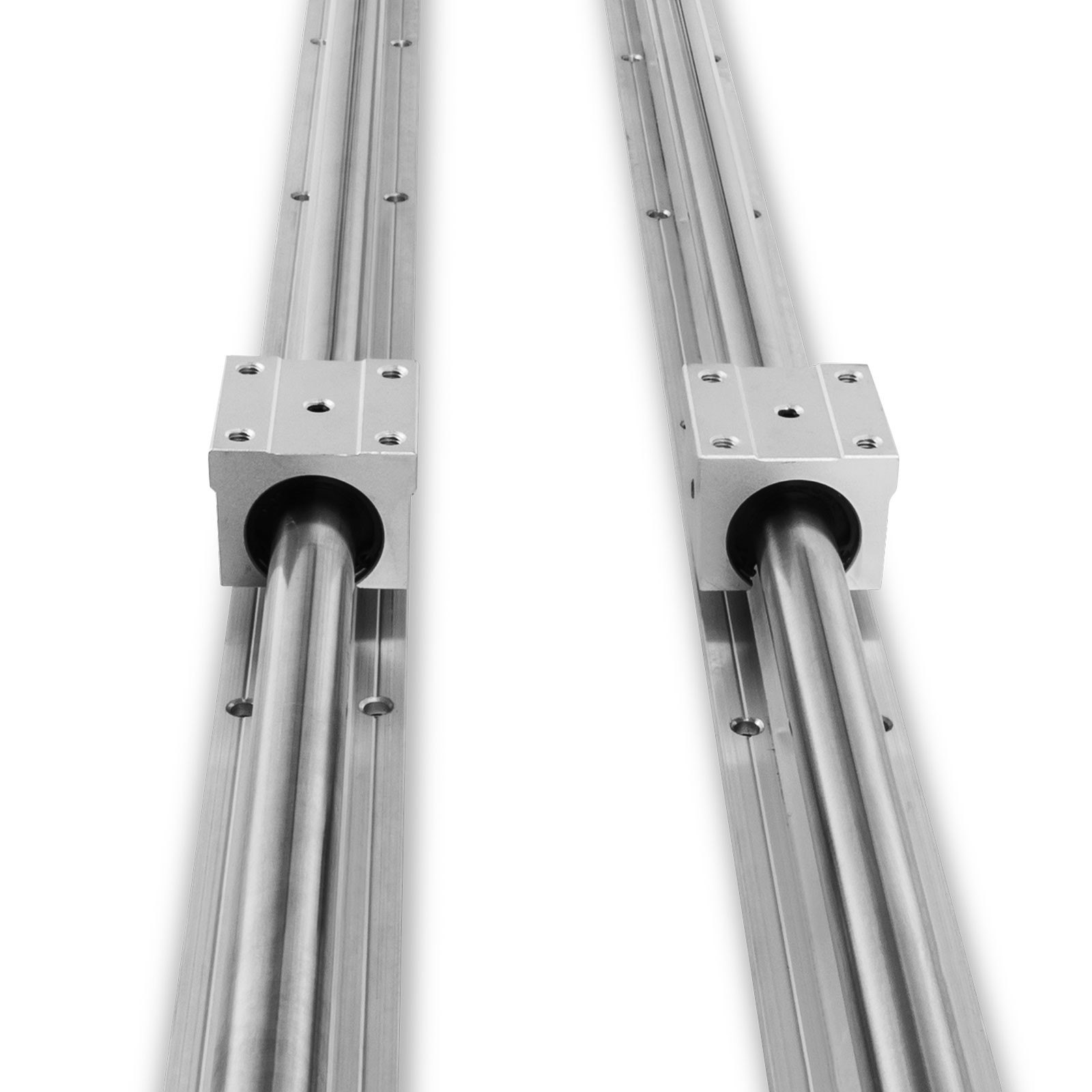

SBR16-2000mm Linear Rail Set

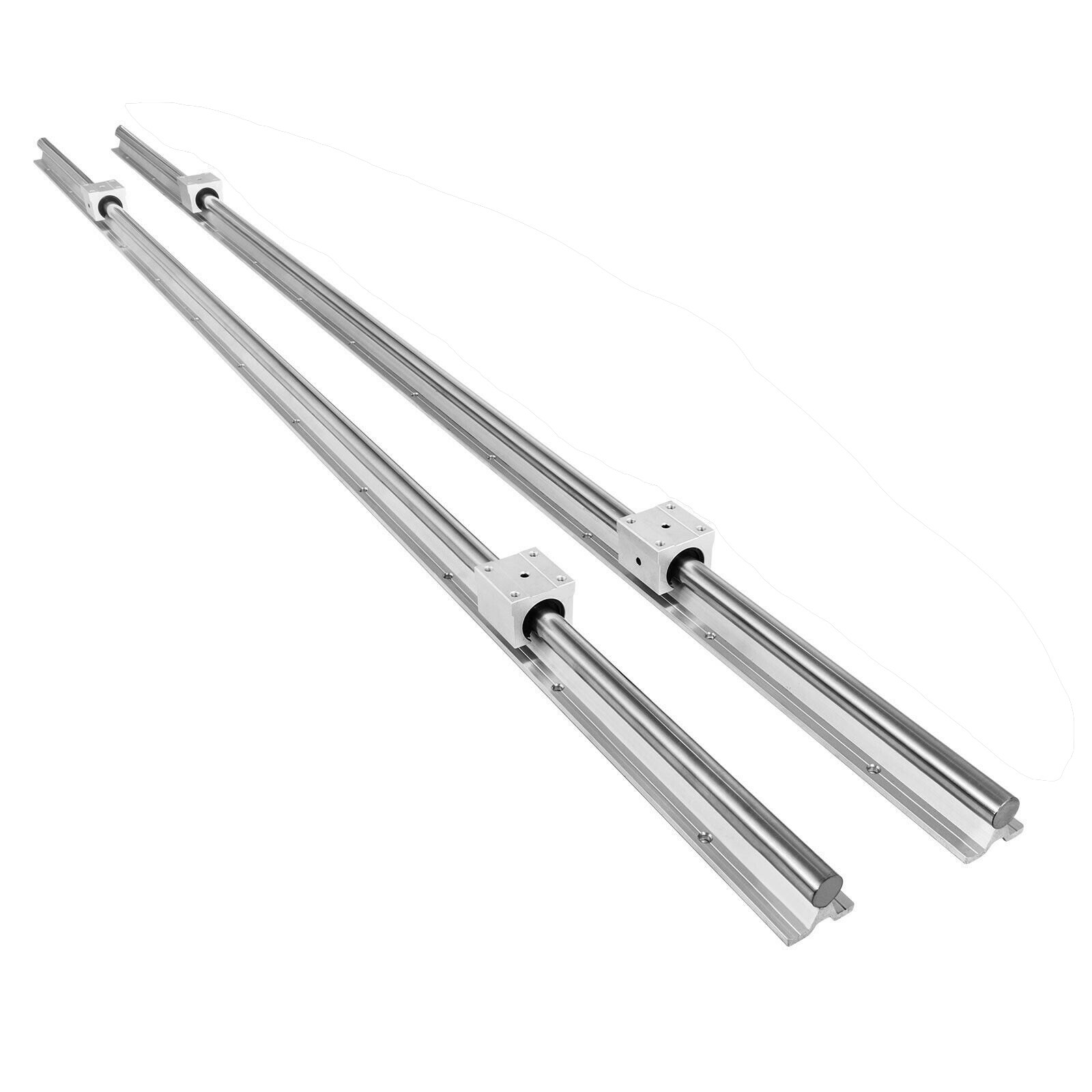

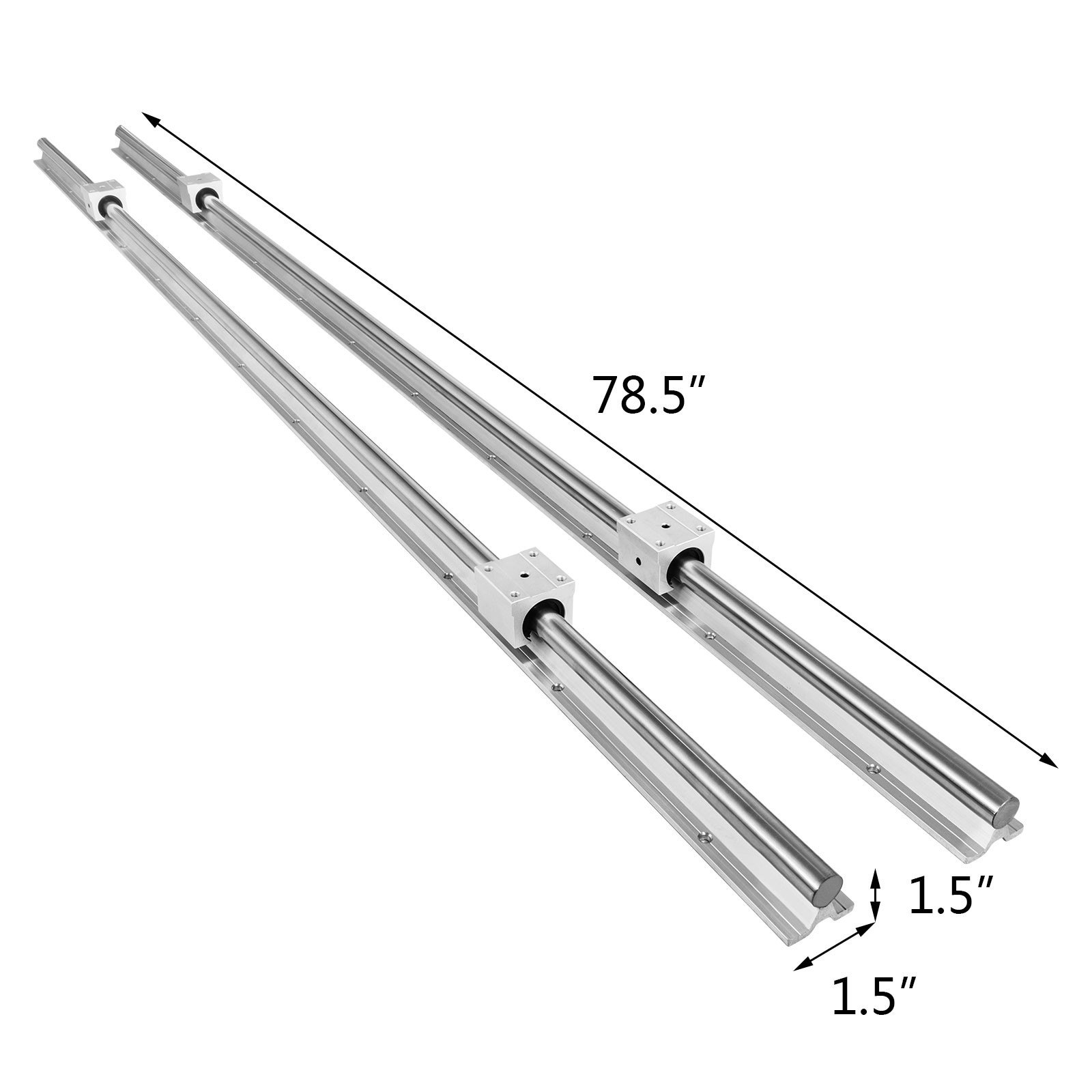

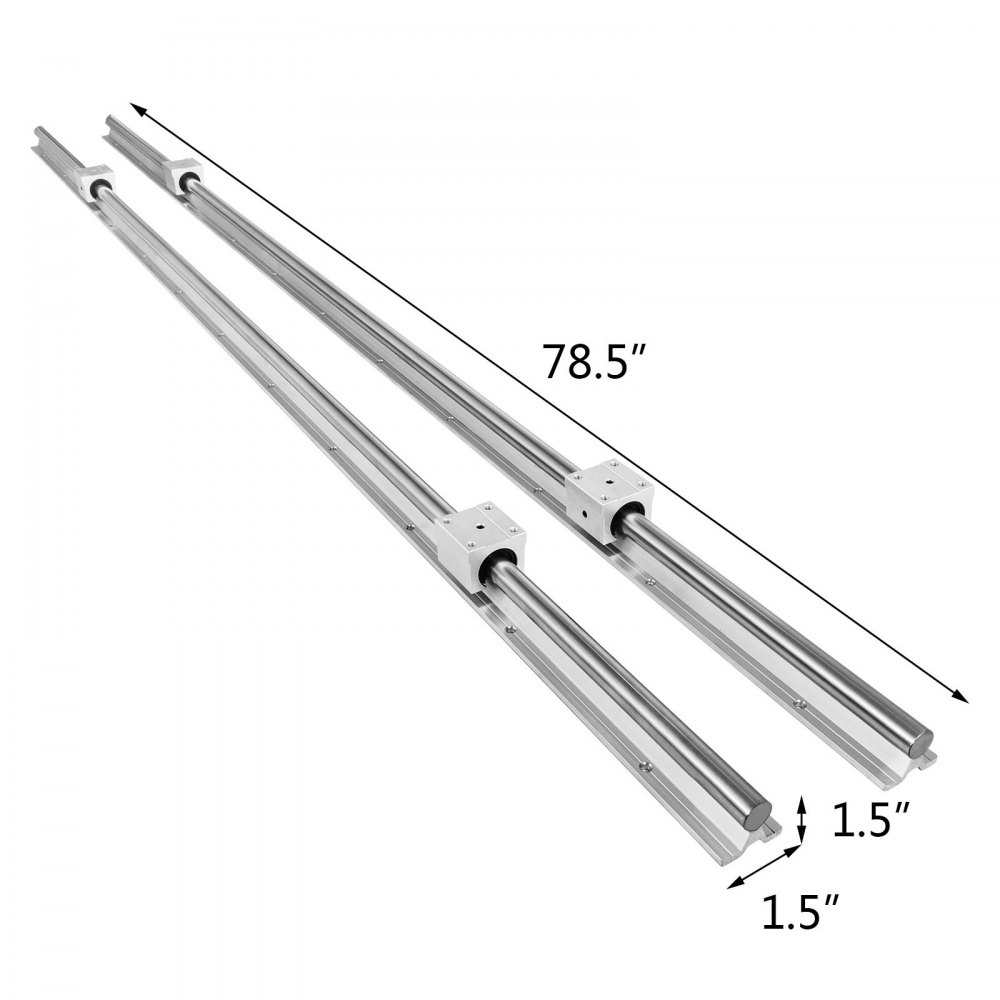

Linear bearing slide rail for sale! Order this and you’ll receive 2 pieces of2000mm/78.7" long SBR16 rail shafts and 4 SBR16UU blocks.

Our rail shaft is made with good quality steel plus aluminum alloy. It is a perfect combination of main axle and aluminum support, which nicely stabilizes the original rail. Premier quality bearing blocks moves smoothly while using.

Application

Feature

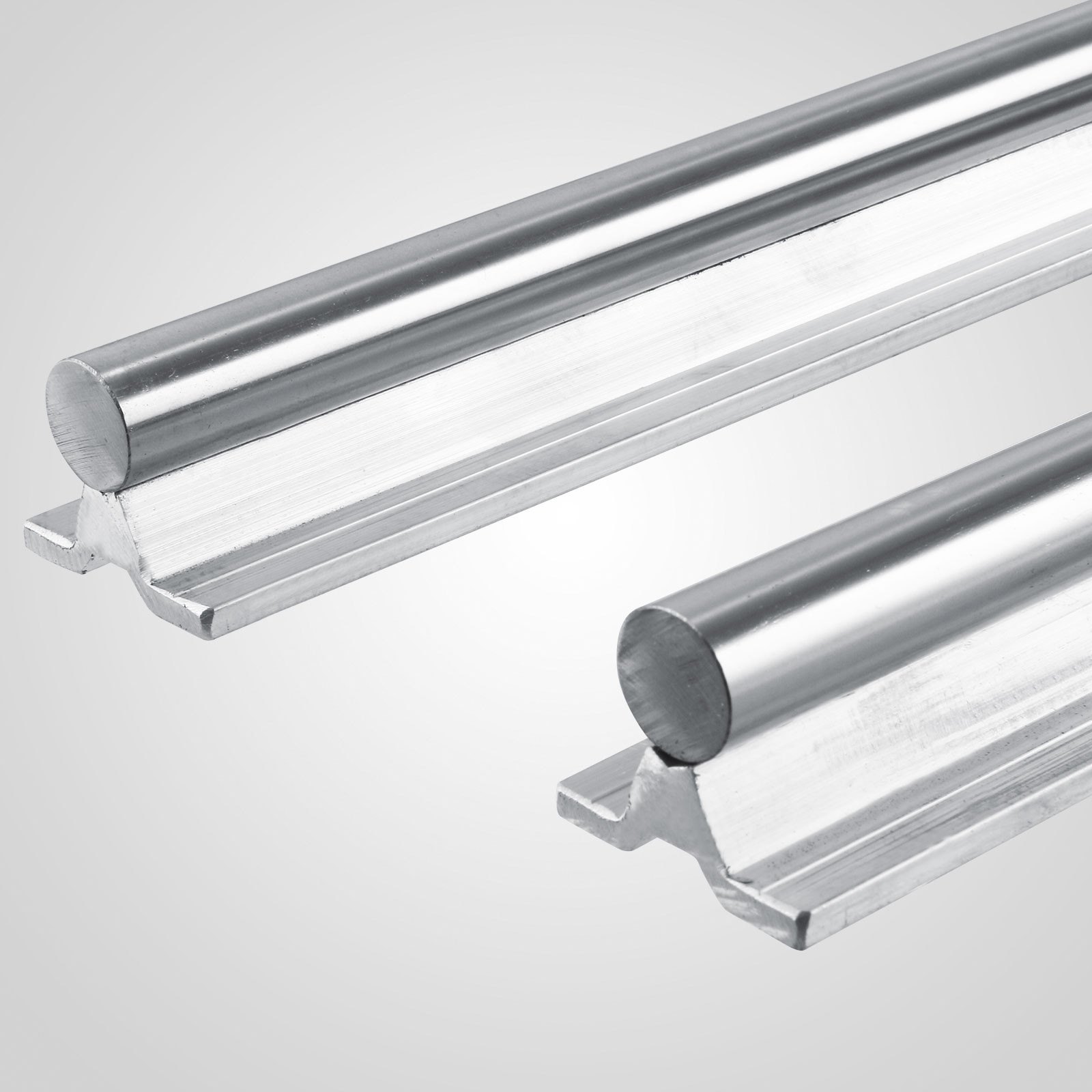

• Cylindrical guide composed by principal rail and aluminum support, stabilizing the original rail.

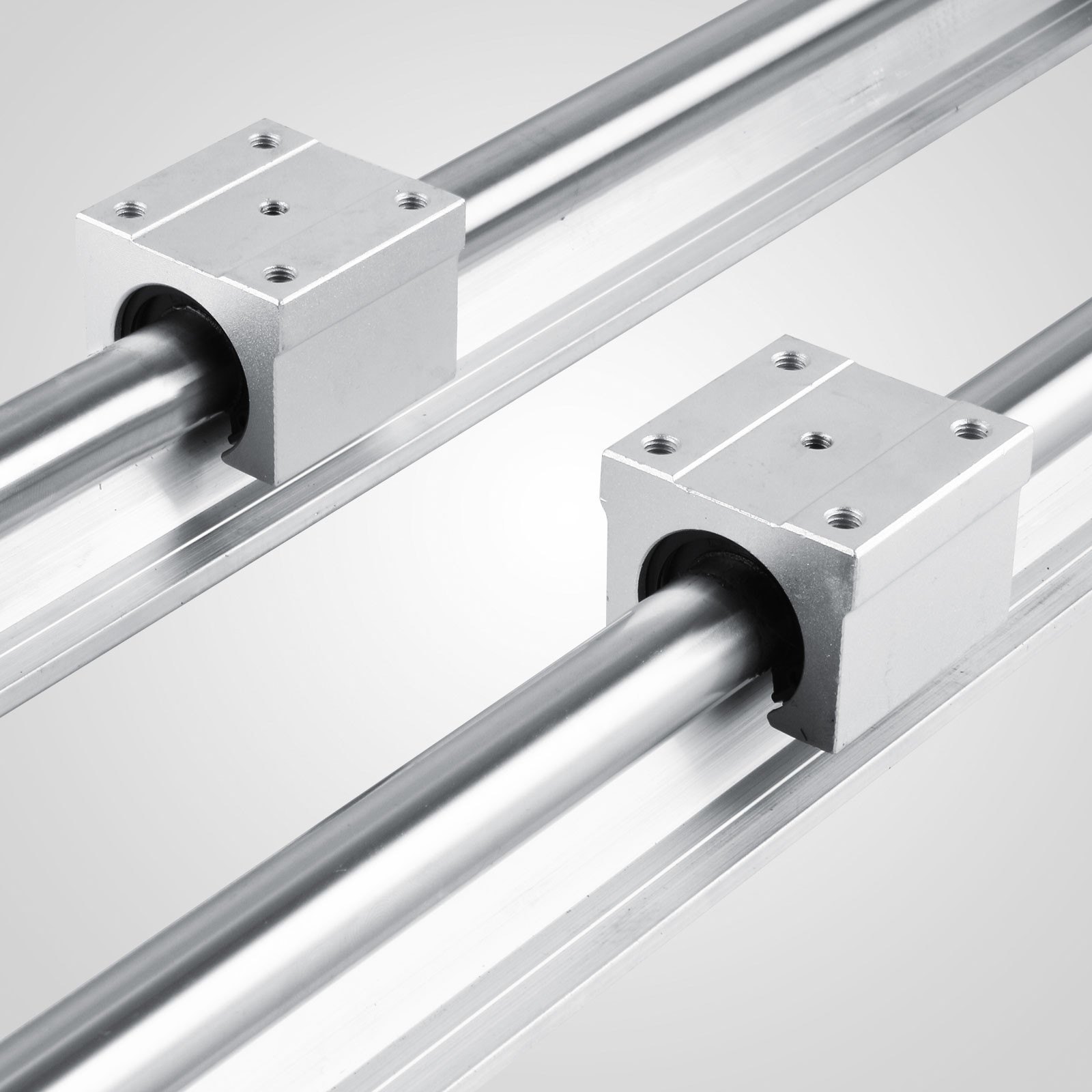

• Sliding blocks to be used cooperatively with rails, smooth sliding provided by inside linear bearing.

The items may be in different stock, so they may be sent separately. Pls do not worry, you will receive ALL the parcels in recent days after the order.

If your shipping address is in Canada, please provide the correct phone number and customer broker information.
If your shipping address is in the United States, please provide a correct phone number.

• This link for 0.78inches slotted bearings
• Perfect for your DIY CNC routers, mills, lathes
• The shaft is case hardened. If you use normal steel shafts, the bearings will cut them up in no time. So make sure what you buy is case hardened
• Aluminum support rail with pre-drilled holes for ease of mounting
• Suits  X, Y, Z axis
• No more unwanted errors in your machining work

• Type: Linear Actuator

• Model: SBR20-1200  SBR20UU

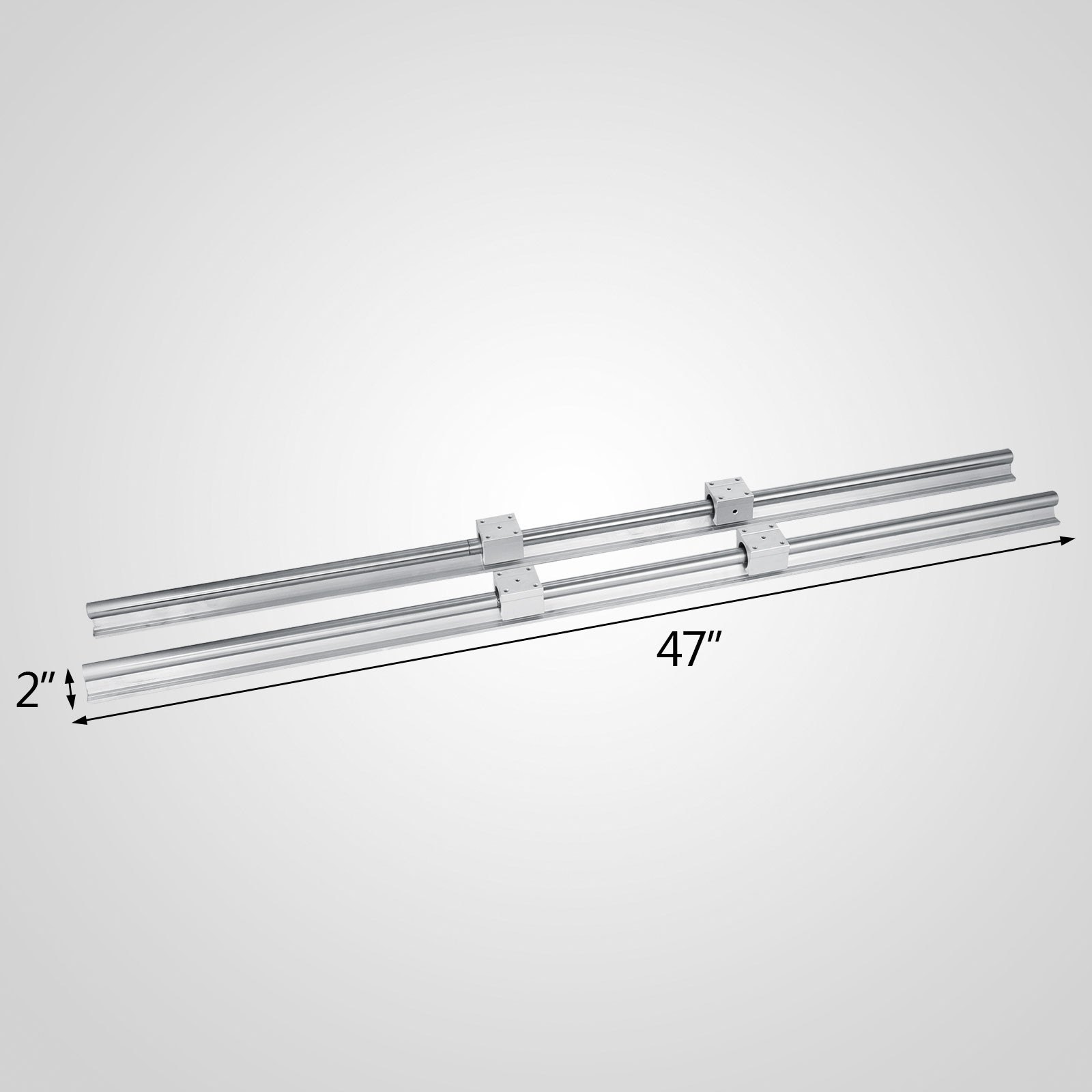

• Length: 47" (1200 mm)
• Diameter: 0.78" (20mm)
• Guide material: Axis - 45 carbon steel optical axis, chrome-plated surface hard axis; bracket - aluminum
• Optical axis accuracy: Optical axis accuracy g6 level
• Optical axis hardness: HRC58-60 degrees
• Packing size: 49"x5"x3"(122x12x7cm)
• G.W.: 11lbs( 5kg)

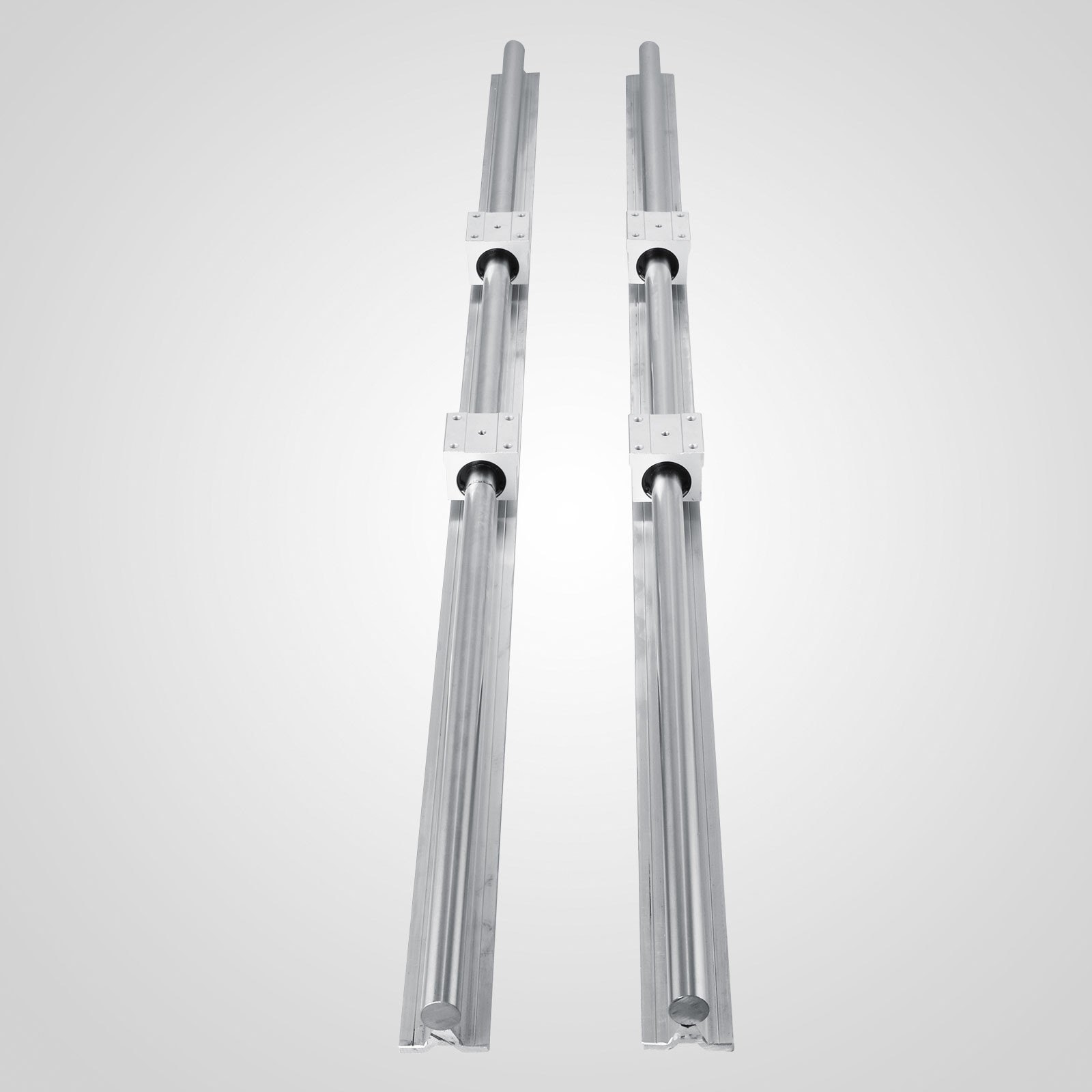

• 2 X SBR20-1200mm Rails

• 4 X SBR20UU Blocks
