VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines
Report Incorrect Product Information
KPK11-250KPZFZ001V0

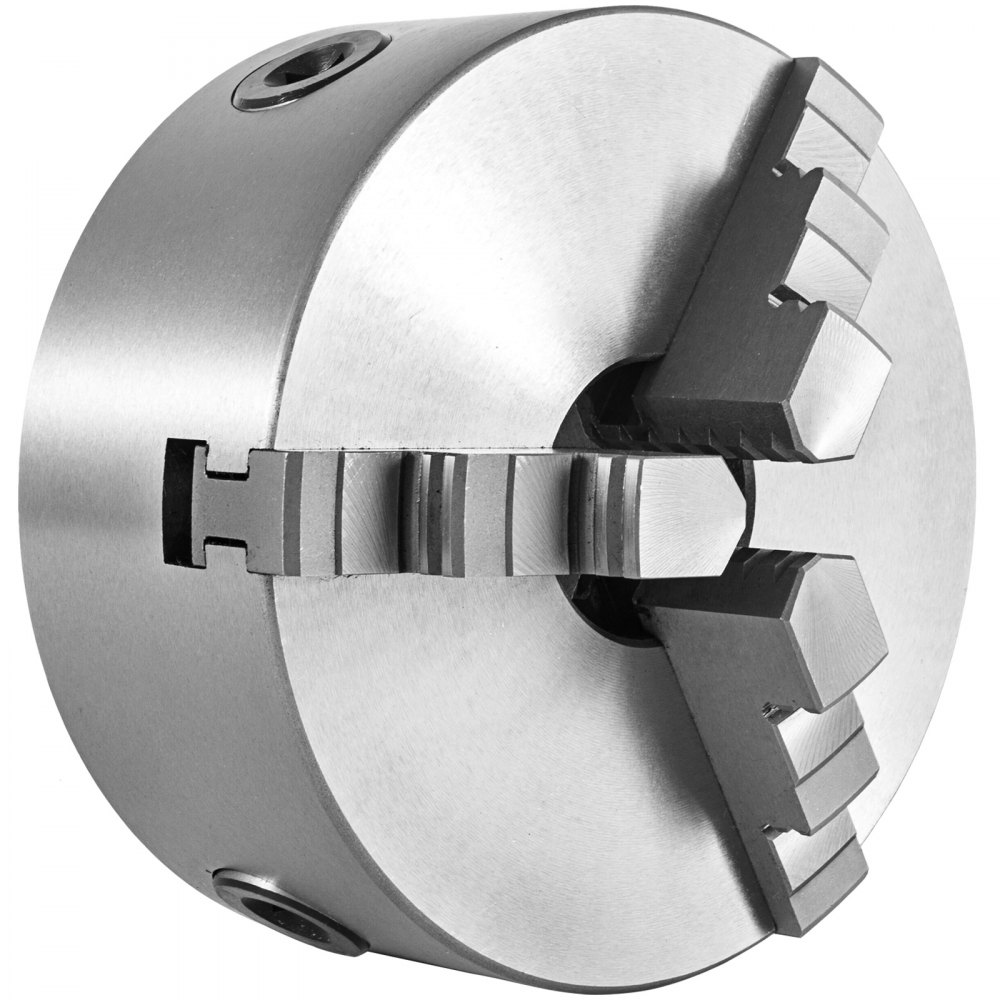

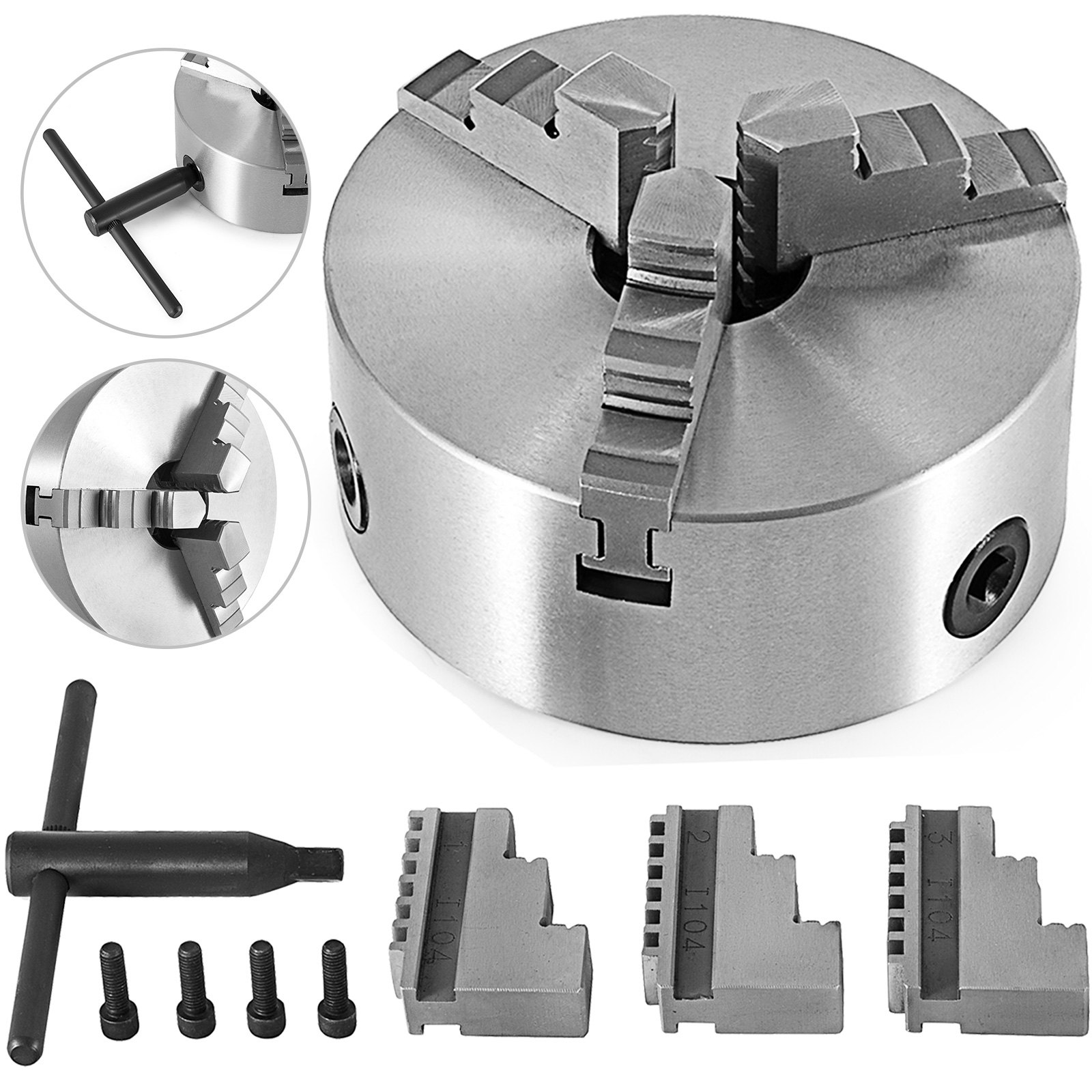

VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines

$126.99
126.99

Internal & External Jaws

  • Separating Jaw
  • Internal & External Jaws

250 mm

  • 200 mm
  • 250 mm
  • 100 mm
  • 160 mm
  • 80 mm
  • 125 mm
  • 【QUALITY MATERIAL】 - The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
  • 【HIGH PRECISION】 - The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
  • 【2 SETS OF JAWS】 - This chuck includes two sets of internal and external jaws. The clamping range of this chuck is between 0.24" / 6 mm - 9.84" / 250 mm, which is suitable for clamping a variety of industrial parts.
  • 【FAST CLAMPING SPEED】 - The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
  • 【HIGH ADAPTABILITY】 - This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc..

Frequently bought together

People Who Bought This Item Also Bought

VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines
VEVOR K11-250 Lathe Chuck 10" Metal Lathe Chuck Self-centering 3 Jaw Lathe Chuck With 2 Sets Of Jaws for Grinding Milling Machines
Internal & External Jaws 250 mm
VEVOR K11-250 Lathe Chuck 10
VEVOR K11-250 Lathe Chuck 10
VEVOR K11-250 Lathe Chuck 10

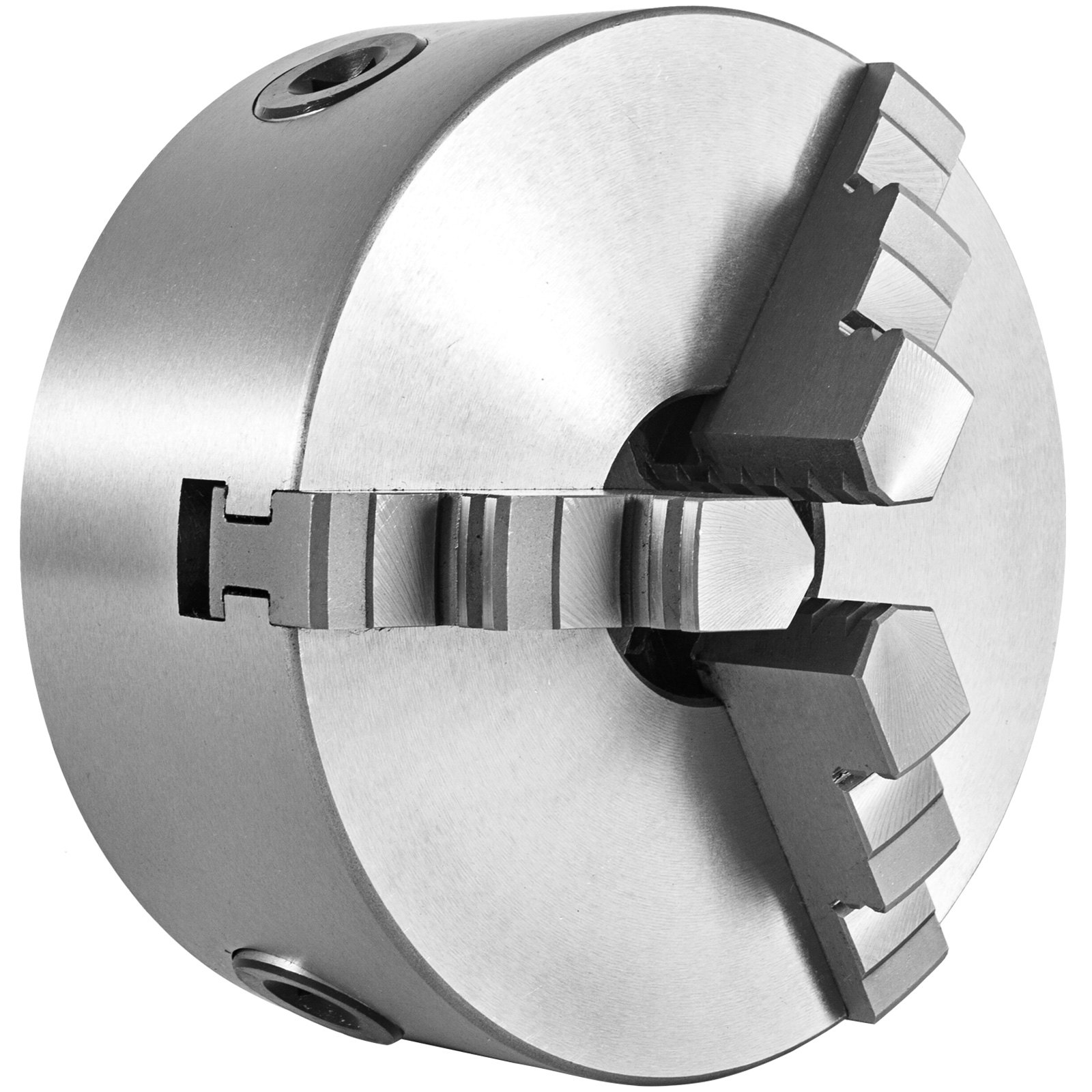

10" Self-centering 3 Jaw Lathe Chuck With Two Sets Of Jaws
This versatile chuck is made of high-quality hardened steel, resistant to compression and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.24" / 6 mm - 9.84" / 250 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets Of Jaws
  • Fast Clamping Speed
  • High Adaptability

VEVOR K11-250 Lathe Chuck 10
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-250 Lathe Chuck 10
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-250 Lathe Chuck 10

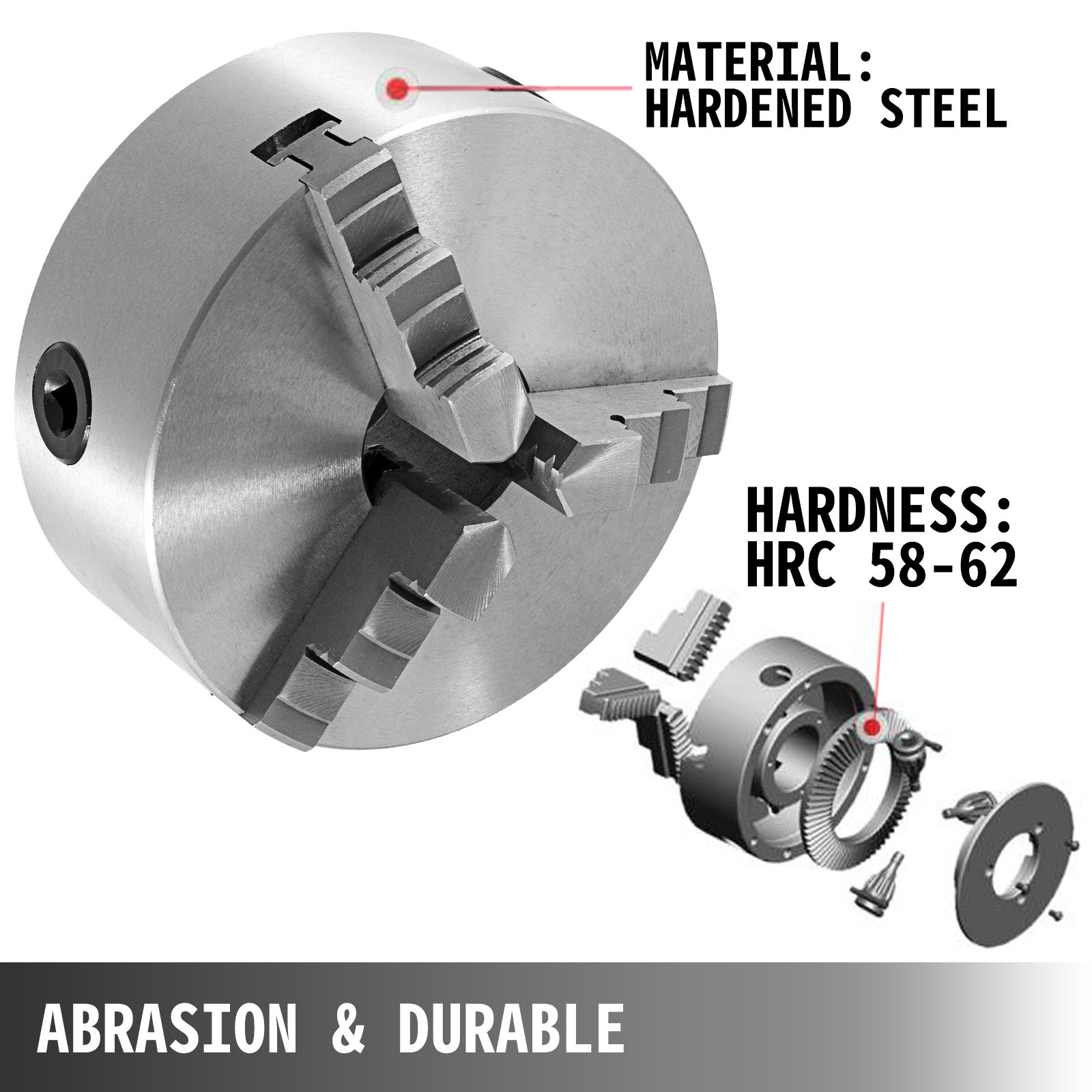

Abrasion & Durable
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR K11-250 Lathe Chuck 10

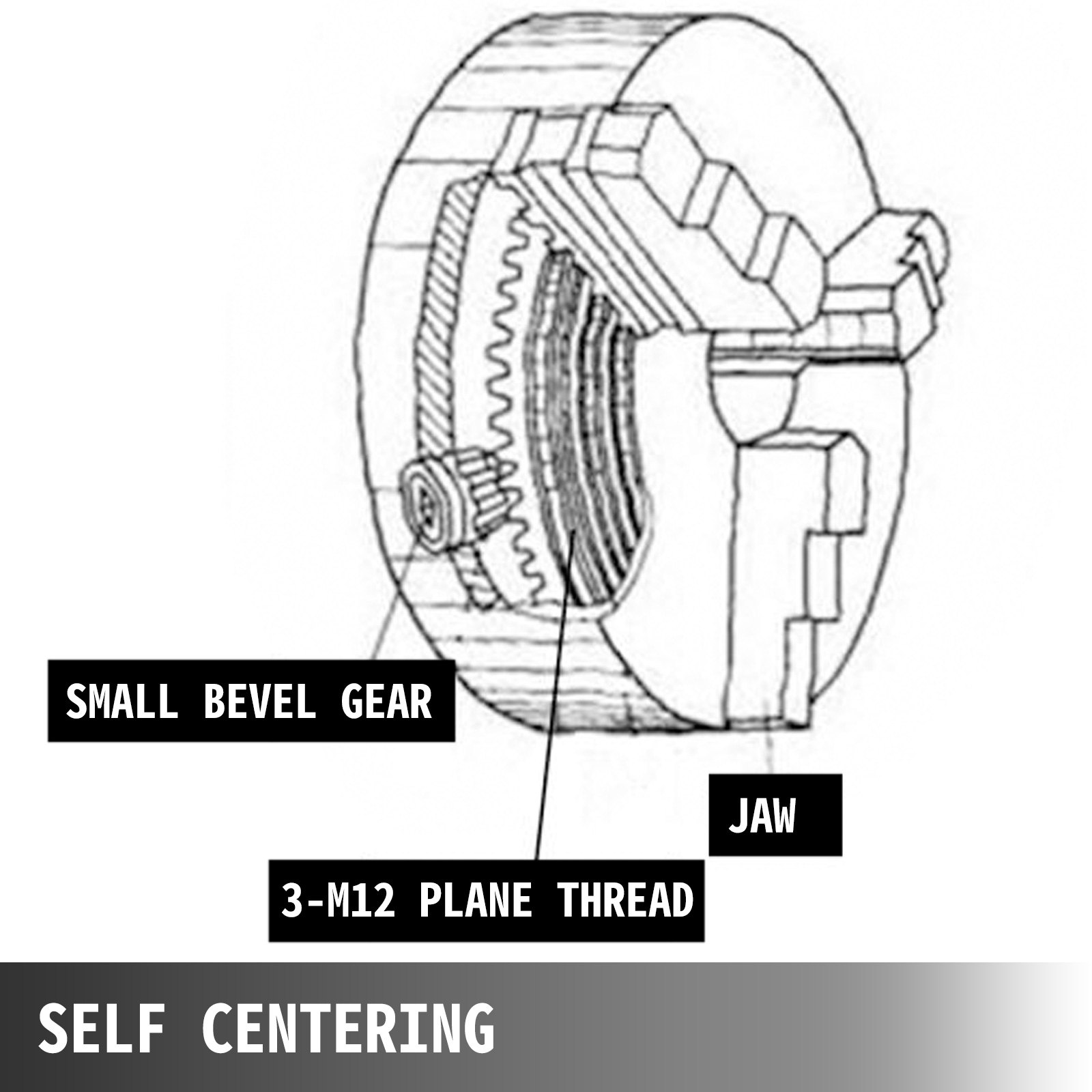

Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR K11-250 Lathe Chuck 10

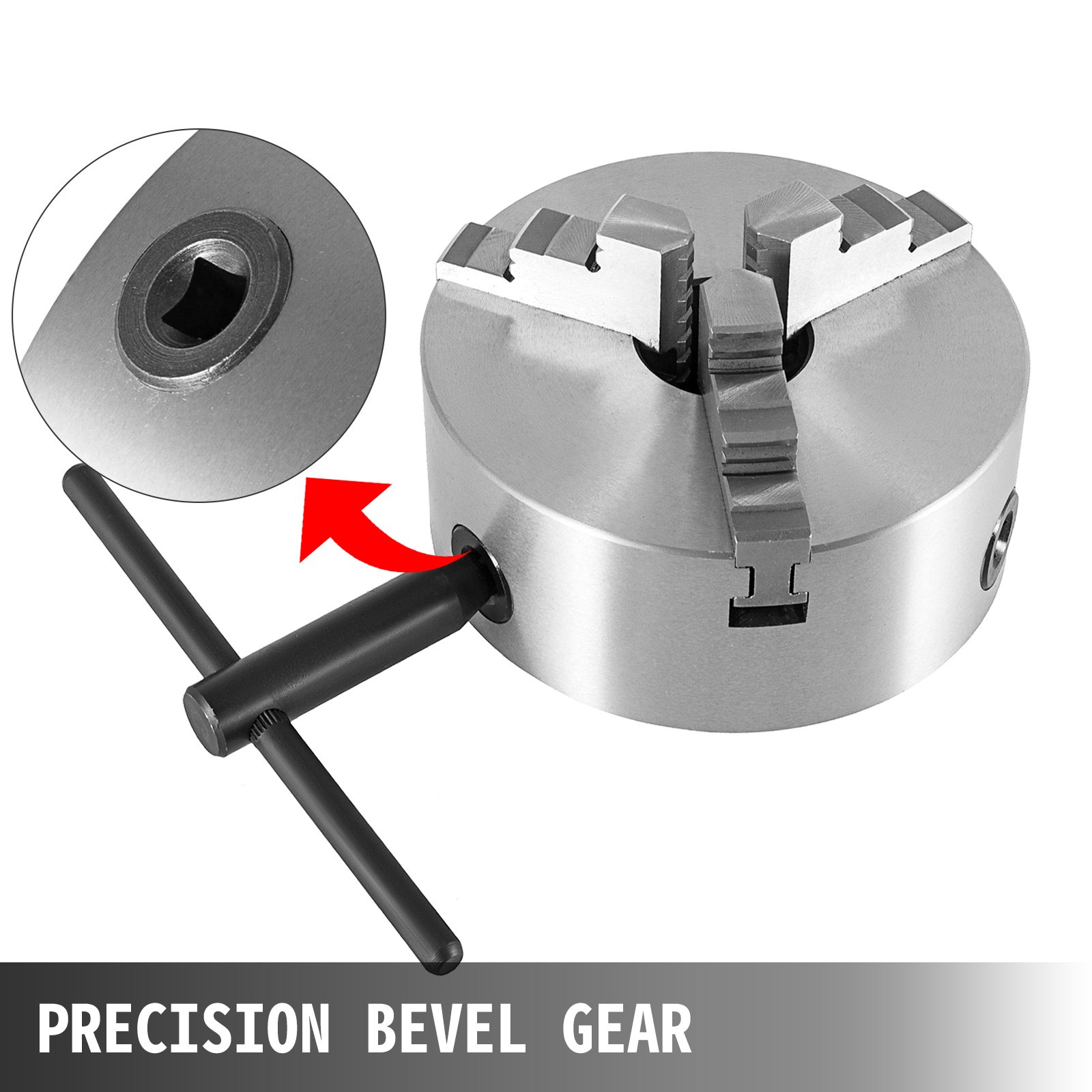

Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR K11-250 Lathe Chuck 10

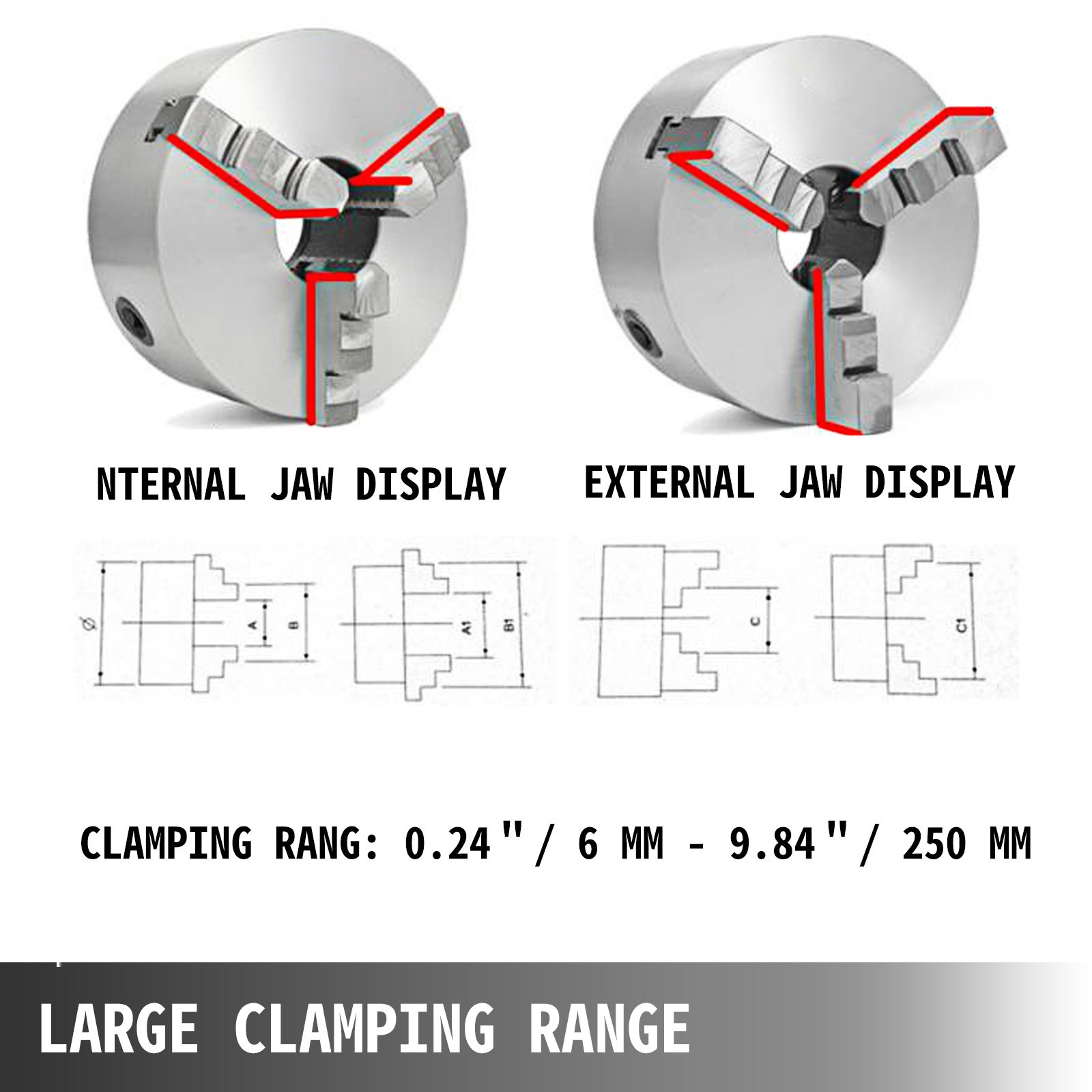

Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR K11-250 Lathe Chuck 10

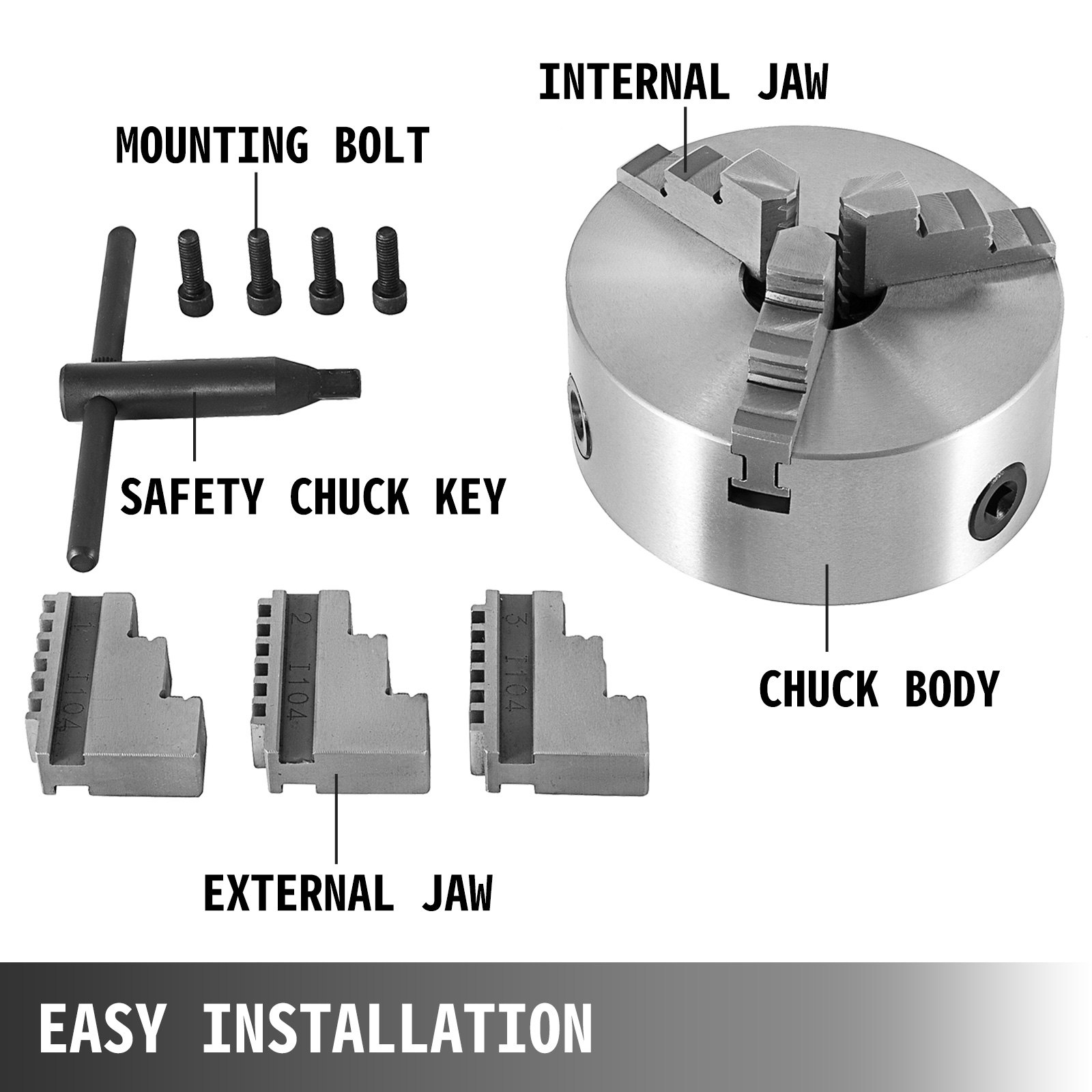

Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
VEVOR K11-250 Lathe Chuck 10
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR K11-250 Lathe Chuck 10

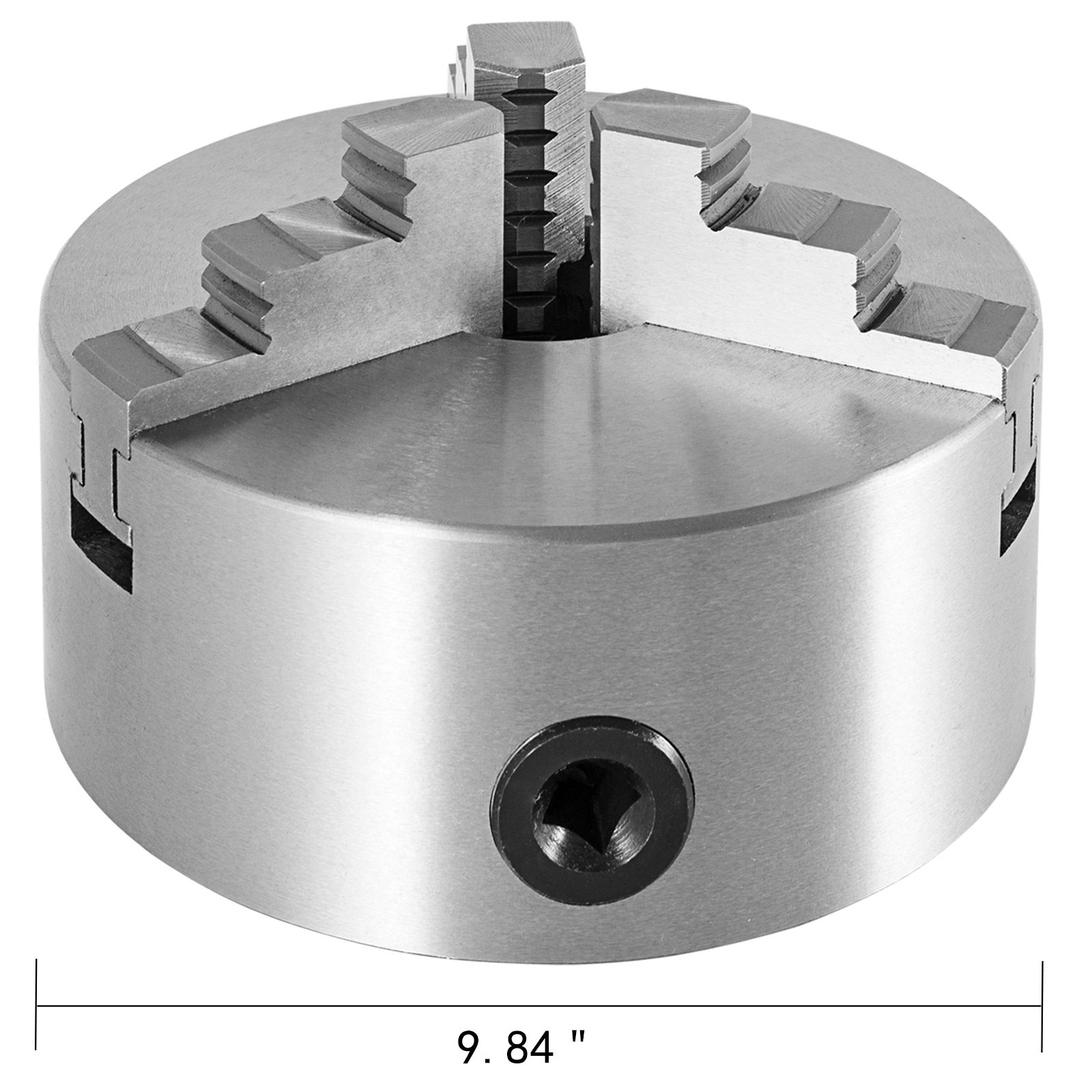

Specifications
  • Mounting Thread: 3-M12
  • Internal Jaw Clamping Range (A-A1): 0.24" / 6 mm - 4.33" / 110 mm
  • Internal Jaw Jamming Range (B-B1): 3.15" / 80 mm - 9.84" / 250 mm
  • External Jaw Clamping Range (C-C1):3.54" / 90 mm - 9.84" / 250 mm
VEVOR K11-250 Lathe Chuck 10

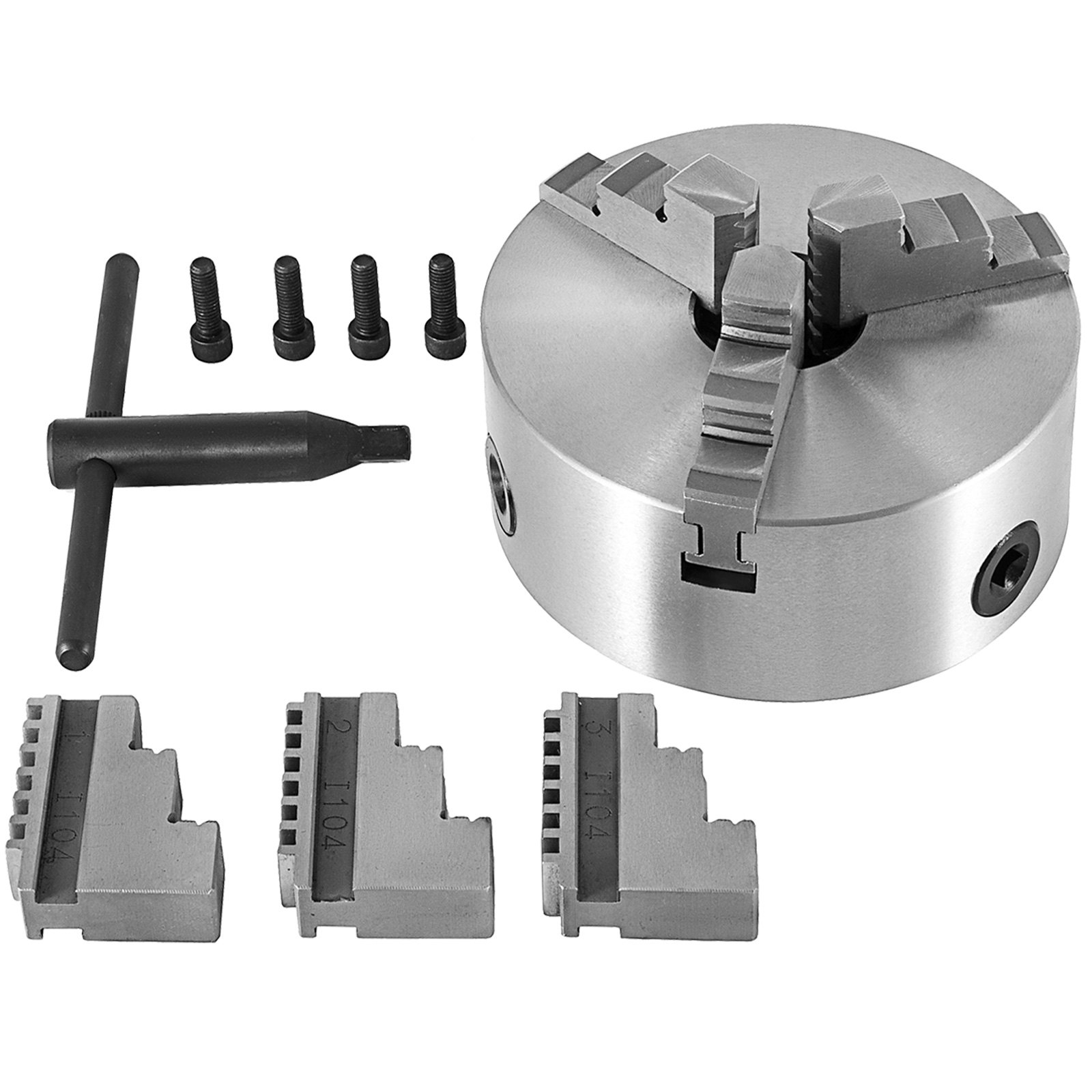

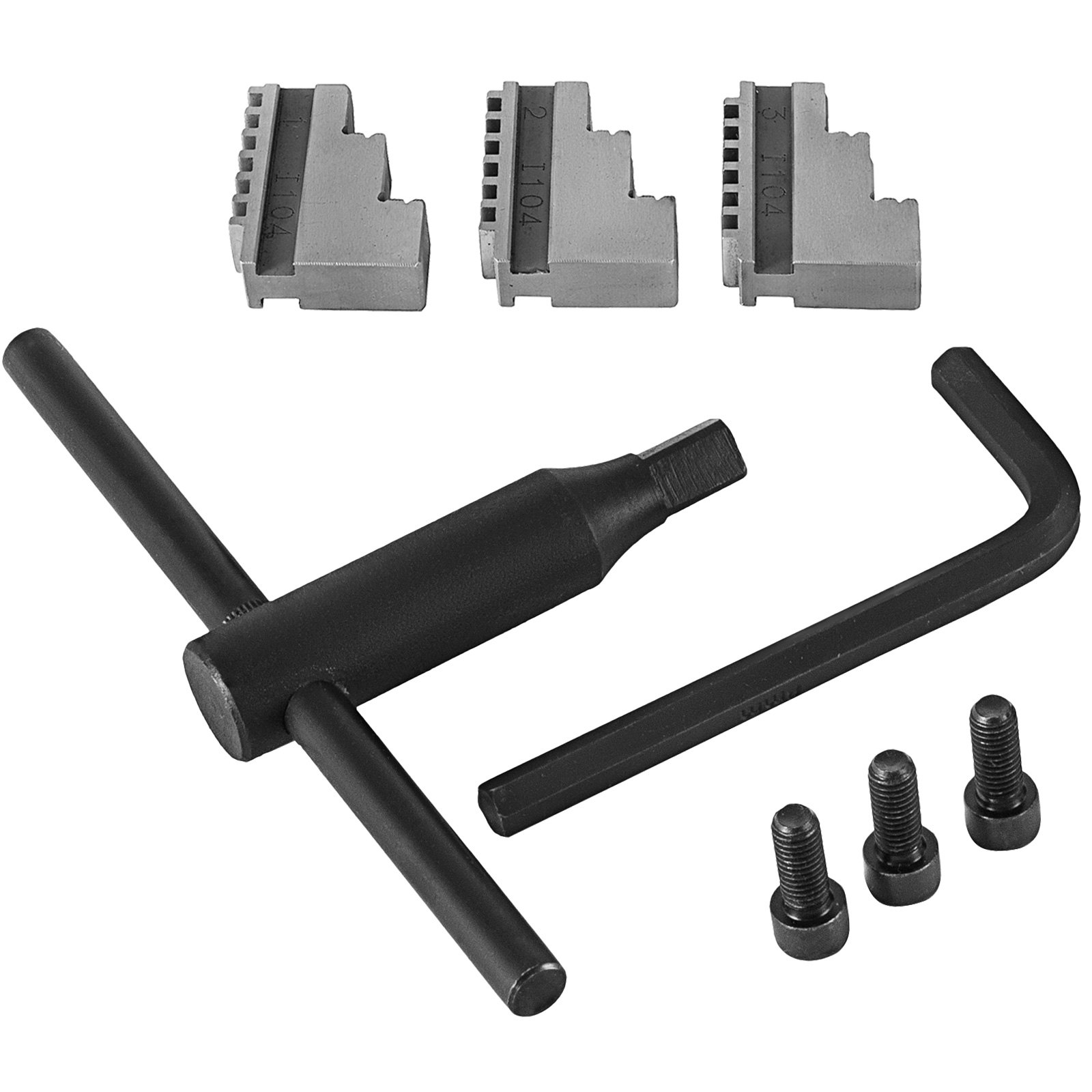

Package Content
  • 1 X 10" / 250 mm Lathe Chuck Body
  • 3 X Internal Jaws
  • 3 X External Jaws
  • 3 X Mounting Bolts
  • 1 X Safety Chuck Key
VEVOR K11-250 Lathe Chuck 10
VEVOR K11-250 Lathe Chuck 10

VEVOR K11-250 Lathe Chuck 10
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-250 Lathe Chuck 10
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-250 Lathe Chuck 10
10" Self-centering 3 Jaw Lathe Chuck With Two Sets Of Jaws
This versatile chuck is made of high-quality hardened steel, resistant to compression and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.24" / 6 mm - 9.84" / 250 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets Of Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR K11-250 Lathe Chuck 10
Abrasion & Durable
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR K11-250 Lathe Chuck 10
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR K11-250 Lathe Chuck 10
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR K11-250 Lathe Chuck 10
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR K11-250 Lathe Chuck 10
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
VEVOR K11-250 Lathe Chuck 10
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR K11-250 Lathe Chuck 10
Package Content
  • 1 X 10" / 250 mm Lathe Chuck Body
  • 3 X Internal Jaws
  • 3 X External Jaws
  • 3 X Mounting Bolts
  • 1 X Safety Chuck Key
VEVOR K11-250 Lathe Chuck 10
Specifications
  • Mounting Thread: 3-M12
  • Internal Jaw Clamping Range (A-A1): 0.24" / 6 mm - 4.33" / 110 mm
  • Internal Jaw Jamming Range (B-B1): 3.15" / 80 mm - 9.84" / 250 mm
  • External Jaw Clamping Range (C-C1):3.54" / 90 mm - 9.84" / 250 mm

Specification

Mounting Thread 3-M12
Internal Jaw Clamping Range (A-A1) 0.24" / 6 mm - 4.33" / 110 mm
Internal Jaw Jamming Range (B-B1) 3.15" / 80 mm - 9.84" / 250 mm
External Jaw Clamping Range (C-C1) 3.54" / 90 mm - 9.84" / 250 mm

Customer Reviews

Customer Ratings

  • 4.6
  • 4.6
  • 4.6
  • 4.7
  • See more See less
Great value :-) Great value :-)
Separating Jaw 250 mm
10" 3 jaw chuck fo under £100
Made a back plate to adapt it to my 1959 Edgewick MK1 lathe. Once in place had about 0.0015 run out, mostly from the lathe it's self. The jaws were not perfectly alined but easy fix ran boring bar through centre with carbide insert. Have two videos on my YouTube channel part one https://www.youtube.com/watch?v=k2UsO-YbpuM&ab_channel=MarshallSmart. Part two https://www.youtube.com/watch?v=zimH9Y6HHEc The jaws can be put in any slot as long as you pay attention to where the teeth catch. Only other thing I would say is that I have been having to take the jaws out after each use to clean out chips. Jaws stick if I don't do that. Value for money you could not beet it. Might buy one of the smaller one's to fit in to tail stalk with morse taper 3 and back plate to suit.
0
Customer Service Reply:
Dear customer,
Thanks for your message and sorry about the inconvenience caused.

We are glad to offer you the best service here.
Would you kindly send e-mail to support@vevor.com with your order number and the related photo or video to show the issue clearly please?
We will help you check it and reply you within 24 hours.

Please do not worry. We will offer satisfying solution after we figure it out.
Your any feedback will be highly appreciated.

Best regards,
Vevor Team
rourov rourov
Internal & External Jaws 100 mm
plato de 100 mm
Buenos acabados y calidad de los materiales para este plato con el precio que tiene. Está fenomenal.
0
ROBERTO ROBERTO
Internal & External Jaws 200 mm
PERFECTO
Hemos recibido nuestro pedido en un plazo de tiempo rápido y el mismo cumple con todos los requisitos y composición según se indica en la web.
0
Tim Tim
Internal & External Jaws 100 mm
Mr
Almost speechless, how do they do it for the price? This is better than the chuck costing four times as much I have. Grab one while you can at this price
0
Jeffrey Causton Jeffrey Causton
Internal & External Jaws 160 mm
Good item, no back plate.
Looks and feels excellent, based on the build but I haven't been able to use it yet because it needs a back plate. Wouldn't it make sense to include one
