Features & Details

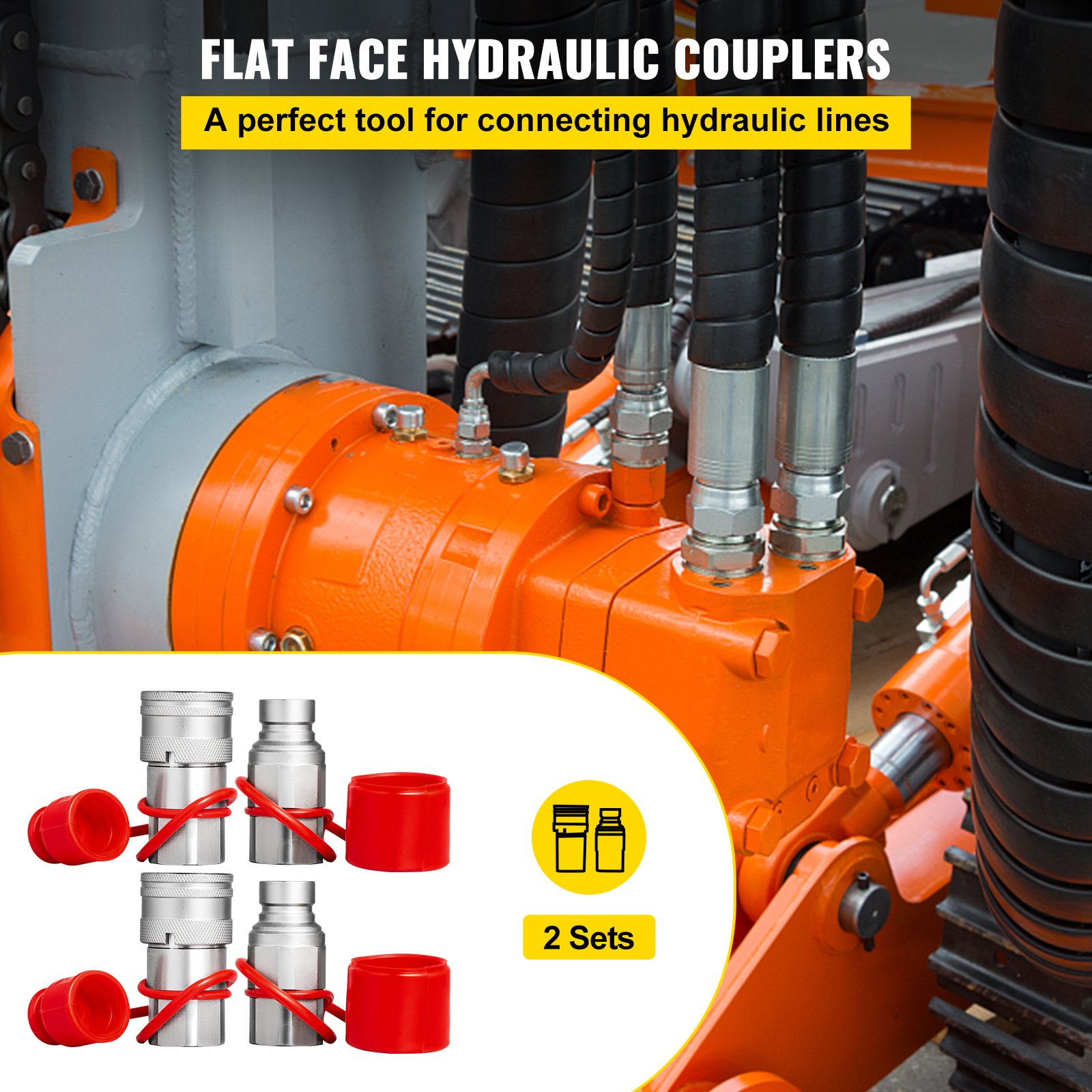

- Advanced Design: This flat face hydraulic connect coupler set features an improved valve design, which allows for a rated pressure of 4000 PSI, 45/L high-flow, zero fluid loss, and long service life. It meets the standards of ISO 16028, perfect for connecting your hydraulic lines.

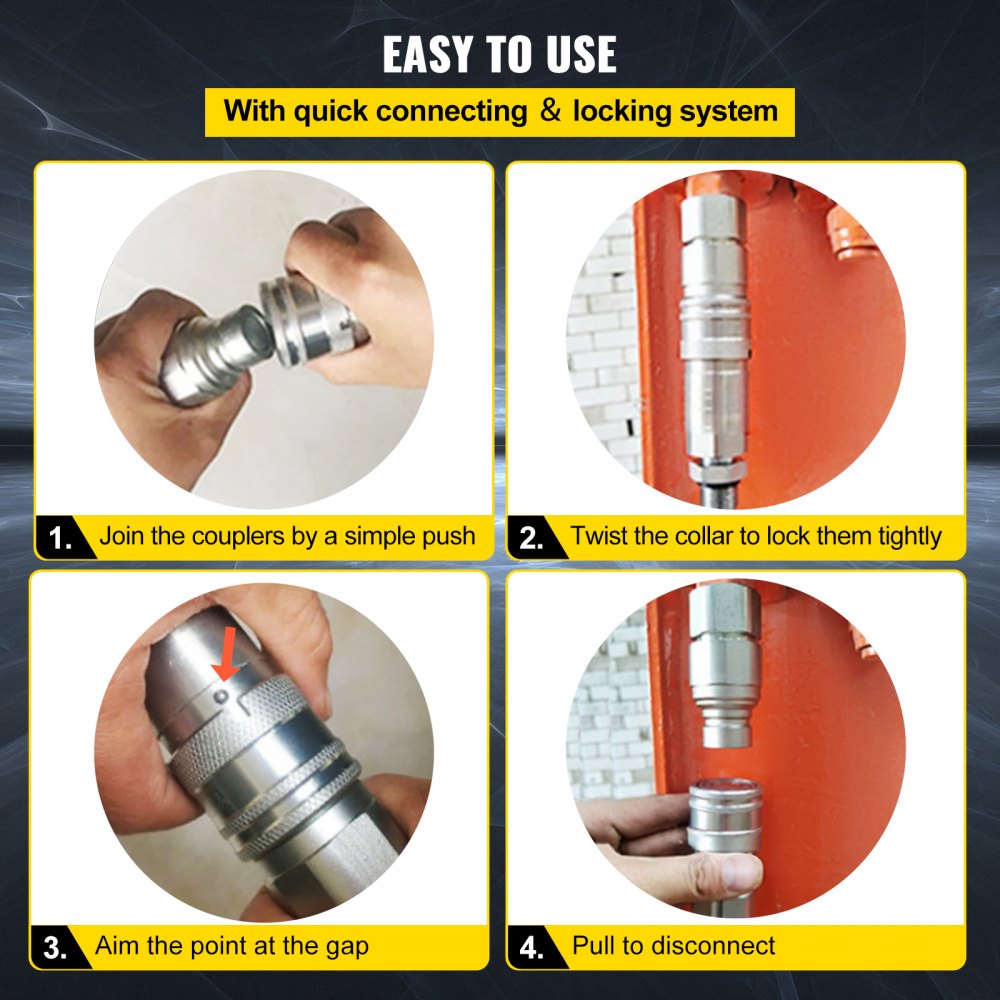

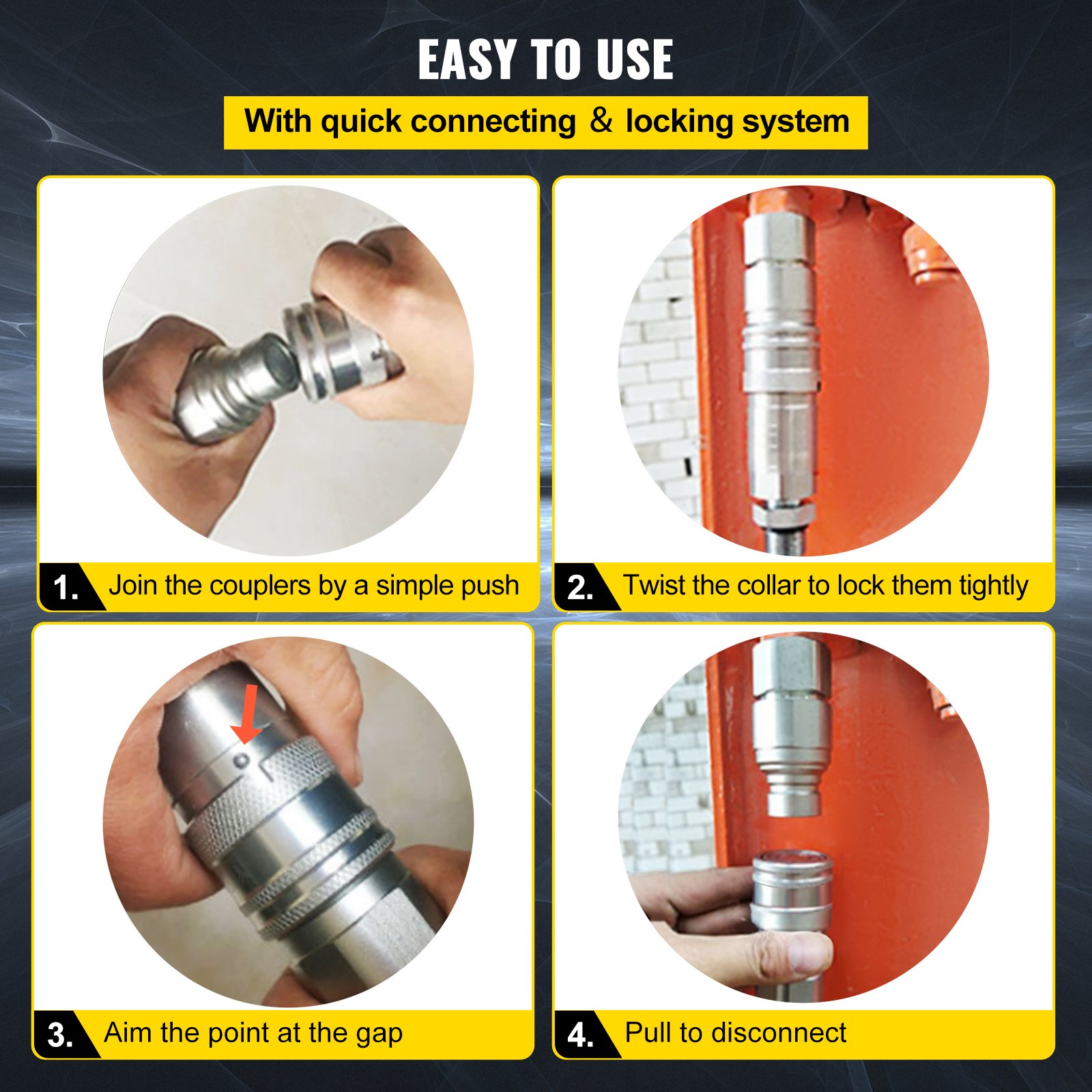

- Quick Connecting: The sleeve locking mechanism (with 1/2" NPT thread) makes the couplers easy to connect with a simple push. Rotate the collar to lock them tightly, preventing accidental disconnection. If you need to disconnect it, aim the point at the gap, then give a pull. Connection is simple, effortless, and requires minimal force.

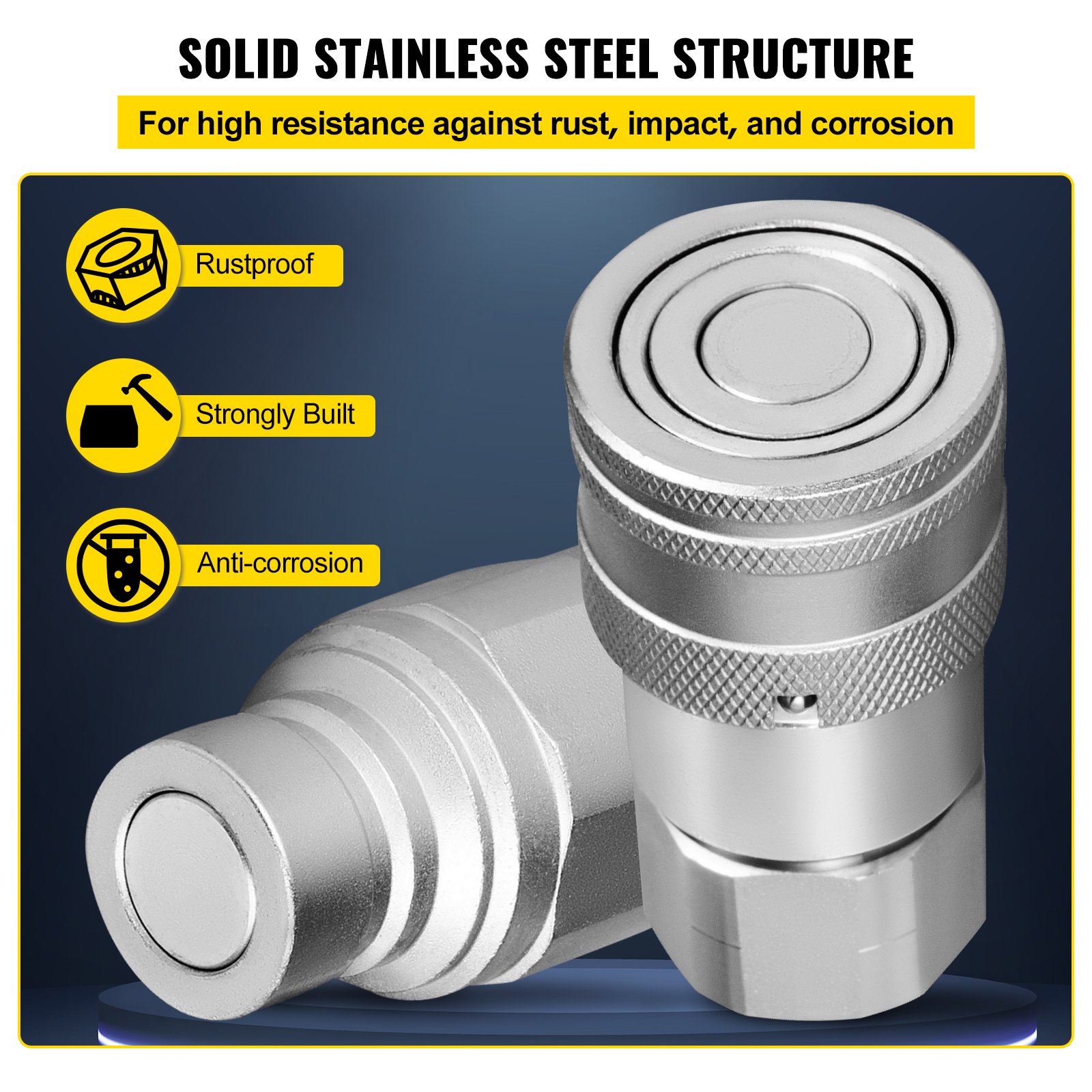

- Hardened Steel Construction: Our quick couplers are strongly built with hardened stainless steel to resist deformation and high temperatures. The zinc-nickel plating provides high resistance against rust and corrosion. They are built tough to last for years to come.

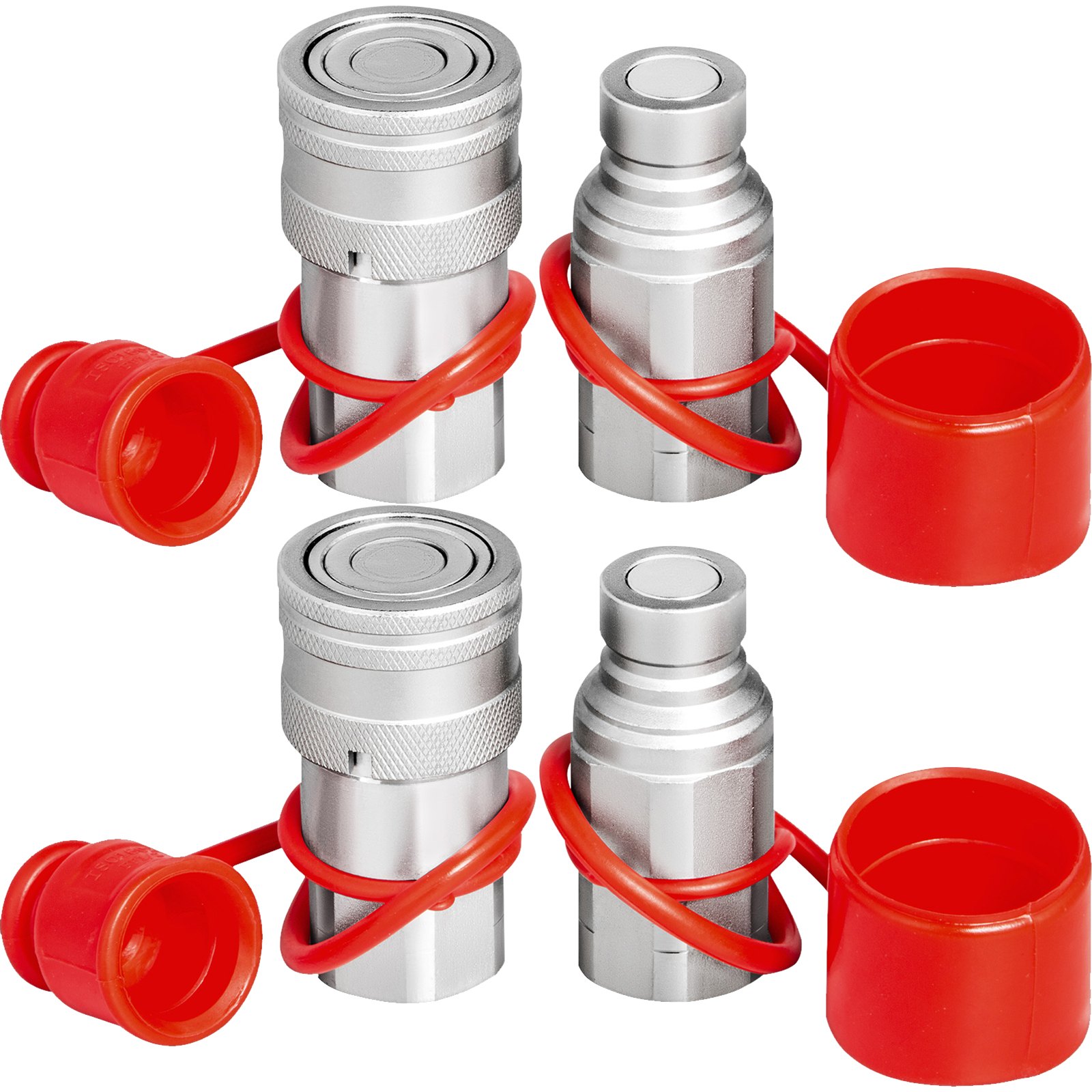

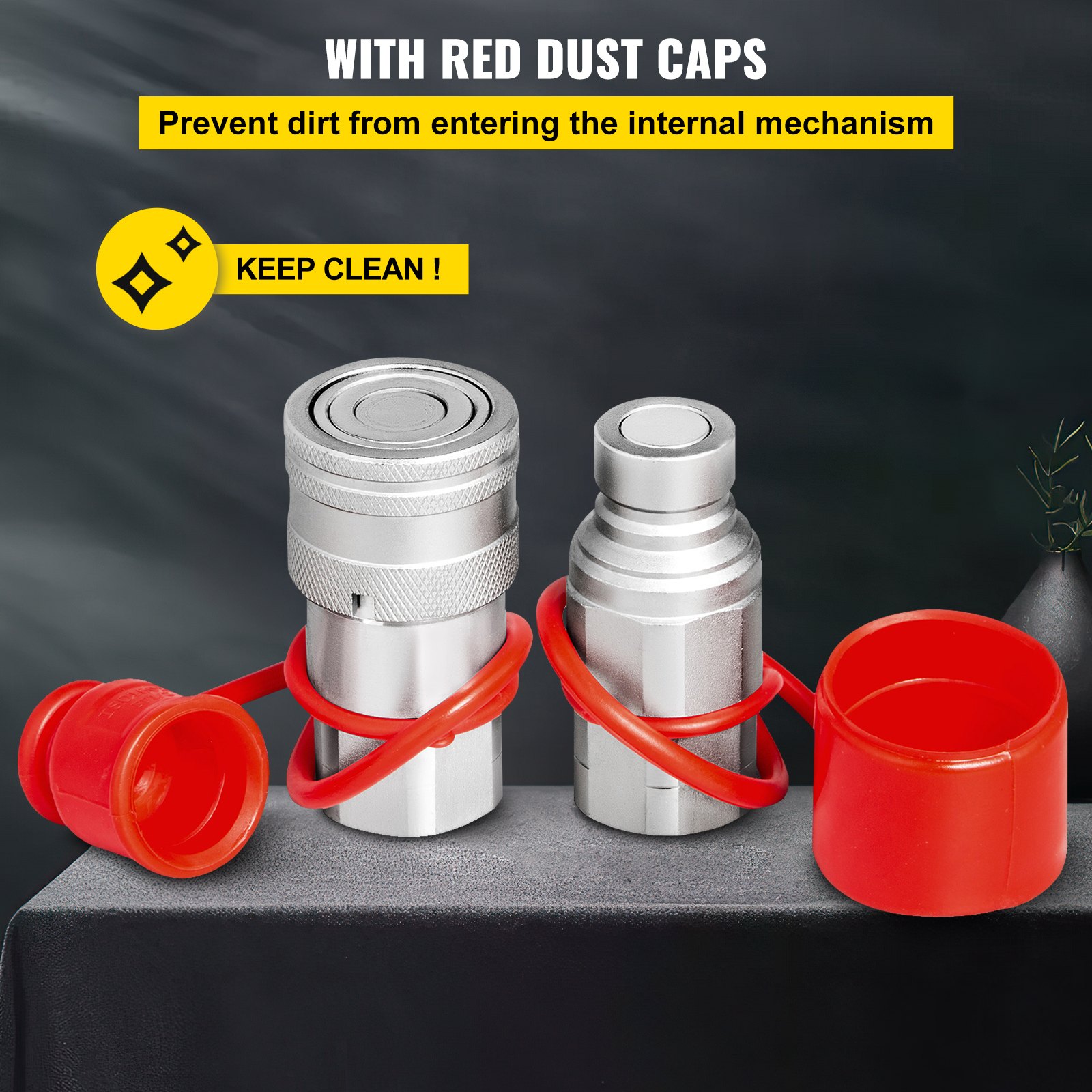

- Dust Covers Included: Dust caps are included to prevent dirt from disrupting the connecting system, preventing the risk of malfunction. The retaining ring is covered by a sleeve. Additionally, a dust seal is placed within the spring area.
- High Compatibility: The quick coupler set is designed for applications where hydraulic spillage is likely to occur. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
Frequently Bought Together
Videos for this product
About this item
Features & Details

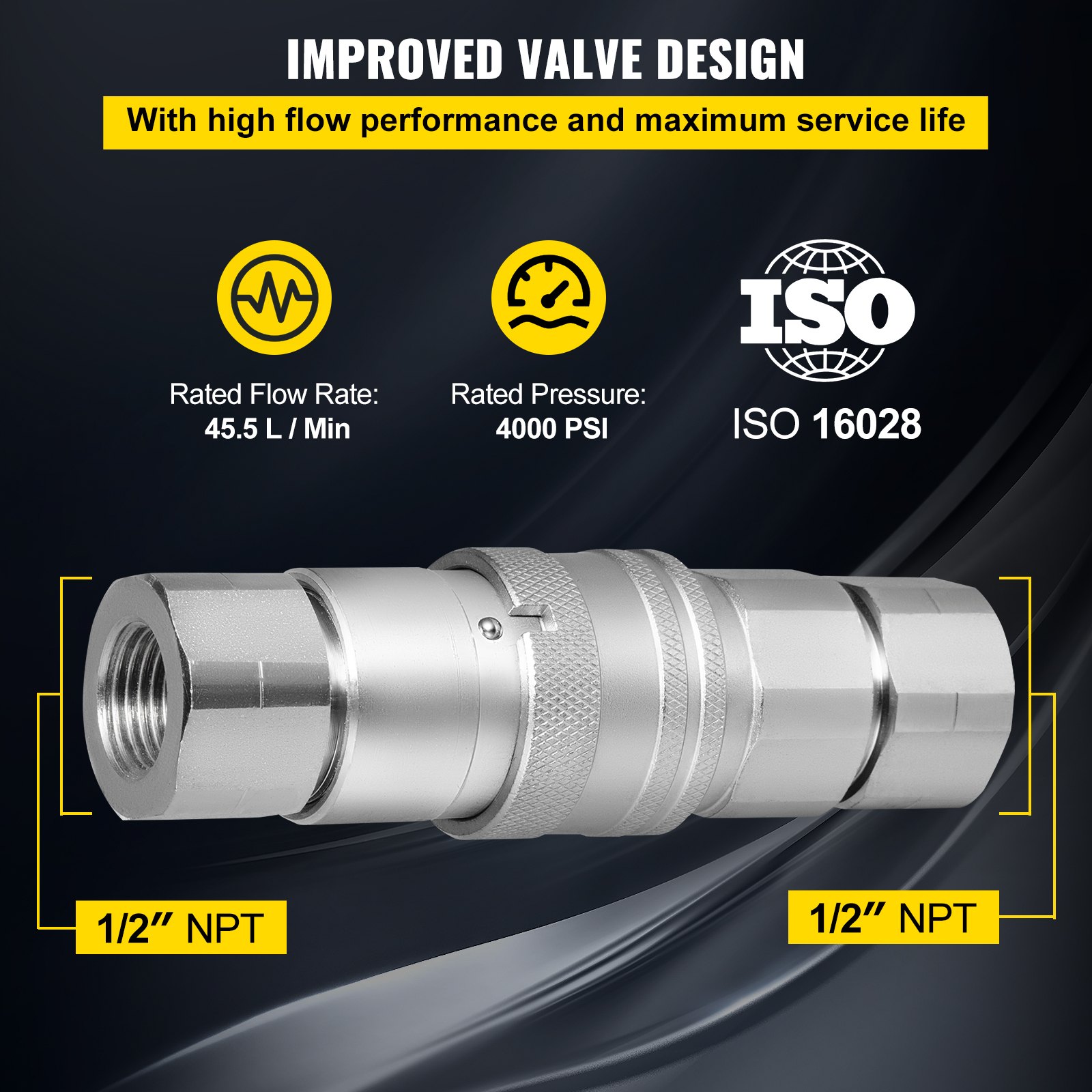

- 【HIGH FLOW PERFORMANCE】- The pair of hydraulic fittings come with protective covers and adopted valve design with higher performance to bear the damage from the high-velocity flow and pulse pressure. With 4000 PSI Rating, Rated Flow: 45.5 L/Min, and meets ISO 16028 Standards.

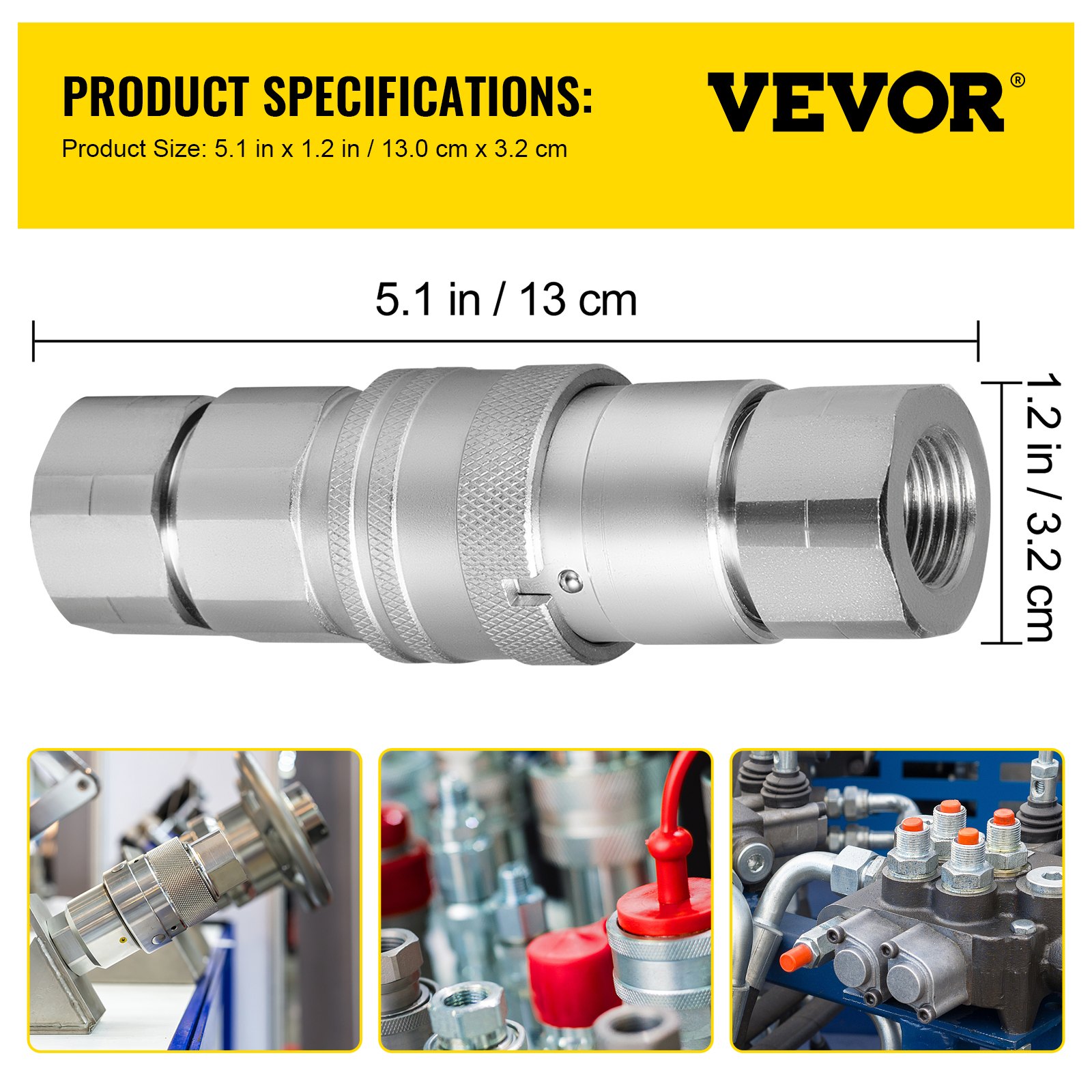

- 【1/2" BODY W/ 1/2" NPT THREAD】- Our flat face hydraulic quick coupling is constructed in precise dimensions, with a 1/2" Body and 1/2" NPT Thread. Coupled Length: 5.1". Both male and female coupler matches to each other tightly due to aligning metal swiveling action of ball-locking. Such an accurate size ensures the exact connect, effectively avoid the fluid losses of loosening connections.
- 【HARDEN STEEL CONSTRUCTION】- The quick hydraulic couplers are made of high-strength harden steel with long service life. Their metal surface went through the zinc plating treatment to get superior resistances to high-temper, corrosion, and rust. Effectively minimize the damage caused by hydraulic and mechanical shock.
- 【SLEEVE LOCKING DESIGN】- The pioneer hydraulic couplers built with an inside locking sleeve mechanism help tighten the couplers and dramatically prevent the accidental disconnects. The sleeve covers the retaining ring and incorporates a dust seal in the spring area, providing a safer and cleaner hydraulic fluid system.
- 【WIDE RANGE APPLICATION】- The quick coupler comes in two pairs and is designed for applications where hydraulic spillage is a concern. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
- Replace Part Number:
Parker FE Series Male: FEM-502-8FP Female: FEM-501-8FP
Faster FFH Series Male: FFH08 12NPT M Female: FFH08 12NPT F
Eaton Aeroquip FD89 Series Male: FD89-1002-08-08 Female: FD89-1001-08-08
Safeway FFE49 Series Male: FFE491-4 Female: FFE495-4
Specifications
- Body Size: 1/2"
- Thread Size: 1/2"NPT
- Valve Type: Flat Face
- Material Type: Stainless Steel & PVC
- Rated Flow Rate: 45.5 L/Min
- Rated Pressure: 4000 PSI/ 27.6 MPa
- ISO Standards: ISO 16028
- Working Temper: NBR -20℃ ~ +100℃ (FKM -20℃ ~ +180℃)
- Plating Type: Corrosion-resistant Trivalent Zinc
Package Content

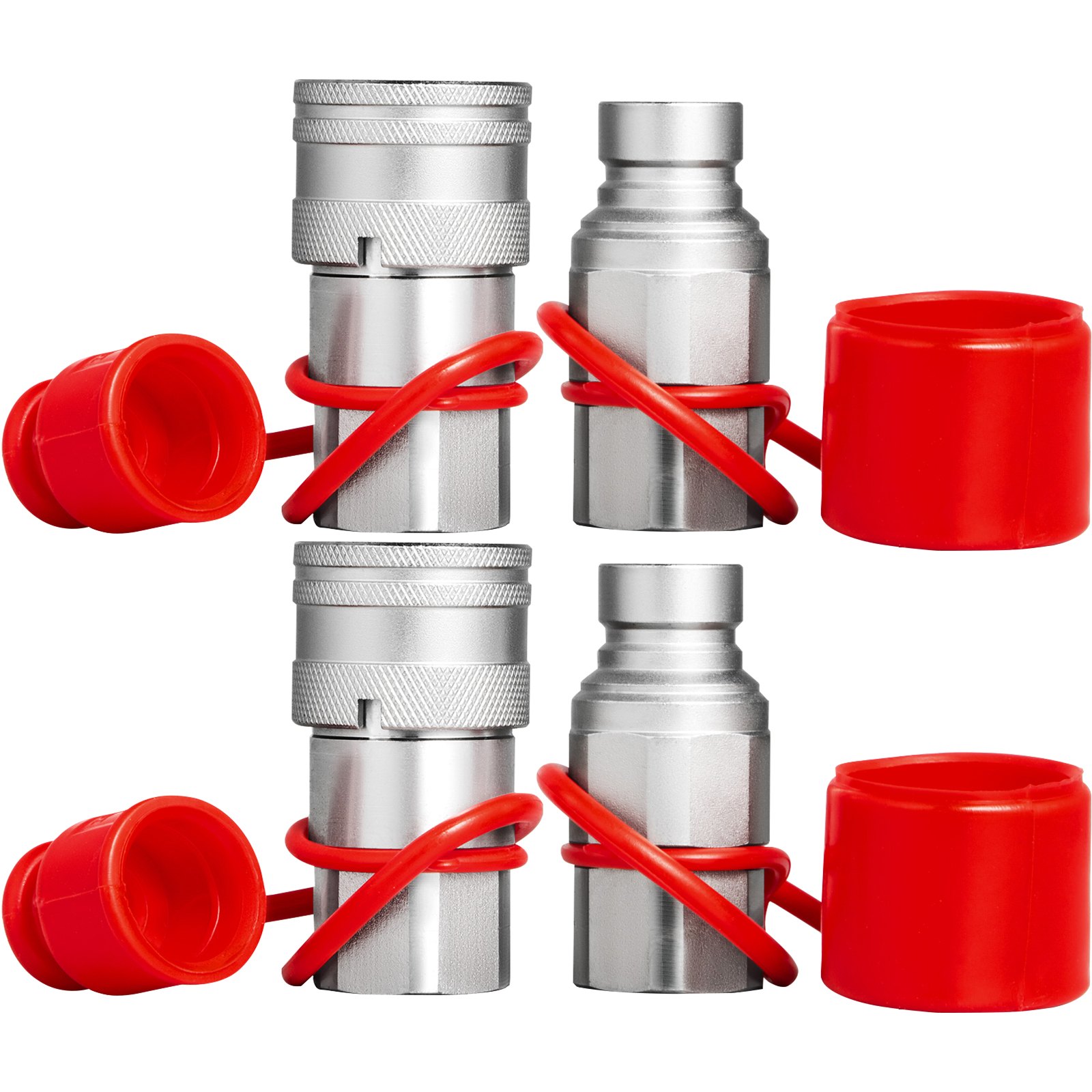

- 2 x Pair of Hydraulic Couplers
- 2 x Pair of Protective Covers
Features & Details
- 【HIGH FLOW PERFORMANCE】- The pair of hydraulic fittings come with protective covers and adopted valve design with higher performance to bear the damage from the high-velocity flow and pulse pressure. With 4000 PSI Rating, Rated Flow: 45.5 L/Min, and meets ISO 16028 Standards.
- 【1/2" BODY W/ 1/2" NPT THREAD】- Our flat face hydraulic quick coupling is constructed in precise dimensions, with a 1/2" Body and 1/2" NPT Thread. Coupled Length: 5.1". Both male and female coupler matches to each other tightly due to aligning metal swiveling action of ball-locking. Such an accurate size ensures the exact connect, effectively avoid the fluid losses of loosening connections.
- 【HARDEN STEEL CONSTRUCTION】- The quick hydraulic couplers are made of high-strength harden steel with long service life. Their metal surface went through the zinc plating treatment to get superior resistances to high-temper, corrosion, and rust. Effectively minimize the damage caused by hydraulic and mechanical shock.
- 【SLEEVE LOCKING DESIGN】- The pioneer hydraulic couplers built with an inside locking sleeve mechanism help tighten the couplers and dramatically prevent the accidental disconnects. The sleeve covers the retaining ring and incorporates a dust seal in the spring area, providing a safer and cleaner hydraulic fluid system.
- 【WIDE RANGE APPLICATION】- The quick coupler comes in two pairs and is designed for applications where hydraulic spillage is a concern. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
- Replace Part Number:
Parker FE Series Male: FEM-502-8FP Female: FEM-501-8FP
Faster FFH Series Male: FFH08 12NPT M Female: FFH08 12NPT F
Eaton Aeroquip FD89 Series Male: FD89-1002-08-08 Female: FD89-1001-08-08
Safeway FFE49 Series Male: FFE491-4 Female: FFE495-4
Specifications
- Body Size: 1/2"
- Thread Size: 1/2"NPT
- Valve Type: Flat Face
- Material Type: Stainless Steel & PVC
- Rated Flow Rate: 45.5 L/Min
- Rated Pressure: 4000 PSI/ 27.6 MPa
- ISO Standards: ISO 16028
- Working Temper: NBR -20℃ ~ +100℃ (FKM -20℃ ~ +180℃)
- Plating Type: Corrosion-resistant Trivalent Zinc
Package Content
- 2 x Pair of Hydraulic Couplers
- 2 x Pair of Protective Covers
