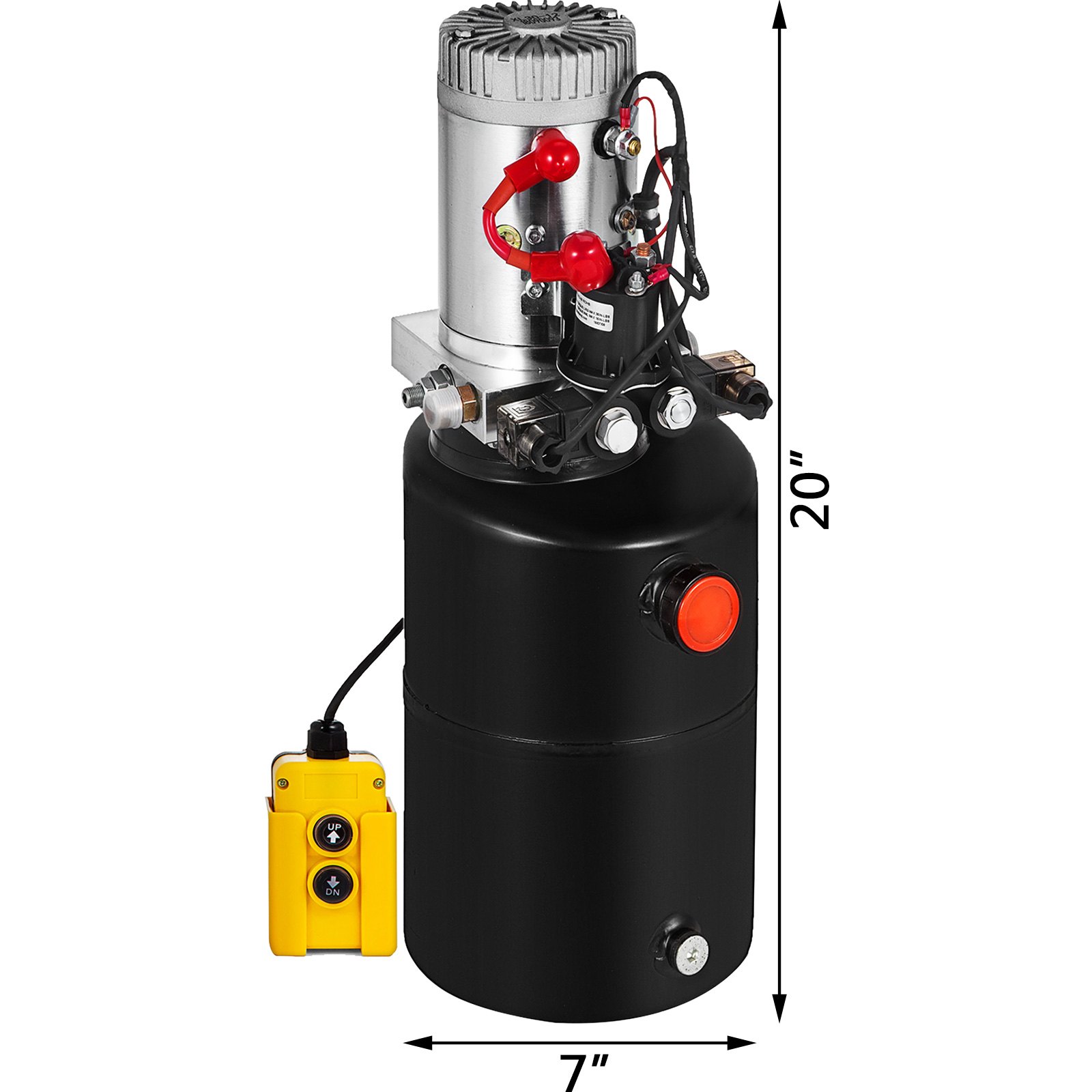

6 Quart Double Acting Hydraulic Pump Dump Trailer Lifting Control Kit Lift
4.6 9 Reviews
$ 237 99
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get $5.00 Off $99.00+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- 【HYDRULIC PUMP DOUBLE ACTING 】- This electric hydraulic pump is the perfect replacement pump for 12V DC remotely controlled hydraulic systems. Adopted durable materials, the hydraulic pump can resist corrosion and weariness, with high strength and hardness, to ensure its longer lifespans.
- 【POWER UNIT SPECIFICATIONS】- The pump power unit kit features double-acting actions, 6-quart cylindrical metal reservoir; standard duty 12V DC motor; SAE # 6 Port Connector; 3200 PSI Max relief setting on A port and 1500 PS Max on B port; 15ft remote pendant for control.
- 【QUICK LIFTING & LOWERING】- The hydraulic dump kits are built to start quickly and reliably. The positive and negative ports need to connect with the battery correctly to delivers quick oil output. With double actions to lifting-up and lowering-down, it tackles massive works with high efficiency.
- 【15FT CONTROLLER EASY TO USE】- This dump trailer hydraulic pump is equipped with a 6qt metal tank in cylindrical shape, solid enough to use in different hydraulic sites, mounted both in vertical/ horizontal. We offer two additional SAE#6 connectors for your replacement. The 15ft up-down control pendant can be used for a long distance.
- 【WIDE RANGE APPLICATION】- These reliable hydraulic powerlifting kits are used in applications where extending a hydraulic cylinder is needed. It suits truck tailgate lift, scissor lift, dump trailer, lifts truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Product specification
- Mode Single-Acting Power-Up/ Gravity-Down
- Tank Material Metal Cylinder Shape
- Tank Capacity 6L/ 6Quart/ 1.5 Gal
- Flow 2.0 GPM
- Max. Relief Valve Setting A Port 3200 PSI
- Max. Relief Valve Setting B Port 1500 PSI
Reviews summary
4.6 9 Reviews
Customers say: The product is praised for fast delivery, ease of installation, reliable performance, and effective customer service, though some users noted challenges with instructions, thread compatibility, and installation.
Al-generated from customer reviews
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Write a Review
Customers say
The product is praised for fast delivery, ease of installation, reliable performance, and effective customer service, though some users noted challenges with instructions, thread compatibility, and installation.
Al-generated from customer reviews
Top Reviews
About this item
Product specification
- Mode
- Single-Acting Power-Up/ Gravity-Down
- Tank Material
- Metal Cylinder Shape
- Tank Capacity
- 6L/ 6Quart/ 1.5 Gal
- Flow
- 2.0 GPM
- Max. Relief Valve Setting A Port
- 3200 PSI
- Max. Relief Valve Setting B Port
- 1500 PSI
- Rated Speed
- 2850R/MIN
- Voltage
- DC12V
- Power
- 1.6KW (Rated), 3.0KW (Max)
- Duty
- 3 Min
- Traffic
- 1.1 cc/r
- Rotation
- Clockwise
- Connector
- SAE # 6
- Mount Position
- Horizontal/ Vertical
- Control
- Solenoid and Handheld Pendant
- Pendant Control Length
- 15ft/ 4.5 m
Description

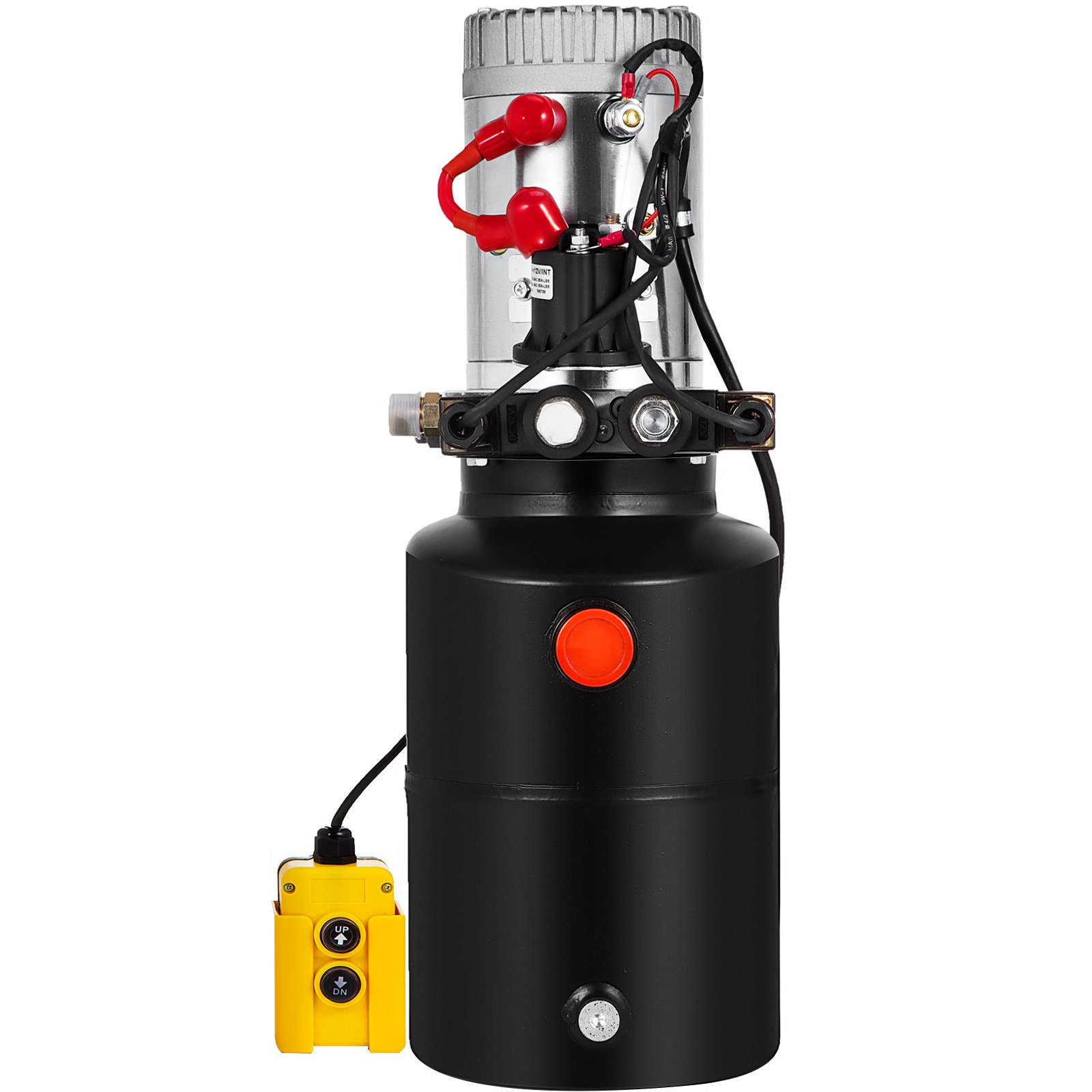

6 Quart Double Acting Hydraulic Pump Kit Cylinder Shape
The dump trailer hydraulic pump unit is made of high-quality materials and features reliable stability and effortless installation and applications. It is suitable for the control of a set of the double-acting cylinder. They are widely used in small dump trucks, trailers, movers or hydraulic winch, etc.
- Hydraulic Pump Double Acting
- Power Unit Specifications
- Quick Lifting & Lowering
- 15ft Controller Easy To Use
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

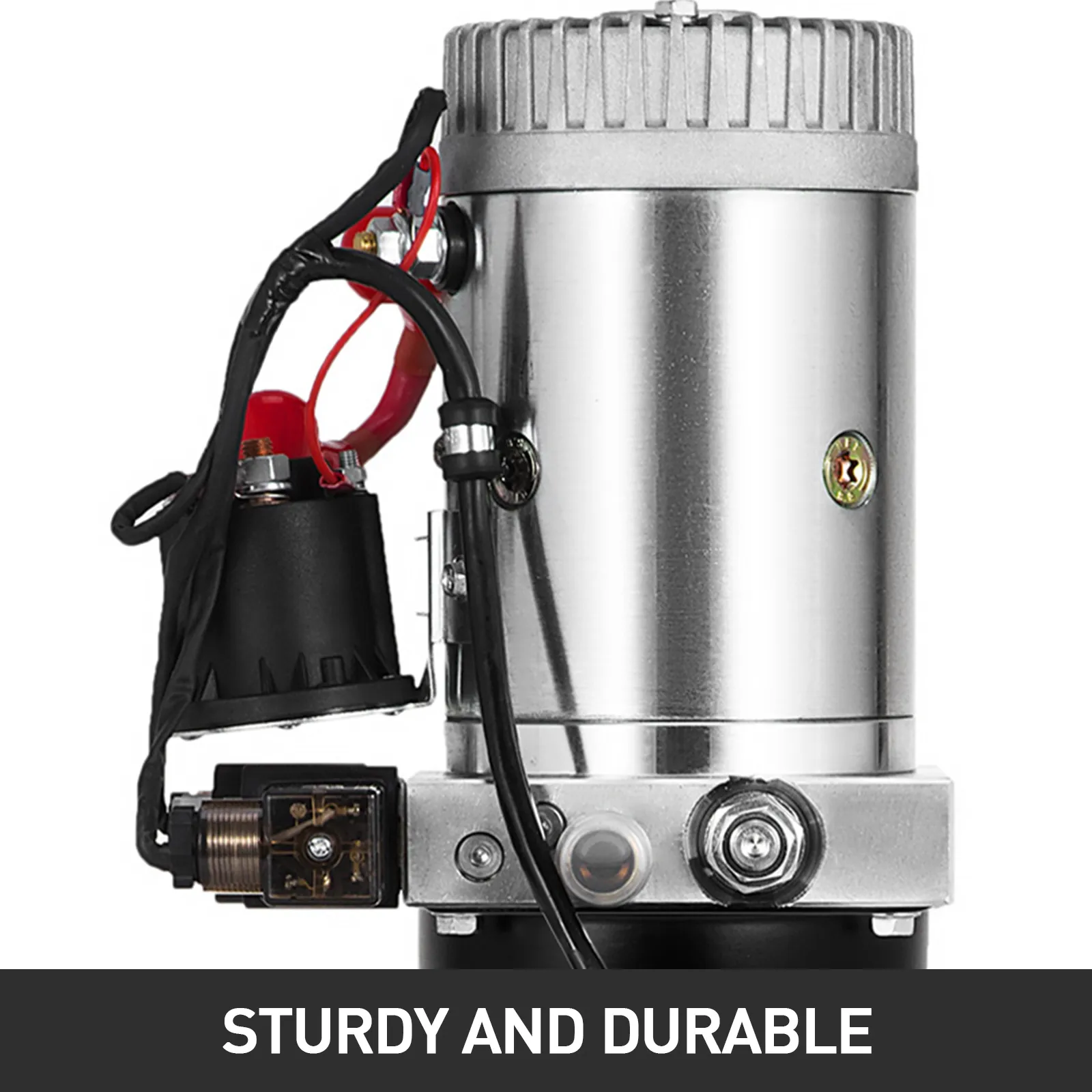

Sturdy and Durable
Over-pressure unit of pressure safety valve of hydraulic pump for dump trailer to avoid over pressure damage or extremely pressured.

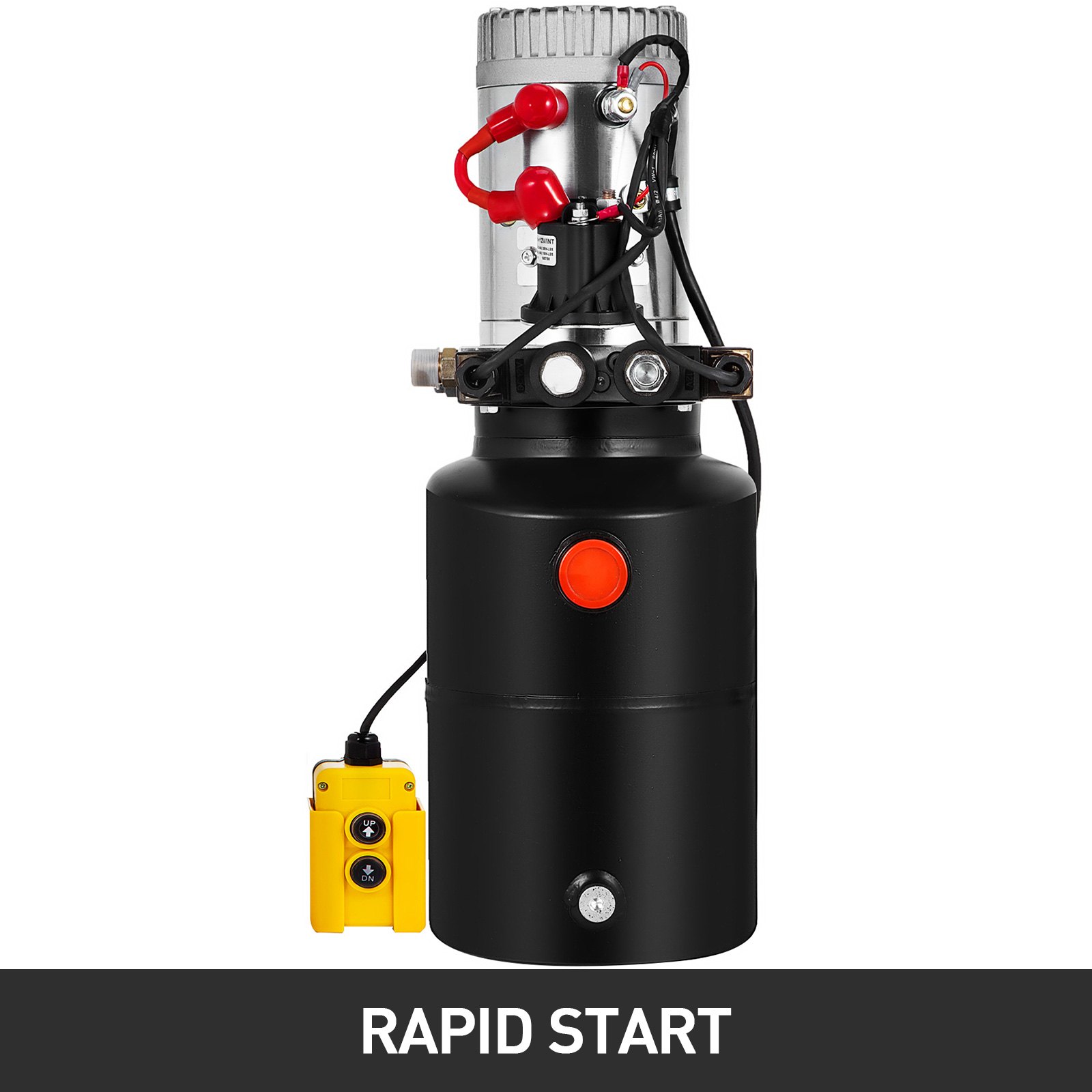

Rapid Start
The motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.This high quality hydraulic pumps ensure long life and a fast starting each time.

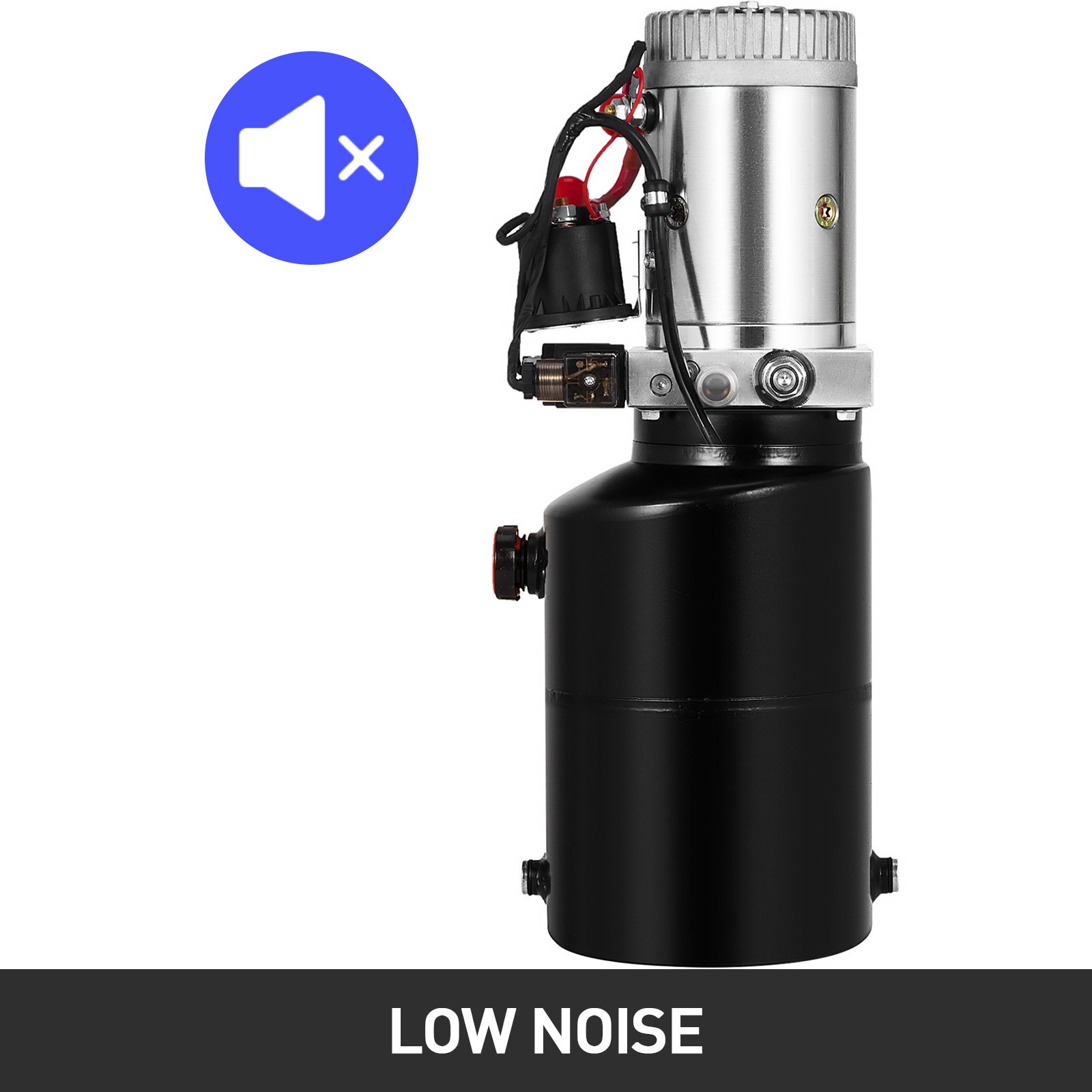

Low Noise
Constructed with high quality oil suck pipes, which needed to be cleaned often, our pump work in a low-noise condition.

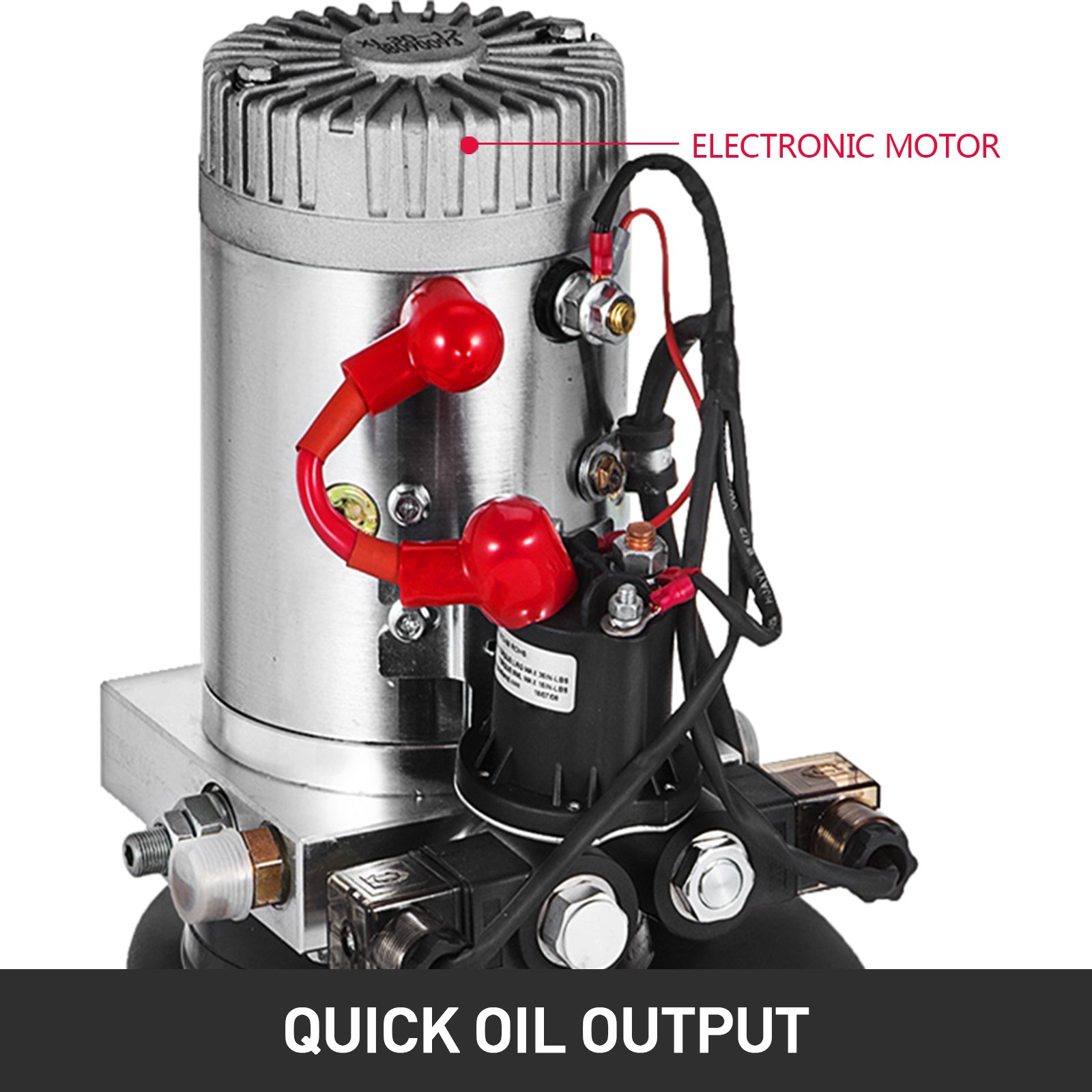

Quick Oil Output
Perfect replacement pump for 12VDC controlled hydraulic systems, hydraulic pump double acting designed for horizontal mounting, capable of quick oil output.

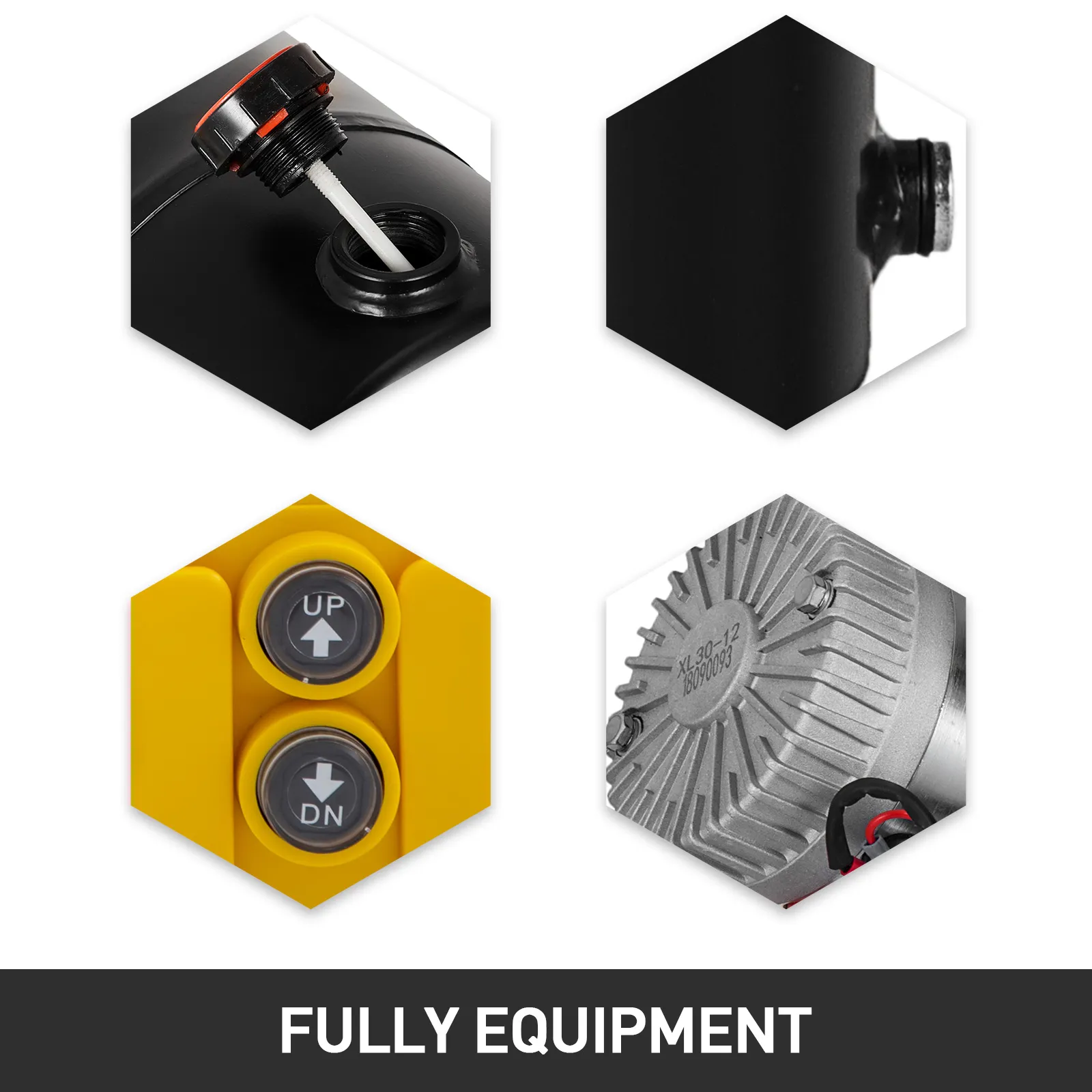

Fully Equipment
This dump trailer hydraulic is equipped with other hydraulic tools can carry out lifting, pressure type, elbow, bending row, straightening, cutting, assembly, demolition and many other work. Reduce labor intensity.

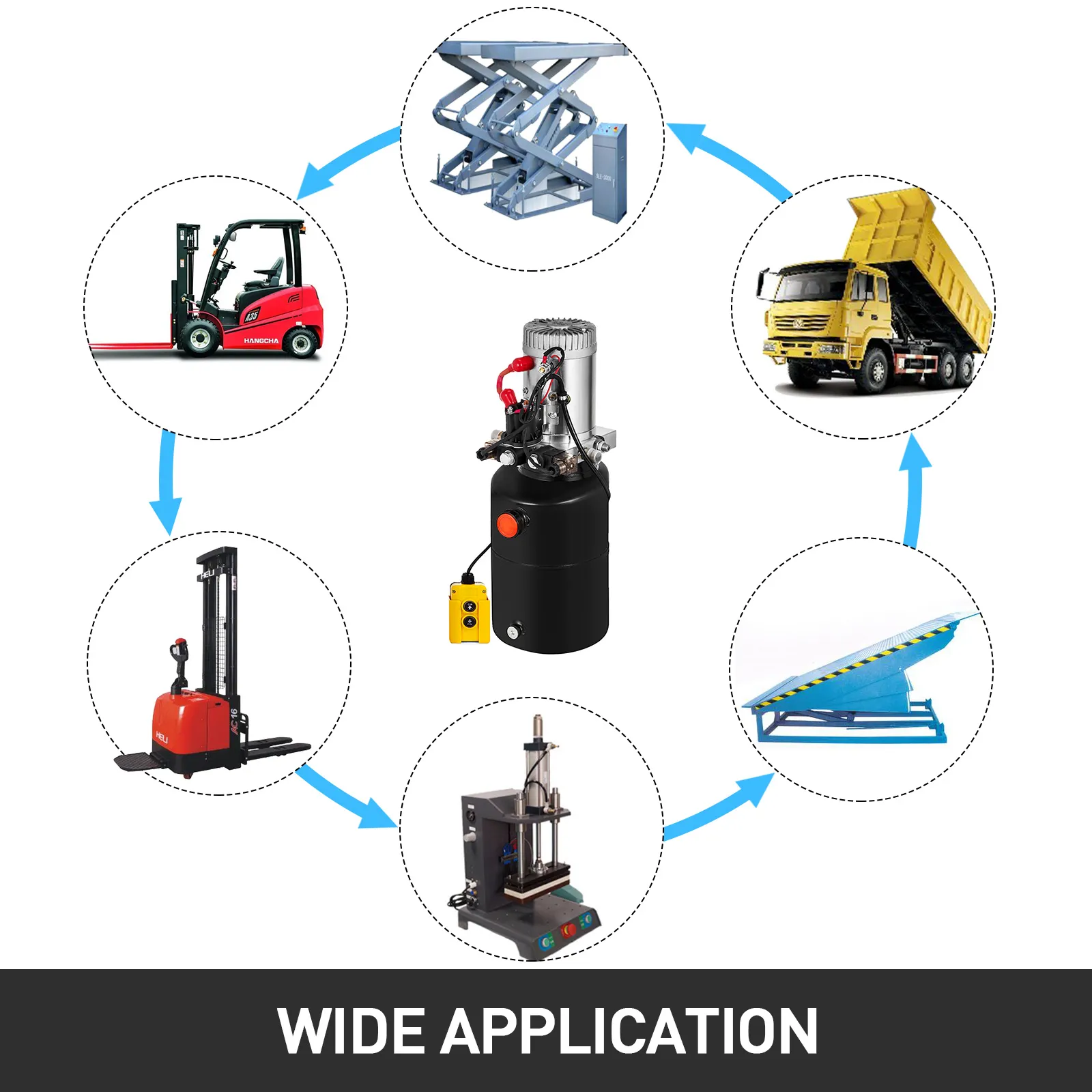

Wide Application
Hydraulic dump used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, rv leveling, scissor lift, dump trailer, lift truck, snow plow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Specifications
- Mode: Single-Acting Power-Up/ Gravity-Down
- Tank Material: Metal Cylinder Shape
- Tank Capacity: 6L/ 6Quart/ 1.5 Gal
- Flow: 2.0 GPM
- Max. Relief Valve Setting A Port: 3200 PSI
- Max. Relief Valve Setting B Port: 1500 PSI
- Rated Speed: 2850R/MIN
- Voltage: DC12V
- Power: 1.6KW (Rated), 3.0KW (Max)
- Duty: 3 Min
- Traffic: 1.1 cc/r
- Rotation: Clockwise
- Connector: SAE # 6
- Mount Position: Horizontal/ Vertical
- Control: Solenoid and Handheld Pendant
- Pendant Control Length: 15ft/ 4.5 m
Package Content
- 1 x 6 Quart Double Acting Hydraulic Pump
- 1 x English Manual
- Several Related Accessories (Including a Connector)
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
6 Quart Double Acting Hydraulic Pump Kit Cylinder Shape
The dump trailer hydraulic pump unit is made of high-quality materials and features reliable stability and effortless installation and applications. It is suitable for the control of a set of the double-acting cylinder. They are widely used in small dump trucks, trailers, movers or hydraulic winch, etc.
- Hydraulic Pump Double Acting
- Power Unit Specifications
- Quick Lifting & Lowering
- 15ft Controller Easy To Use
Sturdy and Durable
Over-pressure unit of pressure safety valve of hydraulic pump for dump trailer to avoid over pressure damage or extremely pressured.
Rapid Start
The motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.This high quality hydraulic pumps ensure long life and a fast starting each time.
Low Noise
Constructed with high quality oil suck pipes, which needed to be cleaned often, our pump work in a low-noise condition.
Quick Oil Output
Perfect replacement pump for 12VDC controlled hydraulic systems, hydraulic pump double acting designed for horizontal mounting, capable of quick oil output.
Fully Equipment
This dump trailer hydraulic is equipped with other hydraulic tools can carry out lifting, pressure type, elbow, bending row, straightening, cutting, assembly, demolition and many other work. Reduce labor intensity.
Wide Application
Hydraulic dump used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, rv leveling, scissor lift, dump trailer, lift truck, snow plow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Package Content
- 1 x 6 Quart Double Acting Hydraulic Pump
- 1 x English Manual
- Several Related Accessories (Including a Connector)
Specifications
- Mode: Single-Acting Power-Up/ Gravity-Down
- Tank Material: Metal Cylinder Shape
- Tank Capacity: 6L/ 6Quart/ 1.5 Gal
- Flow: 2.0 GPM
- Max. Relief Valve Setting A Port: 3200 PSI
- Max. Relief Valve Setting B Port: 1500 PSI
- Rated Speed: 2850R/MIN
- Voltage: DC12V
- Power: 1.6KW (Rated), 3.0KW (Max)
- Duty: 3 Min
- Traffic: 1.1 cc/r
- Rotation: Clockwise
- Connector: SAE # 6
- Mount Position: Horizontal/ Vertical
- Control: Solenoid and Handheld Pendant
- Pendant Control Length: 15ft/ 4.5 m
