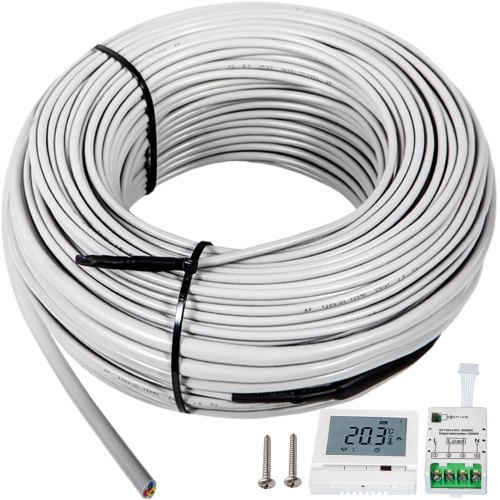

VEVOR Floor Heating Cable,405W 240V Floor Tile Heat Cable,105.8 FT long,32 sqft,with Convenient Temperature Control Panel,No Noise or Radiation

Questions and Answers

3 Questions

It isn't clear whether the three wire heating cable includes a temperature sensor or not. If it doesn't what sensors are recommended. If it does, what is the wiring diagram for the cable (colors->function)? The Thermostat instructions assume that the heating cable is two wire and the thermostat is a separate 2-wire probe, which is not what is supplied.

Answer This Question

Hello Jim. The Thermostat has NTC which is tempeerature sensor. The yellow one is the ground wire, so it doesn't need to be connected to the thermostat. The temperature in the space range detected by the thermostat, if a separate sensor line is installed, it detects the temperature of the cable.

By vevor

Helpful? 8

What is the big black heat shrink piece and does it go in the floor

Answer This Question

It goes in the floor, and the black marks are the soldering points with loop wires inside.

By vevor

Helpful? 1

Can I splice two wires together and run off the same thermostat cause we are on a large bathroom

Answer This Question

Yes, this thermostat detects room temperature.

By vevor

Helpful? 0
