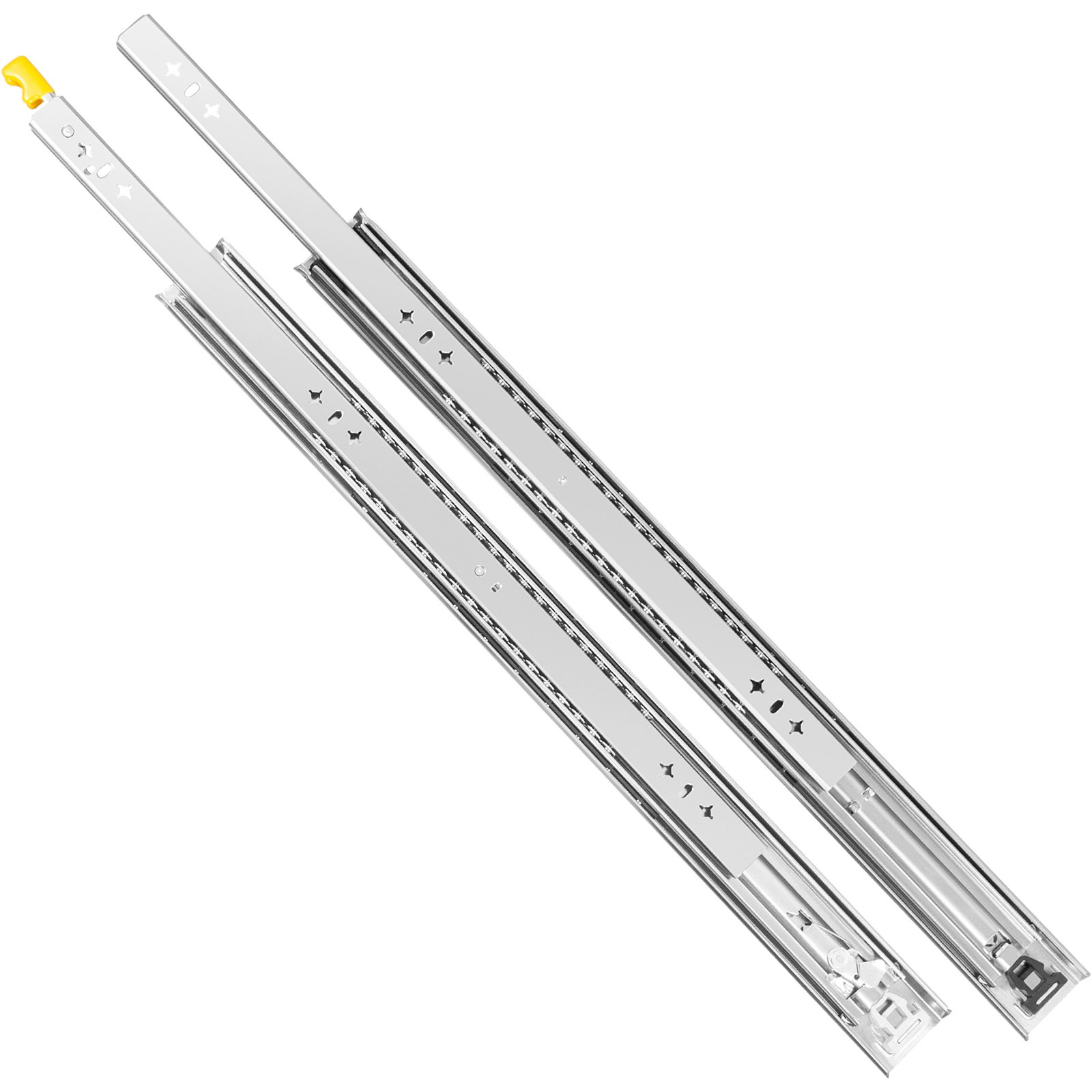

Three-Section Drawer Slides: You can get 1 pair of locking drawer slides: 32.5in / 82.5cm in length, 2.1"/ 5.3 cm in width, and 0.75"/ 1.9 cm in thickness. Our 3-fold full extension design allows the entire drawer to be extended fully, making it easy to reach. A great helper to maximally utilize your drawer's space(fully closed length: 30", fully extended length: 60"/ 152.4 cm).
Sturdy Steel & 250 lbs Bearing: Constructed with 0.08"/ 2 mm thickness cold-rolled steel (CRS), the heavy-duty drawer slides have up to 250 lbs/ 115 kg load capacity. Secure and rugged enough to support heavy storage without deformation over time. The electroplated surface keeps the extension drawer slides rust-proof and abrasion-proof, ensuring lifetime use. The slides can be applied to goods shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.
Softly & Quietly Slides with Lock: These slides feature a lock-in and lock-out design for easy control, secure fixation, and no chance of drawer separating from the cabinet. Compared to drawer slides without locks, our drawer slides with locks provide more security and stability. A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer. The nylon buffer design on the middle-section slides produces less noise and no bounce back.

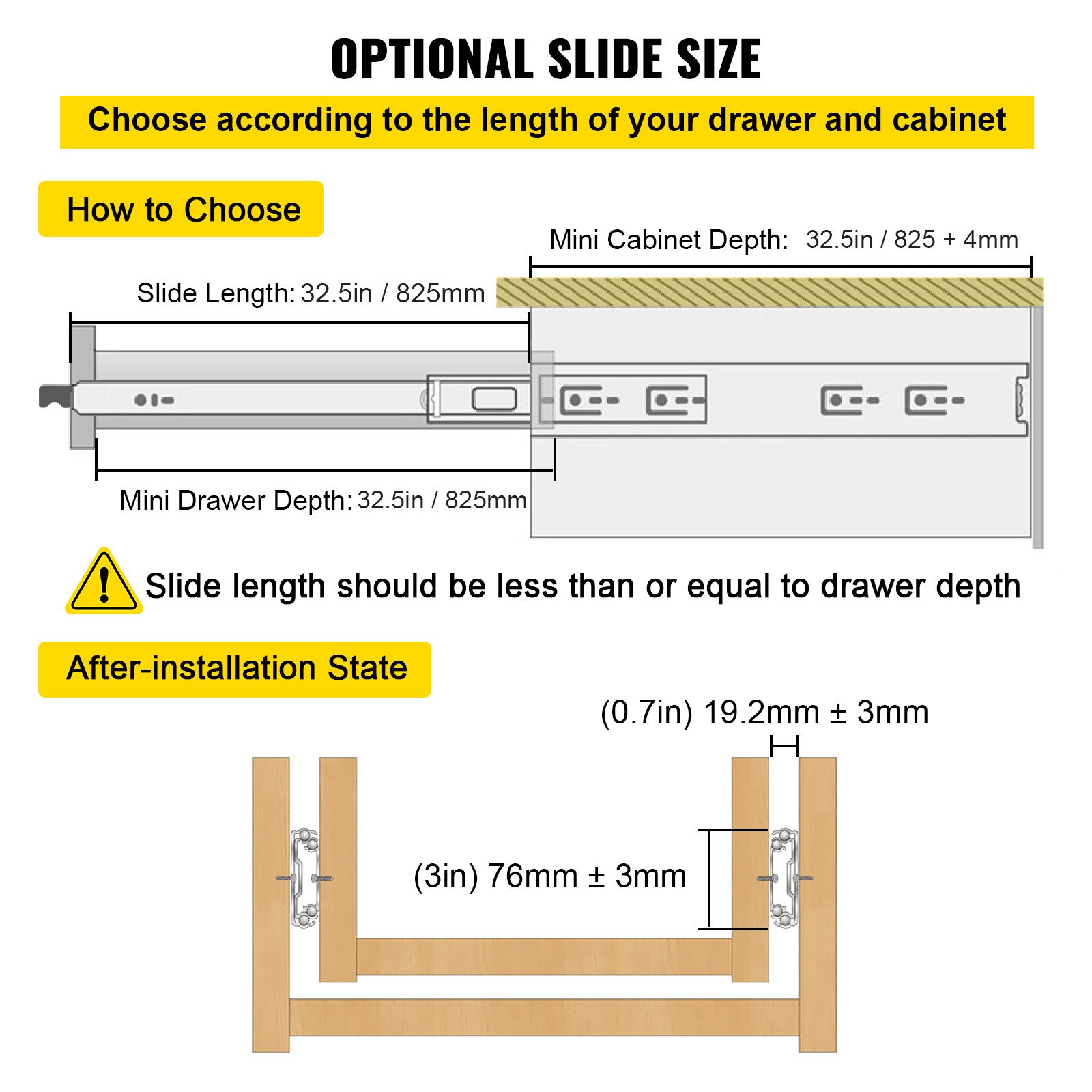

Choose the Right Size: How can you determine the right size of slides for your drawer? Please refer to the detailed description of each size as the picture shows. 0.76"/ 19.2 mm space between drawer and cabinet wall is required (left 0.76", right 0.76"). It is better to measure the length of the drawer and cabinet without the frame board before choosing our drawer slides. Note: The length of slides should be less than or equal to drawer depth.
Installation & Usage: Full extension drawer slides are compatible with most major drawer and cabinet types. The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All screws and bolts are included for effortless installation. Ideal for new construction, remodeling, and replacement projects, such as room furniture, kitchen, tool shed and commercial equipment. Installation is effortless, so you can use the drawer right away.
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. Install your drawers at room furniture, kitchen, tool shed and commercial equipment, and get ready to slide, lock, and close. Stability and durability are achieved for a high-quality performance you can trust.

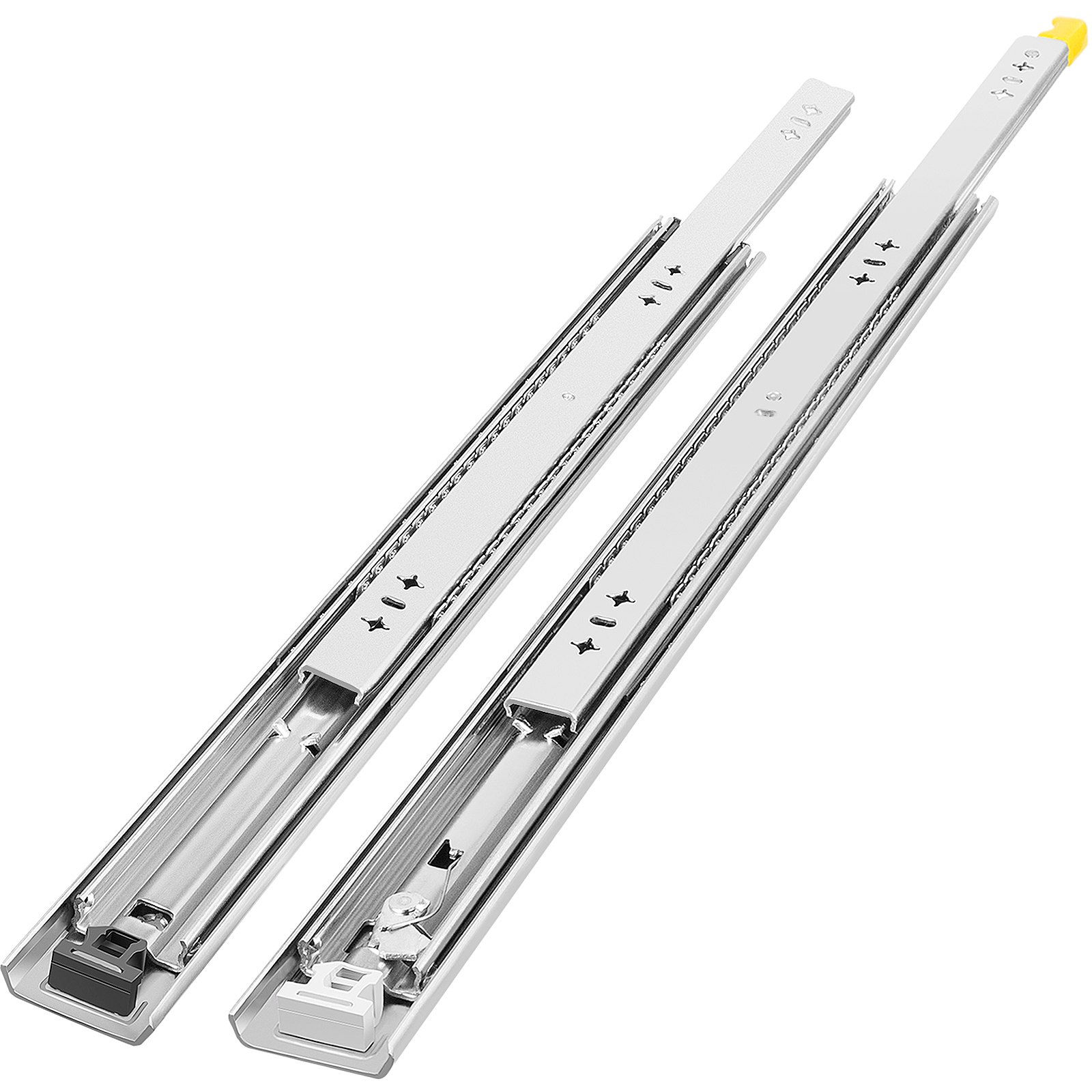

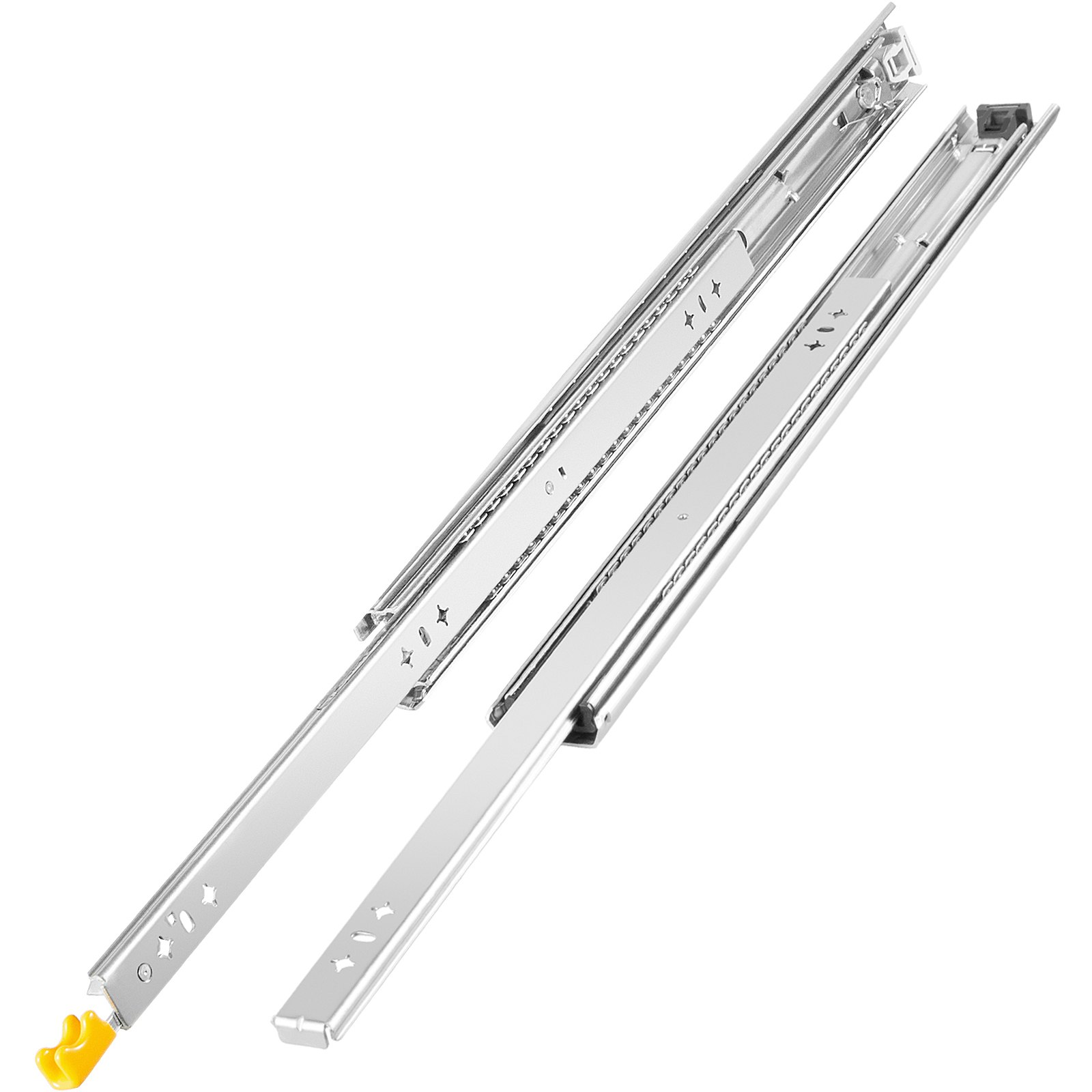

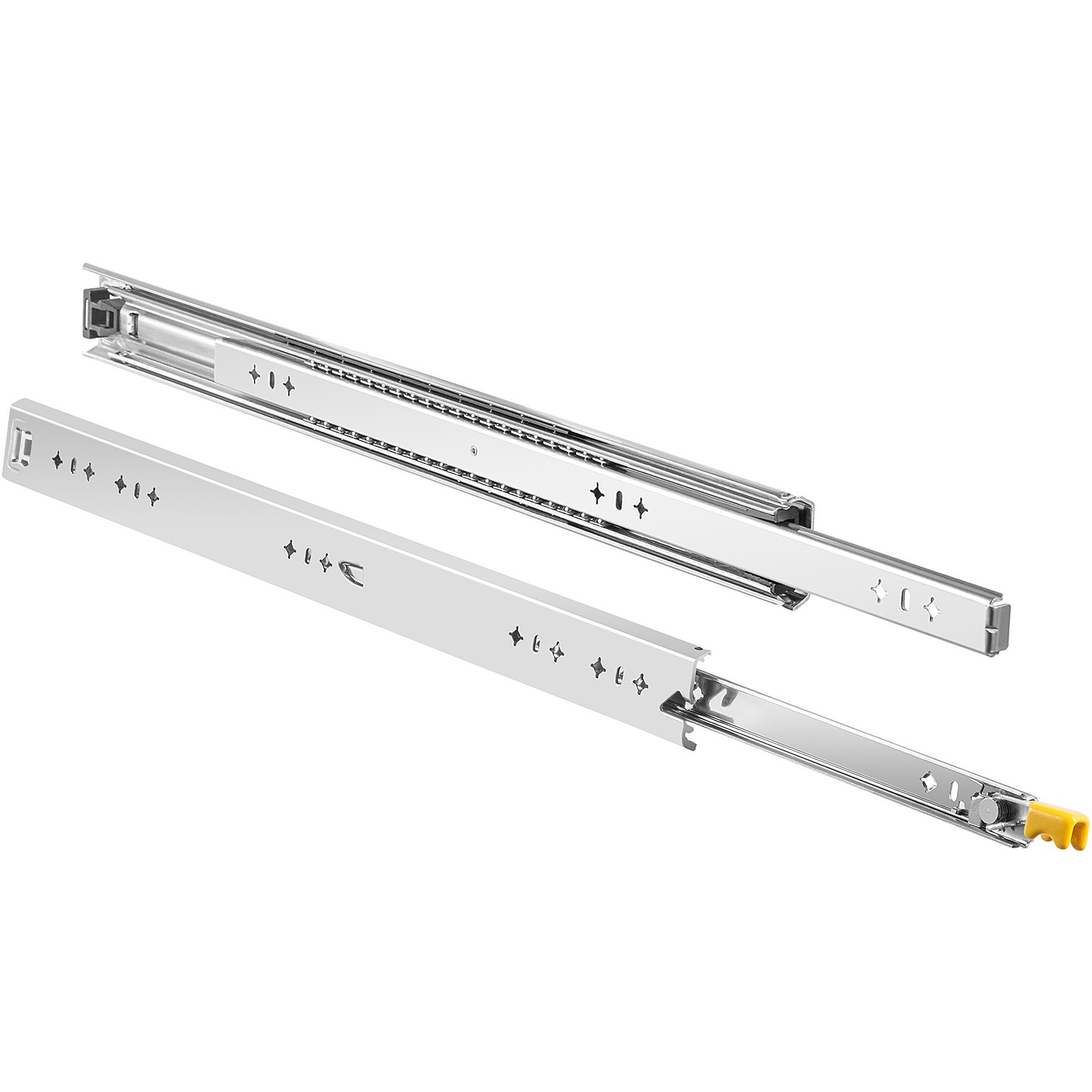

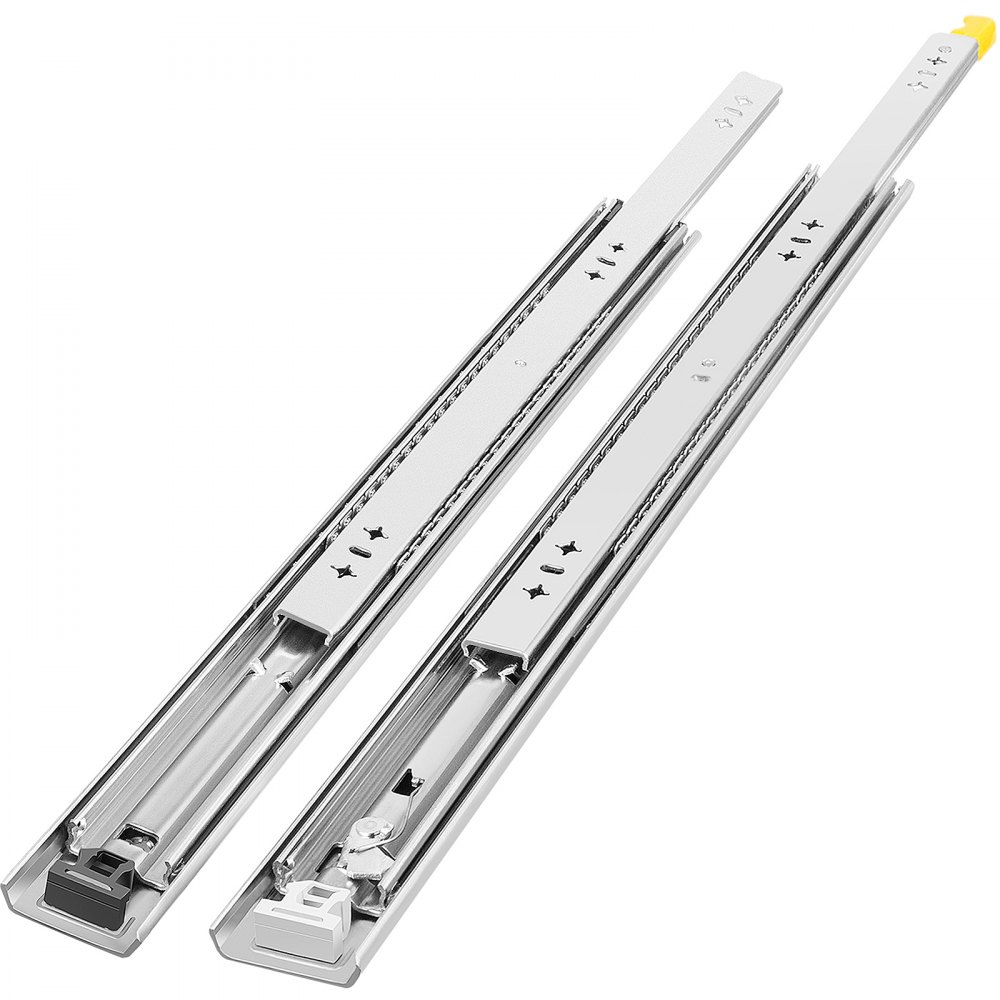

Three-Section Drawer Slides
Sturdy Steel & 250 lbs Bearing
Softly & Quietly Slides with Lock
Choose the Right Size
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

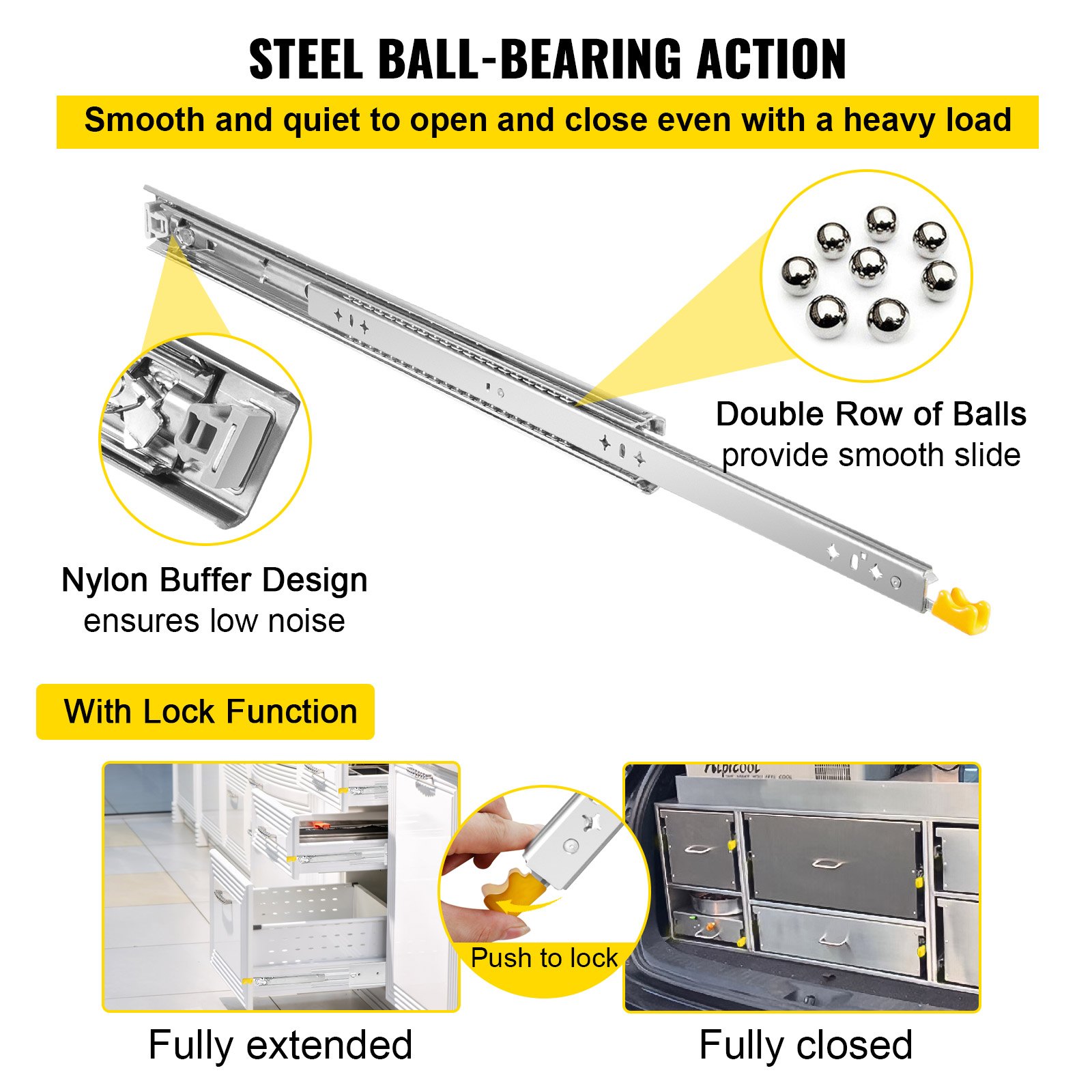

Lock Feature Included
Inner slide, middle slide, and outer slide are all included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.

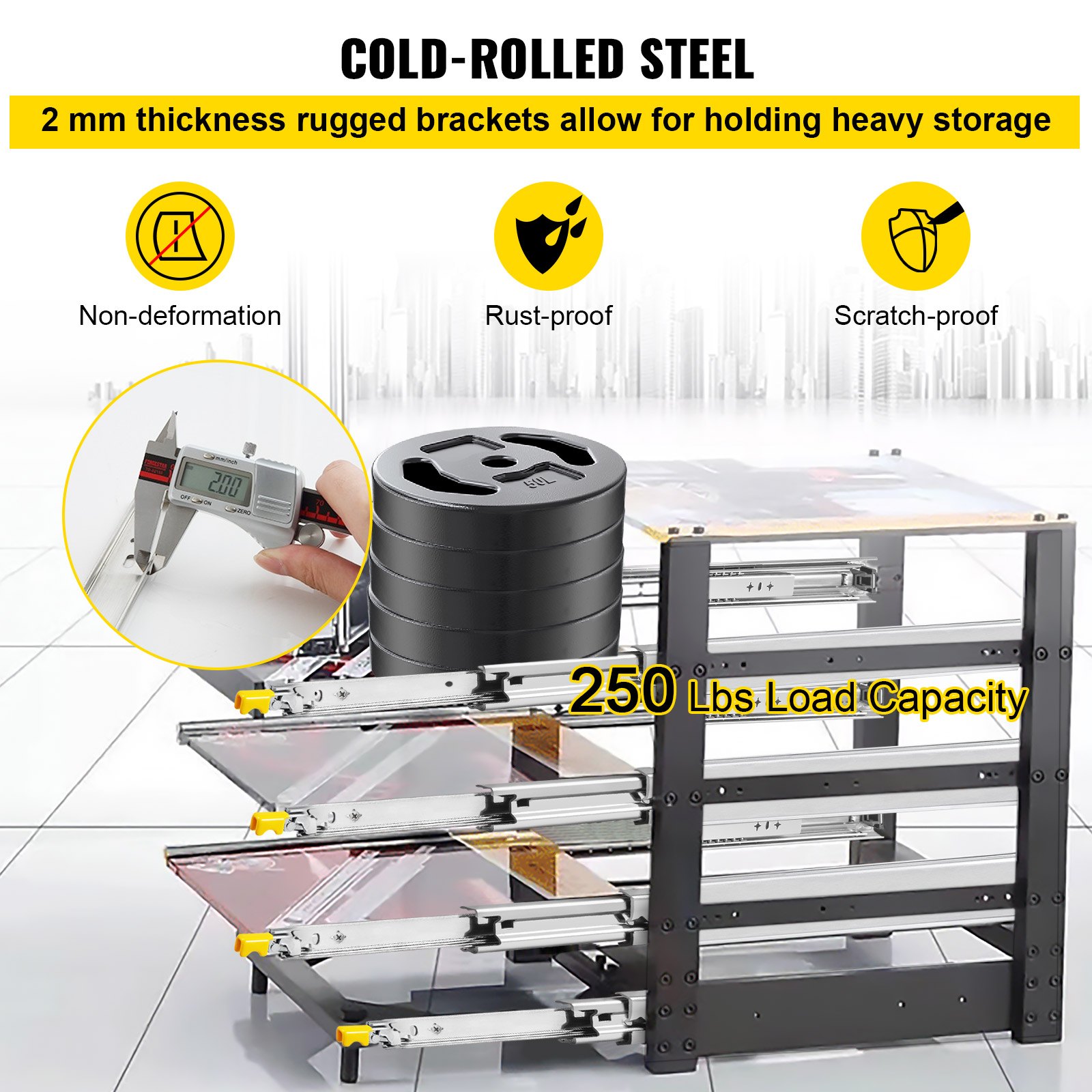

Cold Rolled Steel
High-grade cold-rolled steel with an electroplated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.

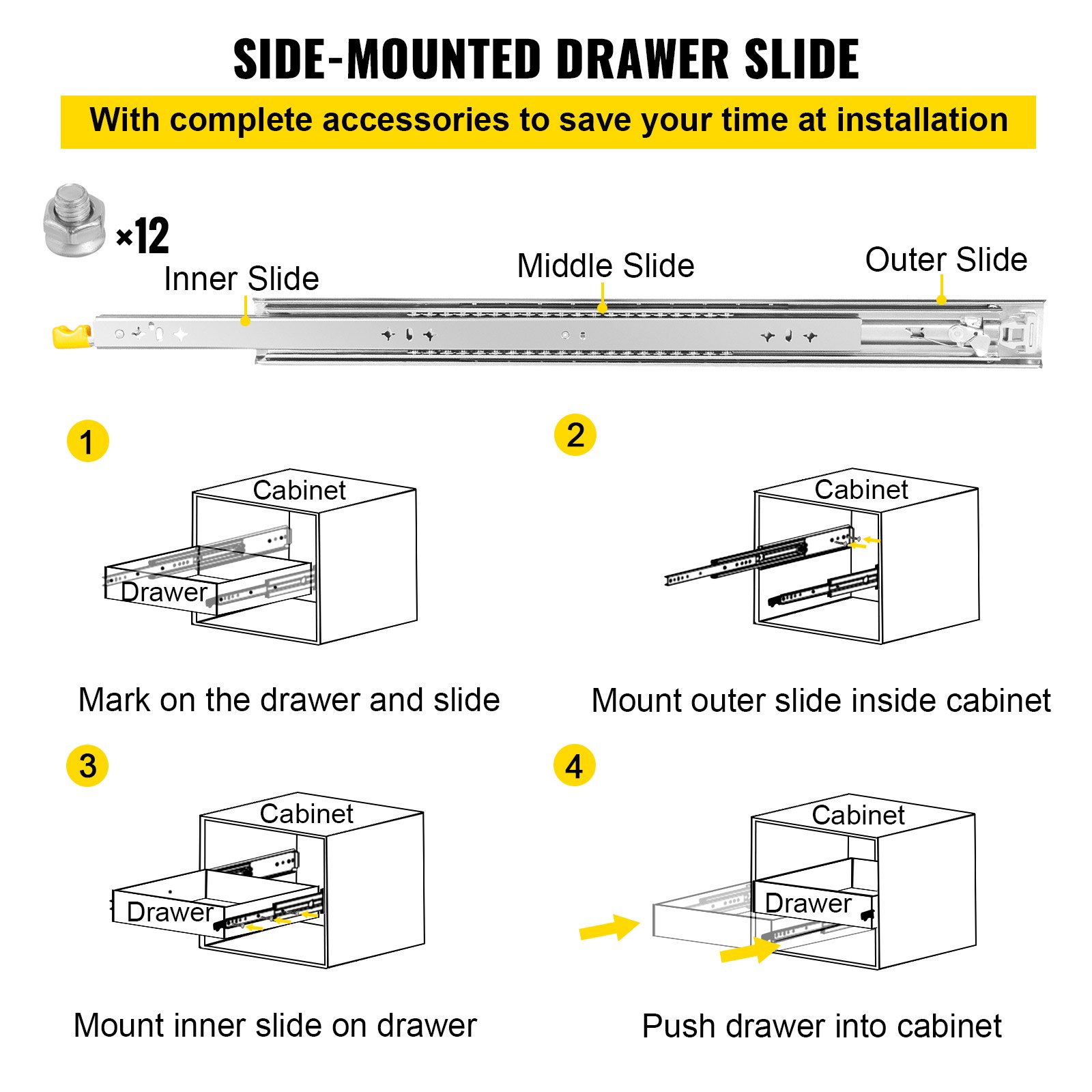

Easy & Quick to Assemble
During installation, it's better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.

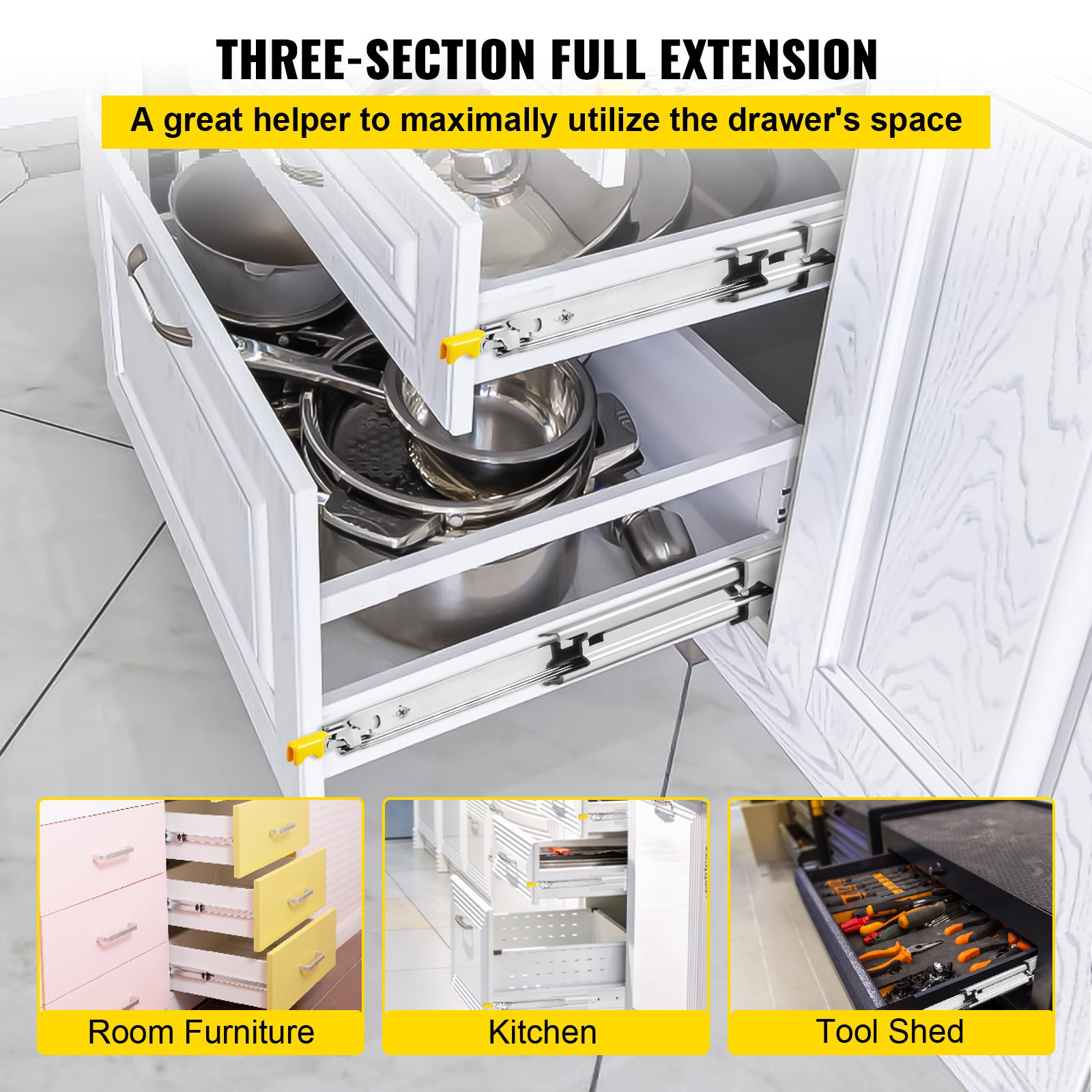

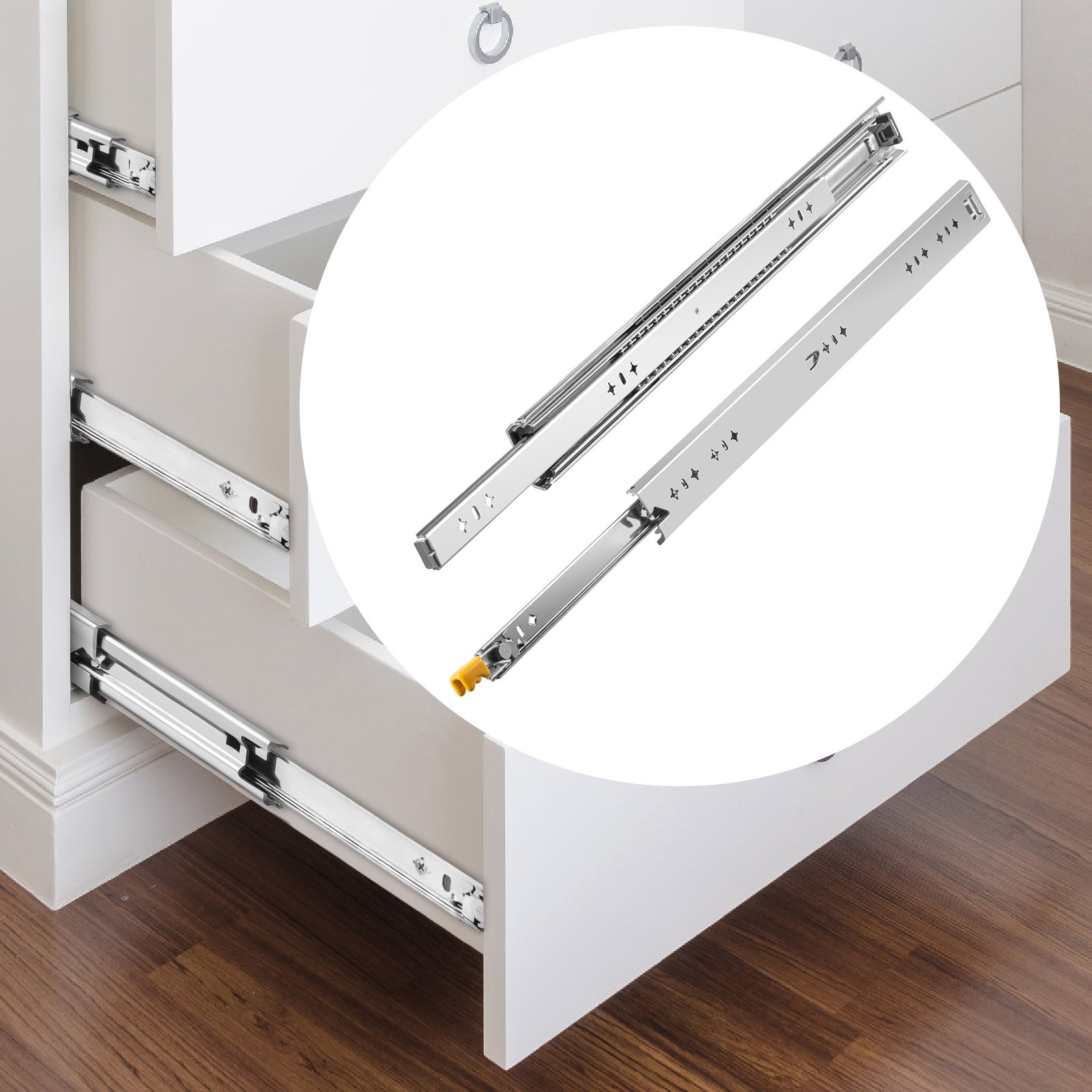

Wide & Professional Uses
The heavy drawer slides are mainly used for industrial factories and homes. It is perfect for room furniture, industrial drawers, modified car drawers, office cabinets, etc.

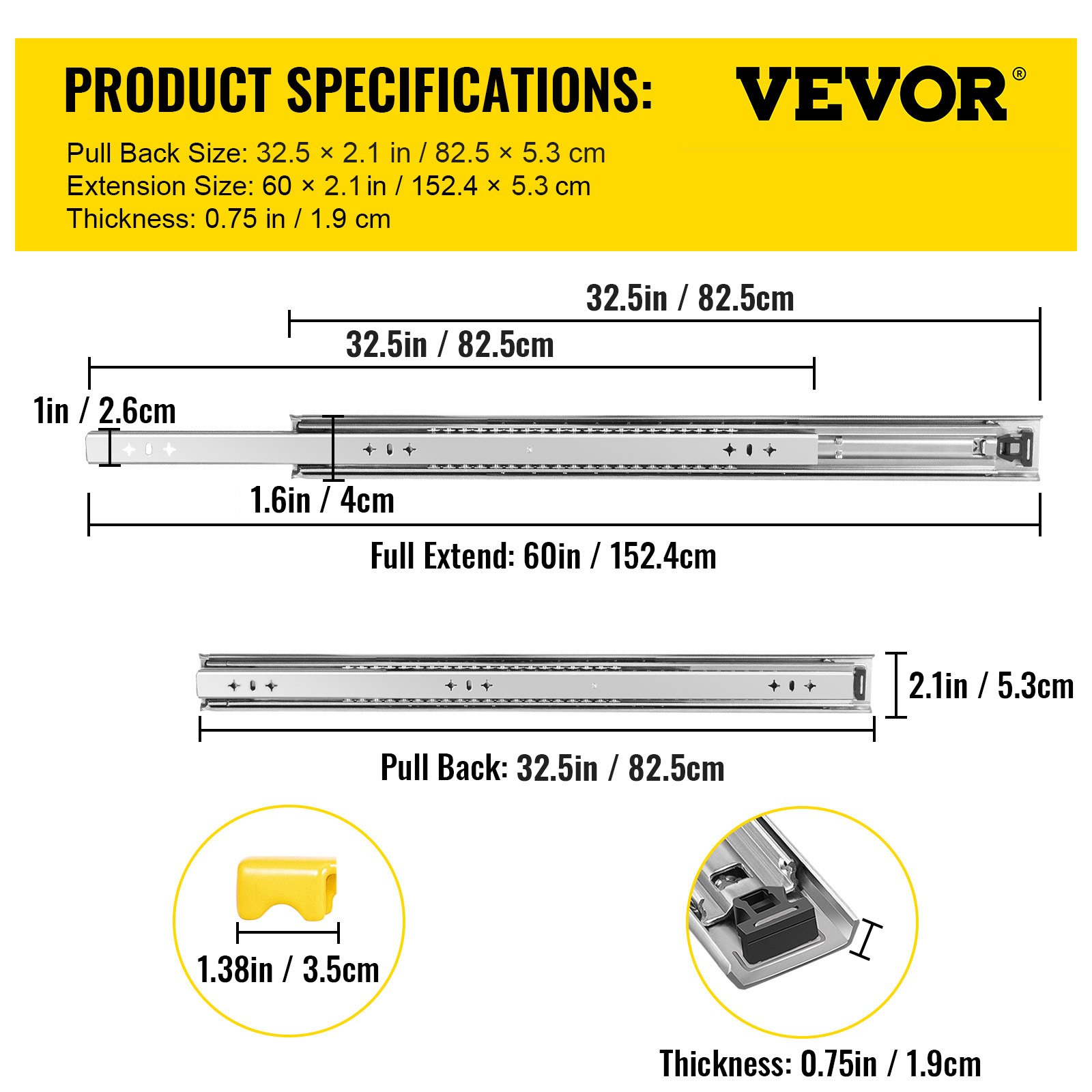

Specifications
Color: Sliver
Material: Cold Rolled Steel
Finish: Zinc Plated
Amount: 1 Pack(2 PCs)
Load Capacity: 250 lbs/ 115 kg
Fully Pull-Out Length: 60"/ 152.4 cm
Fold Product Size: 32.5" x 2.1" x 0.75"/ 82.5 x 5.3 x 1.9 cm
Inner Size (L x W): 32.5" x 1"/ 82.5 x 2.6 cm
Middle Size (L x W): 32.5" x 1.6"/ 82.5 x 4 cm
Outer Size (L x W): 32.5" x 2.1"/ 82.5 x 5.3 cm
Slide Lock: Support

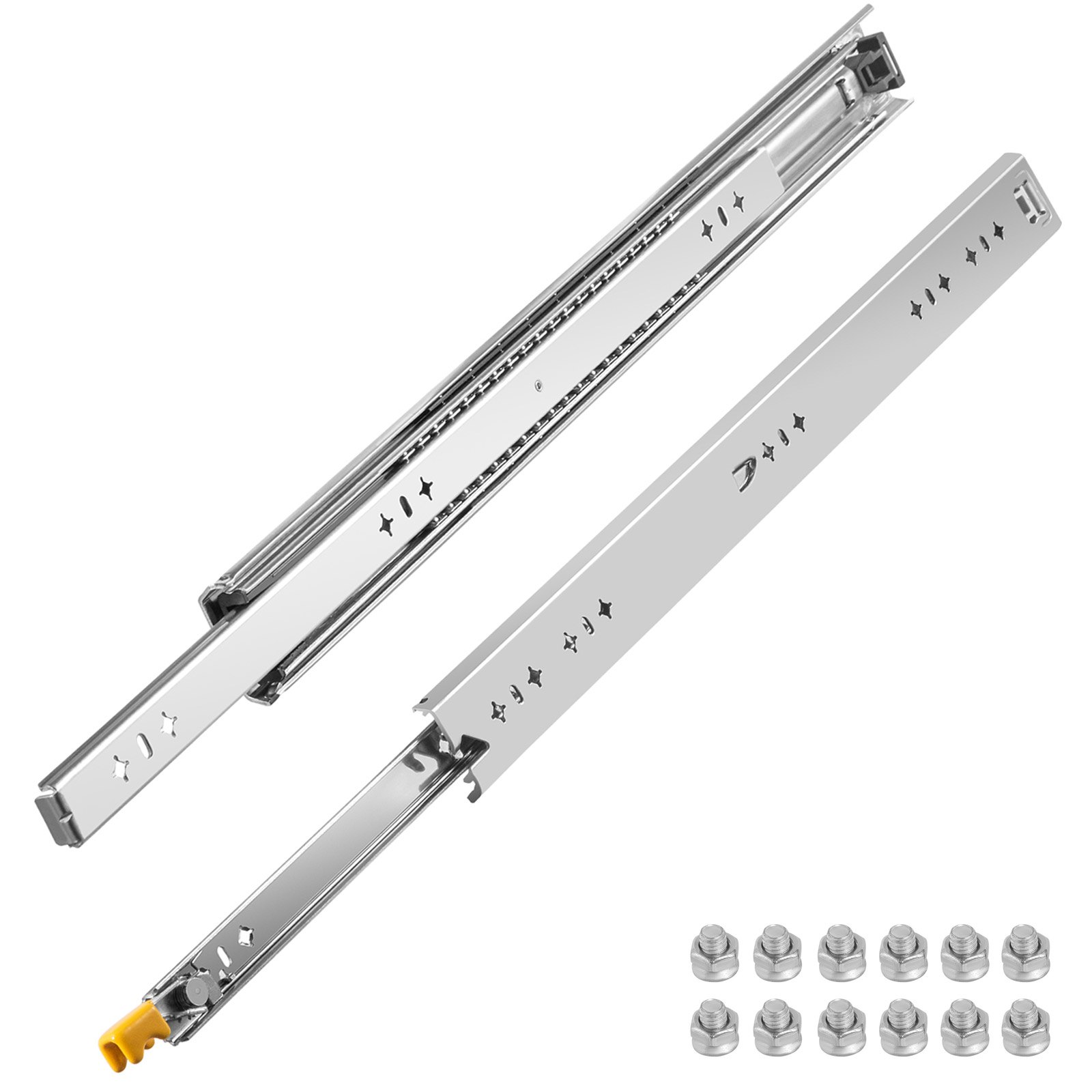

Package Content
2 x Drawer Slides
12 x M5 Screws
12 x M5 Screw Nuts
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
30 in Locking Slide Drawers
Smooth Slide & Low Noise & Durable
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. Install your drawers at room furniture, kitchen, tool shed and commercial equipment, and get ready to slide, lock, and close. Stability and durability are achieved for a high-quality performance you can trust.
Three-Section Drawer Slides
Sturdy Steel & 250 lbs Bearing
Softly & Quietly Slides with Lock
Choose the Right Size
Lock Feature Included
Inner slide, middle slide, and outer slide are all included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
Cold Rolled Steel
High-grade cold-rolled steel with an electroplated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.
Easy & Quick to Assemble
During installation, it's better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.
Wide & Professional Uses
The heavy drawer slides are mainly used for industrial factories and homes. It is perfect for room furniture, industrial drawers, modified car drawers, office cabinets, etc.
Package Content
2 x Drawer Slides
12 x M5 Screws
12 x M5 Screw Nuts
Specifications
Color: Sliver
Material: Cold Rolled Steel
Finish: Zinc Plated
Amount: 1 Pack(2 PCs)
Load Capacity: 250 lbs/ 115 kg
Fully Pull-Out Length: 60"/ 152.4 cm
Fold Product Size: 30" x 2.1" x 0.75"/ 76.2 x 5.3 x 1.9 cm
Inner Size (L x W): 30" x 1"/ 76.2 x 2.6 cm
Middle Size (L x W): 30" x 1.6"/ 76.2 x 4 cm
Outer Size (L x W): 30" x 2.1"/ 76.2 x 5.3 cm
Slide Lock: Support
Heavy Duty Drawer Slides Perfect for RV Projects and Overlanding
These drawer slides support up to 250 lbs, ensuring stability. They're ideal for overlanding, offering smooth and reliable operation. Cold-rolled steel construction ensures their longevity. The zinc plating adds extra durability. The slides can handle weight and movement without flexing. With these slides, your drawers stay secure and stable. These slides are perfect for transporting necessary items over uneven terrain. A solid and consistent solution is perfect for heavy-duty applications in mobile environments.
Sturdy Locking Mechanism Ensures Security on the Move
The locking mechanism on these slides is strong. It ensures your drawers stay secure while in motion. Simply press down to lock and unlock. This mechanism is perfect for preventing unwanted movement. It keeps your items safe and in place. It is especially beneficial for RVs and other mobile setups. The lock works smoothly and reliably. You get an extra layer of security, ideal for protecting valuable items. This sturdy design ensures it won't fail. This design is ideal for providing peace of mind during travel.
Full Extension for Easy Access to Your Drawers
Pulling out your drawers completely is great. This makes accessing your items easy. No more struggling to get to the back of your storage units. The full extension feature is especially helpful in tight spaces. It ensures you can get to everything stored inside. It’s perfect for RVs where space is limited. Smooth operation makes extending and retracting effortless. It enhances the functionality of all your cabinet systems, making it ideal for maximizing storage efficiency.
Durable Construction with Cold-Rolled Steel and Zinc Plating
They're made from cold-rolled steel and are durable too. The zinc plating adds an extra layer of protection. This ensures they resist wear and tear. They can handle heavy loads without bending or breaking. It’s ideal for demanding environments like RVs and trucks. Strong construction guarantees long-term reliability. This construction lasts the test of time. The sturdy design provides stability. Ideal for heavy-duty applications. You get a reliable solution for your storage needs.
Effortless Installation with Pre-drilled Holes and Included Hardware
The installation process is very simple. They come with pre-drilled holes. This simplifies the mounting process. The included hardware makes setup even easier. You don't need to buy extra screws or bolts. Clear instructions guide you through the steps, making it perfect for DIY enthusiasts and professionals. Easy installation saves time and effort. It’s ideal for quick setup in various applications. They fit seamlessly into your projects, providing a hassle-free solution for your drawer systems.
Smooth Operation with Minimal Effort for Effortless Usage
These slides run smoothly. Pulling out and pushing in drawers is easy. The ball-bearing mechanism ensures smooth movement. You don't need to exert much force. This makes accessing your items simple and convenient. It’s ideal for frequent use in RVs and other setups. Smooth operation enhances the user experience. It reduces strain, making using your drawer enjoyable. It is ideal for heavy-duty applications where user-friendliness is crucial. They provide a reliable and smooth solution. Making your daily tasks easier.
Versatile Applications from Tool Drawers to Kitchen Slides
These drawer slides are versatile. Numerous applications can utilize these drawer slides. It’s great for tool drawers in truck beds. Kitchen slides are ideal for RVs. They handle different weight capacities easily. The strong design ensures they fit various needs. Use them for building custom storage solutions. It is ideal for home and commercial setups; this versatility makes them suitable for various uses. They are an excellent choice for any project requiring a sturdy drawer slide. You get dependable solutions for all sorts of needs! Enhancing the functionality of your storage systems is crucial.
I dont need the lock...using these on under bed drawers. Do they slide freely if never touching the yellow lever? So I could install them an inch back into hole {behind the drawer face} I know there are some out there without locks, but cost much more.much more.
The yellow lock handle functions as a lock, so you need to press the yellow lock handle when unlocking. Currently, the 250-pound models are all single-lock.
The screws need to be tightened and the heads should be close to the rails. In addition, if installed on a wooden drawer, the rails will not bear that much weight, and the screws will easily burst if the load is heavy. If you have requirements for the load, you can install a metal bracket.
Yes, the maximum load-bearing capacity of this product is 250 pounds.
By vevor
Helpful
(
0
)
What is the thread size of the fasteners that are included with the drawer slide? I'm building a wooden drawer set and need to know the size of the thread so I can buy the correct threaded inserts. Thank you
