Model:
HE-15C-24E-US
Table of contents
HE-18C-48E-US
Safety Instructions
For your safety and the safety of others, the following precautions must be observed when operating the honey extractor:
- Make sure the honey extractor is clean before use;
- The speed of the honey extractor must not be too high or too low. Adjust the speed according to the amount of nectar or usage habits;
- Connect to the grounding pile to fix the honey extractor;
- First, turn off the switch, then power on the honey extractor, and then adjust the speed knob to control the speed of the honey extractor;
WARNING:
- Turn off the power when not in use.
- Do not disassemble or change this machine.
Model and Parameters
| Model | HE-15C-24E-USHE-18C-48E-US |
| Voltage/frequency | 110V-120V~60Hz |
| Speed regulation range | 0-100r/min |
| Capacity | 15土1kg/18土1kg |
| Height from the bottom of the Barrel to the ground | 32-40 cm (lifting) |
| Frames | 2-4/4-8 frames |
| Fit frame size | Large frame:L415mm * W200mmSmall frame:L415mm * W135mm |
| Main materials | 201 stainless steel |
| Automatic stop when open thelid | possess |
| Locked rotor current (Overload protection) | 1.404-1.648A |
Structure Diagram
| No | Parts name |
| 1 | Motor |
| 2 | Speed control knob |
| 3 | Lid |
| 4 | Barrel Body |
| 5 | Support Leg |
| 6 | Honey valve |

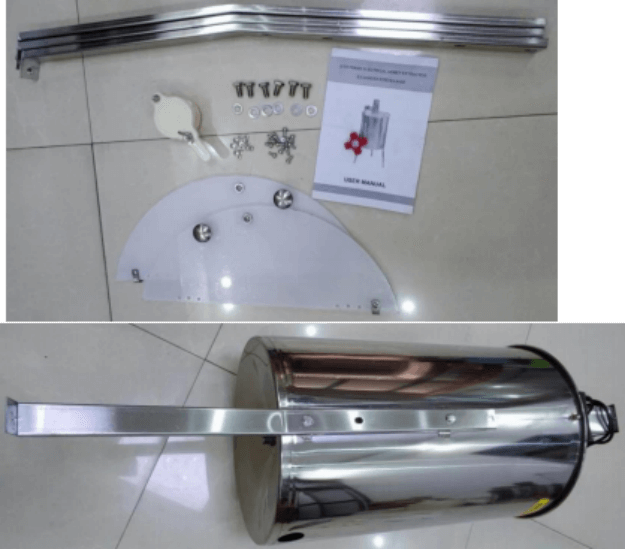

Assembly and Use
Step 1: Installation of support legs
First, remove the three legs and place the barrel on the ground. Next, align the holes on the three legs with the corresponding three holes on the barrel, insert screws into the holes, and tighten them with a screwdriver.
Step 2: Installation of the Honey valve
First, erect the barrel and unscrew the honey outlet connector. Then, put the honey outlet at the corresponding outlet outside the barrel. Finally, put the plastic nut into the barrel, connect it with the honey outlet connector, and tighten it.

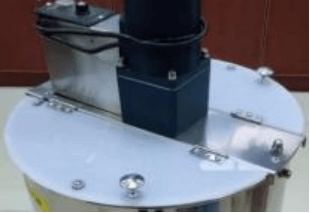

Step 3: Installation of Honey Extractor Lid
Assemble the two lids with screws.

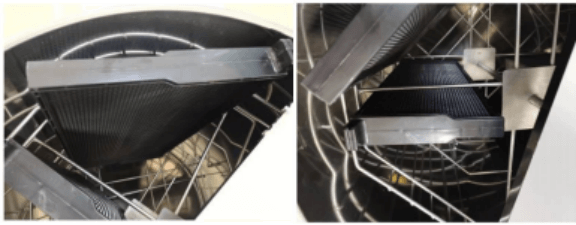

Step 4: Put the beehive frames of different sizes with honey into the corresponding frames in the barrel
Step 5: Connect the power cord to the electrical port to power the honey extractor

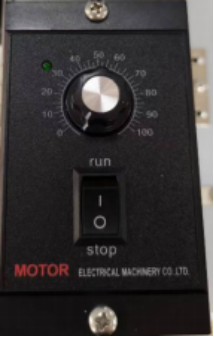

Step 6: Turn the key to position 1, power on, and adjust the speed control knob to start the honey extractor

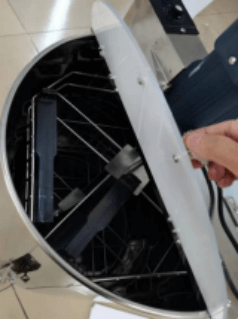

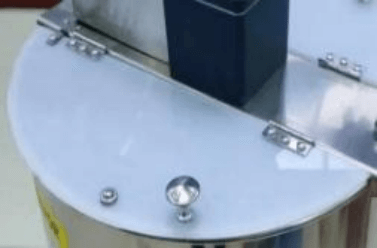

Step 7: lf you open the lid, the motor will stop working automatically. And if you close the lid, the motor will work normally.

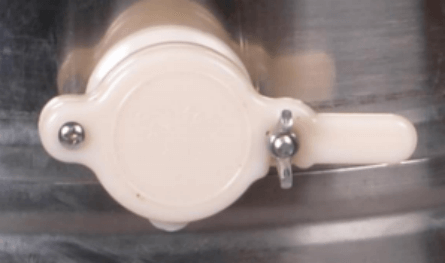

Step 8: Take out the honey
First, loosen the screw. Then, hold the handle of the honey outlet connector, lift it to open the honey outlet, and let the honey flow out.
Troubleshooting Instruction
| Problem | Reason | Solutions |
| The motor does not start after the power is turned on | Insert the plug firmly | Turn the switch to 1 |
| The speed control knob isnot adjusted | Adjust the control knob | |
| The framesare not placed symmetrically | The switch is not turned to 1 | |
| Barrel shaking | The speed control knob is not adjusted | The feet are not fixed on the ground |
| The frames are not placed symmetrically | The feet are not fixed on the ground |
Clean, Care, and Storage Rules
Care and Cleaning
- The honey extractor shall be thoroughly cleaned and dried before use. The ones that have not been used for a long time shall be disassembled and cleaned. Otherwise, the honey stains and other impurities left in the honey shaker will pollute the honey. After using the honey extractor, clean the inner and outer walls of the barrel and its stainless steel frame. And dry them with a clean and dry cloth, use a hair dryer, or let them air dry to keep them clean to prepare for the next use.
Storage
- Please store it out of the reach of children;
- After using the honey extractor, place it in a cool place and cover it with a large cloth to prevent dust from entering.
FAQs About VEVOR Honey Extractor
Q1: How do I assemble the VEVOR Honey Extractor?
Follow the step-by-step assembly instructions in the manual, starting with installing the support legs, then the honey valve lids, and ensuring proper frame placement.
Q2: What are the best practices for operating the Honey Extractor?
Ensure cleanliness, adjust the speed according to the nectar amount, connect to the grounding pile, and control the speed using the knob as detailed in the operating instructions.
Q3: How do I clean the Honey Extractor after use?
Thoroughly clean and dry the inner and outer walls of the barrel and its stainless steel frame. Use a clean, dry cloth, a hair dryer, or air dry to prepare it for next use.
Q4: What should I do if the Honey Extractor isn’t starting?
Check if the plug is firmly inserted, ensure the switch is turned to the correct position, and adjust the speed control knob as outlined in the troubleshooting section.
Q5: How should I store the Honey Extractor when not in use?
Store the extractor in a cool place, covered with a large cloth to prevent dust entry. Ensure it’s out of reach of children for safety.
