Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
BJDJ42HS59NCMSZZ1V9

Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer

$98.99
98.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • 【PRECISION CONTROL SYSTEM】- Stepper motor applied new control technology and vector control technology to prevent out-of-control and ensure product accuracy. High torque stepper motor features a stepping-open-loop circuit system that runs smoothly, vibrates mildly, and has less movement synchronization.
  • 【EXCELLENT PERFORMANCE】- Stepper motor is provided with 59 N.cm / 83.6 oz.in high holding torque, low self-inductance reactance, responsive and can avoid system error. This step motor can lower resistance value than motors of the same thickness and torque, thus enabling good thermal conductivity.
  • 【PREMIUM QUALITY】- The stepping motor is built with a 100% copper core for low noise operation and excellent speed regulating performance. The nema motor adopts a durable metal structure to keep the rotor away from corrosion rust. Magnetic filling materials cover the motor rotor to refrain from skipping steps and getting stuck.
  • 【EFFORTLESS TO USE】- The stepper motor is equipped with a wire stripper commonly used by internal electricians, motor repairs, and instrument electricians to strip plastic & rubber insulated & cable core wires. Insulating rubber tape with excellent insulation performance and good adhesion to prevent leakage.
  • 【MULTIPLE APPLICATION】- A stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Only 1 Left, order soon
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
10PCS NEMA 17 59Ncm High Torque Stepper Motor
This two-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use

Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
High Torque & Speed
The holding torque of the stepper motor up to 59 N.cm / 83.6 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Specifications
  • Model: 42HS19-2004S1
  • Rated Voltage: 2.8V
  • Rated Current/Phase: 2A
  • Number of Phase: 2
  • Holding Torque: 59 N.cm / 83.6 oz.in
  • Step Angle: 1.8°
  • Step Angle Accuracy: 5% (full step, no load)
  • Lead Wire: 4
  • Phase Inductance: 3mH
  • Phase Resistance: 1.4 Ω
  • Moment of Inertia: 68 g.cm²
  • Orientation Torque: 200 g.cm
  • Shaft Diameter: Ø 4.5 mm / 0.18''
  • Shaft Length: 24 ± 0.5 mm / 0.94''
  • Resistance Accuracy: ±10%
  • Inductance Accuracy: ±20%
  • Insulation Resistance: 100 m/min, 500VDC
  • Dielectric Strength: 500VAC/ for one minute
  • Shaft Radial Play: 0.02 Max.(450g-load)
  • Shaft Axial Play: 0.08 Max.(450g-load)
  • Max. Radial Force: 28 N(20 mm from the flange)
  • Max. Axial Force: 10 N
  • Motor Size(L x W x H): 42 x 42 x 48 mm / 1.65 x 1.65 x 1.89''
  • Weight: 0.35 kg / 0.77 lbs
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Package Content

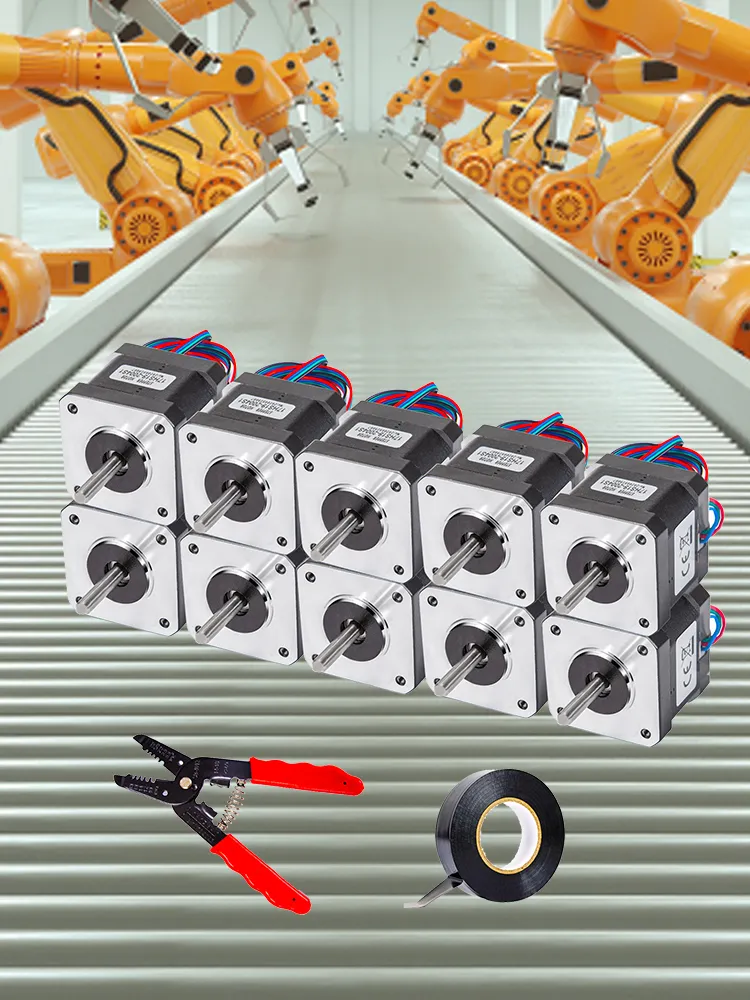

  • 10 x Stepper Motors
  • 1 x Wire Stripper
  • 1 x Insulating Rubber Tape
  • 1 x Product Manual
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer

Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
10PCS NEMA 17 59Ncm High Torque Stepper Motor
This two-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
High Torque & Speed
The holding torque of the stepper motor up to 59 N.cm / 83.6 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Package Content
  • 10 x Stepper Motors
  • 1 x Wire Stripper
  • 1 x Insulating Rubber Tape
  • 1 x Product Manual
Vevor Nema 17 Stepper Motor 83.6 Oz.in High Torque 2a 42x48 Mm For 3d Printer
Specifications
  • Model: 42HS19-2004S1
  • Rated Voltage: 2.8V
  • Rated Current/Phase: 2A
  • Number of Phase: 2
  • Holding Torque: 59 N.cm / 83.6 oz.in
  • Step Angle: 1.8°
  • Step Angle Accuracy: 5% (full step, no load)
  • Lead Wire: 4
  • Phase Inductance: 3mH
  • Phase Resistance: 1.4 Ω
  • Moment of Inertia: 68 g.cm²
  • Orientation Torque: 200 g.cm
  • Shaft Diameter: Ø 4.5 mm / 0.18''
  • Shaft Length: 24 ± 0.5 mm / 0.94''
  • Resistance Accuracy: ±10%
  • Inductance Accuracy: ±20%
  • Insulation Resistance: 100 m/min, 500VDC
  • Dielectric Strength: 500VAC/ for one minute
  • Shaft Radial Play: 0.02 Max.(450g-load)
  • Shaft Axial Play: 0.08 Max.(450g-load)
  • Max. Radial Force: 28 N(20 mm from the flange)
  • Max. Axial Force: 10 N
  • Motor Size(L x W x H): 42 x 42 x 48 mm / 1.65 x 1.65 x 1.89''
  • Weight: 0.35 kg / 0.77 lbs

Specification

Model
42HS19-2004S1
Rated Voltage
2.8V
Rated Current/Phase
2A
Number of Phase
2
Holding Torque
59 N.cm / 83.6 oz.in
Step Angle
1.8°
Step Angle Accuracy
5% (full step, no load)
Lead Wire
4
Phase Inductance
3mH
Phase Resistance
1.4 Ω
Moment of Inertia
68 g.cm²
Orientation Torque
200 g.cm
Shaft Diameter
Ø 4.5 mm / 0.18''
Shaft Length
24 ± 0.5 mm / 0.94''
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Insulation Resistance
100 m/min, 500VDC
Dielectric Strength
500VAC/ for one minute
Shaft Radial Play
0.02 Max.(450g-load)
Shaft Axial Play
0.08 Max.(450g-load)
Max. Radial Force
28 N(20 mm from the flange)
Max. Axial Force
10 N
Motor Size(L x W x H)
42 x 42 x 48 mm / 1.65 x 1.65 x 1.89''
Weight
0.35 kg / 0.77 lbs
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
20 Review(s)
Clear filters
Gavin Gavin
Powerful, Reliable
Powerful motor, actually not using it for a CNC but a vehicle. The initial setup is a bit confusing but after that everything was ok
Xiao Bi Xiao Bi
Good motor and driver
Impressed by the motor's performance in the initial testing. Easy to hook up, fast response and smooth movement at both high and low speed. Powerful but does not take much power. The motor shares a 350W DC power supply with two other 200W Nema 23 stepper motors. The three motors all move at the same time. Not sure about the motor's long term performance.
B. Allen B. Allen
Great for CNC
I used these to retrofit a CNC and am happy with their performance. They are noisier / whinier than I'd prefer. The whine from the driver steps is pretty noticeable and turns the gantry into a big speaker. These are so huge that mounting them with a damper doesn't seem feasible. But that isn't a huge issue (once the spindle is on that's all you hear anyway).
Daryl L. Price Daryl L. Price
Upper Quality
Very excellent quality, well built and works Great. I use it as my Z axis on my CNC machine I built.
MileHiDude MileHiDude
One Awesome Stepper
A beast of a motor. I installed mine to serve the vertical (Z-axis) of my RF-45 mill/drill. Presently, it is driven by a rotary encoder for fine adjustments and an arduino driven pulse for rapid moves.I am SO glad that I got this motor and subsequently built this control!Winding that crank got real old.When the time comes I will replace the 4PDT toggle switch with a 4-pole rotary switch to allow the addition of a CNC input.I rightly should amend this review.I’m currently in communication with the seller Mophorn, over the failure of the driver. While it plainly states that it is equipped with over voltage protection, mine has succumbed to this. According to my power company 120VAC phase to ground with 5% variance (making it 240VAC for both legs) is normal for our country (at least for Exell’s service area).Their manual says 240 is the maximum plus over voltage and of course all appliances made to run on 240VAC easily handle the 5% fluctuation. This driver won’t handle power from the US grid and should be plainly stated as such on the website.
Guy Idaho Guy Idaho
Excellent Set for larger CNC machines.
I purchased this set to replace the Z axis on my Centroid CNC Bridgeport Milling machine. First of all, the driver works on single phase 220v perfectly. It doesn't need a separate power supply. Secondly, the motor has plenty of torque, I estimate that the 12Nm rating is likely understated, I can get a scary fast 300 ipm from the Z travel (maybe more, I'm not going to push it). Third, since this is a three-phase stepper, it's much quieter than the 4 and 6 wire steppers. It's not silent like an AC Servo, but it is very quiet compared to a traditional stepper.Here's some tips to get it working fast:1) Make sure you understand how to wire for common anode or common cathode for this differential input drive. On my Centroid Acorn I connected the driver's PUL+ ENA+ DIR+ all to a common +24v. Then PUL- DIR- ENA- to each of the outputs on the Acorn. This makes the VCC+ common, and the outputs negative on the Acorn. (make sure your Advanced Settings on the Acorn setup wizard reflects this).2) Yeah it says 1.2 degrees per step on the motor, but the controller doesn't have a 300ppr setting. Forget the 1.2 degree thing, the encoder will determine the step. In this case, that's PA 17 and it needs to be set to 1000 ppr (setting 8).3) UVW - on my motor, U is red, V is black and W is white <<-- the motor will whine and wizzle if you don't have these correct.4) ALARM and PEND are optical outputs from the drive, they can (optionally) be tied to voltage and an input, Alarm is well documented, watch some Marty's garage youtube. PEND has to do with the motor finishing its steps. Since it has an encoder, it will get say, 30000 steps, and it will execute all 30000 of them, but PEND will be active until it completes them. It stands for POSition is PENDing ARRiVal. Sometimes this is called POS and sometimes it's called Arrival, it is optional and eats an input, you probably don't need it, unless you do, then it has it, have fun.5) Make sure your control software knows this is 1000 ppr.
Lucky Luc Lucky Luc
Got the power...
Wow fantastic product, it got the power, excellent control, allot for the buck.Why not 5 star, Well where's the software, the instruction manual, what? no app ;-)And there's very little out-there that I could use. I have-it wire, working and with other software working like a stepper... Well It would be great to have the missing software to use the communication port and really use all it fonction (Servo / Encoder).As a stepper, the performance and capacity, it's all there.I think the manufacturer and the seller should at leases provide sufficient information to use there fantastic product.
VEVOR Customer VEVOR Customer
Great Product.
Used this motor and controller on my mill for forth axis with a single axis controller I paid less than Fifty bucks for. You will be pleased with the accuracy. I don't have to crank that handle any more to cut gears.
Nivia Nivia
Perfect!!!!
Really good stepper motor with a great precision.
