VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
+12
More
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
Ask about this product by AI
Can this trench drain system be installed in concrete or on a sand base?
Can multiple trench drain sections be connected to form a longer drain system?
What type of pipes can be connected to the drain outlets, and what are the outlet sizes?
Ask something else

VEVOR Trench Drain System, Channel Drain with Plastic Grate, 5.8x3.1-Inch HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack

4.4 177 Reviews
$ 96 90
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+. Shop
Get -% off for new user
Get $5.00 Off $99.00+ Orders on Your First 3 App Orders.
Download Now

Features & Details

  • Low-profile Drain System: Dimensions of each channel: 5.1" W x 3.1" H x 39.4" L. Commercial water drainage systems allow safe and efficient drainage for grassed areas, gardens, farms, patio areas, pool sides, office buildings, driveways, or factory interiors. The anti-flotation design prevents floating and doesn’t require staking when setting in concrete.
  • Easy & Quick Installation: You can connect these trench drains together for extra length. The interlocking design connects the drains tightly with no potential leak of water. Detachable grate can be manually installed and detached easily, needs no screws or bolts. It also provides a convenient way to clean the drain if it is bunged up.
  • Various Outlet Connections: Each trench drain provides a bottom outlet with multiple sizes(48mm/ 78mm / 96mm), and you can choose the size you need. No outlet connector is required because it is already built-in; thus, the pipe can be connected directly.
  • Durability & High Performance: Sturdy HDPE plastic creates a hard and durable structure. The load capacity is B125. The HDPE plastic provides a smooth interior surface, which allows faster water intake.
  • Complete Packing List: This trench drain kit comes with six drains with built-in bottom outlets, six plastic grates, and six end caps. Plus, the outlet connector is already built-in. All the accessories that you may need are included.

Product specification

  • Model PSG100*45*6M
  • Material HDPE Plastic
  • Color Black
  • Load Rate B125
  • Amount 6 Packs
  • External Item Dimensions 5.7 x 3.1 x 39.4 inch/ 14.5 x 8 x 100 cm

Reviews summary

4.4 177 Reviews
Customers say: The product is sturdy, easy to install, and effective for drainage issues, but occasional challenges include connection compatibility, securing joints, and difficulty with certain modifications or fittings.

Al-generated from customer reviews

Frequently Bought Together

Reviews
About this item
Questions and Answers
Explore

Reviews

No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Write a Review
Customers say
The product is sturdy, easy to install, and effective for drainage issues, but occasional challenges include connection compatibility, securing joints, and difficulty with certain modifications or fittings.
Al-generated from customer reviews
Top Reviews
Reviews for Current Item Verified Purchase Photos and video only

About this item

Product specification
Model
PSG100*45*6M
Material
HDPE Plastic
Color
Black
Load Rate
B125
Amount
6 Packs
External Item Dimensions
5.7 x 3.1 x 39.4 inch/ 14.5 x 8 x 100 cm
Internal Item Dimensions
3.9 x 1.8 x 39.4 inch/ 10 x 4.5 x 100 cm
Diameter of Drain Hole
48 mm/ 78 mm/ 96 mm
Item Weight Each
2.48 kg/ 5.5lbs
Maximum Working Temperature
120℃/ 248℉
Minimum Working Temperature
-40℃/ -40℉
Description

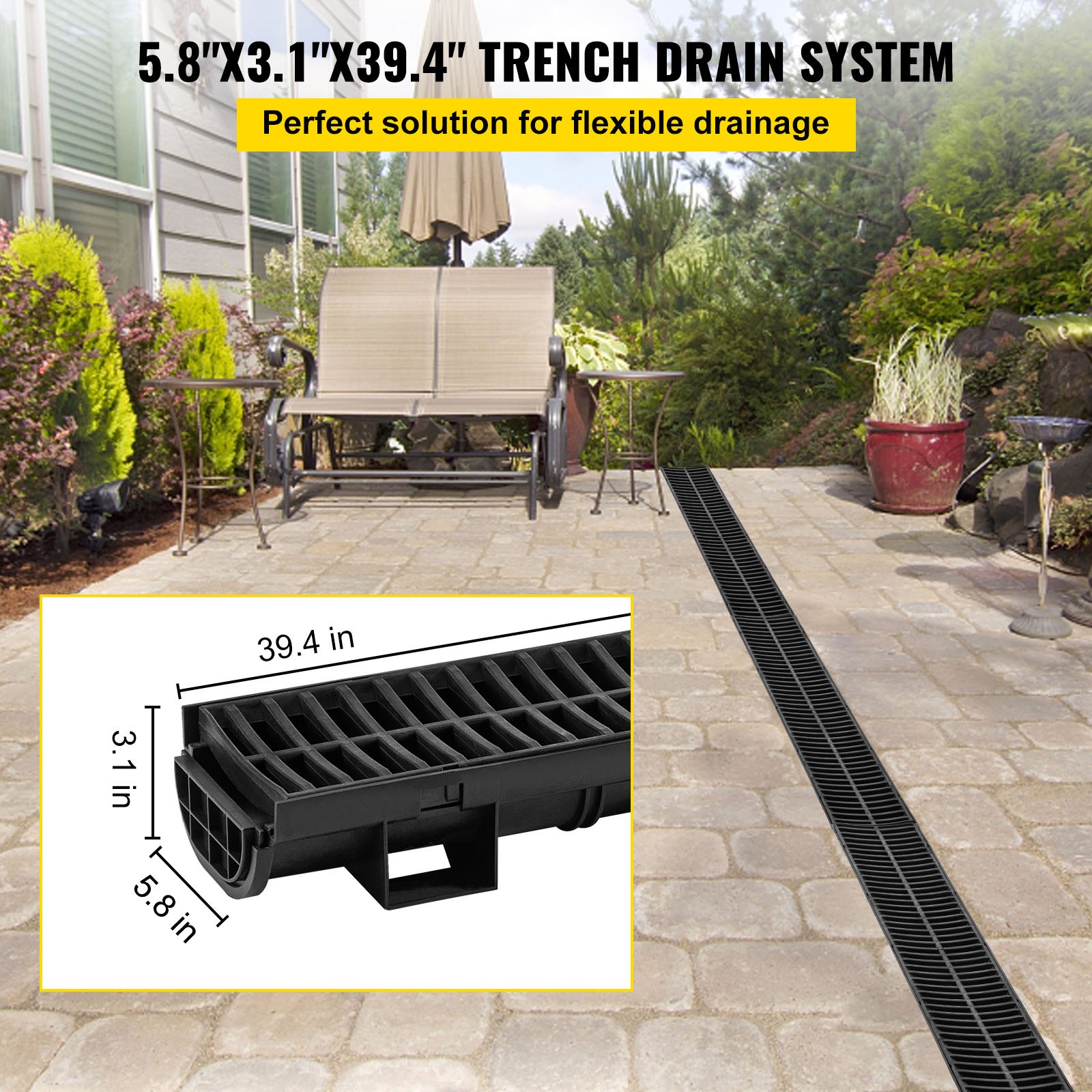

VEVOR trench drain system beside a pool on a concrete patio with a garden background.

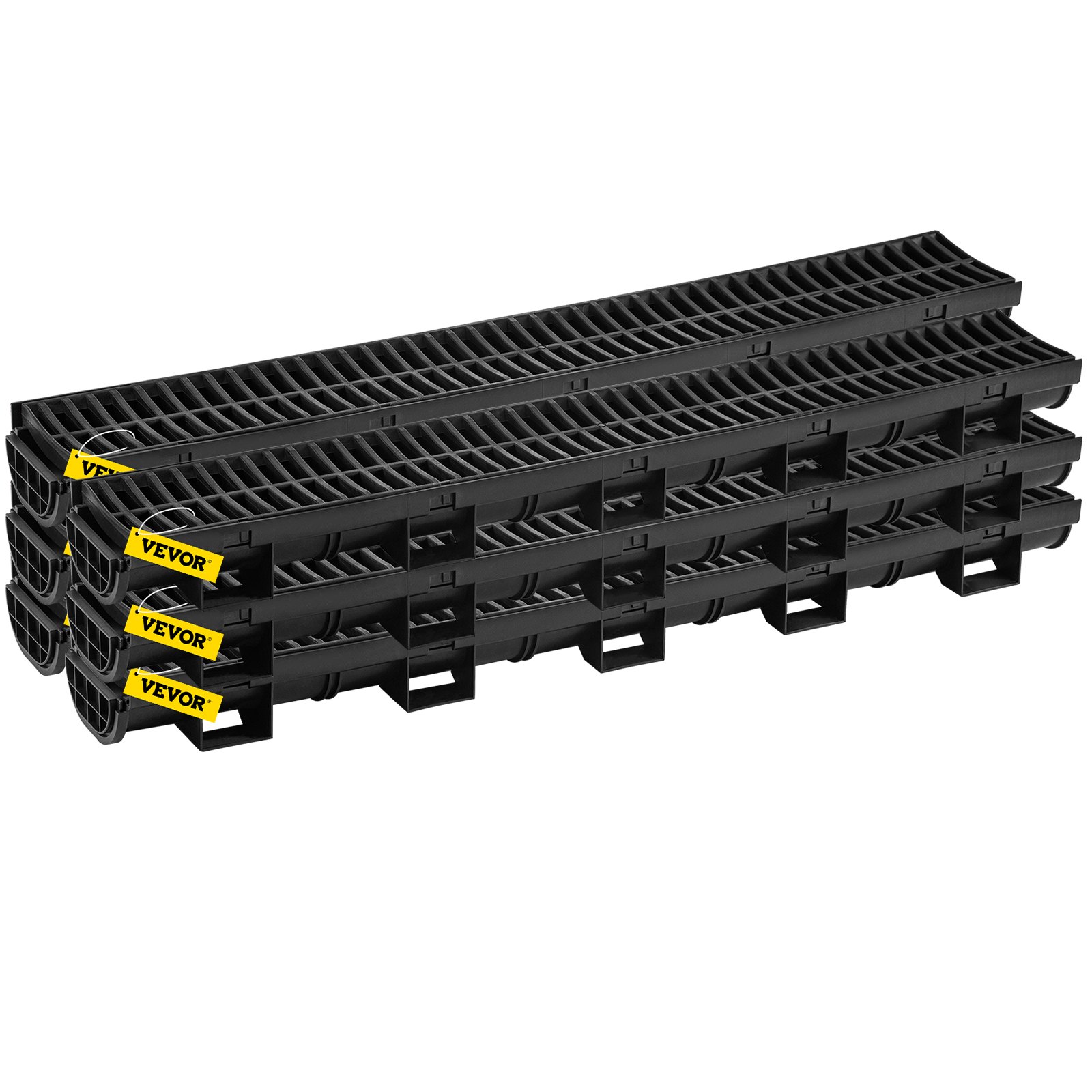

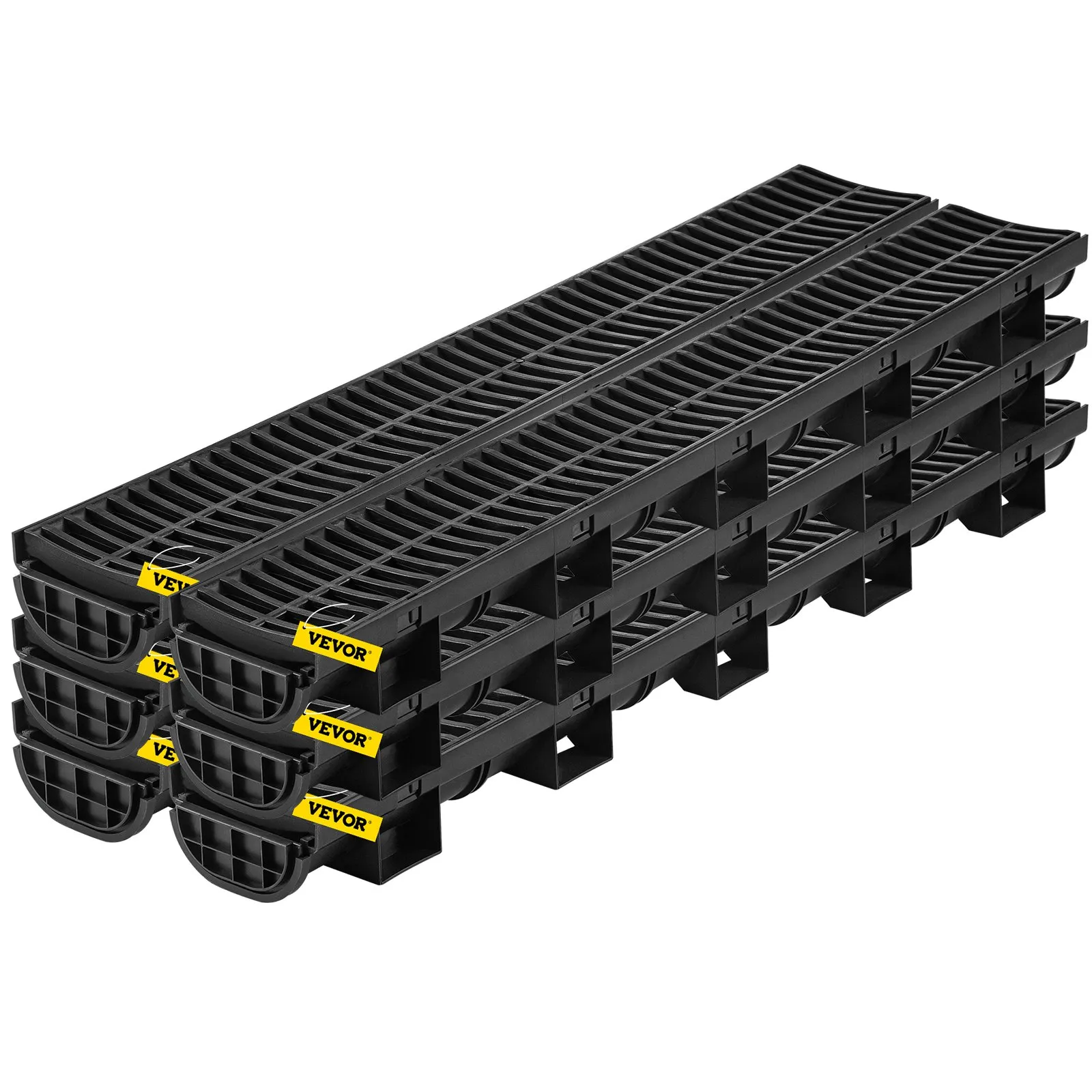

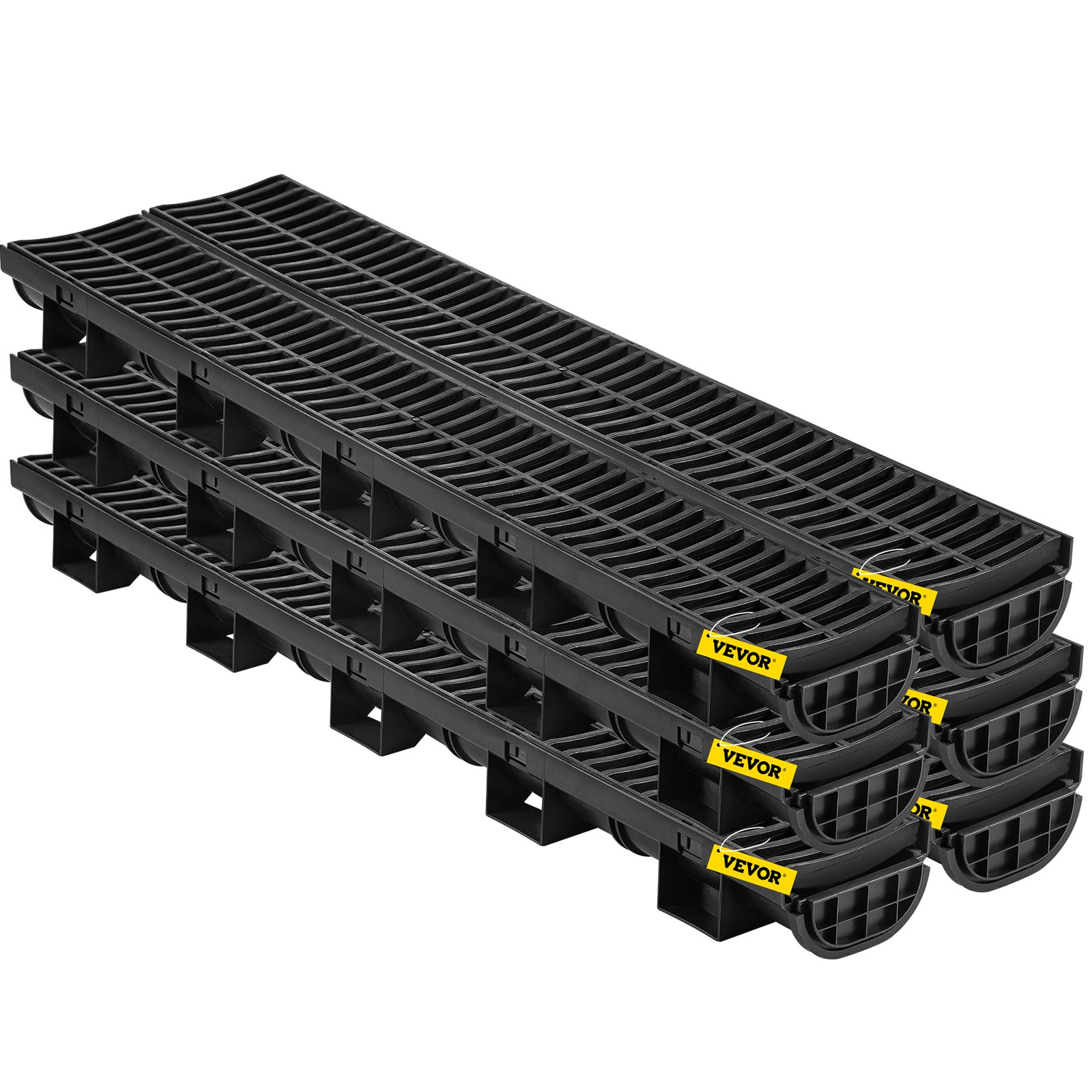

black VEVOR trench drain system with yellow branding in stacks.
HDPE Plastic Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for B125, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

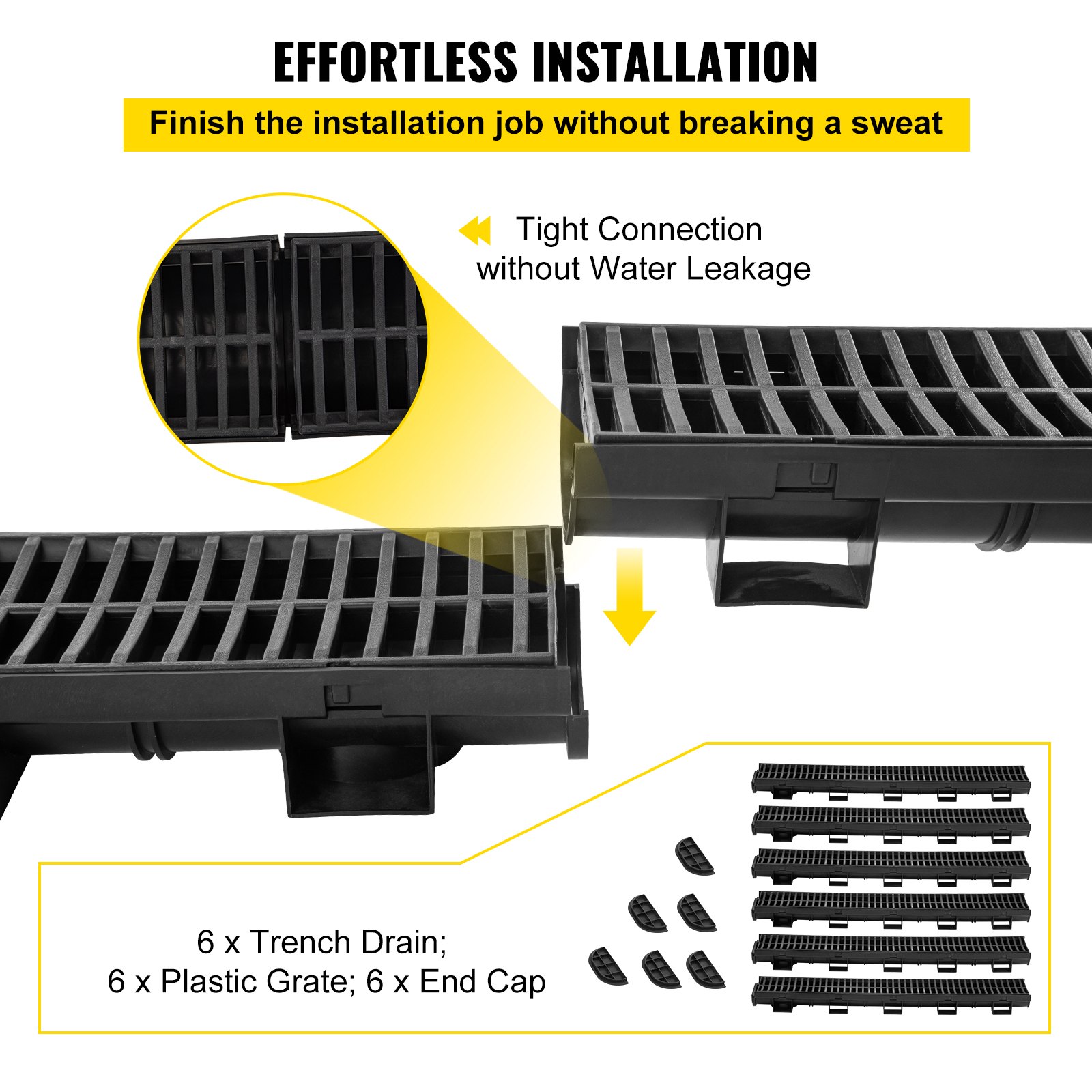

VEVOR trench drain system, hassle-free installation, tight connection, no water leakage.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.

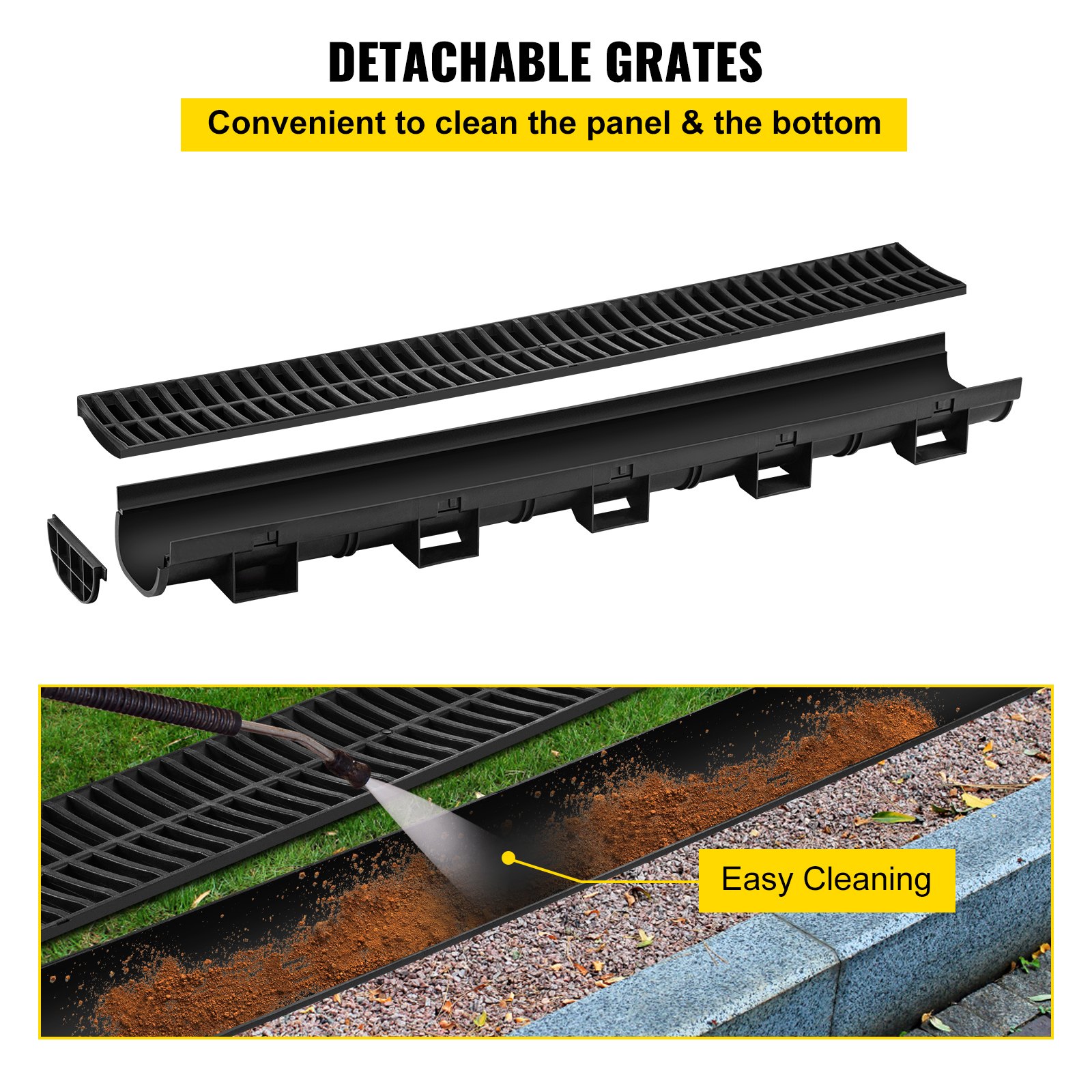

VEVOR trench drain system with removable grates and detailed close-up.
Detachable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.

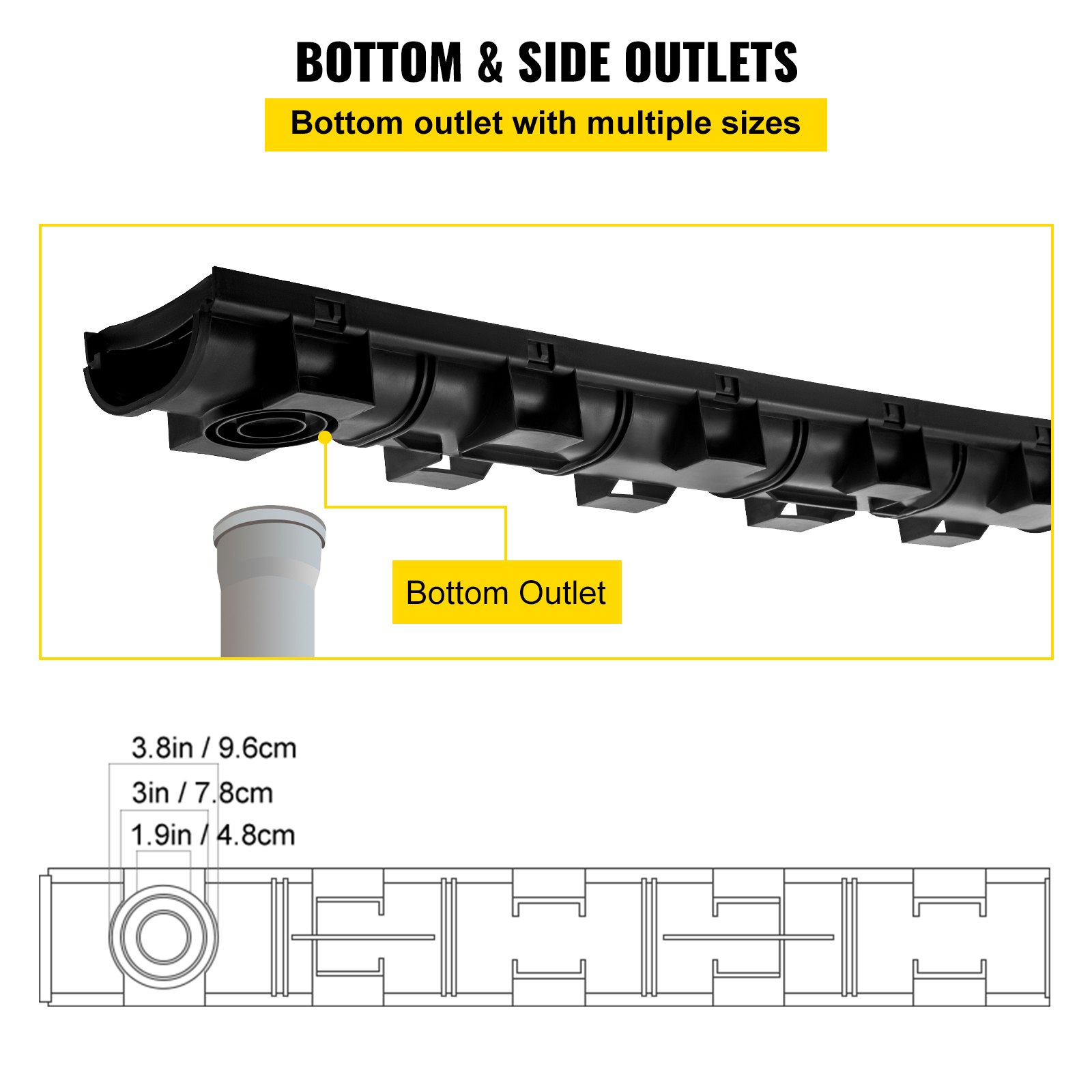

VEVOR trench drain system with labeled water outlets and bottom outlet dimensions.
Water Outlets
Various outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.

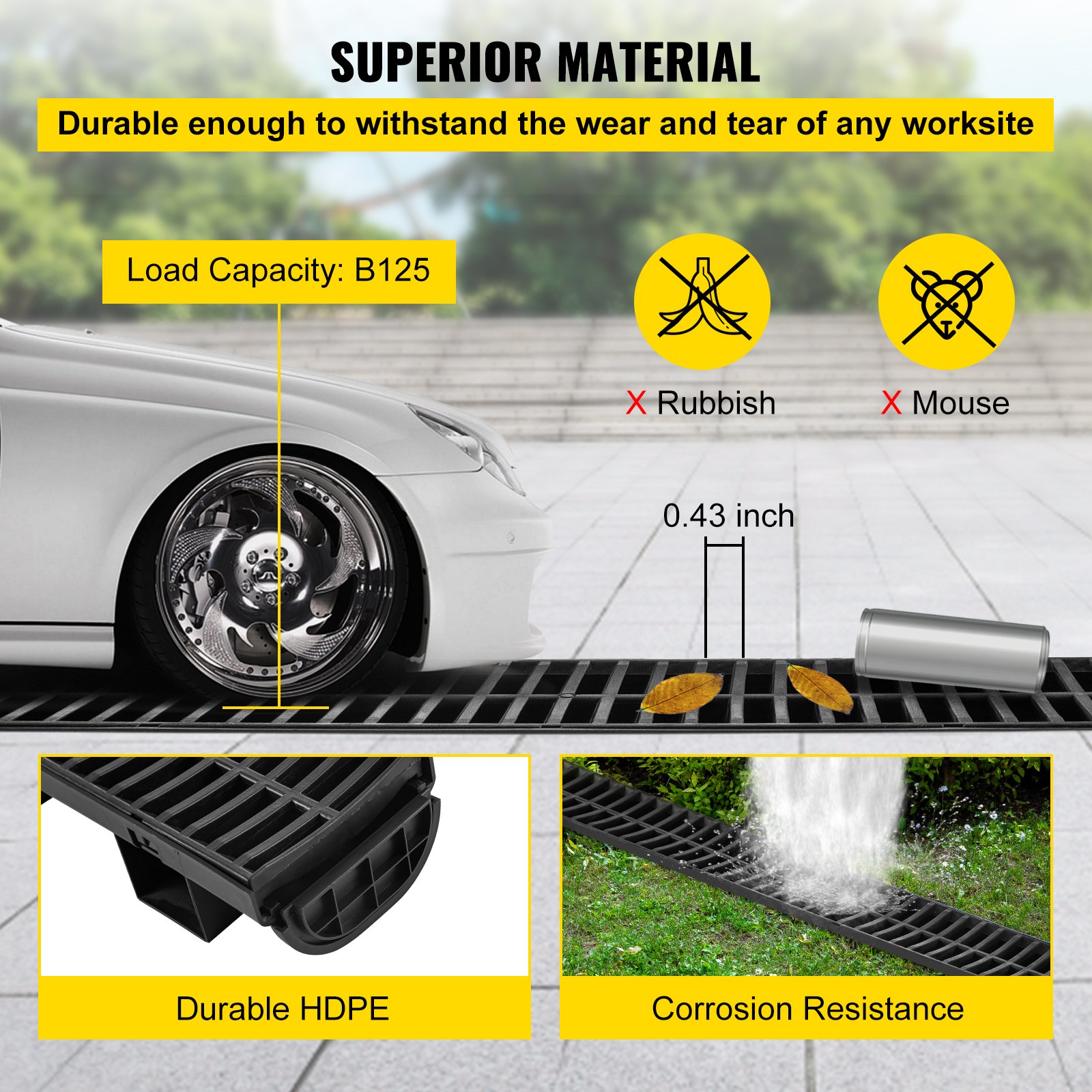

VEVOR trench drain system with durable hdpe for efficient drainage and load capacity b125.
Sturdy HDPE Material
Made of HDPE plastic, the load capacity is b125. It is suitable for driveways. The HDPE plastic creates a smooth and durable surface to drain the water away smoothly.
VEVOR trench drain system with plastic grate and end cap, includes 6 pieces.
Trench Drain Kit
This trench drain kit includes six trench drains. Each one is one meter long. The accessories include six plastic grates and six end caps. We offer you all the accessories that you may need.

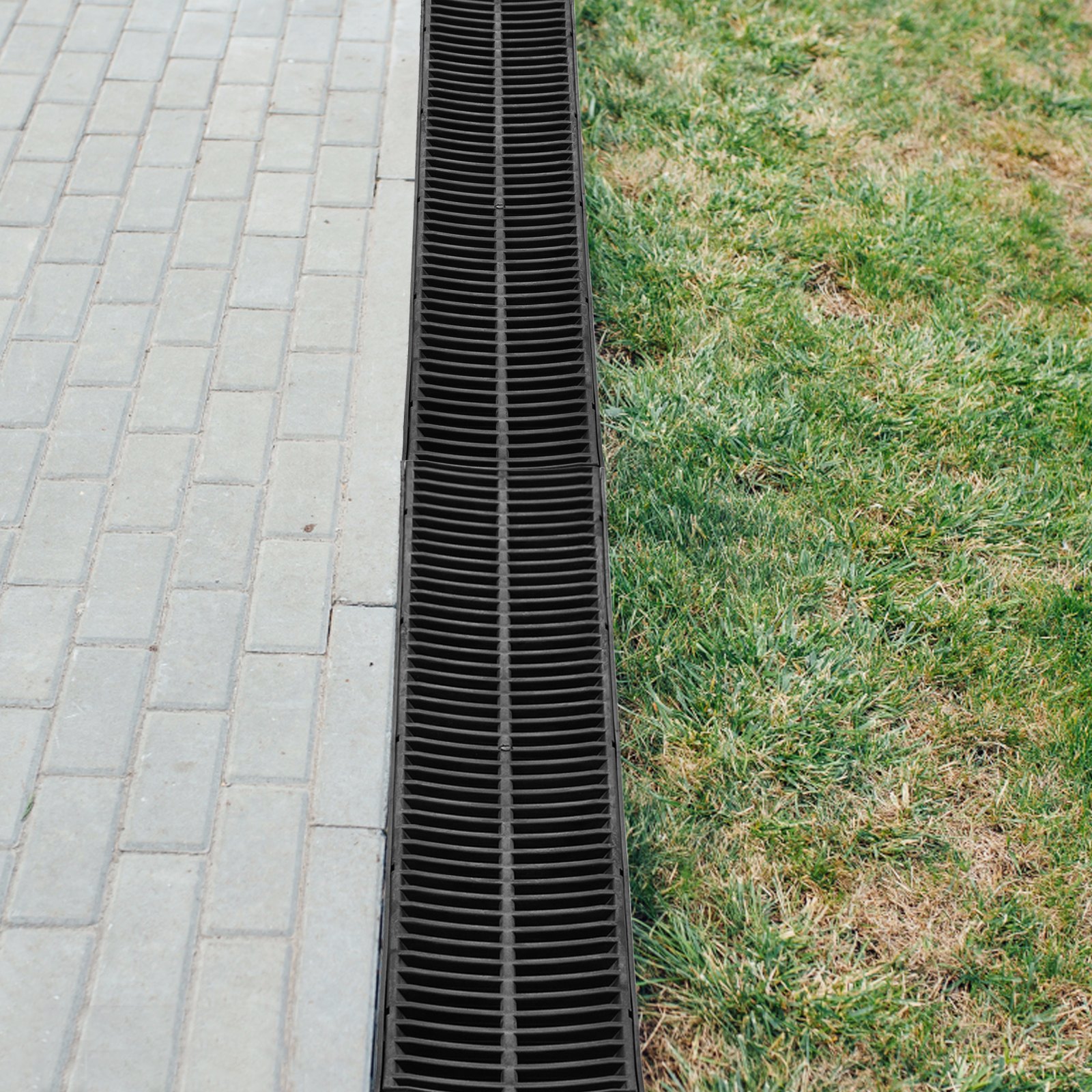

VEVOR trench drain system for concrete, swimming pool, driveway, and grass area.
Multiple Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the B125 load rate, it is also suitable for driveways.

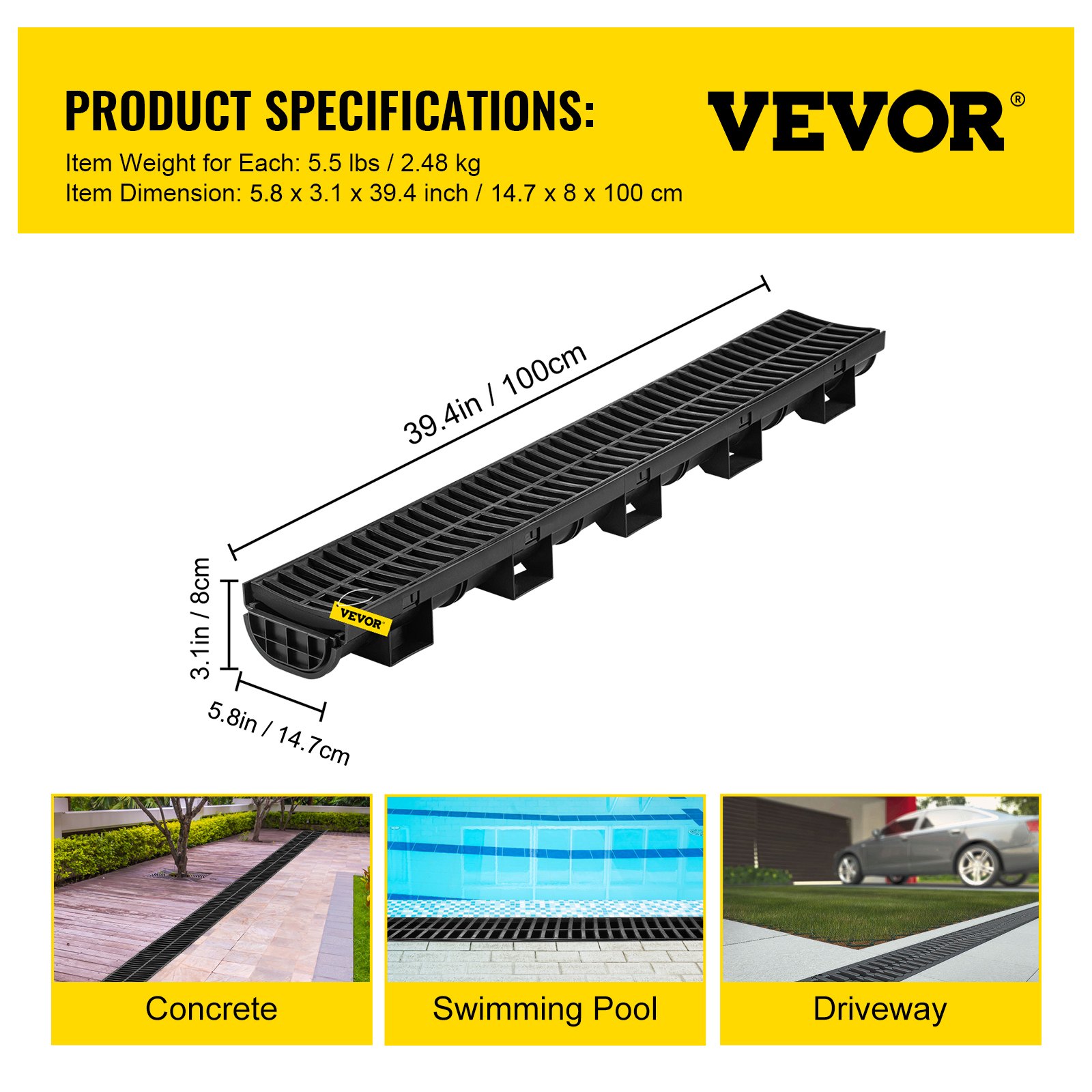

VEVOR trench drain system with dimensions marked: 39.4in x 5.8in x 3.1in.
Specifications
  • Model: PSG100*45*6M
  • Material: HDPE Plastic
  • Color: Black
  • Load Rate: B125
  • Amount: 6 Packs
  • External Item Dimensions: 5.7 x 3.1 x 39.4 inch/ 14.5 x 8 x 100 cm
  • Internal Item Dimensions: 3.9 x 1.8 x 39.4 inch/ 10 x 4.5 x 100 cm
  • Diameter of Drain Hole: 48 mm/ 78 mm/ 96 mm
  • Item Weight Each: 2.48 kg/ 5.5lbs
  • Maximum Working Temperature: 120℃/ 248℉
  • Minimum Working Temperature: -40℃/ -40℉

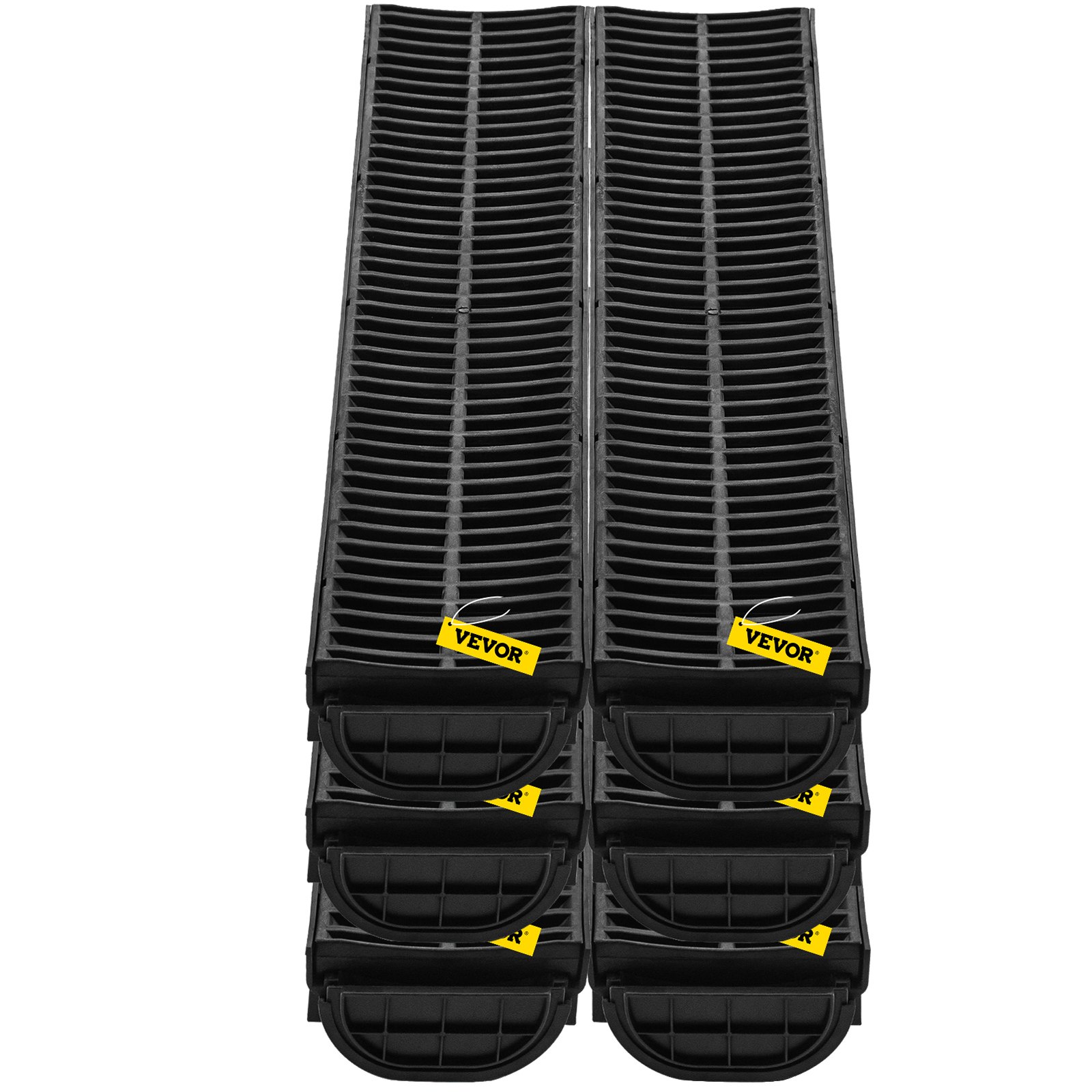

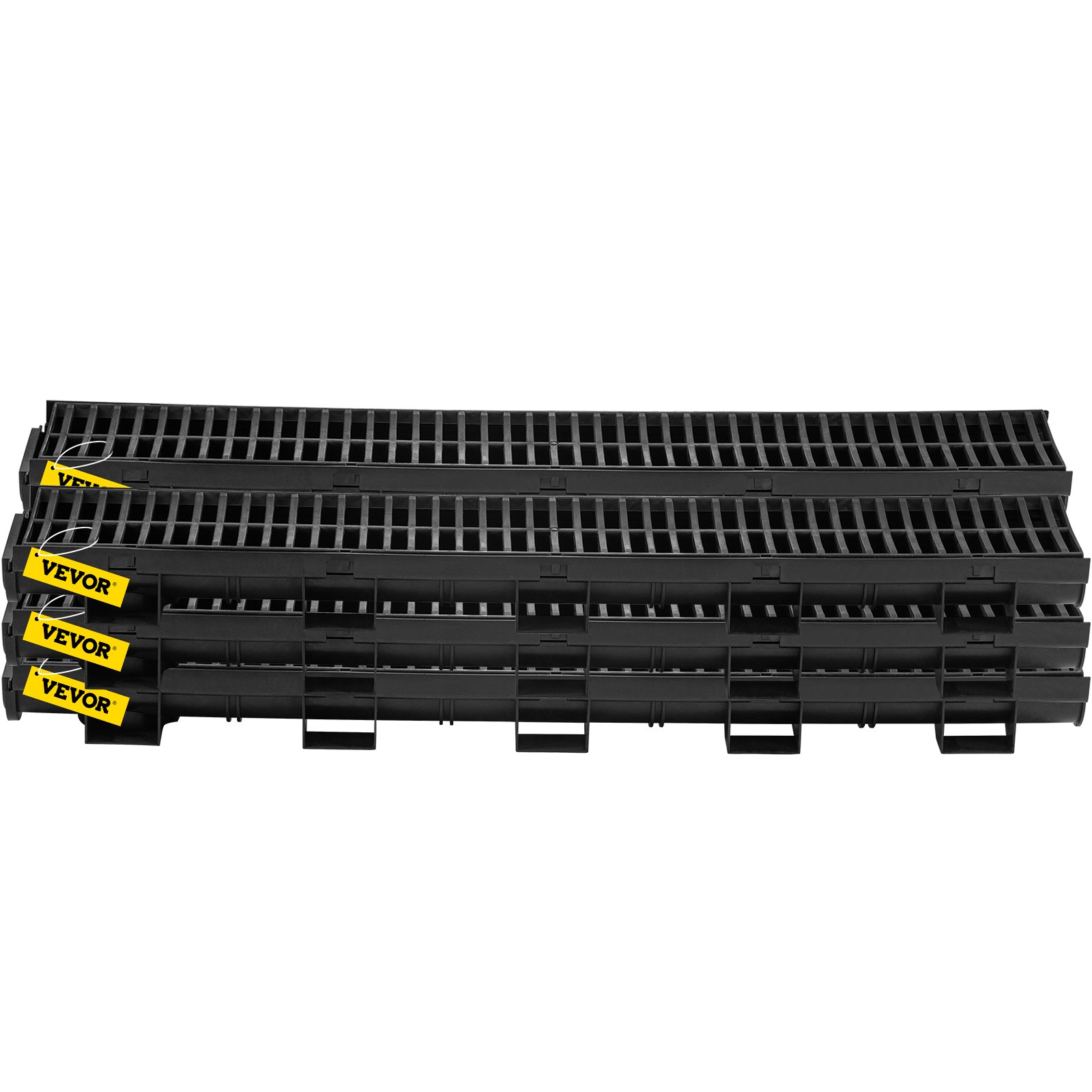

black VEVOR trench drain system with yellow label and slotted grate cover.
Package Content
  • 6 x Trench Drains
  • 6 x Plastic Grates
  • 6 x End Caps
VEVOR trench drain system beside a pool on a concrete patio with a garden background.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
black VEVOR trench drain system with yellow branding in stacks.
HDPE Plastic Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for B125, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR trench drain system, hassle-free installation, tight connection, no water leakage.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.
VEVOR trench drain system with removable grates and detailed close-up.
Detachable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.
VEVOR trench drain system with labeled water outlets and bottom outlet dimensions.
Water Outlets
Various outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.
VEVOR trench drain system with durable hdpe for efficient drainage and load capacity b125.
Sturdy HDPE Material
Made of HDPE plastic, the load capacity is b125. It is suitable for driveways. The HDPE plastic creates a smooth and durable surface to drain the water away smoothly.
VEVOR trench drain system with plastic grate and end cap, includes 6 pieces.
Trench Drain Kit
This trench drain kit includes six trench drains. Each one is one meter long. The accessories include six plastic grates and six end caps. We offer you all the accessories that you may need.
VEVOR trench drain system for concrete, swimming pool, driveway, and grass area.
Multiple Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the B125 load rate, it is also suitable for driveways.
black VEVOR trench drain system with yellow label and slotted grate cover.
Package Content
  • 6 x Trench Drains
  • 6 x Plastic Grates
  • 6 x End Caps
VEVOR trench drain system with dimensions marked: 39.4in x 5.8in x 3.1in.
Specifications
  • Model: PSG100*45*6M
  • Material: HDPE Plastic
  • Color: Black
  • Load Rate: B125
  • Amount: 6 Packs
  • External Item Dimensions: 5.7 x 3.1 x 39.4 inch/ 14.5 x 8 x 100 cm
  • Internal Item Dimensions: 3.9 x 1.8 x 39.4 inch/ 10 x 4.5 x 100 cm
  • Diameter of Drain Hole: 48 mm/ 78 mm/ 96 mm
  • Item Weight Each: 2.48 kg/ 5.5lbs
  • Maximum Working Temperature: 120℃/ 248℉
  • Minimum Working Temperature: -40℃/ -40℉

Resisting Heavy Work — Trench Drain System

Keep your garden, patio, driveways, and garage dry and puddle-free. VEVOR’s trench drain grate is made of high-quality HDPE plastic grate, hence providing strength and durability. Its end caps offer enhanced stability and are easy to use. The product is perfect for beginners and professionals alike. Its quality and performance come at a very affordable price. Moreover, its weatherproof design makes it suitable for all types of weather conditions.


Simple & Effortless Installation

The VEVOR trench drain grate is very easy to connect. Unlike traditional drainage systems, it consists of interlock settings that do not need any screws or bolts. The removable grill is easy to attach, detach, and clean. Its installation is beginner-friendly and does not necessarily require any professional. With an updated anti-floating design, the product stays in place with no need for bulking when set in concrete. An easy installation saves time and effort.


A Multifunctional Socket

Our trench drain system has a bottom outlet and is available in a wide range of size options, for instance, 48mm, 78mm, and 96mm. This helps you choose the size that suits your needs the best. It curbs the need for additional connectors as well. This versatile design seamlessly integrates into the already existing drainage system. It is perfect for the driveway, garden, and factory floor.


Elegant Aesthetic Appeal

The VEVOR HDPE drainage trench has an amazing design. It has sleek black holes, clean lines, and an aesthetic setting. This trench drainage system enhances the aesthetic appeal of patios, gardens, pools, and driveways. Its sleek black grill provides the best modern alternative to the traditionally available chrome options. Hence, enhancing the outdoor appeal. Not only is it more efficient than the traditional ones, but it looks amazing too.


Ultimate Comfort

This channel drain system is not only efficient, but it also provides the ultimate comfort. It comes with a removable grill that can be easily removed for cleaning. Hence, saving time and energy. The product comes with six drains, six plastic grids, and six lids. These are all carefully packed and ensure that everything is in good condition. The VEVOR ensures secure packaging and fast shipping to provide a smooth shopping experience.


Value for Money

The VEVOR garage floor drain offers a cost-effective alternative to traditional drainage systems. It does not compromise on quality. Its performance is comparable to various other available expensive options. It is hence, a smart investment option for homeowners and DIY enthusiasts. It is reliable, has a sleek design, and is easy to install. It is a smart choice for people looking for functionality and design. Its features do not come with a big price tag and are worth investing in.


Unmatched Performance

This garden drainage system is excellent at water management. It deals best with heavy downpours, and regular flow of water, and prevents all types of potential damage. It effectively and efficiently drains water from your space. The system is an ideal option for patios and gardens, as it keeps them dry and usable. It is equally efficient for smooth control of highways and intersections, as vehicular and pedestrian traffic. Its smooth inner surface allows water to penetrate quickly, hence keeping your space dry and safe.


Versatile System

Our trench driveway drainage system is versatile. It can be used in a variety of applications. From gardens and driveways to garage floors and factory interiors. It is made of highly-quality material and an efficient design making it suitable for all types of residential and commercial usage. It is an ideal option for enhancing the outdoor space. Unlike the traditional ones, it is a reliable drainage solution, that fulfills all drainage requirements.


Product guides and documents
User manual-en (PDF) Review

Questions and Answers (50)

50 Questions
Ask a Question
What size pvc pipe can be connected to the end cap if possible?
Answer This Question
Please see the picture in below link for reference, the link is valid in 3 days: https://we.tl/t-M5cq6BEZsE
By vevor
Helpful ( 6 )
Hello how strong are these channels
Answer This Question
The strength of these channels can at most allow small private cars to pass through them, and vehicles with a little more than 2 tons can also pass through them, but they cannot withstand larger pickup trucks.
By vevor
Helpful ( 4 )
What type of fitting goes under the drain hole? How is it attached? Thanks
Answer This Question
Find a PVC pipe with the same diameter as the drainage hole and put it on, then glue it together.
By vevor
Helpful ( 3 )
I'm interested in installing this product across the end of my omni stone driveway. I want it to stop the flow of water off the driveway as it comes down the street. does it need to be installed in concrete and can it hold up to daily traffic?
Answer This Question
It can withstand small cars driving over it occasionally, but not heavy trucks.
By vevor
Helpful ( 2 )
Can 3 inch PVC pipe be connected to end cap to connect to drainage system ?
Answer This Question
No, empties from the bottom , at the end.
By Barret Nelly
Helpful ( 1 )
