VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with Dual Linear Rails & Ball Screw, 15.75 x 15.75 x 3.74 in Working Area, Trim Router, for Wood Acrylic Carving Cutting

4.1 66 Reviews
$ 679 90
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+. Shop
Get -% off for new user
Get $5.00 Off $99.00+ Orders on Your First 3 App Orders.
Download Now

Features & Details

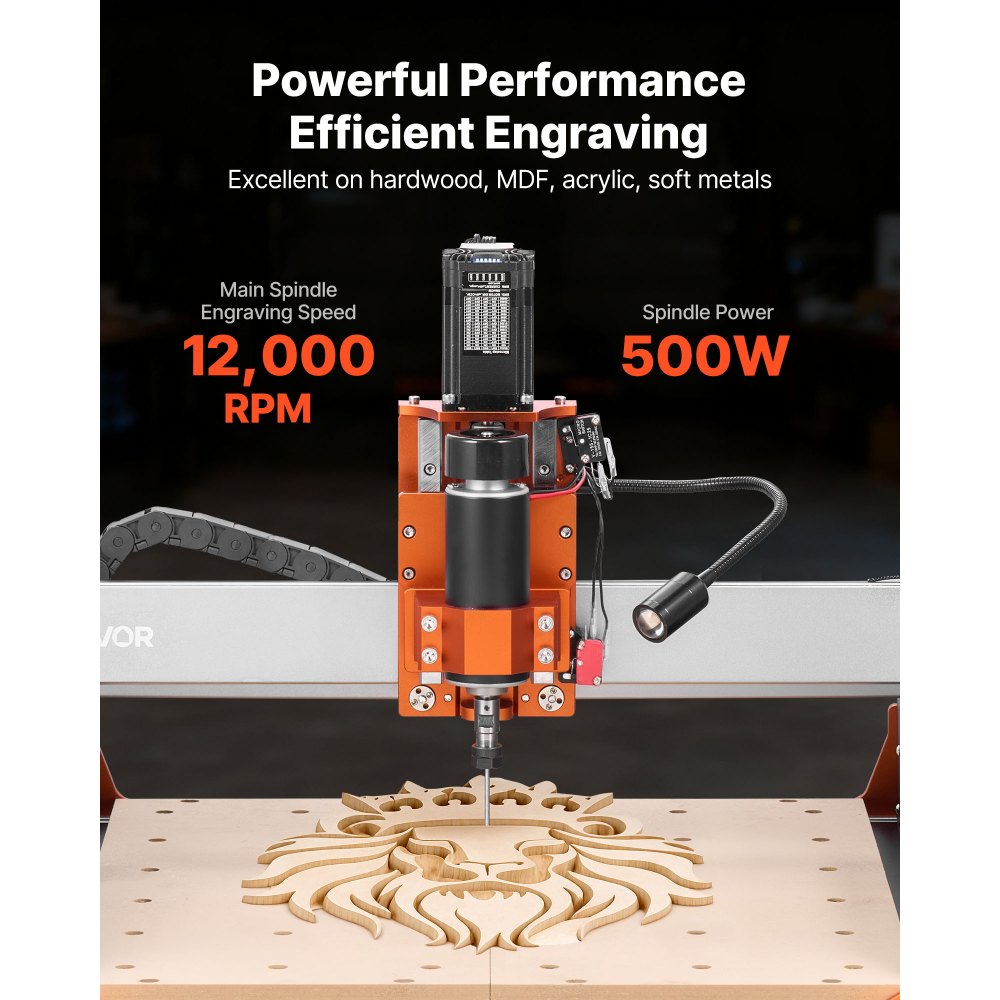

  • High-Precision Engraving: The CNC router machine features an aluminum alloy frame and dual linear rails for vibration-free accuracy. With a 500W spindle, it engraves wood, acrylic, and soft metals. Repeat positioning accuracy: ≤ 0.05 mm

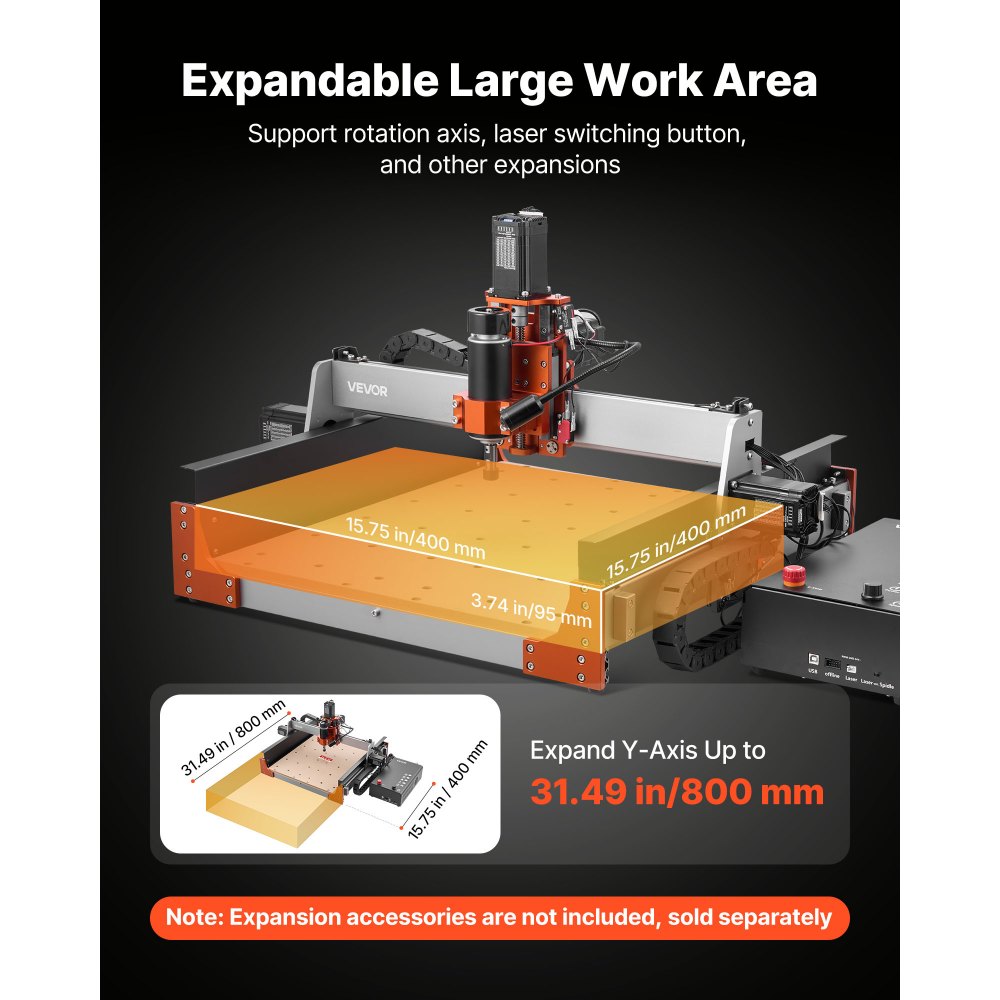

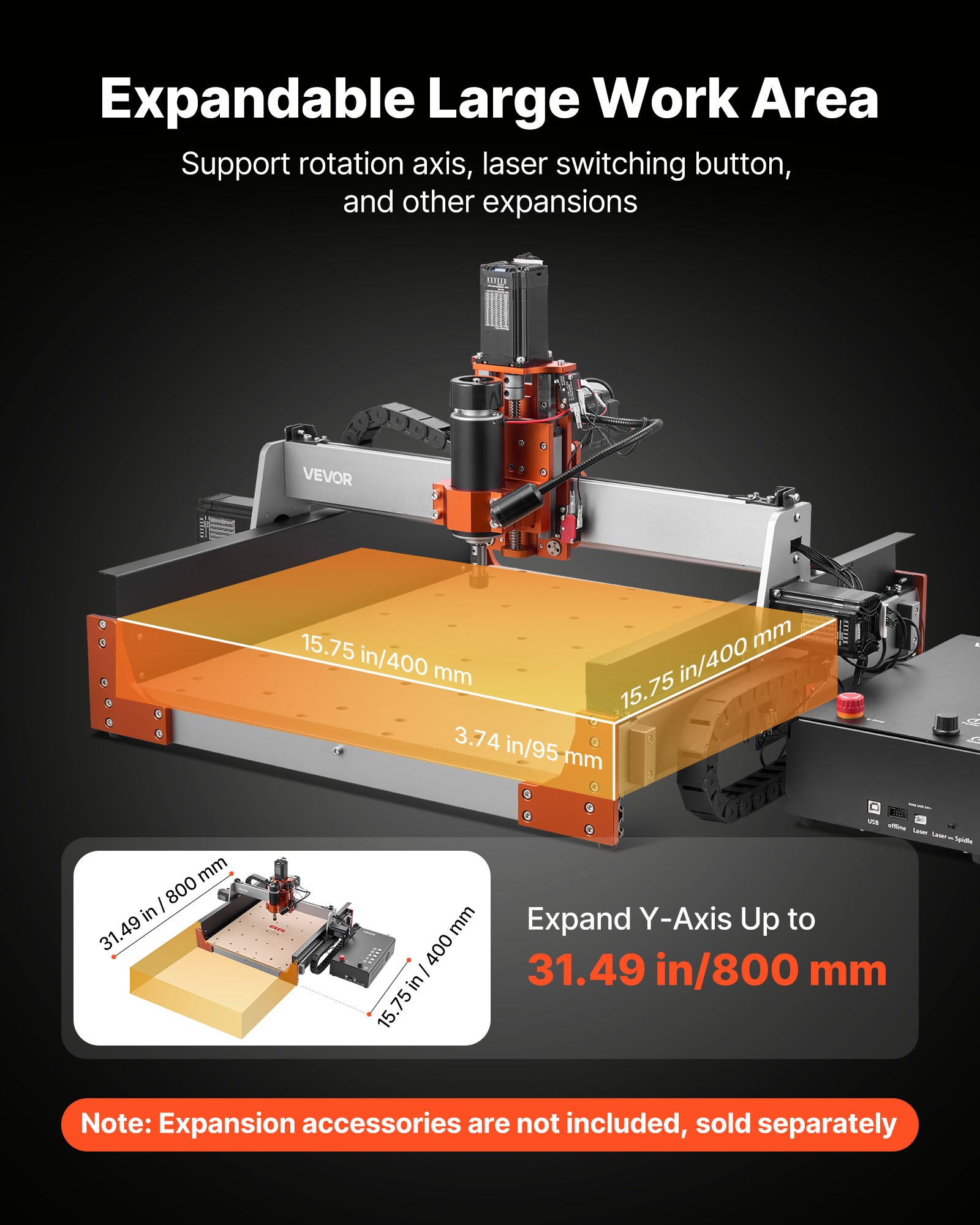

  • Large Work Area & Expandability: Create without limits on the 15.75 x 15.75 x 3.74 in (400 x 400 x 95 mm) work area, expandable Y-axis up to 31.49 in (800 mm). With 52 mm and 65 mm collets for various spindle types. Supports rotary axis expansion. Note: Expansion accessories are not included, sold separately

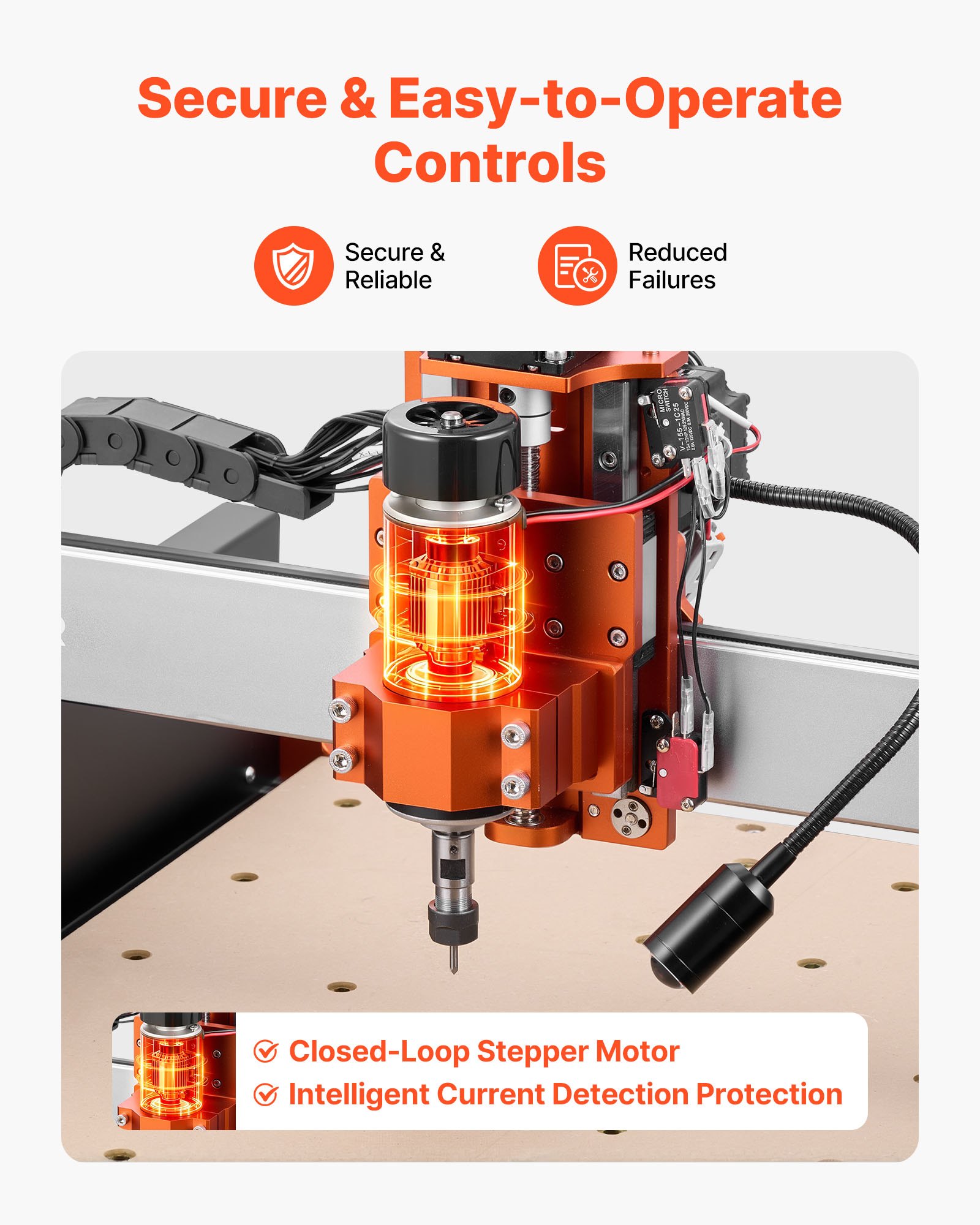

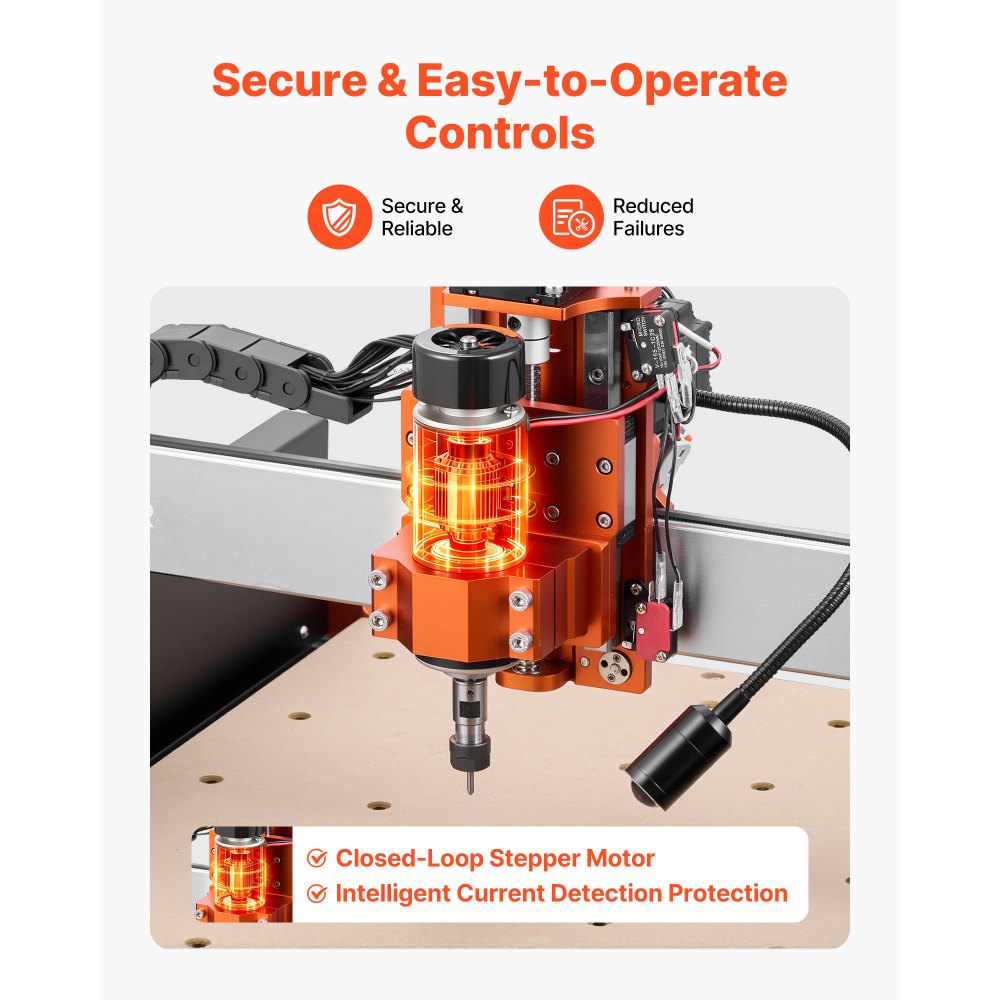

  • Secure & Durable Build: Equipped with a NEMA23-76 closed-loop stepper motor, this CNC wood router ensures smooth and quiet operation (≤75 dB). The spindle features a current detection protection, extending lifespan up to 5000 hours, and enhancing security

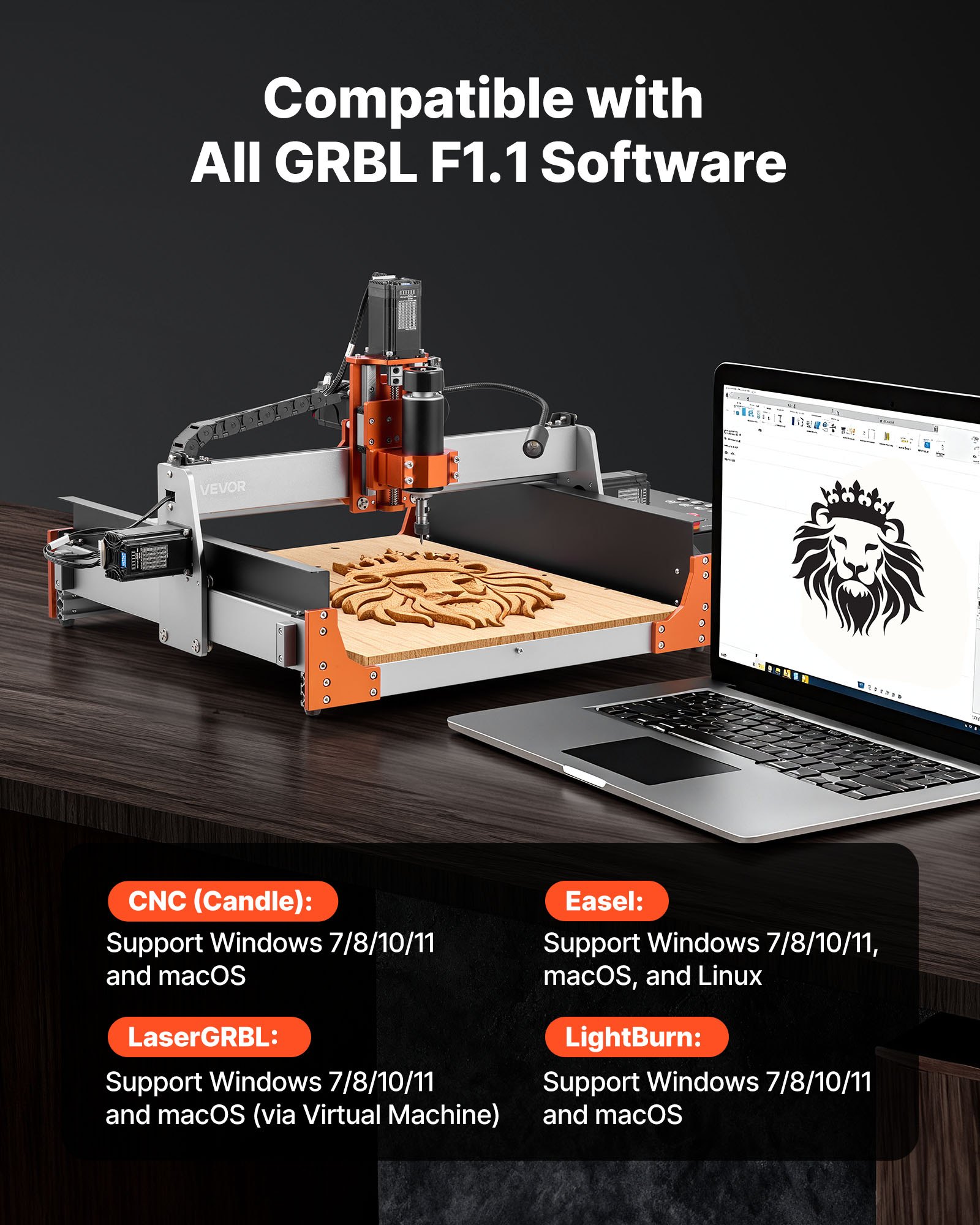

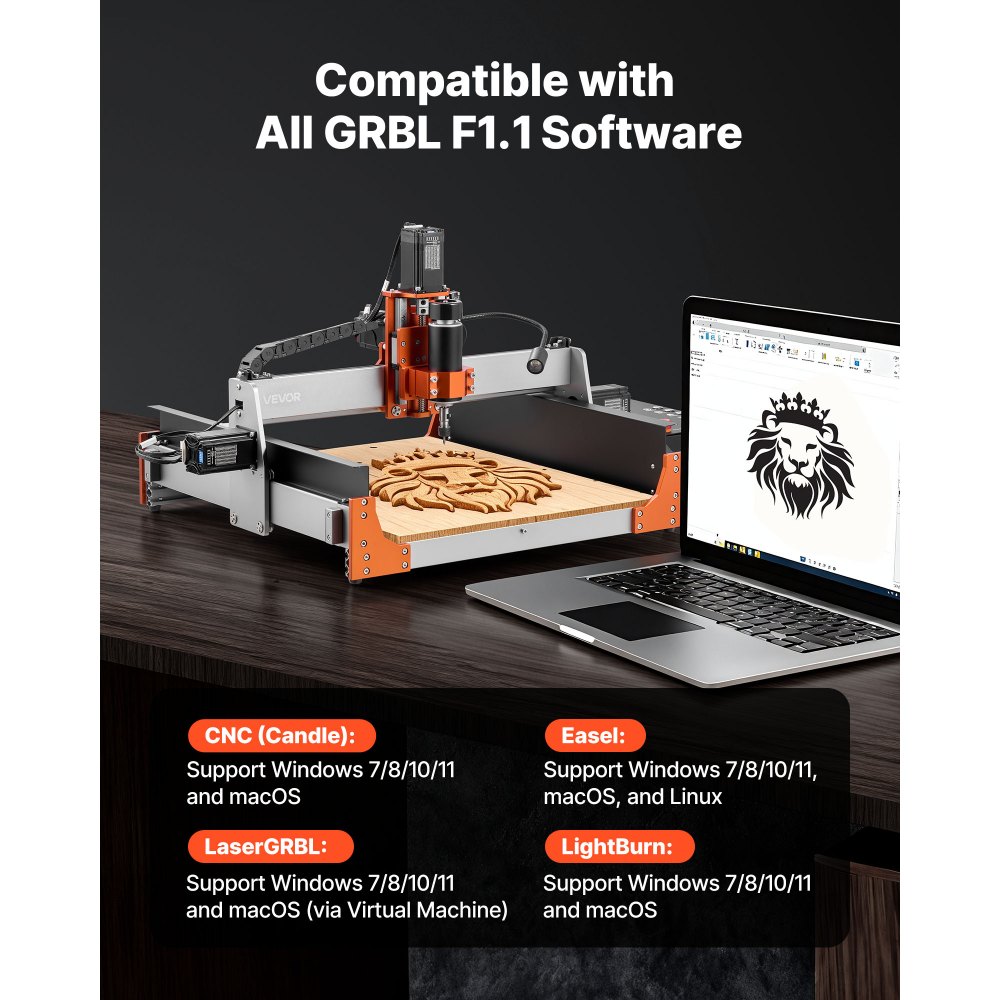

  • Wide Software Compatibility: This CNC wood router is compatible with all software that supports GRBL f1.1 firmware. Includes Candle software for easy setup. It works with Mac/Windows/Linux systems and supports CNC (Candle) and Easel
  • Easy Assembly & Operation: Key components come pre-assembled and pre-wired for quick setup. This CNC router machine is built with a 360° LED spotlight to reduce Z-axis shadows for clearer visibility, while the rotary knob provides precise spindle control

Product specification

  • Item Model Number CN C4040-SS1
  • Input Voltage AC 100-240V, 50/60Hz
  • Maximum Spindle Power 500W
  • Effective Work Area 15.75 x 15.75 x 3.74 in/400 x 400 x 95 mm
  • Computer Connection USB

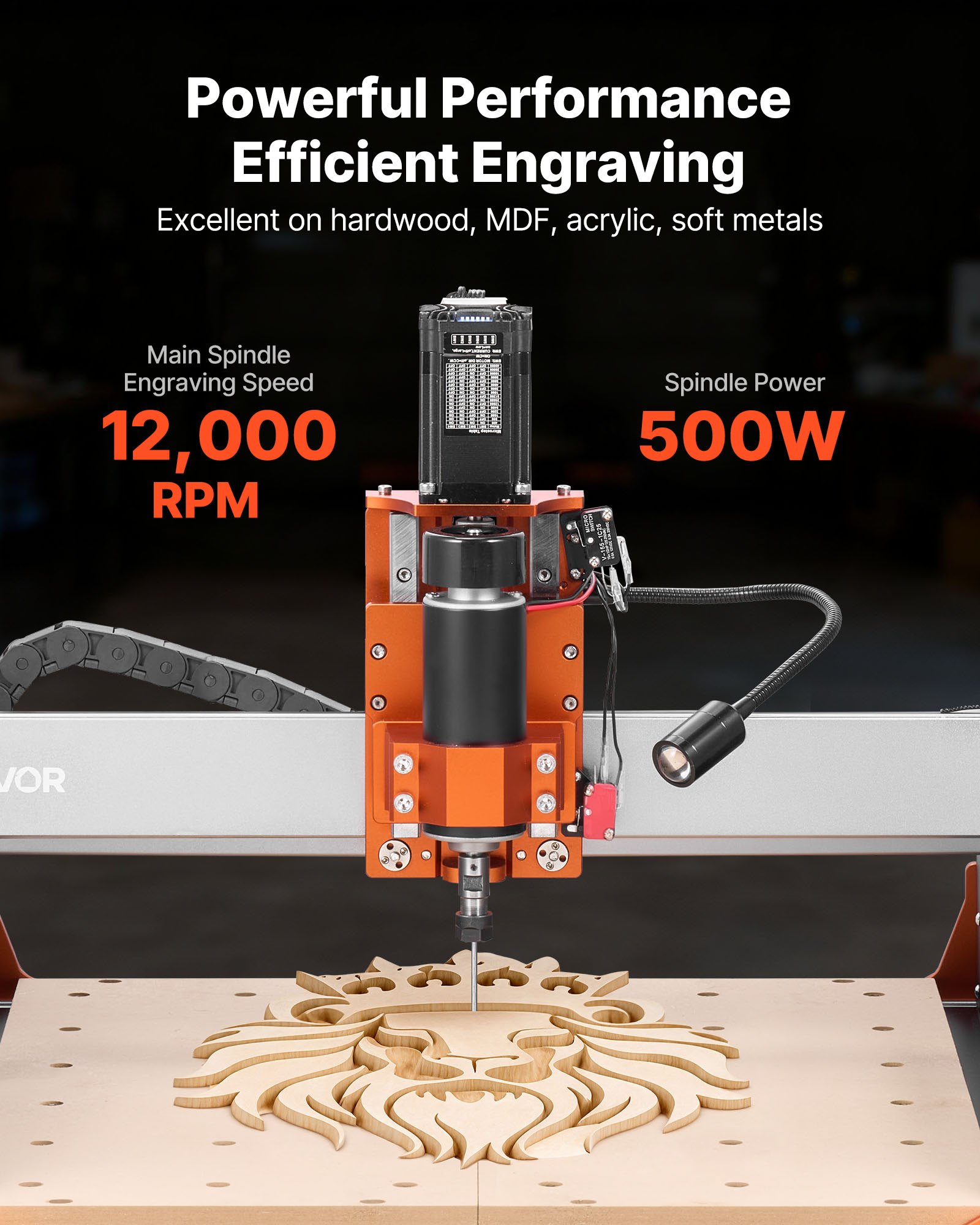

  • Spindle Speed 12,000 RPM

Reviews summary

4.1 66 Reviews
Customers say: The CNC machine is praised for its solid construction, ease of setup, and versatility in handling various materials, but it faces criticism for poor instructions, software challenges, and inconsistent customer support.

Al-generated from customer reviews

Frequently Bought Together

Reviews
About this item
Questions and Answers
Explore

Reviews 4.1
All reviews are from verified purchases
Average rating based on 66 reviews

Customers say
The CNC machine is praised for its solid construction, ease of setup, and versatility in handling various materials, but it faces criticism for poor instructions, software challenges, and inconsistent customer support.
Al-generated from customer reviews
Top Reviews
See all 66 reviews

About this item

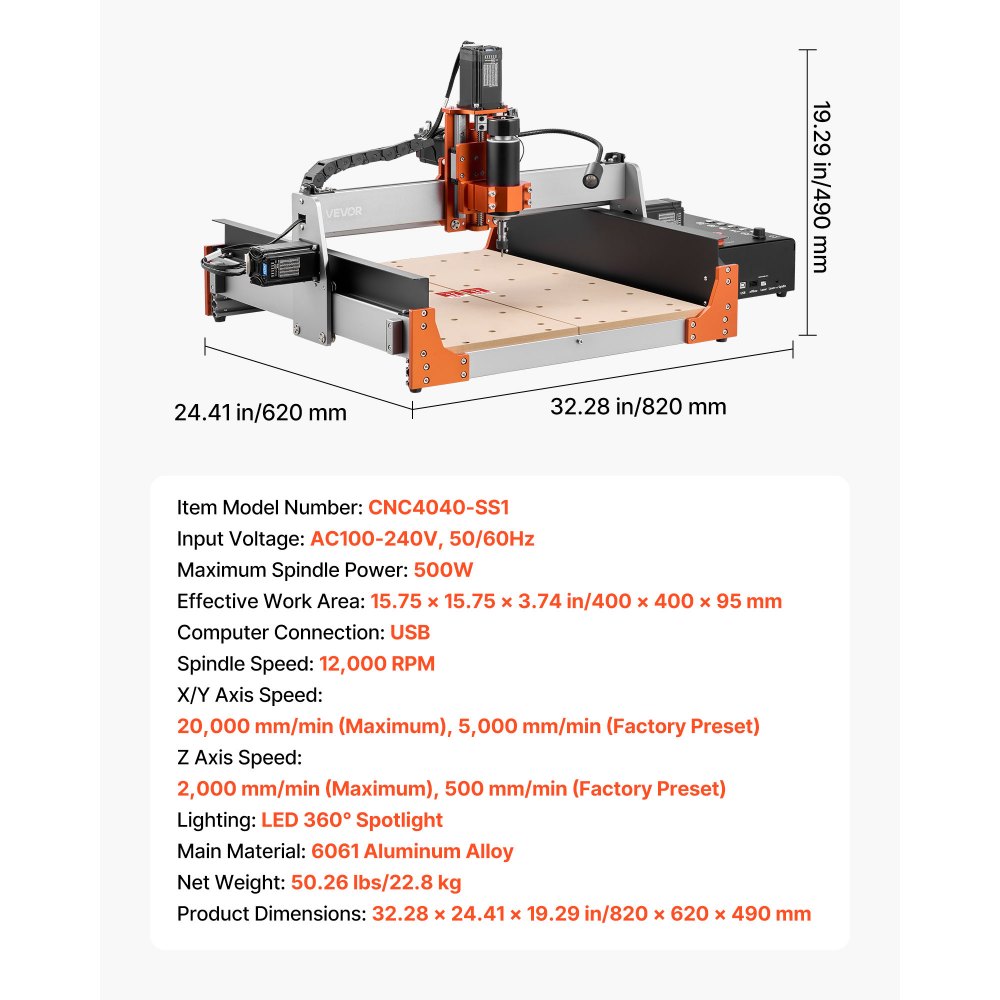

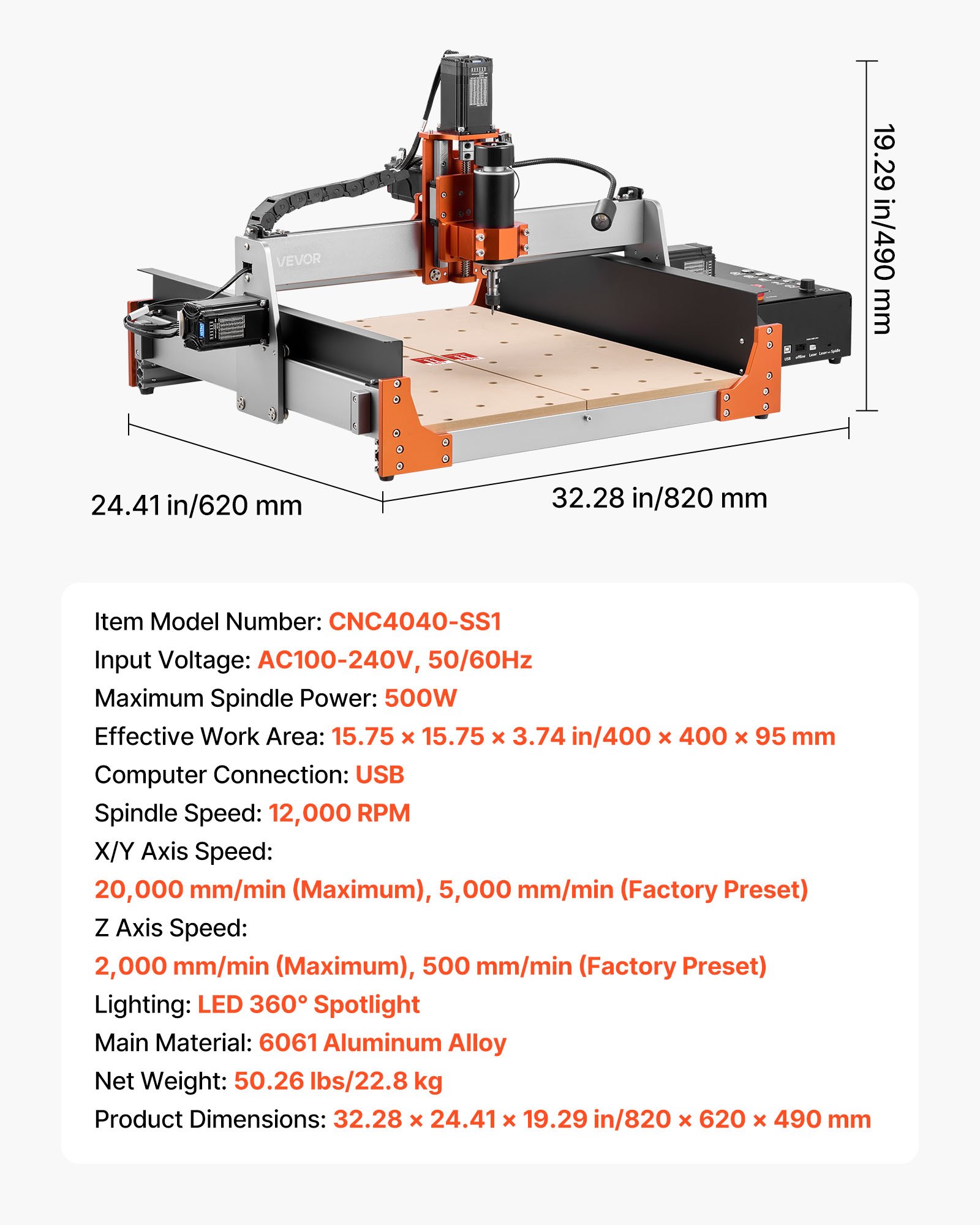

Product specification
Item Model Number
CN C4040-SS1
Input Voltage
AC 100-240V, 50/60Hz
Maximum Spindle Power
500W
Effective Work Area
15.75 x 15.75 x 3.74 in/400 x 400 x 95 mm
Computer Connection
USB
Spindle Speed
12,000 RPM
X/Y Axis Speed
20,000 mm/min (Maximum), 5,000 mm/min (Factory Preset)
Z Axis Speed
2,000 mm/min (Maximum), 500 mm/min (Factory Preset)
Lighting
LED 360° Spotlight
Main Material
6061 Aluminum Alloy
Description

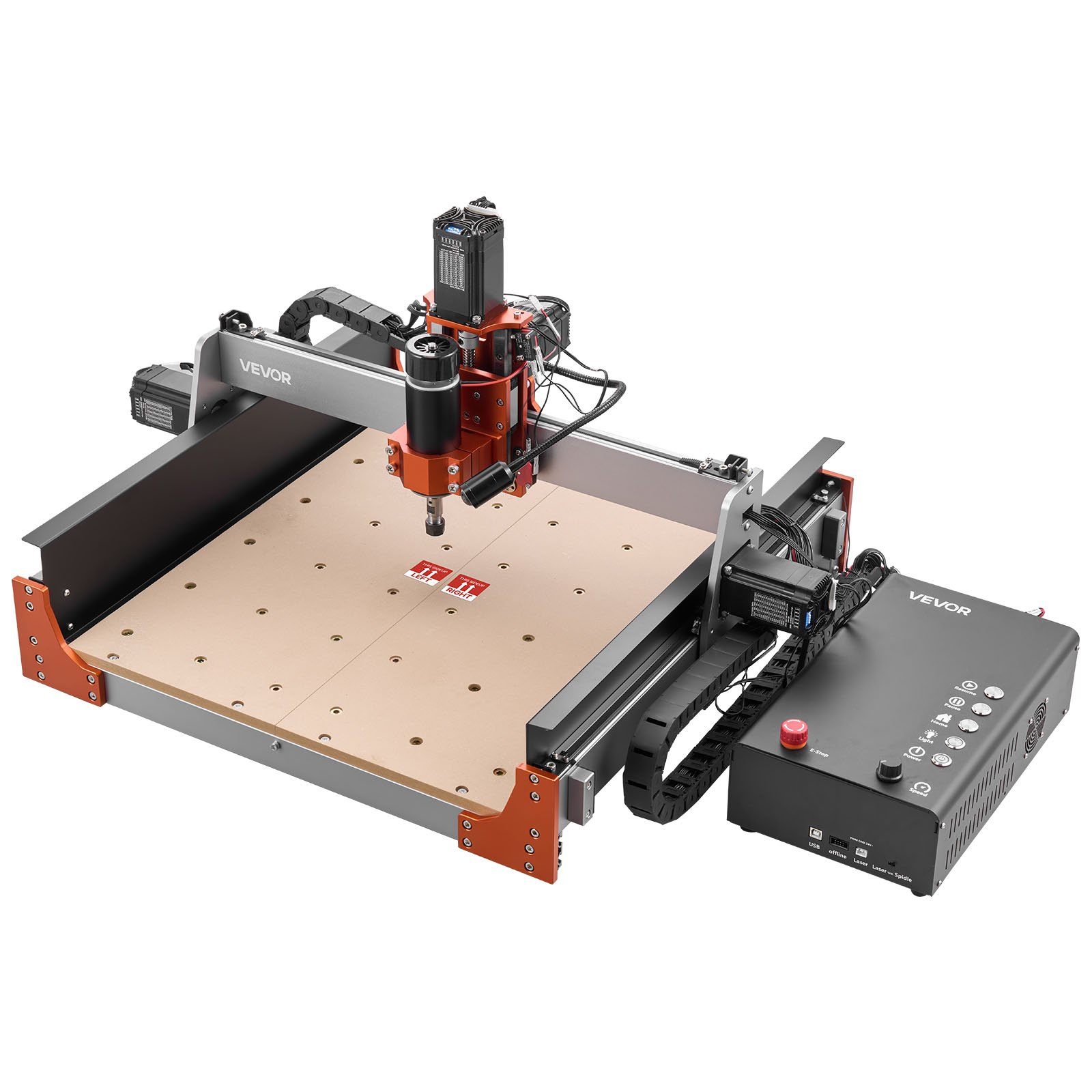

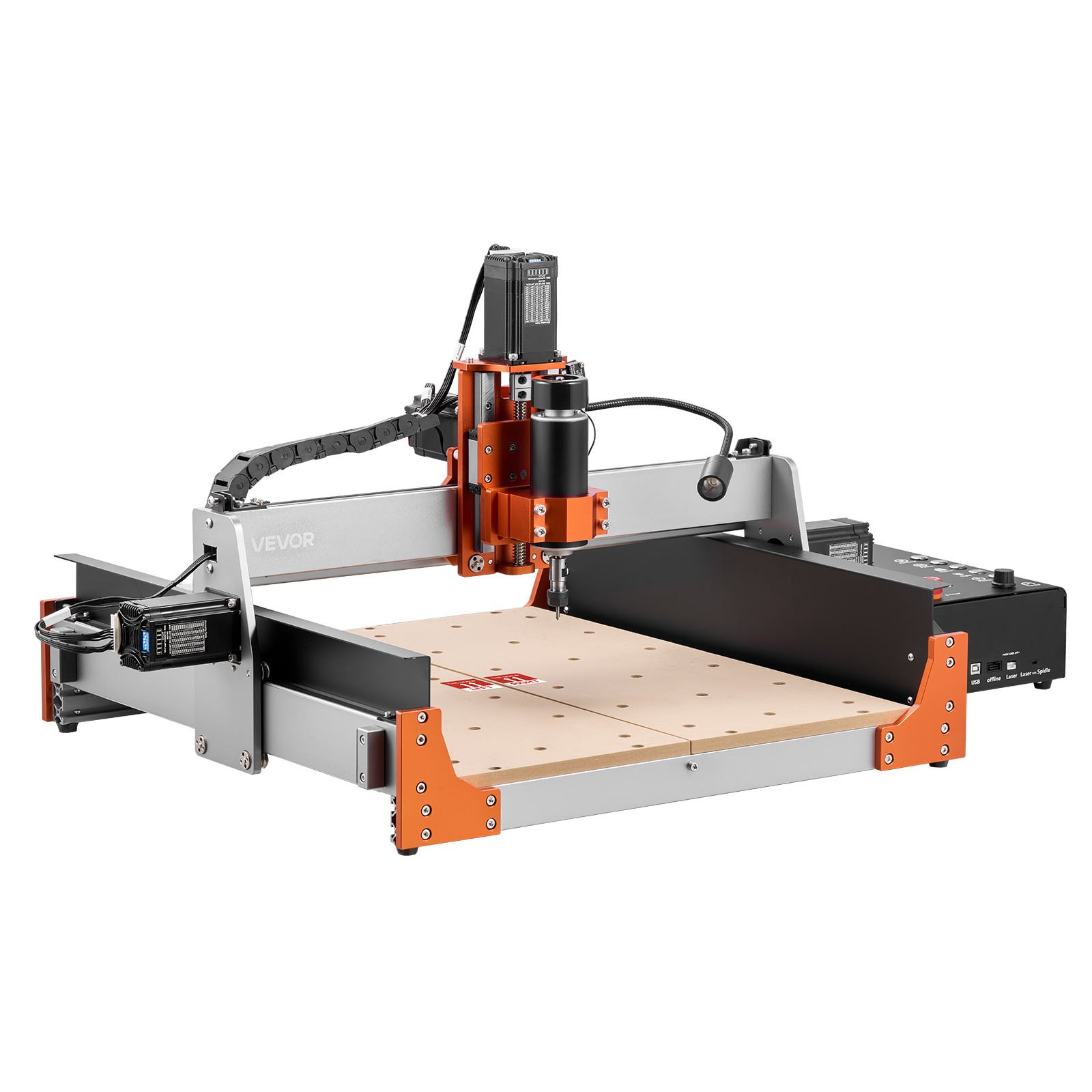

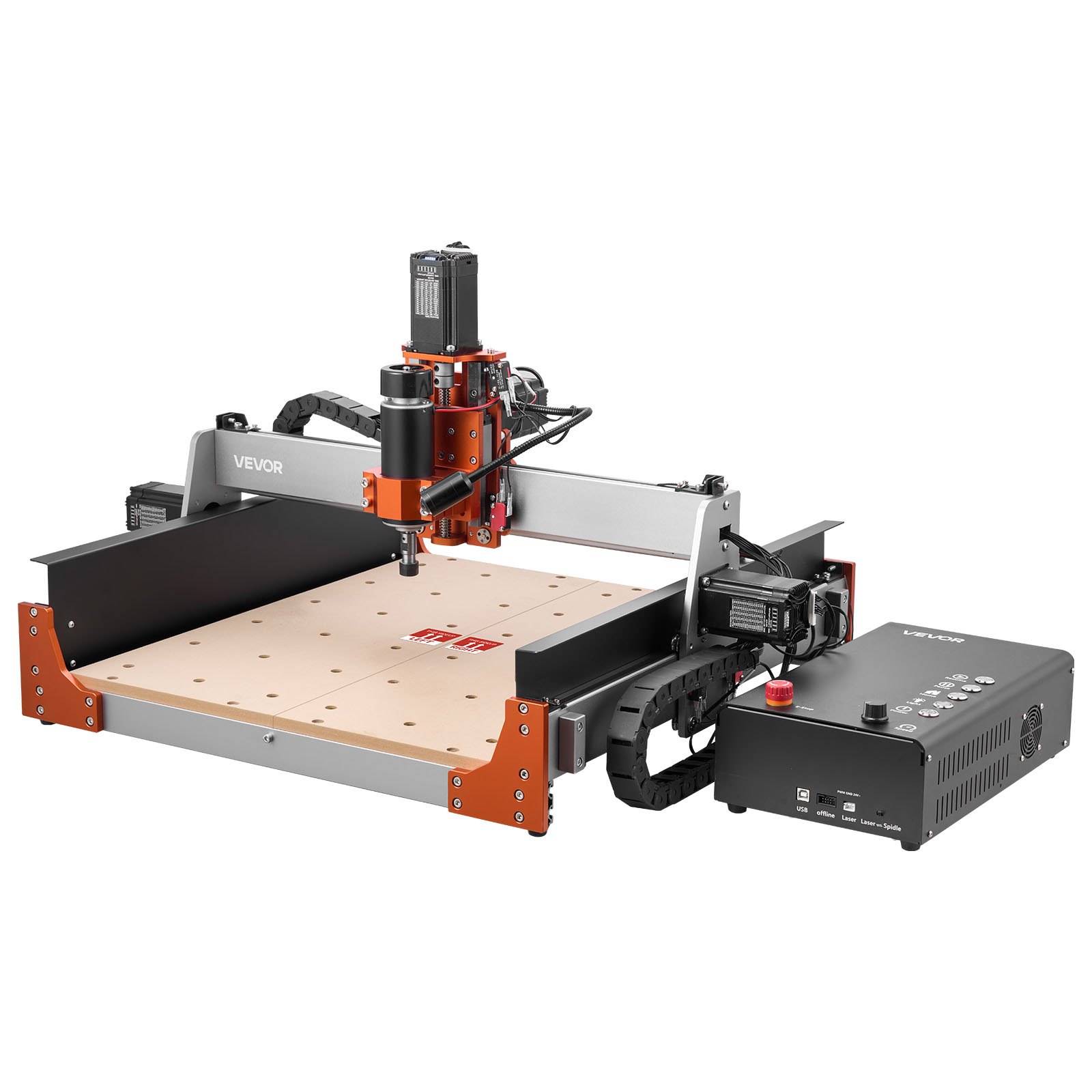

500W CNC Router Machine with Dual Linear Rails
Supports Y-axis and rotary axis expansion, creating complex projects with a 500W spindle and dual linear rails. Compatible with all software supporting GRBL f1.1 firmware, it makes cutting, drilling, and engraving a breeze across materials like wood, leather, vinyl, and soft metals.
Key Features

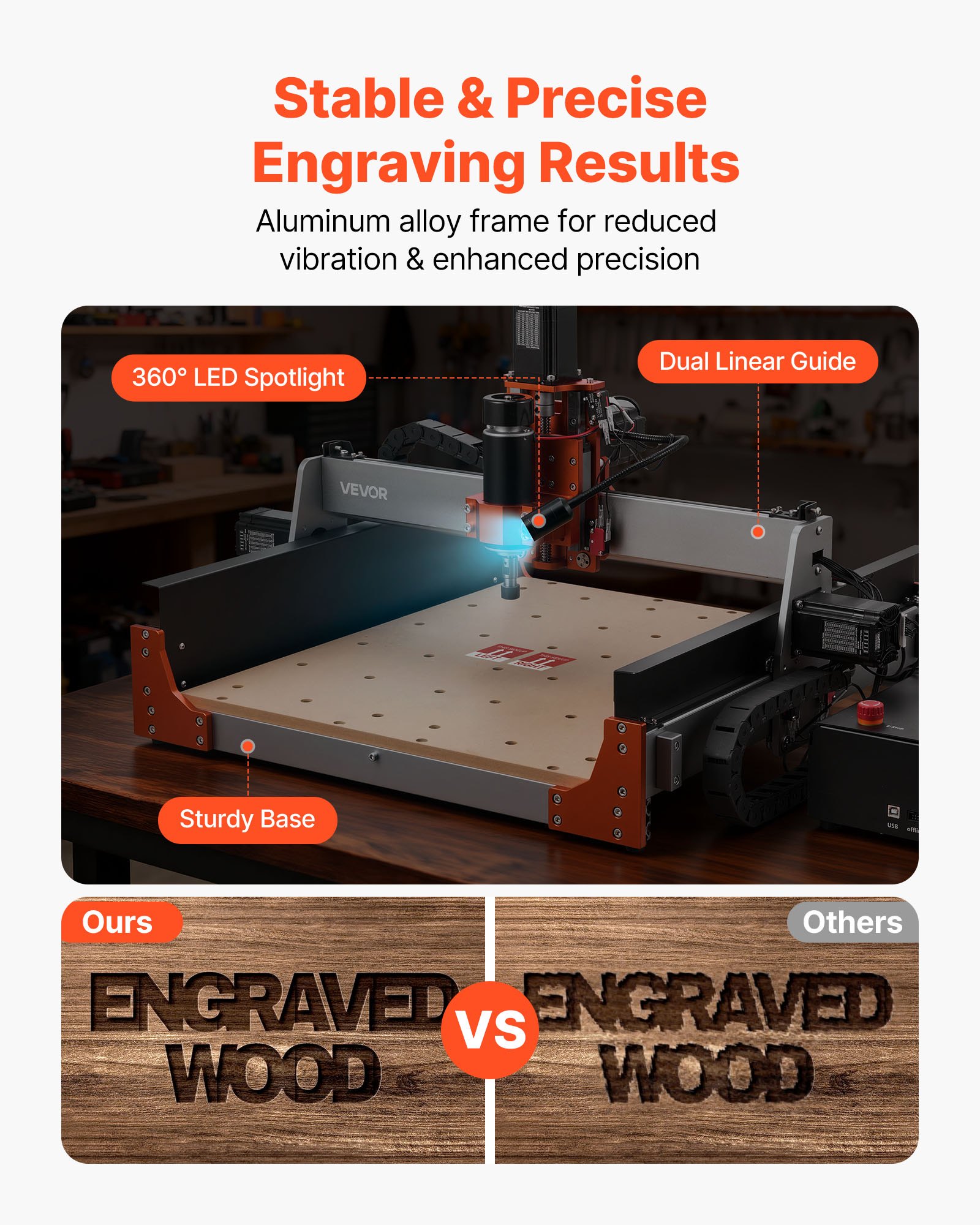

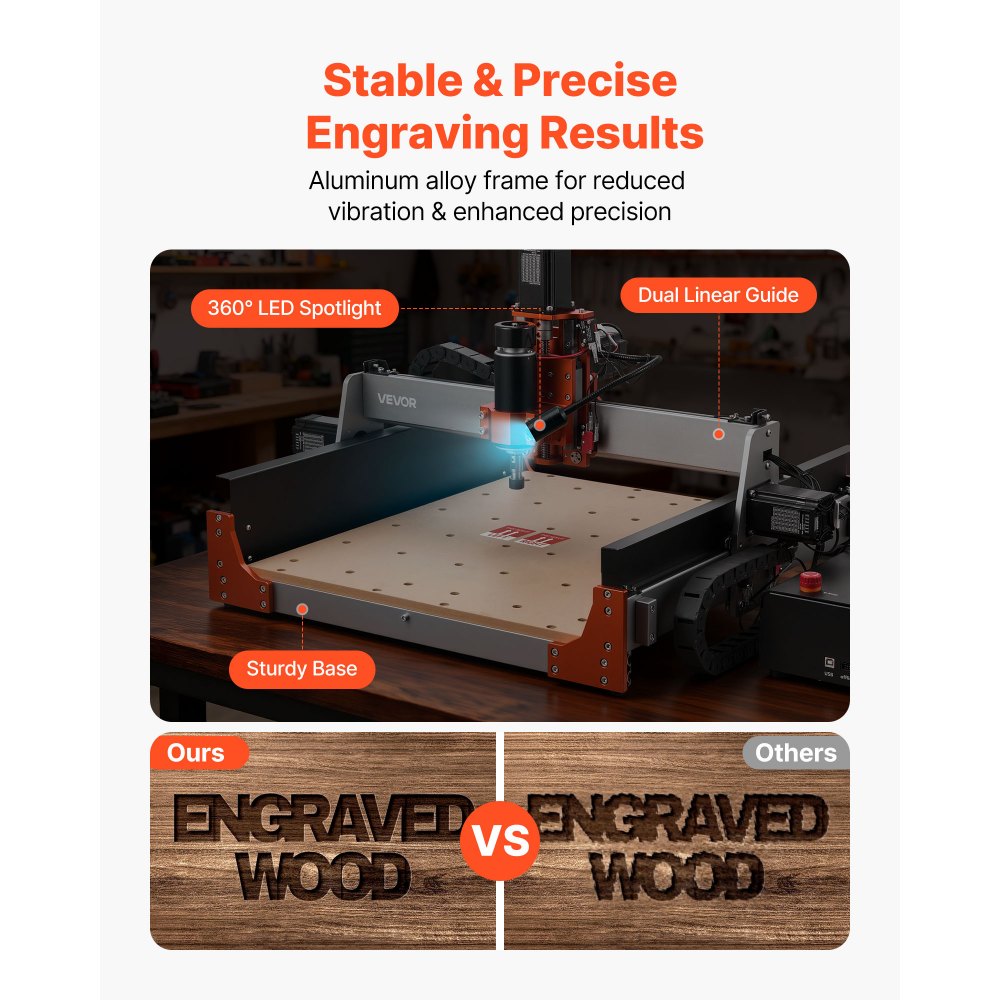

Aluminum Alloy Frame
Our CNC router machine is equipped with an aluminum alloy frame, effectively reducing vibrations to ensure precise engraving.
Stainless Steel Wheels
Stainless Steel Wheels
High Torque Stepper Motor
Our CNC router engraver machine comes with a stepper motor, providing powerful performance and precise control for every engraving task.
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (5)

5 Questions
Ask a Question
Would this work to mill 1/4" thick aluminum plate. I need to cut slotted holes and grooves for elevator headed bolts to slide in.
Answer This Question
Yes, this 500W spindle CNC is capable of milling 1/4" aluminum plate, but it requires much slower feed rates and shallower passes than wood. The dual linear rails and ball screws provide the necessary rigidity to handle the lateral forces of cutting aluminum without excessive vibration. For slotted holes and grooves, use high-quality carbide end mills and take passes of 0.1mm to 0.3mm to ensure a clean finish and prevent tool breakage.
By vevor
Helpful ( 1 )
It is essential to use a lubricant or mist coolant during the process to keep the aluminum from melting and sticking to the cutting flutes. Since elevator bolts require precise flat-bottomed grooves, this 3-axis machine is well-suited to create the exact depth needed for the heads to slide freely. If this answer does not resolve your issue, please contact us again for assistance.
By vevor
Helpful ( 0 )
Where can I buy different size collets? and what is the ER number on the spindle motor? ER20? Thanks. George
Answer This Question
It is ER11. You can easily buy different size collets on Amazon, just make sure they are ER11 size.
By vevor
Helpful ( 0 )
I just bought this. Can I mount a 1/4 shank spindle motor on this? If I can, do you sell this spindle motor? Thanks. George
Answer This Question
You can just buy an ER11 1/4-inch collet.
By vevor
Helpful ( 0 )
What thickness of acrylic can this cut?
Answer This Question
If the milling cutter used can cut a thickness of about 1.8–2 cm, if it is a pointed cutter then it is around 1–1.5 cm. However, one point to note is that the Z-axis single plunge feed rate should not exceed 2 mm. For example, a material with a thickness of 1 cm needs to be cut through in at least 5 passes.
By vevor
Helpful ( 0 )
Can you upgrade the spindle to a 2.2kw without a vfd or do you need to also purchase one of those as well to do the upgrade?
Answer This Question
We do not recommend doing this, as the machine's built-in stepper motor may not be able to support the weight of such a high-power spindle.
By vevor
Helpful ( 0 )
