VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor
VEVOR DC Motor,Rated Speed 1750 RPM,1/2 HP 90V Electric Motor Permanent Magnet Motor

Features & Details

  • 【PERMANENT MAGNET DC MOTOR】- The dc motor we offered is permanent magnet DC motor. 90V voltage, 1/2HP horsepower, 1750RPM rated speed, 56C frame. Our TENV DC motor features excellent speed regulation characteristics, high efficiency.
  • 【EFFICIENT & DURABLE】- The permanent magnet dc motor of Rated Speed: 1750 RPM, features high efficiency, small size and low noise. The outer casing is made from robust steel, F insulation class, durable and reliable.
  • 【DETACHABLE BASE】- The tenv dc motor is easy to mounted and remove with 56C face and Removable mounting bases for dual mounting versatility. The motor is easy to mounted and remove.
  • 【SPARE CARBON BRUSHES】- The package includes one pair of carbon brushes. The carbon brush is a device that transfers energy or signals between the fixed part and the rotating part of the motor. It is a consumable part and should be regularly maintained and replaced.
  • 【WIDE APPLICATION】- Widely used in light industry, textile, chemical, printing and dyeing, metallurgy, mining, wire drawing, extrusion machinery, medical equipment, health fitness equipment, food processing, printing and packaging, machine tools and other machinery and automated control systems.
See More

Frequently Bought Together

Videos for this product

Reviews 4.7

All reviews are from verified purchases
Average rating based on 13 reviews
Top Reviews
Tim Tim
Reviewed on Oct 01,2023
Great value for money. Super quiet. Powerful. I was able to use it at 48V until I received my voltage booster. From 48V to 90V is a huge difference (ok maybe only twice as much). I also was able to run it on a Ryobi 40V battery by using one of the adapters that bring out the hot wires - one thing about this type of setup is that you could possibly ruin battery by completely draining it. Those types of batteries need some charge to recharge again. The motor fit right onto my speed reducer. I was worried about power, but it has plenty. I would definitely buy this again, and the larger 1 hp motor (could make a great go-kart - I think).
Skeeter Bug Skeeter Bug
Reviewed on Jun 29,2023
Great! Infinite speeds between zero and 1725 RPM. #1 DC motor running it on a drill press using a variac ( adjustable variable 20 ampere transformer) and bridge rectifier- it goes from zero to full 1725 RPM with the turn of a dial. #2 DC motor: On the 14 inch band saw, the second DC motor, is powered by a VFD with the three-phase output into a three phase bridge rectifier that feeds the DC motor. Finally fully adjustable speeds for when you need to cut metal to soft woods. Just Wonderful ! DC permanent magnet motors develop torque at extremely low RPM and worrying about fields and magnetic saturation of AC motors is not an issue with these motors. My Wish: I would like to see 90 VDC 1HP and 1.5 HP motors offered and be capable of being powered with simple Variacs or VFDs!!! Those 12 VDC motors require too much current to be useful.
Manny B. Manny B.
Reviewed on Mar 17,2023
I'm very happy with this motor. I have bought 6 already for my salt spreader and works very nice
DFitz DFitz
Reviewed on Mar 03,2023
Great value for the $$$ . Unfortunately it did not fit my project.
Jesus Jesus
Reviewed on Jul 25,2022
Es buen motor no falla ya que tengo 4 trabajando y son buenos
walker walker
Reviewed on Jul 06,2022
The worst part about the motor is finding the right size brushes that the motor requires. Yes you get an extra set but after there gone good luck finding the right size brushes.
david david
Reviewed on May 15,2022
I powered mine up and it runs quiet. Vevor stuff can be hit or miss, but this looks like a decent quality item.
Robert L. Robert L.
Reviewed on Jun 28,2021
A wood turning lathe.
Robert L. Robert L.
Reviewed on Jun 15,2021
A wood turning lathe.
TNM;p TNM;p
Reviewed on Apr 14,2021
Awesome little moter...easily hooked to a pot

About this item

Product specification
Rated Voltage
90V
Rated Current
5.0 A
Rated Power
1/2 HP
Rated Speed
1750 RPM
No-load Speed
1930 RPM
Rated Torque
2.05 N.m
Enclosure
TENV
Frame
56C
Service Factor
1.10
Description

Enhance Your Machine’s Performance — DC Motor

Improve your machine’s power with the VEVOR DC motor. It is a strong, flexible motor that works well for many jobs. It handles challenging work with its 1/2 horsepower and 1750 rotations per minute. It is more environmentally friendly and uses power more efficiently, saving you money on electricity. Installation is easy, with clear instructions and compatibility with different setups. Made from solid steel, this motor is durable and stable. This 1/2 HP motor is ideal for locations where noise levels must be maintained because it operates silently. Because of its lengthy lifespan, it can be used for small-scale projects around the house and larger industrial jobs.


Efficient Performance with Powerful Motor

The VEVOR permanent magnet motor is powerful and can handle various tasks. It has 1/2 horsepower and spins 1750 times per minute (RPM). This power makes it easy to do tough jobs. It uses power efficiently and keeps a steady speed, so you get the right amount of power whether the job is easy or hard. The motor operates at 90V, making it suitable for various setups. Whether you need a reliable motor for industrial machinery or DIY projects, this DC motor provides the robust performance required to do the job.


Quiet & Safe Operation

This 90V electric motor runs quietly and smoothly with a built-in fan that keeps it cool. This fan stops the motor from overheating, so it stays protected and doesn’t make loud noises or shake while running. This quiet operation makes it perfect for places that need a calm environment. You can work comfortably without loud sounds bothering you. This quality makes it a great choice for industrial settings and projects where maintaining a peaceful atmosphere is important.


Strongly Built & Reliable

Durability and reliability are key aspects of the VEVOR DC motor’s design. The motor features a robust steel outer casing, which provides excellent protection and longevity. The motor's outer casing handles are tough to use without getting damaged. Special insulation (F insulation class) works well even in high heat. The motor has special ball bearings that are sealed and filled with long-lasting grease. This makes the motor more durable and reduces the need for frequent maintenance. Because of this strong design, this permanent magnet motor can be trusted to work well, even when used for hard tasks.


User-Friendly Features

The VEVOR 1750 RPM motor has several user-friendly features that enhance its ease of use. The motor includes a detachable base with a 56C frame, allowing for dual mounting versatility. This design makes it easy to mount and remove the motor as needed, providing flexibility for various setups. The motor package comes with extra carbon brushes. This feature makes it simple to care for the motor, even if you’re unfamiliar with motor maintenance. It ensures you can quickly replace the brushes when needed, keeping the motor in good condition without much hassle.


Low Energy Consumption

Efficiency is a major advantage of the VEVOR 90V electric motor. This motor is built to deliver great performance while using less energy. This motor uses less electricity to work well. This saves you money on your utility bills. It is also more environmentally friendly because it consumes less power. You get the performance you need without spending a lot of energy or causing harm to nature. The VEVOR DC motor is a smart choice for business and home use.


Simple to Use

Using the VEVOR permanent magnet motor is straightforward and hassle-free. It’s lightweight and simple, so you can attach it to different machines or projects. The motor has clear instructions and everything you need, like a base you can remove and extra parts called carbon brushes. This 1750 RPM motor is easy to set up and maintain because of these features. It's simple to use from beginning to end, regardless of whether you're changing a used motor or adding one to something new.


Versatile Applications

The VEVOR DC motor is a flexible motor that is used for many different tasks. It works well in factories that make textiles, process chemicals, print, and mine. It’s also useful for running machines that pull wires, shape materials, and more. You can use it in medical equipment, gym machines, and food-making. Besides being great for big jobs, it’s also perfect for small DIY home projects, like running small machines or tools. No matter what you’re working on, this 1/2 HP motor can handle the job and always give reliable results.


brushed dc motor 1/2hp 90v 56c 1750rpm tenv on factory background. VEVOR dc motor

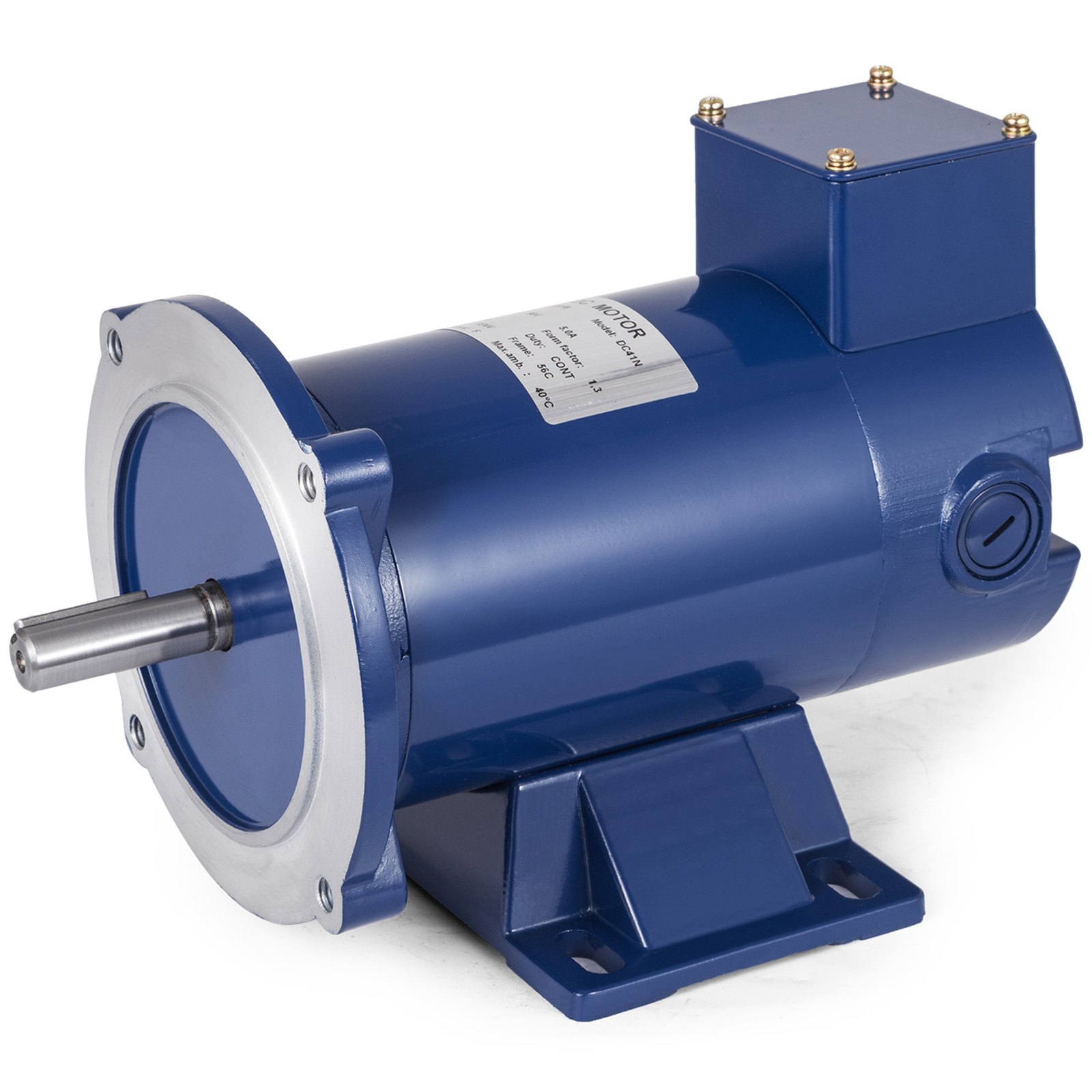

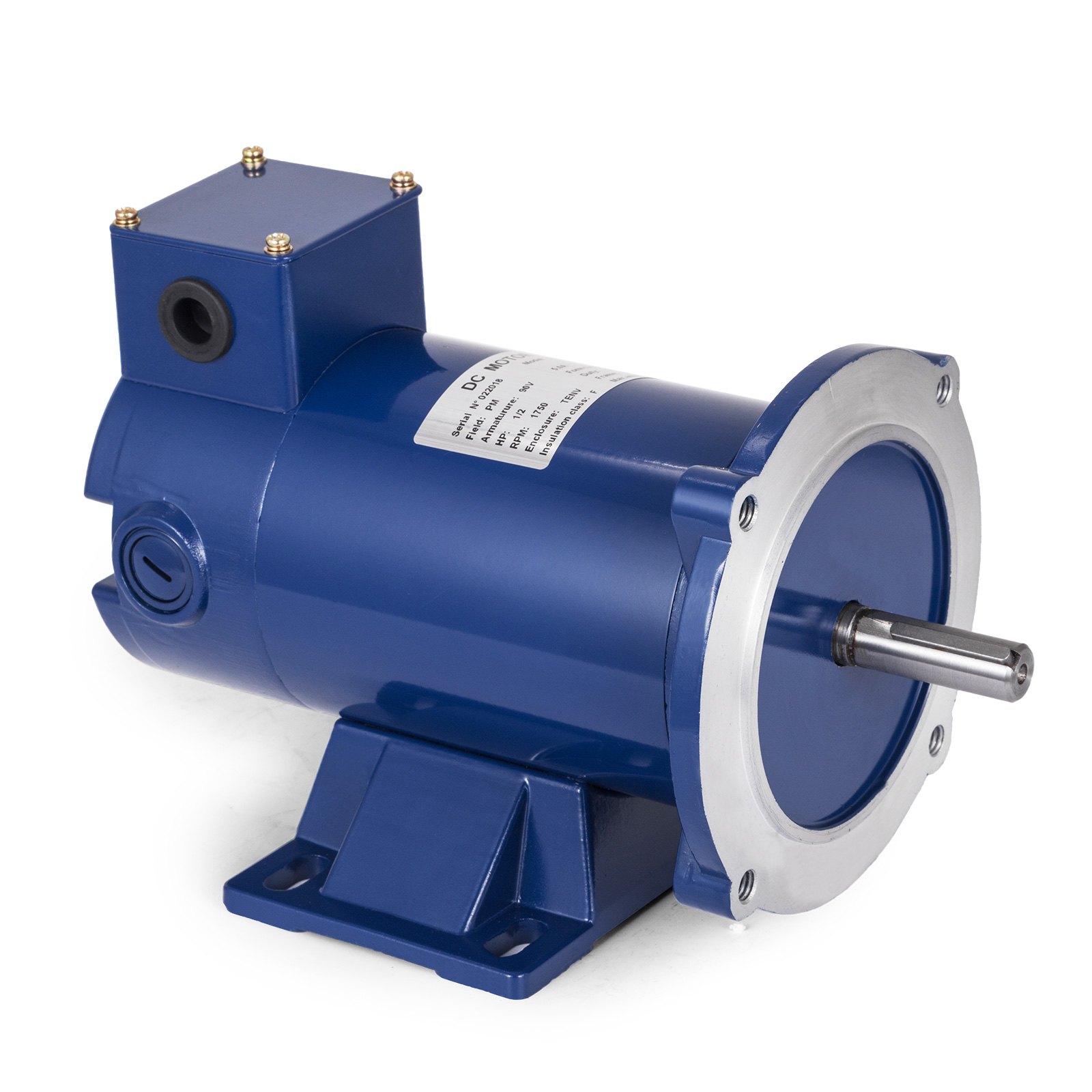

blue VEVOR dc motor with metallic shaft on a mounting base.
Brushed DC Motor 1/2HP 90V 56C 1750RPM TENV
The 1/2HP DC motor we offered is permanent magnet DC motor, 90V voltage, TENV system, 56C frame and 1750RPM rated speed. With removable base and durable stylish blue casing, high efficiency with long life, you can rest assured to buy.
  • Permanent Magnet DC Motor
  • Efficient & Durable
  • Detachable Base
  • Spare Carbon Brushes
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

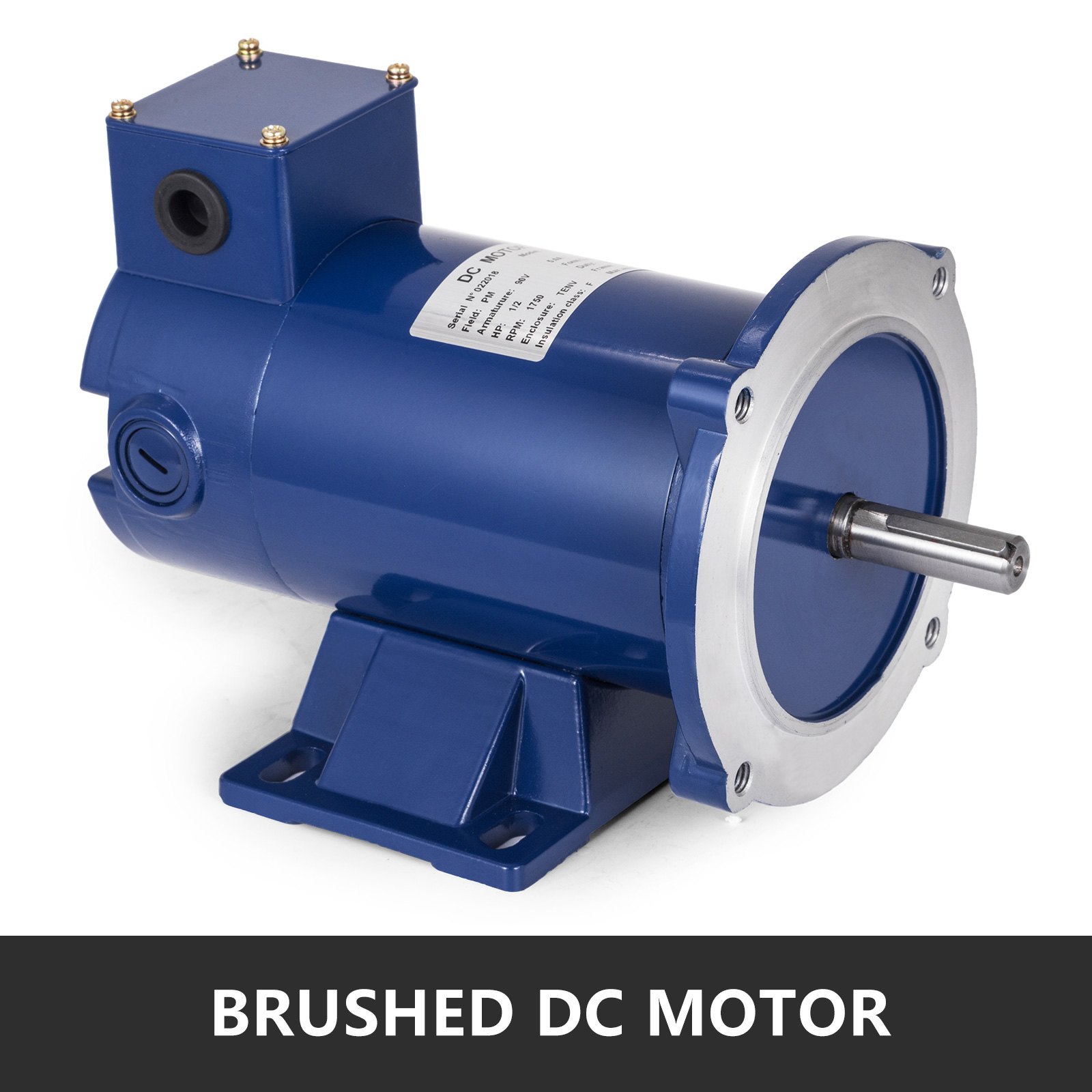

blue VEVOR dc motor on white background, labeled "brushed dc motor".
Brushed DC Motor
With built-in fan cooling system, the TENV (totally enclosed non-ventilated ) motor can dissipate heat better to prevent damage from overheating. Rated Speed: 1750 RPM, HP: 1/2.

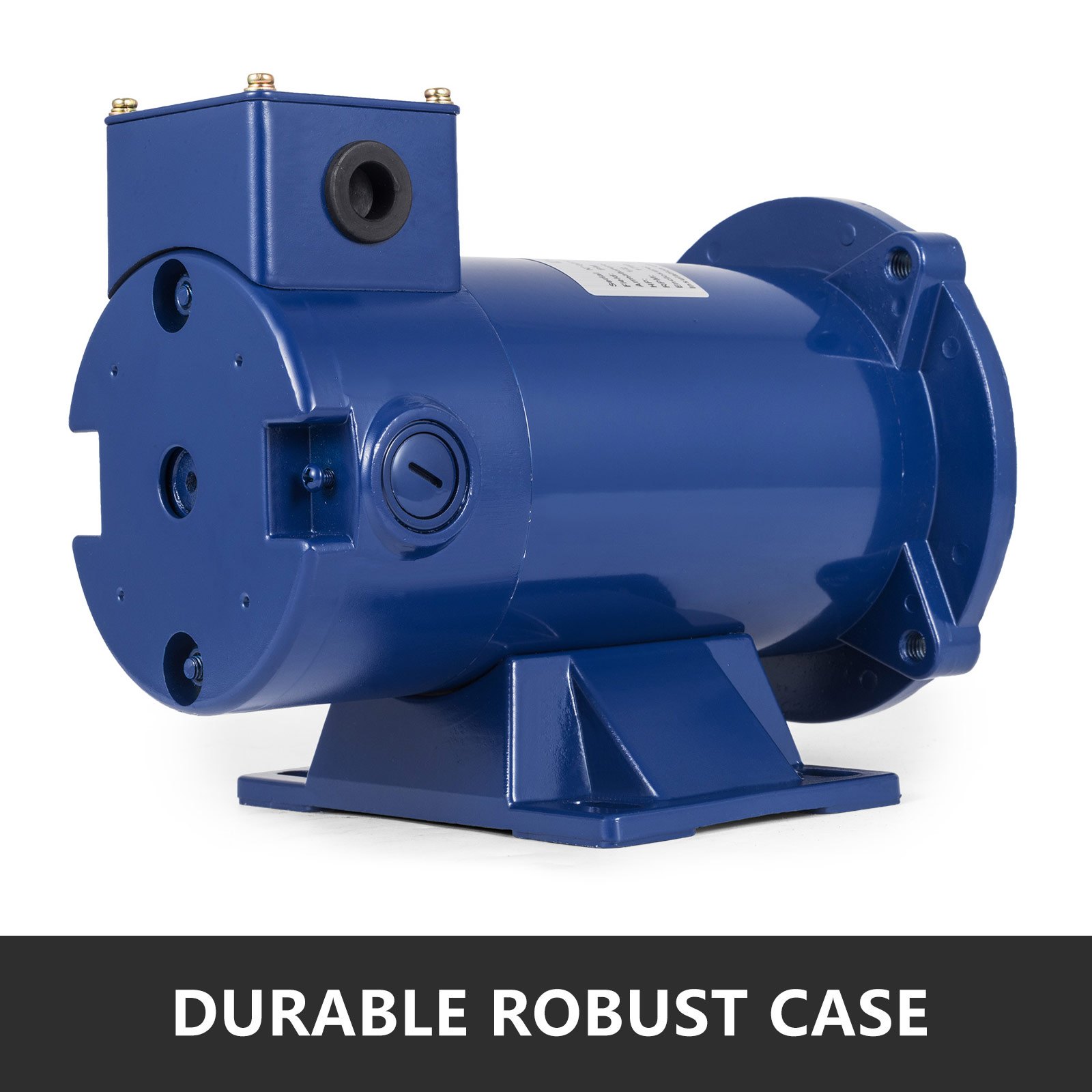

VEVOR dc motor with durable robust blue casing.
Durable Robust Case
High quality steel outer casing, F insulation class, durable and robust. Double seal ball bearings with permanent grease filling for long life.

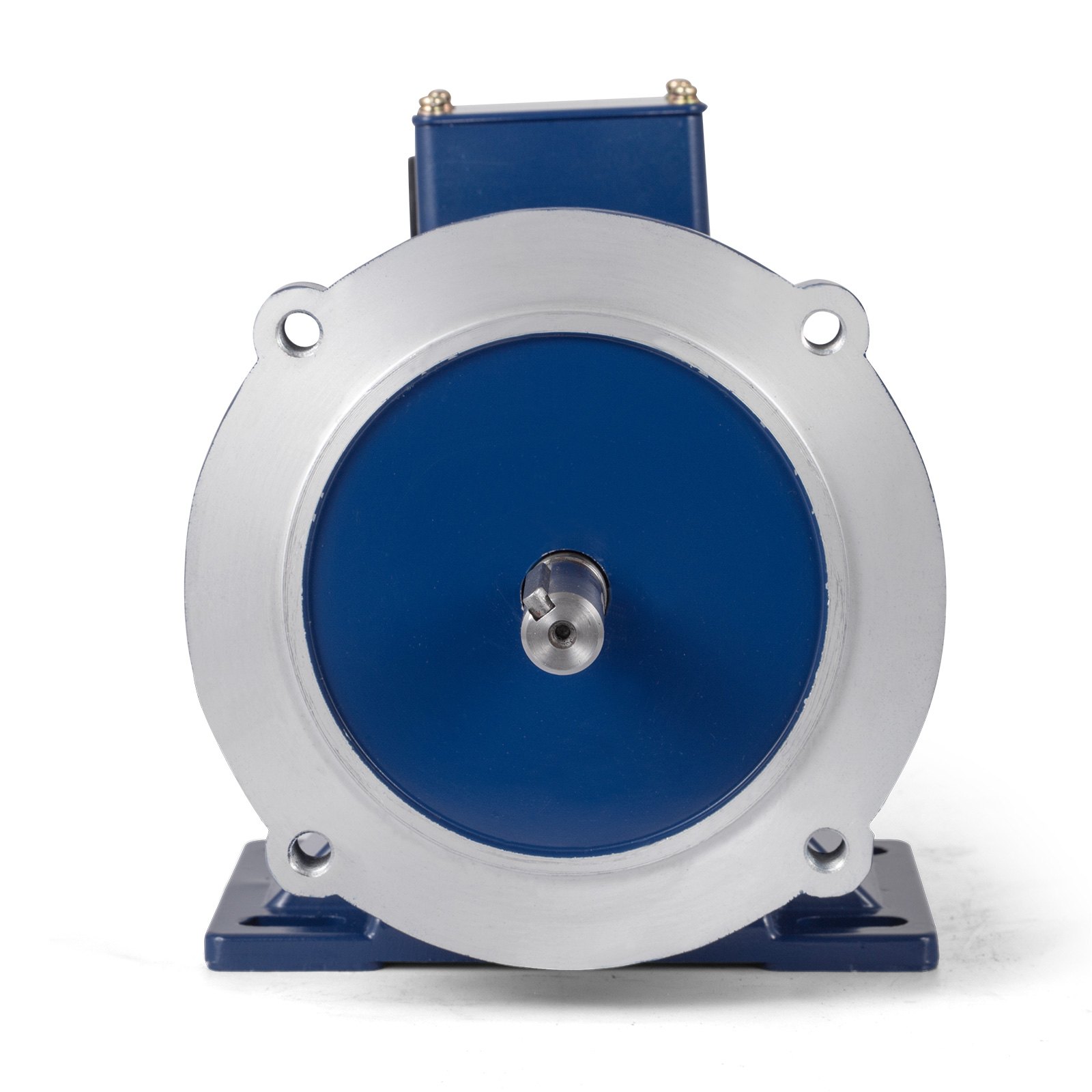

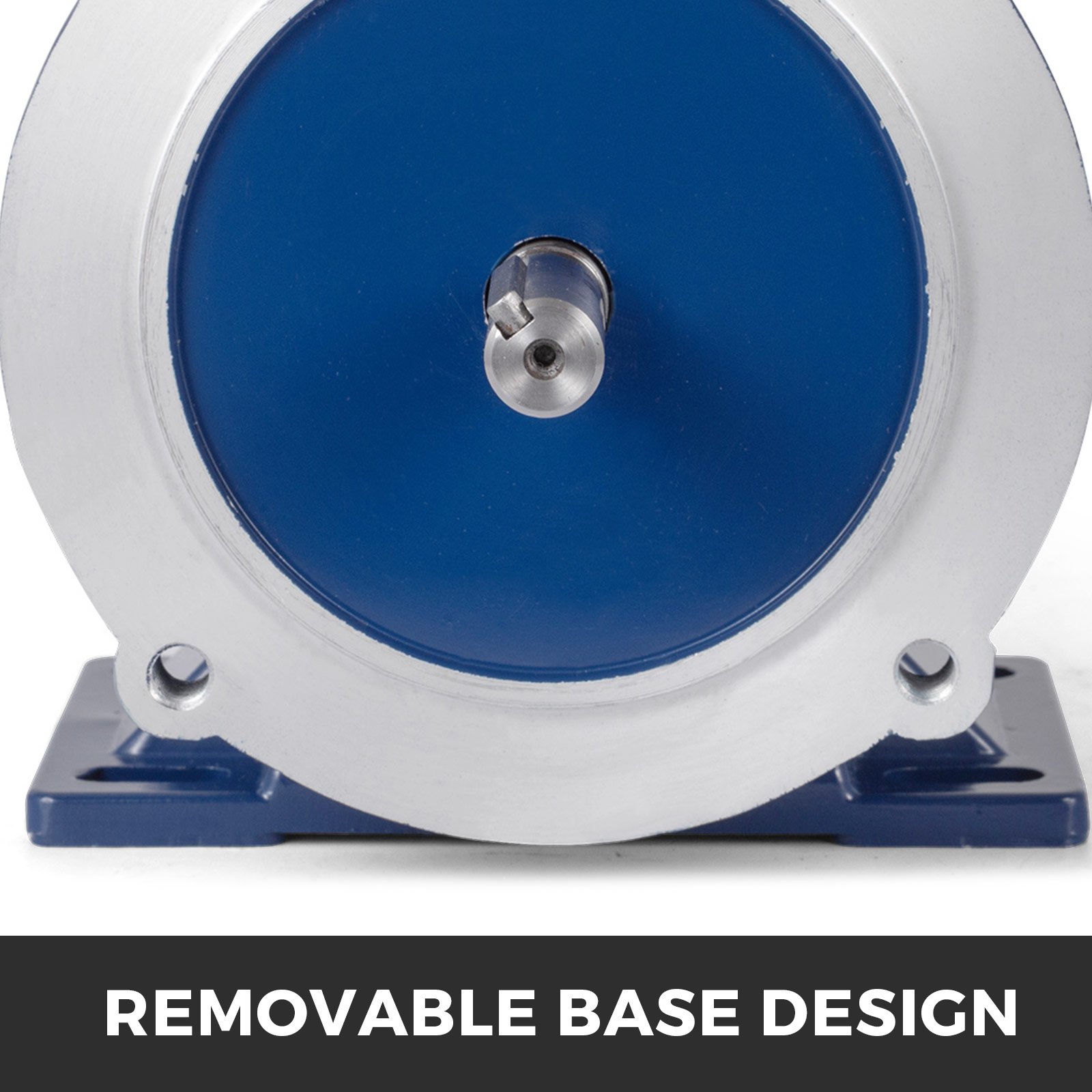

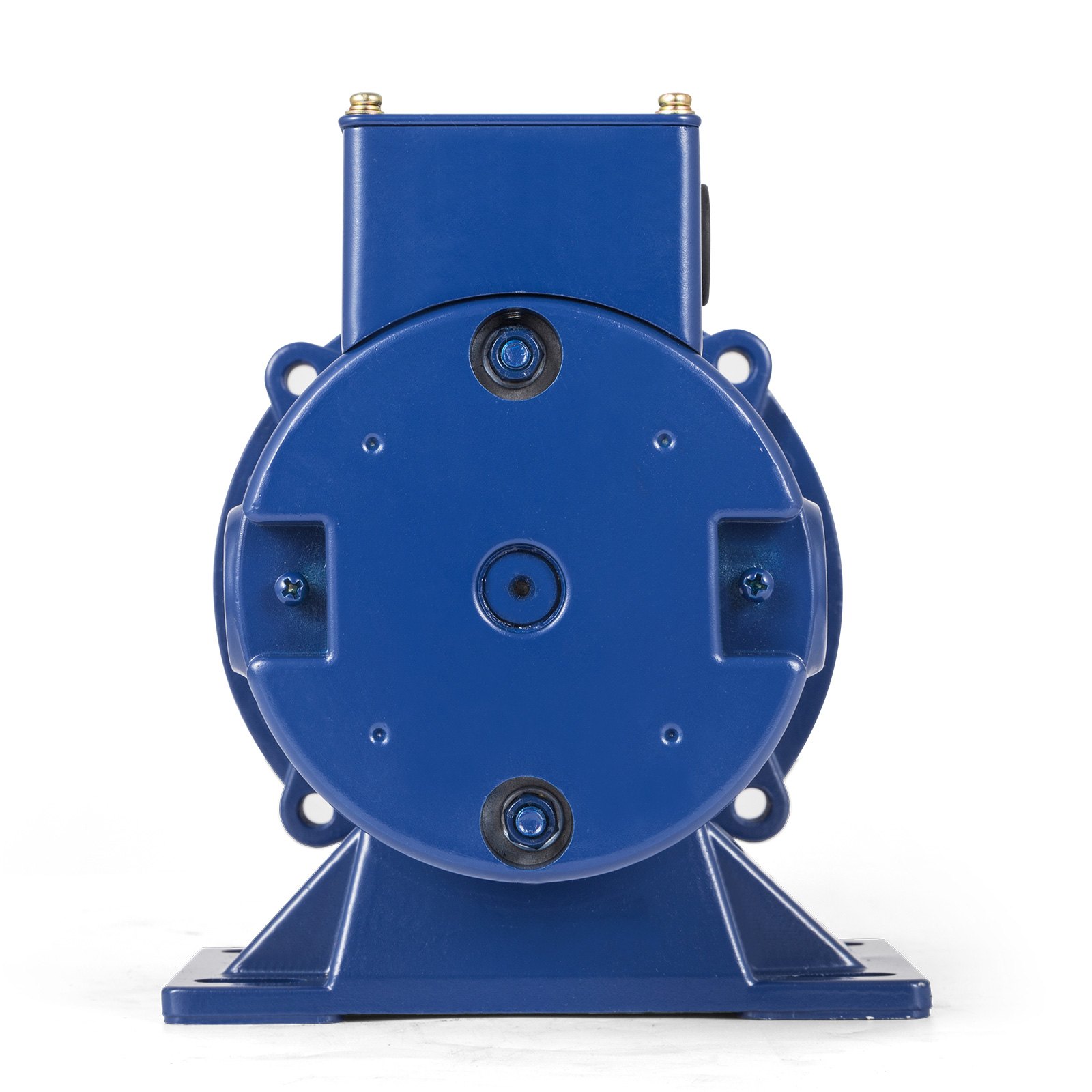

VEVOR dc motor with removable base design shown from the front.
With Removable Base
Our tenv dc motor has removable base and 56C frame for dual mounting versatility. Easy to mounted and remove.

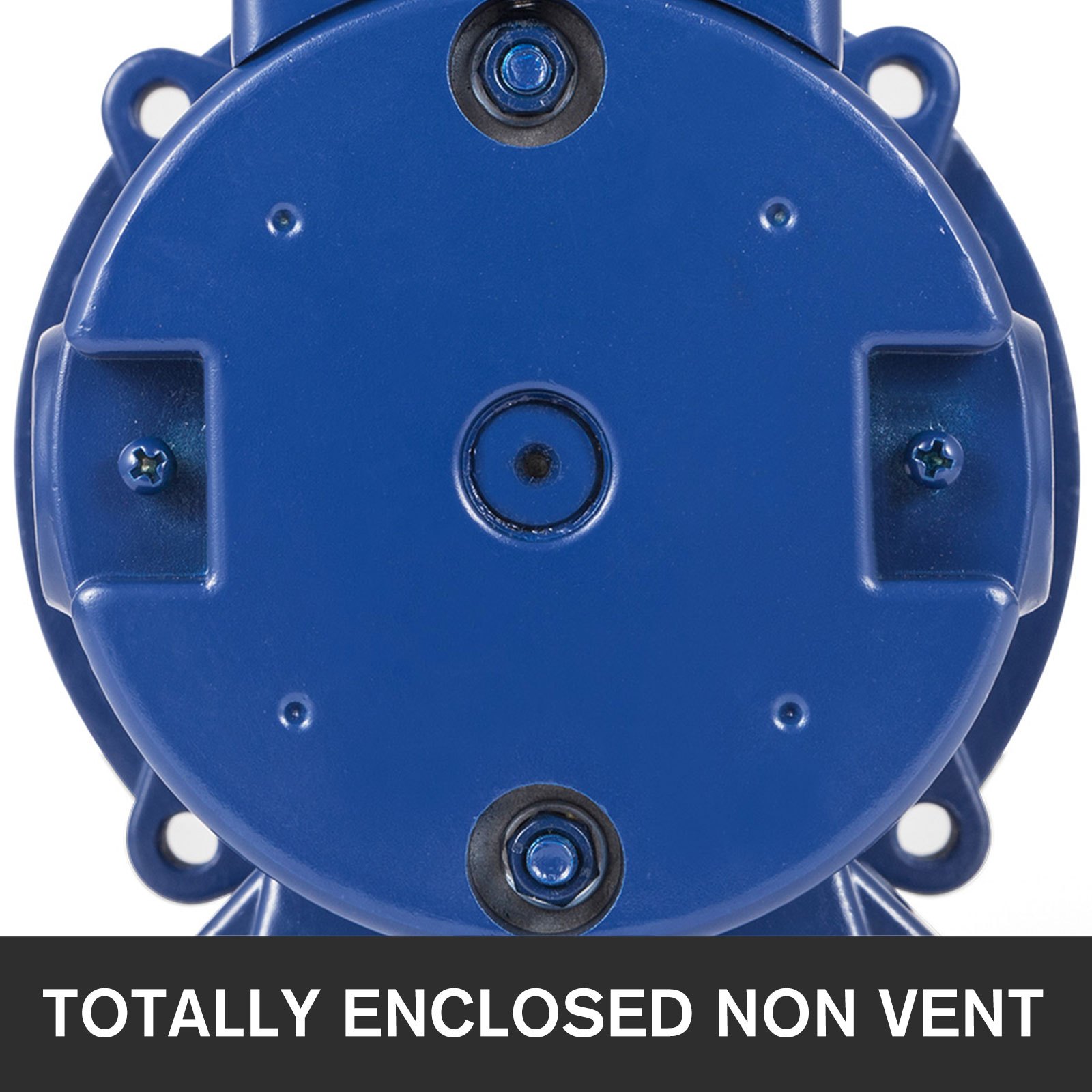

blue VEVOR dc motor with a totally enclosed non-vented design.
Totally Enclosed Non Vent
The motor is TENV (totally enclosed Non Vent) brushed DC motor. The built-in fan cooled for no temp rise. Aluminum alloy end plate to prevent corrosion.

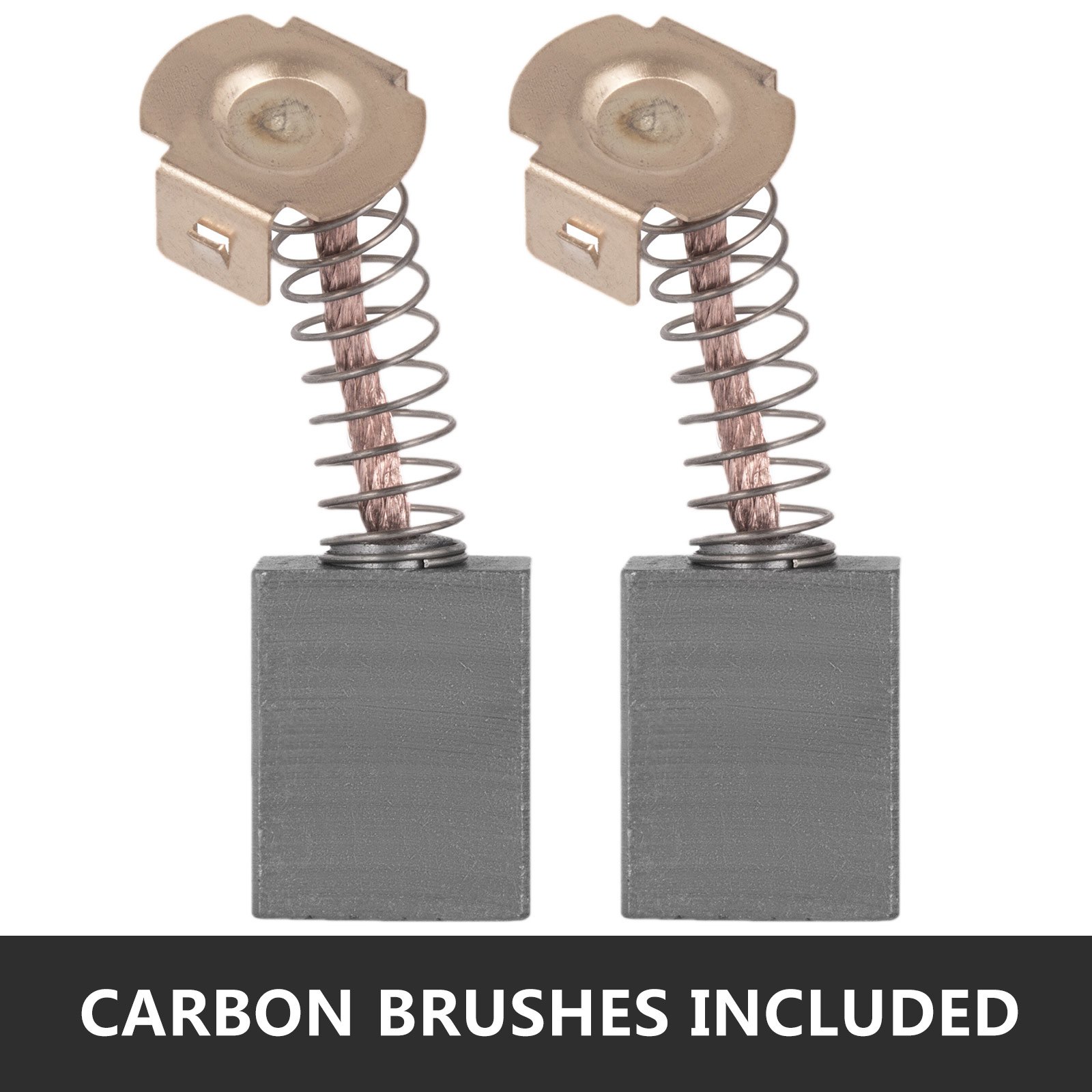

two VEVOR dc motor carbon brushes with springs included.
Carbon Brushes Included
One pair of spare carbon brushes. Carbon brush is consumable part, should be replaced regularly. Insulation Class: F, Service Factor: 1.10.

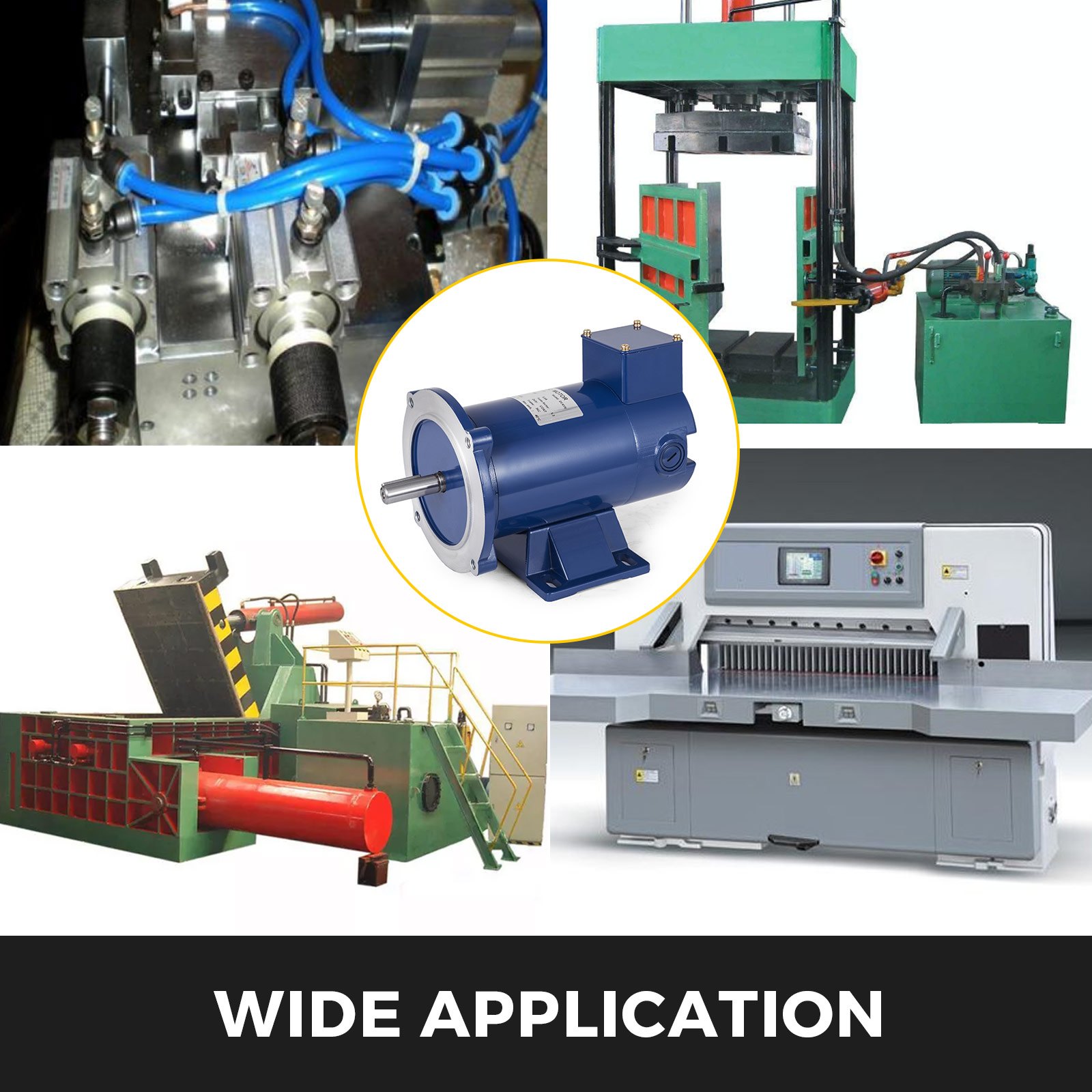

VEVOR dc motor showcasing its wide application in industrial machinery.
Wide Application
Brushed DC motors have come to dominate many applications. Our DC motors are generally used for equipment such as wire peeler, baler, paper cutter, etc.

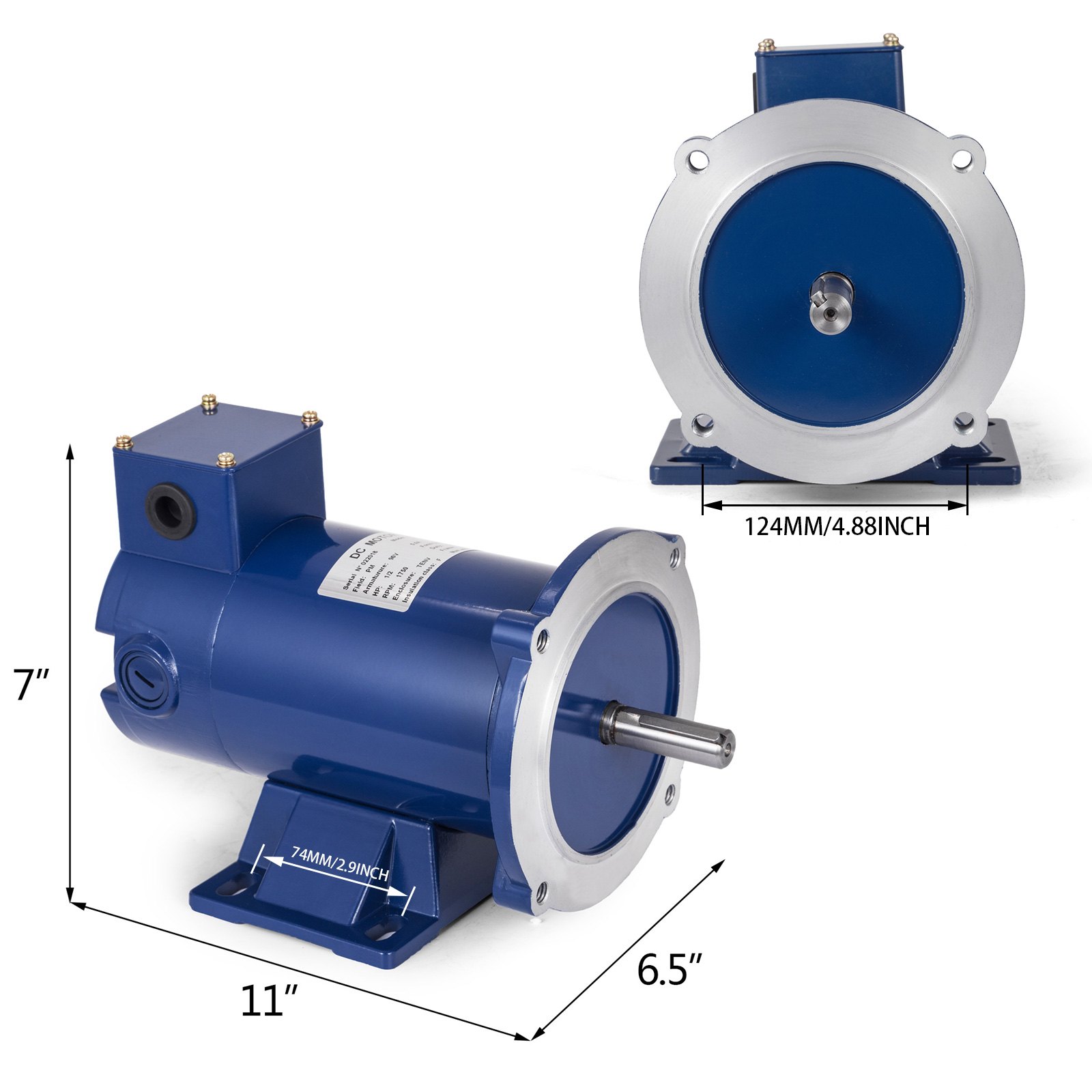

blue VEVOR dc motor with dimensions: 11"x6.5"x7"; 4.88" diameter faceplate.
Specifications
  • Rated Voltage: 90V
  • Rated Current: 5.0 A
  • Rated Power: 1/2 HP
  • Rated Speed: 1750 RPM
  • No-load Speed: 1930 RPM
  • Rated Torque: 2.05 N.m
  • Enclosure: TENV
  • Frame: 56C
  • Service Factor: 1.10

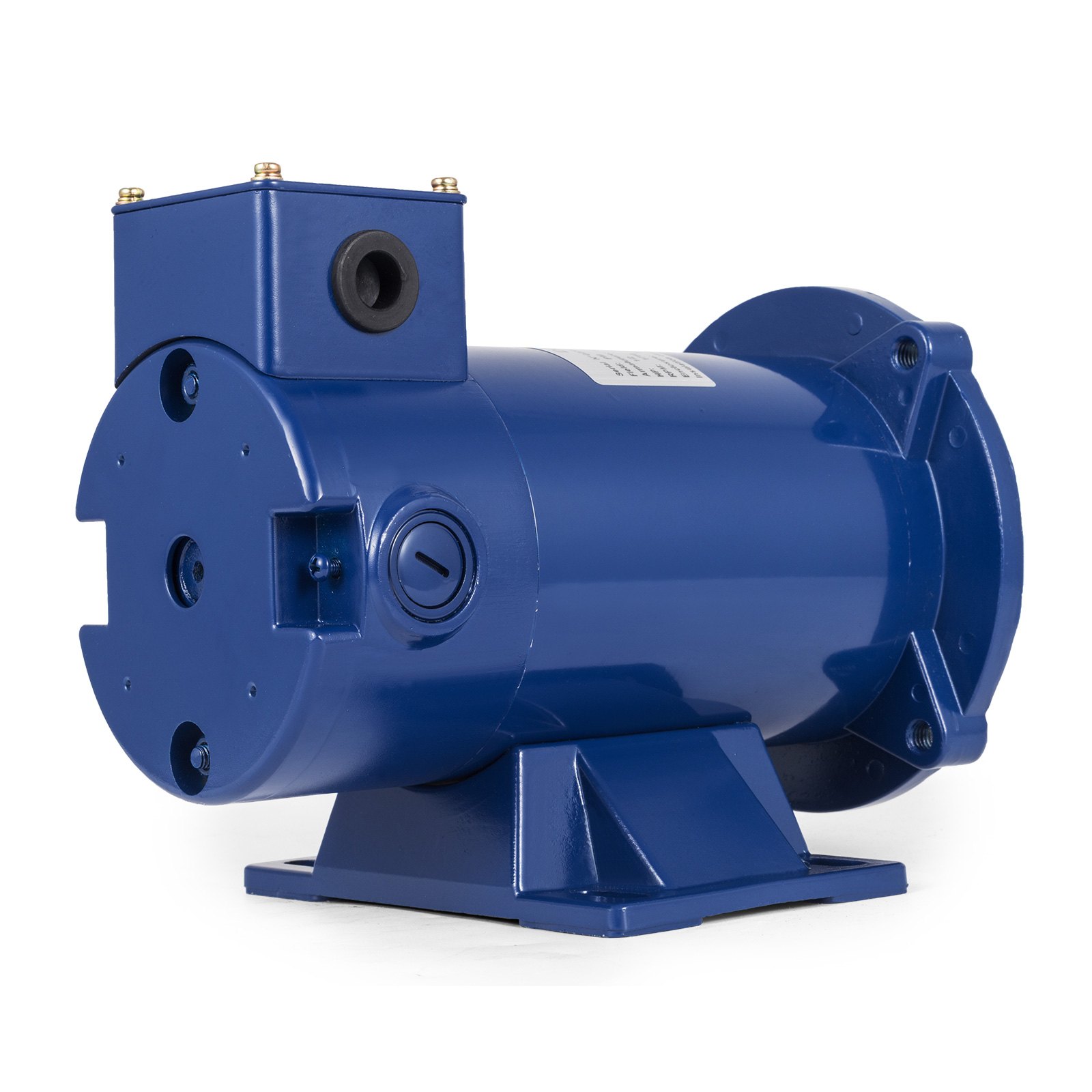

blue VEVOR dc motor with a metal shaft and mounting bracket.
Package Content
  • 1 x 1/2HP DC Motor
  • 2 x Carbon Brush
brushed dc motor 1/2hp 90v 56c 1750rpm tenv on factory background. VEVOR dc motor
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
blue VEVOR dc motor with metallic shaft on a mounting base.
Brushed DC Motor 1/2HP 90V 56C 1750RPM TENV
The 1/2HP DC motor we offered is permanent magnet DC motor, 90V voltage, TENV system, 56C frame and 1750RPM rated speed. With removable base and durable stylish blue casing, high efficiency with long life, you can rest assured to buy.
  • Permanent Magnet DC Motor
  • Efficient & Durable
  • Detachable Base
  • Spare Carbon Brushes
blue VEVOR dc motor on white background, labeled "brushed dc motor".
Brushed DC Motor
With built-in fan cooling system, the TENV (totally enclosed non-ventilated ) motor can dissipate heat better to prevent damage from overheating. Rated Speed: 1750 RPM, HP: 1/2.
VEVOR dc motor with durable robust blue casing.
Durable Robust Case
High quality steel outer casing, F insulation class, durable and robust. Double seal ball bearings with permanent grease filling for long life.
VEVOR dc motor with removable base design shown from the front.
With Removable Base
Our tenv dc motor has removable base and 56C frame for dual mounting versatility. Easy to mounted and remove.
blue VEVOR dc motor with a totally enclosed non-vented design.
Totally Enclosed Non Vent
The motor is TENV (totally enclosed Non Vent) brushed DC motor. The built-in fan cooled for no temp rise. Aluminum alloy end plate to prevent corrosion.
two VEVOR dc motor carbon brushes with springs included.
Carbon Brushes Included
One pair of spare carbon brushes. Carbon brush is consumable part, should be replaced regularly. Insulation Class: F, Service Factor: 1.10.
VEVOR dc motor showcasing its wide application in industrial machinery.
Wide Application
Brushed DC motors have come to dominate many applications. Our DC motors are generally used for equipment such as wire peeler, baler, paper cutter, etc.
blue VEVOR dc motor with a metal shaft and mounting bracket.
Package Content
  • 1 x 1/2HP DC Motor
  • 2 x Carbon Brush
blue VEVOR dc motor with dimensions: 11"x6.5"x7"; 4.88" diameter faceplate.
Specifications
  • Rated Voltage: 90V
  • Rated Current: 5.0 A
  • Rated Power: 1/2 HP
  • Rated Speed: 1750 RPM
  • No-load Speed: 1930 RPM
  • Rated Torque: 2.05 N.m
  • Enclosure: TENV
  • Frame: 56C
  • Service Factor: 1.10

Questions and Answers (11)

11 Questions
Ask a Question
Showing 1-11 of 11
Sort by: Featured questions
Do you have a speed controller for this?
Answer This Question
No, we don't have a speed controller for this.
By vevor on
I want to put a potentiometer on this device to make it variable speed. Will this create issues?
Answer This Question
Because this is a DC motor, so it is generally recommended that you with a gearbox or choose a silicon controlled DC motor controller, the stability will be better.
By vevor on
can it be run in both directions with a switch, can it be run on 110 ac, can a gear reduction work on it
Answer This Question
After the motor is connected to the power supply, it must either run forward or reverse. AC power cannot be used. DC power must be used, and a reducer that matches the motor shaft must be used.
By vevor on
What is the shaft diameter and length?
Answer This Question
The diameter is 15.87 and the length of the shaft is 47.6mm.
By vevor on
How wide is the shaft
Answer This Question
The diameter of the motor's output shaft is 15.87mm.
By vevor on
