Features & Details

• 【EXCELLENT PERFORMANCE】 - The CNC spindle motor kit is of low noise, low friction, and long service life. It takes advantage of air circulation to cool the spindle's heat with 24000 rpm high speed. Besides, large cooling holes and air-cooled fans facilitate good heat dissipation and smooth running.
• 【PREMIUM SPINDLE MOTOR】 - The air cooled spindle motor with upgraded ceramic bearings adopts rust-proof materials and dynamic balance technology to reduce noise, wear and tear during the actual operation. And the one-time molding design features high concentricity & high precision for an excellent performance.
• 【VARIABLE FREQUENCY DRIVE】 - This VFD driver has a single-phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting, etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. And the unique control mode attains high torque, high precision, full speed regulation drive, and can adapt to the poor power grid, temperature, humidity, and dust interference ability.
• 【DURABLE SPINDLE CLAMP】 - The clamp of the CNC spindle motor is constructed of high-quality cast aluminum for sturdiness and durability. And the well-finished surface is designed to provide a better smoothness. It is high-efficiency for you to fasten the spindle.
• 【EXTENSIVE APPLICATION】 - With ER20 collets, milling drill bits, aviation plugs, the extension cord, and the connecting wire, this VFD CNC spindle motor kits are widely applicable to engraving machine for carving materials such as wood, stone, mold & metal, etc.

Frequently Bought Together

Videos for this product

About this item

Product specification

Spindle Motor

Power

2.2KW

Voltage

220V

Frequency

400 Hz

Speed

0-24000 RPM

Current

8.5A

Collet Chuck

ER20

Cooling

Air-cooled

Accuracy

0.002" (0.05 mm)

Runout Off

0.002" (0.05 mm)

Bearings

6002/7005

Variable Frequency Drive

Power

2.2 KW

Input Voltage

220V

Output Voltage

220V

Input Phase

1 Phase

Output Phase

3 Phase

Input Frequency

50 Hz

Output Frequency

0-400 Hz

Output Current

11A

Package Size

3.50" x 5.83" x 4.68" (89 x 148 x 119 mm)

Gross Weight

2.2 lbs (1 kg)

Spindle Clamp

Diameter

3.15" (80 mm)

Material

Aluminum

ER20 Collets

Diameter

0.12/0.13/0.16/0.2/0.24/0.3/0.28/0.32/0.35/0.4/0.43/0.47/0.5/0.51-inch (3/3.175/4/5/6/6.35/7/8/9/10/11/12/12.7/13 mm)

Outer Diameter

0.83" (21 mm)

Height

1.24" (31.5 mm)

Description

2.2KW CNC Spindle Motor Kits

The CNC spindle motor kit comes with a premium spindle motor, variable frequency drive, and aluminum spindle clamp for high-temperature resistance, low noise & low friction, and high speed. It is widely applicable to the engraving machine for carving materials such as wood, stone, metal, etc.

• Excellent Performance
• Premium Spindle Motor
• Variable Frequency Drive
• Durable Spindle Clamp

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

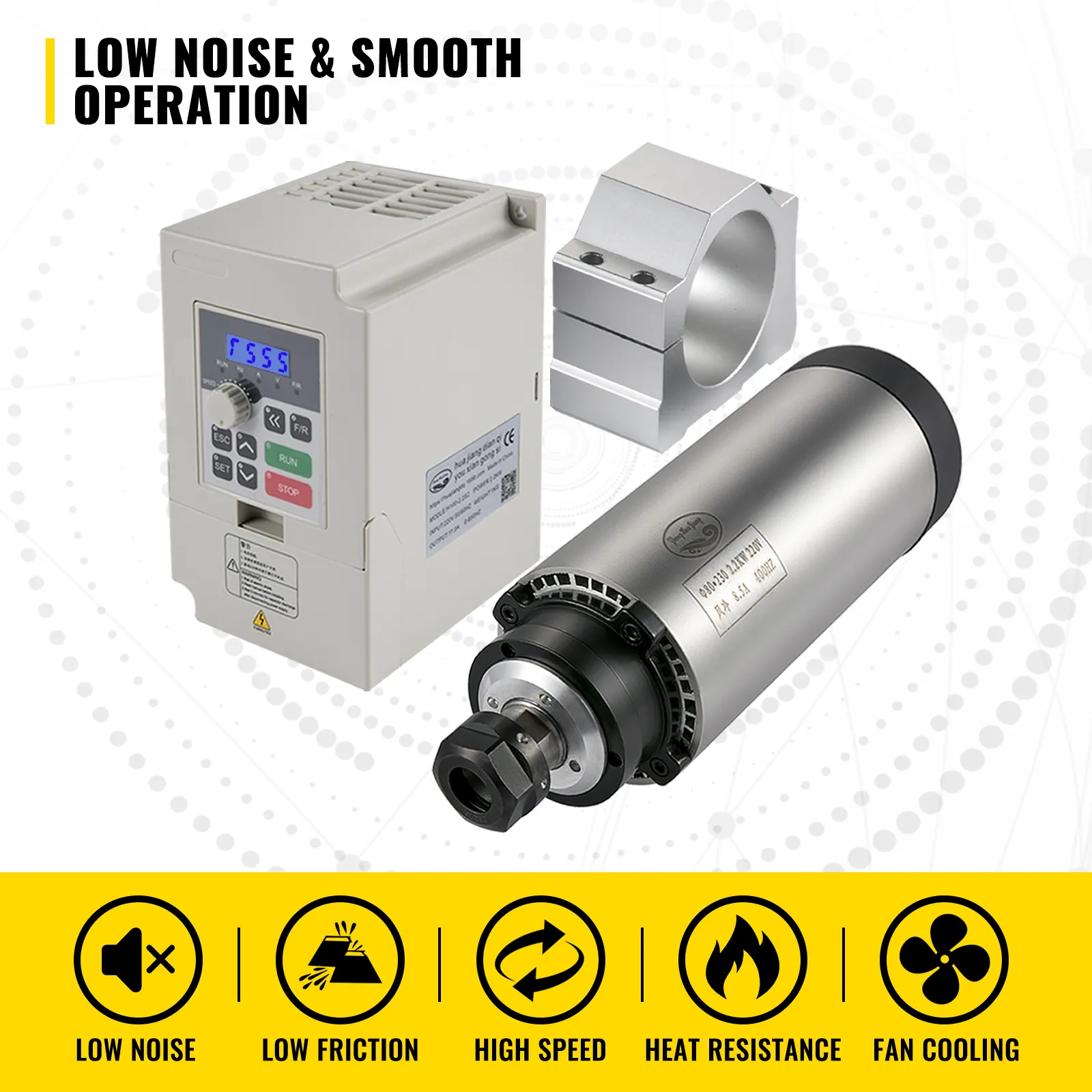

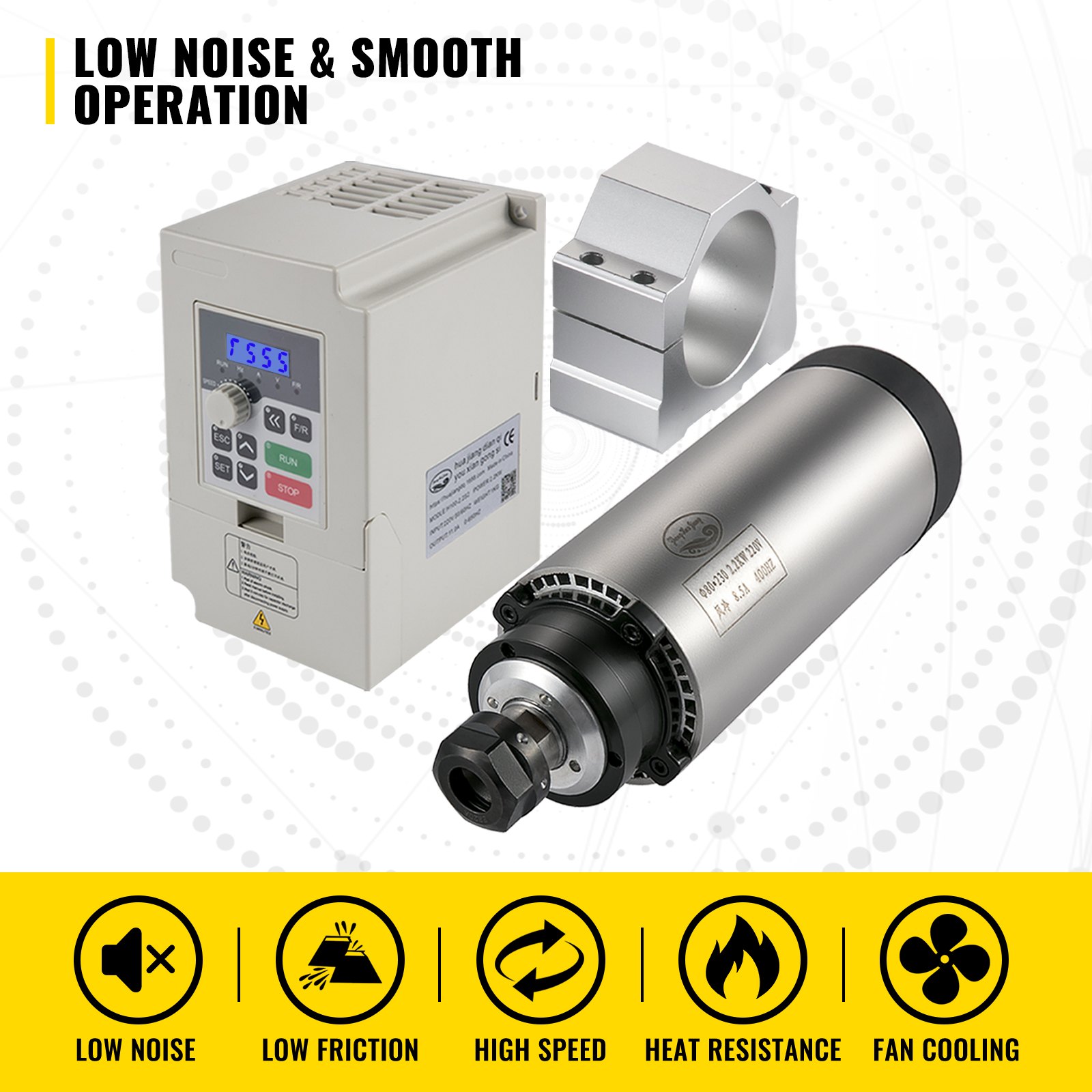

Low Noise & Smooth Operation

The CNC spindle motor kit is characterized by high-temperature resistance, low noise & low friction, and high speed. And with vents and air-cooled fans, the machine has a powerful cooling capacity and low electromagnetic interference.

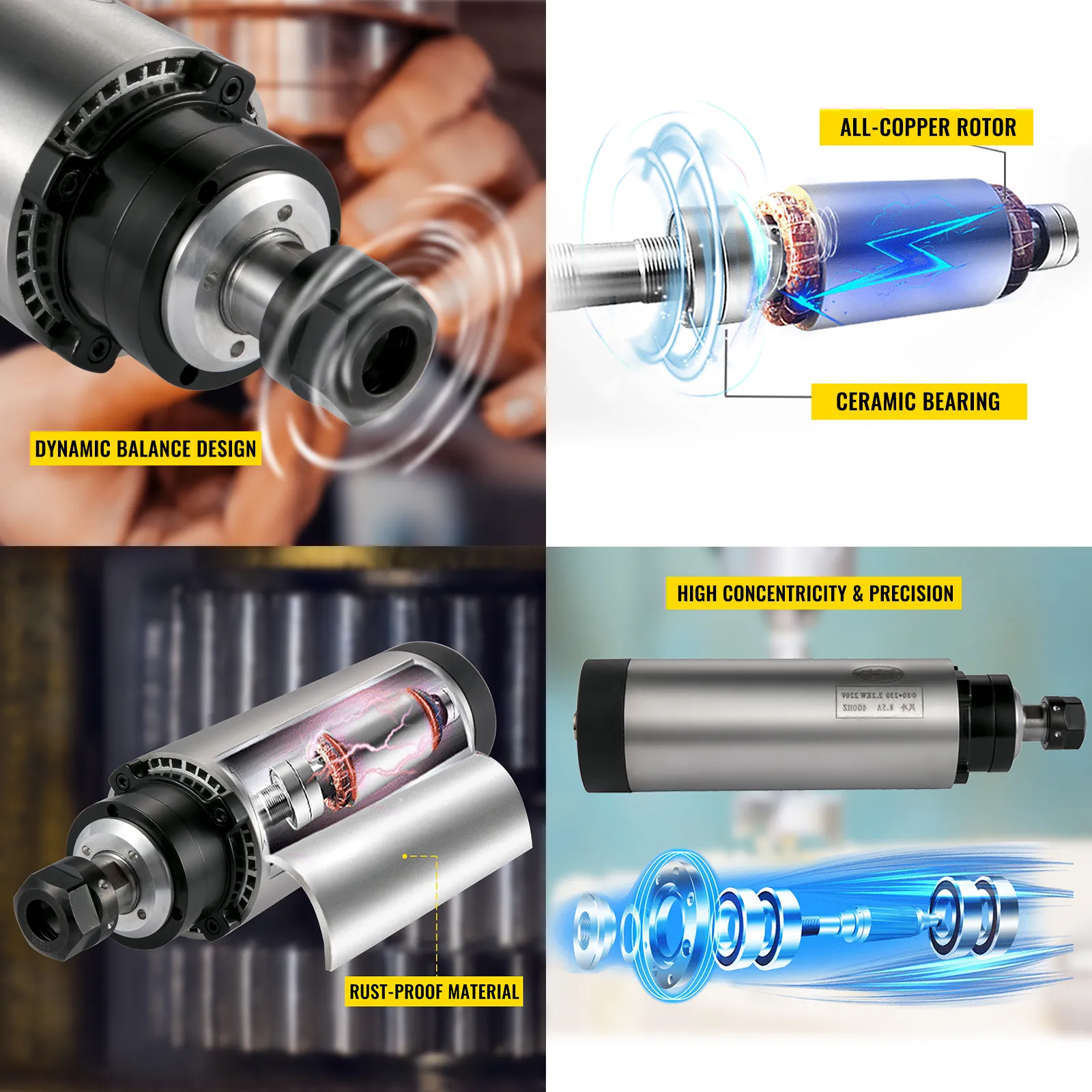

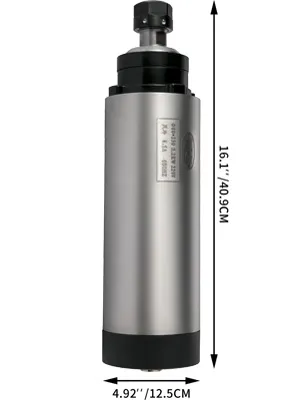

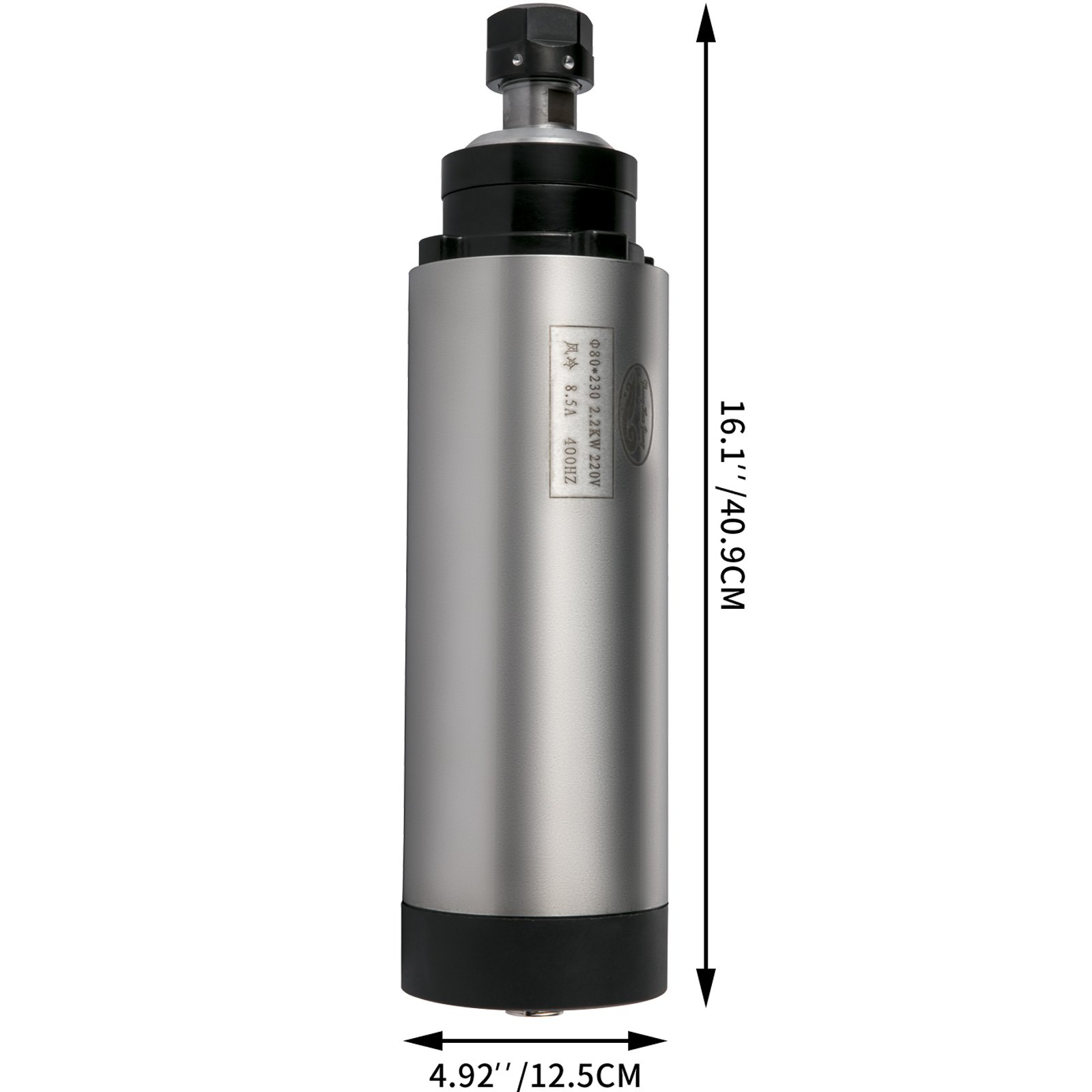

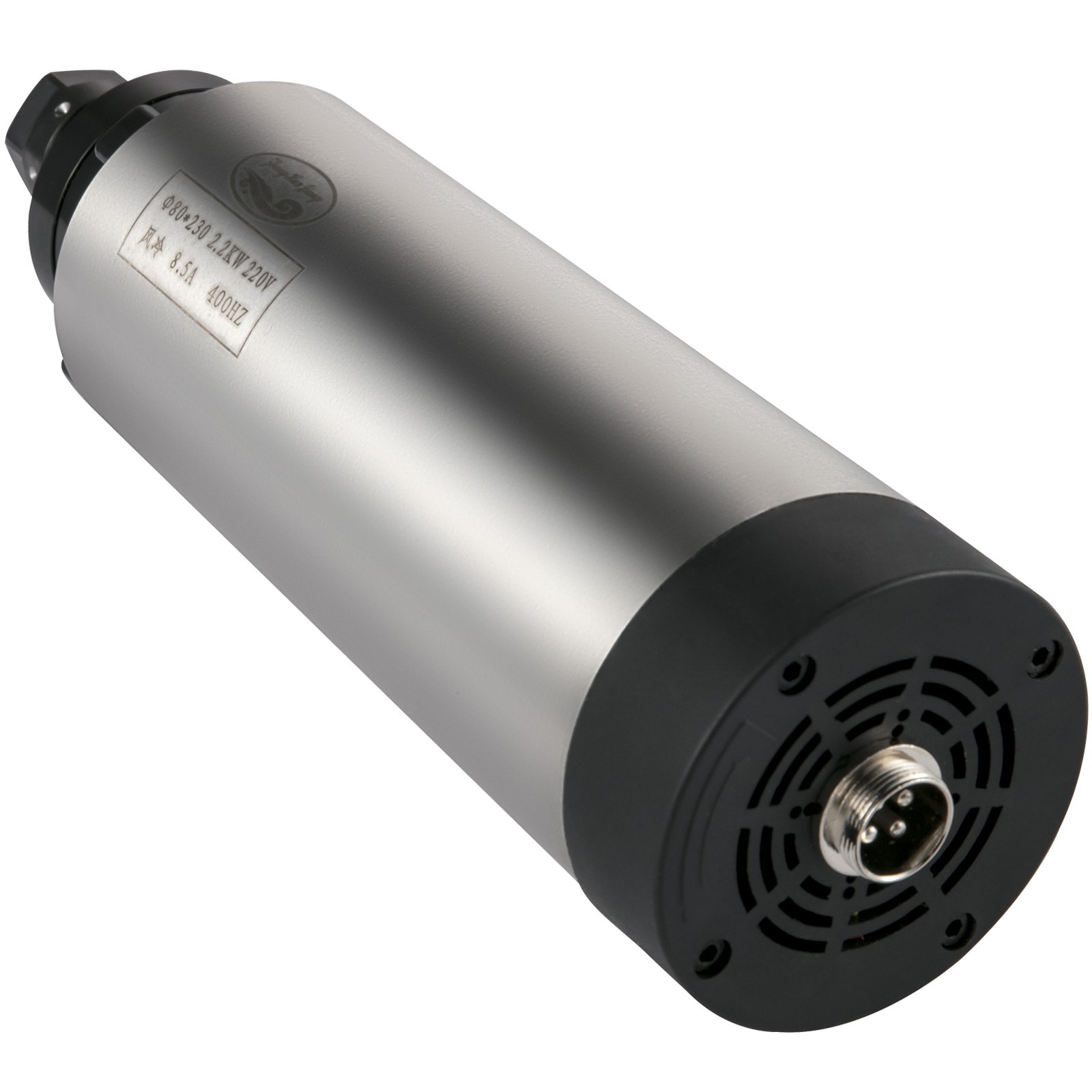

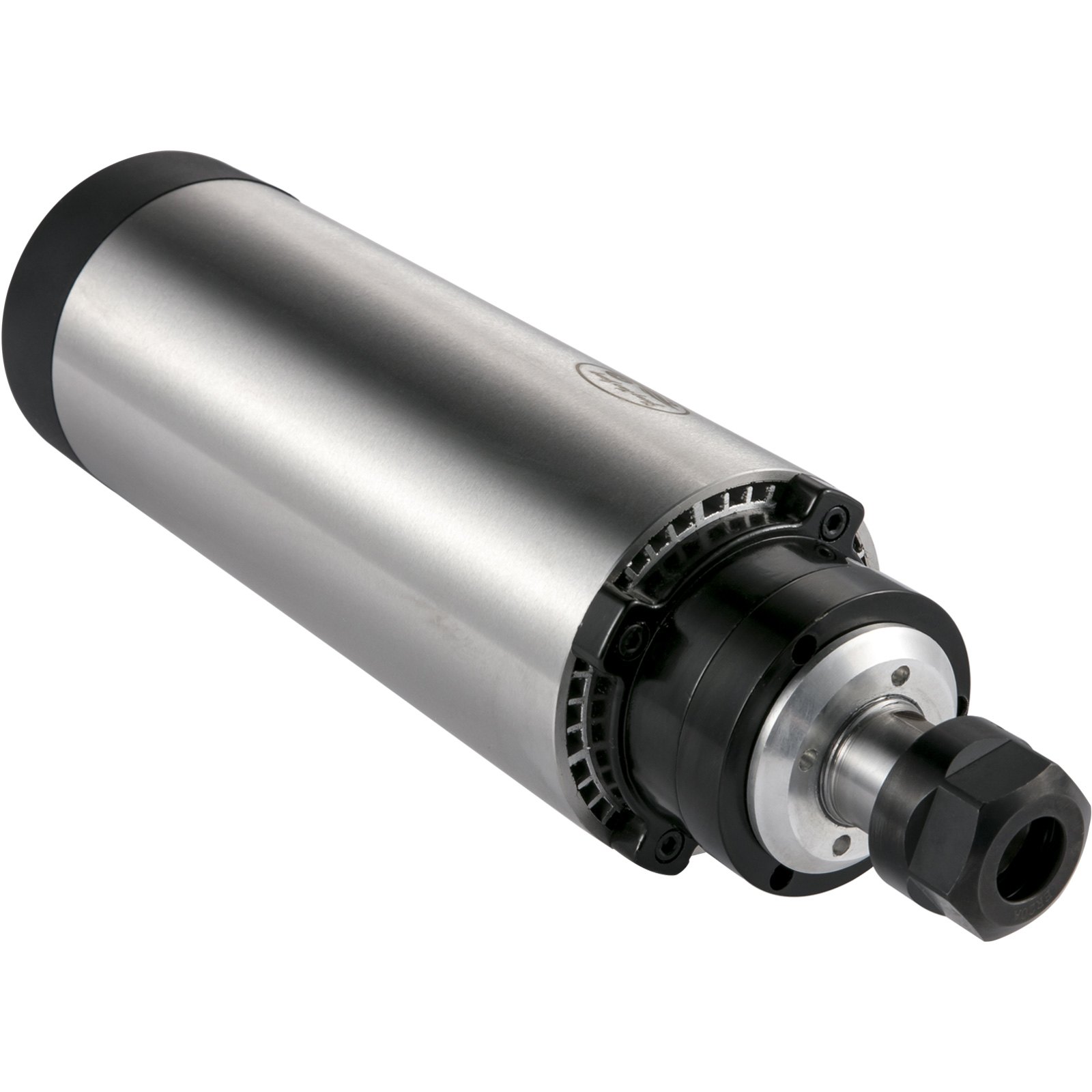

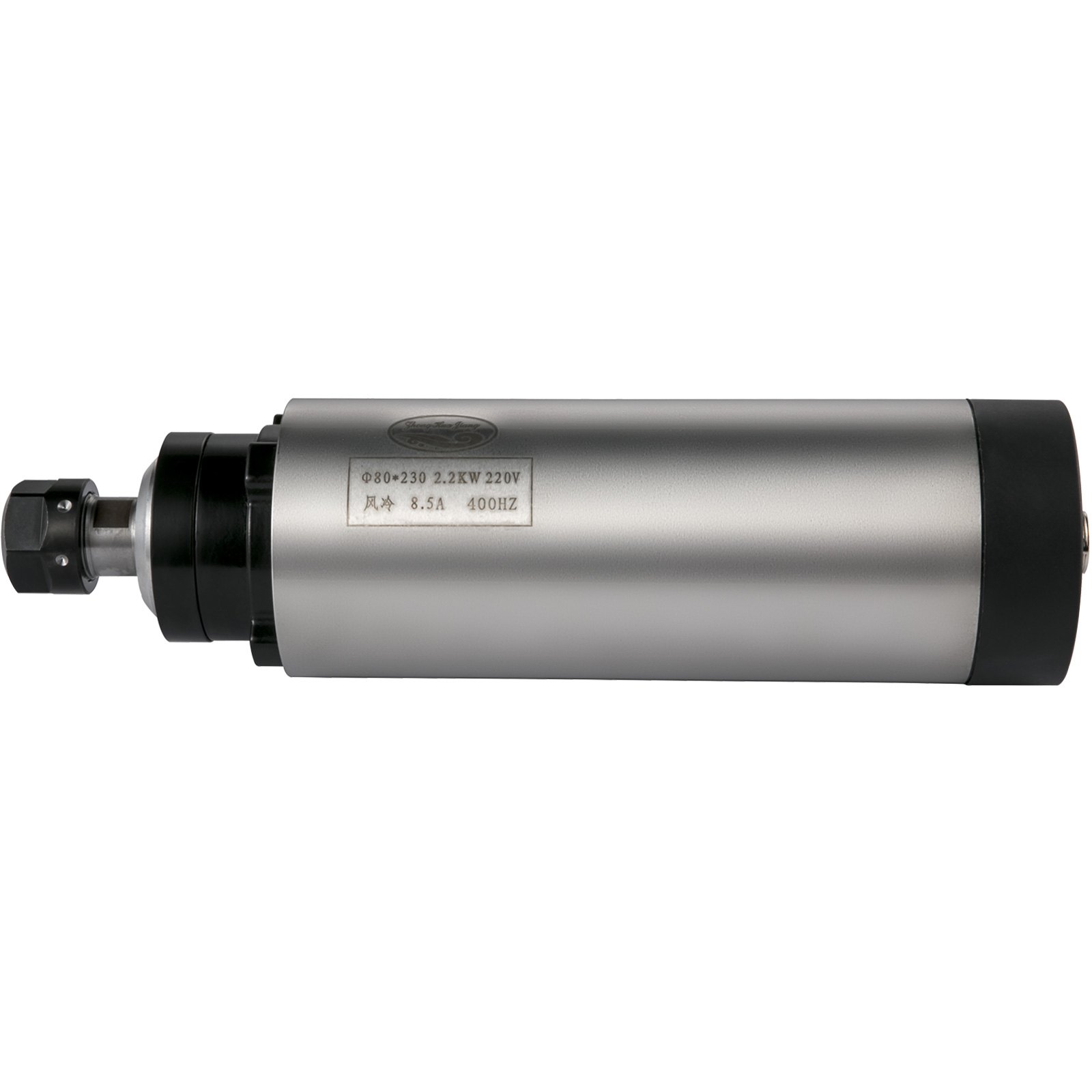

Air Cooled Spindle Motor

Unlike other spindle motors, ours use advanced dynamic balancing technology to achieve noise reduction. Its durable surface, high-speed core, and ceramic ball bearings significantly improve hardness and efficiency to be ideal for the engraving machine.

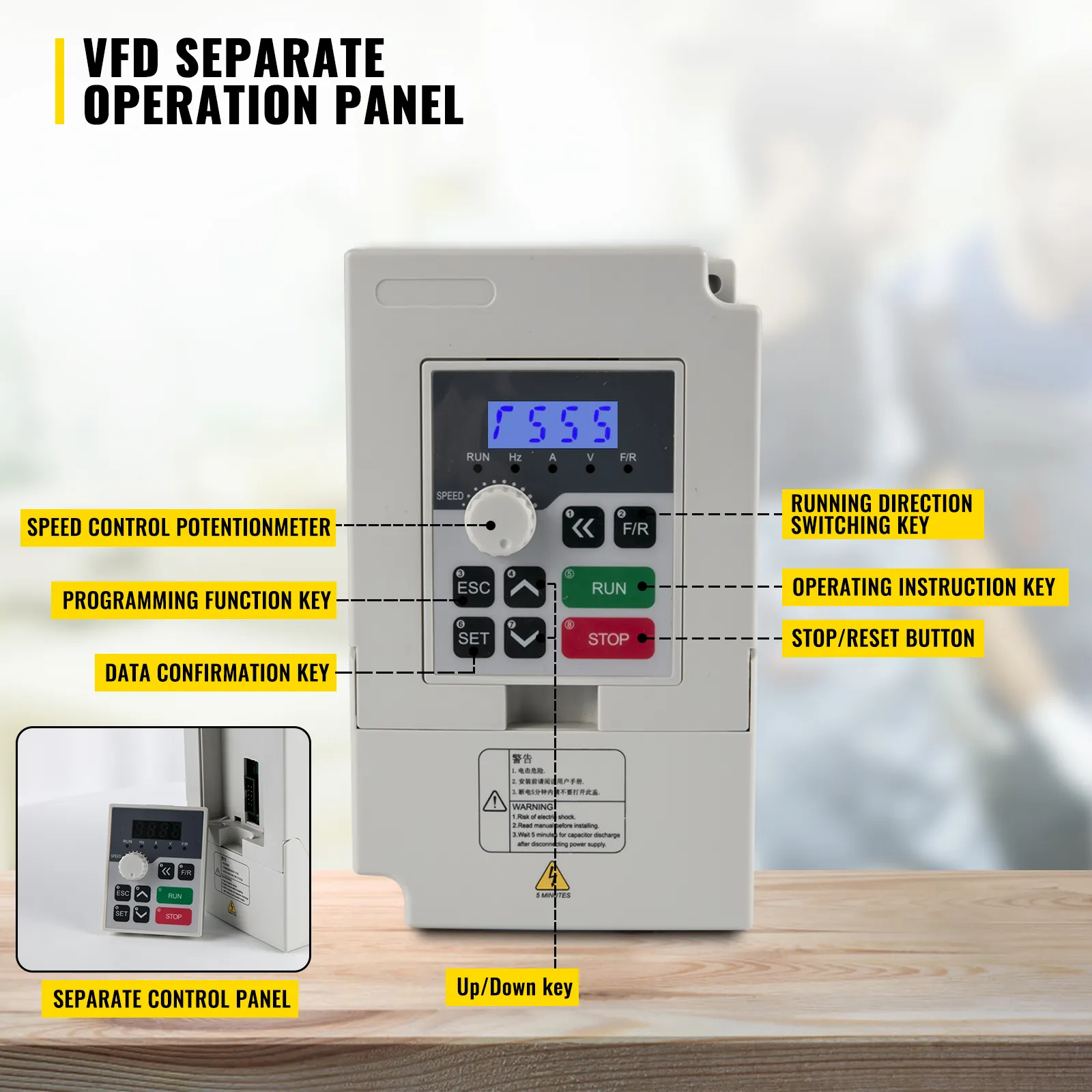

VFD Separate Operation Panel

The variable frequency drive is equipped with full-featured buttons and a detachable panel for quick operation and remote control. Reasonable layout and intuitive digital display increase the convenience of daily use for constant torque loads and variable torque loads.

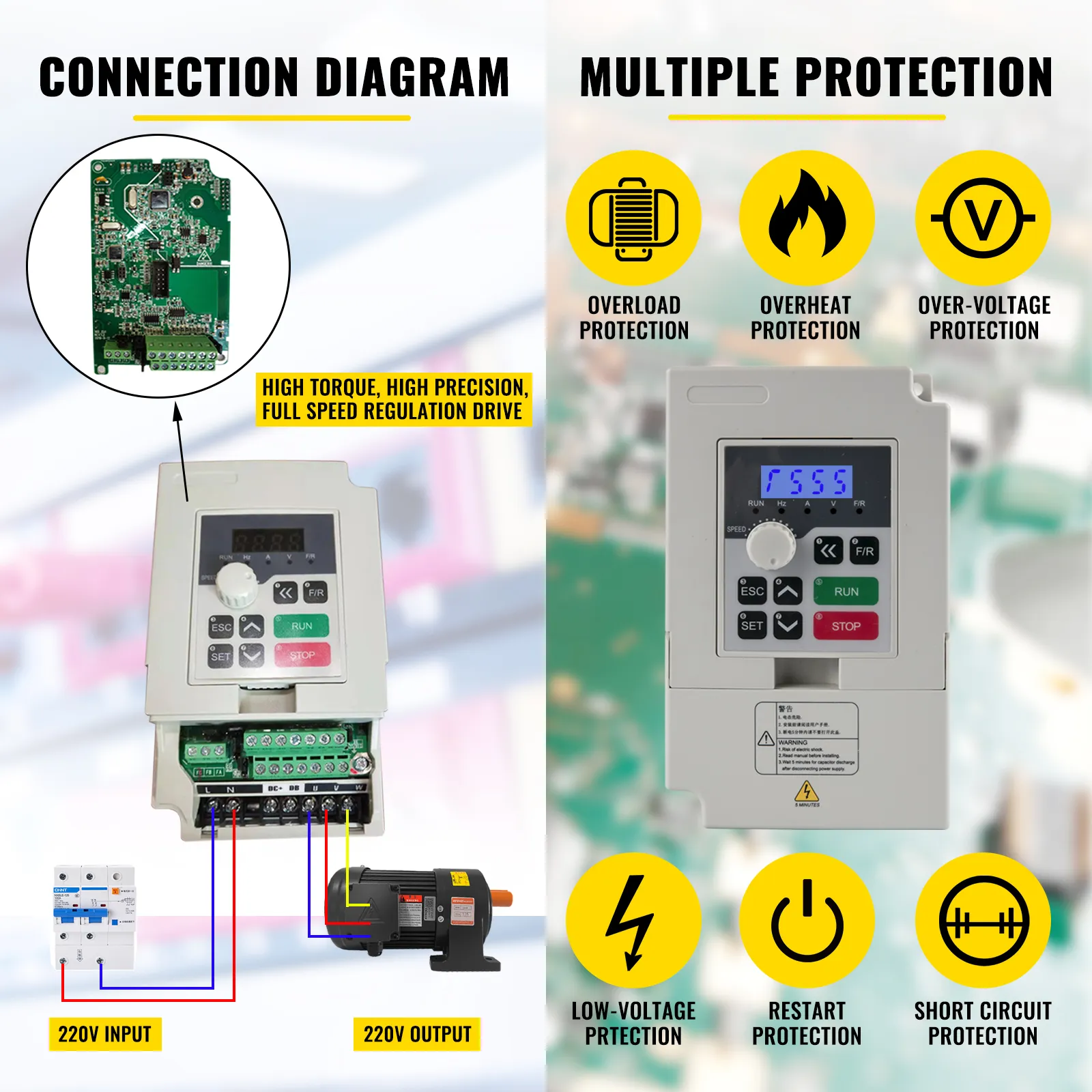

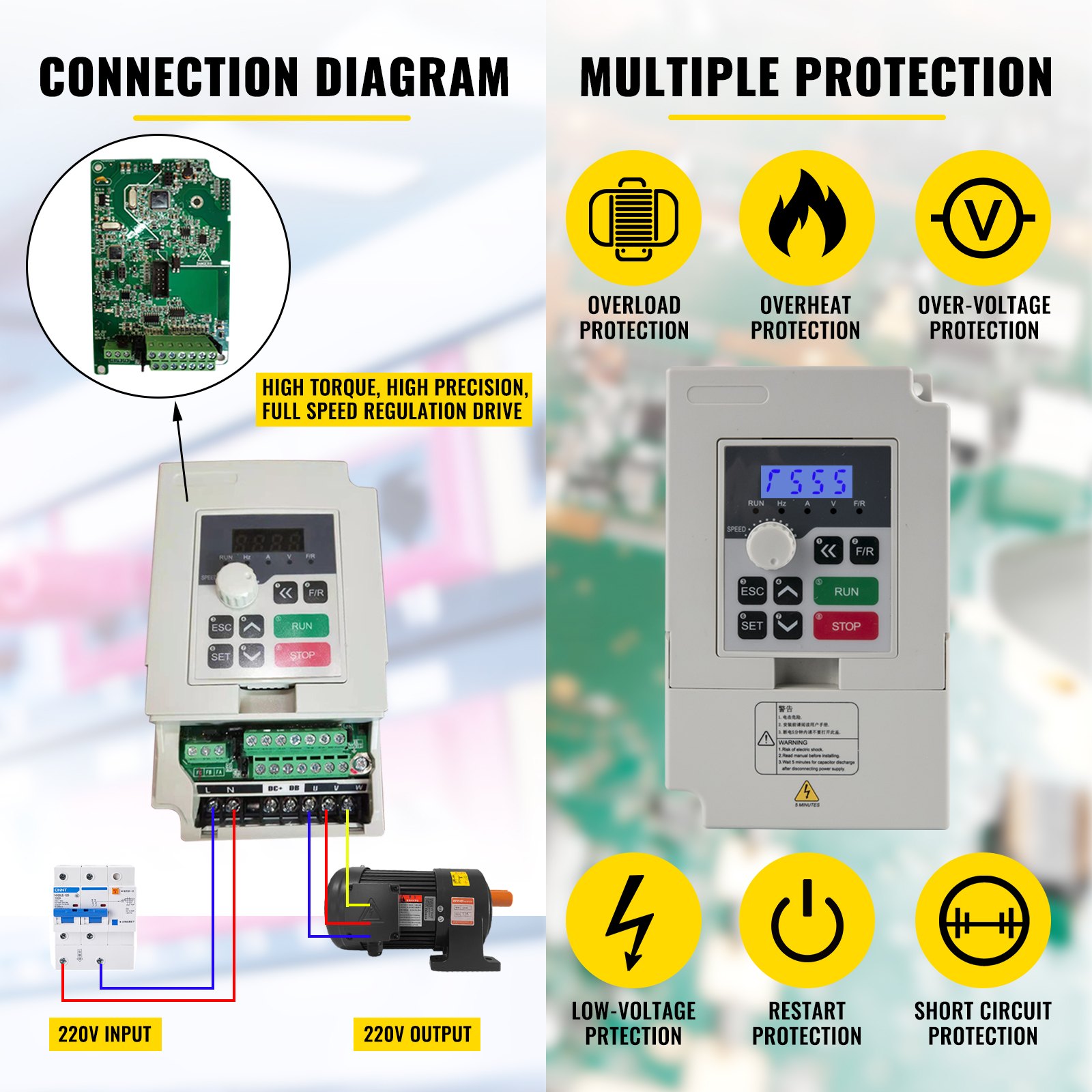

Control Terminals & Multiple Protection

The variable frequency drive is rich in digital and analogy control terminals for versatile control. With 220V single phase input and 220V 3 phase output, the VFD is easy to connect with power and motor. And many protection ways are adopted to ensure stable and reliable operation.

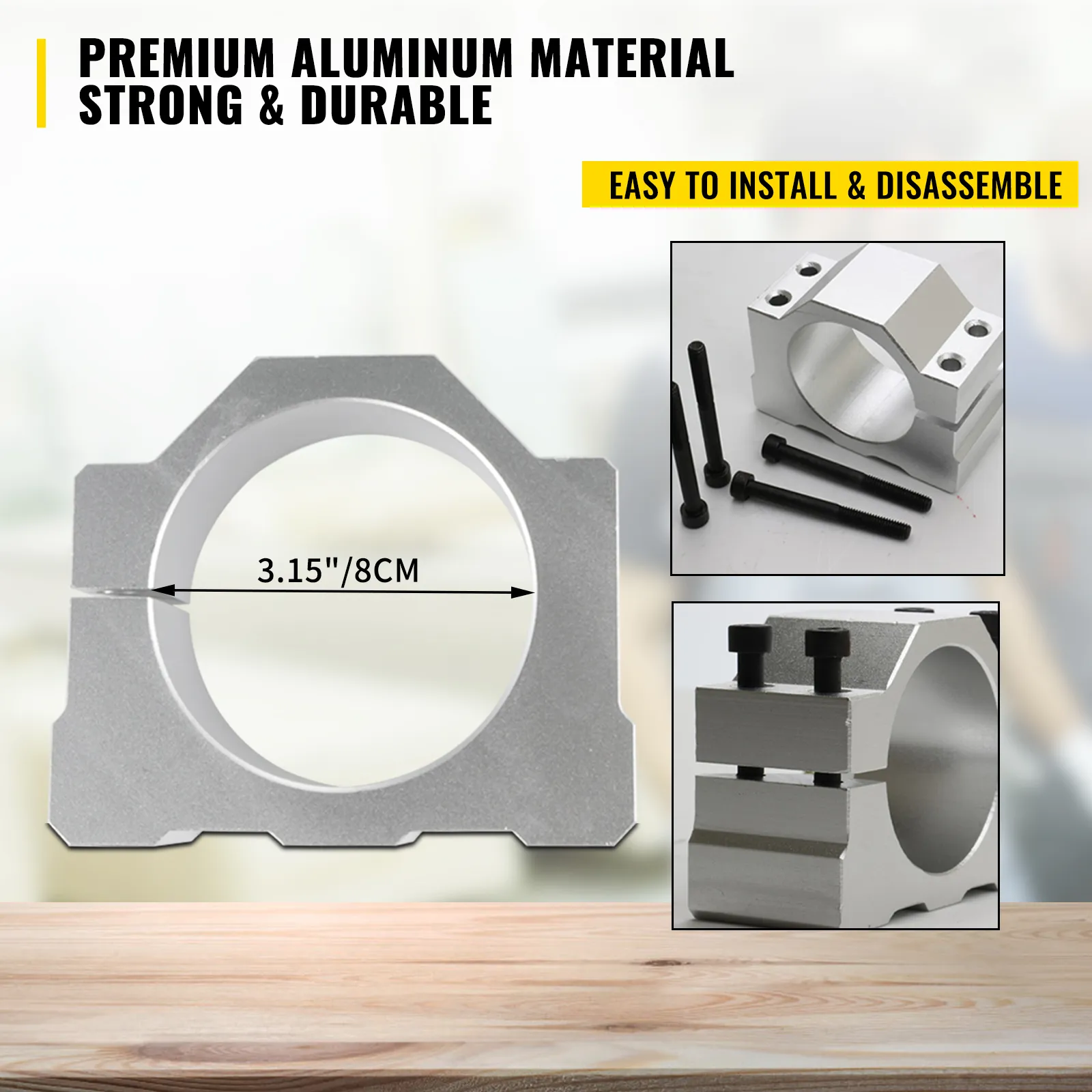

Aluminum Spindle Clamp

The clamp with the finished surface is made of aluminum material, which is lightweight enough for you to install, remove, and use easily. After the fixing frame is aligned, you only need to screw the screws to the four corresponding holes to complete the installation.

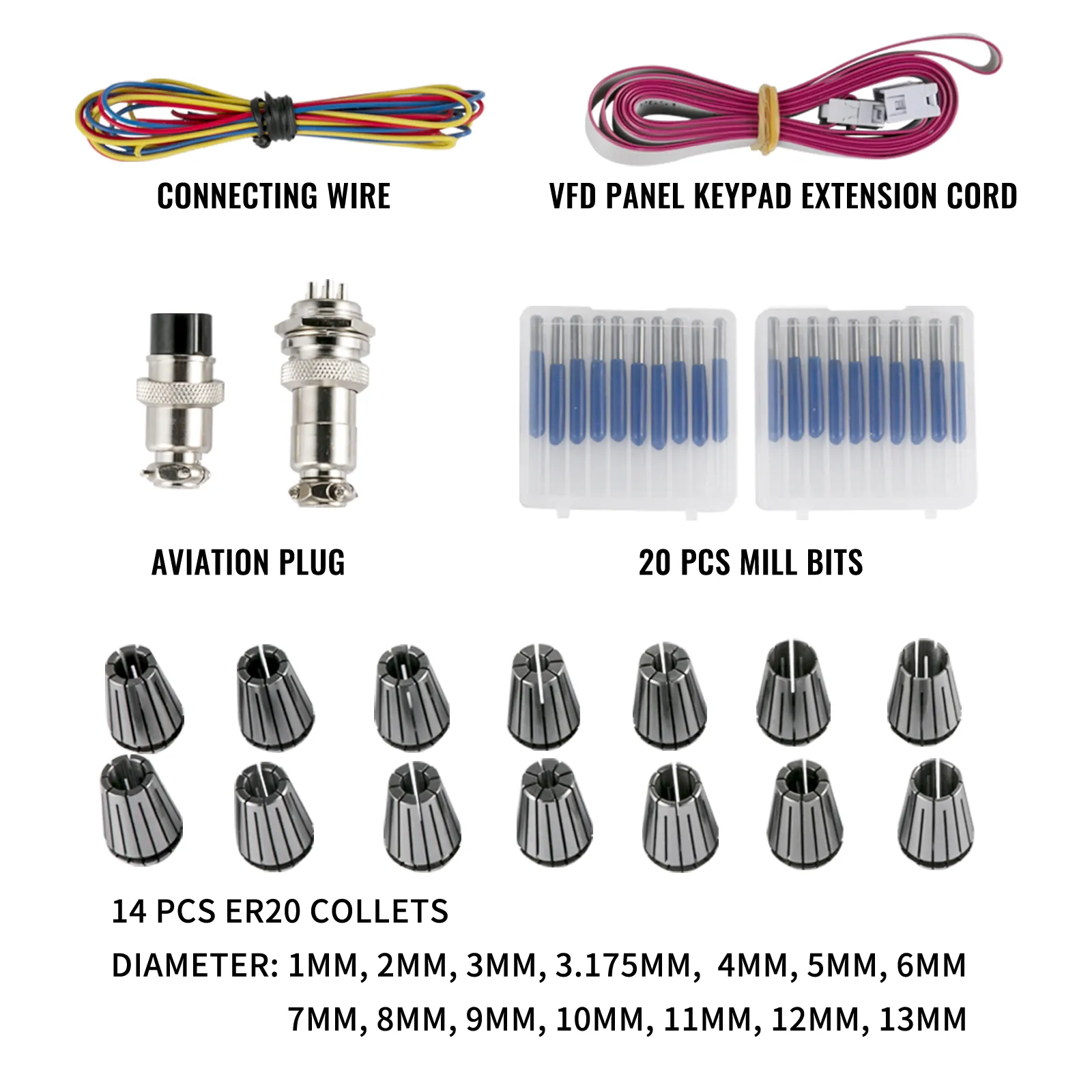

Complete Accessories

For your convenience, we provide you with 14 PCs ER20 collets of different diameters, 20 PCs milling drill bits, aviation plugs, VFD panel keypad extension cord, and connecting wire for use with engraving machines and frequency converters.

Specifications

• Spindle Motor
• Power: 2.2KW
• Voltage: 220V
• Frequency: 400 Hz
• Speed: 0-24000 RPM
• Current: 8.5A
• Collet Chuck: ER20
• Cooling: Air-cooled
• Accuracy: 0.002" (0.05 mm)
• Runout Off: 0.002" (0.05 mm)
• Bearings: 6002/7005
• Variable Frequency Drive
• Power: 2.2 KW
• Input Voltage: 220V
• Output Voltage: 220V
• Input Phase: 1 Phase
• Output Phase: 3 Phase
• Input Frequency: 50 Hz
• Output Frequency: 0-400 Hz
• Output Current: 11A
• Package Size: 3.50" x 5.83" x 4.68" (89 x 148 x 119 mm)
• Gross Weight: 2.2 lbs (1 kg)
• Spindle Clamp
• Diameter: 3.15" (80 mm)
• Material: Aluminum
• ER20 Collets
• Diameter: 0.12/0.13/0.16/0.2/0.24/0.3/0.28/0.32/0.35/0.4/0.43/0.47/0.5/0.51-inch (3/3.175/4/5/6/6.35/7/8/9/10/11/12/12.7/13 mm)
• Outer Diameter: 0.83" (21 mm)
• Height: 1.24" (31.5 mm)

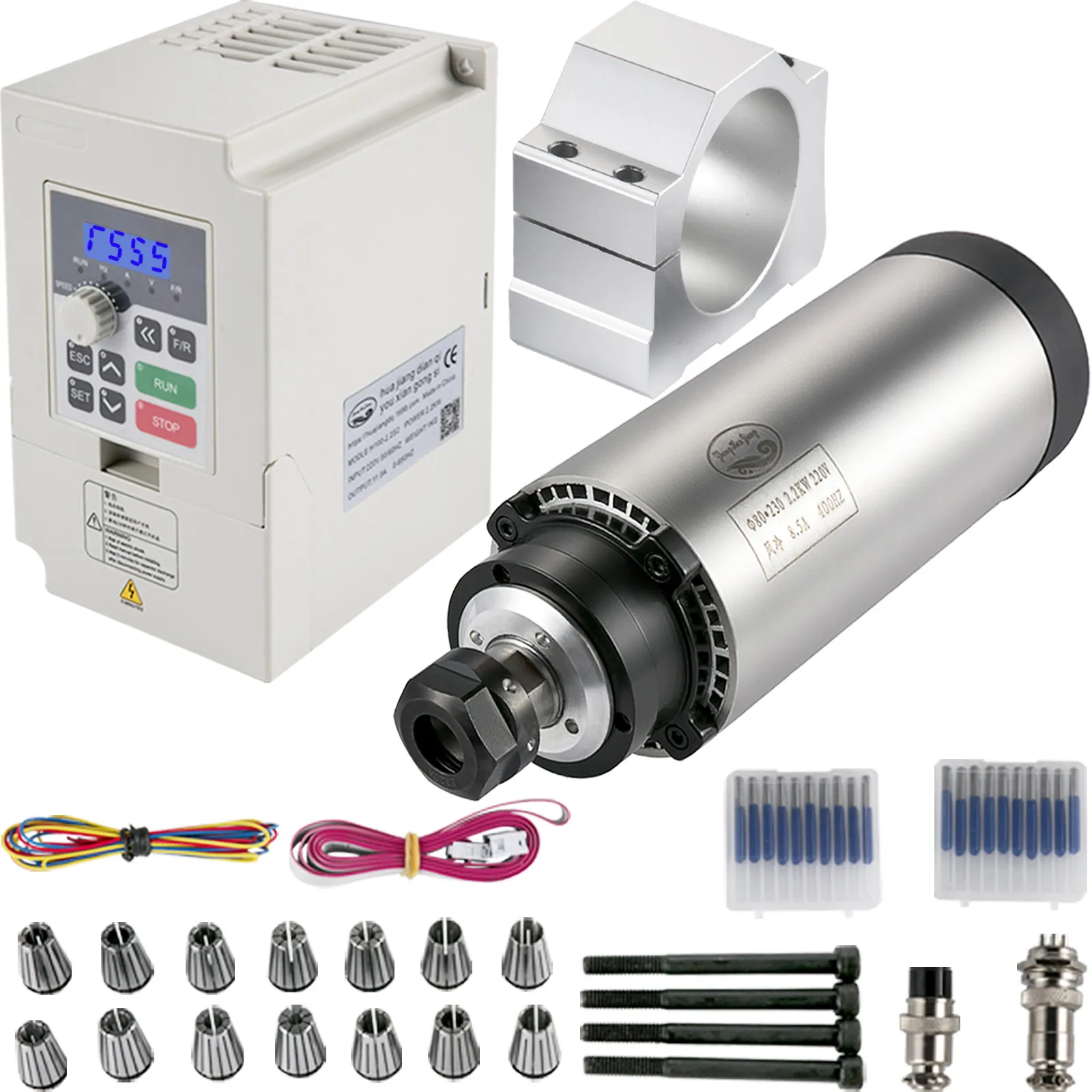

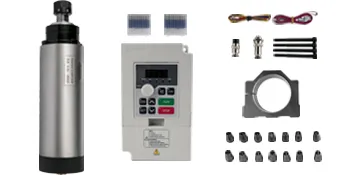

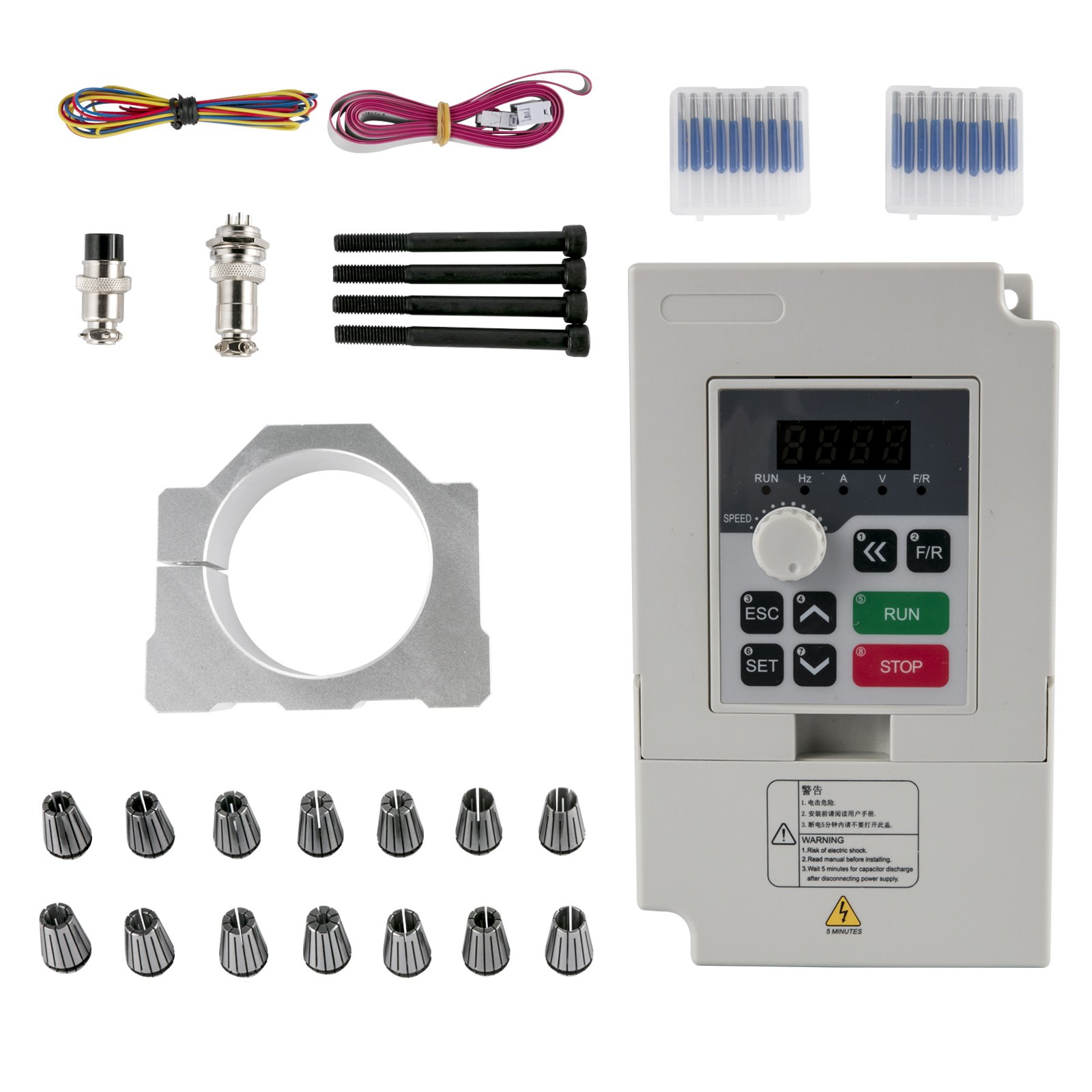

Package Content

• 1 x 2.2KW Air Cooled Spindle Motor
• 1 x 2.2KW Variable Frequency Drive
• 1 x Spindle Clamp
• 14 x ER20 Collets
• 1 x Set of Mill Bits (20 PCs)
• 2 x Aviation Plugs
• 1 x VFD Panel Keypad Extension Cord
• 1 x Connecting Wire
• 1 x Manual

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

2.2KW CNC Spindle Motor Kits

The CNC spindle motor kit comes with a premium spindle motor, variable frequency drive, and aluminum spindle clamp for high-temperature resistance, low noise & low friction, and high speed. It is widely applicable to the engraving machine for carving materials such as wood, stone, metal, etc.

• Excellent Performance
• Premium Spindle Motor
• Variable Frequency Drive
• Durable Spindle Clamp

Low Noise & Smooth Operation

The CNC spindle motor kit is characterized by high-temperature resistance, low noise & low friction, and high speed. And with vents and air-cooled fans, the machine has a powerful cooling capacity and low electromagnetic interference.

Air Cooled Spindle Motor

Unlike other spindle motors, ours use advanced dynamic balancing technology to achieve noise reduction. Its durable surface, high-speed core, and ceramic ball bearings significantly improve hardness and efficiency to be ideal for the engraving machine.

VFD Separate Operation Panel

The variable frequency drive is equipped with full-featured buttons and a detachable panel for quick operation and remote control. Reasonable layout and intuitive digital display increase the convenience of daily use for constant torque loads and variable torque loads.

Control Terminals & Multiple Protection

The variable frequency drive is rich in digital and analogy control terminals for versatile control. With 220V single phase input and 220V 3 phase output, the VFD is easy to connect with power and motor. And many protection ways are adopted to ensure stable and reliable operation.

Aluminum Spindle Clamp

The clamp with the finished surface is made of aluminum material, which is lightweight enough for you to install, remove, and use easily. After the fixing frame is aligned, you only need to screw the screws to the four corresponding holes to complete the installation.

Complete Accessories

For your convenience, we provide you with 14 PCs ER20 collets of different diameters, 20 PCs milling drill bits, aviation plugs, VFD panel keypad extension cord, and connecting wire for use with engraving machines and frequency converters.

Package Content

• 1 x 2.2KW Air Cooled Spindle Motor
• 1 x 2.2KW Variable Frequency Drive
• 1 x Spindle Clamp
• 14 x ER20 Collets
• 1 x Set of Mill Bits (20 PCs)
• 2 x Aviation Plugs
• 1 x VFD Panel Keypad Extension Cord
• 1 x Connecting Wire
• 1 x Manual

Specifications

• Spindle Motor
• Power: 2.2KW
• Voltage: 220V
• Frequency: 400 Hz
• Speed: 0-24000 RPM
• Current: 8.5A
• Collet Chuck: ER20
• Cooling: Air-cooled
• Accuracy: 0.002" (0.05 mm)
• Runout Off: 0.002" (0.05 mm)
• Bearings: 6002/7005
• Variable Frequency Drive
• Power: 2.2 KW
• Input Voltage: 220V
• Output Voltage: 220V
• Input Phase: 1 Phase
• Output Phase: 3 Phase
• Input Frequency: 50 Hz
• Output Frequency: 0-400 Hz
• Output Current: 11A
• Package Size: 3.50" x 5.83" x 4.68" (89 x 148 x 119 mm)
• Gross Weight: 2.2 lbs (1 kg)
• Spindle Clamp
• Diameter: 3.15" (80 mm)
• Material: Aluminum
• ER20 Collets
• Diameter: 0.12/0.13/0.16/0.2/0.24/0.3/0.28/0.32/0.35/0.4/0.43/0.47/0.5/0.51-inch (3/3.175/4/5/6/6.35/7/8/9/10/11/12/12.7/13 mm)
• Outer Diameter: 0.83" (21 mm)
• Height: 1.24" (31.5 mm)
