Features & Details

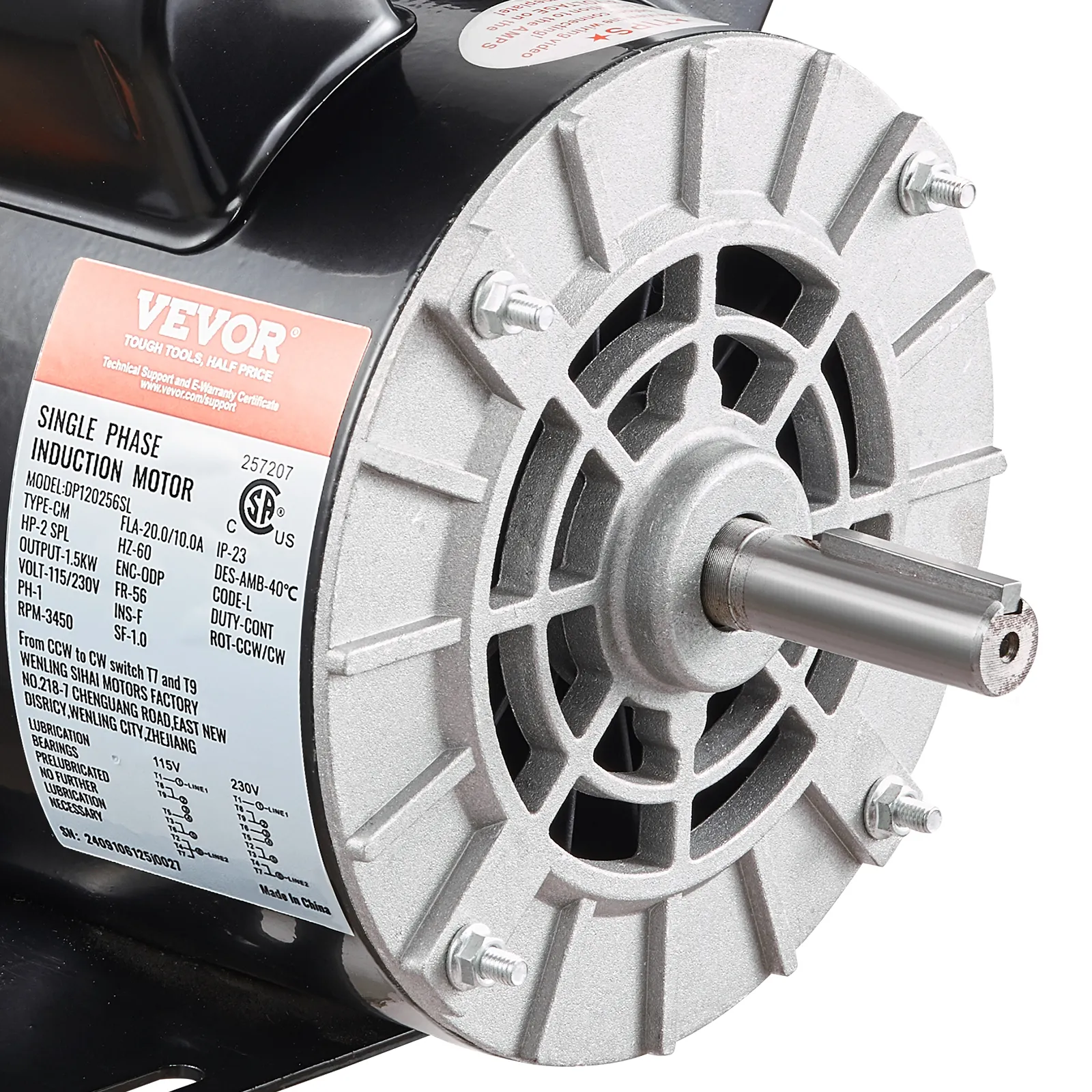

- High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10Amp, 115V/230V, SF: 1.0.

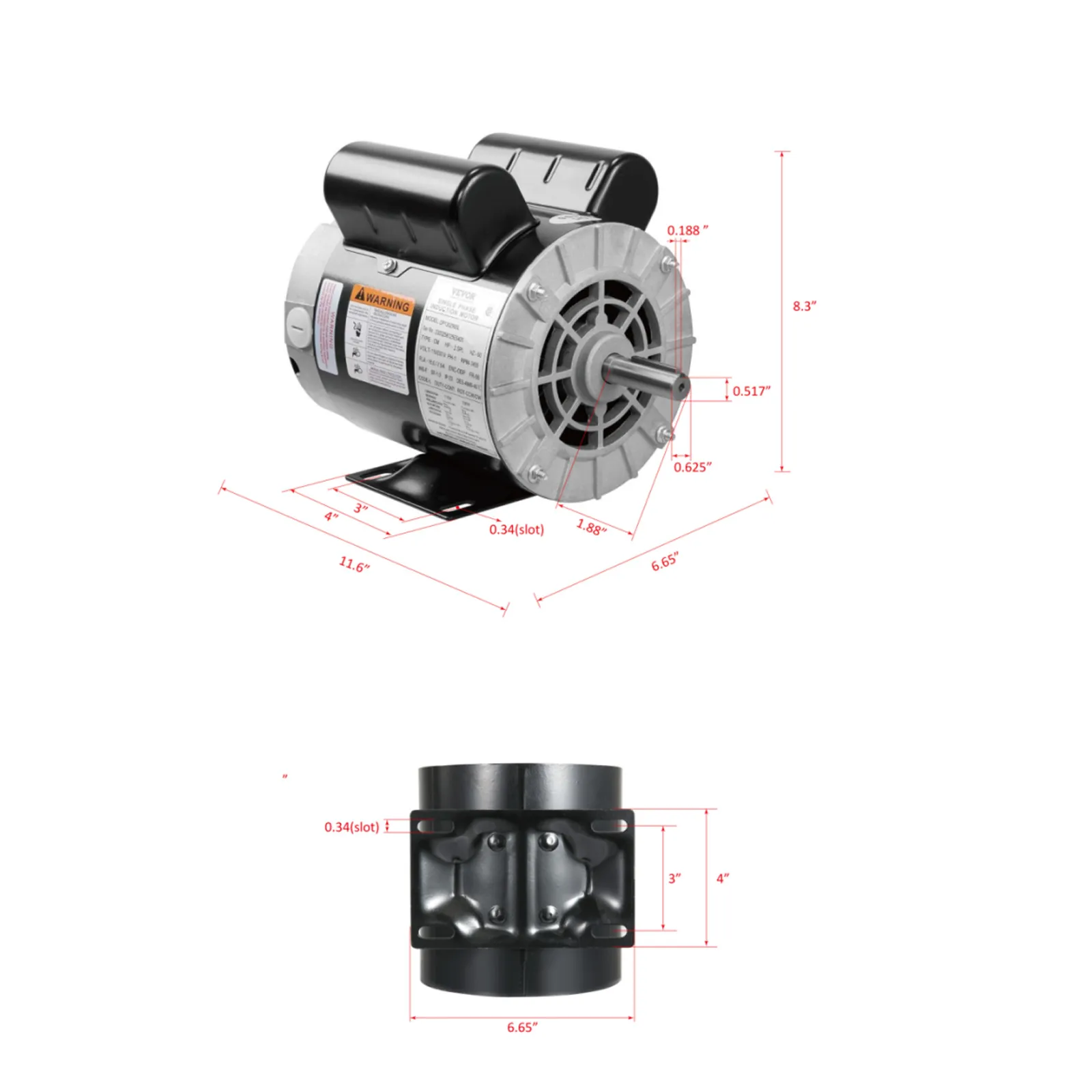

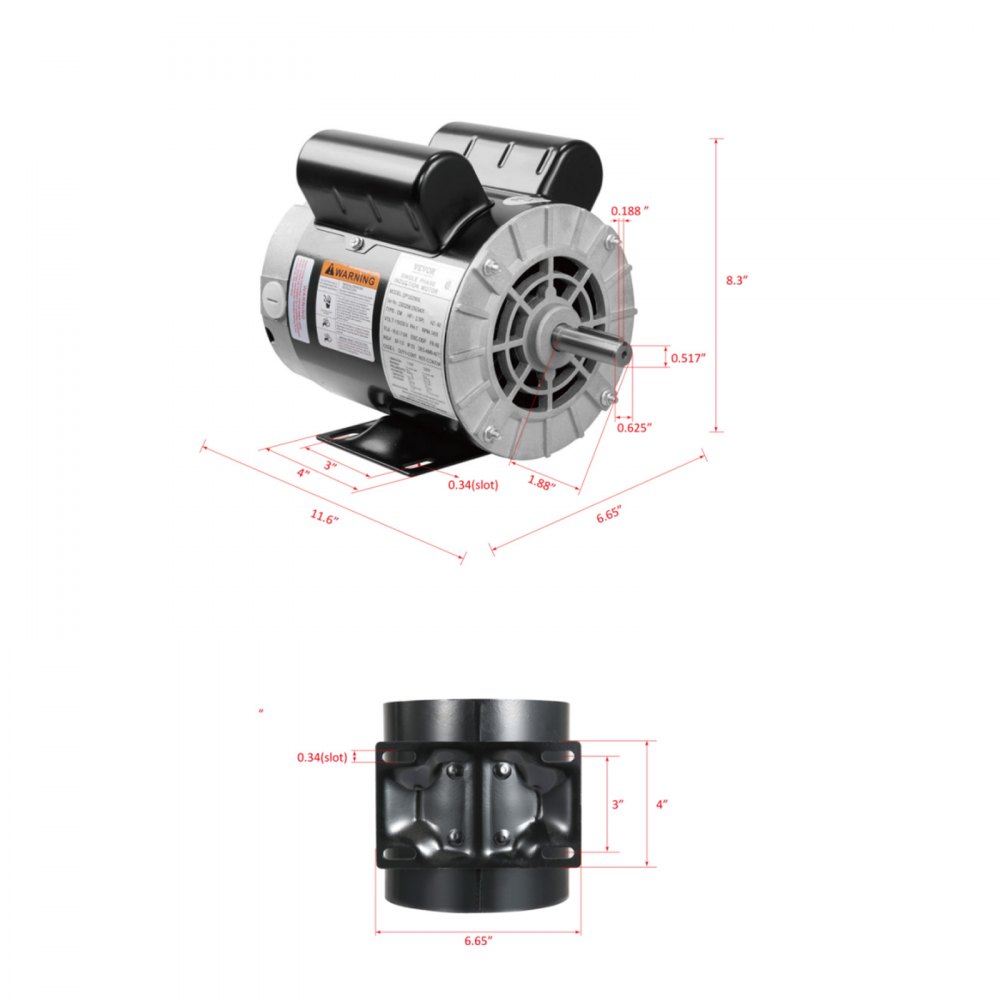

- Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.

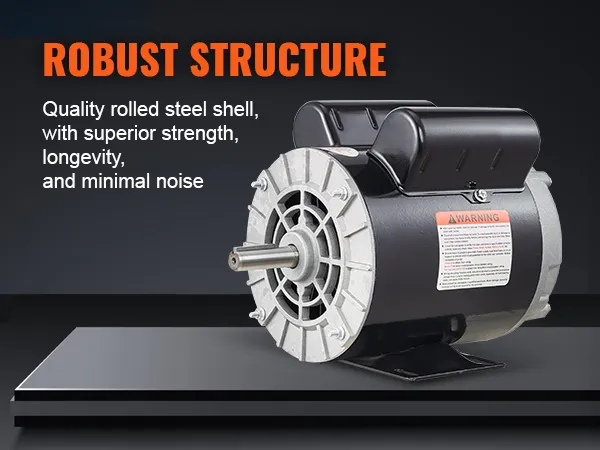

- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Dual Rotation Direction: Motor is Reversible for CCW/CW rotation (Factory Setting is CCW), provides easier wiring operations.
- Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 50 amps at 115V, 25 amps at 230V.)
See More
Frequently Bought Together
Videos for this product
Reviews 3.8
All reviews are from verified purchases
Average rating based on 54 reviews
Top Reviews
Floyd Wickins
Reviewed on Jul 17,2025
Installed on compressor & is working well! I appreciate the quick service & fair price!
Greg Hof
Reviewed on Jul 14,2025
Operates like it should. Price was great and shipping was on time
Lance Asher
Reviewed on Jul 02,2025
Fit perfect
Shawn
Reviewed on Jul 02,2025
Just like it I would be
Robert
Reviewed on Jun 20,2025
Great motor. Arrived undamaged. Installed on a Campbell Hausfeld air compressor. The wiring was easy with the instructions. The quality of the unit is excellent and the performance after 1 months of shop use has been flawless. The shaft was covered with a plastic protector and the key under it. My pulley fit perfectly. Great little motor.
Bill
Reviewed on Jun 16,2025

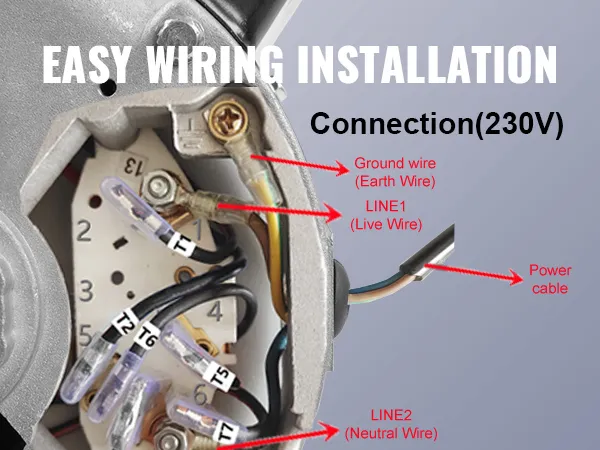

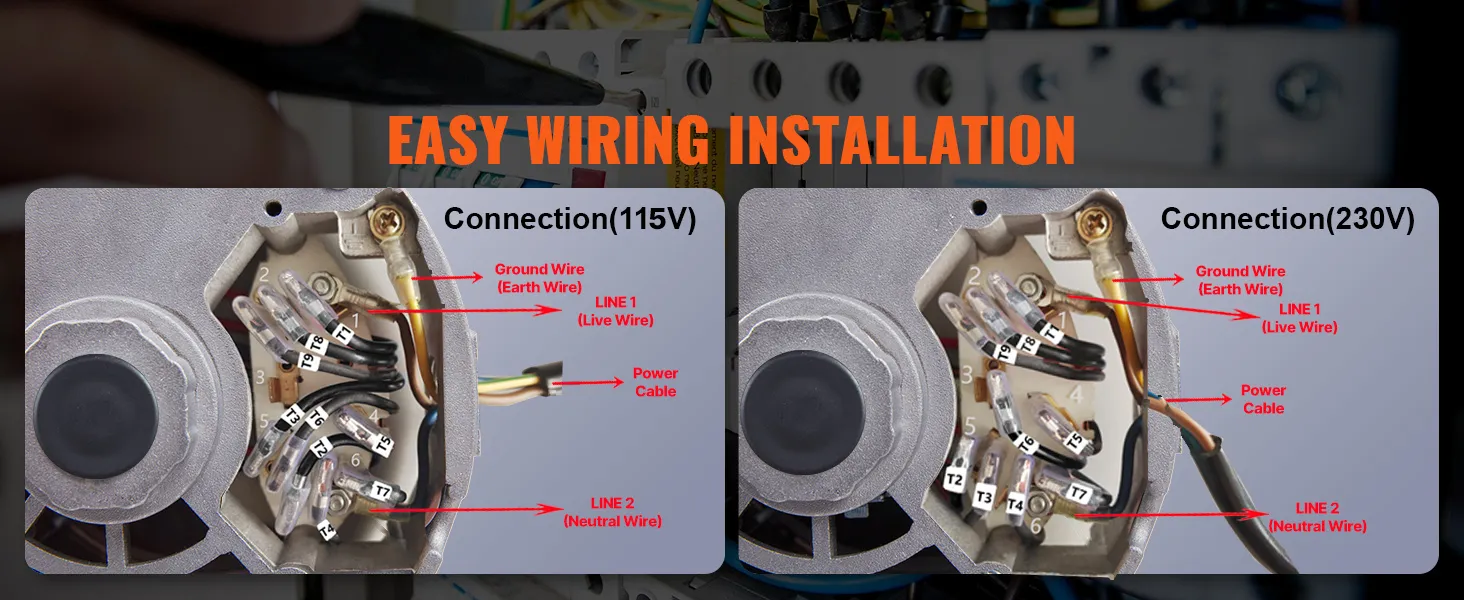

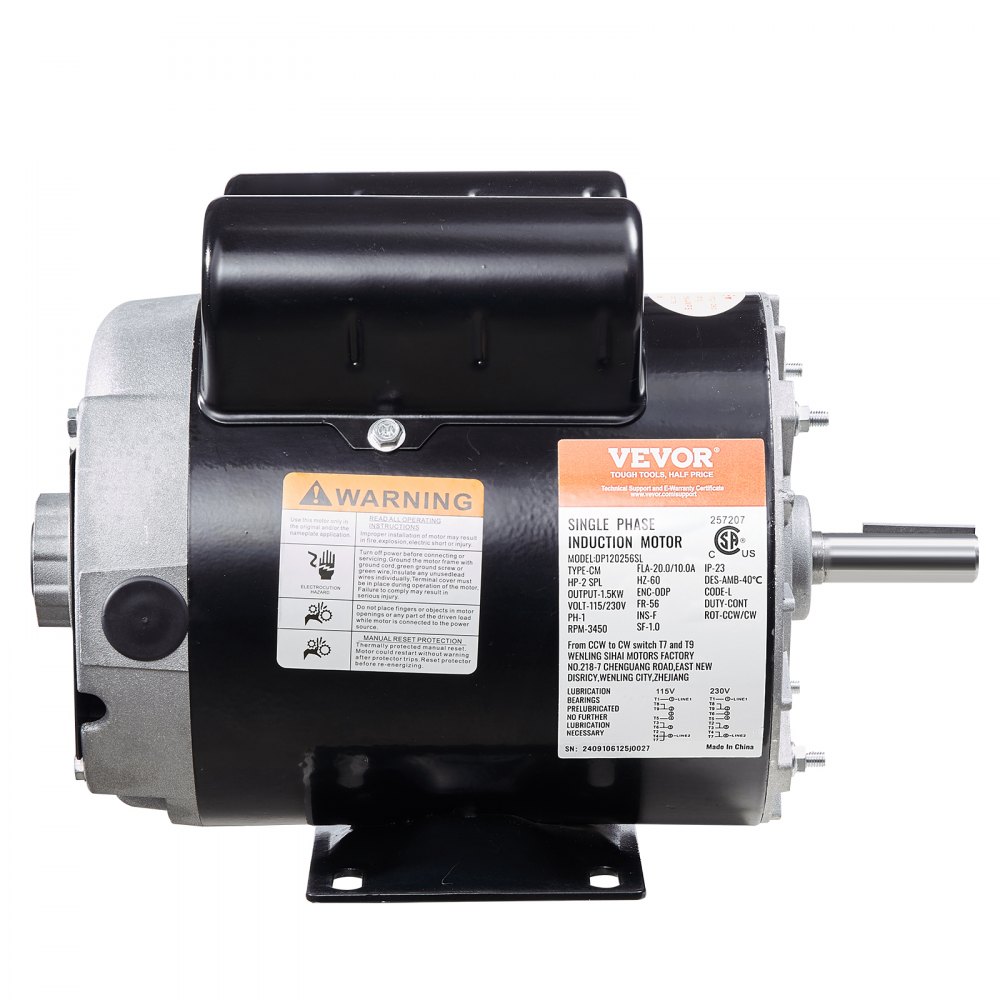

Motor is quiet and runs with minmal heat. The spade terminals leave a little to be desired, but they work. Motor came setup for high voltage, had to reconfigure for 120v and ccw rotation. Pinouts are on the motor label along with the diagram.
Cody j
Reviewed on Jun 11,2025
I bought this as a replacement for my dewalt air compressor as the one for it was nearly 700$ considering the price point of this product it was worth a try and I'm impressed it was essentially i direct fit i did make another hole to ensure solid mounting on the compressor itself everything lined up well and wiring this motor up was a breeze I'm happy with it only had it a few months now and the compressor isn't used often enough for me to preach on its longevity but all in all I'm very pleased with this product it did arrive on time and was packaged in a wood crate if that's another concern you may have but I'd recommend to anyone in the market this motor is worth it in my opinion
Mikey
Reviewed on Jun 08,2025
works great! been using it for a couplemonths now and without a problem. Strong motor, does wht it is supozed to.
Shawn Smith
Reviewed on Jun 06,2025
Part arrived on-time. Installation was easy. Started right up.
TJ
Reviewed on May 27,2025
Upgraded my old Craftsman 1 hp motor perfectly. With a slight modification to my old belt guard I was also able to use it as well.
About this item

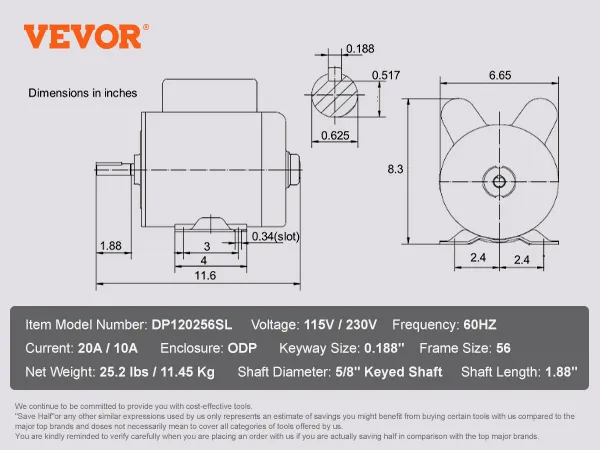

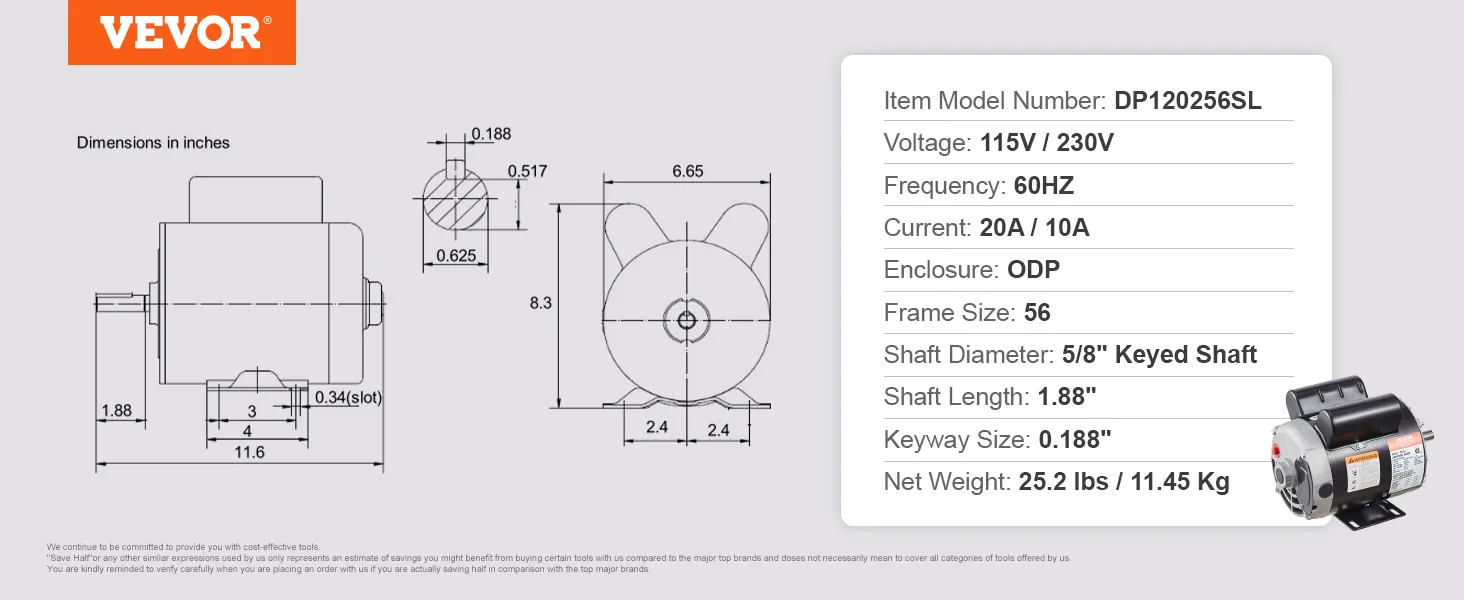

Product specification
- Item Model Number
- DP120256SL
- Voltage
- 115V / 230V
- Frequency
- 60HZ
- Current
- 20 A / 10 A
- SF
- 1.0
- Enclosure
- ODP
- Frame Size
- 56
- Shaft Diameter
- 5/8" Keyed Shaft
- Shaft Length
- 1.88"
- Keyway Size
- 0.188"
- Net Weight
- 25.2 lbs / 11.45 kg
Description
Unleash the Power of Your Air Compressor Again !

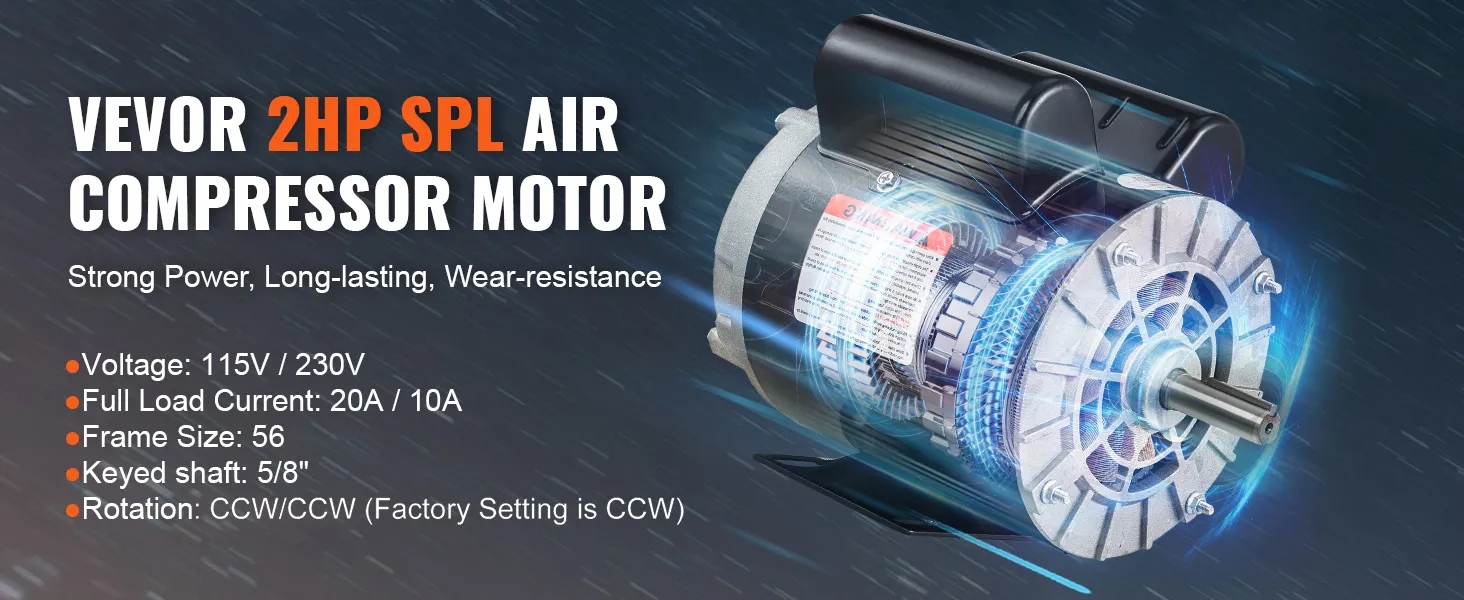

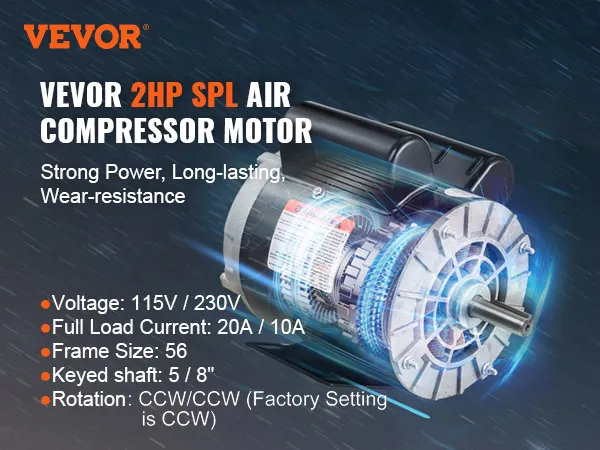

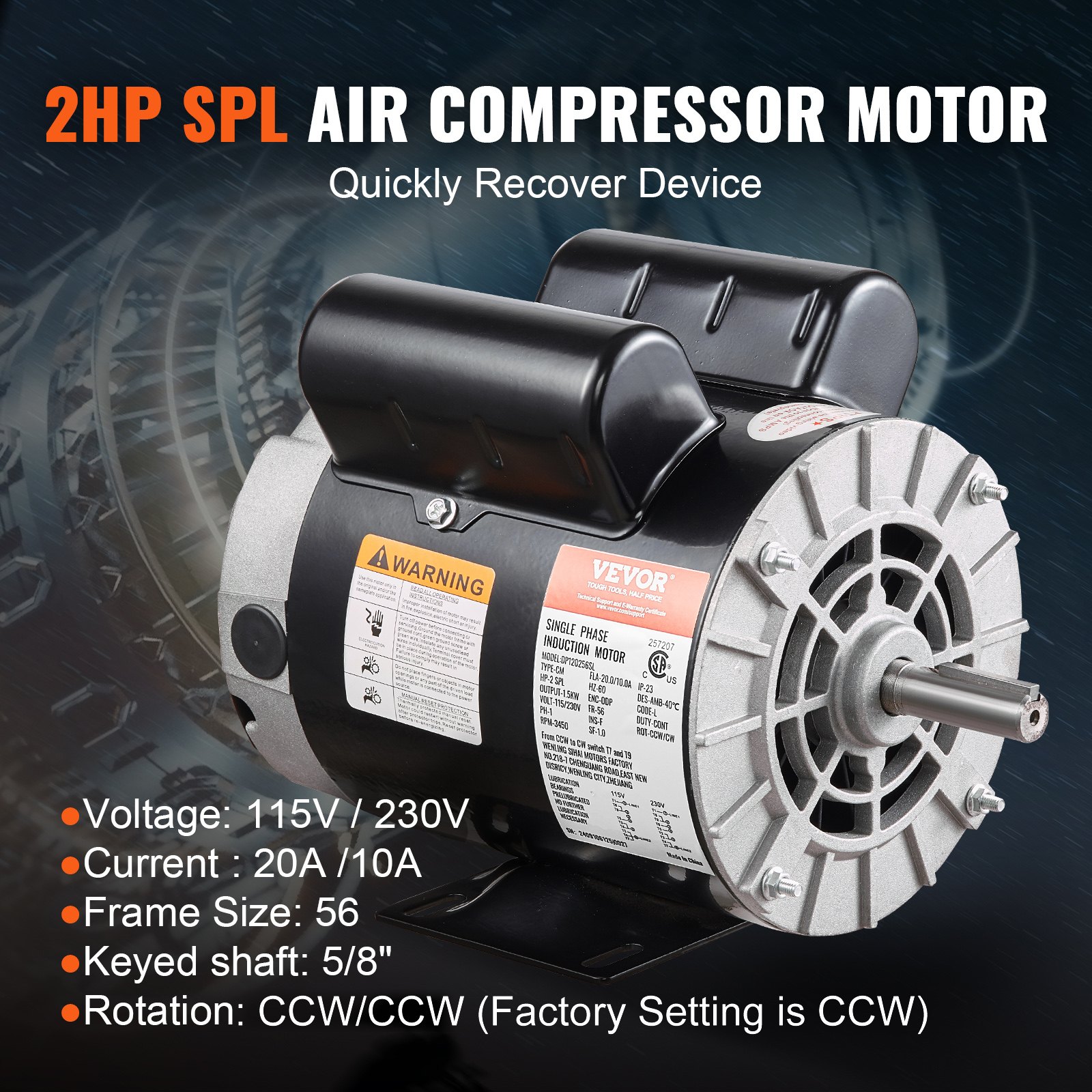

Inject powerful energy into your air compressor with 2HP SPL compressor motor, 115/230V voltage, 20/10A current, 56 frame, 1.88 inch shaft length, 5/8 inch keyed shaft, CW/CCW dual rotation (Factory Setting is CCW). A perfect addition to air compressors, industrial and commercial needs.
Key Features

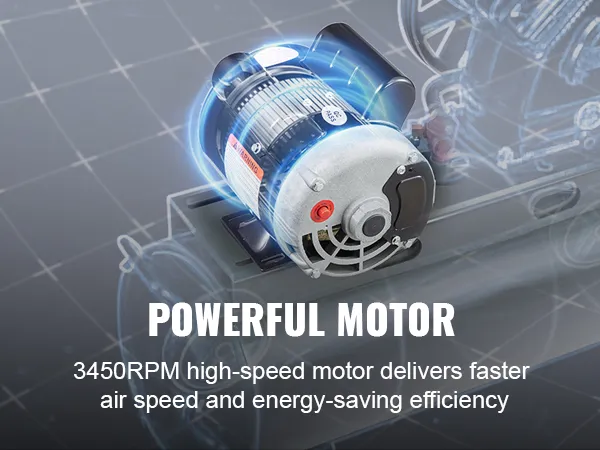

Powerful Motor

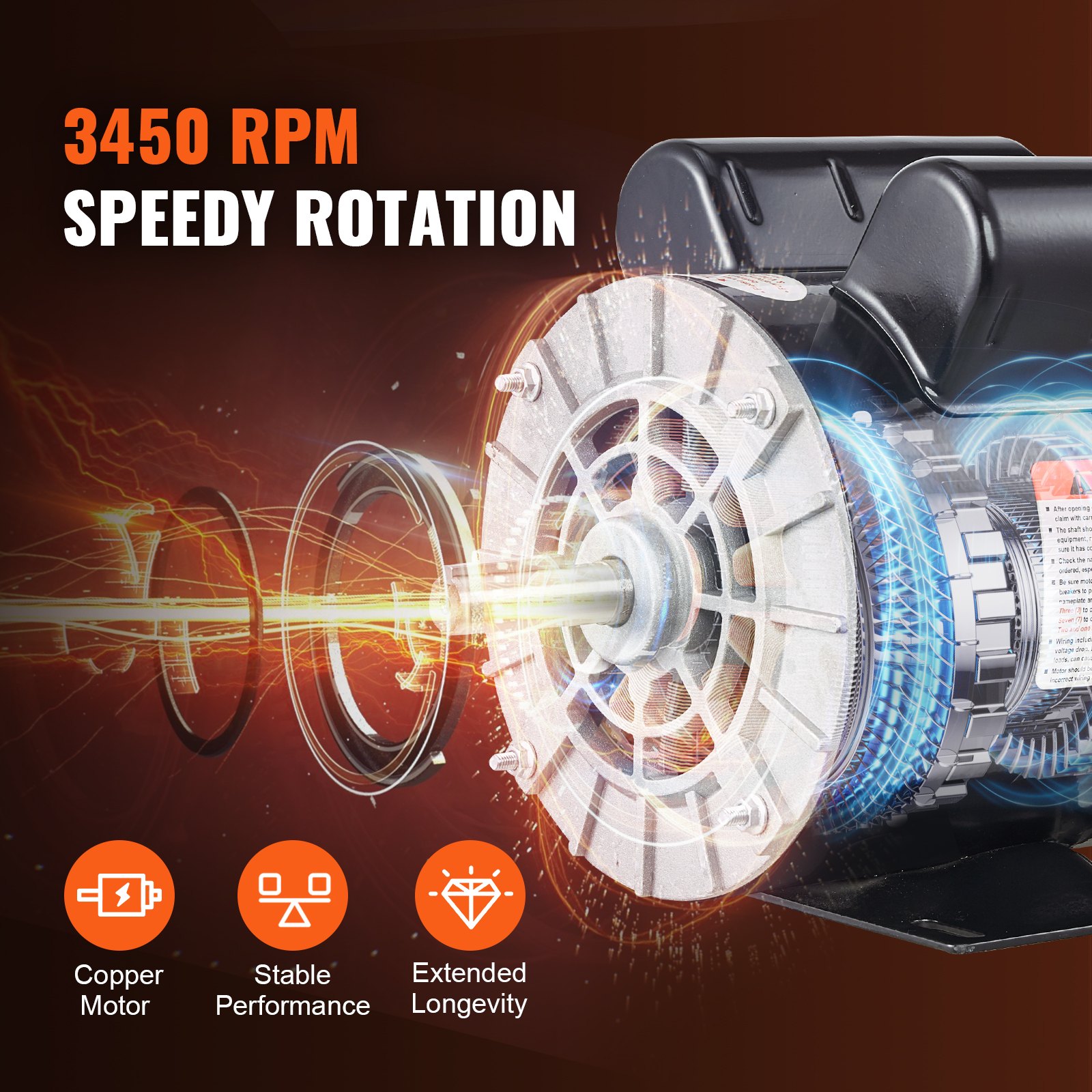

3450RPM high speed enables faster inflation and energy-saving efficiency.

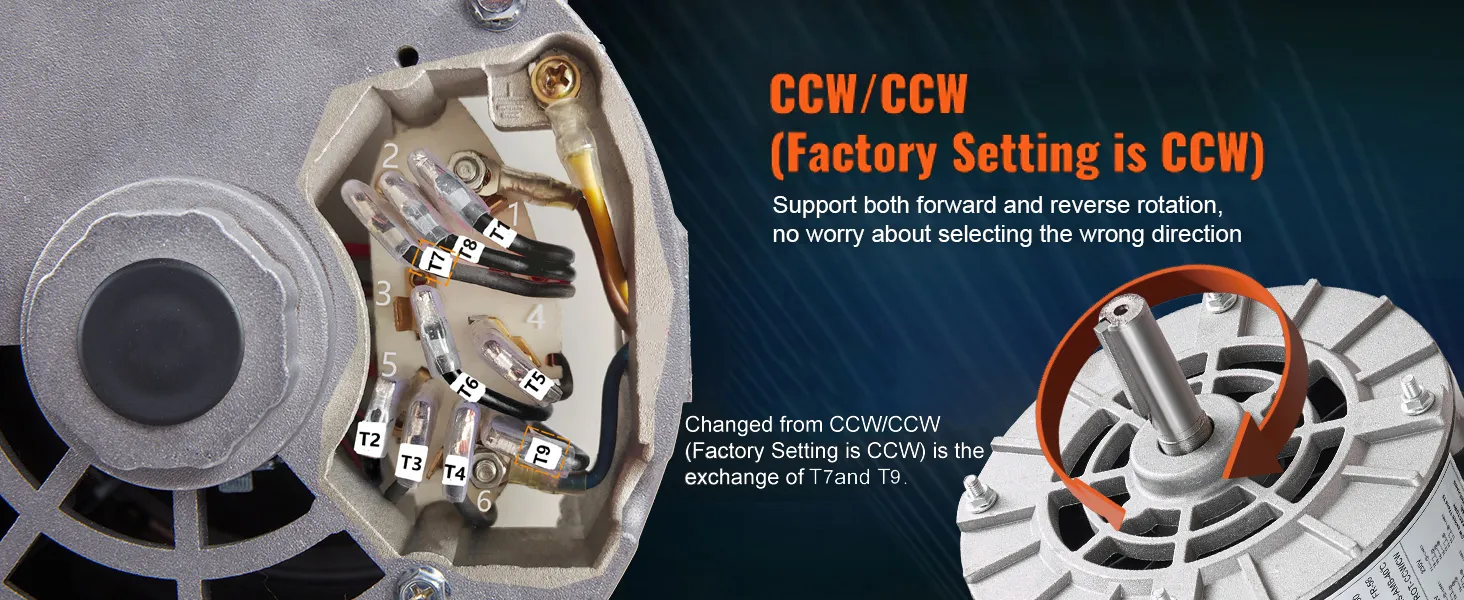

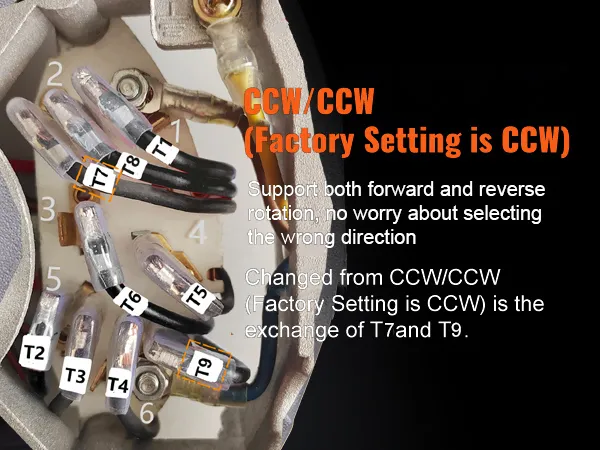

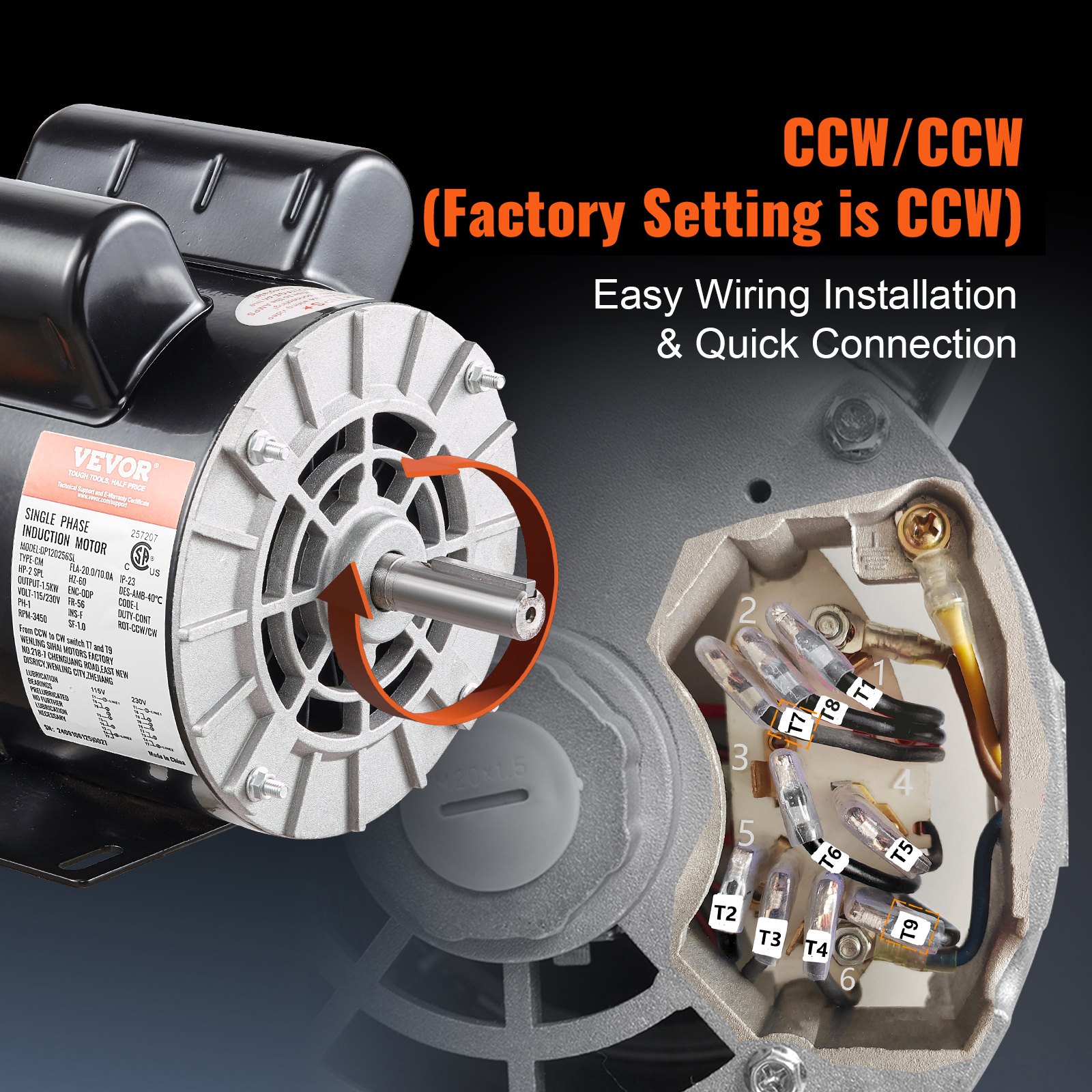

CW/CCW Rotation Direction
The motor can be used for both clockwise and counterclockwise rotations. (Factory Setting is CCW)

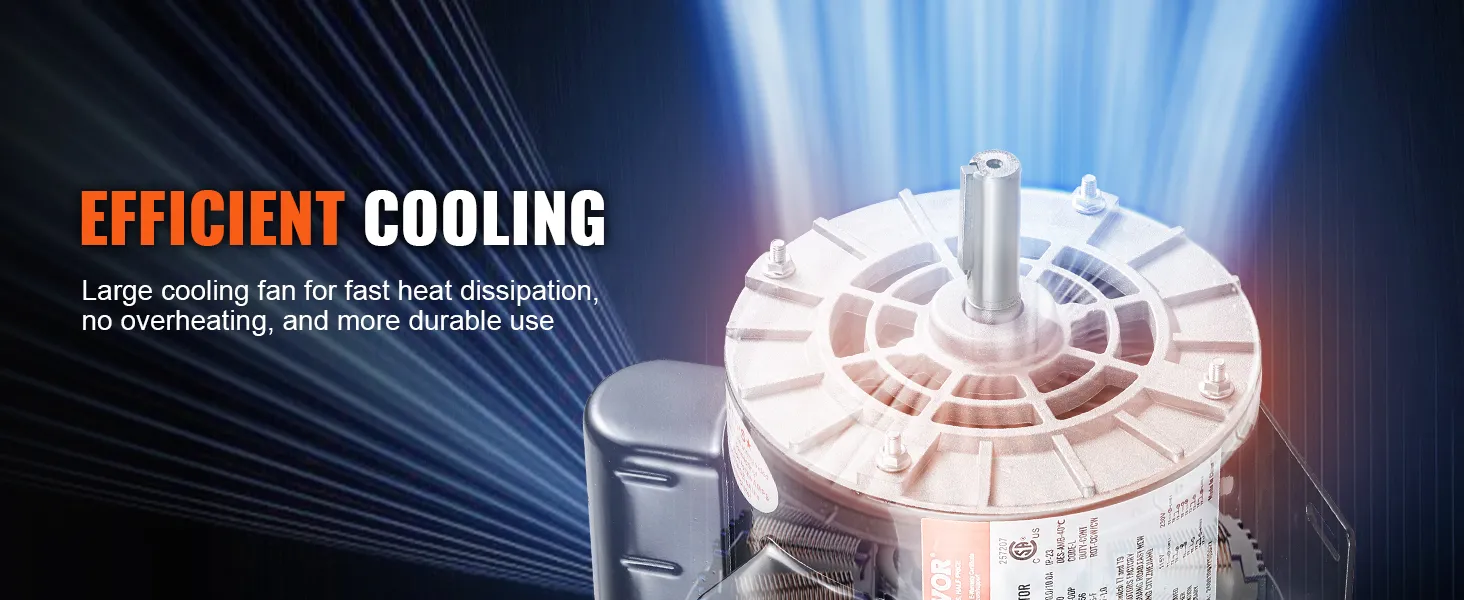

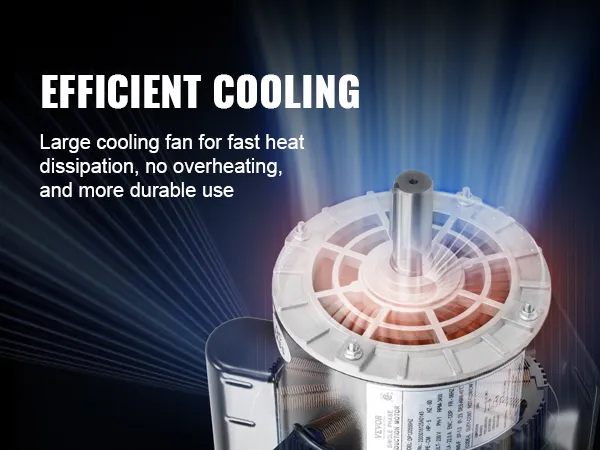

Efficient Cooling
Dissipate heat quickly and efficiently with a large fan, preventing overheating and ensuring durability.
Questions and Answers (6)
Showing 1-6 of 6
Sort by: Featured questions
Does 230 v wiring increase starting torque
Answer This Question
Does this have ball bearings installed on both ends?
Answer This Question
Will it works with drill press?
Answer This Question
Does it safe to use it on drill press?
Answer This Question
Is it safe to use on a table saw?
Answer This Question

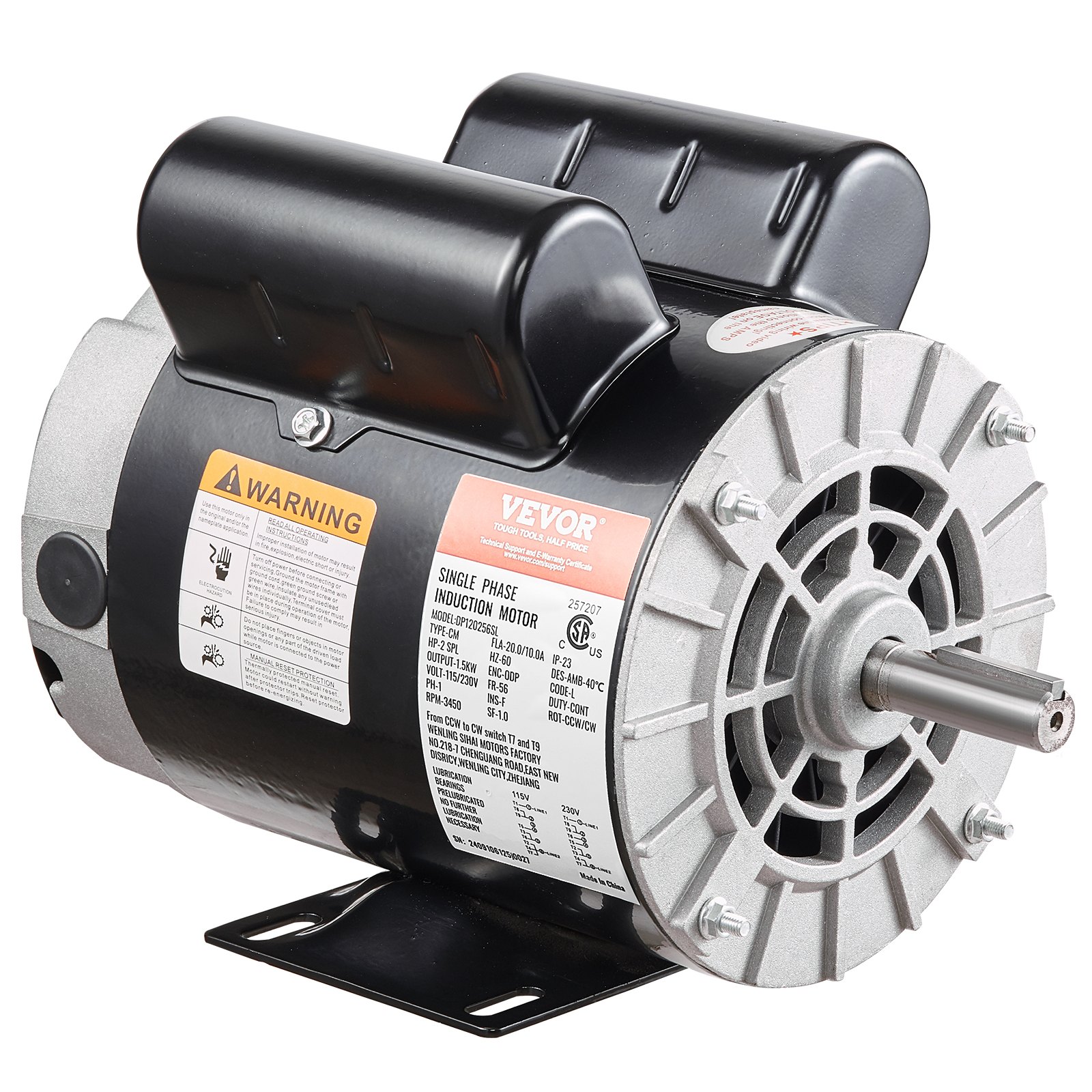

2HP SPL Air Compressor Motor 115/230V 20/10A 3450RPM 56 Frame CW/CCW Rotation (Factory Setting is CCW)
3.8 54 Reviews
$ 107 99
In Stock
