VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
WQZDQ24YC20GZ75I8V0

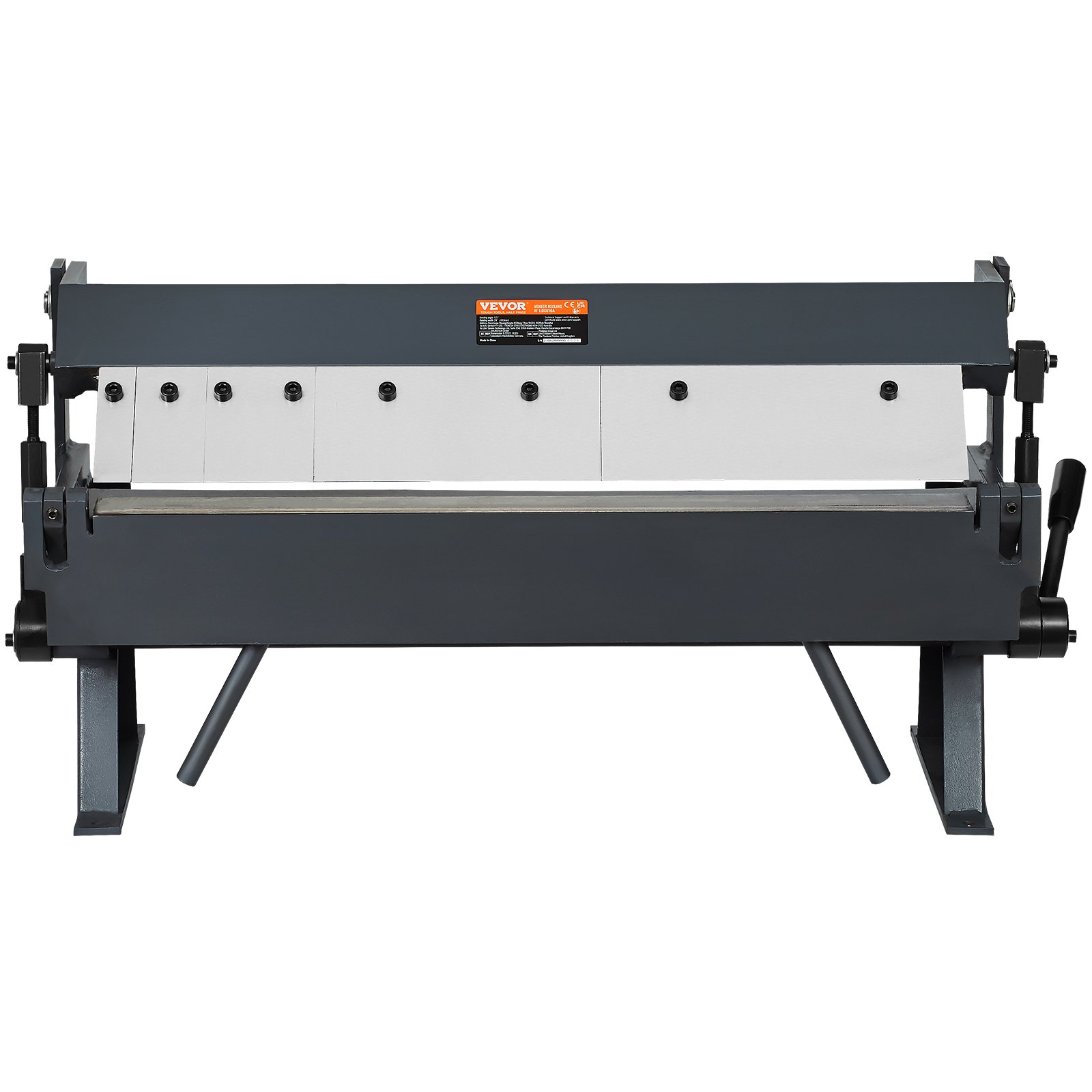

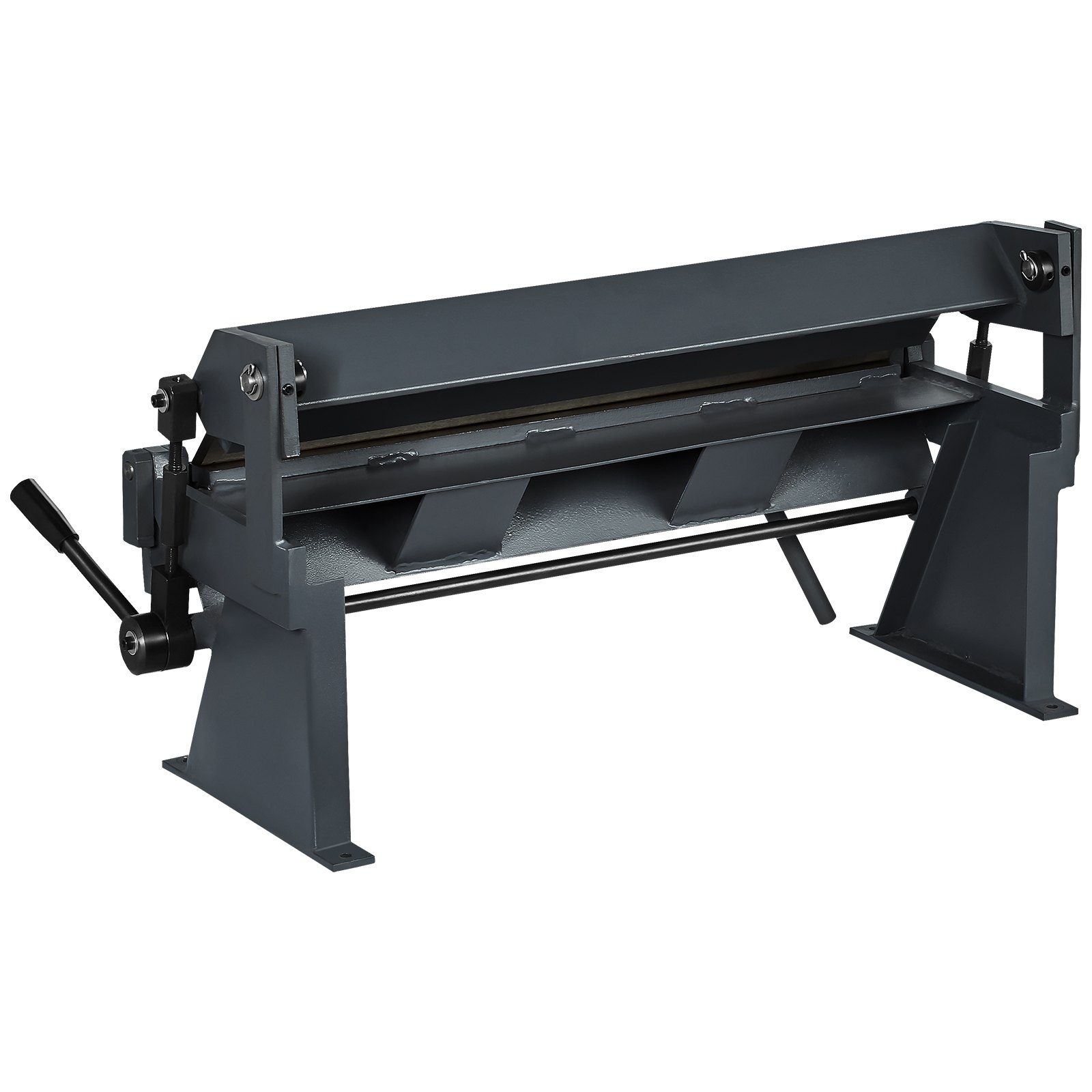

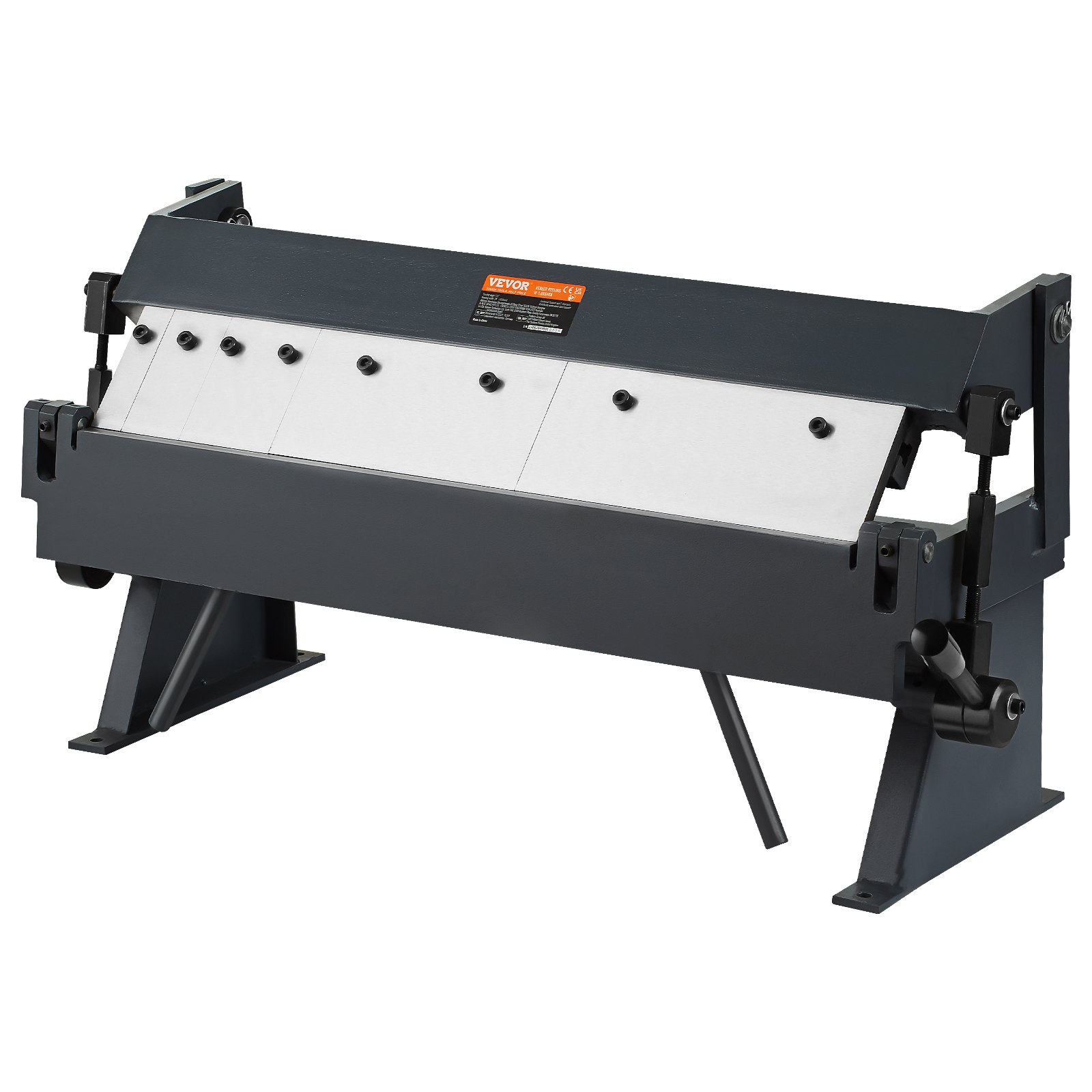

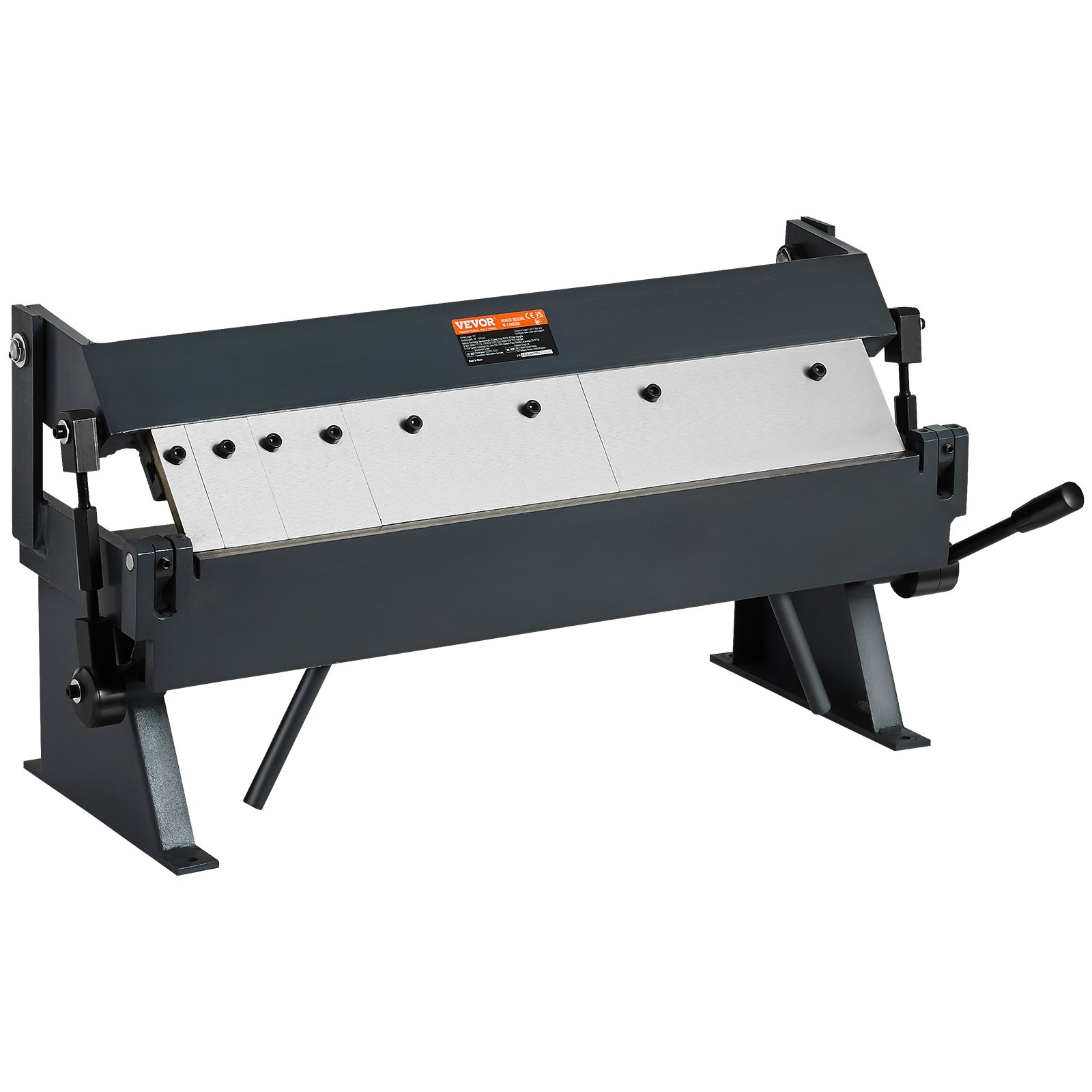

VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending

$240.99
240.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

24 inch

  • 36 inch
  • 24 inch
  • 12 inch
  • 48 inch

About this item

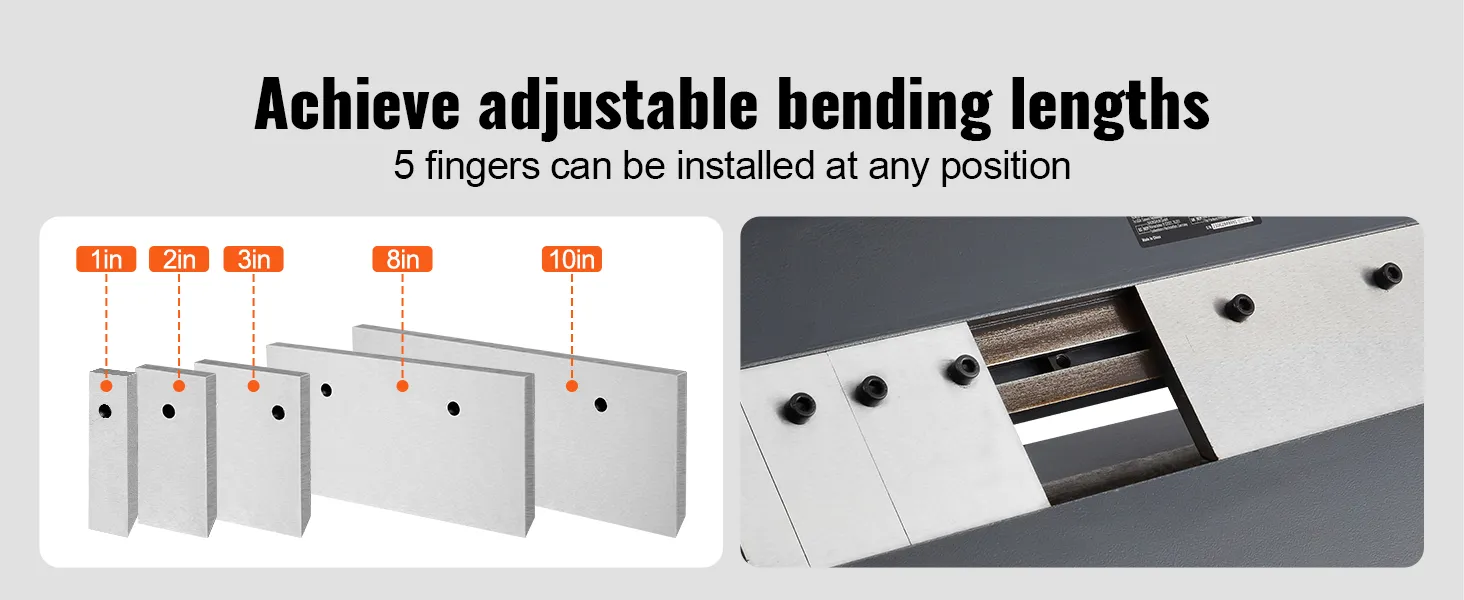

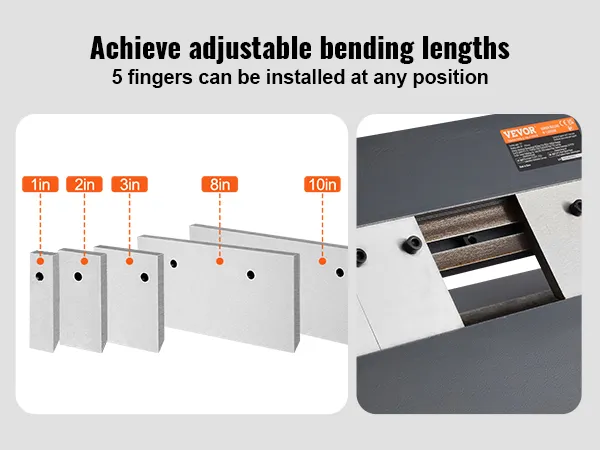

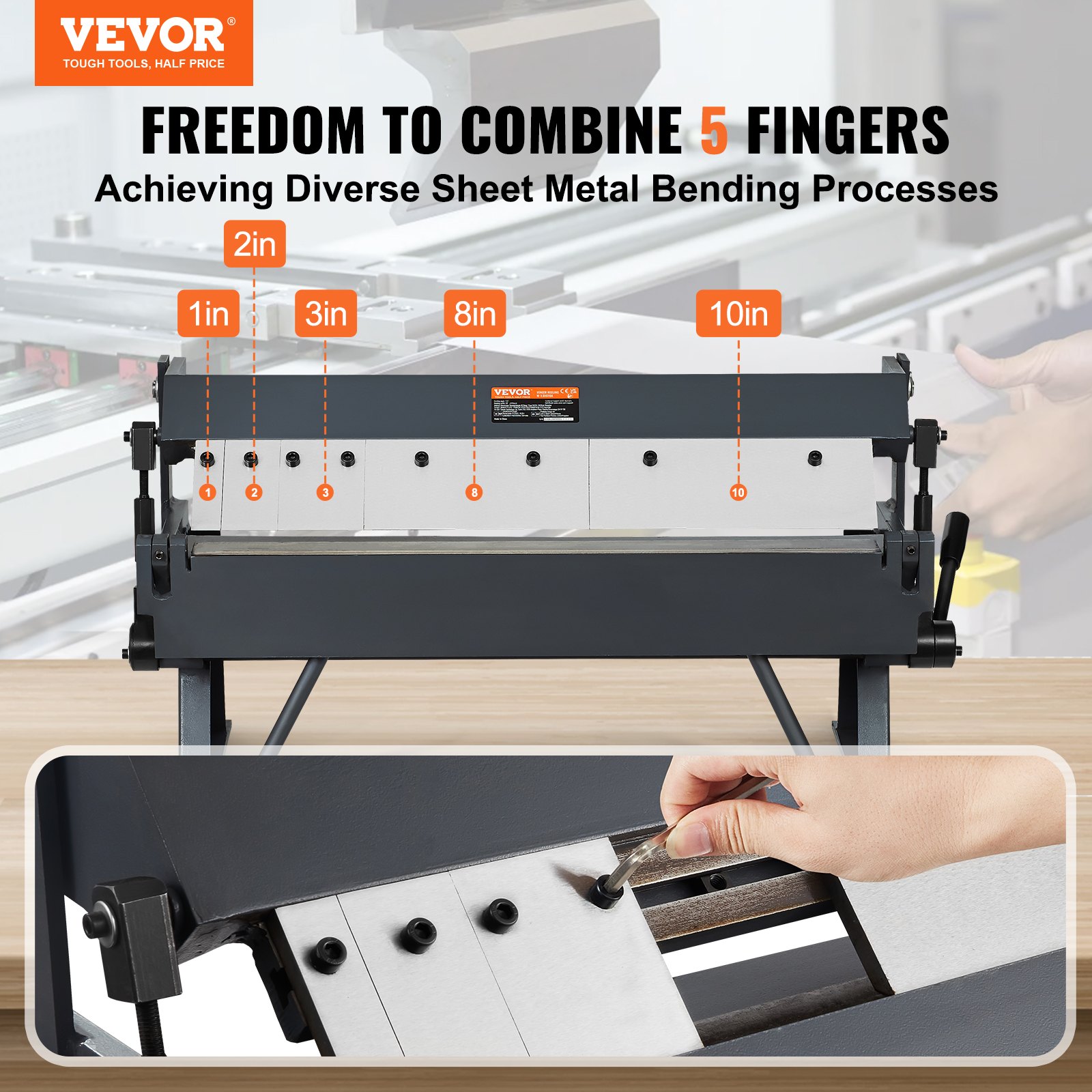

  • Segmented Module Design: Offers 10 segmented modules for free combinations: 1" (x2), 2" (x4), 3" (x2), 4" (x2). You can perform various intricate sheet metal operations, such as reinforcing floor channels, corrugated pickup truck beds, truck headboards, metal mudguards, etc., all achievable using this segmented sheet metal brake.

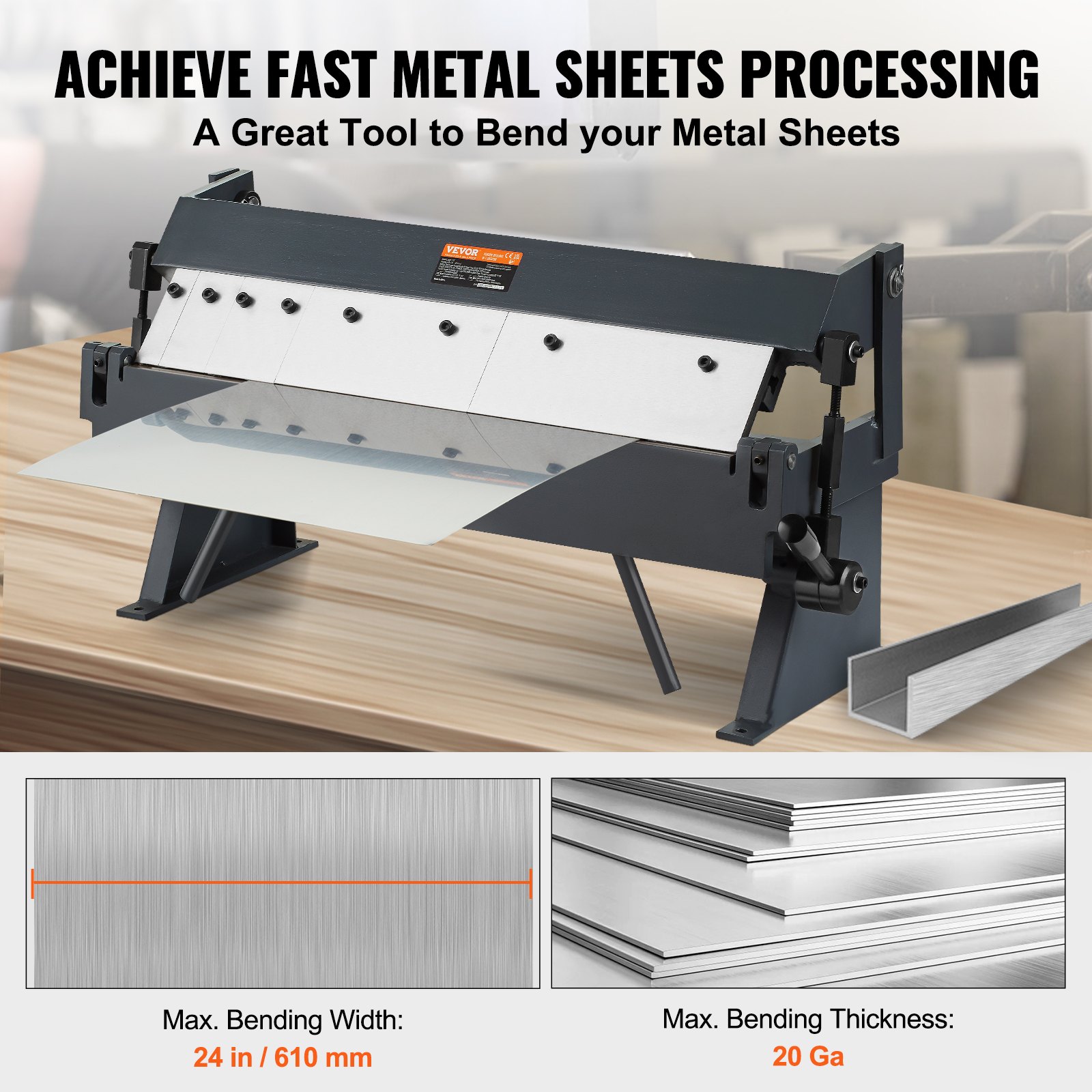

  • Heavy-Duty Metal Sheet Brake: The maximum bending width of the box and pan brake is 24 inches/610 millimeters. With a detachable module design, it uses 0.39" thick metal material with a hardness of up to 21HRC, making it easy to bend 20-gauge low carbon steel and 14-gauge aluminum. Our metal sheet brake is an excellent tool for crafting complex metal edges, and its exceptional bending performance makes it a must-have for factories and workshops.

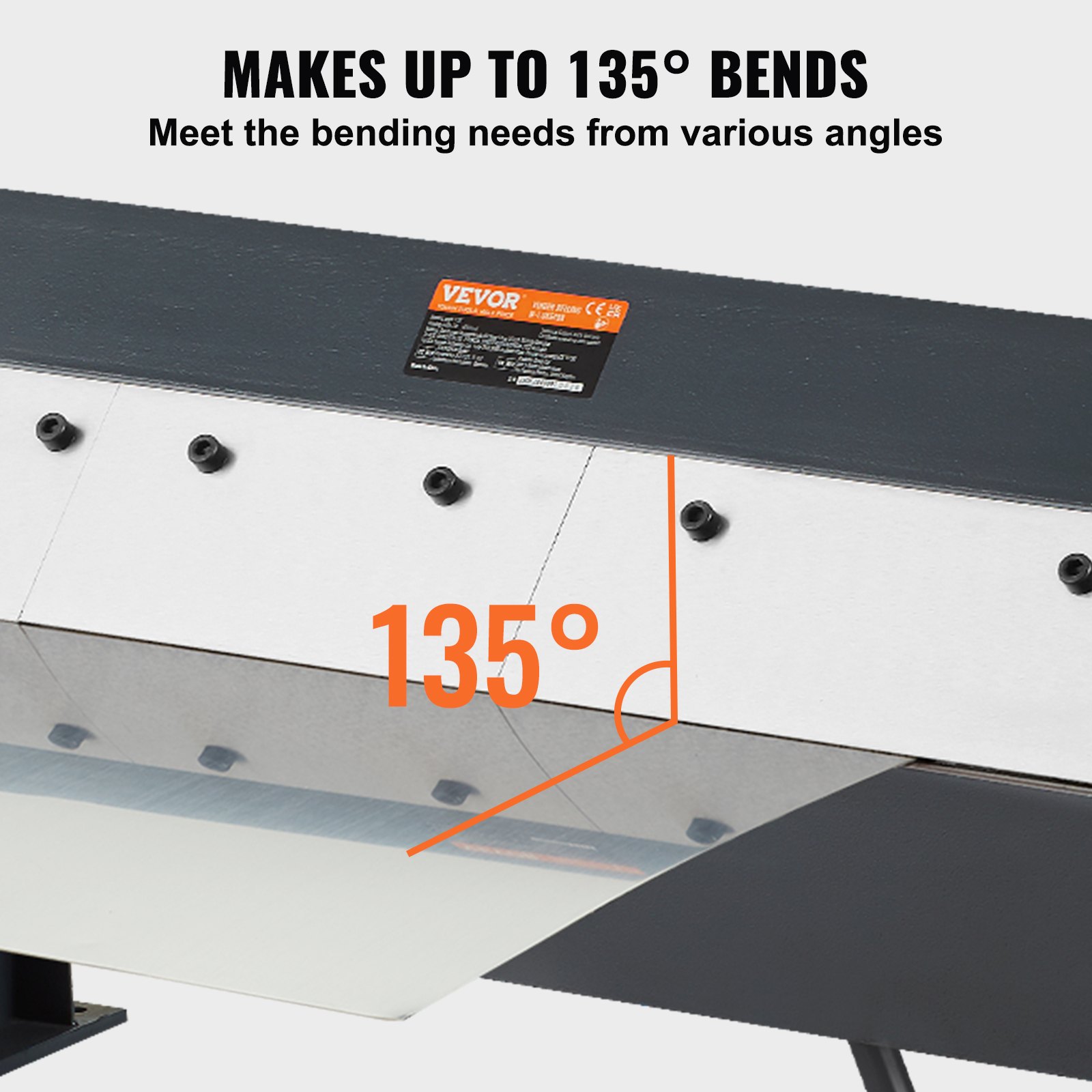

  • 0-135° Flexibility in Bending: You can adjust to specific angles between 0° and 135° according to your work needs, catering to a wider range of bending requirements. This metal brake bender is well-suited for both heavy-duty sheets and light metals.
  • Heavy-Duty Steel Construction: The sheet metal bending brake is meticulously crafted from Q236 steel, ensuring durability and longevity. Its sturdy structure remains resilient over time. With its compact design, you can easily mount it on a workbench using screw-in installation holes, or effortlessly transport it from home to various job sites.

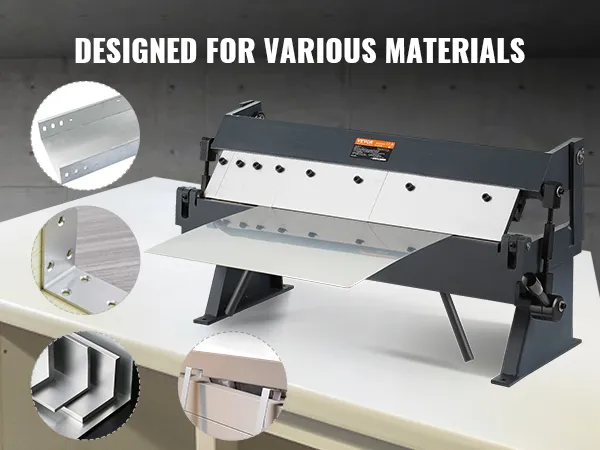

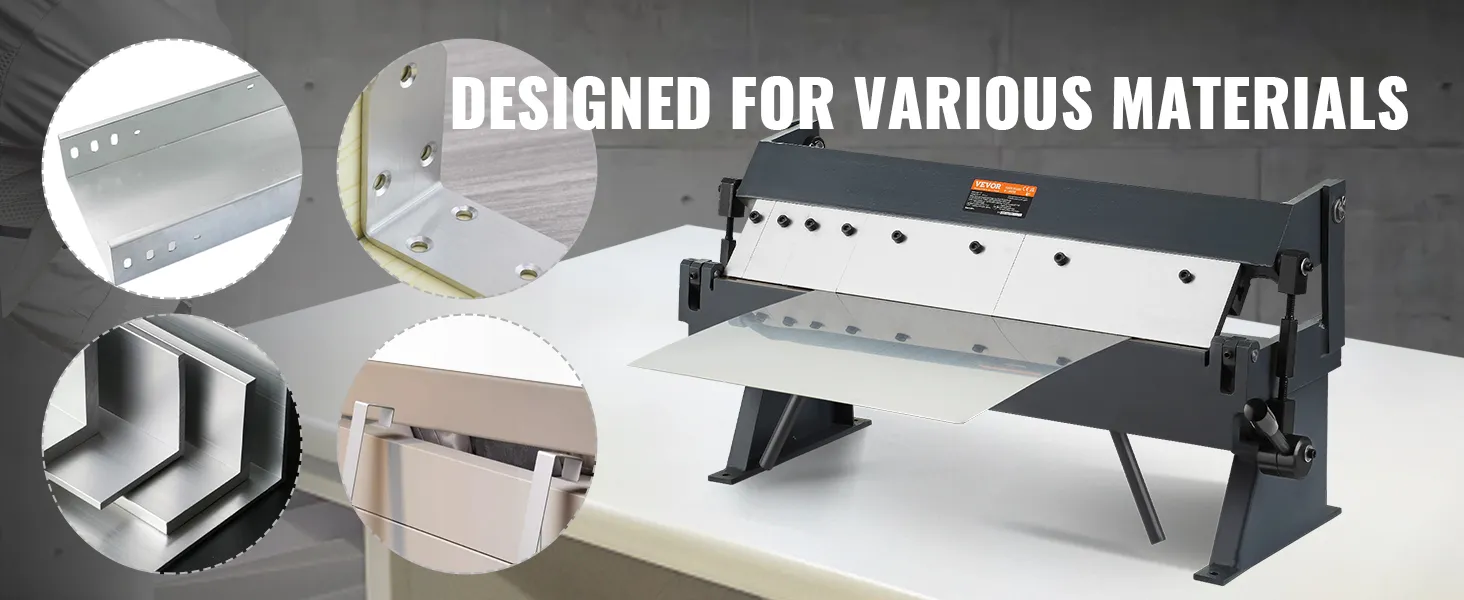

  • Versatile Applications: This sheet metal brake facilitates easy and efficient bending. It's robust enough to handle stainless steel sheets, copper sheets, aluminum sheets, iron sheets, galvanized sheets, steel sheets, and other sheet metal processes, making it highly suitable for professional production operations. It finds utility in various factories, workshops, home workshops, or for personal use in daily tasks.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
24 inch
Only 1 Left, order soon
24 in Box And Pan Sheet Metal Brake
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending

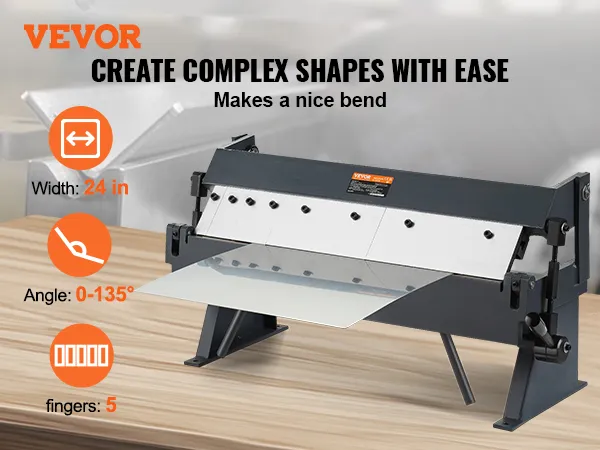

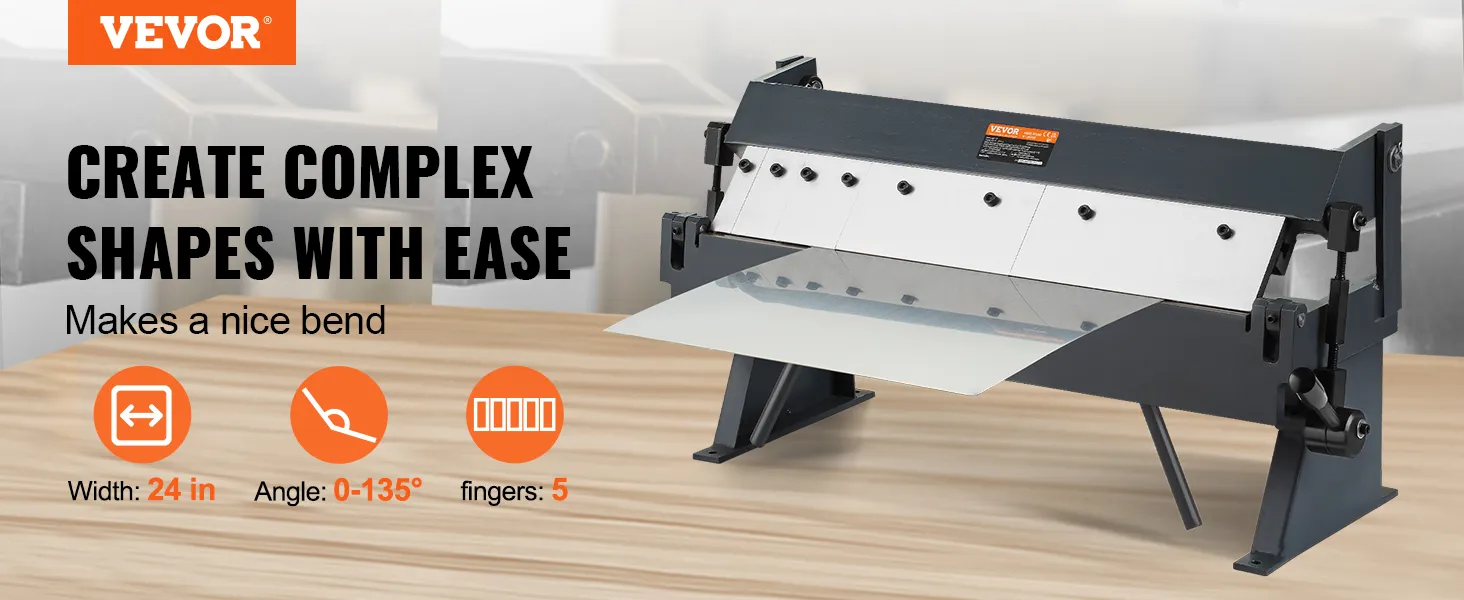

This segmented bending machine is ideal for crafting intricate metal folds. It offers 10 segmented modules for versatile configurations, and effortlessly bends 20-gauge mild steel or 14-gauge aluminum, enabling a 135° fold of the metal sheets.
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
Designed with detachable modules made from 0.39'' thick metal material, boasting a hardness of 21HRC, this box and pan brake effortlessly bends 20-gauge low-carbon steel and 14-gauge aluminum.
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending

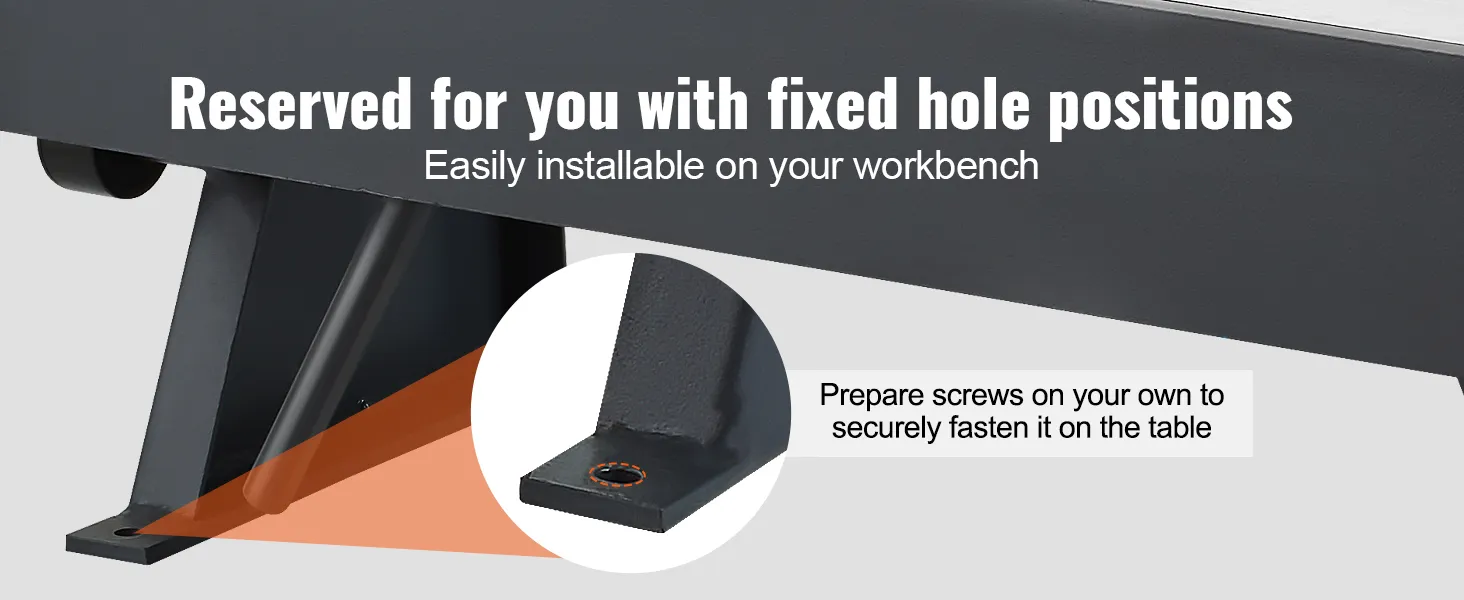

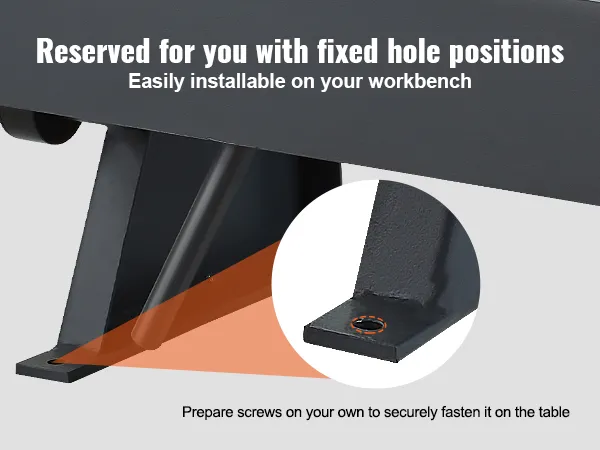

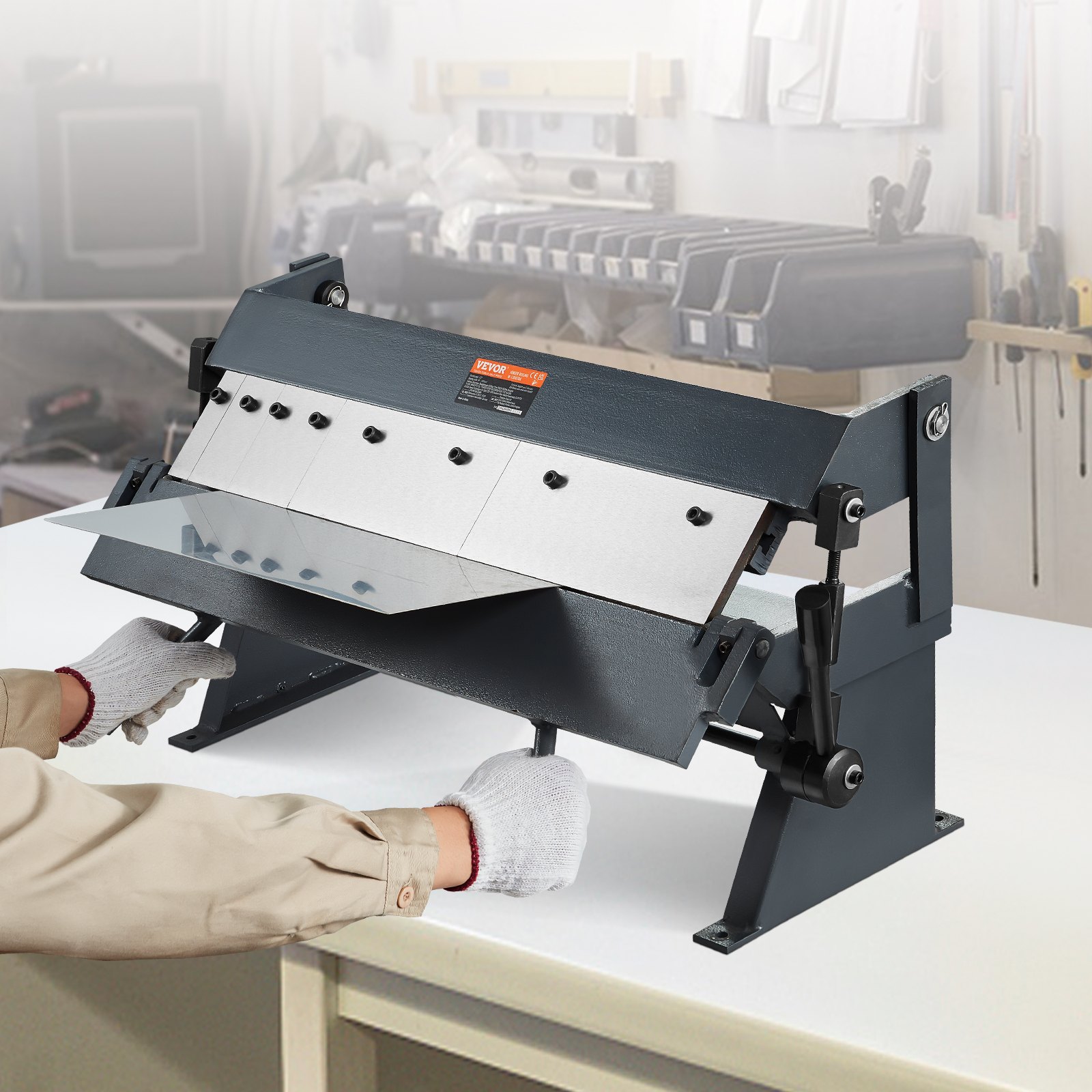

The bottom features two supporting bases, each pre-drilled with two holes. With just a few screws, you can securely attach the sheet metal brake to your workstation and kickstart your professional production work.
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending

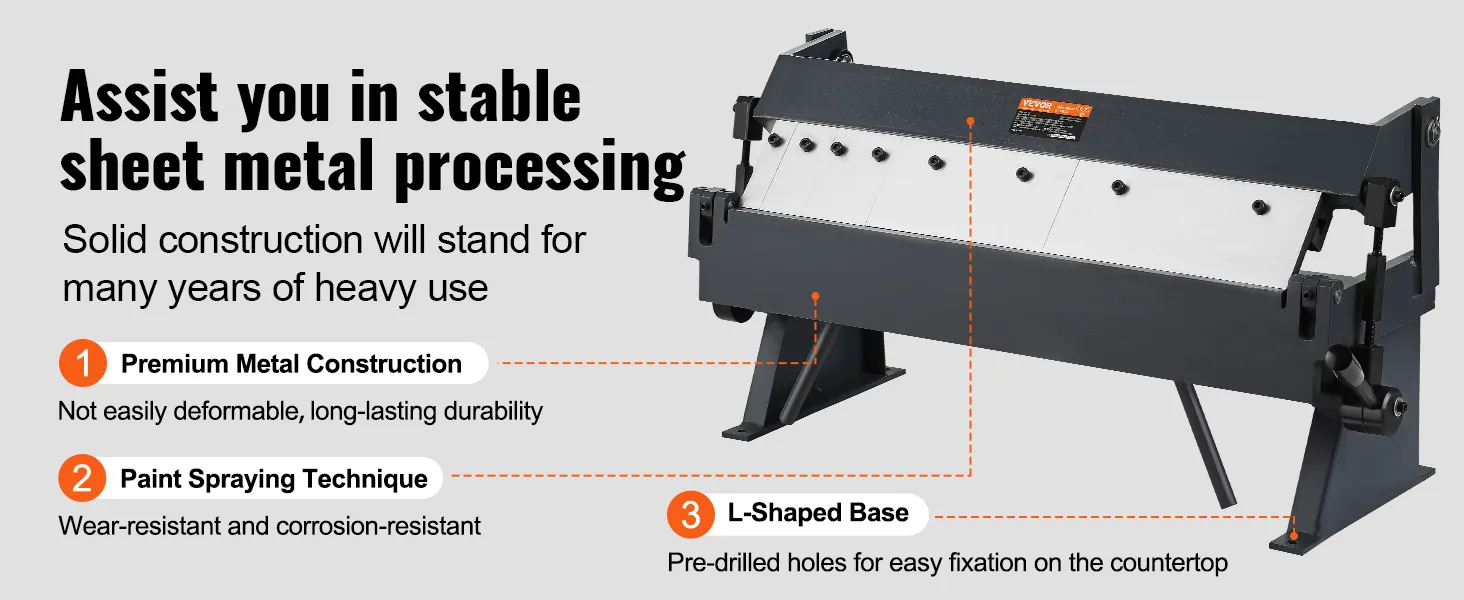

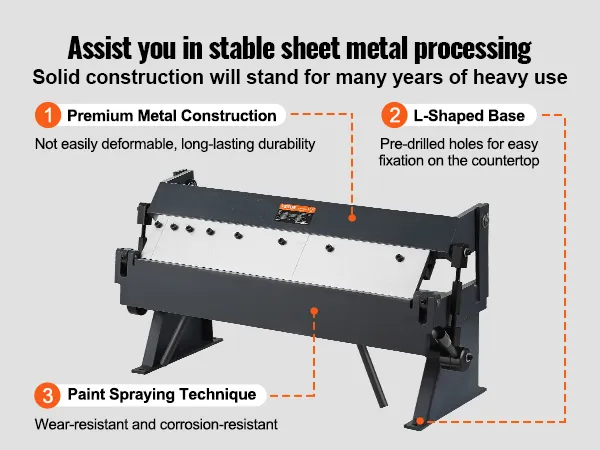

Crafted from full carbon steel, the sheet metal break's design ensures excellent stability, making it suitable for bulk sheet metal production. Its surface is treated with paint, enabling seamless adaptation to various installation environments.
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
Whether you're crafting reinforced floor channels, corrugated truck bed floors, truck headboards, or inner mudguards, this metal brake is poised to assist you in completing these tasks, going beyond your initial expectations.
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending
VEVOR Box and Pan Brake, 24-Inch, 0-130 Degrees Sheet Metal Bending Brake, Portable Metal Bender with 20 Gauge Low Carbon Steel 14 Gauge Aluminum Capacity, 5 Adjustable Fingers for Metal Bending

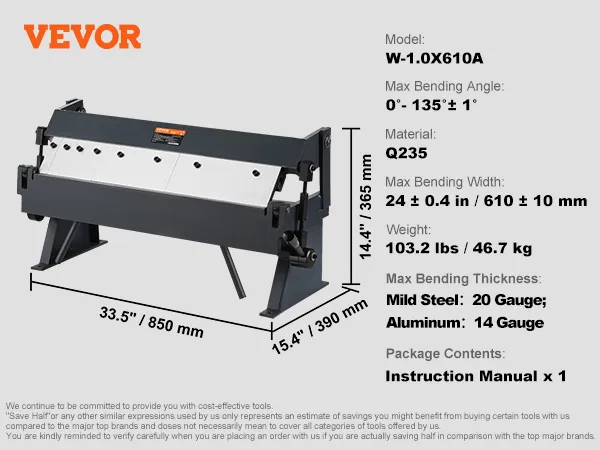

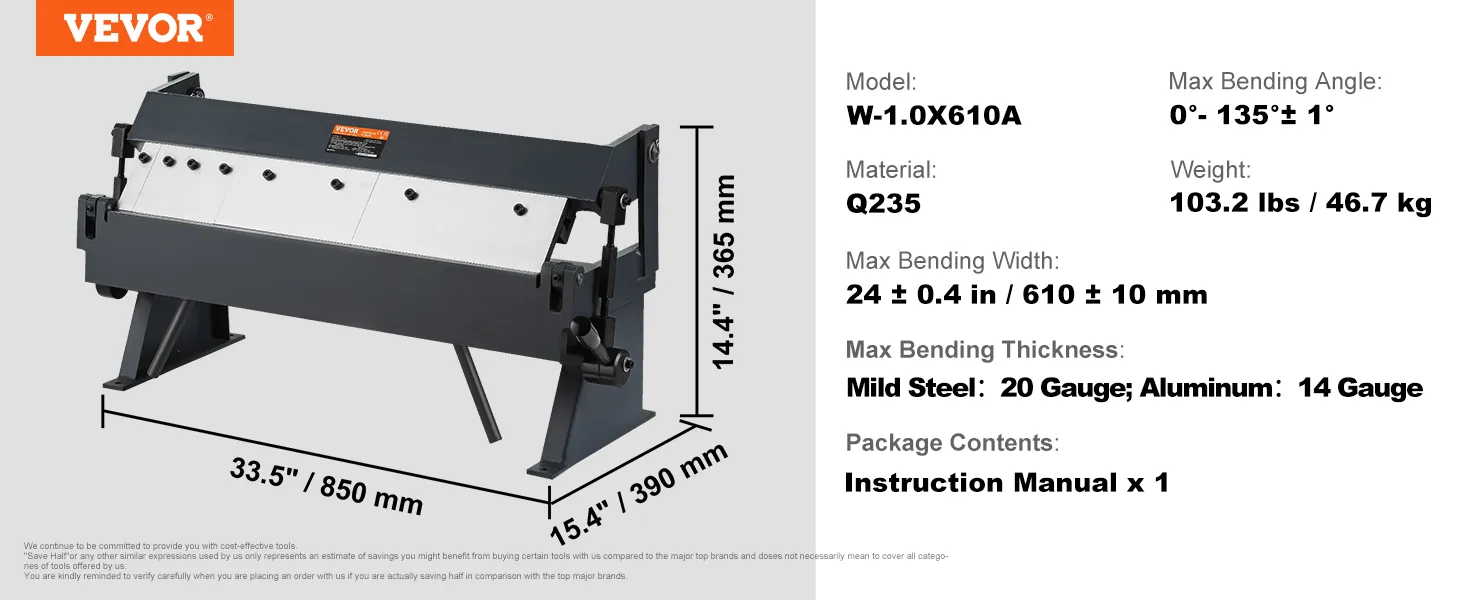

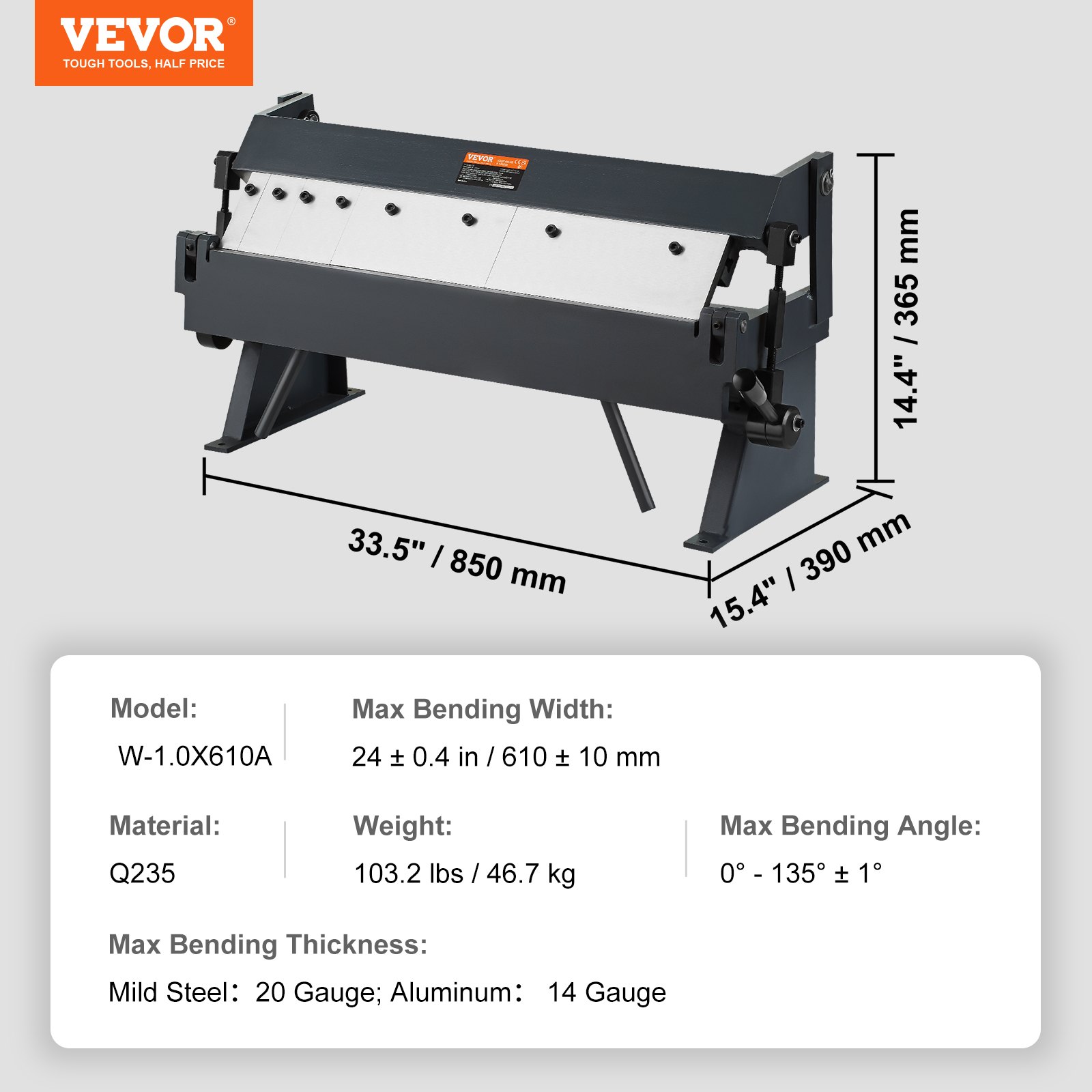

Specification

Item Model Number
W-1.0X610A
Material
Q235
Max Bending Width
24 ± 0.4 inches / 610 ± 10 mm
Max Bending Thickness
Low Carbon Steel
Maximum Bending Angle
0° - 135° ± 1°
Weight
103.2 lbs / 46.7 kg
Dimensions (L x W x H)
33.5 x 15.4 x 14.4 in / 850 x 390 x 365 mm
Manual
Download Link
Questions and Answers
1 Questions
This is a Box and Pan Sheet Metal Brake - How deep of a Box [inches or mm] can you fabricate?
It is about 50cm deep.
By vevor

Customer Reviews

23 Review(s)
Clear filters
Beavis Beavis
sheet metal bender
First time bending sheet metal. Project completed according to plan. Supplied my own clamps and this tool worked great on 30 gauge galvanized steel.
Marten Thieman Marten Thieman
Breaking things in
My first Home Break and I'm impressed by the size and design of the material and the Fingers. Simple to Use. I Had to Hang some cabinets and had no Studs on the wall for the cabinet. So, I made metal Brackets that anchored to the Ceiling Joists. It worked great. The Home Depot Designer was Impressed and The Cabinet guy liked my work. Nice tool. I need to get my welder up and running and make some ducting for my Shop. It is Cold Right Now.
PhilG PhilG
Sr. Maintenance Technician
Great product for the price, the clamps are flimsy. It would be awesome to have an attached material hold down for repetitive work.
lloyd williams lloyd williams
works for what I wanted product for
Prof. Dave. Prof. Dave.
With a little more engineering this could be a great product.
This is a nice product for the money. It is not well suited for repetitive tasks as, the pressure bar needs to be positioned after each bend when the clamps are released. The product is well made, but it would be nice if they could solve the few design flaws that are keeping this from becoming an outstanding product.
Joe Gonzalez Joe Gonzalez
Good
Fácil de usar con su mesa que le hice perfecto Gracias Joe Gonzalez
Pat Pat
Great gift
We bought this for our son (from his Amazon list), it is heavy and looks to be well made. The clamps that come with it are a bit flimsy but it's the Brake itself that was needed. Shipping was quick.
Terrapod Terrapod
Vevor 46" sheet metal brake
Finally got this thing out of the box. Coated in oil, used brake clean to remove same, only it also softens and removes the cheap blue paint that is over sprayed on the working ends.Paint got into the threads for the handles on the end castings, had to chase them with a tap for the handle rods to go in.Bent some 29" duct sheet metal, does give crisp bents at outer ends where clamped, centers leave much to be desired due to flexing of the clamped down bar Going to have to modify the clamp bar which is flat welding on another flat to make it an inverted T and see if that stiffens it a bitThe moving surface actually goes well beyond 90 degrees which was a pleasant surprise.Thinking of drilling some holes at each end and welding in a nut on the underside, then adding two small springs and bolts to act as clamp down instead of the C clamps provided. Will reduce the working width to about 34 inches but allow a much sharper bend to about 135 degrees.Conclusion is that this is good enough for simple jobs at this price point, just don't expect it to do what the 300 and up machines can do.With the mods it might prove to be even more useful. The cheap C clamps are a pain as they are loosey goosey. Best to do the mod or use better quality and smaller clamps.
Mr. E Mr. E
Good as long as you don't try to push it
I bought this specific to bend some aluminum flat stock to make boxes to glue to my vinyl fences where the latches are as the matches kept pulling away from the fend because they had nothing solid to grab onto.As you can see in my photo this brake did a nice job on the aluminum flat stock with nice and clean 90 degrees bends.Pay attention to the listing and the thickness this will support because of you try to exceed it like I attempted it won't work. The brake held up but when I tied to exceed the thickness rating the handles that you pull on started to bend. No damage done to the brake but you need to set your expectations according to what is listed as it's max thickness for the material you are working on.The clamps it came with were not that good and as I have a wooden bench I just screwed the brake into place while using it as you can see in my photo as that gave me the best leverage.
Katherine Richardson Katherine Richardson
Saved me money on window deletes for my school bus
I bought this metal brake rather than buying custom window deletes for my Skoolie conversion. It worked very well to make several window deletes reusing the metal I removed from my bus ceiling. Total cost was less than the cost of two window deletes. Would definitely buy again. Super simple for a beginner to figure out, too.
