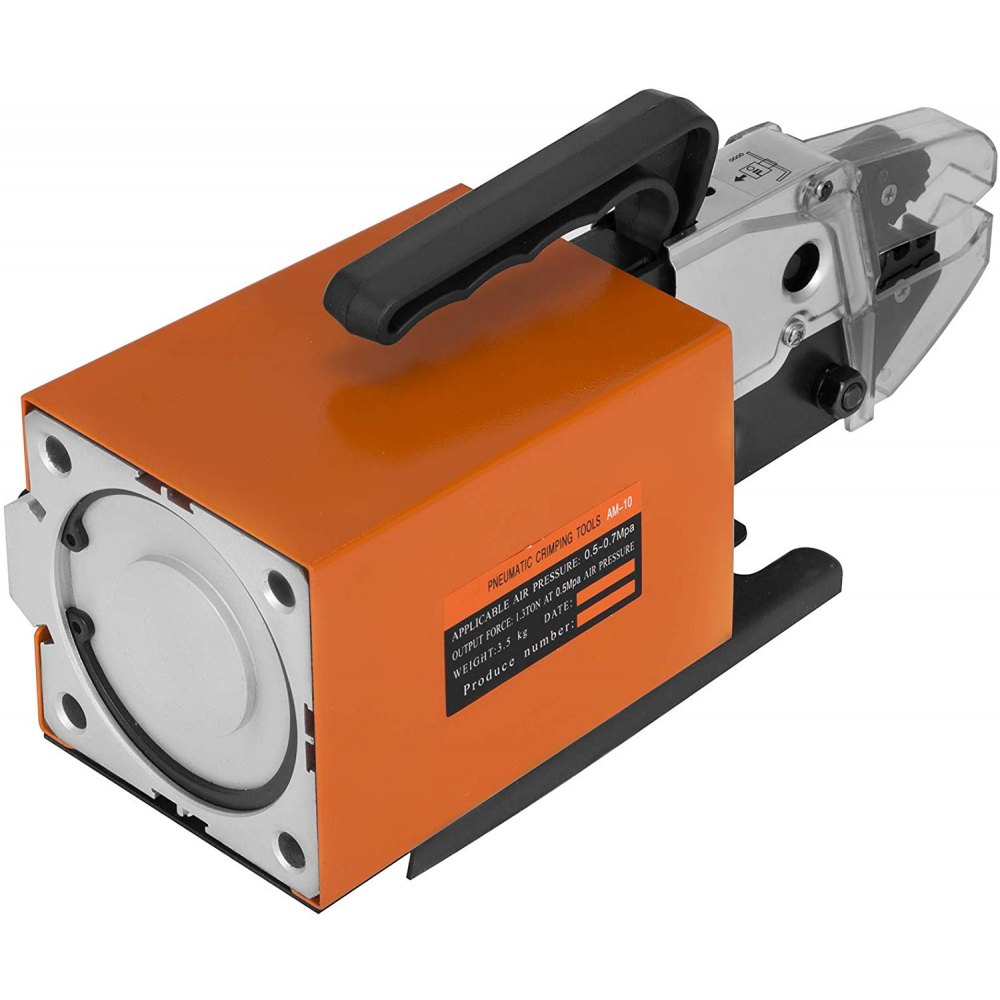

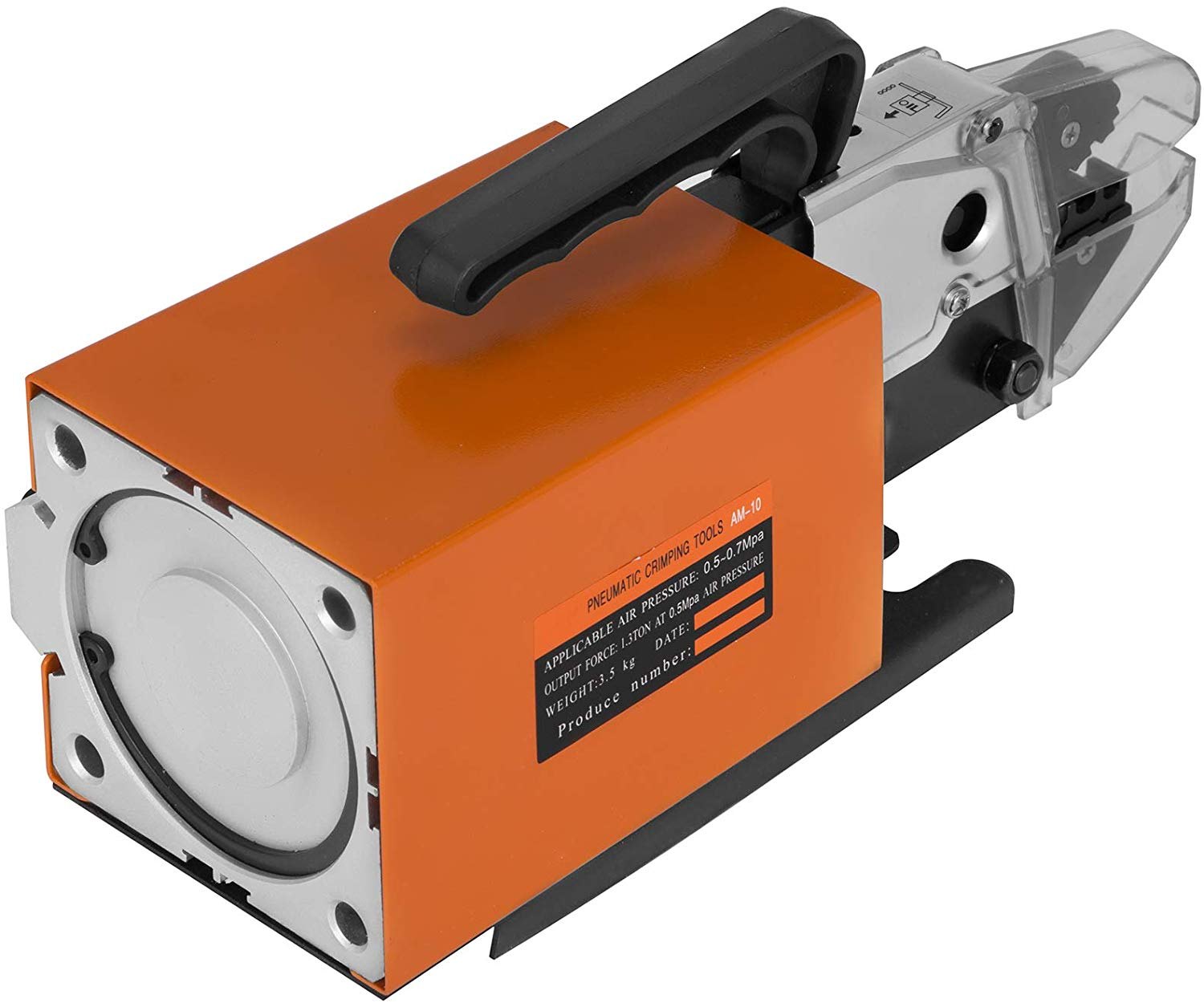

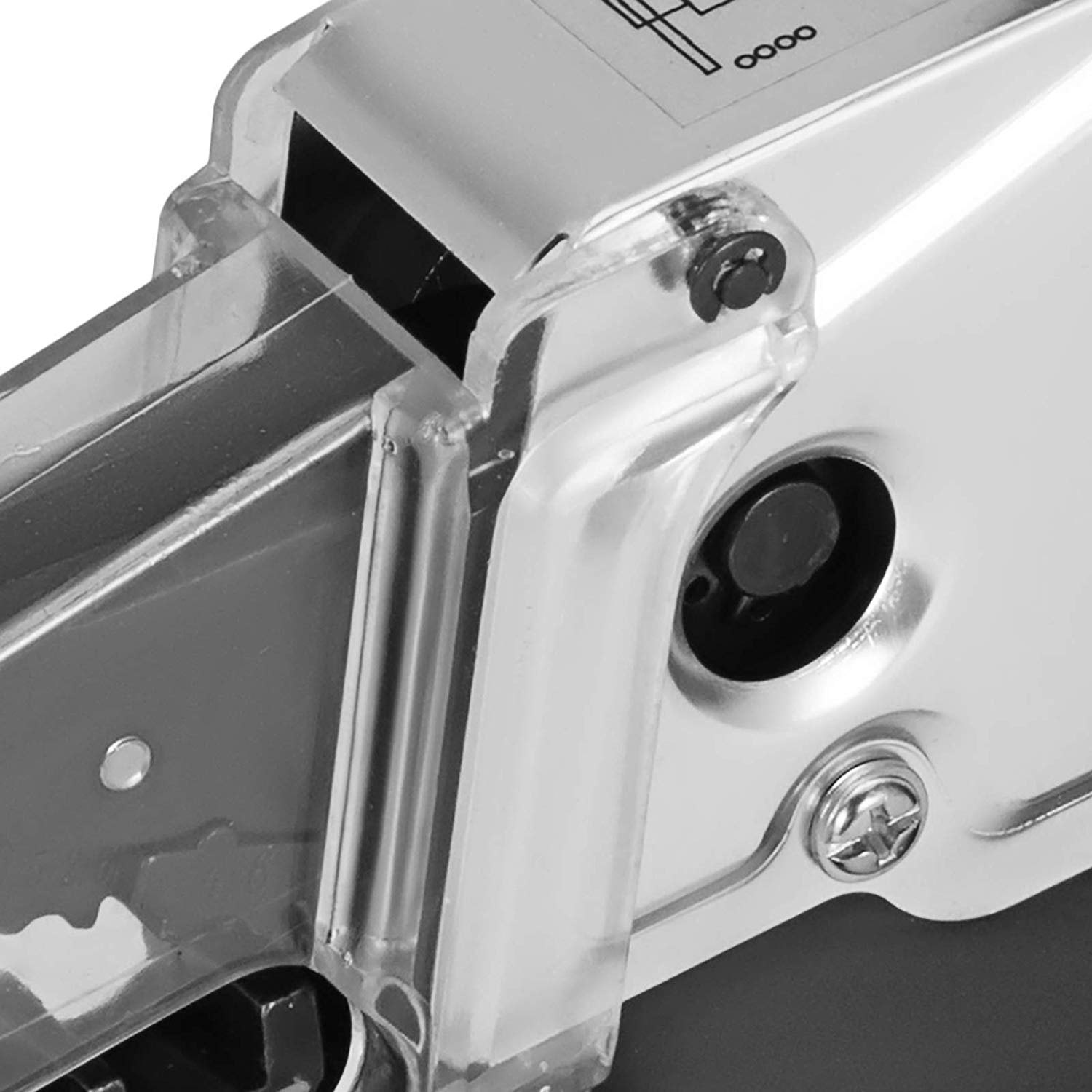

AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies

5.0
See All Customer Reviews
5 Reviews | 3 answered questions
Share
AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies
$223.99
223.99
Price including VATSee details
  • · 【DURABLE MATERIAL】 - The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.
  • · 【HIGH EFFICIENT】 - This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work. Besides, we provide you with an extra 15 sets of dies for free!
  • · 【COMFORTABLE OPERATION】 - Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.
  • · 【EASY TO USE】 - After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain.
  • · 【WIDE APPLICATIONS】 - The pneumatic crimping tool is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². We provide 15 additional sets of dies to meet various terminal interface requirements.


Frequently Bought Together

People Who Bought This Item Also Bought

AM-10 Pneumatic Crimping Tools for Kinds of Terminals 15 Sets of Dies
Description Specification Questions and Answers Reviews
unashoppingifytemplatenew


Features & Details


  • 【DURABLE MATERIAL】 - The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.
  • 【HIGH EFFICIENT】 - This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work. Besides, we provide you with an extra 15 sets of dies for free!
  • 【COMFORTABLE OPERATION】 - Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.
  • 【EASY TO USE】 - After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain.
  • 【WIDE APPLICATIONS】  - The pneumatic crimping tool is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². We provide 15 additional sets of dies to meet various terminal interface requirements.
Note: Air compressor not included. Please cut off the power when changing the mode jaws of the crimping machine.
  • Fit for crimping many kinds of terminals
  • Driven by dual-action normal cylinder
  • High efficiency and quality in crimping force and speed

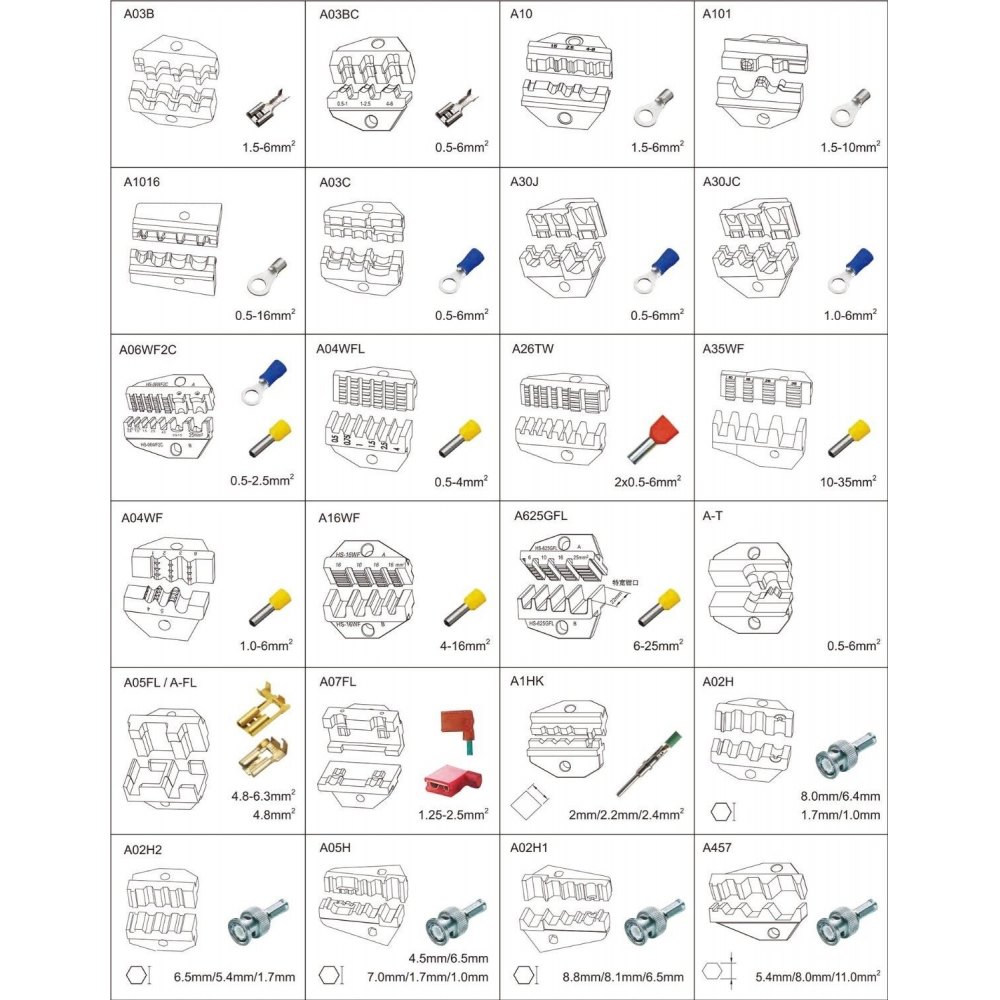

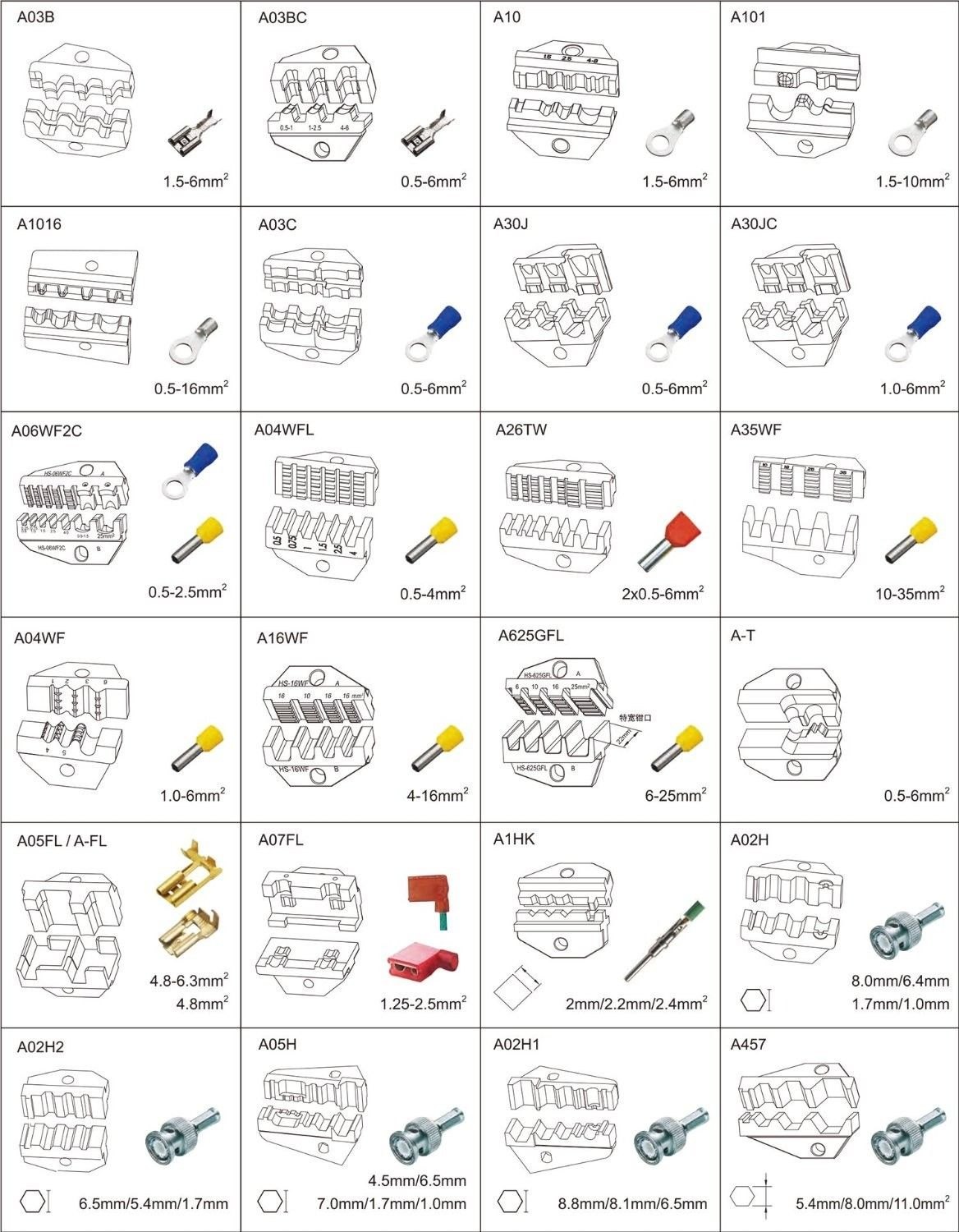

  • 15 sets of dies for free
  • Able to process terminals with large sizes

ThisAM-10 pneumatic crimping tool is driven by dual-action normal cylinder to achieve high efficiency and quality in both crimping force and speed. The pneumatic crimper is suitable for many kinds of terminals. Especially,  we provide you with extra 15 sets of dies for free!

*Air compressor not included.

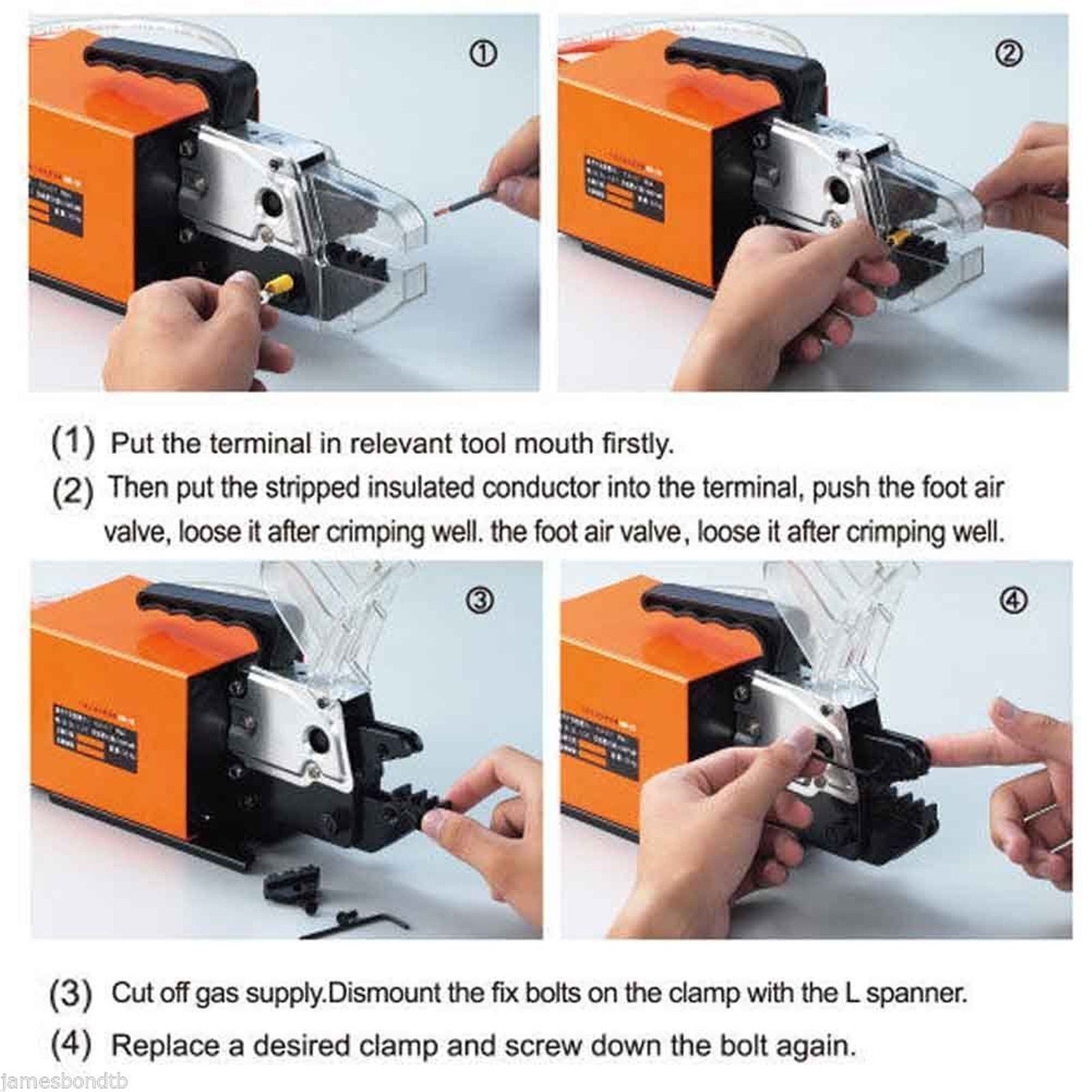

About Usage

  • First, put the terminal about to be crimped in corresponding position of clamp.
  • Secondly, put stripped insulated conductor into the terminal, push foot air valve and loose after crimping.
  • Then cut off gas supply. Dismount fix bolts on the clamp with L shaped spanner for safety.
  • Replace a desired clamp if necessary, screw the bolt tightly once more.
  • Please align the clamps well as they are used in pair.
  • After assembly, press foot-operated gas valve slowly to make the machine work at a rather low speed to check mounted die set.

Notes

  • Pleaselubricate all mechanical moving joints before start to operate, this will increase machine service life significantly.
  • When processing a terminal with large size, please guarantee enough gas supply and air pressure.
  • Do not use or store machine set in surroundings with too high or too low temperature, or high humidity.
  • Keep the machine clean and dry before you store it. Adding dust caps at gas inlet and outlet can be a great choice.

  • Working Pneumatic Pressure: 0.4-1 Mpa
  • Tubular Terminal:≤35 mm²
  • Crimping Force: 13.5 KN
  • Non-Insulated Terminal:≤16 mm²
  • Insulated Terminal: ≤6 mm²
  • Flow in Equipment: Compressed Air
  • Gross Weight: 17 lb (7.5 kg)
  • Package Dimensions (L x W x H): 17 x 14 x 10 inch (41 x 35 x 25 cm)

Specifications
  • Model: AM-10
  • Material: Tool steel
  • Weight: 3.5 kg (7.7 lbs)
  • Output Force: 1.3 T
  • Air Pressure: 0.5-0.7 Mpa
  • Max. Operating Pressure: 1.0 Mpa
  • Non-insulated terminals ≤ 16 mm²
  • Rre-insulated terminals ≤ 6 mm²
  • Tube terminals ≤ 35 mm²

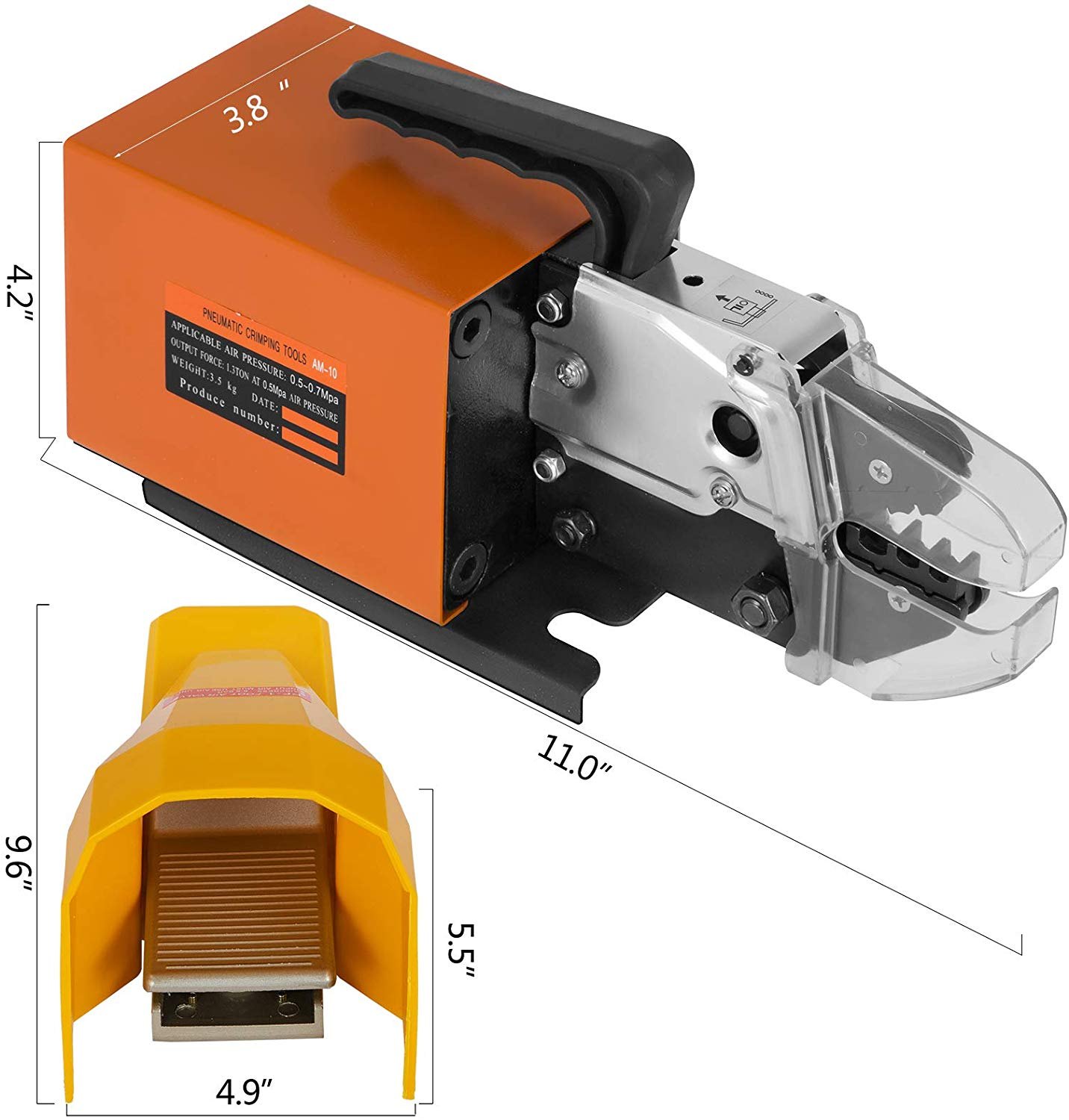

  • External Dimension: 266 x 142 x 117 mm ( 9 x 5.6 x 4.6 inch)

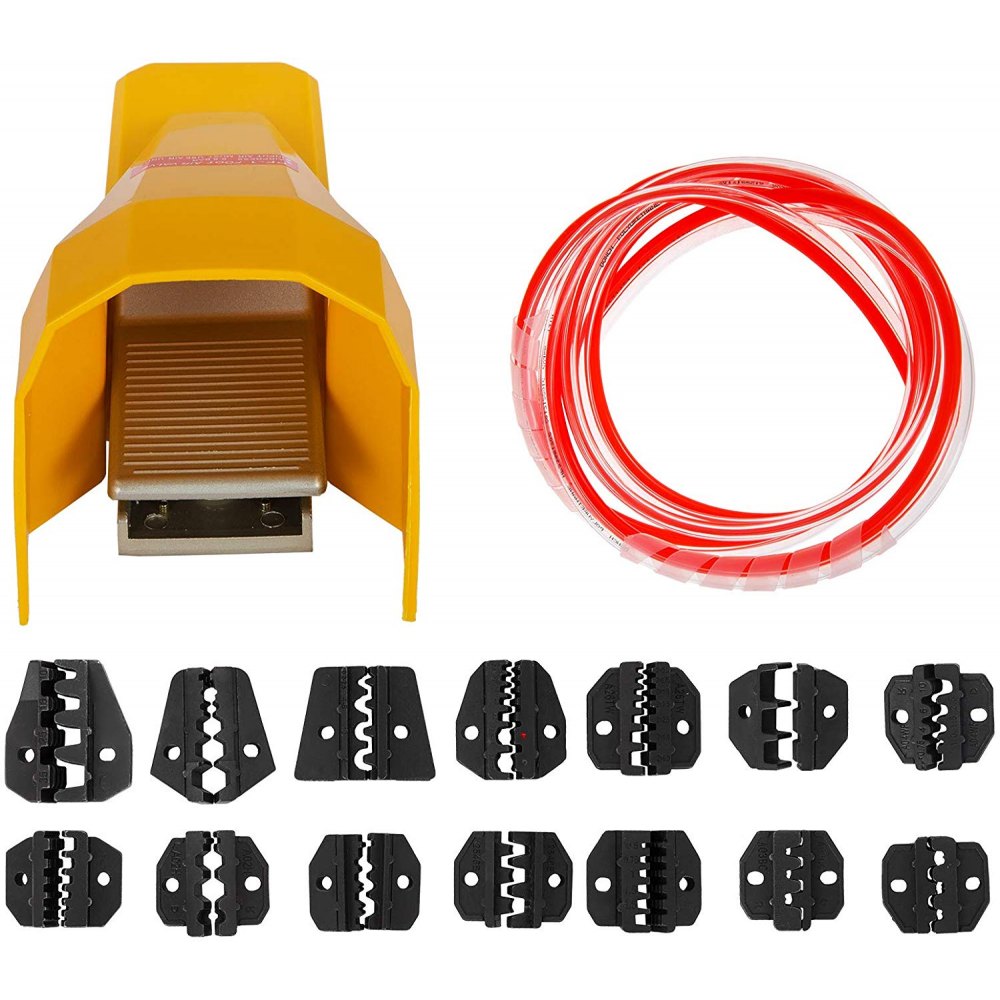

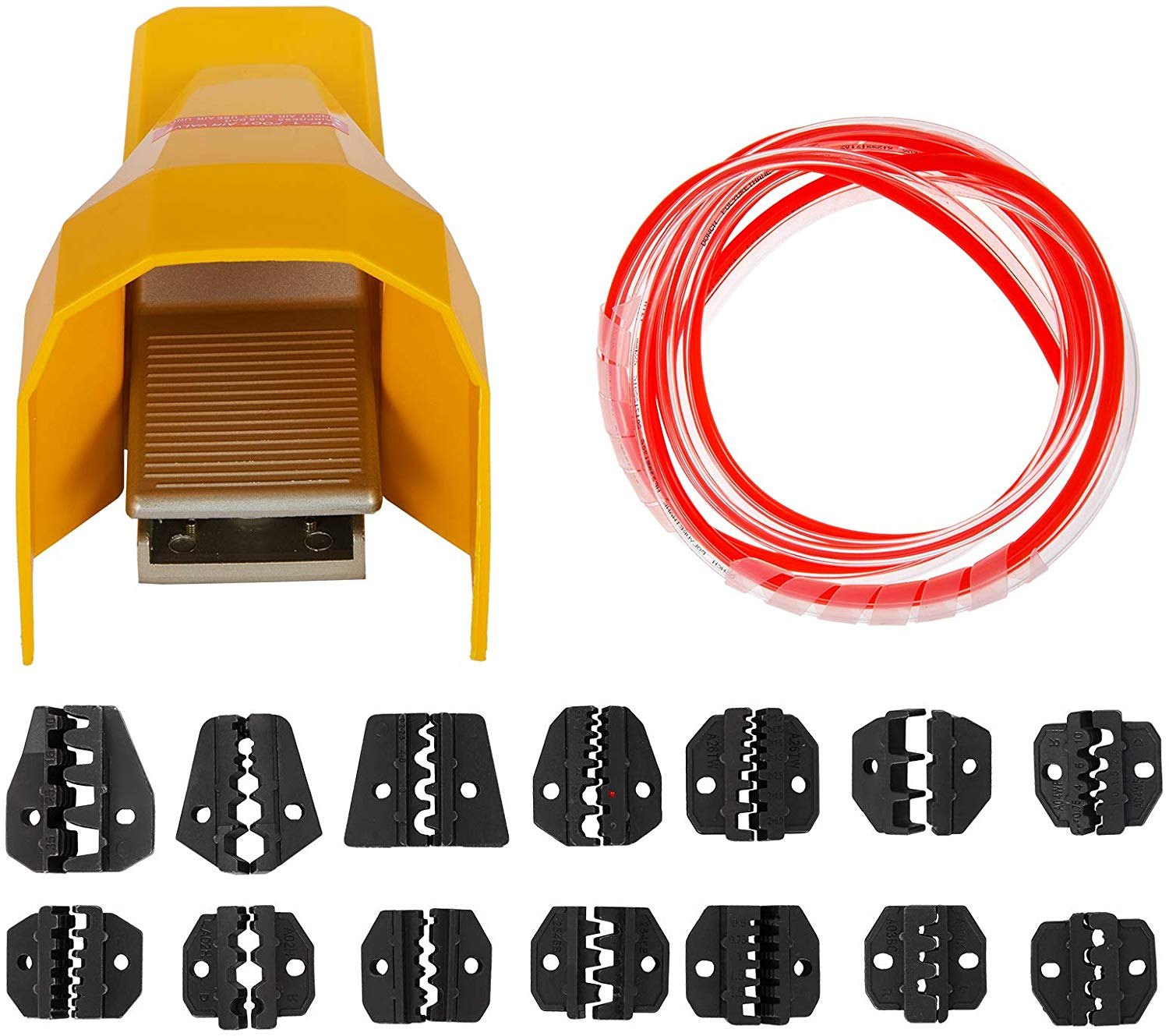

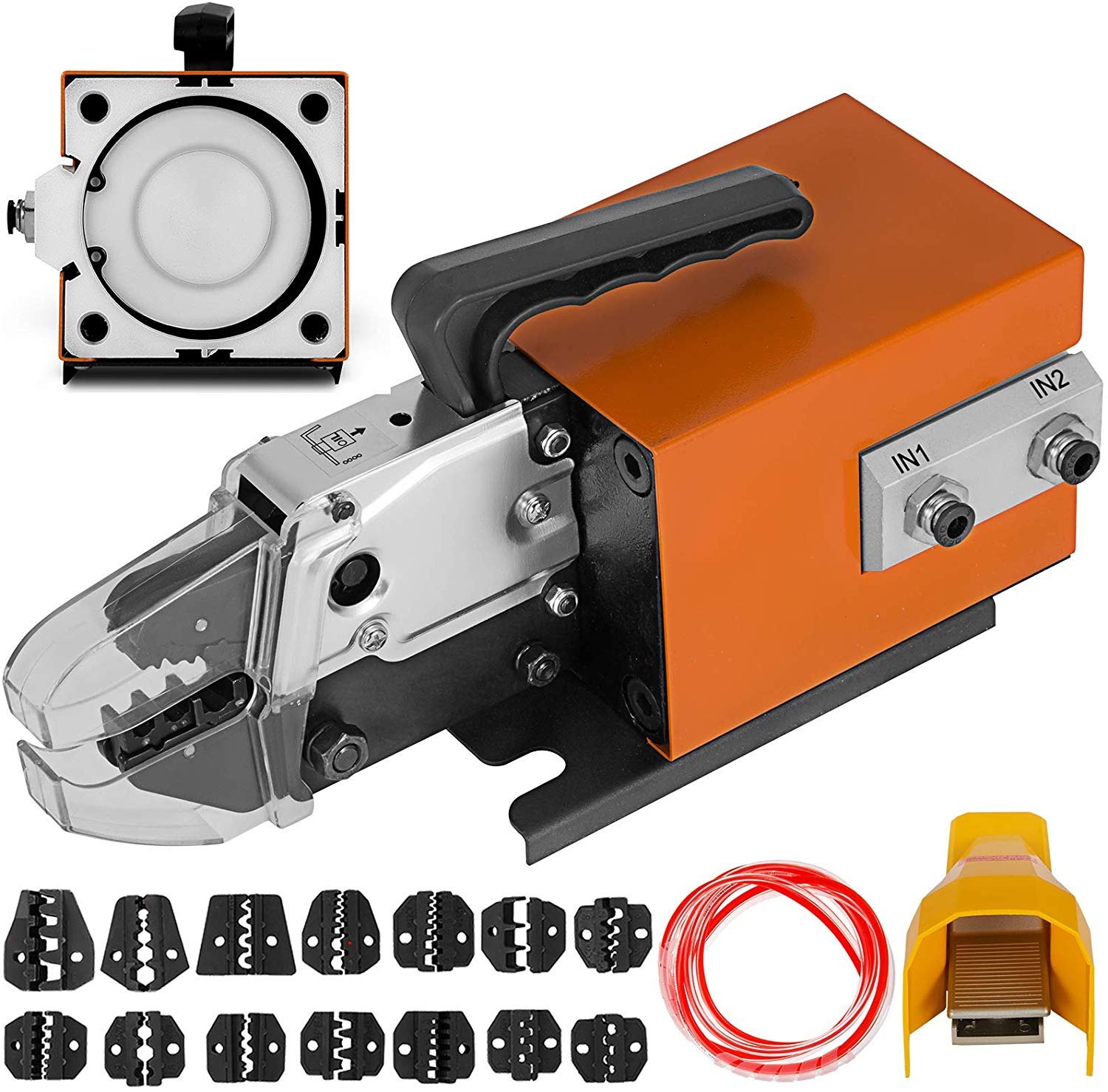

Package Content
  • 1 x Pneumatic Crimping Tool with 1 Die Set
  • 1 x Foot Air Valve
  • 2 x Air Pipes
  • 15 x Extra Die Sets


Features & Details


  • 【DURABLE MATERIAL】 - The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.
  • 【HIGH EFFICIENT】 - This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work. Besides, we provide you with an extra 15 sets of dies for free!
  • 【COMFORTABLE OPERATION】 - Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.
  • 【EASY TO USE】 - After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain.
  • 【WIDE APPLICATIONS】  - The pneumatic crimping tool is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². We provide 15 additional sets of dies to meet various terminal interface requirements.
Note: Air compressor not included. Please cut off the power when changing the mode jaws of the crimping machine.
  • Fit for crimping many kinds of terminals
  • Driven by dual-action normal cylinder
  • High efficiency and quality in crimping force and speed
  • 15 sets of dies for free
  • Able to process terminals with large sizes

ThisAM-10 pneumatic crimping tool is driven by dual-action normal cylinder to achieve high efficiency and quality in both crimping force and speed. The pneumatic crimper is suitable for many kinds of terminals. Especially,  we provide you with extra 15 sets of dies for free!

*Air compressor not included.

About Usage

  • First, put the terminal about to be crimped in corresponding position of clamp.
  • Secondly, put stripped insulated conductor into the terminal, push foot air valve and loose after crimping.
  • Then cut off gas supply. Dismount fix bolts on the clamp with L shaped spanner for safety.
  • Replace a desired clamp if necessary, screw the bolt tightly once more.
  • Please align the clamps well as they are used in pair.
  • After assembly, press foot-operated gas valve slowly to make the machine work at a rather low speed to check mounted die set.

Notes

  • Pleaselubricate all mechanical moving joints before start to operate, this will increase machine service life significantly.
  • When processing a terminal with large size, please guarantee enough gas supply and air pressure.
  • Do not use or store machine set in surroundings with too high or too low temperature, or high humidity.
  • Keep the machine clean and dry before you store it. Adding dust caps at gas inlet and outlet can be a great choice.

  • Working Pneumatic Pressure: 0.4-1 Mpa
  • Tubular Terminal:≤35 mm²
  • Crimping Force: 13.5 KN
  • Non-Insulated Terminal:≤16 mm²
  • Insulated Terminal: ≤6 mm²
  • Flow in Equipment: Compressed Air
  • Gross Weight: 17 lb (7.5 kg)
  • Package Dimensions (L x W x H): 17 x 14 x 10 inch (41 x 35 x 25 cm)

Specifications
  • Model: AM-10
  • Material: Tool steel
  • Weight: 3.5 kg (7.7 lbs)
  • Output Force: 1.3 T
  • Air Pressure: 0.5-0.7 Mpa
  • Max. Operating Pressure: 1.0 Mpa
  • Non-insulated terminals ≤ 16 mm²
  • Rre-insulated terminals ≤ 6 mm²
  • Tube terminals ≤ 35 mm²
  • External Dimension: 266 x 142 x 117 mm ( 9 x 5.6 x 4.6 inch)
Package Content
  • 1 x Pneumatic Crimping Tool with 1 Die Set
  • 1 x Foot Air Valve
  • 2 x Air Pipes
  • 15 x Extra Die Sets

Specification

Model
AM-10
Material
Tool steel
Weight
3.5 kg (7.7 lbs)
Output Force
1.3 T
Air Pressure
0.5-0.7 Mpa
Max. Operating Pressure
1.0 Mpa
Non-insulated terminals ≤ 16 mm²
Rre-insulated terminals ≤ 6 mm²
Tube terminals ≤ 35 mm²
External Dimension
266 x 142 x 117 mm ( 9 x 5.6 x 4.6 inch)
Questions and Answers
3 Questions
Ask a Question
The Unit did not include an installation manual or operation manual. May we have a copy of each or a link to print them?
Here is the link to the manual: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/AM-10PneumaticCrimpingToolManual_1664270685543.pdf
By vevor
(0) (0)
Does it come with a cutter cable option?
No, it doesn't.
By vevor
(0) (0)
AM-10 requires regular calibration? or just preventive maintenance?
No maintenance is required for any use up to 50,000.
By vevor
(0) (0)

Customer Reviews

5.0 Out of 5
5 Reviews
  • 4.8
  • 4.6
  • 4.6
  • 4.7
WARLOCK WARLOCK
Senior Engineer
We crimp an average of 750 insulated #18 quick connects and splices a month. The work staff is aging and this makes the job go faster and with less hand cramps. This was a great investment.
See more See less
0
Robert R. Robert R.
Used by Mass Transit company for wiring harness assembly
We bought this tool from vevor.com simply because the price was better and it came with 15 dies. This tool is a must have for jobs that require repetitive crimping. It will help reduce worker fatigue from using hand crimpers. We plan on using this tool every time we have a bus build that require a custom harness to be made for multiple busses.
See more See less
0
Larry H. Larry H.
Quality product. Fair value.
Have used these for many years now. They do wear out but they last just as long as most of the more expensive brands. Easy to maintain. We feel the are a very good value for our wire harness operations.
See more See less
0
Derek Bester Derek Bester
Great but needs more dies as they are too small.
Great product, pity it only comes with one die only suitable for the small yellow, blue and red terminals. I am now waiting on delivery on more dies.
See more See less
0
Taxilian Taxilian
Works with crimp dies from my other crimpers
I had to turn the dies around from how they fit in my handheld ones, but this works great with the dies I use on my handheld crimpers -- just standard crimp dies. This is one of the best tool purchases I've made in quite a long time due to how much crimping I do.Excellent device.
See more See less
0
