0618-3BMNCC000001V1

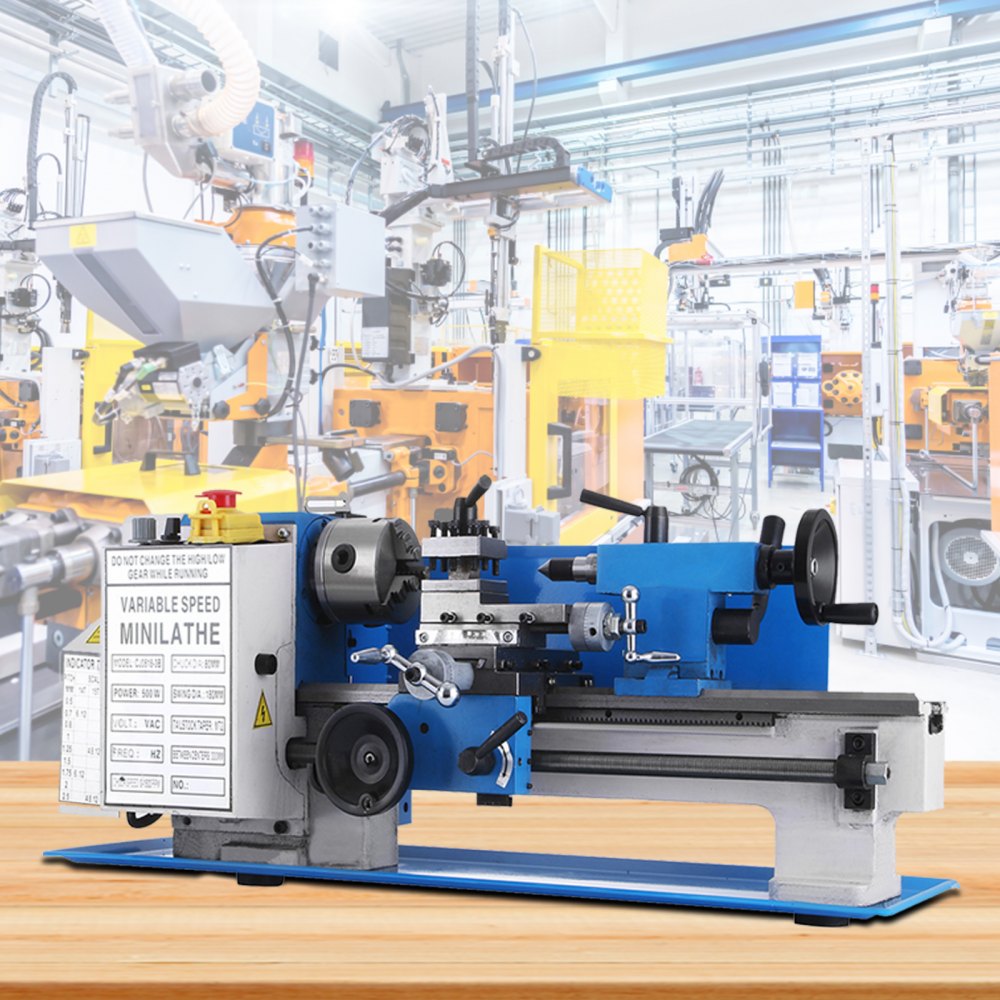

7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM

7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM
$495.99
495.99
Price including VATSee details

Common Parts

  • Brush Parts
  • Common Parts

400 W

  • 550 W
  • 400 W
  • · Sturdy Iron Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, and professional. Mini metal lathe power of motor: 400W. The full-length splash guard provides maximum protection.
  • · Infinitely Variable Speed: Variable speed from 50-2250 RPM. Forward and reverse at all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the sideways are obtained by raw material, heat hardening and grinding. The emergency stop button included.
  • · Accurate 3-Jaw Chuck: 3-jaw self-centering chuck for setting materials steadily. Backsplash guard included. The spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.

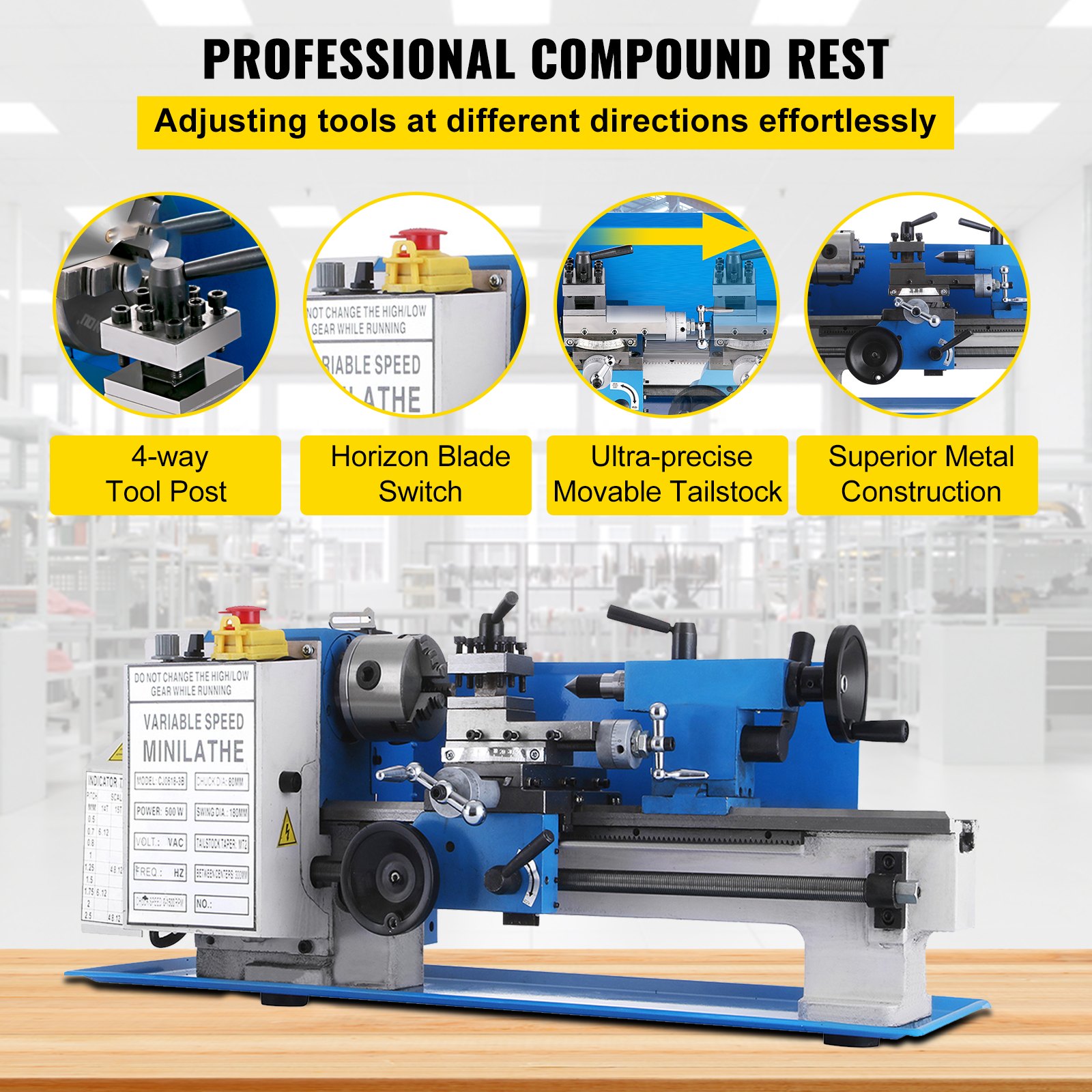

  • · Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting, and bevel cutting by changing the tool post angle and adjusting the compound rest. The professional slide is designed with abrasive resistance, moving blades freely with a feed rod.
  • · Extensive Application: Driven by the quality motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing, and modeling works. It is suitable for processing jobs, like drilling, milling, threading and cutting jobs on kinds of materials.


Frequently Bought Together

People Who Bought This Item Also Bought

7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM
Common Parts   400 W
7x12
7x12
7x12

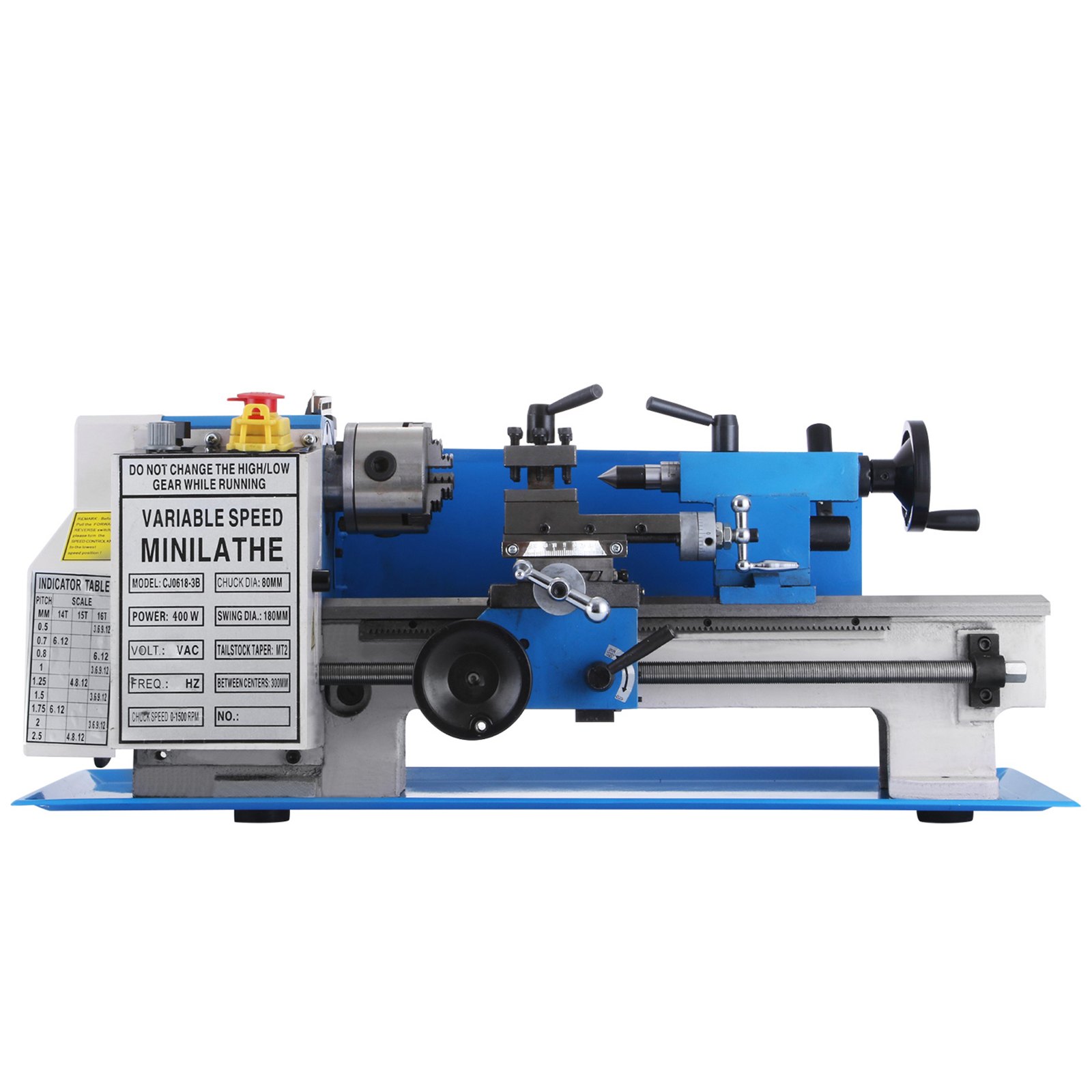

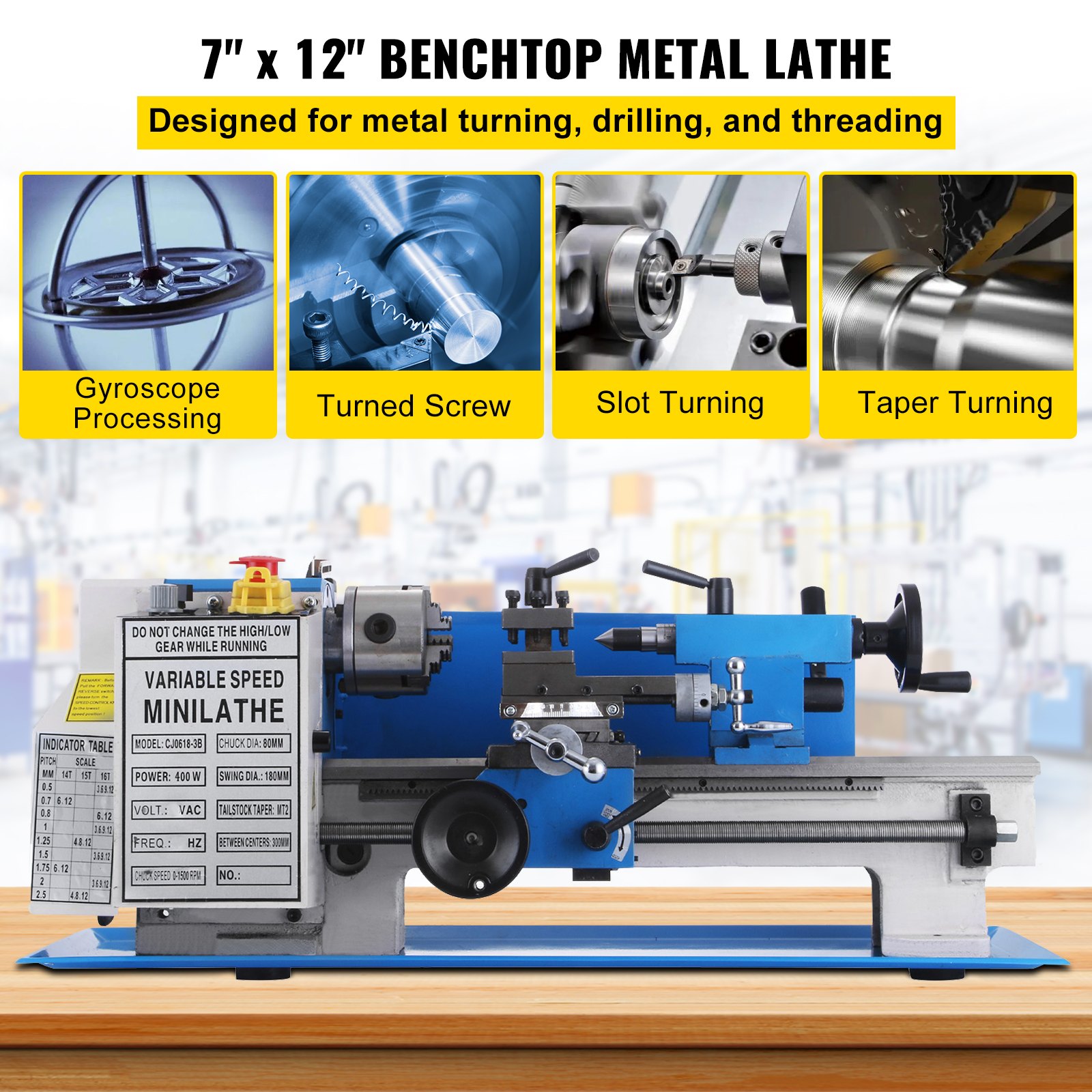

7'' x 12'' Metal Lathe Machine
400W Powerful Motor & MT3 Spindle & 0.01 mm Spindle Accuracy
  • The precision mini bench top lathe features a 3-jaw chuck, a spindle taper, a tailstock taper, a tool rest and a quality motor, designed to perform various types of metal turning, simple to operate through high-frequency quenching process and precision grinding of high-quality cast iron bed
  • Sturdy Iron Construction
  • Infinitely Variable Speed
  • Accurate 3-Jaw Chuck
  • Professional Compound Rest
7x12
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7x12
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7x12

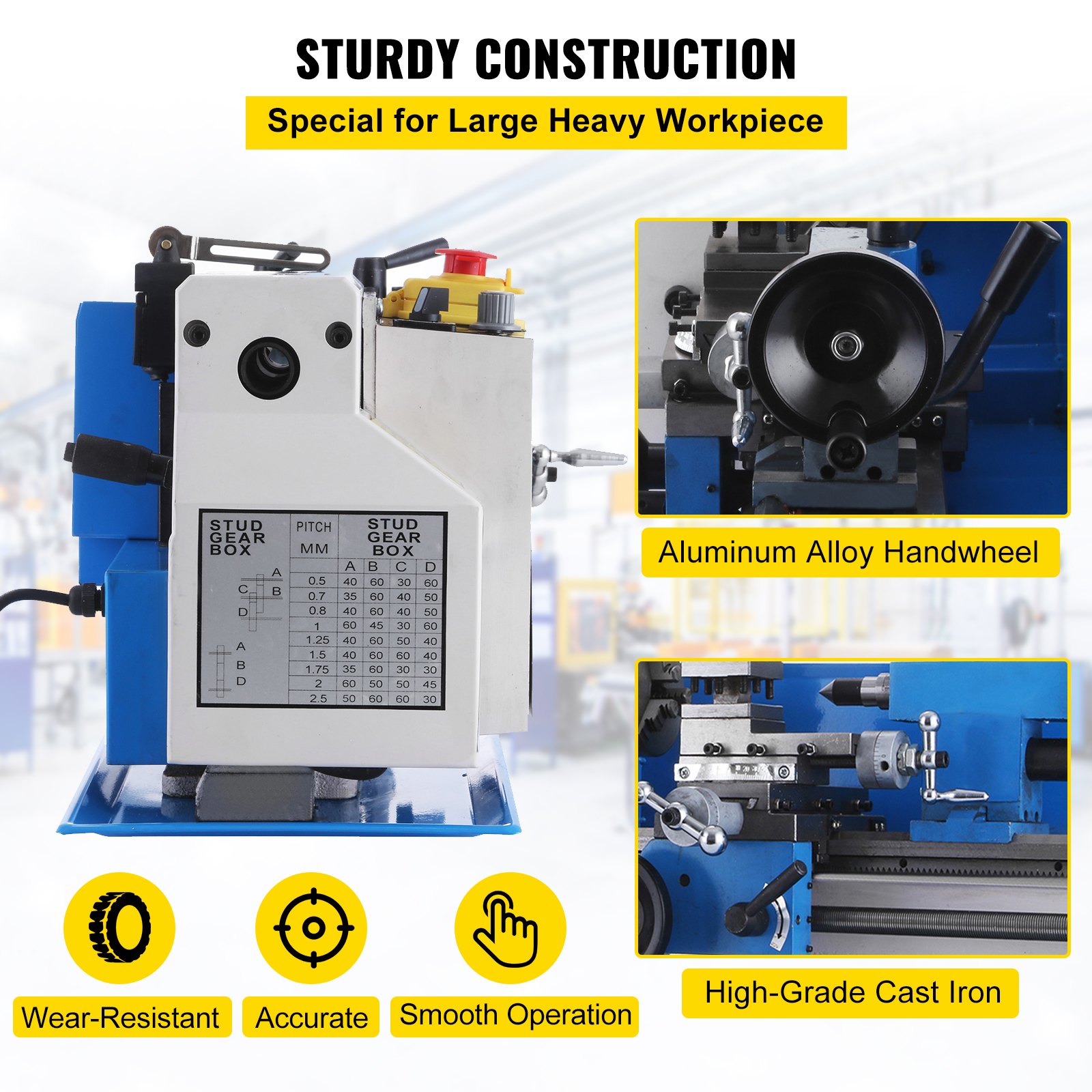

Heavy & Sturdy Machine
Features with high quality iron material, this heavy-duty metal lathe is designed for durability and longevity.
7x12

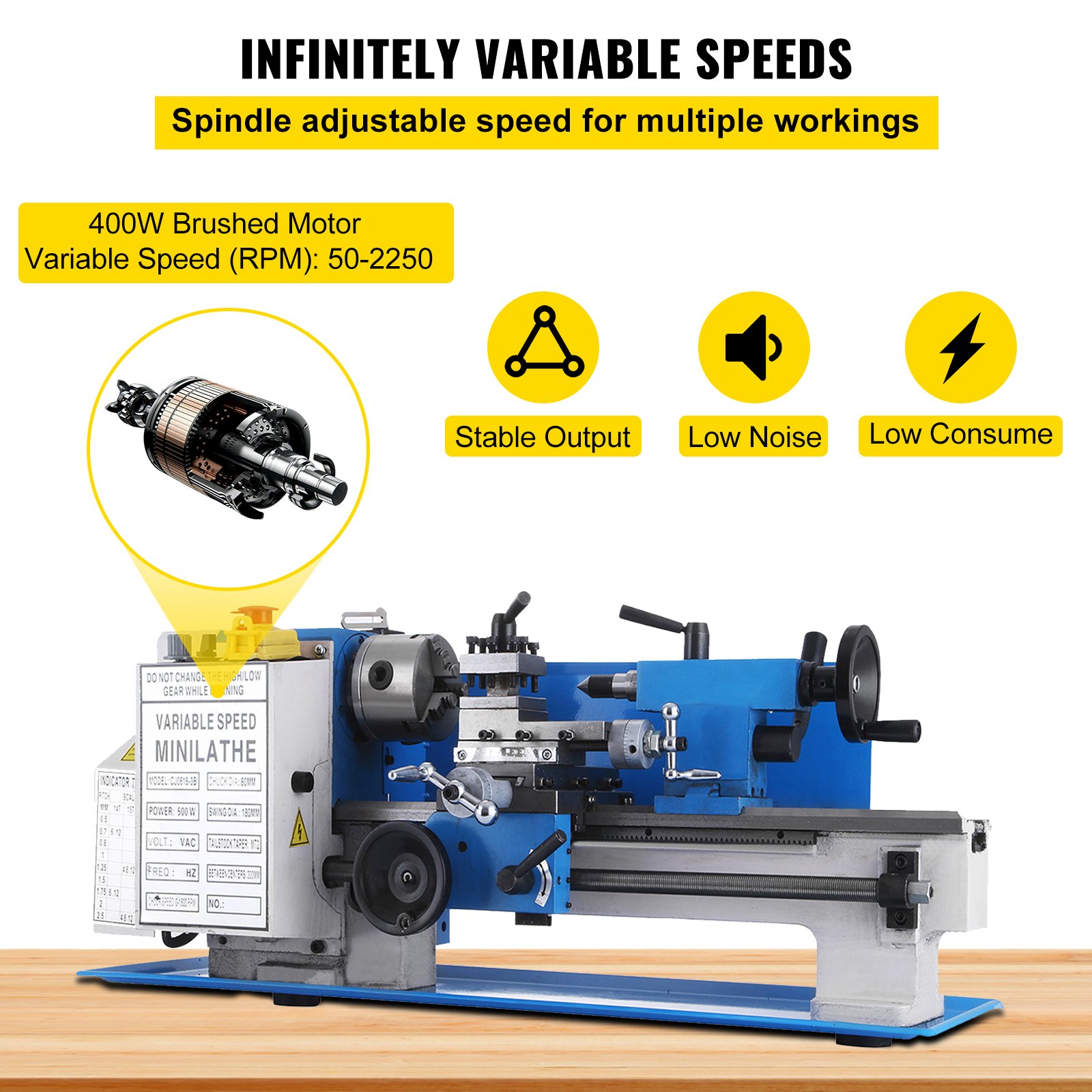

Infinitely Variable Speeds
Variable speed: 50-2250 RPM. You can operate this bench top lathe manually. The feed speed can be adjusted according to the requirements of different workpieces.
7x12

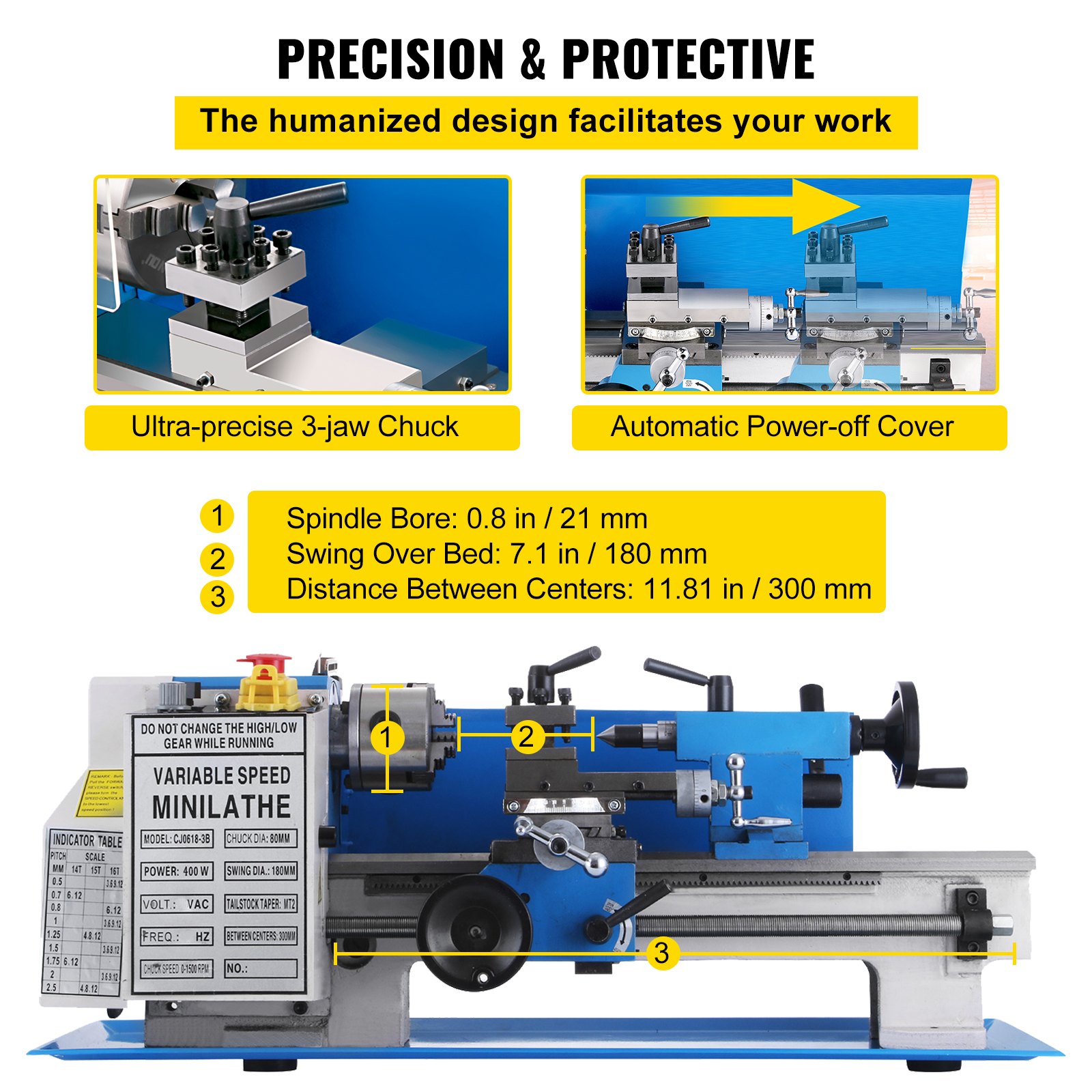

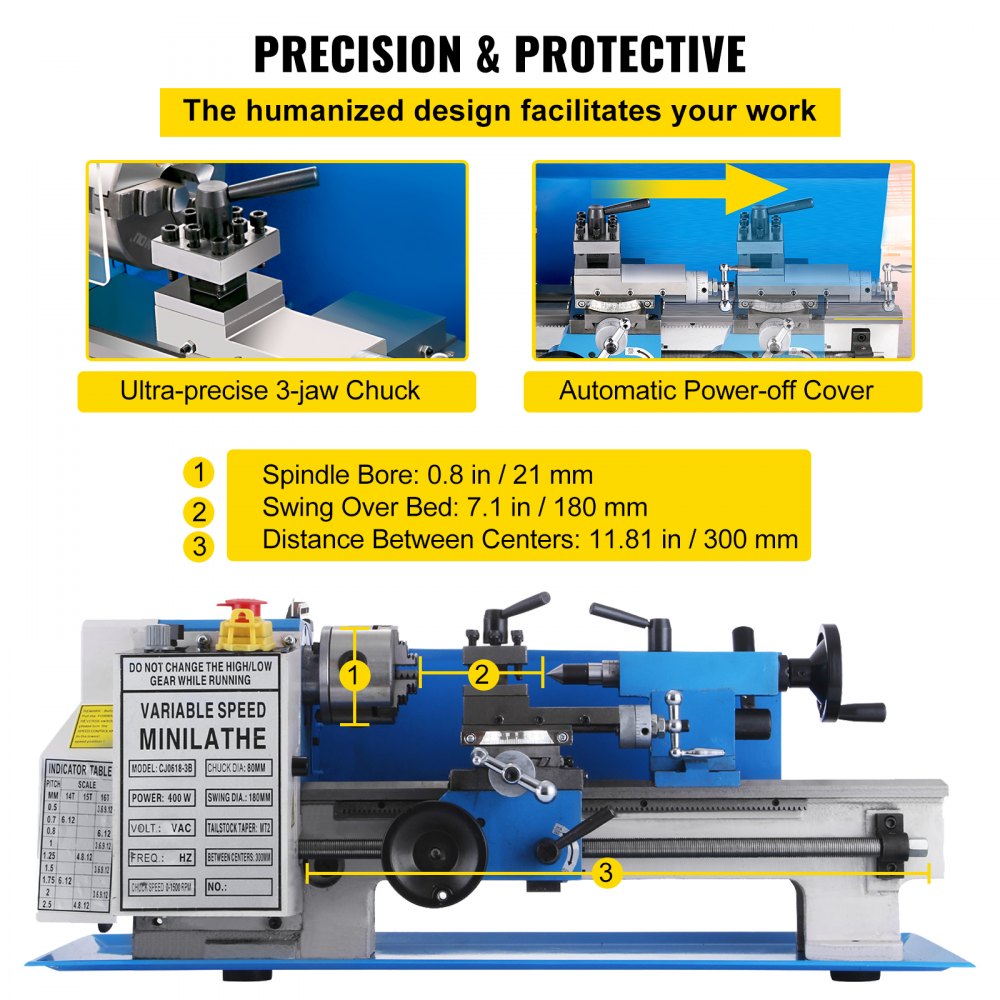

High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. The spindle is supported by precision tapered roller bearings.
7x12
Four-way Tool Post
T-slotted compound slide with 4-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
7x12
Professional Cross Slide
Our lathe is designed with abrasive resistance, moving blades optionally with feed rod. The slide ways with a distance between center is 12" / 300 mm, large workspace for more facilitate.
7x12
Adjustable MT2 Tailstock
The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.
7x12
Specifications
  • Volt: 110V 60 Hz
  • Motor Power: 400W
  • Motor Type: Brushed
  • Phase: Single Phase
  • Variable Speed Gear: Plastic Nylon
  • Certification: CE
  • Swing Over Bed: 7" / 180 mm
  • Distance Between Centers: 11.8" / 300 mm
  • Spindle Accuracy: 0.0004" / 0.01 mm
  • Spindle Speed: 50 - 2250 RPM
  • Spindle Bore: 0.83" / 21 mm
  • Tail Stock Taper: MT2
  • Spindle Taper: MT3
  • Top Slide Travel: 1.38" / 35 mm
  • Cross Slide Travel: 2.56" / 65 mm

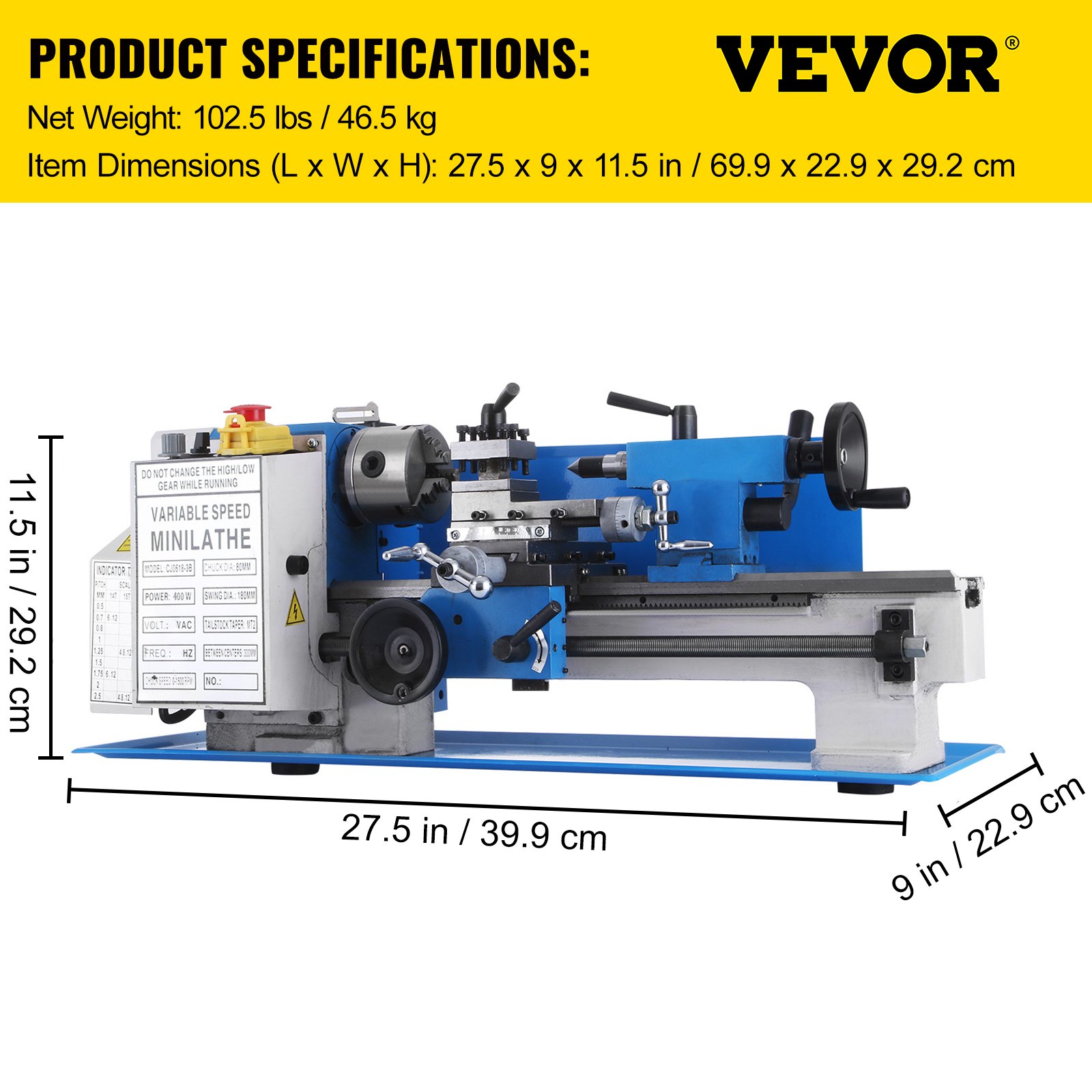

  • Net Weight: 102.5 lbs / 46.5 kg
  • Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm
7x12

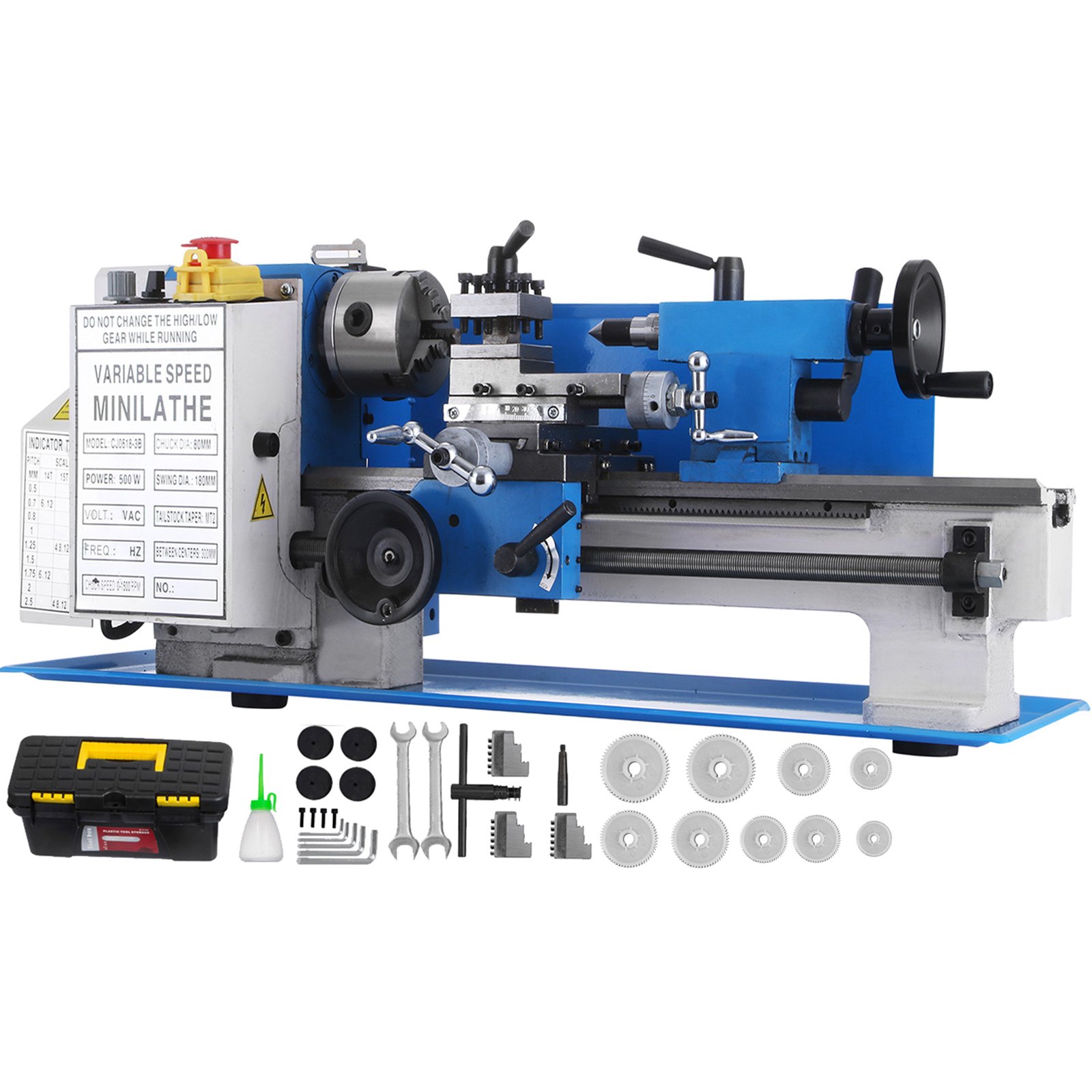

Package Content
  • 1 x Mini Lathe
  • 1 x Chuck Wrench
  • 2 x Wrenches
  • 3 x Chuck Jaws
  • 9 x Nylon Gears
  • 1 x Oil Can
  • 5 x Hex Wrenches
  • 1 x Dead Center
  • 1 x Chuck Claw
  • 1 x Protecting Mask
  • 4 x Shockproof Foot Cushions
  • 1 x Toolkit
  • 1 x Instruction Manual
7x12
7x12
7x12
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7x12
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7x12
7'' x 12'' Metal Lathe Machine
400W Powerful Motor & MT3 Spindle & 0.01 mm Spindle Accuracy
  • The precision mini bench top lathe features a 3-jaw chuck, a spindle taper, a tailstock taper, a tool rest and a quality motor, designed to perform various types of metal turning, simple to operate through high-frequency quenching process and precision grinding of high-quality cast iron bed
  • Sturdy Iron Construction
  • Infinitely Variable Speed
  • Accurate 3-Jaw Chuck
  • Professional Compound Rest
7x12
Heavy & Sturdy Machine
Features with high quality iron material, this heavy-duty metal lathe is designed for durability and longevity.
7x12
Infinitely Variable Speeds
Variable speed: 50-2250 RPM. You can operate this bench top lathe manually. The feed speed can be adjusted according to the requirements of different workpieces.
7x12
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. The spindle is supported by precision tapered roller bearings.
7x12
Four-way Tool Post
T-slotted compound slide with 4-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
7x12
Professional Cross Slide
Our lathe is designed with abrasive resistance, moving blades optionally with feed rod. The slide ways with a distance between center is 12" / 300 mm, large workspace for more facilitate.
7x12
Adjustable MT2 Tailstock
The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.
7x12
Package Content
  • 1 x Mini Lathe
  • 1 x Chuck Wrench
  • 2 x Wrenches
  • 3 x Chuck Jaws
  • 9 x Nylon Gears
  • 1 x Oil Can
  • 5 x Hex Wrenches
  • 1 x Dead Center
  • 1 x Chuck Claw
  • 1 x Protecting Mask
  • 4 x Shockproof Foot Cushions
  • 1 x Toolkit
  • 1 x Instruction Manual
7x12
Specifications
  • Volt: 110V 60 Hz
  • Motor Power: 400W
  • Motor Type: Brushed
  • Phase: Single Phase
  • Variable Speed Gear: Plastic Nylon
  • Certification: CE
  • Swing Over Bed: 7" / 180 mm
  • Distance Between Centers: 11.8" / 300 mm
  • Spindle Accuracy: 0.0004" / 0.01 mm
  • Spindle Speed: 50 - 2250 RPM
  • Spindle Bore: 0.83" / 21 mm
  • Tail Stock Taper: MT2
  • Spindle Taper: MT3
  • Top Slide Travel: 1.38" / 35 mm
  • Cross Slide Travel: 2.56" / 65 mm
  • Net Weight: 102.5 lbs / 46.5 kg
  • Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm

Specification

Volt
110V 60 Hz
Motor Power
400W
Motor Type
Brushed
Phase
Single Phase
Variable Speed Gear
Plastic Nylon
Certification
CE
Swing Over Bed
7" / 180 mm
Distance Between Centers
11.8" / 300 mm
Spindle Accuracy
0.0004" / 0.01 mm
Spindle Speed
50 - 2250 RPM
Spindle Bore
0.83" / 21 mm
Tail Stock Taper
MT2
Spindle Taper
MT3
Top Slide Travel
1.38" / 35 mm
Cross Slide Travel
2.56" / 65 mm
Net Weight
102.5 lbs / 46.5 kg
Item Dimensions (L x W x H)
27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm
Questions and Answers
3 Questions
What size cutters does this take 1/2 inch or 12mm?
10x10mm or 12x12mm are both OK.
By vevor
Can you attach your own drill chuck to the tailstock?
A drill chuck can be attached to the tailstock.
By vevor
How large round stock can the large accept?
The standard chuck is 80mm.
By vevor

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
ET ET
7 inch 14 inch
Mr.
The lathe arrived within a few days of purchase and was undamaged. The crate it was shipped in is a work of art and worth keeping. I have spent ~24 hours disassembling, cleaning, inspecting, deburring, honing, oiling, greasing, and reassembling the lathe's mechanical subsystems - tail stock, compound slide, cross slide, carriage, apron, ways, feed screw, rack gear, chuck, and stud gears. I also inspected the motor and electronics. I have posted >150 photos in the Facebook group Home Shop Machinist (https://www.facebook.com/groups/1104020856281121) of my progress - 10/12 (6), 10/23 (19), 10/26 (46), 10/28 (17), 10/31 (35), 11/04 (26), 11/07 (5). This is the second lathe I have owned. I am very pleased with it so far. I am looking for more accessories - MT3 ER32 collet chuck w/collets, MT3 dead center, faceplate and lathe dogs, follower/steady rest, MT2 live center, tooling. I am also planning a few upgrades - way covers and locks and/or stops for the slides. Once I get it mounted to a solid base I will align the tailstock, tool, and chuck. Once aligned I will begin to make parts with it. I look forward to many years of service from it. It is a fine addition to my small home shop.
2
LucMcPhail LucMcPhail
7 inch 14 inch
Its a mini lathe
What can i say? It does as it should. But a few things of note;1, theres no reference of zero on the cross slide swing. Maybe im missing a mark, idk.2: the slides were VERY loose out of the crate. Be sure to tighten them down3: quick change tool post is worth every penny4: the chuck guard broke immediately after first use. Nothing hit it, it just went "nope" and fell off.Overall, great little lathe, handles just about anything you throw at it (within reason, no titanium or chrome moly), and turns pretty good work.
1
Felix Santiago Felix Santiago
7 inch 14 inch
Why so many bad comments about this item?
I purchased this 7 x 14 mini lathe with mixed expectations on the outcome since numerous people who have purchased the product have expressed there regret as to there purchase. So many negative comments, from to much grease to bad stickers to loose parts, noise, shipping issues, i can go on and on. It's like someone does not like these machines period. If you want an excuse not to buy on... go to the web. I purchased it, used it HARD all day for 2 days straight . I know the heat is coming for my expressions but the truth is the truth. They are Good.
1
John Spillane John Spillane
7 inch 14 inch
Not bad, especially for the money.
I bought this on another site for about $430. I was hesitant, but figured I'd risk it. I'm not upset. You should have a bit of experience using one if you're going to buy this though. The tail stock isn't centered, but it is adjustable. Also, people worry about the nylon gears. Well, I screwed up and flipped it from forward to reverse instead of turning the knob to off, then freaked out and turned it back lol. Yea, they grinded like crazy then, but they still work fine and don't make any additional noises or anything. And thats after about 50 hours of work on it.
0
Stan Adamski Stan Adamski
8 inch 14 inch Common Parts   400 W
Needs some tweaking but good for a mini lathe
A little cleaning and adjusting here and there and this is a pretty decent little lathe for light work. Tons of YT videos on how to improve them out there. I’ve cut everything from plastic to stainless steel with it and it works. Don’t expect machine shop quality but if you’re looking for a hobby level mini metal lathe this fits the bill.
0
kay.b kay.b
8 inch 14 inch
Appears used
Unsure about accurate description as it appears to be a return, maybe used. See the photos and decide yourself. Shipped quickly and arrived ahead of schedule, well padded and crated.Shipping may have loosened bolts, nuts and the like. All the listed tools were included. It powers up and has run at 200 rpm as a preliminary test. So far so good…albeit somewhat noisy. I gave 4 Star Avg. due to its used appearance and I have yet to perform a simple test cut.
7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM 7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM
1
1withwings 1withwings
7 inch 14 inch
Will do...
This will do the job but worried about the plastic gears instead of metal.
0
Anglophile Anglophile
7 inch 14 inch
good value for money
The worst part is the booklet...rather poorly done Otherwise no complaints. Grahame Smith
0
daniel daniel
8 inch 14 inch
Lo bueno, es muy buena máquina Lo malo es que no viene ajustado pero bien al fin.!!
Lo bueno, es muy buena máquinaLo malo es que no viene ajustadopero bien al fin.!!
0
Beagle Scout Beagle Scout
7 inch 14 inch
Does what I need
Some bent parts and broken plastic I’d like to assume from shipping, but assembly wasn’t great either. Fortunately, probably anyone that wants this is more than happy to fix this little stuff since since it’s a tinkerers thing anyway. Well worth the money for light stuff.
0
