VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
ZXDGSBR20MM15WNLNV0

VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

1500 mm

  • 800 mm
  • 1800 mm
  • 1500 mm
  • 2200 mm
  • 1000 mm

About this item

  • SBR Linear Guide Rail Set: SBR20-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
  • Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Guide Rail Set, SBR20 1500mm, 2 PCS 59 in/1500 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
1500 mm

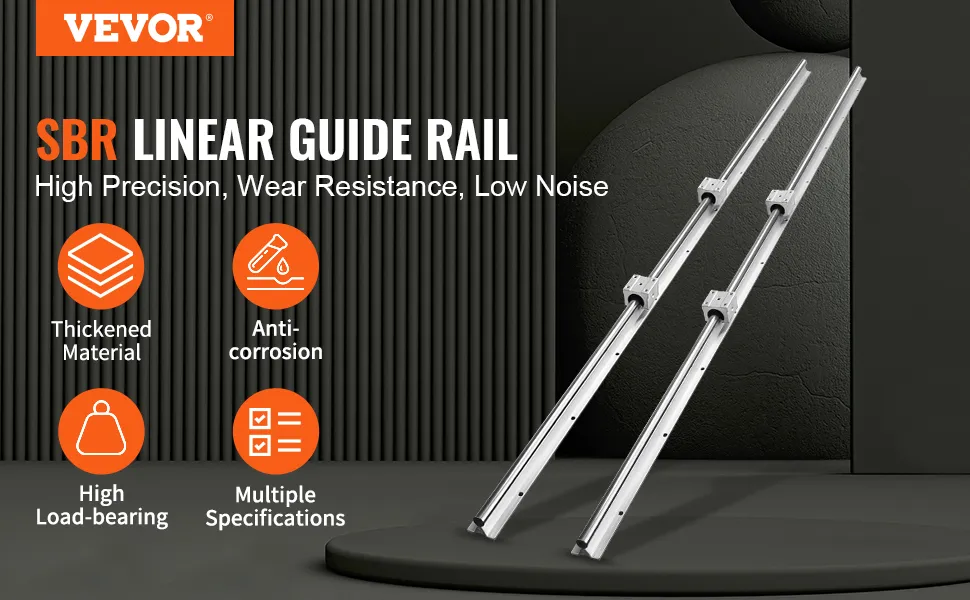

SBR Linear Guide Rail
VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.

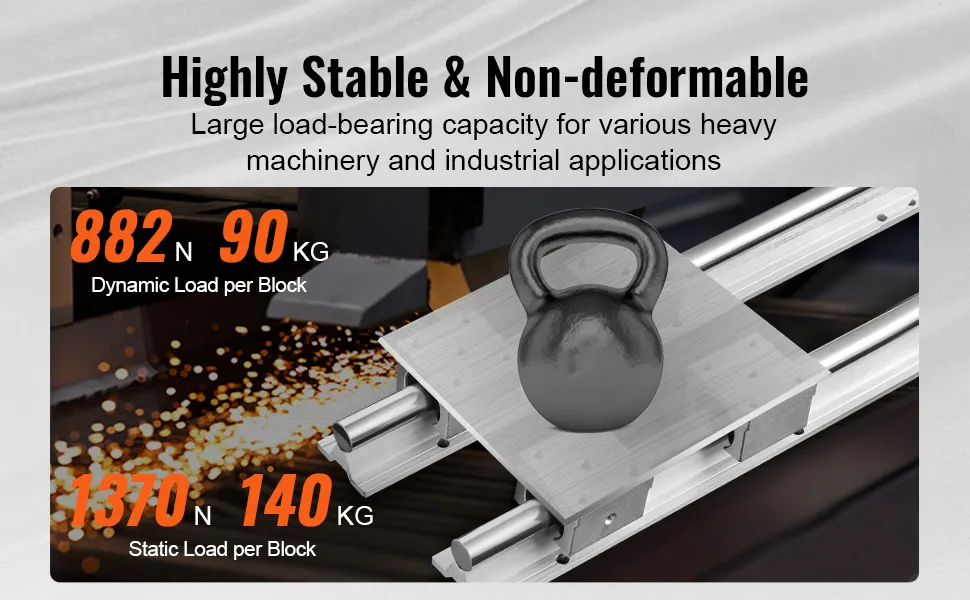

Handle Pressure with Ease
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

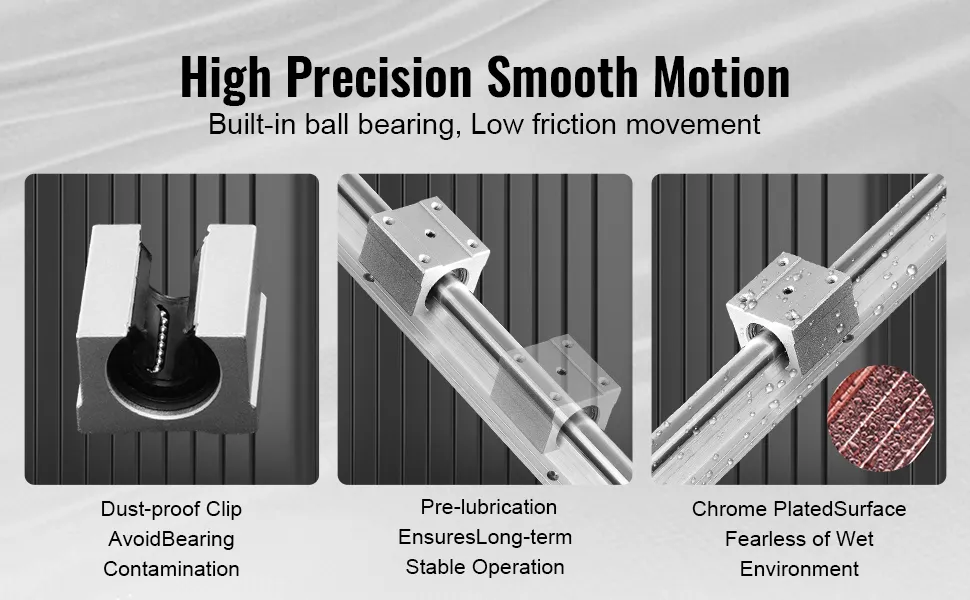

Smooth Sliding without Stutter
Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.

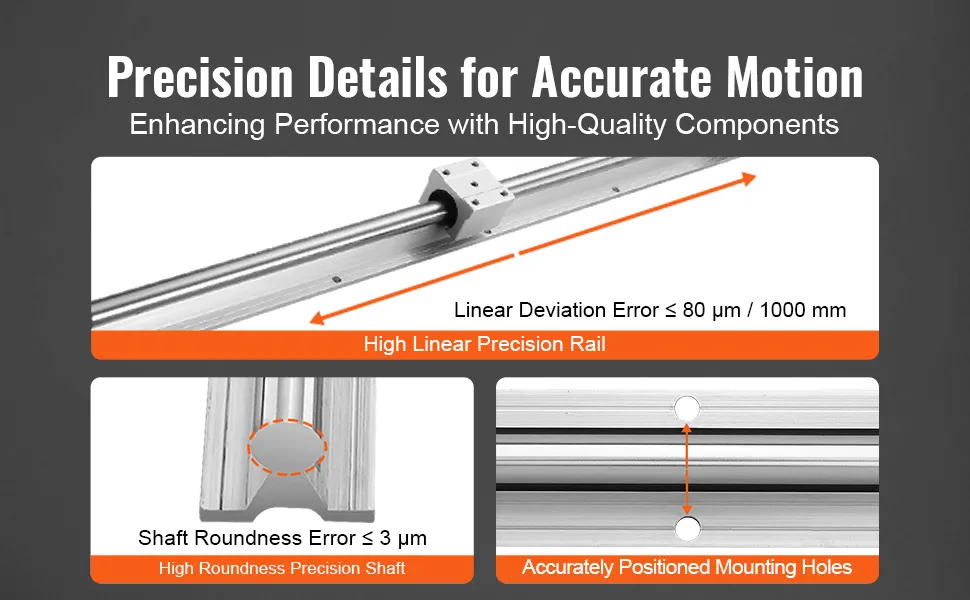

More Accurate Than Ever
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.
Broad Usage Scenarios
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.

Linear Guide Rail Set: Precision for DIY Projects and CNC Router Machines

The SBR20 guide rails provide smooth and accurate linear motion. It is ideal for both amateur and professional applications. High carbon steel and aluminum construction provide durability and reliability. The set includes two 59-inch rails and four SBR20UU slide blocks. These components work together to support heavy loads. These components glide smoothly, ensuring precise performance. Whether you're building a sled or a CNC machine, this set meets your needs. These rail sets are perfect for any workshop. The ease of installation and the robust design make them incredibly useful for every project. The strong design of VEVOR makes them an excellent addition to any tool collection. This linear guide rail set offers precise, smooth, and reliable operation. You can use it for anyone seeking accuracy in their work.


Heavy-Duty Linear Rails and Bearings Kit for Robust Performance

They are built for heavy-duty performance. High carbon steel ensures strength and durability. The robust design supports heavy loads without bending or swaying. This makes them ideal for demanding applications like router sleds and CNC machines. These aluminum slide blocks provide smooth movement along the rails. Their design allows them to withstand significant weight and stress. Linear rail systems and bearing kits work seamlessly. They ensure stable and accurate movement at all times. Quality materials and construction mean these rails last long. In projects that require strength and precision, you can handle continuous use without compromising performance. For projects requiring strength and precision, these rails are an excellent choice.


Ideal for CNC Router Machines and Automated DIY Projects

The VEVOR Linear Guide Rail Set is ideal for CNC router machines and automated DIY projects. For accurate machining, precision and smooth rail movement are essential. The set includes everything necessary for a quick and easy setup. It's perfect for building router sleds, planer tables, and other CNC projects. They have a high load capacity to support heavy machinery and workpieces. They are easy to install and adjust, making them suitable for beginners and experienced users. Whether a beginner or an expert user, these rails meet your needs. These rails support heavy machinery and workpieces. You should always follow simple installation and adjustment. This makes them user-friendly, too. Therefore, it’s suitable for both beginner and professional users alike. Whether you need to build a large CNC machine, this linear guide rail set will enhance the efficiency and accuracy of your projects. Get consistent and reliable performance today!


Smooth and Accurate Linear Motion for Enhanced Project Precision

Achieve smooth and accurate linear motion with the VEVOR Linear Guide Rail Set. The rails' design ensures minimal friction and smooth movement. This improves the precision of your projects. The SBR20UU slide blocks glide effortlessly along the rail systems. They provide a stable and consistent motion for your machinery. It is essential for tasks like router sleds and planning tables. Their smooth movement reduces wear and tear on your equipment. Also, it ensures accurate cuts and finishes. Furthermore, the high tolerance ensures they stay aligned over time. This ensures that the work is accurate. These rail sets are indispensable for projects requiring exact movements to achieve professional-quality results.


Sturdy and Reliable Construction for Long-Term Use

What's the best part of this VEVOR Linear Guide Rail Set? It is built to last. The sturdy construction ensures reliability and longevity. High carbon steel rails resist bending and deformation, making it ideal for long-term use in demanding environments. Aluminum slide blocks are durable and lightweight. They provide smooth movement without adding excess weight. This makes them ideal for long-term use. The rails can handle heavy loads and operate continuously. They maintain their performance even under stress. The strong design ensures that they can withstand rigorous use. For projects needing a strong and reliable foundation, these rails are perfect. These rails offer consistent support and functionality over time. You can put your trust in the durability of our linear guide rail set.


Easy Installation and Adjustment for DIY Enthusiasts

The set includes all necessary components. These rails and slide blocks are easy to assemble, with the mounting holes spaced for convenient installation. The slide blocks feature adjustable screws for fine-tuning. This ensures they fit your specific needs and machinery. The easy setup process makes them accessible to DIY enthusiasts. Even with minimal experience, you can install these rails correctly. Their simple adjustments allow for precise alignment, ensuring optimal project performance. Its ease of use also makes it ideal for a variety of applications. Enjoy hassle-free installation and customization with this linear guide rail set. It is designed to simplify your DIY projects!


Cost-Effective Solution for High-Quality Linear Motion Needs

This is a great value for the VEVOR linear guide rail set. It offers high-quality linear motion at an affordable price. The set's robust construction and precision make it able to provide cost-effective solutions. You get the reliability and performance of more expensive options, all at a price that fits your budget. The rails' versatility makes them suitable for many projects. No matter if you need CNC routers or custom machines, they deliver. Cost savings without sacrificing quality make this set a smart choice. They are perfect for DIY enthusiasts and professionals alike. With this linear guide rail set, you can get more for less! It'll be an economical solution for your linear motion needs.


See More

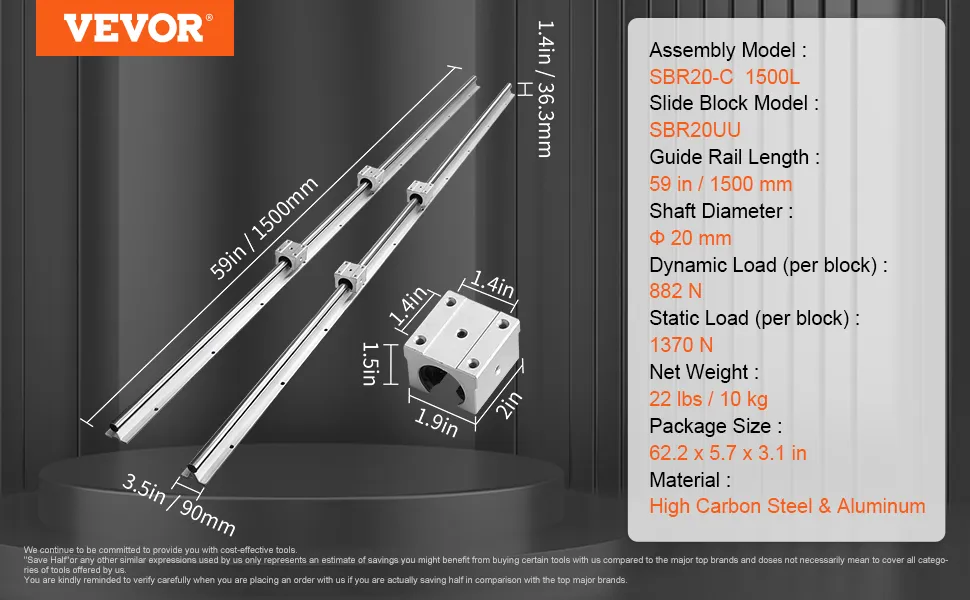

Specification

Model Number
SBR20-C 1500L
Slide Block Model
SBR20UU
Guide Rail Length
59 in/1500 mm
Shaft Diameter
Φ20 mm
Dynamic Load (per block)
882 N
Static Load (per block)
1370 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.4 in/35 mm
Mounting Hole Distance B
1.4 in/35 mm
Slide Block Size(L x W x H)
2 x 1.9 x 1.5 in/50 x 48 x 39 mm
Product Dimensions(L x W x H)
59 x 3.5 x 1.4 in/1500 x 90 x 36.3 mm
Package Size(L x W x H)
62.2 x 5.7 x 3.1 in/1580 x 145 x 80 mm
Net Weight
22 lbs/10 kg
Questions and Answers
3 Questions
What size screw do I need for the mounting holes? What thread size.
M6 is needed.
By vevor
Can the assembly be turned upside down, securing the blocks and sliding the rail.
It is not recommended to flip it over for use.
By vevor
Please confirm rail support width. It says 3.5 inch / 90mm, but it looks to be about the same width as the sliding block, which is listed at 1.9 inch. I believe that the rail supports are 1.8 inches wide.
It is 45mm. The previous test was the size of a set of two guide rails put together. A single piece is 45mm wide.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
33 Review(s)
Clear filters
Brigitte Brigitte
Mrs
Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again. Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again.
Norman Norman
Mr
This item is an excellent product and at a very competative price when compared to other sellers. I would certainly purchase this or similar item again.
Marc Marc
Great Product
These were just right to build my router sled. very smooth rollers and glides really well. would purchase again
Paul Okami Paul Okami
Great value
I ordered these rails as a replacement setup for my home made panel saw. They arrived in good condition with all of the parts. The pillow blocks fit perfectly and run along the rail smoothly. They aren_ as smooth as high end blocks, but you can_ beat the price.
CoX CoX
Useful
Great for the router sled project I'm working on.
G2138 G2138
Mr
I have used these to build a router ‘flattening sled’ - Really well made rails and bearings for this price. Delivery was on time, so all in all really very pleased. A nice touch would have been to provide bolts / screws to attach the bearing runners to “whatever your attaching” to them. That said I would highly recommend these, thank you Vevor.
Mikhail Mikhail
bardzo zadowolony
Dobra jakość, dobrze zapakowane, szybko dostarczone. Dokumentacji opisującej parametry gwintu dla SBR20UU jest po prostu za mało. Ogólnie jestem bardzo zadowolony! Będę nadal kupować w tym sklepie.
Prowadnica liniowa VEVOR Prowadnica liniowa VEVOR
Jestem bardzo zadowolony!
Jestem bardzo zadowolony! Dobrze zapakowane. Łatwy w użyciu. Jakość jest wysoka. Polecam.......................................................................................................................................!
Tomek Tomek
Polska
wszystko tak jak powinno być, bez problemowo produkt zgodny z opisem, dostawa bardzo szybka jak na tak długą drogę, polecam
kG kG
kG
dziękuję porządnie zrobione, jestem zadowolony, ..................................................................................................................................................................................................................................................................................................................
