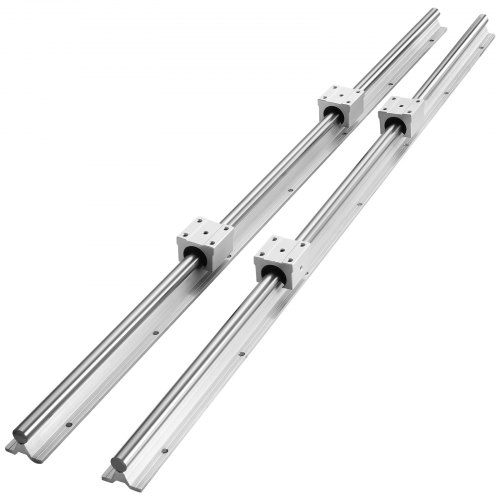

VEVOR linear guide rail set with dual aluminum rails and sliding blocks on a white background. VEVOR linear guide rail set sbr16 with 2 guide rails and 4 slide blocks for diy and cnc machines. VEVOR linear guide rail set featuring carbon steel linear shafts and aluminum alloy slide blocks. VEVOR linear guide rail set with slide block and ball bearing for low noise and smooth movement. comparison of VEVOR linear guide rail set with precise mounting holes, accurate hole spacing VEVOR linear guide rail set easy 3-step installation: align, push forward, and fully insert into shaft. VEVOR linear guide rail set with 1000mm rails and sbr16uu blocks, detailed dimensions and specs.
ZXDGSBR16MM10H508V0

VEVOR Linear Guide Rail Set, SBR16 1000mm, 2 PCS 39.4 in/1000 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

1000 mm

  • 1000 mm
  • 1200 mm

About this item

  • SBR Linear Guide Rail Set: SBR16-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
  • Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Guide Rail Set, SBR16 1000mm, 2 PCS 39.4 in/1000 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
1000 mm
vevorA+Template
SBR Linear Guide Rail
VEVOR linear guide rail set, high precision, anti-corrosion, high load-bearing, multiple specs.
VEVOR linear guide rail set, high precision, anti-corrosion, high load-bearing, multiple specs.
VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.
Handle Pressure with Ease
VEVOR linear guide rail set highly stable, supports 80 kg dynamic and 120 kg static loads per block.
VEVOR linear guide rail set highly stable, supports 80 kg dynamic and 120 kg static loads per block.
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.
Smooth Sliding without Stutter
high precision VEVOR linear guide rail set with built-in ball bearing for smooth motion and low friction.
high precision VEVOR linear guide rail set with built-in ball bearing for smooth motion and low friction.
Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.
More Accurate Than Ever
VEVOR linear guide rail set with high precision rail, roundness shaft, and accurate mounting holes.
VEVOR linear guide rail set with high precision rail, roundness shaft, and accurate mounting holes.
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.
Broad Usage Scenarios
VEVOR linear guide rail set used in diy router, trainer rocker plate, and cnc machine applications.
VEVOR linear guide rail set used in diy router, trainer rocker plate, and cnc machine applications.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.
VEVOR linear guide rail set specifications: sbr16-c 1000l, 1000mm rail, 16mm shaft, slide block sbr16uu.
VEVOR linear guide rail set specifications: sbr16-c 1000l, 1000mm rail, 16mm shaft, slide block sbr16uu.

Linear Guide Rail Perfect for CNC Router Machines

This is why these VEVOR linear guide rails are ideal for your CNC router projects. Made with high-carbon steel, they offer durability and precision. The SBR16 Guiderails have a 1000-mm-long base that provides eloquent and accurate movement. They make your projects easier and more efficient. These rails support dynamic loads of up to 774 N per block. This feature makes them ideal for heavy-duty applications. You can trust these railings to support your router and provide stable guidance. Whether you're a hobbyist or professional, these rails meet your needs. They are easy to install and work perfectly with the included slide blocks. Upgrade your routing setup using these reliable guide rails.


High Precision Linear Rails and Bearings Kit

For your projects, the SBR16UU slide blocks in this linear rails and bearings kit provide high precision. The kit includes everything you need for a seamless setup. Achieve professional results with this high-precision kit. These features smooth sailing along the SCR16 guide rails. This ensures accurate and repeatable positioning. High carbon steel rails are straight and true, providing minimal deflection. The slide blocks are made from durable aluminum. There are adjustable screws that allow them to fine-tune the fit. Precision makes them ideal for detailed work. You can trust these rails for consistent performance. It is perfect for both DIY projects and professional applications. Our kit covers everything needed for an efficient setup! Get professional outcomes with our high quality kit today.


Sturdy Construction with High Carbon Steel and Aluminum

They are built to last. Made from high-carbon steel, the rails are strong and durable. They can handle heavy loads without bending. The slide blocks are made from sturdy aluminum. This combination ensures long-lasting performance. These railings have been designed for toughness against the rigors of regular use. It is ideal for both light and heavy-duty applications. Their materials provide excellent resistance to wear and tear. You can trust that these rails will support your projects for years. With solid construction, these rails are a reliable choice for any setup.


Easy Installation with Precise Mounting Holes

Installing these linear guide rails is a simple process, easy. The rails come with precise mounting holes. This allows for accurate and secure attachment to your setup. Slide blocks also have easy-to-adjust screws. It ensures adherence every time. The installation process is hassle-free because clear documentation is provided. You can get your rail set up and ready to use quickly! The rails are compatible with various mounting configurations, making them versatile for different applications. Achieve ion setup with minimal effort.


Smooth and Quiet Operation with Well-Lubricated Bearings

These linear guiderails provide smooth and quiet operation. The SBR16UU slide blocks come with well-lubricated bearings. This ensures effortless movement along the rails. You can achieve precise and controlled motion. It reduces noise and friction, making your projects more enjoyable and efficient. Additionally, the lubrication helps extend the life of the rails. You should depend on consistent performance over time. Enjoy an easier workspace with these well-engineered rails. They are perfect for detailed work that requires steady movement.


Versatile Use in DIY Projects and Automated Machines

You can use them in a variety of applications due to their versatility. From router sleds to sliding tables, they're perfect for DIY projects. Their strong construction also makes them suitable for automated machines. You can use them in CNC routers, 3D printers, etc. With their versatility, these rails make an incredibly useful addition to any workshop. Whether you're a hobbyist or a professional, this rail provides dependable grounding for your projects. These versatile rail systems provide precise and efficient results.


Great Value with Affordable Price and Reliable Performance

This is why they are great value for their price. They provide reliable performance at an affordable cost. You get high-quality materials and precise engineering. This ensures long-lasting and accurate operation. The rails are designed to handle heavy loads. They are, therefore, suitable for demanding applications. You can trust that these rail systems will effectively support your projects. Their affordability does not compromise on quality. Enjoy professional results without breaking the bank. These rails are a cost-effective solution for your setup needs.


See More

Specification

Model Number
SBR16-C 1000L
Slide Block Model
SBR16UU
Guide Rail Length
39.4 in/1000 mm
Shaft Diameter
Φ16 mm
Dynamic Load (per block)
774 N
Static Load (per block)
1180 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.3 in/32 mm
Mounting Hole Distance B
1.2 in/30 mm
Slide Block Size(L x W x H)
1.8 x 1.8 x 1.3 in/45 x 45 x 33 mm
Product Dimensions(L x W x H)
39.4 x 3.5 x 1.8 in/1000 x 90 x 45 mm
Package Size(L x W x H)
43.3 x 5.1 x 3.1 in/1100 x 130 x 80 mm
Net Weight
11.5 lbs/5.2 kg
Manual
Download Link
Questions and Answers
1 Questions
i am building a router sled does the top rails and bottom rails need to be the same diameter?
The top rails and bottom rails need to be the same diameter.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
225 Review(s)
Clear filters
Chuck Chuck
Owner
Overall this is a good product, If I were to buy in the future, I would choose the thicker set to avoid slight deflection in the Aluminum support to the steel rods. Performs as expected for the price.
GobSmacked GobSmacked
Dr Surprised
I actually cannot believe that I was asked to write a review for these, since they never arrived. Instead of these rails I received a photo canopy for small item photography and a large food warmer. Then in response to me contacting them to rectify the situation all i got was offers of partial refunds for the problem, and never once was there any indication or offer to send the correct items. I eventually just cancelled the order, got a full refund, and purchased these rails from a different source. Now, it is evident that there is no human presence at Vevor as I was asked to write a review. These are not business oriented people, this is a warehouse pushing out stuff without any means to correct errors. If the same happened to you, do not settle, demand full refund.
Jonathan Minami Jonathan Minami
Worker
Very well made and easy to use. Gliding surfaces are very smooth and operate with little effort. Since the slides are bearing mounted it help reduce router noise from vibration.
Eric willey Eric willey
Router sled
Rails were very sturdy and straight. Bearings slide very smoothly. Easy to adapt to whatever you may need it for.
Mr. Jones Mr. Jones
Works well
They are very high quality, I just wish they came with the screws that fit into the threaded holes or at least list the thread size to make it easier to find the screws.
Glen Glen
Mfg Eng.
Worked well for my application and price is very affordable as well. Quality is a little lacking would not if critical to safety.
Jose Alvarez Jose Alvarez
Carpentry hobbyist
EStoy muy satisfecho con los productos obtenidos en Vevor por la caidad de los productos a un precio accesible.
None None
None
Theses rails work very well. I am using them vertically and they slide down very easily. However, some of the ball bearings have fallen out of the guides, and the guides are partly plastic, which means they will wear out long before the rails do. By the way, how do you order replacement bearings?
Marco Marco
Owner
These linear bearings and rails exceeded my expectations! They were very easy to instal and glided on the rails like butter. My clients loved them so much , they decided to give 8 more installs. Double thumbs up Vevor!!!!!
Thunter40 Thunter40
Heavy Duty
These rails are very heavy duty, I'm using them for a Router sled and the router is a 3.25 hp makita and it is very heavy but these rails have not problems with sagging
