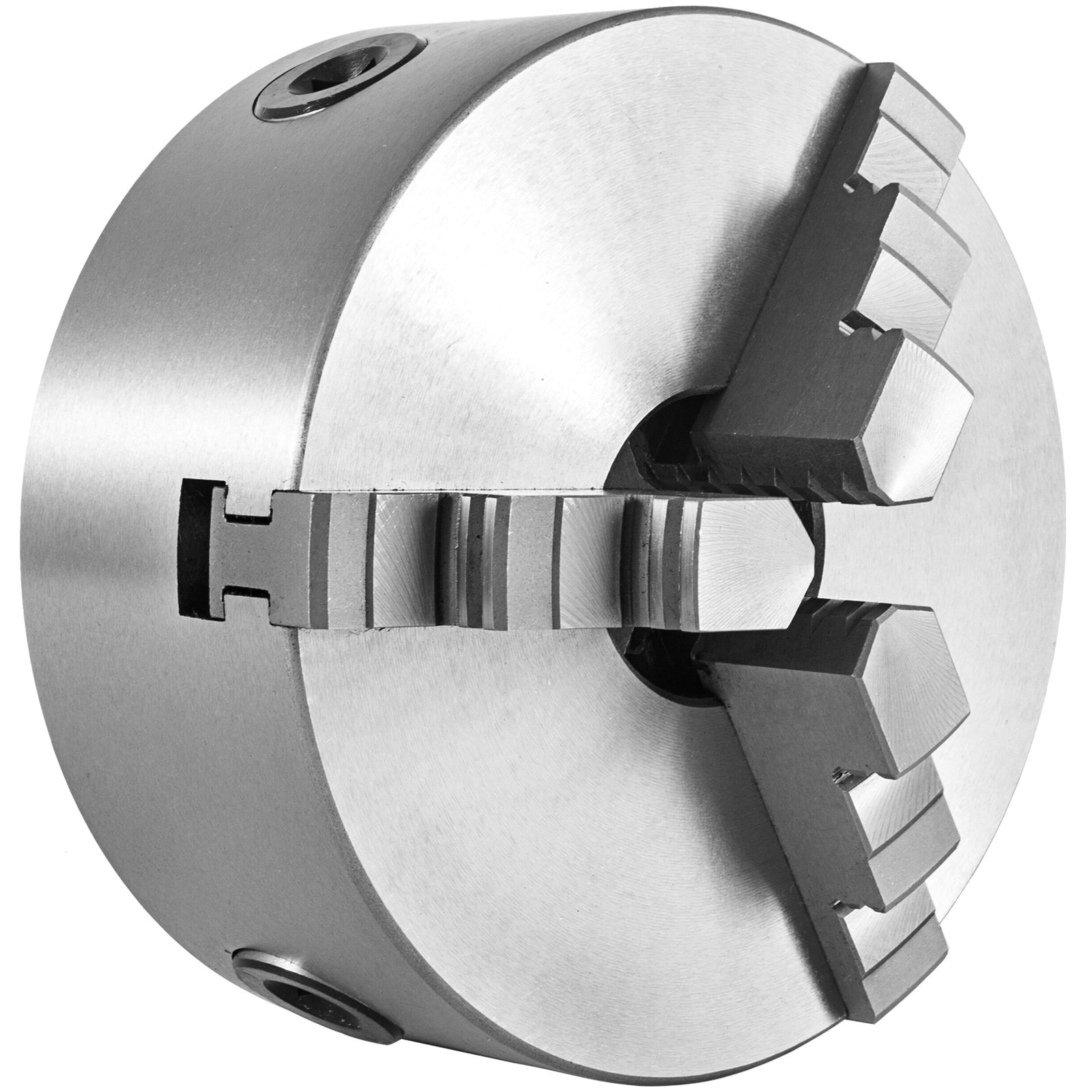

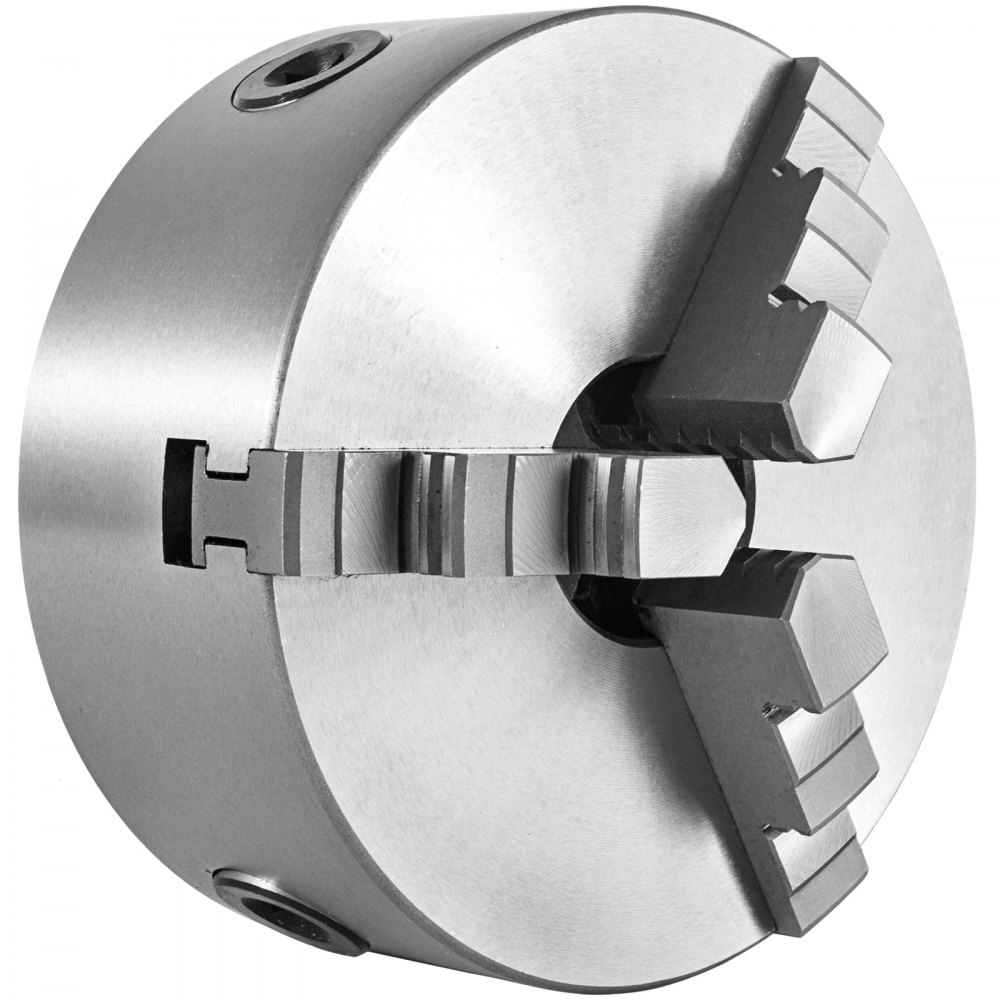

VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
KPK11-100KPZFZ001V0

VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines

$48.99
48.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Quality Material: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
  • High Precision: The metal lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
  • 2 Sets of Jaws: This chuck includes two sets of internal and external jaws. Outside Diameter: 100 mm / 3.94". The clamping range of this chuck is between 0.078" / 2 mm - 3.54" / 90 mm, which is suitable for clamping a variety of industrial parts.
  • Fast Clamping Speed: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
  • High Adaptability: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR K11-100 Lathe Chuck 4", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
Only 1 Left, order soon
VEVOR K11-100 Lathe Chuck 4
VEVOR K11-100 Lathe Chuck 4
VEVOR K11-100 Lathe Chuck 4
4-inch Lathe Chuck for Milling Turning
3 Jaw & Self Centering & With Two Sets of Jaws
  • This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.078" / 2 mm - 3.54" / 90 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets Of Jaws
  • Fast Clamping Speed
  • High Adaptability

VEVOR K11-100 Lathe Chuck 4
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-100 Lathe Chuck 4
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-100 Lathe Chuck 4

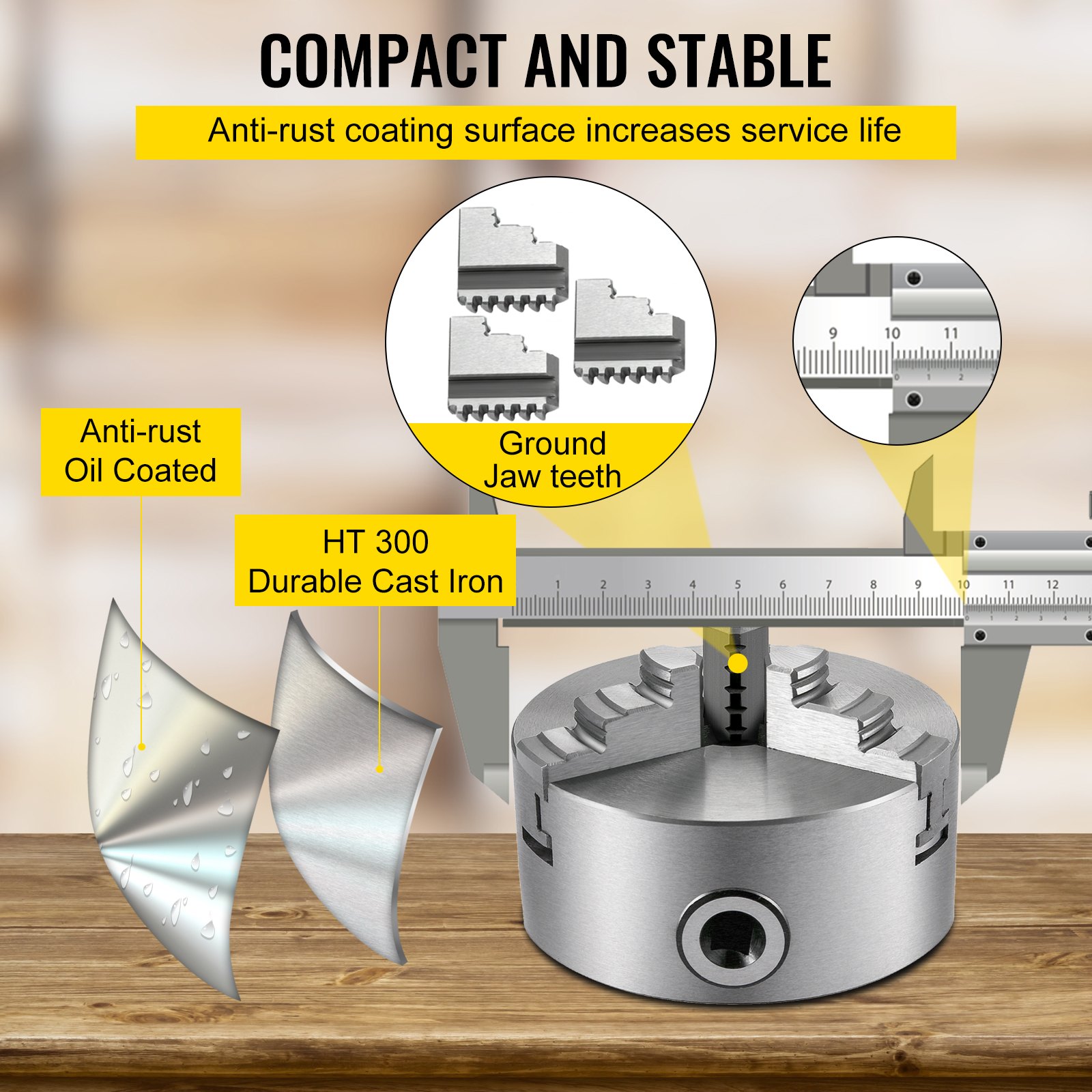

Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR K11-100 Lathe Chuck 4
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR K11-100 Lathe Chuck 4

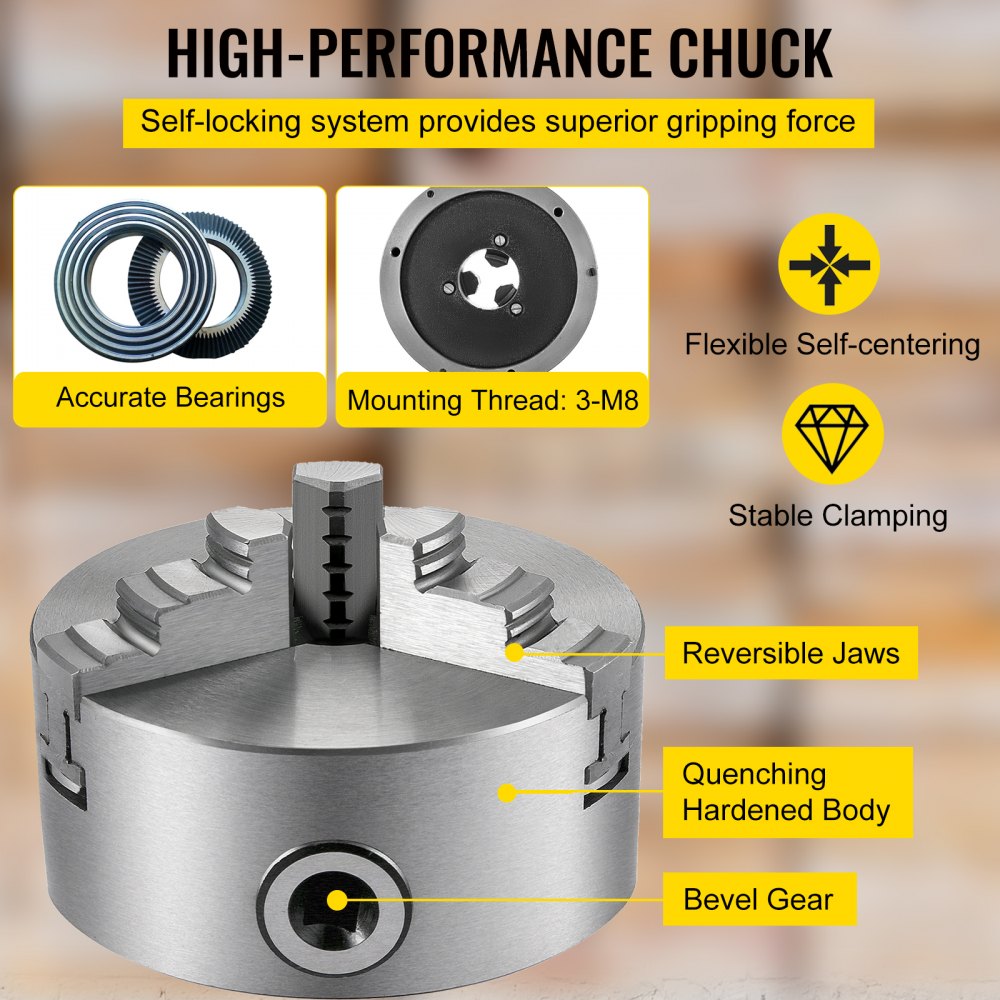

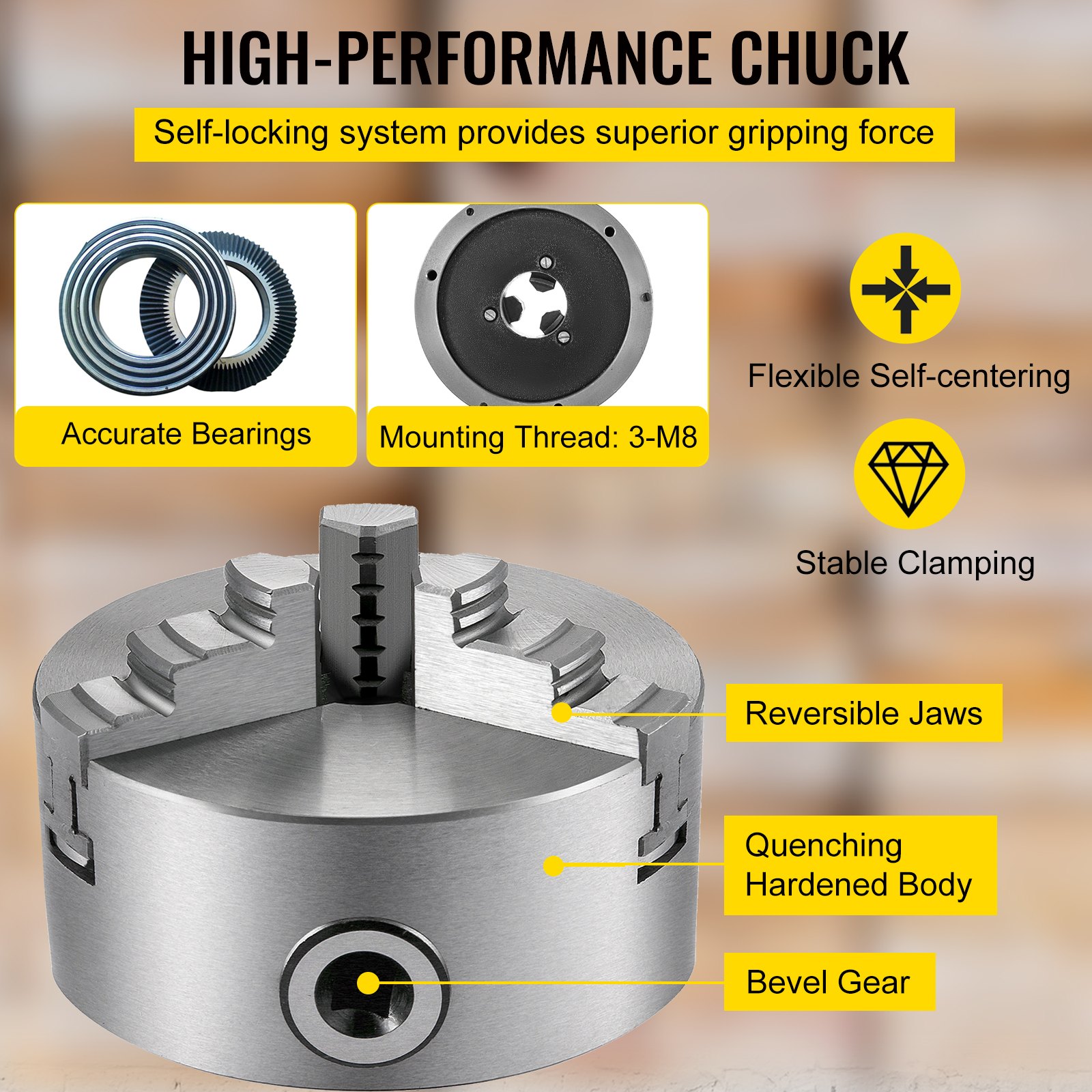

Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread metal lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR K11-100 Lathe Chuck 4
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR K11-100 Lathe Chuck 4

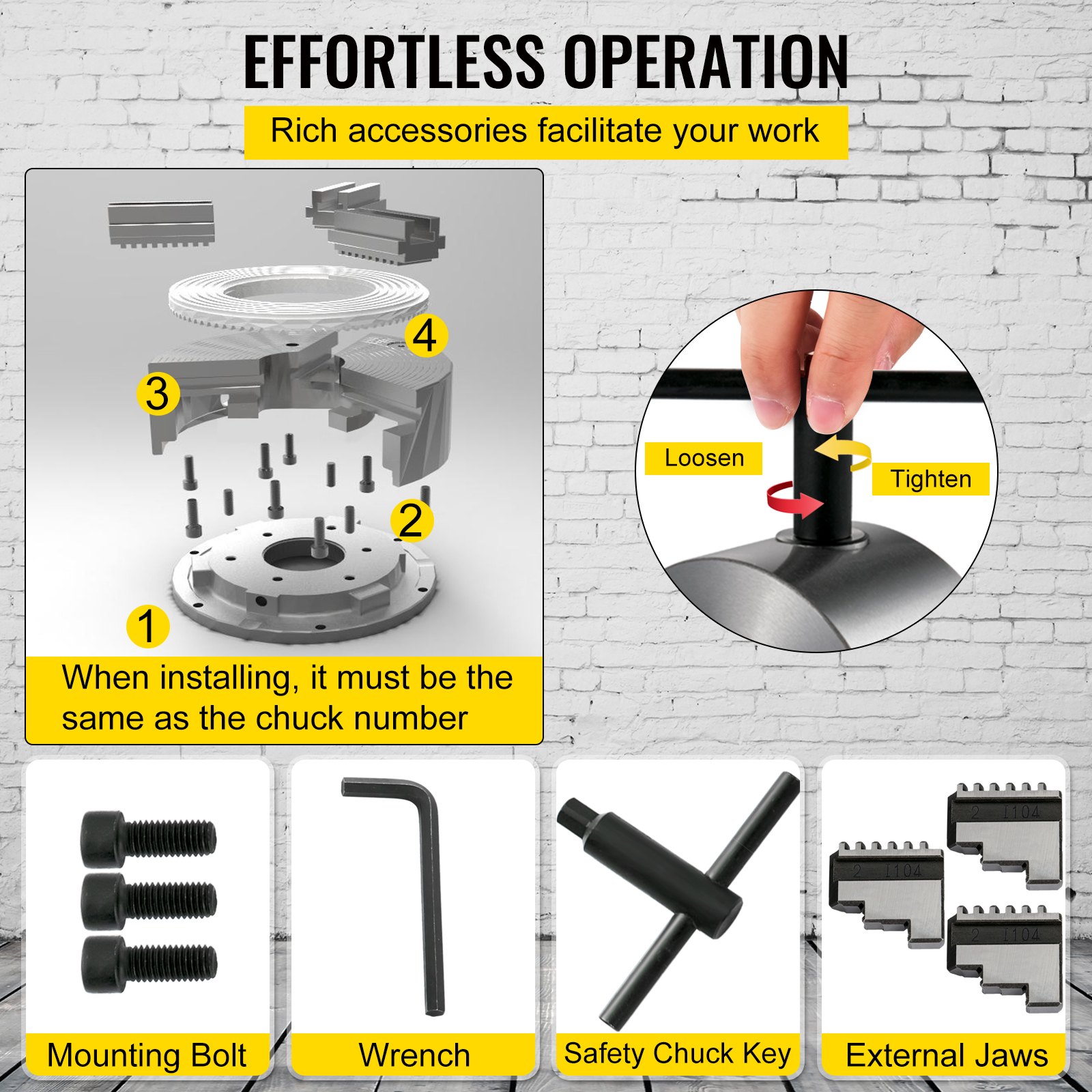

Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
VEVOR K11-100 Lathe Chuck 4

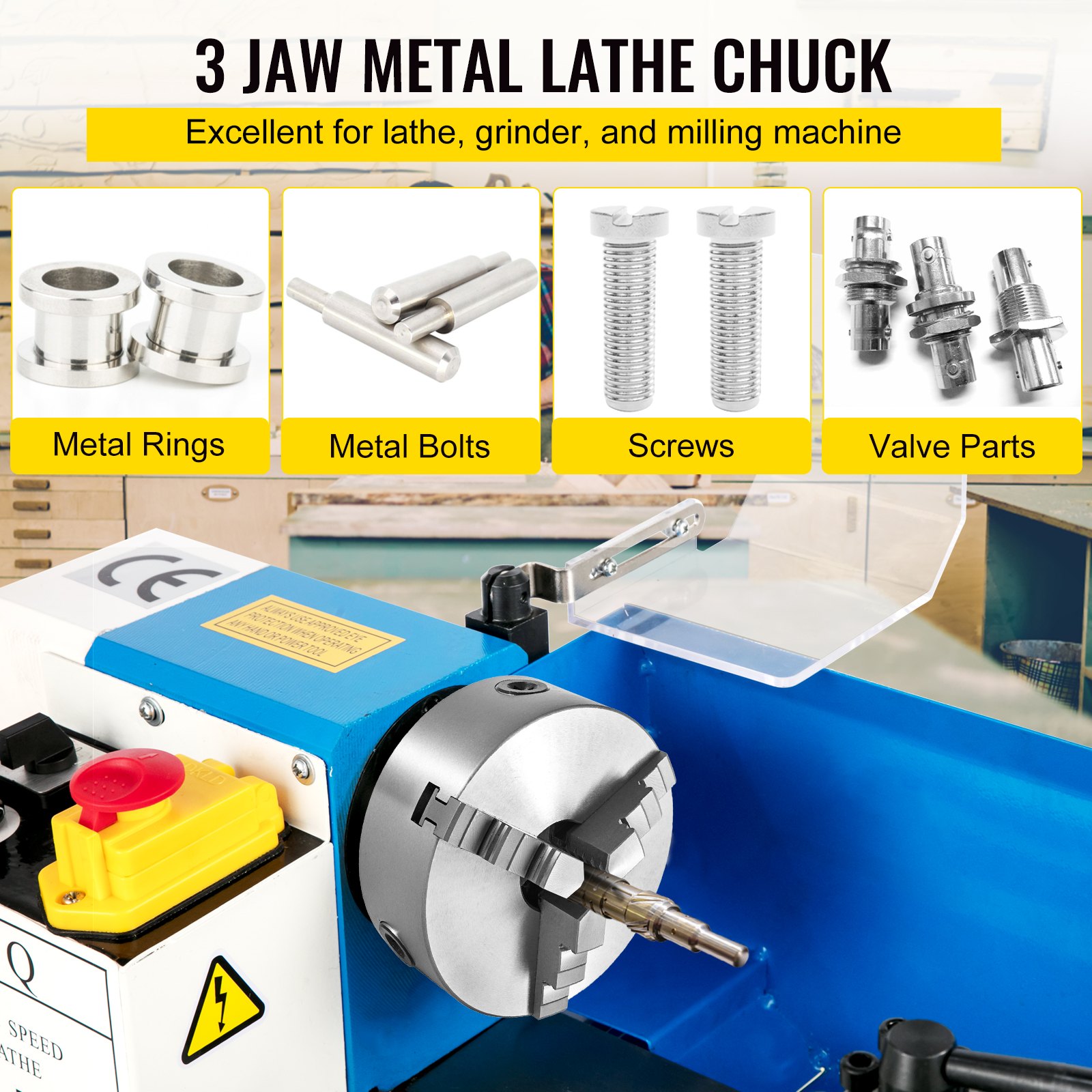

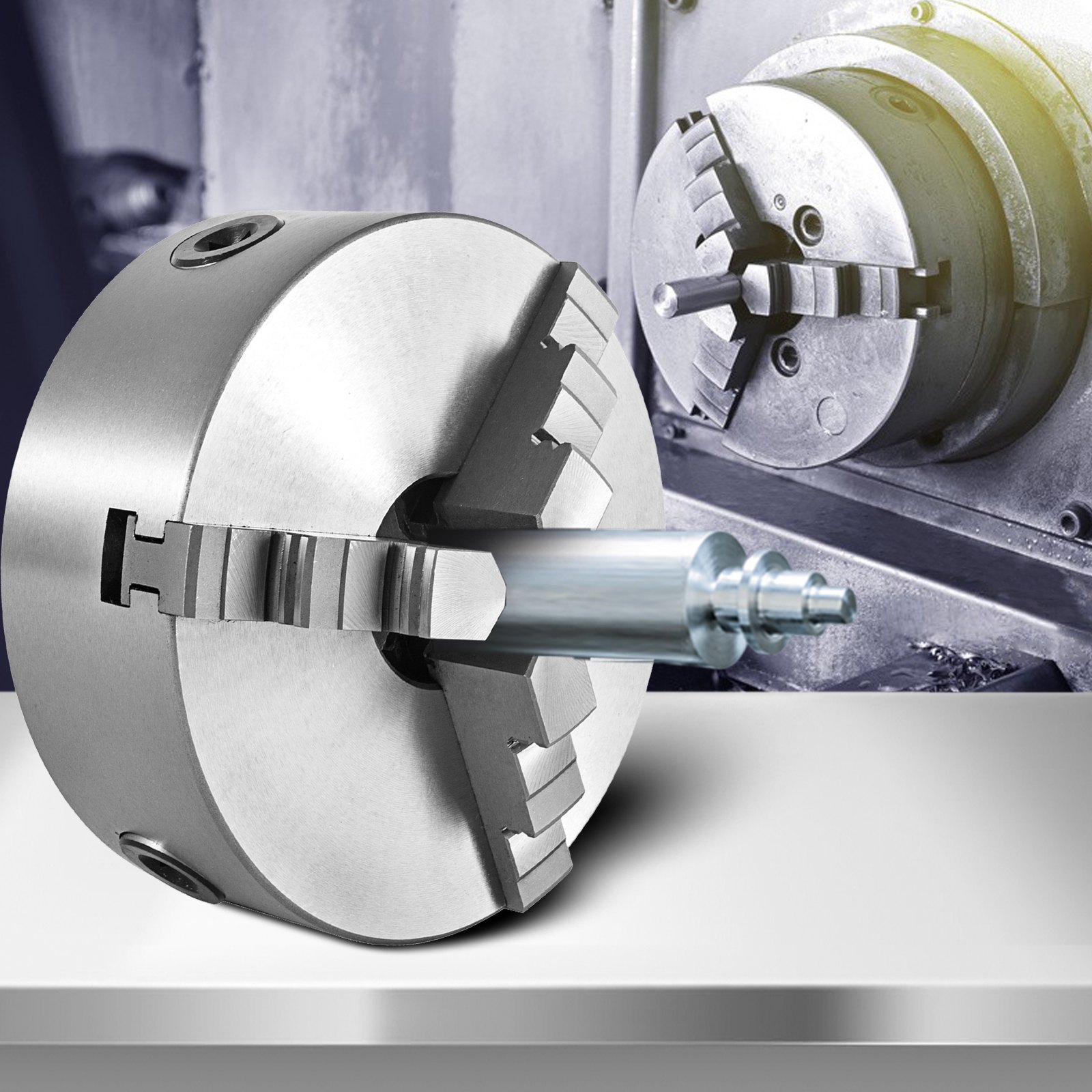

Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR K11-100 Lathe Chuck 4
Specifications
  • Material: Hardened Steel
  • Model: K11-100
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm

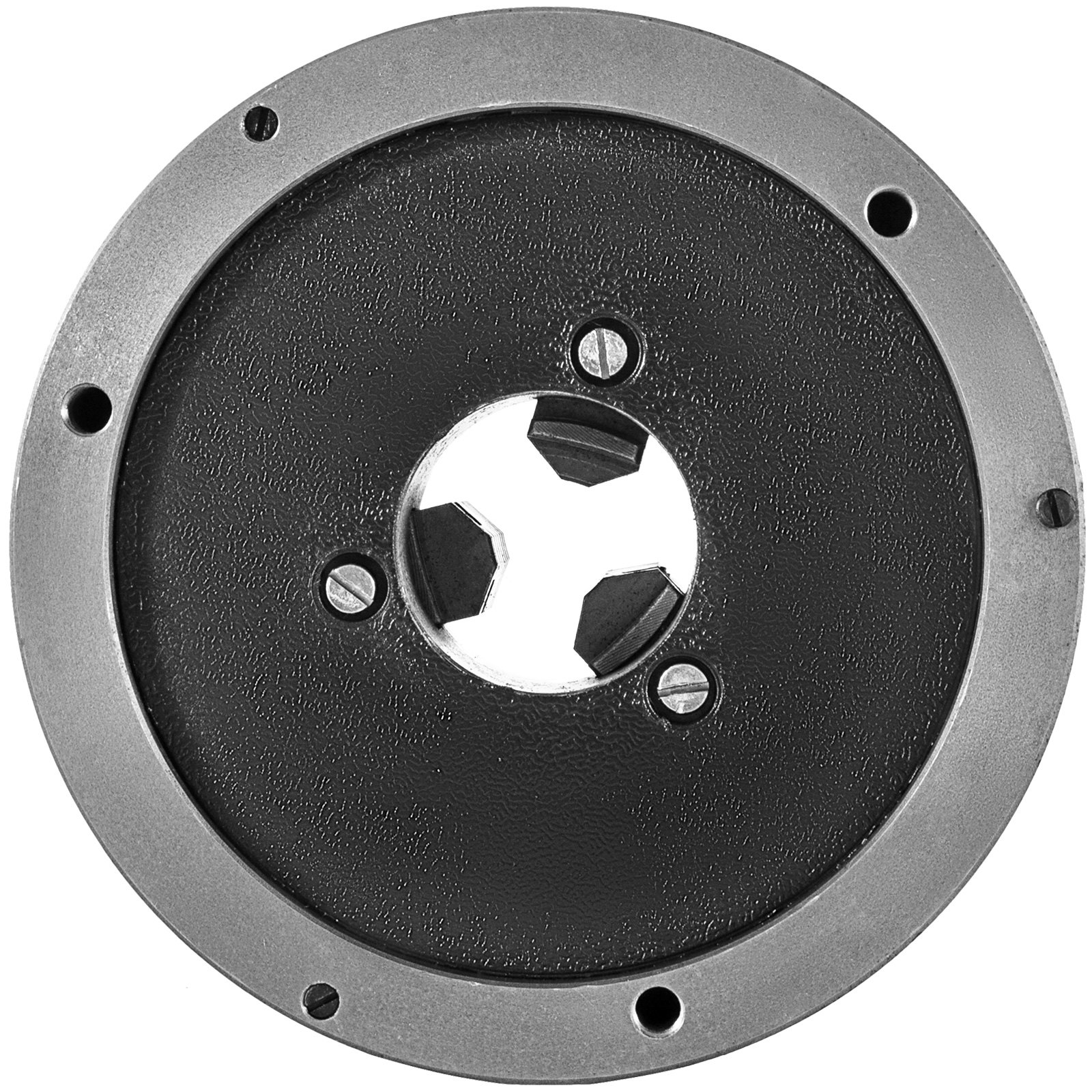

  • Mounting Thread: 3-M8

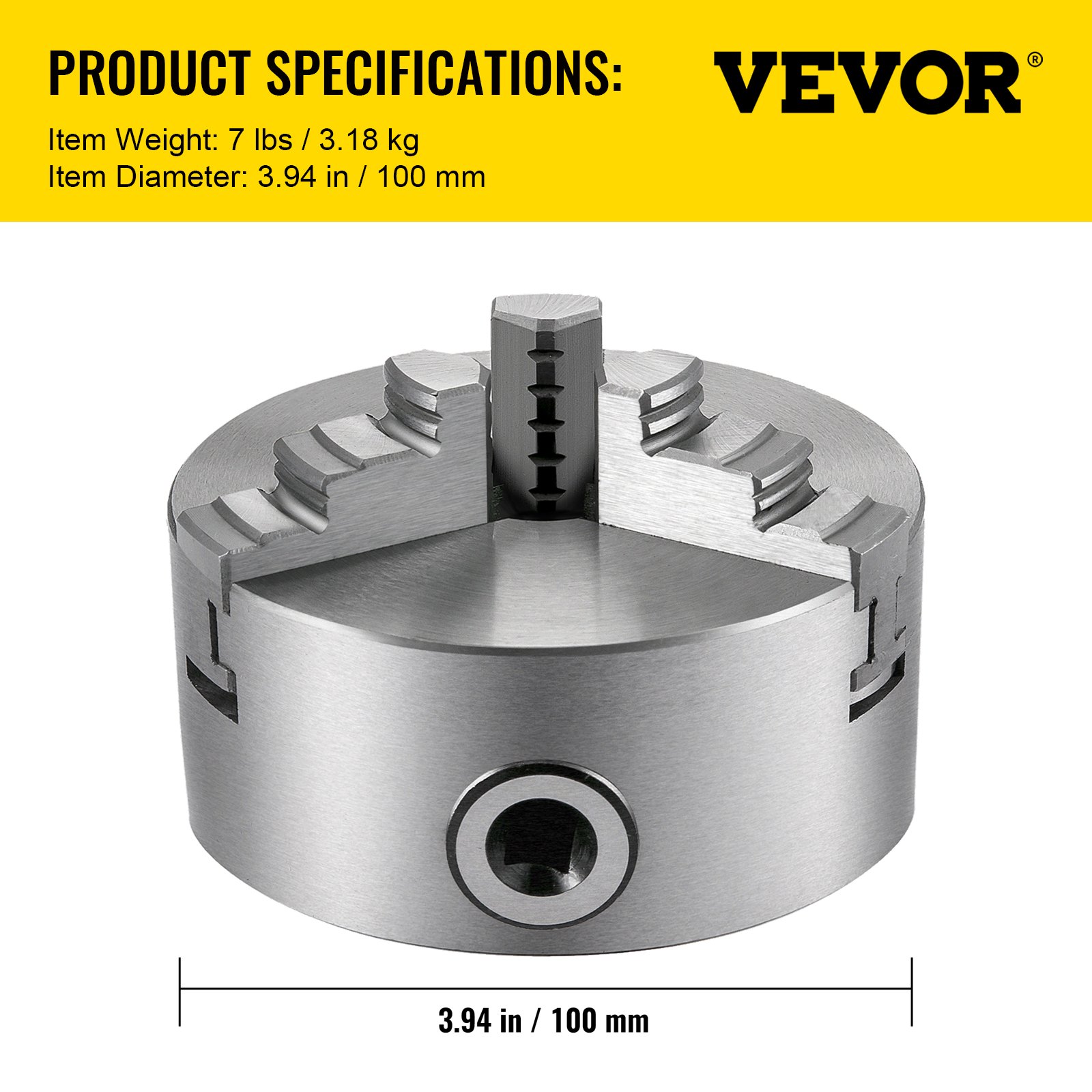

  • Outside Diameter: 3.94" / 100 mm
  • Bolt Circle Diameter: 3.31" / 84 mm
  • Center Thru Hole Diameter: 0.866" / 22 mm
  • Chuck Body Thickness: 2.16" / 55 mm
  • Mounting Thread: 3-M8

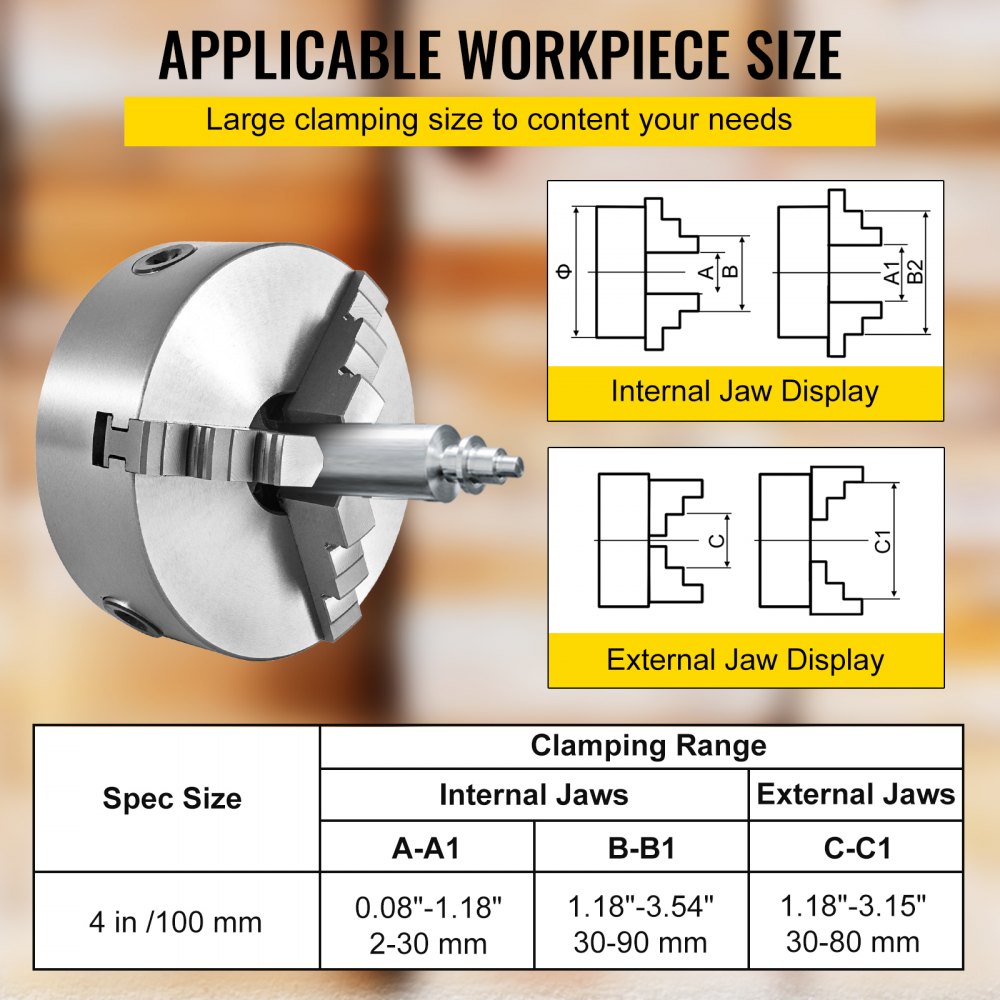

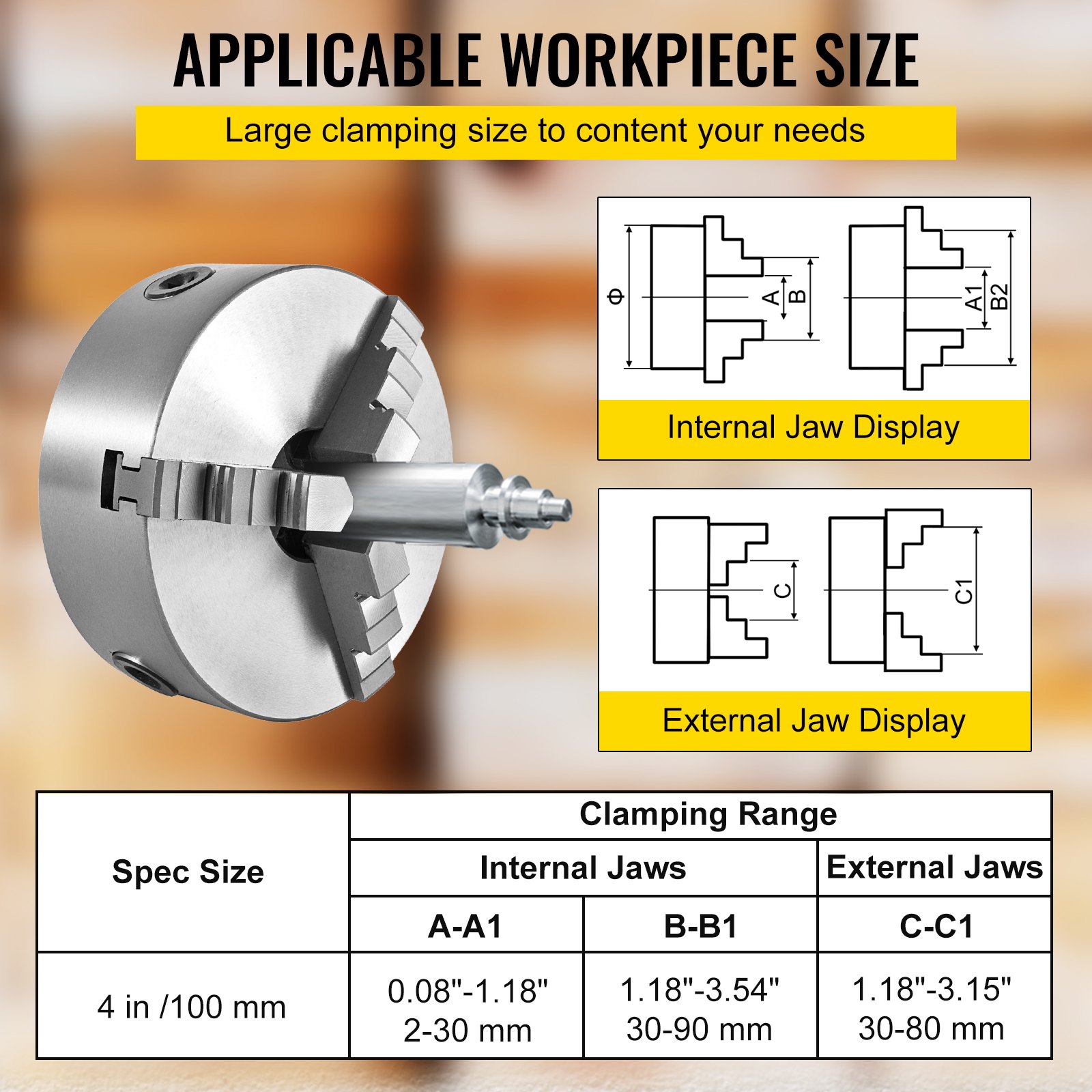

  • Internal Jaw Clamping Range (A-A1): 0.08"-1.18" / 2-30 mm
  • Internal Jaw Jamming Range (B-B1): 1.18"-3.54" / 30-90 mm
  • External Jaw Clamping Range (C-C1):1.18"-3.15" / 30-80 mm
  • Accuracy: 0.002" / 0.051 mm
  • Color: Silver
  • Item Weight: 7 lbs / 3.18 kg
VEVOR K11-100 Lathe Chuck 4

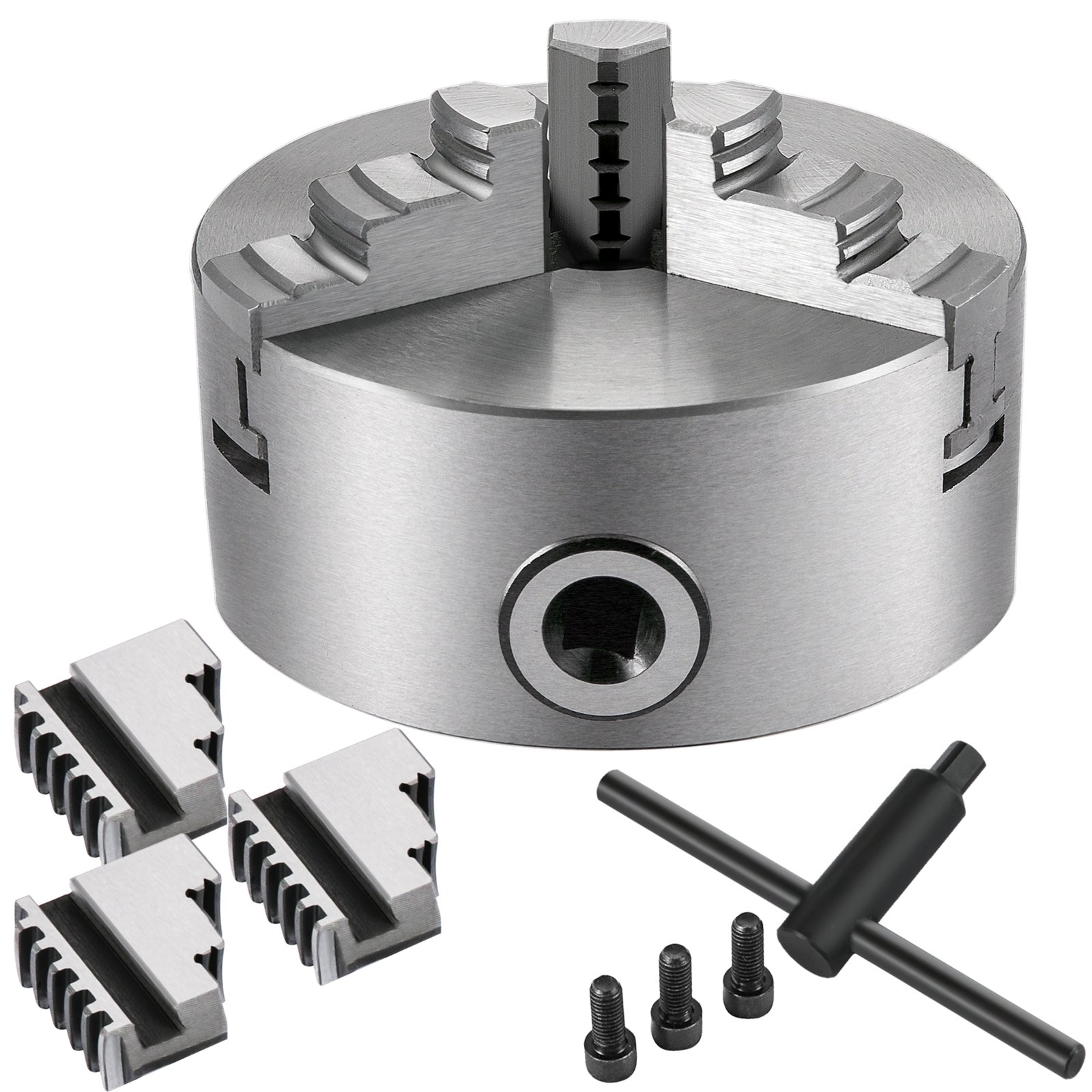

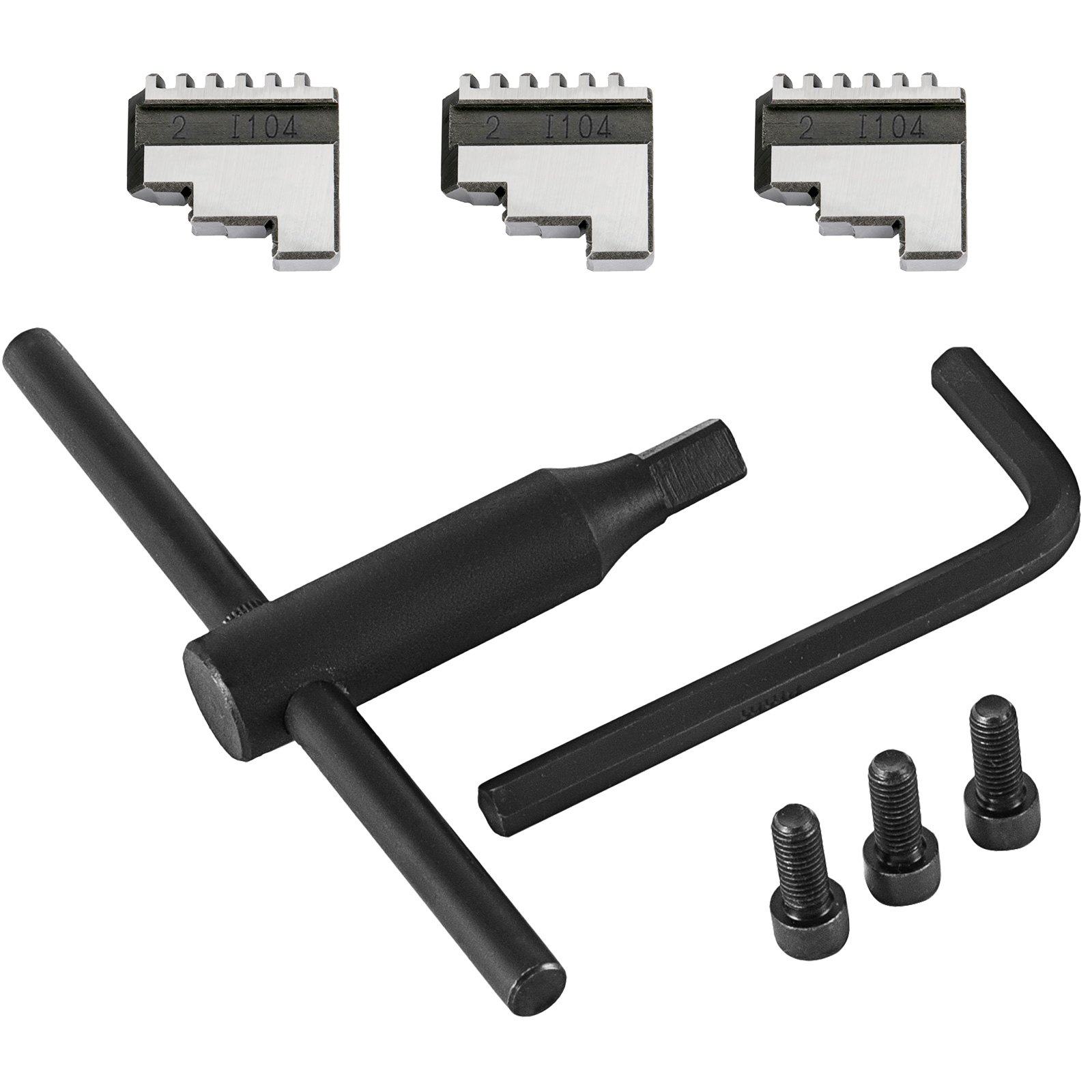

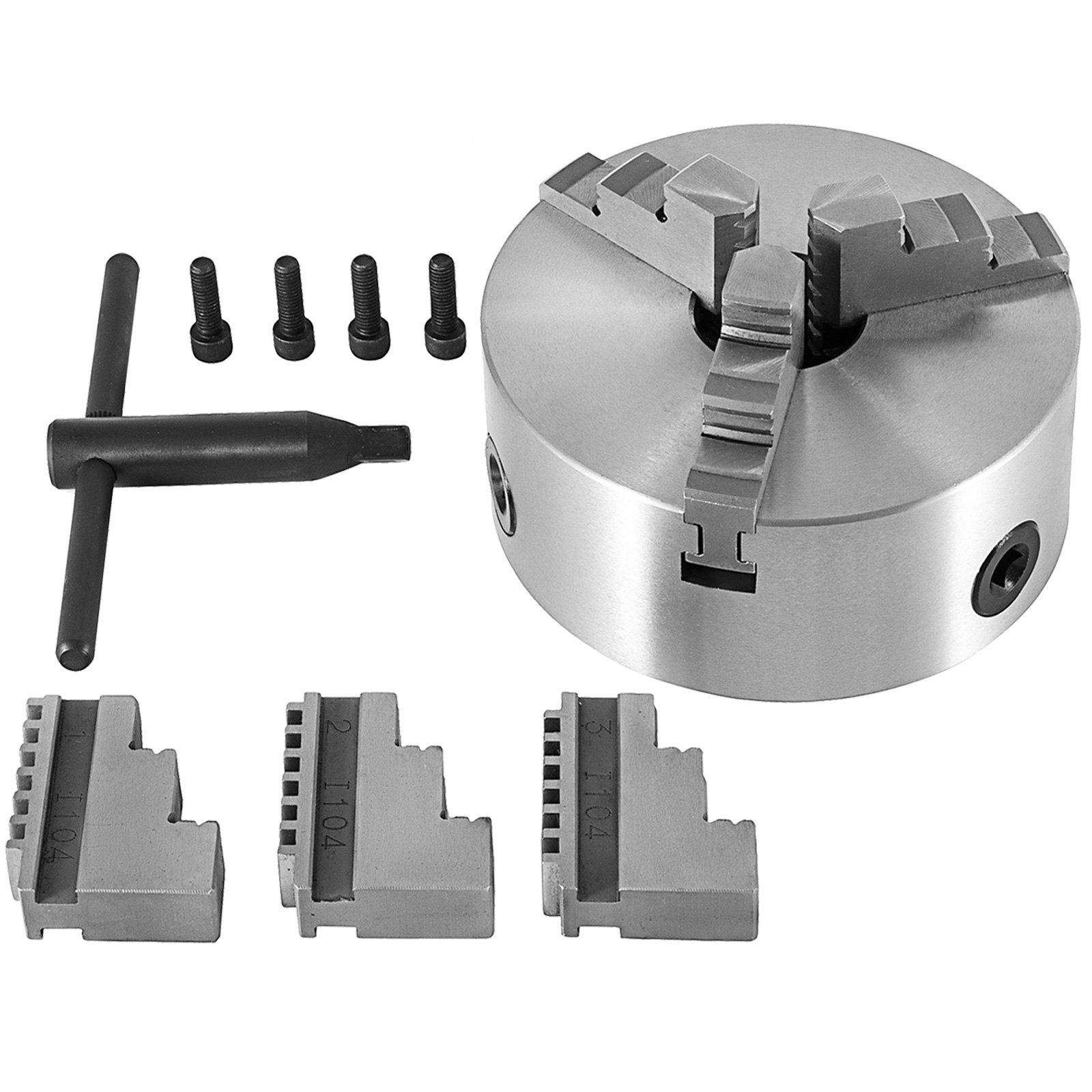

Package Content
  • 1 x 4" / 100 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR K11-100 Lathe Chuck 4
VEVOR K11-100 Lathe Chuck 4

VEVOR K11-100 Lathe Chuck 4
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-100 Lathe Chuck 4
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-100 Lathe Chuck 4
4-inch Lathe Chuck for Milling Turning
3 Jaw & Self Centering & With Two Sets of Jaws
  • This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.078" / 2 mm - 3.54" / 90 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets Of Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR K11-100 Lathe Chuck 4
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR K11-100 Lathe Chuck 4
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR K11-100 Lathe Chuck 4
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread metal lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR K11-100 Lathe Chuck 4
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR K11-100 Lathe Chuck 4
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
VEVOR K11-100 Lathe Chuck 4
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR K11-100 Lathe Chuck 4
Package Content
  • 1 x 4" / 100 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR K11-100 Lathe Chuck 4
Specifications
  • Material: Hardened Steel
  • Model: K11-100
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm
  • Mounting Thread: 3-M8
  • Outside Diameter: 3.94" / 100 mm
  • Bolt Circle Diameter: 3.31" / 84 mm
  • Center Thru Hole Diameter: 0.866" / 22 mm
  • Chuck Body Thickness: 2.16" / 55 mm
  • Mounting Thread: 3-M8
  • Internal Jaw Clamping Range (A-A1): 0.08"-1.18" / 2-30 mm
  • Internal Jaw Jamming Range (B-B1): 1.18"-3.54" / 30-90 mm
  • External Jaw Clamping Range (C-C1):1.18"-3.15" / 30-80 mm
  • Accuracy: 0.002" / 0.051 mm
  • Color: Silver
  • Item Weight: 7 lbs / 3.18 kg

Specification

Material
Hardened Steel
Model
K11-100
Jaw
3 Jaw
High Precision
≤0.002" / 0.05 mm
Mounting Thread
3-M8
Outside Diameter
3.94" / 100 mm
Bolt Circle Diameter
3.31" / 84 mm
Center Thru Hole Diameter
0.866" / 22 mm
Chuck Body Thickness
2.16" / 55 mm
Mounting Thread
3-M8
Internal Jaw Clamping Range (A-A1)
0.08"-1.18" / 2-30 mm
Internal Jaw Jamming Range (B-B1)
1.18"-3.54" / 30-90 mm
External Jaw Clamping Range (C-C1)
1.18"-3.15" / 30-80 mm
Accuracy
0.002" / 0.051 mm
Color
Silver
Item Weight
7 lbs / 3.18 kg
Manual
Download Link
Questions and Answers
1 Questions
My lathe is made by vevor with a 3 1/8 chuck k11-80. Will this fit?
Package size (length x width x height): 15.16 inches x 11.69 inches x 4.8 inches 2 sets of jaws: This bayonet includes two sets of internal and external jaws. The clamping range of this chuck is 0.078 inch / 2 mm - 3.54 inch / 90 mm, which is suitable for clamping various industrial parts.
