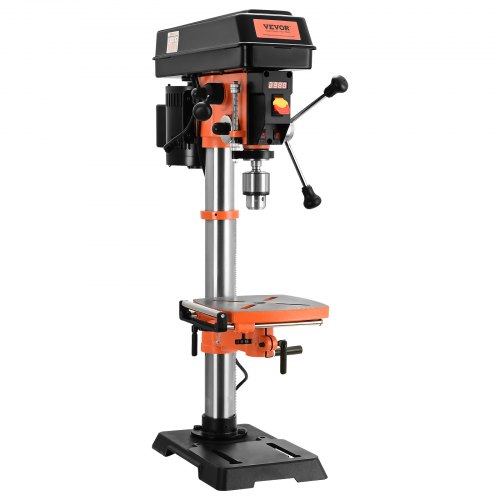

VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal
TSZCBS50A12MIPNMTV1

VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

Variable Speed

  • 5
  • Variable Speed

12 inch

  • 10 inch
  • 12 inch

About this item

  • Powerful Drill Press: Swing: 12 in. 5A induction motor ensures plenty of power to drill through various materials, such as metal, wood, etc. It meets your processing and DIY needs.
  • Precise Drilling: Our benchtop drill press drills precise holes without offset, with high locking strength and higher accuracy. Equipped with accurate X-ray, it can perfectly drill φ16mm holes.
  • Variable Speed: Our bench drill press feature a continuously variable speed control function, so you can easily adjust the speed from 580 to 3200 RPM. The LED digital screen helps to control the speed precisely.
  • Excellent Durability: The bench top drill press variable speed has a perfect heat dissipation system, dissipating heat quickly and operating for a longer time, effectively extending the machine's life.
  • Complete Accessories: We provide 3 x Feed Handles, 1 x Speed Handle, 1 x Table Crank Handle, 1 x Wedge, 2 x Table Lock Handles, 1 x Chuck Arbor, 1 x Fork Wrench, 2 x Hexagonal Wrenches(3 mm & 4 mm), 4 x M10*25 Hex Head Bolts, 1 x Chuck Key, 1 x Column Assembly, 1 x Table, 1 x Base.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 12 in Benchtop Drill Press, 5 Amp 120V, Variable Speed Cast Iron Bench Drill Press, 12 in Swing Distance 0-45° Tiltling Worktable with Laser Work Light, Tabletop Drilling Machine for Wood Metal
Variable Speed 12 inch
VEVOR 12-Inch Benchtop Drill Press
VEVOR 12-Inch benchtop drill press comes with a continuously variable speed control function and a powerful 5A induction motor to give you constant power to drill through wood and metal. Perfect for wood studios and labs, and can support your DIY creations and machining.
The high locking strength of the table top drill press keeps it solid and sturdy and brings a higher precision.
You can effortlessly adjust the speed from 580-3200rpm, achieving easier and more precise speed control.
The desktop drill press has fast heat dissipation to reduce the machine’s internal temperature, ensuring long time usage.
The on-board work light, extendable telescopic rod, and LED digital screen can perfectly assist you in finishing the drilling work more efficiently.

12 in Benchtop Drill Press for Precision Drilling

Get smooth and accurate drill work every time with the VEVOR 12 in benchtop drill press. It has a 5-amp, 120V motor. You can also adjust its speed according to your requirements. It is made of iron, which provides its durability. Also, it has a laser work light that helps with precise drilling. This drill press is easy to use and perfectly fits on the benchtop. The 12-inch swing distance and 0-45° tilting worktable give you flexibility for different projects with precision.


Accurate & Precise Drilling

This 5-amp drill press has more precise drilling without any offset. This means there will be no more shifting or misalignment, and the holes will be drilled in place. It increases the overall quality of your work and reduces the need for rework. Moreover, it has high locking strength for increased security. It reduces the risk of movement and wobbling in your workpiece.


Also, this swing distance drill press has an X-ray feature, which can perfectly make holes of 16 mm. It also allows you to see exactly where you are drilling holes. Hence, all these features reduce errors in your work and enhance precision.


Powerful Motor with Variable Speed

This cast iron drill press has a powerful 120V motor. It is perfect for different materials, particularly wood and metal. This means you can handle various materials without worrying that this machine will slow down or shut off. Also, you can adjust its speed according to the work’s intensity. The speed range can be adjusted from 580 to 3200 RPM. The LED digital screen helps you keep track of the current speed. It means you can easily estimate and alter the speed according to different types of projects.


Extra Features for More Convenience

This variable-speed drill press is highly user-friendly. Like its assembly process, its use is also super easy. With the variable speed, LED digital screen, and laser work, you can smoothly operate it without any effort. Also, you do not require prior skill to run this drill press because it is highly beginner-friendly.


Moreover, with the adjustable stops, you can set a specific depth and prevent overdrilling. The adjustable table makes work easier for you. It allows you to change the height and angle of the work table. So you can easily accommodate workpieces of different sizes and shapes. Therefore, it can be used by anyone who wants precision in their work.


Superior Durability with Heat Dissipation

This tilting worktable drill press has a solid and sturdy construction. It is built with a material that provides durability to the machine. The cast iron base provides stability and reduces vibrations during the operation. Ultimately, it leads to smoother and more precise results. Also, the heat dissipation system makes the machine work for a long time. It allows the motor to stay cool and operate efficiently. So you can easily complete your work without worrying about heating up or shutting down this tabletop drilling machine.


Quick & Simple Assembly

This laser work light drill press is extremely easy to assemble. It does not require any special or professional skills. The user manual has all the instructions written in a more precise and easier way. By reading the instructions, the assembly process becomes easier and simpler. Even one person can quickly assemble this cast iron drill press. It saves time and effort and immediately makes the machine ready for use.


Versatility – Great for Multiple Uses

This tilting worktable drill press is versatile and can be used for different purposes. Its easy-to-use features make it the best option for hobbyists and DIY enthusiasts for woodwork, metalwork, and craft projects. Also, its detailed precision makes it the perfect choice for small workshop owners. It can be used for projects requiring different speeds and producing professional results.


Moreover, its perfect size and ease of use make it the best for home hobbyists. They can use it for occasional projects like furniture or home decor items. It can also be used for educational purposes to teach the drilling process. Hence, the VEVOR 12 inch benchtop drill press is a perfect choice for those who want precision and a smoother finish in their work.


See More

Specification

Item Model Number
DP12VL
Current
5A
Rated Voltage
120V
Frequency
60 Hz
Speed
580-3200 RPM
Swing
12 in
Chuck Capacity
1/32 - 5/8 in(Φ16mm)
Stroke
3-1/8 in / 80 mm
Capacity(Chuck to Base)
23 in / 595 mm
Chuck Taper
JT3
Spindle Taper
MT2
Table Bevel
0 to 45 ° left and right
Laser
Class III, transformer powered, 650 nm, <2.5 mW
Net Weight
78.5 lbs / 35.75 kg
Product Size
21.25 x 13.5 x 37.5 in / 340 x 540 x 950 mm
Manual
Download Link
Questions and Answers
9 Questions
It's about 3/4HP.
By vevor
What is the actual arbor MT size for the chuck
The diameter of the shaft end is 20.599mm.
By vevor
Do they ALL come with digital readout? Ive heard some ship without.
All 12-inch bench drills have digital readout.
By vevor
Does the WEN table and other WEN accessories fit this drill press? Thanks
Yes, the WEN table and other WEN accessories fit this drill press.
By vevor
Oes the dp12vl come digital rpm readout and is it variable rpm's?
It's variable speed.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
57 Review(s)
Clear filters
Gene Taylor Gene Taylor
Mr
This is a very heavy duty drill press. As always, The deliveries are always timely. I will continue to shop Vevor products, the quality is always upper end
Steven Ross Steven Ross
Needs setup; Great for home or hobby
Setting up out of the box: The user needs to attach the press tower to the powder-coated cast-iron base (using your own wrench), the cast and machined-flat table to the press tower, and the drive assembly to the top of the tower. Once this is complete, the user needs to clean the mating surfaces of the chuck and spindle, then use a hammer to attach the chuck onto the spindle. I did this, tested the trueness of my chuck assembly, and discovered some wobble. A couple more medium whacks with the hammer, and the chuck was set nice and true. The table on mine was not squared to the drill bit axis. I used a long Philips screwdriver stuck in the chuck, handle side down, with a small carpenter's square, to get the left-to-right (X-axis) alignment correct. The indicators for degrees of tilt on the table should not be trusted out of the box. Luckily, the table is square front to back (Y-axis), as this is not adjustable on this model. I then adjusted the pulleys to the lowest speed, easily done with no tools. My impressions: Once set up, I was able to rattle off several small home and hobby projects that had been held up due to needing good, 90-degree holes made, including counter-sinking, using the chuck stop on the left side of the press. Get yourself some small C-clamps for holding work steady on the table (different hardnesses in the wood grain can can make pull your project out of alignment) and supply your own work light to shine on the project area, as one is not included with this model. *For the money* this is a good little beginner drill press that has met and, in some cases exceeded, my expectations. If you want more bells, whistles and convenience, spend more on another more expensive model. For occasional home and hobby uses, this is a great little press.
Christina Hughes Christina Hughes
Intuitive set up and operation.
It's heavy for its size and that's a plus. First use was flawless - drilling a 1/32" hole to a depth of 1/8" to modify and repair a camera part. One more similar repair and the drill press will have paid for itself.
Zachary Bennett Zachary Bennett
Compact yet effective!
This drill press performs exceptionally well. I primarily utilize it for constructing birdhouses, but I have no doubt it excels in other applications as well. The assembly process was quick, taking only 5 to 10 minutes, and the instructions were straightforward and easy to follow. I would highly recommend this drill press to anyone engaged in small woodworking projects as a hobby.
Diane Powell Diane Powell
Precision and Power in a Compact Design!"
Constructed with a durable cast iron base, this drill press ensures stability and reduces vibration, resulting in more accurate and controlled drilling. The 5-speed settings cater to various materials and project requirements, offering flexibility and precision. The easy-to-adjust depth stop and spindle travel enhance the overall user experience, allowing for consistent drilling depths. Assembly is a breeze with clear instructions, and the black and orange color scheme adds a touch of style to the workspace. The adjustable worktable and beveling feature accommodate a range of angles and project demands, proving the versatility of this drill press. While the 8-inch size may not be suitable for industrial-scale projects, it is ideal for hobbyists and those with limited space.
Sean Hughes Sean Hughes
Quality
Well made easy to assemble and change speeds.
Julia Rogers Julia Rogers
Outstanding value!
Haven't cleared a space for permanent mounting so the wife agreed to let me use her dining room table! I'm using two panel meters and two SPST illuminated switches so holes needed drilling. Fortunately the panel switches included a hole saw so all I had to do was buy the appropriate size saw for the meters! After determining how best to clamp the work, I enlisted the wife to help hold the laser panel while I torqued it all up. As you can see, the drill press performed FLAWLESSLY! Out of the box and 10 minutes later? JOB DONE! Excellent value and quality!
Vincent Russell Vincent Russell
Great buy
A good little drill press I have drilled several large holes with forshner bits and a hole saw. Looks like it is well built and will last a long time. I have not drilled any metal yet and that’s not what I bought it for so I imagine it would drill thin steel but if you are expecting miracles for a hundred dollars you better buy something much larger. It will be perfect for my needs. I added a ply wood base to clamp it to my bench and to the table for a larger surface so I could use my drum sander.
Amy Price Amy Price
Use it for knives and wood work
Works like it's supposed to and hasn't had any issues
Chad Hughes Chad Hughes
Great tool for beginners like me
Packed very well, easy to understand instructions, no missing parts, and feels very robust and heavy duty. I tried it and it impressed me.
